Introduction

Rheumatoid arthritis (RA), psoriatic arthritis (PsA), and psoriasis (PsO) are chronic inflammatory disorders that primarily affect the musculoskeletal system and the skin. RA is characterized by joint inflammation and cartilage degradation, leading to pain, swelling, and stiffness1. PsO is a chronic auto-immune skin disease with erythematous and scaly patches in the skin, resulting from abnormal proliferation and differentiation of epidermal keratinocytes. Because up to 30% of patients with PsO progress to PsA (characterized by inflammatory arthritis, enthesitis, dactylitis and spondylitis2) PsO patients are considered an at-risk population to develop PsA. RA, PsA and PsO share several clinical features and have altered tissue turnover of the joints and skin, respectively3,4. To avoid structural damage of the musculoskeletal system, timely treatment at disease onset or change of treatment with flare is the goal, and sensitive, pragmatic biomarkers for the detection of disease onset or flare are needed.

The extracellular matrix (ECM) consists of proteins, including collagen and proteoglycans, which provide support and elasticity to various tissues of joints and skin5. Type I and III collagens are the most abundant proteins in soft tissues, providing structural support, while type II collagen and aggrecan are key proteins in articular cartilage, maintaining tissue integrity5,6. Type IV collagen forms the basement membrane, acting as a barrier between tissue compartments5,7, and Type VI collagen contributes to tissue organization and stability of connective tissues such as the skin, tendons, and cartilage5. Vimentin is an intermediate filament protein involved in maintaining cellular structure and supporting tissue integrity8. Citrullinated vimentin has been predominantly studied as an autoantigen in RA and is elevated compared to controls9. However, there is emerging evidence of its potential role in PsA and PsO, suggesting its involvement in the inflammatory and tissue remodeling processes associated with these diseases10.

An altered ECM turnover leads to tissue inflammation, destruction, and fibrosis. The persistent strain leads to higher recruitment of immune cells which increase the concentration of degradative enzymes, such as metalloproteinases (MMP) and aggrecanases, resulting in a vicious cycle of tissue remodeling of the surrounding ECM in the various tissues11. Several MMPs play a role in tissue degradation: MMP-1 degrades type I, II, III collagen; MMP-3 degrades type III collagen; MMP-9 degrades type IV and V and VI collagens and MMP-13 degrades type I, II, and III collagen11,12. Degradation and formation metabolites of these ECM proteins have been studied in RA, PsA and PsO previously, and found to be elevated in both joint and skin disorders3,4,13,14. More specifically, higher levels of MMP-1, -3, -9 and -13 have been observed in RA15 while only MMP-1 and -3 showed increased levels in psoriatic patients16,17. In RA, type I (C1M), type II (C2M), type III (C3M), and type VI (C6M) collagen degradation biomarkers have shown increased levels, indicating elevated collagen degradation and turnover18,19,20. In PsA, C1M, C2M, C3M, type IV (C4M) collagen degradation, C6M and type III (PRO-C3) and type VI (PRO-C6) collagen formation biomarkers were elevated compared to controls3,14,21. Lastly, in PsO, PRO-C3 and C2M were elevated compared to controls, while PRO-C1 and C3M were lowered3.

The quantitative assessment of changes in blood biomarker levels that reflect alterations at the tissue level has the potential to serve as a biomarker to assist in the diagnosis (especially in the early phases of disease manifestation) and monitoring of disease. Therefore, it is essential to identify biomarkers that are pathology-relevant and reflect treatment effect or disease flares.

Besides ECM biomarkers, biomarkers of patient’s functional state are of great importance for disease monitoring. Inflammatory arthritis often affects the small joints in the hands, leading to hand impairments as a major cause of disability in these patients22 that can be quantified by objective functional tests23. Grip strength, extensively studied in RA, is a valuable tool for predicting disease progression24. Fine motor skills are important for maintaining adequate hand function and can be objectively measured with the Moberg Picking-Up Test (MPUT)25,26. Previous studies indicated a similar decline in hand function in PsA and PsO23. In RA patients, functional impairments could already be related to clinical scores like the Disease Activity Score 28 (DAS-28)27. Evaluating the functional state of patients enables the grading of disease burden and the impact of the disease on quality of life, and may be indicative of subclinical alterations23. Understanding and measuring functional status is crucial for personalized treatment approaches. While it has been demonstrated that functional scores can be related with subclinical inflammation (by MRI or ultrasonography28), it is not well-studied how changes in ECM tissue turnover relates with functional status in inflammatory arthritis.

In this observational cross-sectional study, we aimed to investigate differences in biomarker concentrations of ECM formation and degradation, together with measures of hand function impairment between patients with RA, PsA and PsO and controls. Furthermore, we explored the relationship between the ECM biomarkers, hand function and clinical scores.

Materials and methods

Study participants

This analysis includes data from patients and non-arthritic control subjects (controls) of three cross-sectional studies conducted in the outpatient clinics of the Department of Internal Medicine 3, Universitätsklinikum Erlangen, Germany. For study 1 and 2 (ethical approval #125_16B), patients diagnosed with RA (American College of Rheumatology/European League Against Rheumatism (ACR/EULAR) 2010 criteria29, study 1 only), PsA (Classification Criteria for Psoriatic Arthritis (CASPAR)30) and PsO (without any signs of arthritis, dactylitis, enthesitis or inflammatory back pain) were included. Controls were locally recruited from an existing cohort31 and using social platforms, flyers and personal conversation (study 3 ethical approval #357_20B). Exclusion criteria for all participants were injuries or fractures of the hand joints within the last five years, disorders of the musculoskeletal system beyond the rheumatic disease, gross bony deformities of the hands and sign of psoriasis (controls only). All assessments included in this analysis were undertaken at the same day and performed identically in all three studies.

Clinical data and patient-reported outcomes

Demographic data, including age, sex, and body mass index (BMI) were recorded for all participants. All participants underwent a standardized 68 tender (TJC) and 66 swollen joint count (SJC) by a trained physician. C-reactive protein (CRP) was analyzed from serum samples by standard clinical procedures. Data on disease, disease activity and treatment were retrospectively retrieved from patient records for the day of assessment. Current treatment and treatment history were categorized with respect to history of biological treatments, i.e. biologic naïve or as undergoing treatment with biological or targeted Disease-Modifying-Anti-Inflammatory Drugs (DMARDs) and/or taking Glucocorticoids. All participants reported perceived physical function (health assessment questionnaire (HAQ)), pain (visual analogue scale (VAS) for pain), quality of life (Short Form 36 Health Survey Questionnaire (SF-36))32 and physical activity (International Physical Activity Questionnaire (IPAQ)33).

ECM biomarkers

Blood samples were drawn on the day of clinical data collection. Samples were allowed to clot at room temperature for at least 30 min, centrifuged and serum was aliquoted and frozen at -80°C until analysis. ECM turnover biomarkers of type I (C1M), II (C2M), III (C3M), IV (C4M) and VI (PRO-C6) collagen degradation, type IV collagen 7S domain (PRO-C4), type I (PRO-C1), III (PRO-C3) and VI (PRO-C6) collagen formation, aggrecan degradation (ARG), degraded prolargin (PROM) and citrullinated and degraded vimentin (VICM) were measured using validated manual or automated enzyme-linked immunosorbent assays (ELISAs). Assays were either colorimetry or chemiluminescence-based and information on assay development, validation parameters, and references to their technical papers are summarized in Table 1. Sample measurements were conducted in duplicates, and samples with a coefficient of variation (CV) > 15% were re-run.

Table 1 Extracellular biomarkers measured in the study.
Full size table

Hand function tests

Fine motor skills were assessed by the MPUT according to a standardized protocol25. Participants picked up and transported 12 small objects into a little box while task completion (seconds) was recorded. The test was performed twice with each hand and the fastest trials for each hand were used for the analysis. Isometric grip strength (lbs) was measured with a hand dynamometer (Lafayette Instrument, Lafayette, IN, USA). For each hand the highest attempt out of three trials was used for the analysis. Perceived hand function was recorded by the Michigan Hand Questoinnaire (MHQ): based on 6 domains (overall hand function, activities of daily living (ADLs), pain, work performance, aesthetics, and satisfaction with hand function) a total MHQ score was calculated (range: 0 (poorest function) to 100 (ideal function))45.

Statistical analysis

Baseline characteristics are described as number (frequency) and percentage for categorical variables, and as mean ± standard deviation (SD) for continuous variables. A heatmap analysis was conducted to visualize the hierarchical clustering of the biomarkers and to categorize groups of biomarkers based on their relative proximity in the heatmap. Kruskal–Wallis rank test was used to examine baseline differences between groups and between each diseased group and controls. The biomarker data was natural log-transformed for normalization. Linear regression models using robust standard errors were performed to compare biomarker levels between groups while controlling for the effects of the demographic confounders age, sex and BMI. Targeting an overall type-1 error rate of 5%, the significance threshold for each comparison was set at 0.004 considering that in total 12 biomarkers were analyzed. The p-values from post-hoc comparisons between groups were adjusted using Holm’s method.

Spearman’s rank correlation coefficients were calculated to assess the relationships between biomarker levels, hand function and clinical scores. The p-values were adjusted using the false discovery rate method, with significance considered below an adjusted value of 0.05. For all regression models and correlations full-case analysis was performed.

Statistical analysis was performed with R (version 4.2.2, R Foundation for Statistical Computing, Vienna, Austria) and figures were designed using GraphPad Prism version 9.5.1 (GraphPad Software, San Diego, California, USA).

Results

Study participant characteristics

A total of 412 subjects were included in this study (RA, n = 85; PsA, n = 115; PsO, n = 102; controls, n = 110). Participant characteristics are summarized in Table 2.

Table 2 Summary of subject characteristics and clinical data.
Full size table

At the time of assessment, the majority of the RA and PsA patients were under standard of care treatment with biological or targeted DMARDS and/or Glucocorticoids; more than 80% of the RA and 60% of the PsA patients were treated with biological DMARDs. More RA patients were on Glucocorticoid treatment compared with PsA and PsO patients. Approximately 60% of PsO patients had no history of biological treatments. Most RA and PsA patients were in clinical remission or with mild disease activity (DAS-28 3.0 (1.3), 2.9 (1.4); PASI 1.4 (2.7) respectively) at the time of data collection.

For both, the dominant and non-dominant hand, all patients showed slower MPUT performance, lower grip strength and more perceived hand impairment by MHQ compared to controls. Within the patient groups, RA patients showed the worst hand impairment followed by PsA and PsO. In RA patients grip strength was lower in the dominant hand compared with the non-dominant hand; for all other groups the dominant hand was the stronger one. The MPUT times and MHQ scores did not differ between non-dominant and dominant hand within the groups (Supplementary Table S2).

ECM turnover biomarkers in RA, PsA and PsO

Serum concentrations of ECM biomarkers and group difference for RA, PsA, PsO and controls are summarized in Fig. 1. Absolute biomarker levels for each group and comparison of linear regression models using robust standard errors with adjustments for age, sex and BMI to those without adjustments are presented in Supplementary Table S3.

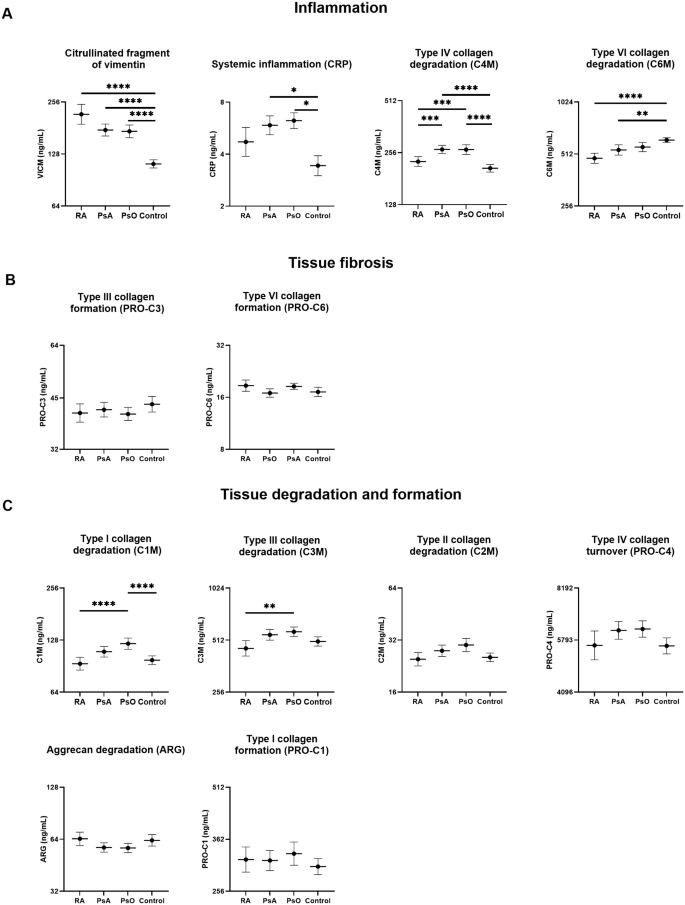

Fig. 1
figure 1

Extracellular matrix remodeling biomarker levels in serum samples from patients with RA (N = 85), PsA (N = 115), PsO (N = 102) and controls (N = 110). Linear regression models using robust standard errors were performed to compare biomarker levels within the groups with age, sex and BMI as covariates. Y axis is in log2 scale and values are shown as the estimated mean with 95% confidence intervals. P-values were adjusted by Holm correction and significance threshold was set at 0.004 considering that 12 biomarkers were analyzed. Significance is shown as ** p < 0.004, ***p < 0.001 and ****p < 0.0001. Raw biomarker values for each group are provided in Supplementary Figure S1.

Full size image

The heat map analysis shows the hierarchical clustering of the biomarkers (Supplementary Figure S2). Subsequently, the biomarkers were categorized into three groups based on their relative proximity in the heatmap: inflammation (VICM, C4M, C6M and CRP), tissue degradation and formation (C3M, PRO-C4, C2M, C1M, ARG and PRO-C1), and tissue fibrosis (PRO-C3 and PRO-C6).

Levels of the inflammation marker VICM were higher in RA, PsA, and PsO compared to controls (Fig. 1A, p < 0.0001). PsA and PsO showed significantly higher C4M levels compared to controls (p < 0.0001, p < 0.0001), while C6M was lower in patients with RA, PsA and PsO than in controls (p < 0.0001, p < 0.001 and p < 0.01, Fig. 1A). The tissue fibrosis markers, PRO-C3 and PRO-C6, did not present any significant differences among the groups (Fig. 1B). The tissue turnover biomarkers C1M presented higher levels in PsO compared to controls and RA (Fig. 1C, p < 0.004, p < 0.0001, respectively). C2M and PRO-C4 showed higher levels in PsA and PsO compared to RA and controls but did not reach statistical significance (Fig. 1C). ARG and PRO-C1 presented similar levels and no significant differences across the different groups (Fig. 1C).

Association between ECM biomarkers, clinical features, and hand function in patients with RA, PsA and PsO

In patients with RA and PsA, we observed weak and non-significant correlations between the ECM biomarkers and the hand function scores (all ρ < 0.3, Fig. 2A and 2B). However, among patients with PsO, we found that PRO-C6 displayed a negative correlation with the MHQ Score and grip strength of the dominant hand (ρ = -0.39 and -0.31; p < 0.01 and p < 0.05, respectively, Fig. 2C).

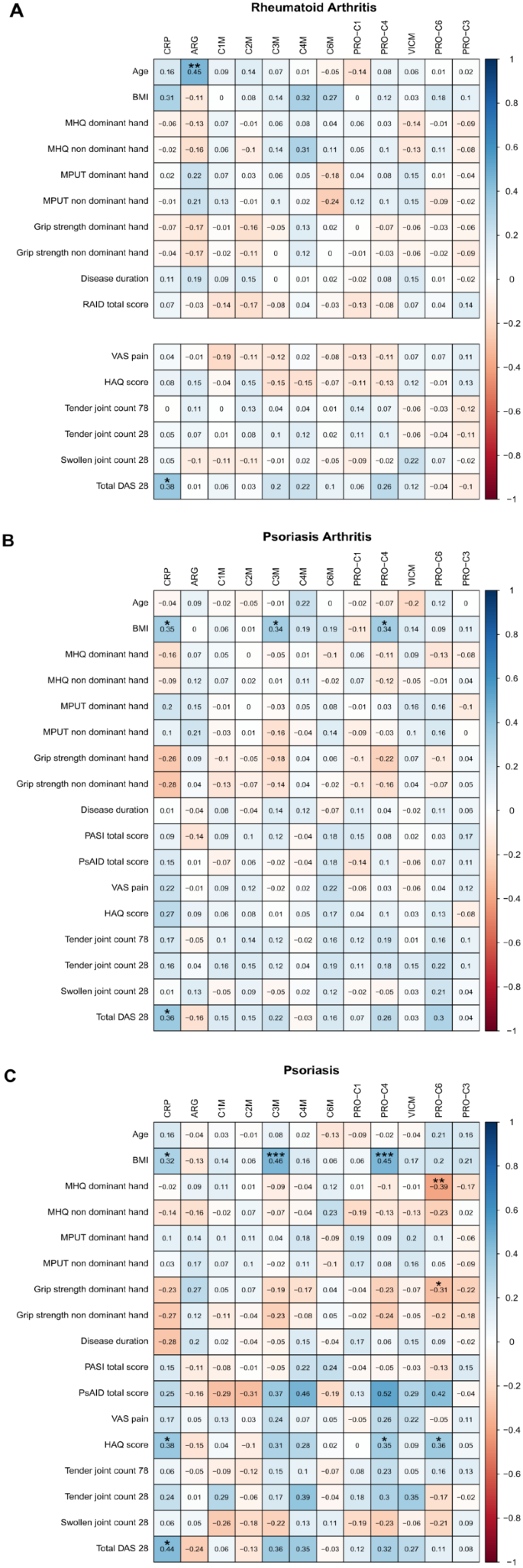

Fig. 2
figure 2

Spearman’s correlation between serological biomarkers and clinical scores were performed. Spearman’s rho (ρ) is shown. Significance of correlations are shown as * p < 0.05, **p < 0.01, and ***p < 0.001. BMI body mass index, VAS pain visual analogue scale pain, HAQ Health Assessment Questionnaire, IPAQ International Physical Activity Questionnaire, RAID Rheumatoid Arthritis Impact of Disease Score, PSAID Psoriatic Arthritis Impact of Disease, MPUT Moberg Picking-Up Test, PASI Psoriasis Area Severity Index, DAS Disease Activity Score, ksk36 physical scale of Short Form 36 Health Survey Questionnaire (SF-36), psk36 psychological scale of SF-36, MHQ Michigan Hand Questionnaire, CRP C-reactive protein, ARG aggrecan ADAMTS degradation, C1M MMP-2/9/13-degraded type I collagen, C2M MMP (multiple) -degraded type II collagen, C3M MMP-9-degraded type III collagen, C4M MMP (multiple)-degraded type IV collagen, C6M MMP (multiple)-degraded type IV collagen, PRO-C1 Type I collagen N-terminal propeptide, PRO-C4 Type IV 7S domain collagen, VICM citrullinated and MMP-degraded vimentin, PRO-C6 Type VI collagen, alpha-3 chain, C5 domain, PRO-C3 type II collagen N-terminal propeptide.

Full size image

We did not find any significant correlations between the specific disease activity scores (DAS-28, Rheumatoid Arthritis Impact of Disease Score (RAID), Psoriatic Arthritis Impact of Disease (PSAID), Psoriasis Area Severity Index (PASI)) and the ECM biomarkers in any of the groups. PRO-C4 and PRO-C6 moderately correlated with HAQ in PsO patients (ρ = -0.35 and 0.36; all p < 0.05, respectively, Fig. 2C).

Discussion

The present study evaluated differences in ECM turnover biomarker levels between patients with RA, PsA, PsO and controls, and the relationship of the biomarker levels with hand function impairments measured by objective and subjective scores. Overall, our results suggested that patients with PsA and PsO had higher tissue degradation and inflammation compared to patients with RA (under well-controlled disease) and controls, whereas RA patients presented with the worst hand function impairments among study groups. Furthermore, ECM biomarkers correlated more frequently and stronger with hand function scores in patients with PsO compared with RA and PsA, while no significant correlations were found for clinical disease activity scores and ECM biomarkers in any of the diseased groups.

In this study, concentrations of MMP-degraded fragments of citrullinated vimentin, type I and IV collagen, reflected by VICM, C1M and C4M, respectively, were higher in patients with RA, PsA and PsO, compared with controls. In agreement with our findings, previous studies have shown increased levels of C1M, C4M and VICM in RA compared to controls4,9, elevated levels of C1M and C4M in PsA3,14,46,47 and in PsO3,47. We found that C6M (MMP-degraded type VI collagen) was higher in controls than in RA, PsA and PsO.

When comparing the biomarker levels within the diseased groups, we observed that patients with PsA and PsO had higher levels of the catabolic markers (C1M and C4M) compared with RA, but only significant for C1M. In our cohort, the RA group had the highest number of patients treated with bDMARDs (N = 66, 80.5%) and at the same time presented with the lowest C1M levels. This is consistent with previous studies that showed that biomarkers reflecting type I, II, III, IV and VI collagen degradation, C1M, C2M, C3M, C4M and C6M, respectively, were modulated by treatment (Janus kinase inhibitor4, IL-6 inhibitors18,48, or methotrexate49) in patients with RA, resulting in lower biomarker concentrations independently of disease activity. Another study showed that serum levels of C1M, C3M C4M and C6M were also decreased in PsA patients treated with interleukin-23p19-subunit monoclonal antibody, and those biomarkers were higher compared to controls at baseline14.

No differences in the catabolic markers were found between the psoriatic diseases. In contrast to our findings, Holm Nielsen et al.3 found that C1M was able to differentiate between PsA and PsO, with PsA patients having higher levels of the biomarker. However, the mentioned study had a smaller sample size and patients with PsA had higher skin disease activity (reflected by PASI score of 2.8). On the other hand, they also found no differences in C2M, C3M and C4M between the two diseases. Other ECM related proteins have been studied previously, and a combination of CRP, MMP-3 and type II collagen (CPII, C2C) biomarkers were able to distinguish patients with PsA from those with PsO47. The study of Groen et al.47 did not report current treatment of the included PsA patients, which might be causing the differences in the ECM biomarker levels between the studies. In addition, while the PsO patients included in this study had no inflammatory arthritis at the time of data collection, they had been referred to a rheumatologist to exclude psoriasis arthritis. Therefore, the role of catabolic biomarkers as early predictors for the transition from PsO to PsA should be further studied in prospective trials specifically designed for the purpose to further elucidate their potential to indicate disease onset.

In this study we did not find an association between anabolic or fibrotic markers (reflected by PRO-C1, PRO-C3 and PRO-C6) and the studied diseases. However, lower PRO-C1 levels have been previously reported in PsA compared to healthy subjects3. Regarding the levels of PRO-C3 and PRO-C6 in these diseases, previous study results are inconclusive: Schett et al.14 observed no differences in PRO-C3 and PRO-C6 levels between PsA patients and controls, whereas Holm Nielsen et al. observed higher levels of PRO-C3 in PsO compared to controls, where the patients with PsO had high disease activity (PASI score of 8.1)3. These results indicate that catabolic activity is clearly associated with RA, PsA and PsO whereas fibrotic or anabolic activity needs to be further elucidated in these diseases.

To our knowledge, this is the first study investigating the association between a panel of ECM biomarkers and hand function impairment to better understand the relationship between tissue-related changes and functional impairments of the musculoskeletal system. While it is well known that hand function is highly impaired in RA, Liphardt et al.23 found that hand function was also altered in patients with PsO. In this study, PRO-C6 was negatively correlated to grip strength and perceived hand function (MHQ) in PsO patients, meaning that high type VI collagen formation might contribute to a worsening in hand function and weaker grip strength, hence greater functional impairment. Previous studies have already established a link between PRO-C6 and increased arterial stiffness in patients with type 1 diabetes44. Considering that PsO patients are at high risk of developing arterial stiffness50, which could potentially be reflected in a decrease in grip strength, this functional parameter is an important factor in the progression of PsO. In this study, we observed only weak correlations between the ECM biomarkers and hand function scores in patients with RA and PsA. As discussed above, treatment likely modulates biomarker levels of the well-treated patients and in low disease activity individual variation in hand functions may be greater than in active disease, both resulting in weak associations between disease activity and the state of functional impairment with ECM biomarkers in this cross-sectional analysis. Our findings suggest that hand impairment is present in both, acute inflammation and as a result of chronic tissue deterioration. The association of hand function with tissue turnover by ECM biomarkers may be prominent in acute, untreated disease activity.

In this study we did not observe significant correlations between clinical scores (RAID or DAS-28) and the ECM biomarker concentrations. This may be due to the target-driven treatment strategy resulting in a narrow range of disease activity in this cohort, which may impede our ability to observe such an association even if it exists. Indeed, other studies have shown that, C1M and C3M correlated with DAS28, joint counts and HAQ6 in patients with RA and when treated with methotrexate, changes in biomarker levels of C1M, C3M, C4M and CRPM correlate with change in disease activity after 8 weeks of treatment also in RA patients18. Further studies should therefore focus on long-term follow up to investigate intra-individual disease activity and treatment-related changes for both ECM biomarkers and hand function in the different patient groups of RA, PsA and PsO. Additionally, this would allow to quantify how the patient specific change in hand function is related to change in ECM biomarkers and provide insights on the extent to which they are linked.

Some limitations were encountered in this study. Firstly, there was a large inter-individual variation of biomarker levels which we tried to minimize by using linear regression models and robust standard errors. Secondly, out of the three patient groups, all RA and most of the PsA patients were under well-regulated standard of care treatment with the already discussed effects on ECM biomarker concentrations. The cross-sectional data set included current treatment and treatment history which we reported in the subject characteristics, but the study design did not allow for a detailed sub-analysis of a treatment effect on the investigated associations. These limitations highlight the need for longitudinal studies in large cohorts and in the context of treatment to validate our findings and gain deeper understanding of the ECM remodeling and hand function impairment. In addition, the impact of adjusting for confounders on biomarker levels, in particular BMI, as one disease characteristic in Pso and PsA patients, needs to be further investigated.

Conclusion

In conclusion, this study showed that patients with RA, PsA, and PsO had significant alterations in the ECM as quantified by biomarkers of citrullinate vimentin degradation, type I, III, IV and VI collagen degradation. However, it is important to consider that blood-based biomarkers are highly dynamic and dependent on treatment, and RA and PsA patients were in a relatively low disease activity state due to current targeted-treatment strategies. Weak associations were found between the blood biomarker levels and quantitative hand function, especially in the PsO group including the highest number of patients with no history of biological treatment. This underlines that both markers reflect different pathological processes and a possible causal relationship between the change in these markers need to be further explored with longitudinal data. While blood-based biomarkers reflect tissue turnover, hand function impairments mirror the overall disability caused by the disease progression, which is present even in patients with low to moderate disease activity. The use of blood-based biomarkers can help to identify patients at risk to develop inflammatory arthritis and hand function is well suited to grade functional impairment in addition to common clinical scores.
