Abstract

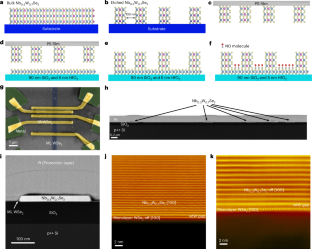

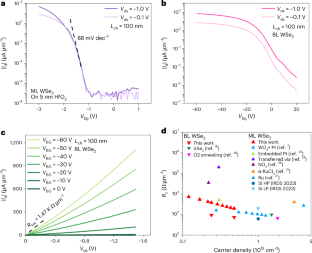

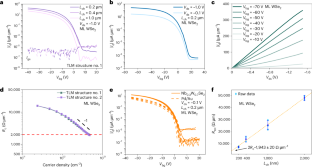

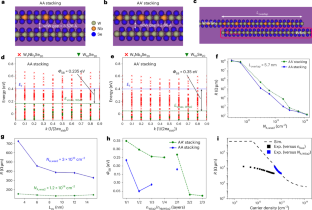

Achieving low contact resistance is a critical challenge in the development of p-type transistors that use monolayer transition metal dichalcogenides, such as tungsten diselenide (WSe2), as their channel material. Contacts made with high work function metals require deposition at high temperatures, which typically creates defects or strain at the metal–channel interface. One solution is to use metallic two-dimensional (2D) materials that have atomically flat surfaces and can be deposited at low temperatures, as have been reported for n-type semiconductors. However, the comparatively large bandgap of WSe2 has hindered experimental progress with p-type transistors. Here we show that metallic layered Nb0.3W0.7Se2 can be used to create contacts for monolayer and bilayer WSe2 field-effect transistors with channel lengths down to 100 nm. Our 2D–2D contacted field-effect transistors exhibit on-current densities of up to 358 µA µm−1 and 1.1 mA µm−1 on monolayer and bilayer WSe2 channels, respectively. In combination with scaled gate dielectrics (effective oxide thickness of 1.3 nm), the fabricated 2D–2D contacted monolayer WSe2 devices achieve a subthreshold swing of 88 mV dec−1.
This is a preview of subscription content, access via your institution
Access options
Access Nature and 54 other Nature Portfolio journals
Get Nature+, our best-value online-access subscription
$32.99 / 30 days
cancel any time
Subscribe to this journal
Receive 12 digital issues and online access to articles
$119.00 per year
only $9.92 per issue
Buy this article
- Purchase on SpringerLink
- Instant access to the full article PDF.
USD 39.95
Prices may be subject to local taxes which are calculated during checkout
Similar content being viewed by others
Data availability
Source data are provided with this paper.
References
Jiang, J. et al. Yttrium-doping-induced metallization of molybdenum disulfide for ohmic contacts in two-dimensional transistors. Nat. Electron. 7, 545–556 (2024).
Chung, Y.-Y. et al. Monolayer-MoS2 stacked nanosheet channel with C-type metal contact. In International Electron Devices Meeting (IEDM), 1–4 (IEEE, 2023).
Dorow, C. J. et al. Exploring manufacturability of novel 2D channel materials: 300 mm wafer-scale 2D NMOS & PMOS using MoS2, WS2, & WSe2. In International Electron Devices Meeting (IEDM), 1–4 (IEEE, 2023).
Chou, A.-S. et al. Status and performance of integration modules toward scaled CMOS with transition metal dichalcogenide channel. In International Electron Devices Meeting (IEDM), 1–4 (IEEE, 2023).
Sun, Z. et al. Statistical assessment of high-performance scaled double-gate transistors from monolayer WS2. ACS Nano 16, 14942–14950 (2022).
Chiang, C.-C., Lan, H.-Y., Pang, C.-S., Appenzeller, J. & Chen, Z. Air-stable P-doping in record high-performance monolayer WSe2 devices. IEEE Electron Device Lett. 43, 319–322 (2022).
Lan, H.-Y., Tripathi, R., Liu, X., Appenzeller, J. & Chen, Z. Wafer-scale CVD monolayer WSe2 p-FETs with record-high 727 μA/μm Ion and 490 μS/μm gmax via hybrid charge transfer and molecular doping. In International Electron Devices Meeting (IEDM), 1–4 (IEEE, 2023).
Lan, H.-Y., Oleshko, V. P., Davydov, A. V., Appenzeller, J. & Chen, Z. Dielectric interface engineering for high-performance monolayer MoS2 transistors via TaOx interfacial layer. IEEE Trans. Electron Devices 70, 2067–2074 (2023).
Sun, Z. et al. Low contact resistance on monolayer MoS2 field-effect transistors achieved by CMOS-compatible metal contacts. ACS Nano 18, 22444–22453 (2024).
Daniel, J. et al. Experimental demonstration of an on-chip p-bit core based on stochastic magnetic tunnel junctions and 2D MoS2 transistors. Nat. Commun. 15, 4098 (2024).
Chen, C. Y. et al. Tailoring amorphous boron nitride for high-performance two-dimensional electronics. Nat. Commun. 15, 4016 (2024).
Sun, Z., Chen, C., Robinson, J. A., Chen, Z. & Appenzeller, J. A mobility study of monolayer MoS2 on low-κ/high-κ dielectrics. In Device Research Conference (DRC), 1–2 (IEEE, 2023).
Cai, J. et al. High-performance complementary circuits from two-dimensional MoTe2. Nano Lett. 23, 10939–10945 (2023).
Kim, S. Y. et al. Fundamental understanding of interface chemistry and electrical contact properties of Bi and MoS2. ACS Appl. Mater. Interfaces 16, 54790–54798 (2024).
Li, W. et al. Approaching the quantum limit in two-dimensional semiconductor contacts. Nature 613, 274–279 (2023).
Shen, P.-C. et al. Ultralow contact resistance between semimetal and monolayer semiconductors. Nature 593, 211–217 (2021).
Wang, Y. et al. P-type electrical contacts for 2D transition-metal dichalcogenides. Nature 610, 61–66 (2022).
Wu, R. et al. Bilayer tungsten diselenide transistors with on-state currents exceeding 1.5 milliamperes per micrometre. Nat. Electron. 5, 497–504 (2022).
Chuang, H. J. et al. Low-resistance 2D/2D ohmic contacts: a universal approach to high-performance WSe2, MoS2, and MoSe2 transistors. Nano Lett. 16, 1896–1902 (2016).
Pack, J. et al. Charge-transfer contacts for the measurement of correlated states in high-mobility WSe2. Nat. Nanotechnol. 19, 948–954 (2024).
Xie, J. et al. Low resistance contact to P-type monolayer WSe2. Nano Lett. 24, 5937–5943 (2024).
Rigosi, A. F. et al. Dielectric properties of NbxW1-xSe2 alloys. J. Res. Natl. Inst. Stand. Technol. 124, 124035 (2019).
Liu, Y. et al. Low-resistance metal contacts to encapsulated semiconductor monolayers with long transfer length. Nat. Electron. 5, 579–585 (2022).
Jung, Y. et al. Transferred via contacts as a platform for ideal two-dimensional transistors. Nat. Electron. 2, 187–194 (2019).
Allain, A. & Kis, A. Electron and hole mobilities in single-layer WSe2. ACS Nano 8, 7180–7185 (2014).
Fang, H. et al. High-performance single layered WSe2 p-FETs with chemically doped contacts. Nano Lett. 12, 3788–3792 (2012).
O’Brien, K. P. et al. Advancing 2D monolayer CMOS through contact, channel and interface engineering. In International Electron Devices Meeting (IEDM), 7.1.1–7.1.4 (IEEE, 2021).
Shi, X. et al. High-performance bilayer WSe2 pFET with record IDs = 425 μA/μm and Gm = 100 at μS/μm Vds = −1 V by direct growth and fabrication on SiO2 substrate. In International Electron Devices Meeting (IEDM), 7.1.1–7.1.4 (IEEE, 2022).
Afzalian, A. & Pourtois, G. ATOMOS: an atomistic modelling solver for dissipative DFT transport in ultra-scaled HfS2 and black phosphorus MOSFETs. In International Conference on Simulation of Semiconductor Processes and Devices (SISPAD), 1–4 (IEEE, 2019).
Afzalian, A. Ab initio perspective of ultra-scaled CMOS from 2D-material fundamentals to dynamically doped transistors. npj 2D Mater. Appl. 5, 5 (2021).
Duflou, R., Pourtois, G., Houssa, M. & Afzalian, A. Fundamentals of low-resistive 2D-semiconductor metal contacts: an ab-initio NEGF study. npj 2D Mater. Appl. 7, 38 (2023).
Lan, H.-Y. et al. Uncovering the doping mechanism of nitric oxide in high-performance P-type WSe2 transistors. Nat. Commun. 16, 4160 (2025).
Kühne, T. D. et al. CP2K: an electronic structure and molecular dynamics software package - Quickstep: efficient and accurate electronic structure calculations. J. Chem. Phys. 152, 194103 (2020).
Kwak, I. H. et al. Full composition tuning of W1–xNbxSe2 alloy nanosheets to promote the electrocatalytic hydrogen evolution reaction. ACS Nano 16, 13949–13958 (2022).
Afzalian, A., Akhoundi, E., Gaddemane, G., Duflou, R. & Houssa, M. Advanced DFT–NEGF transport techniques for novel 2-D material and device exploration including HfS2/WSe2 van der Waals heterojunction TFET and WTe2/WS2 metal/semiconductor contact. IEEE Trans. Electron Devices 68, 5372–5379 (2021).
Afzalian, A. et al. Physics and performances of III–V nanowire broken-gap heterojunction TFETs using an efficient tight-binding mode-space NEGF model enabling million-atom nanowire simulations. J. Phys. Condens. Matter 30, 254002 (2018).
Afzalian, A. & Ducry, F. Pushing the limits of ab-initio-NEGF transport using efficient dissipative mode-space algorithms for realistic simulations of low-dimensional semiconductors including their oxide interfaces. In International Conference on Simulation of Semiconductor Processes and Devices (SISPAD), 305–308 (IEEE, 2023).
Acknowledgements
Z.S., P.W., R.T., J.C., H.-Y.L., Y.T., Z.C. and J.A. acknowledge support from Intel Corporation. A.A. acknowledges the Imec Industrial Affiliation Program for funding. S.K. and A.V.D. acknowledge support from the Material Genome Initiative funding allocated to NIST. H.Z. acknowledges support from NIST under the financial assistance grant no. 70NANB22H101. Certain commercial equipment, instruments, software or materials are identified in this paper to specify the experimental procedure adequately. Such identifications are not intended to imply recommendation or endorsement by NIST, nor is it intended to imply that the materials or equipment identified are necessarily the best available for the purpose.
Author information
Authors and Affiliations
Contributions
Z.S. designed the experiments, fabricated the devices and performed the electrical measurements. A.A. developed the simulation code, designed and performed the first-principle simulations and quantum transport simulations and analysed the simulation data. Z.S. and P.W. analysed the results and experimental plans. Z.S., A.A. and J.A. wrote the paper. H.Z., A.D. and Y.T. performed the electron miscopy experiments. S.K. and A.D. grew the materials. Z.S., A.A., P.W., R.T., J.C., H.-Y.L., Z.C., G.P. and J.A. analysed the data, discussed the results and agreed on their implications.
Corresponding authors
Ethics declarations
Competing interests
The authors declare no competing interests.
Peer review
Peer review information
Nature Electronics thanks Mariusz Zdrojek and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.
Additional information
Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Extended data
Extended Data Fig. 1 Transfer characteristics of mechanically exfoliated NbxW1-xSe2 flakes of varied composition with different thicknesses.
a, Schematic of Nbx1W1-x1Se2 transistors, it had a near-zero Nb concentration, undetectable by EDX as described in the materials growth part of the Method section. b-e, Transfer characteristics of different Nbx1W1-x1Se2 flake thickness. f, Schematic of Nb0.03W0.97Se2 transistors. g-j, Transfer characteristics of different Nb0.03W0.97Se2 flake thickness. k, Schematic of Nb0.3W0.7Se2 transistors. l-o, Transfer characteristics of different Nb0.3W0.7Se2 flake thickness.
Extended Data Fig. 2 Output characteristics of 2D/2D contacted ML FETs on 90 nm SiO2 substrates.
a-d, four different 2D/2D contacted devices with a channel length of 200 nm. e, a 2D/2D contacted device with a channel length of 400 nm. f and g, two 2D/2D contacted devices with a channel length of 1 um. h, a 2D/2D contacted device with a channel length of 2 um.
Extended Data Fig. 3 DFT-NEGF-simulated spectral current (in absolute units), | J(E)|, along the transport direction (x) in the Nb0.3W0.7Se2/WSe2 heterostructure of Fig. 4c for different NA,WSe2 doping concentrations in the WSe2 bottom layer a. NA,WSe2 = 3×1012 cm−2, b. NA,WSe2 = 6×1012 cm−2, and c. NA,WSe2 = 1.8×1013 cm−2.
