Krüppel like factor 7 regulates mitochondrial dynamics balance in myocardial infarction

Cao Wang¹^na1,
Fuxing Zhu¹^na1,
Lan Zhou²,
Situo Zhang¹,
Ruiqi Wang¹,
Hui Tian¹,
Bosong Zhang¹,
Jiahui Wu¹,
Xiang Xu¹,
Ruixian Jiang¹,
Xiaolu Hou³,
Jian Liu⁴^na2 &
…
Weiming Tian ORCID: orcid.org/0000-0003-4958-4118¹^na2

Communications Biology volume 8, Article number: 722 (2025) Cite this article

2717 Accesses
1 Citations
8 Altmetric
Metrics details

Subjects

Abstract

Targeting the balance of mitochondrial fission and fusion can effectively alleviate the cardiac energy supply efficiency, to restore cardiac systolic dysfunction and reduce mortality. We previously found that Klf7 is closely related to cardiac energy metabolism. Here we generated cardiomyocyte-specific Klf7 knockout and overexpression mice that underwent myocardial infarction (MI) surgery. Klf7 expression increased in the ischemic myocardium of mice, and cardiomyocyte-specific knockout Klf7 significantly lowered the mortality of MI-inflicted mice and improved ATP insufficiency in MI. Subsequently, Klf7 overexpression aggravated adverse cardiac remodeling and mitochondrial fission and fusion imbalance after MI. Our results also demonstrated that Klf7 inhibited mitochondrial fusion and promoted mitochondrial fission by targeting prohibitin 2 (Phb2) and mitofusin 2 (Mfn2). Our study revealed a crucial role in upholding the overall balance of mitochondrial fission and fusion during MI. Furthermore, our findings indicated that the Klf7/Mfn2/Phb2 axis holds promise as a potential target for therapeutic interventions of MI.

Klf9 is essential for cardiac mitochondrial homeostasis

Article 08 November 2024

The KLF7/PFKL/ACADL axis modulates cardiac metabolic remodelling during cardiac hypertrophy in male mice

Article Open access 21 February 2023

FL3 mitigates cardiac ischemia-reperfusion injury by promoting mitochondrial fusion to restore calcium homeostasis

Article Open access 03 July 2025

Introduction

Myocardial infarction (MI) and the frequently subsequent heart failure (HF) are among the main causes of death worldwide, accounting for 23.6 million deaths annually¹. Consequently, new strategies are required to protect the heart against myocardial infarct size, retain cardiac function, and improve patient outcome. Mitochondrial fission and fusion play crucial roles as arbiters of cardiac energy requirements, and an imbalance in mitochondrial fission and fusion contributes to the formation of fragmented mitochondria that fail to produce enough ATP for the heart under ischemic injury and HF, and impairs myocardial contraction and relaxation^2,3,4. A previous study confirmed that mitochondrial fission and fusion balance are disrupted in HF patients and rodent model^5,6,7. Overall, mitochondrial fission and fusion are profoundly altered after MI, with significant activation of the former and pathological disruption of the latter⁸. In addition, the process of differentiation from cardiac stem cells to adult cardiomyocytes requires changes in mitochondrial function and fission/fusion to accommodate the increased metabolic demands of differentiated beating cardiomyocyte⁹, and the presence of mitochondrial fission or fusion is required in the development of the heart^10,11. Therefore, the balance between mitochondrial fission and fusion is regarded as a major contributor to both physiological and pathological cardiac processes.

The dynamic processes of mitochondrial fission and fusion, which dictate the mitochondrial shape and influence ATP production, are tightly regulated. The mitochondrial network contains multiple proteins that promote mitochondrial fission, such as mitochondrial fission factor (MFF), mitochondrial fission 1 protein (FIS1), and dynamin-related protein 1 (DRP1), and fusion proteins such as mitofusin 1 (MFN1), mitofusin 2 (MFN2), and optic atrophy protein 1 (OPA1)¹². As the main effector of mitochondrial fission, DRP1 has been the most studied in ischemic cardiomyopathy, and many authors have reported excessive activation of DRP1 and consequent mitochondrial fragmentation^7,13,14. Our knowledge of the mechanisms regulating mitochondrial fission, primarily via DRP1, or regulating fusion, primarily via MFN1/MFN2, and the mechanisms regulating the mitochondrial dynamics balance remain poorly understood. Based on several evidence showing that genetic or pharmacological modulation of mitochondrial dynamics can confer resistance to ischemic burden, limit the area of myocardial infarction (MI), and delay the progression of cardiac adverse remodeling^15,16,17,18, improves left ventricular function¹⁹, and reduces mortality upon MI²⁰. However, therapeutic approaches for MI or HF using inhibitors of mitochondrial fission/fusion remain controversial and challenging⁸. The current potential for using mitochondrial fission and fusion as a therapeutic strategy is limited to acute treatment, such as modulating mitochondrial dynamics on a chronic basis. It is uncertain whether inhibiting mitochondrial fission or activating mitochondrial fusion is harmful in the long term^21,22,23. The balance between mitochondrial fission and fusion seems to be more important than merely inhibiting fission or activating fusion for the sake of mitochondrial health²². Above all, there is an urgent need to better understand the underlying mechanisms during MI, and HF regulation of mitochondrial fission and fusion balance will provide critical insights into therapeutic targeting of these processes.

In our study, the transcriptional factor Klf7 was previously reported to be involved in the energy supply of cardiac glycolysis and fatty acid oxidation metabolism²⁴, thereby indicating that Klf7 may be involved in the regulation of mitochondrial fission and fusion imbalance induced by MI. Herein, we report that mice with cardiomyocyte-specific Klf7 deletion can alleviate ischemic HF, whereas overexpression of Klf7 in adults can aggravate the pathological process of ischemic HF. In addition, our results demonstrate that Klf7 negatively regulates Mfn2 and Phb2, which aggravate the mitochondrial fission and fusion imbalance in vivo and in vitro under hypoxic condition, resulting in cardiomyocyte ATP deficiency and cardiac contractile dysfunction in mice. Our results point to a central role in maintaining the overall balance of mitochondrial fission and fusion in MI, and, more importantly, suggest that the Klf7/Mfn2/Phb2 axis can be used as a potential therapeutic intervention target for MI.

Results

Cardiac Klf7 expression is increased in the ischemic or hypoxic models both in vivo and in vitro

To investigate the role of Klf7 in MI, we analyzed the myocardial tissue microarray sequencing database (GSE83500)²⁵ in patients with ischemic cardiomyopathy, and it revealed that Klf7 expression was significantly up-regulated in the hearts of patients with MI (Fig. 1a). We then measured Klf7 expression under pathological hypoxic conditions. We cultured adult human ventricular cardiomyocyte AC16 cells under hypoxic conditions and performed cardiac mRNA analysis, which showed that Klf7 was upregulated 2-fold after exposure to hypoxic conditions (Fig. 1b). The regulation of Klf7 in cultured mouse cardiomyocytes injured by hypoxia or H₂O₂ was then investigated. Consistently, Klf7 mRNA and KLF7 protein levels were significantly increased in cardiomyocytes exposed to hypoxia for 12 h (Fig. 1c, d) and to H₂O₂ (Fig. 1e). We then prepared C57BL/6 mice at the age of 8 weeks with MI by permanently ligating the left coronary artery and found that Klf7 mRNA expression levels were upregulated for 6 h and sustained to 2 weeks post-MI (Fig. 1f). KLF7 protein and transcript levels were increased in the hearts of mice 2d post-MI (Fig. 1g). These data indicate that Klf7 is involved in the pathogenesis of ischemic and hypoxic models both in vivo and in vitro.

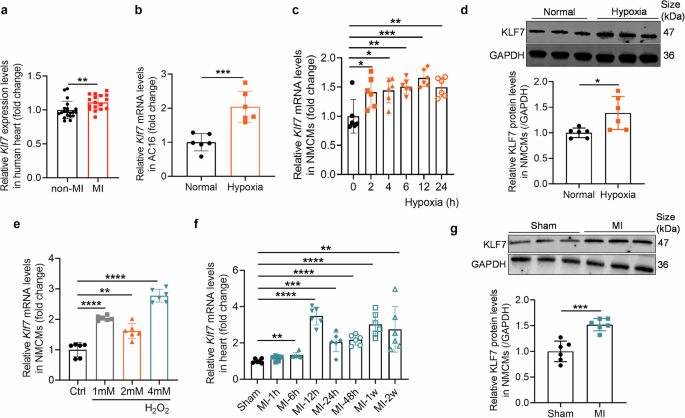

**Fig. 1: Upregulation of KLF7 expression in hypoxic cardiomyocytes and ischemic heart.**

Cardiomyocyte-specific Klf7 deletion improves the imbalance of mitochondrial fission and fusion and ATP production induced by myocardial infarction

Our previous study found that Klf7 plays an important role in regulating energy metabolism in the heart²⁴, given the crucial role that mitochondria play in generating ATP to maintain normal heart contractile function. We further explored whether Klf7 affects the respiratory capacity and mitochondrial dynamics induced by MI. We generated cardiomyocyte-specific Klf7 KO mice (Klf7^flox/flox/Myh6 Cre) as described previously²⁴ and randomized them to undergo MI or sham surgery. Based on the results of the Seahorse XFe24 experiments, KO mice exhibited improved ATP production, maximal respiratory levels, and relative amount of mitochondrial DNA following MI (Fig. 2a–d), thereby suggesting that the deletion of Klf7 may alleviate mitochondrial insufficiency induced by MI. Next, we examined the mitochondrial network in vivo upon MI, and the results are shown in Fig. 2e. Electron microscopy revealed that mitochondria in the hearts of sham-operated mice were of similar size, whereas MI resulted in smaller mitochondria and an increased percentage of fission in WT mice, but this effect was attenuated in KO mice. Moreover, Klf7 deletion decreased the percentage of cardiomyocyte apoptosis induced by MI (Fig. 2f and Supplementary Fig. 1a, b).

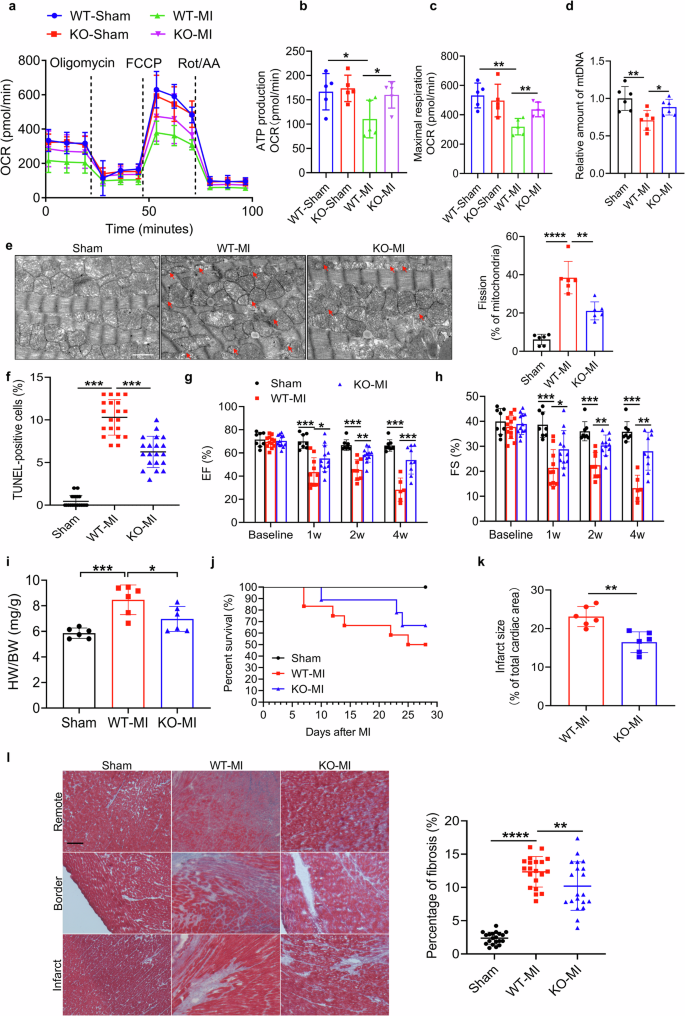

Fig. 2: Cardiomyocyte-specific Klf7 deletion alleviates cardiac and mitochondrial dysfunction after myocardial infarction. — **Fig. 2: Cardiomyocyte-specific *Klf7* deletion alleviates cardiac and mitochondrial dysfunction after myocardial infarction.**

Cardiac 2D echocardiography analysis at baseline and 1, 2, and 4 weeks post MI (Supplementary Fig. 2a) showed no differences at baseline, but higher ejection fraction (EF) and fraction shortening (FS) in KO mice with MI beginning 1 week after MI, compared to WT mice post-MI (Fig. 2g, h). WT-MI mice showed a significant decrease in left ventricular posterior wall thickness (LVPW), interventricular septum thickness (IVS), systolic left ventricular volume (LVvols), and systolic left ventricular internal diameter (LVIDs) at diastole and systole, which was improved in KO mice with MI (Supplementary Fig. 2b–i). There was no significant difference in the diastolic left ventricular volume (LVvold) and diastolic left ventricular internal diameter (LVIDd) at diastole and systole between KO and WT mice post-MI (Supplementary Fig. 2b–i). Furthermore, the increase in heart weight normalized to body weight (HW/BW) was suppressed in KO mice with MI (Fig. 2i). Consistently, cardiomyocyte-specific knockout of Klf7 resulted in significantly-reduced mortality (Fig. 2j). The hearts of cardiomyocyte-specific Klf7 KO mice had a smaller infarct size (Fig. 2k), lesser left ventricular fibrosis, and better cardiomyocyte arrangement than WT mice post-MI (Fig. 2l, Supplementary Fig. 2j). Based on the previous observation that Klf7 stimulation coincides with Klf5 upregulation and Klf15 downregulation, these changes have been associated with HF and metabolic comorbidities^26,27. Accordingly, we examined the effect of Klf7 KO mice on the expression of Klf5 and Klf15 in the heart of mice with MI. The results showed that compared with WT-MI mice, Klf7 knockout had no significant effect on the expression of Klf5 and Klf15 in the infarct border zone (Supplementary Fig. 2k, l). Hence, the effect of Klf7 on MI may be independent of Klf5 and Klf15. In conclusion, cardiomyocyte-specific deletion of Klf7 can substantially improve MI-induced deterioration of mitochondrial and cardiac functions.

Knockdown of Klf7 in cardiomyocytes improves the imbalance of mitochondrial fission and fusion and ATP production under hypoxic condition

To further describe the effect of Klf7 on the metabolic potential of hypoxic cardiomyocytes, we recorded ATP production and maximal respiration in cardiomyocytes after 1 mM of H₂O₂ treatment. Compared to the H₂O₂-treated group, ATP levels and maximal respiration in the Klf7 knockdown group showed a trend of improvement, but there was no significant difference (Fig. 3a–c, Supplementary Fig. 3). Our results also showed that Klf7 knockdown could reduce mitochondrial fragmentation and thus promote mitochondrial fusion upon hypoxia in the cellular model (Fig. 3d–f). Hypoxia induced cardiomyocyte apoptosis, which, however, was alleviated by Klf7 knockdown (Fig. 3g–i). In hypoxic conditions, knockdown of Klf7 in cardiomyocytes decreased the expression of apoptosis genes compared with the controls (Supplementary Fig. 1c, d). These results confirm that Klf7 deletion alleviates cardiac injury and indicate that this is associated with decreased mitochondrial fission both in vivo and in vitro.

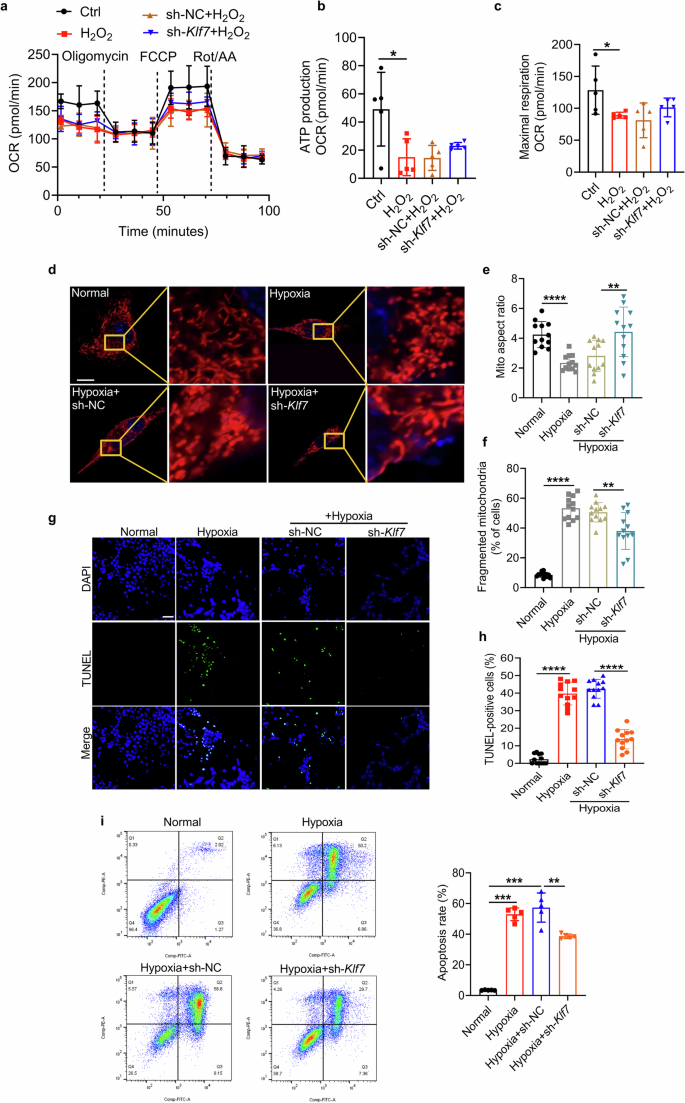

Fig. 3: Knockdown of Klf7 alleviates cardiomyocyte mitochondrial dynamics imbalance and insufficient ATP supply under hypoxic condition. — **Fig. 3: Knockdown of *Klf7* alleviates cardiomyocyte mitochondrial dynamics imbalance and insufficient ATP supply under hypoxic condition.**

Cardiomyocyte-specific Klf7 overexpression aggravates systolic dysfunction and mitochondrial dynamics imbalance induced by myocardial infarction or hypoxia

To further verify the effect of cardiac Klf7 on mitochondrial dynamic balance, we overexpressed Klf7 in mice with adeno-associated virus serotype 9 (AAV9) to assess the effect of cardiac Klf7. Western blotting revealed that cardiomyocyte-specific constitutive KLF7 expression was apparent after 3 weeks of AAV9-Klf7 treatment (Fig. 4a). 2D echocardiography analysis with whole ventricle tracing (Supplementary Fig. 4a) showed that Klf7 overexpression significantly decreased EF and FS at 4 weeks after MI surgery, and aggravated cardiac dysfunction induced by MI compared with the controls (Fig. 4b, c and Supplementary Fig. 4b–i). Compared with the AAV-negative control-MI (AAV-NC-MI) mice, the HW/BW ratio was evaluated 4 weeks post-MI in AAV-Klf7 mice (Fig. 4d). Klf7 overexpression aggravated the disordered myocardial tissue arrangement, increased myofilament gaps, and fibrosis in the left ventricle border and infarct tissue caused by MI, as revealed by histological examination (Fig. 4e, Supplementary Fig. 4j). Overexpression of Klf7 also increased MI-induced infarct size (Supplementary Fig. 4k). Mitochondria in the hearts of MI-operated AAV-NC mice decreased in size related to the sham mice, but this effect was aggravated in AAV-Klf7 mice, indicating increased mitochondrial fission or decreased mitochondrial fusion balance upon Klf7 overexpression (Fig. 4f). Strikingly, AAV-Klf7 mice exhibited decreased relative amount of mitochondrial DNA following MI (Fig. 4g). Furthermore, MI mice displayed increased levels of TUNEL⁺ cardiomyocytes, which were greater in AAV-Klf7 mice than in AAV-NC mice (Fig. 4h). Similar to the AAV-NC mice with MI, cardiomyocyte Klf7 overexpression increased Bax mRNA expression and decreased Bcl-2 mRNA expression levels (Supplementary Fig. 4l). More importantly, overexpression of Klf7 in cardiomyocytes resulted in impaired ATP production and maximal respiratory capacity in mitochondria isolated from mouse hearts after MI (Fig. 4i, j).

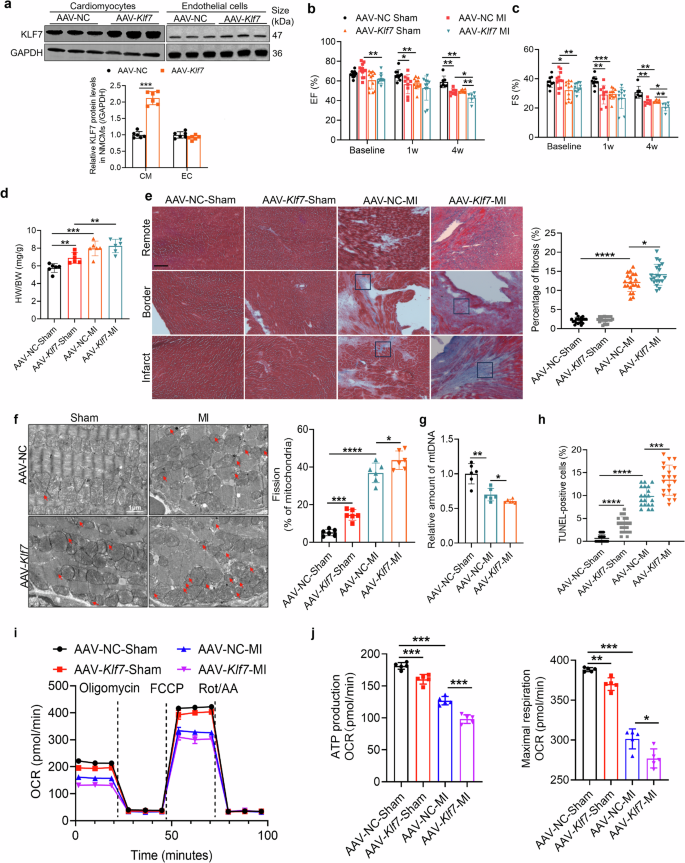

Fig. 4: Cardiomyocyte-specific overexpression of Klf7 aggravates cardiac and mitochondrial dysfunction induced by myocardial infarction. — **Fig. 4: Cardiomyocyte-specific overexpression of *Klf7* aggravates cardiac and mitochondrial dysfunction induced by myocardial infarction.**

We also tested the effects of overexpression of Klf7 on mitochondrial dynamics and ATP levels in HL-1 cells. For this, we subjected cardiomyocytes using the Klf7 lentivirus to hypoxia in combination with H₂O₂ treatment. Indeed, ATP production was lower following the overexpression of Klf7 in HL-1 cells compared to the control group after H₂O₂ treatment (Fig. 5a, b, Supplementary Fig. 5a). However, maximal respiration showed a trend of decrease, but there was no significant difference (Fig. 5a, c, Supplementary Fig. 5a). As shown in Fig. 5d–f, mitochondrial fragmentation occurred in response to hypoxia and Klf7 overexpression promoted this fragmentation further. Furthermore, our results showed that hypoxia-induced cardiomyocyte apoptosis was augmented by Klf7 overexpression (Fig. 5g, h, Supplementary Fig. 5b). Altogether, these findings suggest that Klf7-enhanced cardiac injury is associated with increased mitochondrial fission.

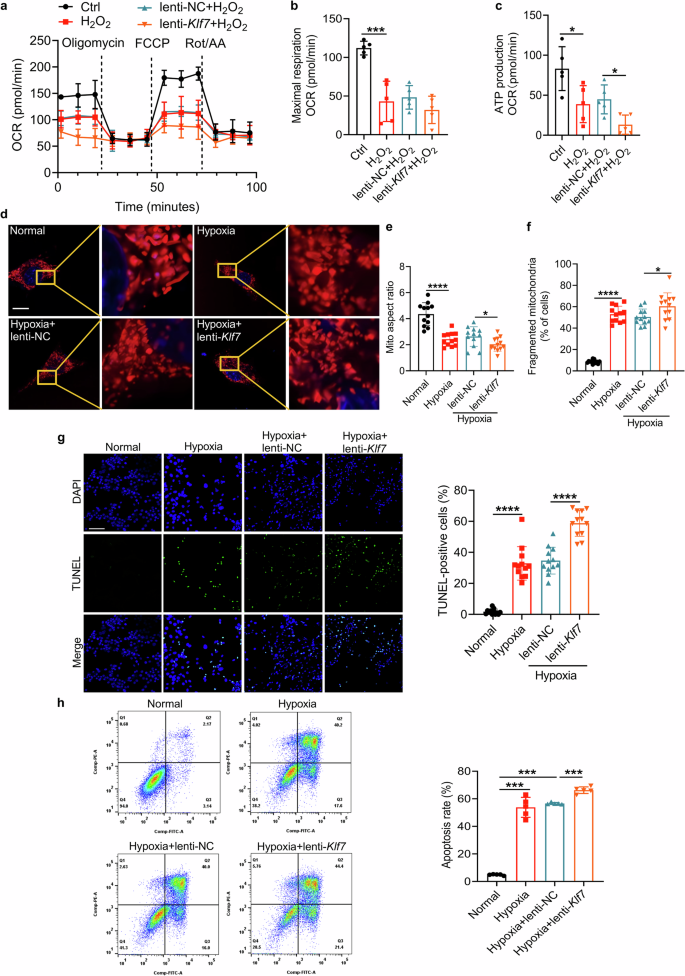

Fig. 5: Overexpression of Klf7 aggravates cardiomyocyte mitochondrial dynamics imbalance and insufficient ATP supply under hypoxic condition. — **Fig. 5: Overexpression of *Klf7* aggravates cardiomyocyte mitochondrial dynamics imbalance and insufficient ATP supply under hypoxic condition.**

Klf7 regulates mitochondrial dynamics balance by targeting both Mfn2 and Phb2

To discover the mechanism by which Klf7 regulates the balance of mitochondrial dynamics during the pathological process of MI, we examined the expression of genes involved in mitochondrial fusion and fission in response to Klf7 depletion using qRT-PCR. As shown in Fig. 6a, Mfn2, Phb2, and Fis1 were significantly upregulated in the hearts of Klf7 KO mice compared to WT mice, while there was no significant difference among other genes. We also searched the target genes involved in mitochondrial dynamics in the ChIP-seq database²⁸ (https://doi.org/10.5281/zenodo.5243430), which showed that Mfn1, Mfn2, and Phb2 are the target genes of Klf7. Among these genes, we rigorously selected Mfn2 and Phb2 as preliminary targets, by which Klf7 may transcriptionally regulate mitochondrial homeostasis. Notably, Phb2 has been reported to regulate diverse facets of mitochondrial function, including mitochondrial respiration chain activity²⁹, promoting cristae morphogenesis³⁰ and mitochondrial mitophagy³¹, and restricting mitochondrial fission^32,33. Similarly, mouse Mfn2^−/− hearts spontaneously develop dilated cardiomyopathy accompanied by impaired contractile function^26,34. In this study, we used luciferase assays to examine the roles of Mfn2 and Phb2 as Klf7 targets. Transfection of a plasmid containing the luciferase sequence followed by the Mfn2 and Phb2 promoter regions, together with a Klf7 mimic, led to decreased normalized luciferase activity (Fig. 6b–g). Then, we performed chromatin immunoprecipitation-polymerase chain reaction (ChIP-PCR) analysis to compare the level of Mfn2 and Phb2 enrichment in the complex pulled down with HA-tag antibody to that of anti-IgG control (Fig. 6h–j). Importantly, our data suggested that Klf7 can simultaneously and negatively regulate Mfn2 and Phb2. Moreover, our results showed that myocardial-specific Klf7 KO can significantly restore the decreased expression of Mfn2 and Phb2 in myocardial tissue of mice perturbed by MI (Fig. 7a, b). In addition, Klf7 knockdown partially prevented Mfn2 and Phb2 downregulation induced by hypoxic conditions in vitro (Supplementary Fig. 5c, d). Our results also showed that Klf7 overexpression aggravated and disturbed the balance of Mfn2 and Phb2 expression in vivo and in vitro (Fig. 7c, d, Supplementary Fig. 5e, f).

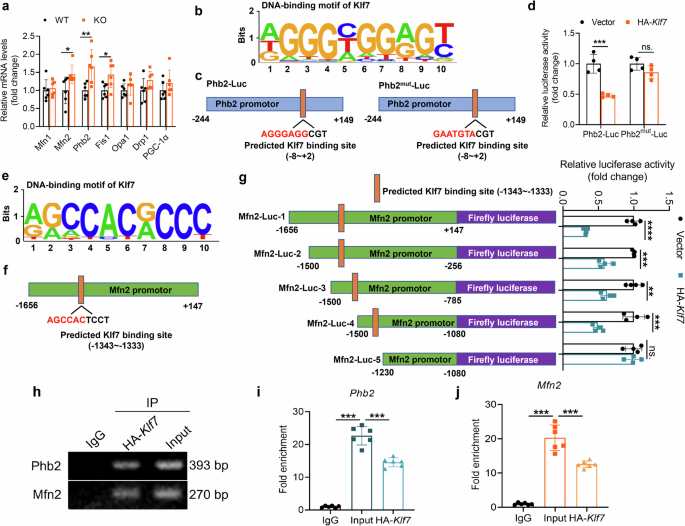

Fig. 6: Mfn2 and Phb2 function as direct targets of Klf7 in cardiac mitochondrial dynamics. — **Fig. 6: *Mfn2 and Phb2* function as direct targets of *Klf7* in cardiac mitochondrial dynamics.**

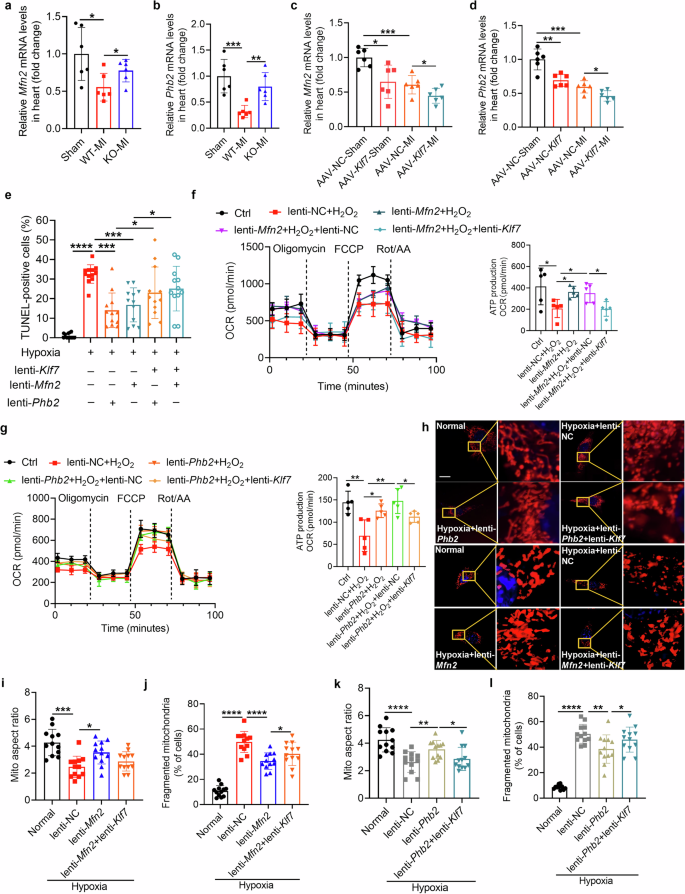

Fig. 7: Klf7 regulates mitochondrial fission and fusion by targeting Mfn2 and Phb2. — Fig. 7: *Klf7* regulates mitochondrial fission and fusion by targeting *Mfn2 and Phb2.*

Overexpression of Mfn2 or Phb2 alleviates mitochondrial dynamics imbalance in hypoxic cardiomyocytes upon Klf7 overexpression

To determine whether Klf7 plays a role in MI- or hypoxia-induced mitochondrial fission and fusion processes, we conducted in vitro and in vivo studies that evaluated the effect of the Klf7/Mfn2/Phb2 axis on mitochondria and cardiac function. The result showed that exogenous overexpression of Klf7 in hypoxic cardiomyocytes overexpressing Mfn2 or Phb2 increased the number of TUNEL-positive cells (Fig. 7e). Notably, Mfn2 or Phb2 overexpression was sufficient to attenuate the insufficient ATP energy supply of H₂O₂-treated cardiomyocytes, but overexpression of Klf7 partially reversed the improvement effect (Fig. 7f, g). In addition, overexpression of Klf7 in hypoxic cardiomyocytes overexpressing Mfn2 or Phb2 caused more fragmented mitochondria (Fig. 7h–l). Taken together, our results suggest that Mfn2 and Phb2 can mediate, or partially mediate the effects of Klf7 on mitochondrial fission and fusion balance.

Cardiac-specific knockdown of Mfn2 or Phb2 aggravates cardiac dysfunction and mitochondrial dynamics imbalance in adult KO mice

As demonstrated above, adult Klf7 KO mice were protected against MI imbalance in mitochondrial dynamics. We injected the tail veins of postnatal 8 weeks old Klf7 KO mice with lentivirus of knockdown NC and Mfn2 or Phb2 for a total of 4 weeks. Subsequently, the mice were subjected to echocardiography (Fig. 8a). The expression levels of cardiomyocyte Mfn2 and Phb2 were reduced to 50% and 40%, respectively, by the injection of 3E + 11 AAV9 virus particles compared to their expression in the control group (Fig. 8b). However, the expression levels of Mfn2 and Phb2 in endothelial cells did not show significant changes (Fig. 8b). In Klf7 KO mice, knockdown of Mfn2 or Phb2 significantly aggravated cardiac function induced by MI, as shown by EF and FS (Fig. 8c–e). Similar results were observed in WT mice (Fig. 8c–e). Other echocardiographic parameters appeared to be affected. Compared with the KO-AAV-NC group, the LVvol and LVID in systole and diastole of Klf7 KO mice with Mfn2 knockdown were significantly increased, and the LVPW in systole was significantly decreased. Klf7 KO mice with Phb2 knockdown displayed decreased LVPW in systole and diastole, and significantly increased LVvol and LVID in systole (Supplementary Fig. 6a–g). In conclusion, knocking down Mfn2 or Phb2 reversed the improvement of cardiac function in mice with MI by knockout Klf7.

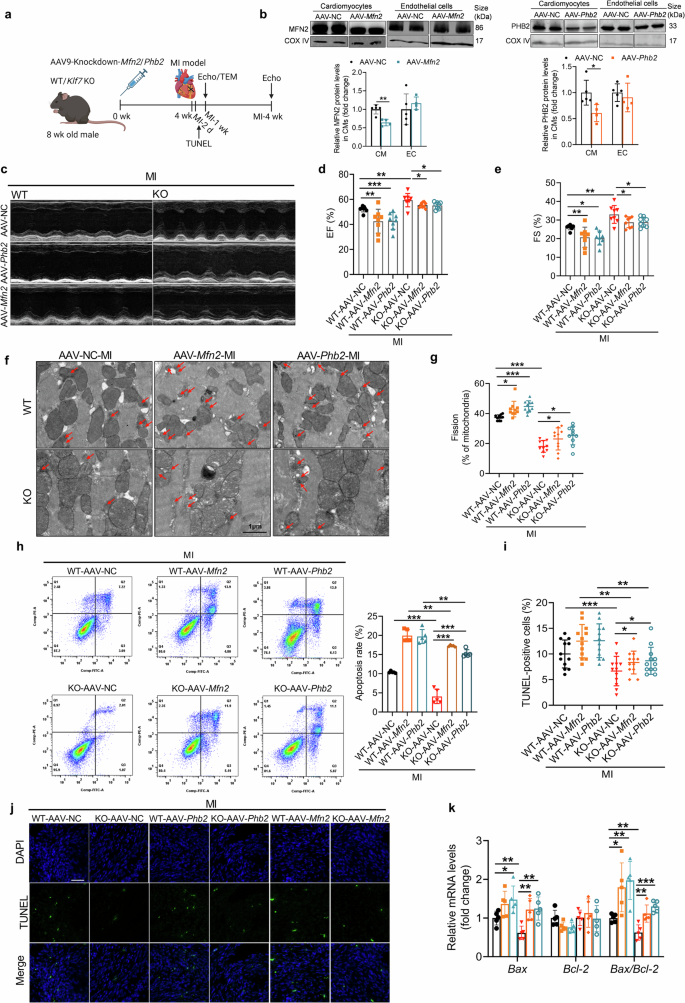

Fig. 8: Cardiomyocyte-specific knockdown of Mfn2 or Phb2 aggravates Klf7 KO mice cardiac function and mitochondria injury after myocardial infarction. — **Fig. 8: Cardiomyocyte-specific knockdown of *Mfn2* or *Phb2* aggravates *Klf7* KO mice cardiac function and mitochondria injury after myocardial infarction.**

We sought to assess the post-MI mitochondrial network using electron microscopy. Our findings demonstrated a reduction in the quantity of fragmented mitochondria in the hearts of Klf7 KO mice in contrast to the WT mice under MI (Fig. 8f, g). Notably, this effect was exacerbated in KO-AAV-Mfn2/Phb2 mice, suggesting a heightened level of mitochondrial fission or a diminished occurrence of mitochondrial fusion in these mice (Fig. 8f, g). We also performed the TUNEL and flow cytometry analysis to assess whether the observed knockdown of Mfn2 and Phb2 aggravates the MI-induced cardiomyocyte apoptosis in Klf7 KO mice (Fig. 8h–j). Our results showed that knockdown of Phb2 or Mfn2 significantly increased apoptosis in the Klf7 KO mice under MI. Similarly, there was a significant increase in cardiomyocyte apoptosis in WT-AAV-Mfn2/Phb2 mice compared to WT-AAV-NC mice under MI (Fig. 8h–j). In addition, these findings correlated well with the observed Bax and Bcl-2 mRNA levels (Fig. 8k). In sum, the above results indicate that myocardial-specific Klf7 knockout improves the balance between mitochondrial fission and fusion in the heart, and this improvement was significantly diminished by downregulating Phb2 or Mfn2. Taken together, these findings suggest that Klf7 can simultaneously modulate the expression of Mfn2 and Phb2 to regulate cardiac homeostasis of mitochondrial dynamics and cardiac function.

Discussion

Despite notable progress in comprehending the dynamics of mitochondrial fission and fusion implicated in the development of MI and HF, specific mechanistic intricacies still remain elusive. Clinical studies have shown a significant increase in the expression of DRP1 in the tissues of HF patients with reduced ejection fraction, without differences in the expression of OPA1 and MFN2⁵. Additionally, OPA1 protein expression was reduced in human failing heart samples from adults presenting with ischemic cardiomyopathy, expression levels of MFN1, MFN2, and DRP1 were increased, whereas FIS1 expression was unchanged²⁷. However, in the HF rat model, the expression levels of OPA1 were significantly decreased, while that of MFN1/MFN2, DRP1, and FIS1 were unchanged²⁷. In summary, variations in the activity of mitochondrial fission and fusion proteins are also different due to the causes and stages of HF. Our study demonstrated that Mfn2 and Phb2 expression decreased in heart tissue during the early stages of MI. Studies have shown that the interactions between mitochondrial fission and fusion are complex, and loss of either fission-related or fusion-related proteins has been demonstrated to be detrimental to the heart. The optimal therapeutic strategy for patients with HF is not just to inhibit mitochondrial fission or activate mitochondrial fusion but rather to maintain a balance between the two processes. Targeting only mitochondrial fission or fusion is not sufficient for improving mitochondrial health³⁵. The present study demonstrated that Klf7 could simultaneously target and regulate Mfn2 and Phb2 to affect the dynamic balance of mitochondrial fission and fusion in cardiomyocytes independent of Drp1, thereby affecting cardiomyocyte energy supply after MI. It is important to maintain the overall balance of mitochondrial fission and fusion. Similarly, a study revealed that an imbalance between mitochondrial fission and fusion (in either direction) is more deleterious than the simultaneous abrogation of both processes²². This idea is supported by our finding that cardiomyocyte-specific knockout of Klf7 promotes mitochondrial fusion and simultaneously inhibits fission by targeting Mfn2 and Phb2. The Klf7/Mfn2/Phb2 axis may shed new light on the complex molecular mechanism of mitochondrial fission and fusion dynamics.

An imbalance in mitochondrial fusion and fission can affect mitochondrial respiratory function and susceptibility to cell death in HF^36,37, and the genetic or pharmacological modulation of mitochondrial dynamics confers resistance to ischemic injury^{17,18,19,20,21,22}. Direct and indirect inhibition of DRP1 mostly reduces MI size and reactive oxygen species (ROS) levels in mouse models subjected to coronary artery occlusion and reperfusion damage^7,38. Metformin exerts cardioprotective effects by attenuating mitochondrial dysfunction and decreasing DRP1 expression and cardiac apoptosis after acute cardiac ischemia and reperfusion (I/R) injury in rats³⁹. Unfortunately, the relevant clinical study was terminated prematurely⁸. Mdivi-1, a DRP1 inhibitor, significantly reduced myocardial infarct size in vivo in murine heart⁷. Chronic inhibition of DRP1 is not suitable for therapeutic purposes as it produces excess superoxide, impairs mitochondrial respiration, and inhibits autophagy, thus limiting its potential use as a therapy for MI⁴⁰. Among the therapeutic potential of improving mitochondrial fusion, the mitochondrial fusion promoter M1 has been used in rats subjected to I/R, resulting in a reduction in MI size and the associated mortality⁴¹. There is substantial experimental evidence supporting the use of targeting mitochondrial fission or fusion as a potential therapeutic strategy to reduce the severity of MI injury. However, clinical trials have proven to be both controversial and challenging⁸, while innovative approaches and new therapeutic targets are required. The primary cause of the pathological phenotype are genes rather than coding proteins. Transcription factors play a key role in regulating gene activity and can specifically modulate diseases due to their fundamental role in binding to the regulatory regions of genes, both in terms of status and quantity⁴². As a result, transcription factors function as drug targets that not only target the root cause of the pathological problem (the gene itself) but also address the side effects caused by crosstalk within signaling pathways. Emerging evidence suggests that some inhibitors such as JQ1⁴³, DRB⁴⁴, and valproic acid⁴⁵ target the transcriptional machinery in models of cardiac hypertrophy and ischemic injury. In the above, it is suggested that targeting transcriptional regulation provides a new perspective for the treatment of HF. In our study, we revealed that cardiomyocyte-specific knockout of Klf7 significantly reduces the mortality of mice with MI, improves ATP insufficiency in heart-induced MI, and reduces the percentage of MI area, suggesting that Klf7 may be a potential therapeutic target for mitochondrial metabolism and mitochondrial dynamics imbalance induced by MI or HF.

During MI, intense inflammatory responses and oxidative stress cause myocardial cell damage and substantial changes in cellular signaling pathways, which critically regulate the pathological mechanisms of MI⁴⁶. To identify key regulatory factors related to MI, we utilized an online database (http://bioinfo.life.hust.edu.cn/HumanTFDB/#!)⁴⁷ to predict potential transcription factors that regulate Klf7 expression. Additionally, we examined transcription factor expression changes during MI progression using various models from the GEO database (https://www.ncbi.nlm.nih.gov/geo). The analyzed models included patient aortic wall samples (GSE83500²⁵), mouse myocardial tissues (GSE243668^48,49, GSE255826⁵⁰), and mouse cardiomyocytes (GSE255933⁵¹). Comparative analysis of these datasets identified the transcription termination factor 2 (TTF2) as a potential key transcription factor influencing Klf7 expression, and we will conduct detailed verification in the subsequent study.

Our study was confined to male mice aged 8–12 weeks and did not explore potential sex- or age-related variations in Klf7 expression and mitochondrial fission/fusion. Given our emphasis on young mice, the applicability of our findings to older patient populations with MI or HF should be approached with caution. Our previous study demonstrated that cardiomyocyte-specific Klf7 knockout mice developed spontaneous cardiac hypertrophy after 6 months and subsequently developed pathological HF²⁹. Among cardiomyocyte-specific Klf7-deficient mice, we observed no adverse effects likely due to the fact that our study focused on young mice (2 months of age) who had normal cardiac function at that time. Moreover, in our previous study, the pathological progress of cardiac hypertrophy induced by the cardiomyocyte-specific overexpression of Klf7 in the embryonic myocardium was spontaneous. Overexpression of Klf7 promoted fatty acid oxidation and inhibited glycolysis, resulting in HF in the embryonic mouse heart due to insufficient energy supply. In this study, overexpression of Klf7 in adult mice and cardiomyocytes was performed under hypoxia stimulation, which aggravated the phenomenon of insufficient energy supply of cardiomyocytes. Similarly, cardiomyocyte KLF5 inhibition exerts protective effects in ischemic HF, while fibroblast KLF5 drives pressure-overload hypertrophy⁵². Our previous study combined with our present findings suggests that the expression of Klf7 may be different in various developmental cycles of the heart, which leads to distinct effects. Future studies are needed to clarify the specific effects and mechanisms of Klf7 on mitochondrial function and metabolism during cardiac development.

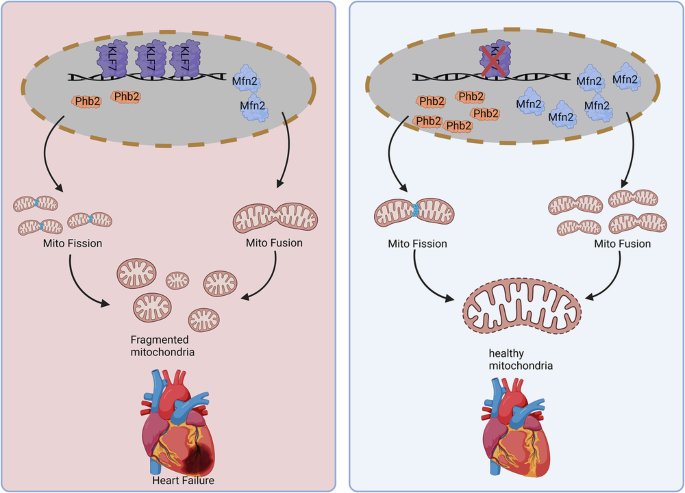

In conclusion, our study identified Klf7 as a central transcriptional regulator of mitochondrial fission and fusion. We uncovered a new mechanism by which Klf7 simultaneously regulates Mfn2 and Phb2 genes, thus affecting mitochondrial fission/fusion dynamics equilibrium and cardiomyocyte energy supply insufficiency under MI injury, suggesting the importance of maintaining the overall balance of mitochondrial fission and fusion. Moreover, modulating the expression of Klf7 may represent a potential therapeutic target for interventional treatment of MI and HF. This may also provide a new clue for understanding the Klf7-mediated mitochondrial homeostasis.

Methods

Animals

Male C57BL/6J mice (20 ± 2 g) were purchased from Changsheng Animal Ltd (Jilin, China). Cardiomyocyte-specific Klf7 knockout (Myh6^Cre×Klf7^flox/flox, Klf7^CKO) mice were generated by Shanghai Cyagen Co., Ltd. (Shanghai, China) using CRISPR/Cas9 system in the C57BL/6J mouse background previously described²⁴. Myh6^Cre mice refer to mice expressing a Cre recombinase transgene controlled by the Myh6 promoter, which is specifically active in the cardiomyocytes of adult mice. Experiments were performed with male mice for up to 2 months after left anterior descending coronary artery ligation, and wild-type (WT) littermates and C57BL/6J mice were used as controls. Mice were kept in a pathogen-free environment with a controlled 12 h light-dark cycle in a specific barrier facility. We have complied with all relevant ethical regulations for animal use, and all animal procedures were conducted in accordance with the guidelines set forth by the Harbin Institute of Technology Committee on Animal Resources (IACUC-2022054).

Hypoxic treatment

Hypoxia was performed as described previously²⁹. Briefly, cells were placed in a hypoxic chamber with a water-saturated atmosphere composed of 5% CO₂ and 95% N₂ under hypoxic conditions for 12 h. The H₂O₂-treated group was treated with 100 μL of 1, 2, or 4 mmol. L⁻¹ H₂O₂ for 24 h while the control group was treated with 100 μL of Dulbecco’s modified Eagle medium (DMEM) medium (Gibco, Waltham, MA, USA).

Mitochondrial morphology detection in the cells

Mitochondrial staining was carried as others described with neonatal mice cardiomyocytes (NMCMs)^14,29. NMCMs were cultured on coverslips. The cells were then incubated with MitoTracker Red (M22425, Thermo Fisher Scientific, Waltham, MA, USA) at 37 °C for 30 min. The cells were washed with PBS and then were fixed with 4% formaldehyde (Sigma-Aldrich, Waltham, MA, USA) for 15 min. Nuclei were stained with 4’,6-diamidino-2-phenylindole dihydrochloride (DAPI, Solarbio, Beijing, China). Images were acquired using a confocal laser scanning microscope (LSM710; Carl Zeiss AG, Jena, Germany). Mitochondrial morphology was determined using ImageJ software (National Institutes of Health, Bethesda, MD, USA). Mitochondrial fragmentation vs connectivity was determined by plotting length × width of several thousand mitochondria from 12 randomly selected fields for each 10 cells were counted. At least 120 cells per group were counted²⁹.

Echocardiography

A transthoracic echocardiography was carried out on conscious, gently restrained mice using a Vevo 3100 system (VisualSonics, Ontario, Canada). Male mice were anesthetized with 1.5–3% isoflurane in 100% oxygen at different time points post-MI. The left ventricle (LV) was assessed using the parasternal long-axis view. The LV wall thickness, LV diameter, LV volume, ejection fraction, and fractional shortening were measured in M-mode at 1 kHz at the papillary muscle level.

Myocardial infarction surgery

Male mice (8–10 weeks old) of the respective genotypes with normal ejection fraction (EF) or fraction shortening (FS) were subjected to left anterior descending coronary artery ligation. Anesthesia of mice was achieved with 1.5–3% isoflurane in 100% oxygen. Then, the cheats of mice were opened to expose their hearts. The left descending coronary artery was ligated with a 7/0 nylon suture, 2 mm below the border between the left atrium and ventricle, to create the MI model. The mice in the sham-operated control group underwent the same experimental procedures as the MI group, but without undergoing ligation. At defined time points, mice were euthanized by CO₂ overdose at a flow rate of 10–30% of the cage volume per minute, and whole hearts or left ventricle infarct borders and remote areas were collected for histological, molecular, and biochemical analyses.

AAV9 infection

To achieve Mfn2 and Phb2 knockdown in the hearts of KO mice and WT littermates, AAV9 carrying shRNA to interfere with the Mfn2 and Phb2 genes was constructed and inserted into the GV683 vectors, and AAV9 encoding GFP was used as a control. AAV9 particles were used to package the constructs and envelope plasmids in 293A cells. After 48 h of transfection, cell supernatants were collected and concentrated using ultracentrifugation (Optima L-100XP, Beckman Coulter, CA, USA) to obtain viral particles. The resulting stocks were resuspended in a serum-free culture medium and stored at −80 °C until needed. Two-month-old KO and WT mice were treated with AAV9 3E + 11 particles per mice via tail vein injection. AAV9 was purchased from GeneChem (Shanghai, China) (AAV9.shPhb2, catalog no. GIDV0331036; AAV9.shMfn2, catalog no. GIDV0331895).

Neonatal mice cardiomyocytes isolation and lentivirus infection

Neonatal mice that were born 1–3 d prior were euthanized using CO₂ overdose at a flow rate of 10–30% of the cage volume per minute. Primary NMCMs were isolated and cultured in DMEM containing 10% fetal bovine serum (FBS, 04-001-1ACS, Biological Industries, Kibbutz Beit Haemek, Israel) and penicillin-streptomycin (Solarbio, Beijing, China). To perform lentivirus-mediated gene knockdown and overexpression, cells were incubated for 48 h infection with lentivirus. NMCMs were subsequently analyzed for infection efficiency by measuring the fluorescence of GFP. The shRNA plasmid was constructed by Genechem (Shanghai, China) (sh-Klf7; catalog no. GIEE0269089; sh-Phb2, catalog no. GIEE0331037).

Cell culture

A human ventricular cardiomyocyte-derived cell line, designated AC16, a mouse atrial cardiomyocyte-derived cell line, designated HL-1, and a human embryonic kidney cell 293 cell line, designated HEK293T were used for in vitro experiments. AC16 cells were maintained in DMEM:F12 (#SH30023.01; HyClone, Logan, UT, USA) supplemented with 10% FBS, 1% penicillin-streptomycin, and 1% fungizone (#C0222; Beyotime, Shanghai, China), HL-1 and HEK293T cells were maintained DMEM with 10% FBS and penicillin-streptomycin, and grown at 37 °C in a humid atmosphere of 5% CO₂ + 95% air until they had reached 70–80% confluence.

Whole-cell lysates from mouse left ventricles and NMCMs were prepared in radioimmunoprecipitation assay (RIPA) buffer (89901, Thermo Fisher Scientific) containing protease and phosphatase inhibitors (11836170001, Roche, Basel, Switzerland). Samples containing equal amounts of protein (10–20 μg) were separated on a 12% SDS-PAGE gel (Thermo Fisher Scientific), and transferred to a nitrocellulose membrane (Sigma-Aldrich, Waltham, MA, USA). Proteins were detected using primary antibodies against the following targets diluted 1,000-fold: Mfn2 (A12771; ABclonal, Wuhan, China), Phb2 (12295-1-AP; Proteintech, Wuhan, China), COX IV (AF5468, Affinity Biosciences, Cincinnati, OH, USA), KLF7 (H00008609-M01; Abnova, Taiwan, China), α-tubulin (AC007; ABclonal), and GAPDH (10R-G109a; Fitzgerald Industries, Acton, MA, USA). After washing, membranes were incubated with secondary antibodies (AS014/AS003, ABclonal), after which specific protein bands were detected and quantified using an Odyssey scanner (version 3, LI-COR Biosciences, Lincoln, NE, USA). The intensity of the bands was quantified using ImageJ software.

Histology and immunohistochemistry

Histological and immunohistochemical (IHC) analyses were carried out on formaldehyde-fixed hearts that were processed for generating frozen sections as per the standard protocol. Briefly, hearts were fixed in 4% paraformaldehyde overnight at 4 °C and transferred to 1×PBS (Solarbio, Beijing, China), followed by optimal cutting temperature compound (OTC) embedding. Haematoxylin and eosin (H&E, Solarbio, Beijing, China) and Masson’s trichrome staining (Solarbio, Beijing, China) was performed for morphological and fibrosis analyses. The fibrotic area fraction was obtained by using automated image analysis (Image-Pro Plus, Media Cybernetics, Rockville, MD, USA).

Luciferase and ChIP-PCR assay

Based on our previous ChIP-seq database on mouse overexpression of Klf7²⁴, we learned that Klf7 can target the promoter binding sequence of Mfn2 and Phb2, and then conducted luciferase assay and ChIP-PCR assay to verify this. The promotor regions of Mfn2 and Phb2 were cloned into the KpnI and HindIII restriction sites of a plasmid containing a luciferase reporter and the PGL4 basic vector. Luciferase activity was quantified in lysates of HEK293T cells transfected with PGL4-Phb2 and PGL4-Mfn2 containing fragments of Mfn2 and Phb2 promoters, and infected with overexpression Klf7 for 48 h. Luciferase activity was measured using Dual-Luciferase Reporter Assay System (E1910; Promega, Madison, Wisconsin, USA) and was normalized to Renilla activity.

The quantitative analysis of the ChIP-PCR assays was carried out as previously described²⁴. Briefly, HL-1 cells overexpressing HA-tagged Klf7 were processed using the Zymo-Spin ChIP kit (D5210, Zymo Research, CA, USA) according to the manufacturer’s instructions, enabling KLF7 to be immunoprecipitated with an HA-tag antibody. HA-tag acts as a tag-specific antibody to obtain the target protein-DNA complex. DNA was purified, and PCR amplification was performed using primers targeting the Phb2 or Mfn2 promoter regions. The resulting gel bands were then assessed. The primers for the sequences of luciferase and the ChIP-PCR assay were as follows: Phb2, forward 5′-GGGGTACCTTTAACAGTCTATGACGAGTACTTT-3′ and reverse 5′-CCGCTCGAGGAAGGTTGGGATGGAGGCAAGCTCA-3′; Mfn2, forward 5′-GGGGTACCAATCTCTAGTCAGTTTTCCAAAGGG-3′ and reverse 5′-CCAAGCTTCAGTAAATGGTTAGAAACACTCCCT -3′.

RNA extraction and quantitative real-time PCR (qRT-PCR)

Total RNA was isolated from mouse hearts and NMCMs using TRIzol reagent (15596026; Invitrogen, Waltham, MA, USA) according to the manufacturer’s protocol. cDNA was synthesized using the ReverTra Ace qPCR RT reagent kit (FSQ-301; TOYOBO, Osaka, Japan) according to the manufacturer’s instructions, and gene expression was analyzed by qPCR using the SYBR Green Master Mix (50837000; Roche) on a ViiA 7 real-time PCR system (ABI, Carlsbad, CA, USA) according to the manufacturer’s instructions. Primer sequences used for each reaction are listed in Supplementary Table 1.

Mitochondrial DNA content

The Genomic DNA Isolation Kit (ab65358, Abcam, Cambridge, UK) was used to extract the mice heart tissue genomic DNAs according to the manufacturer’s instructions. Routine PCR reactions were performed with SYBR Green Master Mix (50837000; Roche) on a real-time PCR system (ABI) to detect relative amount of mitochondrial DNA. Primer sequences used for the reaction was as follows: forward 5′-TCGCCTACTCCTCAGTTAGC-3′ and reverse 5′- TCCGTTCGTAGTTGGAGTTTG -3′.

Measurement of infarct size

Heart tissue was first divided into five biventricular sections of equal thickness and then taken and stored at −80 °C for 1 h. Five sections were cut from the apex of the largest lumen of the heart, placed in 1.5% triphenyltetrazolium chloride (TTC, Sigma-Aldrich, Waltham, MA, USA), dissolved in saline, and stored at 37 °C in the dark for 30 min. The white regions represented infarcted tissue and were quantified under a digital camera with ImageJ software. The myocardial infarct size was measured as the percentage of the infarct area with respect to the total ventricular area.

TUNEL assay

Cardiomyocyte apoptosis were assessed in vivo and in vitro using an in situ apoptosis detection kit (Roche) by the indirect terminal deoxynulceotidyl transferase nick-end-labeling (TUNEL) method, according to the manufacturer’s instructions. Nuclei were stained with DAPI (Solarbio, Beijing, China). Immunofluorescence was analyzed using a fluorescence microscope (LSM880, Carl Zeiss). The number of TUNEL-positive cardiomyocytes (HL-1) was counted in 12 randomly selected fields, each group consisted of 4 mice or 4 cardiomyocyte parallel samples. The percentage of apoptotic cells was determined by the ratio of apoptotic cells to total cells.

Flow cytometry

Cardiomyocyte apoptosis was performed using a FITC Annexin V Apoptosis Detection Kit I (BD Pharmingen, San Jose, CA, USA) according to the manufacturer’s protocol. Cells were collected and washed twice with cold PBS. The cells were then re-suspended in 1× Binding Buffer at a concentration of 1 ×10E6 cells/ml., after which 5 μL Annexin V and 5 μL propidium iodide (PI) were mixed evenly, and the mixture was incubated in the dark for 15 min. The cells were then assessed by flow cytometry. The apoptosis rate (%) was calculated as [Annexin V (+) PI (−) cells + Annexin V (+) PI (+) cells]/total number of cells ×100.

Electron microscopy

Heart sample preparations and electron microscopy were performed as described before⁶⁰. In brief, hearts excised from mice were fixed in 2.5% glutaraldehyde (Sigma-Aldrich, Waltham, MA, USA) and 0.1 M sodium cacodylate (Sigma-Aldrich, Waltham, MA, USA) buffer at 4 °C overnight followed by obtaining a 2 mm transverse slice, 3 mm from the apex, from each heart. Ultrathin sections were examined with a JEM-1230 transmission electron microscope (TEM) (JEOL, Tokyo, Japan). The TEM allowed mitochondria to be observed at ×6000 magnification. The size of individual mitochondrion was measured by using Image-Pro Plus software (Midia Cybernetics, Rockville, MD, USA). Approximately 800–1000 mitochondria were measured to determine the percentages of mitochondria with various sizes. In MI-treated heart tissues, mitochondria disintegrated into numerous small round fragments of varying size and the number of small mitochondria was increasing. Thus, we categorized mitochondria smaller than 0.6 μm² as having undergone fission. Data represent mean ± standard error of the mean (SEM). of at least six independent experiments.

Isolation of mitochondria from heart tissue

Mitochondria were isolated from mouse heart tissue using the Mitochondria Isolation Kit for Tissue (Abcam; ab110168) according to the manufacturer’s instructions. Briefly, mice were euthanized, the heart tissue was immediately washed in ice-cold PBS buffer, and cut into small pieces using scissors. The sample tissue was washed twice with wash buffer, minced with 1 ml Dounce homogenizer, and then each tube was filled with isolation buffer. The homogenate was centrifuged at 1000 × g for 10 min at 4 °C. The supernatant was transferred into a centrifugation tube and centrifuged at 12,000 × g for 15 min at 4 °C, and the pellet was resuspended in 500 μL of isolation buffer supplemented with 5 μL protease inhibitor cocktail (Solarbio). The crude mitochondrial fraction pellet was utilized to quantify mitochondrial protein.

Isolation of mitochondria from cardiomyocytes

Mitochondria were isolated from cardiomyocytes using the Cell Mitochondria Isolation Kit (C3601, Beyotime) according to the manufacturer’s instructions. Cardiomyocytes were digested and collected by 0.25% pancreatic enzyme (Solarbio, Beijing, China). A small number of cells were counted, and 1.0–2.5 mL of mitochondria isolation reagent was added to 2–5E7 cardiomyocytes and placed on ice for 15 min. Then the cells were transferred to a glass homogenizer and homogenized using about 10–30 strokes. The cell homogenates were centrifuged at 600 × g for 10 min at 4 °C. The supernatant was transferred to another centrifugation tube and centrifuged at 11,000 × g and 4 °C for 10 min. The supernatant was carefully removed. The precipitate is the isolated cardiomyocyte mitochondrial fraction.

Measurement of cardiac mitochondria oxygen consumption rate

The oxygen consumption rate (OCR) of mouse heart tissue and cardiomyocyte (HL-1) mitochondria were detected with a Seahorse XF24 Analyzer (Agilent Technologies, Santa Clara, CA, USA). The Agilent Mito Stress Test Kit was used to determine the OCR. On the day prior experimentation, the sensor cartridge was hydrated in a 37 °C non-CO₂ incubator and cardiomyocytes were seeded at the desired final concentration (5 μg/50 μL). The cell culture microplate was centrifuged at 2000 × g for 20 min at 4 °C. After centrifugation, 150 μL of mitochondrial assay buffer (MAS) containing pyruvate/malate was added to each well and incubated for 10 min in a non-CO₂ incubator. Fresh aliquots were used to prepare the working solutions. Working drug (oligomycin, carbonyl cyanide 4-(trifluoromethoxy) phenylhydrazone (FCCP), and antimycin/rotenone (Rot/A)) solutions were prepared in the required quantities every day in pH-adjusted MAS containing pyruvate and malate. Following microplate insertion, the XF24 protocol consisted of baseline and stepwise injection measurements (3 min for mix, 2 min for incubation, and 3 min for measurement for a total of three cycles).

Statistics and reproducibility

All data are presented as mean ± SEM. GraphPad Prism software (version 8.0) (GraphPad Software, Boston, MA, USA) was used for the statistical analysis. All experiments were performed with at least four biological replicates. The exact number of biological replicates (number of mice, samples, or cell culture dishes) is indicated in the figure legends. A two-tailed independent sample t-test was used to compare the differences in mean values between the two groups. A result was considered statistically significant if the P < 0.05.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The source data behind the graphs are available in zenodo (https://doi.org/10.5281/zenodo.15227857). The newly generated plasmid deposit in the Addgene database (AAV-Mfn2: 238882, AAV-Phb2: 238883, Lenti-Phb2: 238886, Lenti-Mfn2: 238887, Phb2-luc: 238888, Phb2-mut-Luc: 238898, Mfn2-luc-1: 238889, Mfn2-luc-2: 238890, Mfn2-luc-3: 238891, Mfn2-luc-4: 238892, Mfn2-luc-5: 238893, sh-Klf7: 238895, AAV-Klf7: 238896, Lenti-Klf7: 238897). Other data are available from the corresponding author on reasonable request.

References

Reed, G. W., Rossi, J. E. & Cannon, C. P. Acute myocardial infarction. Lancet 389, 197–210 (2017).
Article PubMed Google Scholar
Quiles, J. & Gustafsson, A. The role of mitochondrial fission in cardiovascular health and disease. Nat. Rev. Cardiol. 19, 723–736 (2022).
Article CAS PubMed PubMed Central Google Scholar
Wai, T. et al. Imbalanced OPA1 processing and mitochondrial fragmentation cause heart failure in mice. Science 350, 0116 (2015).
Article Google Scholar
Bonora, M. et al. Targeting mitochondria for cardiovascular disorders: therapeutic potential and obstacles. Nat. Rev. Cardiol. 16, 33–55 (2018).
Article Google Scholar
Chaanine, A. H. et al. Mitochondrial Morphology, Dynamics, and Function in Human Pressure Overload or Ischemic Heart Disease With Preserved or Reduced Ejection Fraction. Circ. Heart Fail. 12, 005131 (2019).
Article Google Scholar
Ahuja, P. et al. Divergent Mitochondrial Biogenesis Responses in Human Cardiomyopathy. Circulation 127, 1957–1967 (2013).
Article CAS PubMed PubMed Central Google Scholar
Ong, S. B. et al. Inhibiting Mitochondrial Fission Protects the Heart Against Ischemia/Reperfusion Injury. Circulation 121, 2012–2022 (2010).
Article CAS PubMed Google Scholar
Giampaolo, M. et al. Comprehensive Analysis of Mitochondrial Dynamics Alterations in Heart. Int. J. Mol. Sci. 24, 1–25 (2023).
Google Scholar
Rehman, J. Empowering self-renewal and differentiation: the role of mitochondria in stem cells. J. Mol. Med. 88, 981–986 (2010).
Article PubMed Google Scholar
Atsuko, K. et al. Mitochondrial Fusion Directs Cardiomyocyte Differentiation via Calcineurin and Notch Signaling. Science 342, 6159 (2013).
Google Scholar
Chen, Y., Liu, Y. & Dorn, G. W. Mitochondrial Fusion is Essential for Organelle Function and Cardiac Homeostasis. Circ. Res. 109, 1327–1331 (2011).
Article CAS PubMed PubMed Central Google Scholar
Mishra, P. & Chan, D. C. Mitochondrial dynamics and inheritance during cell division, development and disease. Nat. Rev. Mol. Cell Biol. 15, 634–646 (2014).
Article CAS PubMed PubMed Central Google Scholar
Wong, W. Breaking mitochondria and hearts. Science 362, 778–790 (2018).
Google Scholar
Wang, J. X. et al. miR-499 regulates mitochondrial dynamics by targeting calcineurin and dynamin-related protein-1. Nat. Med. 17, 71–78 (2010).
Article PubMed Google Scholar
Ong, S. B. et al. Targeting Mitochondrial Fission Using Mdivi-1 in A Clinically Relevant Large Animal Model of Acute Myocardial Infarction: A Pilot Study. Int. J. Mol. Sci. 20, 3972 (2019).
Disatnik, M. H. et al. Acute Inhibition of Excessive Mitochondrial Fission After Myocardial Infarction Prevents Long-term Cardiac Dysfunction. J. Am. Heart Assoc. 2, 000461 (2013).
Article Google Scholar
Zhou, H., RolRen, J., Toan, S. & Mui, D. Role of mitochondrial quality surveillance in myocardial infarction: From bench to bedside. Ageing Res. Rev. 66, 101250 (2021).
Article CAS PubMed Google Scholar
Michael, C. et al. Physiologic Mitochondrial Fragmentation Is a Normal Cardiac Adaptation to IncreasedEnergy Demand. Circ. Res. 122, 282–295 (2017).
Piamsiri, C. et al. Chronic mitochondrial fusion promotor as a novel pharmacological intervention to alleviate left ventricular dysfunction in rats with chronic myocardial infarction. Eur. Heart J. 43, ehac544.960 (2022).
Cooper, H. A. & Eguchi, S. Inhibition of mitochondrial fission as a noveltherapeutic strategy to reduce mortality uponmyocardial infarction. Clin. Sci. 132, 2163–2167 (2018).
Article CAS Google Scholar
Ikeda, Y. et al. Endogenous Drp1 Mediates Mitochondrial Autophagy and Protects the Heart Against Energy Stress. Circ. Res. 116, 264–278 (2015).
Article CAS PubMed Google Scholar
Song, M., Franco, A., Fleischer, J. A., Zhang, L. & Dorn, G. W. Abrogating Mitochondrial Dynamics in Mouse Hearts Accelerates Mitochondrial Senescence. Cell Metab. 26, 872–883 (2017).
Article CAS PubMed PubMed Central Google Scholar
Ong, S. B., Kalkhoran, S. B., Cabrera-Fuentes, H. A. & Hausenloy Derek, J. Mitochondrial fusion and fission proteins as novel therapeutic targets for treating cardiovascular disease. Eur. J. Pharmacol. 763, 104–114 (2015).
Article CAS PubMed PubMed Central Google Scholar
Wang, C. et al. The KLF7/PFKL/ACADL axis modulates cardiac metabolic remodelling during cardiac hypertrophy in male mice. Nat. Commun. 14, 959 (2023).
Article CAS PubMed PubMed Central Google Scholar
Cheng, W. C. et al. Expression data from aortic wall between myocardial infarction (MI) and non-MI group [Data set]. Gene Expression Omnibus, https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE83500 (2017).
Papanicolaou, K. N. et al. Mitofusin-2 Maintains Mitochondrial Structure and Contributes to Stress-Induced Permeability Transition in Cardiac Myocytes. Mol. Cell. Biol. 31, 1309–1328 (2023).
Article Google Scholar
Chen, L., Gong, Q., Stice, J. P. & Knowlton, A. A. Mitochondrial OPA1, apoptosis, and heart failure. Cardiovasc. Res. 84, 91–99 (2009).
Article CAS PubMed PubMed Central Google Scholar
Hui, T. ChIP-seq of HA-tagged klf7 in N2A cells (klf7-rep2) [Data set]. Zenodo, https://zenodo.org/records/5243430 (2021).
Wang, J. et al. Bax inhibitor 1 preserves mitochondrial homeostasis in acute kidney injury through promoting mitochondrial retention of PHB2. Theranostics 10, 384–397 (2020).
Article CAS PubMed PubMed Central Google Scholar
Merkwirth, C. et al. Prohibitins control cell proliferation and apoptosis by regulating OPA1-dependent cristae morphogenesis in mitochondria. Genes Dev. 22, 476–488 (2008).
Article CAS PubMed PubMed Central Google Scholar
Wei, Y., Chiang, W. C., Sumpter, R. Jr., Mishra, P. & Levine, B. Prohibitin 2 Is an Inner Mitochondrial Membrane Mitophagy Receptor. Cell 168, 224–238 (2017).
Article CAS PubMed Google Scholar
Lahiri, V. & Klionsky, D. J. PHB2/prohibitin 2: An inner membrane mitophagy receptor. Cell Res. 27, 311–312 (2017).
Article CAS PubMed PubMed Central Google Scholar
Wang, K. et al. CARL lncRNA inhibits anoxia-induced mitochondrial fission and apoptosis in cardiomyocytes by impairing miR-539-dependent PHB2 downregulation. Nat. Commun. 5, 3596 (2014).
Article PubMed Google Scholar
Chen, Y. & Dorn, G. W. PINK1-Phosphorylated Mitofusin 2 Is a Parkin Receptor for Culling Damaged Mitochondria. Science 340, 471–475 (2013).
Article CAS PubMed PubMed Central Google Scholar
Liu, X., Guo, C. & Zhang, Q. Novel insights into the involvement of mitochondrial fission/fusion in heart failure: From molecular mechanisms to targeted therapies. Cell Stress Chaperones. 28, 133–144 (2023).
Article PubMed PubMed Central Google Scholar
Brown, D. A. et al. Mitochondrial function as a therapeutic target in heart failure. Nat. Rev. Cardiol. 14, 238–250 (2016).
Article PubMed PubMed Central Google Scholar
Vásquez-Trincado, C. et al. Mitochondrial dynamics, mitophagy and cardiovascular disease. J. Physiol. 594, 509–525 (2016).
Article PubMed PubMed Central Google Scholar
Ding, M. et al. Mfn2-mediated mitochondrial fusion alleviates doxorubicin-induced cardiotoxicity with enhancing its anticancer activity through metabolic switch. Redox Biol. 52, 102311 (2022).
Article CAS PubMed PubMed Central Google Scholar
Palee, S., Higgins L., Leech T., Chattipakorn, S. C. & Chattipakorn, N. Metformin exerts cardioprotection via attenuating mitochondrial fission in cardiac. Eur. Heart J. 41, 110604 (2020).
Aishwarya, R. et al. Pleiotropic effects of mdivi-1 in altering mitochondrial dynamics, respiration, and autophagy in cardiomyocytes. Redox Biol. 36, 101660 (2020).
Article CAS PubMed PubMed Central Google Scholar
Maneechote, C. et al. Balancing mitochondrial dynamics via increasing mitochondrial fusion attenuates infarct size and left ventricular dysfunction in rats with cardiac ischemia/reperfusion injury. Clin. Sci. 133, CS20190014–CS20190513 (2019).
Article Google Scholar
Crunkhorn, S. Targeting transcription factors. Nat. Rev. Drug Discov. 18, 18–25 (2018).
PubMed Google Scholar
Alexanian, M. et al. A transcriptional switch governs fibroblast activation in heart disease. Nature 595, 1–6 (2021).
Article Google Scholar
Sano, M. et al. Activation and function of cyclin T-Cdk9 (positive transcription elongation factor-b) in cardiac muscle-cell hypertrophy. Nat. Med. 8, 1310–1317 (2002).
Article CAS PubMed Google Scholar
Lee, T. M., Lin, M. S. & Chang, N.-C. Inhibition of histone deacetylase on ventricular remodeling in infarcted rats. Am. J. Physiol. Heart Circ. Physiol. 293, 68–77 (2007).
Article Google Scholar
Zhang, Q. et al. Signaling pathways and targeted therapy for myocardial infarction. Sig. Transduct. Target. Ther. 7, 78 (2022).
Article CAS Google Scholar
Hu, H. et al. AnimalTFDB 3.0: a comprehensive resource for annotation and prediction of animal transcription factors [Data set]. Human Transcription Factor Database http://bioinfo.life.hust.edu.cn/HumanTFDB/#! (2019).
Lee, K. C. Y. et al. PKM2 regulates metabolic flux and oxidative stress in the murine heart [Data set]. Gene Expression Omnibus https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE243668 (2024).
Lee, K. C. Y. et al. Loss of PKM2 dysregulates inflammatory signaling in the infarcted murine heart [Data set]. Gene Expression Omnibus https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE243668 (2025).
Li, S. et al. A Humanized Monoclonal Antibody Targeting an Ectonucleotidase Rescues Heart Function after Myocardial Infarction [Data set]. Gene Expression Omnibus https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE255826 (2024).
Nikolaou, P. E. et al. Empagliflozin in Acute Myocardial Infarction Reduces No-Reflow and Preserves Cardiac Function by Preventing Endothelial Damage [Data set]. Gene Expression Omnibus https://www.ncbi.nlm.nih.gov/geo/query/acc.cgi?acc=GSE255933 (2024).
Hoffman, M. et al. Cardiomyocyte Krüppel-Like Factor 5 Promotes De Novo Ceramide Biosynthesis and Contributes to Eccentric Remodeling in Ischemic Cardiomyopathy. Circulation 143, 1139–1156 (2021).
Article CAS PubMed PubMed Central Google Scholar

Download references

Acknowledgements

This work was supported by the National Natural Science Foundation of China (82400320), the Postdoctoral Fellowship Program of CPSF (GZC20242212), China Postdoctoral Science Foundation (2024M764164), Postdoctoral Fellowship of Heilongjiang Province (LBH-Z24017) and the Fundamental Research Funds for the Central Universities (HIT.DZJJ.2023129). We would like to express their gratitude to EditSprings (https://www.editsprings.cn) for the expert linguistic services provided.

Author information

These authors contributed equally: Cao Wang, Fuxing Zhu.
These authors Jointly supervised this work: Jian Liu, Weiming Tian.

Authors and Affiliations

School of Life Science and Technology, Harbin Institute of Technology, Harbin, 150080, China
Cao Wang, Fuxing Zhu, Situo Zhang, Ruiqi Wang, Hui Tian, Bosong Zhang, Jiahui Wu, Xiang Xu, Ruixian Jiang & Weiming Tian
The Second Affiliated Hospital of Heilongjiang University of Chinese Medicine, 150001, China, Harbin
Lan Zhou
Department of Cardiology, The Fourth Affiliated Hospital of Harbin Medical University, Harbin, 150081, China
Xiaolu Hou
School of Instrumentation Science and Engineering, Harbin Institute of Technology, Harbin, 150080, China
Jian Liu

Authors

Cao Wang
View author publications
Search author on:PubMed Google Scholar
Fuxing Zhu
View author publications
Search author on:PubMed Google Scholar
Lan Zhou
View author publications
Search author on:PubMed Google Scholar
Situo Zhang
View author publications
Search author on:PubMed Google Scholar
Ruiqi Wang
View author publications
Search author on:PubMed Google Scholar
Hui Tian
View author publications
Search author on:PubMed Google Scholar
Bosong Zhang
View author publications
Search author on:PubMed Google Scholar
Jiahui Wu
View author publications
Search author on:PubMed Google Scholar
Xiang Xu
View author publications
Search author on:PubMed Google Scholar
Ruixian Jiang
View author publications
Search author on:PubMed Google Scholar
Xiaolu Hou
View author publications
Search author on:PubMed Google Scholar
Jian Liu
View author publications
Search author on:PubMed Google Scholar
Weiming Tian
View author publications
Search author on:PubMed Google Scholar

Contributions

T.W.M. L.J., and W.C. designed the experiments and supervised the study. W.C., Z.F.X., Z.L., Z.S.T., T.H., and W.J.H., performed the majority of the biochemical experiments. W.C., Z.B.S., X.X., J.R.X., H.X.L., and W.R.Q. performed animal experiments. W.C., L. J., and T.W.M. wrote and edited the manuscript.

Corresponding author

Correspondence to Weiming Tian.

Ethics declarations

Competing interests

The authors declare no competing interests.

Peer review

Peer review information

Communications Biology thanks Santosh Karnewar, Mirko Völkers, Chad Grueter and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. Primary Handling Editor: Christina Karlsson Rosenthal. A peer review file is available.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Supplementary Information (download PDF )

Reporting Summary (download PDF )

Transparent Peer Review file (download PDF )

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License, which permits any non-commercial use, sharing, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if you modified the licensed material. You do not have permission under this licence to share adapted material derived from this article or parts of it. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.

Reprints and permissions

About this article

Cite this article

Wang, C., Zhu, F., Zhou, L. et al. Krüppel like factor 7 regulates mitochondrial dynamics balance in myocardial infarction. Commun Biol 8, 722 (2025). https://doi.org/10.1038/s42003-025-08139-z

Download citation

Received: 23 July 2024
Accepted: 28 April 2025
Published: 09 May 2025
Version of record: 09 May 2025
DOI: https://doi.org/10.1038/s42003-025-08139-z

This article is cited by

The impact of the PI3K/AKT pathway on arrhythmia: mechanisms of action and therapeutic potential
- Tao Leng
- Jue Zhao
- Qian Nie
Journal of Molecular Histology (2026)
