Introduction

Molten salt pyrochemical processing is an effective technique for separating actinides (An) and lanthanides (Ln), which present challenges due to their chemical similarity1,2,3,4. Successful implementation and optimization of this process requires a fundamental thermodynamic understanding of salt properties, particularly the excess Gibbs energy, which is influenced by the solvation structures of the mixed components. The dominant term, enthalpy of mixing (ΔHmix), can be experimentally measured using high temperature drop calorimetry5,6,7,8,9,10,11,12, and modeled through first-principles calculations, including ab initio molecular dynamics (AIMD). AIMD provides insight into intermolecular interaction, speciation, and local organization as predicted by density functional theory (DFT), including coordination numbers and interatomic pair potentials13,14,15,16,17,18. While various thermodynamic models, such as those used in the Calculation of Phase Diagrams (CALPHAD) approach4,19,20, exist to couple thermochemical data (e.g., ΔHmix) and phase equilibrium data, most rely on empirical fitting parameters rather than values directly obtained from experiments or simulations. Given that ΔHmix is sensitive to short-range ordering and complex formation at the atomic scale7,11,12,21,22,23,24, it serves as a powerful probe linking microscopic solvation structure with macroscopic thermodynamic behavior. As such, a model with chemically intuitive and physically accessible parameters offers unique advantages for the rational design of salt compositions and optimization of separation process conditions.

In this work, we showcase a physically interpretable thermodynamic framework, by integrating molecular interaction volume model (MIVM25,26) with experimental calorimetry and computational methods (AIMD and the polarizable ion model molecular dynamics (PIM-MD) simulations27,28,29). This hybrid approach, denoted MIVM+Calorimetry+AIMD, enables a detailed, chemically grounded understanding of the structure-energy landscape of a representative molten chloride salt system.

The pseudo-binary LaCl3-(LiCl-KCl) molten salt was studied, with (LiCl-KCl) held at its eutectic composition (~58 mol% LiCl and ~42 mol% KCl), which melts at 773 K30. When molten, this eutectic LiCl-KCl enables anodic dissolution of metallic spent nuclear fuel (SNF) during pyroprocessing. Actinides and lanthanides can then be recovered on the cathode via electrochemical deposition by applying appropriate reductive potentials31. Molten salt pyrochemical processing offers a promising method for recycling up to 96% of critical metals (e.g., U) back into fresh fuel1,32, while also recovering industrially valuable fission products, especially rare earth elements (REE)33,34. In this work, LaCl3 was selected as a surrogate for Ln species in the eutectic LiCl-KCl melt, given that lanthanides conprise ~1/3 of the fission products in SNF1 and pose major challenges for separations and purification31,35,36. Uncertainty in lanthanide speciation and stability within molten salts can negatively impact An-Ln separation efficiency37. Moreover, extracting Ln from SNF provides an alternative source of critical metals and reduces reliance on REE ore deposits, which typically enrich light REEs and are often contaminated with Th or U38. Due to the growing demand for efficient Ln separation from SNF39,40,41,42, understanding their speciation and thermodynamic behavior in the eutectic LiCl-KCl melt is crucial.

Although prior calorimetric studies have reported ΔHmix for molten Ln chlorides mixed with alkali/alkaline-earth metal chlorides10,20,43,44,45,46,47, the underlying origins of the observed thermodynamic non-ideality remain unclear. This non-ideality may arise from complex formation, oligomerization, or metal-chloride network interactions induced by the “guest” metal salt component13,48. Establishing a direct correlation between solvation structure and mixing energetics is not straightforward and typically relies on parameterized empirical models. The most widely used of these are the associated solution model (ASM)10,43,44,45,46,47 and the surrounded ion model (SIM)4. ASM assumes that the irregularity of mixing behavior may be expressed as a linear combination of regular mixing interactions (ΔmixHREG) and locally ordered “associates” (ΔmixHASSOC)47. From ASM, one can derive the interaction parameter (λ) by λ = ΔHmix/x·(1-x), where x is the mole fraction of the primary chloride component (e.g., LnCl3)47. The λ parameter can be further deconvoluted into a linear combination of coulombic and polarization interactions, as well as the enthalpy of formation of the associates. However, ASM assumes only minor deviations from regular solution behavior and neglects solvation beyond the first cation-anion coordination shell, making it quantitatively inadequate for interpreting some spectroscopic and computational results49. In contrast, the SIM model is largely configuration-based, and primarily focuses on ion charge effects, where charge-asymmetric cation substitutions (e.g., trivalent + monovalent salts) create vacancies on corresponding sublattices50. While SIM allows fitting of multicomponent salt systems, it does not explicitly account for solvation structure and is generally limited to specific charge asymmetries18,49. As such, SIM is prone to overfitting and lacks transferability. An alternative approach is to directly compute ΔHmix directly from molecular dynamics (MD) simulations, either through empirical models (e.g., PIM-MD) or ab initio methods using DFT with the generalized gradient approximation (GGA) for exchange-correlation energy. However, these methods often overestimate the magnitude of ΔHmix in molten salts containing multivalent metal ions (e.g., Be2+, U3+, U4+, and Th4+)23,51,52 due to inadequate sampling of the configurational space and/or the approximations made in the Hamiltonian.

Comparison of these models highlights the need for new approaches that quantitatively correlate ΔHmix with information about intermolecular interaction, solvation structure, and chemical speciation. To address this, we investigated the mixing behavior of LaCl3 with a 58 mol% LiCl –42 mol% KCl eutectic melt, using experimental calorimetry, together with AIMD and PIM-MD simulations of ΔHmix, followed by implementing a modified MIVM for integrated data analysis. Calorimetric measurements were performed at 873 K to reflect pyroprocessing-relevant conditions31, while 1133 K was used to melt and access high La-content compositions and to perform AIMD and PIM-MD simulations across the full LaCl3-(LiCl-KCl) composition range. Additional AIMD simulations at 1200 K provided radial distribution functions (RDFs), potentials of mean force (PMF), and metal coordination number (CN) distributions as a function of La content. These results, including enthalpies of mixing and solvation structures, were integrated into a modified MIVM mixing model, the hybrid MIVM+Calorimetry+AIMD, which uses physically meaningful parameters that are either experimentally measurable or computationally accessible. While MIVM has previously been applied to binary, ternary, and high-order alloy systems53,54, this is its first application to molten salts. This work demonstrates a unique integration of calorimetry and AIMD, leveraging the fact that key MIVM parameters, including coordination number, pair potential, and molar volume, can be readily and reliably derived from computation or experiment (Eq. 1)25,26,53. The mathematical integration of experimental and simulated data not only advances the MIVM model itself but also enhances our chemical understanding of molten salt thermochemistry, particularly the roles of metal ion coordination number distributions and speciation (i.e., oligomerization) in driving non-ideal mixing behavior and thermochemical properties.

Results and discussion

\(\Delta {H}_{{{{\rm{mix}}}}}\) values computed directly from both PIM-MD and AIMD simulations do not fully reproduce the calorimetrically measured values. Sections “Computations of mixing enthalpy of LaCl3 in eutectic LiCl–KCl from PIM-MD and AIMD” and “Application of MIVM to the mixing enthalpy of LaCl3 in eutectic LiCl–KCl” compare these predicted \(\Delta {H}_{{{{\rm{mix}}}}}\) values with experimental data, followed by the successful reproduction of the measured \(\Delta {H}_{{{{\rm{mix}}}}}\) using the MIVM+Calorimetry+AIMD model (Section “Application of MIVM to the mixing enthalpy of LaCl3 in eutectic LiCl–KCl”). Section “Sensitivity of MIVM+Calorimetry+AIMD to variances in input parameters” evaluates the model’s sensitivity to input parameters, while Section “Bridging ΔHmix and the solvation structure of molten LaCl3–(LiCl–KCl)” discusses the physical interpretation and underlying assumption of the MIVM+Calorimetry+AIMD approach in describing non-ideal mixing behavior.

Computations of mixing enthalpy of LaCl3 in eutectic LiCl–KCl from PIM-MD and AIMD

In the case of PIM-MD simulations, the mixing enthalpies of molten salts are computed directly from classical molecular dynamics trajectories generated using the isothermal–isobaric ensemble (NPT) by averaging the normalized (per one molecular unit) potential energies across the composition range after subtracting the normalized potential energies of the end members, as follows: \(\Delta {H}_{{{{\rm{mix}}}}}={U}_{{AB}}+{\left({PV}\right)}_{{AB}}-{x}_{A}\left[{U}_{A}+{\left({PV}\right)}_{A}\right]-{x}_{B}\left[{U}_{B}+{\left({PV}\right)}_{B}\right]\), where U, P, and V denote the internal energy, the system pressure, and system volume, respectively. Subscripts A and B correspond to the two pure component systems, eutectic LiCl-KCl and LaCl3, respectively, while AB denotes mixtures with associated mole fractions, xA and xB. At conditions close to the atmospheric pressure, the PV term is small and can be omitted. For example, in our PIM-MD NPT (P = 1 bar) simulations, the PV contribution to ΔHmix is less than 0.02 kJ/mol. Consistent with the previous studies of molten salts containing multivalent cations23,51,52, the PIM-MD only reproduced the overall shape of ΔHmix as a function of composition, and significantly overestimates the magnitude of ΔHmix, by almost 100% at the most negative ΔHmix value (Fig. S5, see AIMD in “Method” section). The absolute error in ΔHmix produced by the PIM-MD is < 6 kJ/mol, which is in the range of accuracy expected from such a model.

To assess whether improvements over the classical PIM-MD are possible, AIMD simulations using the PBE-D3 functional were performed for the same compositions. AIMD simulations were initialized from structures equilibrated with PIM-MD for over 2 ns. Due to the high computational cost of AIMD, a series of short NVT simulations was first conducted at varied volumes to estimate equilibrium densities near 1 bar (Fig. S3, see AIMD in Method section). Final AIMD runs at these densities were then extended to ~22 ps, with the last 20 ps used for analysis. Additional details are provided in the SI. The resulting mixing enthalpies (ΔHmix) again overestimated the experimental values by more than a factor of two (Fig. 1), with errors likely arising from limitations of semilocal DFT and system size.

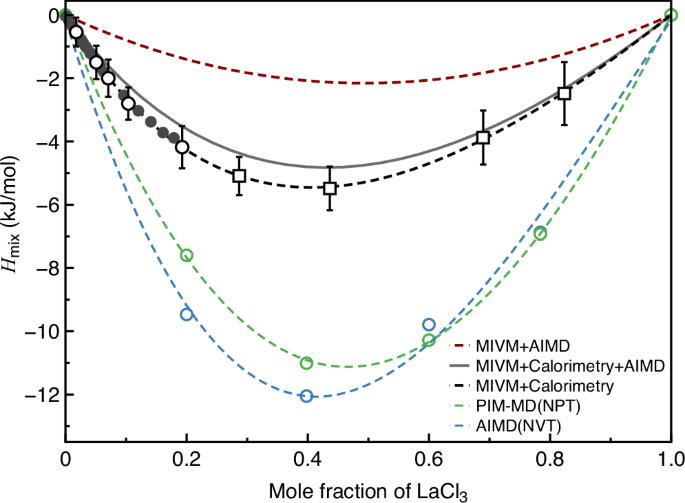

Fig. 1: Experimentally and computationally obtained ΔHmix in the present work.
Fig. 1: Experimentally and computationally obtained ΔHmix in the present work.
Full size image

Closed black and open black circular data correspond to the experimental ΔHmix values obtained through the continuous (ΔHcd) and physical mixture drop (ΔHpd) methods at 873 K; and the open black cubic data represent experimentally obtained ΔHmix values through ΔHpd at 1133 K. Dotted green and blue curves and data represent the direct computation of ΔHmix from PIM-MD (NPT) and AIMD (NVT), respectively. Dotted red curve represents the ΔHmix curve obtained based on the MIVM+AIMD model. Dotted black curve represents the MIVM regression fit of the experimental data with B12 and B21 as free parameters. Gray solid curve represents the ΔHmix curve obtained by AIMD using MIVM and experimentally benchmarked B12 and B21 parameters, so the MIVM+Calorimetry+AIMD approach.

Application of MIVM to the mixing enthalpy of LaCl3 in eutectic LiCl–KCl

Although accurately reproducing ΔHmix directly from AIMD remains a challenge, AIMD offers an improved description of intermolecular interactions and solvation structure compared to PIM-MD. Building on this advantage, we implemented AIMD-derived parameters into the MIVM model to yield a new method, MIVM+AIMD. We applied a pseudo-binary formulation of MIVM, using a modified definition of coordination number, to describe the mixing behavior of LaCl3 in eutectic LiCl-KCl, as detailed in Eq. 1. In this formulation, component 1 is LaCl3 and component 2 is the eutectic LiCl-KCl:

$$\frac{\triangle {H}_{m}^{M}}{{RT}}= \frac{1}{2}\left\{\sum\limits_{i=1}^{2}{Z}_{i}{x}_{i}\times \left[{\left(\frac{\sum\limits_{j=1}^{2}{x}_{j}{B}_{{ji}}{{\mathrm{ln}}}{B}_{{ji}}}{\sum\limits_{j=1}^{C}{x}_{j}{B}_{{ji}}}\right)}^{2}-\left(\frac{\sum\limits_{j=1}^{2}\left(1+{{\mathrm{ln}}}{B}_{{ji}}\right){x}_{j}{B}_{{ji}}{{\mathrm{ln}}}{B}_{{ji}}}{\sum\limits_{j=1}^{C}{x}_{j}{B}_{{ji}}}\right)\right]\right\}\\ -\sum\limits_{i=1}^{2}{x}_{i}\left(\frac{\sum\limits_{j=1}^{2}{x}_{j}{V}_{{mj}}{B}_{{ji}}{{\mathrm{ln}}}{B}_{{ji}}}{\sum\limits_{j=1}^{2}{x}_{j}{V}_{{mj}}{B}_{{ji}}}\right)$$
(1)

where T is the temperature (K), R is the gas constant (kJ/mol·K), Zi is the liquidus first shell coordination number of component i, Vmj is the liquidus molar volume of component j (cm3/mol), Bij and Bji are the pair potential parameters of the i – j pairs defined as

$${B}_{{ij}}={e}^{-\left({\varepsilon }_{{ij}}-{\varepsilon }_{{jj}}\right)/{RT}},\,{B}_{{ji}}={e}^{-\left({\varepsilon }_{{ji}}-{\varepsilon }_{{ii}}\right)/{RT}}$$
(2)

where εii, εjj, and εij (kJ/mol) refer to the potential energies of the i – i, j – j, and i – j pairs, respectively26. Further description and visualization of the MIVM model can be found in in SI section 1.1.

Table 1 summarizes the input parameters used in the MIVM model to construct the ΔHmix functions shown in Fig. 1, alongside calorimetry-measured results. Vm1 and Vm2 were referenced from prior thermomechanical analysis (TMA) data55. The remaining four parameters (Z1, Z2, B12, and B21) were provided either from AIMD or through MIVM fitting. Specifically, RDFs of La-La, Li-K, La-Li, and La-K (Fig. 2) were used to calculate Z1 = 8.76 and Z2 = 8.39. In our initial application of MIVM, the pair potential energies ε11, ε22, and ε12 were derived at the minima of the cation-cation potential of mean force, calculated from the corresponding RDFs (Index 1, Fig. 2) using the equation: \(w\left(r\right)=-{k}_{B}T{{\mathrm{ln}}}\left(g\left(r\right)\right)\). Using Eq. 2 in the supplementary information, we obtained B12 = 1.11 and B21 = 1.09, as listed in Table 2. However, the resulting MIVM+AIMD approach predicted ΔHmix curve (Fig. 1) deviates toward a more endothermic profile than the experimental values (see also Section “Result and discussion” of the supplementary information, Tables S4 and S7). This deviation may arise from finite-size effects (notably longer-range organization) or limited configurational sampling due to the high computational cost of this method.

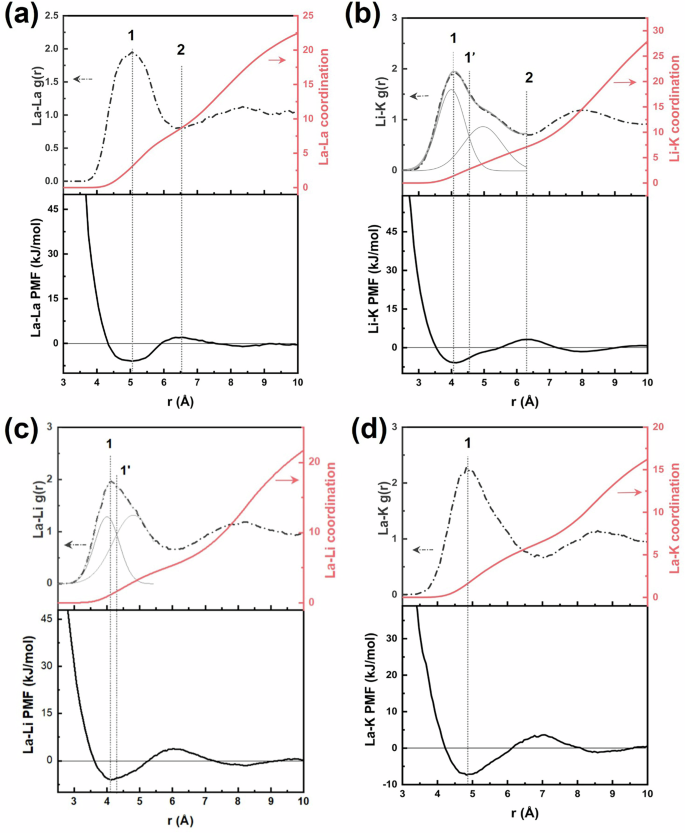

Fig. 2: AIMD calculated radial distribution functions (RDF) depicted as the dashed grey curves, CN represented as solid red curves, and potentials of mean force (PMF) depicted as solid black curves, for cation-cation pairs in the LaCl3–LiCl-KCl system.
Fig. 2: AIMD calculated radial distribution functions (RDF) depicted as the dashed grey curves, CN represented as solid red curves, and potentials of mean force (PMF) depicted as solid black curves, for cation-cation pairs in the LaCl3–LiCl-KCl system.
Full size image

a La-La pairs of pure molten LaCl3. Dotted indexes marked by 1 and 2 represent the PMF energy for the ε11 parameter, and Z1 La-La CN for MIVM, respectively. b Li-K pairs of molten 58 mol% LiCl - 42 mol% KCl eutectic. Dotted indexes marked by 1 and 2 represent the PMF energy for the ε22 parameter, and Z2 Li–K CN for MIVM, respectively. Index marked by 1’ corresponds to the PMF energy of the ε22 and La-Li component of ε12 parameter benchmarked by the MIVM fit of the experimental ΔHmix. K-Li RDF and CN are shown in Fig. S6. c La-Li pairs of molten LaCl3–LiCl-KCl melt with 20 mol% LaCl3 loading, calculated at 873 K. Dotted index marked by 1 represents the La-Li PMF energy component for the ε12 parameter for MIVM. d La-K pairs of molten LaCl3–LiCl-KCl melt at 20 mol% LaCl3 loading. Dotted index marked by 1 represents the La-K PMF energy component for the ε12 parameter for MIVM.

Table 1 MIVM+Calorimetry+AIMD and previously determined experimental parameters used to estimate the ΔHmix of LaCl3 in LiCl-KCl eutectic through equation 1 (black dashed and gray solid curves 1 in Fig. 1)
Full size table
Table 2 AIMD determined distances between the cation pairs with the corresponding PMF energies
Full size table

To account for the non-ideal mixing effects, we applied two modifications to better connect solvation structure to energetics. In the first approach, the PMF-related Bij parameters were allowed to relax (with CN and molar volumes fixed) by fitting of MIVM-generated ΔHmix against experimental data (Fig. 1). From this fitting, the refined values of Bij were obtained as B12 = 1.48 ± 0.02 and B21 = 0.98 ± 0.02 (Table 1). The PMF corresponding to the new Bij from the MIVM+Calorimetry approach is higher than that from MIVM+AIMD, confirming that the averaged interatomic potentials represent solvation structures extending beyond the first cation-cation shell environment. For instance, deconvolution of the Li-K and K-Li RDFs (Fig. 2b and S6, respectively) reveals two distinct coordination environments for Li–K in eutectic LiCl-KCl. AIMD modeling supports this finding, showing multiple coordination environment (Fig. 3). Similar behavior has been reported by Emerson et al.49 in the LaCl3–NaCl molten chloride system, where La3+ was observed to occupy several shallow free energy minima with little to no barriers separating metastable states from the global minimum.

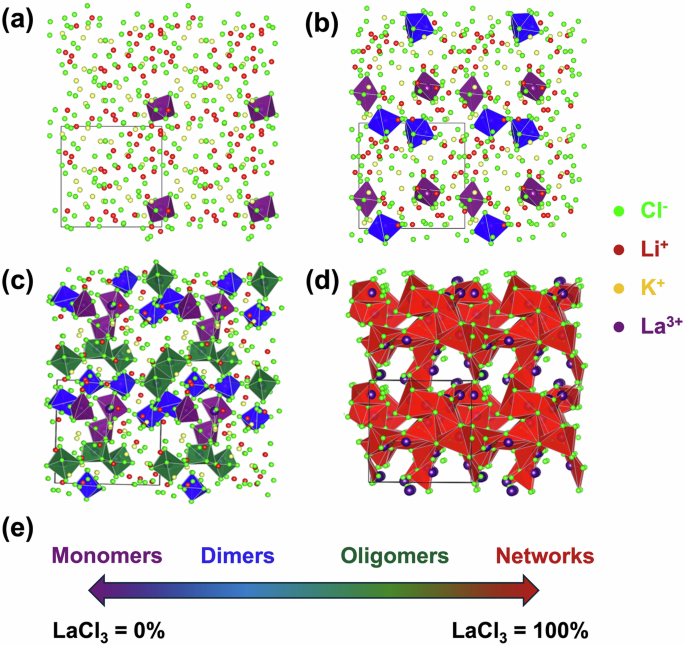

Fig. 3: AIMD calculated solvation structures of LaCl3 in 58 mol% LiCl–42 mol% KCl eutectic, with the periodic boundary outlined in black.
Fig. 3: AIMD calculated solvation structures of LaCl3 in 58 mol% LiCl–42 mol% KCl eutectic, with the periodic boundary outlined in black.
Full size image

Purple polyhedra represent the LaClz monomers (ave. z = 6.34), blue polyhedra the La2Clz dimers, green polyhedra the LaxClz (x ≥ 3) oligomers, and red polyhedra the LaxClz networks (x » 1000). The La-Cl first shell coordination distributions are demonstrated in Fig. S9 and Table S10. a LaCl3 speciation at 1 mol% LaCl3, calculated at 873 K; b LaCl3 speciation at 7 mol% LaCl3, calculated at 873 K; c LaCl3 speciation at 20 mol% LaCl3, calculated at 873 K; d Structure of pure LaCl3 calculated at 1200 K; and e AIMD determined generalized trend of the LaCl3 speciation in LiCl-KCl.

In the second modification by using the hybrid MIVM+Calorimetry+AIMD approach, the PMF was determined at the average of two deconvoluted Li-K RDF peak positions (index 1’ in Fig. 2b), yielding ε22 = -3.92 kJ/mol at 4.55 Å, compared to ε22 = -5.85 kJ/mol at 4.15 Å from the MIVM+AIMD approach. Similarly, the first La-Li cation-cation coordination can be deconvoluted into two locally adjacent environments using normal distribution functions (Fig. 2c), giving an averaged distance of 4.33 Å (index 1’ in Fig. 2c). The PMF at this position was determined to be ε12 = -5.47 kJ/mol, compared to -6.04 kJ/mol at the global PMF minima (4.13 Å). These refined PMF ε22 and ε12 produced new pair-potential parameters, B12 = 1.38 and B21 = 1.04, respectively. Since their derivations were inspired by the mismatch of measured ΔHmix and those reproduced by MIVM+AIMD, we consider them AIMD-derived but experimentally benchmarked. Applying these new Bij in conjunction with fixed CN and molar volumes enables a more rational reproduction of ΔHmix based on the solvation structure.

The hybrid MIVM+Calorimetry+AIMD approach fully reproduced ΔHmix within the experimental uncertainty (Fig. 1). The slightly endothermic character implies the MIVM+Calorimetry+AIMD model only accounts for binary interactions, while non-trivial corrections would be required to capture ternary or quaternary interactions. A similar outcome was reported by Poizeau and Sadoway, who used the MIVM method to predict the partial Gibbs energies of Cs–Sb–Pb alloys53.

In that case, the more endothermic mixing energies were attributed to the method’s inability to account for the first-nearest-neighbor interactions. By contrast, in our molten salt system, we hypothesize that the discrepancy in the MIVM+Calorimetry+AIMD predictions arises from missing high-order interactions, a topic elaborated further in Section “Bridging ΔHmix and the solvation structure of molten LaCl3 – (LiCl–KCl)”.

Sensitivity of MIVM+Calorimetry+AIMD to variances in input parameters

Knowing that the hybrid MIVM+Calorimetry+AIMD approach can effectively describe and predict thermochemistry of pseudo-binary molten salt, we tested the model sensitivity to variations in input parameters by perturbing Z1, Z2, B12, and B21 by ± 10% from Table 1 (excluding Vm1 and Vm2, which are benchmarked in AIMD). As shown in Fig. 4, changes in coordination number had negligible impact on predicted ΔHmix, indicating model stability and limited ability to constrain CN experimentally. In contrast, perturbation in Bij produced ~25% shifts in generated ΔHmix, suggesting a strong sensitivity. These results highlight that accurate and rationale determination of the pair potential energies from the MIVM+Calorimetry+AIMD model is possible to be used with high confidence for benchmarking AIMD calculations.

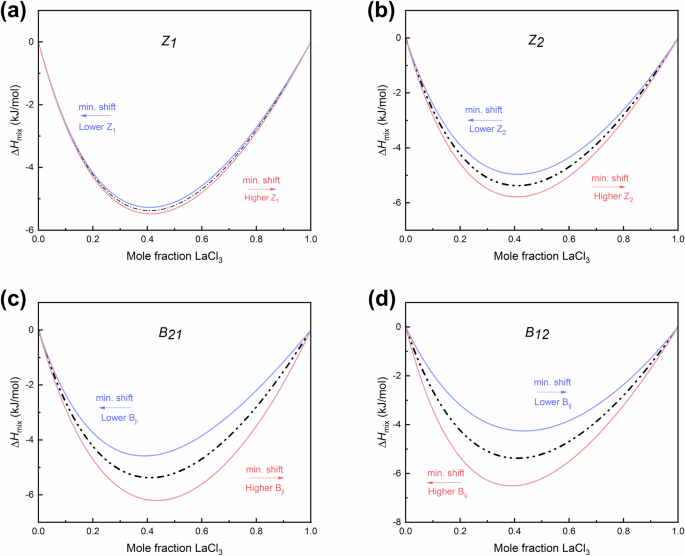

Fig. 4: Iterative MIVM+Calorimetry+AIMD fitting analyses of experimentally obtained ΔHmix through single variable perturbation.
Fig. 4: Iterative MIVM+Calorimetry+AIMD fitting analyses of experimentally obtained ΔHmix through single variable perturbation.
Full size image

Black dashed curve represents the MIVM fit of calorimetric data with values from Table 1 (Z1, Z2, B12 and B21). The red solid curve represents raising the magnitude of the corresponding parameter by 10% and the blue solid curve represents lowering the magnitude of the corresponding parameter by 10%. a Perturbation of the Z1 parameter; b Perturbation of the Z2 parameter; c Perturbation of the B21 parameter; and d Perturbation of the B12 parameter.

To better distinguish the statistically significant difference between the curves in Fig. 4, we performed an analysis of covariance (ANOVA)56 on the perturbated datasets (Fig. S10a, Evaluation of MIVM, and its applications in supplementary information). ANOVA shows that ΔHmix generated by MIVM+Calorimetry+AIMD is statistically different at the 0.05 level when compared to datasets from ±10% perturbations of Z2, B12, and B21. However, when comparing related perturbed parameters (e.g., + Z1 vs. +Z2, +B12 vs. +B21, −Z2 vs. −Z1, and −B12 vs. −B21), ANOVA found no statistical difference at the 0.05 level (Fig. S10c). This suggests that if paired input parameters have similar directional inaccuracies, the resulting fits from MIVM+Calorimetry+AIMD cannot be statistically distinguishable.

Based on the sensitivity analysis, we suggest that when experimental data are available, fitting measured ΔHmix with the MIVM+Calorimetry+AIMD framework provides a robust means, perhaps the best available experimental approach, for constraining pair potential energies. In contrast, extracting coordination number with this method should only be attempted when pair potential energies are well constrained, or when experimental or computational inputs for Z1 and Z2 are lacking. This conclusion is supported by interactive perturbation tests (Fig. 4b), which rank Bij higher importance than Zi on perturbing ΔHmix. These results reiterate that MIVM+Calorimetry+AIMD is relatively robust to uncertainties in the coordination number of the first cation–cation shell.

Bridging ΔH mix and the solvation structure of molten LaCl3 – (LiCl–KCl)

The MIVM+Calorimetry+AIMD fit of ΔHmix produced an asymmetric mixing curve with a minimum of −5.45 kJ/mol at 41.71 mol% LaCl3, in general agreement with previous studies of LaCl3 mixing in alkali chlorides4,47. The magnitude and asymmetry of the curve closely resemble those of LaCl3 in molten NaCl4,47, likely due to the similarity between the ionic radii of Na+ and the weighted mean radius of the eutectic cations (0.58Li+ −0.42 K+)57. The irregularity in ΔHmix can be explained by the AIMD simulated solvation structure of LaCl3 in the molten eutectic LiCl-KCl. Figure 3 shows the solvation environment of La3+ at 1, 7, 20, and 100 mol% LaCl3, while Fig. S9 presents the CN distributions of the La–Cl first shell at the corresponding LaCl3 concentrations (Table S10). In addition, Figs. S7 and S8 illustrate the evolution of RDF and CN of cation–cation and cation–anion pairs, respectively, across LaCl3 concentrations in the eutectic. The corresponding values are tabulated in Tables S8 and S9 (Solvation structure from molecular dynamics simulations in supplementary information).

At the dilute LaCl3 concentrations (i.e., ≤1 mol% LaCl3), AIMD predicts that La3+ forms predominantly monomeric, locally ordered structures, with La primarily 6- and 7-fold coordinated (67% and 32% in CN distribution, respectively) to the adjacent chlorides, corresponding to the LaCl63- and LaCl74- complexes. Higher La-Cl CN (>7) is negligible, with only 1% of La atoms coordinated by 8 Cl in the first shell (Fig. S9). The formation of LaCl63- in alkali chloride melts has been hypothesized previously47, with their formation further constituting the fundamental assumption of the ASM method. However, our AIMD results demonstrate that even at dilute La loadings, an equilibrium exists between LaCl63- and LaCl74- complexes. This observation is consistent with recent work by Emerson et al.49 which reported the coexistence of these complexes, based on spectroscopic and computational studies.

At 7 mol% of LaCl3, AIMD predicts increasingly complex solvation environments, with LaClxy- monomers, dimers, and trimers present at equilibrium in approximate populations of 85.98, 11.24, and 2.78%, respectively (Table S10). The La–Cl CN shifts to 55% CN = 6, 42% CN = 7, and 3% CN = 8, with LaCl63- becoming less prevalent, as dimeric and trimeric structures stabilize higher coordination through edge- and corner-sharing. Oligomerization intensifies at 20 mol%, where the distribution becomes 46.14% monomers, 14.75% dimer, 8.42% trimers, and 30.69% oligomers (x ≥ 4 in Lax–Clz). At this concentration, the proportion of 7-coordinated La rises to 45%, nearly equal to 6-coordianted (46%). Similar increases in CN and oligomerization have been reported in related molten salt systems such as LaCl3-NaCl and UCl3/UCl4–NaCl49,50. Furthermore, the RDF of La-Cl shows an increase of the average CN from 6.35 at 1 mol% to 6.52 at 7 mol% and 6.63 at 20 mol% (Table S9). Corresponding La–Cl distances elongate with oligomerization, as edge- or corner-sharing polyhedra reduce the polarizability of shared Cl ligands, stabilizing dimeric and trimeric La-Cl structures. These oligomers, therefore, exhibit higher La–Cl CN with reduced polarization of each coordinated Cl. Describing their energetic contributions requires a model beyond binary interaction. In the MIVM+Calorimetry+AIMD method, high-order interactions are implicitly included: calorimetry benchmarks the effective interatomic pair potentials used in AIMD, which reflects an effective binary interaction that includes the mean-field effect of high-order interactions. The effective metal-metal distance (e.g., indices 1’ in Fig. 2), based on which the averaged interatomic pair potential is defined, should always be farther than the first metal-metal coordination peak, and thus represents the overall oligomer geometry.

At high LaCl3 loading, oligomeric networks expand significantly. The increasing La-La interconnections are likely driven by the chloride deficiency in the LiCl-KCl medium, forcing La to form complex chloride-sharing networks13. At 100 mol% LaCl3, AIMD suggests that the molten structure is best described as a salt network of interconnected La–Cl polyhedra joined through edge-, corner-, and face-sharing polyhedra. The La–Cl CN populations are 11, 48, 34, and 7% for the 6-, 7-, 8-, and 9-coordinated environments, respectively, with an average CN of 7.45 that is in general agreement with previous studies29,49. These AIMD-calculated solvation structures rationalize the irregular mixing behavior observed in calorimetry, where the exothermic ΔHmix arises from the formation of complex and concentration-dependent La-metal coordinate environments. The enthalpic trends can be further explained by polarization effects: as induced polarization is relaxed, oligomeric La-Cl structures form and stabilize. Prior calorimetric studies on LaCl3 in alkali chloride melts have shown that ΔHmix becomes more exothermic as the polarization capacity of the spacer salt cation increases4. Larger alkali cations (K+, Cs+, and Rb+) provide expanded coordination shells that enables the softer cations to stabilize the La–Cl oligomers in a charge-alternating network58. Evidence of preferential cation interactions is observed in AIMD by comparing the AIMD simulated La–Li versus La–K CN: despite Li being more abundant than K in the eutectic, the RDF shows CNLa-Li < CNLa-K at all examined LaCl3 concentrations (Table S9). This suggests that K+ preferentially interacts with the local chloride environment around La, contributing to the non-random mixing behavior of LaCl3 in LiCl-KCl. In addition to polarization, Coulombic ordering and melt ionic packing may also influence thermodynamically favored solvation states58, though further studies are required to confirm these effects.

Conclusions

This work presents an integrated framework that combines experimental thermodynamics with solvation structures and intermolecular interaction energies obtained from ab initio molecular dynamics to predict enthalpies of mixing in molten salt systems. When used independently, parameterized empirical models and molecular simulations exhibit inadequacies in their ability to predict ΔHmix. Empirical models rely on assumptions that may neglect key physics and chemistry of solutions, while limitations in configurational sampling and model Hamiltonians in the PIM-MD and PBE-D3 AIMD methods could cause errors in absolute values of predicted ΔHmix. By integrating calorimetry and AIMD through the hybrid MIVM+Calorimetry+AIMD approach, we establish an effective experimental-computational loop that enables a comprehensive thermodynamic understanding of molten salt mixing. As a case study, we performed drop calorimetric experiments to measure the enthalpy mixing functions of LaCl3 in eutectic LiCl-KCl across the full composition range at high temperatures. AIMD provided solvation structures and interatomic pair potentials. While AIMD alone underestimated the exothermic nature of mixing, incorporating calorimetric data with MIVM refined the PMF functions, offering a high-sensitivity benchmark for AIMD. Sensitivity analysis demonstrated that the hybrid MIVM+Calorimetry+AIMD approach is tolerant of coordination number errors but highly sensitive to pair potential parameters. This integration provided new chemical insight: the irregular ΔHmix behavior arises from oligomer formation and concentration-dependent La-metal coordination environments, which alter effective metal-metal distances and produce correlations extending beyond the first metal-metal coordination shell. The averaged interatomic pair potential thus captures effective binary interactions, while implicitly incorporating high-order interactions not explicitly included in MIVM.

Methods

Calorimetric methods

Differential drop-calorimetric (DDC) method

An argon-sealed ampule of the ultra-dry LaCl3 was transferred to and opened within a glovebox (O2 < 1 ppm, H2O < 0.5 ppm). LaCl3 beads were subsequently ground into a fine powder and pressed into ~20 mg pellets using a hand die. The pellets were then loaded into an annealed 3D printed airtight dropper59 that was then used to transfer the sample to the calorimeter. All the samples’ preparation, loading, and storage were done within the glovebox. The LaCl3 pellets were then dropped from room temperature into the calorimetric chamber (ambient exposure of <1 s), which contained a nickel crucible with the molten LiCl-KCl eutectic (~200 mg) at 873 K in a steady argon atmosphere (~100 ml/min flow). Upon dissolution and mixing of LaCl3 within the LiCl-KCl eutectic, the continuous drop enthalpy (ΔHcd) was obtained. The resulting ΔHcd values were then deconvoluted using the thermochemical cycles in the Calorimetric data session, Table S3 to yield the differential (or incremental) enthalpy of mixing (dHi,mix), which denotes the changes in the heat of mixing corresponding to changes in La concentrations within the melt. LaCl3 samples were dropped into the LiCl-KCl eutectic at periodic intervals (~1.25 h), which changed the mol% of La within the melt and thus generated dHi,mix values across the liquidus range of the LaCl3–LiCl-KCl system at 873 K. The dHi,mix values were then cumulatively summed to obtain molar enthalpies of mixing (ΔHmix) (Table S3) corresponding to the overall La concentration introduced into the eutectic LiCl-KCl melt. The validity of this method was evaluated based on the consistency of the ΔHmix values obtained from four independent trials reported in Table S4, with a curve presented in Fig. 1.

Integral drop calorimetric (IDC) method

LaCl3 and LiCl-KCl powders were mixed in specific LaCl3–LiCl-KCl ratios and were homogenized using an agate pestle and mortar, to yield 5 physical mixtures with LaCl3 concentrations corresponding to 1.77, 5.09, 7.06, and 19.26 mol% LaCl3 measured at 873 K. Four additional mixtures were prepared with LaCl3 concentrations corresponding to 28.68, 43.64, 68.95, and 82.36 mol% LaCl3 and measured at 1133 K. Samples from the corresponding physical mixtures were then pressed into ~10 mg pellets using a hand die and loaded into annealed 3D printed airtight droppers59. This approach is similar to literature work5,60. The physical mixtures were then dropped from room temperature into the calorimetric chamber, which contained empty nickel crucibles at either 873 K or 1133 K in a steady argon environment (~100 ml/min flow). Upon introduction of the physical mixtures into the calorimetric chamber, the pellets underwent the following thermal reactions within the crucibles: (i) melting of the LiCl-KCl eutectic; (ii) dissolution of LaCl3 within the eutectic; and (iii) mixing of LaCl3 and LiCl-KCl. Upon completion of these reactions, the integral heat effect, termed the drop enthalpy of physical mixtures (ΔHpd), was obtained. The resulting ΔHpd values were then used in a corresponding thermochemical cycle (Tables S5 and S6 for reactions at 873 and 1133 K, respectively) to calculate the molar ΔHmix at a given physical mixture La content (Table S7). At least 3 consecutive measurements were made for a given physical mixture ratio, resulting in ΔHmix values with experimentally bound uncertainties (Table S7). Data for the 873 and 1133 K trails are plotted as dark grey solid squares and solid diamonds in Fig. 1, respectively, with two standard deviations serving as uncertainty bounds.

Computational methods

Polarizable ion molecular dynamics (PIM-MD)

Initial structures were equilibrated using PIM in the CP2K simulation package61, and the resulting densities are shown in Fig. S2. The PIM parameters used in this work were taken from Salanne et al.28 The initial random configurations for each system were equilibrated with 1 ns of molecular dynamics (MD) at constant volume and 2000 K (NVT ensemble), followed by 1 ns of MD at 1 bar and 1133 K (NPT ensemble), and a final 2 ns of NPT MD at 1 bar and 1133 K for generating enthalpy data. The timestep used for all PIM simulations was 0.5 fs. The Nose-Hoover thermostat with a chain length of 3 and a time constant of 100 fs was used to maintain a constant temperature during MD. The barostat62 implemented in CP2K used a time constant of 1000 fs to maintain a pressure of 1 bar during NPT simulations. We note that the PIM model27 for LaCl3 was fitted to reproduce experimental liquid density and structure functions from the scattering experiments and was not specifically trained to yield accurate thermodynamic parameters for the interaction of the individual salt’s components with its environment.

Ab-initio molecular dynamics (AIMD)

An initial set of AIMD simulations was performed to attempt to directly reproduce ΔHmix. In this case, the PIM-MD equilibrated systems were used to perform ab initio molecular dynamics (AIMD) simulations with the Vienna Ab initio Simulation Package (VASP), version 6.2.163,64. The Perdew-Burke-Ernzerhof (PBE)65,66 functional was used, and dispersion interactions were modeled using Grimme’s empirical D3 correction67. Valence electrons were expanded using plane waves with a kinetic energy cutoff of 500 eV for all systems. The projector augmented-wave (PAW) method68 was used to approximate core-valence interactions. A convergence criterion of 10−5 eV was used for the self-consistent field (SCF) calculations. Charge density mixing during SCF calculations was performed using the Pulay mixing scheme69. A 1 × 1 × 1 k-point mesh grid was used for all systems. The PIM-MD equilibrated simulation boxes (and associated densities) led to very large initial pressures in each PBE-D3 AIMD simulation. These impacted the AIMD pressures non-uniformly across the composition range, ranging from approximately −2 kbar up to 8 kbar. To mitigate the effects of non-zero pressures on the predicted mixing enthalpies, a series of NVT AIMD simulations (at least 12 ps each) was performed with varying volumes to identify the appropriate PBE-D3 volume (Fig. S3) to yield an equilibrium pressure near 1 bar (see Fig. S3). This approach was used instead of direct equilibration in the NPT ensemble due to the large computational cost associated with running sufficiently long AIMD to properly estimate the equilibrium volumes in NPT. After identifying the PBE-D3-equilibrium volumes and associated densities for each composition, AIMD simulations for each composition were extended to ~22 ps (the production run), from which the first 2 ps were excluded during analysis.

In comparison to the experimental densities observed for the pure components, the PBE-D3 density functional underestimates the density of liquid LaCl3 at T = 1133 K by 9.2%, yet provides an accurate density estimation for the LiCl-KCl eutectic mixture. The PIM-MD and PBE-D3 densities deviate more as the mole fraction of LaCl3 increases, with the PIM model accurately reproducing the density of liquid LaCl3. In this respect, the deficiency of DFT is likely related to underestimation of the interaction of LaCl3 with its environment, which is consistent with previous observations49 that DFT-based AIMD simulations yielded smaller La-Cl CN and reduced first RDFs peaks for the La-Cl and La-La pairs compared to the PIM model. Mixing enthalpies using the trajectories were computed for the cells with the smallest pressure magnitudes. Block averaging was used to prepare uncorrelated samples of the potential energy or enthalpy from each composition’s simulation. In each case, the block size used for averaging was confirmed to be sufficiently large enough such that adjacent block averages were decorrelated, producing ~15 samples from each AIMD trajectory and 4000 from each PIM trajectory. The uncertainties in the predicted mixing enthalpies are represented as 95% confidence intervals, which were estimated via bootstrapping (Nbootstrap = 10,000) on the uncorrelated samples from each simulation. The uncertainty in the ΔHmix due to the average pressure deviating from 1 bar was estimated to be below 0.6 kJ/mol (Fig. S4). In line with the PIM simulations, the magnitude of ΔHmix from the AIMD simulations is significantly overestimated (more than twice) compared to the experimental values (Fig. 1). In general, GGA DFT-based AIMD simulations are not expected to achieve a desirable level of ‘chemical accuracy’ for a diverse set of systems, especially for those containing f-block elements, where the self-interaction error of DFT becomes very prominent70. It remains to be seen if hybrid DFT methods can significantly reduce the error in ΔHmix, or resorting to more accurate methods, such as Random Phase Approximation (RPA), coupled cluster, and/or quantum Monte Carlo, would be necessary to bring the error down to the level expected from CALPHAD modeling. Another promising option is the use of machine learning (ML) force field developments for testing these more advanced quantum mechanical methods for predicting thermodynamic properties of molten salts.

Given the inability of the PBE-D3 AIMD simulations to significantly improve the predicted ΔHmix, relative to PIM-MD, we instead took an approach where the experimental volume was fixed and much longer-timescale AIMD simulations were run so as to obtain the best configurational sampling possible for radial distribution functions, coordination numbers of and inter-particle interaction energies (potentials of mean force) for use in the MIVM. In this case, simulation boxes were constructed with the compositions shown in Table S1. The CP2K package61,71 version 9.1, using the Quickstep module, was employed for Born-Oppenheimer density functional theory molecular dynamics simulations. Experimental densities were used for the construction of the simulations. The pure salt densities were determined using the linear temperature-dependent density formula:

$$\rho =a-{bT}$$
(3)

where the a and b parameters for the LiCl, KCl, and LaCl3 came from the molten salt database by Janz72. The ideal mixing model developed at Idaho National Laboratory (Eq. 4) was implemented to determine the density of the molten salt mixtures73, where the density, ρ, is given by the summation of the individual weight fractions and densities, \({w}_{i}\) and \({\rho }_{i}\), respectively.

$$\frac{1}{{\rho }_{{salt},{calc}}}=\sum \frac{{w}_{i}}{{\rho }_{i}}$$
(4)

The simulation boxes were initially generated using PACKMOL74, where the dimensions for the boxes ranged from (14.757 × 14.757 × 14.757 Å) to (20.45 × 20.45 × 20.45 Å). Detailed information for the composition of each simulation is found in Table S1.

The equilibrium procedure at the experimental density calculated in Eq. 4 utilized the NVT ensemble using a Nose ́ thermostat at 873 K for LiCl–KCl–LaCl3 (LaCl3 = 1, 7, and 20 mol%), higher than the reported melting point for this range of La concentration in the LiCl-KCl eutectic75. Additionally, 1200 K was used to model molten LaCl3. Geodecker, Teter, and Hutter (GTH) psuedopotentials with the Perdew, Burke, and Ernzerhof (PBE) exchange-correlation function with D3 dispersion corrections were applied to all ions with the accompanying DZVP-MOLOPT basis set for all ions66,67,76,77,78. It is well documented that the generalized gradient approximation (GGA) functions in DFT poorly describe systems with strongly correlated d- and f-elements. This was resolved through the use of a Hubbard-like term implemented via DFT + U with an effective U (\({U}_{{eff}}\)) value of 4 eV79. This simulation method is referred to as PBE-D3 + U. All simulations were run in the NVT ensemble with a time step of 1 fs for a total of 150 ps, with the last two-thirds (100 ps) employed for analysis. The radial distribution functions, coordination numbers in the first coordination/solvation shell, and oligomerization of La that occurs through bridging anions were calculated. Using the radial distribution functions, the potential of mean force (PMF) w(r) was obtained, as it is proportional to the negative natural log of the g(r).

$$w\left(r\right)=-{k}_{B}T{{\mathrm{ln}}}\left(g\left(r\right)\right)$$
(5)

The value of the PMF at the minimum of PMF function (which corresponds to the maximum in the RDF for the pair) was used as an estimate of the associated pair interaction energy.
