Introduction

The chemistry of zirconia materials has been prolifically studied due to their superb properties, which have found application in a variety of topics ranging from advanced ceramics1, oxygen sensors2, optical fibres3 to fuel cells4, among others. Core to these applications is the well-defined phase relationships among the zirconia polymorphs, crystalline monoclinic, tetragonal and cubic, in addition to the amorphous phase5. The stabilities of these phases have been well established in literature to arise from factors including particle size, gas phase pressure, temperature, or doping level of specific elements5,6. Despite the exceptional literature available on m-ZrO2-based compounds and doping, a notable exception is the role minor actinides and 5 f element chemistry have in influencing the stability of zirconia materials. The relevance of this topic pertains to the formation of m-ZrO2 within the inner lining of spent nuclear fuel (SNF) Zircaloy cladding that forms during nuclear reactor operations and fuel burnup7. The interaction of the cladding and m-ZrO2 with the fuel is pertinent as it can affect the stability of the fuel elements during reactor operations and acts as a barrier to radionuclide release when stored as SNF8. The formation of ZrO2 within SNF is understood to occur from changes to the fuel’s oxygen potential, which is particularly influenced by the occurrence of Am9. This effect becomes more pronounced in higher burnup nuclear fuels and also mixed oxide (MOX) fuels that blend PuO2 and UO210,11. Subsequently, Am and ZrO2 share an in-part symbiotic relationship within SNF, promoting the need for their joint chemical investigation, particularly regarding the incorporation and chemistry of the former in the latter.

Investigating the chemistry of minor actinide elements within m-ZrO2 has been chiefly performed via surrogate methods, often using lanthanide (Ln) elements. Relatively similar trends are observed between different trivalent Ln’s when doping m-ZrO2 due to their similar chemical properties5. In contrast, actinide elements exhibit a more diverse chemistry, which is influenced by the variability of 5 f electrons partaking in bonding; this, in turn, is then actinide element specific12. This is well exemplified by the chemistry of neighbouring Pu and Am, where the former can adopt oxidation states ranging from 3+ to 6+ in comparison to Am, which is typically confined to 3+ and 4 + 13. The difference is linked to the transition from itinerant to localised behaviour of the 5 f electrons in Pu and Am, respectively. Critically, this prevents direct extrapolation of chemical behaviour occurring for lighter actinide elements like Th, U and Pu to heavier and more difficult to handle minor actinide elements, including Am and Cm. Practically, Nd has been often used as a surrogate for Am in a variety of studies, due to similar chemical trends and ionic radii14,15. However, recent comparative studies have also highlighted associated shortcomings in inferring chemical behaviour through such surrogate studies of Am and Nd, especially as the lanthanide surrogate is not stable in the tetravalent oxidation state16. Consequently, in order to appropriately understand the chemistry of m-ZrO2 materials, particularly in the context of SNF stability, but also gauge the relevance of Ln surrogates like Nd, it demands direct studies utilising Am.

In considering the known Am doping chemistry of m-ZrO2, the understanding of the role of Am doping on the structural chemistry of m-ZrO2 is essentially not established. For instance, the level of solubility in the structure, the effect on stabilising the higher temperature tetragonal form, in addition to the overall redox chemistry, are not defined. Pertinently, there is no known Am-Zr-O phase diagram to help provide insight into these questions. If the chemistry of Nd is to be followed, previous work suggests the solubility is limited to 1 mol%, where after a defect fluorite structure is quickly precipitated, followed by eventual cubic pyrochlore structure in space group Fd-3m (No. 227)17. Similarly, if the chemistry of neighbouring Pu is to be followed, the solubility is found to be less than 1 mol% with a similar progression to an F-type cubic structure18. Critically, the ability of a specific element to be incorporated within m-ZrO2 has been shown to be highly dependent on its redox state, as has been shown previously for a variety of different elements5. At high temperatures, Am can readily disproportionate between its tri- and tetravalent states, depending on the oxygen potential present19. Simultaneously, m-ZrO2 is understood not to support oxygen defects that would occur through trivalent dopant incorporation, suggesting a preference for reaction with Am in its tetravalent state at high temperature. Subsequently, this suggests that during reactor operations, in pile partitioning and speciation may occur for different oxidation states of Am. However, this hypothesis has yet to be tested.

Considering what is described as a global nuclear renaissance in the use of nuclear energy, involving more advanced and higher burnup fuels20,21,22, the inevitable increase in pellet-cladding interactions will lead to enhanced fuel - m-ZrO2 interactions and subsequent solid-state chemical reactivity. Such phenomena will be considerably influenced by Am due to its contribution to changes in the fuel’s oxygen potential. However, the chemistry and ability of Am or other minor actinides to be incorporated within m-ZrO2 remain poorly established. Consequently, to develop critical and currently lacking fundamental insight, we have experimentally examined the incorporation of 5 mol% Am in m-ZrO2 to establish its chemistry and solubility. The synthesised material, produced via high temperature sintering under controlled oxygen potential conditions, was examined using X-ray diffraction (PXRD) with Rietveld analysis and Vegard’s law calculations to determine phase assemblage and assess Am incorporation within m-ZrO2, respectively. Am L3-edge and Zr K-edge X-ray absorption near edge structure (XANES) and extended X-ray absorption fine structure spectroscopy (EXAFS), as well as Am M5-edge high-energy resolution X-ray absorption near edge structure spectroscopic (HR-XANES) techniques, were used to examine both the redox states and local structural chemistry. The thermal dependence and stability of identified phases were further examined using high-temperature in situ powder X-ray diffraction. The results of this investigation are discussed in the context of existing m-ZrO2 literature, with comparison between Am and Ln incorporation, and with implications for fuel and SNF cladding chemical reactivity.

Results and discussion

Synthesis

The synthesis of 5 mol% Am-doped ZrO2 was conducted in a flowing Ar atmosphere at 1600 °C involving 1000 ppm H2O. At this sintering temperature and conditions, this resulted in an oxygen potential of −301 kJ/mol or 4 × 10−9 atm based on readings from the input gas system used. When considering previous thermodynamic investigations of the Am-O system19, the conditions used suggest that Am is predominantly trivalent, existing as AmO2-x prior to potential high temperature reactivity. Nevertheless, PXRD and spectroscopic analysis (discussed in subsequent sections) indicated that m-ZrO2 incorporates Am+4 at ~20% of the original 5 mol% Am used, i.e., ~1 mol%. According to the oxygen potential measurements of AmO2 by Otobe et al., this would still correspond to sub-stoichiometric AmO2 conditions, which would not typically favour such amounts of Am+4 when present solely as the binary Am oxide19. Notably, it has been shown that water vapour can interact strongly with oxide surfaces at high temperature, enhancing oxygen exchange or diffusivity among phases, particularly promoting the formation of thermodynamically stable structures23,24.

Structural and spectroscopic characterisation

Collected PXRD data on the 5 mol% Am-doped ZrO2 sample was analysed using the Rietveld method, where a monoclinic structure in space group P21/c consistent with m-ZrO2 could be well refined against the diffraction pattern. The Rietveld profile is provided in Fig. 1 with determined lattice parameters in Table 1. The lattice volume was determined to be 141.714(4) Å3, which is 1.063 Å3 larger than the expected value for pure m-ZrO2 of 140.651(3) Å325. Such a lattice expansion is consistent with the inclusion of the Am cation within the crystal structure of m-ZrO2, due to its larger size both as a trivalent and a tetravalent cation (1.09 Å and 0.95 Å, respectively, for CN 8) in comparison to Zr (0.84 Å in CN 8)26.

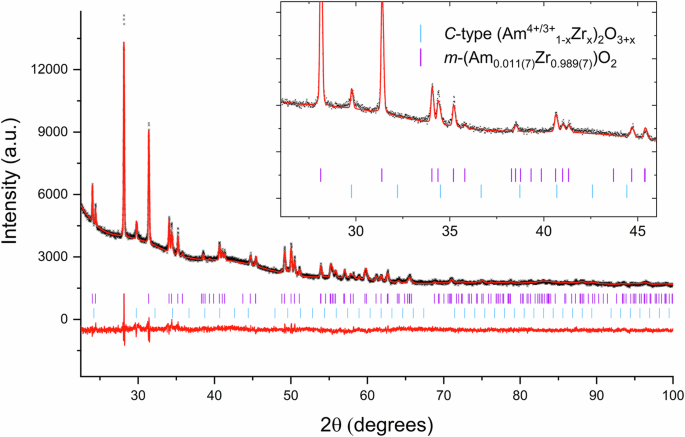

Fig. 1: Rietveld profile made against PXRD data collected on synthesised 5 mol% Am-doped ZrO2.
figure 1

The black markers, upper and lower red lines respectively represent collected data, refined model and the difference curve. The vertical purple and blue markers respectively represent the (Am4+0.011(7)Zr4+0.989(7))O2 monoclinic (SG P21/c) and C-type (Am1-xZrx)O3+x (SG Ia-3) structures determined where their respective refined phase amounts are 98.15(6) and 1.85(6)%. Aberrations in the background are associated with the resin holder that the sample was mounted in. Rwp (%) = 1.95% and Rp (%) = 2.70%. Justification and detail for the final determined structures are provided in the section “Phase Composition Determination via Vegard’s Law”.

Full size image
Table 1 Refined lattice parameters for 5 mol% Am-doped ZrO2 for determined phases m-(Am0.011(7)Zr0.989(7))O2 and C-type (Am1-xZrx)2O3+x in addition reference data for m-ZrO225, C-type Am2O331 and Am2Zr2O730
Full size table

In addition to the main phase m-ZrO2 structure, a minor secondary phase could be observed with reflections at ~30° and 34°. By considering the position of these reflections against possible phases that may occur in the Zr-Am-O system, it was determined that the best candidate matching phases would be a cubic structure in origin, particularly pyrochlore type in space group Fd-3m or C-type Am2O3 sesquioxide in space group Ia-3. Other potential phases, such as AmO2 or a secondary phase m-ZrO2 with depleted Am content, were ruled out based on the position of reflections. Subsequently, refinements were performed using pyrochlore and C-type Am2O3 sesquioxide type models to determine the origin of this secondary phase. To these phases, unit cell volumes of 1124.2(3) Å3 and 1122.1(6) Å3 were determined, respectively. Supplementary Information Note 1, provides details of the subsequent refinements performed. However, from the fitting values alone, it was not definitively clear which of these phases better describes the secondary phase occurring, although a more consistent fit could be observed with the C-type Am2O3 structure used.

Am M5-edge high-energy resolution X-ray absorption near-edge structure spectroscopy

To understand the redox chemistry of Am within the 5 mol% Am-doped ZrO2 sample, and in particular the redox speciation between Am-rich and Am-poor phases in the sample, Am M5-edge HR-XANES experiments were performed. The normalised spectra are plotted in Fig. 2 in addition to the standards Am4+O2, Am3+VO4 and U0.80Am3+0.20O2+x27. The latter standard contains Am3+ incorporated into the UO2 lattice, with a slight trace Am4+ impurity on the surface, previously identified and discussed elsewhere28. This standard clearly shows that Am3+ in a cubic structure produces a double peak, with non-negligible peak intensity at the energy position of the Am4+ main absorption peak, i.e., at ~3890 eV. Comparing the 5 mol% Am-doped ZrO2 sample with the redox standards, clear contributions from both Am4+ and Am3+ can be seen (Fig. 2, orange traces). This is apparent from the peak intensity at 3890 eV, which is greater than in the U0.80Am3+0.20O2+x standard, suggesting a predominance of Am3+ in the sample with a minor contribution of Am4+. The very similar shape of the standard and the Am-doped ZrO2 sample further suggests that the mixed Am3+/4+ is found within a cubic environment. Together with the clear predominance of Am3+, this supports the earlier PXRD results, suggesting that Am3+ resides in either a C-type Am2O3 or pyrochlore-type Am2Zr2O7 phase.

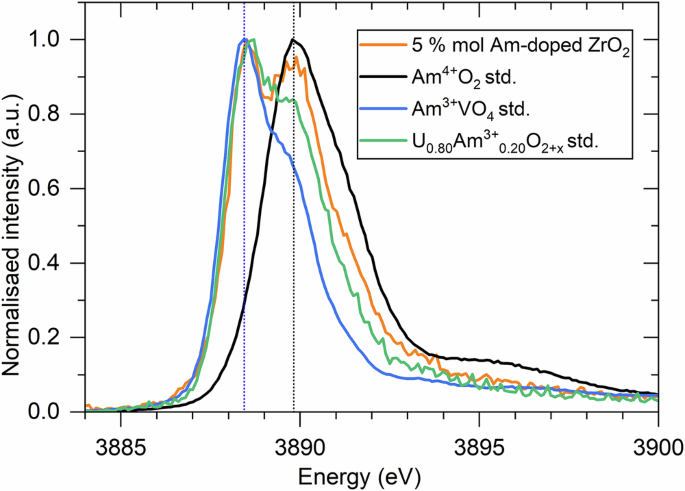

Fig. 2: Am M5-edge HR-XANES spectra of the 5 mol% Am-doped ZrO2 sample.
figure 2

Am M5-edge HR-XANES spectra of the 5 mol% Am-doped ZrO2 sample performed on the Am M5-edge with the standards Am4+O2 and Am3+VO4, as well as U0.80Am3+0.20O2−x (sintered)28. The vertical dashed blue and black lines correspond to the white line positions, representing the Am3+VO4 and Am4+O2 standards, respectively, which define the Am3+ and Am4+ oxidation state reference positions.

Full size image

Zr K-edge X-ray absorption near-edge structure and extended fine-structure spectroscopy

Both Zr K-edge XANES and EXAFS analyses indicate that the local environment of the Zr atoms corresponds to a monoclinic structure. As shown in Fig. 3, the normalised Zr K-edge XANES spectrum of the 5 mol% Am-doped ZrO2 sample closely resembles that of a m-Zr4+O₂ reference. Furthermore, the Zr K-edge k3.χ(k) EXAFS spectrum was successfully fitted using a structural model based on the monoclinic phase. The structural parameters obtained from the fit (Table 2) are consistent with the monoclinic space group and suggest the incorporation of americium into the structure, as evidenced by slightly increased interatomic distances compared to pure m-ZrO₂29. Considering both the quality of the EXAFS fitting and the detection limits of the technique, the data support the conclusion that zirconium is present predominantly in the monoclinic ZrO₂ phase, adopting a distorted monocapped octahedral coordination environment. Subsequently, the Zr XANES and EXAFS analyses further indicate that the secondary phase is mainly americium-based.

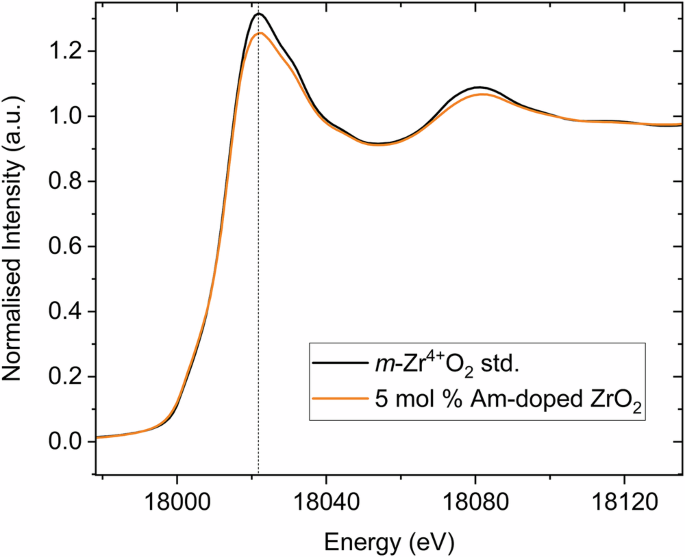

Fig. 3: Normalised Zr K-edge XANES spectra of the 5 mol% Am-doped ZrO2 sample.
figure 3

Normalised Zr K-edge XANES spectra of the 5 mol% Am-doped ZrO2 sample with a m-Zr+4O2 standard. The vertical dashed black line corresponds to the white line position of the m-Zr4+O2 standard, representing the reference Zr4+ oxidation state.

Full size image
Table 2 Structural parameters derived from the analysis of the EXAFS signal of the Zr K-edge for 5 mol% Am-doped ZrO2
Full size table

Am L3-edge X-ray absorption near-edge structure spectroscopy

The oxidation state of Am within the 5 mol% Am-doped ZrO2 sample was investigated using Am L3-edge XANES spectroscopy. The choice of appropriate standards was guided by the M5-edge measurements. As shown in Fig. 4, the XANES spectrum of the 5 mol% Am-doped ZrO2 sample lies between those of Am3+ and Am4+ reference compounds, indicating the presence of mixed-valence states. Linear combination fitting reveals that approximately 80 ± 1% of the americium is present in the trivalent state, with the remaining 20 ± 1% in the tetravalent state. This result is in accordance with the qualitative fingerprint analyses of the Am M5-edge HR-XANES spectra. These results are displayed in Table 3, together with corresponding Zr data from all standard XANES measurements and related phase assignments discussed in subsequent sections.

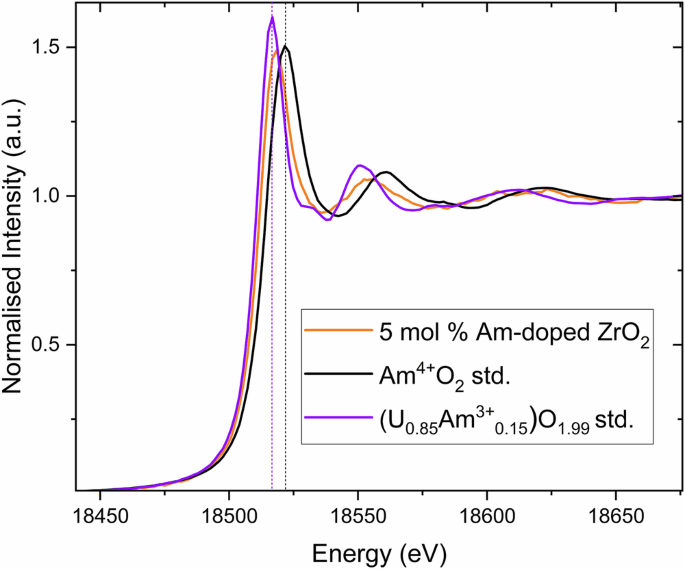

Fig. 4: Normalised Am L3-edge spectra of the 5 mol% Am-doped ZrO2 sample.
figure 4

Normalised Am L3-edge spectra of the 5 mol% Am-doped ZrO2 sample measured with the standards Am4+O2 and (U0.85Am3+0.15)O1.99. The vertical dashed black and purple lines correspond to the white line position of the Am4+O2 and (U0.85Am3+0.15)O1.99 standards for the Am4+ and Am3+ oxidation states, respectively.

Full size image
Table 3 Summary of Am M5-edge HR-XANES, Am L3-edge and Zr K-edge XANES and EXAFS analyses of the identified Am and Zr chemical species
Full size table

Phase composition determination via Vegard’s law

From the experiments and analysis thus far, it is shown that the synthesis of 5 mol% Am-doped ZrO2 results in the formation of m-ZrO2 with an additional secondary phase in low amounts, in which the Am oxidation state is mixed, occurring as trivalent and tetravalent. Am L3-edge XANES analysis shows that 80% of the Am occurs as trivalent, and the remaining 20% as tetravalent. This result agrees with the results of the Am M5-edge HR-XANES analysis, which is more sensitive to small variations of the actinide oxidation states, but quantitative analyses are generally more difficult. From the Am M5-edge HR-XANES analysis, the coordination environment of the Am in the m-ZrO2 sample is found to be cubic. When the phase diagram of ZrO2 is considered5, m-ZrO2 is not expected to host oxygen defects, which would occur when Am3+ is incorporated within it. Rather, it is more expected Am4+ would incorporate into m-ZrO2 and the identified secondary phase accordingly contains Am3+. Based on the XANES analysis, it implies that of the 5 mol% Am that was used in the synthesis, only 1 mol% enters m-ZrO2 and it follows this is tetravalent Am. The subsequent 80% Am (4 mol%) is subsequently attributed primarily to trivalent and some tetravalent Am that reports to the secondary phase, which Rietveld analysis suggests is likely C-type Am2O3 or pyrochlore type Am2Zr2O7, i.e., an Am rich phase consistent with the HR-XANES and EXAFS. Invariably, the observed phenomena of phase separation is likely associated with the limited solubility of Am4+ within m-ZrO2. Subsequently, in order to identify the origin of the secondary cubic phase occurring whilst simultaneously determining the solubility of Am with m-ZrO2 and its composition, calculations were performed using Vegard’s Law (Eq. 1.) with determined lattice parameters from Rietveld analysis employed. The observed lattice expansion of the m-ZrO2 phase with Am4+ doping compared to the non-doped state will depend on the specific amount of Am that enters the lattice. Whereby, the observation of the secondary phases implies that the solubility limit has been reached in the main phase. Since Am was used in its tetravalent state during synthesis, further supported by XANES and particularly EXAFS analysis, the expansion of the m-ZrO2 structure can be assumed to follow a linear expansion via substitution of Zr4+ for Am4+ as given in Eqs. 1 and 2.

$$V={V}_{o}+x\cdot\Delta V$$
(1)
$${{Zr}}^{4+}1-{x{Am}}^{4+}x{O}_{2}$$
(2)

Using the determined lattice volume from the Rietveld method in Table 1 and comparing it to reference data from Gualtieri et al.25 provided also in Table 1, by Eq. 1, the necessary amount of Am4+ required to induce the observed 0.75% lattice expansion would be x = 0.0105 when using ionic radii of 0.95 Å and 0.78 Å for Am4+ and Zr4+, respectively, in CN = 726. Accordingly, for the m-ZrO2 structure identified, this will correspond to an x value of 0.011(7) when the uncertainties of the ionic radii of Am and Zr are both considered, which corresponds to a formula of (Am0.011(7)Zr0.989(7))O2, i.e., only 1.1(7) mol% incorporation into m-ZrO2. This value is considerably lower than the 5 mol% addition used in the synthesis, which will subsequently result in precipitation of a secondary Am-rich phase, as is described and observed. Notably, this determined value from Vegard’s law is consistent with the Am L3-edge XANES analysis and appears to corroborate both the amount of phase separation and also the difference in Am valence between the phases, namely m-ZrO2 contains only Am4+ and the secondary Am-rich phase is predominantly Am3+.

When the Zr K-edge XANES results are considered, they show that the Zr appears to be predominantly associated with the m-ZrO2 structure, with slightly increased interatomic distances compared to pure m-ZrO2 (Table 2). This corroborates the low amount of Am found in the monoclinic ZrO2 matrix and further implies that the secondary phase is likely very poor in the amount of Zr contained and rather rich in Am. Accordingly, it is suspected that the secondary phase is more likely C-type Am2O3+x compared to pyrochlore-type Am2Zr2O7. Nevertheless, this can be further confirmed and understood when examining determined lattice parameters from Rietveld refinements, as was previously performed. For the pyrochlore-type Am2Zr2O7 a unit cell volume of 1124.2(3) Å3 was determined, this can be compared against the determined lattice volume of Am2Zr2O7 synthesised by Belin et al.30 of 1214.252(4) Å3. Since the unit cell volume of 1124.2(3) Å3 is considerably smaller than that determined by Belin et al., this would imply that the amount of Am with the pyrochlore structure is significantly less than the Am:Zr 1:1 ratio. Such an argument is difficult to support considering the noted significance ejection of Am from m-ZrO2, which should coincide with only some minor Zr incorporation. In the case of C-type Am2O3+x a lattice volume of 1122.1(6) Å3 was determined, which is smaller than the reference C-type Am2O3+x value provided by Epifano et al.31 of 1302.171 Å. For a C-type Am2O3 structure occurring as a secondary phase, it is likely that some Zr will be incorporated in the structure when it is ejected from the m-ZrO2 phase. Since XANES measurements show Zr occurs as Zr4+ this will lead to a contraction of the C-type Am2O3 structure, which is consistent with the trend in lattice parameters when the end-member value of Epifano et al.31 is compared to the solid solution value determined here. Naturally, variations in oxygen stoichiometry, although difficult to quantify, will further influence the lattice parameters when comparing the investigations; nevertheless, the results are still very consistent. Subsequently, it is argued that the significant excess Am that does not enter m-ZrO2, results in the formation of a C-type (Am4+/3+1-xZrx)2O3+x structure where x is small and the Am exists primarily trivalently, but also in part tetravently, as supported by PXRD, HR-XANES, and standard XANES analysis. Using the determined chemistries of the phases from the analyses and applying quantitative phase analysis via the Rietveld refinement method indicates the m-(Am4+0.011(7)Zr4+0.989(7))O2 and C-type (Am4+/3+1–xZrx)2O3+x phases occur as 98.15(6)% and 1.85(6)% respectively from the original synthesis of 5 mol% Am-doped ZrO2, whereby the former phase consists of 1 mol% Am as opposed to the latter phase that has 4 mol% from the total 5 mol% that was used. Interestingly, the amounts of Am deposited between the phases observed are strikingly consistent with what is seen in the Nd2O3-ZrO2 phase diagram17, suggesting in this instance there is good congruency between the behaviour of Am and Nd within ZrO2.

High-temperature X-ray diffraction

A notable known behaviour of m-ZrO2 is the ability to stabilise it in its tetragonal and cubic forms with increasing temperature, where the transition temperature can be reduced via doping. An appropriate test of confirming Am4+ incorporation within m-ZrO2 can be achieved subsequently through HT-PXRD measurements and showing a reduced phase transformation temperature with doping. Accordingly, HT-PXRD measurements were performed on a small amount of 5 mol% Am-doped ZrO2 material (15 mg) where the sample was heated sequentially to 1100 °C before cooling to RT. As shown in Fig. 5, which provides a portion of the collected data, the phase transformation of the tetragonal form from the monoclinic can be observed between 900 and 1050 °C. This is significantly lower than that of pure m-ZrO2, which transforms to the tetragonal polymorph at approximately 1150 °C5. This indicates that the inclusion of Am4+ within m-ZrO2 lowers the transition temperature as expected, while also corroborating its incorporation within the structure.

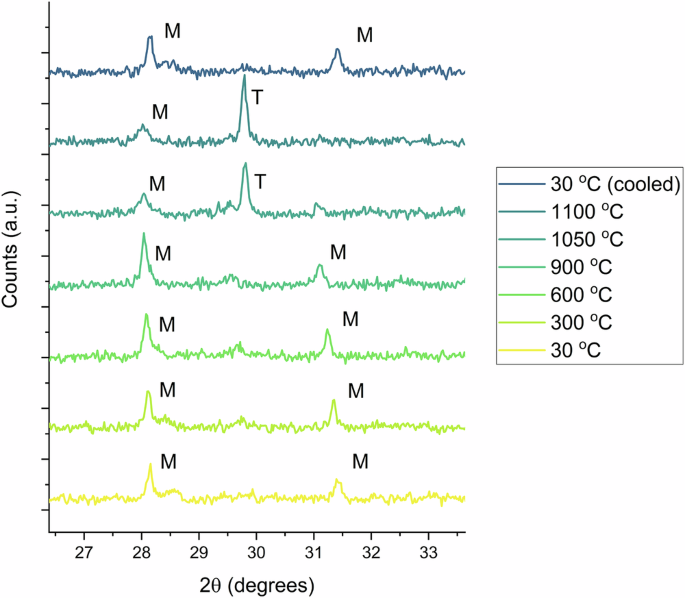

Fig. 5: High temperature diffraction of 5 mol% Am-doped ZrO2.
figure 5

HT-PXRD of 5 mol% Am-doped ZrO2, where the transition from the m-(Am4+0.011(7)Zr4+0.989(7))O2 phase (labelled M) can be observed to its tetragonal form (labelled T) reversibly between 900 and 1050 °C.

Full size image

Reactivity of Am and m-ZrO2 in Nuclear Fuel

From the results of the present investigation, it is pertinent to consider the reactivity and co-occurrence of m-ZrO2 and Am in UO2 based nuclear fuel. The in-operando formation of ZrO2 along the cladding inner surface of Zircaloy is attributed to the increase in the fuel’s oxygen potential that arises with increasing fuel burnup (fuel fission). Chemically, this effect originates from the accumulation of fission products, particularly those with lower valence than uranium (tetravalent). Lanthanides and minor actinides, which predominantly occur in the trivalent state, contribute strongly to this process. It is most pronounced at the rim of fuel pellets due to the known “rim effect”, arising from enhanced production and fission of Pu from 238U capture. As a result, oxidised phases can form in close proximity to the Zircaloy-based cladding, favouring the formation of oxidised ZrO2. Studies of SNF have identified that the ZrO2 polymorphs present are primarily m-ZrO2 and t-ZrO27,32. The formation of t-ZrO2 is attributed to stabilisation by pressure, temperature, or significant incorporation of fission products7,32. In contrast, m-ZrO2 initially forms due to changes in the oxygen partial pressure and is therefore considered the first polymorph to form paragenetically within the fuel. Critically, m-ZrO2 tends to contact the UO2 fuel between the Zr cladding, which can promote solid-state reactions and chemical transport between the phases (Fig. 6)32. The present work has demonstrated that m-ZrO2 can retain Am4+ but rejects Am3+, which is soluble in UO228. The redox state of Am at high temperature depends strongly on the oxygen partial pressure. In the present work, conditions of −301 kJ/mol or 4 × 10−9 atm at 1600 °C were used. Previous studies indicate that under these conditions, Am4+ is not stable in binary oxides19. However, the presence of water vapour can enhance oxygen exchange or diffusivity of ions with other phases, provided it results in thermodynamic stabilisation23,24. In the present synthesis, 5 mol% Am was used, of which 20% reports to the m-ZrO2 phase, suggesting that tetravalent Am is stabilised within m-ZrO2. Such results on thermodynamic structure stabilisation have been made for other actinide oxide materals33,34. In relation to UO2-based nuclear fuel, comparable oxygen partial pressures used in the present study are generally only reached at higher burnup35,36. Furthermore, although high temperatures similar to those used in the present synthesis are generally not expected in nuclear fuels beyond accident scenarios, significantly lower temperature reactivity of m-ZrO2 can be expected5. Consequently, interactions between Am and m-ZrO2 can be expected at high burnup. The rejection of Am3+ from m-ZrO2 implies in pile chemical partitioning between the Am4+ and Am3+ redox states with the m-ZrO2 and UO2 phases, respectively. This process is graphically illustrated in Fig. 6. This chemical behaviour could consequently influence both the stability of the fuel cladding and the Am source term during SNF storage.

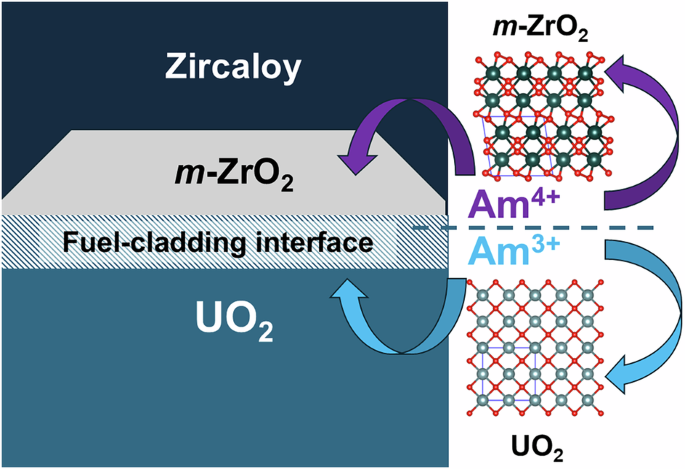

Fig. 6: Schematic of reactions between Am redox states and m-ZrO2 and UO2 within Zircaloy cladded nuclear fuel at high burnup.
figure 6

Schematic of the inferred chemical interactions between m-ZrO2 and Am redox states at the UO2 fuel-Zircaloy cladding interface that can occur at higher fuel burnup, based on observations from this study.

Full size image

Conclusions

The solubility and structural chemistry of 5 mol% Am doped m-ZrO2 has been determined through a combination of structure and spectroscopic techniques. Synthesis of a 5 mol% Am-doped ZrO2 is found to result in the formation of major phase m-(Am4+0.011(7)Zr4+0.989(7))O2 and a minor phase that is attributed to a C-type (Am4+/3+1-xZr4+x)2O3+x structure, where x is small, as shown via PXRD, HR-XANES, XANES, EXAFS measurements and supported by Vegard’s law calculations. The known HT transformation from m-ZrO2 to t-ZrO2 occurring above 1150 °C is found to be reduced to below 1050 °C via HT-PXRD in situ measurements, due to the inclusion of the Am4+ cation in the lattice. The limited solubility of Am within m-ZrO2 is attributed to its size in its tetravalent form, the resistance of m-ZrO2 to incorporate lower valent Am, and the relative stability of trivalent Am at high temperature. Nevertheless, under the conditions used in this study, m-ZrO2 is able to successfully immobilise tetravalent Am, which would otherwise exist in its trivalent form. Considering the results of this investigation with the limited literature available on the Zr-Am-O system and the complete lack of a ZrO2-Am2O3 phase diagram, it appears that Am behaviour closely resembles that predicted by the ZrO2-Nd2O3 phase diagram. More broadly, given the symbiotic relationship between Am and ZrO2 within SNF, whereby the occurrence of Am during fuel burnup contributes to the formation of m-ZrO2 on the inner surface layer of Zircaloy cladding via elevation of the fuel’s oxygen potential11, the study provides key chemical insight into the interaction between these two species. Particularly, that m-ZrO2 appears to selectively incorporate Am4+ over Am3+. Conversely, this implies Am3+ would occur as binary oxide, soluble within the UO2 fuel matrix, which in turn creates an in operando partitioning effect between the redox states of Am with m-ZrO2 and UO2 in nuclear fuel during burnup. This consequently has repercussions for the stability of the Zircaloy cladding, whilst also for the distribution of minor actinides and Am within SNF assemblies.

Experimental

Synthesis

m-ZrO2 was synthesised following a high-temperature solid-state method. AmO2 was weighed out in a hot-cell glovebox and mixed with pre-acquired ZrO2 powder in stoichiometric quantities, targeting 5 mol% addition of Am. A dedicated and thoroughly cleaned working area within the hot-cell glovebox was used for the work, and all equipment required for the synthesis, including mortar with pestle, spatulas, crucibles and pellet dies, was either purchased new or cleaned with ethanol and water before synthesis. The AmO2 was used at the availability of the Joint Research Centre (JRC) Karlsruhe, Germany. The AmO2 was characterised prior to use regarding the presence of other actinides, of which maximum amounts of Pu and Np of 0.98(12)% and 3.47(4)% were determined from mass spectroscopy. The two reagents were homogenised using a mortar and pestle and ground into a fine powder. This powder was then compacted into a green pellet using a 5 mm diameter pellet die and a hydraulic press that applied 8 kN of force. Then, the pellet was transferred into a Mo crucible and placed in a furnace. The furnace was heated at a ramp rate of 200 °C/h to 1600 °C, held at 1600 °C for 48 hours, and then cooled at a rate of 200 °C/h. During sintering, a high-purity Ar atmosphere (Ar 98.998%, <4 ppb O2 and <3 ppb H2O) that contained 1000 ppm H2O was used. At sintering conditions, this provides a calculated potential of −301 kJ/mol or 4 × 10−9 atm based on the gas flow mixture input into the furnace. The sintered ceramic pellet was then removed for subsequent analysis.

Powder X-ray diffraction

To safely and routinely study the synthesised Am4+ incorporated m-ZrO2, a piece of the sintered pellet was separated, ground to a fine powder and embedded in Loctite® Double Bubble 2-part epoxy adhesive (5 minutes at 20 °C) resin matrix mounted to a standard powder X-ray diffraction holder. To minimise the effects of self-irradiation damage, particularly lattice swelling, the synthesised sample was measured within 1 day of synthesis. Measurements were performed using a Bruker D8 powder X-ray diffractometer using Cu Kα radiation (Kα1/Kα2–1.54056 Å/ 1.54439 Å, 40 kV, 40 mA, Ge(111) monochromator). Measurements were recorded from 15° to 100° 2θ in step sizes of 0.0017° with a counting time of 1 s using a LynxEye detector. Collected data was analysed using the Rietveld method as implemented in the programme GSAS-II37. The peak shapes were modelled using a pseudo-Voigt function, and the background was estimated using a 6–12 term shifted Chebyshev function. The atomic parameters of the phases examined were fixed based on determined chemistries. The scale factor, detector zero-point and lattice parameters were refined together with the peak profile parameters.

High temperature X-ray powder diffraction

To study the thermal dependence of 5% mol Am-doped ZrO2, high temperature X-ray powder diffraction measurements (HT-PXRD) were performed on a Bruker D8 powder X-ray diffractometer using Cu Kα radiation (Kα1/Kα2–1.54056 Å/ 1.54439 Å, 40 kV, 40 mA, Ge(111) monochromator) and a LynxEye detector. Approximately 15 mg of sample was loaded on a Pt heating strip and placed in an Anton Paar HTK2000 heating chamber. A small amount of sample was loaded to minimise radiation exposure risks. The sample was heated from 30 to 1100 °C with the sample kept under vacuum conditions. The heating chamber was prior calibrated using a MgO standard over an extended temperature range, with a coefficient of thermal expansion consistent with previous works using the same diffractometer and heating chamber, determined and deemed acceptable38.

Am M5-edge high-energy resolution X-ray absorption near-edge structure spectroscopy

For the determination of the oxidation states of Am present within the 5 mol% doped ZrO2 material, Am M5-edge HR-XANES experiments were conducted at the ACT station of the beamline for catalysis and actinide research (CAT-ACT beamline) of the KIT Light source at the Karlsruhe Research Accelerator (KARA)39. A Si(111) double-crystal monochromator (DCM) was used to monochromatize the incident beam. The beam was focused to 1000 × 1000 µm and further narrowed down by slits, leading to a sample spot size of ~500 × 200 µm (vertical × horizontal). HR-XANES spectra were acquired with a Johann-type X-ray emission spectrometer, using up to four Si(220) (Saint-Gobain, France) analyzer crystals with 1.0 m bending radius and an AXAS-M silicon drift detector (SDD, KETEK GmbH), which, together with the sample, were arranged in a Rowland circle geometry39. The spectrometer and sample were encased in a He glovebox to minimise the influence of atmospheric O2 and N2 during measurements. For the sample itself, a fragment of the sintered pellet was carefully mortared using ethanol. Approximately 1 mg of the finely ground powder was diluted in BN, pressed into a pellet, placed in a double containment and sealed twice with 13 µm Kapton foil. The HR-XANES spectra were measured with a step size of 0.1 eV from −5 to +20 eV from the white line (WL) of the respective edge and 0.5 eV in all other parts of the spectra. As no metallic reference foil with a suitable energy close to the Am M5-edge was available, energy calibration of collected spectra was done against an in-house Am3+-nPr-BTP reference sample. This was done by fixing the measured WL position of the reference sample to the known literature value for Am3+ (3888.5 eV)27. The spectra were thereafter normalised to have a WL intensity of close to one. Four spectra were averaged for 5 mol% Am-doped ZrO2. The results were compared against three standard samples, Am4+O2 as well as Am3+VO4 and U0.80Am3+0.20O2+x27 containing tetravalent and trivalent Am, respectively, for the determination of the Am redox state in m-ZrO2.

Am L3- and Zr K-edge X-ray absorption near-edge structure and extended fine structure spectroscopy

Am L3- and Zr K-edge and XANES and EXAFS measurements of the 5 mol% Am-doped ZrO2 were conducted at the KIT Light Source at the INE-beamline40 using the KARA accelerator. Measurements were conducted at the Am L3- and Zr K-edges. The Larch software was used to extract EXAFS spectra from the raw absorption data15. Experimental Zr K-edge EXAFS spectra were Fourier-transformed using a Hanning window over the full k space range available 3.5–10.5 Å−1 Curve fitting was performed in k3 for R values in the range 1.2–4.3 Å. Phases and amplitudes for the interatomic scattering paths were calculated with the ab initio code FEFF8L16. Coordination numbers for cation-cation shells were fixed. Once satisfactory results were obtained, the constraints were removed with no significant variation. Linear combination fitting was used based on the WL absorption edge positions of the samples and the measured samples to quantitatively determine amounts and distributions of the investigated redox states present.
