A single-cell atlas characterizes dysregulation of the bone marrow immune microenvironment associated with outcomes in multiple myeloma

Pilcher, William C.; Yao, Lijun; Gonzalez-Kozlova, Edgar; Pita-Juarez, Yered; Karagkouni, Dimitra; Acharya, Chaitanya R.; Michaud, Marina E.; Hamilton, Mark; Nanda, Shivani; Song, Yizhe; Sato, Kazuhito; Wang, Julia T.; Satpathy, Sarthak; Ma, Yuling; Schulman, Jessica; D’Souza, Darwin; Jayasinghe, Reyka G.; Ohlstrom, Denis; Ferguson, Katherine E.; Cheloni, Giulia; Bakhtiari, Mojtaba; Pabustan, Nick; Nie, Kai; Foltz, Jennifer A.; Saldarriaga, Isabella; Alaaeldin, Rania; Lepisto, Eva; Chen, Rachel; Fiala, Mark A.; Thomas, Beena E.; Cook, April; Santos, Junia Vieira Dos; I-ling, Chiang; Figueiredo, Igor; Fortier, Julie; Slade, Michael; Oh, Stephen T.; Rettig, Michael P.; Anderson, Emilie; Li, Ying; Dasari, Surendra; Strausbauch, Michael A.; Simon, Vernadette A.; Radkevich, Emir; Rahman, Adeeb H.; Chen, Zhihong; Lagana, Alessandro; DiPersio, John F.; Rosenblatt, Jacalyn; Kim-Schulze, Seunghee; Lonial, Sagar; Kumar, Shaji; Bhasin, Swati S.; Kourelis, Taxiarchis; Dhodapkar, Madhav V.; Vij, Ravi; Avigan, David; Cho, Hearn J.; Mulligan, George; Ding, Li; Gnjatic, Sacha; Vlachos, Ioannis S.; Bhasin, Manoj

doi:10.1038/s43018-025-01072-4

Download PDF

Resource
Open access
Published: 09 January 2026

A single-cell atlas characterizes dysregulation of the bone marrow immune microenvironment associated with outcomes in multiple myeloma

Nature Cancer (2026)Cite this article

11k Accesses
2 Citations
100 Altmetric
Metrics details

Subjects

Abstract

Multiple myeloma (MM) remains incurable despite advances in treatment options. Although tumor subtypes and specific DNA abnormalities are linked to worse prognosis, the impact of immune dysfunction on disease emergence and/or treatment sensitivity remains unclear. We developed an Immune Atlas of MM by generating profiles of 1,397,272 single cells from the bone marrow (BM) of 337 newly diagnosed participants and characterized immune and hematopoietic cell populations. Cytogenetic risk-based analysis revealed heterogeneous associations with T cells of BM, with 17p13 deletion showing distinct enrichment of a type 1 interferon signature. The disease progression-based analysis revealed the presence of a proinflammatory immune senescence-associated secretory phenotype in rapidly progressing participants. Furthermore, signaling analyses suggested active intercellular communication involving a proliferation-inducing ligand and B cell maturation antigen, potentially promoting tumor growth and survival. Lastly, using independent discovery and validation cohorts, we demonstrated that integrating immune cell signatures with known tumor cytogenetics and individual characteristics significantly improves stratification for the prediction of survival.

Multiple myeloma long-term survivors exhibit sustained immune alterations decades after first-line therapy

Article Open access 29 November 2024

Bioinformatics analysis of intrinsic drivers of immune dysregulation in multiple myeloma to elucidate immune phenotypes and discover prognostic gene signatures

Article Open access 05 May 2025

Cross center single-cell RNA sequencing study of the immune microenvironment in rapid progressing multiple myeloma

Article Open access 26 January 2023

Main

Multiple myeloma (MM) is the second most prevalent hematological cancer and its incidence continues to rise globally^1,2. An estimated 35,780 new diagnoses and 12,540 deaths are projected for 2024 in the United States³. The emergence of myeloma-targeting biologic and immune-based therapies has led to notable improvements in outcomes⁴. Nevertheless, curative outcomes are characteristically elusive and most persons with MM eventually succumb to the disease. Disease evolution is associated with progressive immune dysregulation. With the recent US Food and Drug Administration approval of immunotherapies such as chimeric antigen receptor (CAR) T cells and bispecific T cell engagers, understanding the immune elements in the myeloma microenvironment has become increasingly important for addressing disease emergence and/or response to treatment. Over the past 15 years, multiple studies^5,6,7,8,9,10, including the Clinical Outcomes in MM to Personal Assessment of Genetic Profiles (CoMMpass) registry^8,11, have investigated the genomic landscape and diversity of MM and identified specific tumor subtypes and their underlying associations with clinical outcomes. Furthermore, these studies have demonstrated that, like other cancers, MM tumors are multiclonal, with their clonal makeup evolving over the course of the disease progression and exposure to treatments. Notably, prognostic models leveraging these genetic determinants are limited in their capacity to identify high-risk (HR) participants for early relapse. This suggests that latent, tumor-extrinsic factors contributing to prognosis are not captured by current models.

The bone marrow (BM) microenvironment (BMME) composition in MM has been identified as a factor affecting tumor progression and therapeutic outcomes. Recent studies have pointed to T cell exhaustion^12,13 and the infiltration of immunomodulatory cell populations contributing to immunoediting and immune evasion in MM, such as myeloid-derived suppressor cells (MDSCs), regulatory T cells (Treg), Th17 cells, dendritic cells (DCs) and dysregulated natural killer (NK) cells, as well as tumor-associated neutrophils and macrophages^14,15,16,17. We hypothesized that profiling the BMME of persons with newly diagnosed MM (NDMM) before treatment with standard myeloma therapies could reveal immune populations and signaling pathways associated with disease emergence or clinical outcomes. Such insights can be used to refine current participant stratification tools including the revised International Staging System (R-ISS) and, importantly, inform strategies for target identification and rational integration of various immunotherapies in MM.

To this end, we generated a BMME Immune Atlas of participants with NDMM from the MM Research Foundation (MMRF) CoMMpass study (NCT01454297), which included corresponding detailed clinical and genomic information. We profiled and analyzed 1,149,344 cells from 263 participants with NDMM during the discovery phase to identify immune populations and phenotypes associated with MM subtypes and participant survival. These findings were further validated by generating profiles of an additional 247,928 cells from 74 participants with NDMM.

Results

An MM BMME cell atlas

To characterize the BMME of MM, we profiled CD138⁻ BM aspirate from 263 and 74 participants with NDMM as discovery and validation cohorts, respectively (Fig. 1a and Extended Data Fig. 1a–e). The demographic and clinical characteristics of the discovery cohort are reflective of the CoMMpass study (Supplementary Table 1), including median age (62.9 versus 64.1 years), African American percentage (16.6% versus 17.5%), ISS stage 3 (27.9% versus 26.3%) and HR cytogenetics¹⁸ (51.6% versus 53.2%) (Fig. 1b and Supplementary Table 1). Therapeutically, 184 participants initially received a combination of proteasome inhibitors (PIs), immunomodulatory drugs (IMiDs) and steroids, while 135 underwent autologous stem cell transplantation (ASCT) as first-line therapy (Fig. 1c). All samples were profiled using our previously standardized single-cell RNA sequencing (scRNA-seq) protocol^12,19,20.

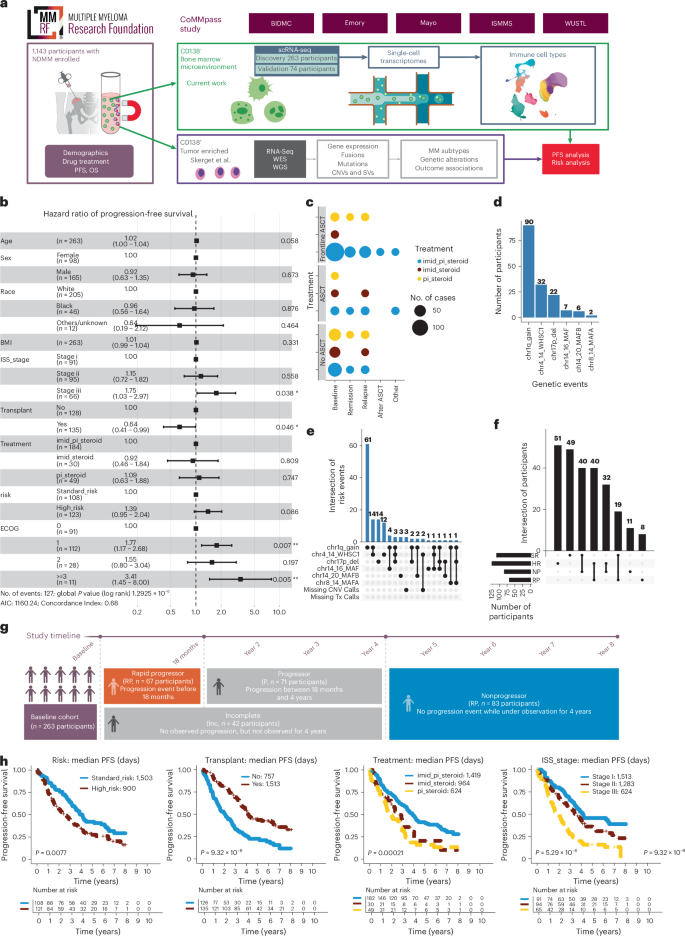

**Fig. 1: Overview of the Immune Atlas design, workflow and participant characteristics.**

Initially, we examined how the participant’s immune landscape varied according to tumor type by stratifying participants on the basis of individual cytogenetic alterations, including del(17p13), t(14;16)[MAF], t(8;14)[MAFA], t(14;20)[MAFB], t(4;14)[WHSC1/MMSET/NSD2] and gain(1q21). We also investigated combining these cytogenetic alterations to define HR and standard-risk (SR) participants using the Davies risk definition¹⁸ (Fig. 1d,e and Supplementary Table 2). We additionally stratified participants on the basis of their disease progression kinetics into rapid progressors (RPs; n_discovery = 67, n_validation = 29), with progression events occurring within 18 months of diagnosis, and nonprogressors (NPs; n_discovery = 83, n_validation = 35), with durable remission for at least 4 years following treatment (Fig. 1f,g). Interestingly, while evaluation of the discovery cohort confirmed that most HR participants were mainly associated with RPs and vice versa, we identified 32 HR participants as NPs and 19 SR participants as RPs, indicating that other factors, such as the immune environment, might have additional critical roles (Fig. 1f). As expected, participants categorized as SR had improved progression-free survival (PFS) relative to HR participants, suggesting that our risk classification strategy was informative for predicting outcomes (Fig. 1h; P = 0.007). Additionally, survival analysis on other clinical variables also demonstrated that discovery cohort participants who either underwent BM transplant (P = 9.32 × 10⁻⁸) or received triplet treatment (PI, IMiD and steroid) (P = 0.0002) or who were classified as ISS stage I had significantly (P < 5.29 × 10⁻⁶) better outcomes (Fig. 1h). Similar patterns of outcomes were also observed in the validation cohort, underscoring the similarity in our discovery and validation cohorts (Extended Data Fig. 1e and Supplementary Table 3).

Single-cell transcriptome profiling identifies traditional and rare cell populations of the myeloma BMME

Across 1,149,344 high-quality BM cells (Fig. 2a) the baseline BMME consisted of T cells (30.51% CD8⁺, 23.39% CD4⁺), NK cells (6.82%), B cells (8.51%), myeloid cells (12.20%), erythroblasts and erythrocytes (7.87%) and plasma cells (9.17%), with the remainder comprising small, independent populations (hematopoietic stem cells (HSCs), plasmacytoid DCs (pDCs) and fibroblasts; 1.53%) (Fig. 2b,c). Canonical lineage markers were used for cell type and subtype annotation (Fig. 2b,c). The cellular profiles showed subtle variations associated with the processing sites (that is, Mayo, Emory, Washington University and Icahn School of Medicine at Mount Sinai) and batch-corrected using the Harmony approach (Extended Data Fig. 2a–f).

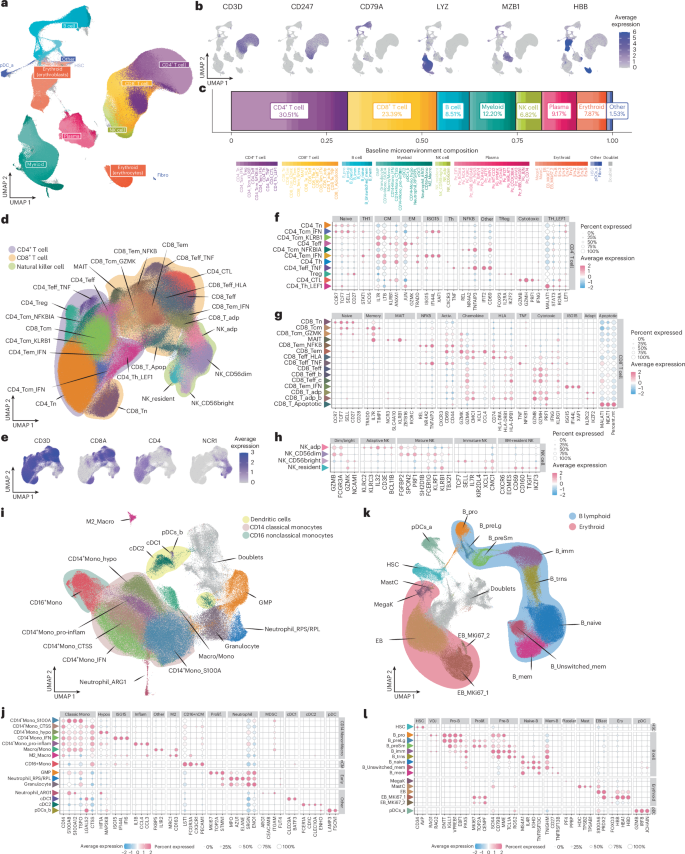

**Fig. 2: Single-cell Immune Atlas of samples from participants with MM.**

The T and NK cell compartment formed 30 clusters across CD4⁺ (11 clusters), CD8⁺ (15 clusters) and NK (four clusters) cell populations (Fig. 2d,e and Extended Data Fig. 3a–c). CD4⁺ T cell clusters comprised naive (Tn), central memory (Tcm), effector (Teff) memory, Treg and helper (Th) cells (Fig. 2f and Extended Data Fig. 3b). This large-scale analysis also enabled the identification of rare cytotoxic CD4⁺ T cells with high expression of GZMB and PRF1 markers. Similarly, the CD8⁺ T cell population also comprised multiple clusters of memory and Teff cells, as well as activated Teff subtypes (that is, CD8_Teff_HLA) with low expression of cytotoxic markers but high expression of human leukocyte antigen (HLA) markers (Fig. 2g and Extended Data Fig. 3c). The NK cell clusters comprised classical CD56^+bright and CD56^+dim cell types, as well as rare adaptive and BM-resident cell types (Fig. 2h).

The myeloid lineage comprised 18 clusters of classical CD14⁺ and nonclassical CD16⁺ monocytes, granulocytes, neutrophils, conventional DCs (cDCs), pDCs and macrophages (Fig. 2i,j). The B cell compartment contained pro-B cells, as well as immature transitional, naive and memory B cells (Fig. 2k,l). The compartment also captured immature hematopoietic populations, such as HSCs, mast cells and erythroblasts. A distinct population of mature erythrocytes was observed (Extended Data Fig. 3d,e), with nine subclusters exhibiting minimal participant-specific heterogeneity.

The plasma cells, ~9.17% of cells on average in baseline samples (Extended Data Fig. 3f–h), were likely residual myeloma cells that were not effectively depleted by CD138 bead selection. The number of plasma cells was significantly correlated with levels of plasma cells measured before the CD138 selection step, indicating the inefficiency of the bead selection method for samples with high tumor cell content (Extended Data Fig. 3i,j; R² = 0.63, P = 1.68 × 10⁻⁵⁶). Plasma cells captured in scRNA-seq also showed enrichment for mutations in the driver genes, indicating that these were malignant cells (Extended Data Fig. 3k). The higher malignant plasma cell proportions were associated with RPs, with potential implications for participant outcomes (Extended Data Fig. 3l,m).

Analysis of tumor cytogenetic subgroups reveals heterogeneous impact on T cell compartment

To explore the potential relationship between tumor cytogenetic subgroups and their BM immune microenvironment, we assessed key abnormalities, including 1q21 gain, translocations (t(4;14)[NSD2], t(14;16)[MAF], t(8;14)[MAFA] and t(14;20)[MAFB]) and 17p13 deletion. We also assessed the combined effects of these cytogenetic alterations by stratifying participants into HR and SR groups¹⁸. Overall, most immune populations had similar abundances across cytogenetic subgroups, both when combined and when individually assessed (Fig. 3a). Some differences in specific cell types were detectable, including a higher abundance of rare cytotoxic CD4⁺ T cells in NSD2 t(4;14) participants (Fig. 3a; P = 0.017). The participants with NSD2 t(4;14) and 1q21 gain showed significant depletion of CD4⁺IFN (interferon)⁺ Teff memory (P_NSD2 = 0.043, P_1q21 = 0.001) and CD4⁺IFN⁺ Tcm cells (P_NSD2 = 0.043, P_1q21 = 0.011) (Fig. 3a). Interestingly, participants with MAF translocation exhibited significant dysregulation in the B cells rather than the T cells with depletion of naive and memory B cell populations (P_naive = 0.001, P_mem = 0.004) (Fig. 3a) and enrichment of immature B cell states ranging from the CD34⁺ pro-B population to the transitional B cell population (Fig. 3a; P < 0.005). The MAF translocation participants also uniquely displayed significant enrichment of an immunosuppressive macrophage cluster (Fig. 3a; P = 0.031). Notably, across myeloid and T cell compartments, type 1 IFN (IFN-I) response-associated clusters depict reversed trends in participants with 17p13 deletion as compared to NSD2 or 1q21 abnormalities. In contrast to the reductions in IFN-I-responsive CD4⁺ memory populations observed in NSD2 t(4;14) and 1q21 gain participants, participants with 17p13 deletion tended to possess a higher abundance of IFN-stimulated populations, with significant enrichment of CD4⁺ Teff memory IFN-I cells (Fig. 3a; P = 0.007). Further combined analysis of these putative HR tumor abnormalities revealed significant enrichment of the late-activated CD8⁺HLA⁺ Teff (that is, CD8_Teff_HLA; P = 0.041) population and reduction in CD8⁺ Tn cells and CD4⁺TNF (tumor necrosis factor)⁺ Teff cells (P = 0.006 and 0.042, respectively; Fig. 3a). This higher abundance of CD8_Teff_HLA Teff population was significantly associated with poor overall survival (OS) (P = 0.036; Extended Data Fig. 4a), and a trend toward worse PFS (P = 0.062; Extended Data Fig. 4b).

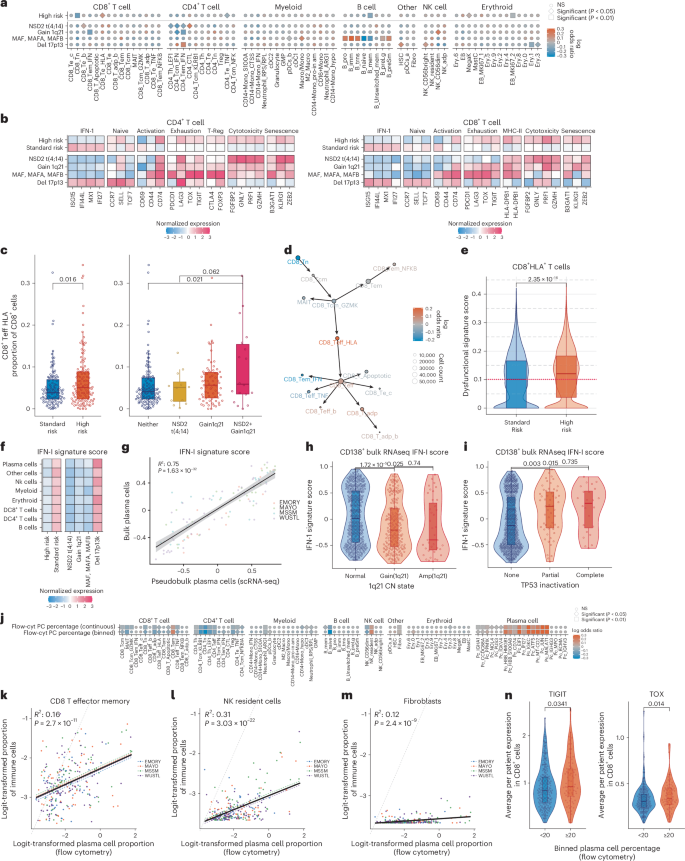

**Fig. 3: BMME alterations associated with cytogenetic abnormalities.**

To further investigate the associations of individual HR abnormalities and their combined impact on the transcriptome, we conducted an in-depth analysis focusing on T cell compartments (Fig. 3b). Participants with NSD2 and 1q21 gain showed higher-than-average expression of CD4⁺ and CD8⁺ T cell cytotoxicity and senescence-related genes (Fig. 3b). Interestingly, participants with MAF translocation showed higher exhaustion marker expression among CD8⁺ T cells, a feature that was primarily found in the early activated GZMK⁺ Teff memory cells (Extended Data Fig. 4c,d). The combined analysis of HR participants also highlighted overexpression of major histocompatibility complex class II (MHC-II) and cytotoxicity markers across CD8⁺ T cells (Fig. 3b) driven by the higher abundance of the CD8_Teff_HLA population (Fig. 3c; P = 0.016). The interaction analysis of cytogenetic abnormalities suggested that the co-occurrence of NSD2 and 1q21 gain significantly contributed toward the enrichment of the CD8_Teff_HLA Teff population (Fig. 3c; P = 0.021) associated with poor outcomes (Extended Data Fig. 4a,b). The trajectory analysis on the T cell compartment showed that the HR-enriched CD8_Teff_HLA population represented a transitional state between early activated CD8⁺ memory to terminally differentiated cytotoxic populations (Fig. 3d). This population also showed enrichment of T cell dysfunction characteristics among participants with HR cytogenetics, measured as a function of the expression of exhaustion or senescence markers (P = 2.35 × 10⁻¹⁶; Fig. 3e, Extended Data Fig. 4c,d and Supplementary Table 4). This shift or accumulation of activated T cell states was mainly observed in participants with NSD2 and 1q21 gain, while participants with biallelic 17p13 deletion or 17p13 deletion paired with a nonsynonymous TP53 mutation had lower levels of differentiated CD8⁺ T cells, possibly suggesting different immune escape mechanisms among the HR cytogenetic events (Fig. 3b and Extended Data Fig. 4e,f).

Tumor and microenvironment cells of participants with 17p13 deletions depict distinct enrichment of IFN-I signature

To further study the distinct IFN-I-associated gene expression enrichment observed in T cells of 17p13 participants across other compartments, we generated an IFN-I signature using top marker genes from T cell IFN-I clusters (Supplementary Table 4). Participants with elevated expression of the IFN-I signature in one lineage, such as T cells, showed overexpression across all other compartments, including malignant plasma cells (Extended Data Fig. 4g). Across risk groups, IFN-I signature enrichment was specific to 17p13 cytogenetic groups only (Fig. 3f). Further interaction analysis of 1q21 with other HR abnormalities indicated that IFN-I downregulation was primarily associated with 1q21 gain (Extended Data Fig. 4h; P < 0.05). Conversely, enrichment of IFN-I populations was strongly associated with participants having a complete loss of TP53 (Extended Data Fig. 4i; P < 0.05). This IFN-I signature enrichment in the plasma cells from scRNA-seq was confirmed on independently generated bulk RNA-seq data from CD138⁺ malignant cells of these participants (R² = 0.75, P = 1.63 × 10⁻³²; Fig. 3g). Analysis of CD138⁺ bulk RNA-seq data from the CoMMpass cohort (n_participants = 660) confirmed opposite IFN-I activity patterns between 1q21 gain and TP53 loss; participants with 1q21 gain or amplification showed reduced IFN-I activity (Fig. 3h; P = 0.003), whereas those with partial or complete TP53 loss exhibited increased activity (Fig. 3i; P = 0.015).

Furthermore, we also examined additional HR abnormalities, including chromothripsis and APOBEC (apolipoprotein B mRNA-editing enzyme, catalytic polypeptide) activity, which showed no T cell dysregulation but some alterations in myeloid and B cell compartments (Extended Data Fig. 4j).

GZMK⁺ Teff memory cell level correlates with the abundance of myeloma cells

In addition, we also examined the impact of plasma cell levels on immune cells and, as expected, most nonmalignant BM populations were reduced in participants with elevated plasma cell levels (Fig. 3j). However, GZMK⁺CD8⁺ Teff memory cells, BM-resident NK cells and fibroblasts showed significant positive correlations with plasma cell percentages (P = 2.4 × 10⁻⁹; Fig. 3k–m and Extended Data Fig. 4k–m). In participants with higher plasma cell percentages, CD8⁺ T cells showed increased TIGIT and TOX expression (P = 0.035 and 0.014, respectively; Fig. 3n), mainly within GZMK⁺ Teff memory cells (Extended Data Fig. 4c,d), suggesting that high plasma cell levels might be promoting T cell exhaustion in BM.

RPs display accumulation of Teff and depletion of Tn populations

We subsequently investigated potential BMME alterations in RPs within <18 months (n_participants = 67) of initial therapy, compared to those who had not progressed for at least 4 years (NP, n_participants = 83) (Fig. 1g). Most of these participants received standard triplet therapy, consisting of a PI, IMiD and a steroid as their first line of therapy (Supplementary Table 5). Broadly, RPs had lower abundances of CD4⁺ T cells and B cells and higher levels of myeloid, plasma and erythroid cells relative to NPs (Fig. 4a). The lower levels of B cells were driven by a large reduction in transitional, immature and naive B cells (P = 0.003; Fig. 4b and Extended Data Fig. 5a,b).

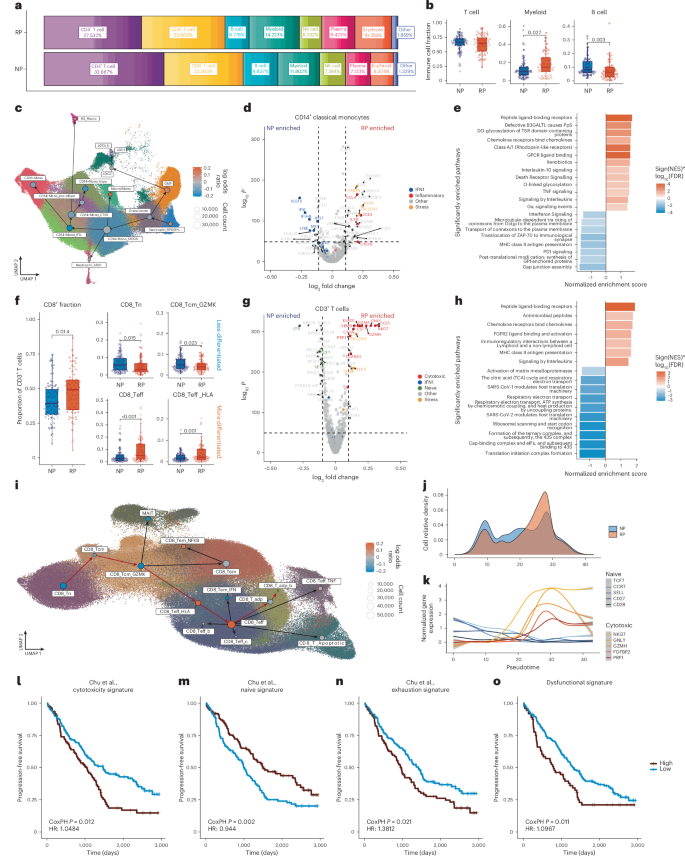

**Fig. 4: Single-cell level alterations in the BMME of MM RPs.**

To investigate myeloid compartment enrichment (P = 0.027) in the RPs, we performed a trajectory analysis that revealed anticipated progression from immature to activated CD14⁺ monocytes, culminating into mature CD16⁺ monocytes (Fig. 4c). RPs were significantly enriched for CD14⁺CD163⁺ monocytes (Macro/Mono, P = 0.006) and depleted of IFN-I-stimulated CD14⁺ monocytes (CD14⁺Mono_IFN, P = 0.026) (Fig. 4c and Extended Data Fig. 5c). This IFN-I monocyte cluster contains several IFN-I signature markers, which have been previously noted in persons with TP53 loss (Fig. 3f–i). Differential gene expression analysis (DGEA) of CD14⁺ monocyte populations identified significant upregulation of proinflammatory markers in RPs, such as CCL3, CCL4, IL1B and CXCL8, whereas IFN-I signaling-related genes were increased in NPs (that is, ISG15, IFI6, IFI44 and MX1) (Fig. 4d). Pathway analysis revealed enrichment of proinflammatory pathways (TNF, interleukin (IL)-10 and chemokine signaling) in RPs, indicating an immunosuppressive phenotype. In contrast, NPs showed enrichment of MHC-II antigen presentation and IFN signaling, consistent with classical antigen processing (Fig. 4e).

The focused analysis on the T cell compartment identified a significantly higher proportion of CD8⁺ T cells (45.5%) in RPs in comparison to NPs (39.9%) (Fig. 4f; P = 0.01). Significant enrichment of CD8⁺ Tn (P = 0.015) and CD8⁺ GZMK⁺ Tcm (CD8_Tcm_GZMK_, P = 0.023) cells was observed in NPs, while RPs exhibited higher abundance of differentiated CD8⁺ cytotoxic Teff (CD8_Teff, P = 0.0008) and HLA⁺ Teff (CD8_Teff_HLA, P = 0.001) populations (Fig. 4f and Extended Data Fig. 5d). Furthermore, DGEA supported this cytotoxic shift of T cells in RPs by identifying a significant upregulation of cytotoxicity markers (NKG7, GNLY, PRF1, FGFBP2, KLRD1, GZMB and GZMA). The T cells of NPs demonstrated significant upregulation of genes for early-stage, Tn populations (LTB, TCF7 and SELL) (Fig. 4g). RPs showed enrichment of interleukin and chemokine signaling, while NPs were enriched in ribosomal and translational pathways linked to Tn cells (Fig. 4h). Trajectory analysis of CD8⁺ cytotoxic lineages revealed higher densities of RP cells at later pseudotime points (that is, CD8_Teff_HLA and CD8_Teff), whereas NPs were enriched at earlier stages (CD8_Tn and CD8_Tcm_GZMK) (Fig. 4i,j). Cytotoxic markers (NKG7, GZMH and FGFBP2) peaked at late pseudotimes, associated with RPs, while Tn markers (CCR7, SELL, TCF7, CD27 and CD28) peaked at early pseudotimes, associated with NPs (Fig. 4k). This suggests the accumulation of terminally differentiated, cytotoxic, CD27⁻CD28⁻CD8⁺ Teff cells in RPs, accompanied by a corresponding reduction in the healthy Tn and Tcm pool necessary for mounting an immunological memory, which might be associated with poor outcomes.

To further explore this hypothesis, we evaluated associations of independent cytotoxic and Tn CD8⁺ signatures from the pan-cancer T cell atlas²¹ to predict outcomes in our myeloma dataset. Elevated T cell cytotoxicity signature was significantly associated with worse PFS (P = 0.012) (Fig. 4l and Supplementary Table 4). Conversely, participants enriched in a Tn-like signature across their T cell compartment displayed better PFS (P = 0.002) (Fig. 4m and Supplementary Table 4). Exhaustion signature enrichment also showed negative associations with PFS (P = 0.021) (Fig. 4n and Supplementary Table 4). However, the expression of exhaustion did not correspond to the RP-enriched CD8_Teff population and seemed to primarily originate from CD8_Tem, CD8_Teff_HLA, CD8_Tem_IFN and CD8_T_adp populations (Extended Data Fig. 4c,d). This is further supported by the significant association of curated putative dysfunctional T cell signature encompassing exhaustion and senescence markers (Supplementary Table 4) with poor survival (P = 0.011) (Fig. 4o).

We repeated the above T cell compartment analysis using only samples from participants treated with triplet therapy. While therapy itself cannot impact the baseline immune composition, it can influence outcomes. These analyses showed enrichment of Tn CD8⁺ cells and B cells in NPs, whereas RPs on triplet therapy were enriched for differentiated T cells, including CD8_Teff and CD8_Teff_HLA (Extended Data Fig. 5e).

RPs with SR profiles showed an accumulation of apoptotic CD8⁺ T cells and M2 macrophages

Considering the cellular alterations observed across cytogenetic and progression-based groups, we next sought to determine whether immunologic alterations remained associated with RPs even in participants without HR abnormalities. The analysis of SR-RP participants (n_participants = 19) compared to SR-NP participants (n_participants = 40) exhibited significant enrichment of both CD8_Teff_HLA (P = 0.008) and CD8_Teff (P = 0.018) populations, along with depletion of CD8⁺ Tn cells (P = 0.007; Fig. 5a). Additionally, these participants also depicted enrichment of M2 macrophages (P = 0.023) and depletion of naive B cells (P = 0.039) and IFN-stimulated T cell populations (P < 0.038) (Fig. 5a).

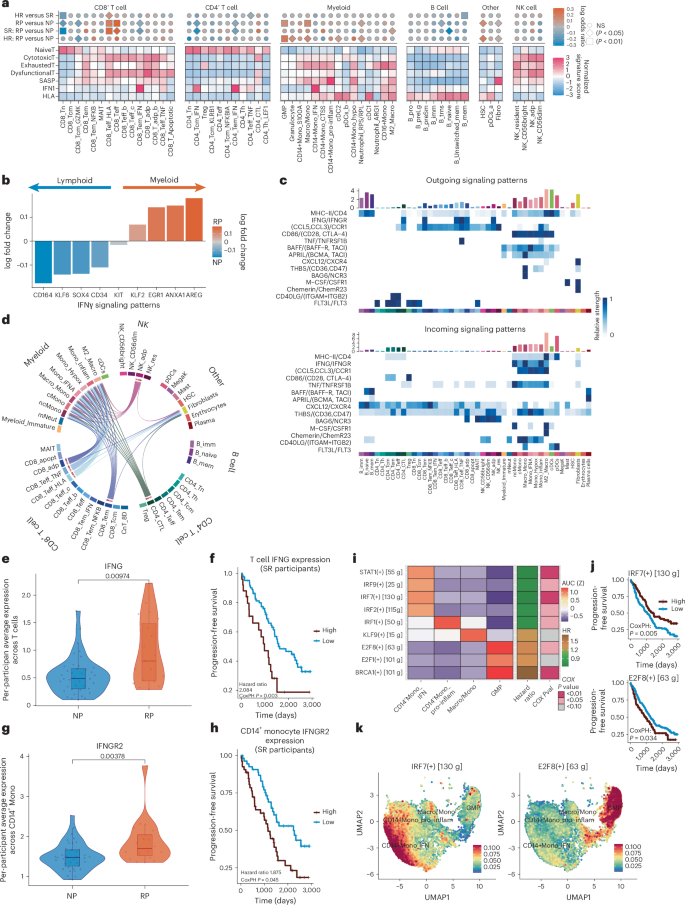

**Fig. 5: Pathway and systems biology analysis to decipher mechanisms of poor outcomes in MM.**

Because of the observed trends in reduced B cells paired with the enrichment of myeloid cells in RPs (Fig. 4b), we investigated the potential for altered hematopoiesis within the BMME. DGEA on HSCs revealed a shift toward myelopoiesis in the RPs, with overexpression of myeloid lineage commitment markers, while the NPs exhibited an overexpression of lymphoid lineage commitment markers, such as SOX4 (Fig. 5b).

Cellular communication analysis depicts IFNγ-driven proinflammatory and immunosuppressive changes in participants with poor outcomes

To explore potential BMME signaling changes associated with cytogenetic risk and disease progression, we investigated intercellular communication patterns, revealing several key pathways in outcome-associated subpopulations (Fig. 5c and Supplementary Table 6). MHC-II expression was enriched in antigen-presenting cells (B cells, M2 macrophages and cDCs), associated with NPs (Fig. 4e), pointing toward an improved adaptive immune response in these groups. We also observed increased expression of IFNγ in CD8⁺ Teff populations (CD8_Teff_TNF, CD8_Teff_HLA and CD8_Tem; Figs. 2f,g and 5c,d), CD4⁺ cytotoxic populations (CD4_CTL) and cytomegalovirus (CMV) adaptive NK cells (NK_adp). Higher IFNγ receptor expression was also observed in the RP-associated immunosuppressive macrophage cluster (Macro/Mono). Markedly, CD8_Teff_HLA cells were associated with RPs and HR (Figs. 3c and 4f), suggesting that IFNγ signaling in the BME may contribute to inflammatory alterations in the monocytes of RPs. Notably, the RP-associated cluster (Macro/Mono; Fig. 4c and Extended Data Fig. 5c) was also found to express BAG6, an inhibitor of NK-mediated cytotoxicity in its soluble form, and well-documented molecules in MM oncogenesis and progression, thrombospondin-1 (THBS1) and a proliferation-inducing ligand (APRIL). In contrast, the IFN-I-associated monocyte cluster, associated with NP participants (Fig. 4c and Extended Data Fig. 5c), was found to highly express B cell-activating factor (BAFF), an essential promoter of B cell survival and terminal differentiation. Previous studies also reported BAFF expression associated with IFN-I signaling across multiple diseases²². BAFF can bind to transmembrane activator and CAML interactor (TACI) expressed on plasma cells, although it has a much higher affinity to BAFF-R expressed on the mature B cell populations.

Given that IFNγ overexpression in the T cell compartment correlates with RPs, we further investigated IFNγ expression in SR participants and its relationship to outcomes. SR-RPs also showed significantly higher average IFNγ expression across their T cell compartment (Fig. 5e), associated with poor outcomes (Fig. 5f). Furthermore, CD14⁺ monocytes of SR-RPs had significantly higher IFNγ receptor (that is, IFNGR2) expression (Fig. 5g), which was also associated with poor outcomes (Fig. 5h). These findings appeared to indicate that heightened IFNγ expression before therapy may be a prognostic indicator of poor outcomes.

In a systems biology analysis, we further investigated gene regulatory networks (GRNs), particularly focusing on myeloid subpopulations associated with HR and disease progression (for example, CD14⁺ Mono_IFN) and identified enrichment of GRNs for IFN regulatory factor 2 (IRF2), IRF7, IRF9 and signal transducer and activator of transcription 1 (STAT1) transcription factors (TFs) (Fig. 5i–k, Extended Data Fig. 6 and Supplementary Table 7). These TFs are regulated by IFNα and promote the transcription of IFNα-stimulated genes, including ISG15 (refs. ^23,24). Examining the survival association of IRF7 regulon activity within the myeloid compartment, we observed that participants with increased IRF7 regulon activity exhibited better outcomes (Cox proportional hazards (CoxPH) P = 0.005; Fig. 5j). Additionally, regulatory networks of cell proliferation related to E2F1 and E2F8 TFs were enriched in the granulocyte-monocyte progenitor (GMP) population (Fig. 5i,k), elevated in RPs (Fig. 5a). Increased E2F8 regulon activity was linked with poor survival outcomes within the myeloid compartment, aligning with our previous observation of increased myelopoiesis in RPs (CoxPH P = 0.034; Fig. 5j).

Independent validation of BM immune landscape features that are predictive of myeloma outcomes

To independently validate immune microenvironment alterations associated with clinical outcomes, we analyzed an additional 74 samples from participants with NDMM as a validation cohort (Fig. 6a). This effort produced high-quality scRNA-seq data comprising approximately 247,928 cells after integration, clustering and batch correction (Fig. 6b and Extended Data Fig. 7a). The validation cohort identified all major immune cell types of BM, with T cells being the most frequent, followed by B cells, myeloid cells and plasma cells (Fig. 6b,c and Extended Data Fig. 7b–i). Further comparative analysis of cellular abundances between the validation and discovery cohorts revealed striking similarities, reinforcing the robustness and reliability of the validation cohort (Fig. 6d). The validation cohort depicted PFS similar to the discovery cohort, consisting of a nearly equal number of RPs (n_participants = 29) and NPs (n_participants = 35) (Fig. 6a). According to the Davies risk definition, the validation cohort contained 34 HR samples, although cytogenetic abnormalities were mostly restricted to gains of 1q21 or NSD2 (Fig. 6a and Extended Data Fig. 1b,c). In the validation cohort, RPs depicted significant enrichment of CD8⁺ Teff cells (P = 0.045), including CD8⁺HLA⁺ Teff cells (P = 0.036; Fig. 6d), and reductions in immature B cells (P < 0.020; Fig. 6d), consistent with the discovery cohort. We also observed the enrichment of M2 macrophages (P = 0.0095), previously observed in the RPs with SR (Fig. 5a). The enrichment of CD8⁺HLA⁺ Teff cells (CD8_Teff_HLA) also depicted a trend toward poorer OS (P = 0.07; Fig. 6e) and PFS (P = 0.01; Fig. 6f), supporting discovery cohort results. Further DGEA depicted significant overexpression of cytotoxicity-associated markers and downregulation of Tn markers in the RPs (Fig. 6g). The validation cohort also showed a shift toward cytotoxic CD8⁺ and Tn cell populations in RPs and NPs, respectively (Fig. 6h). Additionally, the validation cohort also confirmed discovery cohort findings, demonstrating higher T cell cytotoxicity scores (P = 0.030, hazard ratio = 1.07; Fig. 6i) and putative dysfunctional scores (P = 0.028, hazard ratio = 1.14; Fig. 6j) with poor outcomes. These findings underscore the association of terminally differentiated T cell enrichment with rapid progression of myeloma and poor outcomes.

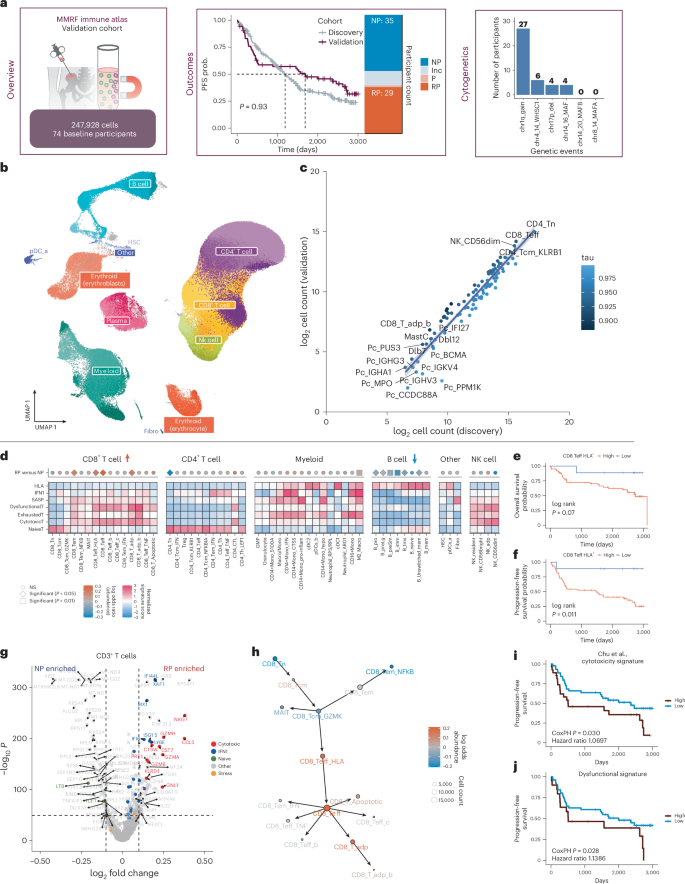

**Fig. 6: Terminally differentiated and senescent T cells predict poor outcomes in an independent validation cohort of 74 participants.**

Integrating baseline immune signatures with cytogenetic risk improves our ability to predict outcomes

To test the hypothesis that immune risk is nonparallel to cytogenetic risk, we aimed to assess the ability of immune clusters or signatures to predict disease progression in a univariate and multivariable framework while also including covariates such as age, sex, stage and cytogenetic risk. We used a bootstrapping approach to ensure model robustness and used three different statistical methods (elastic net, logistic regression and Cox models) to validate findings on an independent cohort (Fig. 7a).

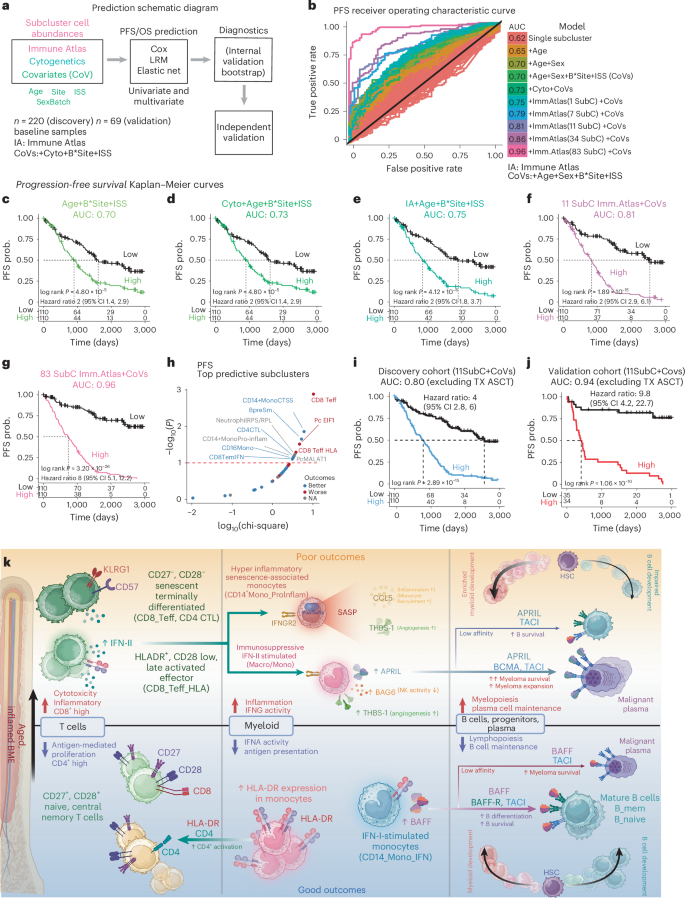

**Fig. 7: Prediction of MM progression by integration of cytogenetic risk along with immune signatures.**

Clinical data alone yielded an area under the curve (AUC) value of 0.7 in predicting PFS (Fig. 7b,c). Incorporating cytogenetic risk with clinical variables (stage and demographics) increased the PFS prediction to 0.73 (Fig. 7b,d). Similarly, the predictive power of any single immune subcluster combined with clinical variables only marginally improved prediction (AUC = 0.75; Fig. 7b,e). Iterative feature selection combining subsets of BMME immune clusters with clinical covariates and cytogenetics improved the average AUC for predicting PFS (Fig. 7b,f,g). Specifically, combining Immune Atlas clusters, clinical variables and cytogenetics resulted in AUC values ranging from 0.75 (any given subcluster) to 0.96 (all subclusters), contingent on the number of subclusters considered during modeling (Fig. 7b,g). This substantial increase in AUC by combining clinical and immune features (Extended Data Fig. 8a–c) further highlights the importance of the BMME. Although marginal differences in AUC were observed among individual cell clusters alone, integrative models showcased a notable advantage over simpler models (Extended Data Fig. 8a–c and Supplementary Table 8). Lastly, we identified the most relevant 11 subclusters selected using an elbow test on predictive power versus number of clusters, resulting in a model with high precision and recall (AUC = 0.81; Fig. 7b,f,h). This model for stratifying participants into progressors (Ps) and NPs (Fig. 7b,f,h) included differentiated T cytotoxic populations (CD8_Teff and CD8_Teff_HLA) along with inflammatory myeloid populations (CD14⁺ Mono_ProInflam) (Fig. 7h).

Next, we investigated the predictive ability of immune cell populations toward OS. Using the same approach as for PFS described above, we identified that OS was predicted at lower true positive rates than PFS (Extended Data Fig. 8d). Furthermore, cytogenetics provided little improvement over models using simple demographics (Extended Data Fig. 8e,f). Yet, integrative models, including immune subclusters, improved the predictions slightly with values around 0.7, although not as strongly as observed for PFS (Extended Data Fig. 8g,h). Consistent with the PFS model, we identified populations significantly associated with OS that included HSCs, T cells and megakaryocytes (Extended Data Fig. 8i).

To further independently validate our finding of immune BM clusters’ importance in improving PFS and OS prediction, we investigated our validation cohort of 74 participants with NDMM. The investigation of key clinical variables and cell proportions revealed that ASCT status was a strong confounder of PFS and OS outcomes in the validation cohort. To remove the confounding effects of ASCT, we modeled PFS and OS with and without this confounder to investigate this effect and rule out that our models were biased for validation by not including it in the prediction models for PFS (Fig. 7i and Extended Data Fig. 8j–o) and OS (Extended Data Fig. 8p–t). The PFS prediction model excluding ASCT status achieved an AUC of 0.80 (Fig. 7i and Extended Data Fig. 8n) by incorporating key immune clusters, representing a significant improvement over the combined prediction based on age, ISS and cytogenetics alone¹⁸. This underscores the synergy and critical role of immune clusters in predicting myeloma progression.

Integrating the minimal (n_clusters = 11) immune subset signature from the discovery cohort to our validation cohort exceeded expectations by revealing that the prediction of PFS and OS increased to AUC values of 0.94 (Fig. 7j and Extended Data Fig. 8o) and 0.73 (Extended Data Fig. 8r,t), respectively. These results clearly show the potential biases of clinical covariates and demonstrate that integrative scores using clinical data and genomic and immune cell populations can potentially enhance risk stratification and outcome prediction.

Lastly, to further investigate the robustness of the signature against other proposed cytogenetic risk criteria, we investigated whether immune populations could add to the prognostic capability of the recently proposed International Myeloma Working Group (IMWG) criteria as an alternative to the previously used Davies risk definition²⁵ (Extended Data Fig. 9a–j and Supplementary Table 1). Top predictive subclusters included many of the same immune populations, including CD8⁺HLA⁺ T cells and CD8⁺ Teff cells (Extended Data Fig. 9h). Integrating these immune populations with the clinical and cytogenetic variables outlined by the IMWG significantly improved the predictive AUC from 0.73 (Extended Data Fig. 9d) to 0.80 (Extended Data Fig. 9f,i). This finding further highlights the unbiased and critical importance of the immune microenvironment in accurately predicting myeloma progression.

Discussion

In this study, we generated a comprehensive single-cell Immune Atlas of the myeloma BMME by profiling ~1.4 million cells, capturing diverse cell states, including rare subtypes, such as cytotoxic CD4⁺ T cells, mast cells, HSCs and fibroblasts. This enabled deciphering BMME variations among participants with diverse risk profiles and outcomes; notably, these participants were not treated with recently approved immunotherapies, suggesting that the immune system has a broad, treatment-independent role in myeloma outcomes.

The BMME analysis by stratifying participants on the basis of individual HR abnormalities emphasized the heterogeneous impact of T, myeloid and B cell compartments. Participants with HR abnormalities except 17p13 deletion demonstrated a reduction in IFN-stimulated cell populations and expression. Interestingly, participants with 17p13 deletion had universal elevation of IFN-I-associated genes in T cells, other immune cells and malignant plasma cells. Acute IFN-I stimulation is crucial for mounting an effective antitumor immune response²⁶ through the activation of pathways such as cGAS–STING²⁷ but lesions such as 1q21 gain or amplification may block this, enabling immune evasion and progression²⁸. Conversely, as IFN-I’s apoptotic and senescent effects often depend on p53 (refs. ^29,30), del(17p13) may allow tumors to persist despite IFN-I overactivation, with chronic activity potentially impairing T cells³¹. Ultimately, these data underscore the complex interactions between HR cytogenetic alterations and critical antitumor pathways such as IFN-I, emphasizing the need to balance IFN-I signaling for therapeutic benefit. Agents such as bortezomib capable of acutely activating the IFN-I response might synergize with immunotherapies to boost antitumor response in persons with 1q21 gain or NSD2 abnormalities³². Strategies to alleviate immune impairment from chronic IFN-I signaling, such as checkpoint inhibitors targeting exhaustion markers (for example, PD1 and LAG3), could restore T cell function and counteract immune suppression in persons with 17p13 deletion. Kawano et al. already showed that IFNAR1 inhibition results in MM-driven Treg expansion and activation³³, thereby reducing immunosuppressive function and myeloma progression.

The T cell compartment of RPs displayed an accumulation of terminally differentiated CD8⁺ Teff cells, specifically late-activated cytotoxic cells, with reduced Tn populations (Fig. 7k). This state is sometimes referred to as immunosenescence, with low levels of cytotoxicity, inhibitory KIR and KLRG1 genes and a lack of costimulatory receptors CD27 and CD28, resulting in impaired antigen-mediated proliferation^{34,35,36,37,38}. Additionally, studies have indicated that the immunomodulatory effects of drugs such as IMiDs may be through the costimulatory CD28⁺ pathway³⁹; therefore, this population may show a diminished response to standard first-line therapies, potentially leading to poorer outcomes. Depletion of the Tn pool can be driven both by thymic involution^40,41 or by antigenic pressure driven from either myeloma cells or other chronic infections such as CMV or Epstein–Barr virus^42,43,44. Impairment of Tn cells reduces the TCR repertoire clonality^38,45, which is typically associated with worse outcomes in various malignancies^46,47. Additionally, accumulation of these differentiated T cell populations contributes to the inflammatory microenvironment through the production of cytokines such as IFNγ, which we observed highly expressed in the HLADR⁺CD28⁻ population associated with both HR and poor outcomes. Unlike exhaustion, it is not well understood whether this senescent state can be reversed, although some studies have indicated that it may be possible⁴⁸. Given that immune therapies could aggravate the T cell imbalance, it may be better to use more targeted therapies, such as bispecific antibodies and CAR-T cells, as the first line of therapy, rather than only in the relapsed setting.

In addition to T cell alterations, RPs displayed a shift toward myelopoiesis in the BM, reflected by general depletion of the B cell compartment, including the BM-native immature populations, compensated for by the enrichment of the myeloid compartment. Myelopoiesis in the BM can be driven by stress or inflammation that drives HSCs to differentiate toward myeloid lineages at a higher frequency⁴⁹. Myeloid cells are also a major source of inflammatory cytokines promoting tumor survival, immunosuppression or angiogenesis, as observed in RPs, displaying enrichment of senescent-associated secretory profile factors, including IL-8, CCL3 or IL-1β⁵⁰. The increased expression of these proinflammatory and immunomodulatory molecules aligns with previous findings, which identified neutrophils as major mediators of cytokine and chemokine signaling promoting the inflammatory BMME in NDMM⁵¹ (Extended Data Fig. 9k). The enrichment of these inflammatory factors may be related to IFNγ produced by the expanded CD8⁺ Teff cell populations, as the inflamed myeloid cells both express the receptor IFNGR2 and the TF IRF1, which is associated with IFNγ activity⁵².

Cell–cell communication analysis identified both BAFF (TNFSF13B) and APRIL (TNFSF13) expression in the myeloid compartment. BAFF expression was primarily associated with myeloid populations enriched in NPs such as IFN-associated monocytes. BAFF can bind to TACI expressed on plasma cells, although it has a much higher affinity to BAFF-R expressed in mature B cell populations to promote their differentiation and survival. Conversely, APRIL was most strongly associated with the Macro/Mono population enriched in RPs. APRIL is known to bind to TACI (TNFRSF13B) on malignant plasma cells, promoting their survival and MM progression^53,54.

Cytogenetics alone demonstrated positive predictive capabilities, yet integrating information from the BMME could enhance stratification and guide optimal therapeutic selection. We observed that the prevalence of differentiated BMME immune cell populations could predict outcomes with good accuracy in our cohort regardless of cytogenetics. Importantly, combining tumor cytogenetics and immune signatures can significantly improve the accuracy in stratifying myeloma outcomes. Participants with immunosenescent and inflamed BMME might have poor overall or event-free survival even with a favorable genetic makeup. Therefore, we posit that future treatments targeting the immune microenvironment could improve outcomes of myeloma. This observation can elevate the importance of capturing the BMME as a prognostic marker for MM. Increasing the studies capturing such information at the cohort scale could enable us to establish a new generation of comprehensive risk scores or the derivation of simplified lower-cost assays that focus only on the most informative populations. Furthermore, these data may identify ancillary therapeutic targets that improve the efficacy of current treatment strategies and may contribute to rationally designed, personalized treatment regimens based on both the tumor and the immune microenvironment.

This study created an extensive and comprehensive resource to map the granular cellular landscape of myeloma from baseline samples. However, the study had multiple limitations, including only studying gene expression, and did not include any proteomic or functional profiling. Additionally, the study lacked information on T cell repertoire profiling, which is crucial for understanding the expansion of antitumor T cell clones. This expansion is particularly important when analyzing longitudinal samples to ascertain treatment responses rather than relying solely on baseline NDMM samples profiled in this study. Future comparison of the findings herein against age-matched, non-MM biopsies could inform how aging contributes to alterations in the BMME.

This study highlights the importance of the immune landscape in better stratification of persons with myeloma in addition to tumor alterations. This paradigm can enable us to better understand the combinations of factors that influence outcomes in MM and move closer to the goal of optimizing therapy for each individual to ensure the best outcomes.

Methods

Ethics approval and participant consent

All samples for the study were obtained from the MMRF CoMMpass clinical trial (NCT01454297). Procedures involving human participants as part of this trial were performed according to the ethical standards of the MMRF research committee. Written informed consent was obtained from participants for the collection and analysis of samples and clinical information by the MMRF. The institutional review board at each participating medical center approved the study protocol. The list of participating institutes that approved the study protocol is available from ClinicalTrials.gov (NCT01454297).

Experimental model and human subject details

A total of 337 CD138⁻ MM BM mononuclear cell samples were collected from participants with MM enrolled in the MMRF CoMMpass study (NCT01454297) and profiled in the discovery (n = 263) and validation (n = 74) phases. Participants enrolled in the study were monitored through quarterly checkins for up to 8 years following initial disease diagnosis. All participants were required to be eligible for either standard triplet therapy (IMiD, PI and glucocorticoid) or doublet therapy. Most participants received triplet therapy in their first line of therapy. Participants’ information is available in Supplementary Table 3 for the discovery and validation cohorts. Samples were acquired before therapy (baseline) and after therapy (relapse or remission) and then processed at four institutions: Emory University, Mayo Clinic Rochester, Icahn School of Medicine at Mount Sinai and Washington University.

CD138⁻ cell isolation and cryopreservation of cell samples

BM aspirates from the MM Research Consortium tissue bank were separated into CD138⁺ (myeloma cells) and CD138⁻ (immune, BM cells) fractions using immunomagnetic cell selection targeting CD138 surface expression (automated RoboSep and manual EasySep from StemCell Technologies). Before bead-based separation, each sample was assessed for malignant plasma cell levels using flow cytometry. Briefly, the CD138⁻ cells were centrifuged at 400g for 5 min. The resulting cell pellet was resuspended in freezing medium consisting of 90% fetal calf serum and 10% DMSO at a concentration of 5–30 million cells per ml in multiple aliquots. Cell concentrations and aliquot locations were documented before storing in liquid nitrogen for future studies.

scRNA-seq sample preparation, library construction and sequencing

To generate high-quality and comparable single-cell data, we developed a highly detailed single-cell protocol on the basis of our pilot studies^12,19,20 for implementation across centers and performed profiling using single-cell 3’ profiling (10x Genomics). Briefly for scRNA-seq, aliquots of the CD138⁻ BMME samples were thawed quickly in 37 °C water bath. Cells were washed with a warm medium and pelleted by spinning at 370g for 5 min at 4 °C. The cell pellet was resuspended in ice-cold PBS with 1% BSA and cell viability was measured. If cell viability was <90%, dead cell removal was performed using the dead cell removal kit (Miltenyi Biotec). The cell pellet was resuspended in 100 µl of dead cell removal microbead solution and incubated at room temperature for 15 min. Magnetic removal of labeled dead cells was performed using the MS column or autoMACS Pro separator. The eluted supernatant containing the live cells was pelleted by centrifugation at 370g for 5 min at 4 °C. Cells were finally resuspended in ice-cold PBS containing 1.0% BSA. To assess for potential batch effects between sequencing runs, a subset of samples were spiked in with approximately 100–150 cells from a murine sarcoma line (NIH/3t3; American Type Culture Collection (ATCC), CRL-1658), as described below. The cells were loaded onto the 10x Genomics Chromium Controller according to the manufacturer’s instructions, followed by reverse transcription (RT)–PCR, complementary DNA (cDNA) amplification and library preparation using the Chromium Next-GEM single-cell 3′ GEM, library and gel bead kit version 2.1. Briefly, approximately 8,000 cells were partitioned into nanoliter droplets to achieve single-cell resolution for a maximum of 5,000 individual cells per sample. The resulting cDNA was tagged with a common 16-nt cell barcode and 10-nt unique molecular identifier (UMI) during the RT reaction. Full-length cDNA from poly(A) mRNA transcripts was enzymatically fragmented and size-selected to optimize the cDNA amplicon size (~400 bp) for library construction as per recommendations from 10x Genomics. The concentration of the single-cell library was accurately determined through qPCR (Kapa Biosystems) to produce cluster counts appropriate for the paired-end sequencing using NovaSeq 6000 platforms (Illumina). The sequencing data were generated by targeting 25,000–50,000 reads per cell, which provided gene expression profiles of 1,000–4,000 transcripts per cell.

NIH/3t3 spike-in and filtering for downstream analyses

In some samples, cells from murine sarcoma lines (NIH/3t3; ATCC CRL-1658) were spiked into the final human single-cell suspension to qualitatively assess batch effects across centers. The vial of NIH/3t3 cells was thawed by gentle agitation in a 37 °C water bath. Contents of the vial were transferred to a 1.5-ml sterile tube and spun at approximately 400g for 4 min. The supernatant was discarded; the resulting pellet was washed with 1× PBS and then spun down at the same speed. After discarding PBS, the pellet was resuspended in complete medium, DMEM (ATCC, 30-2002) supplemented with 10% FBS and 1% penicillin–streptomycin. Cell viability was assessed and kept on ice while the participant’s sample was prepared. After cells from the participant’s BM aspirate were resuspended, approximately 100–150 NIH/3t3 cells were spiked in, targeting a 1:50 ratio of spike-in to human cells.

To identify the murine sarcoma spike-in cells in the scRNA-seq data, we additionally mapped the raw data to the 2020A combined human (GRCh38) and mouse (mm10) reference genome provided by 10x Genomics using Cell Ranger (version 6.0.1; 10x Genomics) and analyzed the resulting data using Seurat. Clusters in which at least 80% of cells had fewer than 95% of reads mapped to the human reference genome were identified as mm10 spike-in cell lines. These populations were assessed to see whether variance in alignment between processing centers or between subsequent sequencing runs within the same center would result in sample-specific or processing-center-specific populations for the spike-in cell line to determine whether batch correction would be required. Cell barcodes corresponding to NIH/3t3 spike-in cells were removed from the final merged object after alignment to the 10x Genomics 2020A GRCh38 reference genome before calculating highly variable genes or clusters. Two samples with over 65% of cells being identified as NIH/3t3 spike-in cells were excluded from the integrated object and subsequent downstream analyses.

scRNA-seq genome alignment and quality control

For the analysis of scRNA-seq samples, Cell Ranger (version 6.0.1; 10x Genomics) was used for demultiplexing sequence data into FASTQ files, aligning reads to the human genome (GRCh38) and generating gene-by-cell UMI count matrices. Empty droplets were removed using DropletUtils⁵⁵ (version 1.14.2) (false discovery rate (FDR) < 0.001). Ambient RNA was removed using CellBender⁵⁶ (version 0.3.0) (false positive rate = 0.01). For quality control, cells with <1,000 UMI reads, <200 unique genes or >20% of UMIs mapped to mitochondrial genes were filtered out using Seurat (version 4.3). Harmony⁵⁷ (version 0.1) was implemented to mitigate batch effects from processing sites and shipment batches in the resulting cell clusters and embeddings. For a small subset of downstream analyses that directly operate on the count matrix and do not support controlling for a batch covariate, such as CellChat⁵⁸ or SCENIC⁵⁹, a corrected count matrix was generated as described below.

Batch-corrected count matrices for GRN and cellular communication analysis

Batch effect estimation

First, the Poisson Pearson residuals were computed for each gene across all cells. Genes with zero UMI counts across all cells were excluded from further steps. For the remaining genes, the proportion of variance explained by batch in the Pearson residuals was estimated using the R² from a linear regression model. Genes where the batch explained less than 1% of the variance were removed to avoid overcorrection.

Batch-corrected counts

The reference count distribution for each gene affected by batch was modeled as either Poisson (when the mean was equal to the variance) or negative binomial. The Poisson parameter was estimated using the maximum-likelihood estimator, while the negative binomial mean and dispersion parameters were estimated using a gamma Poisson generalized linear model. The batch correction was performed in two steps: (1) scaling and centering the Pearson residuals using the batch-level means and s.d. to account for the differences between batches and (2) transforming the standardized Pearson residuals onto the probability scale using the empirical distribution function and then the batch-corrected counts using the quantile function of the reference Poisson or negative binomial distribution. A pseudocount of 1 and the original zeros observed in the uncorrected UMI counts were restored to preserve the observed sparsity.

Clustering and cell annotation

Following the removal of NIH/3t3 spike-in cells as described previously, raw counts were log-normalized (scale factor = 10,000) using Seurat⁶⁰ (version 4.3). The first 25 principal components derived from principal component analysis were computed from the top 3,000 variable genes to reduce data dimensionality. Harmony was applied to these principal components to generate batch-corrected embeddings, where each combination of processing center and shipment batch was considered an independent variable. To cluster cells of similar transcriptome profile, Louvain clustering was performed on the batch-corrected Harmony embeddings using Seurat’s ‘FindClusters’ function. Clusters were visualized using uniform manifold approximation and projection (UMAP). Clusters were aggregated into five major connected components called compartments based on their separability on the UMAP. To annotate these compartments, a combination of SingleR⁶¹ and cell-type-specific or subtype-specific marker expression was used. The identified compartments included ‘T/NK’ (T cells and NK cells), ‘B-Ery’ (B cells, CD34⁺ populations and erythroblasts), ‘myeloid’ (monocytes, neutrophils and DCs), ‘plasma’ (plasma cells) and ‘Ery’ (erythrocytes). A small independent cluster of fibroblasts (946 cells, discovery cohort) was observed in the initial UMAP and was not included in any compartment.

More precise annotation of individual cell compartments was performed separately by repeating the above process on each compartment, leveraging variable genes specific to each compartment. Because of the highly participant-specific nature of myeloma populations, batch correction in the plasma compartment was performed per aliquot instead of per batch. Each cluster was manually annotated on the basis of the expression of canonical markers or top genes of the clusters. While annotating cells, if a possible subset was identified within a given cluster on the basis of marker expression, further subclustering was performed specific to that cluster using the same procedure. Multiple resolutions were assessed, with the final subclustering used being the result that isolated the subpopulation of interest while minimizing the formation of minor or participant-specific clusters.

Validation cohort data processing and cell annotation label transfer

The validation cohort samples (n = 74) were processed and quality-controlled using the same procedures applied to the discovery cohort described above. The discovery and validation cohort samples were then merged into a single dataset using Seurat’s merge function for batch correction and annotation. Harmony was applied to correct batch effects while preserving shared biological variation. The resulting merged dataset was used for clustering and to derive UMAP embeddings. Subclusters in the validation cohort (n = 74) were inferred using the discovery cohort (n = 263) as the reference. Label transfer was performed using a k-nearest neighbor (kNN) approach (k = 1) on the basis of UMAP embeddings from the merged dataset (n = 337). For each cell in the validation cohort, the label of its single nearest neighbor in the discovery cohort was transferred. The FNN package⁶² (version 1.1.4) was used to implement the kNN search.

Single-cell mutation mapping and copy-number variation inference

To better understand tumor heterogeneity and malignancy of plasma cell populations, we profiled mutations and copy-number changes of plasma cells. First, we used a mutation mapping strategy to detect mutations within each cell by looking for reads supporting the reference or variant alleles at variant sites in mapped reads from scRNA-seq BAM files. This was achieved by leveraging high-confidence somatic mutations derived from whole-exome sequencing data from the same participant. The code for mutation mapping is available from GitHub (https://github.com/ding-lab/10Xmapping). Furthermore, we used inferCNV (version 0.8.2; https://github.com/broadinstitute/inferCNV) with default parameters to identify sample-level chromosomal copy-number variations of plasma cells, using the immune cells as reference normal set.

Doublet detection

For the discovery cohort, doublets were identified by flagging clusters with high doublet proportions as predicted using DoubletFinder⁶³, Scrublet⁶⁴ (version 0.2.3) and Pegasus (version 1.8.1; https://github.com/lilab-bcb/pegasus). Scrublet was used to detect doublets with the expected doublet rate set at 0.06 and thresholded at 0.2. Doublet-enriched clusters, characterized by at least two methods (FDR < 0.05, Fisher’s exact test), were manually reviewed and marked as doublets accordingly. Characteristics considered when reviewing doublet-enriched clusters include the simultaneous, high expression of canonical markers from unrelated lineages (for example, T cell markers CD3, CD8A and GZMK and myeloid markers LYZ, CST3 and CD14) or UMI counts disproportionately high relative to similar cell types. A total of 17 cell clusters (n = 74,282) were flagged as doublets and were omitted from downstream differential expression, abundance and trajectory analysis. In the validation cohort, cells mapped to doublet populations were considered doublets and excluded from downstream analysis.

Differential expression among cell types and clinical groups

Differential expression analysis was performed using linear modeling (as implemented in limma⁶⁵) R packages to identify markers enriched in each population, or between clinical groups of interest. Models were adjusted for technical covariates, such as processing site and batch. Significance was determined using moderated t-test statistics on the log-normalized expression. P values were adjusted for multiple comparisons using Benjamini–Hochberg (BH) correction.

Differential abundance of cell types and subtypes

Differential abundance was performed using limma by fitting a linear model to logit-transformed cell proportions across individual participant samples. The distribution of logit-transformed proportions was assumed to be normal but this was not formally tested. Proportions were computed as a fraction of a given set of cell types, as described by the relevant figures. Proportions of nonmalignant cells refer to cell populations other than plasma cells. Proportions of immune cells refer to nonerythroid and nonmalignant plasma populations. All models were adjusted according to the processing site. Significance was determined using a moderated t-test on the logit-transformed proportions. The coefficient of the model represents the log odds ratio between the two groups after adjusting for other confounding features. The logit-transformed proportions were computed using the car package⁶⁶ (version 3.1) with default parameters and the difference was considered statistically significant if P < 0.05.

Participant stratification based on time interval to disease progression

Participants in the CoMMpass study had regular 3-month checkins in which clinical parameters were evaluated following therapy. The day of disease progression was identified using standard IMWG criteria. Progression data used in this study were derived from the IA22 CoMMpass clinical metadata release. Participants were categorized into discrete progression groups on the basis of their PFS and the duration of time the participant was enrolled in the study. The extreme categories of RP and NP used cutoffs matching those of our pilot study¹². RPs were those with a progression event within 18 months of therapy (PFS < 18 months). NPs included those who had no progression event for at least 4 years following therapy (PFS > 4 years). Ps were those who had a documented progression event between 18 months and 4 years (PFS > 18 months, PFS < 4 years). Incomplete (Inc) participants were those who exited the study before 4 years of disease diagnosis without experiencing a progression event.

Cytogenetic risk-based stratification of participant samples

The cytogenetic risk categorization was defined using translocation data or copy-number data derived from CD138⁺ WGS results included in the IA21 CoMMpass metadata release. Thresholds for calling mutation events in the MMRF CoMMpass data are based on the work by Skerget et al.¹¹ HR participants were defined with one of the six following cytogenetic events: del17p13, t(14;16)[MAF], t(8;14)[MAFA], t(14;20)[MAFB], t(4;14)[WHSC1/MMSET/NSD2] and 1q gain. This extends the definition proposed by Skerget et al. by incorporating 1q gain. Participants with none of these six events were considered SR. Participants with partial mutation data, such as having only translocation or only copy-number data, could be classified as HR if an HR mutation was present in the available data; otherwise, these participants were excluded from downstream analyses involving risk-based stratification.

Additionally, we also used the revised HR definition proposed by the International Society of Myeloma (IMS) and IMWG for exploring immune associations. The revised IMS risk definition relies on the presence of one of the following cytogenetics abnormalities: (1) del(17p), with a cutoff of >20% clonal fraction, and/or TP53 mutation; (2) an IgH translocation including t(4;14), t(14;16) or t(14;20) along with +1q and/or del(1p); or (3) monoallelic del(1p32) along with +1q or biallelic del(1p32)²⁵ (Supplementary Table 1).

Furthermore, we explored the association of APOBEC-induced mutational score with BM MM immune profile. The enrichment scores were computed using R package maftools⁶⁷. Briefly, the enrichment scores are computed as a ratio between the number of C>T transitions occurring within a TCW motif over all the C>T transitions in a given sample and total background cytosines and TCW motifs within a 20-bp window of mutated bases.

Additionally, we obtained chromothripsis events for participants in this cohort from a prior study by Rustad et al.⁶⁸

Prediction of participant progression based on immune cell abundances, cytogenetics and demographics

To assess the progression prediction capability of the immune signatures alone and in combination with clinical variables, we developed and evaluated multiple classifiers. We evaluated the predictive power of clusters containing cells from at least 50% of samples, resulting in the usage of 83 subclusters. Subsequently, the cell frequencies of these subclusters were used to construct both univariate and multivariate models applying three distinct methods: Cox regression, logistic linear regression (LRM) and elastic net regression. Internal validation using bootstrap was used to test the robustness of the results.

For the elastic net regression models, a sensitivity analysis of the coefficients was performed to facilitate feature selection and the identification of pertinent features. Likewise, features were selected from LRM and Cox models using P-value filtering. Our modeling approach was designed to assess individual or multiple subclusters, integrated with additional variables such as age, sex, disease stage (ISS) and the cytogenetic risk descriptor mentioned earlier.

To ensure the robustness of our models, a bootstrap validation approach was implemented, yielding bias-corrected indices specific to each model type. Model performance metrics, including the Somers index (Dxy) and diagnostic statistics were computed using Harrel’s rms R package⁶⁹. The R packages, glmnet⁷⁰, survival⁷¹ and rms⁶⁹ were used for identifying and testing predictions of disease progression. Visualization was carried out using R packages such as ggplot, tidyverse, pheatmap, survminer and gtsummary.

Cell transition trajectory analysis

Pseudotemporal ordering of cells was performed using the Slingshot R package⁷². Cells with a known biological lineage were isolated from all other populations (for example, CD8⁺ T cells) and doublet and mitochondrial-enriched populations were excluded. New variable features and batch-corrected embedding components were computed as described above. Slingshot was performed on the first 25 batch-corrected harmony embeddings. If an identified progenitor or less-differentiated population was detected through annotation, this cluster was designated as the ‘start cluster’ for trajectory analysis. Pseudotimes for clusters, representing the distance along the trajectory from the starting cluster, were calculated using the Slingshot package.

Survival analysis

The participants were categorized on the basis of clinical characteristics and risk groups. To analyze survival outcomes, we calculated the probabilities for either PFS or OS and generated Kaplan–Meier curves using the survival⁷¹ (version 3.2.7) and survminer⁷³ (version 0.4.9) packages in R. The PFS and OS data were derived from the IA22 CoMMpass clinical metadata release. Participants who left the study before any follow-up appointments or participants with large delays in the start of therapy from the initial baseline visit were excluded from survival analysis. CoxPH models were used to determine the clinical characteristics that had the most significant and independent impact on participant survival. The survival curves based on the CD8 Teff HLA⁺ abundance were based on a CoxPH model regressing the OS on the Pearson residuals from a linear regression model with processing site as the covariate. The optimal cutoff to separate the participants at baseline in low-expression and high-expression groups was determined using maximally selected rank statistics implemented in the surv_cutpoint function from the survminer package⁷³.

Pathway activity analysis and signature scoring

Gene set enrichment analysis (GSEA) was performed to identify the pathways enriched across cell types or clinical groups. The GSEA analysis function gsePathway from ReactomePA⁷⁴ (version 1.42.0) was used to compute normalized enrichment scores (NESs) derived from an ordered gene list. Gene lists were ordered by log₂ fold change computed using limma trend, correcting for processing site and batch among cell types or clinical groups, as described above. To evaluate the enrichment of a gene signature in individual cells, we computed a signature score using the AddModuleScore_UCell function from the UCell package⁷⁵ (version 2.2.0). A list of genes from each biological signature was provided as an input. Higher scores were given to cells that consistently showed higher expression of genes in the marker list relative to a randomly selected set of background genes. To derive a per-participant signature score, the mean signature score of all cells in the relevant compartment was computed. Wherever necessary, the P values were adjusted using the BH approach.

Processing of bulk RNA-seq data to determine IFN signature scores

Bulk RNA-seq data were obtained from the IA22 release from the MMRF CoMMpass Study. The edgeR package⁷⁶ (version 4.0.16) was used to normalize raw count data, filtering out genes with fewer than five counts per million (cpm) across all individual samples. The gene set variation analysis (GSVA) package (version 1.50.0) was used to compute per-sample signature scores for the IFN-I signature (Supplementary Table 4), using log cpm values as the input, and a Gaussian kernel density function. A Student’s t-test using the rstatix package⁷⁷ (version 0.7.2) was used to determine whether the difference in IFN-I signature scores across participants with normal 1q21, 1q21 gain or 1q21 amplification or across participants with normal P53 activity, partial loss of P53 or complete loss of P53 was significant.

To determine whether IFN-I patterns identified in CD138⁺ bulk RNA-seq were consistent with those found in CD138⁻ sequencing, IFN-I scores in residual plasma cells in the CD138⁻ scRNA-seq data were compared to the CD138⁺ bulk RNA-seq data. Counts from baseline participants with at least 50 plasma cells captured in the scRNA data following quality control and doublet filtering were aggregated into pseudobulked count matrices using the pseudobulk expression function in Seurat version 4. Aggregated per-participant count matrices were subsequently filtered in an identical manner to the bulk RNA-seq data and GSVA IFN-I scores were computed.

Cell–cell communication analysis

CellChat⁵⁸ (version 2.1.0) was used to identify possible cell–cell interactions across the BMME. The normalized, batch-corrected count matrix described above was used as the input to CellChat. Doublet clusters were excluded from this analysis. For downstream analysis, some clusters representing biologically similar subtypes were aggregated. A table displaying the mapping between the original clusters and their CellChat clusters is provided in Supplementary Table 6.

GRN analysis

The GRNs for selected clusters within our dataset were estimated using pySCENIC, an implementation of SCENIC⁵⁹ (single-cell regulatory network inference and clustering). The analysis was focused on selected clusters of interest from the myeloid compartment (CD14⁺ Mono_IFN, CD14⁺ Mono pro-inflam, Macro/Mono and GMP). The batch-corrected count matrix served as the input to run GRNBoost2 and generate coexpression modules. GRNs were further inferred using the hg38_refseq-r80 (mc_v10_clust) motif database, hgnc motif annotation (version 9) and pySCENIC’s default settings. Because of the stochastic nature of the GRNBoost2 algorithm, slightly varying regulons are detected in each run. Hence, high-confidence regulons were filtered out if they were present in >80% of runs, while their target genes were considered if they were detected in >90% of runs. Using AUCell from pySCENIC, each cell was assigned a gene signature score (AUC) indicating the degree of TF activity. The AUC values were normalized across each regulon and their mean was calculated for each cluster to identify regulons that were strongly associated with a specific cluster. AUC values for each cell in the clusters of interest were averaged to get a per-participant per-regulon score. The cutpoint algorithm was used for grouping samples into ‘high’ and ‘low’ regulon activity categories. Survival analysis was performed using the Kaplan–Meier method and CoxPH regression model on the variables ‘high’ and ‘low’ activity. As AUC values were derived from batch-corrected count matrices, the shipment batch was not adjusted for in the Cox model.

Statistics and reproducibility

No statistical method was used to predetermine sample sizes. Samples from participants with a baseline time point who were treated with standard doublet or triplet therapy in the CoMMpass study were prioritized for scRNA-seq. Each analysis used all processed scRNA-seq samples available that met our quality control requirements, with the required clinical, cytogenetic or demographic information for each analysis. Two scRNA-seq samples were excluded from all analyses, in which >65% of cells from the sample were identified as mm10 spike-in cells. Samples were from an observational clinical trial and no randomization was performed with regard to therapy. Therapy selection was determined by the physician. For creating scRNA-seq libraries, aliquots were randomly assigned to one of the four processing centers. Investigators were not blinded to allocation during experiments, as participant categorization for subsequent analyses was based on observed features and outcome assessments. Normality of data distribution was not formally tested, although variance stabilization transformations were applied where appropriate for the type of data, as described in the corresponding sections (logit transformation for proportion data in differential abundance and log normalization for expression data in differential expression).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

All single-cell raw data, processed summary data and clinical information used for this project are under controlled access at MMRF’s VLAB shared resource. MMRF requires anyone interested in accessing the data apply for access at https://mmrfvirtuallab.org and to meet following minimum qualifications: (1) permanent employee of their institution and at a level equivalent to a tenure-track professor or (2) senior investigator that is overseeing laboratory or research program. If the access request is approved, usually within 1 week, investigators will receive an email with instructions to download the data. Alternatively, a Seurat object with limited metadata is available from Zenodo (https://doi.org/10.5281/zenodo.11150168)⁷⁸. Zenodo additionally contains a copy of the Immune Atlas Cell Annotation Dictionary, which provides additional information about cluster annotation and marker expression for those who wish to use the preannotated dataset. For all other additional inquiries, please email ImmuneAtlasNetwork@themmrf.org. The data from this study can be explored online at https://myelomaimmuneatlas.themmrf.org/. Source data are provided with this paper.

Code availability

All the code used for data analysis and generation of figures is available on the MMRF Immune Atlas Consortium GitHub (https://github.com/theMMRF/MMRF_ImmuneAtlas). A copy of the Immune Atlas Cell Annotation Dictionary providing additional information about cluster annotation and marker expression will also be provided on the GitHub for those who wish to use the preannotated dataset.
