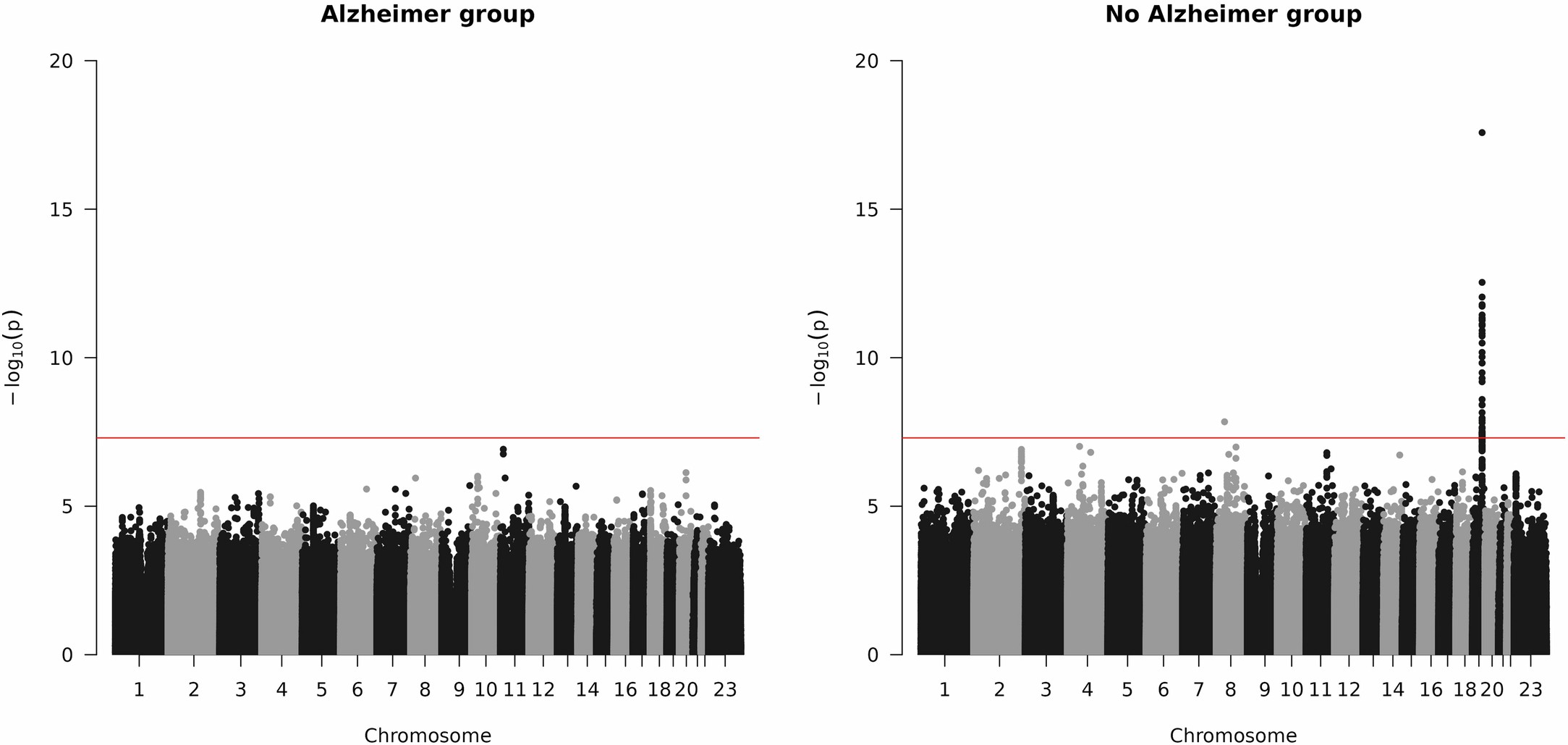

Extended Data Fig. 5: Manhattan plots of delirium GWAS in UKB EUR, stratified by Alzheimer disease status.
From: Dissecting the genetic and proteomic risk factors for delirium
Results for the AD (n_cases = 1,142; n_controls = 2,424) (left) and non-AD (n_cases = 6,033; n_controls = 382,592) (right) sub-cohorts. Each point represents a genetic variant. The x-axis denotes the variant’s genomic position and the y-axis the GWAS association p value. The red dashed line denotes the genome-wide significance p value threshold 5×10−8. The plot was created using the qqman R package. AD: Alzheimer disease.
