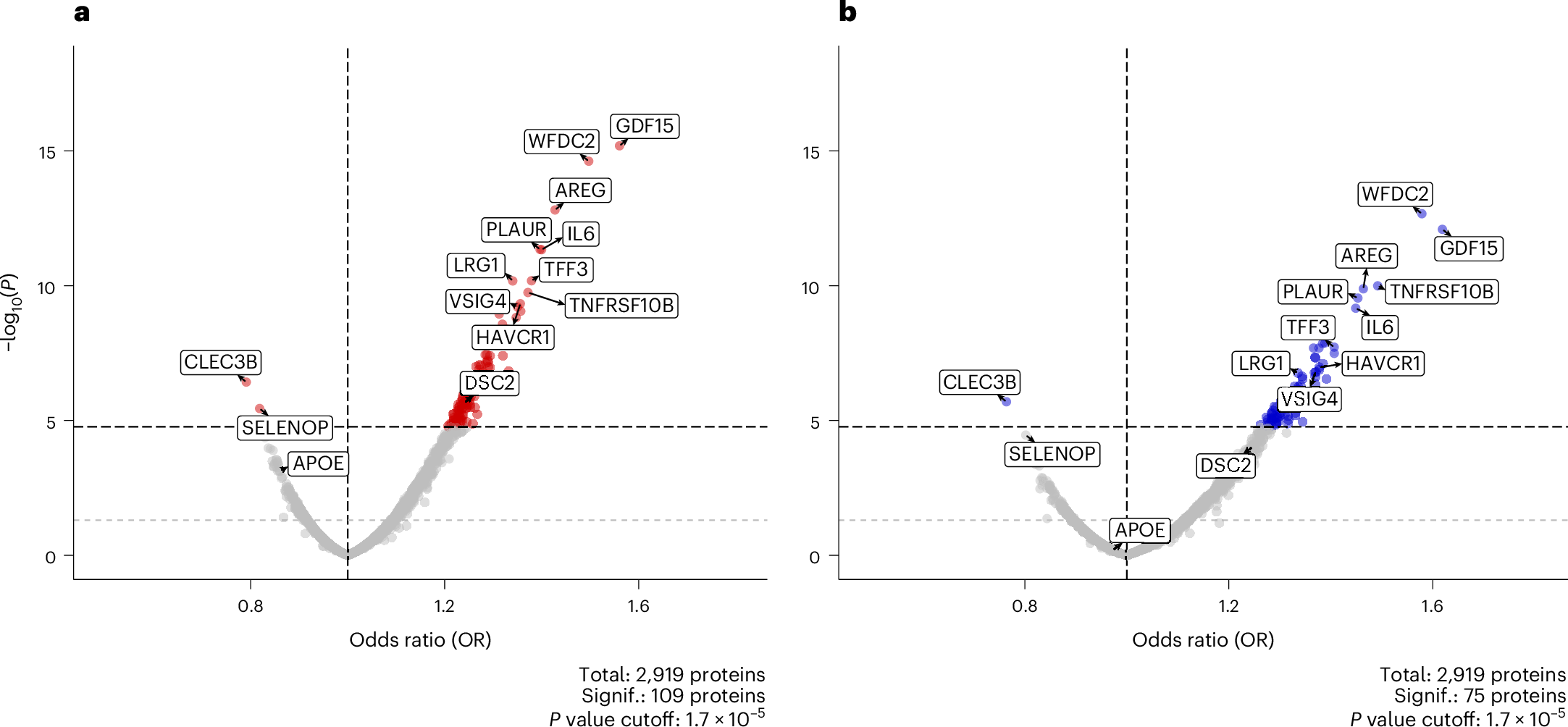

Fig. 5: Associations of plasma proteins with incident delirium.
From: Dissecting the genetic and proteomic risk factors for delirium
a,b, Volcano plot showing the proteome-wide associations of 2,919 plasma proteins with incident delirium in the nonstratified (a) and the dementia-free (b) UKB proteomic set. ORs of the logistic regression models are plotted on the x axis and respective two-sided −log10(P) of the corresponding logistic regression z-scores are plotted on the y axis. All models are adjusted for age at protein collection, sex and BMI. The black dashed horizontal line indicates the Bonferroni-adjusted P value threshold of 1.7 × 10−5, with proteins above this line colored red (a) and blue (b), respectively. The gray dashed horizontal line indicates the nominal P value threshold of 0.05. The plot was created using the EnhancedVolcano R package (v.1.18.0).
