Introduction

Continuous health condition monitoring and proactive intervention (ideally before the onset of disease) are essential developments for improving healthcare1,2,3,4,5,6,7,8. The status quo focuses primarily on reactive medical intervention, meaning patients typically seek care after developing noticeable symptoms. Many chronic and geriatric diseases also require significant monitoring, currently performed through a variety of invasive procedures, for disease prognosis and overall health. This highlights the urgent need to develop devices that provide continuous, real-time insights for health monitoring. In recent years, sweat/wearable biosensors have emerged as a promising direction for diagnostic and prognostic care1,3,4,7. There have been numerous developments in wearable devices for accurate measurement of biophysical parameters, such as blood pressure, galvanic skin response (GSR), heart rate, and body temperature, though recent studies have drawn more attention onto monitoring direct information on the physiological and metabolic biomarkers of the human body1,9,10. This movement towards wearable biomarker detection and diagnosis is not limited to sweat; however, Heikenfeld and colleagues comprehensively reviewed biochemical monitoring across various biofluids5. For sweat sensors, these recent advances demonstrate a progression of biosensing to combine component innovations, such as novel receptors or microfluidic designs, to the construction of fully integrated systems11,12,13. By combining sensor arrays, flexible electronics, and biochemical receptors, with recent studies on data science and machine learning algorithms developing to interpret biosensor data, the infrastructure for wearable biosensors has improved significantly14,15. As illustrated in Fig. 1, from the specifics of MIP synthesis, sensor fabrication strategies, and various electrochemical sensing modalities to sweat induction and biomarker detection, this review systematically examines the core components and provides a comprehensive overview of MIP-based AA sweat sensing. This structure provides a comprehensive framework for understanding the current landscape, future trajectory of the field, and applicability to health monitoring.

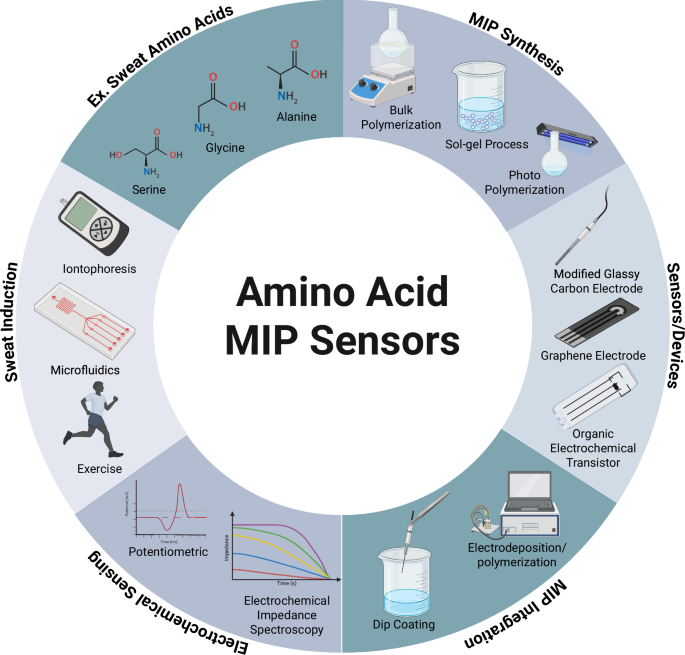

Fig. 1
figure 1

Graphical illustration of the key components and potential applications of MIP-Based Amino Acid (AA) Sensors, from sweat induction and biomarkers to MIP synthesis, sensor fabrication, and electrochemical sensing methods discussed in this review.

Among the various biofluids available for analysis, sweat has emerged as a particularly compelling sample for wearable sensing. Gao and coworkers’ review on wearable sweat sensors offers a comprehensive and broader perspective on the area of sweat sensing16. The conventional gold standard biofluid, blood (and its constituents), is information-rich; however, access is invasive17. In contrast, other biofluids, such as, saliva and urine, have limitations for continuous monitoring, including sampling difficulty, contamination and inconsistency1. On the other hand, sweat is readily and non-invasively available, consistently detectable, and contains a vast secretome of biomarkers reflecting metabolic state, diseases, and overall health1,7,9,11,17.

Since the initial proposals for real-time sweat analysis, much research has been directed to the monitoring of various analytes, such as electrolytes, metabolites, proteins, and trace elements1. However, within the varied composition of sweat, amino acids stand out as significant molecular targets for analysis. Amino acids play a crucial role in human metabolic function due to their utilization of carbon skeletons in energy production and glucose conversion, while also serving as essential precursors for other vital biomolecules, including the nucleotides of DNA and RNA, as well as the heme group in hemoglobin. However, recent discoveries have further established amino acids as sophisticated signaling molecules that play an active role in regulating cellular and bodily physiology, which in turn acts as potential biomarkers for many diseases18,19. Current literature demonstrates that glutamate and glycine act as the primary excitatory and inhibitory neurotransmitters in the central nervous system, respectively20. Others, like tryptophan and tyrosine, are essential precursors for key neurotransmitters, such as serotonin and dopamine, directly linking diet to mood and cognitive function20. Furthermore, amino acids, such as arginine, glutamine, and tryptophan are now recognized as critical modulators of the immune system, directing immune cell activation, cardiovascular system/disorders, and influencing the gut-brain axis19. This evolving understanding demonstrates that amino acids are not simply static indicators of nutritional status but as significant biomarkers for the real-time state of the body’s metabolic, nervous, and immune systems, which positions them as valuable targets for continuous health monitoring18,19,20. The practical realization of quantifying amino acids in sweat requires the construction of robust and highly selective recognition elements. While natural receptors like antibodies and enzymes have been historically prevalent for biosensing, their application in wearable technology is significantly limited by high production costs, complex purification, selectivity, and stability21. A synthetic alternative, Molecularly Imprinted Polymers (MIPs) have recently emerged as a promising and disruptive alternative22,23. These antibody-mimetic materials are engineered with tailored recognition cavities that are sterically and chemically complementary to specific target molecules. MIPs offer high sensitivity and selectivity with high physical durability, resistance to chemical and thermal degradation, and low-cost production. Figure 2 demonstrates a timeline of general sweat sensors and their evolution towards MIP-based AA-specific wearable sensors. This progression highlights the various milestones of the technology from foundational research on wearable sweat sensors and integrated platforms towards highly sensitive, wearable monitoring of specific metabolic biomarkers and amino acids, overall providing a comprehensive overview of the many years of significant research preceding MIP-based AA sensors.

Fig. 2: A timeline of key milestones in the development of general wearable sweat sensors from 2016 to 2025.
figure 2

The figure highlights the technological progression of MIP sensors from a fully integrated multiplexed sensing platforms combined with on-demand sweat induction142, b refinement of selective recognition layers, such as the use of creation of a fully integrated sweat analysis platform143, c development of MIP electrochemical sensors for Tyrosine and Uric Acid144, d integration of CNTs and nanomaterials in a MIP sensor for Tryptophan detection145, e Comprehensive wearable MIP biosensors for personalized nutrition9, f anti-fouling wearable MIP sensing for sweat tryptophan133, g point-of-care diagnostics validated against blood standards for metabolic disorders like phenylketonuria146, h to recent studies working towards textile-integrated sensors147.

This review provides a comprehensive overview of the current state of MIP-based, wearable sensors for amino acid detection in sweat. It begins by detailing the physiological importance of sweat as a diagnostic medium and the clinical significance of its amino acid constituents. Subsequently, the review explores the fundamental principles of molecular imprinting and the engineering considerations for sensor design, including substrate selection and signal transduction. It then evaluates the current literature/status quo, addressing key challenges which may impede clinical translation, and outlines future opportunities for this technology to advance health monitoring.

Sweat physiology and biomarkers

The diagnostic potential and composition of sweat

Sweat is a complex biofluid secreted by glands within the skin. It primarily serves the physiological function of thermoregulation, moisturization, immune defense, and electrolyte and pH balance1,24. Sweat is produced by two distinct types of glands: eccrine and apocrine, both of which have been explored for their potential diagnostic capabilities. Apocrine glands are located at specific anatomical regions, such as the axilla and secrete a viscous, lipid-rich fluid into hair follicles24,25. This distribution thus makes it less favorable for diagnostic purposes, with eccrine sweat garnering more significant scientific attention, as eccrine glands are distributed across the entire body surface and secrete a clear, aqueous fluid that is a more direct reflection of the constituents of blood plasma25,26,27. Generation of this sweat can be induced through thermoregulation during physical activity or, for on-demand analysis in sedentary individuals, through localized iontophoretic delivery of cholinergic agonists or electrical stimulation. The diagnostic value of eccrine sweat lies in its rich and dynamic chemical composition. While predominantly composed of water and electrolytes, such as sodium, potassium (K+), and chloride (Cl), sweat contains a diverse array of organic and inorganic molecules that provide a multiparametric window into an individual’s physiological state1. This secretome includes a variety of metabolites, including lactate from anaerobic glycolysis and urea from the hepatic urea cycle; hormones like cortisol, which is a key indicator of physiological stress; exogenous agents, including therapeutic drugs and their metabolites; and, critically for this review, a wide spectrum of amino acids1,25,26,28.

Amino acids and diseases

Amino acids are commonly recognized as the fundamental building blocks of proteins. However, their physiological roles extend far beyond proteogenesis, including crucial biological mechanisms like neurotransmission, hormone synthesis, and cellular energy metabolism28,29. Tight bodily regulation on amino acid concentrations in biofluids consequently posits the dysregulation of amino acid metabolism as a hallmark of numerous health conditions. As depicted in Fig. 3, the Krebs/TCA cycle acts as a central hub connecting amino acid catabolism with cellular energy production, with the central role of these amino acids in critical metabolic pathways highlighting why monitoring their concentrations is beneficial for the early detection and management of many associated pathological conditions30. Many amino acids can be converted into key metabolic intermediates within the cycle, contributing to the cell’s energy supply, serving as precursors for biosynthesis, tumorigenesis, stem cell function, and physiological function, demonstrating how defects in amino acid processing can ultimately lead to pathological conditions (Table 1) 30. Genetic metabolic disorders provide the clearest examples of amino acid dysfunction-related conditions, such as in Phenylketonuria (PKU), a deficiency in phenylalanine hydroxylase that causes toxic accumulation of phenylalanine. This has been found to lead to neurological damage by competitively inhibiting the transport of other crucial amino acids, such as tyrosine and tryptophan, across the blood-brain barrier. According to van Spronsen and coworkers, management of PKU aims to maintain plasma phenylalanine concentrations between 120 and 600 µmol/L in adolescents and adults to prevent this toxicity31. Similarly, Maple Syrup Urine Disease (MSUD), a disease that results from a defective branched-chain α-ketoacid dehydrogenase (BCKDH) complex, can be significantly ameliorated with early diagnosis. Recent studies have found that diagnosis and dietary intervention within the first 5–7 days of life are critical for preventing severe neurological complications32. The disease causes a buildup of branched-chain amino acids (BCAAs), which are primarily driven by excess leucine, resulting in neurotoxicity, saturated brain transporters and impaired neurotransmitter synthesis32. Beyond monogenic diseases, chronic conditions also feature various amino acid imbalances. In advanced liver cirrhosis, for instance, impaired hepatic function leads to elevated aromatic amino acids (AAAs) and depleted BCAAs. According to Meyer and coworkers, the resulting low Fischer Ratio (the molar ratio of BCAA to AAA), particularly a value below 1.0, is a key factor that contributes to hepatic encephalopathy and muscle atrophy33. Furthermore, altered amino acid metabolism, particularly for BCAAs, have been found to be particularly implicated in cardiovascular diseases. Elevated levels of BCAAs have been found to be associated with an increased risk of atherosclerosis and heart failure. Mansoori and coworkers note that some heart failure patients exhibit a 2-fold increase in plasma BCAA levels, while impaired BCAA catabolism in the heart contributes to contractile dysfunction34. Another important amino acid implicated in cardiovascular disease, arginine, as the precursor to nitric oxide (NO), stands as a key molecule for vasodilation and maintaining vascular health. Recent studies have found increasing evidence of its role and connection to hypertension and atherosclerosis, with Oyovwi and coworkers demonstrating the bioavailability of L-arginine for endothelial NO synthase (eNOS) and its essentiality for preventing endothelial dysfunction35. Additionally, high levels of homocysteine, a metabolite of methionine, are recognized as an independent biomarker for cardiovascular disease. Jakubowski and Witucki specified that homocysteine levels exceeding 15 µmol/L are associated with increased risk, promoting endothelial damage, inflammation, and oxidative stress36. Amino acid metabolism is also actively reprogrammed in complex diseases like cancer and is increasingly implicated in neuropsychiatric disorders. According to Lieu et al., cancer metabolism is dependent on amino acids and their pathways, such as the central carbon metabolism, including glycolysis and the tricarboxylic acid cycle28. Furthermore, cancers exhibit a heightened dependency on specific amino acids to fuel proliferation, such as glutamine to replenish the TCA cycle and synthesize nucleotides, and an over-reliance on the serine-glycine pathway for DNA replication precursors28. Tumors also manipulate arginine and tryptophan metabolism within their microenvironment to evade the immune system. Recent studies have found that many tumors accomplish this by depleting arginine to starve T-cells, often due to the silencing of the argininosuccinate synthetase 1 (ASS1) gene and upregulating the IDO enzyme to convert tryptophan into immunosuppressive kynurenine metabolites28,37. Overall, amino acid metabolism has been shown to play a critical role in cancer metabolism, positing amino acid monitoring to be a promising target for understanding tumor progression and diagnosis.

Table 1 Key Amino Acid Biomarkers in Sweat, Their Properties, and Associated Health Conditions

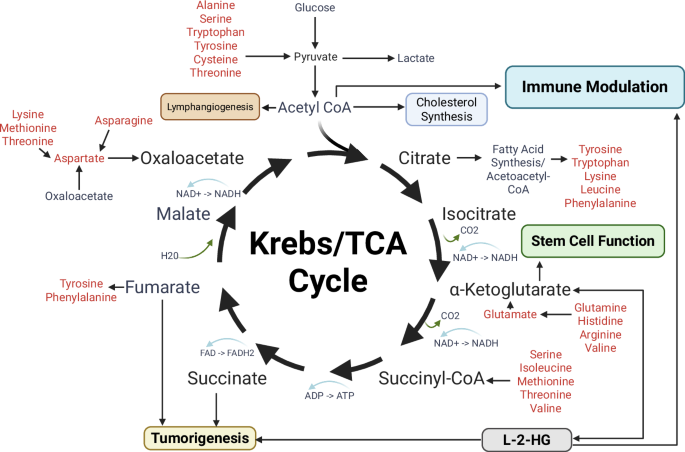

Fig. 3: Illustration of the Krebs/TCA (tricarboxylic acid) cycle, its metabolism, and how it acts as a central hub of cellular metabolism, illustrating the entry points, roles, and connections of various amino acids (red font).
figure 3

Prepared based on summary by Martinez-Reyes et al.30.

In neurological disorders, imbalances in tryptophan metabolism have been demonstrated to contribute to the biology of depression through tryptophan’s sole precursor relationship to the mood-regulating neurotransmitter serotonin38. During inflammation or stress, tryptophan is shunted away from serotonin synthesis and down the kynurenine pathway. According to Correia and Vale, this diversion is significant, with up to 95% of tryptophan being metabolized via the kynurenine pathway under inflammatory conditions38. This tryptophan steal mechanism further contributes to depressive symptoms through both serotonin depletion and the production of neurotoxic metabolites38,39. Gong et al. specified that pro-inflammatory cytokines directly activate enzymes, such as IDO1, which initiates this steal39. This link is further reinforced by findings that analyze acute tryptophan deletion, both experimentally and naturally, triggered a rapid relapse in depression and anxiety in patients undergoing serotonergic antidepressants40,41. Recent studies have also found this to be relevant in dementia, with Aquilani et al. reporting a 20–30% reduction in the plasma ratio of tryptophan to other competing amino acids in Alzheimer’s patients, suggesting impaired brain availability42. Furthermore, as certain amino acids are direct metabolic precursors to key neurotransmitters, for instance, tryptophan is the precursor to serotonin, and tyrosine is the precursor to dopamine, amino acids promise future neurological insights. Although all of its mechanisms are not yet fully understood, the ability to non-invasively track these neurochemical precursors in sweat could provide specific, biologically significant data to complement psychiatric diagnostics and monitor therapeutic responses. The following table summarizes ten key amino acids that serve as potential biomarkers in sweat, detailing their essential properties and typical concentrations alongside the specific health conditions the dysregulation indicates43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74.

MIPs synthesis

MIPs are highly cross-linked synthetic polymers that may act similarly to natural antibodies75. Functionally, they are engineered to possess tailored recognition sites complementary to a specific target molecule, mimicking biological receptors. Its polymerization and crosslinking result in a rigid, three-dimensional polymer network that effectively frames the functional monomers in an optimized spatial arrangement around the template, creating a molecularly shaped cavity that is capable of selectively rebinding the target analyte in a lock and key fashion76. This process is illustrated in Fig. 4, demonstrating a schematic overview of the MIP synthesis process and providing a rudimentary understanding of how it can selectively rebind and be used in a sensor setting. Due to their highly crosslinked nature, MIPs can be optimized to have stability in sensing, with some capable of withstanding harsh environmental conditions, including high temperatures (up to 300 °C in some cases), extreme pH, exposure to organic solvents, and long shelf life, all without loss of function77,78. By contrast, biological receptors can be fragile, with antibodies and enzymes being susceptible to irreversible denaturation from shifts in temperature or pH. MIPs also offer substantial advantages in terms of cost and production. The synthesis process for MIPs is relatively straightforward and significantly less expensive and time-consuming than the production of biological receptors. For example, the generation of high-affinity monoclonal antibodies is typically complex and costly, involving animal immunization, cell line development, and extensive purification79. Similarly, producing enzymes often requires laborious microbial screening, cloning, and large-scale fermentation80. Although the highest-affinity antibodies may still outperform MIPs, numerous studies have demonstrated that MIPs can achieve sensitivity and selectivity that are comparable or even superior to their biological counterparts81,82. The synthesis of these MIPs can be conducted using various methods and different compounds chosen for specific usages (Table 2).

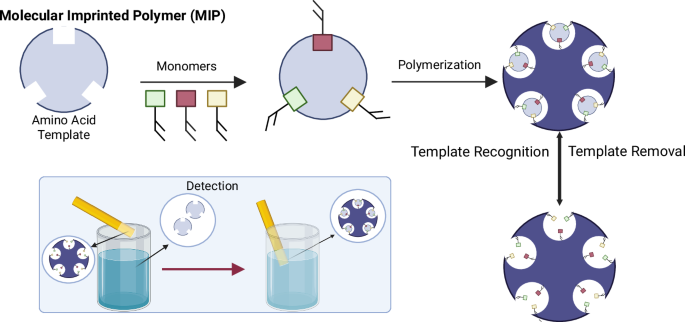

Fig. 4: Schematic diagram of the molecular imprinting process.
figure 4

An amino acid template molecule directs the assembly of functional monomers. After polymerization, the template is removed, leaving a complementary binding cavity. The MIP can then selectively rebind the target analyte for detection.

Bulk free-radical polymerization (FRP)

The most established and widely practiced family of techniques for MIP synthesis is free-radical polymerization (FRP), which includes bulk, precipitation, and emulsion polymerization (all of which have been successfully applied to amino acid MIP syntheses). Bulk polymerization is currently the most widely used method for MIP synthesis due to its simplicity and versatility83. The procedure involves mixing the template, functional monomer, cross-linker, and initiator in a porogenic solvent. Upon initiating polymerization (typically thermally in bulk polymerization), a crosslinked MIP polymer network is formed84. While the synthesis is straightforward, the aggressive post-processing by grinding remains a drawback as it can potentially produce irregularly shaped particles with a larger size distribution or damage some of the pre-formed recognition cavities. Despite these limitations, bulk polymerization is still a viable method for MIPs, such as amino acid MIP syntheses for L-Lysine by Pisarev and Polyakova85. Rather than using traditional thermal initiation, FRP can additionally be initiated with methods, such as ultraviolet (UV) light or electron beams. Photopolymerization, however, allows for enhanced spatial and temporal control over the reaction and can preserve the integrity of thermally sensitive templates and pre-polymerization complexes86. This approach and its advantages can be seen in the works of Chen et al. for L-Histidine87 and Najafizadeh et al. for L-Phenylalanine88. Furthermore, Miao et al.89 employed a more novel technique of electron beam irradiation to polymerize an MAA-based MIP for the adsorption and recognition of L-Tyrosine. These radiation-based methods may offer different reaction kinetics and potentially lead to materials with unique network structures, though their usage has not been fully explored in the current literature.

Precipitation and emulsion polymerization

To address the disadvantages of bulk polymerization, i.e., the destructive grinding step and resulting particle irregularity, both precipitation and emulsion polymerization methods were designed to produce uniform, spherical micro or nanoparticles directly in a solution. Precipitation polymerization is particularly notable for producing high yields of surfactant-free particles. In precipitation polymerization, all components are dissolved in a larger volume of porogen. As polymerization proceeds, the growing polymer chains become insoluble in the solvent and precipitate out as discrete, monodisperse spherical particles90. On the other hand, emulsion polymerization techniques, such as the mini-emulsion approach used for L-Proline by Mustafa et al.91 and the copolymerization used for L-Tryptophan by Xia et al.92, employed surfactants to stabilize monomer droplets in an immiscible continuous phase to form polymer latex particles. This residual surfactant in emulsion polymerization necessitates further post-processing and washing, making the procedure unideal for creating undisturbed recognition cavities (Table 2).

The sol-gel process

Compared to emulsion polymerization, the sol-gel process is drastically different, offering a distinct procedure involving the hydrolysis and polycondensation of metal alkoxide precursors, such as silicon alkoxides like tetraethyl orthosilicate (TEOS) or functionalized silanes, to form a rigid, highly porous, and stable inorganic network93. A functionalized precursor, such as 3-aminopropyltriethoxysilane (APTES) is often used, which acts as both a network forming agent and a functional monomer. This methodology was strategically employed for the synthesis of MIPs targeting the small, non-polar amino acids L-Alanine94 and L-Valine95. In the work by Aryan et al.94, the sol-gel process was used to create L-Alanine-imprinted polymers on the surface of silica nanoparticles (SiO2 NPs), which were then used to modify an electrode for electrochemical sensing. Thus, the sol-gel process is ideally suited for surface imprinting and offers significant kinetic advantages over traditional bulk imprinting. By confining the recognition sites to the material/electrode’s surface, issues of poor site accessibility and slow mass transfer are effectively eliminated96. The use of high-surface-area nanoparticles as a support further amplifies the analytical signal for electrochemical sensors. The sol-gel process, as employed in the L-Alanine sensor94, combines the physical robustness of a silica matrix with the kinetic and accessibility benefits of surface-imprinted nanoparticles. The combined theoretical and experimental approach taken by Azalina et al.95 for L-Valine demonstrates the high degree of control and sensitivity with this method (Table 2).

Table 2. Summary of Examples of Reported (selected to cover a wide variety of synthesis methods) MIPs for Various Amino Acids

Electrochemical polymerization

Electrochemical polymerization is a prominent surface-imprinting technique involving the in situ growth of a polymer film directly onto the surface of an electrode by applying an electrical potential. Its primary advantage lies within its one-step fabrication of a thin, uniform, and strongly adhered MIP film integrated with the signal transducer97. This approach eliminates the need for multi-step procedures for immobilizing pre-synthesized MIP particles onto a sensor surface. The work of Yu et al.98 in developing a sensor for L-Glutamic Acid utilizes electrochemical polymerization to deposit a film of 4,6-diaminoresorcinol in the presence of the L-Glutamic Acid template. Crucially, this was not done on a bare electrode but pre-modified with carbon nanotubes (CNTs). By first modifying the electrode with CNTs, a nanostructured scaffold is created that dramatically enhances the electroactive surface area available with the subsequent electropolymerization for the selective MIP layer. This combination, the modified electrode’s amplified signal transduction with the MIP providing specific molecular recognition, acts as the key for the sensitive determination of L-Glutamic Acid in pig serum98.

Trends in MIP Synthesis

A common trend in MIP polymerization, Methacrylic Acid (MAA) has been widely used as a functional monomer (L-Cysteine99, L-Histidine87, L-Phenylalanine88, L-Tyrosine89, and L-Lysine85,100. This commonality is a rational design choice for non-covalent imprinting. Amino acids are zwitterionic molecules, possessing both a protonated amine group and a deprotonated carboxyl group at physiological pH, making them excellent at forming multiple hydrogen bonds101. For a high-fidelity MIP to be formed, the prepolymerization complex between the template and the functional monomer must be strong and stable. The carboxylic acid moiety of MAA is a superb hydrogen bond donor and acceptor, allowing it to form stable, often dimeric, hydrogen-bonded complexes with the functional groups on the amino acid template, further ensuring that the spatial arrangement of the monomer around the template is maintained throughout the polymerization process. While MAA is a powerful general-purpose monomer, its interactions may not be optimal for all templates. For instance, Mustafa et al. selected Vinyl Imidazole as the functional monomer for imprinting L-Proline, as its α-amino group is a secondary amine incorporated into a rigid five-membered pyrrolidine ring91. This structure sterically hinders interactions that are favorable for primary amines, leading to the use of the imidazole ring of the monomer, with its aromatic character and basic nitrogen atoms, to offer more favorable steric complementarity and electronic interactions (e.g., hydrogen bonding and π − π stacking) with the proline ring. Similarly, for the imprinting of L-Tryptophan, which possesses a large, hydrophobic indole side chain, Xia et al. 92 employed 4-vinylbenzoic acid as this monomer contains both a carboxylic acid group for hydrogen bonding with the amino acid backbone and a benzene ring strategically included to induce π − π stacking interactions with the L-Tryptophan’s indole ring. These examples both demonstrate the necessity of specific monomers to engage in interactions with both the conserved backbone and the unique side chain of the target amino acid.

Sensor transduction and fabrication

Sensor transduction

A sensor’s transduction mechanism is the critical component that converts a molecular recognition event, in this context, an amino acid binding to an MIP, into a measurable analytical signal. While several transduction strategies exist, including optical and mass-based methods, electrochemical techniques are typically used for MIP-based sensors due to their high sensitivity, wide range of detection, ease of construction, and potential for miniaturization and flexibility for portable devices1,9,22. This section provides an overview of the most common electrochemical transduction methods used for detecting amino acids. Table 3 summarizes the performance characteristics of several recently reported electrochemical MIP sensors targeting a range of amino acids. As shown in the table, these sensors employ a variety of electrode modifications and detection techniques to achieve impressive limits of detection (LOD) and wide linear ranges, highlighting the versatility and power of this approach. The following subsections will delve into the principles of these key electrochemical techniques.

Table 3 Performance Characteristics of Some Reported (selected based of diversity of electrochemical detection methods and demonstration of a wide performance spectrum) Electrochemical MIP Sensors for Amino Acid Detection

Electrochemical impedance spectroscopy

Electrochemical Impedance Spectroscopy (EIS) is a label-free, non-faradaic method that probes the electrical properties of the electrode-electrolyte interface by applying a small AC potential over a range of frequencies. EIS is typically performed using a three-electrode setup, as seen in Fig. 5a, and can easily detect surface interactions and allows the MIP layer to perform with very high precision and label-less detection of analytes at extremely low concentrations102. Alam et al.’s work on Tryptophan detection demonstrates the usage of EIS in amino acid MIP sensing with extremely high sensitivity, with a linear range of 10 pM - 80 µM, a LOD of 8 pM, and high selectivity for Tryptophan detection103. Similarly, Roy et al.’s detection of Tyrosine through a modified-ITO sensor using EIS demonstrates an extremely low LOD (6.63 pM (EIS)) and highly significant linear range (100 fM–1 mM)104. Though not an amino acid, dopamine was successfully monitored with high sensitivity by Hemed et al. through an MIP EIS-based sensor with a large linear range of 1 nM to 10 mM, a LOD of 0.76 nM, and selectivity105. Furthermore, Hemed et al. demonstrate sensing in PC-12 cell cultures, confirming its ability to sense in biological media, and, importantly, demonstrate near-complete reversibility by applying a small voltage pulse105. Though less fully explored than many other techniques for amino acid MIP usages, EIS has demonstrated substantial potential for biosensing with high biocompatibility, precise measurements, and a large range of detection.

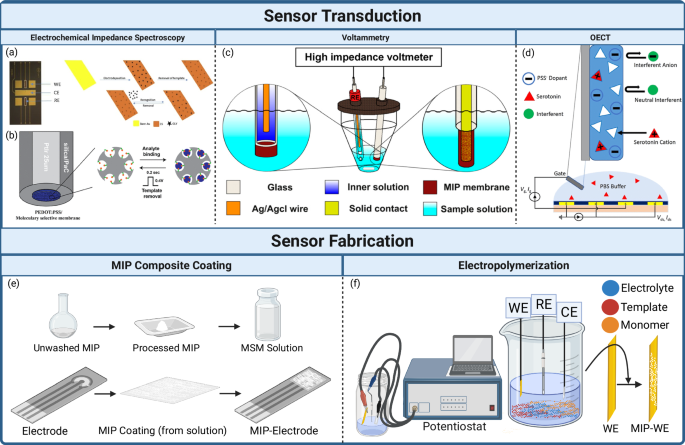

Fig. 5: General overview of MIP-Based AA sensor Transduction and Fabrication methods.
figure 5

a Example of a Glyphosate EIS Sensor148, b Example of an EIS Dopamine Sensor105, c Example of a Voltammetric MIP sensor149, d Example of an OECT150. e Schematic overview of the preparation of a MIP composite, by mixing MIPs into a polymer matrix in solution followed by direct coating on the sensing active layer. This workflow details the processing of bulk-synthesized MIPs for integration into sensor platforms, f Schematic overview of electropolymerization through a three-electrode electrochemical cell to form a cross-linked polymer matrix around the template molecules directly on the WE, resulting in a MIP-modified electrode (MIP-WE).

Voltammetric techniques

Pulse-based voltammetric techniques, specifically Differential Pulse Voltammetry (DPV) and Square Wave Voltammetry (SWV), have been widely used for amino acid MIP sensors. These pulse techniques (setup shown in Fig. 5b) are specifically designed to discriminate between Faradaic current and non-Faradaic charging current, which allows the sensors to achieve the low LODs required for the analysis of trace-level biomarkers108. However, the standard method of Cyclic Voltammetry (CV) is still commonly used, with studies from Zhang, and Li, and Dinu, and Apetrei, demonstrating a low limit of detection with a large linear range106,107.

Differential Pulse Voltammetry (DPV)

DPV is frequently employed within recent literature, utilized in the detection of L-Alanine94, L-Cysteine99, L-Glutamic Acid98, L-Phenylalanine109, and L-Tryptophan92. This popularity stems from its well-suited nature for quantitative analysis in complex media. By sampling the current late in the pulse width, the contribution from the charging current is significantly minimized. This ability to enhance the signal-to-noise ratio makes DPV favorable for the analysis of trace molecules. This is particularly advantageous for MIP sensors designed to operate in complex biological matrices, such as in Aryan et al.’s work on the determination of L-Alanine in urine samples94 or Xia et al.’s work on detecting L-Tryptophan in human serum92. However, the choice of detection method alone is not the primary determinant of performance. The reported LODs of DPV sensors span an enormous range, from 0.6 µM for the L-Alanine sensor94 compared to 0.74 pg/mL (~6.11 pM) for the L-Cysteine sensor designed by Hou and colleagues99 (a difference of almost five orders of magnitude). This significant disparity provides evidence that the sensor’s performance is not significantly affected by simply the method of transduction, but includes the nature of the electrode substrate, the properties of nanomaterial modifiers, and the quality of the MIP film itself in achieving high sensitivity.

Square wave voltammetry (SWV)

Similarly in methodology, SWV, employed in the sensors for L-Aspartic Acid110 and L-Serine111, represents a more complex and often faster alternative to DPV. Unlike DPV, SWV samples current at the end of both the forward potential pulse and the subsequent reverse potential pulse within each square-wave cycle, resulting in a voltammogram which plots the difference between the forward and reverse currents against the potential of the underlying staircase108. SWV also shares the primary advantage of DPV in its discrimination against background charging current. However, SWV offers several distinct advantages in speed, as SWV can be performed at effective scan rates up to 1 V/s or faster, whereas DPV is typically limited to rates of 1–10 mV/s112. Furthermore, for electrochemically reversible or quasi-reversible systems, SWV can offer even greater sensitivity than DPV as the reverse pulse in each cycle can lead to a greater net current response through regenerating the initial reactant at the electrode surface112. As such, the choice to use SWV for the L-Aspartic Acid110 and L-Serine111 sensors is reasonable, as in the case of Jaiswal et al.’s L-Serine sensor, which is fabricated using a sophisticated layer-by-layer assembly of dual-imprinted polymers, the rapid analysis time afforded by SWV would be beneficial for practical application and high-throughput testing111.

The organic electrochemical transistor (OECT)

Organic Electrochemical Transistors (OECTs) mark a shift from simple signal transduction into active signal amplification. For example, the L-Histidine sensor developed by Zhang, L. et al.113 represents a significant departure from conventional voltammetric approaches discussed above through its utilization of an OECT to detect and monitor L-Histidine in human urine. OECTs work by applying a small voltage to a gate electrode, which drives ions from an electrolyte into the channel114. Crucially, these ions do not merely accumulate at the dielectric-semiconductor interface, as in a traditional field-effect transistor (FET), but instead penetrate and potentially permeate the entire volume of the OMIEC channel. Thus, this design allows a slight change in the ionic flux at the gate-electrolyte interface to produce a large, amplified change in the electronic current between the source and drain115. This bulk modulation mechanism is the source of the OECT’s characteristically high transconductance, often surpassing that of conventional organic FETs and sometimes silicon-based transistors114,115. A schematic overview of an OECT can be seen in Fig. 5c, demonstrating its method of sensing/transduction. The sensor characteristics of an OECT also offer compelling advantages for biocompatibility with further improved flexibility, enabling higher conformability to a biological surface, and operations at low voltages (typically <1 V) in aqueous environments114. Furthermore, the intrinsic signal amplification allows for the detection of minor changes lower than the typical physiological ranges of amino acids in a local ionic environment, demonstrated by the 100 nM LOD for the L-Histidine sensor113. One drawback with OECTs, however, is that the current output is sensitive to the ionic concentration of the dielectric, which may vary substantially for in-vivo conditions. While conventional two or three-electrode electrochemical techniques have demonstrated continued success, the OECT platform may offer another direct and scalable path to achieving high-gain, low-power, and potentially wearable or implantable biosensing systems.

Sensor fabrication

The successful translation of synthesized MIPs into functional sensors requires their effective integration with the transducer platform. Two principal strategies dominate this integration: ex-situ immobilization of pre-synthesized particles and in situ polymerization directly on the transducer surface. The ex-situ approach (Fig. 5e) is commonly employed to fabricate MIP composites, a mixture of MIP particles in a polymer matrix (membrane). This method utilizes MIPs synthesized independently through, most commonly, bulk or precipitation polymerization. The resulting polymer must undergo extensive post-processing, including physical homogenization to achieve the desired particle size, followed by washing for template removal and drying, and are subsequently dispersed into a supportive matrix, typically comprising a structural polymer (e.g., PVC, polyurethane) and plasticizers. This resulting MIP composite can then be integrated onto the electrode’s surface through various methods, such as dip coating, spin coating, and more. In contrast, in situ polymerization methods form the MIP layer directly on the transducer surface, offering a streamlined fabrication workflow and enhanced interface characteristics. Electropolymerization (Fig. 5f) is a prominent in situ technique particularly advantageous for electrochemical sensors97. In this process, a potentiostat applies a controlled electrical potential, typically using an electrochemical technique like CV, to the working electrode (WE) immersed in a precursor solution containing the functional monomer, template, and supporting electrolyte. The electrochemical initiation drives the polymerization process, resulting in the deposition of a thin, conformal MIP film directly adhered to the electrode surface (MIP-WE), skipping the potentially destructive post-processing step. Overall, both methods stand as important and usable methods for MIP integration into a sensor platform.

Beyond simply sensing, the performance of an MIP sensor in a wearable situation is closely linked to the physical and chemical properties of its substrate. This material must be mechanically compliant, biocompatible, and conform to skin contact, with the Young’s modulus of the substrate ideally matching that of human skin (110.1–499.1 kPa) to ensure adhesion and prevent delamination during movement6,116,117. Common materials include polydimethylsiloxane (PDMS), a flexible and biocompatible silicone elastomer which could also be modified for conductivity; polyurethane (PU)-based elastomers, an inexpensive and flexible material capable of being tailored to various applications; and Styrene Ethylene Butylene Styrene (SEBS), for enhanced stretchability and softness118. Recent developments in stretchable sensors have also highlighted the use of elastomers, such as SEBS and PDMS, for enhanced stretchability and softness for in vivo and in situ applications. Pioneering work in this area by Bao and coworkers, such as a comprehensive wearable BodyNet multimodal sensors and stress sensor with cortisol sweat sensing, demonstrates the clear applicability of wearable sensors in health monitoring119,120. Another approach to improving the performance of modern MIP sensors is the integration of nanomaterials for improved sensor transduction121. These materials serve to amplify the analytical signal by increasing the electrode’s effective surface area and enhancing its electrical conductivity while also providing an improved scaffold for MIP immobilization. Carbon-based nanomaterials like CNTs and graphene (typically in the form of laser-induced graphene (LIG)) are frequently used due to their high porosity and high conductance (lower impedance)122. LIG is particularly promising for creating low-cost, high-surface-area electrodes due to its ability to be fabricated directly on flexible substrates like polyimide via laser engraving. Metallic nanoparticles, especially gold nanoparticles (AuNPs), are also widely employed to improve conductivity and provide functional sites for polymer growth121,122. More recently, porous crystalline materials like Metal-Organic Frameworks (MOFs) have also been explored for MIP deposition due to their high surface area and tunable pore structures that can enhance the stability of the MIP layer and increase the density of accessible binding sites123.

Sensor integration

Furthermore, as wearable biosensors draw increasingly more attention to sweat as the preferred biofluid for real-time non-invasive health monitoring, there is a necessity for the efficient management of a sweat sample. To address the lower quantities and inconsistency of natural perspiration (≥10 µL), current literature demonstrates an increasing trend towards the use of skin-adherent microfluidic systems to enhance sensing volume124. These devices incorporate networks of micro-scale channels that wick sweat directly from the skin’s pores and transport it to a dedicated sensing chamber. Advanced designs integrate active mechanisms, such as electrowetting-on-dielectric (EWOD), or passive, capillary driven flow control elements to deliver small sample volumes for analysis. Paper-based microfluidics have also emerged as a particularly effective and low-cost solution with a simple paper strip acting as a pump to continuously wick sweat through the sensing chamber and into a reservoir11,125. This sophisticated fluid handling is essential for delivering unadulterated samples, a necessary feature that allows for the detection of minute concentration changes that would otherwise be obscured by contamination or evaporation. Iontophoresis is another method that has emerged to combat the challenges of natural perspiration. This technique operates by employing mild, localized electrical current to facilitate the transdermal delivery of pharmacological sudomotor agents, further stimulating eccrine glands to produce sweat independent of thermoregulation or exercise126. Therefore, integration of a miniaturized, programmable iontophoresis module into a flexible, skin-interfaced platform stands as a potential step toward mitigating the physiological challenges of natural perspiration and commercialization127. However, there are also many challenges for the implementation of iontophoresis, including the mitigation of skin irritation associated with traditional direct current (DC) iontophoresis, though this can be mitigated by employing significantly lower currents and reducing the frequency of iontophoresis126,128. The choice of sudomotor agent has significant implications for system design. While pilocarpine has been traditionally used, its effect is limited to approximately one to two hours while the adoption of slowly metabolized agonists like carbachol can address the issue of iontophoresis frequency and sustain sweat production for over 24 hours from a single dose128. Furthermore, the reversibility/reusability of these materials still requires significant research for complete integration. The combination of these technologies, such as consistent sweat induction, microfluidic sample handling, and advanced electrochemical sensing, forms the foundation for the recent major advances in amino acid MIP sweat sensors and the integration into complete platforms.

A representative example demonstrating this integration is the ‘NutriTrek’ platform was developed by Wang et al.9. This system utilizes modified laser-induced graphene (LIG) electrodes further functionalized via electropolymerization with specific MIPs designed to selectively detect target amino acids. The detection mechanism, using DPV, relies on the direct electrochemical oxidation of the target analyte (e.g., Tyrosine) after it binds within the MIP cavity (Fig. 6i, k). By fabricating an array of these LIG-MIP sensors, each tailored for a different analyte using MIPs, the NutriTrek platform successfully achieves the simultaneous and continuous detection of all essential amino acids (Fig. 6m). The NutriTrek device architecture (Fig. 6h, j) showcases a comprehensive approach to wearable sweat analysis. It integrates not only electrochemical molecular biosensors but also a temperature sensor for calibration and dedicated electrodes for on-demand sweat stimulation via iontophoresis (using Carbachol gel). This addresses the critical challenge of obtaining sufficient sweat volume independent of physical activity. The functionality of the sensor array is supported by sophisticated, integrated electronics (Fig. 6l), enabling voltage regulation, signal acquisition (via Analog-to-Digital Converters, ADCs), data processing (MCU/CPU), and wireless transmission (Bluetooth). The processed data is relayed to a custom mobile application (Fig. 6n) with the entire system packaged into a compact smartwatch form (Fig. 6o). Wang et al.’s work serves as a representative hallmark in the field through illustrating the successful integration of MIP-based electrochemical sensing into a holistic wearable platform for health monitoring and demonstrates a clear and vital trend in non-invasive biomarker monitoring.

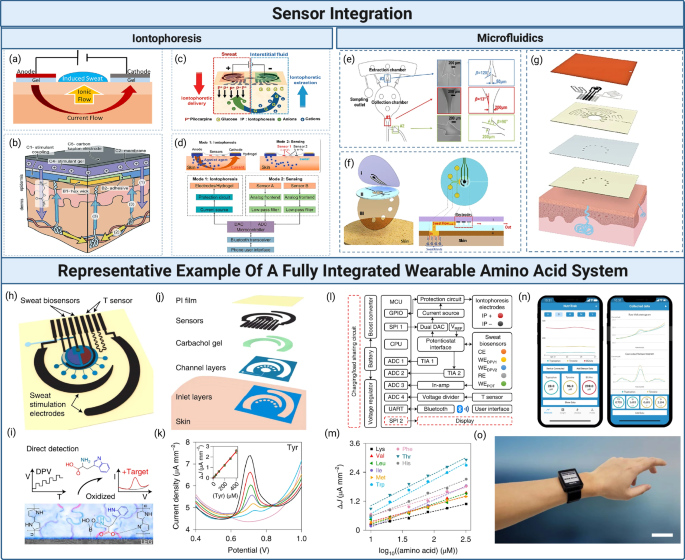

Fig. 6: Schematic overview of integration methods and integrated systems for wearable sweat sensing, showing key components for sensor integration.
figure 6

a Schematic illustrations detailing the sweat induction process through iontophoresis1, b example of iontophoresis for on-demand sweat induction1, c illustrated delivery process of iontophoretic sweat induction1, d schematic overview of iontophoresis integration in a sensing platform1, e demonstration of skin-mounted microfluidic network1, f example of microfluidic electrochemical detection system1, g schematic overview of a laser-engraved microfluidic platform1, h schematic depiction of NutriTrek device9, i detection mechanism of LIG–MIP sensors9, j layer assembly of the NutriTrek device9, k DPV voltammograms for Tyrosine exposure on LIG-MIP sensors9, l Block electrical diagram of NutriTrek’s integrated electronics9, m indirect detection of all essential AA’s using Wang et al.’s sensors9, n Mobile application for point-of-care monitoring via NutriTrek9, o NutriTrek full integrated system design/smartwatch9.

Overcoming key challenges

The path to clinical and commercial viability is obstructed by several systemic challenges. The most significant challenge for the commercialization of amino-acid MIP sensors is the historically noted high degree of physiological variability in sweat secretion rate composition, both between different individuals (inter-subject) and within the same individual (intra-subject)129. These parameters can be influenced by a variety of confounding factors, including ambient temperature, sympathetic nervous system activity, hydration status, diet, and hormonal regulation. However, HPLC analysis by Kuroki and Tsunado posits that the results of intra- and inter-day sweat analyses show relative stability in the concentrations of amino acids regardless of sex129. Despite the suggested relative stability of concentrations, there remains a case-by-case difference of amino acid concentration within individuals, evident from the large standard deviation seen across various sweat amino acids. Sweat composition can be influenced by a variety of factors, such as sweat flow rate, reabsorption and secretion mechanisms within the sweat duct, extracellular solute concentrations, hydration, genetic predispositions, and more. While several studies have analyzed and established correlations between amino acid concentrations in sweat and blood, the physiological mechanisms underlying changes in amino acid concentrations are varied and difficult to fully isolate130. This inherent variability further complicates the establishment of a reliable correlation between analyte concentrations in sweat and those in blood/plasma, adding doubt to the concrete usage of biomarker sweat sensors as reliable diagnostic devices130. To address this, future research must focus on integrated real-time normalization strategies for personalized usage, such as simultaneous monitoring of conductivity or reference electrolytes as proxies for sweat rate, and local skin temperature. Furthermore, more research needs to be conducted on the direct relationship of sweat-AA concentrations as specific disease biomarkers. This correlation between sweat and blood is the linchpin for many envisioned clinical applications that aim to use sweat as a surrogate for blood tests. This issue has been a primary cause of disillusionment in the commercial sector, as the biological basis for their target application proved to be less robust than initially hoped. Furthermore, the commercialization of a wearable sensor ideally provides truly continuous monitoring and reusability. Traditional MIPs often bind to their target with such strength that harsh chemical washing is needed for removal. A recent and important advancement is the development of in situ electrochemical regeneration for an MIP sensor105. This solution employs an applied electrical potential to generate electrostatic repulsion forces that gently eject the bound analyte from the MIP cavity demonstrated in Wang et al.’s Nutritrek amino acid MIP sensor array and Hemed et al.’s dopamine MIP sensor9,105. This capability enables the long-term, continuous monitoring of biomarkers. MIPs also present an inherent challenge in their synthesis and post-processing, as imprinting small, flexible, and water-soluble amino acid templates often results in a heterogeneous mix of low-affinity binding sites that can be damaged by harsh removal methods84. There is also distinct variability noticeable within the synthesis process of the MIPs, capable of resulting in dud batches. Overcoming this trial-and-error nature of MIP development has been a bottleneck for manufacturing. However, recent studies have shown it could potentially be addressed through real-time approaches, such as in Babamiri et al.’s work on controllable MIP electrofabrication through Prussian blue nanoparticles, and computational approaches to optimize polymerization parameters, accelerating development, improving batch-to-batch consistency, and ensuring sensor performance131,132. Still, several on-skin related challenges compromise the quality of the measurement. Sweat is a complex matrix containing high concentrations of electrolytes, metabolites (e.g., lactate, urea), structurally similar amino acids, and varying pH levels. These factors can interfere with the MIP binding mechanism or the electrochemical transduction, for instance, fluctuations in ionic strength can alter the Debye length and impact the performance of EIS or OECT sensors. Furthermore, continuous contact with the skin leads to biofouling from endogenous sources on the skin surface, such as keratinocytes, lipids, and environmental debris, potentially passivating the electrode surface and leading to signal drift and reduced sensitivity over time. Strategies to mitigate this include the development of advanced antifouling coatings, such as zwitterionic polymers or hydrogel membranes and the implementation of continuous calibration techniques133. Furthermore, evaporation can further artificially concentrate analytes, and the mixing of freshly secreted sweat with older accumulated sweat can invalidate measurements, necessitating the creation of tailored fluidic systems to ensure a flow of fresh samples to the sensor.

The future of MIP-based sweat sensing

The most transformative opportunities for the future of this field lie in the intersection between amino acid MIP biosensors and artificial intelligence134,135. This potential relationship would be positioned to amplify the potential of continuous biomarker monitoring to true commercialization. The complex datasets generated by wearable amino-acid sensor arrays are often too noisy and convoluted for simple interpretation. Machine learning algorithms could act as essential tools for the real-time processing of this data, detecting patterns, filtering out noise, performing personalized calibration, and ultimately providing precise health monitoring136,137. This combination has the potential to redefine how we traditionally view biomarkers134,135,136. The classical model for biomarkers involves measuring the concentration of a single analyte against a static threshold. However, the sensor-to-AI model enables a move toward identifying complex, multi-analyte signatures (various patterns over time that are far more predictive of a physiological state). For example, an algorithm might learn that a subtle decrease in sweat tryptophan, combined with a specific spike in sweat rate and a stable pH, all occurring within a 30-minute window, is a highly predictive signature of an impending metabolic shift or neurological event. This multi-variate pattern could become the new biomarker, unlocking a level of diagnostic precision unattainable with single-analyte measurements. Figure 7 demonstrates the potential use cases of wearable MIP amino acid sensors commercialized with algorithms for both patient and everyday consumer usage. This could include low-cost, reusable wearable devices for specific point-of-care applications, such as neonatal PKU screening in resource-limited settings, as well as fully integrated continuous monitoring systems for managing chronic diseases, assisting in personalized medicine, implementing into textiles, and managing early risk factors for many health conditions.

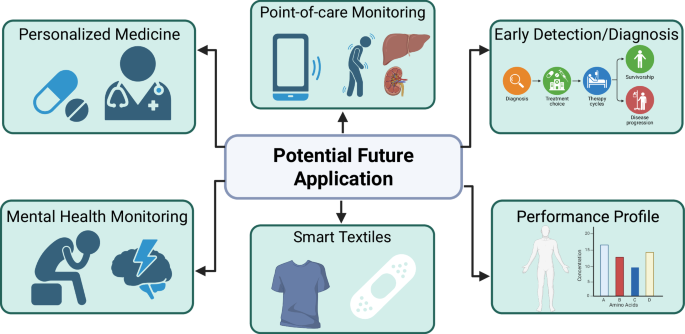

Fig. 7
figure 7

Potential future applications of MIP-based sweat sensors, including personalized medicine, point-of-care monitoring, early disease detection, mental health monitoring, smart textiles, and performance profiling.

Conclusion

MIPs have established themselves in the current literature as a highly promising class of recognition materials for the development of sensitive, selective and potentially wearable biosensors. The combination of their operational robustness, tailored selectivity, cost-effective production efficiency, and high degree of sensitivity makes them compelling candidates for engineering the next generation of wearable biosensors and health monitoring devices. When applied for quantifying amino acids in sweat, MIP-based platforms offer a new modality of non-invasive and continuous analyte detection with the goal of real-time health monitoring. The ability to track fluctuations in an individual’s amino acid profile can yield profound and clinically relevant insights into metabolic regulation, organ function, physiological responses, and serve as disease biomarkers, directly advancing the objectives of precision medicine. However, there is still much to be said about the successful transition of this technology from controlled laboratory settings to real-world clinical/consumer applications. Substantial research and development efforts are still required, such as improving in situ sensor regeneration for long-term usage, substantiating causations and correlations with sweat amino acids and health disorders, and establishing multimodal wearable devices, likely powered by artificial intelligence, to account for the individual nature of subject-specific physiological variability. A clear path towards overcoming these obstacles lies within continued innovations across separate fields, ranging from polymer science and microfabrication to wearable electronics and computational data analysis. Rigorous, interdisciplinary investigation is necessary to fully explore and utilize the rich diagnostic potential of sweat. In this pursuit, a future in which healthcare is more proactive, predictive, and personalized, may potentially be on the horizon.
