Introduction

Bipolar disorder (BD) is a mood disorder with unknown aetiology characterised by recurrent episodes of mania and depression [1], and cognitive impairments that are functionally impactful [2, 3] which persist during euthymia [4]. Both memory encoding and retrieval processes for verbal material are impacted [5,6,7], and additional studies link BD with poor autobiographical memory specificity [8,9,10] and recognition memory deficits [11, 12]. Identifying the neural mechanisms of neurocognitive impairment may inform treatment development and reduce disease burden.

The hippocampus is important for both memory and emotion, and may be involved in the pathogenesis of BD. The hippocampus is critical for encoding complex associative and autobiographical memories [13,14,15], and is ideally suited to promote contextually appropriate responses due to its connectivity with brain systems involved in executive functioning, motivation, stress response, and emotion [16, 17]. Recent theories have proposed that the hippocampus integrates amygdalar and prefrontal inputs to create temporal context-dependent representations that may constrain emotional responses to their appropriate contexts, protecting against psychopathology [17]. Disruptions in hippocampal function will therefore impact memory and downstream emotion and cognitive processes by influencing dynamics within cortico-limbic-subcortical circuits; this dynamic hippocampal role has been proposed to play a role in BD pathogenesis [18]. Indeed, anatomical and functional imaging hippocampal abnormalities have been reported in BD.

Hippocampal abnormalities in BD include reduced hippocampal volume, reduced inhibitory interneuron expression, and an increase in recurrent excitatory projections between dentate granule cells as reported in post-mortem studies [19,20,21] (for review, see Frey et al. [18]). A meta-analysis of functional magnetic resonance imaging studies has reported hyperactivity in limbic (i.e., parahippocampal, hippocampal and amygdalar) areas in BD relative to healthy individuals [22]. Lithium, the gold-standard prophylactic for BD, may protect against BD-associated hippocampal volume loss [23, 24]. In summary, the hippocampus is a region of interest in BD, but the physiological abnormalities that would impact neural computation, leading to the cognitive deficits described earlier, are still unknown.

Induced pluripotent stem cell (iPSC) technology has recently been used to create hippocampal cell models in-vitro from stem cells derived from individuals with BD, to study the cellular physiological abnormalities of BD [25, 26]. Lithium responsive and non-responsive BD iPSC models of the pyramidal CA3 neuron and dentate granule cell (GC) have been created to date, and these neurons indeed have abnormal physiological properties that differ between models derived from lithium responders (LR) and lithium non-responders (NR) [25,26,27,28]. Both LR and NR iPSC neurons are hyperexcitable relative to healthy controls, and this hyperexcitability is normalised after application of lithium only for neurons derived from LRs [26]. LR-BD cell models also demonstrate elevated spontaneous activity levels relative to NR-BD and healthy control models; lithium also normalises spontaneous activity levels in LR neurons [25]. In other words, response to lithium at the cellular level corresponds to the patient’s clinical response to lithium, suggesting that this cellular phenomenon may be a useful biomarker of treatment response in BD. These neurons may also play a core role in BD’s pathophysiology, and explain lithium’s mechanism of action. Although promising, we must acknowledge that the iPSC findings reported to date require replication in larger samples to confirm that these initial effects were not spurious. Nonetheless, how these potential abnormalities impact hippocampal microcircuit neural computation, contributing to BD-associated cognitive and memory impairments, is not yet understood.

The present study aims to investigate the impacts of GC hyperexcitability in lithium responsive and nonresponsive BD on the neural computation called pattern separation (PS), widely attributed to the hippocampal dentate gyrus. PS is a computation that involves mapping highly overlapping and similar inputs onto less overlapping and dissimilar outputs [29], aiding the hippocampus with encoding precise memories with minimal interference. The dentate gyrus is ideally suited to perform this computation due to the sparse, competitive firing of mature GCs that are tightly controlled by powerful inhibitory interneurons [30,31,32]. Supporting dentate gyrus PS, rodent studies have reported a reduction in activity correlation in the dentate gyrus relative to the entorhinal cortex and CA3 in response to slight changes in environmental stimuli [33, 34]. Independent of other circuit factors, electrophysiological [35, 36] and computational modeling [37] studies have indeed shown that GCs produce separated representations of inputs (i.e., perform PS) by shifting output spike times, highlighting both the importance of GC physiology for PS, and the GC’s role in performing PS. PS within the dentate gyrus may also be behaviourally relevant, as PS has been hypothesised to underlie performance on high-interference memory tasks, such as mnemonic discrimination [38], which is a phenomenon that involves discerning between stimuli with highly overlapping qualitative properties [39]. Following this hypothesis, dentate gyrus PS deficits may therefore serve as predictors for BD-associated behavioural task performance deficits. Interestingly, results from a pilot study of mnemonic discrimination performance in BD have suggested that lithium may improve mnemonic discrimination in LRs only [40].

This work aims to predict the consequences of GC hyperexcitability on dentate gyrus PS, building a translational “bridge” between in vitro iPSC [26, 27, 41] and in vivo behavioural work [40]. We hypothesise that BD-specific GC hyperexcitability will lead to PS impairments, which will resolve after lithium-induced normalisation of hyperexcitability in LRs. We test this hypothesis by integrating detailed biophysical models of these abnormal BD GCs into a larger dentate gyrus network model, and evaluate the network’s PS abilities. Our study will help elucidate neural computations underlying some of the cognitive and memory-related impairments in BD.

Methods

To study the effects of LR and NR GC hyperexcitability, spontaneous activity, and effects of lithium on PS, we developed biophysically realistic computational models based on empirical data from patient-derived iPSC neurons. We outline details of our approach in the Supplementary Materials, and present an intuitive description here. A schematic walk-through of our methods is shown in Fig. 1.

Fig. 1: Schematic of study methodology: from human participants to computational modelling.
Fig. 1: Schematic of study methodology: from human participants to computational modelling.
Full size image

A Blood samples were first collected from individuals with bipolar disorder (BD) (both lithium responders, LRs, and non-responders, NRs) and healthy controls (HCs), and cells were reprogrammed into granule cell (GC)-like neurons. Half of the GCs were exposed to lithium, and the electrophysiological properties of these neurons were studied. These results have been previously reported by Khayachi et al. [41]. B We used these electrophysiological data (frequency-current and current-voltage curves specifically) to fit the parameters of a model GC such that the model generated the same electrophysiological behaviour as the in-vitro GCs. Note: spike trains shown here are for illustrative purposes only, and are not real GC spike trains. C These model GCs were then incorporated into a biophysical dentate gyrus (DG) network, to form model DGs for LRs, NRs and HCs. Abbreviations are as follows: PP perforant path, BC basket cell, HIPP hilar perforant path cells, MC mossy cell. Solid lines indicate excitatory connections, and dashed lines indicate inhibitory connections. N indicates the number of cells per population. This circuit diagram was adapted from our previous paper [37]. D The pattern separation (PS) performance of these networks were then assessed, by presenting the network with a series of partially overlapping PP input patterns, and assessing whether the resulting output patterns were less correlated. Plotting the correlation between pairs of input patterns and resulting output patterns against each other generated a PS curve. The area between the diagonal and this pattern separation curve (AUCPS) summarised the network’s PS abilities, with larger AUCPS values representing better PS.

Developing GC models

Ethics approval and consent to participate

All protocols were approved by the Nova Scotia Health Authority Research Ethics Board (REB # 1020604), and all participants provided informed consent.

Description of iPSC-derived dentate gyrus granule cell-like neurons

First, iPSC neurons were reprogrammed from lymphocytes and peripheral blood mononuclear cells taken from blood samples from consenting participants. Detailed methodology describing iPSC differentiation and cell culture protocols for the iPSC neurons used to inform our modelling have been previously described [41]. Briefly, blood samples were collected from 8 BD patients (4 LRs, and 4 NRs), and 5 healthy control (HC) participants (Fig. 1A). Patient ascertainment, characteristics, and assessment of lithium response are detailed in our Supplementary Materials, section 1.1.1. After lymphocyte and peripheral blood mononuclear cell isolation, followed by iPSC differentiation as described previously [26, 41], about half of the neurons per group were exposed to therapeutic levels of lithium (~1.5 mM), for 7 days. The following number of iPSC GC-like neurons per group were used for whole-cell patch-clamp recordings: LR: (nLi = 49, nCTRL = 55); NR: (nLi = 41, nCTRL = 45); HC: (nLi = 42, nCTRL = 40). Sodium and potassium current-voltage and frequency-current relationships were acquired in voltage-clamp and current-clamp modes respectively.

Computational model of a dentate GC

We then adapted a computational model of the hippocampal dentate GC [37, 42,43,44] implemented in the NEURON simulation environment (v. 8.0) [45]. This cellular model has two identical dendrites with four compartments each, and a single compartment for the soma (Fig. 1B). Distributed along the somatodendritic tree are 11 different ion-channels: fast sodium (Na), fast and slow delayed rectifier potassium, A-type potassium, large conductance calcium, voltage-dependent potassium, small conductance calcium-dependent potassium, T-type, N-type, and L-type voltage-gated calcium, inward-rectifier potassium and the tonic GABAA chloride channel. The dynamics of each of these channels are described by sets of differential equations that are parameterized to produce behaviour consistent with real-world GCs. Together, these parameters govern the intrinsic excitability and behaviour of these model neurons. To ensure these models captured the behaviour of real-world iPSC-derived neurons from BD and HC participants, we fit these parameters using numerical optimization to the frequency-current and current voltage electrophysiological data described previously (Fig. 1B).

Numerical optimization-based fitting of computational models to cellular data

Parameter optimization was conducted using an evolutionary algorithm using the inspyred (v. 1.0) and NetPyNe (v. 1.0.0.2) Python packages. The objective function minimised was the averaged mean squared error between model and averaged iPSC-neuron FI and IV curves (for each group: HC, LR, NR), for iPSC neurons with and without exposure to lithium (“LITM” and “CTRL”, respectively). This procedure therefore generated six models: HC-CTRL, HC-LITM, LR-CTRL, LR-LITM, NR-CTRL and NR-LITM. Evolutionary algorithms perform parameter optimization by iteratively mutating, then evaluating the “fitness” of a parameter set [46]. We deemed the model fits satisfactory if each simulated data point fell within the empirical standard error of the mean.

Granule cell-like neuron models for lithium nonresponders

Experimental data failed to show a statistically significant effect of lithium exposure on frequency-current and current-voltage relationships for the NR iPSC GCs, meaning these two curves were statistically identical. Therefore, to produce a NR-LITM model, we began with the fitted NR-CTRL model and modified the parameters by increasing or decreasing their values by a random value less than 2% of the original parameter’s value to introduce some noise (detailed in our Supplementary Materials, section 1.1.3). This approach yielded two models with slight differences that have comparable parameter values and biophysical behaviour, which we believe are good candidates for simulating NR-CTRL and NR-LITM conditions.

Simulation of spontaneous activity

Randomly selected GCs within the network were equipped with Poisson spike generators, synapsed onto GC somata, that randomly produced spikes at the following rates during the simulation, following previous experimental reports [25]: HC and NRs = 0.25 Hz; LRs = 1 Hz. The effect of lithium on spontaneous activity was captured by setting the LR spontaneous activity level back to HC levels of 0.25 Hz [25].

Biophysical network model of the dentate gyrus

We then incorporated the model GCs into a dentate gyrus network, to assess how BD-associated GC electrophysiological abnormalities may affect PS functioning. We employed a previously established conductance-based biophysical model of the dentate gyrus [37, 43, 44], also implemented in NEURON [45]. We preserved the original model’s geometric and topological features. Our model included 500 glutamatergic GCs (as described earlier), 6 GABAergic basket cells, 15 glutamatergic mossy cells, 6 GABAergic hilar perforant path cells, and 100 excitatory entorhinal perforant path cells (Fig. 1C). As with the GCs, the basket, mossy and hilar perforant path cells were modelled as multicompartmental Hodgkin-Huxley style neurons with a soma and varying numbers of dendrites. Details regarding these neurons can be found in our Supplementary Materials. Perforant path cells were modelled as point processes that stimulated GCs and basket cells.

All biophysical properties were kept the same as in the original model [37, 43, 44]. Parameter values for the connectivity, cellular biophysics, and synaptic double-exponential functions can also be found in our Supplementary Materials, and are also described in our previous study using this model [37].

Spatiotemporal PS task

We assessed PS using a previously established spatiotemporal PS task [37, 43, 47]. 24 partially overlapping perforant path patterns, varying smoothly in degrees of overlap, were presented to the dentate gyrus at the beginning of a 200 ms simulation. We then assessed whether pairs of the resulting GC output pattern representations were less correlated than the inputs by computing Pearson correlations (Fig. 1D). By using the correlation of input patterns as x coordinates and the correlation of output representations as y coordinates, plotting this relationship between inputs and outputs should produce a curve that falls below the leading diagonal if the network performed PS (Fig. 1D). In other words, highly correlated inputs should be mapped onto less correlated outputs. We computed a summary PS index defined as the area between the leading diagonal and the PS curve (AUCPS). Higher values of AUCPS indicate stronger PS by the dentate gyrus network (Fig. 1D). Additional details can be found in our Supplementary Materials, section 1.2.1.

Statistical analysis

The predicted impacts of group (HC, NR, LR), treatment (with lithium and without) and spontaneous activity (baseline vs. pathological) on standardised (i.e., z-scored) PS scores (AUCPS) were characterised by the following linear mixed effects model, presented here in R syntax for the lme4 package in the R programming language [48]:

$${AUC} \sim {Group}^{*} {Lithium}^{*}{SpontActiv}+(1|{ID})$$

where ID refers to each simulation run, which is initialised with a different random seed to incorporate variability in network connectivity and which GCs are spontaneously active. A priori power calculations using the simR package in R showed that 14 simulation runs per experimental condition offered 80% power to detect a 5% change in AUCPS at a statistical significance threshold of ɑ = 0.05 for the three-way interaction. Model coefficients are reported as standardised effects, in the number of standard deviations of AUCPS.

Assessing k winner-take-all dynamics

The competitive activation of GCs controlled by basket cell lateral inhibition promotes dentate gyrus PS. In our network, GCs are organised into lamellar clusters around basket cells, with each basket cell projecting onto 100 GCs. Under a winner-take-all paradigm, the stimulation of a few GCs should inhibit the other GCs within the lamella via these basket cell projections. This will promote the selective firing of a few GCs, or a sparse coding regime, supporting PS [32, 49,50,51,52,53]. To further understand the effects of BD and lithium on PS, we analysed our network’s winner-take-all dynamics as follows. Each spontaneous stimulation event (described in section 2.1.6) was treated as a randomised trial. For each lamella and across the 24 patterns used in the PS analysis, we assessed the aggregate population-level behaviour of both directly stimulated non-stimulated GCs within a 10 ms window post-spontaneous stimulation. This activity was averaged across 14 simulation runs. Under a winner-take-all paradigm, we expect a peak in activity within GCs that are directly activated (these neurons are therefore the “winners”), and little to no change in behaviour within GCs that are not directly activated, suggesting tight inhibitory control, and thus a strict “selection” process, of the neurons within these lamellar microcircuits.

Cellular response to negative currents

Given that a winner-take-all mechanism for PS is dependent on the inhibition of GCs, studying GC neuronal sensitivity to inhibition is essential. For this computational protocol, current was injected into the somatic compartment for 1 s from -33–0pA in 3pA steps, and the overall membrane potential was recorded, mirroring the protocol used for the iPSC GCs in-vitro.

Results

Fitting GC model to iPSC data

Results from our parameter fitting procedure are shown in Supplementary Fig. 2 with parameter values in Supplementary Table 5, and spike trains for each model shown in Supplementary Fig. 3. Our model fitting procedure was successful in capturing the group-level differences in cellular physiology between LR, NR and HCs (iPSC data shown in Supplementary Fig. 1), in that through parameter differences, our LR-LITM model demonstrated reduced GC hyperexcitability, and sodium and potassium current magnitudes, in contrast with the LR-CTRL and NR models (Fig. 2). We observed a similar, albeit smaller, effect in the HC-LITM model (Fig. 2).

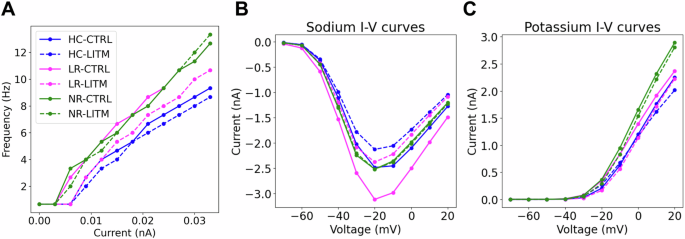

Fig. 2: Model GC electrophysiology for HC, LR and NR models, with and without lithium.
Fig. 2: Model GC electrophysiology for HC, LR and NR models, with and without lithium.
Full size image

A frequency-current relationships. BD models are more excitable than HC models, and excitability is reduced for LRs and HCs after lithium exposure (dashed lines). B Sodium current-voltage relationships. Lithium reduces sodium current magnitudes for LRs and HCs. C Potassium current-voltage relationships. NRs have greater potassium currents than LRs and HCs.

Effects of BD hyperexcitability and lithium on PS

PS performance for dentate gyrus networks with HC and BD GC models, for baseline and pathological levels of spontaneous activity, is shown in Fig. 3, and full statistical results from the linear mixed model analysis are presented in Supplementary Table 2. BD DG models performed significantly poorer PS than HC models, regardless of spontaneous activity levels and lithium treatment (LR: β = −2.37, CI: −2.46 – −2.29, p < 0.001; NR: β = −0.75, CI: −0.83 – −0.66, p < 0.001) (Fig. 3). Lithium, independent of Group or Spontaneous Activity, significantly and negatively impacted PS in general (β = −1.32, CI: −1.41 – −1.24, p < 0.001) (Fig. 3). Although lithium reduced the excitability of HC GCs (Fig. 2A), it also reduced HC PS performance (Fig. 3A).

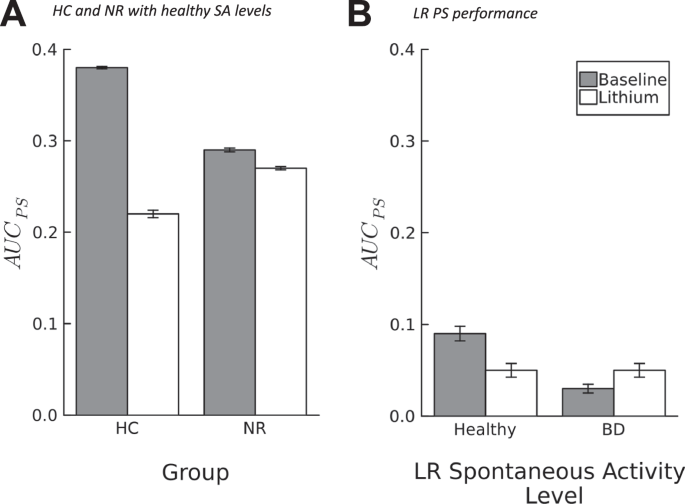

Fig. 3: Effects of BD models on pattern separation (PS).
Fig. 3: Effects of BD models on pattern separation (PS).
Full size image

A Healthy levels of spontaneous activity (SA) used for HC and NR models (0.1 Hz [25]), and B pathological levels of spontaneous activity used for the LR condition (Healthy = 0.1 Hz; BD = 1 Hz, normalised to healthy levels after lithium exposure [25]). Error bars show standard error of the mean, for 14 simulation runs initialised with different random seeds to incorporate variability in network connectivity and granule cells selected for spontaneous activation.

Elevated spontaneous activity levels in LRs without lithium therapy negatively impacted PS (Fig. 3B) (LR x Spontaneous Activity; β = −0.45, CI: −0.57 – −0.33, p < 0.001). Lithium therapy however protected against the deleterious effects of spontaneous activity on PS for LRs (Fig. 3B) (LR x Lithium x Spontaneous Activity; β = 0.39, CI: 0.22 – 0.56, p < 0.001).

Lithium disrupts winner-take-all dynamics in HCs by reducing neuronal sensitivity to negative currents

HC GC population behaviour within the third dentate gyrus lamella 10 ms post-spontaneous activation is shown in Fig. 4 for the GCs directly activated (“AC”) and the remaining GCs within the lamella (“RM”). Without lithium, GC population activity increased 2 ms post-stimulation, and declined steadily for 3 ms before reaching a steady state of low activity (Fig. 4A, “CTRL-AC”). Activity within the remaining GCs did not change (Fig. 4B, “CTRL-RM”). In the lithium-exposed GC model, the directly activated GCs fired more than the CTRL condition post-stimulation, with a similar reduction and stabilisation of activity after 3 ms (Fig. 4A, “LITM-AC”); however, in the remaining (i.e., unstimulated) GCs, there was a substantial and sustained increase in population activity, indicative of activity “spillover” or insufficient inhibition (Fig. 4B, “LITM-RM”). This behaviour was consistent across lamellae, and also for the BD NR models (Supplementary Fig. 5). LR models demonstrated similar RM activity-level differences between CTRL and LITM conditions, but to a lesser degree (Supplementary Fig. 4).

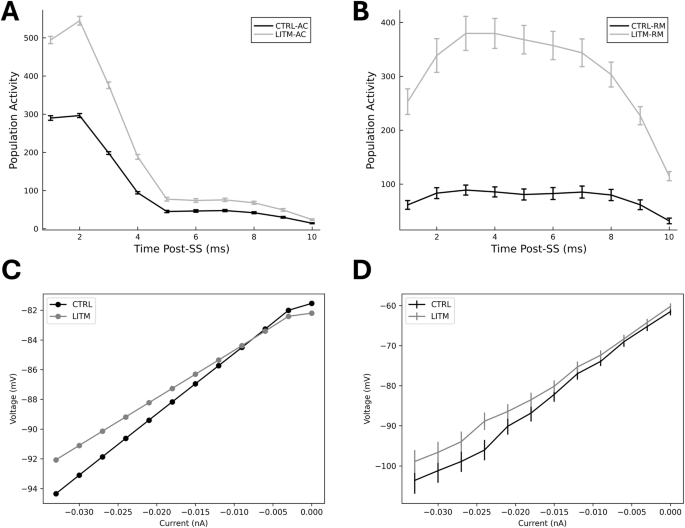

Fig. 4: Effects of lithium on healthy control winner-take-all dynamics in DG model, and cellular response to negative currents both in silico and in vitro.
Fig. 4: Effects of lithium on healthy control winner-take-all dynamics in DG model, and cellular response to negative currents both in silico and in vitro.
Full size image

Winner-take-all dynamics in DG model are shown in panels A, B, and cellular response to negative currents in GC model and in-vitro are shown in panels C, D respectively. A GC activity after direct spontaneous stimulation (SS) (“-AC”), and B activity of remaining GCs not directly stimulated by spontaneous activity (“-RM”) in lamella 3 only. C HC-CTRL and HC-LITM GC computational model behaviour in response to negative current injection, and D HC-CTRL and HC-LITM iPSC GC in-vitro behaviour in response to negative current injection. Error bars show standard error of the mean.

At the cellular level, our lithium-exposed HC GC model demonstrated less sensitivity (i.e., reduced hyperpolarized response) to negative currents than the control model (Fig. 4C). These results align qualitatively with electrophysiological data collected from iPSC GCs in vitro (Fig. 4D). Lithium increased sensitivity to negative currents in both our LR GC models, and in iPSC GCs in vitro (Supplementary Fig. 4).

Discussion

Simulated GC hyperexcitability disrupted PS in BD models relative to HCs (Fig. 3). Given that PS within the DG is supported by the intrinsically sparse firing of mature GCs [32, 50, 54, 55], we hypothesised that increased intrinsic excitability of these neurons would lead to PS impairments, which our simulations support. We expected lithium to improve PS in the LR and HC models by reducing GC intrinsic excitability. Instead, lithium-induced reductions in GC excitability in LRs and HCs impaired PS relative to baseline (i.e., without lithium) models when controlling for spontaneous activity levels (Fig. 3); lithium therefore may not ameliorate PS deficits in LRs by reducing GC intrinsic excitability. Instead, lithium may protect against the loss of PS that would occur with higher spontaneous activity levels in LRs (Fig. 3B). Additionally, we identified that lithium not only reduced excitability in HCs, but also sensitivity to negative injected currents (Fig. 4C, D). This reduced sensitivity may prevent effective basket cell inhibition, leading to inappropriately elevated network activity (Fig. 4A, B), explaining why lithium impaired PS in HCs. Therefore, GC hyperexcitability in BD may lead to PS disruptions, and lithium may prevent these deficits in LRs not by normalising hyperexcitability, but by reducing spontaneous activity levels.

We simulated spontaneous activity by randomly stimulating a subset of GCs within the network using Poisson spike generators, as the cellular or network mechanism by which this spontaneous activity arises has not yet been identified. Spontaneous activity has been attributed to depolarizing GABA currents [56] and the interplay between sodium and calcium discharges [57] in developing hippocampal circuits, and is thought to tune network development and synchrony [58, 59], raising questions about the implications of elevated spontaneous activity on synaptic plasticity and the functioning of memory systems in BD. Interestingly, elevated spontaneous activity within brain networks measured using fMRI may predict diagnosis conversion from major depressive disorder to BD [60], highlighting the importance of understanding spontaneous activity in BD further. Identifying the neural mechanisms of spontaneous activity observed in iPSC GCs, and whether this mechanism also exists in vivo, are worthwhile avenues for future investigation. Based on our results, we would predict that treatments aimed at reducing spontaneous activity levels in LRs may preserve PS while avoiding the potential negative effects of lithium therapy.

Indeed, lithium impaired PS for all groups when controlling for spontaneous activity levels (Fig. 3A), despite lithium-associated reductions in GC excitability in HCs and LRs, motivating the study of winner-take-all dynamics in our network. In our HC model without lithium, only the directly stimulated GCs fire post-stimulation, with no changes in activity in the remaining GC population (Fig. 4A, B), suggesting sufficient basket cell-mediated inhibition throughout the network. The elevated and sustained activity in the remaining (i.e., unstimulated) GCs in the HC-LITM model (Fig. 4B) suggests that basket cells were unable to quiet the remaining GCs in the network, or in other words, a deficit in winner-take-all dynamics. Since we did not manipulate the BCs in our network, we hypothesised that this effect may be attributable to reductions in HC GC sensitivity to inhibition; indeed, our simulations supported this hypothesis (Fig. 4C), agreeing with in vitro behaviour of iPSC HC GCs (Fig. 4D). Supplementary Fig. 6 presents a schematic of our interpretation of these changes in winner-take-all dynamics. In summary, although reducing excitability via lithium exposure is theoretically beneficial for neural computations that are reliant on sparse coding such as PS, the effects of lithium on cellular response to inhibition should not be ignored, as it is excitation/inhibition balance within networks that will ultimately promote effective neural computation.

Our cellular and circuit-level results of lithium’s mixed (i.e., both beneficial and deleterious) effects for individuals with BD echo clinical discussions of whether lithium is neuroprotective or neurotoxic [61]. There have been reports of lithium-induced cognitive side effects such as memory impairments and a subjective sense of mental “slowness” [62], contrasted with reports of lithium improving cognitive functions such as processing speed and verbal learning and memory in BD [63]. Despite these mixed results, lithium is effective at preventing suicide and self-harm in individuals with mood disorders [64] and relapse in individuals with BD [65]. Our results predict that lithium may lead to memory impairments in healthy individuals, motivating a future controlled trial in this group. Finally, our simulations highlight the importance of identifying predictors of lithium response, such that the potential risks to memory systems are mitigated in non-responders, while allowing responders to benefit from lithium therapy.

One area of promise for identifying predictors may be behavioural tasks such as mnemonic discrimination that are hypothesised to probe lower-level dentate gyrus neural computational functioning. In a previous study, we hypothesised that PS may underlie mnemonic discrimination performance [37], based on two lines of evidence for the dentate gyrus’s involvement (1) during mnemonic discrimination [38, 66], and (2) in PS [33, 34]. Interestingly, a pilot study of the effects of lithium therapy in BD on mnemonic discrimination performance demonstrated that lithium therapy significantly improved mnemonic discrimination performance in LRs only [40]. Our simulations predict that these mnemonic discrimination improvements in LRs may be attributable to lithium-induced reductions in spontaneous activity. We make this statement speculatively, given that (1) a direct empirical demonstration that PS underlies mnemonic discrimination has yet to be reported, and (2) the results from our PS simulations must be validated in vivo. Further, lithium has been demonstrated to increase hippocampal neurogenesis [67, 68], which has also been shown to improve mnemonic discrimination [69,70,71]. Whether lithium-induced mnemonic discrimination improvements are attributable to improvements in PS, increased neurogenesis, or some combination of the two is another avenue for future work, which we discuss further below. Future lines of research addressing these questions will contribute to our understanding of how cellular behaviour impacts neural computation, and how those impacts then translate to behaviour. Forming these mechanistic links across levels of biological hierarchy will allow for the translation of identified cellular-level deficits and drug response to potential mechanistic deficits underlying disease aetiology, observable through patient behaviour.

Strengths and limitations

Model fitting procedure

Our computational models demonstrate good face and predictive validity [72]. Face validity refers to a model’s ability to simulate or capture the behaviour of the system of interest [72]. Our cellular models demonstrate face validity because they are directly fit to electrophysiological behaviour of patient- and HC-derived iPSC GCs (Supplementary Fig. 2). Predictive validity assesses a model’s ability to predict the effects of interventions and experimental manipulations on the underlying condition [72]. A model with strong predictive validity will be able to generate testable predictions for a set of manipulations in the form of “synthetic” data that can later be compared against real-world data. After model fitting, we assessed our models’ predictive validity by comparing our models’ and iPSC GCs’ membrane response to negative currents (negative current-voltage curve) with and without lithium and found that our models were able to predict lithium-induced (1) reductions in sensitivity to negative currents observed in HCs (Fig. 4C, D), and (2) increases in sensitivity to negative currents observed in LRs (Supplementary Fig. 4C, D), despite fitting these models to the positive current-voltage and frequency-current data only. Additionally, our simulations are consistent with the effects of lithium on mnemonic discrimination performance in individuals with BD [40]. Therefore our fitted GC models exhibit good face and predictive validity, supporting the plausibility of our simulation results.

Although our model fitting procedure was generally successful in producing the iPSC GC behaviour, we had difficulties with fitting the potassium current-voltage curves (Supplementary Fig. 2). The potassium channels for all of our computational models were, as a result, more resistant to negative currents than their iPSC counterparts. This issue may be attributable to inaccurate modelling of the potassium channel dynamics and/or a missing potassium channel; the baseline GC model used for this study should therefore be re-visited after further genetic analysis, electrophysiology and immunohistochemistry to identify other relevant channel types, their dynamics, and their location on the somatodendritic tree. Additionally, to improve the data available for model fitting purposes, we encourage researchers to follow the electrophysiology protocols outlined by the Allen Brain Institute [73]. Overall, we do not believe that this effect would change the general result of our study as every group/condition was impacted and we were more interested in the relative differences in PS between groups/condition; instead, we believe that this limitation should be addressed in the future, to further improve model face validity.

Improving our model design

We made a number of simplifications to our model design that limit biological plausibility. The dentate gyrus is known to have a subpopulation of adult-born immature GCs that, in contrast to their mature counterparts, are highly intrinsically excitable [74], plastic [75], and are not yet regulated by inhibitory interneurons [76, 77]. Simulations have suggested that immature GCs may reduce PS but increase performance on high interference memory tasks [78], which is consistent with studies demonstrating the positive impacts of neurogenesis on discrimination performance [69,70,71]. As discussed previously, lithium improves mnemonic discrimination performance in LRs [40], and also may upregulate neurogenesis in the dentate gyrus [67, 68]. Lithium may also reduce mossy fiber sprouting [21], and promote both axonal growth cone “spread” [79] and consequent hippocampal synaptogenesis [80]. A natural progression of the present model would be to incorporate a sub-population of immature GCs along with the additional impacts of lithium on GC axonal growth and synaptogenesis, and subsequently evaluate PS and performance on a high interference memory task, following previous modellers [78]. This approach would therefore allow for the study of the combined impacts of lithium-induced (1) reductions in mature GC intrinsic excitability and spontaneous activity (as we have done here), (2) upregulated neurogenesis, (3) reduced mossy fiber sprouting, and (4) synaptogenesis on both PS and mnemonic discrimination, to provide us with a more comprehensive and nuanced understanding of lithium’s impacts on dentate gyrus neural computation.

There have been two iPSC hippocampal neuronal models created to date: the dentate gyrus GC, and the CA3 pyramidal neuron [25,26,27,28]. Although the electrophysiological findings from iPSC studies are promising, they require replication in larger samples. Accordingly, our modelling results should be interpreted with caution, as they are contingent on the robustness of those empirical findings. Furthermore, future iPSC work should also consider other neural cell types. BD and lithium may also impact the inhibitory interneurons within the hippocampus and dentate gyrus, of which iPSC neuronal models have not yet been reported. It is pertinent to study the behaviour of the inhibitory neurons using iPSC technology as well, especially given that our simulations demonstrated that negative cellular currents modulate network dynamics and PS. Incorporating detailed models of BD inhibitory interneurons into our network will further improve biological plausibility, and allow investigation of the interplay between abnormal excitatory/inhibitory network dynamics in BD, and subsequent impacts on PS.

Since the time of earlier hippocampal computational models [50, 81], hippocampal research has revealed a number of other dentate gyrus computations along with PS, such as contextual binding, novelty detection, temporal tagging, and indexing [82]. We studied PS here as a fundamental computation that the dentate gyrus is ideally suited to perform, but also recognise that it would be beneficial for future work to investigate the impacts of BD on these other computations. PS seemingly does not conflict with these other proposed computations [82], meaning these future results may not contradict the results we presented here, but rather add to our understanding of dentate gyrus function in BD. How those other computations then relate to behaviour, and what the clinical implications may be, are yet additional questions.

Conclusions

We presented the first detailed biophysical computational model of BD-associated GC hyperexcitability and effects of lithium therapy. We evaluated impacts of the abnormal cellular behaviour on PS using network models, and found that (1) both BD and lithium impair PS, (2) lithium may protect against the loss of PS attributable to high spontaneous activity levels in LRs, and (3) lithium reduces sensitivity to negative currents in HCs, impairing inhibitory control over GCs. Our results are consistent with clinical reports of BD and lithium-associated cognitive slowing and memory impairments, and also with a hypothesised relationship between DG PS and mnemonic discrimination. In conclusion, we presented a first step in translating abnormal iPSC-derived neuronal activity in BD to neural computational deficits that may underlie BD-related cognitive and memory impairments.
