Cefazolin shifts the kidney microbiota to promote a lithogenic environment

Agudelo, Jose; Chen, Xing; Mukherjee, Sromona D.; Nguyen, Jane K.; Bruggeman, Leslie A.; Miller, Aaron W.

doi:10.1038/s41467-024-54432-6

Download PDF

Article
Open access
Published: 11 December 2024

Cefazolin shifts the kidney microbiota to promote a lithogenic environment

Nature Communications volume 15, Article number: 10509 (2024) Cite this article

18k Accesses
12 Citations
67 Altmetric
Metrics details

Subjects

Abstract

Clinical studies of the urinary tract microbiome, termed urobiome, suggest a direct, antibiotic-dependent, impact of the urobiome on kidney physiology. However, evidence for kidney bacteria comes from indirect sources or infected tissue. Further, it is unclear how antibiotics impact kidney bacteria. Here we show direct evidence for the presence of bacteria in the kidneys, with microniches in nephrons. In murine kidneys, administration of cefazolin, a commonly used perioperative antibiotic, led to a loss of uroprotective Lactobacillus spp. and proliferation of Enterobacteriaceae (which includes many known uropathogens). This effect was dependent on treatment duration, with recovery post treatment. Uroprotective L. crispatus and a strain of stone-associated E. coli differentially influenced calcium oxalate (CaOx) crystallization through the incorporation of CaOx inhibitors or promoters, respectively. In humans, microbial signatures were identified in the kidney, with unique niches between the glomeruli and tubules, established through RNA sequencing analysis and direct imaging of two independent populations. Collectively, findings support the hypothesis that the kidneys harbor a stable and antibiotic-responsive microbiota that can influence CaOx lithogenesis. The presence of unique, age-dependent microbial signatures in the glomeruli and tubuli carry implications for non-infectious kidney diseases.

Unraveling the role of gut microbiota by fecal microbiota transplantation in rat model of kidney stone disease

Article Open access 20 September 2024

The microbiome and host mucosal interactions in urinary tract diseases

Article 04 February 2021

Mechanisms of the intestinal and urinary microbiome in kidney stone disease

Article 20 September 2022

Introduction

Medical costs for urologic diseases account for over $11 billion in the United States annually, led by urinary tract infections (UTI) and kidney stones¹. Urologic disease accounts for an annual global burden of 830,000 deaths and 18,467,000 disability-adjusted life years, ranking 12th among causes of death and 17th for disability². Thus, continuing emphasis on understanding basic mechanisms of urologic disease is needed.

Importantly, a resident and unique urinary microbiota, or urobiome, has been described in healthy individuals, debunking long-held notions that the urinary tract is sterile³. Urobiome dysbiosis, driven in part by antibiotic use, has been implicated in multiple urologic diseases^4,5,6,7. Taxa from Lactobacillus spp. have frequently been associated with urinary health^7,8,9. One species, L. crispatus, has been negatively associated with urolithiasis^7,9 and has successfully been used, through vaginal administration, in clinical trials to inhibit recurrent UTIs¹⁰. In contrast, Enterobacteriaceae, which is a large family of Gram negative bacteria that includes uropathogenic bacteria such as E. coli, Proteus, and Klebsiella, are frequently associated with UTIs¹¹, kidney stone formation^7,12,13, and kidney infection (pyelonephritis)¹⁴. Strains of E. coli are recurrently identified from the nidus and periphery of CaOx stones, suggesting a non-random entrapment of these microbes into stones that are considered as “metabolic”¹⁵. Additionally, some strains isolated from CaOx stones have shown to enhanced crystallization potential^7,16,17.

While the presence of upper urinary tract bacteria has been implied through analysis of kidney stones, voided urine samples, and renal pelvis urine, direct evidence of a resident microbiota in the kidneys is lacking. Bacteria isolated from non-infectious stones are unique from taxa identified in the lower urinary tract (LUT)^7,16. However, bacteria in kidney urine are not significantly different from midstream-voided urine¹⁶. Recent analysis of micro-dissected tubuli and glomeruli RNA sequencing (RNAseq) data show unique microbial RNA signatures in each compartment, with significant differences in composition based on kidney function and disease¹⁸. Collectively, data provide strong circumstantial evidence of a kidney microbiota that may be influenced by antibiotics and impacts kidney health, which warrants further investigation.

In the current study, we aimed to determine the presence and impact of antibiotics on renal microbiota in a mouse model and understand the mechanisms of lithogenesis for uroprotective L. crispatus^7,9 and stone-associated strain of E. coli (ATCC 43886), which is the most abundant species present across multiple stone types^7,13,15,17. Finally, we sought to validate the presence of kidney microbiota in humans, using molecular and imaging techniques.

Here, we show a low biomass microbial community present in microniches of the kidneys in human and mice, with a pattern of disturbance caused by antibiotics that suppresses Lactobacillus taxa, and proliferates Enterobacteriaceae. An in vitro lithogenic model shows that stone-associated and antibiotic resistant E. coli was associated with enhanced lithogenesis, while antibiotic susceptible L. crispatus was associated with inhibition of crystallization metrics. These findings suggest that the renal microbiome may play a role in either preventing or promoting CaOx lithogenesis based on antibiotic disturbance.

Results

Mice kidneys harbor a unique microbial signature

Given pragmatic issues in establishing and assessing a kidney microbiota in humans, comprehensive assessment of the kidney microbiota was initially examined in mice. To quantify viable bacterial loads in mouse kidneys, aseptically retrieved punch biopsies of three, 10-week-old SWR/J mice housed in a clean barrier facility were plated undiluted in seven different media, incubated, and colony-forming units (CFUs) quantified. Data revealed a significant increase in bacterial density from the renal cortex to medulla, then ureter (Fig. 1a,b; Paired chi-square x² = 5.024, p = 0.023 (a) or t-test cortex:medulla- t = 3.96; p = 0.0036; cortex:ureter- t = 6.47; p = 0.00002; ureter:medulla- t = 2.17; p = 0.09 (b)). Negative controls did not produce CFUs. An RNA-targeted, fluorescence in situ hybridization (FISH) analysis of kidneys stained with a universal probe for bacteria shows the presence bacteria in the medulla and cortex (Fig. 1c) and is consistent with the distribution of bacteria assessed by culture-based means.

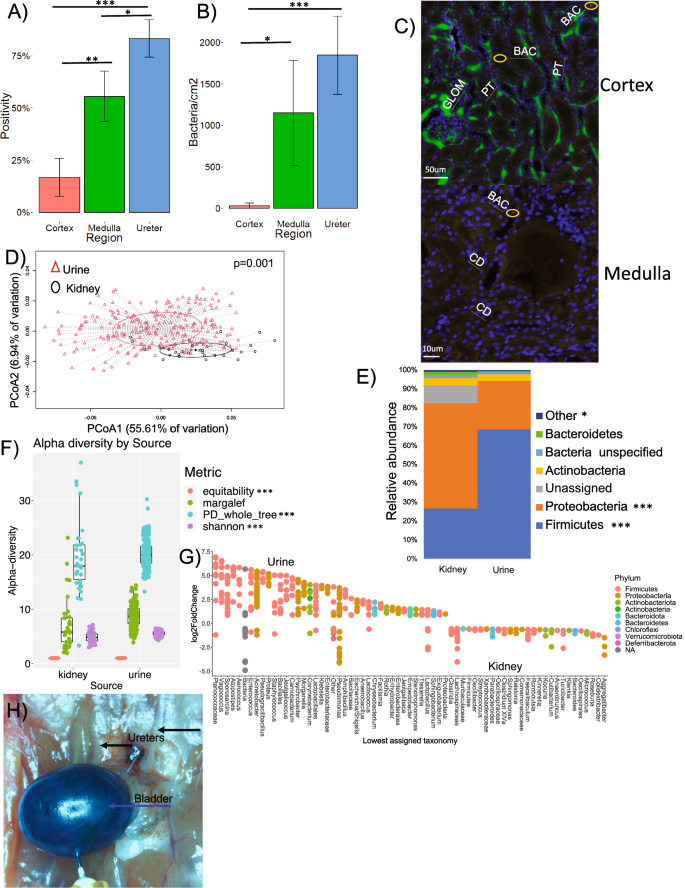

**Fig. 1: Composition and distribution of kidney bacteria in mice.**

To evaluate the presence of a kidney microbiota using criteria established for low biomass microbial communities¹⁹ and quantify the impact of antibiotics on kidney bacteria, one-hundred sixty SWR/J mice were exposed to antibiotics, with or without recovery, in parallel with non-exposed controls (Fig. 1). Animals exhibited an antibiotic-dependent difference in water intake and urine output similar to past studies²⁰, but not food intake or body mass (Two-way ANOVA and post-hoc, Holm’s corrected, paired t-tests; t = 16.436, p < 0.001 for water, t = 10.23 p = 0.001 for urine; Fig. 2). A total of 239 urine samples and 40 kidneys were subjected to high-throughput sequencing of the V4 region of the 16S rRNA gene. There was an average of 8336 + /- 598 reads per sample, with 2821 + /- 62 mapping to host reads. Kidney and urine samples were significantly different than positive and negative controls in terms of microbial community composition (Permanova f = 3.98, p = 0.001; Fig. 3a). All kidney and urine samples surpassed the sequencing threshold to provide a statistically representative snapshot of microbial communities based on rarefaction analysis, defined as the sequencing depth that >90% of samples had a slope of <0.01 (Fig. 3b). While 5.34% of high-quality reads were removed from urine samples as Eukaryotic/host, 52% of reads were removed from kidney specimens as Eukaryotic/host (ANOVA, f = 5.73, p < 0.001; Fig. 3c).

PERMANOVA analysis, based on weighted UniFrac dissimilarity, revealed that the murine kidneys and urine microbiomes were unique (f = 97, p = 0.001; Fig. 1d). Taxa in kidneys and urine were dominated by the Pseudomonadota and Bacilliota, with relatively high numbers of Actinobacteriota and low levels of Bacteroidota (DESeq2; FDR < 0.05 for significantly different phyla; Fig. 1e), consistent with voided human urine^7,9,21,22 and in contrast to predominant taxa in murine stool²³. We detected significantly higher species richness/evenness in urine compared to kidneys (paired t-test; PD_whole_tree t = 3.24, p = 0.19; Margalef t = 914, p = 0.0009; Shannon t = 2.7 × 10¹¹, p = 6.9 × 10^-12; equitability t = 4.5 × 10¹⁷, p = 5.6 × 10^-18; Fig. 1f). Acinetobacter, a common urobiome taxon²², was most enriched in urine compared to kidneys (DESeq2; FDR < 0.05 for significantly different taxa; Fig. 1g, Supplementary data S1). Pseudomonas was most enriched in kidneys, compared to urine (Fig. 1g), a taxon that is resident in other organs, such as lung tissue²⁴.

Importantly, vesicoureteral reflux (VUR) assays²⁵ were conducted in 12-weeks male SWR/J to assess this renal defect phenotype in this breed used for the experiment. (Fig. 1h). Five animals were tested under the protocol described in the methods, and not any reflux was recorded from 30 to 150 cm², observing exit of dye through the urethra at the highest pressure.

Long-term use of cefazolin impacts the LUT of mice, with recovery

Long-term use of cefazolin had a significant impact on bacterial composition and richness of the urine, even with a recovery period (2-way Anova f = 12.6, p = 0.0007; Fig. 2a; 2-way Anova f = 8.5, p = 0.021; Fig. 2b; Permanova f = 3.94, p = 0.018; Fig. 2c). Short-term antibiotic exposure did not impact the composition or richness (2-way Anova f = 0.014, p = 0.909; Fig. 4a; 2-way Anova f = 4.064, p = 0.05; Fig. 4b; Permanova f = 0.98, p = 0.32; Fig. 4c).

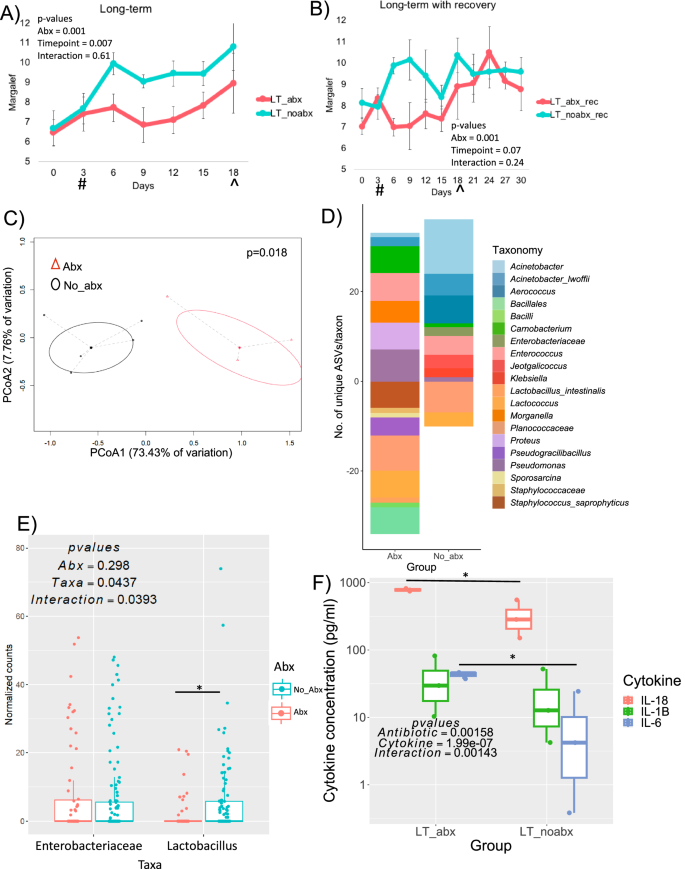

**Fig. 2: Impact of cefazolin on urine microbiota.**

To identify taxa positively or negatively impacted by antibiotic treatment in urine samples, we conducted a differential abundance analysis of amplicon sequence variants (ASVs) in animals that received a long-term course of antibiotics from baseline to the last day of exposure, compared to non-exposed controls (DESeq2, FDR < 0.05 Fig. 2d, Supplementary data S2). Genera of known uropathogens Pseudomonas (8 ASV’s), Proteus (6 ASV’s), and Enterococcus (10 ASV’s) significantly increased in abundance with antibiotic use (p < 0.01), indicative of antibiotic resistance, whereas Planococcaceae (7 ASV’s), Bacilliales (32 ASV’s), Staphylococcus (6 ASV’s), and Lactococcus (9 ASV’s) were most negatively impacted by intervention (FDR < 0.05). With the exception of Staphylococcus, infections by these taxa are rare and instead may represent the commensal urinary flora. Acinetobacter (19 ASV’s) most benefitted from time in the trial without antibiotic use (FDR < 0.05).

Previous studies suggest that bacteria from the Enterobacteriaceae and Lactobacillus taxa, present in kidney stones and urine, are associated with pro- or anti-lithogenic influences, respectively, on kidney stone development^7,9,15. As such, we sought to evaluate the susceptibility of these specific taxa to antibiotic disturbance, as the use of antimicrobials have been associated with the development of stones^7,26. Proteus, a causative agent of UTIs and struvite stones²⁷, is from the Enterobacteriaceae family and was one of the taxa that increased in abundance most after antibiotic use (6 ASV’s, FDR < 0.05), while Lactobacillus was significantly inhibited by antibiotics (Fig. 2d). Molecular and culture-based analysis of all Enterobacteriaceae and Lactobacillus at the endpoint for all groups, revealed that there was no impact of antibiotics on the Enterobacteriaceae, but a significant reduction of Lactobacillus (Two-way ANOVA f = 2.097, p = 0.04; Fig. 2e, f = 10.665, p = 0.013; Fig. 4d). Antibiotic-associated dysbiosis is consistent with published clinical urobiome data^7,28,29 as well as antibiotic sensitivity testing across multiple Lactobacillus³⁰ and Enterobacteriaceae³¹ species.

Proteomic techniques have revealed an upregulation of proinflammatory cytokines in the kidneys and urine of stone formers³². In our study, we observed a significant, antibiotic-associated increase in the urinary cytokines IL-1β and IL-6, but not IL-18 (Two-way ANOVA, f = 16.49, p = 0.002; Fig. 2f), which could reflect urinary dysbiosis-driven inflammation due to higher levels of Enterobacteriaceae³³ or an oxalate-driven inflammatory response due to reduced oxalate degradation^34,35.

Murine kidney microbiota is stable, but shifts towards uropathogenic bacteria with cefazolin exposure

To evaluate the stability of the murine renal microbiota, we quantified alpha diversity of the kidney microbiome longitudinally for animals not exposed to antibiotics, similar to previous analyses in low microbiome echosystems³⁶. While antibiotic exposure did not significantly change the number of microbial species detected in the kidneys (paired t-test, t = 0.5, p = 0.6’ Fig. 3a), there was a shift in overall microbial composition based on weighted UniFrac dissimilarity (Permanova, f = 3.94, p = 0.03; Fig. 3b). In contrast, there was no impact of a short-term course of antibiotics for the kidney microbiome (Fig. 4e; one-way ANOVA, N = 4-6/group, df=9, f = 0.03 for Abx; p = 0.867; Fig. 4f; Permanova, N = 4-5/group; df=8, f = 1.153,p = 0.654). There were no significant changes in renal microbial alpha diversity over 30 days (Pearson’s correlation, r = 0.14, 0.45, 0.5, 0,42 and p = 0.6, 0.2, 0.16, 0.2 for equitability, Margalef, PD_whole_tree, and Shannon; Fig. 3c), indicative of a stable community³⁷. Similar to the LUT, Acinetobacter, Lactobacillus and Lactococcus (1 ASV each) were lost in the kidneys with antibiotic treatment (DESeq2; FDR < 0.05). Tepidimonas and Lysinibacillus (1 ASV each) proliferated with antibiotic administration (Fig. 3d, Supplementary data S3; FDR < 0.05). There was no effect of a short-term course of antibiotics on species number or composition (paired t-test, t = 0.03, p = 0.867; Fig. 4e).

**Fig. 3: Impact of cefazolin on kidney microbiota.**

To validate molecular data, an RNA-FISH protocol was utilized to localize and quantify microbial DNA through hybridization in mouse kidney tissue. Three targeting probes were used for all bacteria, Enterobacteriaceae, or Lactobacillus. The protocol was validated with pure cultures from either the Enterobacteriaceae or Lactobacillus taxa, isolated from mouse urine (Fig. 5a–c). The EUB (universal), PB (Enterobacteriaceae) and GC (Lactobacillus) probes hybridized to the intended targets of all bacteria, Enterobacteriaceae, and Lactobacillus. There was co-localization with DAPI signals with all probes, and no cross hybridization observed in triplicate samples. Kidney slides stained with DAPI and any one of the three probes exhibited bacterial signals primarily located in the medulla, in or around the renal tubules and collecting ducts (Fig. 5d–f). Negative controls, which included stained slides without tissue or bacteria (Fig. 5g) did not exhibit any bacterial signals. Additionally, serial sections of mice kidney samples stained with randomly scramble probe sequences did not exhibit fluorescent signals, compared to their counterpart sections from the same samples stained with bacterial targeting probes (Fig. 5h–j). Quantitative analysis of bacteria was independently performed by two analysts blinded to sample identifiers. Analysis of surroundings and borders of kidney tissue did not show the presence of randomly distributed bacteria, suggesting no contamination during slide processing³⁸. Histologic analysis revealed no indications of calcium oxalate deposition or kidney injury. Quantitative results show a significant loss of total microbial density in the kidneys with antibiotics (paired t-tests, t = 12.69 p = 0.04), with a clear impact on Lactobacillus (t = 9.81, p = 0.04), but not on Enterobacteriaceae (t = 0.04, p = 0.316; Fig. 3e), consistent with molecular (Figs. 2e, 3d) and culture-based (Fig. 4d) analyses in urine. These findings suggest a shift in kidney microbial communities caused by antibiotics towards antibiotic-resistant, uropathogenic Enterobacteriaceae and away from uroprotective bacteria such as Lactobacillus. Validation of results were obtained through antibiotic resistance assays on a kidney stone-associated strain of E. coli (ATCC 43886)^7,13 and a strain of L. crispatus that is negatively associated with urinary stone disease^7,8,9,39, such that L. crispatus was significantly more susceptible to three out of four antibiotics tested compared to E. coli (Fig. 3f; p = 0.02). Genomic analysis revealed that the genome of E. coli (ATCC 43886) harbors more antibiotic resistance genes than L. crispatus (Fig. 6a).

Occasional outbreaks of Enterobacteriaceae hybridization in the kidneys were apparent and clusters were often observed (Fig. 3g). These observations were consistent with molecular data which saw three of the 10 mice exhibiting very high Enterobacteriaceae counts compared to the other animals (Fig. 6b), which may result from virulence factors, as suggested by the higher number of genes for biofilm formation, stress response, and competition than L. crispatus (Fig. 6a). Molecular comparison of Enterobacteriaceae and Lactobacillus in the kidneys, reveals that either one or the other taxa was dominant, indicative of potential direct competition (Fig. 6c).

Specific strains of Lactobacillus and E. coli compete and differentially impact calcium oxalate crystal metrics through known non-canonical pathways

To determine the direct impact of candidate bacteria on the growth of calcified crystals, we utilized a CDC bioreactor system, which is a specialized chemostat that mimics the constant flow, shear forces, temperature, and biochemical environment of the kidneys, while providing a removable surface for biofilm growth⁴⁰. Uroprotective L. crispatus and stone-associated strain of E. coli (ATCC 43886) were incubated in the bioreactor individually and in co-culture to evaluate their influence on CaOx crystallization.

Artificial urine media (AUM; Supplementary data S4) was run at a constant flow into the chemostat system, which was placed on a stir plate at 37 °C and at a constant stir rate. The system was either run sterile or inoculated with candidate bacteria at equal starting densities. After 72hrs, removable polycarbonate coupons were analyzed with scanning electron microscopy (SEM) and energy dispersive x-ray spectroscopy (EDS). Aliquots of media from each experiment were used to quantify bacterial density and viability. No culturable bacteria were recovered from sterile controls. For SEM and EDS, a pure, clinically extracted CaOx stone was included for crystal morphology analysis, along with in vitro CaOx crystals for validation of bioreactor studies.

In qRT-PCR analysis, when grown alone, 100% of sequences were attributed to E. coli or L. crispatus, relative to a universal bacterial primer (paired t-test against L. crispatus, t = 7.173, 8.459 and p = 0.0003, 0.0002 for co-cultures and E. coli; Fig. 7a; paired t-test against L. crispatus, t = 8.54, 9.76 and p = 0.0009, 0.0005 for co-cultures and E. coli; Fig. 7b). When co-cultured, E. coli (ATCC 43886) comprised ~90% of the culture after three days, despite equal inoculation densities (Fig. S7a, b). No detectable DNA was recovered with qRT-PCR from sterile controls. The E. coli strain (ATCC 43886) exhibited significantly higher viability compared to L. crispatus, in pure culture. However, the proportion of viable bacteria was significantly reduced in co-culture (ANOVA, f = 52.81, p = 0.0002; Fig. 7c). The more effective competitiveness by E. coli (ATCC 43886) was also reflected in the number of genes for competition in genome analyses (Fig. 6a).

The CaOx crystals were styloid laminated sheets in a clinical pure CaOx stone (Fig. 4a), consistent with CaOx monohydrate⁴¹, which is generally found on the surface of CaOx stones. In sterile media, crystals exhibited an octahedral structure, consistent with CaOx dihydrate crystals (Fig. 4b)⁴². Additionally, spherical structures less than 1μm in diameter were common, which appeared to aggregate into amorphous, then octahedral structures (Fig. 4b), consistent with a recently reported, non-canonical pathway for CaOx crystallization and growth⁴³. To confirm abiotic origins of these nanospheres, we filter sterilized fresh AUM and observed media under light microscopy after one hour. Imaging showed a few shapes compatible with CaOx dihydrate crystals, but also showed many of the styloid crystal shapes and nano-sized spheres that were the same size and shape as those observed in SEM analysis (Fig. 7d). No culturable bacteria were recovered from this media, similar to sterile bioreactor runs. When stone-associated strain of E. coli (ATCC 43886) was grown by itself, octahedral structures were abundant along with nanospheres that appeared to aggregate to octahedral crystals (Fig. 4c). Bacteria were often found attached to octahedral structures. In contrast, when L. crispatus was grown alone, only small, amorphous crystal structures formed, with no bacterial attachment (Fig. 4d). When E. coli (ATCC 43886) and L. crispatus were co-cultured, styloid, CaOx monohydrate crystal structures were observed (Fig. 4e), indicative of an entirely different microbe-crystal interaction. Quantification of crystal size in bioreactor studies showed E. coli (ATCC 43886) grown alone produced the largest crystals, followed by sterile media, then L. crispatus grown alone (ANOVA, f = 52.54, p < 0.001; Fig. 4f). However, the influence on crystallization, based on plate-based crystal size assays, of other ATCC purchased species of lactic-acid bacteria and different strains of E. coli isolated from calcium-based stones was different from the findings observed with the bioreactor experiments. (ANOVA, f = 78.97, p < 0.001; Fig. 4g). Collectively, data suggest that this strain of E. coli (ATCC 43886) facilitates the growth and aggregation of CaOx crystals into larger and more complex octahedral structures through a non-canonical pathway, whereby CaOx nanospheres aggregate into amorphous structures and continue aggregating until the octahedral structures develop and further aggregate⁴⁴. In contrast, L. crispatus appears to inhibit this process at the amorphous phase.

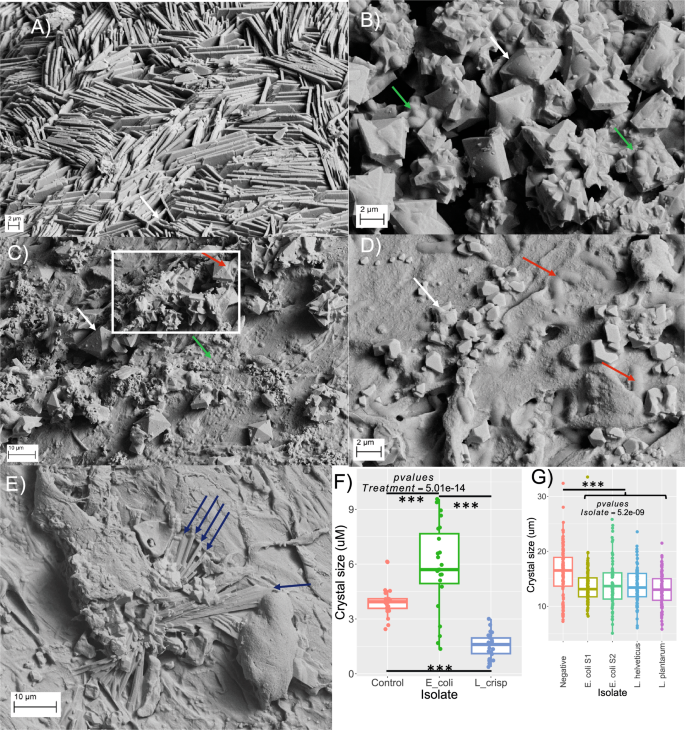

**Fig. 4: SEM images of in vivo and in vitro CaOx crystals.**

The differential interaction between bacteria and CaOx crystallization could either be mediated through oxalate production/degradation, by the production of pro-/anti-lithogenic molecules, or by the interaction of proteins on the bacteria surface on crystal faces¹⁵. Genome analysis revealed that both species have an equal number of oxalate metabolism genes (Fig. 6a). A previous report showed that healthy individuals had a higher abundance of L. crispatus oxalate-degrading genes in their urine compared to CaOx stone formers⁹. In vitro oxalate-degrading assays revealed that L. crispatus was able to degrade significant amounts of oxalate, confirming genome and metagenomic analyses, but the stone-associate E. coli (ATCC 43886) produced significant amounts of oxalate (Two-way ANOVA, f = 23.47, p < 0.001; Fig. 7e).

Genome analysis revealed that E. coli (ATCC 43886) harbors more genes that overlap with known lithogenic factors, compared to L. crispatus, which includes genes for urea and metal interactions (Fig. 6a). In an energy dispersive x-ray spectroscopy (EDS)-based assay, peaks of calcium, carbon, and oxygen were observed in crystals formed by E. coli (ATCC 43886) and L. crispatus, consistent with CaOx crystals (Fig. 5a). The largest CaOx peaks were observed in the clinically extracted stone, along with the crystals from the sterile and E. coli (ATCC 43886) experiment. Other elements were present in lower abundance, such as sodium, chloride and nitrogen. Binomial dissimilarity matrix analysis of the whole elementome revealed treatment-specific effects with significant differences based on the presence or absence of bacteria (Permanova, f = 4.85, p = 0.001; Fig. 5b, ANOVA, f = 1.47-3.83, p = 0.004-0.206; Fig. 8a–h). Crystals that developed when L. crispatus was present were enriched in sulfur (Fig. 8f) and phosphorus (Fig. 8h), known calcium competitors linked to lower CaOx urolith formation^{44,45,46,47,48}. In contrast, crystals formed when E. coli (ATCC 43886) was present were enriched in chloride (Fig. 8g) and iron (Fig. 8c), known promoters of CaOx crystals^49,50,51.

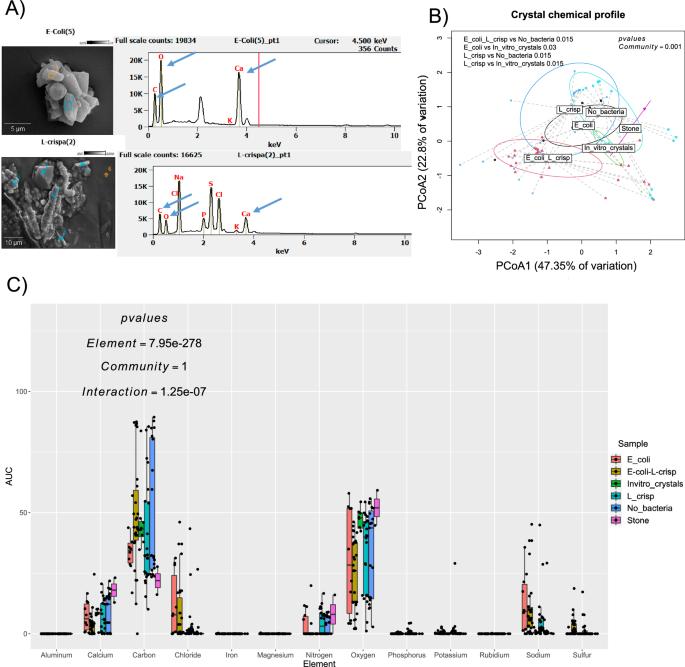

**Fig. 5: X-ray diffraction (EDS) of CaOx crystal formation in vivo or in vitro.**

Metagenomic and FISH data from human renal specimens show microbial signature differentiated by tissue proximity, age, and ethnicity

To evaluate the presence of microbial signatures in human renal specimens, we conducted an RNA-FISH analysis of kidney biopsies and autopsies, using the universal bacterial probe (EUB). Image analysis revealed bacteria in all samples, typically reserved to lumen spaces (Fig. 6a-d). Bacterial density, estimated as the relative area of bacterial stain compared to total kidney tissue, was not significantly different between biopsies and autopsies, which suggests that bacterial proliferation post-mortem did not contribute to bacterial signals (paired t-test, t = 2.195, p = 0.177; Fig. 6e).

**Fig. 6: RNA-FISH imaging of in situ bacteria in human kidney tissue.**

To further evaluate the presence of bacteria in human kidneys, bacterial signatures in an independent population of kidney specimens were re-analyzed from a previously published transcriptomic dataset of micro-dissected glomeruli and tubuli that underwent polyA enrichment prior to sequencing (BioProject PRJNA725213)⁵². There were 101 sequenced samples from healthy participants available, which included 71 glomeruli and 30 tubuli. There was an average of 38,646,509 + /− 1,301,280 total reads/sample, with 19,086,347 + /− 639,898 mapping to host reads, and 56,191 + /− 2934 mapped to prokaryotes after removal of potential contaminants and low-quality reads. We observed significant differences in the ratio of high-quality sequences mapping to prokaryotes vs. human reads between glomeruli and tubuli (paired t-test, t = 26.99, p < 0.001; Fig. 9a). Importantly, nearly all reads exhibited 100% sequence homology with their microbial references, which minimizes the possibility of false microbial annotations (Fig. 9b). Wih this analysis, we observed significantly greater species richness in the glomeruli compared to tubuli (paired t-test, t = 25.37, p = 0.0007; Fig. 9c), with a posititve correlation with increasing age (Pearson’s correlation, r = 0.43, -0.14 and p = 0.0003, 0.45 for glomeruli and tubuli; Fig. 9d). The composition of the microbial signatures was significantly different between the glomeruli and tubuli, assessed with a Bray-Curtis dissimilarity index (Permanova, f = 28.58, p = 0.001; Fig. 9e). Bacterial phyla indentified in glomeruli and tubuli were dominated by Pseudomonadota and Bacilliota (Fig. 9f), consistent with previous urobiome studies^7,21. Taxa that differentiated the glomeruli and tubuli, based on a DESeq2 analysis, were primarily Streptomyces (38 ASV’s), Pseudomonas (22 ASV’s), Burkholderia (16 ASV’s), and Streptococcus (15 ASV’s) in the glomeruli and Bacillus (17 ASV’s) in the tubuli (DESeq2, FDR < 0.05; Fig. 9g; Supplementary data S5). Similar results were obtained with an ANCOM analysis (ANCOMBC, FDR < 0.05; Fig. 9h). Ethnicity was a significant driver of composition and species richness in two-way analyses (Permanova, f = 2.85, p = 0.007; Fig. S9i; ANOVA, f = 6.191, p = 0.0007; Fig. 10a). We did not see differences in the kidney microbial signatures by gender identity (Two-way ANOVA f = 0.061, p = 0.805; Fig. 10b; Permanova f = 1.37, p = 0.253; Fig. 10c). Negative controls used in this analysis for decontamination were variable, but significantly different from positives, independent of source (Fig. 10d).

Scrutinization of microbiome data

To scrutinize and support the validity of the microbiome data generated from our analysis, we used a hybrid approach. First, we conducted statistical decontamination with Decontam, which removes 90% of contamination with minimal false negatives⁵³ and we also conducted a knowledge-based removal of common taxa found in laboratory reagents⁵⁴. Statistical decontamination led to a 23% reduction in the number of unique taxa in the human data compared to a 19% when bacteria was censored through a knowledge-based approach. In mouse data, statistical decontamination led to a 2.3% reduction in unique taxa compared to a 35% reduction with the knowledge-based approach. It must be noted, however, that in mouse studies, multiple sources of negatives that were directly tied to the experimental procedures were used as negatives for statistical decontamination. Additionally, many of the taxa that have been identified as reagent contaminants⁵⁴ that we used for the knowledge-based scrutinization, such as Enterobacter, Escherichia, Corynebacterium, Kocuria, Bacillus, Streptococcus, and others, have been recurrently identified in the urinary tract microbiome⁵⁵. As such, removal of these taxa would necessarily lead to a number of false negatives.

To assess the impact of decontamination methods on the statistical differences shown here, we compared the statistical significance in the beta diversity of human glomeruli vs. tubuli and mouse kidneys vs. urine. While the knowledge-based decontamination method led to a reduction in the statistical significance for both human and mouse data, beta diversity analyses were highly significant regardless of the decontamination method chosen (Fig. 11a, b). Additionally, to assess the impact of contamination on the statistical differences between groups, we simulated contamination in both the human and mouse data by using a random number generator to simulate universal, stochastically distributed taxa, similar to what would be seen with reagent-based contamination. In this analysis, we found that the number of contaminants exhibited a significant negative correlation with the beta diversity test statistic in both datasets (Pearson’s correlation, r = -1, p < 0.001; Fig. 11c, Pearson’s correlation, r = -96, p < 0.001; Fig. 11d).

Discussion

Recent studies have characterized the microbiome of intrarenal specimens, such as stones or kidney urine^7,17,56. We hypothesized that the kidneys may harbor a low-density, antibiotic-sensitive microbiota that influences lithogenesis through microbial metabolic output. It has been recently suggested that to differentiate a microbiota with transient colonization, the former should exhibit: 1) Metabolic activity; 2) Stability over time; and 3) In situ replication¹⁹. Thus, to address our hypothesis, and having in mind these criteria, we conducted a comprehensive mouse study to quantify the distribution and antibiotic sensitivity of bacteria in kidney tissue. From rigorously controlled experiments, culture-based and imaging data show a viable and metabolically active kidney microbiota in all animals regardless of intervention (Fig. 1a–c), which was corroborated molecular data (Fig. 1d, f) and was consistent with human kidney microbial signal profiles (Fig. S9f,1e). Previous studies in SWJ/R mice show that trans-urethral inoculation of bacteria into the bladder leads to vesico-ureteric reflux and pyelonephritis from inoculated bacteria^57,58,59. In a diabetic mouse model, investigators found kidney bacteria due to gut translocation⁶⁰. One other potential source of kidney bacteria is hematogenous spread⁶¹. In our study, there were clear differences between the kidneys and urine in mice (Fig. 1d), which suggests the bladder did not make a significant contribution to the kidney microbiome. In the present study, we conducted VUR phenotyping of male SWR mice²⁵, which reveals absence of this urinary tract defect, as further evidence that bacteria may not come from the bladder under normal conditions. (Fig. 1h). Longitudinal analysis revealed a stable microbiome over 30-days (Fig. 3c). Collectively, our findings supports, the presence, metabolic activity, and stability of a renal microbiota in mice.

In human renal specimens, RNA-FISH analysis shows bacterial DNA, as a marker of microbial replication and viability, in 100% of the samples (Fig. 6). Importantly, RNAseq data, derived from human specimens and reanalyzed in the present study, came from polyA enriched RNA with oligo-dt beads, which seeks to eliminate microbial RNAs⁵². While this method reduces microbial signatures by 27-fold compared to conventional RNAseq, previous studies have shown that microbial signatures are not completely removed⁶². Given this, we estimate that the true proportion of microbial to host reads in nephrons is closer to 5% (based on Fig. 9a). The mRNA data derived from this study, as a marker of metabolically active microorganisms⁶³, was further evaluated to assess factors that shape these microbial signals. Microbial signatures were differentiated by proximity in the nephrons and was dependent on age and ethnicity, but not gender identity (Figs. S9, S10), consistent with a previous study¹⁸. Importantly, in both human and mouse data, we show that microbial signatures could not have resulted from either falsely annotating sequences as microbial (Fig. 9b) nor from contamination (Fig. 11).

While we did not investigate the potential origins of renal microbial signals, the age-based higher species richness in the glomeruli of humans compared to the tubules (Fig. 9c), sheds light on one potential source. Past studies have shown bacteria can translocate from gut to the kidneys with increased gut epithelial permeability⁸, which is more notable in older adults⁶⁴. There is a progressive loss of glomerular filtration with age, in part due to an age-related loss of glomeruli⁶⁵. Our data suggest that the potential loss of the glomerular basement membrane integrity due to the progressive decrease in kidney clearance with age, may allow some bacteria to pass from the blood into the glomerulus. With the loss of glomeruli, red blood cells, which are up to eight times larger than individual bacteria, can infiltrate the urinary space⁶⁶ and may also allow for the colonization of bacteria. Given the limitations with the human data, we could not establish stability. However, image-based and molecular data provides evidence for the presence of a viable and metabolically active microbial signals in humans. In all kidney specimens, microbial signals were evident in the glomeruli and tubuli, with clear differences in microbial density and composition, consistent with similar analysis¹⁸. Causative implications of these findings for disease remain to be determined. It’s important to note that while mice had a higher bacterial density in the more distal region of the kidneys (Fig. 1b), there was greater density apparent in the proximal end of the kidneys in humans (Fig. 9a). Given that the mice strain used in this study was negative for VUR phenotype (Fig. 1h), the most likely explanation for this discrepancy is the positive correlation of increasing age and increased species diversity in the glomeruli but not the tubuli in humans (Fig. 9c).

Cefazolin is a common antibiotic prophylaxis in surgical procedures that can cause gut dysbiosis and colitis⁶⁷, is associated with future risk of nephrolithiasis⁶⁸, and is excreted unchanged in urine⁶⁹. In mice, seven days of cefazolin exposure significantly impacted the urobiome (Figs. 2a, b, S4a, b). In the present study, taxa previously associated with lithogenesis and infection, such as Enterococcus and Enterobacteriaceae^15,70, were not impacted by long-term antibiotics (Figs. 2d, e, 3d–f). Conversely, uroprotective lactic acid strains like Lactobacillus and Lactococcus^7,71,72, were significantly disturbed (Figs. 2d, e, 3d–f). Past research shows that antibiotic use can promote translocation of colonic bacteria⁷³, which could potentially lead to the transient presence of bacteria in the circulation and in the kidneys. Our data show that antibiotics induced a species-specific decline in abundance (Fig. 3d, f), indicative of a microbiota responding to an environmental perturbance, rather than translocation. Overall, results show that cefazolin can drive a dysbiosis in the murine kidney microbiota towards antibiotic-resistant uropathogens.

Urine supersaturation with crystallizing salts has been associated with the development of a renal inflammatory response and interstitial crystal deposition³⁵, as has urinary dysbiosis and the proliferation of uropathogenic bacteria, such as E. coli^15,17,74,75. In the present study, cefazolin and urinary dysbiosis was associated with an increase in pro-inflammatory cytokines (Fig. 2f), which could result from antibiotic exposure directly, or from differential exposure to dietary or microbial elements, and suggests that disturbance of the urinary microbiome can cause changes in the urinary environment that can trigger immune responses in the kidney and enhance lithogenic steps like tubular cell-crystal adhesion³² that warrants further investigation.

While studies have illuminated the beneficial and pathogenic impacts of Lactobacillus and E. coli, respectively for urologic health^7,8,74, questions remain about mechanisms driving this phenomenon. Our study points to antibiotic resistance by Enterobacteriaceae as one means of dysbiosis, but we also observed occasional outbreaks by Enterobacteriaceae in addition to direct competition between Enterobacteriaceae and Lactobacillus (Figs. 3g, S6b, c), consistent with previous studies⁷⁶. We observed that a specific strain of E. coli (ATCC 43886) out-compete L. crispatus (Fig. S7a–c) through bioreactor studies, consistent with genomic analysis (Fig. 6a), but is in contrast to previous findings of adhesion inhibition of E. coli by Lactobacillus strains¹¹.

Past studies have shown that E. coli enhances the growth of CaOx cyrstals^15,77. Our bioreactor studies show that this effect can be modified by the presence of other bacteria such as L. crispatus. When grown alone, a specific strain of E. coli promoted and L. crispatus inhibited development of CaOx crystals through a known non-canonical pathway whereby nano-sized droplets aggregate to first form amorphous crystals, that further aggregate into octahedral shapes and then more complex structures (Fig. 4)⁴³. While E. coli attached to and facilitated the growth and aggregation of crystals, L. crispatus did not attach to crystals and halted lithogenesis at the amorphous stage, similar to known inhibitors (Fig. 4)^78,79. The differential impact of these species on crystal growth could be due to the production or degradation of oxalate, respectively (Fig. 7e). However, EDS analysis revealed significantly different elementomes in crystals that developed under different microbial inocula (Figs. 5, S8). Specifically, L. crispatus produced crystals enriched in sulfur, a known calcium competitor^47,48 and phosphorus, another calcium competitor linked to urolithiasis inhibition^44,45,46. E. coli produced crystals enriched in iron and chloride, which are both known CaOx crystal promoters and are common elements in biofilms^44,49,50,51. When E. coli and L. crispatus were co-cultured, crystal morphology switched from octahedral to styloid (Fig. 4). Common uropathogens, like Klebsiella pneumoniae and E. coli, have also been shown to enhance CaOx crystal growth and aggregation in vitro⁷⁷ through bacterial proteins and the net charge of crystal ions¹⁵. E. coli was found on both dihydrate and monohydrate forms of crystals (Fig. 4). This finding corroborates E. coli attachment to abiotic and CaOx surfaces^17,79. Collectively, we provide evidence that pro-lithogenic and anti-lithogenic microbe dynamics influence a diverse range of steps in the development of CaOx stones, from the availability of crystallizing salts to the development of crystal polymorphism. Importantly, the effect of these empirically chosen E. coli and Lactobacillus strains do not necessarily extend to related taxa. In other species of lactic-acid bacteria and additional strains of stone-derived E. coli, we found that while all isolates influenced CaOx crystal size, these new strains universally decreased crystal size, which suggests that the E. coli strain used in the bioreactor studies, which is the most abundant found across multiple stone types, exerts its influence in strain-specific ways, while lactic-acid bacteria may exhibit a more common mechanism to inhibit crystal growth. Previous studies have suggested that net electrostatic potential on the surface of bacterial appendages like flagellum can interact with the surface of CaOx crystal¹⁵. This protein distribution, on bacterial surface, can potentially vary by different strains of the same bacteria and determine whether CaOx growth is promoted or inhibited⁸⁰.

In conclusion, the data of the present study, derived from multiple, independent approaches show that a low biomass microbial community may be present in microniches of kidneys from humans and mice. This community is perturbed by antibiotics, generating a pattern of dysbiosis which suppresses Lactobacillus, and proliferates Enterobacteriaceae. Lactobacillus and a specific strain of E. coli may modified the chemical environment to influence CaOx lithogenesis. Collectively, data suggest that the association between antibiotic use and the onset of urolithiasis can be driven, in part by a loss of Lactobacillus in the kidneys, which allows antibiotic resistant Enterobacteriaceae to proliferate. This may lead to a change in the local chemical environment to facilitate CaOx lithogenesis through the potential production of CaOx promoters, which would be an independent risk factor to other known biochemical risk factors for stones³². Collectively, our animal experiment suggests that conventional antibiotics may shift the kidney microbiome towards more pathogenic/lithogenic bacteria. As such, to help prevent lithogenesis, good antibiotic stewardship combined with the development of alternative or more targeted bacteriotherapies are needed, such as quorum-sensing inhibitors that target biofilm formation or urinary Lactobacillus probiotics that can restore uroprotective bacteria to the urinary tract.

We acknowledge the limitations of the study. First, evidence of the human bacterial signature is limited to molecular and imaging data, with human molecular data not collected specifically for microbiome analyses. Additionally, our mouse study was designed to assess the baseline murine kidney microbiome, and tests of hypotheses for the influence of urinary tract bacteria and lithogenesis were done in vitro. Importantly, to eliminate sex-based anatomical biases, studies were only done in male mice. Given these limitations, follow-up in vivo studies are needed in germ-free mice with an appropriate stone-forming rodent model, which includes both male and female mice. Finally, we note that DESeq2, the differential abundance algorithm used here, can be limited in microbiome studies⁸¹. However, ANCOM analysis produced similar results in our study (Fig. S9g,h).

Methods

The present research complies with all relevant ethical regulations

All animal procedures were approved by the Institutional Animal Care & Use Committee of the Lerner Research Institute (IACUC # 2020-2312) and performed in accordance with institutional guidelines. Human kidney samples were obtained through the pathology department at the Cleveland Clinic (IRB# 20-847) from kidney biopsies and from tissue harvested from autopsies, in which family consent was given for tissue collection for submission to the local biobank for research purposes (IRB# 20-403). Study approval and a consent waiver were obtained from the Cleveland Clinic to use archival formalin-fixed paraffin blocked kidney tissue considered discard from with less than minimal risk to subjects. Tissue was provided without patient identifiers and no protected health information was collected. Publicly available data from human kidney samples deposited in the sequence read archive (BioProject PRJNA725213) were reanalyzed in the present study to investigate the presence of microbial signals.

Low microbial biomass considerations

Recent research has focused on the presence of a low biomass microbiome in entrapped organs previously thought to be sterile^19,82. Where possible, recommendations put forth for the study of low biomass microbial communities and the discovery of a microbiome were followed in the current study to prevent, assess, and eliminate contamination^19,82. For this purpose, we followed the suggestions of RIDE guidelines through the inclusion of multiple negative controls, bioinformatic decontamination, and reporting contaminants for animal studies. Molecular human data were limited in that no internal negative controls were available. To overcome this limitation, we conducted a hybrid approach with the use of: external negative controls from two clinical microbiome studies of the urinary tract from two different sites as discussed below, and a knowledge-based approach with the removal of taxa previously described as reagent contaminants⁵⁴. For the discovery of a microbiome in the kidneys, we followed the recommendations of an expert panel, in which a microbiome must be 1) metabolically active; 2) reproduce in situ; and 3) is stable over time¹⁹.

Animal studies

To eliminate sex-based biases associated with LUT anatomy, one-hundred sixty 3-week-old SWR/J male mice⁸³ (RRID:IMSR_JAX:000689) were purchased from The Jackson Laboratory and maintained at the Cleveland Clinic Biological Resources Unit. All mice were housed four to a cage in metabolic cages, with a 12-h/12-h light/dark cycle, at 28 °C and 20% humidity. After 5-days acclimation and through the duration of the diet trial (Fig. 1a), mice were fed with a 1.5% oxalate pelleted diet (Supplementary data 6), adjusted with Na₂C₂O₄ (Fisher Scientific, Pittsburgh, PA) on a dry weight basis. At four weeks age, animals were randomized into eight treatment groups, four cages per group for a total of 16 animals in each intervention or control arm. Four groups of mice received antibiotic-free water and four received cefazolin sodium salt, 98% (Fisher Scientific) in water (0.125 g/L) for either 3 days (short-term) or 14 days (long-term) (Fig. 1a). During antibiotic exposure, all animals received water with 2 g/L sucralose. This concentration and duration of cefazolin elicits a significant drop in gut microbiota diversity and microbial oxalate metabolism in SWR/J mice³⁴. Throughout the post-acclimatization phase of the diet trial, urine was collected daily in sterile collecting funnels and pooled in three-day intervals for microbial analyses. To help prevent contamination from the stool or fur, the collecting cones of the metabolic cages were disinfected daily, new sterile collection funnels were placed daily, and any urine specimens with fecal pellets were discarded. Urine samples were frozen at −20 °C for less than 6 months prior to DNA extraction. After three or fourteen days of intervention, half of the animals from the short-term and long-term arms were necropsied. The remaining animals were allowed to recover for 14 days and given antibiotic-free water ad libitum prior to necropsies (Fig. 1a). Necropsies were conducted in a disinfected biosafety cabinet with sterile gloves and instruments. Animals were disinfected with 70% ethanol, and kidneys were aseptically collected⁸⁴ and rinsed with sterile saline. One kidney from each animal was frozen in sterile PBS at −20 °C, prior to DNA extraction. The remaining kidney was fixed in 10% formalin overnight and stored at 4 °C in 70% ethanol to prevent environmental contamination³⁸, prior to histological processing. Vesicoureteral reflux testing in SWR/J male mice

To exclude the presence of bacteria coming from a potential vesicourteral reflux (VUR) in our experimentation animals, 5 SWR/J male mice at 12 weeks of age were phenotype for this urinary tract defect. Briefly, animals were euthanized, made hypothermic on a pietri dish with ice, and surgically manipulated under microscope magnification to remove tissue and organs covering the urinary tract. The bladder was puncture with a 26-gauge 3/8 needle connected to a system of an IV tubing and a 60 ml syringe filled with 70% methylene blue. The syringe was raised vertically from 30 to 150 cm by 30/5 seconds intervals and maintaining it for 10 seconds once the final height was reached. The height of the column was record if there was any passing of dye to any of the ureters, individually assess under microscope, or escape through the urethra²⁵.

Calcium oxalate lithogenesis model

For in vitro assessment of bacterial influences on CaOx mineralization, a CDC Biofilm Reactor (BioSurface Technologies Corp.) was used (Fig. 1b). This system is a specialized continuous flow stirred tank reactor chemostat model that has been used to model the urobiome and lithogenesis⁴⁰. It enables control of biofilm-related activity in a physical and chemical environment that mimics the urinary tract, in part through the use of AUM (Supplementary data S4)⁸⁵. The original AUM recipe was amended with 5 g/L of meat extract (OXOID) to facilitate growth of L. crispatus. The system consists of a media reservoir, a chemostat with a stirring vane and eight suspended coupon holders, with eight polycarbonate coupons each (RD128-PC), that provide a substrate for biofilm attachment and growth, and a waste reservoir. The chemostat is placed on a stir/hot plate with a pump to transfer media from the reservoir to the chemostat at a constant flow rate. The AUM and control of the physical parameters of the bioreactor were designed to mimic the flow rate, temperature, chemical environment, and shear forces in the kidneys⁴⁰.

Specific strains of L. crispatus and E. coli used for lithogenic assays were chosen based on a previous clinical microbiome study of the urinary tract from patients with or without kidney stones⁷. The identity L. crispatus was verified through shotgun metagenomics⁹ and the specific strain of E. coli through ASV⁷⁰ and phylogenetic analyses. Representative isolates were purchased from ATCC (ATCC 33197 and ATCC 43886) and verified through sequencing of the full length 16S rRNA gene with 27 F and 1492 R primers. For every experiment, 3 liters of AUM was prepared and filter sterilized. Filter-sterilized solutions of calcium chloride (Fisher) and sodium oxalate (Fisher) in Milliq water were added to media at a concentration of 1 mMol. Then, 350 ml of media was placed in the chemostat and the rest in the system reservoir. Subsequently, AUM was pumped to the chemostat at a rate of 1 ml/min and stirred at a rate of 150 rpm at 37 °C. Prior to inoculation, bacteria were acclimated in static AUM for 72hrs, washed 3 times by centrifugation at 4,500 x g and resuspended in sterile PBS before being diluted to an optical density at 600 nm of 0.4. 100μl of bacteria or sterile AUM was inoculated for bioreactor assays with the following treatment groups: 1) Sterile media alone (negative control); 2) E. coli alone; 3) L. crispatus alone; and 4) A combination of E. coli and L. crispatus. AUM flow was started immediately after inoculation and continued for 72 hours. After incubation, coupons were removed from holders to assess mineral accumulation and an aliquot of the bioreactor media was sampled to quantify the viability and abundance of each taxa within the media (discussed below).

Bacterial viability assay from bioreactor experiments

The proportion of live bacteria in bioreactor effluent was analyzed using the LIVE/DEAD BacLight Bacterial Viability Kit (Molecular Probes, Invitrogen; L7012). Fresh bacterial suspensions of E. coli and L. crispatus with known proportions of viable and non-viable bacteria were used to create a standard curve of viable cells. Assays and analyses for each sample was performed following the manufacture’s protocol Control samples, and aliquots of the media from the bioreactor were analyzed using fluorescent spectroscopy.

qRT-PCR

To quantify the abundance of each taxa from the bioreactor experiments, E. coli and L. crispatus were detected and quantified using qRT-PCR as described⁸⁶ using a universal bacterial primer as a standard^87,88. Bioinformatic analysis of genomes was used to design species-specific primers for L. crispatus and E. coli (Supplementary data S7). Extracted DNA from each strain was used to validate primer specificity prior to qRT-PCR quantitation. Efficiency of each primer set was above 90%.

Mineralogical analysis of the coupons

Field emission-SEM (FE-SEM) was used to quantify minerals attached to air-dried coupons. A clinically- extracted, pure-CaOx stone and in vitro CaOx crystals were included as positive controls. For FE-SEM a Zeiss Sigma VP scanning electron microscope was used, at a voltage of 5 – 10 kV and resolution between 2 and 10 nm. Crystal size was quantified in ImageJ. FE-SEM and energy dispersive x-ray spectroscopy (EDS) was done to observe mineral shapes and quantify near surface chemistry. For EDS, coupons were pressed to a SEM sample mount covered with carbon tape, leaving solid material attached to the tape. Samples were sputter coated with 5 nm of gold in a EMS150T ES Sputter Coater and imaged with Zeiss Sigma EM coupled with an UltraDry Xray spectroscopy detector for elemental analysis.

CaOx crystallization assays on representative bacteria strains

To analyze the influence on dynamics of crystallization from additional strains of E coli and lactic-acid bacteria, plate based crystallization assays were conducted. From a stored biobank of bacteria, 2 other strains of E coli, isolated from CaOx stones, and identified through sequencing, and 2 strains of lactic-acid bacteria (Lactiplantibacillus plantarum and L. helveticus) purchased from ATCC were enriched in BHI broth for 48 hours. CaOx crystallization assays were performed through a modified protocol. Briefly, aliquots from each enriched bacteria were washed 3 times and resuspended in PBS before being dilutes at 600 nm of 0.4. Then, 10 μl of the resuspended bacteria were added into Nunc Glass Base Dish (Thermo Scientific), containing 2 ml of 10 mM CaCl₂ in a basic buffer (10 mM Tris HCL and 90 mM NaCl, ph 7.4). Thereafter, 2 ml of 1 mM Na₂C₂O₄ in the basic buffer was added and incubated at 25 °C for 60 min. Crystal images were captured randomly from 4 power fields under Leica DMi1 inverted microscope at 40X. Crystal size and number were quantitated using ImageJ software in triplictes from each experiment. An assay without bacteria was also run as a negative control for comparison¹⁵.

Genomic analysis and in vitro validation of study results

Genomic analysis was performed on L. crispatus and stone-associated E. coli, followed by additional in vitro assays for oxalate metabolism and antibiotic resistance. Genomes associated with ATCC strains were downloaded from ATCC and full-length genes extracted and annotated with PROKKA⁸⁹. Subsequently, genes associated with lithogenesis, antibiotic resistance, biofilm formation, or oxalate metabolism were quantified. To validate the impact of antibiotics on Lactobacillus and Enterobacteriaceae, pure cultures of L. crispatus and the stone-associated E. coli were plated in triplicate on MRS (Oxoid) or MacKonkey agar (Oxoid), respectively, along with paper disks (Oxoid) containing ampicillin, cloranfenicol, penicillin, or tetracycline. After 48hrs incubation, the zone of inhibition was quantified. To validate the interaction between L. crispatus and the stone-associated E. coli with oxalate, bacteria were grown in broth culture (MRS for L. crispatus and BHI for E. coli) that contained 5 mM of Na₂C₂O₄ as preliminary studies indicated that greater oxalate concentrations inhibited the growth of L. crispatus. The supernatant of the broth culture was assayed for oxalate content using a potassium permanganate titration assay following oxalate extraction⁹⁰ at 0, 3, 5, 14, and 21 days after inoculation. Sterile media was used as a negative control.

Histopathology and FISH-based bacterial quantification

To quantify the presence of bacteria in mice kidney tissue at the domain, family or genus level, three RNA-targeted FISH probes were purchased (Invitrogen). Probes included a universal probe that targets all bacterial taxa (EUB388; GCTGCCTCCCGTAGGAGT)⁹¹, an Enterobacteriaceae-targeted probe (pB-00914; CTCTTTGGTCTTGCGACG)⁹², and a Lactobacillus-targeted probe (gC-358a; CCATTGTGGAAGATTCCCT)⁹³. A 5μM stock solution of each probe was prepared in sterile Milliq water and stored at −20 °C⁹⁴.

Formalin-fixed kidneys were longitudinally bisected, paraffin embedded, and sectioned after disinfecting equipment. Blocks were sectioned (3 μm thick) on a rotary microtome (Medim, Type DDM 0036). Fixed suspensions of Lactobacillus sp. and Enterobacter sp. isolates obtained from murine urine, were used as positive controls to validate probe specificity. Slides with no bacteria as negative controls were assessed to determine the presence of contamination in reagents. In addition, to assess the presence of false positives generated by autofluorescence or non-specific binding, each probe was randomly scrambled and a set of samples were stained in parallel with either the targeted or the untargeted probe, as previously described⁹⁵. To stain slides with FISH probes, serial tissue sections were incubated at 60 °C for 1 hour and immersed in xylene, ethanol and MilliQ water. The FISH probes (50 μl/slide) were prepared by mixing 1 part of the probe, 1 part of hybridization buffer (100 mM of Tris–HCl (pH 7.2), 0.9 M of NaCl, and 0.1% of SDS), and 1 part of RNA stabilization solution⁹⁴. Bacterial suspensions and deparaffinized tissue sections in triplicate were stained with DAPI and either one of the three FISH probes. A cover slip was placed on the stained tissue and incubated on a heating block for 90 minutes and washed with a washing buffer (100 mM of Tris-HCL (pH 7.2), 0.9 M NaCl, 0.1 mM SDS) for 30 minutes. Finally, 50 μl of VECTASHIELD antifade mounting media (Fisher Scientific, nc9029229) was added to dry slides and stored 24 hours at 4 °C. Slides were scanned with an Artemis confocal microscope with channels for each of the fluorescent probes. After the specificity and immunofluorescence thresholds of the probes were established with pure cultures of Lactobacillus and Enterobacter, stained kidney tissue was analyzed to enumerate bacteria. Bacterial counts were averaged for each slide and normalized to the surface area of the kidney section (bacteria/cm² of kidney tissue). A Holm’s-corrected paired t-test was used to statistically compare bacterial counts between treatment groups.

Four clinical biopsy and six autopsy specimens were acquired through the pathology department at the Cleveland Clinic to validate the presence of bacteria in human kidney tissue. Specimens were collected from May 2020 to February 2022 from in-patients undergoing punch kidney biopsies in the course of routine care for diagnostic purposes and from tissue harvested from autopsies. The kidney samples were processed by the clinical pathology department using their standard fixation procedure in formalin. The residual paraffin blocks from biopsies and autopsies were archived within the institutional pathology department. No clinical data, as well as age or sex, were considered for this analysis. Since bacteria in human tissue were often present in overlapping clusters, stained bacterial area, rather than individual bacteria, were quantified relative to total tissue area. For histographs in Fig. 6, brightness and contrast were uniformly altered to make the fluorescent staining more apparent. Quantification occurred in QuPath targeting the fluorescent stain. To assess the presence of contaminants, we analyzed all borders of the tissue section and the surroundings for the presence of randomly distributed bacteria, which is a sign of contamination, as previously described³⁸. As an additional control for autofluorescence and non-specific binding in the tissue from mice, all FISH stained kidney sections were assessed with four fluorescent channels pertaining to DAPI and each of our three microbial probes. If signals were present in multiple channels, they were not counted. Additionally, serial mouse tissue sections were stained with three unique microbial probes that target all, Lactobacillus, or Enterobacteriaceae taxa. If signals were present using multiple probes, indicative of autofluorescence, they were not counted.

Culture-based bacterial quantification in urine and kidney tissue

The presence of a murine kidney microbiota was validated through culture-based means whereby three, 10-week-old mice in a clean barrier facility were necropsied and the kidneys aseptically excised and longitudinally bisected. A sterile inoculation stick, 1 mm in diameter, was inserted 1 mm into either the cortex, medulla, or ureter. Sticks were used to streak culture plates (Fisher Scientific) containing Columbia blood agar, CNA blood agar, chocolate agar, and brain heart infusion agar, in triplicate. Negative controls included sterile sticks without kidney insertion. Plates were incubated aerobically for 72 hrs before quantifying CFUs.

To quantify the abundance of Enterobacteriaceae and Lactobacillus in urine at each timepoint, serially diluted urine was plated aerobically on MacConkey (Oxoid) or MRS agar (Fisher Scientific), respectively, and incubated for 48 hours at 37 °C prior to counting of colony-forming units (CFUs). Data were compared with a two-way ANOVA followed by post-hoc, Holm’s-corrected, paired t-tests.

Quantification of urinary cytokine levels

Concentrations of IL-6 (R&D Systems), IL-18 (Fisher Scientific), and IL-1β (R&D Systems) were quantified with ELISA-based assays, following the manufacturer’s instructions. Positive controls of a known amount of substrate and no substrate-negative controls were included in all batches. Samples, standards, and controls were run in duplicate and values averaged by sample. Due to limitations of urine volume, we prioritized microbiome analyses and could not perform other biochemical assays, such as urinary oxalate. We previously reported the impact of cefazolin on urinary oxalate in this animal model³⁴.

Metagenomics and bioinformatic analysis

For DNA extraction, mouse urine was centrifuged at a 3000 x g for 5 minutes and the pellet was used for subsequent processing or kidney tissue was aseptically morcellated in a sterile mortar and pestle in 1 ml of sterile PBS and vigorously vortexed until a homogenized solution was achieved. The suspension was then processed with a MolYsis Basic 5 Kit (MolYsis Life Science, Bremen, Germany) to lyse residual animal cells and remove host DNA⁹⁶. Either 400μl of pelleted urine or homogenized kidney tissue was used for semi-automated DNA extraction on a KingFisher Duo Prime system (Thermo Scientific) following manufacturer’s instructions. From extracted DNA, the 16S rRNA gene was amplified with the 27 F and 1492 R universal bacterial primers for a subset of urine and kidney samples to validate the presence of bacterial DNA prior to high-throughput 16S rRNA sequencing. For high-throughput 16S rRNA sequencing, extracted DNA was submitted to the Microbial Sequencing & Analytics Facility at the Lerner Research Institute (Cleveland, OH) for 150 bp, paired-end sequencing of the V4 region of the 16S rRNA gene, with primers 515 F and 806 R on an Illumina MiSeq⁹⁷. Duplicate samples of a commercial DNA positive (Zymobiomics, USA) were run with each sequencing plate to determine if the sequencing run itself impacted community composition. Negative controls that included sterile PBS, mouse chow, antibiotic-free water, and water with cefazolin were run in tandem with the urine and kidney samples through the entire workflow for animal studies. We also included sampling blanks, DNA extraction blanks, and no-template amplification blanks in each batch, following suggestions from RIDE guidelines for low biomass studies⁸². Contaminants from the mouse study were identified with decontam and represented 43 out of 1852 ASV’s identified (Supplementary data S8). For mouse data, negative controls presented a direct potential source of contamination.

To investigate the presence of microbial signals in human kidneys, the sequence read archive was searched for data derived from shotgun metagenomics, transcriptomics, or 16S rRNA sequencing, and originating from human kidney tissue. Only one study fit the criteria (BioProject PRJNA725213), which included RNA-seq data from laser micro-dissected glomeruli and tubuli of humans⁵². From this study, we used a batch that only included healthy individuals. Raw sequencing data was screened for adapter sequences and sequences with a Phred score <20 with bbduk⁹⁸. High-quality data was then mapped to the GRCh38 human genome to remove host reads, with BWA mem⁹⁹. For publicly available human data, which was not designed as a microbiome study, external positive and negative controls from other clinical urobiome studies from two different sites (San Diego, CA and Cleveland, OH; unpublished data) were assessed, as well as the removal of potential contaminant taxa⁵⁴ through a knowledge-based approach to eliminate taxa typically associated with plants or extreme environments (Fig. 10d). Use of the external negative controls and a knowledge-based approach led to a conservative approach for contaminant removal and 751 out of 3186 taxa were removed (Supplementary data S9).

All bioinformatic analyses were conducted in R statistical software¹⁰⁰, unless otherwise noted. Quality control, chimera removal, and assignment of amplicon sequence variants (ASV) were completed in dada2¹⁰¹. For ASV assignment, a dereplicated database containing 16S rRNA sequences from the Silva 138 SSURef¹⁰² and NCBI 16S rRNA databases¹⁰³ were used for mouse data while a database of 30,052 full-length Prokaryotic genomes downloaded from the NCBI were used for non-host RNAseq data derived from human kidney samples. Taxa assigned to mitochondria, Eukaryotes, or chloroplasts were removed from all samples prior to subsequent analysis. For all datasets, threshold sequencing depths needed to adequately reflect community diversity per sample were calculated through rarefaction analysis in vegan¹⁰⁴, which we defined as the sequencing depth at which >90% of samples had a slope of <0.01 in the rarefaction analysis. For 16S rRNA data, ASV’s were aligned in MSA¹⁰⁵ and arranged into a maximum likelihood phylogeny in phangorn to produce a phylogenetic tree.

The raw count tables from human or mouse sequencing data were normalized to the number of host reads. From the normalized count tables, we calculated the following α-diversity metrics: species richness (Margalef’s), evenness (equitability), Shannon index, and phylogenetic diversity (16S rRNA data only). We analyzed diversity metrics with a repeated-measure ANOVA and post hoc Tukey’s analysis or a paired t-test with Holm’s correction where applicable, after testing for data normality. A weighted UniFrac analysis (16S rRNA data) or weighted Bray-Curtis analysis (human data) was performed to compare community composition. Comparisons between treatment groups and timepoints were made with a 2-way PERMANOVA after 999 permutations.

To assess the potential impact of contamination on microbial data, we simulated universal, stochastically distributed contamination in mouse and human datasets using a random number generator, assigning values ranging from 0-100 in each of the samples. Simulated contaminants were added onto data that had already been decontaminated with Decontam, which is what our initial results were based on (Fig. 1d, S9e). Unique datasets were generated that contained simulated contaminants from 0-150 for both mouse and human data. Subsequently, the beta diversity test statistic was calculated for each dataset, comparing the glomeruli and tubuli (human data) or kidney and urine (mouse data) and a Pearson correlation was used to assess the correlation between the number of contaminants and differences in microbiome compositions.

Statistics and reproducibility

The animal study was designed with 8 groups based on short or long term antibiotic intervention with or without 14 days recovery, as well as control counterparts. Each group was represented by 4 cages of 4 animals each. After the acclimation period the animals were randomly allocated in each group. Assessment of bacterial viability, qRT-PCR, mineralogical analysis of the bioreactor coupons, CaOx crystallization assay of representative bacteria were conducted in triplicate. Replicate numbers are specified for each condition and were determined by conducting a power analysis in the pwr package in R, with a power of 0.8 and a medium effect size for all experiments, based on results from similar animal and clinical studies conducted in the lab previously. Clinical data was excluded from the human FISH analysis. The FISH data from murine kidneys was blinded and quantified by two independent reviewers. Quantification from the two reviewers were averaged prior to analysis.

All values, representing individual samples, are shown for boxplots, PCoA plots, and correlations. Bar and line graphs display mean values + /-SE. Differentially abundant ASVs (FDR < 0.05) are grouped by lowest assigned taxonomy and plotted as number of ASVs/taxon. Statistical analyses included ANOVA, after testing for data normality, and Holm’s corrected paired t-tests, Pearson correlation with significant correlations based on the Pearson product-moment correlation coefficient, PERMANOVA with 999 permutations, based on either a weighted UniFrac or Bray Curtis dissimilarity matrices. Differential abundance analysis was based on the DESeq2 algorithm, which calculates the log₂ fold difference +/-SE of DESeq2 normalized counts, between groups¹⁰⁶. While other differential abundance algorithms have been developed for microbiome-specific data, such as ANCOM-BC¹⁰⁷, these algorithms are prone to type I and II error if groups are highly divergent (i.e. comparing different tissue types), and if the sample size is >10 between similar comparative groups, results and type I, II errors are comparable between DESeq2 and ANCOM-BC¹⁰⁸. Data analysis was done in R (4.2). No custom code or software was used in data processing or analysis.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Sequence reads from the animal study are available at the Sequence Read Archive under Accession #SRP405883. Sequence reads for the human study are available from the Sequence Read Archive under BioProject #PRJNA725213. Source data for all Fig. are provided as supported data files. Source data are provided with this paper.

Code availability

Scripts to reproduce all findings shown in the main Fig. are available at https://github.com/amill017/kidney_bact.
