Asymmetric multi-component trifunctionalization reactions with α-Halo Rh-carbenes

Abstract

Multi-component multi-functionalization reactions involving active intermediates are powerful tools for rapidly generating a wide array of compounds. Metal carbynoids, with their distinct reactivity, hold great promise for developing synthetic methodologies. However, their application in catalytic transfer reactions has been hindered by the limited availability of suitable precursors. In this study, we investigate the catalytic potential of α-halo Rh-carbenes, leveraging the concept of metal carbynoids in multi-functionalization reactions. Through a chiral phosphoric acid-catalyzed asymmetric trifunctionalization, we have developed a method for synthesizing a variety of chiral α-cyclic ketal β-amino esters with high yields and excellent enantioselectivity. Our extensive experimental and computational studies reveal that α-halo Rh-carbenes exhibit carbynoid properties, which facilitate the transformation into functionalized Fischer-type Rh-carbenes through the decomposition of the C-halo bond.

Introduction

Multi-functionalization reactions^1,2,3,4,5,6, involving multiple components^{7,8,9,10,11,12,13} with active intermediates, are indispensable tools in both synthetic and medicinal chemistry. These reactions offer an efficient approach to constructing multiple chemical bonds in a single operational step by integrating three or more starting materials. They enable the rapid exploration of diverse chemical spaces and offer streamlined pathways to structurally varied compounds with a broad range of biological activities^{14,15,16,17,18}. Metal carbynoids^{19,20,21,22,23}, which exhibit dual reactivity as both carbene and carbon cation, can form up to three sigma bonds on a single carbon. This distinctive reactivity positions them as powerful intermediates, holding significant promise for advancing synthetic methodologies and facilitating the synthesis of complex molecules^24,25,26.

In recent years, the Suero group has reported a series of investigations utilizing hypervalent iodine Rh-carbenes as metal carbynoids. These investigations primarily focused on cycloaddition reactions with unsaturated olefins and acetylenes, leading to the formation of allyl structural units, cyclopropenes, and cyclopropyl-fused lactones^27,28,29. In 2023, our group pioneered asymmetric trifunctionalization reactions using the same reagents, successfully generating optically pure β-amino esters³⁰. More recently, sulfonium Rh-carbenes have been utilized as metal carbynoids in two distinct applications: Han’s group utilized them for synthesizing imidazo N-heterocycles through [2 + 1 + 2] cycloadditions³¹, while the Alcarazo group applied them in a ring expansion process to convert indenes into naphthalenes³². Despite these advancements, the application of these active intermediates in catalytic transfer reactions remains largely unexplored. This is primarily due to the limited availability of suitable precursors^33,34,35. Overcoming this challenge could open alternative avenues for the development of efficient and innovative synthetic strategies.

α-Halo metal carbenes, developed by Bonge-Hanson’s group^{36,37,38,39,40,41,42}, have demonstrated significant utility in a variety of metal-catalyzed reactions, including X-H insertion^37,38, cyclopropanation^36,42 and as C1 synthons in carbon atom insertion reactions^39,41 for skeletal editing^43,44,45. Despite these successes, their potential as precursors to metal carbynoids in catalytic processes, particularly in enantioselective transformations, remains largely unexplored. This is largely due to the challenge posed by the lower departure capability of the C-X bond compared to C-I^III / C-S⁺ bonds, as well as the need for precise control over the formation of multiple active intermediates. Additionally, the negative impact of liberated acids (such as HBr or HCl) on enantioselectivity, particularly within chiral acid control systems, presents a further obstacle that must be addressed to unlock their full potential.

Building upon our previous research on selective metal carbene multi-functionalization via ylide trapping process^{46,47,48,49,50}, we report here a chiral phosphoric acid-catalyzed asymmetric trifunctionalization reaction utilizing α-halo Rh-carbenes as carbynoids in combination with diols and imines (Fig. 1C). This method offers a rapid and efficient pathway to a diverse array of chiral α-cyclic ketal β-amino esters, which are of considerable interest due to their broad spectrum of biological activities^51,52,53,54, in high yields and exceptional enantioselectivities. The underlying mechanism has been thoroughly investigated through a combination of experimental and computational analyses.

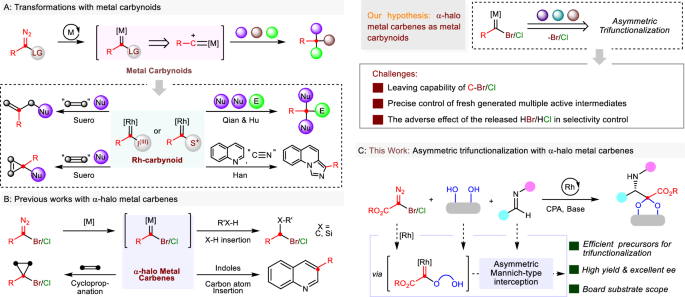

Fig. 1: Transformations with metal carbynoids.

A Transformations with metal carbynoids. B Previous works with α-halo metal carbenes. C Asymmetric trifunctionalization with α-halo metal carbenes (This work).

Results

In our preliminary study, we evaluated a range of carbynoid precursors 1 with different types of leaving groups, including α-halodiazo esters, hypervalent iodine diazo reagents, and α-diazo sulfonium salts (Fig. 2). These reactions were conducted with diol 2a and imine 3a in CH₂Cl₂ at 0 °C in the presence of a Rh₂(OAc)₄ catalyst. We were pleased to observe that the reaction proceeded smoothly, with the bromo diazo ester 1a providing the highest yield of 67%. Interestingly, the chloro diazo ester 1Ia also afforded a satisfactory yield of 53%. Notably, the yield was further improved to 78% when 3.0 equivalents of 1a were used. Subsequently, we assessed the performance of various commercially available transition metal catalysts to optimize the reaction conditions. Notably, both Rh₂(esp)₂ and Rh₂(Oct)₄ provided promising results, yielding the desired product in 69% and 67%, respectively. In contrast, Cu(MeCN)₄PF₆ and AgOTf, which are well-regarded for their efficacy in metal carbene transformations, were ineffective, failing to yield any desired product. Additionally, while [Pd(allyl)Cl]₂ did produce the desired product, the yield was significantly reduced to 32%. Encouraged by these preliminary results, we proceeded to explore enantiocontrol using phosphoric acid 4. We were pleased to find that the expected chiral β-amino esters could be obtained in a 70% yield, albeit with <5% ee, utilizing 5.0 mol% of chiral phosphoric acid 4a. Further investigation into various chiral phosphoric acids, ranging from 4b to 4 f, revealed an improvement in enantioselectivity with the use of spirol-type chiral phosphoric acid 4 d, which resulted in an 84% yield and 40% ee for the desired product 5a. Given the potential activation of the imine by HBr release during the reaction, which could impact the asymmetric control, we systematically explored different base additives. Gratifyingly, the addition of Cs₂CO₃ as an additive led to a significant enhancement in enantioselectivity control, leading to a high 88% yield and excellent 92% ee for the desired product 5a. Notably, reducing the amount of Cs₂CO₃ resulted in a lower isolated yield and enantiomeric excess, highlighting the importance of the base additive in controlling the selectivity of the reaction.

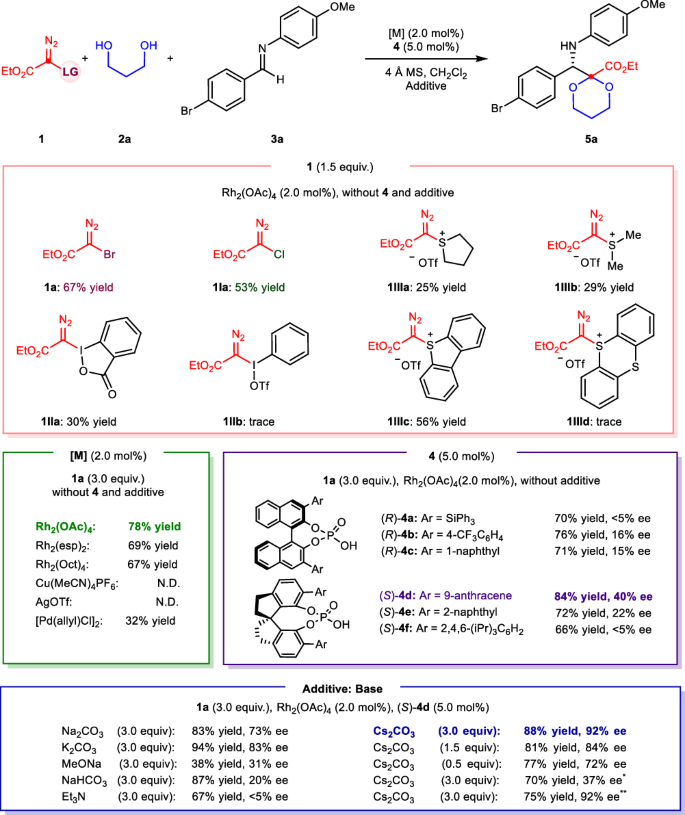

Fig. 2: Reaction optimization.

The reactions were conducted on a 0.1 mmol scale: To the mixture of corresponding catalyst (2.0 mol%), CPA 4 (5.0 mol%), 2a (0.30 mmol), 3a (0.10 mmol), and 4 Å MS (150 mg) in CH₂Cl₂ (1.5 mL) was added a solution of diazo compound 1 in cold CH₂Cl₂ (1.5 mL) via a syringe pump in 0.5 h under a nitrogen atmosphere at 0 °C; The yields were given as isolated yields, and the ee values were determined by chiral HPLC analysis; N.D. = not detected; *The reaction concentration was diluted to 0.011 mol/L; **15.0 mol% CPA (S)-4d was used.

With optimized reaction conditions established, we expanded the applicability of the protocol to encompass various imines, diols, and diverse diazo esters (Fig. 3). Initially, we examined the substrate scope of imines 3 in conjunction with diazo compound 1a and diol 2a. Impressively, a wide array of functional groups on the aryl rings of the imines exhibited excellent tolerance, leading to the formation of Mannich-type addition products 5 with exceptional enantioselectivity and yields ranging from good to high. Specifically, imines 3 featuring benzaldehyde units at different positions, encompassing both electron-neutral and electron-withdrawing groups, yielded the desired products 5a-5m in yields ranging from 70% to 92% with high 84-96% ee. Moreover, imines bearing various substituents on the aniline unit (Ar), such as hydrogen, halogen, and methoxy groups, demonstrated good reactivity, yielding products 5n-5t with yields ranging from 70% to 93% and 84-93% ee. Smooth reactions were also observed for imines derived from 2-thiophene and 1-naphthaldehyde, yielding products 5 u and 5 v in good yields and with high enantiomeric excesses of 90-91%. In addition to imines derived from aromatic aldehydes, those derived from cinnamaldehyde and ethyl glyoxalate emerged as practical reagents for this reaction, yielding the respective products 5w and 5x in good yields, albeit with slightly lower of 78-84% ee. The stereochemistry of 5n was determined as S by single crystal X-ray diffraction analysis, while the stereochemistry of other compounds was tentatively assigned by analogy.

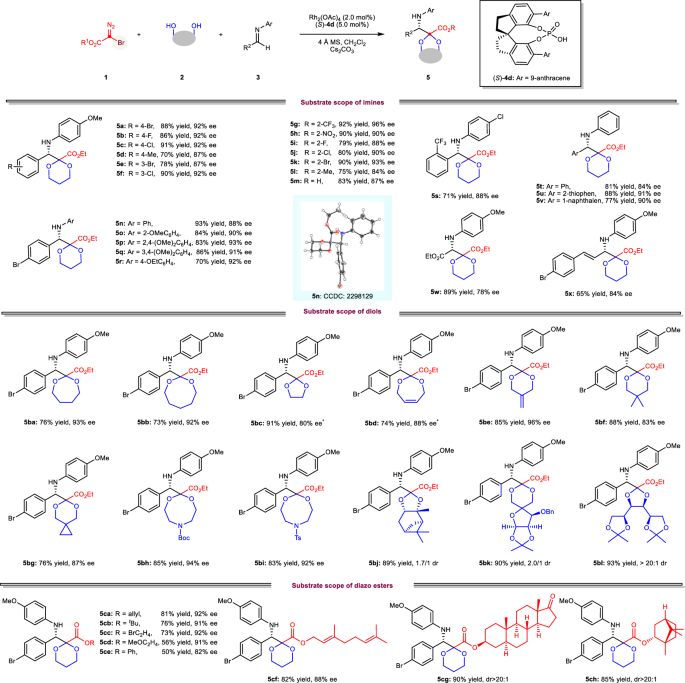

Fig. 3: Substrate scope with α-bromo Rh-carbenes.

The reactions were conducted on a 0.1 mmol scale: To the mixture of 3 (0.10 mmol), 2 (0.30 mmol), Rh₂(OAc)₄ (2.0 mol %), CPA 4 d (3.3 mg, 5.0 mol%), Cs₂CO₃ (0.30 mmol) and 4 Å MS (150 mg) in CH₂Cl₂ (1.5 mL) was added a solution of diazo compound 1 (0.30 mmol) in cold CH₂Cl₂ (1.5 mL) via a syringe pump in 0.5 h under a nitrogen atmosphere at 0 °C, and the reaction was running for 4 h under these conditions; The yields were given as isolated yields, the dr were determined by crude NMR and the ee values were determined by chiral HPLC analysis. *5.0 mol % Rh₂(OAc)₄ was used.

A diverse array of diols was subsequently examined under the optimized reaction conditions, leading to the smooth formation of the corresponding products. Diols with varying chain lengths exhibited robust performance, yielding β-amino esters bearing diverse cyclic ketal ring sizes 5ba-5bc in yields ranging from 73% to 91% with high 80–93% ee. Furthermore, diols featuring alkene groups capable of undergoing cyclopropanation with carbene complex^37,38,39,40 were also well tolerated, producing the target products 5bd-5be in good yields of 74–85% with good 88–96% ee. Reactions involving substituted diols and diols containing nitrogen atoms proceeded efficiently, providing products 5bf-5bi in yields of 76–88% with remarkable enantiomeric excesses of 83–94%. Notably, naturally derived diols containing secondary and tertiary alcohols, such as Pinanediol, Ribofuranose and Mannitol, afforded the desired products 5bj-5bl in high yields ranging from 89% to 93%. Finally, various ester groups of the diazo reagents were explored, all of which successfully provided the desired products 5ca-5ce in good yields of 50–81% with 82–92% ee, even with bulky ^tBu ester groups. Moreover, a range of naturally occurring alcohol-derived diazo reagents, including Geraniol, Epiandrosterone, and L(-)-Borneol were investigated, yielding their respective products 5cf-5ch in high yields of 82–90% with excellent stereoselectivity (88% ee or >20:1 dr).

Next, we focused on establishing the catalytic asymmetric version of this transformation, utilizing chloro diazo esters as metal carbynoid precursors (Fig. 4). Under optimized conditions, a wide range of imines, featuring diverse electronic properties and substitution patterns, as well as diols, were evaluated. This led to the formation of the desired products 5 in 58–80% yield with high 80–92% ee. Alkene groups present in both diols and diazo esters were well-tolerated, yielding compounds 5bd and 5cf in good yields with enantiomeric excesses exceeding 91%. These findings demonstrate that chloro diazo esters can serve as effective carbynoid precursors in multicomponent reactions.

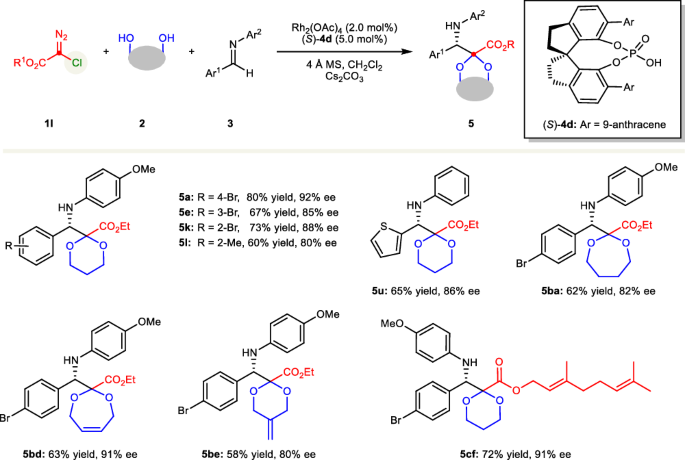

Fig. 4: Substrate scope with α-chloro Rh-carbenes.

Standard conditions as in Fig. 3.

To further demonstrate the effectiveness of α-halo Rh-carbenes as metal carbynoids, we investigated the use of various nucleophiles (Fig. 5). Monoalcohols were well-tolerated under the standard reaction conditions, yielding the desired uncyclic β-amino esters 6a and 6b with good yields and excellent enantiomeric excesses of 92% and 87%, respectively. Additionally, carbamates with Cbz and Boc protecting groups also gave favorable results, resulting in the desired products 6c and 6 d with excellent enantiomeric excesses of 99% and 91%, along with good yields.

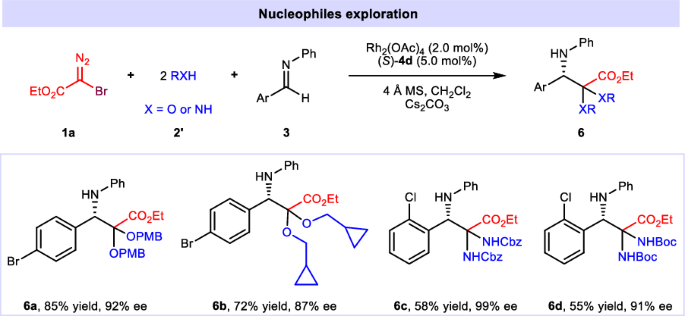

Fig. 5: Synthetic generality.

Expanding reactions with a range of nucleophiles.

To gain insight into the mechanism underlying this trifunctionalization reaction, we conducted a series of control experiments. Using diol 2bm, the desired product 5bm was obtained in 40% yield with a high enantiomeric excess of 90%, while the typical ylide trapping product 7 was also detected in 36% yield (Fig. 6a). When isolated 7 was treated under standard conditions, no cycloaddition product 5bm was observed (Fig. 6b), suggesting that the C-Br bond undergoes cleavage prior to the addition step. Next, we observed no reaction between the insertion product 8 and imine 3a under standard reaction conditions (Fig. 6c), suggesting that a stepwise pathway is not likly. We then introduced Rh₂(R-PTTL)₄ as the chiral catalyst along with racemic phosphoric acid, yielding the corresponding product 5n in a high yield of 78%, but with enantioselectivity <5%. In contrast, using CPA (S)-4d led to a good yield of 76% with a high 87% ee (Fig. 6d). Similarly, when CPA (R)-4d was used as the chiral catalyst in combination with achiral Rh₂(OAc)₄, the desired isomer was smoothly generated in a good yield of 84% with -88% ee. Furthermore, we observed a linear correlation between the enantiopurities of the products 5a and their corresponding catalysts (S)-4d, indicating that a single chiral phosphoric acid (CPA) catalyst is involved in each enantioselective transition state (Fig. 6e). We also noted that CPA can react with Cs₂CO₃ under standard reaction conditions to form the cesium salt CP-Cs, with a calculated Gibbs free energy change (ΔG) of -26.1 kcal/mol. The CP-Cs salt can be acidified by HBr, converting it back to CPA, with a ΔG of -25.1 kcal/mol (Fig. 6f). When CP-Cs is employed as a chiral catalyst in trifunctionalization reactions in combination with Rh₂(OAc)₄, the desired products 5a and 5 g can be obtained in high yields, achieving excellent 90% and 93% ee, respectively (Fig. 6g).

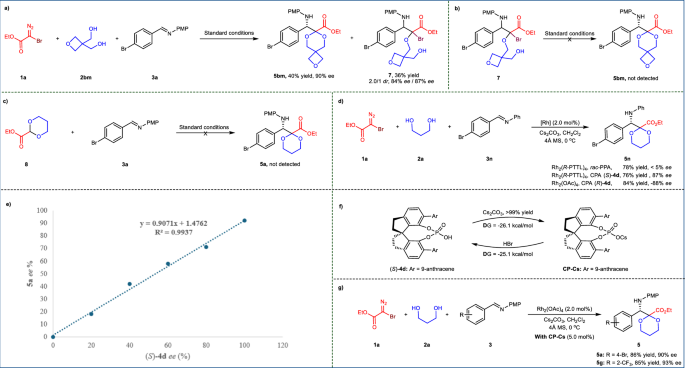

Fig. 6: Control Experiments.

a The reaction was performed with diol 2bm. b Compound 7 was subjected to standard reaction conditions. c Compound 8 and imine 3a were subjected to standard reaction conditions. d The reaction was performed with chiral rhodium catalyst. e The study of nonlinear effect. f The synthesis of CP-Cs and the calculated gibbs free energy changes for CPA and CP-Cs. g The reaction was performed with CP-Cs as the chiral catalyst.

Subsequently, a density functional theory (DFT) using the quantum mechanics/molecular mechanics (QM/MM) methodology (two-layer ONIOM)^55,56,57 was performed to elucidate the mechanism of Rh/CPA cooperatively catalyzed trifunctionalization with bromo diazo esters 1a, as well as the origin of its stereoselectivity. As depicted in Fig. 7, the free energy profile for Rh₂(OAc)₄ and CPA cooperatively catalyzed reaction starts from the carbynoid complex, Cat-Rh, through the reaction of 1a with Rh₂(OAc)₄, resulting in the extrusion of N₂. The metal-alkyl intermediate IM1 (-4.9 kcal/mol) is then formed following the addition of alcohol 2a with metal-carbynoid via TS1 (2.1 kcal/mol). The tautomeric isomer enol-intermediate IM1-iso is calculated to be energetically unfavorable, with an energy approximately 18.0 kcal/mol. From IM1, the reaction can proceed via two distinct pathways, labeled pathway A (red) and pathway B (blue). In pathway A, IM1 undergoes dissociation of HBr to form the carbene A-IM2 (-21.8 kcal/mol). With the assistant of another alcohol 2, intramolecular nucleophilic addition from the A-IM2 occurs through the transition state TS2 (-10.8 kcal/mol) to form the intermediate A-IM3 (-15.0 kcal/mol) or the enol-intermediate A-IM3-iso (-16.9 kcal/mol). Computational result show that the enol-intermediate A-IM3-iso is the favored species. Next, A-IM3-iso interacts with imine and CPA to form more stable interaction A-IM4 (-41.0 kcal/mol), which is exergonic by 24.1 kcal/mol. The enantioselective S- and R- products are obtained via the transition state A-TS3_S (-42.5 kcal/mol) and A-TS3_R (-40.1 kcal/mol). The final product 5 is generated through ligand exchange between the A-PC and the substrate 1a, regenerating the carbynoid complex Cat-Rh. This entire process is exergonic by 54.4 kcal/mol. Alternatively, in pathway B, the ylide IM1 directly interacts with imine and CPA to form intermediate B-IM2 (-38.3 kcal/mol). Bromine-containing product in S- and R- configuration might be formed through the transition state B-TS3_S (-39.0 kcal/mol) and B-TS3_R (-36.4 kcal/mol) with subsequent regeneration of Cat-Rh through the substrate exchange, a process that is also exergonic (-53.6 kcal/mol). Comparison of the enantioselective transition states in pathway A reveals that the energy barrier of A-TS3_S is 3.5 kcal/mol lower than that of B-TS3_S in pathway B, implying that the formation of bromine product is less favorable. In addition, the CP-Cs catalysis mechanism was considered. The intermediate A-IM3-iso, in combination with imine and CP-Cs, generates the complex A-IM4’ (-39.5 kcal/mol). However, the free energy of A-IM4’ is 1.5 kcal/mol higher than that of A-IM4, indicating that the CP-Cs catalysis mechanism is less favored than the CPA mechanism in pathway A. In conclusion, these calculations indicate that the formation of the enantioselective S-product 5 is more competitive when catalyzed by the CPA mechanism.

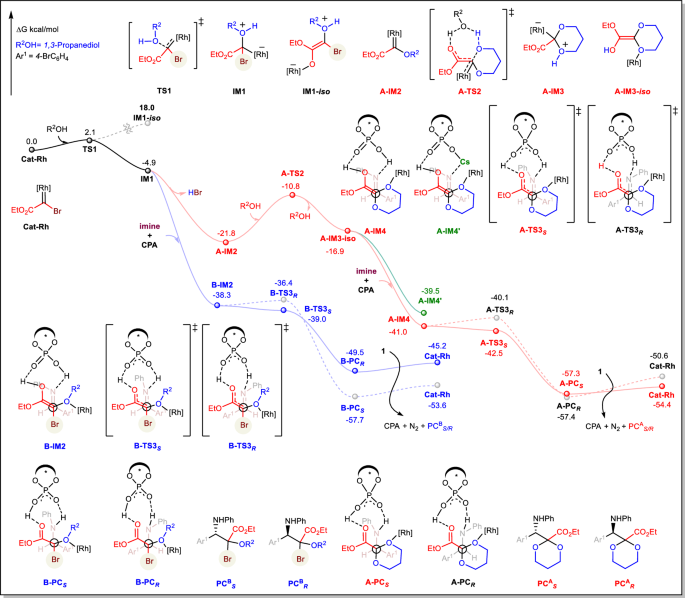

Fig. 7: Free energy profile for the CPA catalyzed enantioselective trifunctionalization with α-bromo Rh-carbenes.

Both the non-bromine products pathway (A, in red) and bromine products pathway (B, in blue) are explored. The former pathway was proved to be more favored.

To uncover the origin of enantioselectivity control, we performed an Independent Gradient Model based on Hirshfeld partition (IGMH) analysis to evaluate noncovalent interactions on the structures of A-TS3_S and A-TS3_R. As shown in the Fig. 8, several types interaction between the fragment A (CPA and Rh₂(OAc)₄) and fragment B (imine and enol) were observed. Notably, there is a stronger C-H···O interaction exit in A-TS3_S compared to A-TS3_R (b). The C-H···O distance between the hydrogen atom of imine and the oxygen atom of Rh₂(OAc)₄ in A-TS3_S is shorter than that in A-TS3_R (A-TS3_S, 1.940 Å vs A-TS3_R, 2.003 Å) (b²), indicating a more significant C-H···O interaction in A-TS3_S. Moreover, the green isosurface (C-H···π interactions) between the phenanthrene of CPA and the fragment B in A-TS3_S is larger than that in A-TS3_R (c), indicating a stronger C-H···π interaction in A-TS3_S. Furthermore, dispersion interactions are observed not only between the H atom of imine and the methyl of Rh₂(OAc)₄ (e¹) but also between the benzene group of imine and the phenanthrene of CPA (e²). The isosurface of these interactions (e¹ and e²) are more pronounced in A-TS3_S than in A-TS3_R, further supporting the enantioselectivity. Taken together, these noncovalent interactions play a pivotal role in the enantioselectivity control, with a clear preference for the formation of the S-product in A-TS3_S.

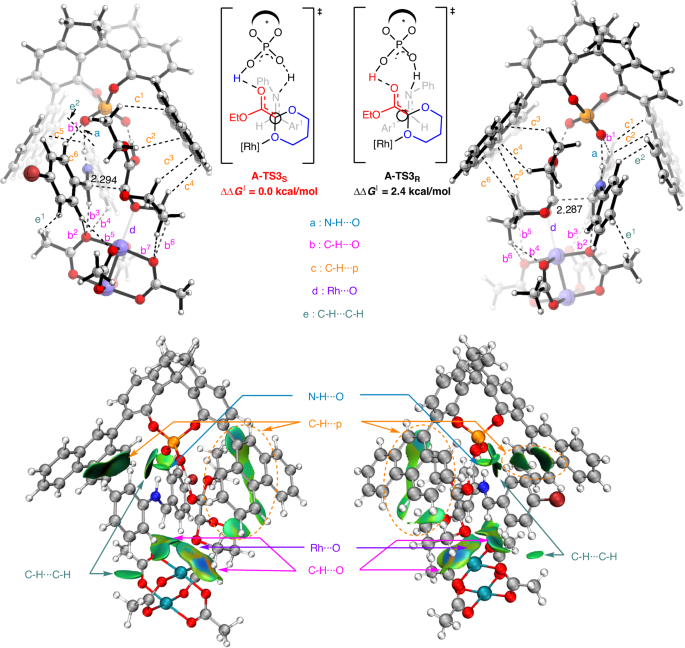

Fig. 8: Key transition states and IGMH analysis of the non-covalent interactions for the A-TS3_S and A-TS3_R.

Noncovalent interactions play a pivotal role in the enantioselectivity control.

Based on the insights from control reactions and previous studies^27,30,58, we proposed a plausible reaction mechanism, as illustrated in Fig. 9. The reaction begins with the decomposition of diazo compound 1 in the presence of a rhodium catalyst, forming a carbynoid intermediate A. This intermediate undergoes nucleophilic attack by diol 2, resulting in the formation of ylide B. Ylide B subsequently transforms into a Fischer-type alkoxy-Rh-carbene C through the cleavage of the C-Br bond and the release of HBr. The newly formed carbene species C can then react intramolecularly with the alcohol, leading to the formation of cyclic ylide D, which exists in equilibrium with its enolate forms E. This active intermediate E is intercepted by chiral CPA 4 activated imine 3, leading to the formation of Mannich-type products 5 and the regeneration of the catalysts. Simultaneously, CPA can be converted to CP-Cs in the presence of Cs₂CO₃, and the CP-Cs salt can subsequently be acidified by the released HBr to regenerate CPA. Alternatively, byproduct 7 can be formed when electrophilic imines 3 react with enolate intermediate F, which is in equilibrium with ylide intermediate B.

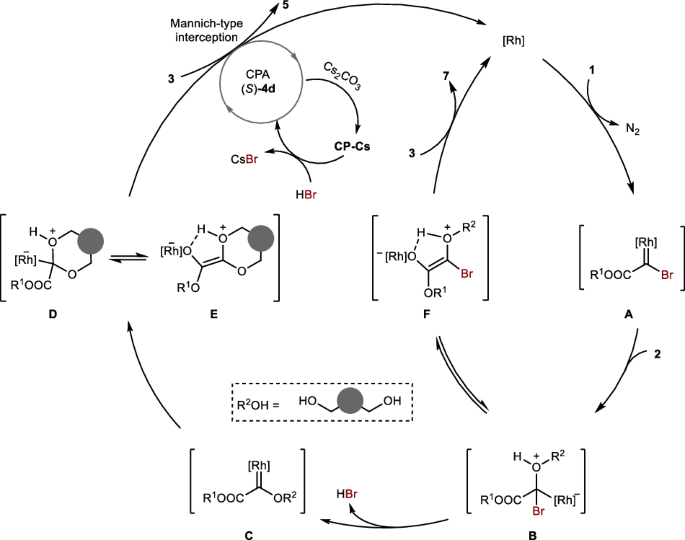

Fig. 9: Reaction mechanism.

Proposed reaction mechanism for chiral phosphoric acid-catalyzed asymmetric trifunctionalization involving α-halo Rh-carbenes.

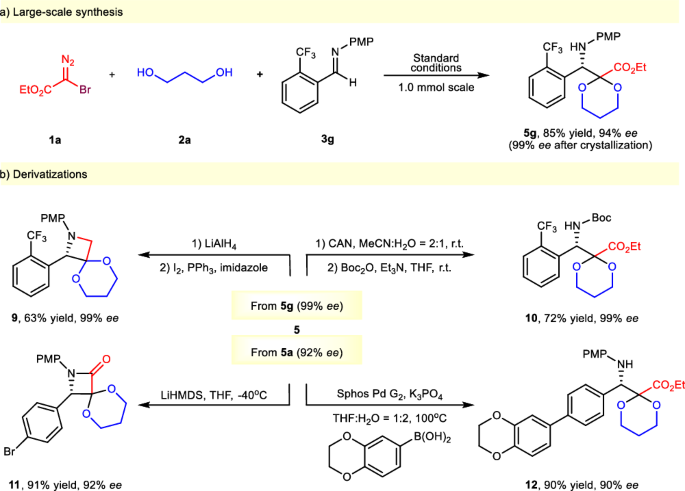

Subsequently, we scaled up the reaction to a mmol scale, observing no adverse effect on the yield and stereoselectivity of product 5 g. After simple crystallization, the enantiomeric excess of the product was further improved to 99% (Fig. 10a). Next, we explored additional transformations of the readily produced β-amino esters using commercially available reagents (Fig. 10b). Reduction of the ester group to a hydroxyl group by LiAlH₄, producing amino alcohol which underwent cyclization with I₂/PPh₃, resulting in the formation of optically pure spiroazetidine 9 in 63% yield. Moreover, the PMP group on the nitrogen could be removed by treatment with ceric ammonium nitrate (CAN), generating the free amine, which was subsequently protected with Boc₂O under basic conditions, yielding compound 10 in a good 72% yield with 99% ee. Intramolecular amidation of compound 5a using LiHMDS yielded spirolactam 11 in high 91% yield and with 92% ee. Notably, the Suzuki coupling reaction was also compatible with this skeleton, producing compound 12 in 90% yield with 90% ee. To highlight the synthetic value of this strategy, we evaluated the anti-proliferative activity of the chiral α-cyclic ketal β-amino esters using the CCK-8 assay in three human cancer cell lines: A549 (lung adenocarcinoma), HCT116 (colorectal cancer), and MIA-PaCa2 (pancreatic cancer). Preliminary results showed that most compounds displayed potent anti-proliferative activity across all tested cell lines (Table S1). Among these, the Pinanediol-derived compound 5bj demonstrated exceptional potency, with IC₅₀ values ranging from approximately 1 to 4 μM, outperforming Taxol in select cell lines (Fig. S6; see Supplementary Information for details).

Fig. 10: Synthetic applications.

a Large scale synthesis of compound 5 g. b Derivative transformations of compound 5a or 5g.

In summary, we have developed an efficient chiral phosphoric acid-catalyzed asymmetric three-component reaction that employs α-halo Rh-carbenes as carbynoids in conjunction with diols and imines. This method facilitates the synthesis of a broad array of α-cyclic ketal β-amino esters with broad substrate scope, high yields, and excellent enantioselectivities under mild conditions. Mechanistic studies indicate that the reaction’s success relies on the in situ formation of functionalized Fischer-type alkyloxy Rh-carbenes, with cesium carbonate playing a pivotal role in achieving precise enantioselective control. The origins of the high enantioselectivity have been further clarified through DFT calculations. Ongoing research in our laboratory is focused on expanding this reaction to higher-order multicomponent systems (four or more components) and exploring its potential applications in biological activity testing.

Methods

General procedure for the asymmetric trifunctionalization reaction

In a 10-mL oven-dried vial equipped with a magnetic stirring bar, 3 (0.10 mmol, 1.0 equiv.), 2 (0.30 mmol, 3.0 equiv.), Cs₂CO₃ (0.3 mmol, 3.0 equiv.), Rh₂(OAc)₄ (2.0 mol%), CPA 4 d (5.0 mol%) and 4 Å MS (150 mg) were combined in CH₂Cl₂ (1.5 mL). The cooled solution of diazo compound 1 or 1I (0.30 mmol, 3.0 equiv.) in CH₂Cl₂ (1.5 mL) was added to this mixture via a syringe pump in 0.5 h under a nitrogen atmosphere at 0 °C, and the reaction was running for 4 h under these conditions. Upon complete consumption of the starting material (monitored by TLC), the crude reaction mixture was then concentrated under vacuum, and the product was purified by column chromatography on silica gel to give the corresponding products in good to high yields. The enantioselectivity was determined by chiral HPLC analysis.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
