Embracing nonlinearity and geometry: a dimensional analysis guided design of shock absorbing materials

Abstract

Design of shock absorbers requires a delicate balance between mechanical properties and geometric design, allowing them to be compressible yet strong enough to withstand crushing loads. Here, we present a unified framework for designing compact and lightweight shock absorbers by employing a streamlined kinematic model and dimensional analysis. We derive geometric constraints on the thickness and cross-sectional area of a protective foam with a given stress-strain response to ensure that acceleration and compressive strain remain within critical limits. Additionally, we identify the optimal mechanical properties that yield the most compact and lightweight protective foam pads for absorbing impact energy. Contrary to common belief, we demonstrate that foams with a nonlinear stress-strain response can effectively achieve thin and lightweight protective pads, particularly when a large cross-sectional area is required. Guided by this design framework, we introduce optimal architected designs of vertically aligned carbon nanotube (VACNT) foams—a low-density hierarchical material system.

Introduction

Energy-absorbing materials permeate our lives, from soft polymeric foams used in helmet liners^1,2, packaging³, and seat cushions, to crushable metallic foams employed in ballistic impact attenuators^4,5, automotive buffers, and planetary landers⁶. Those protective foams must absorb the kinetic energy from impacts and undesirable vibrations while limiting the forces and accelerations imparted on the protected objects^3,7. Compared to stochastic foams, architected foams demonstrate superior modulus, strength, and energy absorption at comparable or lower densities⁸. This indicates better specific (density-normalized) properties, achieved through architectural design of the lattice unit cells^9,10,11,12. The pursuit of achieving specific mechanical properties near the theoretical limits has resulted in several advancements^9,13, including ultra-stiff micro-lattices^14,15, nanolattices with high mechanical strength^9,16, high energy-absorption of supersonic projectiles^17,18, and fracture resilience in hierarchical^19,20 and woven architectures²¹. While the field of architected materials is thriving with advancements on improving specific mechanical properties, the role of the sample geometry of the energy absorbing material and its interplay with the mechanical properties towards meeting critical performance criteria has been overlooked. For example, it is well understood that helmet liners designed to prevent traumatic brain injury during extreme sports or combat require not only high specific energy absorption capacity but also the ability to limit peak accelerations below a critical value^2,22.

This interplay between the intrinsic properties of the foam and the protective layer’s geometry is governed by three important mechanical properties of foams: relative density ($\bar{\rho }$), the scaling of relative modulus with relative density $(\bar{E}\propto {\bar{\rho }}^{\alpha })$, and the characteristic shape of the stress-strain response. The relative density, which is the ratio of the foam’s bulk density (ρ) to the density of its solid counterpart (ρ_s), controls the compressibility of the foam. A porous foam with a low relative density can be compressed to larger strains before reaching the densification regime beyond which the stress rapidly increases, diminishing the foam’s effectiveness. The relative modulus $(\bar{E})$ of all cellular materials has been observed to scale with relative density $(\bar{E}\propto {\bar{\rho }}^{\alpha })$. The scaling exponent (α) is determined by the morphology and the deformation mechanism and typically falls within the range 1 < α < 3^15,23,24. A linear scaling exponent (α = 1) is generally desirable because it allows achieving higher modulus and greater specific energy absorption without significantly increasing the foam’s density^10,15. The protective performance of the foams also depends on the characteristic shape of the stress-strain response (Fig. 1d). Foams with a plateau-like sublinear stress-strain response are typically considered desirable, allowing absorption of a given amount of energy at a lower stress level. A desirable protective foam, hence, should exhibit high porosity, a near-linear scaling of modulus with density, and a plateau-like sublinear stress-strain curve.

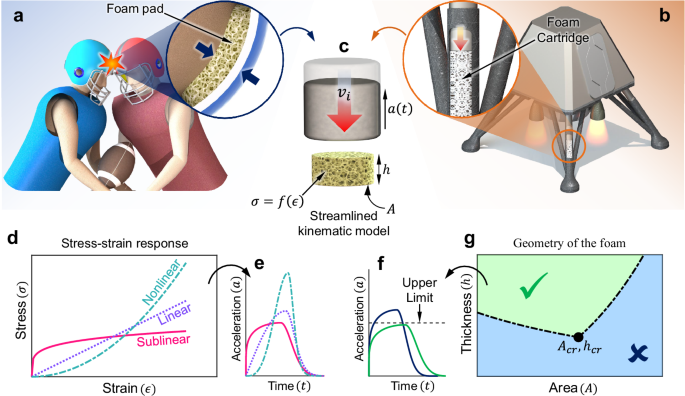

Fig. 1: Capturing various impact scenarios with a streamlined kinematic model.

a An illustration of a collision in sports, where sudden acceleration can cause Traumatic Brain Injury (TBI). Inset: an energy absorbing pad in a helmet absorbing kinetic energy. b An illustration of a spacecraft lander with struts consisting of aluminum honeycomb foam cartridges absorbing residual kinetic energy at touchdown. c A streamlined kinematic model showing a mass traveling at a velocity v_i coming to rest by being decelerated (a(t)) by a foam pad of stress-strain response σ(ϵ), cross-sectional area A, and thickness h. d, e Various types of stress-strain curves seen in cellular materials and their effect on the impact acceleration (a(t)) vs. time (t) curves. f, g A design map for the thickness and cross-sectional area of foam. Any combination of thickness and area within the green region keeps the peak acceleration and peak strain below the desired limits, whereas the blue region does not. Illustrations (a, b, c) are created using SolidWorks PhotoView 360. Source data are provided as a Source Data file.

Traditionally, foams exhibiting properties similar to those mentioned above are considered suitable for nearly all protective applications. Contrary to this belief, we report that foams with steeper scaling (α > 1) and nonlinear stress-strain behavior can be beneficial in achieving compact and lightweight energy-absorbing pads. Using a streamlined kinematic model and dimensional analysis, we derive guidelines for geometric design and discover optimal mechanical properties resulting in the thinnest and lightest energy-absorbing foam pads. Guided by these derived criteria, we design, synthesize, characterize, and demonstrate optimal performance in hierarchically architected vertically aligned carbon nanotube (VACNT) foams. Freestanding VACNT foams, synthesized via the floating-catalyst thermal chemical vapor deposition (tCVD) process, are renowned for being simultaneously stiff and lightweight, as well as for exhibiting remarkably high specific energy absorption^25,26, which rivals that of crashworthy metallic foams and architected foams²³. These properties are attributed to their multi-scale hierarchical structure with the nanoscale interactive fibrous morphology. Unlike metallic foams and architected foams, which often fail in a brittle manner and lack strain recovery, VACNT foams can recover nearly completely from compressive strains as large as 90%²⁵. Furthermore, they exhibit high thermal conductivity²⁷ and maintain consistent mechanical properties across a wide range of strain rates and temperatures^28,29, making them suitable for protective applications in extreme environments.

Using photolithography, we introduced an additional level of structural hierarchy in VACNT foams by creating mesoscale patterns^23,30,31. Incorporating various geometries of mesoscale patterns opens a broad range of tunability in relative density, constitutive response, and density-dependent scaling of mechanical properties. Our hierarchical architecture design of VACNT foams yields optimal pad geometries subjected to imposed constraints on peak acceleration and maximum compressive strain. We demonstrate that while a VACNT foam with a concentric cylinder architecture results in protective pads that limit maximum exerted force by exhibiting a plateau in the stress-strain response, its geometric design space is limited. In contrast, a bio-inspired higher-order fractal architecture and a sparsely packed cylindrical architecture, both exhibiting nonlinear stress-strain responses, enable the design of thin and lightweight protective pads across a much wider range of pad geometries. Our design framework and its effective demonstration on the hierarchically architected VACNT foams provide a comprehensive approach to designing architected materials for superior performance. Our study provides guidance on achieving enhanced protective performance with imposed constraints on geometry and physical properties within the vast material design space that is typically tackled with machine learning^32,33 and statistical design of experiments³¹.

Results

The foundation of the design framework

Energy-absorbing pads can take various geometries depending on the application, such as a flat comfort pad in helmet liners (Fig. 1a) or a long cylindrical cartridge in planetary landers (Fig. 1b). In all cases, during an impact, the foam is compressed in the direction of impact, absorbing kinetic energy while minimizing the imparted load and recoil. The impact scenarios depicted in Fig. 1a, b can be described by the simplified equation of motion corresponding to an impacting mass m compressing the protective foam with an initial impact velocity (v_i) resulting in swift acceleration (retardation) to rest (Fig. 1c). Assuming that the foam is getting compressed uniformly within an area A and thickness (or height) h, the force acting on the mass during acceleration will be equal to the magnitude of force developed in the foam, as follows:

$$m\frac{{d}^{2}x}{d{t}^{2}}=mg-{\sigma }_{L}A,$$

(1)

with the initial conditions:

$${\left.x\right| }_{t=0}=0,\,\,{\left.\frac{dx}{dt}\right| }_{t=0}={v}_{i}$$

(2)

where x is the compressive displacement in the foam, t represents time, g is the acceleration due to gravity, and σ_L is the stress response of the foam, with the subscript L indicating that the foam is being loaded (compressed) by the impact. We describe the constitutive stress-strain response of the foam by an empirical power law equation³⁴ as follows

$${\sigma }_{L}={E}_{L}{\epsilon }^{{\lambda }_{L}}$$

(3)

where E_L is elastic modulus, and the exponent (λ_L) governs the shape of the constitutive stress-strain response. By varying λ_L, various stress-strain curves, such as those exhibiting sublinear (λ_L < 1), linear (λ_L ≈ 1), and nonlinear (λ_L > 1) behaviors, can be modeled for parametric analysis. Integrating Eq. (3) up to a compressive strain ϵ_max, we obtain the expression for energy absorption per unit volume (W_L) as follows,

$${W}_{L}={E}_{L}\frac{{\epsilon }_{max}^{{\lambda }_{L}+1}}{{\lambda }_{L}+1}$$

(4)

In the above expression, W_L is inversely proportional to λ_L + 1. This indicates that, for the power-law model, energy absorption significantly decreases as the stress-strain curve becomes more nonlinear (see Fig. S1 in SI). To counteract the effect of λ_L, we scale the power law by introducing a multiplicative term, ${({\lambda }_{L}+1)}^{\beta }$, to Eq. (3).

$${\sigma }_{L}={E}_{L}{({\lambda }_{L}+1)}^{\beta }{\epsilon }^{{\lambda }_{L}},\,\,{W}_{L}={E}_{L}{\left({\lambda }_{L}+1\right)}^{\beta }\frac{{\epsilon }_{max}^{{\lambda }_{L}+1}}{{\lambda }_{L}+1}$$

(5)

where the exponent β ≥ 1 determines the relative difference in modulus among a set of foams with various λ_L values. The scaled power law (Fig. S1 in SI) more accurately reflects the energy absorption behavior observed in VACNT foams²³ and other foam materials³⁵. When comparing foams with the same $\bar{\rho }$ and α, the λ_L value primarily governs the shape of the stress-strain response, while its effect on energy absorption is minimal. As shown in Fig. 2a, the power law equation captures the experimentally measured stress-strain response up to the onset of densification (indicated by red dots)—all measured at the same 0.01 s⁻¹ strain rate—fairly well for different open-cell elastomeric foams. These power-law fits yield the effective modulus $({E}_{L}{({\lambda }_{L}+1)}^{\beta })$ of the foam and a dimensionless exponent (λ_L) that describes the shape of the stress-strain curve. The strain at the onset of densification, also called critical strain (ϵ_c), is where the energy absorption efficiency of the foam reaches the maximum, beyond which it declines rapidly³⁶. The critical strain (ϵ_c) is slightly smaller than the actual densification strain (ϵ_d), where the stress-strain curve becomes almost vertical⁷. While a foam does keep absorbing more energy for ϵ_c < ϵ < ϵ_d, the transmitted force rises sharply, making the foam ineffective. Hence, a foam’s performance is characterized based on the amount of energy it can absorb before the onset of densification (ϵ < ϵ_c). We measured the critical strain of different polymeric foams using the energy absorption efficiency method³⁶ and observed a linear relationship $({\epsilon }_{c}=0.66-2\bar{\rho })$ between the critical strain and the relative density of the foam (Fig. 2b). Noteworthy is that this linear fit extrapolates to $\bar{\rho }\to 0.33$ for ϵ_c→0, which matches the relative density of foams reported in literature which do not have a plateau region and exhibit densification immediately after the linear elastic regime⁷. In addition to the critical strain, the modulus of the foam also depends on the relative density, as mentioned in the introduction:

$$\frac{{E}_{L}}{{E}_{s}}={c}_{1}{\left(\frac{\rho }{{\rho }_{s}}\right)}^{\alpha }$$

(6)

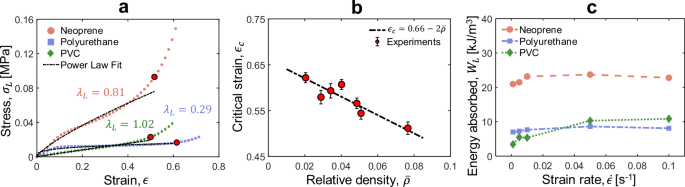

Fig. 2: Power-law fit, critical strain, and energy absorption in polymeric foams.

a Quasistatic stress-strain curves, measured experimentally at a strain rate of 0.01 s⁻¹, for various open-cell polymeric foams, fitted with the power-law model up to the critical strain (indicated by red dots). b Critical strain (ϵ_c) (or onset-to-densification strain) of different polymeric foams plotted as a function of their relative densities $(\bar{\rho })$. Average is taken of five different samples for better accuracy of fit. The error bars represent ±  one standard-deviation. c Energy absorbed per unit volume (W_L) of different foams, measured up to the critical strain, plotted against the strain rate $(\dot{\epsilon })$. Source data are provided as a Source Data file.

Here, E_s and ρ_s represent the modulus and density, respectively, of the solid material utilized in foam fabrication, α denotes a scaling exponent that is a function of the foam’s morphology and deformation mechanism, and c₁ is a constant of proportionality³⁷. Utilizing Eq. (5), the stress-strain relationship for the foam is expressed as,

$${\sigma }_{L}={c}_{1}{({\lambda }_{L}+1)}^{\beta }{E}_{s}{\left(\bar{\rho }\right)}^{\alpha }{\left(x/h\right)}^{{\lambda }_{L}},$$

(7)

where x/h represents the compressive strain (ϵ = x/h). Similarly, the equation for the energy absorption up to the critical strain (ϵ_c) is expressed as follows,

$${W}_{L}={c}_{1}{E}_{s}\left({\bar{\rho }}^{\alpha }\right){\left({\lambda }_{L}+1\right)}^{\beta }\frac{{\epsilon }_{c}^{{\lambda }_{L}+1}}{{\lambda }_{L}+1}$$

(8)

The stress response in equation (7) is independent of the strain rate, while the most polymeric and elastomeric foams are strain rate sensitive. This rate dependency is generally incorporated into constitutive models by multiplying the elastic term by a viscous damping term³⁸. However, we observe that the specific energy absorbed—the area under the stress-strain curve up to the critical strain—as a function of the strain rate we measured experimentally on various open-cell elastomeric foams show only a mild strain rate effect with it initially increasing and then becoming almost constant (Fig. 2c).

In Fig. 3d, we compare the stress-strain response of open-cell polyurethane foam for a quasistatic strain rate of 0.1 s⁻¹ and dynamic strain rates of 2000 s⁻¹ and 2800 s⁻¹. From 0.1 s⁻¹ to 2000 s⁻¹, the overall plateau stress level increases by 1.6× . However, for a further increase in strain rate, the response shows negligible change, reaching a steady-state response with minimal additional rate effects^39,40. Given the mild dependence of the stress-strain response on the strain rate, the rate-independent power-law (Eq. 7) can still be used to model the stress-strain response that is stable within a working range of strain rate for an application. Moreover, our VACNT foams exhibit rate-independent behavior from quasistatic to very large strain rates^28,29. Therefore, adding a rate-dependent term in Eq. (7) is not worth considering at the cost of simplicity. To make our modeling scale-free, we establish the following dimensionless variables:

$$\bar{x}=x\times \frac{{a}_{c}}{{v}_{i}^{2}},\,\,\bar{t}=t\times \frac{{a}_{c}}{{v}_{i}},\,\,\bar{h}=h\times \frac{2{a}_{c}}{{v}_{i}^{2}},\,\,\bar{A}=A\times \frac{{E}_{s}}{m{a}_{c}}$$

(9)

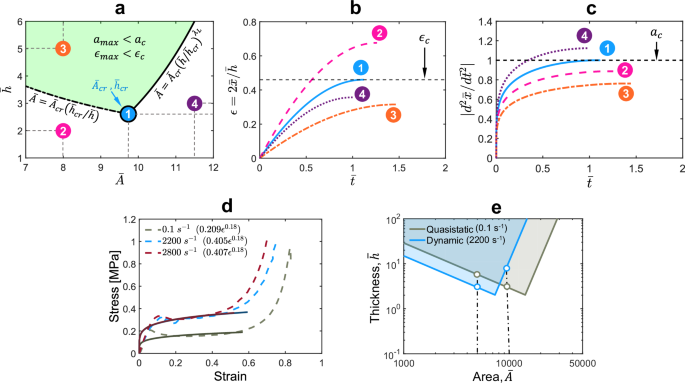

Fig. 3: Geometric design of energy absorber and effect of strain-rate dependence.

a Geometric design space showing constraints on dimensionless thickness $(\bar{h})$ and dimensionless area $(\bar{A})$ (α = 1, λ_L = 0.2, β = 1, $\bar{\rho }=0.1$, c₁ = 1, ${\epsilon }_{c}=0.66-2\bar{\rho }$). In the shaded region, both peak acceleration and peak strain will remain below the desired limits for any combination of $\bar{A}$ and $\bar{h}$, while absorbing the given kinetic energy of impact. b Compressive strain in the foam during impact as a function of dimensionless time $(\bar{t})$. The maximum limit on strain (critical strain, ϵ_c) is indicated by a black dashed line. c Dimensionless acceleration as a function of dimensionless time. The limit on maximum acceleration is shown by a black dashed line (a_c). d Effect of strain rate on the experimentally measured stress-strain response of an open-cell polyurethane foam, along with the corresponding power-law fits. e Geometric design space for quasistatic and dynamic strain rates, obtained using power-law fits with the assumption E_s = 2.7 GPa for solid polyurethane. Source data are provided as a Source Data file.

Here, a_c represents the maximum acceleration limit that the protected object should not exceed. This limit depends on the object’s structural resilience or physiological tolerance, for example, the allowable peak acceleration in the case of traumatic brain injury prevention⁴¹. By substituting the dimensionless variables (Equation (9)) and stress-strain relation (Equation (7)) into equation (1) and equation (2), we arrive at the following dimensionless governing equation and dimensionless initial conditions:

$$\frac{{d}^{2}\bar{x}}{d{\bar{t}}^{2}}-\frac{g}{{a}_{c}}=-{c}_{1}\bar{A}{({\lambda }_{L}+1)}^{\beta }{\left(\bar{\rho }\right)}^{\alpha }{\left(2\bar{x}/\bar{h}\right)}^{{\lambda }_{L}}$$

(10)

$${\left.\bar{x}\right| }_{t=0}=0,\,\,{\left.\frac{d\bar{x}}{d\bar{t}}\right| }_{t=0}=1$$

(11)

Usually a_c ≫ g, so the term (g/a_c) can be ignored⁴². When the impacting mass accelerates to rest from initial velocity v_i as the foam absorbs all its kinetic energy, the maximum compression $({\bar{x}}_{max})$ experienced by the foam can be calculated as follows (see SI for details):

$${\left(2\frac{{\bar{x}}_{max}}{\bar{h}}\right)}^{{\lambda }_{L}+1}=\frac{{\lambda }_{L}+1}{{c}_{1}\bar{A}\bar{h}{({\lambda }_{L}+1)}^{\beta }{(\bar{\rho })}^{\alpha }}$$

(12)

The magnitude of acceleration will also reach its peak when the compressive strain in the foam reaches its maximum. From Eq. (10), the expression for maximum acceleration can be obtained as,

$${\left| \frac{{d}^{2}\bar{x}}{d{\bar{t}}^{2}}\right| }_{max}={c}_{1}\bar{A}{({\lambda }_{L}+1)}^{\beta }{\left(\bar{\rho }\right)}^{\alpha }{\left(\frac{2}{\bar{h}}{\bar{x}}_{max}\right)}^{{\lambda }_{L}}$$

(13)

By substituting ${\bar{x}}_{max}$ from Eq. (12), we obtain the following expression for the magnitude of peak acceleration:

$${\left| \frac{{d}^{2}\bar{x}}{d{\bar{t}}^{2}}\right| }_{max}={\left({c}_{1}\bar{A}{({\lambda }_{L}+1)}^{\beta }{\left(\bar{\rho }\right)}^{\alpha }\right)}^{1/({\lambda }_{L}+1)}\times {\left(\frac{{\lambda }_{L}+1}{\bar{h}}\right)}^{{\lambda }_{L}/{\lambda }_{L}+1}$$

(14)

Our objective is to minimize both the mass and the thickness of the foam required to absorb the kinetic energy of the impact while ensuring that the magnitude of the maximum acceleration (a_max) stays below the desired limit (a_c) and the maximum compressive strain (ϵ_max) remains below the critical strain (ϵ_c).

$${\epsilon }_{max}=\frac{{x}_{max}}{h}\le {\epsilon }_{c}\,\,\,\to \,\,\,\frac{{\bar{x}}_{max}}{\bar{h}}\le \frac{{\epsilon }_{c}}{2}$$

(15)

$${a}_{max}={\left| \frac{{d}^{2}x}{d{t}^{2}}\right| }_{\max }\le {a}_{c}\,\,\,\to \,\,\,{\left| \frac{{d}^{2}\bar{x}}{d{\bar{t}}^{2}}\right| }_{\max }\le 1$$

(16)

By substituting Eqs. (12 and 14) into Eqs. (15 and 16), respectively, we obtain the following constraints on $\bar{h}$ for a given value of dimensionless foam area $\bar{A}$ and parameters that describe the foam’s mechanical properties $({c}_{1},{\lambda }_{L},\alpha,\bar{\rho },{\epsilon }_{c},\beta )$

$$\bar{h}\ge \frac{{({\lambda }_{L}+1)}^{1-\beta }}{{c}_{1}\bar{A}{(\bar{\rho })}^{\alpha }{({\epsilon }_{c})}^{{\lambda }_{L}+1}}\,\,\,\,({\epsilon }_{max}\le {\epsilon }_{c})$$

(17)

$$\bar{h}\ge {({\lambda }_{L}+1)}^{\left(1+\frac{\beta }{{\lambda }_{L}}\right)}{({c}_{1}\bar{A})}^{1/{\lambda }_{L}}{(\bar{\rho })}^{\alpha /{\lambda }_{L}}\,\,\,\,({a}_{max}\le {a}_{c})$$

(18)

Equations (17 and 18) establish individual conditions on $\bar{h}$ to satisfy the criteria for maximum strain and acceleration, respectively. However, both equations are also functions of $\bar{A}$. Therefore, to derive a condition on $\bar{h}$ that depends solely on material properties, we solve the two inequalities to obtain the individual constraints on both $\bar{h}$ and $\bar{A}$ as follows (refer to SI for detailed derivation):

$$\bar{h}\ge {\bar{h}}_{cr},\,\,{\bar{h}}_{cr}=\frac{{\lambda }_{L}+1}{{\epsilon }_{c}}$$

(19)

$${\left(\frac{\bar{h}}{{\bar{h}}_{cr}}\right)}^{{\lambda }_{L}}\times {\bar{A}}_{cr}\ge \bar{A}\ge \left(\frac{{\bar{h}}_{cr}}{\bar{h}}\right)\times {\bar{A}}_{cr},\,\,{\bar{A}}_{cr}=\frac{1}{{c}_{1}{({\lambda }_{L}+1)}^{\beta }{{\epsilon }_{c}}^{{\lambda }_{L}}{\bar{\rho }}^{\alpha }}$$

(20)

The above inequalities suggest that, to maintain the peak acceleration and maximum compression strain within the desired limits (Eq. 15), the foam’s thickness must be greater than a critical value ${\bar{h}}_{cr}$, which depends on the material properties, regardless of $\bar{A}$. Conversely, the cross-sectional area can vary within a range determined by the ratio $\bar{h}/{\bar{h}}_{cr}$ and a critical area ${\bar{A}}_{cr}$. For the limiting case of $\bar{h}={\bar{h}}_{cr}$, $\bar{A}$ must exactly be equal to ${\bar{A}}_{cr}$. The flexibility in selecting $\bar{A}$ and $\bar{h}$ provides design freedom for addressing different challenging applications with geometric constraints on shock absorbers. In Fig. 3(a), we illustrate such combinations in a shaded region bounded by the upper and lower limits of $\bar{A}$ for an example ${\bar{A}}_{cr}$ and ${\bar{h}}_{cr}$ calculated from a certain set of material parameters (α = 1, λ_L = 0.2, β = 1, $\bar{\rho }=0.1$, c₁ = 1, ${\epsilon }_{c}=0.66-2\bar{\rho }$). All combinations of $\bar{A}$ and $\bar{h}$ that fall within the green-shaded region will ensure that the peak acceleration and peak compressive strain remain below the desired limits while the entire kinetic energy due to impact is absorbed by the foam. To validate this, we select four different combinations of $\bar{A}$ and $\bar{h}$, as marked in Fig. 3a, for which we solve the time-domain differential equation (Eq. 10). In Fig. 3b, c, we plot strain and dimensionless acceleration, respectively, as functions of dimensionless time. At the critical point $(\bar{A}={\bar{A}}_{cr},\bar{h}={\bar{h}}_{cr})$, the peak acceleration and the maximum strain exactly match the set upper limits a_c and ϵ_c. For points (2) and (4), one of the conditions is not satisfied, whereas for point (3), which lies in the shaded region, both conditions are satisfied. We further validated our geometric design criteria by conducting impact simulations on a metallic 3D-architected foam using Abaqus CAE. Simulations were performed for various pad geometries to compare peak acceleration and peak compressive strain (see Fig. S2 in SI). Our results confirmed that for pad geometries with dimensions lying within the shaded region of the geometric design space, both peak acceleration and peak compressive strain remained within the specified limits.

Considering that the geometric design space shown in Fig. 3(a) is plotted for dimensionless variables $\bar{h}$ and $\bar{A}$, changes in the parameters used to nondimensionalize these variables (v_i, a_c, m) will result in the geometric design space being shifted and scaled along the x and y axes. Similarly, the material’s strain rate dependence can also alter the geometric design space. For example, when fitting Eq. (7) to the stress-strain response of polyurethane foam (Fig. 3d), we observed that as the strain rate increases, the modulus increases (E_L) while keeping λ_L and ϵ_c nearly constant. Consequently, the increase in strain rate only proportionally reduces ${\bar{A}}_{cr}$, while ${\bar{h}}_{cr}$ remains constant (Eqs. 19 and 20). This results in the geometric design space shifting leftward, affecting the minimum allowable $\bar{h}$ for a given $\bar{A}$, as shown with two dotted lines in Fig. 3e. For a foam material with modulus characterized as a function of strain rate, all the geometric design space for various strain rate scenarios can be obtained (also see Fig. S9 in SI).

Thickness and mass minimization

As shown in the previous section, for a given set of material parameters $(\alpha,{\lambda }_{L},\beta,\bar{\rho },{c}_{1})$, the thickness of the foam $(\bar{h})$ must be greater than the critical thickness $({\bar{h}}_{cr})$, while the cross-sectional area $(\bar{A})$ can fall within a broad range defined by a lower and an upper limit (Eq. 20) in order to limit peak acceleration and maximum compressive strain while entirely absorbing the kinetic energy of impact. These bounds on cross-sectional area depend on the ratio $\bar{h}/{\bar{h}}_{cr}$, such that the higher the ratio, the broader the range. Thus, any desired cross-sectional area $(\bar{A})$ within the permissible range can be achieved by proportionally scaling the thickness. We can use this property to identify an optimal set of material parameters that will minimize the thickness of a protective foam given a specific cross-sectional area, for absorbing a given kinetic energy of impact.

To this end, we consider a foam with density ρ and modulus E_L made of a solid material with density ρ_s and modulus E_s. As the relative modulus scales with relative density (Fig. 4a), we explore three different scaling exponents (α) that are commonly found in cellular materials literature: a linear scaling (α = 1) that is typically associated with a stretch-dominated deformation mechanism of the foam’s micro-structure²⁴, a quadratic scaling (α = 2) observed in bending-dominated deformation mechanisms¹⁴, and cubic scaling (α = 3) which has been observed in foams with stochastic micro-structure⁴³. Values of α greater than 3 are exceedingly rare⁴⁴. While certain efficient architectures demonstrate α ≈ 1^10,45, values of α less than 1 have not been reported. It is worth noting that many stretch-dominated lattices as well as some open-cell polymeric foams (Fig. 3d), exhibit a yield transition after the initial elastic regime, characterized by a peak stress and subsequent softening before reaching a plateau of nearly constant stress. While our empirical two-parameter monotonic power-law function may not fully capture this behavior, it still approximates the overall sublinear trend and provides a reasonable prediction of energy absorption and acceleration (see Fig. S3 in SI). These limitations can be addressed by employing more detailed material models, which are beyond the scope of this work. Additionally, some lattices show linear scaling with either no peak stress or negligible peak stress^10,15,23, thus our choice to begin the range of α from α = 1 is motivated by the commonly observed scaling behavior in cellular materials.

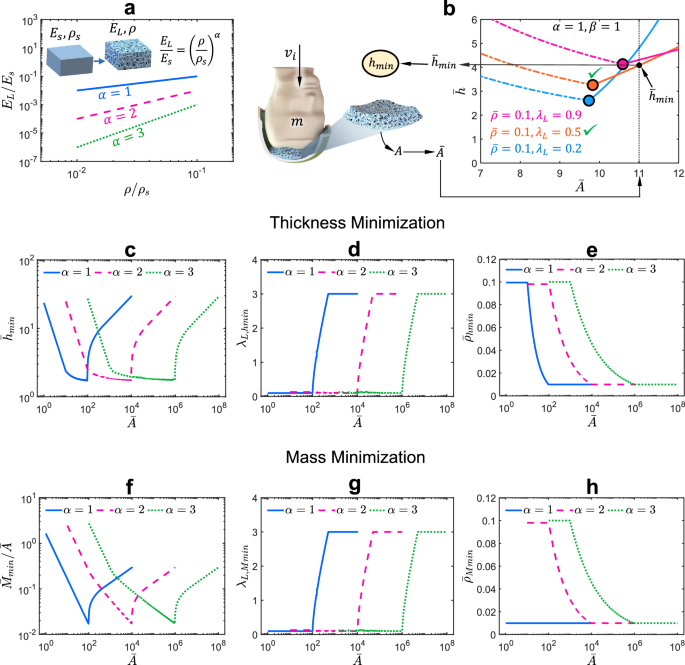

Fig. 4: Minimizing the thickness and mass of an energy-absorbing pad for a given set of material property parameters.

a Scaling of the relative modulus with the relative density. b Determining the minimum possible thickness for a protective foam pad of a known area $\bar{A}$ from a given set of foam material parameters; inset shows a surrogate head-helmet system undergoing impact. c Minimum thickness as a function of area for material parameters $0.01 \, < \, \bar{\rho } \, < \, 0.1$, 0.1 < λ_L < 3, and 1 < α < 3. d, e Values of λ_L and $\bar{\rho }$ corresponding to the minimum thickness. f Minimum mass per unit area as a function of area for material parameters $0.01 \, < \, \bar{\rho } \, < \, 0.1$, 0.1 < λ_L < 3, and 1 < α < 3. g, h Values of λ_L and $\bar{\rho }$ corresponding to the minimum mass per unit area. Illustrations in (a, b) are created using SolidWorks PhotoView 360. Source data are provided as a Source Data file.

We assume that the relative density varies between $\bar{\rho }=0.01$ and $\bar{\rho }=0.1$, which is typical for open-cell foams⁷. Also this is approximately the range of $\bar{\rho }$ for which we measured the critical strain $({\epsilon }_{c}=0.66-2\bar{\rho })$ of various open-cell polymeric foams (Fig. 2b). The measured critical strain (ϵ_c) follows a linear relationship with relative density, as shown in Fig. 2b. Additionally, we assume that λ_L ranges from λ_L = 0.1 (indicative of a highly sublinear stress-strain response resembling a Heaviside function) to λ_L = 3 (indicative of a highly nonlinear stress-strain response) (Fig. 1d).

The workflow to achieve minimum thickness for a given cross-sectional area is illustrated in Fig. 4b using an example of a head-helmet system undergoing a blunt impact, similar to that of a drop tower test for evaluating helmet performance. Here, m represents the effective mass of the head-helmet system, while v_i denotes the impact velocity. While the foam liner—often in combination with an additional soft layer for comfort—inside the helmet undergoes much more complex deformation⁴⁶, the direct impact shown in Fig. 4b leads to axial compression of the foam liner that absorbs kinetic energy. An oblique impact can induce shear deformations and rotational acceleration, which have recently been identified as a key contributor to TBI alongside linear acceleration^41,46. However, the design framework presented here is limited to mitigating translational acceleration, with potential extensions to address rotational effects in the future. For the cross-sectional area A of the pad that experiences direct impact, the corresponding dimensionless area can be calculated using Eq. (9). The Fig. 4b illustrates the process of obtaining the minimum thickness $({\bar{h}}_{min})$ for a given $\bar{A}$ ($\bar{A}=11$ in this example), indicated by a black dotted vertical line. Here, we consider three different ${\bar{h}}_{cr}$ values and their corresponding ${\bar{A}}_{cr}$ values (represented as colored dots in Fig. 4(b)), which were obtained for $\bar{\rho }$, λ_L, and α within the parameter space we considered ($0.01 \, < \, \bar{\rho } \, < \, 0.1$, 0.1 < λ_L < 3, α = 1, 2, 3). For each dot, when $\bar{h}$ is scaled, the lower and upper limits of permissible $\bar{A}$ are depicted by dashed and solid lines, respectively. The solid lines extend to our target $\bar{A}=11$, intersecting the vertical dotted line at different locations. Among the three dots, the orange dot corresponding to $\bar{\rho }=0.1$ and λ_L  = 0.5 results in the minimum thickness $({\bar{h}}_{min})$. This dimensionless minimum thickness can be converted to dimensional minimum thickness (h_min) using the known parameters v_i and a_c to fabricate a compact foam pad (Eq. 9). Let’s denote the $\bar{\rho }$ and λ_L corresponding to the minimum thickness as ${\bar{\rho }}_{hmin}$ and λ_L,hmin, respectively. The chosen energy absorbing foam must have a relative density equal to ${\bar{\rho }}_{hmin}$ and a stress-strain response with λ_L = λ_L,hmin to achieve the minimum thickness.

Similarly, all possible pairs of ${\bar{h}}_{cr}$ and ${\bar{A}}_{cr}$ within the range of material parameters ($0.01 \, < \, \bar{\rho } \, < \, 0.1$, 0.1 < λ_L < 3, α = 1, 2, 3) can be compared for a given $\bar{A}$ to determine the absolute minimum thickness. In Fig. 4c, we plot the absolute minimum thickness as a function of $\bar{A}$ obtained for material parameters $\bar{\rho }$, λ_L, and α, varying within the range we assumed, while β = 1 is fixed. As $\bar{A}$ increases, ${\bar{h}}_{min}$ counters $\bar{A}$ and decreases initially to maintain the volume of the foam nearly constant for energy absorption, reaching a minimum, and then sharply rises to prevent the effective stiffness (E_LA/h) of the foam pad from becoming too large. The descending portion is governed by the constraint on $\bar{h}$ set in equation (17), whereas the ascending portion is governed by Eq. (18) (see Fig. S4c in SI). Notably, the condition $\bar{h}\ge {\bar{h}}_{cr}$ is satisfied in both the ascending and descending portions. In the middle section, the minimum thickness becomes equal to the critical thickness, i.e., ${\bar{h}}_{min}={\bar{h}}_{cr}$. While the equation for ${\bar{h}}_{cr}$ is independent of $\bar{A}$, λ_L,hmin and ${\bar{\rho }}_{hmin}$ vary as functions of $\bar{A}$, resulting in a curved middle section in Fig. 4c. For smaller cross-sectional areas $(\bar{A} \, < \, 100)$, linear scaling (α = 1) results in the smallest thickness, whereas for $\bar{A} \, > \, 1{0}^{4}$, cubic scaling is better. This suggests that linear scaling results in a compact-sized foam pad for applications with space limitations in terms of area, such as a foam cartridge in landing struts (Fig. 1b). On the other hand, cubic scaling performs better when more area has to be covered with foam, such as helmet liners and packaging applications.

Figure 4d, e shows optimized parameters corresponding to the minimum thickness ${\bar{h}}_{min}$. A small value of λ_L initially leads to a lower value of ${\bar{h}}_{cr}$ (Eq. 19). Therefore, it’s not surprising that for a smaller cross-sectional area, the thickness is minimized for λ_L,hmin = 0.1. In contrast, for higher $\bar{A}$, the minimum thickness occurs for λ_L,hmin = 3. Notice the power exponent λ_L in the upper limit of $\bar{A}$ in equation (20), which allows for attaining significantly higher $\bar{A}$ without scaling $\bar{h}$ by a large amount. This demonstrates the utility of foams with a nonlinear stress-strain curve (λ_L > 1), which contradicts the conventionally held belief that foams should always exhibit a sublinear response with a plateau of nearly constant stress.

To elucidate this phenomenon, we compare the geometric design space of an ideal shock absorber—a foam with a stress-strain response that resembles a Heaviside step function (λ_L,IA = 0) to a nonlinear absorber (λ_L,NA = 1.5) (Fig. 5). Generally, it is argued that the presence of a plateau makes a foam superior in shock absorption because it limits the amount of transmitted force for large compressive strains. However, such a feature constrains the design space for pad’s geometry. Figure 5a shows the stress-strain responses of an ideal absorber with a sharp rise in stress followed by a plateau of constant stress and a nonlinear absorber that exhibits a slow rise in stress eventually crossing the ideal absorber’s stress-strain curve at ϵ_cp. Figure 5b compares the geometric design space of the ideal absorber with that of the nonlinear absorber. While the ideal absorber provides thinner shock-absorbing pads for smaller cross-sectional areas (A < A_cr,IA), its design space abruptly terminates (A = A_cr,IA) for larger areas (A > A_cr,IA). In contrast, the nonlinear absorber allows the creation of thin and lightweight energy-absorbing pads over a broader range of cross-sectional areas (A > A_cr,IA).

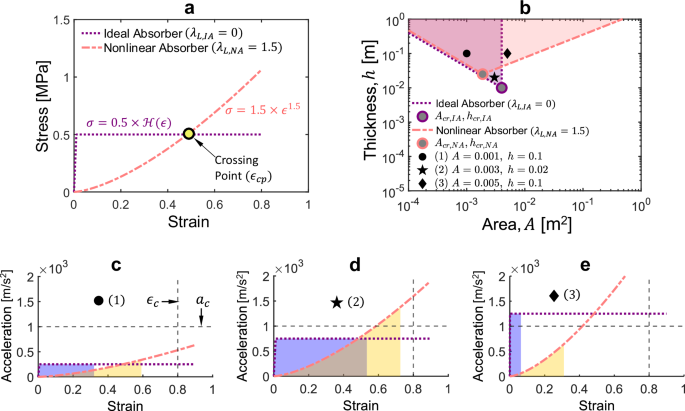

Fig. 5: Comparison of an ideal absorber and a nonlinear absorber.

a Stress strain response of an ideal absorber vs. a nonlinear absorber. b Geometric design space of ideal absorber vs. nonlinear absorber plotted assuming ϵ_c = 0.8,  E_s = 10 MPa ${m}_{s}=2\,kg,\,{v}_{i}=4\,m/s,\,{E}_{L,NA}{({\lambda }_{L,NA}+1)}^{\beta }=1.48\,MPa,\,{a}_{c}=1000\,m/{s}^{2}$. Shaded regions represent the geometric design space where both maximum acceleration and maximum strain will remain below the desired limits. c, d, e Acceleration vs strain for various pad geometries. Shaded regions represent energy absorption. Source data are provided as a Source Data file.

Although the plateau in the ideal absorber limits the maximum possible stress, the initial sharp rise prevents the stress from remaining low, even at small strains. To illustrate this, we selected three combinations of A and h in Fig. 5b, representing three distinct pad geometries. Figure 5c, d, e shows the acceleration as a function of strain for these geometries. The shaded regions beneath the curves indicate the extent of foam compression, for the given kinetic energy of impact. For pad geometry (1), the maximum compression strain and peak acceleration remain well below the critical limits for both the ideal and nonlinear absorbers. For pad geometry (2), because the thickness lies outside the geometric design space of the nonlinear absorber, the acceleration exceeds the critical limit. In contrast, the ideal absorber maintains a lower acceleration due to its plateau. For pad geometry (3), where A > A_cr,IA, the ideal absorber becomes excessively stiff, causing the acceleration to exceed the upper limit. However, the nonlinear absorber, with its initial gradual increase in stress, absorbs the same amount of energy while keeping the acceleration below the upper limit. Due to this, it offers greater versatility in geometric design, enabling the thickness to be adjusted so that the maximum strain remains below ϵ_cp (Fig. 5a). It is noteworthy that the ideal absorber, while exhibiting higher specific energy absorption for strains below ϵ_cp, it becomes too stiff to be used for A > A_cr,IA. The importance of this fundamental understanding is best exemplified by recent work on graded architected foams⁴⁷ and the development of bi-layer (soft + hard) combat helmet liners⁴⁸, which aim to achieve a gradual initial rise in stress similar to our nonlinear absorber.

In Fig. 4e, the relative density corresponding to ${\bar{h}}_{min}\,({\bar{\rho }}_{hmin})$ on the other hand follows an opposite trend to λ_L,hmin. A higher relative density for a small $\bar{A}$ provides stiffness to the foam pad, whereas a low relative density, which results in a large critical strain $({\epsilon }_{c}=0.66-2\bar{\rho })$, limits ${\bar{h}}_{cr}$ (Eq. 19) for large $\bar{A}$. It is worth mentioning that ${\bar{h}}_{min}$ and $\bar{A}$ are dimensionless; therefore, their magnitudes in Fig. 4c are not to scale. Their magnitudes are meaningful only when converted back to their dimensional form using Eq. (9). Moreover, since we made our equations scale-free by rendering them dimensionless beforehand, any variation in the external factors such as v_i, m, and a_c will only scale up or scale down $\bar{A}$ and $\bar{h}$ in Fig. 4c without changing the trend of the curves. For example, setting a lower value of a_c, which is akin to increasing the factor of safety, will make $\bar{A}$ larger for a constant A (Eq. (9)), affecting only the selected ${\bar{h}}_{min}$ (Fig. 4c) along with the associated λ_L,hmin and ${\bar{\rho }}_{hmin}$.

Minimizing thickness and making a foam pad compact in size doesn’t always guarantee minimum possible mass. The mass depends on both the volume and the relative density. The dimensionless mass can be calculated using the following equation

$$\bar{M}=\bar{\rho }\bar{A}\bar{h}$$

(21)

The above mass can be minimized and the resultant optimal material parameters can be obtained by using the similar methodology we implemented earlier for ${\bar{h}}_{min}$ (Fig. 4b). Since mass scales with area, we have plotted the minimum mass per unit area $({\bar{M}}_{min}/\bar{A})$ in Fig. 4f. The trend is similar to ${\bar{h}}_{min}$: linear scaling (α = 1) performs better for a small cross-section area, whereas cubic scaling is better when overlaying a larger area with foam. In Fig. 4g, h, we plot the optimized parameters λ_L,Mmin and ${\bar{\rho }}_{Mmin}$ corresponding to minimum mass. For α = 2 and α  = 3, both λ_L,Mmin and ${\bar{\rho }}_{Mmin}$ exactly match λ_L,hmin and ${\bar{\rho }}_{hmin}$ respectively which suggest that both mass and thickness are simultaneously minimized. However, for α = 1, while λ_L still matches, the relative densities are different. ${\bar{\rho }}_{Mmin}$ remains constant at 0.01, which is the smallest relative density we considered. This occurs because for α = 1, the ${\bar{\rho }}^{\alpha -1}$ term vanishes from the critical mass, which is defined as follows:

$${\bar{M}}_{cr}=\bar{\rho }{\bar{A}}_{cr}{\bar{h}}_{cr}=\frac{1}{{c}_{1}{({\lambda }_{L}+1)}^{\beta -1}{{\epsilon }_{c}}^{{\lambda }_{L}+1}{\bar{\rho }}^{\alpha -1}}$$

(22)

While ϵ_c is a function of relative density, it is maximum for $\bar{\rho }=0.01$ (Fig. 2b), thus minimizes ${\bar{M}}_{cr}$.

To summarize, a nonlinear scaling of relative modulus with relative density allows for the simultaneous minimization of both the mass and thickness of the foam. In contrast, for linear scaling (α = 1), minimizing one disregards the other, not allowing both objectives to be simultaneously achieved. We can witness this by comparing the absolute minimum thickness $({\bar{h}}_{min})$ with the thickness corresponding to the minimum mass, expressed as follows:

$${\bar{h}}_{min}\,\,\,\,{\mbox{vs.}}\,\,\,\,\bar{h}=\frac{{\bar{M}}_{min}}{\bar{A}\times {\bar{\rho }}_{Mmin}}$$

(23)

Figure 6a illustrates that for α = 1, minimizing the mass has unintentionally resulted in a much higher thickness. For example, at $\bar{A}=10$ (black dotted line), the absolute minimum thickness is ${\bar{h}}_{min}\approx 2.38$ (on blue solid curve), while the thickness corresponding to when mass is minimized (ignoring thickness) is $\frac{{\bar{M}}_{min}}{\bar{A}\times {\bar{\rho }}_{Mmin}}\approx 16.35$ (orange dashed curve). Similarly, minimizing the thickness leads to a slightly higher mass, as shown in Fig. 6b. For α ≥ 1.5, both mass and thickness are simultaneously minimized (Fig. 6c, d).

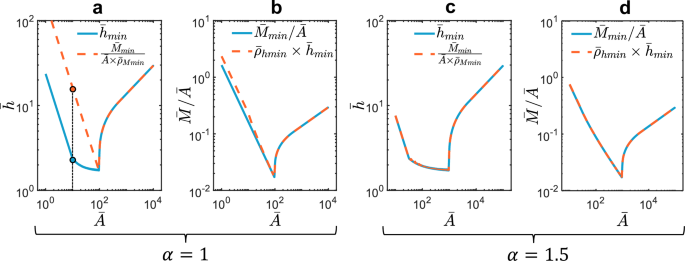

Fig. 6: Effect of the scaling exponent (α) on thickness and mass minimization.

a Comparison of the absolute minimum thickness with the thickness associated with the minimum mass for α = 1. b Comparison of the absolute minimum mass per unit area with the mass per unit area associated with the minimum thickness for α = 1. c Comparison of the absolute minimum thickness with the thickness associated with the minimum mass for α = 1.5. d Comparison of the absolute minimum mass per unit area with the mass per unit area associated with the minimum thickness for α = 1.5. Source data are provided as a Source Data file.

Architected VACNT Foams

The underlying assumption behind the minimization problem we pursued in the previous section was that the material parameters, such as $\bar{\rho }$, λ_L, and α, are independent of each other. In reality, they exhibit some inter-dependency, and not all possible combinations can occur, especially in stochastic polymeric and metallic foams. For example, a nonlinear stress-strain response (where λ_L > 1) is usually observed in foams with large relative densities. In contrast, architected foams offer versatility in the design space and allow independent tunability of different mechanical properties. The vertically aligned carbon nanotube (VACNT) foams with mesoscale architecture are particularly interesting because of their hierarchical structure that can be tailored to achieve broad range of properties. The non-architected VACNT foams themselves exhibit exceptional modulus and energy absorption comparable to metallic foams, while their densities, compressibility, and strain-recovery are similar to polymeric foams²⁵. Moreover, unlike polymeric foams, which exhibit viscoelastic behavior and slowly recover from strain after compression, VACNT foams exhibit fast strain recovery, making them useful for countering repetitive impacts. These exceptional properties arise from a hierarchical structure with features across various length scales. Multi-walled CNTs (MWCNTs) at the nanoscale (Fig. 7d), a random forest of entangled CNTs at the microscale (Fig. 7c), and a structure of nominally vertically aligned CNTs at the mesoscale (Fig. 7b) all culminate in a monolithic, seemingly solid foam at the macroscale (Fig. 7a). We introduced an additional level of structural hierarchy at the mesoscale by synthesizing VACNTs on a photo-lithographically prepatterned silicon wafer substrate. We selectively deposit chromium in areas where we do not want CNTs to grow (the inverse of architecture), allowing growth only in the region defined by the architecture²³. Figure 7 illustrates SEM images of three different mesoscale architectures: a hexagonally packed cylindrical architecture (Fig. 7e), a concentric cylinder architecture (Fig. 7f), and a self-similar fractal architecture (Fig. 7g).

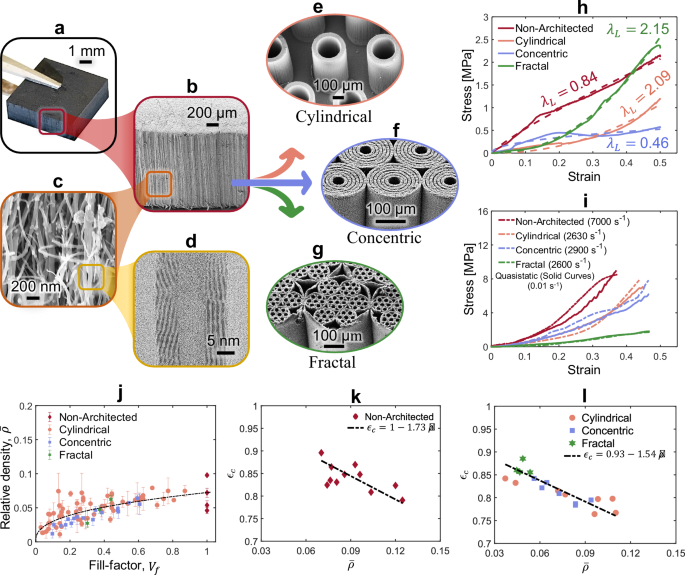

Fig. 7: Mechanical and physical properties of FCCVD-synthesized architected VACNT foams.

a, b, c, d Hierarchical vertically aligned carbon nanotube foam with structural lengthscales spanning from nanometers to millimeters. VACNT foams with mesoscale architecture having hexagonal close-packed arrays of cylinders (e), concentric cylinders (f), and self-similar fractal (2nd order) (g). h Representative experimentally measured quasistatic stress-strain responses of non-architected and architected VACNT foams along with the corresponding power law models. i Comparison of quasistatic and dynamic stress-strain responses of non-architected and architected VACNT samples measured using commercial load frame and Kolsky bar setup, respectively. j Relative density of various non-architected and architected VACNT foam samples as a function of the fill-factor of the architecture (V_f). Each data point is an average of 3 distinct samples to minimize variability due to the synthesis process with error bars representing ± one standard deviation. k Critical strain of non-architected VACNT foams as a function of relative density. l Critical strain of architected VACNT foams as a function of relative density. Source data are provided as a Source Data file.

In our previous works on cylindrical and concentric-cylinder architected VACNT foams, we reported tunability in density-dependent scaling, specific modulus, and relative density as functions of various architectural parameters^23,31. Furthermore, by increasing the gap between cylinders and thereby reducing lateral interactions between them, we demonstrated a transformation in the shape of the constitutive stress-strain curve from nonlinear to sublinear (see Fig. 7h). Here, we introduce a self-similar fractal architecture that enhances interconnectivity between mesoscale cylinders at much lower relative densities, enabling higher specific energy absorption. We investigate fractal-architected samples and compare their properties with our previous cylindrical and concentric VACNT samples to identify optimal architectures for compact and lightweight shock absorbers.

Figure 7h shows representative experimentally measured quasistatic (strain rate of 0.01 s⁻¹) stress-strain responses of non-architected VACNT foam as well as architected foams, including the corresponding power law models (dashed curves). As shown, architected VACNT foams enhances the range of values of λ_L, which was limited to nearly linear λ_L ≈ 1 for non-architected foams, to sublinear (λ_L < 1) and nonlinear (λ_L > 1). The shape of the stress-strain curve or the value of λ_L depends on the specific architectural parameters that elicit specific deformation mechanism of cylinders within the architecture. For example, in concentric cylinder architecture (Fig. 7f), a column buckling of cylinders with larger gap between the concentric cylinders results in a sublinear stress-strain curve, whereas a progressive shell buckling of cylinders with smaller gap results in a nonlinear stiffening stress-strain response²³. Moreover, the stress-strain responses of both architected and non-architected VACNT foams are strain rate independent (Fig. 7i) up to very large strain rates^28,29,49. In Fig. 7, the stress-strain responses of a cylindrically architected VACNT foam we tested at quasistatic and dynamic strain rates reveal almost no effect of strain rate. This strain rate independence and the richness of material parameter space make VACNT foams an ideal material system for us to demonstrate the effectiveness of our model in real materials.

We synthesized multiple samples in each architecture category by varying the dimensions of architectural features. For example, by varying the inner diameter (D_in), wall-thickness (t_w), and gap (g) between the cylinders in cylindrically architected foams, we synthesized 60 different types of samples³¹. In concentric architecture, we varied the inner gap and the number of rings of concentric cylinders, resulting in a total of 18 samples²³. For fractal architecture, we synthesized three types of samples with different orders of self-similarity (see Fig. S5, S6 in SI). Moreover, we repeated the synthesis of each kind of sample three times and averaged the mechanical properties to account for any variability in the samples of a given architecture.

We calculated the relative density $(\bar{\rho })$ by dividing the bulk density (ρ) of VACNT foams by the density of highly packed CNTs (ρ_s ~ 2.26 g/cm³)⁵⁰. In Fig. 7j, we plotted the relative densities of all VACNT foams as a function of the fill-factor (V_f) of the architectures (see SI for derived expressions of V_f for different architectures). It is evident that the relative density is adjustable as a function of fill-factor and exhibits a wide range across samples, from $\bar{\rho }=0.01$ to $\bar{\rho }=0.1$. As the fill-factor approaches 1, the relative density of architected VACNT foams asymptotically approaches the relative density of non-architected VACNT foams. Similar to polymeric foams in Fig. 2b, we measured the critical strain ϵ_c of both non-architected and architected VACNT foams using the energy absorption efficiency method³⁶. For both types of foams, the critical strain ϵ_c varies linearly as a function of $\bar{\rho }$ with a slope of  ~2, which is typically observed in crushable metallic foams⁷.

We observe a wide range of density-dependent scaling of elastic modulus among different architectures. In Fig. 8a, b, c, d, we plot average relative modulus $({\bar{E}}_{avg})$ of VACNT foams as a function of relative density, where ${\bar{E}}_{avg}$ is a dimensionless modulus calculated from the experimentally measured stress-strain response of VACNT foams. ${\bar{E}}_{avg}$ is a measure of the elastic energy stored in the foam during compression. Unlike E_L, ${\bar{E}}_{avg}$ is normalized by λ_L + 1, thus it scales more consistently with relative density (see SI for details). As a function of loading modulus E_L and λ_L obtained from power-law fits, the expression of ${\bar{E}}_{avg}$ is given as follows

$${\bar{E}}_{avg}=\frac{{E}_{L}}{{E}_{s}}\times {({\lambda }_{L}+1)}^{\beta -1}{\epsilon }_{p}^{{\lambda }_{L}-1}\times (2-\delta )$$

(24)

where E_s is the elastic modulus of highly densely packed CNTs (E_s ~ 15 GPa)⁵¹, ϵ_p is the peak compression strain applied while measuring the stress-strain response, and δ is the damping capacity—a ratio of hysteretic energy dissipated in the loading-unloading cycle divided by the area under the loading curve²³. For non-architected and fractal-architected, the scaling is nonlinear with scaling exponent α = 2.34 and α = 1.94, respectively. However, for cylindrically-architected and concentric cylinder architectures, the scaling is tunable as a function of the external gap between the cylinders and the internal gap between the concentric cylinders, respectively (see Fig. S5, S6 in SI).

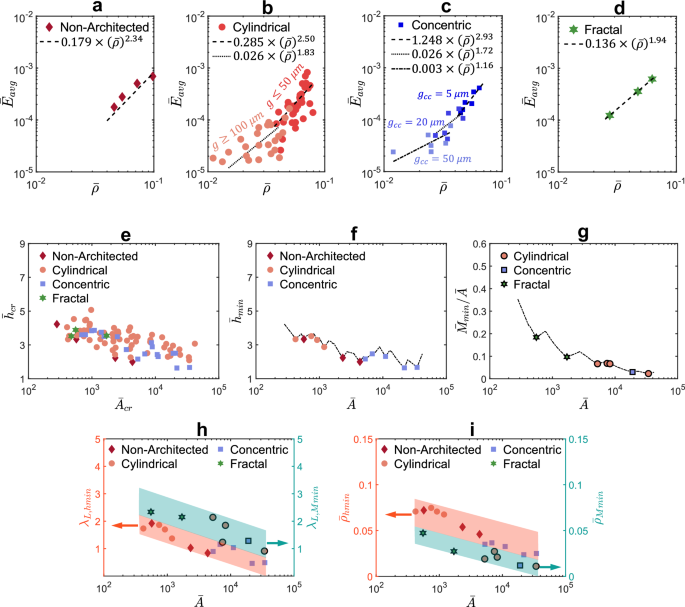

Fig. 8: Identifying optimal architectures among various VACNT foam samples for thin and lightweight energy absorber design.

Scaling of normalized average modulus with relative density of non-architected (a), cylindrical (b), concentric (c), and fractal architectures (d). e Critical thickness vs. critical area of all VACNT foams. Minimum thickness (f) and minimum mass per unit area (g) as a function of dimensionless area. (h) λ_L,hmin compared to λ_L,Mmin shown in two separate shaded regions. i ${\bar{\rho }}_{hmin}$ compared to ${\bar{\rho }}_{Mmin}$ shown in two separate shaded regions. Source data are provided as a Source Data file.

Using the measured material parameters $(\bar{\rho },{\lambda }_{L},{E}_{L})$ we calculated dimensionless critical thickness and critical area, which are plotted in Fig. 8e. To identify the VACNT foam samples that will result in minimum thickness, we implemented the framework that we demonstrated earlier in Fig. 4(b). In the thickness minimization process, starting with 85 samples, we were able to condense down to 12 samples that will result in minimum thickness for a given area $(\bar{A})$ lying in the range shown in Fig. 8f. Similarly, we identified VACNT foam samples that will result in minimum mass for a given $\bar{A}$. For minimum mass, we were able to condense down to 7 samples, which all turned out to be architected VACNT foams, because of the comparatively large relative densities associated with non-architected VACNT foams. In Fig. 8(h), we compare λ_L corresponding to minimum thickness (λ_L,hmin) with minimum mass (λ_L,Mmin). The data points corresponding to λ_L,Mmin are plotted with black outline to distinguish from λ_L,hmin. The data points seem to form distinctive bands with λ_L,hmin forming a band of lower overall values compared to λ_L,Mmin. In contrast, for relative density, ${\bar{\rho }}_{Mmin}$ values form a band of lower overall values compared to ${\bar{\rho }}_{hmin}$ (Fig. 8i). In summary, a higher $\bar{\rho }$ and a sublinear λ_L are favourable to achieve minimum thickness, whereas a smaller $\bar{\rho }$ and a nonlinear λ_L are needed to achieve minimum mass.

As a function of $\bar{A}$, both λ_L,hmin and ${\bar{\rho }}_{hmin}$ exhibit a decreasing trend, which differs from the behavior observed in Fig. 4. Previously, we assumed that material parameters were independent, meaning that for each value of $\bar{\rho }$ within the range $0.01 \, < \, \bar{\rho }\, < \,0.1$, any value of λ_L within 0.1 < λ_L < 3 could be paired with it. In VACNT foams, however, there is a weak dependence between λ_L and $\bar{\rho }$, where λ_L scales weakly with $\bar{\rho }$ (Fig. 9a). For samples with higher $\bar{\rho }$, ${\bar{A}}_{cr}$ is smaller because ${\bar{A}}_{cr}\propto 1/{\bar{\rho }}^{\alpha }$, but ${\bar{h}}_{cr}$ is larger since ${\bar{h}}_{cr}\propto {\lambda }_{L}+1$, leading to a decreasing trend in ${\bar{h}}_{cr}$ with increasing ${\bar{A}}_{cr}$ (Fig. 8e). This trend is also reflected in the plot of λ_L,hmin. Notably, the decreasing trend persists only within the $\bar{A}$ range shown in Fig. 8h, which corresponds to the ${\bar{A}}_{cr}$ values in Fig. 8e. For higher $\bar{A}$ values $(\bar{A} \, > \, 1{0}^{5})$, λ_L,hmin increases and then stabilizes (Fig. 9b), while ${\bar{\rho }}_{hmin}$ decreases before becoming constant (Fig. 9c), similar to Fig. 4d, e. Therefore, our finding that foams with nonlinear stress-strain responses perform better at higher $\bar{A}$ values holds true for VACNT foams as well (see Fig. S11 in SI). λ_L and $\bar{\rho }$ corresponding to minimum mass, i.e., λ_L,Mmin, and ${\bar{\rho }}_{Mmin}$ also follow similar trends for extended ranges of $\bar{A}$ (see Fig. S10 in SI).

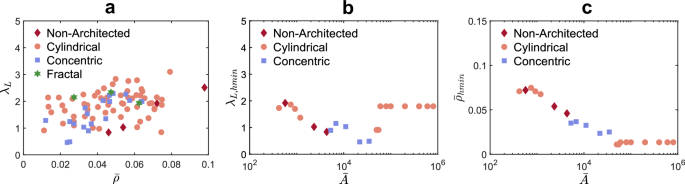

Fig. 9: Optimal λ_L,hmin and ${\bar{\rho }}_{hmin}$ as a function of an extended range of cross-sectional areas.

a λ_L vs. $\bar{\rho }$ for VACNT foams. b λ_L corresponding to minimum thickness as a function of area for VACNT foams. c $\bar{\rho }$ corresponding to minimum thickness as a function of area for VACNT foams. Source data are provided as a Source Data file.

In Fig. 10, we present a plot showing volumetric energy absorption (W_L) versus density, where we have isolated the best-performing VACNT samples from a total of 85 samples. The samples that minimize thickness (${\bar{h}}_{min}$) are represented by colored markers, while data points for samples that minimize mass (${\bar{M}}_{min}$) are depicted with the same markers but with black borders. All other samples are shown using solid black dots. Energy absorption scales with density, and since λ_L exhibits a weak correlation with $\bar{\rho }$ (Fig. 9a), nonlinear foams demonstrate slightly higher energy absorption for a given $\bar{\rho }$. However, these results involve VACNT samples with varying scaling factors α. The precise relationship between energy absorption and λ_L for constant α and $\bar{\rho }$ cannot be determined due to finite number of VACNT samples and interdependence of α, λ_L, and $\bar{\rho }$ (Fig. 8a–d).

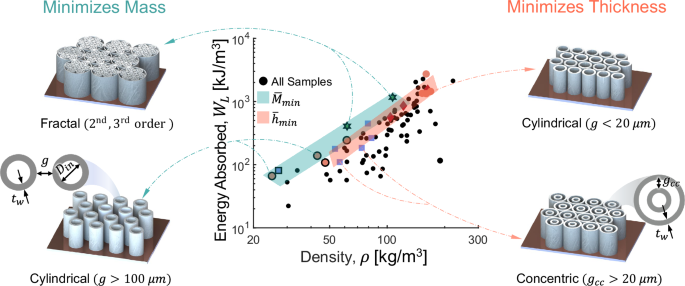

Fig. 10: Scaling of energy absorption with density, highlighting optimal VACNT architectures.

Volumetric energy absorption as a function of density for all the VACNT foam samples. The data points for samples that minimizes mass are shown with black outline. The illustration of the architectures of different VACNT samples that outperform others is also shown. Architected VACNT illustrations are created using SolidWorks PhotoView 360. Source data are provided as a Source Data file.

The samples corresponding to ${\bar{M}}_{min}$ and ${\bar{h}}_{min}$ form two distinct bands in the top region of the scatter plot, demonstrating maximum energy absorption for a given density. This phenomenon can be clearly understood by examining the equation for energy absorption per unit volume. Using Eqs. (19 and 20), we can restructure the equation for energy absorption Eq. (8) as follows

$$\frac{{W}_{L}}{{E}_{s}}=\frac{1}{{\bar{h}}_{cr}}\times \frac{1}{{\bar{A}}_{cr}}\,\,\to \,\,{\bar{h}}_{cr}{\bar{A}}_{cr}=\frac{{E}_{s}}{{W}_{L}}$$

(25)

where ${\bar{h}}_{cr}{\bar{A}}_{cr}$ is the critical volume. The expression above indicates that foams with higher W_L will result in lower critical volume therefor lower thickness for a given area, as observed in Fig. 10. On multiplying both sides of the Eq. (25) with $\bar{\rho }$, we get

$$\bar{\rho }{\bar{h}}_{cr}{\bar{A}}_{cr}=\frac{{E}_{s}}{{W}_{L}}\times \bar{\rho }\,\,\to \,\,{\bar{M}}_{cr}=\frac{{E}_{s}}{{W}_{L}}\times \bar{\rho }$$

(26)

where ${\bar{M}}_{cr}$ represents the critical mass, which minimizes for higher W_L and lower relative density, as observed in Fig. 10. This analysis demonstrates that, in addition to the material’s property parameters $({\lambda }_{L},\bar{\rho },\alpha )$, exhibiting a high energy absorption per unit volume is also crucial in designing thin and lightweight shock absorbers.

The architectures corresponding to the majority of samples lying in these bands are illustrated along with their geometric design parameters. For ${\bar{M}}_{min}$, the samples include higher-order fractal (2nd and 3rd order) and sparsely packed cylindrically architected samples (with g > 100 μm) due to their low densities and high energy absorption capabilities. On the other hand, samples associated with ${\bar{h}}_{min}$ include tightly packed cylindrical architected and non-architected samples due to their highest energy absorption. Additionally, sparsely (g_cc > 20 μm) packed concentric cylindrically architected foams are present due to their sublinear stress-strain response (Fig. 8h) and consequently lower critical thickness (${\bar{h}}_{cr}$) (see Eq. 19). While a lot of samples, other than the optimal ones, lying in the ${\bar{h}}_{min}$ band exhibit considerably high energy absorption at a given density, their λ_L values are too large to minimize thickness.

In our theoretical calculations, we achieved simultaneously minimized thickness and mass for a large range of λ_L and $\bar{\rho }$ varying independently. We showed that for α ≥ 1.5, thickness and mass minimize simultaneously. For VACNT foams, we witnessed similar behavior when both thickness and mass were minimized across a set of samples following a particular fixed scaling, α (see Fig. S12 in SI), like we did in theoretical analysis. However, when considering all VACNT foams collectively, gaps in the material parameter space lead to variations: some foams minimize thickness, while others minimize mass. For example, the linear density-dependent scaling observed in concentric VACNT foams for g_cc = 50 μm (Fig. 8c) occurs over a narrow range of low relative densities ($0.012 \, < \, \bar{\rho } \, < \, 0.037$), whereas cubic scaling for g_cc = 5 μm is seen at higher relative densities ($0.044\, < \, \bar{\rho } < 0.064$). As a result, lower α and higher $\bar{\rho }$ become conflicting, deviating from the parameter independence assumed in our theoretical results. A similar pattern is evident in cylindrically architected VACNT foams (Fig. 8b). Moreover, there is a slight interdependence between λ_L and $\bar{\rho }$ (Fig. 9a) as well, whereas we also assumed them to be independent in theoretical analysis. Nevertheless, this study demonstrates that, despite some gaps in the parameter space, VACNT foams offer a rich material property landscape with a wide range of parameters suitable for designing efficient shock absorbers. We envision that using novel hierarchical graph network-based machine-learning methods to design architectures can potentially result in a broadened parameter space, allowing for independent tunability of λ_L, α, and $\bar{\rho }$. Such independent tunability can possibly lead to simultaneous thickness and mass minimization in various types of architectures.

In conclusion, our study highlights the pivotal role of a foam pad’s geometry in addition to the constitutive behavior of the material in determining the mechanical performance of the protective layer. By employing a simplified kinematic model and dimensional analysis, we established constraints on the cross-sectional area and thickness of foam pads with known mechanical properties. These constraints ensure that both the maximum compressive strain within the foam and the maximum acceleration experienced by the protected object remain below desired limits. Using these constraints as a design framework, we identified the mechanical properties necessary for achieving the thinnest, lightest, or a combination of both in foam pads for a given cross-sectional area. Contrary to prevailing beliefs that a plateau in a stress-strain response is essential for all shock-absorbing applications, our findings suggest that foams with nonlinear responses, with gradually increasing stress vs strain, can enable the design of both thin and lightweight foam pads in various extreme protective applications. More specifically, we found that foams with a nonlinear stress-strain response can outperform foams exhibiting a plateau-type stress-strain response when protective foam pads of large area coverage is required, such as in helmet liners and packaging applications. Additionally, we also discovered that foam materials with nonlinear density-dependent scaling of modulus can lead to simultaneously lightweight and thin protective energy absorbers. Using our non-dimensional design framework, we demonstrate optimal designs in hierarchically architected VACNT foams with cylindrical, concentric cylindrical, and fractal architectures. Our generalized design framework can be applied to any architected and stochastic foams with known mechanical properties to design compact and lightweight energy-absorbing pads for diverse protective applications by identifying the best-performing architectures from a multitude of options.
