Structures and mechanisms of U6 snRNA m6A modification by METTL16

Ju, Jue; Tomita, Kozo

doi:10.1038/s41467-025-63021-0

Download PDF

Article
Open access
Published: 21 August 2025

Structures and mechanisms of U6 snRNA m⁶A modification by METTL16

Nature Communications volume 16, Article number: 7708 (2025) Cite this article

6349 Accesses
2 Citations
19 Altmetric
Metrics details

Subjects

Abstract

The N⁶-methyladenosine (m⁶A) modification in U6 snRNA, catalyzed by METTL16 using S-adenosylmethionine (SAM) as the methyl donor, is required for efficient and accurate pre-mRNA splicing. However, the mechanism by which METTL16 modifies U6 snRNA with m⁶A remains elusive. Here, we present cryo-EM structures of METTL16 in complex with U6 snRNA, providing insights into the METTL16-mediated modification of U6 snRNA with m⁶A. The structures reveal that U6 snRNA is recruited to METTL16 through specific interactions between the C-terminal kinase-associated 1 (KA-1) domain of METTL16 and the internal stem-loop (ISL) of U6 snRNA. Upon SAM binding to the catalytic pocket within the N-terminal methyltransferase domain (MTD), U6 snRNA undergoes a structural rearrangement that positions the target adenine-containing motif at the catalytic site. This conformational change is followed by an additional structural adjustment of U6 snRNA into a productive conformation, bringing the target adenosine closer to SAM within the catalytic pocket and thereby ensuring efficient m⁶A modification. The KA-1 domain functions as a scaffold for initial substrate recognition and facilitates the subsequent dynamic methylation process within the MTD, highlighting the cooperative roles of METTL16 domains for U6 snRNA modification.

Structural insights into molecular mechanism for N⁶-adenosine methylation by MT-A70 family methyltransferase METTL4

Article Open access 26 September 2022

Investigation of a squaramide motif as a bioisostere of the amino-acid group of S-adenosyl-L-methionine and its functional impact on RNA methylation

Article Open access 12 August 2025

Structural insights into DNA N⁶-adenine methylation by the MTA1 complex

Article Open access 20 January 2023

Introduction

N ⁶-methyladenosine (m⁶A) is a well-characterized mRNA modification crucial for gene expression in various biological processes^1,2,3,4. It regulates RNA splicing, localization, stability, and translation^5,6,7,8,9.

Most m⁶A modifications in mRNAs are catalyzed by the METTL3/METTL14 complex, which methylates the specific adenosine in the DRACH (D = A, G or U, R = A or G; H = A, C, or U) motif close to the stop codon or 3’-UTR of mRNAs^{2,3,10,11,12,13}. METTL3 acts as the catalytic subunit, and METTL14 plays a structural role critical for substrate recognition^14,15,16.

A distinct m⁶A methyltransferase, METTL16, targets a particular motif within specific RNA structures, including mRNAs and non-coding RNAs^{13,17,18,19,20,21}. In vertebrates, METTL16 installs m⁶A in RNA hairpins containing the motif UACA*GAR, where A* denotes the methylation site, within the 3′ UTR of methionine adenosyltransferase 2A (MAT2A) mRNA, regulating S-adenosylmethionine (SAM) homeostasis by modulating MAT2A pre-mRNA stability and splicing^17,18,22. Under high SAM conditions, the YTH domain-containing protein YTHDC1 binds to the m⁶A-modified hairpins, promoting MAT2A mRNA degradation and reducing SAM synthesis¹⁷. In contrast, under SAM-limited conditions, prolonged METTL16 binding to the 3′ UTR hairpin recruits splicing factors, enhancing pre-mRNA splicing and increasing SAM production^18,23. In invertebrates such as C. elegans, the METTL16 homolog, METT10, methylates the adenosine in the AG dinucleotide within the UACA*GAGA motif at the 3′-splice site (3′-ss) of SAM synthetase (sams) mRNA, affecting spliceosome assembly and splicing efficiency^24,25. High SAM levels sustain the m⁶A modification at this site, preventing U2AF35 binding and inhibiting splicing²⁶, and thereby suppressing SAM production. Conversely, low SAM levels reduce the m⁶A modification, allowing U2AF35 to bind, promoting splicing and enhancing SAM synthetase mRNA expression, and ultimately increasing SAM production.

METTL16 and its homologs also methylate a conserved adenosine in the ACA*GAGA motif of U6 snRNA (A43 in human U6 snRNA)^19,27,28. The ACA*GAG box in U6 snRNA base pairs with the 5′ splice site during pre-mRNA splicing^29,30,31. The m⁶A modification in U6 snRNA is required for efficient and accurate splicing of specific pre-mRNAs that possess the BBH motif (B: G, C, or U; H: A, C, or U) at positions −3 to −1 and an A at position 4 (A₊₄) of the 5′ splice site (5′-ss)^32,33,34. In spliceosomal B complex, the m⁶A in U6 snRNA and the 5’-ss A₊₄ form a trans Hoogsteen sugar edge interaction³⁵, thereby stabilizes the U6 snRNA-5’-ss interaction³⁴. The BBH motif at the 5′-ss in pre-mRNAs weakly interact with U5, and thus the absence of m⁶A in U6 snRNA further destabilizes the interaction between the 5′-ss and U6 snRNA, resulting in intron retention within these specific pre-mRNAs³².

METTL16 consists of an N-terminal methyltransferase domain (MTD) and a C-terminal kinase-associated 1 (KA-1) domain^36,37. The KA-1 domain was initially named the vertebrate conserved region (VCR) but later renamed^18,22, since the KA-1 domain is widely conserved among METTL16 and its homologs across vertebrates, invertebrates, and even fission yeasts^34,37,38, and the structure is homologous to the KA-1 found in MARK/PAR1 kinases³⁶ and U6-specific terminal uridylyltransferases (TUTase1, TENT1)^39,40.

The crystal structures of the MTD of human METTL16 (hsMETTL16), its complex with S-adenosyl-L-homocysteine (SAH), and its complex with a short hairpin from the 3’-UTR of MAT2A mRNA (MAT2A-hp) have been reported^41,42. The MTD of hsMETTL16 (hsMTD) catalyzed adenosine methylation in the MAT2A-hp as efficiently as full-length hsMETTL16⁴². Both the consensus RNA sequence and intrinsic RNA structural features—the loop and the transition region of MAT2A-hp— are critical determinants of the methylation efficiency by hsMTD⁴². The C. elegans METT10 MTD similarly recognizes specific structural features of the RNA surrounding the 3′-ss of sams pre-mRNA, sharing a substrate recognition mechanism with hsMTD³⁸. Regarding the C-terminal KA-1 domains, predictions based on structural studies have suggested that they are well conserved among eukaryotes^37,38. The KA-1 domains of hsMETTL16 and ceMETT10 facilitate m⁶A methylation of the conserved adenosine in U6 snRNA^37,38 by increasing the affinity of METTL16 (or ceMETT10) for U6 snRNA and enhancing the catalytic efficiency. A biochemical analysis also suggested that the KA-1 domain would interact with the internal stem-loop (ISL) region of U6 snRNA³⁷. However, the precise mechanisms of U6 snRNA recognition by METTL16 and the role of its KA-1 domain in enhancing methylation remain elusive.

Here, we present the structural and functional analysis of Schizosaccharomyces pombe METTL16, revealing the mechanism of U6 snRNA methylation by METTL16. The KA-1 domain serves as a scaffold for the multi-step methylation process—U6 snRNA ISL recognition, motif recognition in the MTD, and target adenosine positioning in the catalytic site—ensuring the U6 snRNA m⁶A modification, which leads to accurate and efficient pre-mRNA splicing.

Results

KA-1 of METTL16 facilitates U6 snRNA m⁶A modification

The C-terminal KA-1 domain of human METTL16 (hsMETTL16) reportedly facilitates the m⁶A43 modification of U6 snRNA in vitro³⁷, and KA-1 domains are conserved among METTL16 homologs in vertebrates and invertebrates³⁸. The KA-1 domain is also present in METTL16 homologs in fission yeast^34,38 (Fig. 1a and Supplementary Fig. 1a, b).

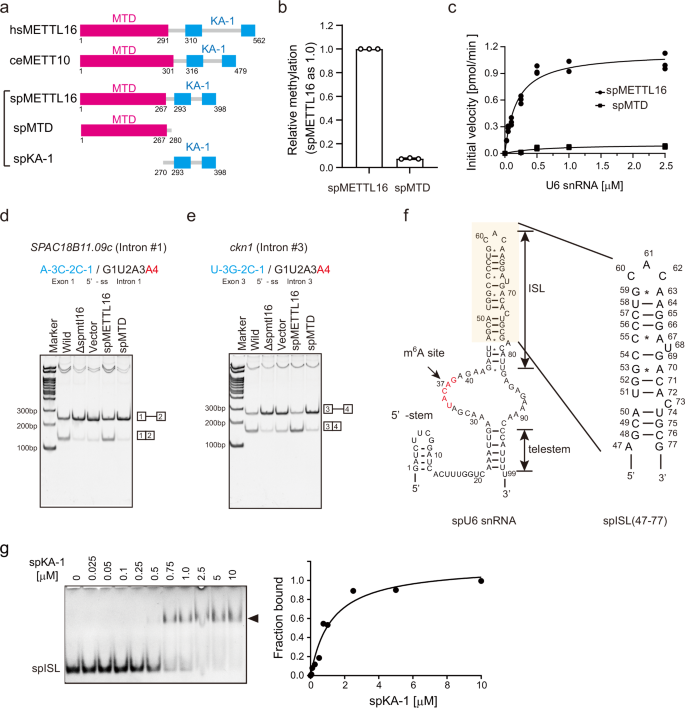

**Fig. 1: The KA-1 domain of METTL16 facilitates m⁶A modification of U6 snRNA and splicing.**

To investigate the role of the KA-1 domain in Schizosaccharomyces pombe METTL16 (spMETTL16) in the m⁶A modification at A37—corresponding to A43 in human U6 snRNA—of S. pombe U6 snRNA (spU6 snRNA), we examined the methylation activities of full-length spMETTL16 (amino acids 1–398) and its N-terminal methyltransferase domain (MTD; amino acids 1–280) (Fig. 1a), using an spU6 snRNA transcript as a substrate in vitro. The MTD exhibited ~10% of the methylation activity compared to full-length spMETTL16 (Fig. 1b). A steady-state kinetic analysis provided estimated K_m values of spU6 snRNA for full-length spMETTL16 and the MTD of 0.182 μM and 0.752 μM, respectively (Fig. 1c). The k_cat values were estimated to be 0.38 min⁻¹ for full-length spMETTL16 and 0.037 min⁻¹ for the MTD. Thus, the catalytic efficiency (k_cat/K_m) of the MTD was ~2% of that of full-length spMETTL16. These results indicate that the KA-1 domain of spMETTL16 facilitates A37 methylation in spU6 snRNA, similar to its role in hsMETTL16³⁷.

KA-1 of METTL16 facilitates pre-mRNA splicing

The m⁶A modification at A37 of spU6 snRNA is required for the efficient splicing of specific pre-mRNAs containing the BBH motif (B = G, C, or U; H = A, C, or U) at positions −3 to −1 and an A at position 4 of the 5′ splice site (5′-ss)^32,33. In S. pombe, the SPAC18B11.09c and ckn1 transcripts have the sequences A_-3C_-2C_-1/G₁U₂A₃A₄ at the 5′-ss between exon 1 and exon 2, and U_-3G_-2C_-1/G₁U₂A₃A₄ at the 5′-ss between exon 3 and exon 4, respectively³² (Fig. 1d, e). These 5′-ss in pre-mRNAs weakly interact with U5, and the absence of the m⁶A37 modification in spU6 snRNA destabilizes the interaction between the 5′-ss in the pre-mRNA and U6 snRNA, resulting in intron retention³².

To assess whether the KA-1 domain could facilitate A37 methylation and regulate pre-mRNA splicing in vivo, we transformed a mettl16 knockout strain (Δmtl16) with a plasmid expressing the MTD of spMETTL16 and analyzed the splicing of specific introns in pre-mRNAs (SPAC18B11.09c and ckn1) by RT-PCR (Fig. 1d, e). In the Δmtl16 strain, introns were retained compared to the wild-type strain, whereas ectopic expression of full-length spMETTL16 restored proper splicing and intron removal. In contrast, expression of the spMTD in the Δmtl16 strain failed to rescue splicing (Fig. 1d, e and Supplementary Fig. 2a, b).

Together with the in vitro analyses (Fig. 1b, c), these results suggest that the KA-1 domain of spMETTL16 facilitates the m⁶A modification of spU6 snRNA, thereby promoting the efficient splicing of specific pre-mRNAs in vivo.

Crystal structure of the KA-1 domain in complex with the ISL of U6 snRNA

The KA-1 domain of hsMETTL16 has been suggested to interact with the internal stem-loop (ISL) region of U6 snRNA, based on a previous biochemical study³⁷. Our cryo-EM analysis of the spMETTL16–spU6 snRNA complex, as described below, also indicated that the ISL region of spU6 snRNA specifically interacts with the KA-1 domain of spMETTL16. The gel-retardation assay showed that the KA-1 domain of spMETTL16 (spKA-1; residues 270–398) (Fig. 1a) binds to the isolated ISL RNA fragment of spU6 snRNA (spISL; nucleotides 47–77) (Fig. 1f) with a K_d of ~1.2 μM (Fig. 1g).

To elucidate the molecular basis of this interaction in detail, we crystallized spKA-1 in complex with spISL and determined its structure at 2.8 Å resolution (Fig. 2a, b; Supplementary Fig. 3 and Supplementary Table 1). spKA-1 consists of five antiparallel β-sheets (β8 – β12) and three α-helices (α8 – α10) (Fig. 2a). The conserved arginine-rich region (RRR) is in α9. As expected, its overall structure closely resembles that of the hsMETTL16 KA-1 domain (hsKA-1, PDB ID: 6M1U)³⁷, with an RMSD of 1.461 Å for 61 structurally equivalent Cα atoms (Fig. 2c). The arginine-rich region (RRR) in hsKA-1 was disordered in the reported structure³⁷ (Supplementary Fig. 1a).

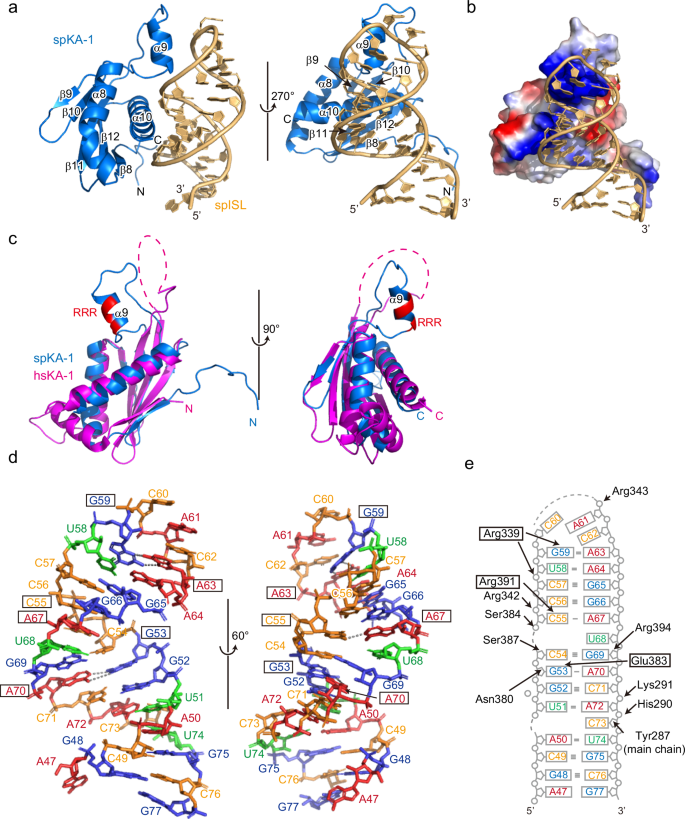

**Fig. 2: Crystal structure of spKA-1 in complex with spISL.**

In the complex, helices α9 and α10 interact with distinct regions of spISL: α9 engages with the major groove of the loop at the spISL tip, while α10 contacts the minor groove of the double-stranded region of spISL (Fig. 2a). These interactions are mediated by positively charged residues on α9 and α10, which stabilize the spKA-1–spISL interaction (Fig. 2b). The spISL RNA structure within the complex contains non-canonical base pairings, including G59-A63, C55-A67, and G53-A70 (Fig. 2d, e), with the spKA-1 domain specifically recognizing these conserved non-canonical base pairs (Supplementary Fig. 1c), as described below.

The arginine-rich region (RRR: R339, R342, and R343) on α9 interacts with the tip of the ISL (Figs. 2a, 3a and Supplementary Fig. 1a). The nucleobases of C60-A61-C62 in the loop at the tip of spISL stack continuously, and the C62 base stacks on the A63 base (Fig. 3a). The A63 base forms a non-canonical base pair with G59, where the 2-NH₂ and the N3 atoms of G59 form hydrogen bonds with the N7 atom and the 6-NH₂ of A63, respectively. The Nε and Nη1 atoms of Arg339 form hydrogen bonds with the O6 and N7 atoms of G59, respectively (Fig. 3a). The Nη2 atom of Arg339 forms a hydrogen bond with the phosphate backbone of U58. Arg343 forms a hydrogen bond with the phosphate of A61, and the side chain of Arg343 form cation-π interactions with the G59-Arg339 hydrogen bonds. Arg342 forms a hydrogen bond with the phosphate backbone of C56. Thus, the RRR extensively and specifically interacts with the tip of the ISL of spU6 snRNA. The interactions between the RRR and the tip of the ISL in the present structure were quite similar to the arginine forks recognition of RNA as observed in the crystal structures of HIV Tat in complex with TAR RNAs⁴³ and Tat or HEXIM in complex with the apical stem-loop of 7SK RNA⁴⁴.

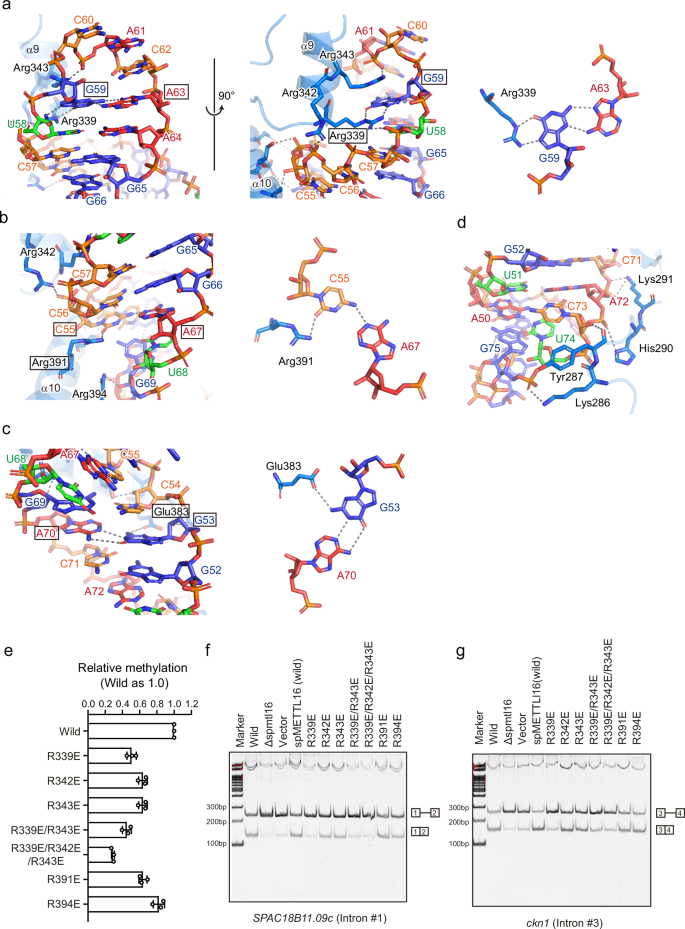

**Fig. 3: Interactions between the spKA-1 domain and spISL.**

α10 contacts the minor groove of the double helix containing the non-canonical C55-A67 and G53-A70 base pairs (Figs. 2a and 3b, c). The 4-NH₂ of C55 forms a hydrogen bond with the N1 atom of A67, and the Nη1 atom of Arg391 forms a hydrogen bond with the O2 of C55 (Fig. 3b). The N1 atom and the O6 of G53 form hydrogen bonds with the N1 atom and the 6-NH₂ of A70, respectively, and Glu383 forms a hydrogen bond with the 2-NH₂ of G53 (Fig. 3c). The phosphate backbone and ribose 2′-OH form hydrogen bonds with several residues—Asn380, Ser384, Ser387, and Arg394—on α10 (Fig. 2e). Lys286, Lys291, and His290 in the N-terminal part of spKA-1 form hydrogen bonds with the phosphate backbone of A72, C73 and G75, respectively, and the main-chain carbonyl of Tyr287 forms a hydrogen bond with the ribose 2′-OH of C73 (Fig. 3d).

The R339E, R342E, and R343E mutations in the RRR of spMETTL16 reduced the methylation activity of spMETTL16, and the double mutation (R339E/R343E) and triple mutation (R339E/R342E/R343E) further decreased the activity in vitro (Fig. 3e). Although the R394E mutation slightly reduced the activity under our conditions, the R391E mutation reduced it to the same extent as a single mutation in the RRR (Fig. 3e). These results suggest that the specific interactions facilitating the recognition of the ISL of spU6 snRNA are important for A37 methylation by spMETTL16.

Consistently, the Δmtl16 strain expressing spMETTL16 with the R339E, R339E/R343E, or R339E/R342E/R343E mutations failed to rescue the splicing of the SPAC18B11.09c and ckn1 pre-mRNAs, compared to the strain expressing wild-type spMETTL16 (Fig. 3f, g). Expression of spMETTL16 with the R391E or R394E mutations also failed to rescue the splicing of these pre-mRNAs, compared to the strain expressing wild-type spMETTL16, although their effects were less pronounced than those of the R339E, R339E/R343E, or R339E/R342E/R343E mutations (Supplementary Fig. 2c, d).

These structural features of the interactions between spISL and spKA-1 (Fig. 3a–c), along with the biochemical (Fig. 3e) and functional (Fig. 3f, g) analyses, suggest that spKA-1 specifically recognizes the conserved sequence and structure of the ISL of spU6 snRNA (Supplementary Fig. 1c) and is important for U6 snRNA m⁶A methylation and pre-mRNA splicing.

Cryo-EM structure of the METTL16-U6 snRNA complex

To further elucidate the mechanism of spU6 snRNA methylation by spMETTL16, we determined the cryo-EM structure of spMETTL16 in complex with spU6 snRNA lacking the 5′-stem (spU6 snRNA_Δ17), which can be methylated as efficiently as full-length spU6 snRNA, at 3.4 Å resolution (Fig. 4a, Supplementary Fig. 4 and Supplementary Table 2). The spMETTL16–spU6 snRNA_Δ17 complex was reconstituted by mixing purified spMETTL16 with in vitro-transcribed spU6 snRNA_Δ17, followed by size-exclusion chromatography for purification.

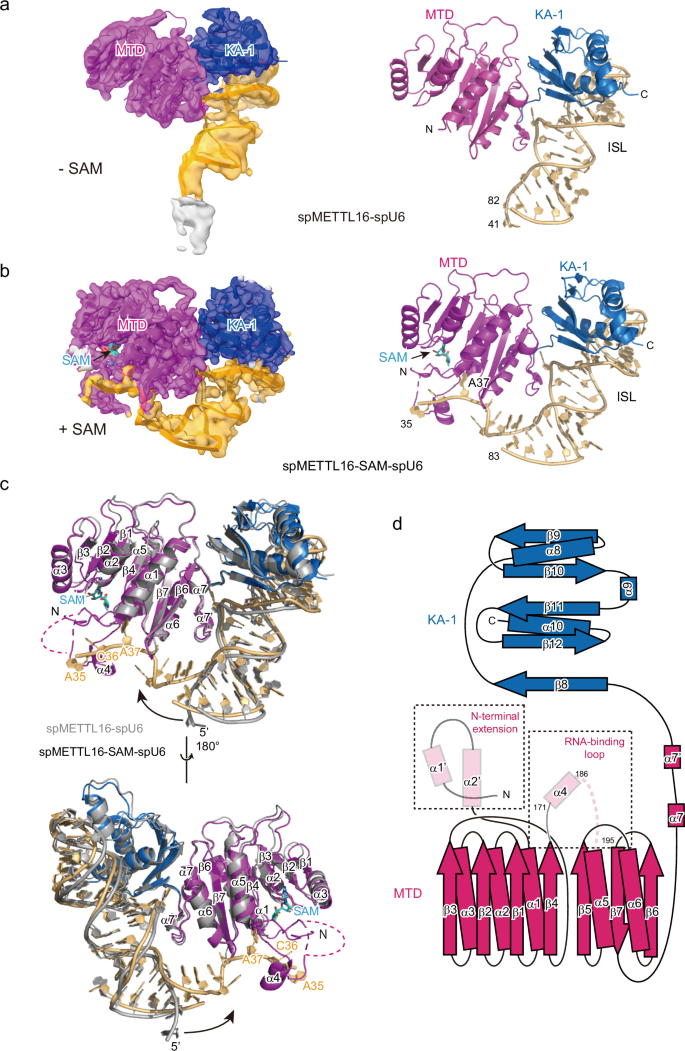

**Fig. 4: Cryo-EM structures of spMETTL16 in complex with spU6 snRNA.**

The cryo-EM density map of the spMETTL16–spU6 snRNA_Δ17 complex without SAM (hereafter referred to as spMETTL16–spU6) suggests that spU6 snRNA adopts an extended conformation. However, only the ISL region (nucleotides 41–82) could be modeled, and the entire spU6 snRNA structure could not be fully resolved (Fig. 4a), due to the insufficient quality of the cryo-EM map. In the cryo-EM structure of spMETTL16–spU6, the KA-1 domain of spMETTL16 interacts with the ISL region of spU6 snRNA, resembling the interaction of spKA-1 with spISL in the crystal structure (Fig. 2a and Supplementary Fig. 5). The helices α9 and α10 interact with the major groove of the loop at the spISL tip and the minor groove of the double-stranded region of spISL, respectively. However, the remaining portion of spU6 snRNA does not interact with the protein. Notably, the ACA*GAGA motif containing the target A37– located between the ISL and the telestem—is far from the catalytic site of the MTD domain (Fig. 4a). The N-terminal extension (residues 1–61) and the segment between β4 and α5 (residues 172–200) within the MTD (Fig. 4d)—which are both potentially involved in RNA binding^22,42—were disordered and could not be modeled due to the lack of a cryo-EM map. Thus, this structure likely represents an initial stage of substrate U6 snRNA recognition by spMETTL16.

Cryo-EM structure of the METTL16-SAM-U6 snRNA complex

We also determined the cryo-EM structure of spMETTL16 in complex with spU6 snRNA in the presence of SAM (hereafter referred to as spMETTL16–SAM–spU6), at 3.0 Å resolution. SAM was added to the spMETTL16–spU6 snRNA complex.

In the cryo-EM structure of the spMETTL16–SAM–spU6 complex (Fig. 4b, Supplementary Figs. 6 and 7 and Supplementary Table 2), the mode of U6 snRNA binding to spMETTL16 differs from that observed in the spMETTL16–spU6 structure (Fig. 4b, c). SAM binds to the catalytic site in the MTD, and the ISL of spU6 snRNA retains its interaction with the KA-1 domain, as observed in the SAM-free structure. However, the ACAGAGA motif in spU6 snRNA shifts toward the MTD, and the methylation site, A37, is proximal to SAM in the MTD (Fig. 4b, c), although the telestem region (nucleotides 1–34 and 84–99) of spU6 snRNA could not be modeled due to the lack of a cryo-EM map. The α4 helix (between β4 and α5) within the MTD, which was not visible in the spMETTL16–spU6 structure, is partially resolved in the spMETTL16–SAM–spU6 structure (Fig. 4b, c). However, the loop between α4 and α5 (residues 187–194), as well as the N-terminal extension (residues 1–55), remains unresolved (Fig. 4c, d).

SAM is located within the catalytic site of the MTD, and its position is identical to that of SAH observed in human METTL16 (hsMETTL16) in complex with SAH (Fig. 5a, b, PDB ID: 6B92)⁴¹. The adenine base of SAM stacks with Ile120 and Phe206, while Lys148 in the K-loop⁴², which regulates SAM binding to the catalytic pocket in hsMETTL16, is positioned away from the SAM binding site. A37 in the ACA*GAGA motif of spU6 snRNA resides near the catalytic pocket of the MTD (Fig. 5b, c). However, the distance between the 6-NH₂ of A37 in spU6 snRNA and the methyl group of SAM is ~6 Å (Fig. 5b), which is longer than typical distances observed for productive methyl transfer. The methylation of A37 proceeds relatively slowly (k_cat = 0.38 min⁻¹, Fig. 1c), and the cryo-EM map at the position of A37 shows no apparent methylation of 6-NH₂ group of the adenine base (Supplementary Fig. 7c). Additionally, we determined the cryo-EM structure of the spMETTL16 in complex with spU6_Δtelestem and SAM at ~2.9 Å (Supplementary Fig. 8a, b). The sample was applied to the grid immediately after mixing spMETTL16, spU6_Δtelestem, and SAM on ice. Structural analysis revealed that RNA recognition in this complex is consistent with that observed in the spMETTL16–SAM–spU6 complex (Supplementary Fig. 8c). The distance between the 6-NH₂, of A37 in U6 snRNA and the methyl group of SAM remains ~6 Å, and the cryo-EM map at A37 shows no apparent methylation at the N6 position (Supplementary Fig. 8b). These observations suggest that, in the present structure, the 6-NH₂ of A37 is not positioned for nucleophilic attack on the methyl group of SAM⁴⁵, and that the present structure represents a pre-productive state of the reaction, as described below.

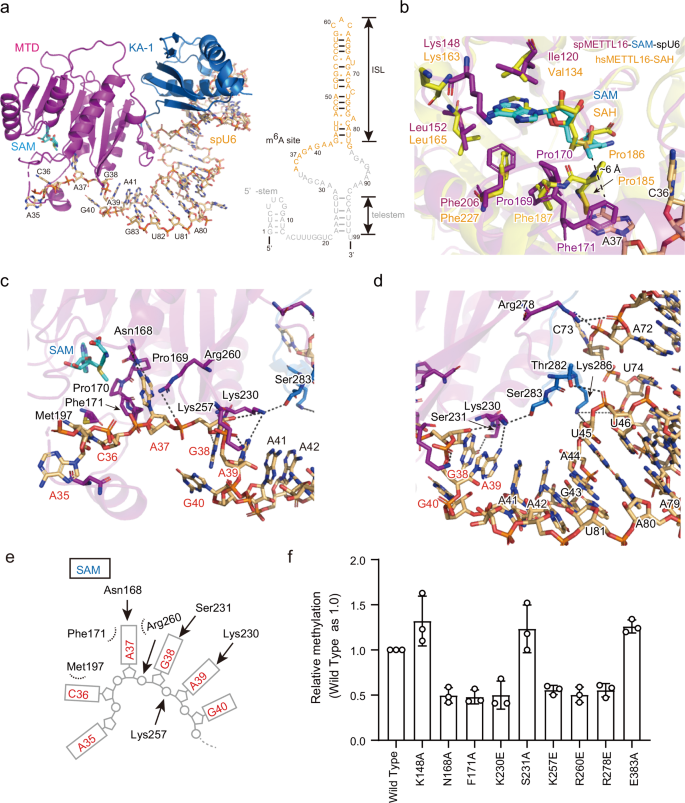

**Fig. 5: Interactions between spMETTL16 and spU6 snRNA in the spMETTL16–SAM–spU6 complex.**

The C36 base stacks with the side chain of Met197. The N1 atom and the 6-NH₂ group of A37 form hydrogen bonds with the Nδ1 atom and the Oδ1 atom of Asn168, respectively, in the NPPF motif (residues 168–171). The A37 base is sandwiched between Phe171 and the side chain of Arg260, which interacts with the phosphate of G38. The O6 of G38 forms a hydrogen bond with Ser231. The 6-NH₂ of A39 interacts with Lys230, which in turn forms a hydrogen bond with Ser283 (Fig. 5c–e). Lys257 forms a hydrogen bond with the phosphate of A39. These structural features suggest that part of the ACA*GAGA motif in spU6 snRNA is recognized by the MTD of spMETTL16 (Fig. 5e), although the 6-NH₂ of A37 remains distant from SAM. Arg278 forms hydrogen bonds with the phosphates of A72 and C73, and Lys286 interacts with the phosphates of U45 and G75. Thr282 interacts with the phosphate of U46 (Fig. 5d). Consistent with the RNA recognition by the MTD in the present structure, the N168A, F171A, K230E, K257E, R260E, and R278E mutations of spMETTL16 all reduced the methylation activity of spMETTL16 in vitro (Fig. 5f).

Altogether, the present spMETTL16–SAM–spU6 structure represents a stage in which the core of the ACA*GAGA motif of spU6 snRNA is specifically recognized by the MTD, but spMETTL16 is not yet ready for catalysis. spU6 snRNA has not adopted a productive conformation for efficient methylation by spMETTL16, and thus, the present structure would be the pre-productive stage, as described below.

Structural elements in spU6 snRNA for efficient methylation by spMETTL16

The crystal structure of the methyltransferase domain (MTD) of hsMETTL16 in complex with the short hairpin RNA of the 3’-UTR of MAT2A mRNA (MAT2A-hp) has been reported⁴². In the structure, MAT2A-hp adopts a distinct structural conformation, including a loop (containing the UACAG recognition motif and linker), a stem and a transition region between the loop and the stem, all of which are essential for efficient catalysis by the MTD⁴² (Fig. 6a). It has been suggested that the human U6 snRNA could also adopt a similar structural conformation, with the UACAG recognition motif positioned in the same context as in the MAT2A-hp structure³⁷. Likewise, spU6 snRNA is predicted to adopt the same structure as MAT2A-hp and human U6 snRNA (Fig. 6a).

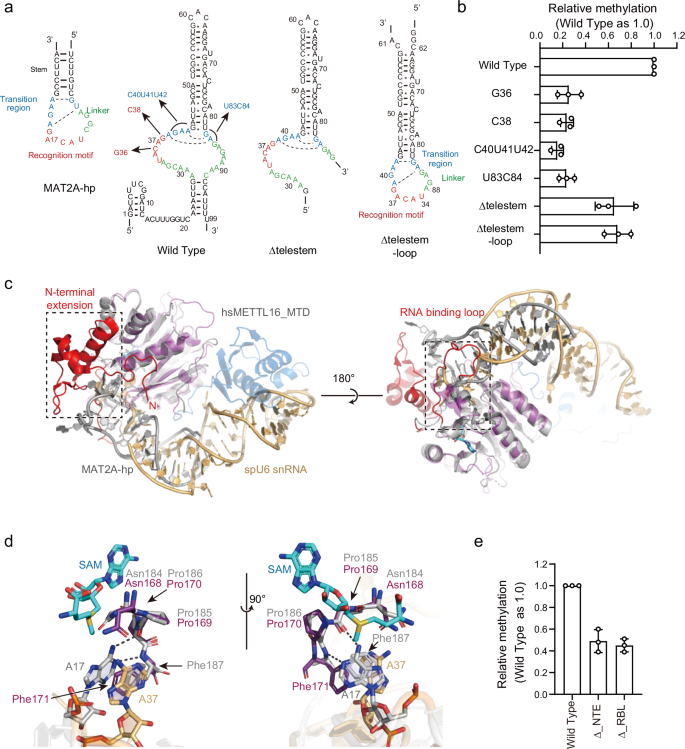

**Fig. 6: spU6 snRNA methylation requires productive conformation of spU6 snRNA.**

To verify the requirement of these structural elements in spU6 snRNA for methylation by spMETTL16, as observed with hsMETTL16, we tested the methylation of mutant spU6 snRNAs by spMETTL16 in vitro (Fig. 6b). Mutations in the UACAG recognition motif in the loop, such as C36G and G38C, reduce its methylation by spMETTL16 in vitro (Fig. 6a, b). Mutations in the putative transition region of spU6 snRNA – G40A41A42 to C40U41U42 or G83A84 to C83U84 – also reduce its methylation by spMETTL16 in vitro (Fig. 6a, b). These results indicate that the structural elements surrounding the methylation site in spU6 snRNA are necessary for efficient A37 methylation by spMETTL16, similar to hsMETTL16 and ceMETT10^37,38,42. Furthermore, spU6 snRNA lacking the 5′-stem and telestem, spanning nucleotides 26 to 84 (Δtelestem), can be methylated by spMETTL16, although with lower efficiency than that of full-length spU6 snRNA, suggesting that Δtelestem can adopt the same structural conformation as MAT2A-hp. Furthermore, an hsMAT2A-hp-like U6 snRNA variant (Δtelestem_Loop) is also methylated by spMETTL16 to the same extent as Δtelestem (Fig. 6a, b). These results indicate that spU6 snRNA must adopt a productive conformation for efficient methylation by spMETTL16, as required for MAT2A-hp methylation by hsMETTL16.

Transition of spU6 sRNA to the productive form for efficient methylation by spMETTL16

Superimposition of the structure of the MTD of hsMETTL16 in complex with MAT2A-hp (hsMTD–MAT2A-hp, PDB ID: 6DU4)⁴² onto that of spMETTL16–SAM–spU6 reveals that, while the N-terminal extension and the RNA-binding loop in the MTD of hsMETTL16 interact with MAT2A-hp from various angles, the corresponding regions of spMETTL16 are not visible in the current spMETTL16–SAM–spU6 structure (Figs. 4d and 6c). This suggests that the N-terminal extension and the RNA-binding loop of spMETTL16 would facilitate the transition of spU6 snRNA into a productive structure for methylation by spMETTL16.

Superimposition of the catalytic core of hsMTD–MAT2A-hp onto that of spMETTL16–SAM–spU6 (Fig. 6c, d) reveals that A17 in MAT2A-hp is positioned closer to SAM than A37 in spMETTL16–SAM–spU6 (Fig. 6d). In the hsMTD–MAT2A-hp structure, the 6-NH₂ and N1 atoms of A17 of MAT2A-hp form hydrogen bonds with the main-chain carbonyl and amide of Pro185 and Pro186, respectively⁴². These observations suggest that the reported hsMTD–MAT2A-hp structure represents the productive stage, and the current structure of spMETTL16–SAM–spU6 (Fig. 4b) likely represents a pre-productive stage, in which the ACA*GAGA motif in U6 snRNA is recognized by spMETTL16 (Fig. 5c), but the spU6 snRNA has not yet transitioned into a catalytically active, productive conformation for methylation by spMETTL16.

Subsequently, this pre-productive conformation undergoes further structural adjustment through interactions involving the N-terminal extension, the RNA-binding loop, and U6 snRNA. Consistently, the deletion of the N-terminal extension and the RNA-binding loop in spMETTL16 reduced its methylation activity (Fig. 6e). The establishment of the interactions between A39G40A41G42 and G83A84, forming the transition base-pair, along with the base pairings in the telestem, enables spU6 snRNA to adopt the productive conformation. In this state, the ACA*GAGA motif protrudes deeper into the catalytic site, positioning the A37 base closer to SAM and thereby facilitating efficient m⁶A37 modification.

Discussion

The m⁶A methylation of a conserved adenosine in U6 snRNA, catalyzed by METTL16 or its homologs, is essential for the efficient splicing of specific pre-mRNAs^32,33,34. In this study, we elucidated the molecular mechanisms governing the interactions between S. pombe METTL16 (spMETTL16) and U6 snRNA, as well as the m⁶A methylation. The conserved C-terminal KA-1 domain, present across METTL16 homologs in vertebrates, invertebrates, and fission yeast, is a critical element that enhances methylation efficiency and ensures proper pre-mRNA splicing (Fig. 1). The KA-1 domain, particularly its arginine-rich region (RRR), interacts specifically with the internal stem-loop (ISL) of U6 snRNA, recruiting the substrate U6 snRNA to the enzyme (Figs. 2 and 3), and serves as an axis in the subsequent methylation process.

Cryo-EM structures of the spMETTL16–spU6 snRNA complex, with and without SAM, reveal the dynamic processes of substrate recognition, methylation site recognition, and the methylation reaction (Figs. 4, 5, and 7). Previous biochemical studies showed that hsMETTL16 binds to U6 snRNA with much greater affinity than SAM^37,46. As for the spMETTL16, the K_m values for U6 snRNA and SAM are 0.182 μM and 482 μM, respectively, differing by three orders of magnitude (Fig. 1c and Supplementary Fig. 7d). This substantial difference indicates that spMETTL16 has a significantly higher affinity for U6 snRNA compared to SAM.

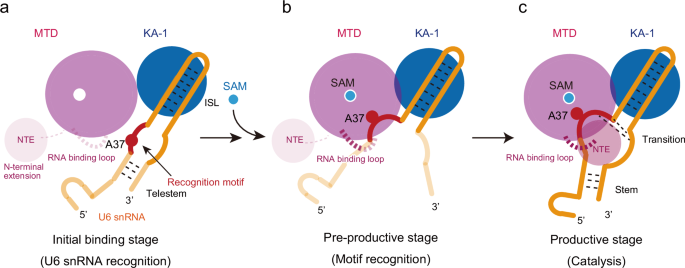

**Fig. 7: Mechanism of U6 snRNA methylation by METTL16.**

Thus, the m⁶A modification of U6 snRNA occurs by the ordered-sequential mechanism⁴⁶. First, U6 RNA is recruited to METTL16 through the specific interactions between KA-1 and the ISL. U6 snRNA adopts an extended structure, and the ACA*GAGA motif, containing the methylation site A37, is apart from the catalytic site in the methyltransferase domain (MTD), representing the initial U6 snRNA binding stage (Fig. 7a). Next, the SAM binds to the catalytic site in the MTD of the METTL16–U6 snRNA complex. The catalytic pocket and part of the RNA-binding loop in the MTD are resolved, allowing the ACA*GAGA motif in U6 snRNA to shift closer to the catalytic pocket of the MTD. At this stage, the motif is specifically recognized by the MTD, although the target A37 remains ~6 Å from SAM— indicating a pre-productive state insufficient for methyl transfer (Figs. 4, 5, and 7b). A comparison with the hsMETTL16–MAT2A-hp structure, in which MAT2A-hp RNA adopts a productive conformation for m⁶A modification⁴², highlights the need for further adjustment of the U6 snRNA conformation into a productive state for A37 methylation by the MTD (Figs. 6 and 7c). Finally, additional intramolecular interactions—the formation of the transition region and the stem in the telestem of U6 snRNA—through the interactions of U6 snRNA with the N-terminal extension and RNA-binding loops in the MTD, reorient the ACA*GAGA motif deeper into the catalytic site, aligning the target A37 with SAM for efficient methylation (Figs. 6 and 7c).

The KA-1 domain not only anchors U6 snRNA to METTL16 but also serves as a hub that orchestrates the transition of the METTL16-U6 snRNA complex into a catalytically competent state. This multi-step process, which includes initial ISL recognition, motif recognition, and final positioning of the methylation site A37 within the catalytic site, reflects the coordinated roles of the METTL16 domains (Fig. 7). The productive conformation, consisting of the transition region and the stem in U6 snRNA (Fig. 7c), might be transient and inherently unstable. Due to its fleeting nature, we may have been unable to capture it in our cryo-EM analysis.

In vertebrates, METTL16 regulates SAM homeostasis by controlling MAT2A mRNA splicing and stability through the m⁶A modification of the 3’-UTR hairpins of MAT2A mRNA^17,18. The effect of KA-1 on the methylation of MAT2A hairpins was observed in vitro, although its impact is much less significant than its role in the methylation of U6 snRNA^37,42. MAT2A-hp has a stem-loop structure, and compared to U6 snRNA, its loop can more readily adopt the productive conformation for efficient methylation by METTL16 (Fig. 6a). Structural adjustment after ACA*GAGA motif recognition would proceed smoothly, with the recognition of MAT2A-hp by METTL16 primarily mediated by the MTD. Therefore, as described below, KA-1 would have been attached to the MTD for the efficient methylation of structured U6 snRNA.

The KA-1 domain reportedly promotes splicing when tethered to a reporter¹⁸. The splicing of MAT2A mRNA is collaboratively regulated by METTL16 and the cleavage factor Im (CFIm) complex²³. The KA-1 domain may alter the RNA secondary structure surrounding MAT2A hairpins, particularly by binding to the double-stranded region, thereby facilitating the recruitment of CFIm complexes and promoting MAT2A mRNA splicing. The mechanism and involvement of the KA-1 domain in MAT2A mRNA splicing await further investigation.

The KA-1 domain structure is also found in the C-terminal region of the U6 snRNA-specific terminal uridylyltransferase (TUTase, TUT1)^47,48,49, although the amino acid sequence homology between the KA-1 domains of METTL16 and TUT1 is low^37,39. The KA-1 domain of human TUT1 (hsTUT1) increases hsTUT1’s affinity for U6 snRNA and facilitates efficient oligo-uridylylation of U6 snRNA^39,50. A recent structural analysis of hsTUT1 in complex with U6 snRNA showed that the KA-1 domain interacts with the tip of the ISL⁵¹, where two helices engage distinct regions of the ISL: one containing RRR interacts with the major groove of the loop at the ISL tip, while the other contacts the minor groove of the double-stranded region of the ISL, similar to the interaction of spKA-1 with spISL (Fig. 2a and Supplementary Fig. 9). Notably, these two distinct enzymes, which exert different, yet functionally essential activities on U6 snRNA, share the same structural domains for their activities. Therefore, the KA-1 domain may have become associated with the catalytic domains of these enzymes and evolved to recognize U6 snRNA, particularly the ISL, for the efficient maturation of functional U6 snRNA.

The KA-1 domain is widely conserved in METTL16 and its homologs across vertebrates, invertebrates, and even fission yeast. As revealed in this study, the KA-1 domain of spMETTL16 functions as a key regulatory domain for efficient U6 snRNA m⁶A modification and precise pre-mRNA splicing. Therefore, this mechanism is likely to be functionally and evolutionarily conserved among eukaryotes, including humans.

Methods

Plasmid construction

The plasmid encoding the full-length S. pombe Mtl16 gene without untranslated regions (pET28a-SpMettl16) was kindly provided by Dr. Suzuki³². Plasmids encoding spMETTL16 variants were prepared using the pET28a-SpMettl16 plasmid as the template. The DNA fragment encoding the N-terminal methyltransferase domain (MTD: residues 1–281) of SpMettl16 was PCR-amplified and cloned between the NdeI and XhoI sites of pET28a, yielding pET28a_SpMettl16-MTD. The DNA fragment encoding the C-terminal KA-1 domain (residues 270–398) was PCR-amplified and cloned into the pET15SUMO vector⁵² between the NdeI and XhoI sites, yielding pET15SUMO_SpMettl16-KA-1. Mutations were introduced using a KOD-Plus Mutagenesis Kit (Toyobo, Japan), according to the manufacturer’s instructions. The oligonucleotide sequences used for molecular cloning and mutagenesis are listed in Supplementary Table 3.

Expression and purification of recombinant proteins

For the overexpression of spMETTL16, its variants, and spMETTL16-MTD (spMTD), as well as that of spMETTL16-KA-1 (spKA-1) and its variants, E. coli Rosetta2(DE3) cells (Novagen, Japan) were transformed with the respective overexpression plasmids. Transformed cells were cultured in LB medium supplemented with 50 μg/mL kanamycin and 40 μg/mL chloramphenicol for the expression of spMETTL16, its variants, and spMTD, or with 50 μg/mL ampicillin and 40 μg/mL chloramphenicol for spKA-1 and its variants. Cultures were grown at 37 °C until the OD₆₀₀ reached 0.8, and protein expression was induced by adding isopropyl β-D-thiogalactopyranoside (IPTG) to a final concentration of 0.1 mM, followed by an incubation at 20 °C for 20 h. Cells were harvested and lysed in buffer containing 20 mM Tris-HCl, pH 7.0, 500 mM NaCl, 5 mM β-mercaptoethanol, 20 mM imidazole, and 5% (v/v) glycerol. Lysates were clarified by centrifugation at 30,000 × g for 30 min at 4 °C.

SpMETTL16, its variants, and spMTD were first purified by Ni-NTA agarose (Qiagen, Japan) chromatography, with proteins eluted in buffer containing 20 mM Tris-HCl, pH 7.0, 500 mM NaCl, 5 mM β-mercaptoethanol, 300 mM imidazole, and 5% (v/v) glycerol. The eluted proteins were further purified on a HiTrap Heparin column (GE Healthcare, Japan) and separated by size-exclusion chromatography using a HiLoad 16/60 Superdex 200 column (GE Healthcare, Japan), equilibrated with buffer containing 20 mM Tris-HCl, pH 7.0, 200 mM NaCl, and 10 mM β-mercaptoethanol. His6-SUMO-tagged spKA-1 proteins were purified using Ni-NTA agarose chromatography as described above. The His6-SUMO tags were cleaved by ULP1 (ubiquitin-like-specific protease 1) during dialysis against buffer, containing 20 mM Tris-HCl, pH 7.0, 500 mM NaCl, 5 mM β-mercaptoethanol, and 5% (v/v) glycerol, at 4 °C overnight. Following cleavage, the proteins were passed through a Ni-NTA agarose column to remove the uncleaved His6-SUMO-tagged proteins and ULP1. The cleaved proteins were further purified as described above. The final purified proteins were concentrated and stored at −80 °C.

Preparation of synthetic U6 snRNA and its variants

Synthetic S. pombe U6 snRNA internal stem-loop (spISL) RNA was purchased from Fasmac, Japan. The U6 snRNA and its variants were synthesized by T7 RNA polymerase, using plasmids encoding the respective DNA sequences downstream of the T7 promoter as templates. The synthesized RNAs were purified by 10% (w/v) polyacrylamide gel electrophoresis under denaturing conditions. The nucleotide sequences of the templates used for in vitro transcription are listed in Supplementary Table 4, and the nucleotide sequences of the RNAs used in this study are listed in Supplementary Table 5.

In vitro methylation assay

In vitro methylation assays were conducted using the MTase-Glo system (Promega, Japan), as previously described^37,38 with slight modifications. The reaction mixture (15 μL), containing 0.2 μM spMETTL16 (or its variants or spMTD), 50 mM HEPES-KOH, pH 8.0, 120 mM NaCl, 2 mM MgCl₂, 1 mM dithiothreitol (DTT), 1 mM S-(5′-adenosyl)-L-methionine chloride (SAM, Cayman Chemical, USA), 1× MTase-Glo Reagent, and a series of RNA samples at different concentrations (0.05–10.0 μM), was incubated at 37 °C for 4 min. Subsequently, 15 μL of MTase-Glo Detection Solution was added, and the reaction was incubated at room temperature for 30 min. Luminescence was quantified using a GloMax-Multi Detection System (Promega, Japan). The luminescence value of the mixture without the RNA substrate was used as the background and subtracted. One picomole of SAH was estimated to be equivalent to 190,000 LU (light units), according to the standard quantification curve.

Yeast strains and cultivation

The ED668 (h+ ade6-M216 ura4-D18 leu1−32) (wild-type) strain and SPAC27D7.08cΔ (Δmtl16), mettl16 knockout strain³² were grown at 30 °C in YE5S medium [0.5% yeast extract and 3% glucose, supplemented with adenine, uracil, lysine, histidine, and leucine (225 mg/mL each)] or EMM medium [EMM without dextrose (MP Biochemicals) with 2% glucose, supplemented with adenine and leucine (225 mg/mL each)]. Yeast cells were cultivated at 30 °C to mid-exponential phase for total RNA extraction.

Total RNA preparation

Total RNA from yeast cells was prepared by hot phenol extraction⁵³. Cell pellets were resuspended in TES solution (10 mM Tris-HCl, pH 7.5, 10 mM EDTA, and 0.5% SDS), mixed with an equal volume of acidic phenol with brief vortexing, incubated at 65 °C for 30 min, and centrifuged at 14,000 × g for 5 min at 4 °C. The aqueous phase was collected, mixed with an equal volume of chloroform, and centrifuged at 14,000 × g for 5 min at 4 °C. The supernatant was subjected to ethanol precipitation to obtain the RNA pellet. The RNA pellet was dissolved in RNase-free water and stored at −80 °C.

Semi-quantification of intron-retention of specific pre-mRNAs

The plasmid encoding the full-length S. pombe mtl16 gene with untranslated regions (pREP42-spMETTL16-FL) and the empty control vector (pREP42-vector) were kindly provided by Dr. Suzuki³². Plasmids expressing mutant spMETTL16 were generated by site-directed mutagenesis. The S. pombe Δmtl16 strain was transformed with these plasmids using a Frozen-EZ Yeast Transformation II Kit (Zymo Research, Funakoshi, Japan) and grown on YE5S or EMM medium plates. After an incubation for 3–4 days, single colonies were selected and cultured in EMM medium without thiamine until the cell density reached an OD₆₀₀ of 1.0. Cells were harvested, and total RNA was extracted as described above. One microgram of total RNA was treated with Recombinant RNase-free DNase I (Takara, Japan) and subjected to reverse transcription using random hexamer and oligo(dT) primers with a PrimeScript™ RT Reagent Kit (Takara, Japan). The resulting cDNA was amplified by PCR with specific primers (SPAC18B11.09c and ckn1 pre-mRNA)³² under the following conditions: 30 cycles of 98 °C for 10 s, 53 °C for 10 s, and 72 °C for 20 s. PCR products were resolved on a 10% (w/v) non-denaturing polyacrylamide gel, stained with ethidium bromide, and visualized and quantified using a Gel Doc EZ Imager (Bio-Rad, Japan).

Crystallization and structural determination

The purified spKA-1 was mixed with spISL RNA at a 1:1 molar ratio (final concentration of 50 μM each), and the solution was incubated on ice for 10 min. Crystals were obtained using the sitting-drop vapor diffusion method at 20 °C. A 0.2 μL sample of the spKA-1–spISL complex was mixed with an equal volume of reservoir solution, containing 0.36 M sodium acetate, 0.09 M sodium cacodylate, pH 7.0, 0.01 M Tris-HCl, pH 8.5, and 23% (v/v) PEG 8000. The crystals were cryoprotected with reservoir solution supplemented with 25% (v/v) ethylene glycol and flash-cooled in liquid nitrogen. X-ray diffraction data were collected at Beamline 17 A of the Photon Factory (KEK, Japan) and processed using XDS⁵⁴. The initial phase of the spKA-1:spISL complex structure was determined by molecular replacement with Phaser⁵⁵, using the AlphaFold-predicted structure of the spKA-1 domain (AF-O42662-F1)⁵⁶ and the spISL RNA model predicted with SimRNA⁵⁷ as search models. The structure was manually modeled using Coot⁵⁸ and further refined with Phenix.refine⁵⁹. The final model was assessed with MolProbity⁶⁰. The details of the crystallographic data collection and refinement statistics are provided in Supplementary Table 1.

Cryo-EM grid preparation

For the spMETTL16–SAM–spU6 snRNA complex, purified spMETTL16 (0.6 mg/mL) was mixed with the U6 snRNA transcript at a 1:1 molar ratio in buffer C (20 mM Tris-HCl, pH 7.0, 200 mM NaCl, 10 mM β-mercaptoethanol, and 2 mM SAM) and incubated at 37 °C for 10 min. Tween-20 [0.005% (v/v)] was then added, and the mixture was placed on ice prior to grid preparation. A 3 μL aliquot of the sample was applied to a glow-discharged UltrAuFoil R1.2/1.3 Au 300 grid (Quantifoil) at ~4 °C. The grids were blotted for 4 s at 100% humidity and 4 °C, and then flash-frozen in liquid ethane using a Vitrobot Mark IV (Thermo Fisher Scientific). The spMETTL16–SAM–spU6_Δtelestem complex was also prepared as described above, except that the sample was applied to the grid immediately after mixing spMETTL16, SAM, and spU6_Δtelestem on ice. The spMETTL16–spU6 complex was prepared as described above, except that the sample was applied to a Quantifoil R1.2/1.3 mesh Cu300 holey carbon grid (Quantifoil), with a sample concentration of 0.4 mg/mL.

Cryo-EM data collection and processing

All datasets were processed using a similar protocol with minor variations. Data collection parameters are summarized in Supplementary Table 2, and data processing flowcharts are shown in Supplementary Figs. 4 and 6. The processing of the spMETTL16–SAM–spU6 snRNA complex is described as follows. Cryo-EM movies were collected using a Krios G4 transmission electron microscope (Thermo Fisher Scientific) equipped with a K3 direct electron detector (Gatan, Inc.) operated at 300 kV. A total of 8497 micrographs were recorded at a pixel size of 0.83 Å, with a total electron dose of 50 e⁻/Å² Downstream processing was performed in cryoSPARC (ver. 4.6.0)⁶¹. Movies were motion-corrected using Patch Motion Correction, and contrast transfer function (CTF) estimation was performed with Patch CTF. Micrographs were denoised using Micrograph Denoiser, and particles were automatically picked with Blob Picker. Two rounds of two-dimensional (2D) classification were conducted, and the selected high-quality classes were used as templates for template-based particle picking. After three rounds of heterogeneous refinement and one additional 2D classification step to remove junk particles, 486,386 particles were selected and extracted with a 324-pixel box. The final reconstruction from 425,927 particles was obtained using non-uniform refinement, yielding an EM map at an average resolution of 2.99 Å after CTF refinement, particle subtraction, and reference-based motion correction polishing. The final map was sharpened using DeepEMhancer (ver. 0.14)⁶². The data processing for the spMETTL16–spU6 complex was nearly identical to that of the spMETTL16–SAM–spU6 complex, as described above. The final reconstruction was obtained using non-uniform refinement, yielding an EM map at an average resolution of 3.4 Å from 173,139 particles (Supplementary Figs. 4 and 6 and Supplementary Table 2).

Model building and refinement

To build the model of the spMETTL16–SAM–spU6 structure, the structures of the spMETTL16-MTD domain (residues 56–291) and RNA base pairs (G43-U82, A44-U81, U45-A80, and U46-C79) were predicted using AlphaFold2⁵⁶. The spMETTL16-spKA-1 domain (residues 292–398) and U6 RNA nucleotides (47–77) were derived from the spKA-1-spISL structure. These models were docked into the cryo-EM density using ChimeraX (ver. 1.9)⁶³. Additional RNA nucleotides (A35 to A42 and G83) and SAM were manually fitted, and the model was constructed and adjusted using Coot⁵⁸. The structure was refined using phenix.real_space_refine⁵⁹. Due to insufficient density for de novo model building, restraints were applied to maintain the correct geometry of the base pairs G43-U82, A44-U81, U45-A80, and U46-C79 during model refinement. The final structures were validated using MolProbity⁶⁰, and figures were prepared using PyMOL (http://www.pymol.org/pymol) and UCSF ChimeraX (ver. 1.9)⁶³. The model building process for the spMETTL16–spU6 structure was nearly identical to that for the spMETTL16–SAM–spU6 structure, as described above (Supplementary Table 2).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The data that support this study are available from the corresponding author upon request. The data generated in this study are provided as Source Data files with this paper. The coordinates and structure factors for the crystal structure of spKA-1–spISL have been deposited in the PDB, under the accession number 9M86. The atomic coordinates and cryo-EM maps of spMETTL16–spU6 and spMETTL16–SAM–spU6 have been deposited in the Protein Data Bank (PDB IDs: 9U47 and 9U48), and the Electron Microscopy Data bank (EMD-63833 and EMD-63834), respectively. The micrographs of spMETTL16–spU6 and spMETTL16–SAM–spU6 have been deposited in the Electron Microscopy Public Image Archive EMPIAR-12699 and EMPIAR-12700, respectively. The structures of hsKA-1 (PDB ID: 6M1U), hsMTD-SAH (PDB ID: 6B92), and hsMTD–MAT2A-hp (PDB ID: 6DU4) were used for structural comparisons in this study. Source data are provided with this paper.
