Introduction

The methyl group is one of the most fundamental and simplest structural units in synthetic and medicinal chemistry, playing a crucial role in numerous biological processes, including DNA replication, protein modification, and various metabolic pathways1,2,3. Introducing a methyl group into drug molecules can effectively improve their solubility and target selectivity, prolong their half-life in vivo, and reduce the IC50 value. For instance, incorporating methyl functional groups into the anticardiovascular drug simvastatin doubled its half-life, while the efficacy of the antibody OX1R increased by 480 times compared to its precursor4. The colloquial term “magic methyl effect” is often used to describe these unique advantages in the medicinal chemistry community5,6,7,8. Deuterium-labeled compounds are widely employed as analytical tools for investigating reaction mechanisms and elucidating metabolic pathways9,10,11,12. In addition, due to the deuterium isotope effect, where C–D bonds exhibit higher dissociation energies than C–H bonds, substituting hydrogen atoms in drugs with deuterium can significantly enhance their absorption, distribution, metabolism, and excretion properties13,14,15.

Consequently, the d3-methyl group, which combines the “magic methyl effect” and the deuterium effect, is highly valued by medicinal and organic chemists16,17,18. Notably, among the five currently approved deuterated drugs, three contain deuterated methyl groups, and several d3-methyl-containing molecules are under clinical investigation (Fig. 1). To meet this demand, various d3-methyl reagents have been developed, including CD3I, d6-DMSO, CD3CO2D, CD3OD, and derivatives based on CD3OD19,20,21,22,23,24,25,26,27,28,29,30,31,32,33. Although CD3OD stands out as the most cost-effective and readily accessible d3-methyl reagent, its direct application is constrained by the requirement for a specialized catalytic system and its relatively low reactivity, limiting its general applicability24,25,26,27,28,29. Therefore, there is an urgent need to develop a universally applicable, cost-effective, readily accessible, easily handleable, highly active, and recyclable d3-methyl reagent derived from CD3OD.

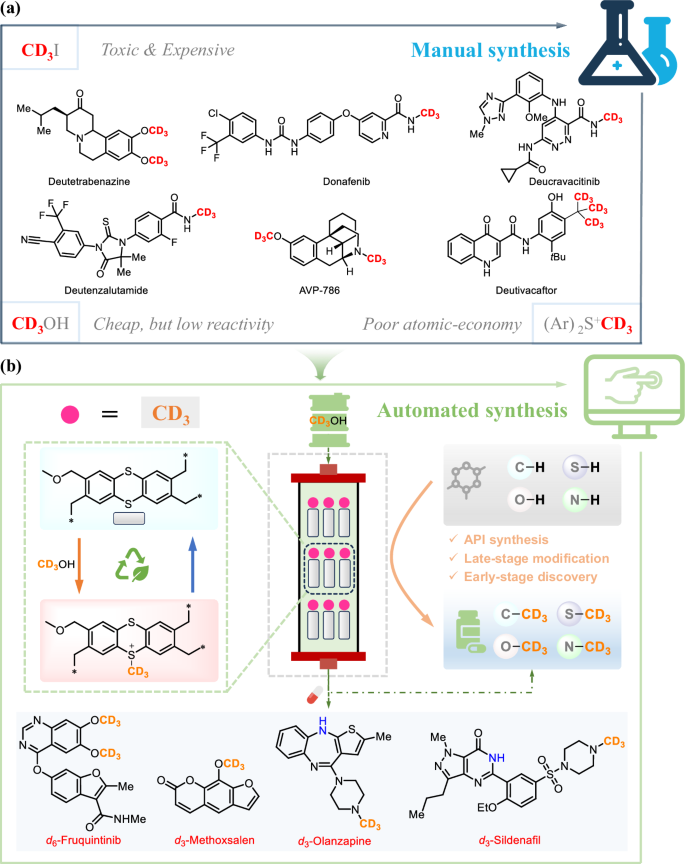

Fig. 1: Project design.
figure 1

a Traditional homogeneous d3-methyl reagents and bioactive molecules containing d3-methyl groups. b From manual to automated synthesis of d3-methyl bioactive molecules by SPS-based continuous-flow platform. SPS solid-phase synthesis.

Full size image

Recently, Wu’s group reported an automated platform that integrates solid-phase synthesis (SPS)34,35,36,37,38 with a continuous-flow system for the automated synthesis of prexasertib derivatives39. This strategy, combining SPS and continuous-flow processing, unlocks new avenues for automated synthesis. Inspired by this and the biochemistry of S-adenosylmethionine in living organisms40,41, we here develop a thianthrene-based organic polymer (TT-OP) that has the capability to capture and release the d3-methyl derived from CD3OD. Impressively, TT-OP can be scaled up to hectogram-scale quantities and exhibits excellent immobilization capability for the d3-methyl group, yielding TT-OP-CD3 with a maximum loading capacity of approximately 80%. The solid TT-OP-CD3 demonstrates highly selective and universal capability for d3-methylating bioactive molecules at oxygen, nitrogen, sulfur, and carbon sites, delivering the desired pharmaceutical products and regenerating the TT-OP, which remains super-stable and reusable for over 50 runs. This property of TT-OP enables us to establish a program-controlled, SPS-based continuous-flow automation platform, offering a clean, universal, and high-throughput d3-methylation method for the late-stage modification of a wide range of pharmaceutical molecules, easily accessible via a push-button interface.

Results

Synthesis and characterization of TT-OP and TT-OP-CD3

Thianthrene (TT)-based polymers (TT-OP) were prepared via an anhydrous FeCl3-mediated42,43 Friedel–Crafts alkylation reaction, utilizing formaldehyde dimethyl acetal (FDA) as a cross-linker under a nitrogen atmosphere (Fig. 2a). Using this polymerization method, TT-OP could be readily synthesized on a hectogram scale (Supplementary Information). As shown in Fig. 2b, c, solid-state cross-polarization/magic angle spinning nuclear magnetic resonance (13C CP/MAS NMR) spectroscopy and Fourier transform infrared (FT-IR) spectroscopy measurements confirmed the successful crosslinking of TT-OP by FDA. The signal observed at approximately 40 ppm in the 13C CP/MAS NMR spectrum and the weak peak at around 2920 cm−1 in the FT-IR spectrum were attributed to the –CH2– groups, along with minor remnants of –CH2OCH3 in the polymer. UV–visible diffuse reflectance spectroscopy (UV–vis DRS) spectrum reveals that TT is a near-ultraviolet-sensitive material, whereas the absorption edge of TT-OP extends to approximately 800 nm, resulting in its reddish-brown color (Fig. 2d). With TT-OP in hand, we next evaluated its capability to load CD3 groups using CD3OTf, which could be generated in situ from CD3OD and Tf2O. To confirm successful loading, solid-state 2H magic angle spinning nuclear magnetic resonance (MAS NMR) spectroscopy was performed. As depicted in Fig. 2e, the spectrum of TT-OP-CD3 exhibits a distinct peak at 2.74 ppm, corresponding to the CD3 group. The elemental composition of TT-OP and TT-OP-CD3, determined by survey XPS, is shown in Fig. 2f. Notably, an additional F 1 s peak appears in the TT-OP-CD3 XPS spectrum, with a binding energy of 689 eV, consistent with the CF3SO3− counterion associated with sulfonium44. High-resolution XPS analysis of the S 2p signal further elucidates the formation of the S–CD3 bond (Fig. 2g). The S 2p XPS spectrum of TT-OP shows one spin–orbit split doublet (2p3/2 and 2p1/2), characteristic of the S–C (aromatic) bond. While this peak is retained in the TT-OP-CD3 XPS spectrum, deconvolution of the broadened S 2p signal reveals a new S species (sulfonium) at a higher binding energy, consistent with the binding of CD3 groups to sulfur sites, which likely involves electron donation from sulfur to the CD3 groups. In addition, there appears a new peak with significantly higher binding energy in the TT-OP-CD3 XPS spectrum, corresponding to the CF3SO3− group45. To quantify the amount of S-bound CD3 groups, d3-methylation of N-methylaniline using TT-OP-CD3 was conducted, demonstrating that more than 0.12 mmol of CD3 groups were loaded per 100 mg of TT-OP-CD3 polymer (see Supplementary Information for details).

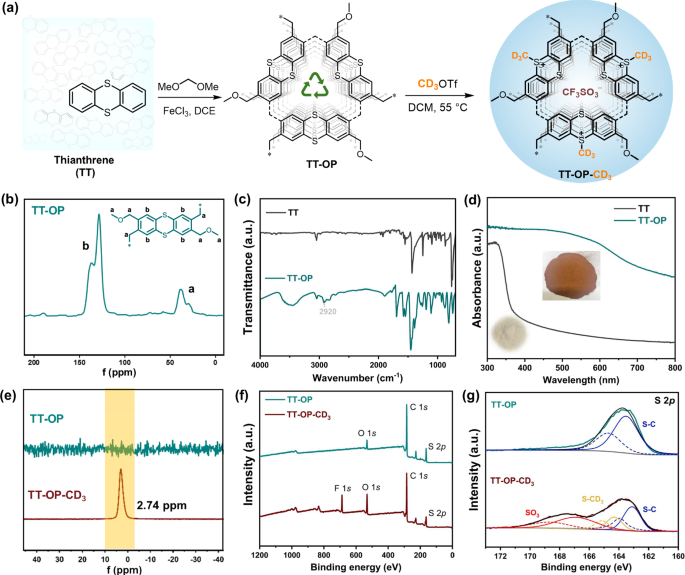

Fig. 2: Synthesis and characterization of TT-OP and TT-OP-CD3.
figure 2

a Synthetic procedure of TT-OP and TT-OP-CD3. b Solid-state 13C CP/MAS NMR spectrum of TT-OP. c FT-IR spectra of TT and TT-OP. d UV–vis absorption diffuse reflectance spectra of TT and TT-OP. e Solid-state 2H MAS NMR of TT-OP and TT-OP-CD3. f XPS survey spectra of TT-OP and TT-OP-CD3. g S 2p XPS spectra of TT-OP and TT-OP-CD3.

Full size image

Substrate scope

With the TT-OP-CD3 in hands, the selectivity of TT-OP-CD3 and three other commercially available d3-methyl reagents (CD3I, CD3OTf, and (CD3)2SO4) were investigated. When a substrate with three nucleophilic sites was treated with these reagents, the results showed that TT-OP-CD3 exhibited the best selectivity and the highest yield (see Supplementary Information for details). After identification of the good selectivity and reactivity of TT-OP-CD3, various pharmaceuticals, natural products, and their derivatives containing multiple potential reactive sites were evaluated under optimized reaction conditions (Fig. 3). Beginning with d3-methyl esterification of carboxylic acid-based pharmaceutical molecules, we were pleased to find that, irrespective of whether complex primary, secondary, or tertiary carboxylic acids were used, the d3-methylation products (2a–2h) were obtained in yields ranging from 83% to 97%. The heterogeneous nature of the d3-methylation reagent enabled high-purity products to be achieved through simple filtration and extraction. Notably, the d3-methyl esterification reaction exhibited excellent selectivity and functional group tolerance, effectively accommodating substrates containing nucleophilic amino, secondary amide, and phenolic groups, as well as sensitive functionalities such as aldehydes, ketones, alkenes, and heterocyclic units. To demonstrate the practicality, late-stage functionalization of pharmaceuticals, including bezafibrate, d-biotin, niflumic acid, carprofen, repaglinide, frusemide, and mycophenolic acid, was performed, delivering the corresponding d3-methyl esterification products (2i–2o) with N–H or O–H bonds preserved in the desired yields. This strategy also provides a reliable and rapid method for deuterium-switching of methyl ester drugs. Commercially available drugs such as clopidogrel and bifendate were readily converted to their corresponding deuterated variants (2p and 2q) through a simple two-step process (alkali-promoted hydrolysis followed by d3-methylation with TT-OP-CD3), achieving total yields of 79%–85%.

Fig. 3: Substrate scope of the d3-methylation using TT-OP-CD3.
figure 3

Reaction conditions: 1 (0.5 mmol), TT-OP-CD3 (500 mg), K2CO3 (1.0 mmol), and MeCN (5 mL), rt, 12 h. Isolated yields. aTT-OP-CD3 (1000 mg), K2CO3 (2.0 mmol) were used.

Full size image

Next, this strategy was applied to phenols. Selective d3-methylation of phenolic hydroxyl groups was achieved to afford products (2r–2v) in high yields. Methoxsalen, commonly used in combination with UVA light therapy (PUVA therapy) to treat psoriasis—a chronic skin condition characterized by scaly, red patches—represents a relevant example. Deuterium substitution at the methyl ether has the potential to improve its first-pass effect and photostability. Notably, methoxsalen was effectively converted into d3-methoxsalen (2t) with 78% total yield. The ortho-dimethyl ether (veratrole) motif frequently serves as a metabolic site in pharmaceutical molecules46. Using this heterogeneous d3-methylation approach, the key deuterated building blocks 2u and 2v for deutetrabenazine (SD-809, the first approved deuterated drug) and deuterated fruquintinib were smoothly obtained in 87% and 82% yields, respectively. Then, we explored S-alkylation, which plays a significant role in chemical biology. For example, S-alkylation modifications of cysteine-containing peptides have been extensively employed in activity-based protein profiling47,48,49. Consequently, we examined S-atom d3-methylation using TT-OP-CD3. Under the standard reaction conditions, both aryl thiophenols and biologically active cysteine-containing peptides or 1-thioglycosides were effectively and selectively S-d3-methylated to afford the corresponding products (3a–3e) in yields ranging from 82% to 92%.

The late-stage functionalization of sulfonamides and secondary amines was also investigated. Nimesulide, a non-steroidal anti-inflammatory and anti-rheumatic drug, was successfully d3-methylated to yield 4a in 93% yield. To evaluate the selectivity toward N–H units, glibenclamide, which bears three types of N–H bonds, was employed. As expected, selective d3-methylation occurred at the sulfonamide N–H unit (4b) due to its lower pKa value. Erlotinib, a small molecule tyrosine kinase inhibitor, reacted smoothly with TT-OP-CD3 to produce the nitrogen d3-methylated compound 4c, while preserving the terminal alkyne group. When carvedilol, which contains an O–H bond and two N–H bonds, was used as a substrate, selective d3-methylation at the carbazole N–H bond was observed, delivering product 4d in 75% yield. Similarly, lenalidomide, which contains both an active aryl-amino group and an imide group, was treated with TT-OP-CD3 under standard conditions, affording 4e in 82% yield with the active amino group intact. The 4f serves as a crucial precursor in the synthesis of d3-methylamine, which is the direct deuterium source for sorafenib. Our synthetic strategy enables the rapid and efficient one-step synthesis of compound 4f in high yield, streamlining the production process. Next, various N-CD3 drugs, including d3-diparalene (4g), d3-sildenafil (4h), d3-imipramine (4i), d3-loxapine (4j), and d3-olanzapine (4k), were smoothly obtained in yields ranging from 78% to 88%. Furthermore, the heterogeneous TT-OP-CD3 reagent also proved effective for d3-methylation of active methylene groups using five-, six-, and seven-membered cyclic β-ketoesters, producing the corresponding products (5a–5c) in good yields. In summary, the heterogeneous deuterated d3-methyl reagent demonstrated an ability for selective and clean d3-methylation at oxygen, nitrogen, sulfur, and carbon sites with unique selectivity and excellent functional group tolerance, overcoming challenges typically faced by other methylation reagents.

The ability to load other alkylating reagents onto TT-OP for sequential alkylation was further investigated (Fig. 4). Phenethyl-containing and bromopropyl-containing thianthrenium salts (designated TT-OP-CH2CH2Ph and TT-OP-CH2CH2CH2Br, respectively) were successfully prepared and applied to esterification, etherification, and sulfonamide alkylation, yielding the corresponding alkylated products (6–11). Notably, although TT-OP-CH2CH2CH2Br possesses two electrophilic sites, alkylation occurred exclusively at the sulfonium site. Vardenafil, one of the most widely used drugs for the treatment of male erectile dysfunction50, is primarily metabolized in the liver via cytochrome P450 (CYP) 3A4, with its main metabolite being the N-desethylated form of the piperazine structure51. To study the metabolic effects, d5-vardenafil (12) was specifically prepared, and its plasma concentrations were measured following oral administration in rats. The results demonstrated that d5-vardenafil (12) exhibited a lower Cmax (maximum plasma concentration) and a longer t1/2 (biological half-life) compared to vardenafil, confirming the improved pharmacokinetic profile of d5-vardenafil.

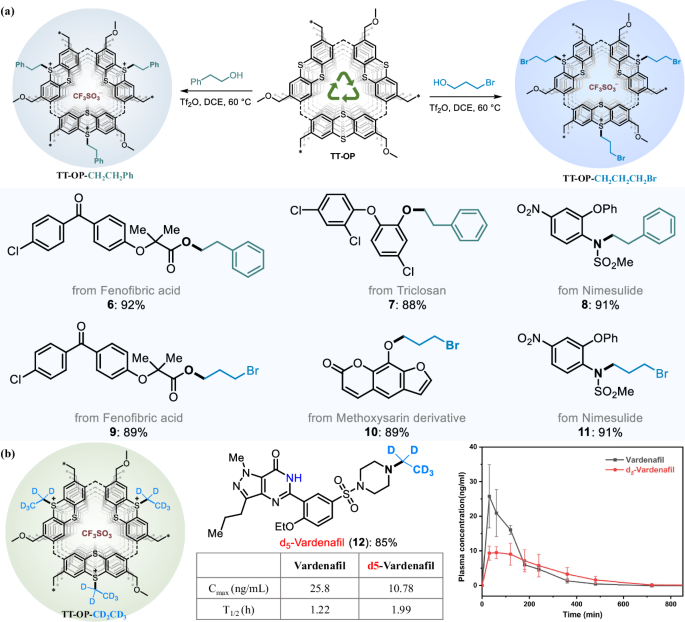

Fig. 4: Extension and application.
figure 4

a Preparation and reaction of other heterogeneous alkylating reagents. b The application of TT-OP-CD2CD3 in d5-vardenafil and its pharmacokinetic study. Error bars represent the standard deviation of five independent rats’ data.

Full size image

SPS-based continuous-flow platform

The stability of TT-OP is of significant importance for multirun experiments and the smart SPS-based continuous-flow d3-methylation platform. Impressively, our results indicated the exceptional stability of TT-OP, which could be recovered and reused more than 50 times without any loss of its loading ability or reactivity (Fig. 5a). Encouraged by this remarkable stability, we designed and developed a program-controlled SPS-based continuous-flow d3-methylation platform (Fig. 5b). This platform consists of four syringe pumps, switching valves, a tower reactor with an interlayer, a programmable heating bath system, and a software controller. The four syringe pumps correspond to four channel systems controlled by the software program: line 1 is the loading channel with the DCE solution of CD3OTf; lines 2 and 4 are the washing channels with MeCN and DCE solution, respectively; line 3 is the d3-methylation channel with MeCN solution of substrate. To validate the concept, the d3-methylation reactions of fenofibrate, nimesulide, and triclosan at gram to decagram scales were conducted on this platform. Taking fenofibric acid as an example, the DCE solution of CD3OTf (20 mmol) on line 1 was initially pumped through the tower reactor containing 40 g of TT-OP at a flow rate of 10 mL/min, at 55 °C for 8 h. Subsequently, the MeCN solution on line 2 was pumped to remove residual CD3OTf/ DCE (10 mL/min, 20 min, 25 °C). Following this, fenofibrate (10 mmol, 3.19 g) and K2CO3 (20 mmol, 2.8  g) dissolved in a MeCN/H2O mixture (250/ 50 mL) on line 3 were pumped through the tower reactor at a rate of 0.8 mL/min. The residence time within the reactor was maintained at 3 h, after which the mixture flowed into a product bottle, yielding d3-methyl fenofibrate (2.85  g) in 85% yield. Finally, the DCE solution on line 4 was pumped at a rate of 10 mL/min for 20 min to restore the initial state of the reactor. Notably, all four steps could be executed automatically with a single click of the “start” button via a computer or mobile phone control program. By replenishing the starting materials in each container and leveraging the programmed reaction sequence, the system could sustain multiple reaction cycles. Ultimately, we obtained 11.4  g of compound 2h, 5.4  g of compound 2s, and 2.8  g of compound 4a, with average yields exceeding 85%.

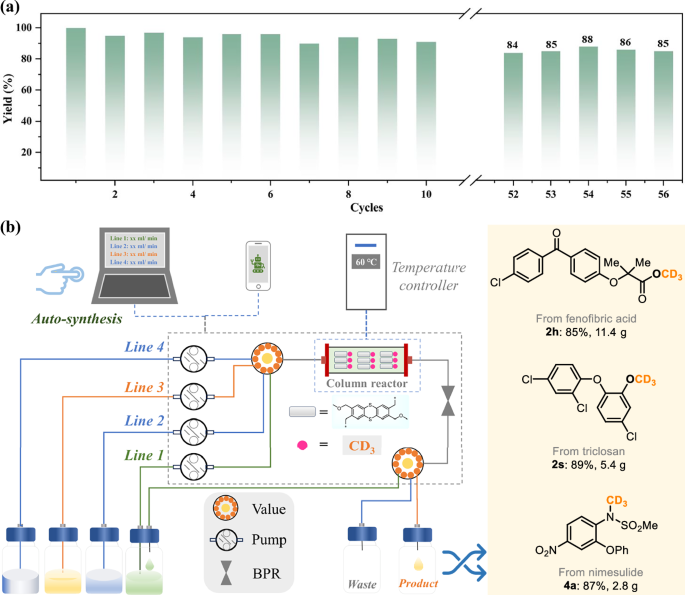

Fig. 5: Development of SPS-based continuous-flow platform.
figure 5

a More than 50 reuse cycles of TT-OP. b Platform for d3-methylated bioactive molecule production. SPS solid-phase synthesis, BPR Back Pressure Regulator.

Full size image

Discussion

In summary, we have successfully designed a TT-OP with excellent capability for immobilizing d3-methyl groups, yielding TT-OP-CD3. The solid TT-OP-CD3 demonstrates highly selective and efficient d3-methylation of carboxylic acids, phenols, amines, amides, thiols, and β-ketoesters, delivering a variety of significant deuterated pharmaceuticals and simultaneously releasing the support. Notably, TT-OP exhibits exceptional stability that can be reused for more than 50 runs without any loss of loading capacity and reactivity. These features enable us to establish an automated platform for high-throughput d3-methylation of pharmaceutical molecules by integrating SPS with continuous-flow. This program-controlled platform offers several remarkable and unique advantages: 1. Very simple and automatic operation: The process requires only the addition of starting materials, followed by a single click of the start button to produce the desired products. 2. Powerful capability for late-stage modification: The platform can selectively incorporate d3-methyl groups at oxygen, nitrogen, sulfur, and carbon sites of pharmaceutical molecules and natural products. In addition, it accommodates other alkylation reactions (e.g., ethyl, phenethyl, and bromoalkyl) by simply switching the reagents in the reservoir and pressing the start button. 3. Straightforward scale-up mode: Continuous addition of starting materials enables flow synthesis for large-scale production. In conclusion, the automated d3-methylation platform, characterized by its long-term stability, low-cost support and deuterium source, and ease of operation and purification, holds great promise for smart, efficient, and practical applications in pharmaceutical synthesis.

Methods

General procedure for d3-methylation of carboxylic acid, phenol, amine, thiol, and active methylene

To the Schlenk tube was added substrate (0.5 mmol, 1.0 equiv), TT-OP-CD3 (500 mg), K2CO3 (1.0 mmol, 138.2 mg, 2.0 equiv), and MeCN (5 mL). The reaction was stirring at room temperature for 12 h. After the reaction, the recyclable TT-OP was simply centrifuged at 10000 rpm (10610  g) for 10 min and was washed with dichloromethane (5 mL) three times, dried under vacuum, and directly reused for the next reaction cycle without any further purification. The organic layers were combined, dried over anhydrous Na2SO4, and concentrated in vacuo. The residue was purified by chromatography on silica gel or without further purification to afford desired product.
