Introduction

Since the pioneering idea by T. Tajima and J.M. Dawson in 19791, laser-wakefield accelerators (LWFAs) have demonstrated their ability to produce high-quality, mono-energetic electron beams in a fraction of the length required by standard RF accelerators2,3,4. LWFAs show significant promise in applications varying from novel cancer therapy treatments5, to non-destructive material testing6, and to the generation of free-electron lasers7,8. There exist, however, a few challenges which limit the achievement of ever higher electron energies and more efficient accelerators9. Among these is the dephasing limit—in which the electrons trapped inside the wakefield outpace the wakefield and cease to be accelerated—and the diffraction limit, in which the laser diffracts and is no longer intense enough to drive a wakefield9,10.

Several solutions have been proposed for overcoming the dephasing limit, including rephasing the electrons with a density ramp11,12, multi-staged LWFAs13, and lowering the plasma density in order to increase the phase velocity of the laser in plasma14,15. Each of these, however, comes with challenges. Rephasing, while yielding a boost in electron energy12 is limited in the amount of extra acceleration it facilitates. Multi-staged LWFAs are experimentally very complex, and timing them correctly is demanding. Lowering the plasma density in turn lowers the acceleration gradient, requiring longer acceleration lengths and, thus, the guiding of the laser pulse over multiple Rayleigh lengths14,16. Thus, while this approach has achieved the highest LWFA electron energies to date, up to 10 GeV17,18, scaling to higher electron energy is challenging.

A promising way to overcome the dephasing limit is by modifying the velocity with which the intensity peak of the laser driver, and thus the wakefield, propagates along the optical axis19. The use of structured light to manipulate this velocity has generated significant interest within the scientific community20,21,22,23,24,25,26,27. Theoretical solutions such as colliding two tilted laser pulses19 or combining longitudinal chromatism with controlled spectral phase20,21 have been explored. Perhaps the most experimentally simple and promising method for achieving dephasingless acceleration relies on a combination of spatio-temporally shaping the beam in the near-field and focusing the laser-pulse with a custom optic that generates a quasi-Bessel beam22,23.

The most suitable optical element that gives the necessary focusing properties while maintaining compatibility with high-power ultra-short pulses is the axiparabola, a long-focal-depth mirror which combines a parabolic focusing term with a controlled spherical aberration28,29. The combination of spatio-temporal pulse sculpting and focusing with the axiparabola promises to overcome both beam diffraction and electron dephasing22,23. Beam diffraction is tackled by utilizing the extended focal depth of the axiparabola and the diminished diffraction seen in Bessel beams28. Dephasing, meanwhile, is addressed by combining the axiparabola’s inherent modification of the velocity of the intensity peak with a manipulation of the spatio-temporal couplings of the incident beam22,23,24,26,27. This combination enables the tuning of the velocity of the wakefield, allowing it to be phase-locked to the trapped electrons22,23.

Much research effort has been dedicated to studying the axiparabola-based approach in the hope of unlocking this potential22,23,24,25,26,27,28,29,30,31,32,33,34. Simulation results show the ability to achieve electron energies in excess of 100 GeV in existing high power laser facilities22. However, experimental results have, so far, lagged behind33.

A significant barrier is the fact that the wakefields generated by these structured pulses differ significantly from the standard, parabola-focused wakefield. These LWFAs are not, as in the standard case, formed by a whole beam focused to a single point but rather by the focusing of different annular sections of the beam to different points along the optical axis. Thus, much of the conventional intuition of the wakefield no longer applies and the physics involved is significantly altered. Given the highly nonlinear nature of the laser–plasma interaction, which involves field ionization and the formation of a nonlinear wakefield, only a detailed look at the wakefield evolution inside of the plasma can yield an accurate picture of the mechanisms involved.

This paper introduces the direct observation of the axiparabola-generated wakefield, taken using the Femtosecond Relativistic Electron Microscopy (FREM) technique35,36,37. In FREM, a short, bright, relativistic electron bunch, generated by a second LWFA, provides a probe capable of resolving micron-scale, femtosecond-duration structures inside of the plasma wave38. Taking advantage of the high spatial and temporal resolution, FREM was used to provide detailed pictures of the axiparabola-generated wakefield. The images were taken at different points along the evolution of the wakefield and with different spatio-temporal couplings. The results were confirmed by particle-in-cell (PIC) simulations which recreate both the axiparabola-generated wakefield and the electron probe images of this wakefield. The PIC simulations also enhance the understanding of the experimental results, allowing for the extraction, in situ, of the plasma wavelength and density. The excited wakefield is shown to simultaneously manifest properties of both non-linear and linear wakefields in a single shot. Modifying the pulse-front curvature (PFC)—a spatio-temporal coupling that gives a radially dependent pulse delay which depends quadratically on the radius—is used to study the influence of changing the spatio-temporal pulse-front, and thus the wakefield velocity, on the structure of the wakefield. The combination of direct images and simulations yields critical insight into the structure and evolution of this structured-light wakefield, and helps shed light onto how such wakefields could be used to make dephasingless acceleration a reality.

Results

Experimental setup

The experiment was conducted using the HIGGINS 2 × 100 TW laser system at the Weizmann Institute of Science39. The laser system provides two temporally synchronized 2.5 J, 27 fs laser pulses. During this experiment, each beam delivered 1 J on target. Prior to compression, beam 1 was passed through a special refractive doublet designed to modify the pulse-front curvature (PFC) of the beam, thus spatio-temporally shaping the beam in the near-field. Details of the pulse-front curvature measurement and the system used to manipulate the PFC can be found in refs. 26,40.

Figure 1a shows a schematic of the experimental setup used to obtain the FREM images. In the experiment, beam 1 was focused by a 480 mm nominal focal length, 5 mm focal depth, 10∘ off-axis axiparabola onto a supersonic 15 mm-long slit nozzle, shown in Fig. 1 as “Jet 1”. The focused beam then generated the structured-light wakefield. Beam 2, meanwhile, was focused by a 1.5 m-focal-length off-axis parabolic mirror onto a supersonic converging-diverging nozzle, shown as “Jet 2”. Beam 2 generated a wakefield in Jet 2 and accelerated an electron bunch with femtosecond duration, referred to as the “probe electron bunch”. A sample spectrum and charge of the probe bunch can be seen in the Lanex scintillator image in Supplementary Information Fig. 1. This bunch was then allowed to propagate for 10 cm in order to spatially expand the bunch before it impinged onto the axiparabola-generated wakefield at near normal incidence. The electro-magnetic field inside of the wake gave momentum kicks to the probe electrons. After a further 7 mm of propagation in vacuum, these momentum changes turned into electron density modulations. The probe beam, imprinted with the density modulations, then hit a YAG screen, and the subsequent radiation was imaged.

Fig. 1: FREM experimental setup and axiparabola focal spots.
figure 1

a Schematic of the FREM experimental setup. Beam 1 is focused by the axiparabola onto jet 1, generating the laser wakefield. Beam 2 is focused by a parabola onto jet 2, generating a second laser wakefield which accelerates a femtosecond duration electron bunch, known as the “probe electron bunch”. This probe bunch is then allowed to expand and impinges onto the axiparabola-generated wakefield, which imposes momentum changes onto the probe electrons. After further propagation, these momentum changes turn into density modulations which are then imaged when the electrons hit a YAG screen. b 2D axiparabola focal spots, measured in vacuum, at specified points along the focal depth relative to the beginning of the focal line 480 mm away from the axiparabola.

Full size image

Figure 1b shows the 2D focal spots of the axiparabola-focused beam in vacuum at different focal depth values. The evolution of the Bessel ring structures as well as the preservation of a small central focal spot, which becomes progressively smaller as the focal depth increases, can be clearly seen. More details of the particular axiparabola that was used can be found in ref. 26.

The structured-light wakefield

The structured-light wakefield was probed at different locations along the focal depth by steering the probe beam and compensating the time delay accordingly. Figure 2a–c shows three experimentally measured FREM images of the wakefield taken at different depths into the nozzle along the propagation axis. Figure 2a was taken around the start of the focal line, where the focused beam begins to drive a wakefield. Figure 2b was taken 0.5 mm further into the nozzle, and Fig. 2c is a further 0.5 mm after that, thus giving snapshots of the wakefield at different points along the focal depth. As can be seen, the structure of the wakefield evolves over the course of the focal depth. As the wakefield evolves, a pronounced V-shaped structure begins to develop around the central axis of the wakefield. In Fig. 2a, as the pulse is beginning to generate a fully formed wakefield, this structure is barely discernible, growing more distinct 0.5 mm later in Fig. 2b. 1 mm into the focal depth, in Fig. 2c, the FREM image is dominated by this V-shaped structure. All the experimental images are cropped in order to allow a direct comparison with simulations. The full-sized experimental image can be seen in Supplementary Information Fig. 1.

Fig. 2: Structured-light wakefield images and simulations along the focal line.
figure 2

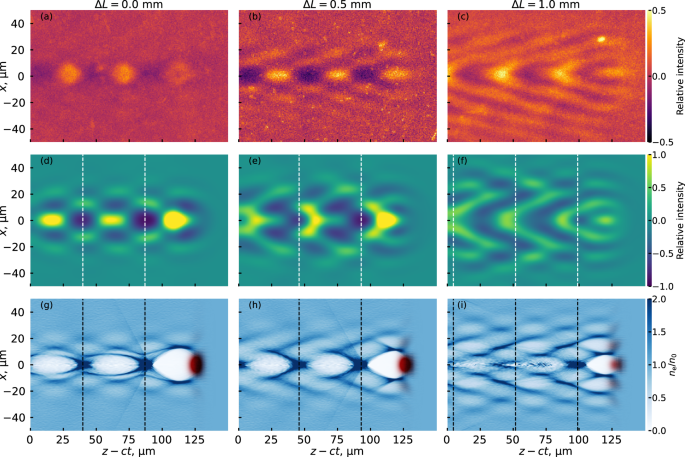

a–c Experimentally obtained FREM images at different relative points ΔL along the focal depth showing the development of the V-shaped structure. d–f Simulated FREM images for similar experimental conditions and at similar points in the nozzle. Image (d) corresponds to the depth of 3.95 mm inside the nozzle (0.95 mm after the beginning of the focal line) in the PIC simulations. g–i Relative electron density distribution ne/n0 in the simulated wakefields that correspond to the FREM images in (d–f). The color scale in (a–f) shows the relative intensity of the signal on the screen where 0 corresponds to the intensity of the unperturbed probe beam. The vertical lines in (d–i) show the plasma period corresponding to n0 = 5 × 1017 cm−3. The red color in (g–i) shows the intensity of the axiparabola laser field.

Full size image

To understand the structure of the wake excited by an axiparabola-focused laser pulse, particle-in-cell (PIC) simulations of its interaction with a gas target were performed. First, the propagation of the reflected laser pulse from the axiparabola surface to the entrance to the gas jet was calculated using the Axiprop code29,41. The simulations used an on-axis axiparabola with parameters corresponding to the experiment. The obtained distribution of the laser field was then used in PIC simulations with the quasi-3D spectral code FBPIC42. The laser pulse interacted with a trapezoidal density profile, and ionization effects were fully taken into account. The calculated electromagnetic field distribution in the wake was then used to simulate FREM images by propagating a probe electron bunch—with parameters similar to the parameters of the experimental probe bunch—through the wake.

Figure 2d–f shows simulated FREM images at corresponding points along the focal depth. The images follow a similar evolution of the wake structure to that seen in the experiment, indicating that the simulations correctly capture the essential dynamics in this wakefield regime. Matching the experimental and simulated FREM images provides a more detailed view into the wakefields via the simulations. The corresponding simulated wakefields are shown in Fig. 2g–i. As the pulse propagates along the focal line, radially off-axis wakes develop, in addition to the central, on-axis wake. As the focal depth increases, the wakes also shrink in the transverse direction, following the evolution of the size of the central focal spot seen in Fig. 1b.

One important thing that can be discerned by comparing the simulated FREM images to their wakefields is that the periodicity seen in the FREM images corresponds to the periodicity of the wakefield structure. Since the wakefield period is equal to the plasma wavelength, this allows for an in situ measurement of the plasma wavelength and, therefore, of the plasma density43,44. This is emphasized in Fig. 2 by the dashed lines, which show that both the length of the wakefield in (g–i) and the length of the periodic structure in the FREM (d–f) correspond to the plasma wavelength.

The wavelength can be algorithmically reconstructed by analyzing the 2D Fourier transform of the FREM image. When applied to simulated FREM images for all simulation steps between 2 and 8 mm inside the nozzle (see Supplementary Information Fig. 3), this method yields the mean reconstructed density of 4.8 × 1017 cm−3 with a standard deviation of 4.5%. The actual plasma density used in the PIC simulations was 5 × 1017 cm−3, which confirms the reconstruction results. Only two to three periods of the wake fit into the simulation box which limits the accuracy of the Fourier analysis. The actual FREM image can capture tens of plasma periods (see Supplementary Information Fig. 1), thus the reconstruction based on experimental FREM images might have even higher accuracy.

At the plasma density probed, electrons were not injected. The lower density isolates physical phenomena such as the linear and non-linear wakefield structures that result from the Bessel-like beam without interference from self-injection or acceleration of electrons. To probe higher densities, higher probe electron energy or lower distance between the jet and the scintillating screen would be used.

Spatio-temporal coupling effect on wakefield structure

To investigate the nature of the prominent V-shaped structure, the relationship between the angle of this structure and the near-field spatio-temporal pulse front was examined. As was shown in refs. 22,23, radially dependent pulse delay in the near-field, when focused by an axiparabola, changes the phase velocity of the wakefield. The pulse delay can be mathematically described by a spatio-spectral phase term, αr2(ω − ω0). In order to test whether the angular structure relates to the velocity of propagation of the wakefield, FREM shots were taken at different pulse-front curvatures (PFCs) of the beam to see if the effect could be seen in the FREM images. Figure 3a, b show the experimentally obtained FREM images for PFC values α of  −0.002 fs/mm2 and  0.020 fs/mm2, respectively. Figure 3c shows the simulated FREM images for the pulses with the same PFC values (top and bottom, respectively), while Fig. 3d shows the corresponding plasma wakefields in PIC simulations.

Fig. 3: Impact of spatiotemporal couplings on the wakefield structure.
figure 3

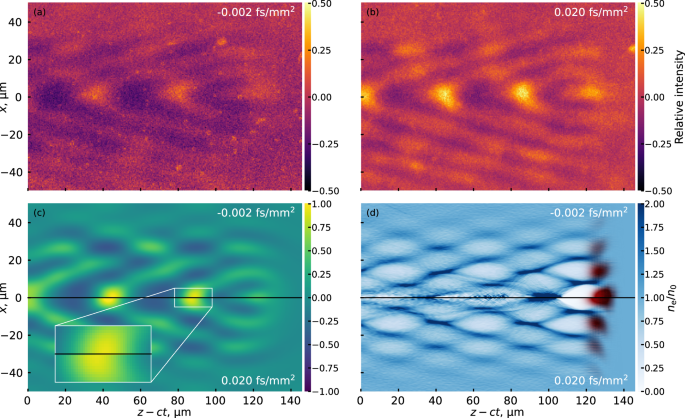

a, b Experimentally obtained FREM images at the same point along the focal depth for PFC values of −0.002 and 0.020 fs/mm2, respectively. c Simulated FREM images for PFC values −0.002 fs/mm2 (top) and 0.020 fs/mm2 (bottom) and the (d) corresponding relative electron density distribution ne/n0 in PIC simulations. The color scale in (a–c) shows the relative intensity of the signal where 0 is the unperturbed beam intensity. The red color in (d) shows the intensity of the axiparabola laser field.

Full size image

The PIC simulations allow for an absolute comparison of the relative positions of the wakefields at the same moment in time. As can be seen in the comparisons in 3c, d, the difference in PFC induces a propagation velocity change, with the positive PFC wakefield arriving temporally later than the negative PFC wakefield. The relative propagation velocities can’t be directly measured in the experimental data as the correction is less than the timing jitter in the experiment, which has been previously estimated at 13 fs38. The measured shift in the PIC simulations of the on-axis peak intensity position due to the PFC difference was equal to 1.8μm at this propagation distance (5.1 mm inside the nozzle or 2.1 mm into the focal line). This small shift does not seem to significantly affect the structure of the wake itself, as can be seen in the FREM images and the simulated wakefields. This shift, however, is critical for the use of the axiparabola for dephasingless LWFA22,23 as it is of the order of the correction needed for phase-locking the wakefield to the trapped electrons.

The origin of the wakefield structure

Another possibility that was examined is that the V-shaped structure is determined by the inherent transverse intensity distribution profile, which changes along the focal depth of the axiparabola. To analyze this, the intensity distribution profiles of an axiparabola-focused pulse at a given distance with and without plasma were compared. The result is shown in Fig. 4a, b, respectively. In this comparison, the intensity distribution is noticeably affected by the propagation of the pulse in plasma, which imposes tilts on the peak intensity profile. These tilts are largely responsible for changing the relative phases of the off-axis wakefield structure seen in Fig. 4a which, in turn, creates the V-shaped pattern in the FREM images in Fig. 2. In the absence of the tilts, the wakefield and thus the probe image would have a checkerboard pattern instead. Therefore, the structure of the wakefield depends on the interaction of the axiparabola-focused laser with plasma and cannot be understood by looking at the laser field distribution in vacuum. This means that the direct study of the behavior in plasma is critical to understanding and optimizing this structured-light wakefield for use in dephasingless acceleration. To properly capture these effects, the ionization of the plasma should always be fully taken into account.

Fig. 4: Effect of propagation through plasma on the laser field distribution.
figure 4

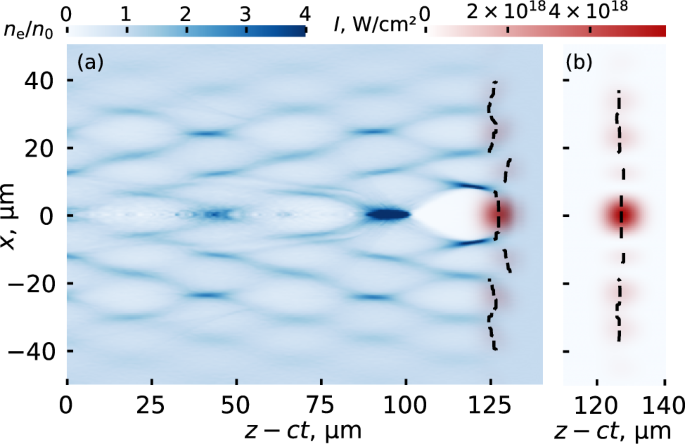

Distributions of the laser field averaged intensity of the axiparabola-focused pulse (red color scale) and relative electron density ne/n0 (blue color scale) in the excited wake at the propagating distance of 5.5 mm (a) with and (b) without plasma. The dashed line shows the dependence of the position of the peak intensity on the transverse coordinate.

Full size image

Combination of linear and nonlinear wakefields

An analysis of the electro-magnetic fields inside of the structured-light wakefield reveals another unusual property: the simultaneous mixing of linear and nonlinear wakes. The on-axis part of the excited wakefield is nonlinear, as the value of the normalized field amplitude a0 = eE0/(mcωlaser) reaches 2 at the beginning of the focal line and stays above 1 over the focal line, according to the PIC simulations. However, the off-axis wakefields are in the linear regime, with a local a0 value well below 1. This can be shown by comparing the electro-magnetic fields in the simulated wake to a linear analytical solution for the same laser distribution16,45.

Figure 5a, b show the transverse (Ex) field component for the PIC simulated (a) and linear (b) wake, taken at the same position as the wakefield shown in Fig. 4a. Figure 5c shows a 1-D comparison of a transverse slice of the fields for the simulated (solid blue) and linear (dashed orange) wakes, at the location indicated by these lines in (a) and (b), respectively. This comparison shows that the field simultaneously exhibits behavior of both a linear and nonlinear wake. Off-axis, the simulation closely follows the linear solution. Around the central axis, however, there are typical features of a nonlinear wakefield, with a linear dependence of Ex on the transverse coordinate. Around the axis, the linear solution significantly overestimates the expected field amplitude, predicting a value of around 50GV/m, while the simulated field is closer to 20 GV/m.

Fig. 5: Comparison of PIC simulations to linear solution for transverse and longitudinal electric fields.
figure 5

Comparison of the spatial distribution of the transverse electric field Ex between (a) the PIC simulation and (b) the calculated linear solution. c Transverse distribution of Ex for a slice z − ct = 114 μm shown with vertical lines in (a, b). Comparison of the longitudinal electric field Ez for (d) the PIC simulation and (e) the linear solution. f Longitudinal distributions of Ez at the off-axis coordinate x = 23 μm for the PIC (solid blue) and linear (dashed orange), and at the center of the wake for the PIC (green dotted) and linear (purple dashed-dotted). The red color in (a, b, d, e) shows the distribution of the laser pulse intensity.

Full size image

Figure 5d, e similarly show the longitudinal (Ez) field component, while Fig. 5f shows longitudinal slices of the fields. The slices are taken from the simulated field, both off-axis (solid blue) and on-axis (dotted green), as well as for the off-axis (dashed orange) and on-axis (dash-dotted purple) linear wake. The off-axis slices agree almost perfectly, both yielding a predicted field of around 10 GV/m. The on-axis slice from the simulation, however, shows a distinctly nonlinear behavior, with a sharp negative peak at the back of the first bucket. The linear solution again overestimates the expected field amplitude, predicting a value of 37GV/m, while the simulated on-axis field is closer to 10 GV/m and reaches the value of 30 GV/m only at the back of the first bucket.

This discrepancy is explained by the difference in scaling between linear and nonlinear wakefields. In the linear regime, the field scales as \({a}_{0}^{2}\), while in nonlinear interactions, the scaling becomes \(\propto \sqrt{{a}_{0}}\) for a0 ≳ 246.

For reference, the cold nonrelativistic wavebreaking field is Ep = mcωp/e ≈ 68GV/m for the considered electron plasma density of 5 × 1017 cm−3. This indicates that while the central part of the wakefield is nonlinear, the interaction does not reach the strongly nonlinear regime.

This analysis of the wakefields shows that the experimental FREM images presented in Fig. 2 capture both a nonlinear and a linear wake in one shot. This is very different from wakefields excited by a pulse with the same characteristics that is reflected by a regular parabolic mirror, where only one strongly nonlinear bubble is formed (see Supplementary Information Fig. 4). This difference showcases unique features of the structured-light wakefield.

Discussion

This paper presents the direct observation of a wakefield generated using a structured light pulse, shaped by an axiparabola and spatio-temporal couplings. As was shown, the structure of this wakefield develops over the focal depth of the axiparabola and differs significantly from that of a standard wakefield accelerator. The results were reinforced with PIC simulations which recreated the structures seen in the FREM images and yielded insight about the wakefield itself. These include the presence of radially offset wakes in addition to the central, on-axis wake; the simultaneous mixing of linear and nonlinear wakes; and the tilting of the phase front of the wake, which yields the V-shaped structure seen in the FREM images. Both the data and simulations showed that modifications to the spatio-temporal couplings of the beam, critical to tuning the propagation velocity of the wakefield, have minimal effect on the structure of the wakefield at the values relevant for dephasingless acceleration. An analysis of the periodicity of the wakefield demonstrated that the in situ plasma density can be extracted from the FREM images, yielding a direct measurement of an important experimental parameter. In addition, the very close correspondence between experimental and simulated results, which has previously not been demonstrated in this regime, provides strong evidence that the simulations succeed in correctly capturing the relevant physical phenomena. This is of great importance to the utility of those simulations in guiding future experimental campaigns.

Since the FREM diagnostic does not interfere with the structured-light wakefield, the density measurement and further FREM studies can be conducted while simultaneously optimizing for electron acceleration. The results shown here and the future experimental capability of the setup could bridge the gap between the promising simulations of the structured-light wakefield and the lagging experimental results. The improved understanding of the field structure in these wakefields provided in this work and the ability to infer modifications to these fields in situ will be critical in tuning the laser and plasma parameters to enable efficient acceleration. This is significant as the coupling of the laser pulse to the plasma wave differs from the standard, parabolically driven wakefield in non-trivial ways that are hard to predict.

With the development of minimally intrusive single-shot measurements of the spatio-temporal behavior of the pulse47, further studies could be made into the effect of spatio-temporally shaping the beam on the structure and behavior of the wakefield. These insights will help facilitate the realization of the potential of the axiparabola-generated wakefield to overcome the dephasing limit of laser-wakefield acceleration. If successfully achieved and implemented in the new generation of laser facilities now coming online, such as the 10PW facility at ELI-NP48, these structured-light-based wakefields could accelerate electrons to energies in excess of 100 GeV22. This would constitute the highest electron energy ever accelerated.

In addition to further studying dephasingless acceleration, the FREM technique described here can be applied to the study of other exotic wakefield structures. A notable example is the proposed use of helical beams to generate laser-wakefield accelerators capable of efficiently accelerating positrons49,50. The realization of such a scheme, coupled with the successful demonstration of dephasingless electron acceleration, would enable a next generation of high-energy physics experiments based on extreme light-matter interactions.

Methods

Laser

The laser system provided two temporally synchronized 2.5 J, 27 fs laser pulses with a central wavelength of 800 nm. During the experiment, the beams each delivered 1 J on target. The two pulses are generated by splitting a 7 J, uncompressed beam into two 3.5 J beams which are then individually compressed, yielding two compressed 2.5 J beams. Therefore, they were synchronized in time, up to controllable delays from the independent beam transport lines and a 13 femtosecond jitter38. Both beams had an unfocused diameter of around 50 mm. Beam 1 was focused by a 480 mm nominal focal length (f/9.6) off-axis axiparabola with a focal depth, δ, of 5 mm, and an off-axis angle of 10 degrees. The axiparabola focus had the following functional form: f(r) = f0 + δ(r/R)2, where f0 is the nominal focal length, r is the radial distance from the central axis, and R is the full radius of the beam. Beam 1 was focused onto a 4mm wide and 15 mm long supersonic slit nozzle, shown in Fig. 1 as “Jet 1”. The gas used was a mixture of 97% helium and 3% nitrogen. The plasma density in Jet 1 was around 5 × 1017 cm−3. Beam 2 was focused by a 1.5 m focal length (f/30), 11 degree off-axis parabolic mirror into a gas jet generated by a supersonic converging-diverging nozzle with a throat diameter of 0.5 mm and an outlet diameter of 3 mm, shown in Fig. 1 as “Jet 2”. The same helium-nitrogen mixture was used in Jet 2.

Probe electron bunch

Upon focusing into Jet 2, Beam 2 generated an LWFA, accelerating electrons injected into the wakefield via ionization injection of the helium-nitrogen gas mixture. To characterize the electrons, they were initially passed through a spectrometer which utilized a 10-cm-long 1 Tesla magnetic dipole and a Lanex scintillator. The magnetic dipole imposed an energy dependent angular deviation onto the electrons, allowing the scintillator to provide energy resolution of the electron bunch. Supplementary Information Fig. 1 shows a sample angularly resolved spectrum of the electrons accelerated by Beam 2 and used as the electrons for the FREM probe. A quasi-monoenergetic peak was observed at 270 MeV  ± 35 MeV and the FWHM of the angular divergence was 1.6 mrad.

FREM

Jet 2 was spatially arranged such that the electrons from the LWFA in Jet 2 propagated 10 cm before intersecting with the structured-light wakefield in Jet 1. By that point, the probe beam electrons spatially spread out to a lateral extent of several hundred micrometers, allowing them to illuminate a large section of the wakefield. The probe beam electrons were spatially and temporally overlapped with the structured-light wakefield. Rough overlap was achieved via the use of Beam 2 for shadowgraphy of the ionization front of Beam 1 in Jet 1. This overlap was sufficient to ensure synchronization on the order of a few hundred femtoseconds and spatial overlap on the order of a hundred micrometers.

Further alignment was done using the electron probe, which impinged onto the axiparabola-generated wakefield at near normal incidence. After crossing the wakefield, the electrons were allowed to drift a further 7 mm in vacuum before they hit a 30 micrometer thick Ce:YAG scintillator. This allowed the momentum kicks imparted by the wakefield to become density modulations which could be seen on the scintillator. The Ce:YAG was shielded from residual laser light by a stainless steel film of 100 micrometers thickness. The light emitted by the Ce:YAG screen was collected by a Mitutoyo infinity-corrected, long-working-distance, plan-apochromatic 10X microscope objective and a Thorlabs achromatic lens with a focal length of 300 mm onto a Hamamatsu ORCA-FLASH4.0 digital CMOS camera. The imaging resolution was checked with a 1951 USAF resolution test target, giving a limit of 2.2 μm. For the plots in Figs. 2 and 3, the measured spatial dimensions were scaled down by a factor of 1.07 to account for probe beam transverse expansion after the interaction and to correspond to the actual dimensions of the probed wakefields. Experimental FREM images were also cleaned from noise and background irradiation during post-processing (see Supplementary Information Fig. 2).

The plasma wavelength is reconstructed from the FREM images by applying a 2D Fourier transform to the image, taking a sum of the absolute spectral amplitude over transverse (vertical) wavenumbers, and then taking the longitudinal wavenumber corresponding to the peak value of the sum. The densities estimated from the experimental FREM images in Fig. 2a–c are 5.9 × 1017 cm−3, 4.5 × 1017 cm−3, 6.0 × 1017 cm−3, respectively.

Axiprop simulation

To simulate the interactions of the gas with the axiparabola-focused beam, the propagation of the reflected laser pulse from the axiparabola surface to the focal plane was calculated using the Axiprop code29,41. In order to make the beam compatible with the axisymmetric solver of Axiprop and the quasi-3D spectral code FBPIC42—which uses angular mode decomposition and is best suited for axially symmetric beams—an on-axis axiparabola with the parameters corresponding to the experiment (480 mm focal length, 5 mm focal depth for 25 mm radius) was used. The laser pulse had a Gaussian temporal profile with a duration of 27fs (FWHM intensity) with a central wavelength of 800 nm and a 6th order super-Gaussian transverse profile with a diameter (FWHM intensity) of 40mm. The energy of the pulse was equal to 0.85J. The lower energy and diameter compared to the experimental setup were used for better correspondence with the experimental observations, perhaps reflecting non-ideal alignment of the axiparabola or phase-front defects of the real laser pulse as well as laser energy losses in the beam transport line. For simulations with PFC, an additional PFC phase correction was applied to the laser pulse on the axiparabola surface.

For the PIC simulations with the parabola-reflected pulse in Supplementary Information Fig. 4, Axiprop simulations with a pulse reflected by a regular parabola with the same focal length of 480 mm were performed.

Particle-in-cell simulation

The obtained distribution of the laser field was saved in the LASY format51 and then input into PIC simulations performed with the quasi-3D spectral code FBPIC with azimuthal mode decomposition42, assuming linear polarization in the x direction. To make sure the entire laser pulse fits inside the simulation box, a simulation box with a large size of 586 μm in the transverse r direction and 150 μm in the longitudinal z direction, with two azimuthal modes was used. The grid resolution was dz = 0.04 μm and dr = 0.24 μm, respectively. To accelerate the simulation, a Lorentz-boosted frame with a Lorentz factor γ = 3 was used52.

The slit nozzle gas target was represented by an 8-mm plateau with 1 mm linear up and downramps with a peak electron density at full ionization of 5 × 1017 cm−3. This expected density was estimated based on the plasma wavelength retrieved from the experimental FREM images. We used pure helium as the gas in the PIC simulations to limit the number of macroparticles and accelerate the simulation, as the small nitrogen component present in the experiments is not expected to be important in the absence of ionization injection in Jet 1. The gas was initially neutral to properly account for the diffraction of the weaker laser field at large radii where the gas might be partially ionized. The gas was initialized with 32 helium atoms per 2D cell (2 in r, 2 in z, 8 in θ directions, respectively). The starting point of the axiparabola focal depth f0 corresponded to a position of 3 mm (2 mm into the plateau) in the simulations.

For the simulations of the wakefield generated by the parabola-reflected pulse in the Supplementary Information Fig. 4, the same PIC simulation and gas target parameters were used with the focal point of the parabola at 3 mm inside the nozzle. The only change was the reduction of the transverse size of the box to 166 μm.

FREM simulation

The calculated electromagnetic field distribution in the wake was then used to simulate FREM images by propagating a probe electron bunch with parameters similar to the parameters of the experimental probe bunch through the field. The field was assumed to be moving perpendicular to the beam at the speed of light. The simulated bunch had an energy spectrum with a uniform energy distribution between 100 MeV and 300 MeV, a duration of 10fs with a rectangular current profile, an initial transverse size at the source of 5 μm, and a divergence at maximum energy of 1mrad. The bunch was modeled by 5 × 106 particles of equal weights.

Before interacting with the wakefield, the bunch propagated for 10 cm in vacuum. After the interaction, it was projected to a plane 7 mm away from the wakefield and normal to the bunch propagation direction. The projection used a pixel size of 0.52 μm (equal to the experimental one). An additional Gaussian filter with a kernel size of 8 pixels (standard deviation) was applied to the image to model the resolution constraints in the experimental imaging system as well as to reduce the excessive noise introduced by a limited number of particles in the simulations. To eliminate the effect of varying background brightness, the signal on the plane was calculated relative to the signal in the absence of the wakefield. Similar to the experimental FREM images, the spatial dimensions on the image plane were scaled down by a factor of 1.07 to account for the beam expansion during its propagation to the screen.

Linear solution

In a linear wakefield, the plasma dynamics can be described by linearized hydrodynamic equations, assuming a small laser pulse amplitude a0 and a corresponding small perturbation of the plasma density16,45. This procedure enables the calculation of the electrostatic potential

$$\varphi (x,y,z-ct)=\frac{m{c}^{2}}{2e}\int_{z-ct}^{\infty }\left\langle {a}^{2}\right\rangle (x,y,{\zeta }^{{\prime} })\sin [{k}_{{{{\rm{p}}}}}({\zeta }^{{\prime} }-z+ct)]d{\zeta }^{{\prime} },$$
(1)

where \(\left\langle {a}^{2}\right\rangle\) is the time-averaged normalized laser field amplitude a(x, y, z − ct) = eEx/(mcωp) which is retrieved from the PIC simulation data, and kp = ωp/c is the plasma wavenumber corresponding to the electron density n0 = 5  ×  1017 cm−3. The electric field is then retrieved by taking the gradient of φ. The magnetic field in the linear wake is negligibly small (\(\propto {a}_{0}^{4}\)).
