Introduction

Photodynamic therapy (PDT) has emerged as a promising oncological treatment due to its high spatiotemporal precision, noninvasiveness, minimal systemic effects and ease of operation1,2,3. As the pivotal core of PDT, photosensitizers generate highly toxic reactive oxygen species (ROS) under light irradiation to cause cell death. Current organic photosensitizer design primarily focused on single molecular level, with strategies including conjugation length extension, heavy atom introduction, donor-acceptor engineering, devoted to red-shifting excitation wavelength, improving ROS generation efficiency, tuning ROS types, and so forth4,5,6,7,8,9. However, these hydrophobic photosensitizers are usually applied in the format of nanoaggregates or nanoparticles to improve their colloidal stability and biocompatibility10,11,12. The consequent concern is that the properties of photosensitizers at single molecular or dimer levels do not necessarily correlate with their behaviors in aggregated (e.g., enriching in tumor sites) or nanoparticle forms. Compromised fluorescence and ROS production upon loading into nanoparticles was often observed for most photosensitizers, especially for those with large planar skeletons13,14,15. Furthermore, these photosensitizing nanoparticles predominately adopt isotropic spherical morphologies, exhibiting suboptimal tumor accumulation and penetration capability16,17,18. Therefore, developing nano-photosensitizers with simultaneously enhanced ROS generation as well as superior tumor accumulation and penetration capabilities remains an unmet challenge.

Nanoparticle geometry plays a pivotal role in biological performance. Small spherical nanoparticles facilitate tumor accumulation due to enhanced permeability and retention (EPR) effects, but may suffer from fast tumor clearance19,20,21. Alternatively, anisotropic geometries such as vesicles, fibers, discs and bowls offer distinct advantages in biological applications22,23,24,25. In particular, nanorods, which mimic the bacterial morphologies, exhibit exceptional tumor targeting and penetration capabilities compared to the common nanospheres26,27,28. Nevertheless, achieving anisotropic rod-shaped geometry with enhanced ROS generation remains challenging. Conventional morphology shaping methods such as photolithography, film stretching, and template molding have tedious procedures and are incompatible with photophysical property modulation17. Meanwhile, polymer-/surfactant-based co-assembles29,30,31, grafting strategies32,33 or polymeric crystallization-driven self-assembly (CDSA)34,35 function well on morphology control, but they introduce competing interactions that obscure the intrinsic molecular packing of organic photosensitizers, complicating the optimization of photophysical properties.

Supramolecular self-assembly of small molecules presents a compelling alternative to concurrently regulate their photophysical properties and biological behaviors36,37. Unlike multicomponent nanoplatforms that rely on external matrix encapsulation, supramolecular self-assemblies are driven by their intrinsic intermolecular interactions, enabling the synergistic control over molecular packing, nanostructure geometry, photophysical properties, and functional output. For instance, crystallization induces room-temperature phosphorescence or enhances ROS production, J-aggregation red-shifts absorption window38,39,40, while higher degree of aggregation enhances the fluorescence for molecules with aggregation-induced emission (AIE) behaviors41,42,43. Generally, molecules with planar π-conjugation cores such as porphyrins or perylene diimide (PDI) could be regulated into rod-shaped self-assemblies through introduction of flexible alkyl chains44,45,46, but these assemblies often suffer from non-radiative dissipation of excited energy due to the dense π-π stacking, causing aggregation-caused quenching (ACQ) and reduced ROS generation13,14,15. In contrast, AIE photosensitizers avoid these energy losses at aggregate state, thus serving as promising candidates for developing robust nano-photosensitizers47,48. Considering the twisted molecular skeletons of AIE photosensitizers, we hypothesize that adjusting the appropriate twist-planarity balance may help achieve anisotropic rod-shaped self-assembly. However, this rod-shaped self-assembling strategy with adequate ROS generation remains uncharted.

Herein, we report a hindrance-plane-hindrance (H-P-H) molecular design skeleton to develop rod-shaped supramolecular self-assemblies, achieving simultaneously enhanced ROS generation and tumor accumulation/penetration for better PDT (Fig.1). The strategy is elucidated with AIE photosensitizer triphenylamine-thiophene-2-(4-oxo-3-phenylthiazolidin-2-ylidene)malononitrile (TPA-S-DCR), with twisted triphenylamine (TPA) unit as electron donor (D), thiophene as π bridge, and perpendicular-aligned 2-(4-oxo-3-phenylthiazolidin-2-ylidene)malononitrile (DCR) as the sterically hindered electron acceptor (A). TPA-S-DCR molecules self-assembled into rod-shaped nanoparticles under the sonication-assisted nanoprecipitation. Mechanics studies revealed that peripheral steric hindrance from TPA and DCR directs the anisotropic self-assemble of TPA-S-DCR into nanorods. The universality of the H-P-H strategy was further validated with a series of D-π-A molecules with planar core and twisted D/A peripheries. Intriguingly, such rod-shaped self-assemble behavior was minimally influenced by polymer matrices, and the biocompatible TPA-S-DCR nanorods (TSD-Rod) with 1, 2-distearoyl-sn-glycero-3-phosphoethanolamine-poly (ethylene glycol) (DSPE-PEG) coating exhibited 1.31-fold higher ROS generation and 5.04-fold greater cancer cell uptake than spherical counterpart (TSD-Sphere). TSD-Rod also demonstrated better tumor accumulation and retention, deeper tumor penetration, thus achieving enhanced therapeutic outcome both in vitro and in vivo. This work provides a supramolecular engineering strategy for anisotropic self-assembly, which also establishes rod-shaped nano-photosensitizers as a powerful platform for next-generation phototheranostics.

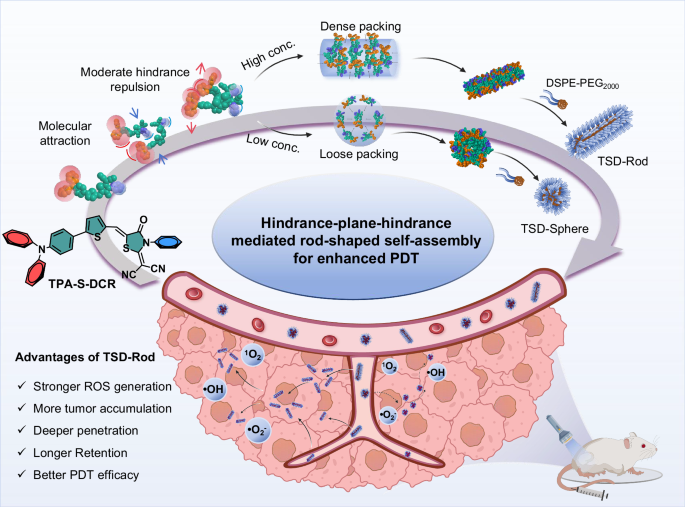

Fig. 1: Schematic of rod-shaped self-assembly of TPA-S-DCR and the application of TSD-Rod in PDT.
Fig. 1: Schematic of rod-shaped self-assembly of TPA-S-DCR and the application of TSD-Rod in PDT.
Full size image

TPA-S-DCR monomers initially form dimmers whereas their hindrance avoids close π-planar interaction. The dimers then grow into rod-shaped supramolecular self-assembly at high molecular concentrations but spherical ones at low concentrations. The obtained nanorods (TSD-Rod) and nanospheres (TSD-Sphere) are subsequently encapsulated with DSEP-PEG2000 for in vivo biological applications. Compared with TSD-Sphere, TSD-Rod show stronger reactive oxygen species (ROS) generation, higher tumor cell uptake, better tumor accumulation, deeper tumor penetration, and longer tumor retention. As a result, the obtained TSD-Rod showed better photodynamic therapy (PDT) antitumor effect. ROS include: superoxide anion free radical (O2-), hydroxyl radical: (OH) and singlet oxygen (1O2). Created in BioRender. Mou, X. (2025) https://BioRender.com/6xtfrq3.

Results

Molecular design of TPA-S-DCR

To achieve controllable rod-shaped self-assembly, a rational molecular design must balance intermolecular attraction and steric repulsion forces to direct anisotropic growth. Regulation of noncovalent interactions such as π–π interactions, hydrophobic effect, hydrogen bonding are common strategies in polymeric, small molecular and their co-assembly systems49,50,51. Among these, steric hindrance plays a unique role in twisted small molecules, which restricts molecular rotation and confines conformational freedom, thereby guiding anisotropic growth. Interestingly, previous studies have demonstrated that steric hindrance on the π-bridge often disrupts ordered self-assembly52,53, a relative long and rigidified π-bridge often led to microscale aggregates, while long but flexible π-bridges disfavor anisotropic packing54,55. In this regard, we hypothesized that a H–P–H architecture, in which a planar π-conjugated core is flanked by sterically hindered D and/or A peripheries, would favor directional self-assembly growth of these molecules into rod-shaped structures. Such a configuration provides appropriate driving forces for unidirectional growth, and also prevents excessive aggregation that could otherwise lead to large-scale aggregates.

Based on this principle, TPA-S-DCR with twisted D-π-A molecular geometry (featuring the H-P-H architecture) was designed for rod-shaped self-assembly exploration (Figs. S1S4). Gaussian theoretical calculation depicted that the π conjugation plane extends from the benzene ring in TPA to the five-membered ring in DCR, maintaining a moderate π-conjugated planarity (Fig. 2a). However, the two benzene rings in TPA unit extend outside the central plane, providing the large steric hindrance at donor side. In addition, the benzene ring in DCR is perpendicularly aligned to the π-conjugated plane, constituting as the other steric hindrance on the acceptor side. Both TPA and DCR adopt twisted geometries that minimize planarity, weaken π–π interactions from the lateral direction, and provide directional steric hindrance. Moreover, time-dependent density functional theory (TD-DFT) calculation illustrated that the highest occupied molecular orbital (HOMO) mainly distributed at TPA part and lowest unoccupied molecular orbital (LUMO) located at the thiophene and DCR segment (Fig. S26). This spatial separation of HOMO and LUMO electron clouds reduces the electron exchange energy, lowers the singlet-triplet (S1-T1) energy gap (0.71 eV), thereby increasing the intersystem crossing (ISC) rate and making TPA-S-DCR a potential photosensitizer.

Fig. 2: Self-assembly of TPA-S-DCR.
Fig. 2: Self-assembly of TPA-S-DCR.
Full size image

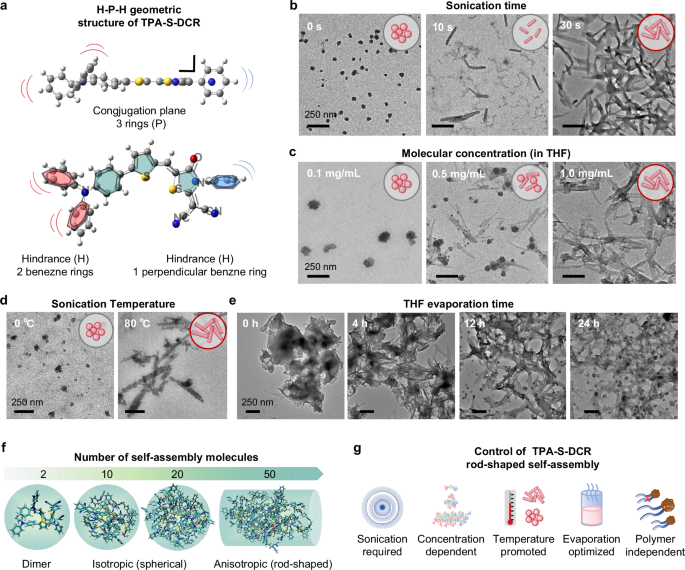

a Optimized chemical structure of TPA-S-DCR. b TEM images showing the spherical to rod-shaped morphology transition with the increase of sonication time at TPA-S-DCR concentration of 1.0 mg/mL) (Scale bar: 250 nm). c TEM images showing the self-assemble behaviors of TPA-S-DCR at different molecular concentration (under 2 min sonication) (Scale bar: 250 nm). d TEM images showing the self-assemble behaviors of TPA-S-DCR (1.0 mg/mL) under 0 °C and 80 °C (Scale bar: 250 nm). e TEM imaging showing the morphology evolution of TPA-S-DCR self-assemblies with the evaporation of THF (Scale bar: 250 nm). f Molecular dynamic simulation (GROMACS) of TPA-D-DCR self-assembly with the increased molecule number increase within simulation box. g Schematic of influence factors towards TPA-S-DCR self-assembly. For TEM imaging, n = 3 independent experiments. Created in BioRender. Mou, X. (2025) https://BioRender.com/tf1dnvd.

The photophysical properties of TPA-S-DCR were subsequently evaluated. The emission of TPA-S-DCR in toluene centers at 597 nm, which gradually red-shifts along with the solvent polarity increase, reaching 684 nm in dimethylsulfoxide (DMSO) (Fig. S27). In contrast, the absorption bands were less sensitive to the solvent polarity, locating from 495 nm to 518 nm. TPA-S-DCR thus exhibited a larger Stokes shift in DMSO (181 nm) over toluene (84 nm), suggesting its strong intramolecular charge transfer (ICT) effect, favoring ROS generation56,57. TPA-S-DCR also exhibited good photostability with minimal absorbance changes within 15 min of light irradiation (Fig. S28). The AIE feature of TPA-S-DCR was explored by measuring fluorescence in water/tetrahydrofuran (THF) mixture with different water fractions (fw) (Fig. S29a, b). TPA-S-DCR showed gradually reduced fluorescence when increasing fw from 0 to 50%, attributing to the ICT effect. Further increasing fw to be above 60%, TPASIC showed largely increased fluorescence, suggesting that the AIE effect of TPA-S-DCR competes over ICT effect. The fluorescence of TPA-S-DCR slightly reduced when fw increases to 99%, hinting that a relatively high aggregation degree may hamper radiative decay and open other dissipation pathways. Therefore, the ROS generation of TPA-S-DCR was explored with varied fw, with 2′,7′-dichlorodihydrofluorescein (DCFH) as the ROS probe58. The ROS generation of TPA-S-DCR initially exhibited a similar trend as its fluorescence, showing a “V” shaped profile in the fw ranges between 10% and 90% (Fig. S29c, d). Intriguingly, TPA-S-DCR exhibited further increased ROS generation when increasing fw from 90% to 99%, revealing a positive correlation between aggregation degree and ROS generation ability. These results suggested that molecular packing density influences the photo-physicochemical properties of this AIE photosensitizer, thus playing an important role in regulating the performance of self-assembled nanoparticles.

Self-assemble behavior of TPA-S-DCR

To investigate the self-assembling behavior of TPA-S-DCR, a conventional nanoprecipitation strategy without external energy input was first employed59. Specially, 1.0 mg of TPA-S-DCR was dispersed in 10 mL THF/water mixtures with varying fw. As shown in optical images and transmission electron microscope (TEM) results (Figs. S30S31), microneedles and even visible precipitation were observed when fw ranges from 10 to 80%, while spherical nanoparticles were obtained at about fw = 90%. TPA-S-DCR failed to form rod-shaped nanoparticles under these conditions. Ultrasound-assisted nanoprecipitation was further introduced to disperse and energize TPA-S-DCR molecules for possible morphology transition60. Intriguingly, rod-shaped nanoparticles formed rapidly within only 10 s of ultrasound sonication at a fw of 90%. With prolonged sonication time, these nanorods became longer, wider, and more uniform, reaching a morphological plateau at ~2 min (Fig. 2b, Fig. S32a). The variation of sonication amplitude (from 20 to 100%) does not affect the nanorod self-assemble behavior of TPA-S-DCR (Fig. S32b). This rod-shaped self-assembly was also found to be strongly concentration dependent. At a low initial concentration of 0.1 mg/mL (in 1 mL THF), TPA-S-DCR only self-assembled into spherical nanoparticles, even with ultrasound sonication assistance (Fig. 2c, Fig. S33). In contrast, increasing the initial concentration to 1.0 mg/mL and above led to the gradual emergence of rod-shaped nanoparticles at the expense of spherical ones. Additionally, this rod-shaped self-assemble is an entropy-driven process, as TPA-S-DCR (at 1.0 mg/mL, with 2 min sonication) rapidly self-assembled into rod-shaped nanoparticles at 80 °C, but spherical nanoparticles at 0 °C (Fig. 2d). A high solution temperature also lowers rod-shape self-assemble threshold under sonication, where TPA-S-DCR at a low initial concentration of 0.1 mg/mL formed rod-shaped nanoparticles at 80 °C (Fig. S34). It should be noted that high solution temperature (e.g., 80 °C) alone without sonication could not induce the rod-shaped transition (Fig. S35). These results suggested that nanorod formation is an entropy-driven process, favored by ultrasound sonication and higher temperatures61,62.

The evolution of self-assemble morphology during THF volatilization was also monitored. Immediately after ultrasound sonication, the aggregates displayed poorly define boundaries (Fig. 2e, Fig. S36). For concentrated group (the initial concentration is 1 mg/mL), partially discernible rod-shaped structures could still be distinguished. As THF gradually evaporated, the morphology shapes became more defined, with nanorods emerging from the concentrated group and nanospheres from the diluted group (0.1 mg/mL). Notably, some small spherical aggregates began to appear even in the concentrated group at a later stage (12 h to 24 h). This was likely the local Ostwald ripening63, where molecules re-dissolved from nanorods and subsequently went through re-precipitation into spherical aggregates due to low local concentration. In addition, amphiphilic block copolymers DSPE-PEG and Pluronic F127, branched polymer 8-arm polyethylene glycol-OH (PEG-OH) and dendritic polymer poly(amidoamine)-COOH (PAMAM-COOH) were further introduced to evaluate polymeric encapsulation and co-assembly effects (Fig. S37). The nanorods became thinner, shorter, and more uniform in the presence of amphiphilic block copolymers (DSPE-PEG and F127). Instead, TPA-S-DCR assembled into nanorods with irregular outlines and rough edges in the presence of branched or dendritic polymers. This was probably due to the inherent structural rigidity and limited conformation of these branched and dendritic polymers, which hinder uniform encapsulation (compared to flexible block copolymers)64,65. The results demonstrated that although the self-assemble behavior of TPA-S-DCR was influenced by polymeric matrices to some extent, the strong intermolecular interactions between these TPA-S-DCR molecules remain the primary driving force for nanorod formation.

The stacking modes of TPA-S-DCR molecules inside nanorods were subsequently investigated. Poor powder X-ray diffraction (PXRD) crystallization signals and lack of diffuse rings under high-resolution TEM diffraction revealed the amorphous interior for both rod-shaped and spherical nanoparticles (Figs. S3839). Moreover, both nanoparticles showed similar absorption peaks (~500 nm) as their monomers in THF (495 nm), suggesting the absence of ordered H- or J-type aggregation (Fig. S40). Quantification of packing density showed that nanorods had a higher TPA-S-DCR density of 39.67 nm-3, which was about ~3-fold of nanospheres (13.10 nm-3) (Table S1). The result indicated that rod-shaped self-assembly possesses tighter molecular packing, which was likely to enhance the internal restriction of intramolecular motions, thus favoring AIE effect and ROS generation. In addition, molecular dynamic simulations using GROMACS were further conducted in an 8 × 8 × 8 nm3 simulation box. As molecule number increases, TPA-S-DCR exhibited anisotropic growth tendency, potentially leading to rod-shaped aggregation (Fig. 2f). This simulation result was consistent with the concentration-dependent morphology transition. Additionally, four typical dimer conformations were extracted from the simulation box, which depicted disordered stacking modes, stabilized by repulsion of these peripheral hindrance groups (Fig. S41). No obvious π-π interactions or specific atom-atom interactions were determined in these dimers since most interatomic distances exceeded 4 Å. In summary, we demonstrated a unique rod-shaped self-assembly process for TPA-S-DCR, which was concentration-, temperature-, and sonication-dependent (Fig. 2g).

H-P-H-regulated rod-shaped self-assembly

The fundamental structure determinant for the anisotropic growth into rod-shaped nanostructures was further evaluated with a series of H-P-H structured molecules (Fig. 3a, Fig. S1S25). Within TPA-S-DCR (2), TPA contributes higher steric hindrance (two out-of-plane benzene rings) but shorter planar conjugation, while DCR contributes longer planar conjugation with less steric bulk (one perpendicular benzene ring). Their combination resulted in a successful, concentration-dependent rod-shaped self-assembly. To verify the generality of the H-P-H principle, two similar derivatives were synthesized: TPA-B-DCR (3) in which the thiophene π bridge was replaced by a benzene (B) ring (a minor change in conjugation and steric profile); TPE-S-DCR (4) in which TPA was substituted by tetraphenylvinyl (TPE) group with a higher steric hindrance while maintaining similar planar conjugated plane. Both TPA-B-DCR and TPE-S-DCR self-assembled into spherical nanoparticles at low initial concentration (0.1 mg/mL), but nanorods at higher concentration (1.0 mg/mL) under 2 min sonication. Their similar self-assembly behavior to TPA-S-DCR expands the scope of H-P-H strategy for concentration-dependence rod-shaped self-assembly.

Fig. 3: Supramolecular self-assembly based on H-P-H designing template.
Fig. 3: Supramolecular self-assembly based on H-P-H designing template.
Full size image

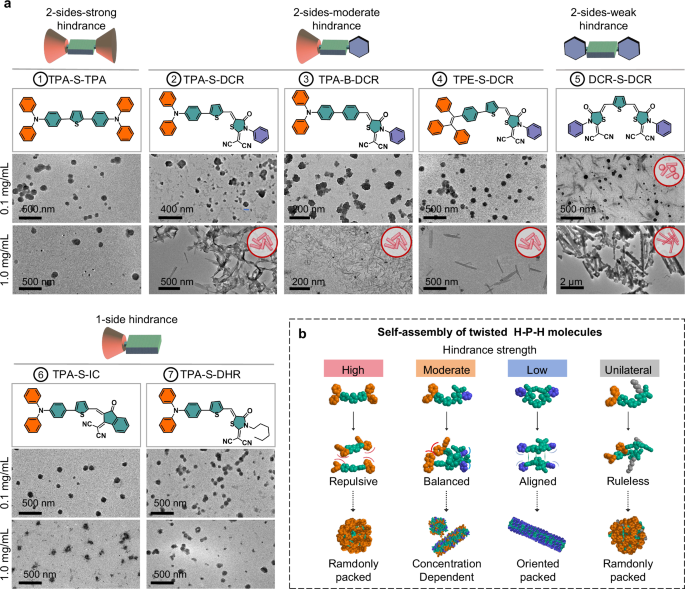

a Self-assembled morphologies of molecules with distinct hindrance effects (with the assistance of 2 min sonication) (n = 3 independent experiments). b Schematic of the influence of structural hindrance strength on supramolecular self-assembly towards morphology control. Created in BioRender. Mou, X. (2025) https://BioRender.com/tf1dnvd.

Additionally, a highly hindered symmetric molecule TPA-S-TPA (1) with two strong distorted peripheries was also examined. TPA-S-TPA only formed spherical aggregates regardless of concentration, temperature and ultrasound sonication. This should be caused by its high proportion of hindrance groups (two out-of-plane benzene rings) on both TPA sides, which provide high degree of repulsion and disrupt the long-range oriented stacking, thus hindering rod-shaped self-assembly. In contrast, another symmetric molecule DCR-S-DCR (5), with lower steric hindrance at both peripheries, rapidly self-assembled into micro-scale rod-shaped aggregates even at low initial concentrations. This should be caused by the extended central planar conjugation of DCR, which enhances planar π-π interactions and counterbalances the steric hindrance, leading to rapid micro-scaled rod-like self-assembly with less controllability.

To further probe the roles of terminal steric hindrance, TPA-S-IC (6) and TPA-S-DHR (7), with reduced steric hindrance at acceptor periphery were synthesized. In TPA-S-IC, the perpendicular benzene ring was replaced by a fused conjugated ring that extends π-conjugated plane. While in TPA-S-DCR, the perpendicular benzene ring was replaced by a flexible hexyl chain, which largely reduced peripheral steric hindrance. Both molecules self-assembled into spherical nanoparticles under all conditions, suggesting that crucial roles of terminal π-conjugated steric hindrance in controlling molecular alignment and promoting the anisotropic rod-shaped self-assemble. When the steric hindrance on both peripheries was minimized by changing TPA to N,N-dimethylaniline, the exampled molecule MeA-S-MeA (8) self-assembled into the mixture of spherical and rod-shaped nanoparticles, regardless of concentrations (Fig. S42). The molecular conformation of MeA-S-MeA completely deviated from the H–P–H rule, thus the directional growth becomes stochastic and the self-assembly morphologies are less predictable and controllable.

Therefore, the H–P–H architecture represents a rational and effective design strategy to achieve rod-shaped self-assemblies (Fig. 3b). Molecules with excessive steric hindrance on both peripheries (e.g., TPA-S-TPA) are prone to spherical aggregation due to overwhelming intermolecular repulsion. Those with balanced steric hindrance and planar conjugation (e.g., TPA-S-DCR, TPA-B-DCR, and TPE-S-DCR) can form rod-shaped nanoparticles in a concentration-dependent manner, where denser stacking at high concentrations enhances steric restriction and repulsion, favoring anisotropic growth. Molecules with reduced hindrance rely increasingly on planar interactions; for instance, DCR-S-DCR exhibits rapid micro-rod formation. When hindrance on one side is removed (e.g., TPA-S-IC and TPA-S-DHR), the suppression of molecular slippage is lost, and isotropic spherical assembly dominates.

Characterization of TPA-S-DCR nanorods (TSD-Rod)

To improve colloidal stability and biocompatibility, amphiphilic polymer DSPE-PEG was introduced to co-assemble with TPA-S-DCR under different initial concentrations to form colloidal stable nanoparticles (termed as TSD-Rod and TSD-Sphere) (Fig. 4a). TEM images showed uniformly distributed TSD-Rod and TSD-Sphere with well-defined and smooth particle edges (Fig. 4b). Atomic force microscopy (AFM) analysis further supported the distinct rod-shaped and spherical nanostructures (Fig. 4c, Fig. S43). Geometric parameters and packing densities were subsequently quantified (Fig. 4d, Table S1), TSD-Rod exhibited a typical length of ~200 nm and an average diameter of ~20 nm, while TSD-Sphere had diameters of ~60 nm. The overall morphological features of these nanoparticles were further statistically characterized by static light scattering (SLS) and dynamic light scattering (DLS) (Fig. 4d). The radius of gyration (Rg) and hydrodynamic radius (Rh) were determined to be 47.11 nm and 8.26 nm for TSD-Rod, and 33.64 nm and 32.87 nm for TSD-Sphere, respectively. A high Rg/Rh ratio (5.7) of TSD-Rod suggested their anisotropic geometry, whereas the nearly unity Rg/Rh ratio (1.02) of TSD-Sphere confirmed their isotropic spherical nature, consistent to the microscopic observations. Additionally, the translational diffusion coefficient (Dt) and rotational diffusion coefficient (Dr) for TSD-Rod were determined to be 2.96 × 107 nm2/s and 9877.89 s-1, which were about ~4.0- and 1.9-fold higher than those of TSD-Sphere (Dt = 7.43 × 106 nm2/s, Dr = 5157.57 s−1), hinting the better movement and mucosal penetration ability of TSD-Rod66,67,68. Further light scattering analysis suggested similar zeta potentials for TSD-Rod (−29.2 mV) and TSD-Sphere (−31.0 mV) in water (Fig. S44), due to the presence of PEG shell. Both TSD-Rod and TSD-Sphere also showed minimally changed sizes, morphologies and surface potentials upon 15 days’ storage under physiological conditions, indicating their excellent colloidal stability (Figs. S44S46).

Fig. 4: Characterization of TSD-Rod and TSD-Sphere.
Fig. 4: Characterization of TSD-Rod and TSD-Sphere.
Full size image

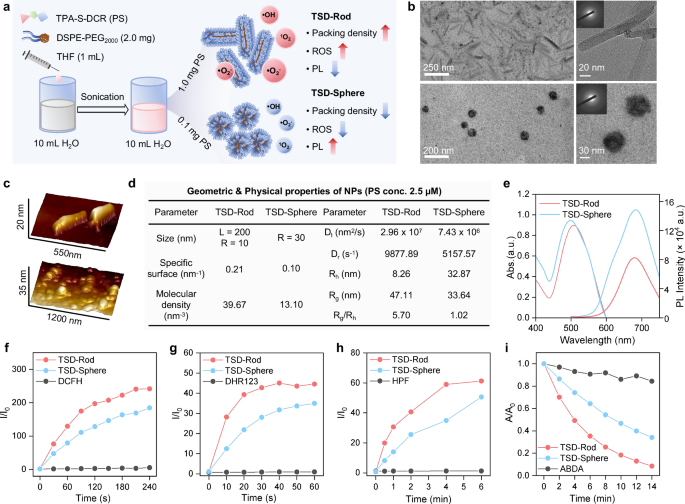

a Schematic of the preparation of TSD-Rod/TSD-Sphere and the summary of their properties. PS refers to photosensitizer, ROS refers to reactive oxygen species, PL refers to photoluminescence. Created in BioRender. Mou, X. (2025) https://BioRender.com/tf1dnvd. b TEM images and diffraction patterns of TSD-Rod/TSD-Sphere (n = 3 independent experiments). c 3D AFM images of TSD-Rod/TSD-Sphere. d Table showing the geometric and physical properties of TSD-Rod and TSD-Sphere. e Absorption and PL spectra of TSD-Rod/TSD-Sphere. TPA-S-DCR concentration is 80 μM. a.u. refers to arbitrary unit. f Total ROS generation detected by DCFH probe, which was reflected by DCF fluorescence enhancement. g O2- generation detected by DHR123 probe. h OH generation detected by HPF probe. I0 and I refer to fluorescence intensity of specific ROS probe before and after light irradiation (i) 1O2 generation detected by ABDA probe, which was reflected by the decrease of ABDA absorbance (A/A0, where A0 and A refer to the absorbance of ABDA before and after light irradiation). White light irradiation: 20 mW/cm2; TPA-S-DCR concentration is 10 μM. Two-tailed Student’s t test was performed for comparisons between two groups. Source data are provided in Source Data file.

Both nanoparticles showed similar absorption and emission spectra. The lower fluorescence intensity of TSD-Rod (~55.5% of TSD-Sphere) hinted its excited state energy was dissipating through other pathways (Fig. 4e). Thus, the photo-induced ROS generation was evaluated. Using DCFH as the total ROS probe, TSD-Rod exhibited ~1.31-fold higher ROS generation ability than TSD-Sphere as manifested by DCF fluorescence enchancement factors (241.7 versus 184.5) (Fig. 4f, Fig. S47a–d). Additionally, dihydrorhodamine 123 (DHR123), hydroxyphenyl fluorescein (HPF), and 9’,10’-anthracenediyl-bis(methylene)-dimalonic acid (ABDA) were further used to detect the generation of superoxide anion radical (O2-), hydroxyl radical (OH) and singlet oxygen (1O2), respectively. TSD-Rod induced ~1.27-fold higher fluorescence enhancement of DHR123 as compared to TSD-Sphere (44.53 versus 34.97), suggesting a more efficient O2- generation (Fig. 4g, Fig. S47e–h). The HPF assay also suggested a faster fluorescence ascending profile for TSD-Rod, with OH generation reaching 1.69-fold of TSD-Sphere (58.99 versus 34.85) after 4 min light irradiation (Fig. 4h, Fig. S47i–l). ABDA degradation also showed a better 1O2 generation ability of TSD-Rod, showing a 1.39-fold higher absorbance decline rate than TSD-Sphere (Fig. 4i, Fig. S48). These results clearly demonstrated that the TSD-Rod exhibited enhanced ROS generation compared to TSD-Sphere. Notably, the difference was largely attributed to the assembling difference rather than polymer encapsulation, as pure TPA-S-DCR nanorods without DSPE-PEG also exhibited ~1.33-fold higher total ROS generation over TPA-S-DCR nanospheres (Fig. S49). Moreover, both TSD-Rod and TSD-Sphere exhibited slightly increased ROS generation over their bare counterparts, as DSPE-PEG confines the molecular packing and reduces nanoparticle sizes during the assemble process (Fig. S50). However, post-encapsulation reduced the ROS generation for both nanorods and nanospheres as it doesn’t affect molecular packing of TPA-S-DCR but reduces the interaction with surrounding oxygen (Fig. S51). Finally, stability tests suggested that both TSD-Rod and TSD-Sphere also demonstrated consistent fluorescence and ROS generation ability at different physiological conditions (Figs. S52S54).

The underlying mechanism could be explained from the titration experiments mentioned above (Fig. S29), where increasing fw from 90 to 99% led to decreased fluorescence but increased ROS generation. This trend suggested that denser molecular packing (at high fw) possibly promoted ISC process, favoring ROS generation over fluorescence emission. Dynamic tracking of pure TPA-S-DCR self-assembly at different concentrations (0.1, 0.3, 0.5 to 1.0 mg/mL) also supported this hypothesis: higher concentration led to decreased photoluminescence (Fig. S40) with synchronously preferential formation of rod-shaped nanostructures. Besides, geometric analysis also suggested a larger specific surface area of TSD-Rod (0.21 nm-1) compared to TSD-Sphere (0.10 nm-1), implying that a greater interface for oxygen interaction, which also contributed to the enhanced ROS generation. In addition, similar phenomena were also found for TPA-B-DCR and TPE-S-DCR with H-P-H architectures: their rod-shaped supramolecular self-assemblies generated more ROS but emitted weaker fluorescence than the corresponding nanospheres (Fig. S55S56). In contrast, for photosensitizers lacking rod-shaped self-assemble tendency (e.g., TPA-S-DHR), they self-assembled into nanospheres at both low and high initial concentrations, and these nanospheres exhibited similar fluorescence and ROS generation capabilities (Fig. S57). These results further validated that appropriate H-P-H molecular design enabled rod-shaped self-assembly with enhanced ROS generation.

In vitro PDT with TSD-Rod

The cellular uptake behaviors of TSD-Rod and TSD-Sphere were evaluated in both cancerous and normal cell lines, with murine-derived 4T1 cell line, NCTC clone 929 (L929) cell line as the model cell lines. Confocal laser scanning microscope (CLSM) images suggested that cellular internalization of nanoparticles reached the maximum with 5 h incubation (Fig. S58S59). TSD-Rod outperformed TSD-Sphere in internalizing into the 4T1 cancer cells by 2.77-fold in terms of fluorescence brightness, while smaller difference was observed in L929 normal cells (Fig. 5a, b). Considering the lower average fluorescence per nanoparticle, TSD-Rod exhibited a total 5.04-fold higher uptake in 4T1 cells than TSD-Sphere. The flow cytometry results also corroborated these findings, confirming the selectively passive targeting of TSD-Rod towards cancer cells (Fig. 5c). Furthermore, enhanced internalization in human-derived MCF-7 cancer cells was also observed for TSD-Rod (1.29-fold increase over TSD-Sphere), further confirming the cancer-preferable uptake of TSD-Rod (Fig. S60). This internalization difference was likely attributed to the anisotropic rod shape and the distinct endocytic behaviors of cancer cells, which included micropinocytosis that facilitates the engulfment of larger or elongated nanostructures69. In contrast, normal cells rely mainly on the common clathrin-mediated endocytosis and caveolae-mediated endocytosis26,60,70,71. leading to a comparable uptake of nanorods and nanospheres in normal cells.

Fig. 5: In vitro PDT evaluation of TSD-Rod and TSD-Sphere.
Fig. 5: In vitro PDT evaluation of TSD-Rod and TSD-Sphere.
Full size image

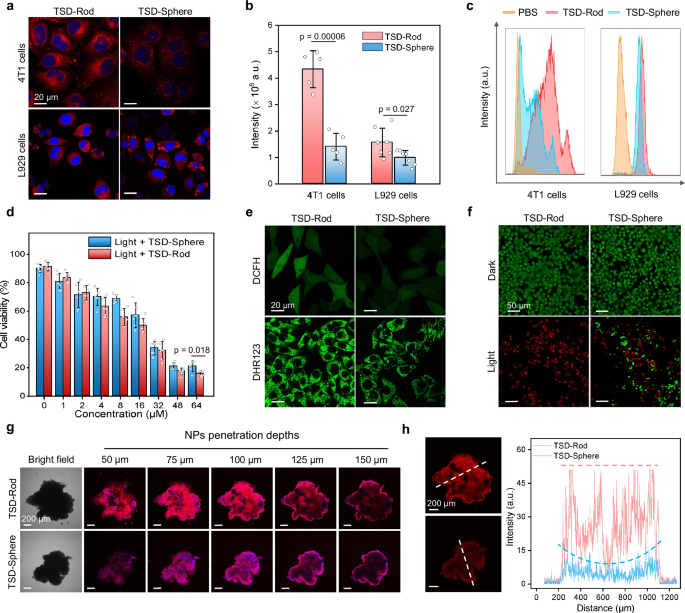

a CLSM images showing the cellular uptake of TSD-Rod and TSD-sphere in cell 4T1 and cell L929 at 5 h (Scale bar: 20 μm). b Histogram statistics of TSD-Rod/TSD-Sphere uptake in (a). Data are presented as mean ± standard deviation (SD) (n  =  5 independent samples for 4T1 cells, n  =  7 independent samples for L929 cells). c Flowcytometry analysis of cellular uptake of TSD-Rod/TSD-Sphere in both cells line. d Viabilities of 4T1 cells after TSD-Rod/TSD-sphere incubation and light irradiation (40 mW/cm2, 20 min). Data are presented as mean ± SD (n  =  6 independent samples). e CSLM images showing intracellular ROS generation with DCFH and DHR123 (20 μM) as ROS probes (Scale bar: 20 μm). f CSLM images showing live/dead of 4T1 cells after TSD-Rod/TSD-Sphere incubation and light irradiation, accessed by calcein AM/PI assay (Scale bar: 50 μm). g CLSM images of 3D tumor spheroids at different depths, after incubation with TSD-Rod/TSD-Sphere (Scale bar: 200 μm). h Cross-section fluorescence profile of TSD-Rod/TSD-Sphere at a depth of 100 μm in the 3D tumor spheroids, showing their centripetal diffusion behaviors (Scale bar: 200 μm). For CLSM imaging, n = 3 independent experiments. a.u. refers to arbitrary unit. Two-tailed Student’s t test was performed for comparisons between two groups. A significance level of p  <  0.05 was utilized for determining statistical significance. Source data are provided in Source Data file.

Cell viability was tested through methyl thiazolyl tetrazolium (MTT) assay. Without light exposure, both TSD-Rod and TSD-Sphere showed negligible cytotoxicity, proving their excellent biocompatibility (Fig. S61). Under white light irradiation (40 mW/cm2 for 20 min), TSD-Rod exhibited much stronger killing effect over TSD-Sphere under all tested concentrations, with the half-maximum inhibitory concentrations (IC50) of 8 μM and 32 μM for TSD-Rod and TSD-Sphere, respectively (Fig. 5d). In addition, increasing light power to 100 mW/cm2 greatly promoted ROS generation and enhanced photodynamically killing effect of both TSD-Rod and TSD-Sphere (Fig. S61). The intracellular ROS generation ability was then assessed in 4T1 cells, using DCFH-DA and DHR123 for total ROS and O2- detection. After 5 h incubation followed by 10 min of white light irradiation (20 mW/cm2), CLSM images showed bright green fluorescence in both groups, with TSD-Rod-treated cells exhibiting 3.07-fold (DCFH) and 1.43-fold (DHR123) higher intensities, indicative of more efficient intracellular ROS generation (Fig. 5e, Fig. S62). The notably larger difference at intracellular ROS level compared to the in vitro solution tests should be attributed to the higher cellular uptake of TSD-Rod. Additionally, live/dead cell staining experiment with calcein acetoxymethyl ester (AM) and propidium iodide (PI) assay further revealed the extensive cell death in TSD-Rod-treated 4T1 cells post-irradiation, whereas only partial cell death was observed in TSD-Sphere-treated group (Fig. 5f). Cell apoptosis and necrosis were quantitatively assessed by flow cytometry with Annexin V-APC and 4’,6-diamidino-2-phenylindole (DAPI) as the indicators (Fig. S63). Upon light irradiation, 32.80% of cells treated with TSD-Rod underwent late apoptosis, increased by ~3-fold compared to TSD-Sphere (10.29%). The early apoptosis rate was also higher for TSD-Rod (64.42%) than TSD-Sphere (49.05%) post-irradiation, underscoring the superior photodynamic ablation capacity of the rod-shaped nanoparticles.

Given the much larger Dt and Dr coefficients, TSD-Rod is expected to penetrate deeper into tumor tissues. This hypothesis was tested using a 3D tumor spheroids model. 4T1 tumor spheroids (diameter of ~1 mm) were incubated with TSD-Rod or TSD-Sphere for 8 h, and the nucleus were stained with Hoechst33342. Sectional images of tumor spheroids from CLSM tomography scan were collected at different depths (0–250 μm). Brighter fluorescence of TSD-Rod was observed cross all the depths, suggesting its higher penetration into tumor spheroids than TSD-Sphere (Fig. 5g, Fig. S64a). At the depth of 75–100 μm, the sectional total intensity reached the highest, where TSD-Rod exhibited 4.60-fold higher than TSD-Sphere (Fig. S64b). The better penetration effect was also reflected by the centripetal diffusion, where the fluorescence of TSD-Rod spread into the spheroid core (e.g., at a depth of 100 μm), while TSD-Sphere remained largely confined to the spheroid periphery (Fig. 5h). After light irradiation, the tumor spheroids were stained with PI to reveal cell death at different depths. Extensive red fluorescence throughout the spheroid volume in TSD-Rod-treated group was observed, highlighting effective phototoxicity in deeper tumor regions (Fig. S65). In contrast, TSD-Sphere delivered minimal damage to these cells deeper seated inside tumor spheroid. The better tumor penetration and photodynamic killing ability of the TSD-Rod was thus preliminarily proved.

Biodistribution and tumor accumulation of TSD-Rod

The in vivo biodistribution, tumor enrichment and penetration of both TSD-Rod and TSD-Sphere were further investigated on tumor-bearing balb/c female mice. 4T1 cells were inoculated into the upper part of the right leg of 6-week-old balb/c mice to construct subcutaneous tumor-bearing murine model. 100 μL of isotonic nanoparticle dispersion (TPA-S-DCR conc. 750 μg/mL) were injected through the tail vein. Fluorescence imaging suggested that tumor-site signal started to emerge at 4 h post-injection, gradually increased, and reached the plateaus at 12 h for TSD-Rod and 8 h for TSD-Sphere, respectively (Fig. 6a, b, Fig. S66). After correcting for inherent brightness differences between the nanoparticles, TSD-Rod achieved 1.67-fold higher tumor enrichment than TSD-Sphere. Tumor fluorescence signal gradually declined thereafter, due to the nanoparticle metabolism and body clearance. Ex vivo imaging of organs collected at 12 h post injection also suggested a 1.44-fold higher tumor accumulation of TSD-Rod over TSD-Sphere (Fig. 6, d, Fig. S67), in consistent with in vivo imaging results.

Fig. 6: Tumor enrichment and penetration of TSD-Rod and TSD-Sphere.
Fig. 6: Tumor enrichment and penetration of TSD-Rod and TSD-Sphere.
Full size image

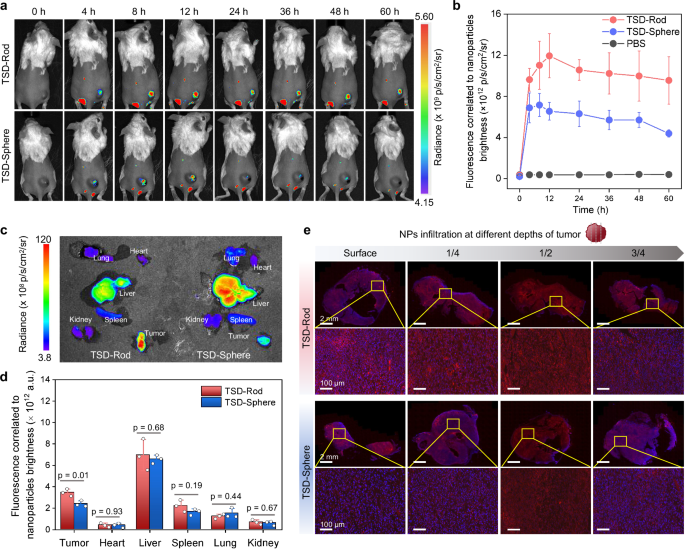

a In vivo near infrared images of tumor enrichment of TSD-Rod/TSD-Sphere. b Tumor enrichment profiles of TSD-Rod/TSD-Sphere. Data are presented as mean ± SD (n  =  3 mice). The intensity of TSD-Sphere was normalized with TSD-Rod to eliminate their fluorescence difference. c Ex vivo fluorescence images of organs and tumors at 12 h post injection. d Histograms of TSD-Rod/TSD-Sphere distribution in (c). The intensity of TSD-Sphere was normalized with TSD-Rod to eliminate their fluorescence difference. Data are presented as mean ± SD (n  =  3 mice). a.u. refers to arbitrary unit. Two-tailed Student’s t test was performed for comparisons between two groups. A significance level of p  <  0.05 was utilized for determining statistical significance. e CLSM images of tumor slices at different depths (Scale bar: 2 mm for overview, 100 μm for enlarged region) (n = 3 independent experiments). Created in BioRender. Mou, X. (2025) https://BioRender.com/tf1dnvd. Source data are provided in Source Data file.

To further evaluate their tumor penetration ability, tumor tissues collected at 8 h post injection (as TSD-Rod and TSD-Sphere exhibited similar ex vivo tumor accumulation ability at this time point, Fig. S67S68) were sectioned at varying depths (i.e., surface, one quarter, one half, and three quarter), followed by CLSM scanning (Fig. 6e). While both TSD-Rod and TSD-Sphere were detectable throughout the tumor mass, TSD-Rod displayed more uniform distribution and stronger fluorescence across all slices, indicating superior tumor penetration. Unlike the in vitro tumor spheroids model, the in vivo tumor microenvironment allowed dynamic nanoparticle redistribution, including penetration, extraction, and clearance into blood vessels. Thus, the more uniform distribution across all depths of TSD-Rod was not only caused by their deeper penetration ability, but also contributed by their prolonged retention. These attributes collectively suggested the potential of TSD-Rod towards enhanced tumor accumulation, penetration and retention.

In vivo PDT of TSD-Rod

The in vivo PDT experiments were subsequently carried out (Fig. 7a). The mice were randomly divided into 6 groups: phosphate buffered saline (PBS), PBS + Light (L), TSD-Rod, TSD-Rod + L, TSD-Sphere and TSD-Sphere + L. Upon tumor volumes reached ~90 mm3 on day 0, 200 μL of PBS or isotonic nanoparticle dispersion (TPA-S-DCR conc. 750 μg/mL) was intravenously injected through the tail. Mice in light treatment groups were exposed to white light irradiation (100 mW/cm2) for 30 min at 8 h post-injection. The treatment was repeated on day 5. Body weights and tumor volumes were consecutively monitored over 14 days (Fig. 7b, Fig. S69). Compared to the PBS + L control group in which tumor volume increased to ~589.0 mm3, both TSD-Rod + L and TSD-Sphere + L groups showed obvious tumor growth suppression. TSD-Rod + L group showed remarkably inhibited tumor growth (~67.8 mm3) after first PDT treatment. While TSD-Sphere + L group only exhibited slight tumor inhibition (~235.8 mm3) even after the second PDT treatment. On day 14, the mice were sacrificed, and the tumors were extracted and weighed (Fig. 7c, Fig. S70). Tumors from TSD-Rod + L group weighted ~50.3 mg, less than those from TSD-Sphere + L (~173.9 mg) and PBS + L (~469.2 mg) groups. Visual examination of tumors also confirmed enhanced tumor ability by the PDT of TSD-Rod (Fig. S71).

Fig. 7: In vivo PDT with TSD-Rod and TSD-Sphere.
Fig. 7: In vivo PDT with TSD-Rod and TSD-Sphere.
Full size image

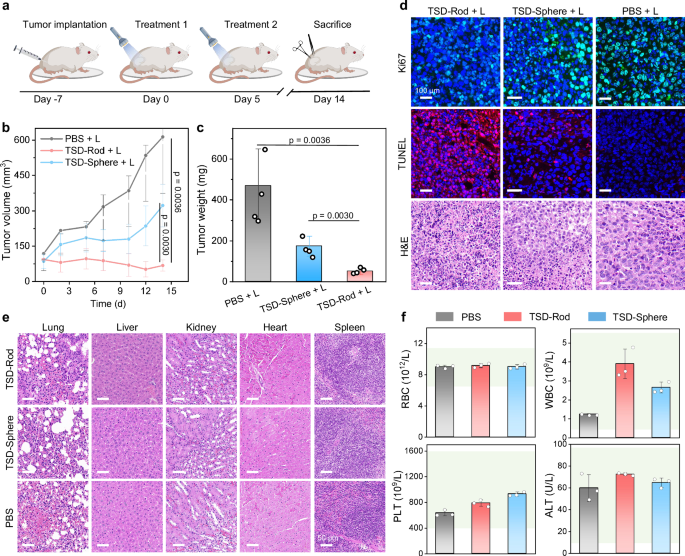

a Schematic of in vivo PDT procedure. Created in BioRender. Mou, X. (2025) https://BioRender.com/tf1dnvd. b Tumor volume changes in different group after PDT treatment. Data are presented as mean ± SD (n  =  4 mice). c Tumor weights in these groups, tumors were collected at day 14 Data are presented as mean ± SD (n  =  4 mice). Two-tailed Student’s t test was performed for comparisons between two groups. A significance level of p  <  0.05 was utilized for determining statistical significance. d Ki67, TUNEL and H&E staining images of sectioned tumors at day 14 for cell damage evaluation (Scale bar: 100 μm). e H&E staining images of normal organs after intravenous injection of TSD-Rod/TSD-Sphere into healthy mice (Scale bar: 50 μm). For staining imaging, n = 3 independent experiments. f Representative blood routine and biochemistry parameters including red blood cells (RBC, anemia indicator, normal range: 6.50–11.50), white blood cells (WBC, inflammation indicator, normal range: 0.80–10.60), blood platelets (PLT, coagulation indicator, normal range: 400–1600) and alanine aminotransferase (ALT, liver function indicator, normal range: 10.06–96.47) in TSD-Rod/TSD-Sphere-injected healthy mice. The normal ranges of the above indexes of healthy mice were represented in green region. Data are presented as mean ± SD (n  =  3 mice). Source data are provided in Source Data file.

Histological and immunofluorescence analyses were conducted to further assess therapeutic outcomes (Fig. 7d). Hematoxylin and eosin (H&E) staining showed extensive cellular necrosis in the tumor from TSD-Rod + L group while tumors from TSD-Sphere + L and PBS + L groups remained largely intact. Likewise, Terminal deoxynucleotidyl transferase dUTP nick end labeling (TUNEL) staining revealed a higher proportion of apoptotic DNA fragmentation in the TSD-Rod + L group. Ki67 immunostaining showed largely reduced green fluorescence, indicative of reduced tumor cell proliferation ability following TSD-Rod-based PDT and further supporting the effective tumor cell ablation by TSD-Rod-mediated PDT.

The in vivo biosafety and biocompatibility of nanoparticles were also evaluated on healthy mice after intravenous administration. H&E staining of heart, liver, spleen, lung and kidney showed minimal histological abnormalities and difference between TSD-Rod, TSD-Sphere and the control groups (Fig. 7e). Blood routine and biochemistry tests were also conducted, where the red blood cells, white blood cells, platelets, liver function and renal function indicators of mice turned out to be within the normal range (Fig. 7f, Fig. S72S73). These results confirm the favorable biocompatibility and systemic safety of TSD-Rod.

Discussion

In conclusion, we herein report a H-P-H molecular design strategy for constructing twisted D-π-A type photosensitizers capable of self-assembling into rod-shaped nanostructures, enabling morphology-regulated phototheranostic performance. In the aspect of self-assembly, we achieved controllable morphology regulation of these twisted photosensitizers into nanospheres and nanorods (e.g., TPA-S-DCR, TPA-B-DCR and TPE-S-DCR) by fine-adjusting the π-conjugated steric hindrances at D/A peripheries. As for photophysical property changes, the denser packing inside nanorods modulated the excited-state energy dissipation pathways—promoting intersystem crossing—thereby enhancing ROS generation. Specifically, TSD-Rod exhibited higher aqueous (1.31-fold) and intracellular (3.07-fold) ROS generation than TSD-Sphere counterparts. TSD-Rod also showed better biological performance: it exhibited higher tumor cell uptake (5.04-fold), deeper penetration in ex vivo 3D spheroid and in vivo tumor tissues, higher tumor enrichment, and longer tumor retention over TSD-Sphere. The enhanced ROS generation and tumor enrichment/penetration/retention cooperatively enhanced the photodynamic therapeutic outcomes. With more efforts on elongating π-conjugation, inducing J-aggregation and introducing tumor-targeting ligands, supramolecular nanorods with deeper penetration depth and better tumor-selectivity could be further developed for feasible and practical PDT. Overall, this study provides a conceptual and practical framework for leveraging molecular engineering to optimize photochemical activity, self-assembly morphology and biomedical functionality simultaneously for organic photosensitizers. This H-P-H strategy presents a morphological control for predictably achieving anisotropic self-assembly in small molecules, an area previously dominated by polymeric systems. It also highlights how supramolecular self-assembly fundamentally dictates emergent biological properties (delivery and efficacy) different from their molecules, offering insights in developing functional supramolecular self-assemblies.

Methods

Synthesis of TPA-S-DCR

5-(4-(diphenylamino)phenyl)thiophene-2-carbaldehyde (355 mg, 1 mmol), DCR (241 mg, 1 mmol) and sodium acetate (41 mg, 0.5 mmol) were dissolved in 10 mL of acetic acid. The mixture was refluxed at 120 °C for 12 h under nitrogen. Then the reaction was stopped by adding cold distilled water. The obtained red precipitate was filtered off and washed by water. After being dried with anhydrous Na2SO4, the bulk solid was further purified by flash column chromatograph (silica gel, ethyl acetate/petroleum ether = 1/20). The dark red product was collected with the yield of about 80%. 1H NMR (400 MHz, DMSO-d6): δ 8.34 (s, 1H), 7.88 (s, 1H), 7.77–7.64 (m, 3H), 7.59 (s, 2H), 7.56 (s, 1H), 7.54 (s, 2H), 7.46 (d, J = 5.7 Hz, 4H), 7.41–7.28 (m, 4H), 7.15–7.09 (m, 3H), 6.99 (d, J = 8.9 Hz, 1H). 13C NMR (126 MHz, THF-d8): δ 173.10, 172.39, 166.05, 165.78, 154.41, 153.72 147.91, 137.70, 134.49, 131.60, 130.27, 130.09, 129.61, 128.50, 127.78, 127.05, 124.83, 124.47, 123.21, 113.93, 109.88. HRMS (ESI): m/z calcd. for C35H22N4OS2H+ = 579.1313, found m/z = 579.1304.

Sonication-assistant self-assembly

These photosensitizers (0.1 or 1.0 mg) were dissolved in 1 mL THF. The THF solution was then added into ultra-pure water (10 mL). The mixture was treated with 2 min of ultrasonic sonication under probe sonicator (50% amplitude). The mixture was then placed in a fume hood under stirring (200 rpm) overnight for THF evaporation. For TPA-S-DCR, TPA-B-DCR and TPE-S-DCR, spherical and rod-shaped nanoparticles were obtained at initial concentration of 0.1 and 1 mg/mL (in THF solution), respectively.

ROS generation tests

TSD-Rod and TSD-Sphere were first concentrated to reach a TPA-S-DCR concentration of 1 mM (detected by UV-vis spectra). DCFH (λex = 480 nm, λem = 525 nm), DHR123 (λex = 507 nm, λem = 529 nm), HPF (λex = 480 nm, λem = 514 nm) and ABDA (λab = 378 nm) served as the general ROS, O2-, OH and 1O2 generation probes, respectively. The preparation of the testing solution was as follows. To prepare DCFH, DCFH-DA was dissolved in 0.5 mL of EtOH (1 mM), which was further added into 2 mL of NaOH solution (1 mM). After 30 min reaction at room temperature, 7.5 mL of phosphate buffered saline (PBS) solution was then added to obtain DCFH solution (50 μM). 1980 μL of DCFH solution and 20 μL of nanoparticles suspension were mixed in a cuvette. Prior and after white light irradiation (20 mW/cm2) for predesignate time, the mixture was subjected to photoluminescence (PL) spectrum measurement. The working concentrations for DHR123, HPF and ABDA were 20, 10, and 50 μM, respectively. The testing concentration of nanoparticles was 10 μM (based on photosensitizer molar concentration).

Ethical statement

All the animal experiments were conducted under the guidance and regulations of the Chinese Law on Institutional Animal Care and Use. And the entire experiment was approved by the Animal Ethics Committee of the South China Agricultural University (Approval ID: 2024D003). Maximal tumor sizes were within permission limits. Mice were housed in a controlled environment maintained at approximately 22 °C, with a 12 h light/dark cycle. The relative humidity was maintained at an appropriate level (50%). Standard rodent chow and water were available to ensure the well-being and normal physiological functions of the animals. Mice anesthesia was realized by 1.5% isoflurane inhalation with the small animal gas anesthesia instrument. Mice were euthanized with excessive isoflurane anesthesia.

Establishment of tumor-bearing mouse model

6 weeks old BALB/c female mice were raised in SPF-level feeding conditions (26 °C, humidity of 50%) with adequate food and water. After hair removal on the back of mice, 4T1 cells (2 × 106) suspended in 100 μL PBS were injected subcutaneously into the upper part of the right leg. The tumor volume was measured every two days. Volume = 0.5 × (tumor length) × (tumor width)2.

In vivo and ex vivo imaging

When the tumor volumes reached about 90 mm3, these 4T1 tumor-bearing mice were randomly divided into three groups (n = 3 mice for each group): TSD-Rod, TSD-Sphere and PBS. 100 μL isotonic solution of TSD-Rod (750 μg/mL), TSD-Sphere (750 μg/mL) and PBS were intravenously injected through tail vein. The living imaging system recorded the fluorescence signal at 0, 4, 8, 12, 24, 36, 48 and 60 h post injection. Another 12 mice were (6 for TSD-Rod and 6 for TSD-Sphere) subjected for ex vivo organ imaging. Similar injection dosage was employed. At 8 h and 12 h post injection, the mice were sacrificed and dissected. The heart, liver, spleen, lung, kidney and tumor were collected and imaged. To study the tumor penetration ability, the tumors collected at 8 h were sliced at different depths. The slices at tumor surface, 1/4, 1/2 and 3/4 depth were stained with DAPI (2 μg/mL) and further imaged with CLSM.

In vivo PDT

The 4T1 tumor-bearing mice were randomly divided into 6 groups (n = 4 mice for each group): PBS, PBS + Light (L), TSD-Rod, TSD-Rod + L, TSD-Sphere, TSD-Sphere + L. On day 0, TSD-Rod, TSD-Sphere and PBS. 200 μL isotonic solution of TSD-Rod (750 μg/mL), TSD-Sphere (750 μg/mL) and PBS were intravenously injected through tail vein. At 8 h post-injection, the mice were anesthetized with isoflurane and the tumors in light groups were exposed to light irradiation for 30 min (100 mW/cm2). Similar nanoparticle injection and light treatment procedures were repeated on day 5. During the entire treatment, the tumors sizes were measured every 2 days. On day 14, the mice were sacrificed and dissected. The tumors were excised, weighed and further stained with H&E, TUNEL and Ki67 for histological analysis.

Biosafety evaluation

The normal organs from these mice were also collected for H&E staining. To further study the biosafety of TSD-Rod and TSD-Sphere, 9 healthy mice were divided into three groups (n = 3 mice for each group): TSD-Rod, TSD-Sphere and PBS. TSD-Rod, TSD-Sphere and PBS. 200 μL isotonic solution of TSD-Rod (750 μg/mL), TSD-Sphere (750 μg/mL) and PBS were intravenously injected through tail vein. After 9 days, blood routine and blood biochemical tests were conducted.

Statistics and reproducibility

Origin2018 software was used for statistical analysis, curve smoothing, graphic embellishment, linear and exponential fitting of correlation curves of light scattering results. AFM images height information was analyzed and derived from NanoScope Analysis 1.8 software. Quantitative comparison of fluorescence intensity in CLSM was carried out by ImageJ software. All experiments were conducted with at least three independent replicates. Quantitative data were shown as mean ± standard deviation (SD) with n ≥ 3. Statistical analysis between two groups of dataset experiments was compared using a two-tailed Student’s t-test. A significance level of p  <  0.05 was utilized for determining statistical significance.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
