Abstract

GPR99/OXGR1 is a G protein-coupled receptor (GPCR) with two endogenous agonists, the tricarboxylic acid cycle derivative 2-oxoglutarate (α-ketoglutarate) and the inflammatory mediator cysteinyl leukotriene E4 (LTE₄), hence also termed CysLT3 receptor. How GPR99/OXGR1 recognizes two distinct ligands is a biologically important question. Here we present cryo-EM structures of GPR99/OXGR1-Gq complexed with oxoglutarate and LTE₄, respectively. The oxoglutarate-bound structure shows a binding pocket surrounded by the transmembrane domains (TM), with a primary site and an accessory site for simultaneous binding of two oxoglutarate molecules for full activation of the receptor. The TM binding pocket, however, is too small to accommodate the cysteinyl leukotriene LTE₄. Alanine substitution of key residues for oxoglutarate binding had little impact on LTE₄-induced signaling. A distinct site in between TM3/4/5 just above intracellular loop 2 was identified in the solved structure with LTE₄, but the densities were less well-defined. Alanine substitution of amino acids potentially involved in LTE₄ interaction at this site abrogated LTE₄-induced receptor activation without affecting oxoglutarate-induced signaling. Both ligands activated GPR99/OXGR1 primarily through the Gq pathway, but LTE₄ also induced Gi signaling. These findings illustrate the structural basis for GPR99/OXGR1 to interact with structurally distict oxoglutarate and LTE₄.

Molecular insights into ago-allosteric modulation at cysteinyl leukotriene receptor 2

Article Open access 16 December 2025

Cryo-EM structures of orphan GPR21 signaling complexes

Article Open access 13 January 2023

Structural basis of leukotriene B4 receptor 1 activation

Article Open access 03 March 2022

Introduction

GPR99 was initially identified as a homologue of P2Y1, a purinergic GPCR that binds nucleotide ligands¹. Further studies found that GPR99 does not bind nucleotide ligands² but recognize endogenous dicarboxylates such as oxoglutarate³. Oxoglutarate is mainly derived from the tricarboxylic acid (TCA) cycle and serves as an essential myometabokine for autocrine and paracrine signaling, as well as an immunometabolite⁴. GPR99 recognizes oxoglutarate with an EC₅₀ of approximately 200 μM and was subsequently named OXGR1⁵. GPR99/OXGR1 is expressed in various human tissues including the kidney, respiratory epithelium, placenta, muscle, fetal brain and immune cells^1,4,6,7. As a receptor of oxoglutarate, GPR99/OXGR1 is characteristic with its low affinity and low potency for this ligand, which is present in various tissues at concentrations in the micromolar range. In renal tubules, high concentrations of oxoglutarate promote Gq-mediated IP1 accumulation that contributes to the regulation of acid-base homeostasis⁴. Variations in renal pH may alter the polarity of oxoglutarate, thereby influencing Gq signaling through the activation of GPR99/OXGR1^4,8. These context-dependent features highlight how physiological environment may shape GPR99/OXGR1 signaling.

In addition to oxoglutarate, leukotriene E₄ (LTE₄) was identified as a ligand of GPR99/OXGR1⁹. LTE₄ is a cysteinyl leukotriene with a branched structure and established functions in allergy and asthma^10,11,12. Elevated concentrations of LTE₄ are observed in severe asthma, acute exacerbation of asthma, and aspirin-exacerbated respiratory disease (AERD)^13,14,15, where it mediates sustained tracheobronchial constriction. An enrichment of GPR99/OXGR1 expression on the respiratory epithelial cells further exacerbates the inflammatory condition. Compared to LTC₄ and LTD₄ that are cysteinyl leukotrienes binding to different G protein-coupled receptors, LTE₄ is more stable¹². This feature of LTE₄ contributes to asthma development due to the chronic effect of receptor/ligand-related hyperresponsiveness¹⁶. Other experimental evidence also supports the presence of the third cysteinyl leukotriene GPCR with high affinity for LTE₄¹⁷, whereas the LTE₄ concentrations required to activate CysLT₁R and CysLT₂R are much higher than its physiological levels¹⁸. Thus, GPR99/OXGR1 is recognized as the physiologically relevant LTE₄ receptor (CysLT₃R), in addition to CysLT₁R and CysLT₂R that primarily bind to LTC₄ and LTD₄^5,9,18. CysLT₃R (GPR99/OXGR1) is markedly different from CysLT₁R and CysLT₂R in primary sequence with only 36% of amino acid identity⁹, and the binding affinity of LTE₄ to GPR99/OXGR1 (K_d ~ 2.5 nM)⁹ is higher than that of LTC₄ and LTD₄ to CysLT₁R and CysLT₂R, respectively^7,9. Extensive studies have associated LTE₄-CysLT₃R(GPR99/OXGR1) signaling with potent pro-inflammatory effects, such as enhanced bronchoconstriction^3,19 and eosinophil influx into the airway^6,7,15. The high affinity of LTE₄ for GPR99/OXGR1 is in sharp contrast to the low affinity of oxoglutarate (K_d in hundreds of micromolar) for the same receptor, suggesting that the two structurally different ligands may interact with GPR99/OXGR1 in different manners. However, the structural basis for GPR99/OXGR1 to bind oxoglutarate and LTE₄ is currently lacking despite progress in structural characterization of CysLT₁R and CysLT₂R^20,21,22.

Here we report a cryo-EM structure of GPR99/OXGR1 bound to oxoglutarate. Structural and functional analyses identify a primary and an accessory binding site for oxoglutarate, featuring simultaneous binding of two oxoglutarate molecules for full activation of the receptor. Furthermore, we found that the transmembrane binding pocket in GPR99/OXGR1 is too small to accommodate the branched LTE₄, and further cryo-EM analysis of a GPR99/OXGR1-Gq complex formed in the presence of LTE₄ identified a potential binding site outside the transmembrane binding pocket. Through functional analysis, we confirmed the alternative binding mode of LTE₄ to GPR99/OXGR1, which likely serves as a promising target for future drug candidates. We found that LTE₄ primarily activates the Gq-signaling pathways and the Gi pathway to a lesser extent. Although the poor EM density at this site prevented us to definitively locate the LTE₄ binding site, our study provides a rational framework of the structural basis for and mechanistic insights into ligand recognition by GPR99/OXGR1.

Results

Overall structure of the oxoglutarate-GPR99/OXGR1-Gq signaling complex

The human GPR99/OXGR1 and Gq proteins were co-expressed in Sf9 insect cells and purified. The endogenous ligand oxoglutarate was introduced to facilitate the formation of the GPR99/OXGR1-Gq signaling complex, which was purified and subjected to cryo-EM analysis (Supplementary Fig. 1a, b). The structure of the signaling complex was then determined at a global resolution of 3.16 Å (Supplementary Fig. 1c–f, Table 1). The structure models were confidently built, and most residues were assigned based on the well-defined density map (Fig. 1a and Supplementary Fig. 2). Two separate ligand densities were observed in the orthosteric binding pocket, which fit well with two ligand molecules of oxoglutarate (Fig. 1b). GPR99/OXGR1 holds the canonical seven-transmembrane architecture and G protein coupling manner of GPCR (Fig. 1c). There are two disulfide bridges in the extracellular domains: C24^N-term-C274^7.25, and C106^3.25-C183^ECL2 (using GPCR Ballesteros-Weinstein numbering as superscripts²³). The disulfide bonds are conserved among most Class A GPCRs and contribute to stabilization of the extracellular domains (Supplementary Fig. 3). The GPR99/OXGR1 in our structure adopts a conformation in the active state, with an intracellular pocket accommodating the α5 helix in Gq (Fig. 1b).

**Fig. 1: Overall structure of the oxoglutarate-GPR99/OXGR1-Gq complex.**

Table 1 Cryo-EM data collection, model refinement and validation statistics

Full size table

Molecular basis for oxoglutarate recognition by GPR99/OXGR1

In the oxoglutarate-GPR99/OXGR1-Gq complex, the transmembrane domains TM1-3, TM6-7, extracellular loop (ECL) 1 and ECL2 of GPR99/OXGR1 encircle a hydrophilic and positively charged orthosteric pocket suited for the binding of negatively charged oxoglutarate molecule (Supplementary Fig. 4). The oxoglutarates adopt a horizontal orientation (Supplementary Fig. 4). One oxoglutarate molecule (OG1 in Fig. 1b) is embedded at the bottom of the pocket with the carboxyl group pointing downwards, and the other oxoglutarate molecule (OG2) fits well in the solvent-accessible subpocket at the top of the TM pocket with the carboxyl group pointing upwards (Fig. 1b and Supplementary Fig. 4). OG1 is directly clamped by salt bridges with four positively charged amino acids: R110^3.29 and R288^7.39 for one carboxyl, and H114^3.33 and R261^6.55 for the other (Fig. 1d, e). There are sufficient interactions between OG1 and these amino acid residues that form a primary binding site for the ligand. In comparison, OG2 is salt-bridged with K32^1.31 and H281^7.32 at one carboxyl, and a hydrogen bond with Y92^2.63 through the other carboxyl (Fig. 1d, e). The surrounding amino acids form an accessory site near ECL2, which is well exposed to the solvent environment and therefore less stable for OG2 binding. Notably, two gating arginine residues (R110^3.29 and R288^7.39), together with Y93^2.64 and D185^ECL2, spatially separate OG1 from OG2 (Supplementary Fig. 5a). The interaction network of arginines³ stabilizes the extracellular domain of GPR99/OXGR1 and separates OG1 from the extracellular solvent environment (Supplementary Fig. 5b).

Structural basis of selectivity for GPCR binding of dicarboxylates

Our findings reveal a distinctive binding mode for dicarboxylates in GPR99/OXGR1 compared to GPR91, suggesting a molecular mechanism underlying dicarboxylate selectivity in these GPCRs. The essential residues K32^1.31, H281^7.32 and Y92^2.63 for OG2 binding in GPR99/OXGR1 are not found in GPR91 (E22, N274 and S82 in GPR91; Fig. 2 and Supplementary Fig. 6). Positively charged arginine residues are critical for the recognition and binding of negatively charged carboxyl groups, which are present in oxoglutarate (from oxoglutaric acid) and succinate (from succinic acid) in physiological pH. Most arginine residues in the orthosteric pocket are conserved between GPR91 and GPR99/OXGR1, namely R110^3.29, R261^6.55, R264^6.58, R268^ECL3 and R288^7.39, but R177^ECL2 and R180^ECL2 in GPR99/OXGR1 are absent in GPR91 (Fig. 2 and Supplementary Fig. 6). In GPR91, only R99^3.29 and R281^7.39 are known to participate in direct interactions with identified agonists and antagonists, including succinate, epoxysuccinate, maleic acid, compound 31, and NF-56-EJ40^24,25.

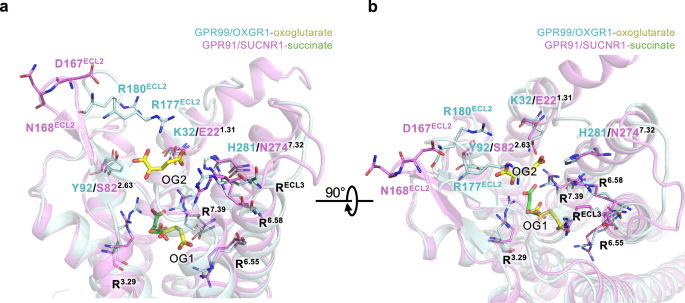

**Fig. 2: Comparison of the dicarboxylate ligand binding pockets of GPR99/OXGR1-oxoglutarate and GPR91/SUCNR1-succinate.**

We found that, in GPR99/OXGR1, R110^3.29, R261^6.55 and R288^7.39 contributed to the binding of OG1 and were involved in receptor activation. The other four arginine residues, R177^ECL2, R180^ECL2, R264^6.58 and R268^ECL3, were positioned above the OG1 and at the top of the orthosteric pocket, with their positively charged guanidinium groups oriented down towards the orthosteric pocket (Supplementary Fig. 5b). This cluster of arginines likely acts as a gatekeeper of the orthosteric pocket, facilitating the recruitment of oxoglutarate. In particular, the flexibility of R177^ECL2 and R180^ECL2 at the tip of ECL2 in GPR99/OXGR1 may be crucial for capturing negatively charged molecules, allowing only appropriate ligands like oxoglutarate (here OG2) to engage with R264^6.58 and R268^ECL3 (Supplementary Fig. 5b). Interestingly, the positively charged R177^ECL2 and R180^ECL2 in GPR99/OXGR1 are replaced by the negatively charged D167^ECL2 and N168^ECL2 in GPR91. Additionally, the tip of ECL2 in GPR91 is positioned farther from the orthosteric pocket compared to GPR99/OXGR1. These observations suggest differences in ligand recognition and recruitment between GPR99/OXGR1 and GPR91, thus contributing to ligand selectivity in these two dicarboxylate receptors. In this structure, the closely positioned arginine residues at the orifice and surface of the orthosteric binding pocket form an “arginine network” that mediates the recruitment and binding of oxoglutarate to the receptor.

Structural insights into LTE₄ binding to GPR99/OXGR1

Unlike oxoglutarate, LTE₄ has a relatively large, hydrophobic tail and two charged carboxyl groups at the head (Fig. 3a). Like other CysLTs, the “Y” shaped carboxyl terminus of LTE₄ differs from the straight chain of hydroxyacids found in LTB₄^10,26. To learn how LTE₄ binds GPR99/OXGR1, we compared our solved structure with available structures of CysLT₁R and CysLT₂R^20,21, bound to Pranlukast (Fig. 3b) and ONO-2570366 (Fig. 3c), respectively. Amino acid residues known to interact with these ligands were identified with the superimposed receptor structures shown in the background. The binding pockets showed little resemblance at these critical residues, an observation consistent with the grouping of GPR99/OXGR1 in the P2Y nucleotide receptor subfamily and the two CysLT receptors in a different subfamily of GPCRs^1,27. We also compared the receptor structures sliced at the TM binding pocket in the same plane. As shown in Fig. 3d–f, the binding pockets of CysLT₁R and CysLT₂R are similar in shape and volume (Fig. 3d, e), snugly holding their respective ligands. In comparison, the binding pocket of GPR99/OXGR1 differs drastically from these two receptors in shape and volume, suitable only for the much smaller oxoglutarate molecules. Other notable features include the absence of positively charged arginine network, which is important for binding of the bicarboxylic ligands such as oxoglutarate and succinate^3,25,28, in the CysLT receptors. Moreover, the large access cleft from the lipid membrane between TM4 and TM5 in the CysLT receptors^22,27, which allow lateral entry of the bulky tails of the lipid ligands, is missing in GPR99/OXGR1. While revising the manuscript, we compared the structure of GPR99/OXGR1 with the LTD₄-bound CysLT2R structure that became available only recently²², and found little resemblance between the two at the orthosteric binding pockets (Supplementary Fig. 7). These results strongly suggest that LTE₄ uses a different binding site in GPR99/OXGR1.

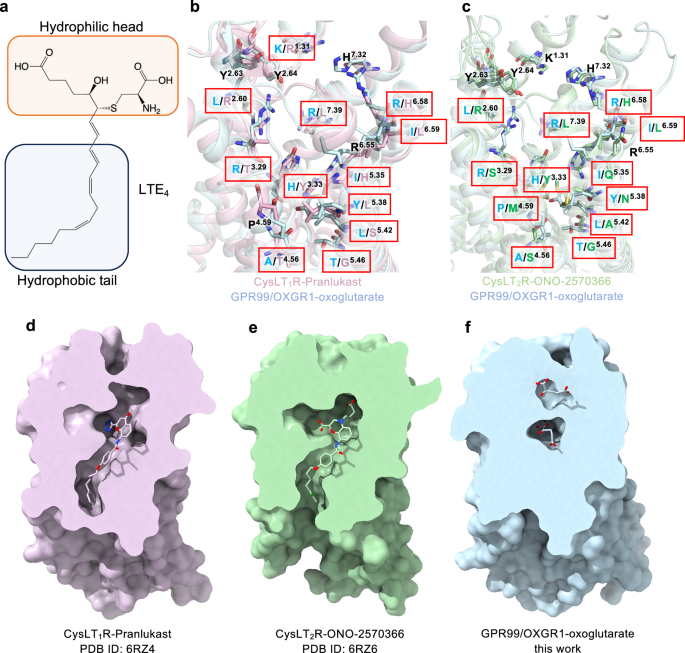

**Fig. 3: Comparison of ligand binding pockets of CysLT₁R-Pranlukast, CysLT₂R-ONO-2570366 and GPR99/OXGR1-oxoglutarate structures.**

To illustrate how LTE₄ binds to GPR99/OXGR1, an LTE₄-GPR99/OXGR1-Gq complex was obtained with an excessive amount of LTE₄ ( ~ 1.00 μM), and then subjected to cryo-EM analysis (Supplementary Fig. 8a, b). The resulting structure of the complex was resolved at an overall resolution of 2.84 Å (Fig. 4a, Supplementary Fig. 8c–g and 9, Table 1). An analysis of the structure found no extra EM density for LTE₄ in the orthosteric pocket. Instead, a binding site was identified above the intracellular loop 2 (ICL2) and surrounded by TM3-5. Although the EM density could not definitively indicate binding of LTE₄ at this site, the shape fits well with an LTE₄ molecule (Fig. 4b, c).

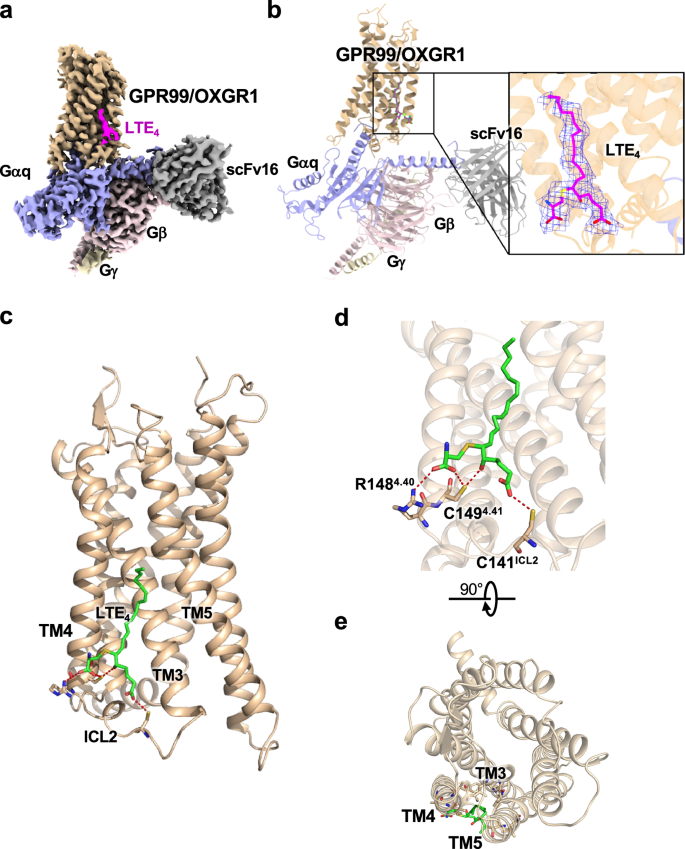

**Fig. 4: Overall structure of the LTE₄-GPR99/OXGR1-Gq complex.**

Several approaches were taken to further explore the potential site for LTE₄. A structural complex model was built based on the EM density, and potential interactions between LTE₄ and GPR99/OXGR1 were identified. Specifically, L122^3.41, T125^3.44, I129^3.48, F130^3.49, V152^4.44, A153^4.45, V157^4.49, I160^4.52, T205^5.45, L209^5.49 could form extensive hydrophobic interactions with the aliphatic chain of LTE₄ (Supplementary Fig. 10a). The negatively charged head of LTE₄ could be attached to a positively charged subpocket formed by ICL2 and TM3-4 (Fig. 4d and Supplementary Fig. 10b). In detail, R148^4.40 could form a salt bridge with one carboxyl group, C141^ICL2 could possibly form a hydrogen bond with the other carboxyl group, and C149^4.41 could form a hydrogen bond with the hydroxyl group as well as another hydrogen bond with a carboxyl group (Fig. 4d, e). The presence of these interactions was validated with alanine substitutions and the effects on receptor signaling by LTE₄ as well as oxoglutarate were compared (see below).

Computational approaches were taken to further evaluate possible binding of LTE₄ to this alternative site. Molecular docking was applied to dock LTE₄ to the TM pocket and the alternative site, respectively. The corresponding binding energies were calculated, showing an energetic preference for LTE₄ at the alternative binding site (Supplementary Fig. 11a). Furthermore, three independent 1-µs MD simulations captured a stable binding pose of LTE₄ at this alternative site (Supplementary Fig. 11b, c).

Validation of GPR99/OXGR1-ligand interactions by site-directed mutagenesis

To further elucidate ligand interaction with GPR99/OXGR1, site-directed mutagenesis and functional assays were performed. Amino acid residues exhibiting polar interactions with oxoglutarate and LTE₄ were substituted by alanine, and all mutants were positive for cell surface expression (Supplementary Fig. 12a). The accumulation of IP1, downstream of the Gq-phospholipase C (PLC) pathway, was measured for both WT and mutants of GPR99/OXGR1 (Fig. 5). Alanine substitution of residues interacting with OG1 (R110A, H114A, R261A, R288A) resulted in a significant reduction in both the potency and efficacy of IP1 accumulation following oxoglutarate stimulation (Fig. 5a). In comparison, mutations in OG2-interacting residues (K32A and Y92A) led to a more than 100-fold increase in EC₅₀, but the maximum response (E_max) remained unchanged (Fig. 5a). These findings suggest that, while OG2 is essential for maintaining ligand occupation, it plays a less significant role in receptor activation compared to OG1.

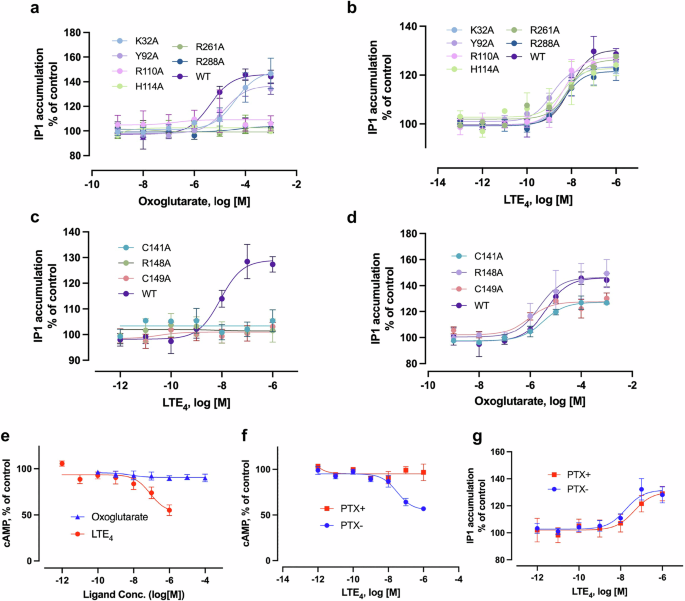

**Fig. 5: Comparison of WT and mutant GPR99/OXGR1 receptors in functional assays.**

Consistent with the predicted structure for LTE₄ binding, alanine substitution of the OG1 and OG2 sites had little effect on LTE4-induced receptor signaling (Fig. 5b). Substitution of the projected LTE₄-binding residues (C141^ICL2, R148^4.40 and C149^4.41) markedly reduced LTE₄-induced IP1 accumulation (Fig. 5c), but had little effect on oxoglutarate-induced receptor activation (Fig. 5d). This finding suggests that LTE₄ binding to GPR99/OXGR1 depends on hydrogen bonding with key residues C141^ICL2, R148^4.40 and C149^4.41 in the binding site, but this site was not utilized by oxoglutarate. Altogether, results obtained from mutagenesis experiments provide functional clues that support the binding of LTE₄ to a site distinct from the TM site for oxoglutarate. We have also noticed that some mutants (C141^ICL2A, C149^4.41A) exhibited a reduced E_max albeit having comparable cell surface expression with the WT GPR99/OXGR1. As C141^ICL2 and C149^4.41 are proximal to the ICL2 region where the receptor extensively interacts with G proteins, we suspect that mutations at these sites may alter the overall stability of ICL2 and consequently the recruitment and activation of G proteins, thus affecting the efficiency of Gq response. These functional data distinguish the TM binding mode of oxoglutarate from the distinct binding mode of LTE₄ at GPR99/OXGR1.

Ligand-induced signaling through GPR99/OXGR1

Given the structural difference between oxoglutarate binding and LTE₄ binding at GPR99/OXGR1, it is suspected that their downstream signaling properties might vary. We therefore examined the signaling pathways triggered by oxoglutarate and LTE₄. Notably, oxoglutarate preferentially activated the PLC pathway downstream of Gq signaling, leading to increased IP1 accumulation; however, oxoglutarate failed to stimulate cAMP reduction downstream of Gi coupling (Fig. 5e). In contrast, LTE₄ treatment caused reduction in cAMP accumulation (Fig. 5e), suggesting activation of Gαi. This interesting finding was further verified by treatment of the cells with pertussis toxin (PTX), which ADP-ribosylates Gαi and breaks the Gi activation cycle²⁹. PTX abrogated the cAMP response elicited by LTE₄ (Fig. 5f) without affecting IP1 accumulation (Fig. 5g). These findings indicate that LTE₄ binding to GPR99/OXGR1 can engage Gi-mediated signaling in addition to its Gq-coupled activity.

To investigate the basal activity of GPR99/OXGR1, we used a NanoBiT-based G protein dissociation assay, with SmBiT fused to Gγ and LgBiT fused to Gα³⁰. Gα dissociation from Gβγ, that accompanies G protein activation, reduces the NanoBiT signal. HEK293T cells were co-transfected with equal amounts of plasmids encoding tagged G proteins and varying amounts of plasmids encoding GPR99/OXGR1 or the constitutively active KSHV-GPCR as a control³¹. Basal G protein dissociation of GPR99/OXGR1 was compared to that of KSHV-GPCR. Increasing KSHV-GPCR plasmid levels resulted in a dose-dependent decrease in NanoBiT signal, indicating agonist-independent G protein dissociation, whereas GPR99/OXGR1 showed no signal change, suggesting negligible basal activity of GPR99/OXGR1 (Supplementary Fig. 12b). These results indicate that GPR99/OXGR1 is not a constitutively active GPCR that can complex with G proteins without agonist binding.

The G protein coupling interface of GPR99/OXGR1

The G protein interfaces are highly similar between oxoglutarate-bound and LTE₄-bound GPR99/OXGR1 signaling complex. However, subtle differences are observed for sidechain orientations of the α5 helix of Gq protein (Fig. 6a). As a result, the G protein interaction profiles are slightly different between oxoglutarate-bound and LTE₄-bound GPR99/OXGR1 structures. In the oxoglutarate-GPR99/OXGR1-Gq complex, more extensive polar interactions between Gq and GPR99/OXGR1 were identified (Fig. 6b). Specifically, Y351 of the α5 helix of Gq protein forms polar contacts with R131^3.50 and S68^2.39 of GPR99/OXGR1. E350 forms a hydrogen bond with H145^ICL2, and K349 interacts with D307^8.48. Q345 forms polar interactions with Q230^ICL3, and D341 has a polar contact with K236^6.30 (Fig. 6b). In the LTE₄-GPR99/OXGR1-Gq complex, four pairs of polar contacts are found between GPR99/OXGR1 and the Gq protein: R131^3.50-Y351, D307^8.48-K349, V134^3.53-N347 and K236^6.30-D341 (Fig. 6c). These subtle structural differences may help to explain the distinct biological outcomes induced by oxoglutarate versus LTE₄.

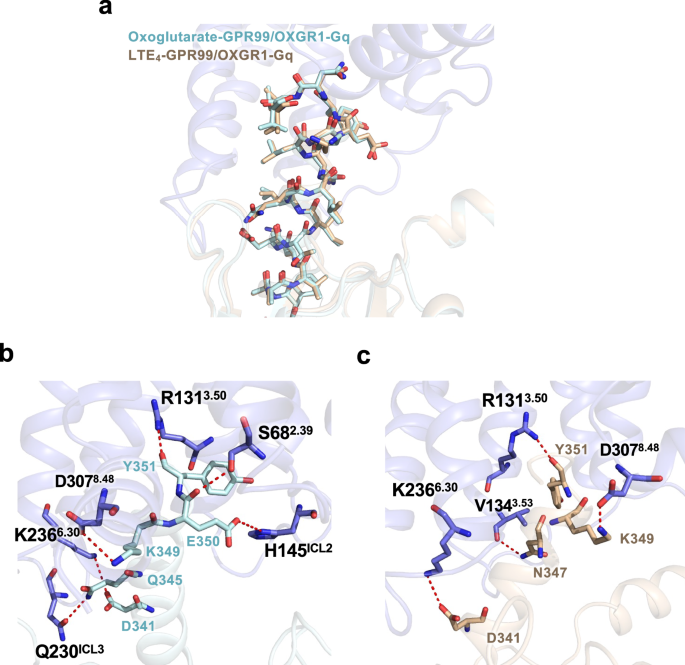

**Fig. 6: The G protein interface of oxoglutarate-bound and LTE₄-bound GPR99/OXGR1.**

Ligand-induced activation mechanism of GPR99/OXGR1

To elucidate the activation mechanism induced by orthosteric coupling of oxoglutarate, the recently reported structures of GPR91 in the active state²⁵ (PDB: 8WOG) and inactive state²⁴ (PDB: 6RNK) were used as references for comparison. The outward movement of TM5-6 and inward movement of TM7, which accommodated the α5 helix of Gq, illustrated a typical conformational change associated with receptor activation (Fig. 7a,b). Additionally, the structural motifs responsible for GPCR activation, specifically DRY, CWXP, NPXXY and PIF (corresponding to FRY, CFLP, NLLLY and PIF in GPR99), were compared between GPR99/OXGR1 and GPR91 (PDB: 8WOG). The oxoglutarate-GPR99/OXGR1-Gq complex represented a molecular mechanism for receptor activation triggered from the orthosteric pocket. Specifically, the salt bridge between OG1 and R261^6.55 gave rise to an inward turning of TM6, which was transduced through the CFLP motif (Fig. 7c). The turning of TM6, along with the bridge between OG1 and H114^3.33, caused a rearrangement of the hydrophobic core of the PIF motif (Fig. 7d). Besides, the salt bridge between OG1 and H114^3.33, and the hydrogen bond between OG1 and R288^7.39, triggered a conformational change that propagates through TM7. The salt bridge between oxoglutarate and R110^3.29 initiated conformational changes that were transduced through TM3. Furthermore, OG2 played an accessory role, alongside OG1, in initiating receptor signaling. In a synergistic manner, the extracellular signal induced a rearrangement of the NLLLY (NPXXY) motif (Fig. 7e) and the FRY(DRY) motif (Fig. 7f) in the intracellular domain, opening the intracellular pocket to accommodate α5 helix of the Gq protein (Fig. 7e, f).

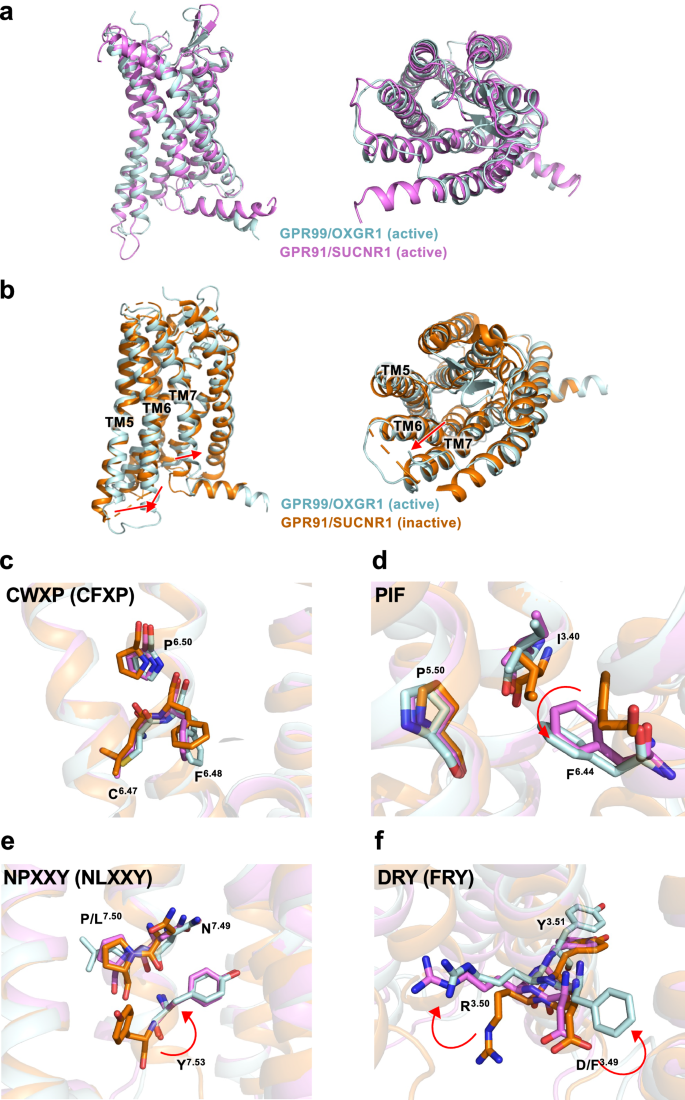

**Fig. 7: Mechanism of GPR99/OXGR1 activation induced by oxoglutarate binding to the orthosteric pocket.**

The reported inactive state structures of CysLT₁R and CysLT₂R were used as references to illustrate the activation mechanism of GPR99/OXGR1 induced by LTE₄^20,21 (Fig. 8). In this structure, polar interactions caused the ICL2 of GPR99/OXGR1 to move outward when LTE₄ is present (Fig. 8a), thus inducing the opening of the G protein-coupling pocket (Fig. 8b). The hydrophobic interaction driven by the aliphatic chain of LTE₄ directly triggered the rearrangement of the NLxxY motif (Fig. 8c) and the FRY motif (Fig. 8d). Consequently, the CFxP and PIF motifs rearranged synergistically, with TM5-6 moving outward and TM7 moving inward (Fig. 8e, f). Additionally, a salt bridge formed between R318 and D312, further stabilizing the activated conformation and resulting in an ordered helix8, which was absent in the inactive structure due to its flexibility.

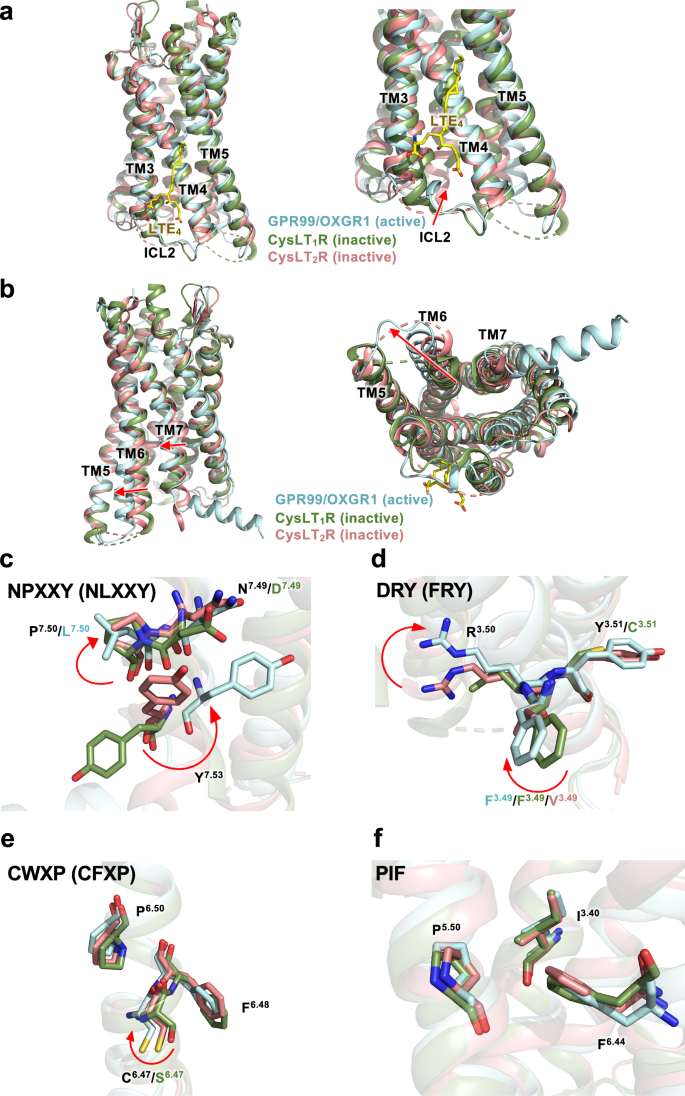

**Fig. 8: Mechanism of GPR99/OXGR1 activation induced by LTE₄ binding to the non-canonical site.**

Discussion

The structural mechanisms by which both dicarboxylates and CysLTs bind their native receptors remain underexplored. Persistent questions revolve around how GPCRs recognize small, charged dicarboxylates with high specificity but low efficacy. There have been great computational efforts, but the issues remain due to the lack of effective structural references^32,33. For example, an exhaustive metadynamics analysis led to the proposal that there are two low-energy succinate binding sites in the orthosteric pocket of GPR91³², although subsequent structural studies demonstrated the presence of only a single succinate binding site in this pocket^25,28. Furthermore, in the absence of a resolved structure for the oxoglutarate receptor GPR99/OXGR1, it remains challenging to address how dicarboxylates are selectively recognized by their respective receptors. This understanding is crucial for developing targeted drugs with high specificity.

In this study, we present a high-resolution cryo-EM structure of GPR99/OXGR1 bound to the dicarboxylate oxoglutarate. Our structural and functional analyses reveal the molecular basis for ligand selectivity and G protein coupling preferences. Dicarboxylates are critical components in physiological fluids, often present at micromolar concentrations. As a result, their native GPCRs may have evolved orthosteric adaptations that attenuate or desensitize activation to prevent unnecessary receptor activation under normal conditions. Notably, GPR99/OXGR1 and GPR91/SUCNR1 have shared features including the arginine network at their binding pockets, but also distinct features in GPR99/OXGR1 allowing simultaneous binding of two oxoglutarate molecules. In SUCNR1, however, the positively charged R177^ECL2 and R180^ECL2 in GPR99/OXGR1 are absent (replaced by the negatively charged D167^ECL2 and N168^ECL2), and the tip of ECL2 in GPR91 is positioned farther from the orthosteric pocket compared to GPR99/OXGR1. These diffences may explain the capture of only one succinate molecule but not two by GPR91 in experimentally resolved SUCR1 structures^24,25, although metadynamics analysis indicated two low-energy succinate binding sites in the orthosteric pocket of GPR91³². As proposed in the work by Shenol, Schwartz and coworkers³², an advantage of binding two dicarboxylates simultaneously is to ensure full activation of the receptor when ligand concentrations reach a necessary threshold, which is shown experimentally in the present work of GPR99/OXGR1.

In contrast, LTE₄, a lipid mediator that preferentially remains associated with the membrane lipids, can easily access the distinct site and efficiently activate the receptor, thereby mediating inflammatory responses. This alternative activation occurs with high affinity and efficiency, contributing to the overactivation of the receptor and leading to diseases such as asthma and allergies^7,15,18,21. Moreover, the DRY-to-FRY mutation in GPR99/OXGR1 may have evolved to accommodate activation signals from LTE₄ at its distinct binding pocket. As the third cysteinyl leukotriene receptor (CysLT₃R), GPR99/OXGR1 is highly expressed in kidney cells¹, fetal brain cells, fibroblast³⁴, as well as immune-related cells including mast cells, eosinophils, and respiratory epithelial mucosa cells^6,7,9,35. GPR99/OXGR1 is associated with normal kidney pH-maintaining functions, central nervous system development, fibrosis pathogenesis, allergies and inflammation. Under different physiological contexts, ligand availability and expression levels of GPR99/OXGR1 and G proteins vary, affecting the activation and signaling of the receptor. For instance, in inflammatory microenvironments rich in leukotrienes, the sustained presence of LTE₄ likely stabilizes its binding to the distinct pocket of GPR99/OXGR1, amplifying Gαi signaling to exacerbate inflammation through leukocyte recruitment and activation^7,11,36. Moreover, an enrichment of GPR99/OXGR1 expression on the respiratory epithelial cells further exacerbates the inflammatory condition. An early study on LTE₄-induced bronchoconstriction suggested that the high stability of LTE₄, compared to LTC₄ and LTD₄, promotes asthma development due to the chronic effect of receptor/ligand-related hyperresponsiveness¹⁶. Conversely, in renal tubules, high oxoglutarate concentrations promote Gαq-mediated IP1 accumulation, regulating acid-base homeostasis in kidney⁴. Acidic renal pH may enhance the polarity of oxoglutarate, thereby favoring Gq signaling through the activation of GPR99/OXGR1^4,8. These context-dependent activation features highlight how patho-physiological environments may shape GPR99/OXGR1 signaling.

LTE₄ is a high-affinity agonist of GPR99/OXGR1, based on pharmacological characterization of the receptor in transfected cell lines⁹. As a result, GPR99 is also named CysLT₃R^5,9. How LTE₄ binds to a GPCR with low sequence similarity to the other two CysLT receptors remained unclear as we began this study. In previous structural studies of antagonist-bound CysLT₁R and CysLT₂R, the endogenous agonists CysLTs LTC₄ and LTD₄ were proposed to bind to the orthosteric pocket just as the antagonists, which was validated by functional assays^20,21. A recent work of the LTD₄-bound CysLT₂R structure, published while this study was under review, provides a solid proof of the binding mode of LTD₄ to its cognate CysLT₂R receptor²². LTD₄ binds within the transmembrane pocket of CysLT₂R, with its polar head reaching to the polar top of the TM pocket and nonpolar interactions spanning TM helices TM4 and TM5, thus stabilizing its bulky tail (Supplementary Fig. 7a–c). The long bulky tail of LTD₄ can therefore extend through an orifice opening formed between TM4 and TM5 of CysLT₂R, similar to the previously proposed binding mode for CysLT₁R and CysLT₂R²⁷. In contrast, the GPR99/OXGR1 TM pocket is much smaller, more polar and more hydrophilic. It has no cleft space between TM4 and TM5 for the accommodation of the long bulky tail of LTE₄, hence poorly suited for LTE₄ binding (Supplementary Fig. 7d–f). While the superimposed active-state structures of GPR99/OXGR1 and CysLT₂R are generally similar, the TM3 of CysLT₂R slightly shifts outwards (Supplementary Fig. 7g), and their binding pockets are very different. By examining the geometry of residues surrounding the TM binding pocket of CysLT₂R, an opening is observed around the hydrophobic tail of LTD₄. For the superimposed GPR99/OXGR1 structure at this site, larger amino acid side chains are found to block such an opening (Supplementary Fig. 7h). Despite the ability of being activated by LTE₄, the sequence of GPR99/OXGR1 is quite different from CysLT₁R and CysLT₂R receptors with about 30% sequence identity (Supplementary Fig. 7i)^3,5,9. Besides, as CysLT₁R and CysLT₂R can both selectively recognize LTC₄ and LTD₄ with high affinity but LTE₄ with only low affinity, it is plausible that the binding mode of LTE₄ is distinct from that of LTC₄ and LTD₄ to the respective cysteinyl leukotriene receptors^37,38. Differing from Gq coupling of GPR99/OXGR1 when stimulated with oxoglutarate, the receptor is found to activate both Gq and Gi signaling pathways when stimulated with LTE₄, thus contributing to its proinflammatory and allergy-inducing properties including induction of leukocyte chemotaxis^7,18. These results highlight the common and distinct features in the signaling and activation of cysteinyl leukotriene receptors from structural and functional perspectives³⁹. While our studies provide a solid structural foundation, further physiological and pharmacological research is required to advance the development of new cysteinyl leukotriene receptor-targeting drugs.

GPCR drug discovery now marches beyond the canonical transmembrane pocket, with increasing efforts focusing on allosteric ligands that bind to alternative binding sites and modulate receptor functions with signaling bias^{40,41,42,43,44,45}. For some GPCRs such as S1PR3, GPR88, GPR35, GPR174, PTHR and CB2, alternative allosteric sites and mechanisms determine their downstream signaling pathways. For instance, the sphingosine-1-phosphate (S1P) receptor S1PR3 can be allosterically modulated by ligands binding to its extracellular vestibule (S1P, and its analogs) or deep within the transmembrane pocket (CYM-5541, CBP-307, BAF-312, FTY720-P, and VPC23019), fine-tuning its response and influencing G protein coupling bias towards Gi, Gq and G13^46,47,48. As an important GPCR regulating neurological functions, GPR88 has its synthetic agonist 2-PCCA binding to a cavity at the cytosolic ends of TM5 and TM6 close to ICL3, allowing direct interaction with the α5 helix of Gi and further stabilization of the receptor-Gi complex⁴⁹. In this case, the binding site is”orthosteric” to the particular ligand but non-canonical when compared with most other GPCRs that use TM binding pocket for ligand interaction. The LTE₄-GPR99/OXGR1 interaction falls within this category, and the non-canonical binding site may offer a strategy to achieve biased agonism and antagonism through stabilization of conformations that favor either Gi or Gq coupling in different physiological environments.

In summary, the present study provides structural insights into oxoglutarate binding to GPR99/OXGR1. The characteristic binding of two oxoglutarate molecules simultaneously may help to address how a GPCR recognizes the small and charged dicarboxylates with high specificity but low efficacy. Despite our effort in resolving the LTE₄-bound GPR99/OXGR1 structure, no EM density was found in the orthosteric binding pocket as originally expected. Results from a multitude of experiments and comparative analysis indicate that the TM pocket in GPR99/OXGR1 is too small to accommodate the bulky cysteinyl leukotriene. It is likely that LTE₄ uses a distinct binding site for activation of GPR99/OXGR1, which has been clearly identified as CysLT₃R through rigorous pharmacological experiments. The present work could not conclusively identify the LTE₄ binding site due to poor EM density, but the collected information supports the presence of an LTE₄ binding site that differs from the TM binding pocket for oxoglutarate. Our results may help further exploration of the LTE₄ binding mechanism and unlock its therapeutic potential.

Method

Design of constructs

The cDNA encoding human wild-type GPR99 was synthesized by General Biol (Chuzhou, China). The constructs were created by cloning the full-length coding sequence into a pFastbac1 vector. To facilitate protein expression and purification, a hemagglutinin (HA) signal peptide, a FLAG tag, a human rhinovirus 3 C (HRV 3 C) protease cleavage site (LEVLFQGP) and a thermostabilized apocytochrome b562RIL (BRIL) were added to the N terminus, following our previously reported method²⁵. The Gq protein was designed based on the Gi backbone by inserting the C terminus of Gq (residues 332 to 359) to DNGαi1 (dominant negative Gαi1 with G203A and A326S mutation) backbone (residues 1 to 326), which provided an additional site for the single-chain antibody variable fragment scFv16 to stabilize the complex. This strategy and the resulting chimeric Gq were widely used, as demonstrated in the reported structure determination of GPCR-Gq complexes^50,51,52. Human Gβ1 and Gγ2 cDNAs with N-terminal 6×His tag were respectively cloned into a pFastBac-Dual vector. scFv16 was fused with a GP67 signal peptide at the N-terminal and an 8× His tag at the C-terminal. For the functional assay, the human GPR99 coding sequence was cloned into the pcDNA3.1 vector. Point mutations were introduced using PCR-mediated site-directed mutagenesis.

Purification of scFv16

Secreted scFv16 was purified from expression media of baculovirus-infected Sf9 insect cell (Invitrogen, Cat #: 11496015) culture using Ni-NTA. The supernatant from 2 L of culture was collected and loaded onto a gravity column packed with Ni-NTA resin. The resin was washed with 20 mM HEPES pH 7.5, 500 mM NaCl, and the protein was eluted with 20 mM HEPES pH 7.5, 150 mM NaCl and 250 mM imidazole. Eluted protein was concentrated and loaded onto Superdex 200 increase 10/300 size exclusion column (GE Healthcare Life Sciences, Sweden). The peak fractions were collected and concentrated, rapidly frozen in liquid nitrogen, and stored at −80 °C.

Expression and purification of the signaling complex

The bac-to-bac baculovirus expression system and Sf9 insect cells were used to express protein for structure determination. The baculoviruses were prepared according to the manual (Thermo Fisher Scientific). For protein expression, baculoviruses of GPR99, Gαq, and Gβ1γ2 were co-transfected into Sf9 cells when they reached a density of 2 × 10⁶ cells/mL. The ratio of baculoviruses for transfection was 1:1:1, and then the proteins were expressed over a 48-hour period. The cell culture was harvested by centrifugation at 2000 × g for 15 min and kept frozen at −80 °C.

To purify the complex, the ligand (oxoglutarate or LTE₄) was added to induce GPR99-Gq complex formation. Cell pellets were resuspended in buffer containing 25 mM HEPES pH 7.4, 50 mM of NaCl, 5 mM of KCl, 5 mM of CaCl₂, 5 mM of MgCl₂, 5% glycerol, 25 mU/mL apyrase, 2.5 μg/ml leupeptin, 0.16 mg/ml benzamidine, 100 μM of oxoglutarate or 1 μM of LTE₄. Cell membranes were collected by centrifugation after 30 minutes of incubation. The cell membranes were then solubilized in 20 mM HEPES pH 7.4, 100 mM NaCl, 0.8% LMNG, 0.1% CHS, 10% glycerol, 2.5 μg/ml leupeptin, 0.16 mg/ml benzamidine, 50 μM of oxoglutarate or 1 μM of LTE₄. After 2 h incubation at 4 °C, the supernatant was cleared by centrifugation at 20,000 × g for 30 min. A gravity-flow column with anti-FLAG affinity resin (GenScript Biotech) was used to capture the complex, followed by washing with 10 column volumes of wash buffer containing 20 mM of HEPES (pH 7.4), 100 mM of NaCl, 5% glycerol, 2 mM of CaCl₂, 2 mM of MgCl₂, 0.05% (w/v) LMNG, 0.05% (w/v) GDN (Anatrace), 0.003% (w/v) CHS, 20 μM of oxoglutarate or 0.4 μM of LTE₄. The protein complex was eluted with buffer containing 20 mM of HEPES (pH 7.4), 100 mM of NaCl, 2 mM of CaCl₂, 2 mM of MgCl₂, 0.01% (w/v) LMNG, 0.001% (w/v) GDN (Anatrace), 0.001% (w/v) CHS, 0.2 mg/ml FLAG peptide (Sigma-Aldrich), 20 μM of oxoglutarate or 0.4 μM of LTE₄. The eluate was concentrated by an Amicon Ultra-15 Centrifugal Filter Unit (Millipore) and separated on a Superose 6 10/300 size-exclusion chromatography column (Cytiva) pre-equilibrated with 20 mM HEPES (pH 7.4), 100 mM NaCl, 0.0015% LMNG, and 0.0005% GDN, 0.0003% CHS, 20 μM of oxoglutarate or 0.4 μM of LTE₄. The relevant peak fractions of the protein complex were collected, analyzed on SDS-PAGE, analyzed on western-blotting, concentrated to approximately 10 mg/mL, and stored at -80 °C.

Cryo-grid preparation and EM data collection

Negative stain electron microscopy was performed on all the samples to confirm homogeneity and complex formation. For cryo-grid preparation, aliquots of 3 µL of purified protein complex were applied onto an Ultrafoil 300 mesh R1.2/1.3 holy gold (Au) grid, which had already been glow-discharged by Tergeo-EM plasma cleaner. Afterward, the grids were blotted for 3.5 s with a blot force of 1 in 100% humidity at 4 °C to remove excess samples, and then quickly plunged into liquid ethane using a Vitrobot Mark IV (Thermo Fisher Scientific). The prepared grids were stored in liquid nitrogen.

The grid sample screening and data collection were performed using SerialEM software (Mastronarde, 2005). The final data sets were collected by a Gatan K3 direct electron detector installed on a 300 kV Titan Krios G3 microscope. During data collection, a GIF Quantum energy filter (Gatan, USA) was used to exclude inelastically scattered electrons, with the energy slit width set to 20 eV. Movie stacks were acquired at a nominal magnification of 105,000, resulting in a calibrated pixel size of 0.85 Å. The total exposure time was 2.5 s, fractionated into 50 frames at a dose rate of 20.8 e/pixel/s. The defocus range for dataset collection was set from -1.2 to -2.5 μm.

Image processing and 3D reconstructions

The cryoSPARC version v4.2.1⁵³ and Relion version 4.0⁵⁴ were used to process the cryo-EM datasets. The pipeline was similar to that reported previously²⁵. Motion correction and dose-weighting were applied to align the movie stacks. After contrast transfer function (CTF) estimation, micrographs were manually inspected, and obviously bad micrographs were discarded. Representative particles were then manually picked to generate initial two-dimensional (2D) templates for auto-picking.

For the oxoglutarate-GPR99-Gq dataset, a total of 2,676,089 particles were template-based picked and subjected to 2D classification. After three rounds of 2D classification, particles were selected from the 2D averages with clear secondary features. Ab initio reconstruction was performed by cryoSPARC to generate initial three-dimensional (3D) templates, followed by rounds of 3D classification. Finally, a dataset containing 167,941 particles was used for homogeneous refinement, non-uniform refinement, and local refinement. The global resolution was 3.16 Å, estimated by the ‘gold standard’ criterion (FSC = 0.143).

For the LTE₄-GPR99-Gq dataset, template-based particle picking resulted in a dataset of 2,043,778 particles, which was subjected to three rounds of 2D classification. Good particles with clear secondary features in the 2D averages were selected. Then, after multiple rounds of 3D classification, a final dataset containing 100,083 particles was obtained, resulting in a final map with an estimated global resolution of 2.84 Å.

Model building and refinement

As no experimental GPR99 structures had been reported previously, we used the predicted structure from the AlphaFold Protein Structure Database (AF-Q96P68-F1) as an initial template for model building. The model building of the G protein heterotrimer and scFv16 was facilitated by our previously reported structure (PDB: 8WOG) as the starting template. The model was docked into the electron microscopy density by UCSF chimera⁵⁵ and manually rebuilt with Coot⁵⁶, as well as iterative refinement with Phenix⁵⁷. Final model validation and statistical analysis were performed using Molprobity⁵⁸. The graphic structural figures were prepared using UCSF Chimera, ChimeraX and PyMOL.

IP-one accumulation assay

Human GPR99, both in its wild-type form and in mutants, were expressed in HeLa cells (ATCC, Cat #: CCL-2) 24 hours before harvesting (Invitrogen, L3000001). Gq downstream signaling, which leads to the accumulation of IP1, was measured using the IP-One Gq HTRF kit (Cisbio). Cells were resuspended in the stimulation buffer (Cisbio) and incubated with varying concentrations of oxoglutarate (A610290, Sangon Biotech, Shanghai, China) or leukotriene E4 (HY-113465, MedChemExpress, Monmouth Junction, NJ) diluted in the stimulation buffer for 30 minutes at 37 °C. IP1 accumulation was then assessed according to the manufacturer’s instructions. Fluorescence intensities were recorded using an Envision 2105 multimode plate reader (PerkinElmer). Intracellular IP1 levels were determined based on the fluorescence signals from the samples and IP1 standards.

cAMP inhibition assay

Human GPR99 (WT/mutants) were expressed in HeLa cells for 24 hrs (Invitrogen, L3000001), and pretreated with 250 ng/mL PTX or vehicle for 12 h at 37 °C. Gi downstream signaling, which results in the inhibition of cAMP accumulation was measured. Cells were harvested in HBSS supplemented with 5 mM HEPES, 0.1% (w/v) BSA, and 0.5 mM 3-isobutyl-1-methylxanthine. The plated cells were subsequently stimulated with varying concentrations of chemerin alongside 2.5 μM forskolin for 30 minutes. Intracellular cAMP levels were quantified using the LANCE Ultra cAMP kit (TRF0263, PerkinElmer) according to the manufacturer’s protocol, with readings taken on an EnVision 2105 multimode plate reader (PerkinElmer).

NanoBiT-based GPR99-G protein dissociation and Gα-Gβγ protein dissociation assays

HEK293T cells (ATCC, Cat #: CRL-3216) were seeded in 24-well plates and incubated for 24 hours. For GPR99-G protein dissociation assay, cells were co-transfected with plasmids encoding GPR99-SmBiT (333 ng/well) and Gαi-LgBiT (167 ng/well). For Gα-Gβγ protein dissociation, cells were co-transfected with plasmids encoding GPR99 (92 ng/well), Gαi-LgBiT (46 ng/well), Gβ (230 ng/well), and SmBiT-Gγ (230 ng/well). Following a 24-hour incubation at 37 °C, the transfected cells were harvested and seeded into white 384-well plates. For the luminescence assay, coelenterazine H (Yeasen Biotechnology, Shanghai, China) was added to a final concentration of 10 μM for 1-hour incubation at room temperature, and baseline luminescence signals were measured for 10 minutes using an Envision 2105 multimode plate reader (PerkinElmer). Ligands were then added, and luminescence detection continued for 1 hour.

Flow cytometry analysis

HEK293T cells were transfected with expression plasmids encoding FLAG-tagged wild-type (WT) or mutant GPR99 for 24 hours at 37 °C. The cells were then collected and washed with HBSS containing 0.5% BSA. After washing, the cells were incubated with a FITC-labeled anti-FLAG antibody (Sigma, Cat #F4049; diluted 1:50 in HBSS buffer) for 30 minutes on ice and washed again with HBSS. Flow cytometry (CytoFLEX, Beckman Coulter) was used to quantify the FITC fluorescence signals on cell surfaces. The fluorescence signals were then analyzed to determine the relative expression levels of GPR99 mutants.

Molecular docking analysis

Flexible docking followed by Binding Free Energy calculations were performed using the BIOVIA Discovery Studio (v2019) to evaluate the differential binding affinity of the ligand LTE₄ at the transmembrane pocket and the distinct site. Flexible docking in DS is an induced fit protocol to simulate both protein and ligand flexibility. During flexible docking, there are three distinct phases: (i) protein side-chain conformation generation through CHARMM-based ChiFlex method, (ii) generation of ligand conformations and rigid ligand placement into each protein conformation through LibDock, and (iii) induced fit protein flexibility through ChiRotor-based side-chain reconstruction and final pose refinement through CDOCKER. Protein flexibility is introduced in the first and third phases.

Prior to docking, LTE₄ was extracted from the cryo-EM structure and preprocessed using the “Prepare Ligands” and “Minimize Ligands” protocols in DS. This step ensured correction of valency errors, adjustment of protonation states, and geometry optimization under the CHARMM force field. The receptor extracted from the cryo-EM structure was prepared by adding hydrogen, defining the binding site, and specifying flexible side chains for induced fit modeling. Residues within 5 Å of the bound ligand in the cryo-EM structure were selected as flexible for ChiFlex/ChiRotor processing. Docking regions for the two binding sites were defined using a spherical selection with a radius of 20 Å centered on the geometric center of LTE₄ and oxoglutarate. For each receptor, multiple low-energy conformations were generated by ChiFlex. Ligand conformations were generated using the BEST mode in CatConf. Rigid docking poses were generated using LibDock based on binding-site hotspots, which were clustered and filtered before a final refinement stage using CDOCKER.

After the flexible docking, poses were sorted by -CDOCKER_ENERGY, and the top-ranked poses were selected for binding free energy calculations. The “Calculate Binding Energies” section in Discovery Studio estimates the free energy of binding for a receptor-ligand complex by calculating the free energies of the complex, the receptor, and the ligand. Binding free energies were computed using CHARMM-based molecular mechanics and implicit solvation via the PBSA model. Ligand conformational entropy was included in the estimation by enabling the “Estimate Entropy” and “Ligand Conformational Entropy” options. The reported energy terms include van der Waals, electrostatic, ligand strain, receptor strain, and solvation contributions, providing an overall estimate of binding energy for each pose. The poses with the lowest binding energy were selected as the final poses for further analysis.

Molecular dynamics (MD) simulations and analysis

Molecular dynamics (MD) simulations started with the atomic coordinates of LTE₄ and GPR99 extracted from the cryo-EM structure of LTE₄-GPR99-Gq complex resolved in this study; the Gq protein heterotrimer complex was removed before the system setup. The protonation states of the ligand-receptor complex were assigned for a pH of 7.4 using the H + + web server. Next, the CHARMM-GUI membrane builder was used to embed the complex within a POPC (1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine) lipid bilayer⁵⁹. The entire system was then solvated in a periodic water box (TIP3P model) containing 0.1 M NaCl. CHARMM36m force field was applied to model the system. Simulations were produced on GPUs using GROMACS (version 2024.2)⁶⁰. The system was maintained at 310 K and 1.0 bar, and energy minimized in 10,000 steps. Then a 200-ns restrained MD simulations was performed to equilibrate and relax the system. After initial energy minimization and equilibration, three independent production simulations were performed, each lasting 1 μs. The production runs were conducted under an NPT ensemble, using the leap-frog algorithm. Bonds involving hydrogen atoms were constrained using the LINCS algorithm. Long-range electrostatic interactions were computed with the Particle Mesh Ewald (PME) method, while a 1.2 nm cutoff was used for short-range van der Waals and Coulombic interactions. The stability of the ligand-receptor complex was monitored throughout the simulations by calculating the root mean square deviation (RMSD). Trajectory frames were first aligned to the protein backbone Cα atoms of the initial structure, and the ligand’s RMSD was then computed relative to its starting pose. Analysis of these trajectories confirmed that LTE₄ consistently adopted a stable conformation in the alternative pocket above ICL2 of GPR99. Initial coordinate and simulation input files and a coordinate file of the final output of molecular dynamics simulations are provided as Supplementary Data 1.

Statistical analysis

The data analysis was performed using Prism 9.5.0 (GraphPad, San Diego, CA). Dose-response curves for agonist analysis were generated using the log[agonist] vs. response equation (three parameters) within the software. For the IP1 and cAMP assay, data points were expressed as percentages (mean ± SEM) relative to the maximum response level for each sample, based on at least three independent experiments, as indicated in the figure legends. For NanoBiT assays, data points were expressed as fold changes (mean ± SEM) relative to negative control (cells treated without ligands) for each sample, based on at least three independent experiments, as indicated in the figure legends. EC₅₀ values were derived from the dose-response curves. For cell surface expression, data points were shown as percentages (mean ± SEM) of the flow cytometry fluorescence signals of wild-type GPR99. Statistical comparisons were made using one-way analysis of variance (ANOVA). A p-value of 0.05 or less was considered statistically significant.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The atomic coordinates for the oxoglutarate-GPR99-Gq complex and the LTE₄-GPR99-Gq complex have been deposited in the Protein Data Bank with accession codes 8YYW and 8YYX, respectively. The corresponding EM maps have been deposited in the Electron Microscopy Data Bank with accession codes EMD-39681 and EMD-39682, respectively. All data needed to evaluate the conclusions in the paper are present in the main text or the supplementary materials. Initial coordinate and simulation input files and a coordinate file of the final output of molecular dynamics simulations are provided as Supplementary Data 1. Source data are provided with this paper.
