Introduction

In response to the depletion of traditional energy sources, there has been a growing demand for clean and renewable energy, driving the development of new thin-film solar cells. Antimony selenosulfide (Sb2(S,Se)3) has recently demonstrated significant potential in emerging thin-film photovoltaics due to its high stability, low toxicity, tunable band gap and excellent optoelectronic properties1,2,3,4. Based on these advantages, Sb2(S,Se)3 solar cells have undergone a rapid development, achieving a reported power conversion efficiency (PCE) of 10.92%5. However, the current efficiency of these thin-film solar cells is limited by significant open-circuit voltage (VOC) losses caused by severe non-radiative recombination at the absorber layer and interfaces6,7. Currently, high-efficiency Sb2(S, Se)3 solar cells are often fabricated through direct deposition on cadmium sulfide (CdS) substrates. An unfavorable energy level arrangement at the CdS/Sb2(S,Se)3 interface, such as a cliff-like band structure, can cause severe carrier recombination at the interface. Therefore, developing an efficient passivation strategy to improve the quality of the CdS/Sb2(S,Se)3 heterojunction and mitigate the VOC losses of devices is crucial.

Researchers have conducted extensive studies on interface engineering to improve the quality of heterojunctions and suppress interface carrier recombination. To transform the band structure at the CdS/Sb2(S,Se)3 interface from a cliff-like to spike-like structure, Liu et al. employed a heterojunction lithiation strategy and achieved a high PCE of 10.76% for the Sb2(S,Se)3 solar cells8. As for optimizing the CdS buffer layer, a hydrazine hydrate solution was used to remove surface oxides and improve the surface morphology of CdS films, resulting in a PCE of 10.30%9. Besides, Chen group investigated the effects of potassium chloride (KCl) and ethylenediamine (EDA) post-treatments on CdS films, which yielded PCEs of 9.98% and 10.10%, respectively10,11. They found that KCl treatment effectively reduced the surface roughness of CdS films and improved their conductivity, while EDA treatment promoted the grain growth and crystallinity of CdS films and suppressed the formation of interface defects. Although these passivation approaches reduced the VOC losses of the device to some extent, such chemically-based passivation methods suffer from byproduct residues, poor long-term stability and potentially harmful chemical reactions at interfaces. This hinders the reproducibility of device performance and large-scale applications12.

In addition to chemical passivation technology, a physical passivation strategy, such as field-effect passivation by introducing a dielectric layer, is a promising approach. In crystalline silicon (Si) solar cells, the zinc oxide (ZnO), titanium oxide (TiO2), strontium oxide (SrOx) thin films have been deposited on the Si substrate to provide moderate surface passivation and form the additional interfacial fields, which facilitate the charge-selective transport and reduce the probability of interface recombination13,14,15. In perovskite solar cells, a molybdenum oxide (MoOx) thin film with a high work function is inserted between the perovskite and hole transport layer. This field-effect passivation of MoOx effectively enhances the built-in field and improves interface charge transport thanks to the formation of interfacial polarization16. Furthermore, fixed charge passivation is used to modify carrier concentration distribution near the heterojunctions and selectively extract charge carriers17,18. Despite these advantages, the application of the physical passivation strategy to inorganic thin-film solar cells remains underexplored, and the impact of field-effect passivation on the charge transport and recombination dynamics in Sb2(S,Se)3 solar cells has rarely been reported.

Herein, we fabricated an ultrathin, transparent Ta2O5 dielectric layer between CdS and Sb2(S,Se)3 layers to investigate the effect of field-effect passivation on the VOC loss in the device. Ta2O5 is a wide-bandgap transition metal oxide that exhibits exceptional optical transparency and chemical stability19,20. Its material properties remain unaffected during subsequent high-temperature hydrothermal and annealing processes. There are positive fixed charges generated in Ta2O5 films, which can attract electrons while concurrently repelling holes away from the interface21. Thanks to the reduced VOC losses resulting from this field-effect passivation, the champion device achieves a certified PCE of 10.65% with VOC of 692 mV, corresponding to 54.96% of the theoretical limit (VOC/VOC,SQ), which is comparable to the highest reported value (55.14%) for Sb2(S,Se)3 solar cells5. This type of inorganic thin-film solar cells also exhibits good operational stability.

Results and discussion

Characterization of CdS/Ta2O5 buffer layers

In this study, a highly transparent and ultrathin Ta2O5 dielectric layer was fabricated via the sol-gel spin-coating technique. Fig. 1a depicts the specific reaction pathway and conditions for Ta2O5:Ta⁵⁺ ions in the solution form ethanol-tantalum complexes preferentially, followed by the generation of the desired Ta2O5 precipitate under the influence of high temperature and hydroxyl groups. The inset shows the transparent, homogeneous Ta2O5 precursor solution. To demonstrate the formation of Ta2O5, X-ray diffraction (XRD) was conducted on the thin-film samples to determine their composition and crystal structure. As shown in the XRD pattern, all diffraction peaks of the sample closely match the orthorhombic phase of Ta2O5 (JCPDS #25-0922), with a pronounced (001) grain orientation. The Ta2O5 dielectric layer has a high dielectric constant of ~2822, a wide band gap of 4.25 eV (Supplementary Fig. 1), and an ultralow electrical conductivity of ~ 2.11 × 10−5 S/cm based on Hall effect measurements. Scanning electron microscopy (SEM) analysis of CdS films without and with Ta2O5 modification revealed distinct morphological characteristics. As shown in Fig. 1b, e, the pure CdS films exhibited a rougher surface morphology with numerous pinholes. Such low-quality seed layers can degrade the quality of subsequent Sb2(S,Se)3 films and the resultant device performance. Remarkably, the deposition of Ta2O5 effectively filled surface pinholes and cracks in the CdS films, resulting in a smoother and more uniform surface topography. To verify the uniformity of the ultrathin Ta2O5 layer, we performed EDS mapping analysis on the CdS/Ta2O5 substrate. As shown in Supplementary Fig. 2, the Ta signal (representing Ta2O5) exhibits a continuous and homogeneous distribution on the surface of CdS films, with no observable island-like aggregation or large-scale uncovered areas. This indicates a uniform and complete coverage of the CdS film by the deposited Ta2O5 layer. Simultaneously, the signals of Cd and S also display a homogeneous distribution, further confirming that the Ta2O5 layer is sufficiently ultra-thin, thereby allowing the underlying CdS signals to remain clearly detectable. The CdS and CdS/Ta2O5 films exhibited similar transmittance across the entire visible spectrum (Supplementary Fig. 3). We also used atomic force microscopy (AFM) to analyse the surface morphology of CdS films (Fig. 1c, f). Following the deposition of Ta2O5, the roughness (Rq) of the CdS films was decreased from 27.8 nm to 23.1 nm, consistent with the SEM results. We also conducted the contact angle tests on CdS films (Fig. 1d). The contact angle was reduced from 61.9° to 44.0° after the Ta2O5 layer was introduced, positively impacting the heterogeneous nucleation and grain growth of the Sb2(S,Se)3 films. To confirm that the Ta2O5 layer facilitates carrier transport, we measured the conductivity of CdS films, and the results are shown in Fig. 1g (the inset shows the structure of device). After depositing the Ta2O5 dielectric layer, the conductivity of the CdS films was increased from 3.74 × 10−5 S/cm to 6.22 × 10−5 S/cm.

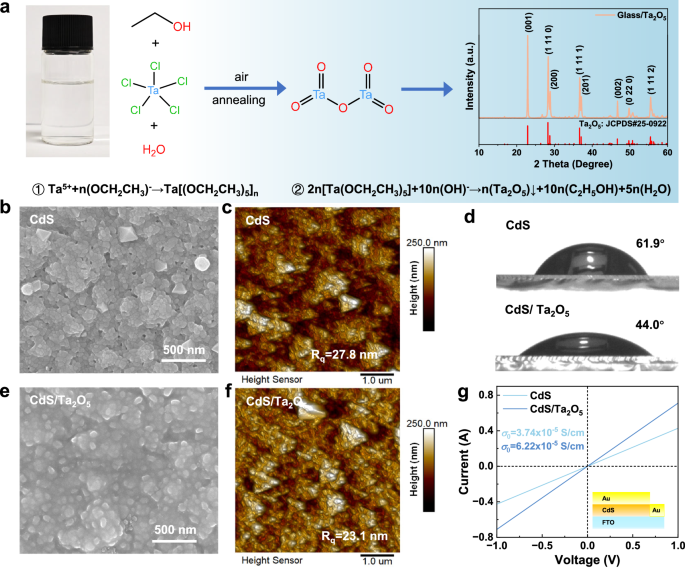

Fig. 1: Characterization of CdS/Ta2O5 buffer layers.
Fig. 1: Characterization of CdS/Ta2O5 buffer layers.
Full size image

a Reaction schematic and XRD pattern of Ta2O5 (The inset shows the precursor solution of Ta2O5). b, e Scanning electron microscopy (SEM) images, c, f atomic force microscopy (AFM) mappings, and d hydrophilicity measurements of CdS and CdS/Ta2O5 films. g I–V characteristics of FTO/CdS/Au and FTO/CdS/Ta2O5/Au devices for conductivity evaluation.

Morphological analysis of Sb2(S,Se)3 layer

According to previous studies, the polarity of CdS surfaces has a significant influence on the growth orientation of the absorber layer1. As shown in Supplementary Fig. 4, the Sb2(S,Se)3 films tend to form a favorable (hk1) grain orientation on the non-polar (100) plane of CdS films. In contrast, exposure of the polar (101) and (10\(\bar{1}\)) planes leads to complex anisotropy in the grain orientation of Sb2(S,Se)3, negatively affecting the carrier transport. To demonstrate that the Ta2O5 layer reduces the exposure of polar planes in CdS, we performed XRD measurements on CdS films. As shown in the Supplementary Fig. 5, compared to the pure CdS film, the CdS/Ta2O5 sample exhibits significantly reduced peak intensities of polar planes, such as (101), and enhanced peak intensities of nonpolar planes, such as (100)23. To investigate the effect of Ta2O5 dielectric layer on the quality of Sb2(S,Se)3 films, we implemented XRD and SEM measurements. The diffraction patterns of Sb2(S,Se)3 films matched well with the orthorhombic Sb2S3 (JCPDS#42-1393) and Sb2Se3 (JCPDS#15-0861) phases (Supplementary Fig. 6a). We calculated the texture coefficients (TC) of the crystal planes for Sb2(S,Se)3 films deposited on CdS and CdS/Ta2O5 substrates based on the XRD data, with detailed results presented in Supplementary Fig. 6b24. The Sb2(S,Se)3 films deposited on the CdS/Ta2O5 substrate exhibit significantly higher TC values for (hk1) planes, such as (211), (221), (301) and (421) compared to those of the control Sb2(S,Se)3 films. This provides evidence for the optimized grain orientation of Sb2(S,Se)3 films induced by the Ta2O5 layer. As shown in Supplementary Fig. 7, the local XRD analysis revealed that Sb2(S,Se)3 films deposited on Ta2O5 substrates exhibited stronger (hk1) diffraction peaks and narrower full width at half maximum than the control Sb2(S,Se)3 films. Regarding the slight shift in diffraction peaks, we attribute it to the changes in the chemical composition of the absorber layer (Supplementary Fig. 8 and Supplementary Table 1). The introduction of Ta2O5 substrate modifies the crystallization kinetics, leading to an altered S/Se ratio in Sb2(S,Se)325. SEM images reflected that both the control and Ta2O5-modified Sb2(S,Se)3 films had a compact morphology. However, the control films displayed a higher density of large granular precipitates, and the phenomenon was effectively mitigated in the Ta2O5-modified Sb2(S,Se)3 films. Supplementary Fig. 9 showcased the AFM images of the Sb2(S,Se)3 films, indicating that the Rq was reduced for films deposited on Ta2O5 substrate (39.6 nm) compared to that of the control films (50.3 nm). We attributed this to the suppression of large granular precipitates in the absorber layer. The reduced surface roughness facilitates uniform interfacial contact and minimizes localized recombination, which is critical for enhancing charge transport and device performance. These results suggest that the insertion of Ta2O5 layer improves the crystallinity, grain orientation and morphology of Sb2(S,Se)3 films. Therefore, the Sb2(S,Se)3 films deposited on Ta2O5 substrate exhibit an enhanced light absorption due to the improved film quality (Supplementary Fig. 10). Since interfacial stability is fundamental to device reproducibility and long-term reliability, we performed HAADF-STEM imaging and corresponding EDS mapping analysis for a cross-sectional sample with structure of FTO/CdS/Ta2O5/Sb2(S,Se)3. As shown in Supplementary Fig. 11, the HAADF-STEM image reveals sharp and distinct interfaces between all functional layers. Notably, a continuous thin layer with a thickness of ~3 nm, corresponding to Ta2O5, is clearly observed between the CdS and Sb2(S,Se)3 layers. EDS mapping further demonstrates a sharp and confined Ta signal precisely at the CdS/Sb2(S,Se)3 interface, while other elements such as Cd, S, Sb, and Se exhibit negligible interdiffusion. These results confirm that the Ta2O5 dielectric layer maintains robust chemical and structural stability during high-temperature hydrothermal and annealing processes, forming well-defined heterointerfaces with adjacent layers.

Fixed charge passivation

In crystalline silicon solar cells, Ta2O5 has been widely recognized as an efficient passivation layer, which is capable of introducing fixed charges at the silicon surface. Theoretically, when Ta2O5 contacts with Sb2(S,Se)3 layer, it may exhibit a similar fixed charge effect. To validate our analyses, we measured the fixed charges by preparing the metal oxide semiconductor (MOS) structured devices for C–V measurements (Fig. 2a). By differentiating the C–V data, the voltage corresponding to the extreme value represents the flat-band voltage. As shown in Fig. 2b, the flat-band voltages of the CdS and CdS/Ta2O5 samples are −0.35 V and −0.50 V, respectively. We therefore confirm that the Ta2O5 enables positive fixed charges at the interface, consistent with reported literatures26,27. The fixed charge (Qf) density was calculated using the following formula28:

$${Q}_{f}=\frac{{C}_{in}({V}_{MS}-{V}_{fb})}{A\times q}$$
(1)

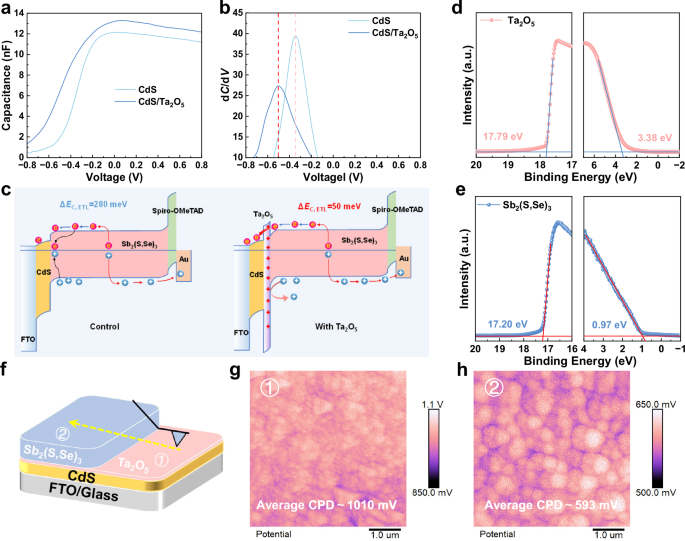

Fig. 2: Fixed charge passivation.
Fig. 2: Fixed charge passivation.
Full size image

a C–V curves and b flat band voltage of CdS and CdS/Ta2O5 devices. The C–V measurements were performed on devices with the structures FTO/CdS/Sb2(S,Se)3/Au and FTO/CdS/Ta2O5/Sb2(S,Se)3/Au. c Schematic band diagrams of the control and Ta2O5 incorporated devices. UPS spectra of secondary electron cutoff and valence band of (d) Ta2O5 and e Sb2(S,Se)3 films. f Schematic diagram of the KPFM measurements. g, h The corresponding KPFM images of regions 1 and 2.

Here, Cin denotes the intrinsic capacitance of the MOS structure, VMS represents the metal-semiconductor potential difference determined by the work function difference between FTO (4.8 eV) and Sb2(S,Se)3, Vfb is the flat-band voltage, A is the electrode area, and q is the elementary charge. The calculated fixed charge density Qf of the Ta2O5 layer is +2.24 × 1011 cm−2 (Supplementary Table 2). When positive fixed charges of Ta2O5 appear at the interface, more electrons of Sb2(S,Se)3 gather therein, resulting in a downward band bending of Sb2(S,Se)3 (Fig. 2c). These positive fixed charges enable field-effect passivation at the Ta2O5/Sb2(S,Se)3 interface, facilitating efficient electron extraction and suppressing hole accumulation17,18. To theoretically verify the field-effect passivation mechanism of the Ta2O5 layer, we performed the device simulations by using the SCAPS-1D software29,30. A device model is established that accurately corresponds to the actual structure of solar cells. All the essential materials parameters are shown in Supplementary Table 3. The simulation results (Supplementary Fig. 12) demonstrate that the insertion of the Ta2O5 layer significantly reduces the conduction band offset (ΔEC,ETL) between CdS and Sb2(S,Se)3 from 280 to 50 meV. The Ta2O5 layer provides a more favorable path for efficient transport of photogenerated electrons from the absorber layer to the electron transport layer.

In addition to the fixed positive charges, Fermi level alignment between Ta2O5/Sb2(S,Se)3 also results in band bending with the same trend. We performed the ultraviolet photoelectron spectroscopy (UPS) for the Ta2O5 and Sb2(S,Se)3 films, respectively. Fig. 2d, e present that the secondary electron cut-off edges are 17.79 and 17.20 eV, and the distances between Fermi energy level and valence band maximum are 3.38 and 0.97 eV for the Ta2O5 and Sb2(S,Se)3, respectively. The corresponding work functions are 3.43 eV and 4.02 eV, similar to the values reported in the literature11,18. As shown in Fig. 2c, the band bending of Sb2(S,Se)3 is downward while the band bending of Ta2O5 is upward when the Fermi-level alignment is achieved between Ta2O5/Sb2(S,Se)3. Kelvin probe force microscopy (KPFM) was conducted to probe the contact potential difference (CPD) across the Ta2O5/Sb2(S,Se)3 heterojunction (Fig. 2f). A significant reduction in CPD was observed as the probe traversed from the Ta2O5 region to the Sb2(S,Se)3 region (Fig. 2g, h). The Ta2O5 region exhibited an average CPD of approximately 1010 mV, while the Sb2(S,Se)3 region exhibited a decreased CPD of approximately 593 mV. This difference in CPD is consistent with the UPS analysis. With the insertion of Ta2O5 layer, the presence of fixed positive charges and the significant work function difference induce more pronounced downward band bending of Sb2(S,Se)3.

Carrier dynamics and interfacial defect study

To further verify that the Ta2O5 dielectric layer facilitated carrier transport, we used transient absorption spectroscopy (TAS) to analyze the carrier transport dynamics. Fig. 3a, b showcased the two-dimensional pseudo-color maps of the TAS spectra for Sb2(S,Se)3 films. Broad photo-induced absorption (PIA, ΔA > 0) in the range of 525–700 nm appeared in both samples due to the formation of S•− radical and the trapping of holes within Sb2(S,Se)3 films31,32. Compared to the control samples, the Sb2(S,Se)3 films deposited on Ta2O5 dielectric layer exhibited lower PIA signals. Supplementary Fig. 13 displayed the time-resolved absorption spectra at different times, in which the Ta2O5 incorporated Sb2(S,Se)3 films showed a weaker peak intensity than the control films at the same delay time. In general, the TAS intensity reflects the number of carriers in the conduction and valence bands of the absorber, so the decreased intensity can be attributed to the effective charge transport via the Ta2O5 dielectric layer33. Fig. 3c showed the decay kinetics of the photobleaching peak intensity at 622 nm for the samples, and the carrier decay lifetimes were obtained by fitting the double-exponential equations in Supplementary Note 1. The corresponding results were listed in Supplementary Table 4. The average carrier decay lifetimes of the Sb2(S,Se)3 films on the Ta2O5 layer are much lower than those of the control films, suggesting that Ta2O5 layer enables the fast electron extraction and transportation to cathode. To explore the carrier recombination behavior, we performed the transient photovoltage/photocurrent (TPV/TPC) measurements on the devices without and with Ta2O5 dielectric layers. As shown in Fig. 3d and Supplementary Table 5, the TPC results indicated a reduced photocurrent decay lifetime of 252 μs in the Ta2O5 incorporated devices compared to that of the control devices (328 μs), consistent with the analysis of TAS measurements. Fig. 3e presented the TPV decay curves of the devices, in which the Ta2O5 incorporated devices exhibited a longer carrier recombination lifetime of 3238 μs than that of the control devices (953 μs) (Supplementary Table 5). We attributed this to the suppressive carrier recombination rate by the field-effect passivation of Ta2O5. Additionally, the capacitance-voltage (C-V) measurements showed a decreased capacitance in the Ta2O5 incorporated devices (Fig. 3f). This suggests that the Ta2O5 dielectric layer can effectively suppress the aggregation of carriers at the CdS/Sb2(S,Se)3 interface and reduce the probability of carrier recombination34, which is in agreement with the results of the TPV measurements.

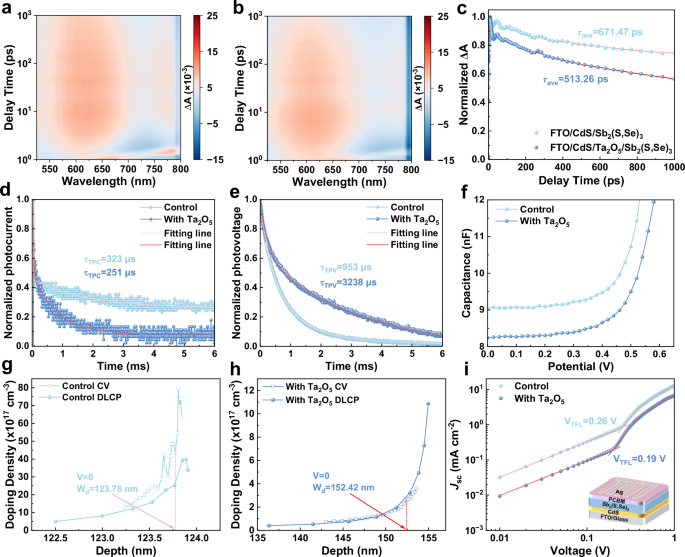

Fig. 3: Carrier dynamics and interfacial defect analysis.
Fig. 3: Carrier dynamics and interfacial defect analysis.
Full size image

Two-dimensional pseudo-color images of TAS spectra of the (a) FTO/CdS/Sb2(S,Se)3 and b FTO/CdS/Ta2O5/Sb2(S,Se)3 samples. c Transient decay kinetics of the Sb2(S,Se)3 films deposited on CdS and CdS/Ta2O5 substrate. d, e Transient photovoltage/photocurrent (TPV/TPC) curves, f capacitance–voltage (C–V) curves, g, h C–V and DLCP profiles, and i space charge limiting current (SCLC) curves for the control and Ta2O5 incorporated devices.

We performed C–V and DLCP measurements on the devices without and with Ta2O5 layer to explore the interface defects in the CdS/Sb2(S,Se)3 heterojunction. The defect density from C–V measurements (NCV) includes the free carriers, bulk defects, and interfacial defects, and the defect density from DLCP measurements (NDLCP) contains the free carriers and bulk defects4,35. Therefore, the interfacial defects can be determined by the difference between the NCV and NDLCP. The defect densities of the devices were calculated according to the equation in Supplementary Note 2, and the corresponding results were shown in Supplementary Table 6. Compared to the control devices, the Ta2O5 incorporated devices exhibited a lower interfacial defect density and a wider depletion region (Fig. 3g, h). This was due to the introduction of Ta2O5 improved the morphology and hydrophilicity of CdS films, providing a favorable substrate for the deposition of high-quality Sb2(S,Se)3 films. The defect density and electron mobility are further investigated by the J–V curves according to the space-charge limited current model. Figure 3i displayed the dark J–V curves of the electron-only devices without and with Ta2O5, and the defect densities were calculated according to the formulas in Supplementary Note 3. The insertion of Ta2O5 reduced the electron defect densities of the devices from 6.91 × 1015 to 5.05 × 1015 cm−3. Moreover, the Ta2O5 incorporated devices exhibit a higher electron mobility compared to that of control devices (Supplementary Fig. 14), demonstrating that the Ta2O5 dielectric layer effectively enhances electron extraction and collection. We conclude that the Ta2O5 dielectric layer not only improves the charge transport dynamics at the interface but also achieves a high-quality CdS/Sb2(S,Se)3 heterojunction with fewer interface defects.

Device performance and characterization

Encouraged by the field-effect passivation of Ta2O5, we fabricated the solar cells with the device structure of FTO/CdS/Ta2O5/Sb2(S,Se)3/Spiro-OMeTAD/Au. The influence of Ta2O5 layers with different thickness on device performance was analyzed, and the corresponding current density-voltage (J–V) curves and device parameters were shown in Supplementary Fig. 15 and Supplementary Table 7. As expected, the introduction of Ta2O5 dielectric layers with varying thickness significantly improved photovoltaic performance. Fig. 4a showcased the J–V curves of the control and champion Ta2O5 incorporated devices measured under AM 1.5 G illumination (100 mW cm−2). The control devices achieved a PCE of 9.21% with a VOC of 0.647 V, a short circuit current density (JSC) of 22.53 mA cm−2 and a fill factor (FF) of 63.19%. Specifically, the devices with optimal thickness of Ta2O5 reached a PCE of 10.95% with a VOC of 0.695 V, a JSC of 23.22 mA cm−2 and a FF of 67.87%, which is the highest efficiency for the Sb-based thin-film solar cells so far. Besides, the J–V curves simulated by SCAPS-1D show significant improvements in VOC and FF (Supplementary Fig. 16 and Supplementary Table 8), which are fully consistent with our experimental results. Moreover, the Ta2O5 incorporated devices exhibited a good reproducibility (Supplementary Fig. 17). Fig. 4b showed the external quantum efficiency (EQE) of the control and Ta2O5 incorporated devices, and the integrated current densities are in good agreement with JSC obtained from the J–V curves. The response in the spectral range of 330–500 nm is enhanced due to the optimization of the CdS buffer layer and the heterojunction interface, while the response in the spectral range of 500–750 nm is increased because of the improved quality of Sb2(S,Se)3 absorber layer36. We further calculated the Urbach energy of the devices based on the EQE spectra. As shown in Supplementary Fig. 18, the Ta2O5 incorporated devices displayed a reduced Urbach energy of 28.43 meV compared to 31.47 meV for the control devices. The lower Urbach energy indicates that the Sb2(S,Se)3 films deposited on Ta2O5 layers have a higher crystallinity and less bulk defects37,38.

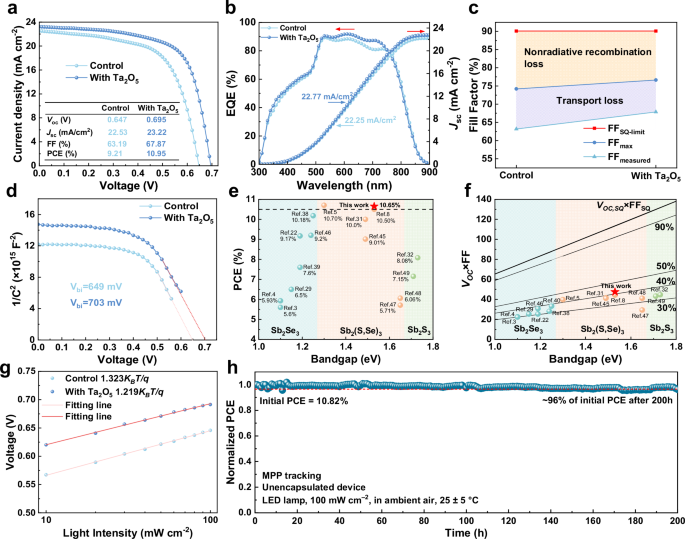

Fig. 4: Device performance and characterization.
Fig. 4: Device performance and characterization.
Full size image

a J–V curves and b EQE spectra of the control and champion devices. c Fill factor (FF) loss analysis for control, and Ta2O5 incorporated devices. d Capacitance-voltage (C–V) curves for control and Ta2O5 incorporated devices. e Certified efficiencies for Sb-based chalcogenide solar cells. The dashed line indicates the benchmark PCE of 10.5%. f Certified VOC × FF versus absorber bandgap for Sb-based chalcogenide solar cells from published literature. Solid lines denote Shockley-Queisser limits (VOC,SQ × FFSQ) at different percentiles for corresponding band gaps. g Light-intensity-dependent VOC for control and Ta2O5 incorporated devices. h Maximum power point (MPP) tracking of the unencapsulated device with the Ta2O5 dielectric layer under ambient conditions.

To investigate the impact of the Ta2O5 dielectric layer on the FF of devices, we decomposed the FF losses into non-radiative recombination losses and transport losses through Supplementary Note 4 (Fig. 4c and Supplementary Table 9). The theoretical maximum fill factor (FFmax) values for the control and Ta2O5 incorporated devices were 74.2% and 76.64%, respectively. Introducing the Ta2O5 dielectric layer reduced FF losses caused by non-radiative recombination from 19.90% to 13.16%. The optical band gaps calculated from EQE measurements show no variation between the control and Ta2O5 incorporated devices (Supplementary Fig. 19). This indicates that the improvement of VOC is due to the field-effect passivation of Ta2O5 and the increased built-in electric field of devices. As shown in the capacitance–voltage (C−2–V) curves, the extracted built-in voltage (Vbi) of the control devices is 649 mV, which is increased to 703 mV for the Ta2O5 incorporated devices (Fig. 4d). Furthermore, the optimized devices were submitted to an authoritative, independent laboratory (South China National Center of Metrology) for performance certification (certification report provided in Supplementary Fig. 20). Consequently, the Ta2O5 incorporated devices demonstrated a certified PCE of 10.65% (10.57%) with a VOC of 0.692 (0.691) V, a FF of 68.70% (68.17%) and a JSC of 22.42 (22.45) mA cm−2 measured in reverse (forward) scan. It is worth noting that the certified PCE of 10.65% is second only to the certified record efficiency of 10.70% (Fig. 4e and Table 1). As shown in Fig. 4f (calculation method detailed in Supplementary Note 5), we calculated the product of VOC,SQ × FFSQ according to the Shockley-Queisser limit values across different band gaps, and compared the VOC × FF values of the reported certified devices. The product of VOC × FF in this work reached 47.54%, which was the highest value among all the reported certified devices (Table 1). Concurrently, the VOC/VOC,SQ ratio of the certified device attained 54.96%, indicating a substantially reduced VOC deficit (VOC, def) (Supplementary Fig. 21 and Table 1). These results fully demonstrated the effectiveness of the field-effect passivation strategy in enhancing device performance.

Table 1 Summary of the certified photovoltaic parameters of the Sb2(S,Se)3 solar cells
Full size table

To further demonstrate that carrier recombination was suppressed, we implemented the dark J–V characterization, light-intensity-dependent J–V measurements, and electrical impedance spectroscopy (EIS) under both dark and different light intensity conditions. It can be seen in Supplementary Fig. 22a that the reverse leakage currents were significantly reduced upon the incorporation of Ta2O5 layer. By processing and fitting the dark J–V curves based on the equations in Supplementary Note 6, we can obtain relevant device parameters, including shunt conductance (G), series resistance (RS), diode ideality factor (A) and reverse saturation current density (J0). As shown in Supplementary Fig. 22b-d, the Ta2O5 incorporated devices exhibit a G value of 0.0005 mS cm−2, an RS of 2.55 Ω cm2, a diode ideality factor of 1.78 and a J0 of 6.28 × 10−6 mA cm−2. All these parameters show improvement over those of the control device, which had a G value of 0.006 mS cm−2, an RS of 6.43 Ω cm2, a diode ideality factor of 1.92 and a J0 of 2.48 × 10−5 mA cm−2. We then measured the VOC versus light-intensity curves that followed the relationship of VOC/n(kBT/q) ln (I), where the kB, T, and q represent Boltzmann’s constant, the temperature in Kelvin, and the elementary charge, respectively. In the case of ideal trap-free recombination, the slope of the curves corresponds to kBT/q. Any deviation of the measured slope from kBT/q indicates the extent of trap-assisted recombination under open-circuit conditions39. As shown in Fig. 4g, the Ta2O5 incorporated devices exhibit a lower slope of 1.219 kBT/q than that of the control devices (1.323 kBT/q), indicating that the Ta2O5 layer suppresses trap-assisted recombination at the CdS/Sb2(S,Se)3 interfaces through the effective field-effect passivation. Furthermore, the light-intensity dependence of JSC (Supplementary Fig. 23) also demonstrates that the introduction of the Ta2O5 dielectric layer effectively suppresses carrier recombination in the devices. We performed EIS on the devices without and with Ta2O5 dielectric layer under dark conditions (Supplementary Fig. 24). The starting point in the high-frequency region represents the series resistance RS, and the semicircle arc in the low-frequency region denotes the recombination resistance Rrec. The extracted RS of solar cells decreased from 19.79 to 3.35 Ω and the Rrec increased from 1358.85 to 4676.42 Ω with the introduction of Ta2O5 dielectric layer. To investigate the interfacial charge transfer properties of the devices, we performed EIS measurements under different light intensities. As shown in Supplementary Fig. 25a, b, all the Nyquist plots exhibit a single semicircular arc, indicating that the interfacial process is dominated by a single time constant40. The equivalent circuit model was used to fit the impedance data (Supplementary Fig. 25c), where RS represents the series resistance, Rct corresponds to the charge transfer resistance, and the constant phase element denotes the geometric capacitive behavior of the device41. The Rct value of both devices decreases linearly with the increasing light intensity (Supplementary Fig. 25d), which can be attributed to that the increased photogenerated carrier concentration effectively reduces the energy barrier of charge transfer. Notably, the Rct values of the Ta2O5 incorporated device were significantly lower than those of the control device under different light intensities. This demonstrates that the fixed charges in the Ta2O5 dielectric layer effectively reduce the charge transfer barrier through the field-effect passivation effect, thereby promoting efficient extraction and transport of charge carriers42,43,44. Clearly, the Ta2O5 incorporated devices exhibit enhanced electrical properties and suppressed carrier recombination in comparison to the control devices, accounting for the improvement of VOC and FF45. Finally, we performed the stability measurement of an unencapsulated target device that maintained ∼96% of its initial PCE after continuous tracking at maximum power point for 200 h, demonstrating good operational stability (Fig. 4h).

Discussion

In summary, we have demonstrated a physical passivation strategy by introducing a low work function Ta2O5 dielectric layer between the CdS and Sb2(S,Se)3 layers, to promote charge transfer and suppress carrier recombination at interfaces. The introduction of Ta2O5 not only realizes a twofold optimization of the CdS buffer layer and the Sb2(S,Se)3 absorber layer, but also yields a field-effect passivation at the CdS/Sb2(S,Se)3 heterojunction. This strategy improves the built-in potential of the devices and provides additional driving force for extracting electron-carrier to the cathode and mitigating hole–carrier accumulation at the interface, which effectively reduces the non-radiative recombination losses and the VOC deficit. By this strategy, the optimized Sb2(S,Se)3 solar cell achieved a PCE of 10.95% with a high VOC of 695 mV and a FF of 67.87%, which also reached a certified efficiency of 10.65% with a VOC of 692 mV and a FF of 68.70%. This study reveals that field-effect passivation induced by fixed charges effectively improves carrier transport dynamics and heterojunction quality, which can be extended to other electronic devices.

Methods

Materials

All chemicals in this work were used as received without further purification unless otherwise specified. Cadmium nitrate tetrahydrate (Cd(NO3)2·4H2O, AR), ammonium hydroxide (NH4OH, 25–28%), thiourea (CH4N2S, GR), Cadmium chloride hemipentahydrate (CdCl2·2.5H2O, AR), antimony potassium tartrate (C4H4KO7Sb·0.5H2O, CP), and sodium thiosulfate pentahydrate (Na2S2O3·5H2O, AR) were purchased from Sinopharm Chemical Reagent Co., Ltd. Tantalum(V) chloride (TaCl5, 99.99%) was obtained from Macklin. Selenourea (CH4N2Se, 98%) and acetonitrile (C2H3N, 99.8%) were sourced from Sigma-Aldrich Trading Co., Ltd. Lithium bis(trifluoromethanesulfonyl)imide (Li-TFSI, 99%) and Spiro-OMeTAD (99.9%) were procured from Yolight Solar Technology Co., Ltd. 4-tert-Butylpyridine (tBP, 96%) and ethanol (C2H6O, 99.8%) were acquired from Aladdin Biochemical Technology Co., Ltd.

Devices fabrications

Fabrication of Ta2O5 dielectric layer: The fabrication process initiated by dissolving 10 mg tantalum chloride (TaCl5) in 1.8 mL ethanol with 30 min ultrasonication. Subsequently, 1.12 mL ethanol and 0.08 mL ultrapure water were added to the solution, followed by another 30 min ultrasonication. The homogenized mixture was filtered through a 200 nm membrane filter to remove large aggregates, after which 1 mL ethanol was introduced and magnetically stirred for 1 h to obtain the Ta2O5 precursor solution. This precursor (50 μL) was then spin-coated onto CdS substrates at varying spin speeds (4000–6000 rpm) and thermally annealed at 400–600 °C for 5 min under ambient air conditions, ultimately yielding densely compacted Ta2O5 films. The thicknesses of the Ta2O5 films prepared by different spin speeds were determined by spectroscopic ellipsometry to be 1 ± 0.5, 3 ± 0.5 and 5 ± 0.5 nm, respectively.

Fabrication of Sb2(S,Se)3 solar cells: The cleaned FTO substrates were first treated with UV-ozone for 20 min, followed by CdS film deposition via chemical bath deposition at 66 °C for 16.5 min. The CdS precursor solution was prepared by thoroughly mixing 20 mL cadmium nitrate tetrahydrate (Cd(NO3)2·4H2O), 26 mL ammonium hydroxide (NH4OH, 25–28%), 14 mL thiourea (CH4N2S), and 140 mL ultrapure water. A cadmium chloride methanol solution (20 mg/mL) was then spin-coated onto the CdS film at 3000 rpm for 30 s and annealed in air at 400 °C for 10 min to complete the CdS buffer layer. Subsequently, Ta2O5 dielectric layers with varying thicknesses were fabricated on the CdS surface. For the deposition of Sb2(S,Se)3 absorber layer, antimony potassium tartrate (C4H4KO7Sb·0.5H2O), sodium thiosulfate pentahydrate (Na2S2O3·5H2O), and selenourea (CH4N2Se) served as Sb, S, and Se sources. Specifically, 0.260 g antimony potassium tartrate was dissolved in 39 mL ultrapure water, followed by sequential addition of 0.774 g sodium thiosulfate and 19.2 mg selenourea to form the precursor solution. The solution was transferred into a Teflon-lined autoclave containing FTO/CdS or FTO/CdS/Ta2O5 substrates and hydrothermally deposited at 135 °C for 2 h. Post annealing was conducted at 400 °C for 10 min under a nitrogen atmosphere to enhance the crystallinity of Sb2(S,Se)3. Spiro-OMeTAD hole transport layers were fabricated by thoroughly mixing 36.6 mg Spiro-OMeTAD, 29 μL 4-tert-butylpyridine (tBP), 9.5 μL lithium bis(trifluoromethanesulfonyl)imide (Li-TFSI, 520 mg/mL in acetonitrile), and 1 mL chlorobenzene, followed by spin-coating at 2000 rpm for 30 s under ambient conditions and subsequent annealing at 100 °C for 10 min. Device fabrication was finalized through thermal evaporation of an approximately 80 nm Au back electrode.

Characterization

Scanning electron microscopy (SEM, TESCAN MIRA LMS) was used to analyze the surface morphology of the CdS and Sb2(S,Se)3 films. The surface roughness and CPD were measured using a Bruker Multimode 8 equipped with an AFM and a KPFM. The absorption and transmission spectra were measured by a spectrophotometer (UV-2600i). The crystal structure of the Sb2(S,Se)3 films was measured by an X-ray diffractometer (XRD, Bruker D8 Discover) with a radiation source of Cu kα. The energy level structures of Ta2O5 and Sb2(S,Se)3 films were measured by UV photoelectron spectroscopy (UPS, Thermo Fisher Scientific ESCALAB Xi) at −5 V bias. Core energy level variations of different elements in Ta2O5 and Sb2(S,Se)3 films were analyzed using an X-ray photoelectron spectrometer (XPS, Thermo Scientific Nexsa). Femtosecond TAS of Sb2(S,Se)3 films was tested using a pumped probe system (Helios, Ultrafast System LLC). TPC, TPV, EIS, and C−2-V curves were measured using a Zahner electrochemical workstation. C–V and DLCP measurements were conducted using a Keithley 4200 semiconductor characterization system on device structures of Glass/FTO/CdS/without or with Ta2O5/Sb2(S,Se)3/Spiro-OMeTAD/Au. The C–V measurements were performed in the dark at room temperature with an alternating current (AC) amplitude of 30 mV, a frequency of 100 kHz and a direct current (DC) bias voltage range of 1 to 0.3 V. DLCP measurements were performed with an AC amplitude range of 15 to 140 mV and a DC bias voltage range of −0.2 to 0.2 V. The J–V curves of the devices were measured by combining a standard xenon sunlight simulator (LSS-55) with a test source meter (Keithley 2450) at a simulated AM 1.5 G (100 mW·cm−2) light intensity. The J–V curves were measured from −0.02 V to 0.70 V with a step size of 5 mV and no wait time. The EQE of the devices was measured using a quantum efficiency test system (LST-QE).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
