A Plug-in system for reprogramming the editing patterns of base editors

Chaoyue Zhong^1,2,3,4,5^na1,
Lan Yu⁶^na1,
Tingting Zhao ORCID: orcid.org/0009-0002-3539-4612⁵^na1,
Xue Shen⁷^na1,
Zhen Li²^na1,
Wei Zhu ORCID: orcid.org/0000-0003-1459-6733⁵,
Zheng Hu ORCID: orcid.org/0000-0001-9306-9442^1,2,3,
Rui Tian ORCID: orcid.org/0000-0002-2305-6395⁵,
Zhiqiang Han^8,9 &
…
Dan He⁴

Nature Communications volume 17, Article number: 910 (2026) Cite this article

4275 Accesses
2 Citations
Metrics details

Subjects

Abstract

DNA base editors are transformative genome editing tools that enable nucleotide conversions without inducing double-stranded DNA breaks, making them promising for correcting genetic mutations. Current base editors, however, are limited by fixed editing windows and constrained location of deaminases. To address these constraints, we develop a modular system termed Plug-in Base Editor (Plug-in BE), which dynamically programs deaminase positioning via integrating various epitopes and antibody-fused deaminases. This system expands the editing capabilities of base editors by optimizing deaminase’s spatial interaction with DNA, leading to improvements in efficiencies, window restrictions, and safety profiles. We validate Plug-in BE’s versatility and high fidelity in cancer gene therapy and zebrafish embryo editing, demonstrating its potential as a powerful and adaptable tool for basic research and therapeutic applications. This innovation can generate a series of base editors without extensive protein evolution, positioning Plug-in BE as a significant advancement in the field of genome editing.

Controllable genome editing with split-engineered base editors

Article 18 October 2021

Improving adenine and dual base editors through introduction of TadA-8e and Rad51DBD

Article Open access 03 March 2023

Deep learning models incorporating endogenous factors beyond DNA sequences improve the prediction accuracy of base editing outcomes

Article Open access 20 February 2024

Introduction

DNA base editors enable the conversion of target nucleotides without introducing double-stranded DNA breaks¹, making them highly promising tools for correcting human inherited diseases. Adenine base editors (ABEs) mediate A-to-G conversion², while cytosine base editors (CBEs) enable C-to-T conversion¹. Additionally, glycosylase base editors (CGBEs) implement C-to-G conversion^3,4. Through deaminase evolution and the incorporation of certain glycosylases, DNA base editors can achieve other mutation types, such as ACBE converting A-to-C⁵. Further, replacing SpCas9 with other Cas proteins has led to base editors matching specific PAMs^6,7. However, current base editors exhibit a specific editing pattern at a fixed window, limiting their effectiveness in genome editing^8,9.

During the optimization of base editors, positioning the deaminase at the N- or C-terminus of nCas9(D10A) has been shown to influence editing efficiency, editing window, byproducts, and Indels¹. Further, in inlaid and circularly permuted base editors, these characteristics can be tuned by embedding deaminases into nCas9(D10A) or permuting its domains^10,11,12. However, such recombination alters protein conformation and activity, thereby restricting the number of viable configurations and resulting in a relatively fixed editing pattern and editing window.

In this study, we present a modular system designed to dynamically program the spatial locations of deaminase within DNA base editors. By embedding epitopes at various positions within nCas9(D10A) and fusing deaminase with antibody, we can manipulate the deaminase’s spatial interaction with DNA, thereby altering its editing outcome, including editing efficiency, editing window, byproducts, Indels, and sequence motif preference. These modular components are combined in a plug-in manner, with CRISPR/Cas as a plug-in platform, epitopes as slots, and deaminases as plug-ins to generate a wide array of new base editors with improvements in efficiency, fidelity, and window restriction, which we term Plug-in Base Editor (Plug-in BE). The efficacy of Plug-in BEs has been further validated in both cancer gene therapy and zebrafish embryo editing, highlighting its potential as a powerful and safe tool for basic research and therapeutic applications.

Results

Generation of SunTag plug-in BE via programming deaminase’s spatial location

Current DNA base editors generally restrict the location of deaminases to the N/C-terminal of nCas9(D10A) (Fig. 1A, left). To overcome this limitation, we embedded an epitope at internal positions within nCas9(D10A), thereby enabling the recruitment of antibody-fused deaminases to specific spatial locations (Fig. 1A, right). Here, we developed 62 D10A-GCN4 variants by embedding GCN4 (a 19 amino acids epitope from SunTag system¹³) primarily within loops between α-helices and β-sheets, thereby minimizing disruption to the function of nCas9(D10A) (Fig. 1B). Based on SpCas9 structure (PDB, 5f9r), the chosen embedded positions are spatially close to the target DNA. Further, structural predictions using AlphaFold3¹⁴ confirmed that the GCN4 embedment did not significantly alter the conformation of nCas9(D10A) (Fig. 1C), suggesting that D10A-GCN4 variants may retain their functionality.

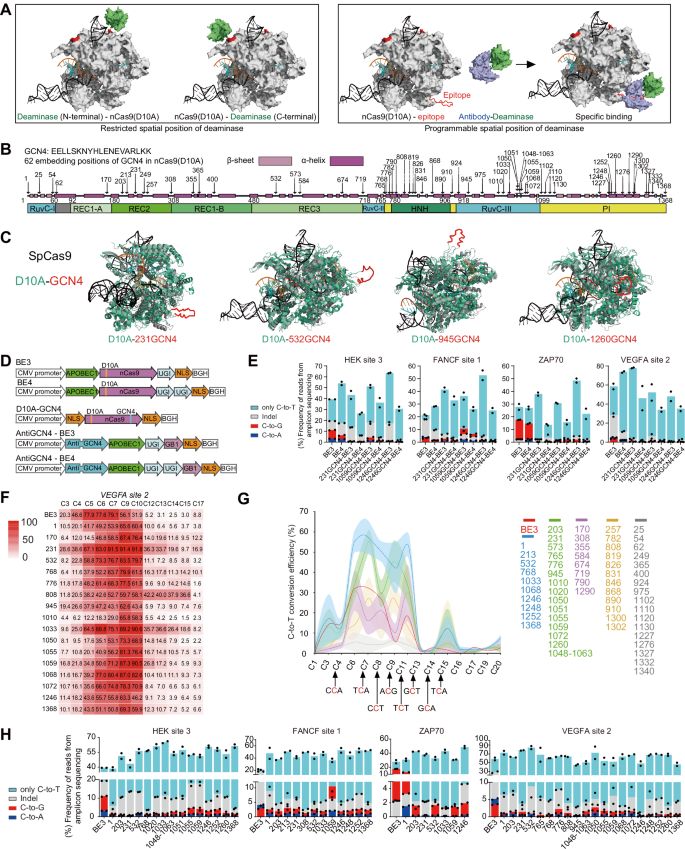

**Fig. 1: Generation of SunTag Plug-in BE3 by programming deaminase’s spatial location.**

To establish a mobile deaminase module, we fused AntiGCN4 (a 272 amino acids antibody from SunTag system¹³) with APOBEC1 and UGI(s)^1,15, resulting in constructs named AntiGCN4-BE3 with UGI and AntiGCN4-BE4 with 2xUGI (Fig. 1D). These systems were collectively termed SunTag Plug-in BE3 and SunTag Plug-in BE4. Initially, we selected D10A-231GCN4, D10A-1055GCN4, and D10A-1246GCN4 for editing four gene loci in HEK293T cells. Overall, SunTag Plug-in BE3 improved editing efficiency by 20% to 40% over BE3, BE4, and SunTag Plug-in BE4, making it a promising candidate for further investigation (Fig. 1E)

Subsequently, we systematically assessed the editing efficiencies of all 62 D10A-GCN4 variants within SunTag Plug-in BE3 framework. Notably, 29 variants demonstrated higher efficiency than BE3 (Fig. 1F and Supplementary Fig. 1A). For instance, at the VEGFA site 2, D10A-170/231/1059/1068GCN4 achieved around 90% C-to-T efficiency, outperforming BE3’s 79%. Similar improvements were observed at the FANCF site 1, HEK site 3, and ZAP70.

Interestingly, the GCN4 embedding position within nCas9(D10A) obviously affected the editing window. For example, the editing windows of D10A-170/308/1033GCN4 expanded to the right at the VEGFA site 2 (Fig. 1F). Based on these observations, we classified 62 variants into five groups with distinct editing patterns, according to the editing results at the HEK site 3, ZAP70, and FANCF site 1 (Fig. 1G). The blue group with 10 variants exhibited the highest efficiency and specific rejection to the motifs CC4A, AC9G, GC13T, and GC14A, while the green group with 15 variants rejected CC8T. Remarkably, the variants reduced byproducts (Fig. 1H). For instance, D10A-308GCN4 reduced byproducts from 25% with BE3 to 4% at the FANCF site 1, while D10A-1246GCN4 reduced from 37% to 2% at the VEGFA site 2. These results demonstrate that the strategic spatial programming of deaminase in the modularized Plug-in BE not only enhances editing efficiency but, more importantly, improves editing fidelity.

SunTag Plug-in BE with ABE8eWQ, miniCGBE1, and Target AID

Inspired by the success of SunTag Plug-in BE3, we further incorporated ABE8eWQ¹⁶ to develop SunTag Plug-in ABE8eWQ (Fig. 2A). D10A-1/532/945/1068/1072GCN4 exhibited comparable editing efficiencies to ABE8eWQ (Supplementary Fig. 2 A). To be noteworthy, the editing window analysis revealed that SunTag Plug-in ABE8eWQ’s editing activity was largely restricted to A6 and A7 (Fig. 2B). Consequently, the contracted window improved single-base editing precision (Fig. 2C). D10A-532GCN4 specifically enhanced the only A8-to-G from 1% with ABE8eWQ to 42% at E21, while D10A-1055GCN4 increased the only A7-to-G from 1% with ABE8eWQ to 90% at OCT4. More importantly, the specific variants further reduced unwanted Indels products (Supplementary Fig. 2C). For example, D10A-532GCN4 reduced Indels from 1.4% of ABE8eWQ to 0.44% at OCT4. Together, these results demonstrate that embedding GCN4 within nCas9(D10A) can refine the activity of ABE8eWQ by narrowing the editing window, enhancing single-base editing precision, and reducing byproducts.

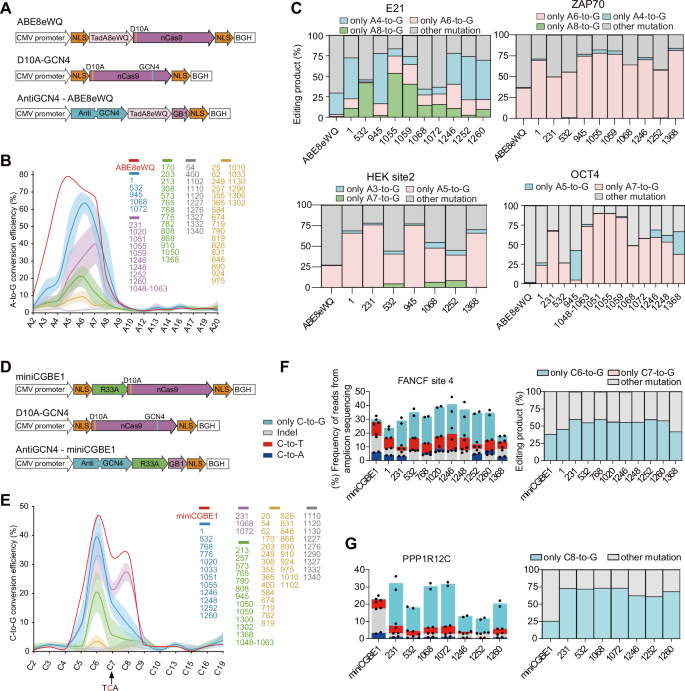

**Fig. 2: Generations of SunTag Plug-in ABE8eWQ and SunTag Plug-in miniCGBE1.**

To evaluate whether Plug-in BE could achieve C-to-G conversion, we developed SunTag Plug-in miniCGBE1³ and assessed its performance in HeLa cells (Fig. 2D and Supplementary Fig. 3A, C). At FANCF site 4, D10A-1246/1248/1252/1260GCN4 achieved the highest editing efficiency, ranging from 44% to 53%, which was comparable to miniCGBE1’s 46% (Supplementary Fig. 3A). Further analysis revealed that the editing window of SunTag Plug-in miniCGBE1 contracted to C6 (Fig. 2E). In addition, the variants showed reduction in byproducts (Fig. 2F, G). For instance, at PPP1R12C site, whereas miniCGBE1 reached 23% editing efficiency but generated 40% byproducts, D10A-231/1068/1072GCN4 achieved 30% editing efficiency with only 10% byproducts. In summary, SunTag Plug-in miniCGBE1 reduces byproducts, providing a narrow editing window that enhances the editing precision and practical application of CGBEs.

We further integrated Target AID to develop SunTag Plug-in Target AID¹⁷. Interestingly, SunTag Plug-in Target AID exhibited a series of wider editing windows and complex editing patterns (Supplementary Fig. 4 and 5).

Taken together, SunTag Plug-in BE is compatible with different deaminases and embedding positions, enabling a wide range of conversions (C-to-T, A-to-G, and C-to-G), while also reprogramming the editing patterns to better achieve diverse editing requirements.

Enhancement of Plug-in BE through integration of MoonTag system

MoonTag system contains a smaller epitope, gp41 (15 amino acids), compared with GCN4 (19 amino acids), and a smaller antibody, Antigp41 (123 amino acids), compared with AntiGCN4 (272 amino acids)¹⁸. Given the compact nature of MoonTag system, we hypothesized that it might improve editing performance with Plug-in BE, and therefore investigated the editing outcomes of MoonTag Plug-in BEs (Fig. 3A, E, H).

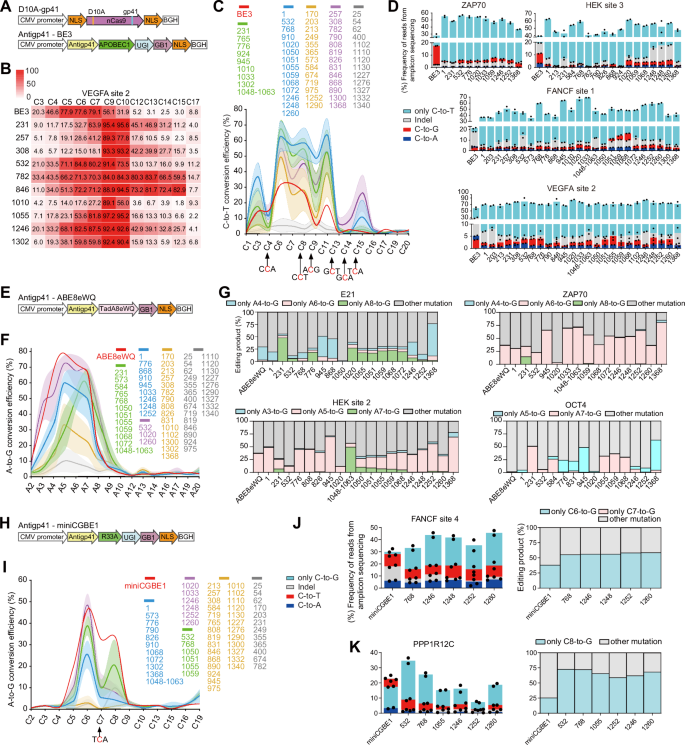

**Fig. 3: Improvement of Plug-in BE through integrating MoonTag system.**

In MoonTag Plug-in BE3 system, D10A-gp41 variants showed further improvement of editing efficiencies than the D10A-GCN4 counterparts at identical embedding positions (Supplementary Fig. 6A). For instance, at FANCF site 1, D10A-719/768/945/1050/1068/1248gp41 achieved over 70% editing efficiency, while D10A-GCN4 resulted in efficiencies ranging from 50% to 60%. Furthermore, D10A-gp41 variants altered the sequence motif preference and editing window width (Fig. 3B, C). Similar to D10A-GCN4, D10A-gp41 reduced byproducts (Fig. 3D). To evaluate the DNA off-target effects of MoonTag Plug-in BE3, we performed amplicon sequencing at off-target sites of HEK site 3 and VEGFA site 2. Based on the on/off-target ratio, D10A-gp41 variants showed comparable editing specificity to BE3 (Supplementary Fig. 8E–H and Supplementary Note 2).

In MoonTag Plug-in ABE8eWQ system, 24 D10A-gp41 variants exhibited editing efficiency higher than SunTag Plug-in ABE system (Fig. 3F and Supplementary Fig. 2B). Unlike the contracted editing window of SunTag Plug-in ABE8eWQ, MoonTag Plug-in ABE8eWQ exhibited diverse window modes (Fig. 3F). Among the variants, 3 variants (purple group) expanded the editing window to A3 and A8. In addition, 12 variants (green group) had the narrowest editing window with the highest efficiency at A7, while another 9 variants (blue group) contracted their window to A5, A6, and A7. Due to the shifting editing window, MoonTag Plug-in ABE8eWQ enhanced the single-base editing precision (Fig. 3G). Moreover, D10A-gp41 variants further reduced the Indels of ABE8eWQ (Supplementary Fig. 2D). To evaluate off-target effects of MoonTag Plug-in ABE, we conducted amplicon sequencing at off-target sites of OCT4 and HEK site 2, and found that D10A-gp41 variants maintained comparable DNA-level editing specificity to ABE8eWQ (Supplementary Fig. 8A, B). Furthermore, transcriptome analysis confirmed that D10A-gp41 variants had no increase in RNA-level off-target effects compared to ABE8eWQ (Supplementary Fig. 8C, D and Supplementary Note 2).

Next, we expanded MoonTag Plug-in BE to two additional deaminases. MoonTag Plug-in miniCGBE1 showed comparable performance to SunTag Plug-in miniCGBE1 in editing efficiency, editing window, and product purity (Fig. 3H–K and Supplementary Fig. 6E). Surprisingly, MoonTag Plug-in Target AID outperformed SunTag Plug-in Target AID in editing efficiency (Supplementary Figs. 4, 5, and 6C).

Cas variants with expanded targeting capacity (e.g., the nearly PAM-less SpRY) can overcome PAM restrictions, thereby broadening the range of base editing. However, even with sgRNA positional adjustments (1–5 bp rightward shifts), SpRY-BE3 failed to efficiently achieve C9-to-T conversion with only 1.4%–16.9% efficiency at HEK site 3 (Supplementary Fig. 7A, B). In contrast, MoonTag Plug-in BE3 (D10A-1246gp41) achieved a higher C9-to-T efficiency of 38.9% without relying on sgRNA redesign (Supplementary Fig. 7B). This finding underscores that expanded PAM compatibility alone does not guarantee precise and efficient base editing, whereas the Plug-in BE system’s programmable deaminase positioning enables targeted edits in regions inaccessible to conventional Cas-fused base editors.

In summary, the compact nature of MoonTag enhances editing efficiencies and improves editing window control in Plug-in BE system, without compromising editing specificity. These findings suggest that MoonTag Plug-in BEs offer a promising strategy for achieving more precise and efficient genome editing.

Expansibility of Plug-in BE with ALFA system for modulating editing patterns

To further validate the expansibility of Plug-in BE as a general strategy for manipulating editing patterns, we developed ALFA Plug-in BE by integrating the ALFA system, which contains a 13 amino acids epitope ALAF and a 132 amino acids antibody Anti-ALFA^19,20. Firstly, we constructed ALFA Plug-in CBE and tested D10A-231ALFA and D10A-1246ALFA (Fig. 4A). Notably, the editing windows varied among GCN4, gp41, and ALFA, even when the same embedding positions were used (Fig. 4B). At C15, D10A-231ALFA possessed 36% editing efficiency compared to D10A-231GCN4/gp41’s 5% to 10%. At C3 and C4, D10A-1246ALFA increased editing efficiency by 20% compared to D10A-1246GCN4/gp41. Additionally, D10A-231ALFA and D10A-1246ALFA also reduced byproducts compared to BE3 (Fig. 4C).

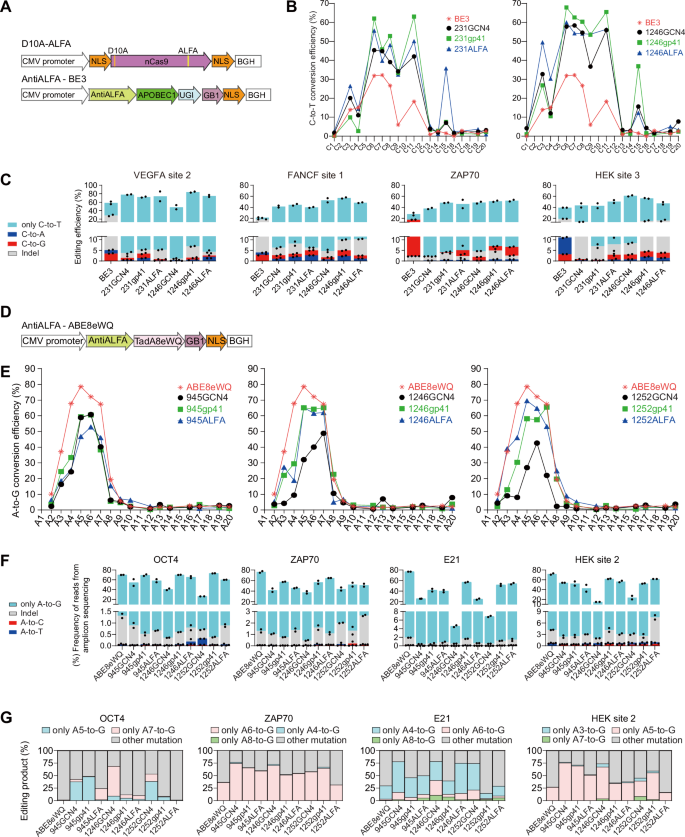

**Fig. 4: Expanding Plug-in BE with ALFA system.**

Next, we evaluated ALFA Plug-in ABE system at embedding positions 945, 1246, and 1252 (Fig. 4D). As with the previous Plug-in BEs, ALFA’s embedment altered the editing window of ABE8eWQ (Fig. 4D). Notably, D10A-1252ALFA improved editing efficiency by 10% to 40% at A3, A4, and A5, compared to the D10A-GCN4/gp41 counterparts. Similar to GCN4 and gp41, D10A-945/1246ALFA reduced byproducts and improved single-base editing precision, compared with ABE8eWQ (Fig. 4F, G).

The ALFA system generated a distinct editing pattern compared to SunTag and MoonTag when using the same embedding position, demonstrating that the type of Protein-Tagging system can impact editing outcomes. Since ALFA system is an excellent protein purification system^19,20, ALFA Plug-in BE could be purified and would possess promising potential for basic and clinical research.

Optimization of plug-in BE via reordering deaminases and antibodies

To examine whether the order of antibody-deaminase fusion influences editing outcomes, we rearrange the components within the Plug-in BE framework. Firstly, we established the four different configurations of antibodies and deaminases within Plug-in ABE (Fig. 5A). As expected, the rearrangement shifted the editing window, as exemplified by ABE8eWQ-1059GCN4, which expanded the window to A9 and improved efficiency from 6% (ABE8eWQ) to 33% (Fig. 5B). Importantly, strategic reordering optimizes editing efficiency (Fig. 5C). For instance, at E21 and HEK site 2, ABE8eWQ-1059GCN4 enhanced efficiency from 5% of 1059GCN4-ABE8eWQ to 36%.

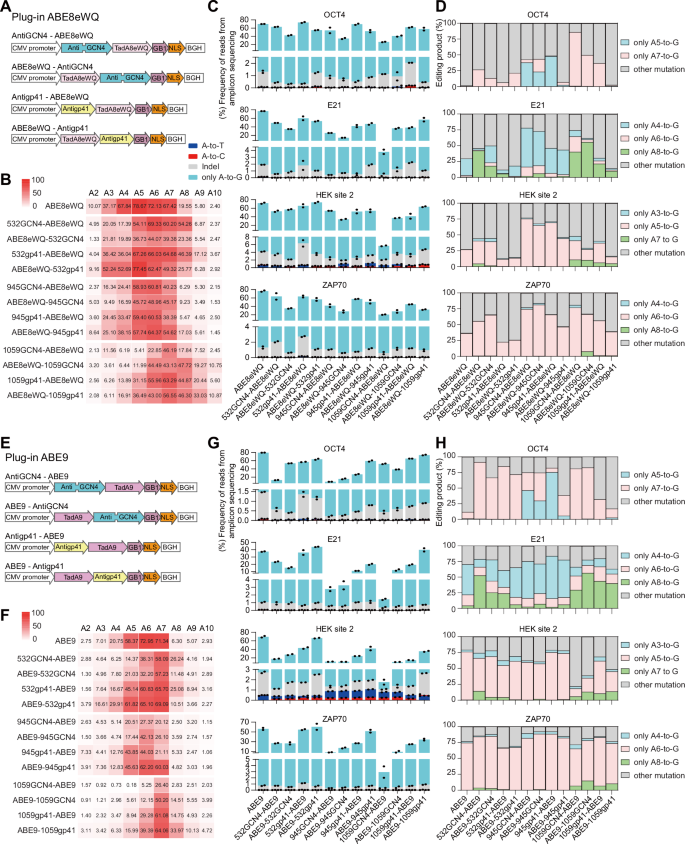

**Fig. 5: Effect of reordering antibody and deaminase on editing outcome in Plug-in ABE8eWQ and Plug-in ABE9.**

To extend this strategy, we incorporated ABE9²¹, known for its minimal editing window, into Plug-in ABE9 (Fig. 5E). Remarkably, reordering within Plug-in ABE9 resulted in more distinct changes to the editing window of ABE9 (Fig. 5F). For example, ABE9-1059GCN4, ABE9-1059gp41, and 1059gp41-ABE9 exhibited narrower editing windows than ABE9. Likewise, reordering within Plug-in ABE9 led to optimization in editing efficiency and single-base editing precision (Fig. 5G, H).

Consistent with the above results, in Plug-in CGBE1 system³, reordering of eUNG and R33A also improved editing efficiency (Supplementary Fig. 9). Collectively, these results demonstrate that the strategic reordering of deaminases and antibodies can enhance the performance of Plug-in BE systems, allowing for the customization of specific editing patterns.

Given the ability of the Plug-in BE system to generate a diverse range of base editors with distinct editing patterns, we have provided a comprehensive comparative summary of recommended Plug-in BE variants (Supplementary Data 4). This summary outlines the advantages, limitations, and optimal applications for each variant, highlighting key parameters including editing windows, editing efficiency, product purity, and sequence motif preferences.

Systematic characterization of plug-in BE using self-targeting library

To systematically evaluate the editing performance of Plug-in BE, we constructed a Self-Targeting library⁸ containing 30,230 sgRNA sequences along with the corresponding target sequences (Fig. 6A). In MoonTag Plug-in BE3 system, D10A-532/1055/1246/1252gp41 exhibited wider editing windows, and their efficiencies were approximately 1.5 to 2 times that of BE3 (Fig. 6B). Of note, D10A-1246gp41 possessed a high efficiency at C5, C6, and C14 to C16, while D10A-1055gp41 improved at C1 to C13. Overall, the variants displayed an improvement in the TCN and CCD motifs, and a reduction in the GCN motifs (Fig. 6C). In addition, the variants reduced byproducts C-to-G/A (Fig. 6D, E). Similarly, MoonTag Plug-in Target AID expanded the editing window, reduced byproducts, and altered motif preferences (Supplementary Fig. 10C–H).

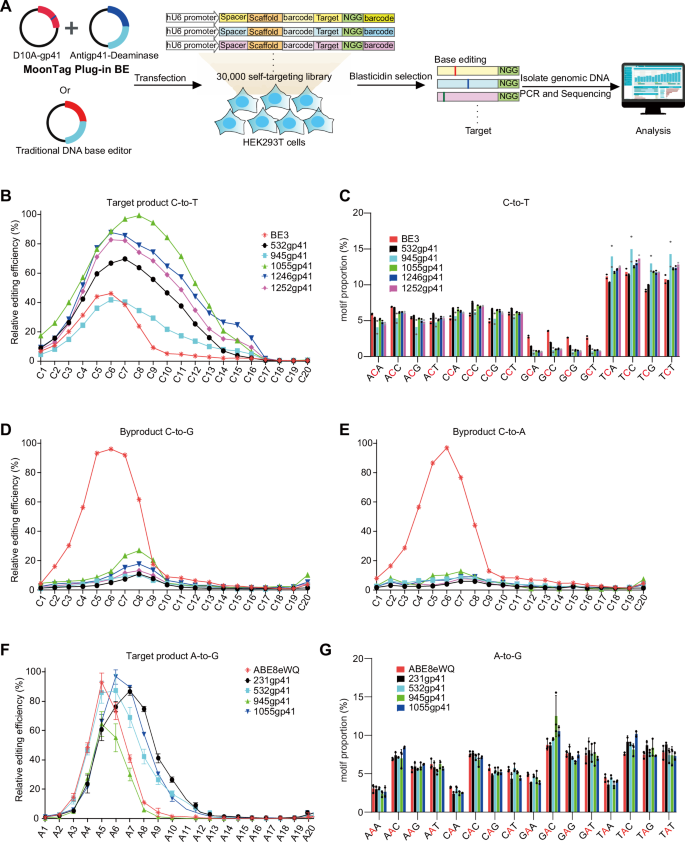

**Fig. 6: Systemically characterization of Plug-in BE using self-targeting library.**

Library analysis of MoonTag Plug-in ABE8eWQ system further demonstrated the programmability of Plug-in BE, as different D10A-gp41 variants produced various editing windows (Fig. 6F). D10A-1055gp41 and D10A-231gp41 presented a right-shifted window with comparable editing efficiency, whereas D10A-532gp41 mainly improved the efficiency at A7 to A11. Moreover, the four variants exhibited different motif preferences (Fig. 6G), such as D10A-1055gp41 especially preferring TAC and GAC.

In summary, Self-Targeting library analysis fully demonstrates the detailed relationship between the spatial location of deaminase and editing outcome.

Advantages of Plug-in BE in gene therapy and zebrafish embryo editing

According to ClinVar data, nearly all of pathogenic single nucleotide variants (SNVs) consist of C-to-T, A-to-G, and C-to-G (Supplementary Fig. 11B, top). Importantly, Plug-in BE system expands the editable regions even further, thereby enabling the correction of additional SNVs, with the A-to-G corrections from 23.26% (ABE8eWQ) to 32.87% and the C-to-T correction from 43.53% (BE3/Target AID) to 77.73% (Supplementary Fig. 11B, down).

To demonstrate the therapeutic potential of Plug-in BE, we targeted the E6 and E7 oncogenes of HPV18 in HeLa cells to generate stop codons. The targeted cytosines of chosen sites are located at CCN motif and C11, which are typically edited inefficiently by BE3 and BE4⁸. Remarkably, D10A-1246gp41 achieved an editing efficiency ranging from 10% to 37% at targeted cytosines, producing stop codons and reducing the cell growth rate (Supplementary Fig. 11C–E). Therefore, strategic adjustment of APOBEC1’s spatial position changes its motif preference and editing window, effectively overcoming the limitations of BE3 and BE4 in cancer gene therapy.

To further evaluate the in vivo editing potential of Plug-in BEs, we transcribed mRNAs along with sgRNAs targeting the zebrafish genes TWIST2 and TYR (Fig. 7A). The mRNAs included sequences encoding fluorescent proteins to facilitate the sorting of embryos expressing base editor (Fig. 7B). Firstly, we edited the TWIST2 site using the Plug-in ABE8eWQ system. Larvae edited by ABE8eWQ or D10A-231gp41 displayed phenotypes associated with TWIST2 dysfunction, including curved tails, body trunk malformations, and pericardial edema (Fig. 7C)^22,23. Sanger sequencing showed that while ABE8eWQ primarily edited A6-to-G, D10A-231gp41 avoided the CA6G sequence and achieved A8-to-G with a 3.8-fold higher efficiency (Fig. 7C). Furthermore, amplicon sequencing of the top 5 larvae with the highest editing efficiency from Sanger sequencing revealed that D10A-231gp41 increased the only A8-to-G conversion from 10% (ABE8eWQ) to 59% of all mutational reads (Fig. 7D). Furthermore, we used the Plug-in BE3 system to edit the TYR. Sanger sequencing revealed that BE3 achieved approximately 21% C7-to-T, with only 3% C11-to-T, due to its restricted window. In contrast, D10A-1246gp41 achieved an average of 39% C11-to-T, generating a stop codon and resulting in albino larvae (Fig. 7F). To further validate these findings, we performed amplicon sequencing of the top 5 larvae with the highest editing efficiency from Sanger sequencing (Fig. 7G). As expected, sequence type analysis showed that BE3 generated 53.7% of reads with C7-to-G conversion, while almost no C11-to-T reads were detected. In contrast, D10A-1246gp41 produced over 75% of reads with C11-to-T conversion (Fig. 7H).

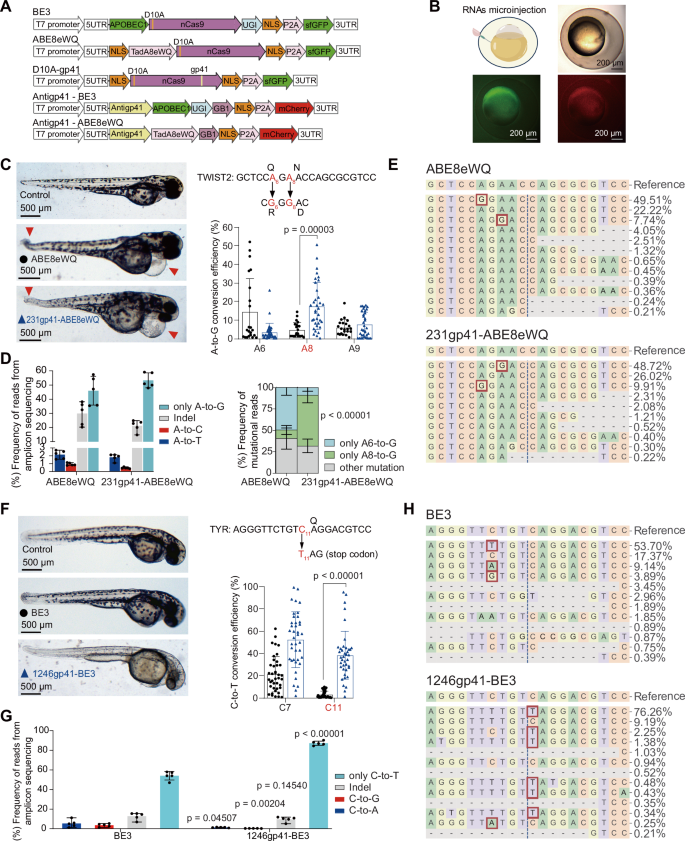

**Fig. 7: Targeted editing in challenging sequence regions using Plug-in BE.**

Together, by overcoming the limitations of traditional base editors, Plug-In BE could achieve both efficient and safe editing in previously un-editable regions in gene therapy and zebrafish embryos with desired phenotypes. The great controllability and high fidelity of Plug-in BE could meet specific editing needs from both basic research and therapeutic applications.

Discussion

The editing capability of current DNA base editors is constrained by the limited spatial locations of deaminases^1,2,3,4,12. In contrast, Plug-in BEs address the constraint and unleash the potential of base editors by strategically programming the spatial location of deaminase, resulting in the improvement of the editing efficiency, fidelity, and window.

In SunTag Plug-in BE3, many D10A-GCN4 variants outperform BE3, with higher efficiency and reduced byproducts. However, in SunTag Plug-in ABE8eWQ, only a few D10A-GCN4 variants maintained comparable efficiency to ABE8eWQ.To further improve Plug-in BE, we incorporated the smaller MoonTag system in Plug-in BE. For overall comparison, the efficiencies from Suntag Plug-in BEs and MoonTag Plug-in BEs were summarized as a dot plot (Supplementary Fig. 6). Interestingly, most of D10A-gp41 variants exhibited higher efficiency than D10A-GCN4 variants, while maintaining the high fidelity of Plug-in BE. The smaller size of gp41 epitope likely reduces its impact on the nCas9(D10A) function after embedding. Additionally, the gp41 antibody is only half the size of the GCN4 antibody, which may result in a shorter spatial distance between deaminase and DNA, contributing to higher editing efficiency. On the other hand, SunTag Plug-in BE performs better in reducing byproducts and indels, likely due to AntiGCN4’s larger size limiting excessive contact between deaminase and DNA.

By designing the editing window and motif preference, Plug-in BE addressed specific editing challenges that original base editors could not overcome. We successfully introduced the stop codons into HPV18’s E6 and E7 for cancer gene therapy using D10A-1246gp41 of Plug-in BE3, while both BE3 and BE4 could not edit the selected targets due to motif preference and window limitation⁸. In zebrafish TYR locus, D10A-1246gp41 of Plug-in BE3 efficiently edited C11-to-G, producing phenotype of albino larvae, while traditional BE3 could not edit C11 due to window restriction. The Plug-in BE’s ability to change motif preference and editing window means that modular combination can be programmed to not only reduce bystander editing but also achieve precise editing in gene therapy and live organisms.

Plug-in BE possesses the expansibility to be a general strategy for reprogramming editing patterns. The spatial location of deaminase is determined by adjusting the epitope embedding position within nCas9(D10A), generating base editors with diverse editing patterns. Interestingly, ALFA and MoonTag have similar sizes, but they produced different editing results, further suggesting that the type of Protein-Tagging system influences the editing pattern of deaminase. In Plug-in ABE8eWQ, Plug-in ABE9, and Plug-in CGBE1, changing the order of deaminases and antibodies yielded different editing outcomes. Thus, different orderings in the Plug-in BE framework create more opportunities for designed editing outcomes. Furthermore, inserting GCN4 into FrCas9 protein²⁴ could also enhance base editing efficiency and broaden editing window (Supplementary Fig. 12). Together, programming epitope embedding positions, Protein-Tagging systems, Cas9 types and their orderings can create combinations of multiple editing patterns, and allow Plug-in BE to be customized for a wide range of editing tasks.

In conclusion, the Plug-in BE system uses CRISPR/Cas as a plug-in platform with many embedding epitopes as slots, Protein-Tagging systems, and deaminases as plug-ins, generating a series of DNA base editors with superior editing patterns and high-safety profiles (Supplementary Fig. 11A). Plug-in BE can serve as a modular and programmable DNA base editor toolbox that can be expanded with the increase of CRISPR protein, slots, and plug-ins, holding significant potential for both basic research and therapeutic applications.

Methods

Ethics statement

The experiments on zebrafish were approved by the Ethics Committee of Zhongnan Hospital of Wuhan University, Wuhan, China. Our experiments on zebrafish complies with the relevant ethical regulations.

Plasmid construction

The following plasmids with Addgene Catalog numbers were used for Plug-in BE plasmid constructions, BE3 (73021), BE4 (100802), ABE8eWQ (161815), ABE9 (194208), Target AID (131300), miniCGBE1 (140253), CGBE1 (140252), pST1374-scFv-APOBEC-UGI-GB1(113029), pST1374-GCN4-D10A (113022), MoonTag-Nb-GFP (128602), mEGFP-NbALFA (159986). KAPA HiFi HotStart Ready Mix (KAPA Biosystems, KK2602) and 2X MultiF Seamless Assembly Mix (ABclonal, RK21020) were adopted for plasmid construction according to the manufacturer’s protocol. During plasmid construction, pST1374-GCN4-D10A, which carries the resistance gene of blasticidin, served as the plasmid skeleton for the insertion of Plug-in BE elements. The DNA sequences of Plug-in BE variants are listed in Supplementary Data 1.

Cell culture and transfection

HEK293T cells (ATCC, CRL-3216) and HeLa cells (ATCC, CCL-2) were cultured in Dulbecco’s modified Eagle’s medium (Gibco, 11965118) supplemented with 1% penicillin-streptomycin (Gibco, 15140122) and 10% fetal bovine serum (Gibco, A5256701). The cell lines were passaged every 3 days and incubated at 37 °C with 5% CO₂. The cell lines have been tested to exclude mycoplasma contamination. Cells were cultured in 24-well plates until the confluency was ~70%. Then, protein-expressing plasmids (500 ng) were co-transfected into cells with sgRNA plasmids (250 ng) using Hieff Trans® Liposomal Transfection Reagent (Yeasen, no. 40802ES08) according to the manufacturer’s protocol. All transfected cells were cultured for four days with blasticidin selection and then harvested for genomic DNA extraction. The sequences of sgRNA are listed in Supplementary Data 2, and the sequences of off-target sites are in Supplementary Data 3.

Detection of cell proliferation rate

The cells after trypsinization were seeded into 96-well plates. Adjust the cell density to 3000 cells per well. In the testing time points (24 h, 48 h, and 72 h), each well was added with 1/10 volume CCK8 (Abbkine, BMU106 - CN). The cells were then cultured in a 5% CO2 incubator at 37°C for 2 h. Finally, the absorbance value of cells was tested and recorded at 450 nm wavelength.

Genomic DNA extraction and PCR

Genomic DNA of transfected cells and zebrafish larvae was extracted with EasyPure® Genomic DNA Kit (Transgen, TEE101-01) according to the manufacturer’s protocol. The gene loci (200–600 bp) were amplified by PCR for Sanger sequencing. Primers are listed in Supplementary Data 2.

Editing efficiency analysis of Sanger sequencing data using EditR

PCR products were sequenced by Sanger sequencing technology (Sangon, Guangzhou). Sanger sequencing data were further quantified to obtain base editing efficiency using the online tool EditR (https://moriaritylab.shinyapps.io/editr_v10/)¹².

Amplicon sequencing and data analysis

Genomic DNA was used for two-step PCR with KAPA HiFi HotStart Ready Mix. Primer pairs of first-step PCR with 25 cycles contained a gene-specific region and an outer Illumina-compatible adaptor sequence. Primer pairs of second-step PCR with 11 cycles had the outer-adaptor sequence to append a unique dual index. Then, the amplicon library was sequenced on MGISEQ-T7 platform. Base editing and indels efficiencies were determined by aligning reads to the genomic sequence using CRISPResso2. The percentage of editing product types, i.e., editing efficiency, was calculated as the desired editing reads / total sequencing reads. The percentage of single-base product types, i.e., editing precision, was calculated as the desired editing reads / total mutational reads. Amplicon primers are listed in Supplementary Data 2 and Supplementary Data 3.

mRNA sequencing

HEK293T cells were transfected with protein-expressing plasmids (500 ng) and sgRNA plasmid (250 ng). At 48 h post-transfection, RNA extraction was performed using TRIzol reagent (Invitrogen, 15596018CN). Subsequently, mRNA was reverse transcribed into cDNA using SuperScript III (Invitrogen, 18080051), and underwent high-throughput sequencing on the Illumina Novaseq-150PE platform. RNA-seq data were analyzed using RADAR (v1.0.0) for detection of RNA SNP.

Preparation of self-targeting library

The architecture and sequence of the Self-Targeting library with 30,230 sgRNAs were adopted from a previously reported article⁸. In brief, each oligonucleotide contains a full-length sgRNA with a corresponding target. The oligonucleotide pool was amplified by PCR with 10 cycles using KAPA HiFi HotStart Ready Mix, and then purified using magnetic beads (Cytiva, 65152105050250). The Lenti-gRNA-Puro plasmid (84752) was digested using BsmBI-v2 (NEB, R0739L). The pool PCR product was introduced into the digested Lenti-gRNA-Puro plasmid using 2X MultiF Seamless Assembly Mix. The recombinant plasmid was transformed into E. coli, and the colonies were scraped for plasmid purification. The lentivirus plasmid library was transfected into HEK293T cells for the construction of the lentivirus library, which was implemented by GURUN Biotechnology (Wuhan, China).

Characteristics of base editors through screening a self-targeting library

The Self-Targeting lentivirus library with an MOI of 1 was transduced into HEK293T cells for the construction of the Self-Targeting cell library. An sgRNA sequence cover at least 1000 cells. After 24 h transduction, the cell library was cultured with media containing 2.5 µg/mL puromycin for 10 days. Subsequently, the DNA base editor plasmid was transfected into the cell library. After 5 days of transfection, the genomic DNA of the cells was extracted for PCR amplification and amplicon sequencing.

Preparation of RNAs

mRNA preparation was performed using HiScribe T7 ARCA mRNA Kit (with tailing) (NEB, E2060S) according to the manufacturer’s protocol. The sgRNAs were modified with phosphorothioation and methoxy group, and synthesized by GenScript (Nanjing, China). The sequences of mRNAs are listed in Supplementary Note 1. The sequences of sgRNAs are listed in Supplementary Data 2.

Microinjection in zebrafish embryos

Wild-type AB strain zebrafish was purchased from China Zebrafish Resource Center, Wuhan, China. Zebrafish was maintained at 28 °C on a 14:10 hour light:dark cycle. Embryos were obtained from natural spawning of adult fish (3–6 months old, mixed male and female). Embryos at 1-cell stage were microinjected with a 2 nL mixture of mRNA (BE3 or ABE8eWQ, 100 ng/µL) and sgRNA (200 ng/µL), or Plug-in BE mRNAs (D10A-gp41 and Antigp41-deaminase, 100 ng/µL) and sgRNA (200 ng/µL). A total of 137 injected zebrafish embryos showed detectable fluorescence at 6 h post-injection across all experiments. Embryo genomic DNA was extracted at 72 h post-fertilization for assessing the base editing efficiency by Sanger sequencing. In each group, the top 5 embryos with the highest editing efficiency from Sanger sequencing were further sequenced by amplicon sequencing. Sex of zebrafish embryos was not considered in the study design because sexual differentiation in zebrafish occurs at approximately 3–4 weeks post-fertilization. The molecular mechanisms of base editing are not expected to differ between sexes at the embryonic stage. The animal experiments on zebrafish were approved by the Ethics Committee of Zhongnan Hospital of Wuhan University.

Statistics & reproducibility

No statistical method was used to predetermine sample size. No data were excluded from the analyses. The experiments were not randomized. The Investigators were not blinded to allocation during experiments and outcome assessment. The cultured cells from a homogeneous and well-mixed population were considered biologically equivalent. For every Plug-in BE combinations (a total of 533 combinations), we tested four genomic loci with two biological replicates (a total of 4264 biological replicates) to assess the base editing efficiency and ensure reproducibility. The Self-Targeting library cells contains 30,230 sgRNAs with >1000 cells per sgRNA, ensuring statistical robustness for identifying the editing pattern of Plug-in BE. Zebrafish embryos from the same clutch were collected sequentially and assigned to injection groups in the order of collection. A total of 137 zebrafish embryos were successfully injected with RNAs, resulting in detectable fluorescence at 6 h post-injection across all experiments (ABE8eWQ, n = 22; 231gp41-ABE8eWQ, n = 35; BE3, n = 40; and 1246gp41-BE3, n = 40). Statistical analysis was done using GraphPad Prism 8. Experiments were performed with at least two biological replicates. Error bars displayed on graphs represent the mean ± SD of at least three biological replicates. Statistical significance was analyzed using two-sided unpaired student’s t test with 95% confidence interval. The exact p value was represented on the graphs. All attempts at replication were successful.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The next-generation sequencing data generated in this study have been deposited in the NCBI Sequence Read Archive database under accession code PRJNA1221304. Source data are provided with this paper.
