Chandrayaan-3 APXS elemental abundance measurements at lunar high latitude

Nature volume 633, pages 327–331 (2024)Cite this article

Subjects

Abstract

The elemental composition of the lunar surface provides insights into mechanisms of the formation and evolution of the Moon1,2. The chemical composition of lunar regolith have so far been precisely measured using the samples collected by the Apollo, Luna and Chang’e 5 missions, which are from equatorial to mid-latitude regions3,4; lunar meteorites, whose location of origin on the Moon is unknown5,6; and the in situ measurement from the Chang’e 3 and Chang’e 4 missions7,8,9, which are from the mid-latitude regions of the Moon. Here we report the first in situ measurements of the elemental abundances in the lunar southern high-latitude regions by the Alpha Particle X-ray Spectrometer (APXS) experiment10 aboard the Pragyan rover of India’s Chandrayaan-3 mission. The 23 measurements in the vicinity of the Chandrayaan-3 landing site show that the local lunar terrain in this region is fairly uniform and primarily composed of ferroan anorthosite (FAN), a product of the lunar magma ocean (LMO) crystallization. However, observation of relatively higher magnesium abundance with respect to calcium in APXS measurements suggests the mixing of further mafic material. The compositional uniformity over a few tens of metres around the Chandrayaan-3 landing site provides an excellent ground truth for remote-sensing observations.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

Fig. 1: Chandrayaan-3 landing site and APXS observation locations.

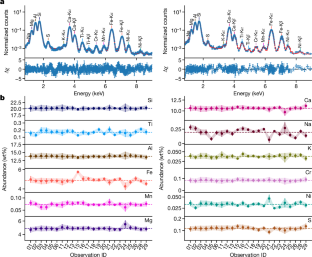

Fig. 2: APXS spectra and measured lunar elemental abundances.
