The transition from monocyte to tissue-resident macrophage requires DHPS

Abstract

Tissue-resident macrophages (RTMs) form during embryogenesis, self-renew locally, and regulate tissue homeostasis by clearing dead cells and debris^1,2,3,4,5,6. During tissue damage, however, bone-marrow-derived monocytes enter tissues and differentiate into RTMs, repairing the tissue and replenishing macrophages in the niche¹. The universal cell-intrinsic mechanisms that control the monocyte-to-RTM transition and the maintenance of mature RTMs across tissues remain elusive³. Here we show that deoxyhypusine synthase (DHPS), an enzyme that mediates spermidine-dependent hypusine modification of translation factor eIF5A^5,7, is required for RTM differentiation and maintenance. Mice with myeloid cell lack of DHPS (Dhps-ΔM mice) had a global defect in RTMs across tissues, resulting in persistent but ultimately futile monocyte influx. Transcriptional analyses of DHPS-deficient macrophages indicated a block in their ability to differentiate into mature RTMs, whereas proteomics revealed defects in cell adhesion and signalling pathways. Sequencing of ribosome-engaged transcripts identified a subset of mRNAs involved in cell adhesion and signalling that rely on DHPS for efficient translation. Imaging of DHPS-deficient macrophages in tissues showed differences in morphology and tissue interactions, which were correlated with their failed RTM differentiation. DHPS-deficient macrophages were also defective in critical homeostatic RTM functions including efferocytosis and tissue maintenance. Together, our results demonstrate a cell-intrinsic, tissue-agnostic pathway that drives differentiation of monocyte-derived macrophages into RTMs.

Main

Essentially all tissues are populated by self-renewing long-lived tissue-resident macrophages (RTMs) that clear damaged cells and debris. In the brain, RTMs prune neuronal synapses, in the lung they remove surfactant, and in the liver they eliminate senescent red blood cells (RBCs). The core responsibility of RTMs is to maintain tissue health and homeostasis through these homeostatic functions¹. RTMs colonize tissues during embryogenesis, with distinct regulatory nodes controlling acquisition and maintenance of a given tissue’s macrophage program. For instance, in the lung, GM-CSFR signalling is essential for alveolar macrophage (lung RTM) development, whereas transcription factor GATA-6 controls peritoneal cavity RTM differentiation². However, we have limited understanding of regulatory factors that are important for RTMs irrespective of their tissue of residency and how these programs influence the differentiation of monocytes into RTMs across tissues^3,4.

Polyamines are ubiquitous metabolites whose biosynthesis is augmented in metabolically active cells. Polyamines have critical roles in many cell functions, including in translation, during which spermidine is the substrate for a two-step reaction mediated first by deoxyhypusine synthase (DHPS) and then by deoxyhypusine hydroxylase to post-translationally ‘hypusinate’ eIF5A, a process in which a conserved lysine is converted into the amino acid hypusine^5,7. Historically, eIF5A has been considered to be the only protein that contains hypusine, with the only functions of DHPS and deoxyhypusine hydroxylase being to hypusinate eIF5A⁸. Hypusinated eIF5A enhances the translation efficiency of certain mRNA transcripts that lead to ribosome stalling⁹, including those with polyproline motifs^10,11, but it has been unclear exactly which transcripts are within this set and how this process is affected in diverse biological contexts in mammalian cells. Previous work by our group and others has shown that polyamine metabolism directs T cell lineage choices and pathogenic potential in inflammation^12,13, and that hypusinated eIF5A boosts respiration, in part by enhancing the translation of certain tricarboxylic acid cycle enzymes, and as such contributes to macrophage alternative activation¹⁴. Other studies have investigated the role of DHPS deficiency in myeloid cell inflammation, observing that in obese mice, DHPS deletion suppresses inflammatory macrophage accumulation in adipose tissue and improves glucose tolerance¹⁵, and that myeloid cell DHPS expression is required to clear gastrointestinal pathogens by controlling translation of antimicrobial factors¹⁶. Here we investigated the role of DHPS in macrophages in steady state using mouse models of myeloid or macrophage-specific gene deletion and found a striking deficiency in mature RTMs across tissues in the absence of DHPS.

Dhps-ΔM mice have a global RTM defect

To examine the polyamine–hypusine pathway (Fig. 1a) in macrophages, we bred mice with loxP-flanked exons 2–7 of Dhps¹⁷ with mice expressing LysM–Cre to generate mice with DHPS deleted in myeloid cells, including monocytes and macrophages (Dhps-ΔM mice). We crossed these mice to Rosa26^eYFP mice to generate Dhps^+/+ LysM–Cre Rosa26^eYFP (control) and Dhps-ΔM Rosa26^eYFP mice, in which YFP reports Cre expression and thus DHPS deletion when loxP is present. DHPS was deleted in macrophages from Dhps-ΔM mice, leading to decreased eIF5A hypusine expression (Fig. 1b and Supplementary Figs. 1 and 2). We gated on YFP⁺ cells and assessed macrophages across tissues. Whereas macrophage number (defined by F4/80 and CD11b, CD11c or CD64, depending on tissue) differed to some extent between 8–10-week old (control) and Dhps-ΔM Rosa26^eYFP mice, macrophages were present across all tissues in both genotypes when measured by flow cytometry (Fig. 1c–f and Extended Data Figs. 1–3) and by imaging (defined by F4/80 or IBA1) (Supplementary Figs. 3–6). However, Dhps-ΔM Rosa26^eYFP mice exhibited substantial defects in RTMs in the peritoneum (TIM-4⁺), lung (Siglec-F⁺), liver (TIM-4⁺), heart (TIM-4⁺), brain (CX3CR1⁺), spleen (TIM-4⁺) and kidney (CD11c⁺CD11b^low)^{18,19,20,21,22} compared with controls (Fig. 1c–f and Extended Data Figs. 1–3), findings supported by imaging of TIM-4⁺ RTMs in the liver and spleen (Extended Data Fig. 4).

Fig. 1: Dhps-ΔM mice have a defect in RTMs.

a, Polyamine biosynthesis and eIF5a hypusination pathways. b, Immunoblot of indicated proteins on FACS-sorted F4/80^hiCD11b⁺ peritoneal macrophages from Dhps-WT and Dhps-ΔM mice. c–e, Representative flow cytometry plots of macrophage subpopulations in peritoneal cavity (c), lungs (d) and liver (e) in Dhps^+/+ Rosa26^eYFP (control) or Dhps-ΔM Rosa26^eYFP reporter mice. CD45⁺YFP⁺ cells were gated on singlets and live cells. f, Absolute numbers of macrophages and RTMs across tissues from Dhps^+/+ Rosa26^eYFP (control) or Dhps-ΔM Rosa26^eYFP reporter mice. Images reflect peritoneal cavity, lung, liver, heart, brain, spleen and kidney. Representative plots and graphs summarize results of at least two independent experiments. Data are mean ± s.d., representative of n = 4 biological replicates. Statistical analyses were performed using two-tailed t-tests; P values are shown. DOHH, deoxyhypusine hydroxylase. Illustrations in b–f were created using BioRender (https://biorender.com).

Source Data

Dhps ^−/− monocytes do not form mature RTMs

We focused on RTMs in peritoneum, lung and liver, distinct niches in which LysM–Cre is strongly expressed (Supplementary Fig. 7). RTMs declined over time in Dhps-ΔM mice (Fig. 2a). In early adulthood, many RTM reservoirs are sustained through self-renewal, receiving little contribution from monocytes, the RTM precursor cell. However, unlike in control mice, we observed persistent monocytes in the peritoneal cavity of Dhps-ΔM mice that we reasoned could reflect sensing of a lack of mature TIM-4⁺ RTMs (Fig. 2b). We performed parabiosis (Extended Data Fig. 5a) to evaluate the monocyte contribution to RTMs. RTM pools in lung, peritoneal cavity and liver of the wild-type (WT):WT mice contained only host cells, with no contribution from the congenically marked WT parabiont. However, among the WT:Dhps-ΔM mice, RTM niches in the Dhps-ΔM mice comprised cells from the WT parabiont (Fig. 2c and Extended Data Fig. 5b,c). These data indicate that the tissues of Dhps-ΔM mice, despite being populated with F4/80⁺ macrophages, received continual monocytic influx, which we propose was driven by a dearth of fully developed RTMs. Furthermore, experiments with bone marrow chimeras revealed that monocytes from CD45.2⁺ Dhps-ΔM bone marrow precursors failed to repopulate RTM pools in irradiated WT recipient mice when competing with CD45.1⁺ Dhps-WT monocytes (Fig. 2d and Extended Data Fig. 5d,e). These data suggest that the RTM defect in Dhps-ΔM mice results from poor macrophage survival in the tissue, which drives constant monocytic influx.

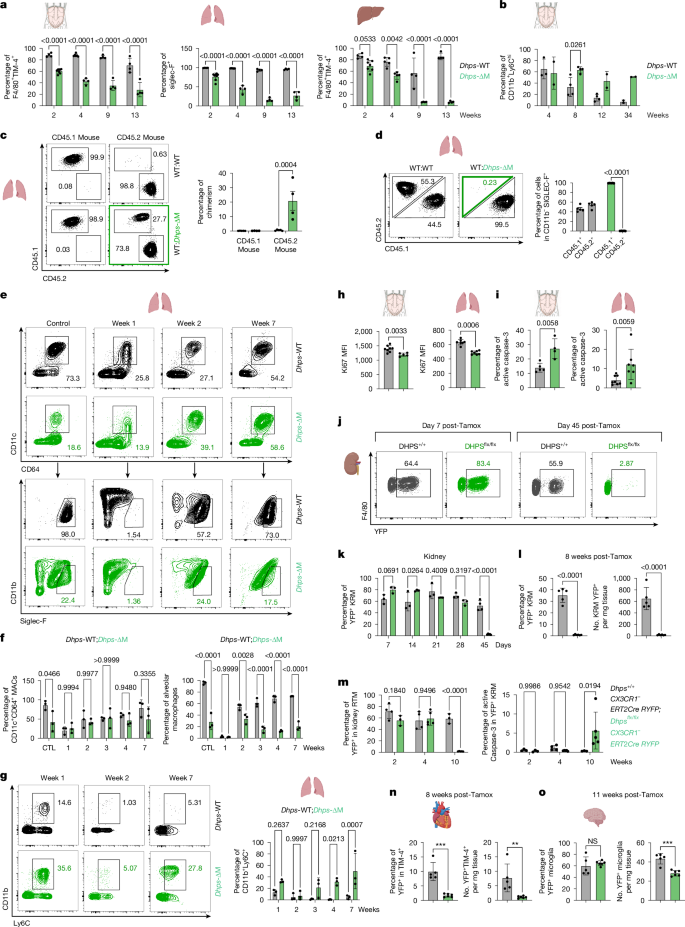

Fig. 2: DHPS is essential for monocyte-to-RTM maturation and macrophage survival.

a,b, Flow cytometry of RTMs (a) and Ly6C⁺ monocytes (b); gated: Lin⁻(CD3, CD19, NK1-1)F4/80⁻. c, CD45.1 versus CD45.2 8 weeks postparabiosis, lung RTMs (F4/80⁺CD64⁺CD11b⁻Siglec-F⁺) and chimerism (%), WT:Dhps-ΔM. d, Bone marrow (1:1) CD45.1 plus CD45.2 Dhps-WT or CD45.1 WT plus CD45.2 Dhps-ΔM cells were infused into irradiated CD45.1 WT recipients; chimerism 12 weeks later in lung RTMs is shown. e–g, CD11c⁺CD64⁺ macrophages (e), CD11b^lowSiglec-F⁺ macrophages (f) and Ly6C⁺ monocytes (g) in BAL after intratracheal CL; control (CTL) mice (e and f) received PBS; BAL was collected at 7 weeks. h,i, Ki-67 MFI (h) and percentage of active caspase-3 (i) in peritoneal (F4/80⁺TIM-4⁺) and alveolar (F4/80⁺CD11c⁺) macrophages. j–l, Frequencies (j,k) and numbers per milligram tissue (l) of YFP⁺ kidney RTMs (KRM; F4/80⁺CD64⁺CD11c⁺CD11b^low). m, Active caspase-3 in YFP⁺ KRM. n,o, YFP⁺ cardiac RTMs (F4/80⁺TIM-4⁺) (n) and YFP⁺ microglia (CD11b⁺CD45^int) (o) post-tamoxifen i.p. in Dhps^+/+ (control) and Dhps^flx/flx CX3CR1–ERT2cre-Rosa26^eYFP mice. Representative plots with graphs summarize results of two or more experiments, except in b and e–g, in which they represent one experiment. Data are presented as the mean ± s.d. In a, n = 4 (2, 9, 13 weeks) and 6 (4 weeks), Dhps-WT; and n = 8 (2 weeks) and 4 (4, 9, 13 weeks), Dhps-ΔM for peritoneum, lung. For liver, n = 4 (2, 9, 13 weeks) and 6 (4 weeks), Dhps-WT; and n = 7 (2 weeks), 5 (4 weeks), and 4 (9, 13 weeks), Dhps-ΔM. In b, n = 3 (4 weeks), 4 (8, 12 weeks) and 3 (34 weeks), Dhps-WT; and n = 2 (4 weeks), 4 (8 weeks) and 2 (12, 34 weeks), Dhps-ΔM. In c, d, f and k, n = 4, 5, 3, and 3, respectively. In h, n = 8, Dhps-WT; n = 5, Dhps-ΔM, peritoneal; and n = 7, Dhps-WT and Dhps-ΔM alveolar macrophages. In i, n = 5, Dhps-WT; n = 4, Dhps-ΔM, peritoneal; n = 8, Dhps-WT; and n = 7, Dhps-ΔM alveolar. In l, n = 5 (control) and n = 6 (Dhps^flx/flx). In m, n = 4 (2, 4 weeks) and 3 (10 weeks), control; and n = 3 (2) and 5 (4, 10 weeks), Dhps^flx/flx. In n and o, n = 5 (control), n = 6, Dhps^flx/flx. n indicates biological replicates. Statistics: two-tailed t-tests, two-way analyses of variance; P values are shown. NS, not significant; Tamox, tamoxifen. Illustrations in a–e, g–j, n and o were created using BioRender (https://biorender.com).

Source Data

To capture what happened to RTM niches after acute macrophage depletion, we injected clodronate liposomes (CL) into the trachea of mice to deplete macrophages in the bronchoalveolar space. In control mice, CL led to rapid macrophage depletion followed by monocyte recruitment and differentiation into SIGLEC-F⁺CD11b^low alveolar macrophages over time (Fig. 2e,f). In Dhps-ΔM mice, however, monocytes entered and differentiated into a persistent population of CD64⁺CD11c⁺ macrophages but failed to re-establish the local SIGLEC-F⁺CD11b^low lung RTM pool (Fig. 2e,f). Also evident was a persistent influx of CD11b⁺Ly6c⁺ monocytes (Fig. 2g). In control mice, CL injected intraperitoneally (i.p.) rapidly depleted peritoneal macrophages²³, followed by monocyte recruitment and differentiation into macrophages (Extended Data Fig. 5f,g). In Dhps-ΔM mice, however, monocytes persisted in the tissue after CL but failed to re-establish the local RTM population (Extended Data Fig. 5f,g). Overall, these data show a collapse in the tissue-residency potential of several DHPS-deficient RTM populations, resulting in persistent but ultimately futile monocytic infiltration to restore the RTM reservoir.

Dhps^−/− macrophages have survival defects

The RTM defect in Dhps-ΔM mice manifests as continual turnover of RTM reservoirs, compelled by low macrophage survival driving continual monocytic influx to tissues. We assessed Ki-67 and active caspase-3 expression, proliferation and impending cell death indicators, respectively, in F4/80⁺TIM-4⁺ peritoneal cavity and F4/80⁺ CD11c⁺ lung macrophages in control and Dhps-ΔM mice. DHPS-deficient macrophages expressed less Ki-67 and more active caspase-3 (Fig. 2h,i). To probe proliferation and survival, we administered IL-4 complexes (IL-4c), which drive accumulation of peritoneal RTMs through self-renewal without recruitment from blood monocytes²⁴, plus EdU, into the peritoneal cavity of Dhps-WT and Dhps-ΔM mice. Control but not DHPS-deficient macrophages accumulated and proliferated (Extended Data Fig. 5h,i). Adoptive transfer of equal numbers of CellTrace Violet (CTV)-labelled peritoneal macrophages from Dhps-WT and Dhps-ΔM mice into congenic recipients showed that DHPS-deficient cells proliferated less than controls, and, although there was some CTV dilution, macrophages did not accumulate (Extended Data Fig. 5j,k), indicating increased cell death. Thus, DHPS-deficient macrophages have a decreased capacity for proliferation coupled with increased death, leading to defective tissue persistence. Notably, there was no difference in peritoneal or liver RTMs, or monocyte expression, between genotypes of colony stimulating factor 1 receptor (CSF1R), the ligand for which is a critical growth and survival factor for monocyte–macrophage development²¹ (Supplementary Fig. 8).

Mature RTM persistence requires DHPS

Dhps-WT and Dhps^flx mice crossed to CX3CR1–ERT2cre-Rosa26^eYFP mice generated offspring in which DHPS could be inducibly deleted in cells expressing CX3CR1. We administered tamoxifen to Dhps-WT CX3CR1–ERT2cre-Rosa26^eYFP and Dhps^flx/flx CX3CR1–ERT2cre-Rosa26^eYFP mice to delete DHPS in mature kidney RTMs²⁵ in adult mice. YFP expression confirmed Cre-mediated gene deletion after tamoxifen. Kidney RTMs were lost by day 45 post-tamoxifen in Dhps^flx/flx CX3CR1–ERT2cre-Rosa26^eYFP mice (Fig. 2j–l), a phenotype that was confirmed by imaging (Extended Data Fig. 6) and was correlated with increased active caspase-3 expression in any surviving YFP⁺ DHPS-deficient RTMs 10 weeks post-tamoxifen (Fig. 2m). We also observed a trend of increased active caspase-3 expression in YFP⁺ DHPS-deficient RTMs at 5 weeks post-tamoxifen by imaging (Supplementary Fig. 9). Microglia (brain RTMs), and heart RTMs to some extent, also expressed CX3CR1 (ref. ²⁶). Numbers and frequency of YFP⁺ heart RTMs declined at 8 weeks, (Fig. 2n), whereas microglia numbers were diminished at 11 weeks (Fig. 2o and Supplementary Fig. 10) post-tamoxifen. Thus, mature RTMs rely on DHPS for persistence.

Blocked RTM differentiation

We next performed single-cell RNA sequencing (scRNA-seq) of peritoneal exudate cells from Dhps-WT and Dhps-ΔM mice. Data were subsetted to include only macrophages, on the basis of a range of expression of key macrophage markers (Adgre1, Csf1r, H2-Ab1, Cd68, Lyz2, Itgam, Mertk). Initial analysis revealed differential clustering between genotypes (Fig. 3a), including diminished frequency of canonical, mature RTMs in Dhps-ΔM mice as defined by Timd4 expression (cluster 3) (Fig. 3a–c). Cells from Dhps-ΔM mice also had distinct populations that were largely not observed in controls (clusters 1 and 2) (Fig. 3a,b), of which cluster 1 was associated with Ccr2 expression, a marker of recently infiltrated monocyte-derived macrophages²⁷ (Fig. 3c). We propose that cluster 1 represents monocyte-derived macrophage infiltration triggered by a scarcity of mature RTMs in Dhps-ΔM mice. We then assessed the top differentially expressed genes (DEGs) among all clusters (Supplementary Fig. 11) and found that cluster 1 showed increased expression of Itgb5 (ref. ²⁸), Cx3cr1 (ref. ²⁹) and Ly6c2 (ref. ³⁰), genes associated with protective macrophage phenotypes and cell interactions within tissues. Cluster 2, a population with high expression of Adgre1 (F4/80) that was significantly expanded in Dhps-ΔM mice, had no Ccr2 and Timd4 expression and probably represents an immature monocyte-derived macrophage population unable to develop to mature RTMs (cluster 3). Again, when assessing the top DEGs (Supplementary Fig. 11) we identified Cxcl2 (ref. ³¹) and Folr2 (ref. ³²) expression in cluster 2, and Timd4 along with Tgfb2 (ref. ³³), Wnt2 (ref. ³⁴) and Nt5e³⁵ in cluster 3, demonstrating broad differences in phenotypes of peritoneal macrophages that may be correlated with more immature macrophages (cluster 2) versus mature RTMs (cluster 3). Cluster 4 might represent a population that is transitioning from immature macrophages (cluster 2) to RTMs (cluster 3), as evidenced by its Timd4, Marco and Tgfb2 expression (Fig. 3a and Supplementary Fig. 11). Notably, expression of Slc7a2, encoding SLC7A2, which transports ornithine and polyamines into cells, was augmented in clusters 2, 3 and 4, perhaps indicating a role of polyamine uptake in macrophage differentiation (Supplementary Fig. 11). Wnt2, Tgfb2 and Cd63 were among the most significantly downregulated genes in DHPS-deficient cells in clusters 2 and 4 and 3, respectively (Supplementary Fig. 12), perhaps indicating that expression of these genes, which have roles in cell adhesion, trafficking and differentiation^33,36,37, is critical for RTM development. Pathway analysis of DEGs between control and DHPS-deficient macrophages indicated that cluster 2 exhibited decreases in chromatin remodelling, translation and proliferation (Fig. 3d and Supplementary Table 1), along with increased expression of inflammatory genes (Fig. 3e and Supplementary Table 2), findings that were to some extent echoed in DHPS-deficient cells in clusters 1 and 3 (Supplementary Fig. 13).

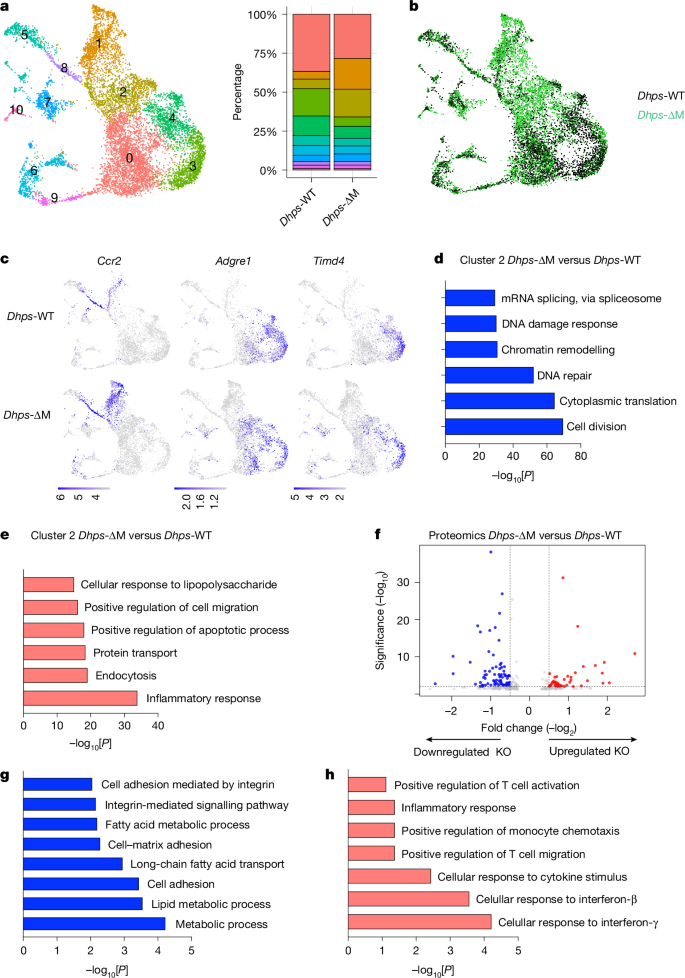

Fig. 3: Single-cell transcriptional analysis indicates a block in monocyte-to-RTM maturation in the absence of DHPS.

a, scRNA-seq clustering analysis of monocytes and macrophages from the peritoneal cavity of Dhps-WT and Dhps-ΔM mice. The proportions of each cluster within conditions are represented as percentages. b, Overlapping clustering distribution between Dhps-WT and Dhps-ΔM mice. c, Ccr2, Adgre1 (F4/80) and Timd4 expression in Dhps-WT and Dhps-ΔM mice. d,e, DAVID pathway enrichment analysis for downregulated (d) and upregulated (e) genes in cluster 2 (Adgre1 (F4/80⁺; Timd4⁻) Dhps-ΔM versus Dhps-WT. f, Proteomics analysis: volcano plot of differentially expressed proteins in F4/80⁺CD11b⁺ sorted peritoneal macrophages from Dhps-WT and Dhps-ΔM mice. g,h, Selected downregulated (g) and upregulated (h) pathways from DAVID pathway enrichment analysis. scRNA-seq and proteomics data represent one experiment with three biological replicates per condition.

Source Data

To confirm our findings in another tissue, we performed scRNA-seq on CD45⁺YFP⁺ (LysM–Cre⁺) cells sorted from digested lungs of Dhps^+/+ LysM–Cre Rosa26^eYFP (control) and Dhps-ΔM Rosa26^eYFP mice (Supplementary Fig. 14). We focused only on macrophages, selecting cells on the basis of a range of markers relevant to this tissue (Adgre1, Csf1r, H2-Ab1, Cd68, Lyz2, Itgam, Mertk, Itgax, Siglecf). Our analysis revealed significant differences between DHPS-deficient and control macrophages (Extended Data Fig. 7 and Supplementary Fig. 15), with loss of cluster 0 and enrichment of other clusters (including cluster 1) in DHPS-deficient macrophages. When examining genes expressed by alveolar macrophages (Adgre1, Itgax and Siglecf), we found that cluster 0 was exclusively Siglecf positive and therefore represented mature alveolar macrophages, and this cluster was specifically absent from DHPS-deficient macrophages (Extended Data Fig. 7). These results mirror our flow cytometry data, which showed that Dhps-ΔM Rosa26^eYFP mice did not lack F4/80+ (Adgre1) CD11c⁺ (Itgax) macrophages but rather lacked mature Siglec-F⁺ RTMs (Fig. 1d,f).

On the basis of our scRNA-seq from peritoneal macrophages (Fig. 3a–e), we speculated that the enriched intermediate clusters in DHPS-deficient macrophages (for instance, cluster 2), which were not Timd4⁺, could represent macrophages blocked in RTM differentiation. In the lung scRNA-seq data (Extended Data Fig. 7), we identified two clusters, 1 and 10, that were almost exclusively found in Dhps-ΔM Rosa26^eYFP mice. We questioned whether these clusters represented immature lung macrophages blocked in their differentiation towards mature RTMs, analogous to our observations in the peritoneum. To test this, we identified the top upregulated DEGs of cluster 2 (Fig. 3a,b), the main intermediate cluster, from our peritoneal macrophage dataset and searched for the same signature in the lung macrophage scRNA-seq dataset (Extended Data Fig. 8). This signature mapped to clusters 1 and 10 in the lung, suggesting that the cells we proposed to be blocked in differentiation in one tissue could be observed in a second tissue. This indicated that these cells represent a transitional state from immature macrophages to RTMs that is independent of tissue. When DHPS was absent, whether in the peritoneal cavity or the lung, these cells failed to acquire the RTM signature imposed by the tissue and remained as immature macrophages. These results support a requirement for DHPS for macrophages to differentiate into mature RTMs across tissues.

Defects in cell adhesion and signalling

We next assessed global protein expression in F4/80⁺ peritoneal macrophages from Dhps-WT and Dhps-ΔM mice (Fig. 3f). Pathway enrichment analysis revealed significant decreases in metabolism, cell adhesion and integrin-mediated signalling pathways, along with increases in immune activation and inflammation (Fig. 3g,h and Supplementary Tables 3 and 4). Many studies have outlined the importance of metabolic remodelling in immune cells³⁸, including RTMs³⁹. Likewise, cell adhesion and signalling are critical facets of RTM biology. A lack of robust expression of components in any of these pathways could lead to a block in RTM differentiation. As hypusinated eIF5A is important for translation, we investigated active translation in WT and DHPS-deficient macrophages by sequencing ribosome-engaged transcripts.

We crossed Dhps^+/+ LysM–Cre mice and Dhps-ΔM (Dhps^flx/flx LysM–Cre) mice with RiboTag mice to create a model in which ribosomes become HA-tagged upon LysM–Cre expression, enabling us to efficiently immunoprecipitate ribosomes from macrophages ex vivo and sequence ribosome-associated transcripts (Supplementary Fig. 16a). We used peritoneal macrophages as they are more abundant and their isolation does not require tissue digestion. Before sequencing, we confirmed that of the HA-tagged cells in the peritoneal cavity, 98% of Dhps ‘Ribo’-WT cells) and 93% of Dhps ‘Ribo’-ΔM cells were F4/80⁺CD11b⁺ macrophages (Supplementary Fig. 16b). We then sequenced transcripts in all peritoneal exudate cells (input: approximately 60% F4/80⁺CD11b⁺HA-TAG⁺ cells in Dhps ‘Ribo’-WT mice and approximately 50% F4/80⁺CD11b⁺HA-TAG⁺ cells in Dhps ‘Ribo’-ΔM mice; Supplementary Fig. 16b), and all transcripts bound to ribosomes (immunoprecipitation of HA-tagged ribosomes) for each genotype. Although this approach meant that the input included some non-macrophage cells, the pulldown was exclusively HA-tagged LysM-expressing cells and reduced manipulation of the samples.

Hypusinated eIF5A promotes translation of sequences that stall the ribosome, and ribosome stalling can lead to transcript degradation^10,11. Therefore, we analysed all transcripts that were stably expressed in the ‘inputs’ for both genotypes and then filtered for transcripts that were differentially enriched on ribosomes between control and DHPS-deficient macrophages (Supplementary Fig. 16c). We aimed to find genes that were significantly decreased on ribosomes in DHPS-deficient macrophages compared with controls but not owing to extraordinary differences in total transcript abundance. This analysis identified 13 genes that were significantly reduced on ribosomes in DHPS-deficient macrophages (Fig. 4a), most of which were involved in cell adhesion or interaction, signalling and apoptosis; these genes included Icos⁴⁰, Cd28 (ref. ⁴¹), Axin2 (ref. ⁴²), Tnik^43,44, Amigo2 (ref. ⁴⁵), Fam83g⁴⁶, Il1rl1 (refs. ^47,48,49), Rab44 (ref. ⁵⁰) and Oasl1 (ref. ⁵¹). These data suggest that the proteins encoded by these genes might be involved in RTM differentiation, and that their expression is decreased in DHPS-deficient macrophages.

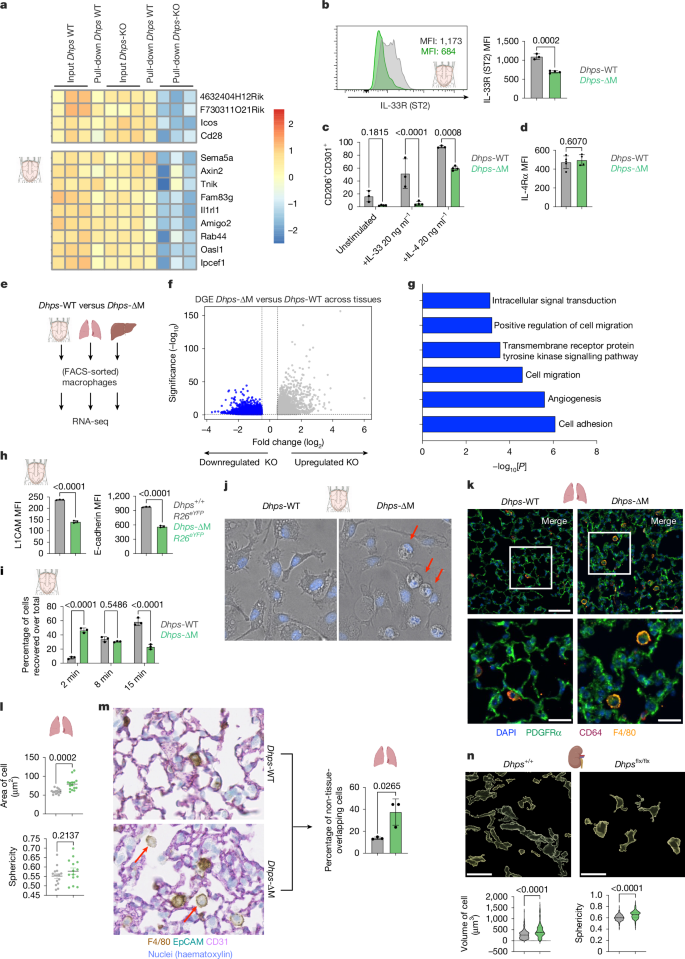

Fig. 4: Cell adhesion and signalling pathways critical for macrophage tissue-residency are DHPS-dependent.

a, Heat map of stable transcripts reduced on ribosomes in peritoneal macrophages (pMacs) (Dhps-ΔM). b–d, pMacs analysed for IL33R (ST2) (b); cultured with IL-33 (20 ng ml⁻¹) for 72 h or IL-4 (20 ng ml⁻¹) for 24 h and analysed (c); or analysed for IL-4R (d). e, Bulk RNA-seq scheme. f, Volcano plot of shared DEGs. g, DAVID pathway analysis of downregulated genes in Dhps-deficient macrophages. h, L1CAM and E-cadherin, flow cytometry; pMacs from Dhps^+/+ Rosa26^eYFP and Dhps-ΔM Rosa26^eYFP mice. i, Percentage cell recovery by time after EDTA; pMacs were cultured for 24 h. j,k, Confocal images of cultured pMacs with cell structure by brightfield microscopy (j) (arrows indicate rounded cells) and lungs stained for macrophages and stromal cells (F4/80, CD64, and PDGFRa, respectively) from Dhps-WT and Dhps-ΔM mice (k). Nuclei (DAPI); box indicates region of interest. l, Area and sphericity of F4/80⁺CD64⁺ macrophages from k. Each data point is the average of five random fields quantified per biological replicate. m, Lungs from Dhps-WT and Dhps-ΔM mice stained for macrophages (F4/80, brown), vasculature (CD31, purple), epithelial cells (EpCAM, teal) and nuclei (haematoxylin, indigo). Frequency of F4/80⁺ cells not positioned on tissue (non-overlapping) was quantified from five random fields in three biological replicates per genotype. n, Confocal images of YFP⁺ kidney macrophages from Dhps^+/+ (control) and Dhps^flx/flx CX3CR1–ERT2cre-Rosa26^eYFP mice 5 weeks post-tamoxifen. Cell volume and sphericity were quantified by Imaris (10.0.1, Bitplane); five random fields in five biological replicates per genotype. All data represent two or more experiments, except in a and e–g, in which data represent one experiment with three biological replicates. Data are mean ± s.d. For b and c, n = 3, Dhps-WT; and n = 4, Dhps-ΔM. For d, n = 5, Dhps-WT; and n = 4, Dhps-ΔM. For h, i, l and m, n = 3. For n, n = 5. n represents biological replicates. Statistical analyses; two-tailed t-tests and two-way analyses of variance; P values are shown. Scale bars, 50 μm (k, top), 20 μm (k, bottom); 20 μm (n). Illustrations in a, b, e and h–n were created using BioRender (https://biorender.com).

Source Data

Il1rl1 codes for the IL-33 receptor (ST2) and is involved in differentiation of bone-marrow-derived monocytes and macrophages to RTMs^47,52 and in the self-renewal and tissue repair and maintenance functions of RTMs^48,53. Consistent with our ribosome sequencing data, ST2 was decreased on peritoneal macrophages from Dhps-ΔM mice (Fig. 4b), and, functionally, the ability of these macrophages to alternatively activate in response to IL-33 in vitro was impaired^47,48 (Fig. 4c). By contrast, DHPS-deficient macrophages expressed IL-4R and partially responded to IL-4 in vitro by inducing alternative activation markers, although not to control cell levels (Fig. 4c,d), consistent with their defective response to IL-4c in vivo (Extended Data Fig. 5h–k) and our previous findings that hypusinated eIF5A directs macrophage alternative activation¹⁴. These data suggest that ST2 is among a subset of ribosome-engaged transcripts that depend on hypusinated eIF5A for efficient translation and that its reduced protein expression might contribute to the monocyte-to-RTM transition defect in the peritoneal cavity in Dhps-ΔM mice. However, although decreased ST2 might contribute to this defect in DHPS-deficient peritoneal macrophages, it may not be important for the RTM transition in other tissues. Also, multiple genes, rather than any one gene, probably contribute to RTM differentiation.

As Dhps-ΔM mice manifested a defect in all RTMs, we sought to understand which pathways might be critical for the RTM transition across tissues. We performed bulk RNA-seq on F4/80⁺ macrophages (Supplementary Fig. 17a–c) isolated from the lung, liver and peritoneal cavity of Dhps-WT and Dhps-ΔM mice (Fig. 4e,f). Pathway analysis of DEGs that were common among all DHPS-deficient macrophages from each tissue identified genes enriched in pathways of cell adhesion, signalling and migration as the most significantly downregulated (Fig. 4g and Supplementary Tables 5 and 6), with increased expression of those enriched in inflammatory response and apoptotic pathways (Supplementary Fig. 17d and Supplementary Tables 7 and 8). Notably, our sequencing of ribosome-engaged transcripts identified several genes involved in cell adhesion (Fig. 4a). For example, Tnik augments expression of target genes in the Wnt/β-catenin pathway, which controls cell adhesion^43,44; as such, β-catenin-deficient macrophages lack cell adherence capacity⁵⁴. The genes encoding cell adhesion molecules L1CAM and E-cadherin (l1cam and Cdh1, respectively) were downregulated in the analysis of DHPS-deficient macrophages isolated from three distinct tissues (Supplementary Table 6); this was consistent with the finding of decreased protein expression (Fig. 4h) and with earlier work showing that E-cadherin expression is polyamine-dependent in alternatively activated macrophages⁵⁵. To investigate cell adhesion functionally, we cultured peritoneal macrophages for 24 h in the presence of CSF-1 to allow adherence. Cell adhesion and integrin binding are Ca²⁺-dependent. We quantified the sensitivity of cultured cells to detach with EDTA over time. DHPS-deficient macrophages were significantly less adherent, with approximately 50% of the cells detaching after 2 min, compared with fewer than 10% of control cells, which took 15 min for 50% detachment (Fig. 4i). We also observed that DHPS-deficient peritoneal macrophages had rounded morphology compared with control cells (Fig. 4j). Taken together, these results indicate that cell adhesion and signalling are critical for RTM development across tissues, and that this program is controlled by DHPS.

Altered morphology and tissue interactions

Our proteomics and transcriptomics analyses suggested that DHPS was critical for enacting the program of RTMs by influencing the expression of signalling molecules, of which ST2 is an example, and cell adhesion proteins. If this were true, we reasoned that defects in cell adhesion and signalling would influence how DHPS-deficient macrophages interacted in tissues. We visualized macrophages in the lungs of Dhps-WT and Dhps-ΔM mice and found that DHPS-deficient macrophages exhibited larger size with a different pattern of localization in the alveoli, that is, less stromal cell overlap (Fig. 4k–m and Supplementary Fig. 18a,b). We also assessed the morphology of kidney macrophages after acute DHPS deletion in Dhps^flx/flx CX3CR1–ERT2cre-Rosa26^eYFP mice. YFP⁺ DHPS-deficient kidney macrophages were larger and more spherical (Fig. 4n and Supplementary Fig. 18c). In the same mice, we assessed microglia and observed changes in cell size, morphology and branching after DHPS deletion (Supplementary Fig. 18d,e). These data support the concept that cell shape and adhesion differences can lead to altered tissue interactions, which could negatively affect macrophage survival and transition of DHPS-deficient cells to RTMs.

Defects in homeostatic functions

The defect in RTMs in the absence of DHPS led us to question whether the F4/80⁺ macrophages present in young Dhps-ΔM mice possessed RTM functions. A main function of RTMs is to clear cellular debris³. DHPS-deficient peritoneal macrophages cocultured with apoptotic cells labelled with CTV and Cypher5E (which becomes fluorescent inside early phagolysosomes) exhibited reduced dead cell uptake and Cypher5E fluorescence, suggesting a defect in their ability to internalize and break down dead cells (corpses) (Fig. 5a). In vivo, alveolar macrophages clear surfactants; without this critical function, alveolar proteinosis develops⁵⁶. Assessment of bronchoalveolar lavage (BAL) fluid from Dhps-ΔM mice demonstrated alveolar proteinosis that worsened over time (Fig. 5b,c) and increased presence of CD45⁺ cells, including CD4⁺ T cells and monocytes and neutrophils (CD11b⁺Ly6C⁺Ly6G⁺) (Fig. 5d,e). These results indicated developing inflammation in the presence of DHPS-deficient macrophages, probably driven by perturbed tissue homeostasis, which, consistent with our transcriptomics and proteomics data, promoted a proinflammatory environment with recruitment of other immune cells to the tissue.

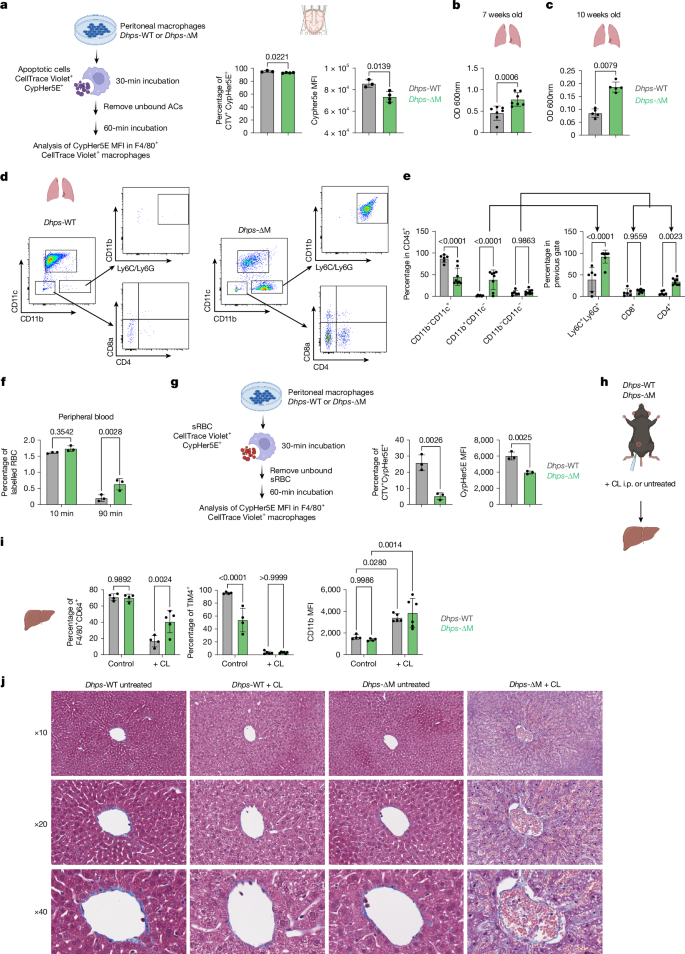

Fig. 5: DHPS-deficient macrophages are defective in critical homeostatic functions of RTMs.

a, Peritoneal macrophages from Dhps-WT and Dhps-ΔM mice were cultured with labelled apoptotic cells and measured by flow cytometry. b,c, Lung proteinosis measured by optical density at 600 nm of BAL supernatants from 7-week old (b) or 10-week-old (c) Dhps-WT and Dhps-ΔM mice. d, Gating strategy for CD45⁺ cells from adult Dhps-WT and Dhps-ΔM in BAL fluid. e, Immunophenotyping and quantification of CD45⁺ subpopulations in BAL from Dhps-WT and Dhps-ΔM mice, by flow cytometry. Frequencies of monocytes and neutrophils (Ly6C⁺Ly6G⁺) were gated from CD11b⁺CD11c⁻ cells, and CD4⁺ and CD8⁺ T cells from CD11b⁻CD11c⁻ cells within CD45⁺ cells. f, Labelled sRBCs were intravenously injected into Dhps-WT and Dhps-ΔM mice. After 10 min and 90 min, the frequency of CTV⁺Cypher5e⁺ cells in peripheral blood was measured by flow cytometry. g, Labelled sRBCs were cultured with peritoneal macrophages for 30 min, and efferocytosis was measured by flow cytometry after 60 min. h, Scheme of i.p. injection of CL and liver harvesting in Dhps-WT and Dhps-ΔM mice. i, Frequency of liver macrophages (F4/80⁺CD64⁺), TIM-4⁺ Kupffer cells, and expression of CD11b in F4/80⁺CD64⁺ cells in CL-treated or control (untreated) Dhps-WT and Dhps-ΔM after CL. j, Stained liver sections from CL-treated or control (untreated) Dhps-WT and Dhps-ΔM mice 6 days after CL. Representative plots and graphs summarize results of two or more experiments with at least three biological replicates. Data are mean ± s.d. For a, n = 3, Dhps-WT; and n = 4, Dhps-ΔM. For b, n = 7; for c, n = 5; and for e, n = 6, Dhps-WT; and n = 8, Dhps-ΔM. For f and g, n = 3. For i, n = 4, Dhps-WT (untreated and CL); and n = 5 (untreated) and n = 6 (CL), Dhps-ΔM. All n indicate biological replicates. Statistical analyses: two-tailed t-tests and two-way analyses of variance; P values are shown. Illustrations in a–d and g–i were created using BioRender (https://biorender.com).

Source Data

To test efferocytosis systemically, we measured the ability of control and Dhps-ΔM mice to remove dead and dying RBCs from the bloodstream⁵⁷. We intravenously injected Cypher5e- and CTV-labelled stressed RBCs (sRBCs) into control and Dhps-ΔM mice. Although both genotypes had similar frequencies of labelled RBCs circulating after 10 min, Dhps-ΔM mice had significantly more sRBCs in the circulation after 90 min, indicating a decreased ability to clear these cells (Fig. 5f). To test whether this systemic defect in clearing sRBCs was correlated with a macrophage-specific defect in efferocytosis, we isolated peritoneal macrophages from control and Dhps-ΔM mice (too few liver RTMs in Dhps-ΔM mice made isolation difficult) and cultured them with labelled sRBCs. Both the frequency of Cypher5e⁺CTV⁺ cells and the mean fluorescence intensity (MFI) of Cypher5e were decreased in DHPS-deficient macrophages, indicating significantly less acquisition of efferocytic cargo (Fig. 5g). These data demonstrate that DHPS-deficient macrophages are defective in clearance of apoptotic cells and debris, an important homeostatic RTM function.

A key function of RTMs is to maintain organ homeostasis. We observed significant lung immune cell infiltration in Dhps-ΔM mice (Fig. 5d,e), overtly indicating disrupted tissue homeostasis in the absence of myeloid DHPS expression and defective alveolar macrophages in these mice. To acutely investigate RTM function in maintaining tissue homeostasis in another tissue, and to demonstrate that myeloid expression of DHPS is required for this critical RTM function, we i.p. injected CL in Dhps-WT and Dhps-ΔM mice to broadly deplete myeloid cells in the peritoneal cavity and in other organs in that space (Fig. 5h). We focused on the liver as it has been shown that upon RTM depletion, bone-marrow-derived monocytes enter the tissue and differentiate into monocyte-derived macrophages and, over time, into RTMs, replenishing the liver RTM niche²⁰. In both Dhps-WT and Dhps-ΔM mice, 5 days after CL, F4/80⁺CD64⁺TIM-4⁺ macrophages were depleted, and monocyte-derived macrophages were detected in the tissue by increased expression of CD11b within the F4/80⁺CD64⁺ gate (Fig. 5i). In the control group, liver sections stained with haematoxylin and eosin (H&E) and Masson trichrome (MAS) appeared identical before and 6 days after CL, whereas livers of Dhps-ΔM mice exhibited congestion (Fig. 5j and Supplementary Fig. 19a), abnormal sinusoids, endothelial lining detached from liver cell plates, central veins lifted from the parenchyma (Supplementary Fig. 19b,c) and extensive necrosis (Supplementary Fig. 19d). These data show that myeloid cell DHPS expression is critical for maintenance and/or restoration of liver tissue homeostasis after CL.

Discussion

Our data support a model in which monocyte interaction within a tissue is a primary and critical driver of RTM differentiation⁵⁸. We show that the polyamine–hypusine axis is an important cell-intrinsic regulatory node directing this process, at least in part by supporting expression of cell adhesion and signalling molecules required for the monocyte–macrophage tissue relationship. Through studying macrophage-specific models of DHPS deficiency, we observed that monocytes are unable to fully differentiate into RTMs in tissues and instead remain as immature monocyte-derived macrophages that would normally develop only during damage³. Accordingly, DHPS-deficient macrophages lack homeostatic functions such as clearing of dead cells and cell debris that are normally assumed by RTMs and are thus unable to maintain tissue homeostasis.

Hypusine modification of eIF5A has been shown to be important for translation of sequences such as di- or polyproline stretches that can stall the ribosome and lead to transcript degradation¹¹. We assessed protein expression, transcriptional output by bulk and scRNA-seq, as well as ribosome-engaged transcripts in macrophages to best resolve how DHPS, and thus hypusinated eIF5A, controls RTMs. Whereas TNIK is proline-rich and ST2 has diproline motifs, which potentially confer hypusine dependency, exactly which motifs in transcripts require hypusinated eIF5A for efficient translation is not completely clear. Further, which transcripts in a macrophage are dependent on hypusinated eIF5A and are responsible for driving this complex in vivo tissue behaviour are challenging to resolve, as transcriptional programs between distinct populations of RTMs across tissues vary considerably. There are significant transcriptional differences between control and DHPS-deficient cells; thus, it is difficult to pinpoint how decreased gene expression affects translation of proteins, that is, a lower number of transcripts versus whether a specific transcript is directly eIF5A dependent. Moreover, it is possible that specific proteins such as transcription factors or chromatin-modifying factors are dependent on hypusinated eIF5A, such that the transcriptional program required for RTM differentiation, which includes cell adhesion and signalling proteins, is never enacted in DHPS-deficient cells. Although historical evidence suggests that eIF5A is the only hypusinated protein, a recent study indicated that spermidine reduces RIPK1 activation in a DHPS-dependent manner⁵⁹. Future research will be needed to determine whether other proteins are modified by the polyamine–hypusine axis. Precise molecular mechanisms notwithstanding, our data demonstrate that DHPS controls a cellular program that affects cell adhesion and signalling critical for RTM differentiation across tissues.

Another question raised by our findings is that of how polyamine levels in a cell influence hypusine and affect translation in diverse biological contexts. Whether or not a cell uses spermidine to hypusinate eIF5A could be influenced by the cell’s engagement of polyamine biosynthesis and the requirement (and hence the pull) of polyamines towards other processes, as well as whether the cell is able to acquire polyamines, which are provided by the diet, microbiota and even dying cells⁶⁰. Investigation of extracellular polyamine levels in tissues and intracellular polyamine levels and hypusine synthesis in health and disease may shed light on these questions. Our results show that DHPS deletion permits initial macrophage development but prevents these cells from taking up residence in tissues. Our data are consistent with a model of RTM development whereby CSF1R signalling drives the initial macrophage program, and then the polyamine–hypusine pathway determines subsequent tissue occupancy and acquisition of tissue-specific programs. Owing to this, our findings have important implications for how systemic tissue homeostasis is maintained, how macrophages may be targeted therapeutically and how these cells are deleteriously remodelled with age.

Methods

Mice

WT C57BL/6 and CD45.1 SJL mice, mice expressing Cre recombinase (LysM–Cre) under the control of the lysozyme (LysM) promoter, CX3CR1–ERT2 inducible Cre, Rosa26-eYFP (R26^YFP) mice and RiboTag mice⁶¹ harbouring a modified allele of Rpl22 (Rpl22-HA) induced by the action of Cre recombinase were all purchased from Jackson Laboratories. Dhps floxed mice were a gift from S. Balabanov, Zurich. Mice were bred and maintained under specific-pathogen-free conditions, and experiments were performed under protocols approved by the Regierungspräsidium Freiburg, the Animal Welfare Committee of the Max Planck Institute of Immunobiology and Epigenetics, or the Institutional Animal Care and Use Committee of Johns Hopkins University School of Medicine, in accordance with the Guide for the Care and Use of Animals. Mice used for all experiments were littermates and matched for age and sex; both male and female mice were used. Mice of all strains were typically 6–12 weeks of age unless otherwise specified. Experiments were not performed blinded. Parabiosis experiments were performed in the laboratory of F.G., with Institutional Animal Care and Use Committee approval from the Biological Resource Center (A*STAR) in Singapore, as follows: the animals were monitored daily for evidence of fighting and were exposed to a gel food diet supplement at least two times, 2–6 weeks before performance of parabiotic attachment. Animals were randomly assigned a pair member, with the appropriate transgene or CD45 congenic allotype, within their cohoused cohort. Pairs established for parabiotic attachment were ‘cage paired’, meaning they were housed only with their future parabiotic pair member, 2 weeks before the parabiosis procedure, and the mice were observed again for aggressive behaviour. Aggressive and injured mice were removed from the study. With this husbandry protocol, aggression was highly uncommon.

Tissue processing for RTM isolation

Lungs, liver, kidney, brain and heart were harvested after perfusion with ice-cold phosphate-buffered saline (PBS) through the heart; organs were placed in 5-ml tubes containing 2 ml digestion solution with 2 mg ml⁻¹ collagenase IV (Thermo Fisher) and 0.1 mg ml⁻¹ DNAse I (Sigma) and cut into small pieces with scissors. The solution was incubated in a shaker at 37 °C for 1 h. Tissues were further homogenized using a 20 G × 1” needle and a 5-ml syringe, and homogenates were filtered through a 100-μm cell strainer. RBCs from lungs, liver, kidney and heart were lysed with ACK for 2 min, washed with PBS 1% fetal calf serum (FCS), 2 mM EDTA (FACS buffer) and kept on ice until flow cytometry staining. For splenic macrophages, no digestion solution was used. Cells were isolated by mechanical disaggregation of spleen on a 70-μm strainer, RBCs were lysed and cells were resuspended in FACS buffer. Microglia were isolated postdigestion using a 35–70% Percoll gradient with centrifugation for 20 min at 500g and room temperature without brakes. The leucocyte layer was transferred to tubes containing FACS buffer and kept on ice until flow cytometry staining. When indicated, alveolar macrophages were isolated by BAL and centrifuged to isolate lavage fluid for optical density measurement, and the pelleted cells were resuspended in FACS buffer for flow cytometry staining. Absolute numbers of macrophages were calculated using 123count eBeads Counting Beads (Thermo Fisher) following the manufacturer’s instructions. For solid organs, the weight of each tissue in milligrams was recorded after harvesting, and the number of macrophages per sample was normalized by this value to obtain the total cells per milligram tissue.

Peritoneal macrophages in vitro culture

Peritoneal macrophages were obtained by peritoneal lavage and either cultured in complete medium (RPMI 1640 medium supplemented with 10% FCS, 2 mM L-glutamine and 100 U ml⁻¹ penicillin/streptomycin) with 20 ng ml⁻¹ macrophage colony stimulating factor (PeproTech) on a six-well-plate, or transferred to a 96-well-plate and used directly for flow cytometry staining. For in vitro activation, peritoneal macrophages were cultured with 20 ng ml⁻¹ IL-4 (PeproTech) overnight to generate alternatively activated macrophages. For IL-33 (R&D Systems) in vitro treatment, 20 ng ml⁻¹ was used in all experiments unless otherwise specified, with culture for 72 h.

Parabiosis

Parabiotic mice were generated as reported⁶² from age- and weight-matched CD45.2⁺ (Dhps^flx/flx LysM–Cre negative (Dhps-WT) or Dhps^flx/flx LysM–Cre positive (Dhps-ΔM) and CD45.1⁺ (C57BL/6) mice (WT) between 6 and 8 weeks old.

Bone marrow chimera

CD45.1⁺ (C57BL/6) mice (WT) were irradiated (1,200 cGy, 2 split doses, 3 h apart) in a Cesium Mark 1 irradiator (JL Shepperd & Associates) and then infused with a mix of 5 × 10⁶ bone marrow cells from Dhps^flx/flx LysM–Cre negative (Dhps-WT) or Dhps^flx/flx LysM–Cre positive (Dhps-ΔM) CD45.2⁺ cells mixed with 5 × 10⁶ bone marrow cells from CD45.1⁺ mice (1:1 ratio). Mice were harvested, and the frequency of CD45.1⁺/CD45.2⁺ RTMs were analysed at 12 weeks after bone marrow transfer.

In vivo proliferation of peritoneal macrophages by IL-4c administration

For long-acting IL-4 treatment, a mixture of 5 mg recombinant mouse IL-4 (Peprotech) and 25 mg anti-IL-4 mAb (clone 11B11; BioXcell) was incubated for 5 min on ice to form an IL-4:anti-IL-4 complex (IL-4c). IL-4c enables sustained and slow IL-4 release. Mice were then injected i.p. with 100ul of IL-4c (containing 5 μg IL-4 and 25 μg anti-IL-4), or PBS vehicle control. The peritoneal lavage was analysed at day 4 post-injection. To measure proliferation, EdU (0.5 mg) was injected i.p. at day 0 and day 2 in IL-4c treated mice and analysed at day 4. To assess proliferation of adoptively transferred peritoneal macrophages, ex vivo isolated peritoneal macrophages from Dhps-WT or Dhps-ΔM CD45.2 mice were stained with CTV (Life Technologies) following the manufacturer’s instructions and assessed for purity by flow cytometry; then, 0.5 × 10⁶ to 1.0 × 10⁶ cells per mouse were transferred by injection i.p. to CD45.1 WT receptor mice. Immediately after transfer, IL-4c or PBS was injected i.p., and macrophage proliferation was measured at day 4 by CTV dilution with flow cytometry.

RTM in vivo depletion by CL treatment

Mice were injected with 200 μl CL (Liposoma BV) i.p. or PBS to deplete RTMs in the peritoneal cavity and liver. Peritoneal lavage and tissues were collected at the indicated time points for flow cytometry or tissue histology.

For depletion of alveolar macrophages, adult male or female mice were treated with intratracheal delivery of CL at days −2 and 0 after the following procedure on each day: mice were anaesthetized with a mixture of ketamine (75 mg kg⁻¹) and xylazine (10 mg kg⁻¹) injected i.p. Their necks were cleaned with alternating scrubs of 70% ethanol and betadine. A vertical incision was then made in the neck, and the trachea was exposed. Orotracheal intubation was performed using a 20 g intravenous catheter under direct visualization of the trachea. The mice were briefly ventilated using a MiniVent Model 845 (Harvard Apparatus) with a respiratory rate of 150 breaths per min and tidal volume of 200 μl. The mice were then disconnected from the ventilator, and 70 μl of liposomes were delivered each day. The mice were again briefly ventilated and then extubated and allowed to breathe spontaneously. The neck incision was closed with glue. The mice were kept on a warming blanket until they awakened from anaesthesia and then returned to their cages. BAL was collected at different time points posteuthanasia for flow cytometry analysis. Control mice received PBS instead of CL.

In vivo Cre induction by tamoxifen administration

Tamoxifen (Sigma) was dissolved in corn oil to a final concentration of 10 mg ml⁻¹ and stored at −20 °C. Adult Cx3cr1CreERT2-Rosa26^YFP mice were given 200 μl (2 mg) tamoxifen solution once per day for 4 consecutive days, injected i.p. Tissues were harvested at the indicated time points after tamoxifen injection.

In vitro efferocytosis of apoptotic cells by ex vivo peritoneal macrophages

Peritoneal macrophages were plated on 24-well uncoated tissue culture plates at a density of 0.1 × 10⁶ cells per well overnight before addition of apoptotic cells. Apoptotic cells were prepared from total lymphocytes isolated from lymph nodes and treated with staurosporin at 0.5 μM overnight at a density of 5 × 10⁶ ml⁻¹ to induce apoptosis. Apoptotic cells were then washed with culture medium and stained with CypHer5E NHS Ester (Cytiva) and CTV (Thermo Fisher), each at 1 μM in PBS. Labelled apoptotic cells were washed three times in culture medium (containing 10% FBS), pelleted and resuspended for counting by trypan blue exclusion.

Apoptosis was confirmed by Apotracker and live/dead viability staining with flow cytometry. Apoptotic cells were added to macrophages in a 1:5 ratio (macrophages to apoptotic cells). To increase the contact between macrophages and apoptotic cells, 30 s centrifugation at 300g was performed, and cells were left at 37 °C in an incubator for 30 min. After this time, apoptotic cells were washed three times with culture medium, and macrophages were left for another 60 min at 37 °C to allow progression of efferocytosis. To analyse the rate of efferocytosis, macrophages were collected and stained for flow cytometry. Cargo-positive cells were gated as F4/80⁺CTV⁺, and levels of efferocytosis were analysed on the basis of MFI of cypher5e in the AF647/APC channel in cargo-positive cells.

Mouse sRBC preparation for in vitro and in vivo transfer

Fresh RBCs were prepared by isolation from mouse peripheral blood and depletion of leukocytes by two steps. First, a 35–70% Percoll gradient was used to pellet RBCs and deplete leukocytes (positioned in the interphase). The second step involved incubating the RBC pellet with mouse CD45 MojoSort beads (BioLegend) following the manufacturer’s protocol to deplete any remaining contaminating CD45⁺ cells. After isolation, RBCs were stressed by heat shock at 48 °C for 20 min under constant agitation. The generated sRBCs were spun down for 10 min at 400g in PBS to remove free haemoglobin and colabelled with CTV and Cypher5e following the manufacturer’s instructions. Before use, sRBCs were washed more than three times with cold PBS to remove free CTV and Cypher5e probes.

In vitro efferocytosis of sRBCs by ex vivo peritoneal macrophages

Peritoneal macrophages were plated on 24-well uncoated tissue culture plates at a density of 0.1 × 10⁶ cells per well overnight before addition of sRBC. To increase the contact between macrophages and sRBCs, a 30-s centrifugation at 300g was performed, and cells were left at 37 °C in an incubator for 30 min. After this time, sRBCs were washed three times with culture media, and macrophages were left for another 60 min at 37 °C to allow progression of efferocytosis. For analysis of the rate of efferocytosis, macrophages were collected and stained for flow cytometry. The percentage of macrophages in active efferocytosis was gated as CTV⁺Cypher5⁺ in the F4/80⁺CD11b⁺ gate, and the progression of efferocytosis was analysed by MFI of cypher5e in the AF647/APC channel within this gate.

In vivo removal of transferred stressed sRBCs from peripheral blood

CTV and Cypher5e colabelled sRBCs were prepared as described above and injected into mice through the tail vein. The prepared sRBCs (isolated from one mouse) were injected into ten recipient mice. Each recipient mouse received a total volume of sRBCs resuspended in 200 μl of PBS. At 10 min (initial sRBC frequency in circulation) and 90 min (end time point) after injection, mice were euthanized, and whole blood was isolated. The frequency of remaining labelled sRBCs was measured by flow cytometry by gating in CD45⁻CTV⁺Cypher5e⁺ cells in peripheral blood.

BAL and ex vivo lung proteinosis analysis

A vein catheter (BD) was inserted into the trachea of mice, and the first wash was performed with 1 ml of prewarmed PBS followed by four extra washes to collect BAL cells. The first BAL wash with PBS was centrifuged for 5 min at 500g, and the supernatant was used for measurement of optical density at 600 nm using a spectral photometer. The cell pellet was merged with the rest of the BAL washes for analysis by flow cytometry.

Flow cytometry protocol and cell sorting

For flow cytometry staining, cells were washed in cold PBS, and non-specific antibody binding to cells was blocked by incubation with an anti-CD16/32 antibody (clone 2G8; BD Biosciences) at 4 °C for 10 min in the presence of LIVE/DEAD viability dye (Thermo). Then, cells were stained with fluorophore-conjugated antibodies (Supplementary Table 9) at 4 °C for 25 min in PBS 1% FCS, 2 mM EDTA (FACS buffer). Cells were maintained at 4 °C and analysed on a BD Fortessa X20, Celesta or Symphony (BD Biosciences). For intracellular staining of active caspase-3 and Ki-67 (Supplementary Table 9), BD Cytofix/Cytoperm Fixation/Permeabilization Kit was used following manufacturer recommendations and the cells stained overnight and analysed on a BD Fortessa X20, Celesta or Symphony (BD Biosciences). Data were analysed in FlowJo (FlowJo LLC). For cell sorting non-specific antibody binding to cells was blocked by incubating cells with an anti-CD16/32 antibody (clone 2.4G2; BD Biosciences) at 4 °C for 10 min. The cells were then stained with fluorophore-conjugated antibodies (Supplementary Table 9) at 4 °C for 25 min. FACS was performed on a BD FACS Aria III (BD Biosciences) to achieve greater than 95% purity. Dead cells were excluded by staining with LIVE/DEAD viability dye (Thermo).

Western blot protocol

For western blot analysis, cells were washed with ice-cold PBS and lysed in 1× Cell Signaling lysis buffer (20 mM Tris-HCl, (pH 7.5), 150 mM NaCl, 1 mM Na2EDTA, 1 mM EGTA, 1% Triton X-100, 2.5 mM sodium pyrophosphate, 1 mM β-glycerophosphate, 1 mM Na₃VO₄, 1 μg ml⁻¹ leupeptin (Cell Signaling Technologies), supplemented with 1 mM phenylmethylsulfonyl fluoride. Samples were frozen and thawed 3 times, followed by centrifugation at 20,000g for 10 min at 4 °C. Cleared protein lysate was denatured with LDS loading buffer for 10 min at 70 °C and loaded on precast 4% to 12% Bis-Tris protein gels (Life Technologies). Proteins were transferred on to nitrocellulose membranes using an iBLOT 2 system (Life Technologies) following the manufacturer’s protocols. Membranes were blocked with 5% w/v milk and 0.1% Tween-20 in Tris-buffered saline (TBS) and incubated with the appropriate antibodies in 5% w/v bovine serum albumin in TBS with 0.1% Tween-20 overnight at 4 °C. All primary antibody incubations were followed by incubation with secondary HRP-conjugated antibody (Pierce) in 5% milk and 0.1% Tween-20 in TBS and visualized using SuperSignal West Pico or Femto Chemiluminescent Substrate (Pierce) on Biomax MR film (Kodak) or a Bio-Rad ChemiDoc. The following antibodies were used: anti-DHPS (Abcam), anti-GAPDH, anti-EIF5A (BD Bioscience), anti-EIF5A-hypusine (Millipore). All antibodies were used at a dilution of 1:1,000.

Mouse tissue histology and histopathologic staining

Perfused lungs, liver, kidney, heart, spleen and brain were fixed overnight in 10% formalin at 4 °C. Lungs were inflated with 1 ml of formalin before harvesting. All organs were cut into 4-μm-thick formalin-fixed paraffin-embedded (FFPE) tissue sections. Liver sections were stained with H&E or MAS. All sectioning and staining were performed by The Johns Hopkins University Oncology Tissue and Imaging Services Core Laboratory. H&E- and MAS-stained liver slides from CL-treated mice and control images were observed and pathologically described by Y.Z. Immunohistochemical staining was performed by the Johns Hopkins University Oncology Tissue and Imaging Services Core Laboratory. Lung sections were stained with an antibody against F4/80 (brown) and lung tissues using antibodies against CD31 for vasculature (purple), EpCAM for epithelial cells (teal) and haematoxylin (indigo-like blue) for nuclei. H&E, MAS and immunohistochemically stained slides were whole-slide scanned using Hamamatsu NanoZoomer XR and NDP software (Hamamatsu Photonics, NDP.scan). NDP.view2 (Hamamatsu Photonics) was used for image analysis.

Immunofluorescence staining and image acquisition of FFPE tissue sections

For immunofluorescence staining of lung, liver, kidney, heart, spleen and brain with FFPE sections of mouse tissues, heat-induced epitope retrieval with Diva Decloaker (Biocare Medical, DV2004MX) was performed after deparaffinization and rehydration. Then, slides were blocked with 2.5% normal donkey serum (Jackson ImmunoResearch, 017-000-121) for 30 min at room temperature and incubated with the cocktail of primary antibodies for 16 h at 4 °C. Slides were washed with PBST (Dulbecco’s phosphate-buffered saline with 0.05% Tween-20), then incubated with the cocktail of secondary antibodies conjugated with fluorochrome for 2 h at room temperature. A Streptavidin/Biotin Blocking Kit (VectorLabs, SP-2002) was used before the incubation with antibodies when endogenous biotin blocking was needed. Slides were cover-slipped with EverBrite TrueBlack Hardset Mounting Medium with DAPI (Biotium, 23018) or ProLong Gold Antifade Mountant (Invitrogen, P36930) after nuclear staining with 1 μg ml⁻¹ DAPI (Thermo Scientific, 62248) for 10 min at room temperature. Images were acquired with Yokogawa Spinning Disk Field Scanning Confocal Systems (Nikon, CSU-W1 SoRa), ZEISS Axioscan 7 or Vectra Polaris (Akoya Biosciences). Images were analysed using NIS Elements (Nikon), ImageJ (v.1.54f, National Institutes of Health), ZEN (ZEN lite, v.3.9.101, ZEISS) and QuPath-0.5.0-x64. For lung sections, five image fields per sample were selected to be analysed.

For the measurement of macrophages of lung (cell counts, area and circularity), five image fields (202,536 μm² for each field) per sample were randomly selected from whole-slide scanned images using ZEISS Axioscan 7 and ZEN software. Random fields were at least 800 μm away from each other; this was confirmed after the selection. The formula (circularity) = 4π × (area)/(perimeter)² was used to calculate sphericity, with a value close to 1 indicating a round object (sphericity = 1 for an exact circle). ImageJ was used for measurement. The following primary antibodies were used: anti-PDGFRα (R&D Systems, AF1062, polyclonal, 1:200 dilution), anti-F4/80 (Bio-Rad, MCA497GA or MCA497B, clone Cl:A3-1, 1:300 or 1:50), anti-CD64 (Invitrogen, MA5-29706, clone 027, 1:300), anti-GFP (Abcam, for YFP detection, ab5450, polyclonal, 1:400), anti-IBA1 (Synaptic Systems, HS-234 308, clone Gp311H9. 1:300) and anti-TIM-4 (BioLegend, 130002, clone RMT4-54, 1:400). Streptavidin conjugated with Alexa Fluor 488 (Invitrogen, S32354) or Alexa Fluor 594 (Invitrogen, S32356) was used for biotin-conjugated primary antibody detection. The following secondary antibodies conjugated with fluorochrome were used: Alexa Fluor Plus 488 (Invitrogen, A32814 and A32790), Alexa Fluor Plus 555 (Invitrogen, A48270 and A32794), Alexa Fluor 594 (Jackson ImmunoResearch, 706-585-148) and Alexa Fluor Plus 647 (Invitrogen, A32795 and A32849).

Immunofluorescence staining of frozen sections from mouse kidney and brain

After transcardial perfusion with PBS, kidneys and brains were harvested and fixed in 4% paraformaldehyde (Electron Microscopy Sciences, catalogue no. 15710) at 4 °C for at least 24 h. Fixed tissues were dehydrated in 30% sucrose solution (Sigma, S1888) for at least 48 h and embedded in Tissue-Plus O.C.T. compound (Fisher Scientific, 23-730-571). Cryosections, prepared by The Johns Hopkins University Oncology Tissue and Imaging Services Core Laboratory, were obtained at a thickness of 10 μm (kidney) or 15 μm (brain). Cryosections were air-dried and blocked for 1 h with 2.5% normal donkey serum (Jackson ImmunoResearch, 017-000-121) and 0.3% Triton X-100 (Sigma) in PBS, followed by incubation with anti-GFP (Abcam, ab5450, 1:500), anti-IBA1 (Invitrogen, PA5-27436, 1:500) diluted in blocking buffer at 4 °C overnight. For anti-cleaved caspase-3 (CST, 9661, polyclonal, 1:300) staining, epitope retrieval was performed using Antigen Retrieval Citra Plus (Biogenex, HK080-9K). After washing, sections were incubated with secondary antibodies (1:500) conjugated with Alexa Fluor Plus 647 (Invitrogen, A32849) and Alexa Fluor 568 (Invitrogen, A10042,) at room temperature for 1 h. Slides were cover-slipped with mounting medium (Vector Laboratories, H-1900-10), after staining of nuclei with 1 μg ml⁻¹ DAPI (Sigma, D8417) for 3 min at room temperature. Images were captured using a confocal microscope (Zeiss LSM880 Airyscan). For kidney, at least four fields per sample were randomly captured and analysed using Imaris software (10.0.1, Bitplane) to measure the volume and sphericity of YFP-expressing macrophages. For cleaved caspase-3 analysis, whole-slide scanning was performed with a Vectra Polaris (Akoya Biosciences), and images were analysed using QuPath-0.5.0-x64. For brain, images of the hippocampal region were captured and denoised using ImageJ (v.1.54g, National Institutes of Health). The volume and sphericity of microglia were analysed using Imaris (10.0.1, Bitplane).

Proteomics procedure and analysis

Protein samples were prepared with 5 × 10⁶ cells using an iST 96X kit (PreOmics), according to the manufacturer’s recommendations. All samples used for data-dependent acquisition (DDA) and data-independent acquisition (DIA) analyses were spiked with index retention time kit peptides (Biognosys), according to the manufacturer’s instructions. DIA spectral libraries were generated with Spectronaut (Biognosys) v.10.0 using MaxQuant (https://www.maxquant.org/) results as an input⁶³. For the latter, DDA runs (using two or three biological replicates from each biological conditions) were acquired using a Q Exactive Plus instrument, and data were searched using MaxQuant (v.1.6.1.0). The spectral library was constructed using a false discovery rate cutoff of 1% and minimum and maximum of 3 and 6 fragment ions, respectively, and protein grouping was performed according to the MaxQuant search results.

For mass spectrometric acquisition, the general nanoscale liquid chromatography mass spectrometry setup was similar to that previously described⁶³ with minor modifications. A Q Exactive Plus mass spectrometer (Thermo Fisher) and an Easy nanoLC-1200 (Thermo Fisher) were used for both DDA and DIA experiments. For the chromatographic separation of peptides, 4 μg peptide digest was analysed at 50 °C (controlled by a Sonation column oven) on a 50-cm in-house-packed fused-silica emitter microcolumn (75 μm inner diameter, 360 μm outer diameter, 8 µm tapered open end; SilicaTip PicoTip; New Objective) packed with 1.9-μm reverse-phase ReproSilPur C18-AQ (120 Å) beads (Dr Maisch). Peptides were separated using a binary solvent system consisting of 0.1% (v/v) formic acid (solvent A) and 80% (v/v) acetonitrile/0.1% (v/v) formic acid (solvent B). Peptides were loaded at 400 nl min⁻¹ at 0% B and then separated by the following linear gradients: from 2% to 10% solvent B over 5 min at 250 nl min⁻¹, from 10% to 35% over 180 min at 250 nl min⁻¹, from 35% to 50% over 26 min at 250 nl min⁻¹, and from 50% to 80% over 6 min at 250 nl min⁻¹, and kept at 80% for 10 min at 250 nl min⁻¹, followed by an inverse gradient from 80% to 5% over 6 min and a re-equilibration step over 5 min at 5% B (300 nl min⁻¹).

For data analysis, MS2-based label-free quantification was carried out by processing DIA raw data using Spectronaut (v.10.0) software with default parameters as previously described⁶³ with minor modifications. In brief, the decoy method was set to ‘mutated’, data extraction and extraction window were set to ‘dynamic’ with correction factor 1, identification was set to ‘normal distribution P-value estimator’ with q-value cutoff of 0.1 and the profiling strategy was set to ‘iRT profiling’ with q-value cutoff of 0.01. Ultimately, protein quantity was set to ‘average precursor quantity’ and the smallest quantitative unit was set to ‘precursor ion’ (summed fragment ions). For statistical testing and identification of deregulated proteins in all approaches, a two-sample Student’s t-test was used to identify differentially expressed proteins filtered to 1% false discovery rate.

scRNA-seq procedure and analysis

For peritoneal macrophage sequencing, single cells were isolated from the peritoneal cavities of the indicated animals with 3–4 biological replicates per genotype (Dhps-WT and Dhps-ΔM) and prepared for scRNA-seq using the GemCode Single Cell Platform with GemCode Gel Beads, Chip and Library Kits (v.3) and 10x Genomics Chromium Controller following the manufacturer’s protocol. Peritoneal lavage libraries were sequenced on a NovaSeq 6000 (Illumina). For lung macrophage sequencing, single cells were isolated from digested lungs as described before, and LIVE CD45⁺YFP⁺ cells were FACS sorted from three biological replicates per genotype for Dhps^+/+ LysM–Cre Rosa26^eYFP (control) and Dhps-ΔM Rosa26^eYFP mice. Cells were submitted to sequencing company OMAPiX for 10x Genomics library preparation using the GEM-X 3′ v.4 gene expression kit. Lung libraries were sequenced on a NovaSeq X Plus (Illumina).

Samples were demultiplexed, quality checked, filtered and aligned with genome build GRCm38 using pre-established pipelines implemented in snakePipes⁶⁴ with STARsolo v.2.7.4a⁶⁵, deeptools v.3.3.2, seqtk v.1.3, pigz v.2.3.4, snpsplit v.0.3.4, samtools v.1.10, fastqc v.0.11.9, cutadapt v.2.8, trim-galore v.0.6.5, multiqc v.1.8, fastp v.0.20.0, umi_tools v.1.0.1 and star v.2.7.4a. For lung macrophage libraries, CellRanger v.9.0.1 was used to obtain count matrices. Resulting raw read count matrices of barcodes corresponding to cells and features corresponding to detected genes were processed, analysed and visualized in R v.4.3.1 (ref. ⁶⁶) using Seurat v.4 (ref. ⁶⁷) with default parameters for all functions unless otherwise specified. Poor-quality cells with low total unique molecular identifier counts and high percentages of mitochondrial gene expression were excluded. Filtered samples were normalized using a regularized negative binomial regression (SCTransform)⁶⁷ and integrated with the reciprocal principal component analysis approach followed by mutual nearest neighbours, using 50 principal components. Integrated gene expression matrices were visualized with UMAP⁶⁸ as a dimensionality reduction approach. Resolution for cell clustering was determined by evaluating hierarchical clustering trees at a range of resolutions (0–1.2) with Clustree⁶⁹, selecting a value that induced minimal cluster instability. Datasets were subsetted to include only macrophages, on the basis of expression of key macrophage markers (Adgre1, Csf1r, H2-Ab1, Cd68, Lyz2, Itgam and Mertk). Macrophage-only datasets were then split along conditions and processed anew as described above. DEGs between clusters were identified as those expressed in at least 25% of cells with a log fold change greater than +1 and an adjusted P value of less than 0.01, using the FindMarkers function in Seurat v.4 with all other parameters set to default. Ribosomal protein genes were excluded from the results. Cluster-specific genes were explored for pathway enrichment using StringDB⁷⁰. DEGs (adjusted P < 0.05, log₂ fold change > 0.5) across clusters were subjected to gene ontology pathway enrichment analysis using DAVID⁷¹ (v.2016 and v.2021). Gene set scores were calculated using UCell with default parameters⁷².

Bulk RNA-seq procedure and analysis

RNA-seq data were obtained by sorting 5,000–100,000 cells from each population directly into RLT buffer (Qiagen) containing 1% 2-ME and submitting them to the Emory Integrated Genomics Core at Emory University. Total RNA was isolated using a Quick-RNA Microprep Kit (Zymo Research), and cDNA was generated using a SMART-Seq v.4 Ultra Low Input RNA Kit for Sequencing (Takara Bio) and used to generate sequencing libraries with a Nextera XT kit (Illumina). Libraries were pooled at equimolar ratios and sequenced on a NovaSeq 6000 at approximately 100M reads per sample using 100PE reads. Sequenced libraries were processed for analysis with deepTools⁷³ v.2.0, using STAR⁶⁵ v.2.7.10 for trimming and mapping and feature Counts⁷⁴ v.2.0.3 to quantify mapped reads. Raw mapped reads were processed in R (Lucent Technologies)⁶⁶, using DESeq2 (ref. ⁷⁵) v.1.36 to generate normalized read counts for visualization as heatmaps with Morpheus (Broad Institute) and to determine DEGs with fold change greater than 1.4 and adjusted P value less than 0.01. Gene ontology analysis was performed with DAVID⁷¹ (v.2016 and v.2021).

Ribo-seq pulldown, sequencing and analysis

Freshly isolated cells from total peritoneal lavage were processed as described in ref. ⁷⁶ with the following modifications. One millilitre of homogenization buffer was used per mouse, and dithiothreitol was removed from the washing buffer to avoid uncoupling of conjugated anti-HA antibodies from magnetic beads. Total lysate (100 μl) was used as an input. The remaining lysate was used for immunoprecipitation of polysomes. Twenty-five microlitres of anti-HA.11 (Pierce) were used per lysate with rotation at 4 °C for 4 h. Beads were then washed three times with 500 μl of wash buffer. RNA was extracted from magnetic beads with TRIzol reagent (Invitrogen), and total RNA was isolated with a Direct-zol RNA Microprep Kit (Zymo Research) according to the manufacturer’s instructions. Total RNA was submitted to Admera Health for RNA-seq. Isolated RNA sample quality was assessed with an RNA TapeStation (Agilent Technologies) and quantified by AccuBlue Broad Range RNA Quantitation assay (Biotium). Paramagnetic beads coupled with oligo d(T)25 were combined with total RNA to isolate poly(A)+ transcripts in a process based on the NEBNext Poly(A) mRNA Magnetic Isolation Module manual (New England Biolabs). Before first strand synthesis, samples were randomly primed (5′ d(N6), 3′ [N = A,C,G,T]) and fragmented on the basis of the manufacturer’s recommendations. The first strand was synthesized with Protoscript II Reverse Transcriptase with a longer extension period, approximately 40 min at 42 °C. All remaining steps for library construction were performed according to the NEBNext Ultra II Directional RNA Library Prep Kit for Illumina (New England Biolabs). Final library quantity was assessed with Qubit 2.0 (Thermo Fisher), and quality was assessed with TapeStation D1000 ScreenTape (Agilent Technologies). The final library size was about 430 bp with an insert size of about 300 bp. Illumina 8-nt dual-indices were used. Equimolar pooling of libraries was performed on the basis of quality control values, and libraries were sequenced on an Illumina NovaSeq X Plus platform with a read length configuration of 150 paired ends for 40 million paired-end reads per sample (20 million in each direction). For analysis, sequenced libraries were processed as described above for bulk RNA-seq analysis, with the differential expression tests and filters specified in the Results section.

Quantification and statistical analysis

Prism 7 software (GraphPad) was used for statistical analysis, and results are presented as the mean ± s.d., unless otherwise indicated. Comparisons for two groups were performed using unpaired two-tailed Student’s t-tests, and comparisons of more than two groups used one-way analysis of variance with Bonferroni’s multiple comparison tests. Exact P values and details of statistical testing can be found in the figure legends and in the source data file. Unless otherwise specified, n represents the number of individual biological replicates and is represented in graphs as one dot per sample. Flow cytometry plots are representative of at least three replicates, immunoblots of at least two independent experiments, and confocal and immunohistochemistry images of at least three independent biological replicates. No statistical method was used to predetermine sample size, but a minimum of three samples were used per experimental group and condition. Experiments were not randomized.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
