Single-molecule dynamics of the TRiC chaperonin system in vivo

Li, Rongqin; Dalheimer, Niko; Müller, Martin B. D.; Hartl, F. Ulrich

doi:10.1038/s41586-025-10073-3

Download PDF

Article
Open access
Published: 04 February 2026

Single-molecule dynamics of the TRiC chaperonin system in vivo

Nature (2026)Cite this article

20k Accesses
1 Citations
90 Altmetric
Metrics details

Subjects

Abstract

The essential chaperonin T-complex protein ring complex (TRiC) (also known as chaperonin containing TCP-1 (CCT)) mediates protein folding in cooperation with the co-chaperone prefoldin (PFD)^1,2,3,4,5. In vitro experiments have shown that the cylindrical TRiC complex facilitates folding through ATP-regulated client protein encapsulation^6,7,8,9. However, the functional dynamics of the chaperonin system in vivo remain unexplored. Here we developed single-particle tracking in human cells to monitor the interactions of TRiC–PFD with newly synthesized proteins. Both chaperones engaged nascent polypeptides repeatedly in brief probing events typically lasting around one second, with PFD recruiting TRiC. As shown with the chaperonin client actin⁸, the co-translational interactions of PFD and TRiC increased in frequency and lifetime during chain elongation. Close to translation termination, PFD bound for several seconds, facilitating TRiC recruitment for post-translational folding involving multiple reaction cycles of around 2.5 s. Notably, the lifetimes of TRiC interactions with a folding-defective actin mutant were markedly prolonged, indicating that client conformational properties modulate TRiC function. Mutant actin continued cycling on TRiC until it was targeted for degradation. TRiC often remained confined near its client protein between successive binding cycles, suggesting that the chaperonin machinery operates within a localized ‘protective zone’ in which free diffusion is restricted. Together, these findings offer detailed insight into the single-molecule dynamics and supramolecular organization of the chaperonin system in the cellular environment.

In situ analysis reveals the TRiC duty cycle and PDCD5 as an open-state cofactor

Article Open access 11 December 2024

Snapshots of actin and tubulin folding inside the TRiC chaperonin

Article Open access 21 April 2022

Disruption of actin dynamics induces autophagy of the eukaryotic chaperonin TRiC/CCT

Article Open access 25 January 2022

Main

Protein folding is assisted by molecular chaperones, both during and after translation^{1,2,10,11,12,13}. A key unresolved aspect of this fundamental process is the dynamic behaviour of chaperone systems in vivo: how long, how often and when during protein biogenesis chaperones interact with their client proteins. In eukaryotic cells, the chaperones nascent polypeptide-associated complex (NAC) and ribosome-associated complex (RAC) interact early with nascent chains on the ribosome^10,13. As translation proceeds, nascent chains may be engaged by Hsp70–Hsp40 as well as the chaperonin TRiC and its co-chaperone prefoldin^2,9,14. TRiC is an abundant approximately 900 kDa double-ring protein complex with ATPase activity that transiently encapsulates non-native substrate protein for folding in its central chamber^6,7,8,9. Each ring consists of eight essential, paralogous subunits (CCT1–8) that feature a common three-domain architecture⁹ (Extended Data Fig. 1a). The apical domains bind unfolded protein substrate at the ring opening and mediate its enclosure through α-helical extensions that form an iris-like lid. This is triggered by ATP hydrolysis in the equatorial domains and conducted by the intermediate domains. TRiC interacts with 5–10% of newly synthesized proteins, including many essential proteins with complex fold topologies, such as actin, tubulins and WD repeat-containing protein 40 (WDR40) domain proteins^15,16,17. Mutations in several TRiC subunits are the cause of developmental brain malformations¹⁸. Although TRiC alone promotes folding of chemically denatured proteins such as actin in vitro⁸, it functionally cooperates in vivo with its major co-chaperone PFD and with phosducin-like protein 2A (PhL-P2A)^2,5,19. PFD, a hetero-hexamer complex of coiled-coil subunits²⁰ (Extended Data Fig. 1b), is thought to deliver client proteins into the TRiC chamber²¹ and is required for efficient actin folding, enhancing both folding rate and yield²².

Despite extensive mechanistic and structural studies, the functional dynamics of the TRiC chaperonin system remain largely unexplored. Given that the highly crowded cellular environment can profoundly affect protein–protein interactions^23,24,25, we developed single-particle tracking (SPT) strategies^26,27,28,29 to directly observe the co- and post-translational interactions of TRiC and PFD with client proteins in live human cells. This methodological platform is broadly applicable to analysing the function of different chaperone systems, co-factors and client proteins in vivo.

Co-translational chaperonin function

To analyse the interactions of TRiC and PFD with nascent chains on translating ribosomes, we expressed the chaperones in human U-2 OS cells as fusions with the self-labelling HaloTag³⁰ and the large ribosomal protein L10A (RPL10A) with SNAP tag (SNAP–L10A)³¹ (Fig. 1a). TRiC–Halo was generated by CRISPR knock-in of the HaloTag into a loop region of TRiC subunit CCT4³² (Extended Data Fig. 1a,c). Tagged CCT4 co-assembled into the TRiC complex and interacted with client proteins and PFD (Extended Data Fig. 1d). To label PFD, we attached the HaloTag to the C terminus of endogenous PFD4 using CRISPR–Cas9 editing²¹, thus enabling functional assembly of the PFD complex (Extended Data Fig. 1b,e,f). SNAP–L10A was stably expressed (in addition to endogenous L10A) and assembled quantitatively into translating ribosomes and polysomes (Extended Data Fig. 1g–i).

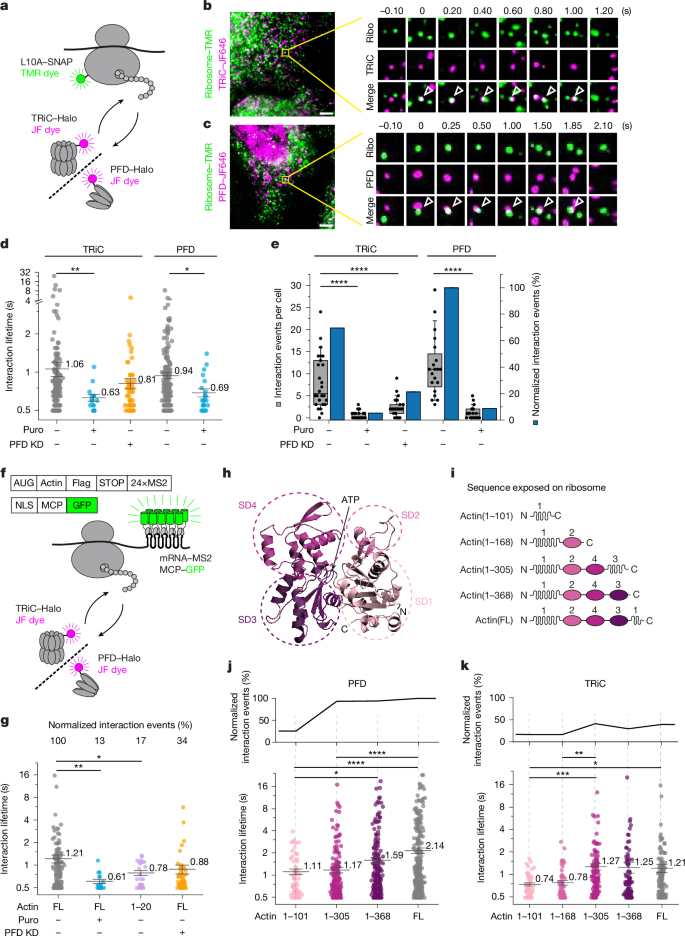

**Fig. 1: Interactions of TRiC–PFD with nascent polypeptides.**

To enable single-molecule detection, we labelled about 3% of TRiC or 9% of PFD molecules (sparse labelling) with membrane-permeant Janelia Fluor (JF) dyes (covalently binding to HaloTag)³³ and equivalent numbers of ribosomes with trifluoromethyl fluorobenzyl pyrimidine (TF)–tetramethylrhodamine (TMR) dye (covalently binding to SNAP-tag)³⁴ for dual-colour analysis (Fig. 1a and Extended Data Fig. 1j–l). This approach ensured comparable numbers of labelled PFD and TRiC complexes, as PFD is about three times less abundant than TRiC³⁵. The puromycin-sensitive spatial and temporal correlation of TRiC–PFD and ribosome movement trajectories served as criteria to define chaperone–nascent chain interactions. Puromycin-insensitive contacts lasting less than 0.5 s were defined as non-specific (Methods). Both TRiC and PFD engaged nascent chains in brief interactions typically lasting for around 1 s (Fig. 1b–e, Extended Data Fig. 1m,n and Supplementary Videos 1 and 2), with PFD apparently binding more frequently to nascent chains than TRiC (Fig. 1e). The interaction data were fitted with a single-exponential decay model suggesting an average lifetime of chaperone binding to translating substrates of around 0.8 s (Extended Data Fig. 1o,p).

Knockdown of PFD subunit 3 (PFD3) leads to downregulation of the entire prefoldin complex (referred to as PFD knockdown), whereas TRiC levels remain unchanged (Extended Data Fig. 2a–c and Methods). PFD knockdown caused reduction of around 65% in the frequency of TRiC–nascent chain interactions (Fig. 1d,e), suggesting a critical role of PFD in TRiC recruitment.

To further characterize the range of nascent chain clients of both chaperones, we used selective ribosome profiling^17,36. We identified 511 and 1,174 interactors of TRiC–Halo and PFD–Halo, respectively (Extended Data Fig. 3a–c and Methods), in line with a higher frequency of PFD–nascent chain contacts (Fig. 1e). Most TRiC interactors (around 80%), including actin and tubulins, also interacted with PFD (Extended Data Fig. 3d–f), consistent with PFD recruiting TRiC. Analysis of the relative positions of ribosome-protected fragment (RPFs) from shared substrates suggested that both PFD and TRiC recognize multiple sites along nascent chains with only minimal (approximately 1%) overlap (Extended Data Fig. 3g), with the first PFD binding preceding TRiC binding in 64% of open reading frames (Extended Data Fig. 3h). Notably, the shared substrates are enriched in TRiC subunits as well as Hsp90 and Hsp70 chaperone proteins (Extended Data Fig. 3i), highlighting the central role of the PFD–TRiC axis in maintenance of proteostasis.

Together, these findings indicate that both TRiC and PFD monitor a broad range of nascent chains primarily through brief, dynamic interactions, with PFD serving as recruitment factor for TRiC for most substrates.

Interactions with nascent actin

To investigate the co-translational interactions of TRiC–PFD with an obligate client protein of the chaperonin system, we selected β-actin^8,21. To avoid possible artefacts from tagging the actin nascent chain itself, we instead labelled the actin mRNA and monitored the colocalization of chaperone and mRNA signals. To this end, we inserted 24 copies of the MS2 phage stem-loop sequence in the 3’ untranslated region of the β-actin mRNA, which enabled binding by constitutively expressed GFP-tagged MS2 coat protein (MCP–GFP)^37,38 for visualization (Fig. 1f). Unbound MCP–GFP was targeted to the nucleus³⁹ to reduce cytosolic background fluorescence. This system enabled the observation of individual, translationally active molecules of actin mRNA in the cytosol (Extended Data Fig. 4a,b).

Dual-colour imaging revealed colocalization events of actin mRNA–MS2 with TRiC–Halo (Extended Data Fig. 4c,d and Supplementary Video 3) and PFD–Halo (Extended Data Fig. 4e,f and Supplementary Video 4). These interactions represented chaperone binding to actin nascent chains: they were markedly reduced in duration and frequency by puromycin or upon translation of an mRNA–MS2 construct encoding only the first 20 amino acids of actin (Fig. 1g and Extended Data Fig. 4g) that is expected to reside within the ribosomal exit tunnel, which is inaccessible for TRiC. The interactions of TRiC with actin nascent chains upon translation of full-length actin displayed an average lifetime of approximately 1.2 s (Fig. 1g), similar to the interactions with nascent chains in general (Fig. 1d), but with a greater proportion (around 37%) of binding events with durations of more than 1 s (Fig. 1g and Extended Data Fig. 4h). PFD knockdown reduced TRiC binding to actin nascent chains by around 70% (Fig. 1g and Extended Data Fig. 4g), confirming the role of PFD in recruiting TRiC. Notably, the TRiC interactions remaining after PFD knockdown were shifted to shorter lifetimes (Fig. 1g), with only 11% of binding events lasting for more than 1 s (Extended Data Fig. 4h). This suggests that PFD, beyond recruiting TRiC, prolongs TRiC–nascent chain associations, either through direct interaction or by acting as a holding chaperone in stabilizing actin in a conformation that is competent for TRiC binding.

Both TRiC and PFD have multiple substrate binding sites, which suggested that their co-translational interactions might be dependent on nascent chain length. β-Actin (375 amino acids) has a discontinuous fold consisting of two domain lobes, each divided into structurally interdependent subdomains (SD1–SD2 and SD3–SD4)⁴⁰ (Fig. 1h). SD1 contains both N-terminal and C-terminal residues of actin and thus must fold post-translationally. To explore a possible length dependence of nascent chain binding, we generated MS2-labelled mRNAs expressing truncated actin chains of 101, 168, 305 and 368 amino acids with termination codons, avoiding translation arrest (Fig. 1i). Similar numbers of ribosome-engaging mRNA molecules were detected in the cytosol for these constructs (Extended Data Fig. 5a,b). Both PFD and TRiC interacted with the respective nascent chains in a length-dependent manner with respect to dwell time and binding frequency (Fig. 1j,k). PFD binding events with actin(1–305), exposing up to the complete SD2 and SD4, were around 4 times more frequent than binding to actin(1–101), exposing only the N-terminal segment of SD1 (Fig. 1i, j and Extended Data Fig. 5c), consistent with the longer availability of actin(1–305) nascent chains on the ribosome during translation. In addition, an increase in interaction lifetimes during translation was observed from actin(1–305) to actin(1–368) to full-length actin (Fig. 1j), suggesting that PFD binding strength was also enhanced by emergent conformational properties of the growing nascent chains. Remarkably, the average duration of PFD binding events increased from about 1.6 s for actin(1–368) to 2.1 s for full-length actin (Fig. 1j), although actin(1–368) and full-length actin differ by only 7 amino acids. Indeed, whereas the binding data for PFD–actin(1–101) fitted to a single-exponential decay with a lifetime of approximately 1.0 s, the lifetime data for actin(1–368) and full-length actin were bimodal, with 24% of interactions having a lifetime of around 6 s when full-length actin was translated (Extended Data Fig. 5d). Thus, at a translation speed of about 5 amino acids per second⁴¹, PFD would bind actin nascent chains increasingly during translation of the approximately 30 C-terminal amino acids, consistent with data from PFD-selective ribosome profiling for actin (Extended Data Fig. 5f). The combined increase in dwell time and frequency of binding suggest a substantial increase in affinity of PFD for long actin chains, consistent with the presence of multiple chaperone sites in the PFD hexamer.

TRiC binding mirrored the chain length dependence of the PFD interactions (Fig. 1k and Extended Data Fig. 5f). Both the frequency and duration of binding increased from actin(1–168) to actin(1–305), in agreement with ribosome profiling data (Extended Data Fig. 5f). However, the increase in binding frequency was less pronounced than for PFD, suggesting that actin nascent chains interact preferentially with PFD. Moreover, the TRiC interactions displayed only a single decay component (time constant (τ) ≈ 1.0 s) (Extended Data Fig. 5e).

In summary, PFD recruits TRiC to actin nascent chains. Both chaperones bind dependent on actin chain length, an effect that is most pronounced for PFD. Whereas short probing associations predominate early in translation, binding events with extended dwell times become more frequent with longer nascent chains. The marked increase in PFD engagement near translation termination is likely to stabilize full-length actin and facilitate TRiC recruitment for post-translational completion of folding.

Post-translational actin folding

Post-translational folding of actin is thought to involve multiple cycles of protein encapsulation in the TRiC cavity⁸ and occurs with an overall half-time (t_1/2) of around 50 s (ref. ⁴²). Actin folding is monitored by DNase I binding, which interacts specifically and with high affinity (dissociation constant (K_d) ≈ 2 nM) with a loop region in SD2 of folded actin⁴³. The near-full-length actin(1–368) was not recognized by DNase I, demonstrating that the complete actin sequence must be available for folding (Extended Data Fig. 6a).

Analysing the post-translational chaperonin cycles was challenging, as diffusion of monomeric actin is too fast for reliable SPT detection. To slow its diffusion, we tethered actin to the ribosome via a C-terminal SunTag peptide array⁴⁴ and a XBP1u+ translation arrest sequence^45,46 (Fig. 2a and Extended Data Fig. 6b). TRiC efficiently folds actin fused to GFP by actin-selective encapsulation, with the linker between actin and GFP protruding through the central oculus of the closed TRiC chamber⁴⁷. The SunTag peptide epitope was visualized using a constitutively expressed GFP-tagged single-chain antibody⁴⁴. As the XBP1u+ sequence retards, but does not prevent, ribosome release, only newly synthesized actin–SunTag is ribosome-associated (Extended Data Fig. 6c). Ribosome-tethered actin–SunTag was folding-competent (Extended Data Fig. 6d,e), and assembled into actin filaments upon ribosome release (Extended Data Fig. 6f). Actin–SunTag pulldown with TRiC–Halo during a chase with puromycin indicated a single exponential rate for passage through TRiC with a t_1/2 of about 48 s (Extended Data Fig. 6g,h), equivalent to the folding rate of wild-type actin⁴². Note that newly synthesized actin–SunTag–XBP1u+ migrates as a range of bands between around 50 and 80 kDa, containing an incomplete SunTag array (Extended Data Fig. 6g). This ribosome-associated form of actin–SunTag, rather than full-length actin–SunTag (approximately 79 kDa), interacted predominantly with TRiC (Extended Data Fig. 6g). Thus, TRiC-mediated folding initiates immediately when the complete actin sequence is available and proceeds during further SunTag elongation. We therefore define these TRiC interactions as post-translational (post), as opposed to the co-translational (co) interactions with incomplete actin nascent chains (Fig. 1f–k).

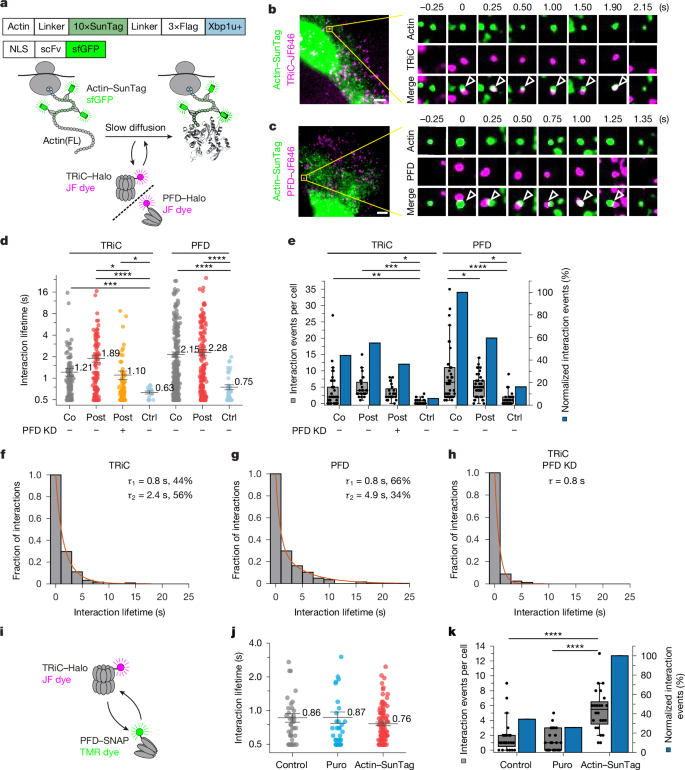

**Fig. 2: Chaperonin dynamics in post-translational actin folding.**

Dual-colour imaging revealed dynamic interactions of actin–SunTag with TRiC–Halo and PFD–Halo (Fig. 2b,c, Extended Data Fig. 6i,j and Supplementary Videos 5 and 6). The binding events of TRiC fitted to a two-component decay model with lifetimes of Approximately 0.9 s (44%) and 2.4 s (56%) (Fig. 2d,f), the latter being specific for the post-translational interaction mode (Fig. 2f and Extended Data Fig. 5e). By contrast, the post-translational interactions of PFD were similar to those during translation, with lifetimes of around 0.8 s (70%) and 4.9 s (30%) (Fig. 2d,g). PFD knockdown reduced the frequency of the post-translational TRiC–actin contacts by about 40% (Fig. 2d,e)—that is, to a lesser extent than during translation (Fig. 1g). Notably, PFD knockdown eliminated the longer TRiC binding component (Fig. 2d,h). Thus, PFD mediates prolonged engagement of TRiC with actin during post-translational folding.

To obtain information on the kinetics of client protein transfer between PFD and TRiC, we used cells that stably expressed TRiC–Halo and PFD–SNAP at endogenous levels (Fig. 2i). Under basal conditions, we observed PFD–TRiC interactions with an average lifetime of about 0.9 s (Fig. 2j). Coincidental collisions with TRiC, analysed using VCP–Halo (VCP is also known as p97 or Cdc48), were also detected, but were less frequent and of shorter duration (Extended Data Fig. 6l–n). Puromycin treatment reduced the frequency of PFD–TRiC contacts by around 25% (Fig. 2k), without change in lifetime (Fig. 2j). This suggests that the majority of PFD–TRiC interactions occur post-translationally.

To selectively enrich for PFD–TRiC interactions during the post-translational folding of actin, we over-expressed actin–SunTag, which accumulates in a folding-competent but ribosome-tethered form. This resulted in a threefold increase in observable PFD–TRiC association events with a lifetime of approximately 0.7 s (Fig. 2j,k and Extended Data Fig. 6k), indicating an extensive functional interplay between PFD and TRiC during post-translational folding, with TRiC–PFD apparently prioritizing the obligate client actin.

These results support a model in which post-translational folding in vivo involves successive interaction cycles of newly synthesized actin with PFD and TRiC. PFD mediates prolonged TRiC interactions with actin lasting around 2.5 s, presumably facilitating productive folding.

Interactions with folding-defective actin

We next explored whether the chaperonin adapts its functional dynamics to the folding properties of specific client proteins. To address this question, we analysed the interactions of TRiC–PFD with a folding-defective actin mutant. Mutation of the conserved glycine 150 of β-actin, located in the hinge between the actin lobes, to proline (G150P) (Fig. 3a), is thought to interfere with formation of the actin nucleotide binding site^8,48,49, resulting in a ‘chaperonin-arrested’ state upon in vitro translation⁴⁸.

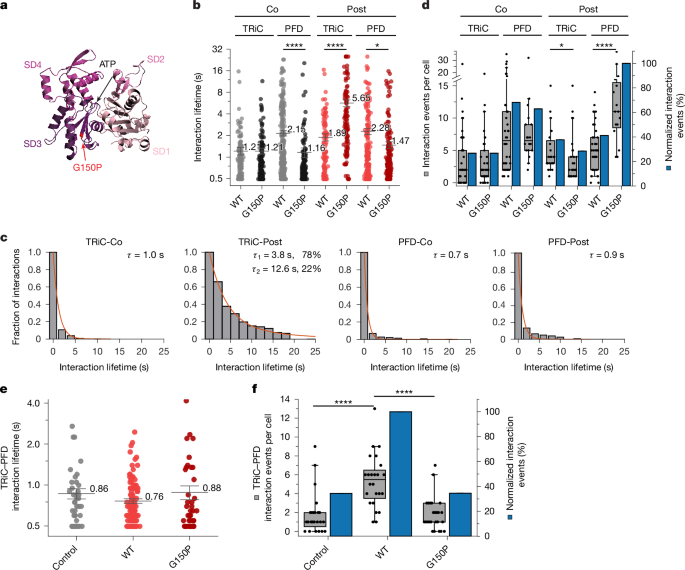

**Fig. 3: Interactions of TRiC–PFD with folding-defective actin.**

The co-translational interactions of TRiC with nascent chains of actin(G150P) were similar to those with wild-type actin (Fig. 3b,c), consistent with the mutation affecting at late folding step. However, PFD binding was shifted to shorter lifetimes, specifically lacking the prolonged dwell times observed with wild-type actin close to translation termination (Figs. 1j and 3b,c). Thus, the G150P mutation interferes with co-translational conformational changes that enable extended PFD binding. This supports the notion that PFD normally modulates conformational properties of actin nascent chains.

We next analysed how TRiC and PFD interact post-translationally with actin(G150P) expressed as a ribosome-tethered SunTag fusion protein (see Fig. 2a). Notably, the TRiC interaction cycles were around 3 to 4 times longer than for wild-type actin (Fig. 3b), with lifetime components of 3.8 s (78%) and 12.6 s (22%) (Fig. 3c). Thus, release of wild-type actin from TRiC appears to be modulated by a rotation at the G150 hinge, with the G150P mutation resulting in a misfolded state. Misfolded actin(G150P)–SunTag remained soluble (Extended Data Fig. 7a) and was rapidly degraded via the proteasome (t_1/2 of around 36 min), whereas wild-type actin–SunTag was stable (Extended Data Fig. 7b,c). Remarkably, during a chase with puromycin (in the presence of proteasome inhibitor), TRiC-bound actin(G150P)–SunTag did not appreciably decay from TRiC for at least 10 min (Extended Data Fig. 7d,e). Thus, the mutant protein cycles continuously on TRiC before being transferred to the proteasome for degradation. Note that mainly full-length actin(G150P)–SunTag was associated with TRiC (Extended Data Fig. 7d), as the SunTag was completely translated during prolonged cycling.

The G150P mutation also altered the post-translational interactions with PFD, more than doubling the binding frequency compared with wild-type actin–SunTag (Fig. 3d) and shortening interaction lifetimes (from 2.3 s to 1.5 s on average) (Fig. 3b,c), specifically eliminating the long-lifetime component seen with wild-type actin (Figs. 2g and 3c). Thus, PFD engages the mutant protein more often but more transiently. Conversely, the interactions between PFD and TRiC in the presence of actin(G150P)–SunTag were about 60% less frequent than for wild-type actin (Fig. 3e,f). Given that PFD exclusively associates with the open conformation of the TRiC ring²¹, this implies that TRiC remains predominantly in the closed state when interacting with mutant actin. Accordingly, the frequent binding of PFD to actin(G150P) is less coupled with protein transfer to TRiC and may instead have a role in targeting the mutant protein for proteasomal degradation.

These findings demonstrate that the G150P mutation profoundly alters the interactions of TRiC and PFD with actin. Individual TRiC interaction cycles are markedly prolonged, indicating that the chaperonin ‘senses’ client protein folding. Mutant actin undergoes futile cycles of binding and release until it is transferred to proteasomes.

Observing successive chaperonin cycles

We next explored mechanisms that underlie the efficient re-binding of client proteins across successive chaperonin cycles within the crowded cellular environment. TRiC and PFD molecules often remain localized near the client protein after release (off state), thereby avoiding diffusion into the bulk cytosol and allowing re-binding for a subsequent interaction cycle (on state) (Fig. 4a–c, Extended Data Fig. 8a–c and Supplementary Videos 7–10). In the off state TRiC remained confined for 0.5 to 2 s, exploring regions up to around 1.5 μm (0.7 μm on average) away from the labelled polysome before re-binding (Fig. 4a,d and Extended Data Fig. 8f), which exceeds the average distance of approximately 70 nm between nascent chains and encoding mRNA (Extended Data Fig. 8d,e). On–off–on binding behaviour was observed in 12–18% of all recorded co-translational and post-translational interaction trajectories. However, owing to the limited depth of total internal reflection fluorescence (TIRF) microscopy (less than 500 nm), TRiC may leave the focal plane during the off state and thus re-binding cannot be tracked, thus probably underestimating the re-binding frequency. Indeed, we observed on–off–on cycles for 30–40% of TRiC complexes that could be tracked long enough in the off state to detect re-binding (Extended Data Fig. 8g). A specific PFD molecule may even undergo three consecutive binding cycles with actin nascent chains translated from the same mRNA (possibly engaging adjacent nascent chains in polyribosomes) before diffusing away (Extended Data Fig. 8b). Notably, in the off state, the majority (70–80%) of observable TRiC complexes were stationary, with the remainder showing sub-diffusive behaviour (Fig. 4c,e,f and Extended Data Fig. 8h), suggesting that the chaperonin is retained through interactions such as low-affinity associations with the translation machinery and/or other chaperones.

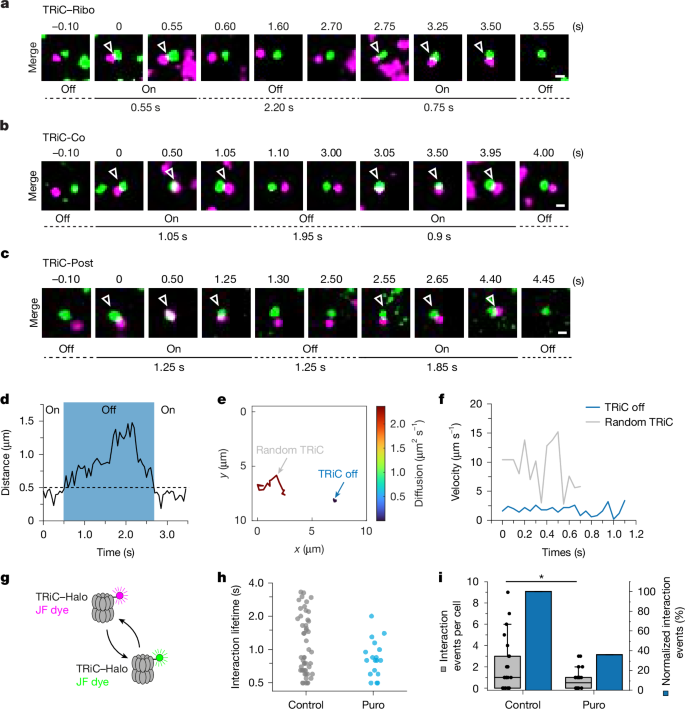

**Fig. 4: Imaging of successive chaperonin cycles.**

A recent study using cryo-electron tomography reported that a fraction of TRiC complexes in human cells form linear and circular clusters of between two and seven molecules⁵⁰. Such clustering may have an auxiliary role in concentrating TRiC molecules near a client protein. To begin exploring this possibility, we analysed TRiC–TRiC interactions using sparse labelling of TRiC–Halo with JF549 and JF646 dyes for dual-colour SPT (Fig. 4g and Extended Data Fig. 8i). We observed two classes of TRiC–TRiC contacts with average lifetimes of around 0.7 s and 2 s (Fig. 4h and Extended Data Fig. 8j), similar to the interactions of TRiC with actin (Fig. 2f). Inhibition of translation with puromycin diminished the long-lived associations (Fig. 4h,i and Extended Data Fig. 8j), suggesting that they are functionally related to protein biogenesis. Client proteins may thus be channelled between TRiC molecules.

Discussion

Here we established a set of versatile methods to explore co- and post-translational chaperone functions by real-time SPT in intact cells. Our analysis provides insight into the functional dynamics of the PFD/TRiC chaperonin system in vivo. We show that both chaperones interact co-translationally with a range of nascent chains in multiple binding events typically lasting for around 1 s, with PFD recruiting TRiC (Fig. 1a–e). Using the obligate chaperonin client actin^8,21, these interactions displayed pronounced nascent chain length dependence (Fig. 1f–k). Whereas brief probing contacts predominate early in translation, both frequency and duration of PFD and TRiC binding increase significantly once 80% of the actin sequence is exposed on the ribosome (Fig. 5a), with PFD–actin complexes persisting for several seconds near translation termination. Thus, full-length actin is poised to be released from the ribosome in complex with PFD, ensuring stabilization in a conformational state competent for transfer to TRiC and post-translational folding.

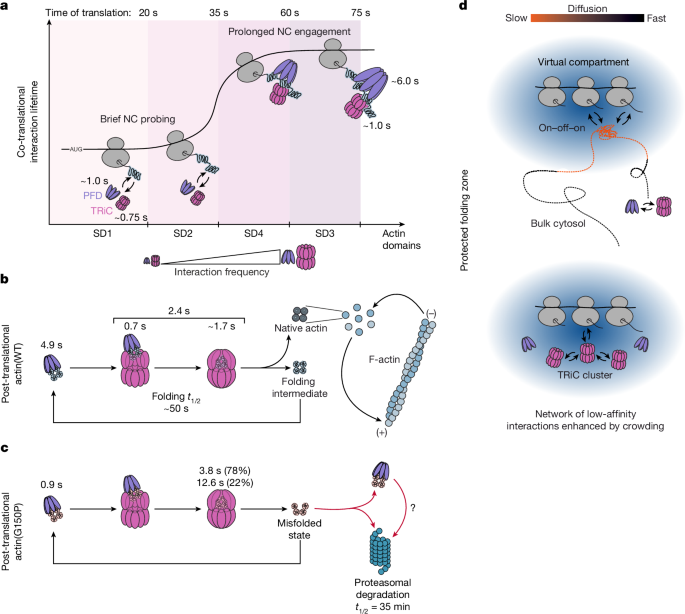

**Fig. 5: Dynamics of TRiC–PFD-mediated protein folding in vivo.**

To acquire its native tertiary fold, the complete actin protein must undergo encapsulation in the TRiC cavity (Fig. 5b). We found the post-translational TRiC–actin interactions to be kinetically bimodal, with approximately 60% of actin molecules displaying a residence time of around 2.4 s and the remainder having a shorter lifetime of around 0.9 s (Fig. 2a–h). The long-lifetime component was eliminated upon PFD dysfunction, suggesting that the functional interplay with PFD facilitates productive folding by TRiC (Fig. 5b). This interpretation is supported by structural data showing that PFD associates with a preformed TRiC–actin complex (with TRiC in the open state), seemingly ‘pushing’ the substrate protein into the TRiC cavity^5,21. The lifetime of the ternary TRiC–actin–PFD complex (with TRiC in the open state) was approximately 0.7 s (Fig. 2j), thus leaving 1.7 s for actin encapsulation (Fig. 5b). The shorter actin–TRiC contacts, observed approximately 40% of the time, may represent proofreading of already folded actin or binding events with failed encapsulation. The post-translational PFD–actin interactions were also bimodal, with average lifetimes of about 0.8 s (66%) and 4.9 s (34%), with the former probably corresponding to the role of PFD in modulating actin folding on TRiC and the latter to the function of PFD in retrieving actin for TRiC re-binding (Fig. 5b). Given that overall actin folding takes around 50 s (ref. ⁴²), individual actin molecules generally require multiple folding attempts. In each round the actin chain folds to the native (or a near-native) state with a biologically relevant probability.

This proposed mechanism for TRiC-assisted folding is supported by our analysis of the folding-defective actin(G150P) mutant (Fig. 3a–f). The dwell time of actin(G150P) on TRiC is three to four times longer than for wild-type actin (Fig. 5c). Since the frequency of PFD–TRiC interactions was reduced correspondingly, the mutant protein appears to spend more time in the TRiC-encapsulated state, which is inaccessible to PFD. Thus, there is an unexpected interdependence between client conformational properties and encapsulation time by TRiC. Actin(G150P) is thought to be impaired in a late folding step involving a relative rotation of the major domain lobes⁴⁸. Contacts of the enclosed protein with the cavity wall^6,51 may regulate the TRiC ATPase to trigger opening of the folding chamber, allowing TRiC to sense the client protein conformation. Misfolded actin(G150P) retains high affinity for TRiC until transferred to the proteasome. Mutations in abundant client proteins like actin might therefore impair proteostasis by occupying available TRiC capacity.

TRiC-mediated folding hinges on the ability of not-yet folded client proteins to return to chaperonin for repeated folding attempts—a remarkably efficient process, as indicated by the continuous cycling of mutant actin. We directly observed successive chaperonin cycles, revealing the surprising phenomenon that between binding events, TRiC and PFD may be retained in close proximity to client protein for up to around 2 s, avoiding diffusion into the bulk cytosol (Figs. 4a–f and 5d). This finding suggests a supramolecular organization of the chaperonin system, perhaps most prevalent at local translation hotspots²⁷, that generates a ‘virtual folding compartment’ through low-affinity interactions with translation machinery and/or other chaperone factors, effective under conditions of local macromolecular crowding^25,52,53. Within this environment, PFD–TRiC and TRiC–TRiC interactions may support client protein channelling for efficient folding (Fig. 5d). Identifying the mechanisms that underlie functional compartmentalization of the chaperone machinery will be important for understanding how protein folding fidelity is maintained in the crowded cellular environment.

Methods

Plasmids

To visualize co-translational interactions, plasmids encoding human β-actin, a 3×Flag tag, and 24 MS2 stem-loop repeats were constructed. The β-actin-24×MS2 (MBSV5) sequence⁵⁴ (Addgene #102718) was amplified and subcloned into pRetroQ-AcGFP-C1 (TaKaRa) via PCR amplification, replacing AcGFP1. Additionally, truncated versions, containing the first 20, 101, 168, 305 and 368 amino acids of β-actin, were generated by amplifying the respective fragment lengths and introducing a stop codon. The plasmid pUbC-NLS-ha-stdMCP-stdGFP⁵⁵, which expresses the MS2 coat protein fused to GFP (MCP–GFP), was used without modification (Addgene #98916). For imaging post-translational interactions, plasmids encoding β-actin, a 10×SunTag, a 3×Flag tag, and Xbp1u+ were designed. A synthetic β-actin gene (Uniprot P60709) was ordered from Integrated DNA Technologies (IDT) and cloned into pHRdSV40-K560-24×GCN4_v4⁴⁴ (Addgene #72229) by replacing the kinesin-1 motor domain via PCR amplification. The 24×SunTag repeats were then reduced to 10, and the Xbp1u+ sequence⁴⁵ was introduced using PCR. To generate a plasmid encoding β-actin with the G150P point mutation fused to 10×SunTag, 3×Flag tag and Xbp1u+ the Q5 Site-Directed Mutagenesis Kit (NEB) was used according to the manufacturer’s instructions. To estimate non-specific interaction of chaperone and SunTag alone, a plasmid encoding the 10×SunTag, 3×Flag tag and XBP1u+ sequence without β-actin was constructed by PCR amplification to excise the β-actin gene from the previously generated plasmid. The plasmid pHR-scFv-GCN4-sfGFP-GB1-NLS-dWPRE, which expresses an scFv against the SunTag epitope fused to sfGFP (scFv-sfGFP), was used without modification⁴⁴ (Addgene #60906). To estimate the distance between mRNA and translating polypeptides, 24×MoonTag⁵⁶ epitope was placed at the N-terminal end of β-actin-24×MS2 plasmid. Plasmids encoding MoonTag specific nanobody 2H10 were generously provided by M. Tanenbaum. To estimate coincidental collisions with TRiC, we analysed interactions between TRiC and the 500-kDa VCP (P97) complex, which has diffusion properties similar to PFD (Extended Data Fig. 6l). A plasmid encoding VCP with C-terminal HaloTag was provided by Z. Liu.

A plasmid expressing CCT4 with SNAP-tag was generated by inserting SNAP-tag in a loop region between S202 and V203, obtained from Integrated DNA Technologies and cloned into pCW57.1-MAT2A (Addgene #100521).

Cell lines

Human U-2 OS cells (ATCC, HTB-96) were grown in complete media with DMEM containing 4.5 g l⁻¹ D-glucose (Gibco), 10% fetal bovine serum (Gibco), 1% penicillin/streptomycin (Gibco) and 1% non-essential amino acids (Gibco) at 37 °C and 5% CO₂. Cells were either transfected with Lipofectamine 3000 (Thermo Fisher) or electroporated (Neon transfection system, Invitrogen) following the manufacturer’s instructions. Cells were regularly tested for mycoplasma contamination and no contamination was detected.

The monoclonal U-2 OS cell line expressing CCT4–HaloTag was generated using CRISPR–Cas9-mediated gene integration. A CCT4 specific single guide RNA (sgRNA) (ATCTCTAAGATCTACACTGG) was cloned into the pSpCas9(BB)-2A-Puro (PX459) vector, which encodes SpCas9 and puromycin resistance⁵⁷ (Addgene #48139). U-2 OS cells were transfected with the Cas9–sgRNA vector and a donor encoding HaloTag using Lipofectamine 3000 following the manufacturer’s instructions. Forty-eight hours after transfection, cells were selected with 1.5 µg ml⁻¹ puromycin (Gibco). Surviving cells were further labelled with a fluorescent HaloTag ligand (Promega) and sorted via fluorescence-activated cell sorting to obtain single clones. The same strategy was applied to generate PFD4–Halo and PFD4–SNAP stable cell lines using PFD4 specific sgRNA (TTCAGTTGTATGCAAAATTC).

The polyclonal U-2 OS cell line expressing RPL10A–SNAP-tag was generated using lentivirus transduction. Lentiviruses were produced and transfected as described⁵⁸. Forty-eight hours after transfection, cells were selected with puromycin (Gibco) and sorted with a fluorescent SNAP-tag ligand (NEB).

The PFD3 knockdown stable cell line was generated using a PFD3 specific sgRNA (TAAAGTGTGTCTGTGGTTGG) using CRISPR–Cas9-mediated gene deletion. U-2 OS cells were transfected with the Cas9–sgRNA vector using Lipofectamine 3000 and selected with puromycin after 48 h transfection. Cells were further sorted to isolate single clones.

Biochemical assays

SDS–PAGE and immunoblotting

Protein samples were boiled in 2× SDS Sample Buffer (Sigma-Aldrich) at 95 °C for 5 min. Equal amounts of total protein were loaded on SDS polyacrylamide gels. Proteins were separated by electrophoresis on NuPAGE 4–12% Bis-Tris Protein Gels (Thermo Fisher Scientific) using NuPAGE MOPS SDS Running Buffer (Thermo Fisher Scientific) at 120 V. Proteins were transferred from polyacrylamide gels to polyvinylidene difluoride (PVDF) membranes (Roche) in transfer buffer (25 mM Tris-HCl pH 7.5, 190 mM glycine, 0.1% SDS, 20% methanol) at a constant voltage of 100 V for 1 h. Membranes were blocked in blocking buffer (10 mM Tris-HCl pH 7.5, 150 mM NaCl, 0.05% Tween-20, 5% low-fat milk) for 1 h at room temperature. Membranes were incubated with primary antibody in blocking buffer for 1 h at room temperature or overnight at 4 °C. Immunodetection was performed using: anti-β-actin (Abcam, ab8226, 1/1,000 dilution), anti-CCT4 (Merck, HPA029349, 1/1,000 dilution), anti-DYKDDDDK Tag (Cell Signal, 2368S, 1/1,000 dilution), anti-GAPDH (Merck, MAB374, 1/1,000 dilution), anti-HaloTag (Promega, G9211, 1/1,000 dilution), anti-prefoldin 3 (Santa Cruz, sc-390524, 1/200 dilution), anti-prefoldin 4 (Thermo Fisher, 16045-1-AP, 1/300 dilution), anti-RPL10A (Abcam, ab174318, 1/1,000 dilution) anti-RPL29 (Thermo Fisher, PA5-27545, 1/1,000 dilution), anti-GCN4 (SunTag) (Addgene, 218104-rAb, 1/1,000 dilution) and anti-SNAP-tag (NEB, P9310S, 1/1,000 dilution). Blots were then washed 3 times for 10 min with blocking buffer without low-fat milk at room temperature and incubated with secondary antibody, conjugated anti-mouse immunoglobulin G (IgG)–horseradish peroxidase (HRP) (Merck, A4416, 1/10,000 dilution) or anti rabbit IgG–HRP (Merck, A9169, 1/10,000 dilution), in blocking buffer for 1 h at room temperature. Blots were washed 3 times for 10 min and developed on Amersham Image Quant 800 control software 2.1.0.3. Images were analysed and quantified in Fiji.

HaloTag pulldown

U-2 OS cells were lysed in standard lysis buffer (50 mM Tris-HCl pH 7.5, 150 mM NaCl, 5 mM MgCl₂, 0.5% IGEPAL CA-630, 20 U ml⁻¹ apyrase, 1 mM PMSF, 2 mM DTT, cOmplete Protease Inhibitor, Benzonase) on an end-over-end rotor for 30 min at 4 °C. The lysate was cleared by centrifugation at 16,000g for 20 min at 4 °C. Protein concentration was determined by Bradford assay. Halo-Trap Magnetic Agarose beads (Chromotek) were equilibrated in ice cold lysis buffer and subsequently washed 2 times with ice cold washing buffer (50 mM Tris-HCl pH 7.5, 100 mM NaCl, 2 mM MgCl₂, cOmplete Protease Inhibitor) containing 5% glycerol and 2 times in washing buffer without glycerol. Cleared lysate was added to equilibrated Halo-Trap beads and incubated for 3 h at 4 °C with vertical rotation. The beads were washed three times in washing buffer containing 5% glycerol and three times in washing buffer without glycerol. For immunoblotting the bound protein was eluted in 2× SDS Sample Buffer by boiling at 95 °C for 5 min. For mass spectrometry the bound protein was eluted and digested with Elution Buffer I (50 mM Tris-HCl pH 7.5, 2 M urea, 5 μg ml⁻¹ trypsin, 1 mM TCEP-HCl) for 30 min at 400 rpm at 30 °C. The sample was then combined with Elution Buffer II (50 mM Tris-HCl pH 7.5, 2 M Urea, 5 mM iodoacetamide) and incubated overnight at 400 rpm at 32 °C. The reaction was stopped by adding 25% trifluoroacetic acid (TFA, Merk).

Kinetics of actin transit to TRiC reflecting TRiC-mediated folding

U-2 OS cells were electroporated with plasmid encoding either actin–SunTag–Xbp1u+ or actin(G150P)–SunTag–Xbp1u+. For cells expressing actin(G150P)–SunTag–Xbp1u+, 10 µM MG-132 was added 4 h prior to the puromycin chase. Twenty-four hours after transfection, cells were pre-treated with 300 µg ml⁻¹ puromycin (Gibco) for 2.7 min. The time 0 (t = 0) sample was collected immediately after pre-treatment. The chase was performed at time points of 0.3 min, 1.3 min, 2.3 min, 3.3 min, 5.3 min and 9.3 min. Cells were washed two times with ice cold PBS supplemented with 100 µg ml⁻¹ cycloheximide (CHX) and frozen in a dry ice 2-propanol bath. Cells were lysed with 500 µl standard lysis buffer. The lysate was cleared by centrifugation at 14,000g for 20 min at 4 °C. Protein concentration was determined by Bradford assay. Anti-HaloTag pull down and sample preparation for immunoblot were performed as mentioned above. Immunoblots were analysed and quantified using Fiji. The average intensity from three replicates was plotted. Folding half-time was determined by fitting the data in SigmaPlot 14.0 using an exponential decay function: f = y0 + a × e^{−b × x}.

Cycloheximide chase

U-2 OS cells were electroporated with a plasmid encoding either actin–SunTag–Xbp1u+ or actin(G150P)–SunTag–Xbp1u+. Twenty-four hours after electroporation, cells were treated with 150 µg ml⁻¹ CHX (Sigma-Aldrich) for 0.5 h, 0.75 h, 1 h and 2 h. The time 0 (T0) sample remained untreated. Cells were collected and subsequently lysed in RIPA buffer (Thermo Fisher Scientific) supplemented with cOmplete Protease Inhibitor and Benzonase. The lysate was cleared by centrifugation at 14,000g for 20 min at 4 °C. Protein concentration was determined by Bradford assay. For further immunoblot analysis, proteins were denatured in 2× SDS Sample Buffer by boiling at 95 °C for 5 min. Immunoblots were analysed and quantified using Fiji. Degradation half-time was determined by fitting the data in SigmaPlot 14.0 using an exponential decay function mentioned above.

Preparation of DNase I Sepharose beads

Cyanogen bromide-activated Sepharose 4B beads (1 g; Sigma-Aldrich) were washed up to 10 times with 1 mM HCl. 100 mg DNase I (Roche) was dissolved in 0.1 M NaHCO₃ and 0.5 mM CaCl₂. DNase I solution was added to washed Cyanogen bromide-activated Sepharose 4B beads and incubated at 4 °C with vertical rotation overnight. Unreacted groups in the resin were blocked upon incubation with 0.2 M ethanolamine pH 8.0 and 0.5 mM CaCl₂ for 2 h at 4 °C. DNase I conjugated Sepharose 4B beads were washed with two alternating cycles of 0.1 M sodium acetate pH 4.5 and 0.1 M ethanolamine pH 8.0. Beads were stored in 10 mM Tris-HCl pH 7.4, 1 mM CaCl₂, 10% glycerol, 1 mM DTT, 0.02% NaN₃, cOmplete Protease Inhibitor at 4 °C.

DNase I pulldown

U-2 OS cells were lysed in lysis buffer (10 mM Tris-HCl pH 7.4, 1 mM CaCl₂, 1 mM DTT, 0.2 mM ATP, 0.5% Triton X-100, 1 mM PMSF, cOmplete Protease Inhibitor, Benzonase) on an end-over-end rotor for 30 min at 4 °C. Lysate was cleared by centrifugation at 16,000g for 20 min at 4 °C. Protein concentration was determined by Bradford assay. DNase I conjugated Sepharose 4B beads were equilibrated by washing 3 times with DNase I binding buffer (10 mM Tris-HCl pH 7.4, 1 mM CaCl₂, 10% glycerol, 1 mM DTT, 0.2 mM ATP, cOmplete Protease Inhibitor). Beads were centrifuged at 500g for 2 min at 4 °C and supernatant was discarded. Equilibrated DNase I conjugated Sepharose 4B beads were added to cleared lysate and incubated for 3 h at 4 °C with vertical rotation. Beads were washed once with DNase I washing buffer (10 mM Tris-HCl pH 7.4, 1 mM CaCl₂, 10% glycerol, 1 mM DTT, cOmplete Protease Inhibitor), once with DNase I washing buffer supplemented with 0.3 M NaCl, and twice with DNase I washing buffer. For immunoblotting the bound protein was eluted in 2× SDS Sample Buffer by boiling at 95 °C for 5 min.

Ribosome isolation

U-2 OS cells were lysed in standard lysis buffer on an end-over-end rotor for 30 min at 4 °C. Lysate was cleared by centrifugation at 15,000g for 15 min at 4 °C to remove large debris. Pre-cleared lysate was further centrifuged at 330,000g for 1 h at 4 °C in a SW 55 Ti rotor (Beckman Coulter) to pellet ribosomes. The supernatant and pellet fractions were used for immunoblot analysis.

Polysome gradient analysis

Cells were treated with 100 µg ml⁻¹ CHX and subsequently lysed in lysis buffer (5 mM Tris-HCl pH 7.4, 1.5 mM NaCl, 2.5 mM MgCl₂, 1 mM DTT, 0.5% Triton X-100, 0.5% sodium deoxylate, 100 µg ml⁻¹ CHX, 100 U ml⁻¹ SUPERase*In, cOmplete Protease Inhibitor, Benzonase). The RNA concentration of the pre-cleared lysate was determined by measuring absorbance at 260 nm, and a total RNA amount of 300 µg was loaded onto the gradients. Sucrose density gradients (10%–45%) were prepared in SW41 ultracentrifuge tubes (Steton) using a BioComp Gradient Master (BioComp Instruments) according to the manufacturer’s instructions. The individual 10% and 45% sucrose solutions were prepared in polysome buffer (25 mM Tris-HCl pH 7.4, 150 mM NaCl, 15 mM MgCl₂, 1 mM DTT, 100 µg ml⁻¹ CHX, cOmplete Protease Inhibitor). The gradients were centrifuged for 2.5 h at 40,000 rpm in a SW 41 Ti rotor (Beckman Coulter) at 4 °C. Polysome profiles were obtained using the Triax Flow Cell Firmware v.2.30.4.211. The gradients were fractionated using a piston gradient fractionator coupled to an A254 nm spectrophotometer (Biocomp). Polysome fractions were precipitated with 10% trichloroacetate and protein precipitates were washed with ice cold acetone. For immunoblotting the proteins were denatured in 2x SDS Sample Buffer by boiling at 95 °C for 5 min.

Solubility assay

U-2 OS cells were electroporated with a plasmid encoding either actin–SunTag–Xbp1u+ or actin(G150P)–SunTag–Xbp1u+. Twenty-four hours after electroporation cells were washed twice with ice cold PBS and lysed in RIPA buffer supplemented with cOmplete Protease Inhibitor and Benzonase. Protein concentration was determined by Bradford assay. The sample was divided into a total fraction and a fraction subjected to centrifugation at 20,000g for 20 min at 4 °C (pellet). The supernatant was transferred to a fresh tube, while the pellet was washed with RIPA buffer supplemented with cOmplete Protease Inhibitor and Benzonase, then centrifuged again under the same conditions. The total and supernatant fractions were denatured in 2× SDS Sample Buffer, while the pellet fraction was denatured in 1× SDS Sample Buffer by boiling at 95 °C for 5 min. Fractions were analysed by immunoblotting.

Single-molecule tracking in live cells

Fluorescence microscopy

Two-colour simultaneous imaging was performed on a Zeiss Elyra PS.1 inverted super-resolution microscope equipped with two Andor iXonEM+ DU-897D EM-CCD cameras and a custom-built image splitter with motorized xyz–rotation adjustment. Camera alignment was automatically performed with a built-in alignment pattern. All images were acquired using ZEN black 2.1 SP3 software using Zeiss alpha Plan-Apochromat 100×/1,46 Oil DIC oil immersion objective in TIRF (total internal reflection fluorescence) mode. The TIRF angle was set between 63° and 65°. The two fluorescence channels were acquired in parallel with the two cameras. Each time series consisted of 500 frames with 50 ms exposure time. During imaging, cells were incubated in a Tokai Hit stage-top incubator at 37 °C and 5% CO₂.

Sparse labelling

Cells used for imaging were cultured in a glass-bottom dish (Ibidi, µ-Dish 35 mm, high glass bottom). Before labelling, cells were washed with Hanks’ Balanced Salt Solution (HBSS, Gibco, 14025092) and incubated with fresh culture media. Janelia Fluor (JF) HaloTag ligands (Promega) and SNAP-tag ligand TF-TMR dye (provided by K. Johnsson)³⁴ were dissolved in DMSO to prepare stock solutions. Fluorescent ligands were added to the cells and incubated for 20–30 min. Excess dye was washed out by rinsing the cells three times with HBSS. Cells were incubated with fresh media for at least 5 min and washed again before imaging.

SPT and colocalization analysis

Tracking of individual particles was performed in Fiji⁵⁹ with the plugin TrackMate⁶⁰. Particles in each frame were detected using the Laplacian of Gaussian detector. Multiple trajectories were then determined from the detected particles using the simple linear assignment problem (LAP) tracker. The linking max distance, gap-closing max distance, and gap-closing max frame gap parameters were set to 0.5 µm, 0.5 µm and 0 frames, respectively. Trajectories detected in the two channels were analysed to identify colocalization events using KNIME as described⁶¹. Pairwise colocalization analysis was performed by measuring the distances from each molecule in the first channel to all the molecules in the second channel. Molecule pairs were classified as co-localization if their distance was less than 500 nm. Tracks with co-localized molecules that persisted for more than 500 ms were used to analyse the interaction lifetime between chaperones and substrates. A 500 ms threshold was applied to exclude short-lived contacts, which are dominated by non-specific encounters and obscure the detection of condition-specific differences, thereby enriching for biologically meaningful interactions. Mean square displacement was used to determine the diffusion coefficient of each track.

Statistical analysis of lifetime and interaction events

Welch’s ANOVA test was used for statistical comparison of measured lifetimes across more than two groups. This test is suitable for datasets that are not normally distributed and have unequal sample sizes, provided that each group contains more than 15 observations^62,63. For comparison of two groups, the non-parametric Mann–Whitney U-test was applied. When comparing interaction events across more than two groups, a one-way ANOVA followed by Tukey’s post hoc test was used if a significant overall difference was detected (hereafter referred to as ANOVA).

Kinetic modelling of chaperone–substrate interactions

The interaction lifetime between chaperone and substrates was calculated from the duration of their co-movement events. To resolve distinct kinetic components, we fitted the 1 − CDF of the interaction lifetimes using a constrained nonlinear least-squares fit. Two kinetic models were evaluated: a single-component model ($F(t)={{\rm{e}}}^{-t/\tau }$) and a two-component model ($F(t)=\alpha {{\rm{e}}}^{-t/{\tau }_{1}}+(1-\alpha ){{\rm{e}}}^{-t/{\tau }_{2}}$). In the two-component model, τ₁ and τ₂ represent the lifetime of each component, and α and 1 − α are their respective fractions. The two-component model was only accepted if it showed both higher coefficient of determination (R²) than the single-component model and a statistically significant second population (α > 5%).

Fraction of fluorescently labelled molecules

To estimate the percentage of labelled Halo-tagged protein at certain concentrations of fluorescent ligand, cells were incubated with Halo ligand JF646 dye (Promega) at the following concentrations: 100 nM, 150 nM, 250 nM and 500 nM for cells expressing TRiC–Halo and 2 nM, 10 nM, 100 nM and 250 nM for cells expressing PFD–Halo. Images were acquired using a fluorescence microscope. Average fluorescence intensity was quantified at different dye concentrations. The highest dye concentrations corresponding to the plateau of normalized fluorescence intensity (250 nM for PFD–Halo and 500 nM for TRiC–Halo), as well as concentrations 2-fold higher (500 nM for PFD–Halo and 1 µM for TRiC–Halo), were used for in-gel fluorescence analysis. These samples were compared to those labelled with the dye concentrations used for SPT (800 pM for PFD–Halo and 50 pM for TRiC–Halo). Cells treated in same way were lysed in RIPA buffer supplemented with cOmplete Protease Inhibitor and Benzonase, and proteins were separated by SDS–PAGE as previously described. To minimize quantification bias, fivefold less total protein was loaded for lysates from samples labelled at saturated dye concentrations compared to those used for SPT. Fluorescence signals were detected using an Amersham Typhoon Biomolecular Imager and quantified with Fiji. Coomassie staining was performed as a loading control (Extended Data Fig. 1k).

Mass spectrometry

Sample preparation for total proteome analysis

Cell pellets were resuspended in 400 µl of SDC buffer containing 1% sodium deoxycholate (SDC; Sigma-Aldrich), 40 mM 2-chloroacetamide (Sigma-Aldrich), 10 mM tris(2-carboxyethyl)phosphine (TCEP, Thermo Fisher Scientific), and 100 mM Tris, pH 8.0. After incubation for 5 min at 95 °C, the samples were ultrasonicated for 10 min using 10 cycles of 30 s at high intensity with a 30 s pause between cycles (Bioruptor, Diagenode). The incubation and ultrasonication steps were repeated once more. The samples were then diluted 1:1 with MS-grade water (VWR), and proteins were digested with 1 µg Lys-C (Wako) for 4 h at 37 °C, followed by an overnight digestion at 37 °C with 2 µg trypsin (Promega). The resulting peptide solution was acidified with TFA to a final concentration of 1%, and then desalted using SCX-stage tips.

Liquid chromatography–mass spectrometry data acquisition

Liquid chromatography–mass spectrometry analysis was performed using an Easy-nLC 1200 (Thermo Fisher Scientific) nanoflow system coupled with a QExactive HF mass spectrometer (Thermo Fisher Scientific). Chromatographic separation was achieved on a 30-cm column (inner diameter: 75 µm; packed in-house with ReproSil-Pur C18-AQ 1.9 µm beads, Dr. Maisch GmbH). Peptides were injected onto the column in buffer A (0.1% (v/v) formic acid), with the column heated to 60 °C. Peptides were eluted at a flow rate of 250 nl min⁻¹ using a gradient from 2% to 30% buffer B (80% acetonitrile, 0.1% formic acid) over 120 min (QExactive HF), followed by a ramp to 60% over 10 min, then to 95% over the next 5 min, which was maintained for another 5 min to measure the total proteome. For immunoprecipitation measurements, peptides were eluted using a gradient from 7% to 30% buffer B over 60 min, followed by an increase to 60% over 15 min, then to 95% over the next 5 min, and maintained at 95% for an additional 5 min. The QExactive HF mass spectrometer was operated in data-dependent mode, with survey scans acquired over the m/z range of 300–1,650 at a resolution of 60,000 at m/z = 200. Up to 10 of the top precursors were selected and fragmented using higher-energy collisional dissociation (HCD) with a normalized collision energy of 30. The AGC target for MS and MS2 scans were set to 3E6 and 1E5, respectively, with maximum injection times of 100 ms for MS and 60 ms for MS2. Dynamic exclusion was set to 30 s.

Mass spectrometry data analysis

Raw data were processed using the MaxQuant computational platform (v.2.2.0.0) with default settings. The peak list was searched against the human proteome database (UniProt: SwissProt and TrEMBL) as well as protein sequences of interest, with an allowed precursor mass deviation of 4.5 ppm and an allowed fragment mass deviation of 20 ppm. The default setting for individual peptide mass tolerances in MaxQuant was used in the search. Cysteine carbamidomethylation was set as a static modification, while methionine oxidation, N-terminal acetylation, deamidation on asparagine and glutamine, and phosphorylation on serine, threonine, and tyrosine were set as variable modifications. Protein quantification across samples was performed using the label-free quantification (LFQ) algorithm in MaxQuant, and iBAQ (intensity-based absolute quantification) values were calculated for each protein.

Selective ribosome profiling

Preparation of ribosome fractions for selective ribosome profiling

Cells were treated with 100 µg ml⁻¹ CHX for 1 min at 37 °C before collection. Cells were washed two times with PBS containing Ca²⁺/Mg²⁺ and incubated with 2 mM DSP (dithiobis(succinimidyl propionate)) for 30 min at room temperature for crosslinking. DSP solution was removed and incubated with quenching buffer (20 mM Tris-HCl pH 7.5, 300 mM glycine) for 15 min at room temperature. Cells were washed 2 times with ice cold PBS containing Ca²⁺/Mg²⁺ and lysed in lysis buffer (20 mM HEPES, 150 mM NaCl, 5 mM MgCl₂, 1% IGEPAL CA-630, 20 U ml⁻¹ apyrase, 1 mM PMSF, 2 mM DTT, 100 µg ml⁻¹ CHX, cOmplete Protease Inhibitor, benzonase) on an end-over-end rotor for 30 min at 4 °C. Lysate was digested with 500 U per 1 mg RNase I (Lucigen) at 4 °C for 1 h. Ribosome pellets were isolated using a 25% sucrose cushion prepared in lysis buffer without IGEPAL CA-630 and supplemented with 20 U ml⁻¹ SUPERase*In (Invitrogen). Samples were centrifuged at 55,000 rpm in a SW 55 Ti rotor (Beckman Coulter) for 1 h at 4 °C. Pellets were resuspended in lysis buffer and used for anti-HaloTag pull down. Samples of the total RNA from the ribosome pellets were resuspended in TRIzol reagent (Invitrogen). HaloTag pull down was performed as described above. RPFs were recovered and libraries were prepared as described³⁶. Libraries were excised from an 8% TBE polyacrylamide gel and sequenced on an Illumina NextSeq 500 or NovaSeq 6000 system.

Ribosome profiling data analysis

Data were analysed as previously described⁶⁴. In brief, reads were trimmed and demultiplexed using an awk script. The UMI were extracted using umi-tools with the flag ‘--extract-method=regex --bc-pattern = “ ˆ(?P$”’, which serves to remove duplicated reads arising from PCR amplification. The remaining reads were mapped against a non-coding RNA library, including rRNA using Bowtie2 (v.2.4.2) with the parameters ‘-N 1 -L 15’. The remaining unaligned reads were mapped against the human genome (hg38) using STAR (v.2.7.10a) with parameters ‘--outFilterMismatchNmax 2 --quantMode TranscriptomeSAM GeneCounts --outSAMattributes MD NH --outFilterMultimapNmax 1’. P-site offsets were calculated using the R-package riboWaltz. Co-translational interactions of TRiC and PFD were identified as described previously¹⁷. In summary, genes were filtered with a coverage below an average of 0.5 reads per codon. Then, positional enrichments were calculated using a two-tailed Fisher’s exact test to compare TRiC–PFD enriched ribosome–nascent chain complexes to input fractions at each position along the coding sequence. This process yielded an enrichment score, defined as an odds ratio, which compared the expected ratio at a given position to the actual observed ratio. A Benjamini–Hochberg correction was applied to test for significance at each position. Interactions were considered valid when an enrichment was observed for at least five codons and the adjusted P value was below 0.05. For plotting binding profiles of chaperones with individual transcripts, one read was added at each position prior to the calculation of the odds ratio in order to avoid division by zero.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The mass spectrometry proteomics data generated in this study have been deposited in the ProteomeXchange Consortium via the PRIDE partner repository under the accession number PXD066622. Selective ribosome profiling data for TRiC and PFD have been deposited in the Gene Expression Omnibus (GEO) under accession number GSE304022. Source data are provided with this paper.

Code availability

MATLAB and KNIME scripts used for SPT analysis are available from Zenodo at https://doi.org/10.5281/zenodo.16569197 (ref. ⁶⁵).
