Precancerous niche remodelling dictates nascent tumour persistence

Skrupskelyte, G.; Rojo Arias, J. E.; Ajith, H.; Dang, Y.; Rossetti, D.; Han, S.; Tang, M. K. S.; Bejar, M. T.; Colom, B.; Fowler, J. C.; Murai, K.; Knight, W.; Aust, D.; Schmidt, M. H. H.; Jászai, J.; Zeki, S.; Noorani, A.; Jones, P. H.; Rulands, S.; Simons, B. D.; Alcolea, M. P.

doi:10.1038/s41586-026-10157-8

Download PDF

Article
Open access
Published: 04 March 2026

Precancerous niche remodelling dictates nascent tumour persistence

Nature (2026)Cite this article

39k Accesses
184 Altmetric
Metrics details

Subjects

Abstract

Interactions between mutant cells and their environment have a key role in determining cancer susceptibility^1,2,3. However, understanding of how the precancerous microenvironment contributes to early tumorigenesis remains limited. Here we show that newly emerging tumours at their most incipient stages shape their microenvironment in a critical process that determines their survival. Analysis of nascent squamous tumours in the upper gastrointestinal tract of the mouse reveals that the stress response of early tumour cells instructs the underlying mesenchyme to form a supportive ‘precancerous niche’, which dictates the long-term outcome of epithelial lesions. Stimulated fibroblasts beneath emerging tumours activate a wound-healing response that triggers a marked remodelling of the underlying extracellular matrix, resulting in the formation of a fibronectin-rich stromal scaffold that promotes tumour growth. Functional heterotypic 3D culture assays and in vivo grafting experiments, combining carcinogen-free healthy epithelium and tumour-derived stroma, demonstrate that the precancerous niche alone is sufficient to confer tumour properties to normal epithelial cells. We propose a model in which both mutations and the stromal response to genetic stress together define the likelihood of early tumours to persist and progress towards more advanced disease stages.

Mutant clones in normal epithelium outcompete and eliminate emerging tumours

Article 13 October 2021

Integrating spatial and single-cell transcriptomics reveals tumor heterogeneity and intercellular networks in colorectal cancer

Article Open access 10 May 2024

Cancer-associated fibroblasts shape the formation of budding cancer cells at the invasive front of human colorectal cancer

Article Open access 16 September 2025

Main

Groundbreaking studies in human genomics over the past decade have revealed that our healthy tissues accumulate cancer-associated mutations with age^4,5,6,7,8. These observations highlight new levels of complexity in the early pathophysiology of cancer, raising the question of what other factors, beyond cancer mutations, may have a role during early carcinogenesis.

Models of early tumours spanning a range of epithelial tissues, including oesophagus, skin and intestine, have started to offer a clearer understanding of what drives tumour initiation^{1,2,3,9,10,11}. Work in this area has shown that tumour formation represents more than the mere accumulation of genetic alterations, highlighting the important role of environmental cues and non-genetic mechanisms in this process^{3,12,13,14,15}. Indeed, mounting evidence indicates that the predisposition of a mutated epithelium to develop tumoral lesions depends on complex interactions between mutant cells and their dynamic surroundings. Coexisting mutant clones could either synergize or compete, contributing to early tumour initiation^16,17. Indeed, even after tumours have formed, the presence of neighbouring mutant clones can continue to influence tumorigenesis¹. Alternative environmental cues, such as the stiffness of the extracellular matrix (ECM)^3,13, as well as direct cell–cell communication between mutant cells and non-mutant cells^2,9,10,11,14, have also been shown to affect the expansion of mutant clones, susceptibility to tumour initiation and invasion^18,19,20. Despite this, understanding of the mechanisms by which environmental factors determine the formation and long-term persistence of emerging tumours remains limited.

Previous studies using an oesophageal early-tumour model demonstrated that not all nascent tumours have the same chance of survival. Most tumours are cleared from the tissue soon after formation by competition with neighbouring mutant clones. Surviving tumours instead persist long term, becoming susceptible to cancer progression¹. But a key question remains: how are precancerous tumours able to withstand the competitive mutant environment that surrounds them? Understanding the processes underlying early tumour persistence and the relevance of the microenvironment at pre-neoplastic stages provides a critical opportunity to dissect the mechanisms driving precancer progression, opening new avenues to halt cancer in its tracks. Here we combine single-cell RNA sequencing with lineage tracing and 3D heterotypic cultures to study the unique features of the few nascent tumours that escape the existing protective barriers preventing tumorigenesis. We demonstrate that, during the earliest stages of tumour development, fibroblasts react to the pre-neoplastic epithelium by promoting the formation of a fibrotic precancer niche that, in turn, feeds back on the epithelium favouring early tumour growth and survival.

Precancerous tumour persistence

To study the processes that underlie the persistence of pre-neoplastic nascent tumours, we used a well-established, clinically relevant mouse model of upper gastrointestinal tract (including oesophagus and forestomach) tumorigenesis driven by a mutagen found in tobacco smoke (diethyl-nitrosamine (DEN))^1,21 (Extended Data Fig. 1a–j). After DEN treatment, the tissue becomes an evolving patchwork of mutant clones competing for space and survival, recapitulating the complex mutational landscape of the normal human ageing oesophagus²². This results in the emergence of pre-neoplastic squamous tumours with the potential to persist long-term (Extended Data Fig. 1a–c).

Nascent epithelial tumours, marked by KRT17 (keratin 6A (KRT6A) and keratin 17)¹, can be detected in tissue whole-mounts from their most incipient stages, from as early as 10 days after DEN treatment (Extended Data Fig. 1d–e). The emerging tumours are microscopic, containing as few as 10 cells, and are characterized by their distinctive rosette-like structure^1,21 (Extended Data Fig. 1d,f). This brief window of formation is followed by a tumour-clearing process, in which more than one-third of the initial tumours are progressively eliminated¹. The surviving tumours can persist in the tissue for more than a year, largely as low-grade dysplasia (pre-neoplastic or precancer stages), with sporadic progression to invasive squamous cell carcinomas¹ (Extended Data Fig. 1c,g,h), mimicking human carcinogenesis²³. As a result, only a subset of the original tumours survive long term, enabling us to study the mechanisms that modulate precancerous tumour persistence.

To understand what drives early tumour survival, we first set out to compare the phenotypic traits of nascent tumours and those persisting long term (10 days and more than 8 months, respectively, after DEN treatment; Fig. 1a). Histological analysis showed that persistent dysplastic tumours (Extended Data Fig. 1h) were characterized by a prominent stromal remodelling (Fig. 1b). These nest-like structures were formed by stromal fibroblasts (PDGFRα⁺) that protruded towards the epithelial compartment, seemingly enclosing early tumours to create a supportive scaffold or a ‘precancerous niche’ (Fig. 1b,c). Unlike in persisting tumours, at nascent stages, most epithelial lesions (around 70%; 199 of 296) showed no apparent stromal reorganization (Fig. 1c, d), denoting the existence of two phenotypically different nascent tumour subtypes, referred to here as Niche+ and Niche− (Fig. 1c).

**Fig. 1: Precancerous niche remodelling is linked to long-term tumour persistence.**

Next, we assessed the dynamic nature of these two nascent tumour subtypes. We found that the number of Niche+ tumours, despite constituting the minority of all initial tumours, remained constant over time, whereas the number of Niche– tumours decreased markedly (Extended Data Fig. 2a). As a result, the tissue became progressively enriched in Niche+ tumours, with most (around 82%; 65 of 79) showing a supportive stromal scaffold by 8 months following DEN treatment (Fig. 1d). This enrichment in Niche+ tumours prompted us to explore whether stromal remodelling was associated with nascent tumour persistence. We found that Niche+ lesions were hyperproliferative and were more likely to persist and enlarge than Niche– tumours were (Fig. 1e–g and Extended Data Fig. 2b–f). Close analysis revealed that keratinocytes in contact with the niche showed a particularly high proliferative activity (Extended Data Fig. 2e), indicating active epithelial–stromal communication at precancerous stages. These results were further reinforced by observations in the squamous forestomach, where long-term pre-neoplastic tumours also exhibited a remodelled stromal niche (Extended Data Fig. 2g,h).

Collectively, our data support a model in which the remodelled stromal scaffold acts as a ‘precancerous niche’ promoting tumour growth and survival. These observations link stromal remodelling in nascent tumours with pre-neoplastic tumour progression.

Niche signals drive tumour traits

The importance of the precancerous niche during early tumorigenesis became evident in 3D heterotypic cultures. These cocultures revealed that signals from the early tumour stroma are sufficient to confer tumour features to epithelial cells that had never been exposed to carcinogens²⁴ (Extended Data Fig. 2i–l). Using reporter mouse lines to track the tissue origin, we found that untreated phenotypically normal epithelium directly exposed to the denuded tumour niche (lacking the epithelial compartment) acquired a tumour-like morphology and became highly proliferative, reaching levels similar to those of early tumours in vivo (Extended Data Fig. 2k,l).

Moreover, heterotypic tissue constructs grafted into immune-deficient NOD-SCID-γ mice (NSG; NOD.Cg-Prkdc^scid Il2rg^tm1Wjl/SzJ) showed that the pro-survival phenotype conferred by the tumour niche was also observed in vivo. Normal epithelial cells were more likely to engraft long term when exposed to early tumour stromal signals (Extended Data Fig. 2m–o).

Overall, these results demonstrate that the early tumour microenvironment promotes epithelial cell growth, favouring precancerous tumour survival and, ultimately, disease progression.

Local fibroblasts form nascent tumour niche

Given the key role of the niche in nascent tumour survival, we next explored its cellular composition.

Under normal conditions, the squamous upper gastrointestinal tract is characterized by three distinct layers of stromal tissue: the lamina propria, a thin loose connective tissue directly beneath the epithelium; the muscularis mucosae, a layer of smooth muscle cells; and the submucosae, a dense irregular lower stromal compartment²⁵ (Extended Data Fig. 3a–d). In line with observations in other epithelial tissues^26,27, immunofluorescence analysis revealed two fibroblast populations that showed distinctive tissue compartmentalization and morphology and different expression levels of the pan-fibroblast marker PDGFRα (Extended Data Fig. 3b–d). PDGFRα^low fibroblasts resided in the upper stroma (the lamina propria), whereas PDGFRα^high fibroblasts populated the deepest stromal layer (the submucosae; Extended Data Fig. 3c,d). Histological analysis of emerging tumours revealed that the main cellular component of the precancerous niche was PDGFRα^low fibroblasts, phenotypically indistinguishable from neighbouring lamina propria fibroblasts (Fig. 2a). Further characterization showed that endothelial and immune cells were largely absent from the niche in nascent tumours (10 days after DEN treatment; Fig. 2b,c).

Fig. 2: The early tumour niche is formed by a PDGFRαlow fibroblast population. — **Fig. 2: The early tumour niche is formed by a PDGFRα^low fibroblast population.**

Since the role of cancer-associated fibroblasts (CAFs) in tumorigenesis, drug resistance and disease progression is well recognized^28,29, we next assessed whether niche-forming fibroblasts exhibited CAF features. Except for the nuclear localization of YAP (active YAP, aYAP; Extended Data Fig. 3e), the expression of CAF markers, such as fibroblast activation protein (FAP) and α-smooth muscle actin (α-SMA), was not detectable in 10-day tumour fibroblasts (Extended Data Fig. 3f). We conclude that, although Niche+ fibroblasts in incipient tumours lack a full CAF phenotype, their aYAP status is consistent with a pre-CAF transitional state in the nascent tumour niche³⁰.

Another important stromal contributor to tumorigenesis and cancer progression is the immune compartment³¹. Immune-cell characterization of Niche+ and Niche– tumours, however, did not show significant differences (Fig. 2b,c and Extended Data Fig. 3g). Accordingly, the emergence and persistence of Niche+ and Niche− tumours remained unaltered in immune-deficient mice (NSG; Extended Data Fig. 3h–l). These results indicate that immune cells do not discriminate between nascent Niche+ and Niche− tumours, acting as bystanders in early tumour persistence.

Precancerous stromal reorganization

To better understand the contribution of stromal fibroblast to tumour niche formation, we used an unbiased genetic lineage-tracing approach to target fibroblasts. Sporadic confetti labelling of fibroblasts, across the lamina propria and submucosae compartments, was induced in Col1a2-Cre^ER;R26^{FlConfetti/WT} mice followed by DEN treatment (Fig. 2d and Extended Data Fig. 4a–d). To trace the origin of the tumour ‘niche’, recombination of the confetti cassette was induced before DEN treatment (Fig. 2d). Analysis of confetti clones 6 months after DEN treatment showed that fibroblasts in the niche underwent clonal expansion (Fig. 2e, Extended Data Fig. 4e–i and Supplementary Table 1). Immunostaining further revealed that clones in the niche were formed by lamina propria PDGFRα^low fibroblasts (Fig. 3e,f and Extended Data Fig. 4e).

**Fig. 3: Nascent tumour heterogeneity in the epithelial compartment is linked to stromal remodelling.**

To confirm this, we traced the PDGFRα^low and PDGFRα^high fibroblast populations separately in Pdgfra-Cre^ER;R26^{FlConfetti/WT} mice (Extended Data Fig. 4j–o). We reasoned that differential PDGFRα expression levels would enable us to control the level of recombination in the lamina propria and submucosae. Paradoxically, the PDGFRα^low fibroblast population showed a markedly higher recombination efficiency, with negligible recombination detected in the lower PDGFRα^high compartment (Extended Data Fig. 4j–m), potentially owing to different tamoxifen accessibility between stromal layers³².

The distinctive recombination efficiency enabled us to trace PDGFRα^low fibroblasts at early tumour stages (6 weeks after DEN treatment) to explore their contribution to the niche-formation process (Extended Data Fig. 4n,o). We observed that the early tumour niche was composed of PDGFRα^low-derived fibroblast clones that expanded locally in the upper stromal compartment. No clonal expansion events were found in the lower stroma (PDGFRα^high compartment) or spanning across stromal compartments (Extended Data Fig. 4o).

Overall, these observations demonstrate that local PDGFRα^low fibroblasts in the lamina propria not only maintain, but also contribute to, the formation of the pre-neoplastic tumour niche.

Pro-fibrotic PDGFRα^low niche fibroblasts

To determine the mechanisms underlying the formation of the precancerous niche, we set out to study epithelial–mesenchymal communication. Single-cell RNA sequencing (scRNA-seq) was done in individually micro-dissected dysplastic tumours of the squamous upper gastrointestinal tract 8 months after DEN treatment (Fig. 3a,b, Extended Data Fig. 5a–f and Supplementary Tables 2 and 3).

The transcriptional profile of pre-neoplastic tumour cells was compared with that of cells from adjacent tumour-free areas in DEN-treated mice (internal control), and with that of cells from healthy untreated control animals (Extended Data Fig. 5g).

In line with our histological and lineage-tracing characterization (Fig. 2 and Extended Data Figs. 3c,d and 4), the scRNA-seq analysis revealed a marked degree of heterogeneity in the expression of the fibroblast marker Pdgfra (Fig. 3c). Distinctive Pdgfra^low and Pdgfra^high fibroblast populations were present across conditions (Supplementary Table 5). Pdgfra^low fibroblasts expressed higher levels of genes encoding structural (scaffolding matrix) ECM components (such as Fn1, Fbn1, Has1, Has2, Loxl2, Mfap5, Cd248 and Col1a1)³³ common in loose connective tissue. Pdgfra^high fibroblasts instead showed an enrichment of genes encoding ECM fibrillar (underlying matrix) collagens (Col6a3 and Col5a3), vascular support collagens (such as Col4a1/2, Col8a1, Col15a1 and Col13a1) and other basement-membrane components³³ (such as Lama1 and Thbs1/2; Fig. 3d, Extended Data Fig. 6a–c and Supplementary Table 6). Accordingly, immunolabelling of Pdgfra-derived clones (Extended Data Fig. 4j) in the lamina propria and submucosae, respectively, revealed increased fibronectin production in the Pdgfra^low fibroblast compartment (Extended Data Fig. 6d).

We then investigated the tumour-specific transcriptional signature of the Pdgfra^low niche-forming fibroblasts. Fibroblasts in cluster 19 (C19), enriched in pre-neoplastic tumour stroma (Extended Data Fig. 6e), showed a significant upregulation of matrisome genes associated with wound healing/fibrosis^9,34 (matrix deposition: Fn1, Fbln5, Tnxb, Cd248, Vim, Plaur, Mfap5; thrombospondins: Thbs1, Thbs3; collagens: Col3a1, Col1a1/2, Col5a3; remodelling: Timp1, Adam9, Loxl1; other factors: Fgfr2, Bmp1, Bmp6, Cx3cr1; Extended Data Fig. 6f and Supplementary Tables 7 and 8). The pro-fibrotic nature of these niche fibroblasts was supported by immunolabelling of both nascent and surviving tumours (Fig. 3e and Extended Data Fig. 6g), as well as by second-harmonic generation (SHG) imaging, which showed a marked ECM remodelling in the tumour niche (Extended Data Fig. 6h–j). Accordingly, alterations in integrin α6 (CD49f) expression in nascent epithelial tumour cells hinted at ‘wound healing-like’ changes in epithelial–ECM interactions³⁵ (Extended Data Fig. 6k). Together, these findings pointed at the activation of a tissue repair response in the stroma of early tumours, in line with the long-standing notion that tumours are “wounds that do not heal”³⁶.

We next explored whether niche-forming fibroblasts (C19) in long-term surviving tumours presented a CAF signature. Despite a subtle upregulation of a reduced subset of CAF-associated genes^{12,28,37,38,39} (Vim, S100a4, Mfap5 and Col1a2; Extended Data Fig. 6l–n), their expression at the protein level (VIM, FSP and FAP) remained largely unaltered or undetectable (Extended Data Fig. 6o). Accordingly, fibroblast proliferation did not show significant changes²⁸ (Extended Data Fig. 6p). These observations indicate that Niche+ fibroblasts in surviving dysplastic tumours lack a fully established CAF phenotype. However, the presence of nuclear YAP and the profibrotic nature of Niche+ fibroblasts point to a pre-CAF state³⁰ (Extended Data Fig. 3e), transitioning to myCAFs at more advanced stages (invasive squamous cell carcinomas 14 months after treatment; Extended Data Fig. 6q). Label-transfer analysis from the fibroblast atlas in ref. ⁴⁰ indicated that tumour niche fibroblasts probably derive from universal, rather than tissue-specific, fibroblast populations. Pdgfra^low fibroblasts, including tumour-enriched cluster 19, partly recapitulated the transcriptional signature of the Pi16⁺ universal population, whereas Pdgfra^high fibroblasts aligned with the Col15a1⁺ universal fibroblast subset (Extended Data Fig. 6r,s).

To assess whether stromal genetic alterations drive the tumour niche phenotype, we performed deep-targeted sequencing of 192 cancer-related genes²² (Supplementary Table 9). The results argued against somatic mutations in fibroblasts being responsible for precancerous niche formation. The data revealed that DEN treatment induces gene perturbations, mainly in the epithelial compartment, showing a minimal mutational burden in the tumour stroma that matched the level of untreated or internal DEN control samples (Extended Data Fig. 7a,b).

In contrast to nascent stages (Fig. 2b,c), we found that, as tumours progressed, they showed a marked remodelling of the vascular network and an increased immune infiltrate (Extended Data Fig. 7c,d). In line with previous findings, transcriptional analysis revealed notable changes in the immune-cell composition in long-term surviving tumours, indicative of active immune-cell recruitment with progression towards an immunosuppressive microenvironment at later stages⁴¹ (Extended Data Fig. 7e–h and Supplementary Table 10).

Taken together, our data reveal a significant stromal reorganization in surviving tumours. Analysis of lamina propria-derived Pdgfra^low fibroblasts was consistent with a notable fibrotic ECM remodelling in the precancerous niche, before the emergence of a fully established CAF phenotype.

Nascent tumour heterogeneity

Next, we explored the epithelial transition from healthy and normal to pre-neoplastic states. Pseudotime analysis revealed two distinctive basal cell trajectories denoting tumour and non-tumour states. These trajectories largely converged in committed and differentiating cells (Fig. 3f and Extended Data Fig. 8a–f). Gene score enrichment analysis of tumour-specific gene modules identified by pseudotime analysis revealed further heterogeneity in epithelial tumour states, referred to as Tumour 1 and Tumour 12 (Fig. 3f, Extended Data Fig. 8d–h and Supplementary Tables 11–13), that expressed increased levels of the early tumour markers Krt6a and Krt17 (refs. ^1,21) (Extended Data Fig. 8i).

Gene set enrichment analysis revealed a unique signature in Tumour 12 cells (Extended Data Fig. 8j,k), enriched for genes related to cancer-associated processes such as tissue development and morphogenesis (Cdh1, Cdh4, Sox4, Klf4, Sox9 and Foxa1), hypoxia (Hmox1, Vegfa, Edn1, Cited2 and Sirt1) and stress-induced pathways, including EGFR (Areg, Hbegf, Nrg1, Nrg2, Egfr, Epha2 (ref. ⁴²) and Lamc2 (ref. ⁴³)), Hippo, TNF, p53 and TGF-β (Tead1, Tnfaip3, Nfkbia, Ccng2, Rela, Nfkb1, Ptgs2, Gadd45a, Cdkn1a and Id1-4) (Extended Data Fig. 8k and Supplementary Table 14). This was reinforced by increased levels of genes encoding transcription factors associated with a tumour stress response (Jun, Fos, Fosb, Runx1, Atf3, Egr1, Egr3 and Myc)^{41,44,45,46,47,48} (Extended Data Fig. 8l). Crucially, validation at the protein level further supported the heterogenous nature of the epithelial cells populating nascent early tumours, with Tumour 12 markers staining only a subset of tumour cells (Fig. 3g and Extended Data Fig. 8m,n).

Further expression changes in Tumour 12 comprised the upregulation of genes associated with stromal communication, including cell adhesion (Col12a1, Itgav, Itga2, Itgb6, Lama3, Vcl, Cadm1, Icam1 and Runx1 (ref. ⁴⁹)), as well as ECM breakdown (Adamst1 (ref. ⁵⁰)). Increased expression of the cell-adhesion genes Ccn1, Ccn2 (ref. ⁵¹) and Thbs1 (ref. ⁵² was of particular interest, owing to their recognized role in communication with fibroblasts (Extended Data Fig. 8l).

Since the data so far had indicated that there was close communication between Tumour 12 epithelial and stromal cells, we reasoned that Tumour 12 cells could be linked to the emergence of the tumour niche, and thereby to tumour persistence and survival. Indeed, SOX9 expression, used as a proxy to mark the Tumour 12 state (alongside KRT6A and/or KRT17 (refs. ^1,21)), was expressed mainly in early tumour cells in direct contact with the niche (Extended Data Fig. 8o), indicative of their close interaction. Accordingly, nascent Niche+ tumours showed significantly higher SOX9 expression than Niche− tumours did (Fig. 3h and Extended Data Fig. 9a–c).

To explore whether SOX9⁺ cells were associated with the formation of the pre-neoplastic tumour niche, we took advantage of sporadic clusters of KRT6A⁺ and SOX9⁺ cells in phenotypically normal (non-tumour) regions of DEN-treated tissue, potentially marking prospective tumour cells before lesion formation. Isolated SOX9⁺ cell clusters showed signs of fibroblast attraction, presenting fibroblasts in closer proximity and at a higher density than in the surrounding tissue (Fig. 3i and Extended Data Fig. 9d–f). Overall, these data establish the Tumour 12 state as a relevant player in early tumour stromal remodelling and niche formation. Accordingly, SOX9 depletion in Krt14-Cre^ER; Sox9^flox/flox DEN-treated mice (Fig. 3j and Extended Data Fig. 9g) led not only to a significant reduction in early tumour survival (1 month after DEN treatment; Fig. 3j) but also to a reduction in the size of nascent Niche+ tumours compared with that of Niche− tumours (Extended Data Fig. 9h).

Cell–cell communication in early tumours

To study epithelial–mesenchymal communication in surviving tumours, we assessed ligand–receptor interactions⁵³ enriched across coexisting cell populations in DEN-treated tissue (Fig. 4a,b and Extended Data Fig. 10a; fibroblasts: Fig. 3c and Extended Data Fig. 6e; epithelia: Fig. 3f and Extended Data Fig. 8g–k). We analysed interactions between non-tumour cells, including control keratinocytes (non-tumour Krt) and control fibroblasts (Pdgfra^low; C19 DEN Fbr used as an internal control), as well as among tumour associated cells; that is, tumour keratinocytes (Tumour 1), tumour niche keratinocytes (Tumour 12) and tumour niche fibroblasts (Pdgfra^low; C19 Tumour Fbr). Pro-fibrotic ECM-related pathways were among the top outgoing interactions predicted to preferentially signal from tumour niche fibroblasts to tumour niche keratinocytes. These pathways included laminin, collagen, fibronectin, thrombospondin and tenascin (Fig. 4c). Given its well-established role in ECM assembly and association with fibrosis and advanced cancer progression⁵⁴, we reasoned that fibronectin (FN1) might be a central player modulating ECM interactions across tumour cell compartments. The relevance of FN1 interactions was supported both by the specific upregulation of FN1 receptor genes in tumour niche keratinocytes (receiver cells) and by the increased expression of FN1, at both mRNA and protein level, in tumour niche fibroblasts (sender cells; Fig. 3d,e and Extended Data Figs. 6f,g and 10b). Overall, our analyses predicted robust pro-fibrotic and wound healing epithelial–mesenchymal interactions in surviving tumours.

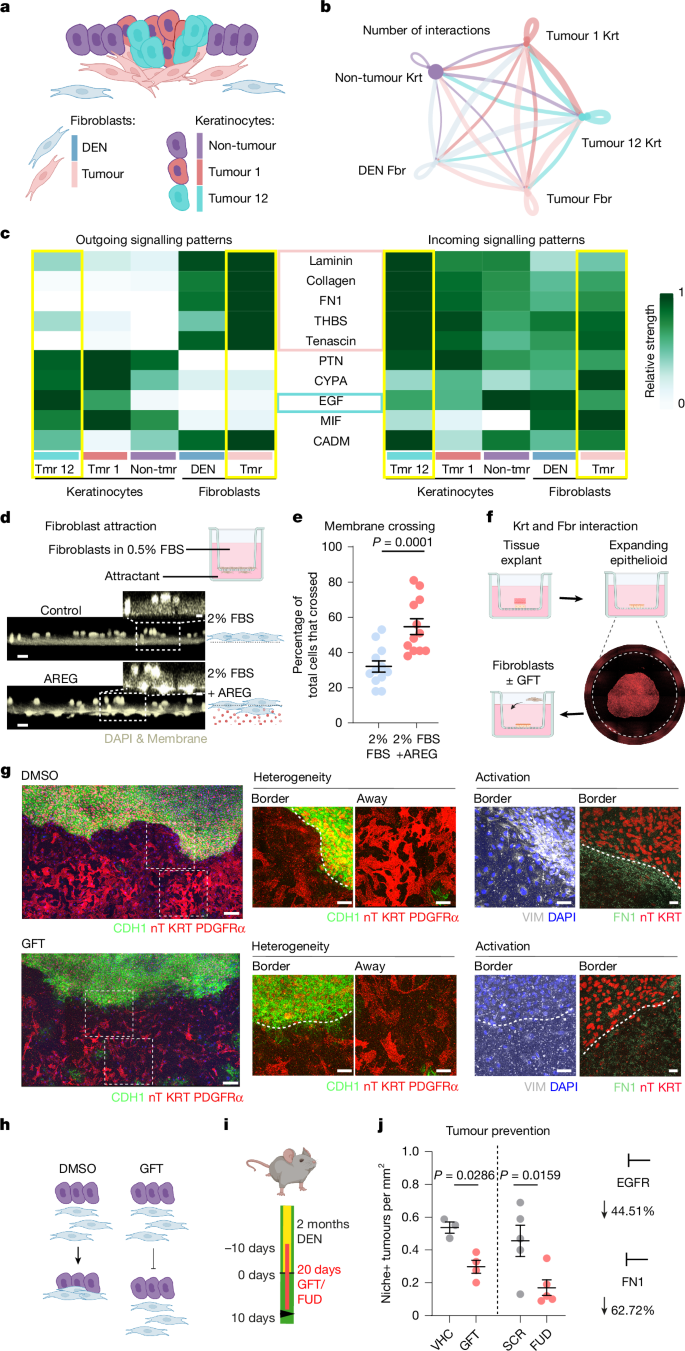

**Fig. 4: EGF–SOX9–FN1 axis promotes tumour survival.**

Next, we explored outgoing signals from tumour niche keratinocytes. Here, EGF was identified as one of the strongest incoming signals for tumour niche fibroblasts (Fig. 4c). EGF ligands (including AREG and HBEGF) were enriched in tumour niche keratinocytes (sender cells) at both the mRNA and protein levels (Fig. 3g and Extended Data Figs. 8l, m and 10b), with its receptor (EGFR) being markedly expressed in the underlying tumour niche fibroblast population (receiver cells; Extended Data Fig. 10b).

The upregulation of both AREG (amphiregulin) and FN1 in nascent tumours (10 days after DEN treatment; Fig. 3e,g and Extended Data Figs. 6g and 8m) highlighted the importance of epithelial–mesenchymal communication from nascent tumour stages.

EGF–SOX9–FN1 supports tumour survival

Given the well-known role of EGF and FN1 signalling in epithelial–stromal communication during wound healing and tissue damage^55,56, we reasoned that they might have a similar role in response to DEN-induced genetic stress.

To determine whether tumour niche keratinocytes (Tumour 12) exert their mesenchymal remodelling effect (Fig. 3h,i and Extended Data Figs. 8k,o and 9a–f) through the EGFR pathway (Fig. 4c), we used a chemoattractant assay (Fig. 4d). We found that the EGFR ligand AREG positively stimulated fibroblast migration, confirming that keratinocytes in nascent tumours can promote fibroblast chemotaxis and mesenchymal remodelling through paracrine EGF stimulation (Fig. 4d,e and Extended Data Fig. 10c).

We gained further insights into the dynamic nature of epithelial–mesenchymal communication by coculturing regenerative 3D oesophageal cultures (epithelioids⁵⁷) with primary fibroblasts (Fig. 4f). We found that expanding keratinocytes, which exhibit increased levels of stress markers (including SOX9; Extended Data Fig. 10d), prompted fibroblasts to segregate spatially into two distinct populations, mirroring the in vivo scenario. PDGFRα^low fibroblasts localized immediately adjacent to the growing epithelium, whereas PDGFRα^high fibroblasts were found in distant areas (Fig. 4g and Extended Data Fig. 10e). The interaction between expanding epithelial cells and fibroblasts also led to FN1 deposition and vimentin upregulation in the PDGFRα^low population (Fig. 4g and Extended Data Fig. 10e). Gefitinib-mediated inhibition of EGFR signalling in epithelioids further confirmed the role of EGFR signalling in epithelial–mesenchymal communication in a regenerative or stress context, showing reduced epithelial SOX9 expression, diminished fibroblast segregation or compartmentalization, and hindered fibroblast ECM remodelling (Fig. 4f–h and Extended Data Fig. 10d,e). These data directly link EGFR signalling and SOX9 expression in the epithelium with mesenchymal remodelling.

FN1, which is an important component of the fibrotic niche in early tumours (Fig. 3d, e and Extended Data Fig. 6b–g), also represents a critical and well-established regulator of the stromal wound-healing response⁵⁸. To determine whether the newly formed fibronectin-rich tumour niche has a critical role in promoting early tumour growth and survival, we treated established 3D epithelioids (exhibiting steady-state levels of proliferation)⁵⁷ with soluble FN1 for 24 hours. Indeed, FN1 promoted epithelial proliferation (Extended Data Fig. 10f). By contrast, in vivo bleomycin treatment, which promotes tissue fibrosis, resulted in a negligible increase in SOX9 expression in DEN-untreated mice (Extended Data Fig. 10g). These data indicate that, although fibrosis promotes tumour growth, a fibrotic environment alone is not sufficient to drive a pre-neoplastic response.

These ex vivo experiments revealed that the EGF–SOX9–FN1 axis governs epithelial–mesenchymal communication and subsequent tissue reorganization in response to epithelial perturbations. Accordingly, in vivo experiments showed that inhibition of either fibronectin fibrillogenesis (using the functional upstream domain (FUD) peptide)⁵⁹ or EGFR signalling with Gefitinib (GFT) led to a significant reduction in the number of Niche+ tumours (Fig. 4i,j).

Taken together, our results demonstrate the central role of the EGF–SOX9–FN1 axis in early tumour niche formation. In response to genetic stress, SOX9⁺ epithelial cells stimulate fibroblast migration and ECM remodelling through EGF signalling. This, in turn, promotes the formation of a pro-fibrotic, fibronectin-rich tumour scaffold, which favours tumour persistence and progression by perpetuating the pro-tumorigenic phenotype.

Human tumour niche remodelling

To validate the relevance of our observations in a human context, we analysed chemo-naive early-stage human oesophageal squamous cell carcinomas (T1a, T1b and Tis; Fig. 5a–d) and residual dysplastic tissues after chemotherapy (ypT0; Fig. 5e,f).

**Fig. 5: Early tumour niche remodelling in human oesophageal squamous cell carcinoma.**

Immunolabelling showed that patient tumours, unlike adjacent tissue, recapitulate observations in the DEN mouse model. T1a and T1b tumours displayed homogeneous expression of KRT6A and KRT17 (pan-tumour markers in mice) and heterogeneous expression of SOX9 (marking tumour cells associated with stromal remodelling in mice; Tumour 12; Fig. 5b,c). Accordingly, SOX9-expressing cells exhibited high AREG expression levels (Fig. 5b) and were found next to areas with increased fibroblast density (PDGFRα; Fig. 5c). Analysis of tissue whole-mounts reinforced the link between SOX9 expression and stromal remodelling, with marked FN1 deposition in the vicinity of SOX9⁺ tumour cells (Fig. 5d).

These features were also observed in residual dysplastic tissue after chemotherapy (Fig. 5e,f), which showed marked ECM remodelling (fibronectin deposition) in the proximity of AREG⁺ or SOX9⁺ tumour cells.

Our observations support the presence of a heterogeneous AREG⁺ and/or SOX9⁺ population in early-stage squamous tumours of the human oesophagus. The data further reinforce the association between this population, mesenchymal changes and ECM remodelling in early human oesophageal tumorigenesis, revealing the potential clinical relevance of our study.

Discussion

Studies in the past decade have shown that mutations, conventionally thought to be the sole cause of cancer, can also be found in healthy ageing tissues^4,5,6,7,8, where they form part of normal tissue physiology. This has redirected the interest of the cancer community to fill the knowledge gap around the earliest disease stages, and particularly to understand how mutant cells interact with adjacent tissue compartments^{1,2,3,13,21,22}. This study provides mechanistic insights into the processes that determine whether tumours emerging in complex mutant landscapes persist long term or are outcompeted and eliminated from the tissue¹. We show that early tumour survival and subsequent progression rely on intricate interactions between nascent tumour cells and their dynamic niche.

This work reveals that exposure to mutagens activates a heterogeneous ‘tissue stress’ response, whereby incipient epithelial and mesenchymal tumour cells signal and feedback onto each other through the EGF–SOX9–FN1 axis. Tumours failing to activate this communication axis are less likely to persist and grow. In particular, a tumour-specific stress state, defined by high SOX9 expression, promotes the recruitment of fibroblasts to the nascent tumour through EGF signalling. This in turn facilitates the formation of a precancerous niche, rich in fibronectin, that perpetuates a pro-tumorigenic phenotype, favouring tumour growth and persistence. Interfering with fibronectin fibrillogenesis in vivo impaired niche formation, prevented tumour survival and reduced the overall tumour burden. These findings support a self-sustaining process in which the reciprocal communication between niche mesenchymal cells and SOX9^high epithelial cells supports tumour survival, favouring disease progression over time (Fig. 5g).

These data are relevant to early human carcinogenesis. The heterogeneous expression of SOX9, EGFR ligands and associated deposition of FN1 are recapitulated in early stage human oesophageal squamous cell carcinomas, consistent with active epithelial–stromal communication in nascent human tumours. Whether interfering with ECM assembly represents a valid approach to prevent cancer progression in patients, and whether analogous mechanisms operate in other tumour types, requires further investigation.

Overall, our data demonstrate the unprecedented capacity of the early tumour niche to perpetuate tumour survival signals beyond intrinsic changes driven by genetic alterations, enabling nascent tumours to persist in highly competitive mutant landscapes. This offers the new perspective that not only mutations, but also the environmental response to genetic stress, defines the likelihood of tumours to progress towards more advanced disease stages. Our findings indicate that strategies targeting tumour cells, as well as supporting neighbouring cells, could open new avenues for cancer prevention and improve long-term outcomes.

Methods

Clinical samples

High-grade dysplasia, squamous cell carcinoma and macroscopically normal, healthy clinical samples, as well as the corresponding clinical information, were collected following research ethics approval and individual informed consent from patients who underwent oesophagectomy for oesophageal cancer.

The T1A and T1B stage chemo-naive surgical tumour samples were donated by patients who had undergone surgery at the Clinic for Visceral, Thoracic and Vascular Surgery at TU Dresden or at the Medical Department I of the Carl Gustav Carus University Hospital. Macroscopically normal samples adjacent to the proximal resection margin were sampled from cancer resection specimens. The corresponding formalin-fixed, paraffin-embedded material (tumour and healthy tissue) from a total of ten characterized oesophageal squamous cell carcinomas was selected from the archive of the Institute of Pathology of the University Hospital Carl Gustav Carus (EK 59032007) by the Tumour and Normal Tissue Bank (TNTB) Dresden. Studies presented in the manuscript involving early chemo-naive human oesophageal tumour samples from Dresden were approved by the Ethics Committee of TU Dresden, Germany (ref. SR+BO-ff (Mono)-EK-161042025). Studies presenting chemo-naive or post-chemo human oesophageal tumour samples from Guy’s and St Thomas’ (London) and Addenbrooke’s Hospital (Cambridge, UK), respectively, were approved by the East of Scotland Research Ethics approval committee (REC 18/ES/133). Histological sectioning of the tissue samples and haematoxylin and eosin staining of reference slide series for determining the tumour cell content of the individual patient samples were done at the Institute of Pathology, University Hospital CGC Dresden, TU Dresden.

Mice strains

All animal experiments were approved by the local ethical review committees of the University of Cambridge and conducted according to the Home Office project licences PPL70/8866 and PP7037913 of the Cambridge Stem Cell Institute, University of Cambridge.

Unless otherwise specified, C57BL/6J mice (Charles River, strain code 632) were used. Other mouse strains used include: cell-cycle reporter line R26^Fucci2aR (Fucci2a)⁶⁰, provided by I. J. Jackson; Pdgfra^EGFP (007669, Jackson Laboratory); Sox9^flox/flox (ref. ⁶¹; MRC-Harwell, on behalf of the European Mouse Mutant Archive; https://www.infrafrontier.eu); K14^CreER (005107, Jackson laboratory); R26^mT−mG (mTmG, Jackson Laboratory); Col1a2^CreER (029567, Jackson Laboratory); R26^FlConfetti (ref. ⁶²; 017492, Jackson laboratory, provided by H. Clevers)⁶²; R26^nT−nG (nTnG; 023537, Jackson Laboratory); H2B-EGFP (CAG::H2B-EGFP; 006069, Jackson Laboratory); NOD-SCID-γ (NOD.Cg-Prkdc^scid Il2rg^tm1Wjl/SzJ; 005557, Jackson Laboratory); and Pdgfra^CreER (018280, Jackson Laboratory)⁶³. Further information about the experimental mouse lines can be found in the Supplementary Methods section Experimental mouse lines.

Recombination of Col1a2^CreERR26^{FlConfetti/WT} mice was induced by a single intraperitoneal tamoxifen injection (3 mg per 20 g body weight). The Col1a2^CreERR26^{FlConfetti/WT} mice were induced by a single intraperitoneal tamoxifen injection (0.5 mg or 5.0 mg per 20 g body weight). The K14^CreERSox9^flox/flox received two subcutaneous tamoxifen injections (5 mg per 20 g body weight) 48 h apart. Tamoxifen was prepared by dissolving in ethanol (less than 10% total volume) and diluting in sunflower-seed oil.

All strains were maintained in a C57BL/6 background. All experiments used a mixture of male and female mice with no gender-specific differences observed (unless specified otherwise). For RNA-sequencing experiments, only male animals were used to avoid confounding effects from the oestrous cycle. All animals exposed to the carcinogen and their respective controls were adults between 8 and 14 weeks of age (see the section on chemically induced mutagenesis below). Mice were bred and maintained under specific-pathogen-free conditions at the Gurdon Institute and the Anne McLaren Building, University of Cambridge. All animals were housed at 20–24 °C, 45–65% humidity and a 12 h:12 h light:dark cycle.

Chemical tumorigenesis model

Mice were treated with DEN (Sigma-Aldrich; N0756) at 40 mg l⁻¹ in Ribena-flavoured water for 24 h, three times a week (Monday, Wednesday and Friday) for 8 weeks^1,21. Mice received sweetened water between DEN dosages and normal water after the completion of DEN treatment. Control mice received sweetened water as a vehicle control for the length of the treatment. Animals exposed to DEN were monitored for adverse effects as stated in our Home Office project licences (PPL70/8866 and PP7037913) for regulated procedures on protected animals. In summary, animals were weighed daily on weekdays for the first week, weekly for the next month and then monthly thereafter. Animals were also checked every day for any clinical signs or abnormal behaviour. Any concerning animals were weighed every other day or daily, if necessary, until the weight was stable again. If the weight loss approached 10%, animals were weighed daily until stable and received wet mash or palatable diet. Animals showing 15% weight loss measured for 2 consecutive days were killed immediately.

EdU tracing

For EdU labelling experiments, mice received 100 µg EdU in PBS (Life Technologies, A10044) intraperitoneally 2 h before tissue collection. In vitro 3D cultures (see above) received media supplemented with 10 µM EdU and were incubated for 2 h at 37 °C and 5% CO₂ before fixation. EdU incorporation in tissue whole-mounts (see above) was detected using a Click-iT EdU kit according to the manufacturer’s instructions (Invitrogen, C10337). EdU⁺ cells were quantified using confocal microscopy.

Inhibitor treatment in vivo

Mice were treated with Gefitinib for 20 days at 80 mg per kg body weight (or vehicle control) three times a week to inhibit the EGFR pathway. Treatment started 10 days before the end of DEN treatment and ended 10 days after it. Gefitinib was prepared in concentrated form by dissolving it in DMSO and was diluted in corn oil.

Pharmacological inhibition of FN1 fibrillogenesis was achieved by treating mice with functional upstream domain (FUD) peptide⁶⁴ intraperitoneally for 20 days at a concentration of 12.5 mg per kg body weight. Control mice were treated with scrambled (SCR) control peptide. Treatment started 10 days before the end of DEN treatment and ended 10 days after it. Peptides were synthesized at more than 95% purity (WatsonBio; peptide sequence below). Lyophilized peptides were reconstituted in PBS.

The peptide sequences were:

FUD, - Cys-GSKDQSPLAGESGETEYITEVYGNQQNPVDIDKKLPNETGFSGNMVETEDTKLN;

SCR, - Cys-QGQTGPVNSKVKIDNYELESNPEKIEANDLQVEGTTTYESKFMGDLTGSGNPED.

Whole-mount preparation

The upper gastrointestinal tract (oesophagus and forestomach) from control and DEN-treated mice was dissected at the time points indicated in the main text and/or figure legends. Oesophagi were excised and cut open longitudinally. The muscle layer was then removed and the tissue was flattened under a dissecting microscope using fine forceps. Stomachs were cut open longitudinally and rinsed twice with PBS to remove any food remains. The glandular stomach was excised away and the forestomach kept and flattened for downstream analysis. For epithelial-only and stromal-only whole-mounts, tissues were incubated in 5 mM ethylene-diamine-tetraacetic acid (EDTA) (Life Technologies, 15575020) in PBS for 3 h at 37 °C. After incubation, the epithelium was gently peeled from the stroma using fine forceps. Subsequently, each of these layers was flattened individually.

Oesophageal and forestomach whole-mounts (either peeled or unpeeled) were fixed in 4% paraformaldehyde (Alfa Aesar, 043368) in PBS for 30 min at room temperature.

Histology

For histology, tissues were fixed in 10% formalin in PBS overnight at room temperature before storage at 4 °C in absolute ethanol. Haematoxylin and eosin staining was done in 7-μm paraffin-embedded sections by the Histology Core Service at the Cambridge Stem Cell Institute and imaged using a Zeiss AxioScan Z1 microscope. Histological analysis of murine tumour samples was done by B. Mahler-Araujo at the MRC Metabolic Diseases Unit (MC_UU_00014/5).

Ex vivo tissue recombination assay

Under a dissecting microscope in a laminar flow hood, oesophagi were dissected and epithelial–stromal layers isolated as described above in the section ‘Whole-mount preparation’. Thereafter, tissues were rinsed in 1% P/S in PBS three times to remove residual EDTA and flattened. Combinations of epithelium and stroma from different experimental conditions (DEN treated and/or control) were prepared by carefully placing the epithelial layer over the relevant stroma (referred to as ‘tissue recombination’ composites). The remaining epithelium was trimmed to match the size of the stroma, and the resulting construct was cut in half. Flattened epithelium–stromal constructs were cultured in six-well plate inserts (ThinCert Greiner Bio-One, 657641). Size-matched polydimethylsiloxane (PDMS) stencil frames were placed around the tissue construct to prevent cell expansion (see the ‘Stencil production’ section below). The tissue was allowed to settle for 10 min before adding 2 ml of minimal medium (mFAD) containing one-part DMEM (Fisher Scientific, 41966029) and one-part DMEM/F12 (Fisher Scientific, 11320033) supplemented with 5 μg ml⁻¹ insulin (Sigma-Aldrich, 15500), 5% fetal calf serum (Fisher Scientific, 26140079), 1% P/S and 5 µg ml⁻¹ Apo-Transferrin (Sigma-Aldrich, T2036), as previously described^24,65. The 3D heterotypic cultures were maintained in standard humidified cell-culture incubators at 37 °C with 5% CO₂ for up to 7 days. At the end point, samples were fixed in 4% PFA in PBS for 30 min at room temperature and stored for downstream confocal analysis.

Stencil production

Silicone elastomer (PDMS) was mixed with a curing agent (Avantor VWR; Sylgard 184 Elastomer Kit, 634165S) at a 10:1 ratio and centrifuged at 300g for 10 min to remove the bubbles. The resulting mix was poured on a dish at around 70 mg cm⁻² and left on an even surface to polymerize overnight at 37 °C. The next day, the resulting polymer was cut into 2 × 5 mm rectangle-shaped frames, sterilized in 70% ethanol overnight, and treated with 1% pluronic acid (Sigma-Aldrich, P2443-250g) in PBS for 1 h at 37 °C. The frames were then left to air dry before use.

In vivo tissue recombination grafting

Tissue recombination composites (as described above in the section ‘Ex vivo tissue recombination assay’) of DEN-treated oesophageal stroma and untreated (control) oesophageal epithelium were prepared for in vivo grafting adapting the strategy described above. Before separating the epithelium from the stroma, all visible tumours were marked with a partial incision using a punch biopsy tool (1 mm diameter; Merck, WHAWB100040). After separating the tissue layers, all the stromal compartments were assessed for peeling efficiency under a fluorescence dissecting microscope (Leica M165 FC), and any remaining epithelium, identified by the dense epithelial nuclei clusters, were excised from the tissue using a 1 mm biopsy punch. For heterotypic tissue constructs, 2 mm biopsies (Selles Medical, instrument BP20F) of tumour or control stroma were excised and a 2 mm healthy untreated epithelium biopsy placed above. Composites were cultured overnight as described above and grafted in the back skin of anaesthetized shaved NSG female mice (two constructs per incision, and two incisions per animal). Longitudinal incisions for grafting were approximately 5 mm in length. The wounds were closed with GLUture glue (Fisher Scientific, NC0632797) and the mice were left to recover. Then, 3–6 months later, the mice were killed and the back skin fixed with 4% PFA in PBS for 30 min at room temperature and stored for downstream confocal analysis.

Primary mouse fibroblast isolation and migration assay

Oesophagi were dissected as described above and cut in half. Tissue was incubated in 0.5 mg ml⁻¹ Dispase (Sigma-Aldrich, D4818) for 10 min at 37 °C while rotating. After incubation, the epithelium was peeled away and the stroma was minced finely and incubated in Trypsin-EDTA (0.25%) (ThermoFisher, 25200056) for 15 min at 37 °C while rotating. The resulting suspension was mixed by pipetting and DMEM supplemented with 10% FBS and 1% P/S was added (1:1 v/v). The suspension was passed through a 70 µm filter (PluriSelect, 43-10070-40) and cells were pelleted by centrifugation at 300g for 5 min at 4 °C. Pellets were resuspended in 0.5% FBS, 1% P/S in DMEM, and seeded on 8.0 µm pore transwell insert (24-well plates; ThinCert Greiner Bio-One, 662638). The lower compartment of the transwell contained 1% P/S DMEM supplemented either with 0.5% FBS, 2% FBS, 10% FBS or 2% FBS with 1 µg ml⁻¹ Amphiregulin (AREG) (R&D, 989-AR-100/CF). Primary fibroblasts were cultured for 48 h before fixation in 4% PFA in PBS for 10 min. Membranes were incubated with 1 µg ml⁻¹ DAPI (Sigma-Aldrich, D9542) in PBS for 30 min at room temperature, cut and mounted in 1.52 Rapiclear mounting medium (SUNJin Lab, RC152001) keeping their original orientation, followed by confocal analysis. Further information on quantification can be found in the Supplementary Methods section ‘Analysis of fibroblast migration assay’.

Keratinocyte cultures and fibronectin treatment in vitro

Oesophagi were cultured using the 3D epithelioid organ culture approach⁶⁵. In brief, tissues were dissected, cut into 3 × 5 mm rectangles and placed on a transwell insert with the epithelium side up. The tissue was left to settle for about 5 min. Explants were expanded in complete medium (cFAD) containing mFAD supplemented with 1 × 10⁻¹⁰ M cholera toxin (Sigma-Aldrich, C8052), 10 ng ml⁻¹ EGF (Fisher Scientific PeproTech, AF-100-15), 0.5 μg ml⁻¹ hydrocortisone (Calbiochem, 386698). Tissue explants were removed by aspiration 5 days after culture set-up and maintained in mFAD for 2 weeks to confluence. Soluble fibronectin (Fisher Scientific Corning, 356008) was added to the medium for 24 h at 100 μg ml⁻¹ after diluting it in mFAD with 25 mM HEPES (Fisher Scientific, 15630056). Samples were fixed with 4% PFA in PBS for 30 min at room temperature, after a 2 h EdU chase, and kept for downstream confocal analysis.

Keratinocyte and fibroblast interaction assay

Epithelioids were set up as described above and maintained in mFAD until keratinocyte migration started. The original tissue was then removed and the explant left overnight before adding freshly isolated oesophageal fibroblasts (as described above). DMSO as vehicle control or 2 µM of Gefitinib prepared in DMSO were added together with the fibroblast suspension. Then, 3 days after the fibroblasts were introduced to culture, samples were fixed with 4% PFA in PBS for 30 min at room temperature and kept for downstream confocal analysis.

Immunostaining

After fixation, epithelial–stromal composites or human tissue whole-mounts were incubated for 30 min in permeabilization buffer (PB1; 0.5% bovine serum albumin (VWR International, 126575-10), 0.25% fish-skin gelatin (Sigma-Aldrich, G7765), 1% Triton X-100 (Fisher Scientific, 10102913) in PBS), then blocked for 2 h in PB1 containing 10% donkey serum (DS) (Scientific Laboratory Supplies, D9663). Next, tissues were incubated with primary antibodies diluted in 10% DS in PB1 for 3 days at 4 °C followed by four washes of 30 min each with 0.2% Tween-20 (Promega UK, H5151) in PBS. Thereafter, tissues were incubated overnight with secondary antibodies diluted 1:500 in 10% DS in PB1 at room temperature. Unbound antibody was removed by four washes with 0.2% Tween-20 in PBS throughout the next day. Antibody details are provided in Supplementary Table 15. To stain cell nuclei, tissues were incubated with 1 µg ml⁻¹ DAPI in PBS at 4 °C overnight. Afterwards, samples were rinsed three times in PBS and mounted in 1.52 RapiClear mounting media for imaging.

Immunolabelling of individual tissue layers (epithelium or stroma) or sections consisted of an incubation for 30 min in permeabilization buffer (PB2; 0.5% bovine serum albumin, 0.25% fish-skin gelatin, 0.5% Triton X-100 in PBS). Tissues were then blocked for 2 h in PB2 containing 10% DS. Next, samples were incubated overnight at room temperature with primary antibodies diluted in 10% DS in PB2 followed by three washes with 0.2% Tween-20 in PBS for 30 min each. Secondary antibodies were diluted 1:500 in 10% DS in PB2 and incubated with tissues overnight at 4 °C, after which unbound antibody was removed by three washes with 0.2% Tween-20 in PBS, and staining continued as above. Thick cryosections of fixed tissues embedded in optimal cutting temperature compound (OCT; Thermo Scientific, 12678646), cut with a thickness of 50 µm onto glass slides, were immunolabelled using the same protocol. Likewise, 7-μm paraffin-embedded sections were immunolabelled according to the protocol described above, after antigen retrieval performed by heating of tissue sections in either 1 mM EDTA buffer (pH 8.0) or 10 mM sodium citrate buffer (pH 6.0) for 10 min at 95 °C.

When staining with primary antibodies raised in the same host, one of the antibodies was acquired as preconjugated with a fluorophore or conjugated in house following the manufacturer’s instructions (Invitrogen, A20186/A20187). The staining proceeded as described above with the unconjugated primary antibodies. After incubation with the corresponding secondary antibodies, the samples were blocked for 3 h at room temperature with 10% DS in PB with the IgG from the relevant host species (1:500). Afterwards, samples were incubated with conjugated antibodies diluted in PB containing 10% DS and the relevant host IgG (1:500) overnight at room temperature. At this point, staining proceeded as described above. Immunostained samples were analysed by confocal imaging.

Confocal imaging

Confocal images were acquired using either an inverted Leica SP5 microscope with standard laser configuration or a Stellaris 8 FALCON FLIM microscope with a white-light laser using LAS X 4.7.0.28176 or 3.5.5.19976 software. Typical confocal settings used included: bidirectional scanning, a 40× immersion objective lens, an optimal pinhole size (as defined by the software), a scan speed of 400–600 Hz with 2–3× line averaging, optimal Z-step size (as defined by the software) and a resolution of 512 × 512 or 1,024 × 1,024 pixels, unless stated otherwise. Then, sD reconstructions from optical sections and their corresponding image renders were generated using Volocity 5.5.5 (PerkinElmer) and Volocity 7 (Quorum), Zen 3.2 and Arivis 3.5.1. Further information about specific types of image analysis, such as second-harmonic generation imaging, can be found in the Supplementary Methods.

Transcriptomics

Library preparation and scRNA-seq

Sample preparation methods for libraries can be found in the Supplementary Methods in the section ‘Single-cell and RNA isolation for single-cell RNA-sequencing (scRNA-seq)’.

The scRNA-seq libraries were generated using the 10× Genomics Chromium Next GEM Single Cell 3′ Reagent Kit (v.3) and sequenced at the Genomics Core Facility of Cancer Research UK (CRUK), Cambridge Institute. Libraries were generated in two different batches. Information about library batches can be found in Supplementary Table 2. Control samples were included in both batches to provide a reference to assess potential batch effects. The cells for each biological replicate were loaded into a 10× Chromium microfluidics chip channel to generate one library from each. In total, 17 libraries were sequenced on either an Illumina HiSeqx4000 or a NovaSeq6000 system using one SP, two S1 and two S2 flow cells. Note that, given the punch biopsy approach used, DEN samples could contain sporadic tumour cells from tumours not visible under the dissection microscope.

scRNA-seq preprocessing, dimensionality reduction and visualization

The raw scRNA-seq data were processed with CellRanger (v.7.0.1). Reads were aligned to the mouse reference genome (mm10 2020-A), empty droplets were filtered and unique molecular identifiers were counted to generate gene-expression matrices. Doublets were identified using Scrublet⁶⁶ (v.0.2.3) and removed, along with low-quality cells, on the basis of per-sample quality-control metrics (Supplementary Table 2); cells with more than 15% mitochondrial reads or genes expressed in fewer than three cells were excluded, resulting in 91,347 high-quality cells. Count matrices were processed using a standard Seurat workflow⁶⁷ (v.5.0.3) up to dimensionality reduction. Data were integrated by tissue of origin (oesophagus or forestomach) using Harmony⁶⁸ (v.1.2.3), and the integrated embeddings were projected in two dimensions using Seurat’s RunUMAP function. Further details on data clustering, annotation, and trajectory and communication analysis can be found in the Supplementary Methods and on the Alcolea lab’s GitHub page.

Low-input targeted DNA sequencing

Oesophagi from control and DEN-treated animals were dissected as described above. Tissues were flattened with the epithelial side up and visible tumour lesions were marked with a partial incision using a 1 mm diameter punch tool under a dissecting microscope. Tissues were then incubated in 5 mM EDTA for 3 h at 37 °C while rotating. After incubation, the epithelium was removed, the stroma was flattened and tissues were fixed as described above.

Immunofluorescent labelling against KRT14 was done as described above. Only tumour stroma footprints negative for KRT14 (lacking epithelial cells) were considered for DNA sequencing to avoid the identification of genetic mutations present in epithelial cells. Tumour stroma matching the criteria was dissected under a fluorescence dissecting microscope (Leica M165 FC) using a 1 mm punch biopsy tool. Punch biopsies of equivalent size were collected from untreated healthy tissues as a control. The DNA from individual biopsies was extracted using the Arcturus PicoPure DNA Extraction Kit (Fisher Scientific, KIT0103) following the manufacturer’s instructions. In brief, proteinase K was reconstituted in 155 µl and the sample was lysed in 20 µl at 65 °C overnight. Thereafter, proteinase K was inactivated by incubation at 95 °C for 10 min.

Samples were then sheared, libraries prepped using the NEBNext Ultra II Fragmentase System, and index tags applied (Sanger 168 tag set). Material was subjected to 12 PCR cycles (initial denaturation; 95 °C for 5 min; 12 cycles of 98 °C for 30 s; 65 °C for 30 s; 72 °C for 2 min; final elongation, 72 °C for 10 min) and quantified (Accuclear dsDNA Quantitation Solution, Biotium). Then, 500 ng of pooled material was taken forward for hybridization capture and enrichment (SureSelect Target enrichment system, Agilent Technologies) using a previously designed bait panel of 192 genes (Supplementary Table 9), including those commonly mutated in squamous cancers²². After clean-up, libraries were normalized to around 6 nM and submitted to cluster formation for sequencing on a Novaseq6000 (Illumina) to generate 100-base pair paired-end reads.

Aligned reads were mapped to the mouse GRCm38 reference genome using BWA-mem (v.0.7.17)⁶⁹. Duplicate reads were marked using SAMtools⁷⁰ (v.1.11). Depth of coverage was also calculated using SAMtools to exclude reads that were unmapped, not in the primary alignment, failed platform or vendor quality checks, or PCR or optical duplicates. Bedtools (v.2.23.0)⁷¹ was then used to calculate the depth of coverage per base across samples.

Variant calling was done using the deepSNV R package (also commonly referred to as ShearwaterML; v.1.21.3; https://github.com/gerstung-lab/deepSNV). Variants were annotated using VAGrENT. R v.3.3.0 was used^7,72.

Mutations called by deepSNV ShearwaterML were filtered using the following criteria: first, positions of called single nucleotide variants (SNVs) have a coverage of at least 100 reads; second, germline variants called from the same individual are omitted from the list of called variants; third, adjustment for false discovery rate and mutations use support from at least one read from both strands for the mutations identified; and finally, pairs of SNVs on adjacent nucleotides in the same sample are merged into a dinucleotide variant if at least 90% of the mapped DNA reads containing at least one of the SNV pairs also contained the other one. DeepSNV ShearwaterML was run with a normal panel of approximately 12,000 reads.

Statistics and reproducibility

The numbers of biological replicates and animals are indicated in the figure legends (n refers to the number of independent replicates per time point and/or condition). A minimum of three independent mice or ex vivo cultures were used in all cases. All experiments were done independently at least three times with similar results, unless otherwise stated. The reproducibility of all key findings was confirmed in independent experiments conducted on different days and using independent biological samples. For image analysis, a minimum of three independent samples were inspected in all cases. All figures show representative images. The data are expressed as mean values ± s.e.m. unless otherwise indicated.

All statistical tests were done comparing biological replicates. Differences in tumour burden were assessed by one-tailed unpaired non-parametric Mann–Whitney U-tests. Differences between Niche− and Niche+ tumour distribution in ageing animals was assessed by one-sided chi-squared test. For large datasets, normality was assessed using a Kolmogorov–Smirnov test; for normally distributed data, differences between two groups were assessed by two-tailed Welch’s t-tests; for non-normally distributed data, a two-tailed Mann–Whitney U-test was used. Differences between more than two groups were calculated using either one-way Welch’s ANOVA, followed by a Dunnett’s T3 multiple-comparison test, or Kruskal–Wallis one-way ANOVA, followed by Dunn’s multiple-comparison test, for normally distributed or non-normally distributed data, respectively, unless specified otherwise. Exact P-values are indicated in the relevant figures with a precision of up to four decimal places. Statistical tests were conducted in GraphPad Prism (v.10.5.0) with 95% confidence intervals. No statistical method was used to predetermine sample size. The experiments were done without randomization. Blinding was done for tumour count per condition and in vitro sample analyses by confocal microscopy. In cases for which quantification was done in tumours and morphologically normal areas, blinding was not possible owing to differences in physical sample appearance.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Mouse reference genomes GRCm38 and mm10 2020-A were used. The single-cell RNA sequencing data generated in this study have been deposited in the Gene Expression Omnibus (GEO) repository under accession code GSE271962. The DNA sequencing dataset was deposited at the European Nucleotide Archive (ENA) under dataset accession number ERP134942. Source data are provided with this paper.

Code availability

No new algorithms were developed for this paper. The analysis code is available on the Alcolea lab’s GitHub page.
