Mechanism of nucleosomal H2A K13/15 monoubiquitination and adjacent dual monoubiquitination by RNF168

Nature Chemical Biology volume 21, pages 668–680 (2025)Cite this article

Subjects

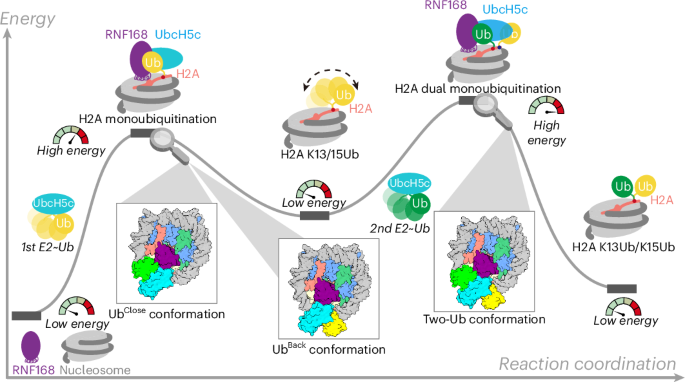

Abstract

The DNA damage repair regulatory protein RNF168, a monomeric RING-type E3 ligase, has a crucial role in regulating cell fate and DNA repair by specific and efficient ubiquitination of the adjacent K13 and K15 (K13/15) sites at the H2A N-terminal tail. However, understanding how RNF168 coordinates with its cognate E2 enzyme UbcH5c to site-specifically ubiquitinate H2A K13/15 has long been hampered by the lack of high-resolution structures of RNF168 and UbcH5c~Ub (ubiquitin) in complex with nucleosomes. Here we developed chemical strategies and determined the cryo-electron microscopy structures of the RNF168–UbcH5c~Ub–nucleosome complex captured in transient H2A K13/15 monoubiquitination and adjacent dual monoubiquitination reactions, providing a ‘helix-anchoring’ mode for monomeric E3 ligase RNF168 on nucleosome in contrast to the ‘compass-binding’ mode of dimeric E3 ligases. Our work not only provides structural snapshots of H2A K13/15 site-specific monoubiquitination and adjacent dual monoubiquitination but also offers a near-atomic-resolution structural framework for understanding pathogenic amino acid substitutions and physiological modifications of RNF168.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

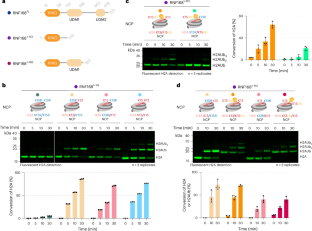

Fig. 1: RNF168 efficiently mediates dual monoubiquitination on adjacent H2A K13/15 sites.

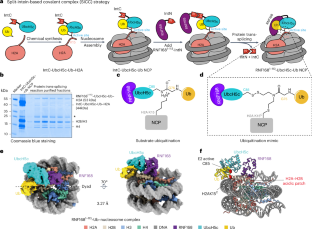

Fig. 2: Capturing the complex of RNF168–UbcH5c-mediated nucleosome monoubiquitination using SICC strategy.

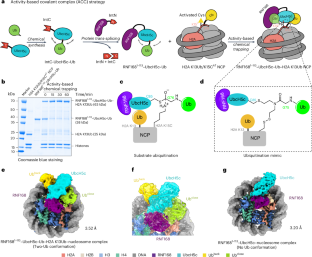

Fig. 3: Structural visualization of RNF168–UbcH5c-mediated H2A K13/15 dual monoubiquitination obtained using ACC strategy.

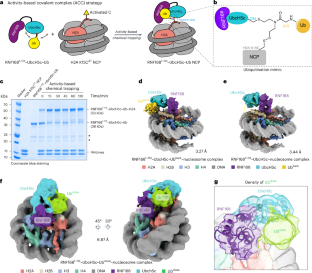

Fig. 4: Capturing the RNF168–UbcH5c complex-mediated nucleosome monoubiquitination using ACC strategy.

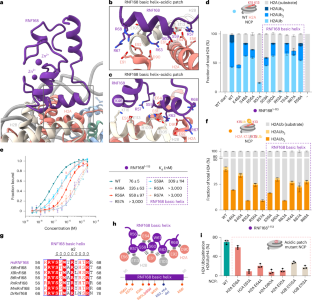

Fig. 5: Structural basis of monomeric E3 ligase RNF168 on the H2A–H2B acidic patch.

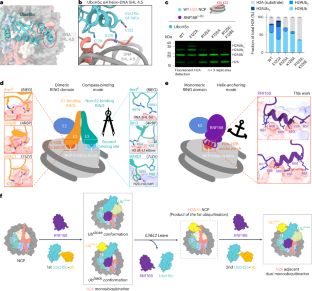

Fig. 6: Interaction of UbcH5c with nucleosomal DNA SHL 4.5 and cartoon models for nucleosomal H2A ubiquitination mediated by monomeric E3 ligase RNF168.
