Fibrosis induced by resident macrophages has divergent roles in pancreas inflammatory injury and PDAC

Baer, John M.; Zuo, Chong; Kang, Liang-I; de la Lastra, Angela Alarcon; Borcherding, Nicholas C.; Knolhoff, Brett L.; Bogner, Savannah J.; Zhu, Yu; Yang, Liping; Laurent, Jennifer; Lewis, Mark A.; Zhang, Nan; Kim, Ki-Wook; Fields, Ryan C.; Yokoyama, Wayne M.; Mills, Jason C.; Ding, Li; Randolph, Gwendalyn J.; DeNardo, David G.

doi:10.1038/s41590-023-01579-x

Article
Published: 10 August 2023

Fibrosis induced by resident macrophages has divergent roles in pancreas inflammatory injury and PDAC

Nature Immunology volume 24, pages 1443–1457 (2023)Cite this article

14k Accesses
75 Citations
47 Altmetric
Metrics details

Subjects

Abstract

Tissue-resident macrophages (TRMs) are long-lived cells that maintain locally and can be phenotypically distinct from monocyte-derived macrophages. Whether TRMs and monocyte-derived macrophages have district roles under differing pathologies is not understood. Here, we showed that a substantial portion of the macrophages that accumulated during pancreatitis and pancreatic cancer in mice had expanded from TRMs. Pancreas TRMs had an extracellular matrix remodeling phenotype that was important for maintaining tissue homeostasis during inflammation. Loss of TRMs led to exacerbation of severe pancreatitis and death, due to impaired acinar cell survival and recovery. During pancreatitis, TRMs elicited protective effects by triggering the accumulation and activation of fibroblasts, which was necessary for initiating fibrosis as a wound healing response. The same TRM-driven fibrosis, however, drove pancreas cancer pathogenesis and progression. Together, these findings indicate that TRMs play divergent roles in the pathogenesis of pancreatitis and cancer through regulation of stromagenesis.

You have full access to this article via your institution.

Download PDF

Coordinated single-cell tumor microenvironment dynamics reinforce pancreatic cancer subtype

Article Open access 26 August 2023

CTHRC1⁺ fibroblasts and SPP1⁺ macrophages synergistically contribute to pro-tumorigenic tumor microenvironment in pancreatic ductal adenocarcinoma

Article Open access 29 July 2024

Heterocellular crosstalk and architecture of the pancreatic tumour microenvironment

Article 16 January 2026

Main

TRMs are established through embryonic and adult hematopoiesis. At birth, TRMs are derived from embryonic progenitors, but some TRMs are gradually replaced with monocyte-derived cells over time, to varying extents determined at a tissue-specific level^{1,2,3,4,5,6,7,8,9}. ‘Closed’ TRM populations, such as brain microglia, undergo little monocyte replacement, whereas ‘open’ TRM populations, such as lung alveolar macrophages, undergo gradual replacement, the extent of which is determined at a tissue-specific level^6,9,10. On the other hand, short-lived, monocyte-derived macrophages (MDMs) rely on continual replenishment from circulating monocytes^11,12. It is understood that both developmental origin and tissue microenvironment offer cues that contribute to macrophage phenotypes^13,14,15. TRMs have a variety of roles in maintaining tissue homeostasis, extracellular matrix (ECM) remodeling and inflammation¹⁶. Across the fat, dermis, heart, lung and mesenteric membranes, it is thought that interstitial TRMs can be subdivided into at least two major subpopulations, LYVE1^hiCX₃CR1^loMHCII^lo/int and LYVE1^loCX₃CR1^hiMHCII^hi cells, with LYVE1^hiCX₃CR1^loMHCII^lo/Int TRMs reported to be involved in ECM remodeling^17,18,19,20. However, it is not fully understood how TRM subsets and MDMs might be uniquely poised to respond to tissue damage or pathologic conditions.

Studies have investigated the roles of TRMs and MDMs under tumor conditions^13,15,21. TRMs have tumor-promoting roles in driving the responses of regulatory T cell responses, contributing to fibrosis and supporting tumor cell growth^13,15,21. In pancreatic ductal adenocarcinoma (PDAC), macrophages have divergent roles based on developmental origin, with embryonic-derived TRMs being particularly adept at driving fibrosis¹⁵. Inflammation and tissue damage during pancreatitis not only is a risk factor for PDAC, but also involves notable accumulation of desmoplastic stroma rich in myeloid cells^22,23. Macrophages contribute to inflammation during pancreatitis, but the specific contribution of TRMs or MDMs has not been well characterized^24,25. While the unique ability of the pancreas to respond to injury with substantial desmoplastic stroma is likely critical for preserving function, it is a feature that drives PDAC progression^26,27.

Here, we showed that pancreas TRMs and MDMs increased markedly during pancreatitis and displayed distinct transcriptional phenotypes. We identified a subset of LYVE1^hi TRMs that expressed genes related to ECM remodeling, and depletion of TRMs negatively impacted mouse survival during severe acute pancreatitis by attenuating the fibrotic response. TRMs triggered the accumulation of fibroblasts, affected their activation and stimulated the production of collagen and ECM proteins. While TRM-driven fibrosis was protective in pancreatitis, it was co-opted by tumors to support their growth.

Results

Pancreatitis and pancreatic ductal adenocarcinoma display immune cell-rich fibrotic stroma

Pancreatitis and PDAC are characterized by desmoplastic fibrotic stromal responses and immune infiltration^23,28,29. Histological analysis of human pancreatitis and PDAC tissues both showed marked loss of acinar cell area and increased fibrotic stroma compared to normal tissues (Fig. 1a). Furthermore, we observed increased numbers of CD163⁺ macrophages, podoplanin⁺ fibroblasts and trichome⁺ collagen area in pancreatitis and PDAC tissues compared to normal pancreas (Fig. 1a,b). This indicated shared stromal alterations across the diseased states. To study this in detail, we used serial injection of cerulein in mice, which causes overproduction of digestive enzymes leading to pancreatitis³⁰. Compared to vehicle-treated mice, cerulein-treated mice showed widespread acinar-to-ductal metaplasia (ADM) by both histology and immunohistochemistry (IHC) staining for CK19⁺, Sox9⁺ and Ki67⁺ epithelial cells (Fig. 1c,d and Extended Data Fig. 1a). Consistent with widespread inflammation during pancreatitis, we observed increased F4/80⁺MHCII⁺ macrophages, F4/80^loMHCII^lo eosinophils, Ly6G⁺ granulocytes and Ly6C⁺ monocytes in cerulein-treated mice (Fig. 1c,d and Extended Data Fig. 1b,c). Together, these observations highlight the accumulation of macrophages and fibrotic stroma during pancreatitis and PDAC.

**Fig. 1: Pancreatitis and pancreatic ductal adenocarcinoma display immune rich fibrotic stroma.**

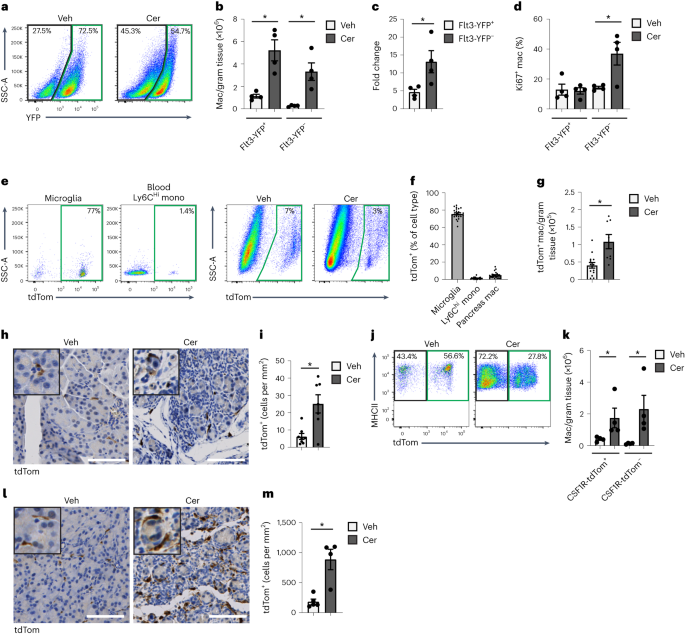

Cerulein treatment increases tissue-resident macrophages

To investigate whether the increase in the number of macrophages in pancreatitis was due to monocyte recruitment or the local expansion of TRMs, we crossed Flt3-Cre mice with R26-LSL-eYFP mice to generate Flt3-YFP mice. In this model, adult bone marrow-derived cells are YFP⁺, while embryonic-derived macrophages lack YFP expression³¹. While both the numbers of Flt3-YFP⁺ and Flt3-YFP⁻ macrophages were increased in cerulein-treated mice compared to vehicle, the number of Flt3-YFP⁻ macrophages was increased 13-fold, while Flt3-YFP⁺ macrophages increased 5-fold (Fig. 2a,c and Extended Data Fig. 2a). The frequency of Ki67⁺ Flt3-YFP⁻ macrophages was also higher compared to Flt3-YFP⁺ in cerulein-treated mice (Fig. 2d), indicating TRMs proliferated in situ. To confirm these findings, we next treated CSF1R-mer-iCre-mer;LSL-tdTomato mice (hereafter, CSF1R-tdTom) with a single dose of tamoxifen on embryonic day 9.5 to specifically label embryonic erythro-myeloid progenitor cells. As expected, brain microglia, which are derived from yolk sac¹, showed nearly 80% recombination in CSF1R-tdTom offspring (Fig. 2e–g), while Ly6C^hi monocytes showed minimal tdTomato labeling (Fig. 2f). Nearly 10% of pancreas F4/80⁺MHCII^hi/lo macrophages were tdTomato⁺ (Fig. 2f), indicating a subpopulation of pancreas TRMs was derived from embryonic progenitors. Quantification of tdTomato⁺ macrophages by flow cytometry and IHC staining indicated that this population expanded during pancreatitis (Fig. 2h–i).

Some embryonically derived macrophages, such as heart or alveolar macrophages, are replaced by MDMs to varying degrees in a tissue-specific manner^6,8,9. To measure the total TRMs irrespective of developmental origin, we administered tamoxifen by oral gavage in adult CSF1R-tdTom mice for 5 consecutive days, then stopped tamoxifen for 10 weeks to allow monocytes and short-lived MDMs to be washed out, while long-lived TRMs remain tdTomato⁺ (hereafter we refer to this regimen as pulse-chase; Extended Data Fig. 2b,c). The number of tdTomato⁺F4/80⁺MHCII⁺ TRMs in the pancreas was increased fourfold in cerulein-treated mice compared to vehicle-treated mice (Fig. 2j–m). While CX3CR1-CreERT2 LSL-tdTomato mice (hereafter CX3CR1-tdTom) showed a similar increase in pancreas tdTomato⁺ TRMs in tamoxifen pulse-chase experiments, a maximum of 50% of pancreas macrophages were tdTomato⁺ (Extended Data Fig. 2d–k), as reported elsewhere¹⁰. IHC staining of CX3CR1-tdTom mice indicated that most F4/80⁺ macrophages in the islets of Langerhans were tdTomato⁺ TRMs (Extended Data Fig. 2l). Islet macrophages were also tdTomato⁺ in CSF1R-tdTom tamoxifen pulse-chase mice (Extended Data Fig. 2m). These data suggest that pancreas TRMs consisted of both embryonic-derived and adult HSC-derived cells that expanded numerically during pancreas tissue damage.

Pancreas tissue-resident macrophages have distinct transcriptional phenotypes

Both ontogeny and tissue of residence can influence TRM phenotype^{13,15,18,21,32}. To investigate the ontogeny-dependent roles of macrophages during pancreas injury and cancer, we performed bulk RNA-sequencing (RNA-seq) analysis of pancreas F4/80⁺MHCII⁺ macrophages sorted from Flt3-YFP mice treated with vehicle or acute cerulein to induce pancreatitis or implanted orthotopically with PDAC tumors. Differential gene expression analysis identified several thousand differentially expressed genes (DEGs) between Flt3-YFP⁺ and Flt3-YFP⁻ macrophages in pancreatitis and PDAC, but only several hundred in the vehicle-treated pancreas (Extended Data Fig. 3a–c). Flt3-YFP⁻ macrophages highly expressed TRM and alternative-activation genes (for example, Folr2, Cd163, Cd209 and Mrc1), as well as genes related to ECM remodeling (Mmp9, Cert1 and Colec12; Extended Data Fig. 3a). While Flt3-YFP⁻ macrophages expressed genes linked to collagen production (Col3a1 and Col1a2; Extended Data Fig. 3a), this could be derived from contaminating fibroblasts or mesenchymal cells. Conversely, Flt3-YFP⁺ macrophages had high expression of antigen-presentation genes, such as H2-Ab1, H2-Eb1 and Cd72 (Extended Data Fig. 3a). Gene-set enrichment analysis (GSEA) indicated that genes upregulated in Flt3-YFP⁻ macrophages were primarily enriched for pathways related to ECM remodeling and growth factor signaling, while Flt3-YFP⁺ macrophages were enriched for antigen-presentation and T cell activation pathways (Extended Data Fig. 3b). Some of these differences were specific to tissue damage, rather than homeostasis (Extended Data Fig. 3c).

To determine whether embryonically derived and HSC-derived TRMs defined phenotypically unique or mixed populations, we performed single-cell RNA sequencing (scRNA-seq). We sorted Flt3-YFP⁺ and Flt3-YFP⁻ F4/80⁺MHCII⁺ macrophages from vehicle-treated (healthy pancreas), cerulein-treated (pancreatitis) and PDAC tumors. We also analyzed tumor-bearing liver and lung, as a positive control for an embryonic TRM population (liver Kupffer cells) and mixed TRM-MDM (alveolar macrophages)^4,6,7,9. As expected, liver and lung macrophages showed origin-specific clustering in scRNA-seq analysis (Fig. 3a,b and Extended Data Fig. 3d–f). By contrast, in the pancreas, most macrophage scRNA-seq clusters were of mixed origin, with contribution from Flt3-YFP⁺ and Flt3-YFP⁻ macrophages (Fig. 3c,d). The only exception was Lyve1^hi clusters (vehicle cluster 0, cerulein cluster 2 and PDAC cluster 5; Fig. 3e and Extended Data Fig. 4a–d), which showed up to 90% enrichment for Flt3-YFP⁻ macrophages (Fig. 3c–e and Extended Data Fig. 4a–h). Some Lyve1^lo clusters (vehicle clusters 2 and 4, and cerulein cluster 4) showed a bias toward Flt3-YFP⁺ cells and were marked by high expression of Ccr2 and MHCII family genes (Fig. 3c–e). Other mixed-origin Lyve1^lo clusters expressed Trem2 and Cx3cr1 (Extended Data Fig. 4e–h). This suggests that, aside from Lyve1^hi TRMs, most TRMs are of mixed origin, and their transcriptional phenotypes might be defined by tissue cues.

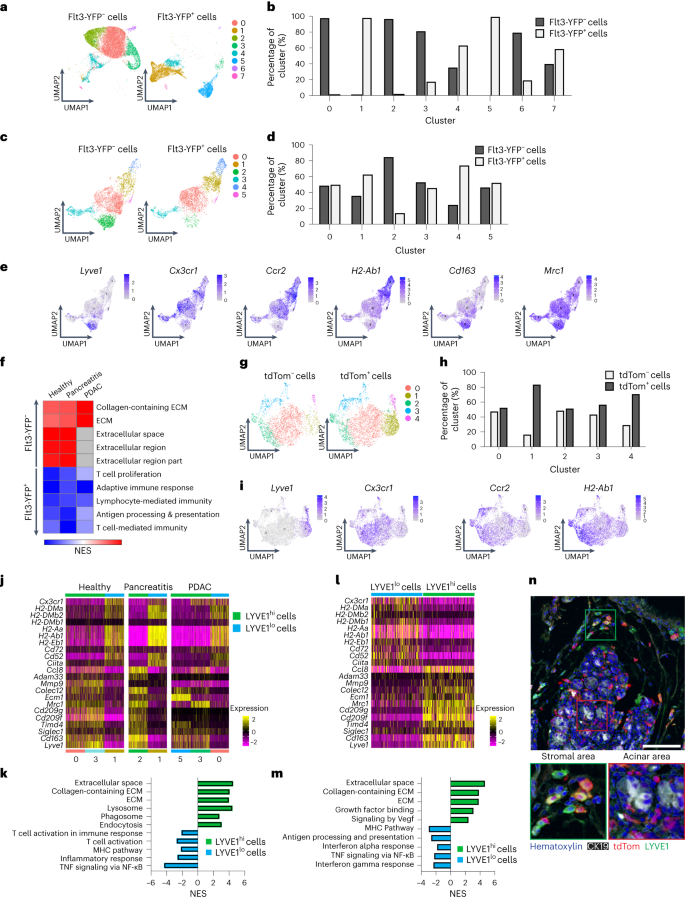

**Fig. 3: Pancreas tissue-resident macrophages have distinct transcriptional phenotypes.**

Because most pancreas clusters were of mixed origin, we investigated the impact of origin on macrophage phenotype. Pseudobulk analysis of the scRNA-seq data, irrespective of clusters, showed enrichment in ECM and ECM remodeling signatures and antigen processing and presentation in Flt3-YFP⁻ and Flt3-YFP⁺ macrophages, respectively (Fig. 3f). Of note, the Flt3-YFP⁻ macrophages in the scRNA-seq clusters did not show expression of collagen genes, indicating that expression of collagen in the bulk RNA-seq might have been due to contamination with other cell types. Next, we assessed how origin might impact phenotype within a single cluster. Comparison of Flt3-YFP⁻ and Flt3-YFP⁺ cells in pancreatitis cluster 0 indicated that Flt3-YFP⁻ cells were enriched for TNF signaling by NF-κB, inflammatory responses and TGF-β signaling, while Flt3-YFP⁺ cells showed higher expression of oxidative phosphorylation and Myc targets (Extended Data Fig. 4g). These data suggest that even in mixed-origin macrophage subsets, origin may yield subtle phenotypic differences.

We next investigated whether Lyve1^hi macrophages consisted predominantly of long-lived TRMs. scRNA-seq on F4/80⁺MHCII⁺ macrophages sorted from pancreas tissue of CSF1R-tdTom mice pulse-chased with tamoxifen showed that clusters of Lyve1^hi macrophages were predominantly tdTomato⁺, while Lyve1^lo clusters showed mixed labeling (Fig. 3g–i), suggesting pancreas Lyve1^hi macrophages were predominantly embryonically derived, long-lived TRMs. As before, Lyve1^hi macrophage clusters expressed scavenger receptors and alternative-activation markers (Cd163, Siglec1, Timd4, Cd209 and Mrc1) and showed enrichment in ECM and ECM remodeling genes and gene sets (Fig. 3j–m and Extended Data Fig. 5a,b). Lyve1^lo macrophage clusters highly expressed H2-Aa, H2-Ab1, H2-Eb1, Cd52 and Cd72 and showed enrichment in T cell activation, major histocompatibility complex (MHC) and NF-κB signaling pathways (Fig. 3j–m). Pseudobulk analysis comparing all tdTomato⁺ and tdTomato⁻ cells, irrespective of cluster, identified similar gene sets (Extended Data Fig. 5a,b). This analysis suggested that Lyve1^hi macrophages were embryonic TRMs with a unique transcriptional phenotype.

To determine possible localization differences in LYVE1⁺ TRMs, we performed multiplex immunohistochemistry (mIHC). Pancreas tissue from CSF1R-tdTom tamoxifen pulse-chase mice treated with cerulein for 1 week was stained for F4/80, LYVE1, tdTomato and CK19, and showed more than 80% of F4/80⁺LYVE1^hi cells were tdTomato⁺ and were located between the lobules of the pancreas and rarely in close contact with acinar cells or within islets (Fig. 3n and Extended Data Fig. 5c). This distribution was not observed for other tdTomato⁺ TRMs, some of which showed infiltration between clusters of acinar cells (Fig. 3n), suggesting that LYVE1^hi TRMs had distinct regional distributions within the pancreas. Finally, to test the tissue residence of the LYVE1⁺ macrophages, we treated healthy, surgically joined CD45.1 and CD45.2 mice with vehicle or cerulein for 1 week at week 6 after surgery. At week 1 of cerulein or vehicle treatment, Ly6C⁺ blood monocytes were 20–30% of parabiotic donor origin, while LYVE1⁺CD163⁺ pancreas macrophages were 4% of donor origin (Extended Data Fig. 5d–f). Around 15–20% of LYVE1⁻CD163⁻ and MHCII⁺ pancreas macrophages were of donor origin (Extended Data Fig. 5d–f), suggesting they were MDMs. While most recruited monocytes had an LYVE1⁻CD163⁻ or MHCII^hi MDM profile, 11% were CD163⁺, indicating a TRM phenotype (Extended Data Fig. 5f). In total, these data suggest that LYVE1⁺ macrophage phenotypes and localization might contribute to pathologic fibrosis during pancreas injury.

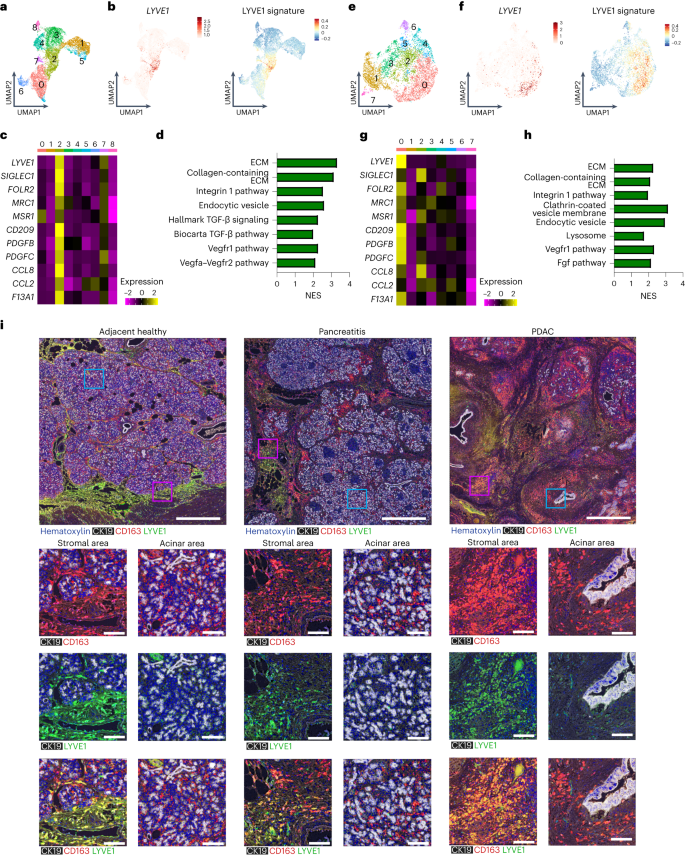

Human LYVE1⁺ tissue-resident macrophages display similar phenotype and localization

To compare macrophage subsets in human pancreas tissues^33,34, we identified clusters of macrophages and monocytes in publicly available scRNA-seq data from three healthy and nine chronic pancreatitis tissues³⁴. We first mapped the gene expression signature of mouse Lyve1^hi macrophages using an averaged z-score. This signature was most highly expressed in human cluster 2, which was the only human cluster with significant expression of the LYVE1 gene (Fig. 4a,b). Human cluster 2 expressed similar marker genes to mouse Lyve1^hi macrophages, including FOLR2, MRC1 and PDGFC (Fig. 4c). By GSEA analysis, human LYVE1^hi macrophages (cluster 2) had enrichment in ECM remodeling, TGF-β signaling and VEGF pathways (Fig. 4d). In publicly available human PDAC scRNA-seq datasets³³, cluster 0 was enriched for the mouse Lyve1^hi signature, had LYVE1 gene expression, and had similar phenotypes to both mouse and human pancreatitis Lyve1^hi clusters by GSEA (Fig. 4e,h). The mouse Lyve1^lo macrophage signature was found in most other human macrophage clusters (Extended Data Fig. 6a,b). mIHC for CD163, LYVE1 and CK19 on human healthy pancreas, pancreatitis and PDAC tissues showed that CD163 expression was more ubiquitous across macrophage subsets in humans than in mice (Fig. 4i). However, expression of LYVE1 was limited to a subset of CSF1R⁺CD68⁺CD163⁺ cells (Extended Data Fig. 6c–f). In human pancreatitis and PDAC tissues, LYVE1⁺CD163⁺ macrophages were only detected within the stroma and outside of acinar areas, while LYVE1⁻CD163⁺ macrophages were localized in both compartments (Fig. 4i). These data suggest conservation in phenotype and localization between mouse and human LYVE1⁺ pancreas macrophages.

Tissue-resident macrophages maintain tissue integrity during pancreatitis

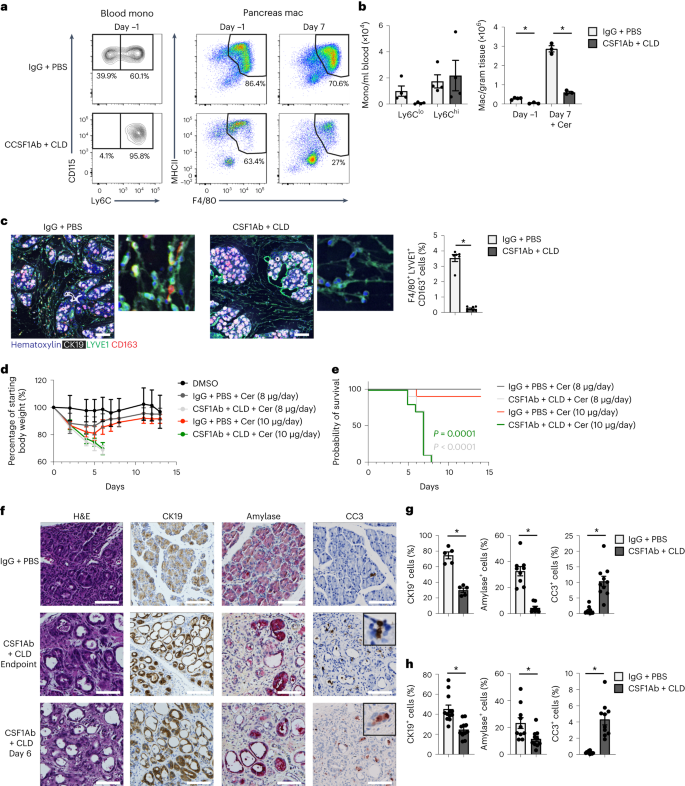

We next asked whether TRMs and MDMs have a distinct functional impact during pancreatitis. To deplete TRMs, mice were treated with either the combination of CSF1 neutralizing antibodies and clodronate-loaded liposomes (CSF1Ab-CLD)^15,35 or control antibodies and PBS-loaded liposomes (IgG-PBS). Mice were then rested for 10 d to allow the recovery of blood Ly6C^hi monocytes and MDMs, and then treated with cerulein or vehicle by intraperitoneal (i.p.) injection for 7 d. At day 10 after CSF1Ab-CLD treatment, before the cerulein treatment, blood Ly6C^lo monocytes were reduced compared to IgG-PBS control mice (Fig. 5a,b), while the total number of pancreas F4/80⁺MHCII⁺ macrophages was notably reduced (Fig. 5b and Extended Data Fig. 7a–c). At day 7 of cerulein treatment, CSF1Ab-CLD mice still had reduced numbers of pancreas F4/80⁺MHCII⁺ macrophages compared to IgG-PBS controls, despite having normal numbers of circulating Ly6C^hi monocytes (Fig. 5b). mIHC indicated that F4/80⁺LYVE1⁺CD163⁺ TRMs were reduced more than 90% in CSF1Ab-CLD + cerulein mice (Fig. 5c). To investigate the effect of TRM loss on pathogenesis, CSF1Ab-CLD or IgG-PBS mice were implanted with osmotic pumps that administered cerulein or vehicle for up to 14 d. In IgG-PBS control mice, we observed acute body weight loss at days 2–5 after cerulein, followed by recovery at days 6–9 after cerulein (Fig. 5d). By contrast, CSF1Ab-CLD-treated mice continually lost body weight after cerulein pump implantation and reached humane survival endpoints by week 1 (Fig. 5d,e). Similar observations were made with both 8 µg per day and 10 µg per day dosages of cerulein and FvB and C57BL/6 mice (Fig. 5d,e and Extended Data Fig. 7d,e). Along with impaired survival, CSF1Ab-CLD-treated mice had a significant decrease in blood glucose and an increase in serum amylase during pancreatitis compared to IgG-PBS mice (Extended Data Fig. 7f–i). Histologic analysis of the pancreas tissues indicated loss of pancreas tissue integrity, substantial tissue necrosis and 90% loss of amylase⁺ acinar cells and CK19⁺ ductal cells and an increase in cleaved caspase-3⁺ cells in CSF1Ab-CLD-treated mice compared to IgG-PBS mice (Fig. 5f–h). In contrast, we observed no histologic difference in the livers of CSF1Ab-CLD and IgG-PBS mice (Extended Data Fig. 7i), suggesting a pancreas-specific defect.

To test the role of MDMs in pancreatitis progression, we used CCR2-deficient mice (CCR2-KO), which have impaired egress of Ly6C^hi monocytes from the bone marrow³⁶ resulting in reduced numbers of blood Ly6C^hi monocytes (Extended Data Fig. 7j). We observed normal numbers of total F4/80⁺ macrophages in steady-state pancreas tissues compared to wild-type mice (Extended Data Fig. 7j). Cerulein-treated CCR2-KO mice had no change in total pancreas F4/80⁺ macrophages (Extended Data Fig. 7j), but a decrease in the number of pancreas MHCII^hi macrophages compared to wild-type mice (Extended Data Fig. 7j). CCR2-KO and wild-type mice had similar survival and pancreas weight following cerulein-loaded osmotic pump implantation (Extended Data Fig. 7k). Together, this suggests that TRMs are critical in restoring pancreas tissue homeostasis after acute damage, whereas MDMs are largely dispensable.

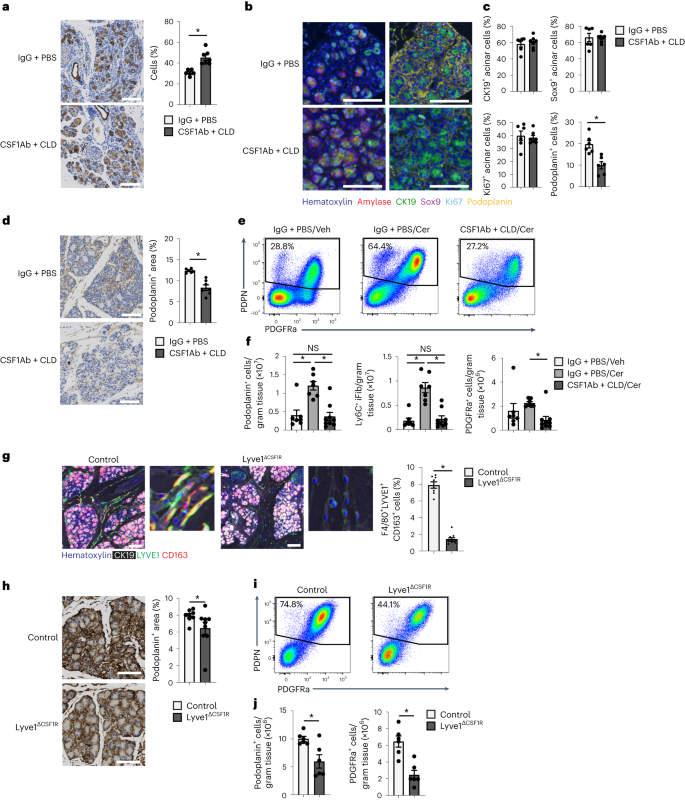

Depletion of tissue-resident macrophages attenuates fibrotic responses

To address whether the protective effect of TRMs was due to changes in the ADM process, we injected mice with CSF1Ab-CLD or IgG-PBS, waited 10 d, then injected cerulein or vehicle by six hourly i.p. injections (that is, once per hour for 6 h) every other day for 1 week. By IHC, CSF1Ab-CLD mice had an increased percentage of CK19⁺ cells in the pancreas compared to IgG-PBS controls (Fig. 6a). Close examination indicated CSF1Ab-CLD mice had significantly fewer stromal cells and stromal area between the acinar cell clusters (Fig. 6a). mIHC using the ADM markers CK19, Sox9 and Ki67 showed no difference in the percentage of amylase⁺ acinar cells expressing CK19, Sox9 or Ki67 between CSF1Ab-CLD and IgG-PBS mice (Fig. 6b,c), indicating that TRM depletion did not affect the ability of acinar cells to undergo ADM. In contrast, CSF1Ab-CLD mice had a >50% reduction in the number of podoplanin⁺ fibroblasts compared to IgG-PBS mice (Fig. 6b–d). Together, these data suggest that TRMs may impact recovery from pancreatitis by promoting stromagenesis.

To profile how TRMs were involved in driving the fibrotic response during pancreatitis, we examined the changes in fibroblast and ECM deposition during pancreatitis progression. CSF1Ab-CLD or IgG-PBS mice were treated with cerulein for 3, 7 and 17 d. CSF1Ab-CLD mice had reduced numbers of podoplanin⁺ fibroblasts compared to IgG-PBS mice at all timepoints (Fig. 6d and Extended Data Fig. 8a). The ECM molecule fibronectin was reduced at early timepoints (days 3 and 7 after cerulein injections), but markedly reduced at day 17 compared to IgG-PBS control (Extended Data Fig. 8a). In the absence of pancreatitis, we observed no difference in podoplanin⁺ fibroblasts between CSF1Ab-CLD and IgG-PBS mice (Extended Data Fig. 8b,c). Flow cytometry indicated the total number of podoplanin⁺ fibroblasts was markedly increased in IgG-PBS mice, but not in CSF1Ab-CLD mice during pancreatitis (Fig. 6e,f). Four distinct subsets of fibroblasts, including Ly6C⁺ inflammatory fibroblasts (iFibs), MHCII⁺ antigen-presenting fibroblasts (apFibs), αSMA⁺ myofibroblasts (myFibs) and PDGFRα⁺ fibroblasts (Extended Data Fig. 8d) have been described in homeostatic pancreas and PDAC^37,38. Of these, we detected an increase in the number of Ly6C⁺ and PDGFRα⁺ fibroblasts in IgG-PBS mice, but not in cerulein-treated CSF1Ab-CLD mice (Fig. 6e,f and Extended Data Fig. 8e).

To test whether LYVE1⁺ macrophages had a role in the initiation of the fibrotic response, we crossed Lyve1-Cre mice with CSF1R^fl/fl mice (hereafter Lyve1^ΔCSF1R), to specifically delete the CSF1R gene in LYVE1⁺ cells¹⁸. Lyve1^ΔCSF1R mice treated with cerulein for 7 d had >80% reduction in F4/80⁺LYVE1⁺CD163⁺ TRMs compared to Cre⁻ littermates (Fig. 6g and Extended Data Fig. 8f), but no change in the number of total F4/80⁺MHCII⁺ or LYVE1⁻ macrophages (Extended Data Fig. 8f). Cerulein-treated Lyve1^ΔCSF1R mice had reduced expansion of podoplanin⁺ fibroblasts and PDGFRα⁺ fibroblasts compared to cerulein-treated Cre⁻ littermates, as measured by IHC and flow cytometry (Fig. 6h–j). Notably, we observed no increase in iFibs or a survival difference in cerulein-treated Lyve1^ΔCSF1R mice compared to their Cre⁻ counterparts (Extended Data Fig. 8f,g), suggesting other TRMs could partially compensate. To check the role of MDMs, we treated CCR2-KO and wild-type mice with cerulein for 7 d and found no difference in the number of fibroblasts in the pancreas or in ECM deposition (Extended Data Fig. 8h,i). These data suggest TRMs, including LYVE1⁺ TRMs, coordinated fibroblast activation and expansion during pancreas injury.

Tissue-resident macrophages shape the tissue-protective fibrotic response

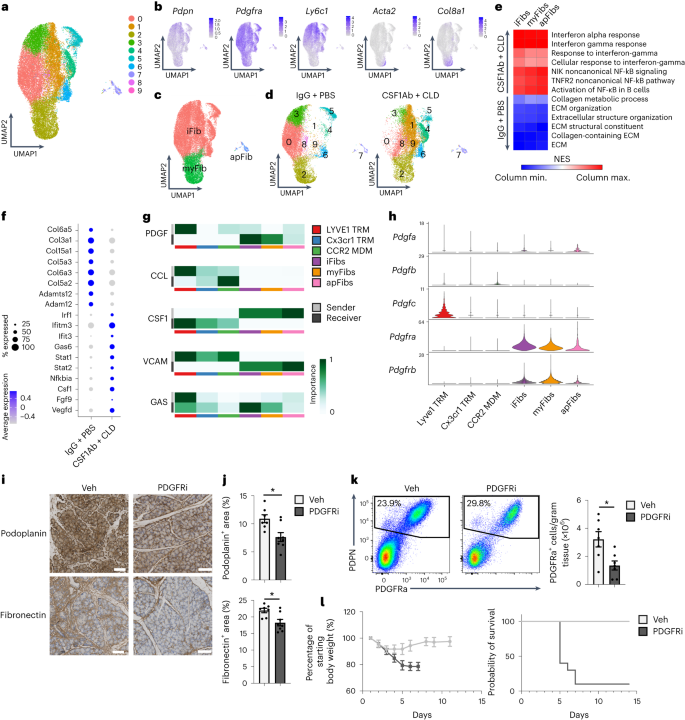

To investigate how TRMs impacted fibroblast phenotype, we performed scRNA-seq on sorted podoplanin⁺ fibroblasts from CSF1Ab-CLD and IgG-PBS mice treated with cerulein by six hourly i.p. injections every other day for 1 week. Uniform manifold approximation and projection (UMAP) clustering resulted in ten distinct clusters that broadly fit into the iFib (based on the expression of Ly6c1 and Clec3b), myFib (Acta2, Col8a1, Cxcl14) and apFib (H2-Ab1, Cd74 and Slpi) subsets (Fig. 7a–c and Supplementary Table 3)^37,38. DEG and GSEA analyses indicated Ly6c1⁺ iFibs from IgG-PBS mice were enriched in gene sets related to ECM production and organization and collagen production, while CSF1Ab-CLD Ly6c1⁺ iFibs were enriched in interferon responses and NF-κB signaling, which are known drivers of pancreatitis severity^39,40 (Fig. 7d,e and Supplementary Table 4). Enrichment in these gene sets was also detected in Acta2⁺ myFibs and H2-Ab1⁺ apFibs (Fig. 7e,f). Fibroblasts sorted from pancreas of IgG-PBS + vehicle (steady-state) mice clustered separately from cerulein-treated IgG-PBS or CSF1Ab-CLD fibroblasts, while cerulein-treated IgG-PBS fibroblasts upregulated collagen and ECM genes more than cerulein-treated CSF1Ab-CLD fibroblasts (Extended Data Fig. 9a,d). This suggests that fibroblasts upregulate genes related to collagen and ECM in the presence of TRMs, but are reduced in number and express genes linked to an inflammatory phenotype rather than protective fibrosis genes, in the absence of TRMs.

Next, to identify TRM–fibroblast signaling molecules, we merged macrophage and fibroblast single-cell datasets and queried LYVE1^hiCX3CR1^loMHCII^lo TRMs, LYVE1^loCX3CR1^hiMHCII^hi TRMs, CCR2^hi MDMs and Ly6C⁺ iFibs, αSMA⁺ myFibs and MHCII⁺ apFibs for enriched receptor and ligand genes (Extended Data Fig. 9e,g). We identified 60 pathways with statistical significance across clusters (Extended Data Fig. 9h). Across all pathways between macrophages and fibroblasts, LYVE1^hi TRMs had the highest aggregate score (Extended Data Fig. 9g,i), suggesting they were likely producing the most signals received by fibroblasts. Among these, PDGF signaling was enriched between LYVE1^hi TRMs and both iFibs and myFibs (Fig. 7g). The LYVE1^hi cluster had the highest expression of Pdgfc, while fibroblasts had high expression Pdgfra and Pdgfrb (Fig. 7h). Notably, all fibroblast populations produced Csf1, which signals through Csf1r, expressed by all macrophage clusters (Fig. 7g). To determine if PDGF–PDGFR signaling was required for fibroblast accumulation during pancreatitis, we treated mice with the PDGFR inhibitor imatinib mesylate (hereafter PDGFRi) or vehicle at the time of cerulein administration. PDGFRi-treated mice had reduced podoplanin⁺ fibroblasts and fibronectin (Fig. 7i,j) and decreased numbers of PDGFRα⁺ fibroblasts (Fig. 7k), but similar numbers of LYVE1^hi and other TRMs (Extended Data Fig. 9j) compared to vehicle-treated mice. Mice treated with PDGFRi concurrent with cerulein-loaded osmotic pump implantation did not recover body weight and showed 90% lethality (Fig. 7l). These data suggest that fibroblast accumulation during pancreas injury might rely on signals from TRMs, including PDGF–PDGFR signaling.

Tissue-resident macrophages drive fibrosis and pancreatitis-accelerated pancreatic ductal adenocarcinoma progression

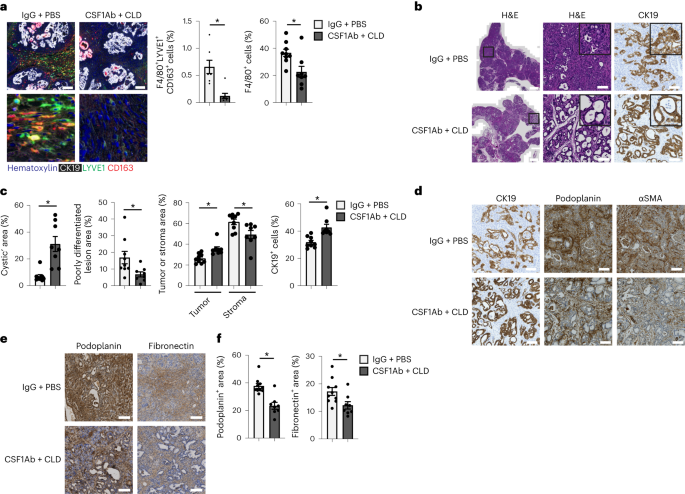

To assess whether TRM regulated fibrosis in PDAC, we used three genetic models. These models are driven by pancreas-specific p48-Cre activation of KRAS^G12D expression either constitutively or under control of doxycycline (iKRAS* mice). Two of the models have Cre-mediated deletion of one p53 allele (hereafter KPC mice) or both p53 alleles (KPPC mice)⁴¹. KPC mice, aged 2.5 months, were treated with CSF1Ab-CLD and IgG-PBS, rested for 10 d and treated with cerulein by six hourly i.p. injections every other day for 5 d (Extended Data Fig. 10a). Three weeks after cerulein treatment, a timepoint when microscopic carcinomas can be observed in IgG-PBS control mice, CSF1Ab-CLD-treated mice had an 80% reduction in the number of F4/80⁺LYVE1⁺CD163⁺ TRMs compared to IgG-PBS controls (Fig. 8a). By histology, CSF1Ab-CLD-treated KPC mice displayed significantly less high-grade PDAC tissue (Fig. 8b,c), compared to IgG-PBS-treated mice, and instead exhibited well-differentiated cyst-like desmoplastic areas characterized by low stromal desmoplasia and fewer podoplanin⁺ and αSMA⁺ fibroblasts (Fig. 8c,d). These data suggest that TRMs might drive PDAC progression in part through facilitating stromal desmoplasia. In the more aggressive KPPC model, we also observed a reduction in podoplanin and fibronectin staining, and a reduced tumor burden in CSF1Ab-CLD compared to IgG-PBS mice at 2 months of age (Fig. 8e,f)¹⁵. Finally, to induce depletion of TRMs before KRAS oncogene induction, we treated iKRAS* mice with CSF1Ab-CLD or IgG-PBS, rested for 10 d, then treated with cerulein by i.p. injection for 2 d and administered doxycycline in their drinking water for 3 weeks (Extended Data Fig. 10b)^41,42. At week 3 after KRAS^G12D induction, CSF1Ab-CLD-treated iKRAS* mice had a significant reduction in F4/80⁺LYVE1⁺CD163⁺ TRMs, as well as reduced premalignant pancreas weight and stromal area compared to IgG-PBS-treated mice (Extended Data Fig. 10c,e). Implantation of tumors in CCR2-KO and wild-type mice resulted in no change in tumor weight, size or podoplanin⁺ fibroblasts (Extended Data Fig. 10f,g). These data indicate that total TRMs facilitate the expansion of the fibrotic stroma during tumor development.

Discussion

Here we showed that a substantial portion of pancreas macrophages were embryonic derived. TRMs in the pancreas did not rely on continual replenishment from monocytes and displayed distinct transcriptional phenotype and location compared to MDMs. The LYVE1^hiCX3CR1^loMHCII^lo TRM population expressed gene sets indicative of ECM remodeling and alternative activation. Depletion of the LYVE1^hi subset impacted the accumulation and phenotype of fibroblasts during pancreatitis and diminished the effects of protective fibrosis.

It is not fully understood to what extent macrophage origin versus tissue residence or microenvironment impact their phenotype. Lineage tracing studies have shown monocyte-derived cells can adopt a similar phenotype to TRMs over time⁶. Transcriptional and epigenetic profiling has shown macrophages retain tremendous plasticity, and adoptive transfer of TRMs into a different tissue can cause the reprogramming of up to 70% of all genes¹⁴. This could align with the preferential localization of LYVE1⁺ TRMs within areas of higher fibrosis, suggesting their role in coordinating fibrosis may be driven by their specific microenvironment within the stroma. Further, pancreas TRMs can be distinguished as LYVE1^hiCX3CR1^loMHCII^lo or LYVE1^loCX3CR1^hiMHCII^hi, in agreement with expression of phenotypic markers in TRMs in fat, lung, mesenteric membranes and other tissues^{17,18,19,20,43}. Studies on LYVE1^hiMHCII^lo TRMs in the lung, arteries and mesenteric membranes report their involvement in ECM remodeling, and display a strikingly similar transcriptional profile to LYVE1^hiMHCII^lo TRMs in the pancreas.

TRM-driven tissue remodeling also led to distinct outcomes depending on the type of tissue injury. TRM-driven fibrosis was critically important for survival and recovery during pancreatitis through protective effects that limited tissue damage. It is thought that pancreatic stellate cell (PSC) activation is critical for recovery following inflammatory injury, both by providing growth factors and possibly driving ductal cell proliferation and regeneration^26,27. PSC activation for wound healing must, however, be transient. In a chronic setting, prolonged PSC activation is detrimental and can induce extensive fibrosis, which can interfere with pancreas function^23,27. Our study was limited to acute pancreatitis, where inflammation resolves upon cerulein withdrawal, but it would be important to understand how TRM–fibroblast interactions change in a chronic inflammation setting.

Similar to chronic pancreatitis, tumors involve prolonged inflammation and wound healing responses. We showed that TRM-driven fibrosis was co-opted by tumors to promote tumor growth. While still debated, studies have reported that fibrosis, and even macrophage-induced fibrosis, can play a tumor-supportive role^18,29,44,45. Fibrotic pathologies have been linked to higher risk of cancer, with chronic pancreatitis being a risk factor for PDAC^46,47. TRMs have also been reported to support tumor growth through other mechanisms. In lung adenocarcinoma, TRMs coordinate regulatory T cell responses and, when depleted, tumors grow more slowly²¹. In metastatic ovarian cancer models, TRMs promote tumor cell growth and metastatic spreading^18,48. While the pro-tumor mechanisms of TRMs vary by tumor model, most TRMs display an alternative-activation phenotype and secrete growth factors and cytokines to either directly or indirectly promote tumor progression.

MDMs were reported to promote inflammation and tissue damage during pancreatitis²⁵. Our transcriptional profiling indicated the upregulation of inflammatory pathways in MDMs, but we were not able to detect a functional outcome by targeting them. CCR2-KO mice showed no changes in ADM, tissue damage or mouse survival, perhaps due to CCR2-independent mechanisms by which inflammatory macrophages could accumulate. In summary, our study demonstrates that LYVE1^hi TRMs expand in number to help coordinate a fibrotic response critical in protecting the exocrine pancreas from inflammatory damage, but this program is co-opted by tumors to support their growth.

Methods

Mouse models

The following mouse models were purchased from Jackson Laboratories: CCR2-KO, Rosa26-LSL-eYFP and Csf1r-mer-iCre-mer. Lyve1-Cre;CSF1R^fl/fl (Lyve1^ΔCSF1R) mice were a gift from G. Randolph at Washington University in St. Louis. LSL-tdTomato mice in the FVB/NJ background were a gift from G. Longmore at Washington University in St. Louis, and were crossed to Csf1r-mer-iCre-mer for lineage tracing studies. Flt3-Cre mice were a gift from T. Boehm at the Max Planck Institute, and were crossed to Rosa26-LSL-eYFP mice. For Flt3-Cre;Rose26-LSL-eYFP experiments, male mice were used between the ages of 8 and 16 weeks. All other experiments were performed on both male and female mice between the ages of 8 and 16 weeks. Mice were maintained in the Laboratory for Animal Care barrier facility at the Washington University School of Medicine under a 12-h light–dark cycle. Washington University School of Medicine Institutional Animal Studies Committee approved all animal studies. Survival endpoints were scored when mice lost >15% body weight or tumors reached >1.8 cm in diameter by palpation.

Mouse tumor models

KPC mice (p48-Cre;LSL-KRAS^G12D;p53^fl/+) used in these studies have been previously described. They were backcrossed to C57BL/6 mice and tested for congenic markers. iKRAS* mice (Pft1a-Cre;LSL-rtTa;TetO-KRAS^G12D) were a kind gift from M. Pasca di Magliano, and have been previously characterized. Briefly, Kras^G12D expression was induced by administration of doxycycline in drinking water at a concentration of 0.5 mg ml⁻¹, supplemented with 3% sucrose (wt/vol). Upon start of doxycycline, mice were treated with acute cerulein on two consecutive days, injecting 100 μg per kg body weight of cerulein every hour for 6 h each day. Doxycycline administration was continued for 3 weeks, replacing drinking water every 3 d. The KPC-1 cell line was derived from a 2.2-month-old KPPC mouse (p48-Cre;LSL-KRAS^G12D;p53^fl/fl), and grown on collagen-coated tissue culture flasks for <12 generations. To establish orthotopic pancreas KPC tumor models, Flt3-YFP or C57BL/6 mice were implanted with 100,000 KPC-1 cells in 5 μl serum-free DMEM/F-12 and 45 μl Cultrex (Trevigen) by injecting cells directly into the pancreas.

For lung tumors, the KPL86 cell line was derived from lung tissues of the 9-month-old Kras^LSL-G12D/p53^flox/+ mouse treated with adenovirus-delivered Cre recombinase. Cells were grown on collagen-coated tissue culture flasks for <10 passages. To establish orthotopic non-small-cell lung cancer models, 1,000,000 KPL86 cells in 100 μl of PBS (Trevigen) were retro-orbitally injected into 8- to 12-week-old Flt3-YFP mice.

For liver metastasis of PDAC cells, hemispleen injection of 500,000 KPC-2 (or ‘KP2’) tumor cells was performed using an adapted procedure from published studies^50,51. The KP2 cell line was derived from pancreatic tumors of a 6-month-old p48-CRE+/LSL-KRAS^G12D/p53^flox/+ mouse, and tumor cells additionally were modified to express mCherry and click beetle red luciferase. To implant cells in the liver, the mice were anesthetized under continuously monitored isoflurane, and the spleen was exteriorized from the peritoneal cavity under sterile conditions through a left flank laparotomy. The spleen was ligated using medium titanium Horizon ligation clips (Teleflex) and divided in half. A tumor single-cell suspension in sterile PBS (100 μl), followed by 150 μl of sterile PBS flush, was injected into the inferior pole of the spleen with a 30-gauge needle (BD), monitoring for blanching of the spleen parenchyma and splenic vein to ensure injection efficacy. Once the cells and PBS flush were injected, the splenic vein was ligated, and the inferior pole of the spleen was excised. Once hemostasis was ensured, the peritoneum was closed with 5-0 ligature (Ethicon), and the skin was closed with the AutoClip system (Braintree Scientific). Mice were post-operatively monitored and managed according to Institutional Animal Care and Use Committee guidelines for survival surgery. Livers were collected at day 14 for cell sorting and scRNA-seq analysis.

Human samples

Human PDAC (with adjacent non-tumor ‘normal’ pancreatic tissue) and pancreatitis (with adjacent ‘normal’ pancreatic tissue) samples were obtained from consenting individuals diagnosed at Barnes-Jewish Hospital. The studies described were approved by the Washington University Institutional Review Board under protocol numbers 201704078 and 201908148. Adjacent healthy pancreas was identified by a pathologist using H&E-stained slides.

Experimental pancreatitis

Acute pancreatitis was induced in mice by administering six hourly i.p. injections of cerulein at a dosage of 100 µg per kg body weight given every other day for 1 week.

For severe acute pancreatitis via osmotic pump delivery of cerulein, osmotic pumps (Alzet Osmotic Pumps) were loaded with 100 µl of concentrated cerulein (8 µg cerulein per day was loaded with 1.33 mg ml⁻¹ and 10 µg cerulein per day was loaded with 1.67 mg ml⁻¹). Pumps were then implanted into the peritoneal cavity of mice, and body weight was monitored every day for up to 14 d.

Macrophage depletion

TRMs were depleted with a combination of CSF1 neutralizing antibodies and CLDs. Eight- to twelve-week-old FVB/NJ mice were treated with two doses of CSF1 antibody (BioXcell, 5A1, 1 mg and 0.5 mg on days −14 and −11, respectively), followed by two doses of CLDs (Liposoma, 200 µl each dose) on days −13 and −10. Mice were then allowed to recover for 10 d to allow monocytes and MDMs to reconstitute. On day 0, mice were either treated with cerulein by i.p. injection (described above) or implanted with osmotic pump to deliver cerulein.

Similarly, KPC mice were treated with two doses of CSF1 antibody (1 mg and 0.5 mg) separated by 2 d and starting at 10 weeks of age. On subsequent days after CSF1 antibody treatment, mice were injected with 100 µl of CLDs. Mice were then allowed to recover for ~2 weeks, then given brief cerulein treatment starting at 12 weeks of age by giving six hourly injections of 100 µg per kg body weight cerulein every other day for 5 d. Following cerulein, tumors were allowed to grow for ~3 weeks and mice were euthanized at 15 weeks of age. KPPC mice were similarly treated with two doses of CSF1 antibody (both 0.5 mg) and two doses of CLDs (100 µl each) starting at 1 month of age, as previously described⁵². Tissue was then taken and analyzed at 2 months of age.

iKRAS* mice were treated with a similar regimen of two doses of CSF1 antibody (1 mg and 0.5 mg) 14 and 11 d before starting doxycycline administration. Following CSF1 antibody treatment, mice were injected with CLDs (100 µl) on subsequent days. After CSF1 antibody and clodronate treatment, mice were allowed to recover for 10 d, after which doxycycline was given in drinking water (0.5 mg ml⁻¹ with 3% sucrose replaced every 3 d, as above) for ~3 weeks. Additionally, on days 0 and 1, iKRAS* mice were treated with acute cerulein (100 µg per kg body weight) by six hourly injections.

Lineage tracing

For lineage tracing of embryonically derived macrophages, timed breeding pairs were set up by crossing Csf1r-mer-iCre-mer mice with Rosa26-LSL-tdTomato mice (both on FVB/NJ background). The embryonic timeline was estimated by observation of the vaginal plug, with 12:00 on the day of plug formation being 0.5 days post coitum. Pregnant mice were then treated with tamoxifen (75 µg per gram body weight) supplemented with progesterone (37.5 µg per gram body weight) dissolved in corn oil at ~9.5 days post coitum. Offspring of tamoxifen-pulsed mice were then treated with vehicle or acute cerulein (as described above) at 6 weeks of age and euthanized for fate mapping analyses.

For lineage tracing of resident macrophages, adult Cx3cr1-CreERT2;LSL-tdTomato and Csf1r-mer-iCre-mer;LSL-tdTomato mice were pulsed with tamoxifen (75 mg per kg body weight) dissolved in corn oil on five consecutive days. Mice were then allowed a chase period of 3–10 weeks, or until blood monocytes lost tdTomato labeling. Following the chase period, mice were treated with vehicle or acute cerulein as described above, then euthanized for flow cytometry or IHC analyses.

Parabiosis

Parabiotic pairs were established based on previously described protocols^52,53. Briefly, age-matched and weight-matched female CD45.2⁺ and CD45.1⁺ mice were surgically joined. Mice were injected with Buprenex (buprenorphine) subcutaneously after surgery. Sulfatrim was continuously added in drinking water for 10 d after surgery to minimize infections in surgical wounds. Mice were separated and perfused with PBS containing 0.2% heparin. Single-cell suspensions from tissues were stained with antibodies for flow cytometry analyses 6 weeks after the establishment of parabiosis.

PDGFR inhibition with imatinib mesylate

Mice were treated once daily with i.p. injection of 100 mg per kg body weight imatinib mesylate (MCE, HY-50946). Imatinib was dissolved in 10% DMSO in PBS, then diluted at a 1:10 ratio for a final concentration of 100 mg per kg body weight in 1% DMSO solution. Concurrent with imatinib treatment, mice were either treated with standard i.p. injection of cerulein for flow cytometry and histology experiments, or implanted with osmotic pumps loaded with 1.67 mg ml⁻¹ cerulein to deliver 10 µg per day (as described above).

Mouse tissue isolation and flow cytometry

Mice were euthanized by cardiac perfusion with ~10–15 ml PBS-heparin under isoflurane anesthesia. Pancreas or tumor tissue was then isolated, minced with scissors, and digested in ~15–25 ml DMEM with 2 mg ml⁻¹ Collagenase A and 1× DNase I for either 15 min (steady-state pancreas and cerulein-treated pancreas) or 25 min (tumor tissue) at 37 °C with constant stirring. Digestion buffer was quenched with 3 ml FBS and filtered through 100-µm Nylon mesh, pelleted by centrifugation (2,000 r.p.m. for 5 min) and resuspended in FACS buffer (1% BSA in PBS). Brain tissue was minced and triturated through 40-µm Nylon mesh and resuspended in FACS buffer to obtain a single-cell suspension.

Cell suspensions were then blocked with rat anti-mouse CD16/CD32 antibodies for 10 min on ice, pelleted by centrifugation, and stained with fluorophore-conjugated extracellular antibodies for 25 min on ice. For samples with endogenous fluorescent protein labeling, cells were then washed twice with FACS Buffer, then run on a BD Fortessa X20 immediately. For unlabeled cells, samples were washed twice following antibody staining, fixed with BD Fixation Buffer for 30 min on ice, washed and resuspended in FACS buffer. Fixed samples were stored at 4 °C and run on a BD Fortessa X20 within 2 weeks. For samples requiring intracellular staining, cells were washed following extracellular staining, and stained using eBioscience FoxP3 Transcription Factor Staining Kit according to the manufacturer’s instructions.

To quantify proliferating cells in Flt3-YFP mice, tissue was digested and extracellular staining was conducted as described above. Cells were then fixed in 4% paraformaldehyde for 10 min on ice, then permeabilized in ice-cold 70% ethanol for 3 h, and stained with Ki67 antibody diluted in FACS buffer for 20 min on ice. Cells were then washed twice and immediately run on a BD Fortessa X20.

To quantify blood monocytes, 100 µl blood was obtained by cardiac puncture before perfusions and deposited into PBS-heparin. Blood was then pelleted by centrifugation, resuspended in 5 ml red blood cell lysis buffer for 10 min at room temperature, cells pelleted by centrifugation, then stained with fluorophore-conjugated antibodies for 25 min on ice. Cells were then fixed in BD Fixation Buffer for 30 min on ice, washed twice with FACS buffer, and stored at 4 °C and run on a BD Fortessa X20 within 2 weeks. For experiments requiring blood quantification before mice being euthanized, blood was obtained by tail vein bleeding, resuspended in RBS lysis buffer, stained with extracellular antibodies as described above.

Fluorescence-activated cell sorting

Single-cell suspensions were obtained as described above. Cells were then resuspended in FACS buffer containing CD16/CD32 antibodies to block for 10 min on ice, pelleted by centrifugation, then resuspended in fluorophore-conjugated antibodies, stained for 25 min on ice, then washed with FACS buffer. Cells were then immediately sorted on a FACSAria II (BD Biosciences).

For homeostatic pancreas, pancreatitis and pancreatic tumors, live macrophages (CD45⁺CD11b⁺CD3⁻CD19⁻B220⁻SiglecF⁻Ly6G⁻Ly6C⁻7AAD⁻F4/80⁺MHCII^hiI/lo) were sorted. For bulk RNA-seq analyses, Flt3-YFP-positive and Flt3-YFP-negative macrophages were sorted directly into RNA lysis buffer (Omega Biotek) and RNA isolated using EZNA Kit (Omega Biotek). For scRNA-seq, cells were sorted into FACS buffer, and library preparation was conducted as described below.

Liver single-cell suspensions were obtained as described above. Cells were then resuspended in anti-CD45 magnetic beads (BD Biosciences), incubated for 15 min on ice, washed in FACS buffer, and applied to an LS magnetic column to enrich for CD45⁺ cells. Following magnetic isolation, cells were spun down, resuspended in fluorophore-conjugated antibodies, stained for 25 min on ice, washed with FACS buffer, then immediately sorted. Flt3-YFP-positive and Flt3-YFP-negative liver macrophages were sorted (CD45⁺CD11b⁺CD3⁻CD19⁻B220⁻SiglecF⁻Ly6G⁻7AAD⁻) into FACS buffer, then scRNA-seq library preparation was conducted as described below.

Lung single-cell suspensions were obtained as described above. Cells were then resuspended in FACS buffer containing CD16/CD32 antibodies to block for 10 min on ice, pelleted by centrifugation, then resuspended in fluorophore-conjugated antibodies, stained for 25 min on ice, then washed with FACS buffer. Cells were then immediately sorted on a FACSAria II (BD Biosciences). Flt3-YFP-positive and Flt3-YFP-negative macrophages were sorted (CD45⁺CD3⁻CD19⁻B220⁻7AAD⁻CD11b⁺CD11c^hi/loF4/80⁺) into FACS buffer, then scRNA-seq library preparation was conducted as described below.

For fibroblasts, homeostatic pancreas or cerulein-treated pancreas tissue was taken, and single-cell suspensions were isolated as described above. Cells were then resuspended in FACS buffer containing CD16/CD32 antibodies to block for 10 min on ice, pelleted by centrifugation, then resuspended in fluorophore-conjugated antibodies, stained for 25 min on ice, then washed with FACS buffer. Cells were then immediately sorted on a FACSAria II (BD Biosciences). Total fibroblasts were sorted (CD45⁻EpCAM⁻CD31⁻PDPN⁺) into FACS buffer, then scRNA-seq library preparation was conducted as described below.

After cells were sorted into FACS buffer, they were pelleted by centrifugation, resuspended in 0.04% BSA in PBS, and cell counts were obtained. scRNA-seq library preparation was then conducted by the Genome Technology Access Center at Washington University. Briefly, cells from each sample were encapsulated into droplets, and libraries were prepared using Chromium Single Cell 3′ v3 Reagent kits according to the manufacturer’s protocol (10x Genomics). The generated libraries were sequenced by a NovaSeq 6000 sequencing system (Illumina) to an average of 50,000 mean reads per cell. Cell Ranger mkfastq pipeline (10x Genomics) was used to demultiplex Illumina base call files to FASTQ files. Afterward, fastq files from each sample were processed with Cell Ranger counts and aligned to the mouse mm10 reference genome (Cell Ranger v4.0.0, 10x Genomics, mouse reference mm10-2020-A from https://cf.10xgenomics.com/supp/cell-exp/refdata-gex-mm10-2020-A.tar.gz) to generate feature barcode matrix.

Mouse bulk RNA-seq analysis

Pancreas macrophages were sorted as described above, directly into TRK Lysis buffer (Omega Bio-Tek). RNA was isolated by E.Z.N.A. Total RNA isolation kit according to the manufacturer’s recommendations (Omega Bio-Tek). Following quality control by bioanalyzer, libraries were prepared using the Clontech SMARTer kit (Takara Bio) at the Washington University Genome Technology Access Center (GTAC). Libraries were then indexed, pooled and sequenced on an Illumina HiSeq 3000 (Illumina). Illumina’s bcl2fastq software was then used for basecalling and demultiplexing. Reads were then aligned to the Ensembl release 76 top-level assembly with STAR version 2.0.4b, and gene counts were derived from the number of uniquely aligned unambiguous reads by Subread:featureCount version 1.4.5. Gene counts were then imported into Edge in R, and TMM normalization size factors were calculated to adjust for differences in library size. Limma and voomWithQualityWeights were then used to calculate weighted likelihoods based on the observed mean–variance relationship of every gene and sample. Differential expression analysis was then performed to analyze for differences between Flt3-YFP lineages and results filtered by Benjamini–Hochberg FDR-adjusted P values less than or equal to 0.05. Global perturbations in known Gene Ontology (GO) terms and KEGG pathways were detected using GAGE to test for changes in expression of reported log₂ fold changes reported by Limma in each term versus background log₂ fold changes of all genes outside the respective term. GSEA was also performed using GO terms, KEGG pathways, Reactome and MSigDB gene sets with Benjamini–Hochberg FDR < 0.05. DEGs and gene sets were displayed using pHeatmap or the Phantasus online tool (Artyomov; https://artyomovlab.wustl.edu/phantasus/).

Mouse single-cell RNA-seq analysis

The filtered feature barcode matrix from each sample was then loaded into Seurat as Seurat objects (Seurat v3). For each Seurat object, genes that were expressed in less than three cells and cells that expressed less than 1,000 or more than 8,000 genes, were excluded. Cells with greater than 10% mitochondrial RNA content were also excluded, resulting in between 2,297 and 17,880 cells, as indicated in Supplementary Table 1. SCTransform with default parameters was used on each individual sample to normalize and scale the expression matrix against the sequence depths and percentages of mitochondrial genes⁵⁴. Principle component analysis (PCA) was performed (function RunPCA). A UMAP dimensional reduction was performed on the scaled matrix using the first 25 PCA components to obtain a two-dimensional representation of cell states. Then, these defined 25 dimensionalities were used to refine the edge weights between any two cells based on Jaccard similarity (FindNeighbors), and were used to cluster cells through FindClusters functions.

To characterize clusters, the FindAllMarkers function with a logfold threshold of 0.25 and minimum 0.25-fold difference and MAST test were used to identify signatures alone with each cluster. For macrophage/monocyte samples, the macrophage/monocytes clusters were selected, and the top 3,000 variable features were recalculated to recluster to a higher resolution. Macrophages were selected based on clusters with high expressions of known macrophage marker genes, including Csf1r, C1qa and C1qb, and confirmed by the absence of Cd3e, Ms4a1, Krt19, Zbtb46 and Flt3, and further confirmed by identifying DEGs associated with potential macrophage clusters, when compared to known macrophage-specific marker genes. For fibroblast samples, the fibroblast clusters were selected and similarly reclustered. Fibroblasts were selected based on clusters with high expression of known fibroblast marker genes, including Pdpn, Pdgfra and Col1a1, and confirmed by the absence of Krt19, Prss2 and Amy1a. For GSEA comparisons, the log₂(fold change) of all genes detected with min.pct > 0.1 and past MAST test was used as a ranking metric. GSEA was performed using GO terms, KEGG pathways, Reactome and MSigDB gene sets with Benjamini–Hochberg FDR < 0.05 in ClusterProfiler⁵⁵. For DEGs between the two groups in each library, we filtered genes with a Bonferroni-corrected P value < 0.05 and fold change > 1.2 or < 0.8.

Human single-cell RNA-seq analysis

For the human datasets³³, cells with greater than 15% mitochondrial genes were excluded and cells that expressed less than 500 genes were excluded. SCTransform with default parameters was used on each individual sample to normalize and scale the expression matrix against sequence depth and percentage of mitochondrial genes⁵⁴. Cell cycle scores and corresponding cell cycle phases were then calculated and assigned after SCTransform based on S and G2/M genes (CellCycleScoring). Differences between the S phase and G2/M phase were then regressed out by SCTransform on individual samples. Variable features were calculated for every sample in the dataset independently and ranked based on the number of samples they were independently identified (SelectIntegrationFeatures). The top 3,000 variable features were then used for PCA (RunPCA). The calculated PCA embedding of each cell was then used as an input for the soft k-means clustering algorithm. Briefly, through iteration, the algorithm designated the cluster-specific centroids and cell-specific correction factors corresponding to batch effects. The correction factors were used to assign cells into clusters until the assignment was stable (RunHarmony). The first 20 PCA components were then used to refine the edge weights between any two cells based on Jaccard similarity (FindNeighbors), and were used to cluster cells through the FindClusters function at a resolution of 0.3, resulting in 24 clusters. To characterize clusters, the FindAllMarkers function with logfold threshold of 0.25 and minimum 0.25-fold difference and MAST test were used to identify signatures alone with each cluster. Macrophage/monocyte clusters were then selected, and the top 3,000 variable features were recalculated to recluster to a higher resolution, resulting in 5,970 total cells and 8 clusters. Macrophages were selected based on clusters with high expressions of known macrophage marker genes, including CSF1R, C1QA, C1QB and CD68, and confirmed by the absence of CD3E, MS4A1, KRT19 and CD1C, and further confirmed by identifying DEGs associated with potential macrophage clusters, when compared to known macrophage-specific marker genes.

Immunohistochemistry and immunofluorescence

Mouse tissues were fixed in 10% formalin overnight at 4 °C, dehydrated through graded ethanol washes of 30% ethanol, 50% ethanol and 70% ethanol for 20 min each. Tissue was then run through a Leica ASP 6025 tissue processor and embedded in paraffin, then sectioned at 6-µm-thick tissue sections. IHC staining was then performed on a Bond Rxm autostainer (Leica Biosystems) according to the manufacturer’s recommendations. Briefly, paraffin slides were loaded onto the machine, baked at 60 °C for 15 min, dewaxed and rehydrated, and antigen was retrieved with either citrate or EDTA antigen retrieval solution (Leica Biosystems). Endogenous peroxidase activity was blocked with a peroxide block, and primary antibodies were then applied for 60 min. Either species-specific or biotinylated secondary antibodies were then applied to the slides. Next, either DAB or Fast Red chromogens were applied, followed by hematoxylin counterstain. Slides stained with DAB were then dehydrated through graded ethanols and xylene, and then mounted with Cytoseal XYL (Thermo Fisher). Slides stained with Fast Red were air dried for 15 min and then mounted with Vectamount Permanent Mounting Medium (Vector Laboratories).

Multiplex immunohistochemistry staining

Formalin-fixed paraffin-embedded tissue was sectioned at 6 µm, loaded onto a Bond Rxm autostainer, baked for 60 min at 60 °C, dewaxed and rehydrated. A series of staining was performed with multiple markers as indicated, based on a previously published study⁵⁶. Briefly, slides were first blocked with peroxide block, goat serum block and species-specific F′ab block (Jackson Laboratories), then primary antibodies were incubated for 60 min, followed by species-specific secondary antibodies conjugated to horseradish peroxidase (HRP). For primary antibodies raised in rabbit, Polymer (anti-rabbit poly-HRP, Leica Biosystems) was used as a secondary antibody; for primary antibodies raised in mouse, Post-Primary (rabbit anti-mouse, Leica Biosystems) secondary was used, followed by Polymer; and for other primary antibodies, biotinylated species-specific secondaries were used, followed by streptavidin-HRP (SA-HRP, Leica Biosystems; anti-rabbit poly-HRP and SA-HRP are provided in Intense R and Polymer Refine Detection Kits respectively, Leica Biosystems). Slides were then chromogenically visualized with AEC (Invitrogen) and counterstained with hematoxylin (Dako). Stained slides were then mounted with Vectamount Aqueous Mounting Medium (Vector Laboratories) and imaged on an Axio Scan.Z1 (Zeiss) at ×20 magnification. Before the next round of staining, coverslips and mounting medium were removed by soaking slides in TBST (1× TBS with 0.05% Tween-20) for several hours, then destained by graded ethanols (50% ethanol, 70% ethanol with 1% HCl, 100% ethanol, 70% ethanol, 50% ethanol and deionized water for 5–10 min each) then loaded onto a Bond Rxm for staining of the next marker. Images were cropped and exported using Zeiss ZEN software (v3.2.0) then analyzed using HALO software (Indica Labs).

Quantification and statistical analysis

The number of mice and statistical tests used are reported in each figure legend. Statistical analyses were performed by GraphPad Prism v9, using an unpaired Student’s t-test, analysis of variance (Bonferroni multiple comparisons) or unpaired non-parametric Mann–Whitney U test as appropriate for normality of data. A log rank (Mantel–Cox) test was used for survival experiments. Data are the mean ± s.e.m., unless otherwise noted. P < 0.05 was considered statistically significant for all studies; *P < 0.05. Mice genotyped as positive for strain-specific alleles were allocated randomly into treatment groups. Littermate controls that were genotyped negative were subsequently allocated randomly into control groups when appropriate. All mice were assigned numbers to allow researchers to be blinded to mouse genotype or treatment group where possible. During data collection by flow cytometry, IHC analysis or pathological grading, mice were only referred to by their number to avoid bias toward genotype or treatment group. Data were then organized according to group or treatment once data collection was complete.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

Sequencing data are publicly available under Gene Expression Omnibus repository accession numbers GSE196778 (scRNA-seq) and GSE203005 (bulk RNA-seq). Source data are provided with this paper. All other data are available upon request from the corresponding author.

Code availability

No custom code was generated for this study. Code used to generate figures is available upon request from the corresponding author.
