Main

Neonatal intensive care units (NICUs) provide critical care to newborns with serious medical conditions. In the United States, approximately 10% of newborns are admitted to NICUs and this number continues to rise1,2,3. Preterm birth—the leading cause of death in children under five years old—is a substantial contributor to NICU admissions, with its rate also increasing over the past decade4. To better serve these vulnerable newborns, NICU practices have incorporated increasingly advanced innovations. These range from the introduction of mechanical ventilation in the 1970s5, the implementation of surfactant replacement therapy in the 1980s6 and the use of therapeutic hypothermia in the United States in early 2000s7. Today, with the rise of big data and AI, another new frontier in NICU innovation involves making care decisions informed by computational methods that leverage troves of data, such as continuous monitor recordings and electronic health records (EHRs). We are already seeing advances in various predictive models, such as for the detection of newborn sepsis7 or intraventricular hemorrhage (IVH)8. Despite these advances, the potential of AI remains largely untapped. Clinical adoption of AI in many US hospitals remains as low as 10% (ref. 9), with almost 90% of the adoption concentrated in radiology and cardiology and 0% in neonatology10. Even with high accuracy, many predictive models do not influence outcomes in real clinical settings11,12. This underscores the need for clinically relevant AI that goes beyond making predictions to guiding effective interventions, a shift reflected in emerging trends such as large action models in autonomous systems, which emphasize actionable outcomes for greater clinical impact13,14.

TPN, used here to encompass both TPN (zero enteral feeds) and partial PN (parenteral nutrition), where some amounts of enteral feeds are also provided, plays a crucial role for many NICU patients. It is in particularly important for those born prematurely or with gastrointestinal complications, by providing essential nutrients directly into the bloodstream when enteral feeding is not possible or sufficient.

For some newborns with underdeveloped or compromised gastrointestinal tracts, TPN is their main source of nutrition and sole source for some15. However, best practice for prescribing and formulating TPN is costly, time-consuming to formulate and requires extensive multidisciplinary collaboration. Other practices that do not involve a multidisciplinary team or adhere to standardized guidelines tend to result in worse outcomes16,17. Contributing to its complexity are the regional differences in practice and the lack of universal guidelines16,18. In the United States, TPN protocols for preterm infants emphasize early, aggressive nutrition with higher protein and calorie goals; in Europe, formulations with lower proteins are used to avoid metabolic complications19,20,21. Given these complexities, it is not surprising that errors in TPN management—ranging from prescribing and compounding to labeling and administration—are the most frequently cited among high-alert medications in NICUs22,23. To mitigate these errors, previous calculator tools for TPN formulations have aimed primarily at addressing issues such as component compatibility, electrolyte balance and osmolarity calculations24,25,26,27. These calculator tools are available commercially (for example, Infusion Studio or modules within Epic28,29. However, their scopes remain limited in addressing the broader complexities of prescribing TPN. Whether due to errors or suboptimal protocols, improper TPN administration has been associated with heightened risks of mortality and morbidities, including necrotizing enterocolitis (NEC), bronchopulmonary dysplasia (BPD), gastrointestinal diseases, sepsis and more30,31,32,33,34,35,36. These challenges and risks associated with TPN highlight an opportunity for data-driven approaches like AI to improve safety, efficiency and patient outcomes in the NICU.

Here, we report the development and validation of TPN2.0—an AI approach that formulates a set of standardized TPN compositions and assigns treatments to newborns based on routinely collected data from their EHR. We developed TPN2.0 using advanced machine learning (ML) algorithms, performed external validation and tested it with a multidisciplinary healthcare team. TPN2.0 can also have a broader impact beyond the standard of practice. The recent American Society for Parenteral and Enteral Nutrition (ASPEN) guidelines for parenteral nutrition in premature infants recognize that standardized solutions like TPN2.0, being relatively easy to implement, will be particularly valuable in resource-limited settings20, including in the United States, and in low- and middle-income countries (LMICs) where customized TPN is often inaccessible37,38.

Results

We compiled a TPN dataset consisting of 79,790 prescriptions from 5,913 unique patients and linked them to their EHRs to develop a data-driven TPN approach called TPN2.0. The data were collected at Stanford Health Care—a quaternary care hospital in the United States, from January 2011 to January 2022. The newborn clinical characteristics are reported in Supplementary Table 1 along with the incidence of 17 principal neonatal morbidities. The clinical characteristics collected include demographics, laboratory measurements, conditions, medications, observations and procedures. A flowchart detailing this process is shown in Extended Data Fig. 1. An independent dataset from the University of California, San Francisco (UCSF) was used for external validation of TPN2.0. The UCSF dataset contained 63,273 TPN prescriptions from 3,417 unique patients.

Study design and overview

TPN2.0 was designed to reduce the formulation subjectivity and increase the compounding efficiency of the TPN prescription process by leveraging ML to (1) formulate a set of standardized TPN formulas and then (2) recommend the best fit from these standardized formulas based on the patient’s clinical characteristics (Fig. 1a). The approach is data-driven, resolving the ambiguity in determining the ideal composition of TPN, which currently varies based on selected guidelines and individual providers’ anecdotal experiences19,20,39. This approach can streamline the prescription process, reducing the human resources and time required from hours to probably a couple of minutes. All of this is achieved while maintaining the necessary level of personalization to meet the diverse nutritional needs of newborns. The standardized formulas also open the possibility of mass manufacturing, which can eliminate the 4–12 h of lead time and errors from individual compounding and shipping. These benefits enable TPN2.0 to address the current TPN processes’ shortcomings and accessibility issues.

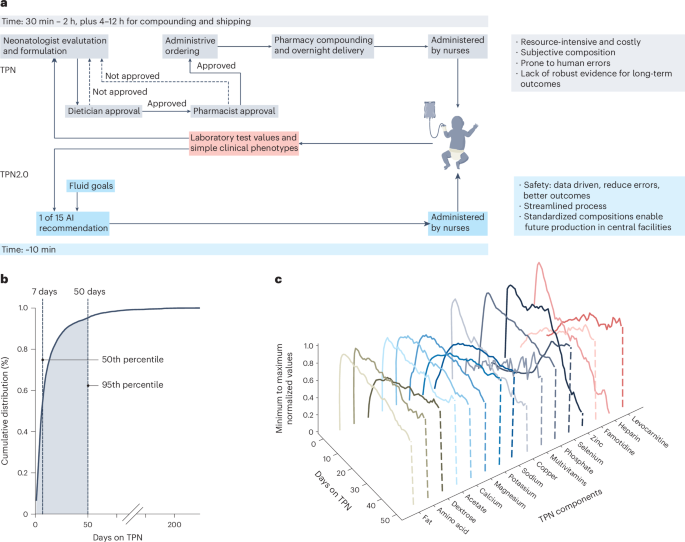

Fig. 1: TPN ordering is a repetitive, time-consuming and error-prone process, with many stakeholders involved.
Fig. 1: TPN ordering is a repetitive, time-consuming and error-prone process, with many stakeholders involved.
Full size image

a, The current TPN ordering workflow involves a multidisciplinary team collaborating to determine the appropriate daily TPN composition for each patient. A medical team first evaluates the patient’s laboratory test results and clinical characteristics and place an order. The order is reviewed by a dietician and, if approved, by a pharmacist. Next, each bag is compounded individually, and delivered to the hospital. This process typically takes 4–12 h, and sometimes up to 24 h. In contrast, the proposed TPN2.0 model simplifies the process by automatically analyzing patient data—comprising laboratory test values and clinical characteristics—and assigning one of the 15 premade TPN formulas to them. TPN2.0 aims to streamline operations to reduce cost, error and practice variability. This is achieved by a combination of AI and standardized TPN compositions. b, Cumulative distribution of the number of days patients are on TPN shows that 50% of the patients receive TPN for up to 7 days, and 95% receive it for up to 50 days. c, Normalized mean values of TPN components by day, demonstrating the dynamic nature of TPN components.

TPN2.0 was developed based on data collected over a decade at Stanford (Supplementary Table 1). During this 10-year period, the patients’ average number of days on TPN was 14 ± 23 days, with a median of 7 days reflecting high variability among cases; for example, the 90th percentile extends up to 50 days (Fig. 1b). The components of TPN can also vary independently over time (Fig. 1c and Supplementary Fig. 1). For example, all macronutrients monotonically increased and plateaued, whereas zinc and copper peaked and then decreased. This variability, alongside diverse patient phenotypes, underscores the complex challenges in nutritional management.

TPN2.0 formulas identified through a data-driven approach

To develop TPN2.0, we first employed a variant of deep-learning architecture called a variational neural network (VNN) combined with semisupervised iterative clustering (Fig. 2a). The VNN compressed high-dimensional patient data into a latent representation, which is effective for subsequent clustering. The TPN2.0 VNN was trained on the compressed EHR representations (Methods), daily laboratory values, demographic data and TPN basic parameters such as daily total fluid targets and enteral volumes, to generate the TPN compositions. The latent representation from the VNN was then grouped into discrete clusters to reduce the innumerable numbers of TPN recommendations into a finite set of clusters, that is, standardized formulas, that allows mass manufacturing. This could substantially reduce costs associated with TPN and increase safety. Moreover, standardized TPN can have a long shelf-life of up to 2 years at room temperature40, making widespread distribution possible to hospitals in low-resource settings that currently lack means to independently formulate TPN.

Fig. 2: A deep representation learning algorithm for data-driven prediction and standardization of TPN.
Fig. 2: A deep representation learning algorithm for data-driven prediction and standardization of TPN.
Full size image

a, A VNN is used to predict TPN compositions based on patient data. The clinical characteristics include newborn characteristics, laboratory measurements and basic TPN information such as total fluid. The compressed EHR representations are obtained from the latent space of the AE fed with 14,499 EHR features including medications, observations, procedures and conditions. The VNN integrates all these inputs and maps them to 16 different TPN components, creating a high-dimensional latent representation that encompasses both prescription and patient information. These latent representations are then fed to a semisupervised iterative clustering algorithm to group similar representations together. The TPN composition of each cluster is obtained by feeding the cluster centroid to the VNN’s decoder, yielding a set of standardized TPN2.0 formulas. b, A 2D visualization of the latent representations, color-coded by cluster assignment. Each dot represents a latent patient EHR profile of that day. The black dotted path corresponds to an example from a particular patient, transitioning through different TPN2.0 clusters based on their historical EHR. Initially, TPN2.0 recommends formula C3, followed by C1, which are low-concentration bags typically used in the first few days of life. Subsequently, the recommendation switches to a more nutrient-rich formula, C7, until hyponatremia develops. In response to this, the model automatically switches the patient to formula C6, which has one of the highest sodium concentrations. Once the hyponatremia is resolved, the recommendation goes back to C1. This case showcases how the model can adjust TPN bag prescriptions based on real-time changes in patient conditions. c, TPN2.0 clusters have distinct compositions. The within-nutrient normalized composition of the formulas illustrated in the example patient’s journey. Comparison should not be made across nutrients. d, This plot visualizes the relative Pearson’s R and the number of clusters, demonstrating diminishing returns after 15, where higher numbers of clusters did not result in substantial performance gain to justify the decrease in practicality. The relative R was calculated from the ratio between R from the cluster predictions and from the model’s raw predictions.

We found that only 15 clusters were required for TPN2.0 to achieve sufficient correlations between a given cluster’s composition and the prescribed TPN. This number of clusters yielded a Pearson’s correlation (R) of 0.82 (P value < 0.0001) relative to the original VNN predictions. Two-dimensional (2D) visualization of the VNN’s latent space demonstrates the heterogeneity of the nutritional needs in different patients (Fig. 2b and Supplementary Fig. 2). The optimal composition of TPN may change from day to day, and each patient may not necessarily follow the same longitudinal trajectory. An example is presented in Fig. 2b, where a patient requiring intravenous nutrition through a central line was first assigned to cluster C3, which contained the lowest concentrations of solutes (Fig. 2c). In response to higher nutritional needs as the newborn grew from days 2–9, they were then shifted from C3 to C1 and then C7, which provided higher nutritional and caloric content. However, upon being diagnosed with hyponatremia, TPN2.0 adapted by moving the patient to cluster C6, which delivered a higher sodium concentration of 5.6 mEq kg−1 day−1. The nutritional profile of each cluster is shown in Extended Data Fig. 2. This flexibility highlights the capability of TPN2.0 to address diverse nutritional needs by algorithmically assigning one of the 15 standardized formulas.

The cluster analysis demonstrated that model performance using 15 clusters was optimal. A higher number of clusters resulted in diminishing gains and did not show enough gain in performance to justify an increased number of formulas (Fig. 2d). TPN2.0 was also more objective than actual prescriptions. Our analysis showed that TPN2.0 had a lower variance for similar types of patients compared to current best practice across all TPN components (Extended Data Fig. 3). This indicates that TPN2.0 was more consistent than actual prescriptions in recommending the same TPN compositions for patients with similar clinical characteristics. It also demonstrates that any two members of the healthcare team may not agree on the same TPN compositions for the same patient (for more on this, see ‘Blinded providers rate TPN2.0 higher than best practice’).

Independent validation of TPN2.0 in a second hospital

In this retrospective study, we validated the VNN model on an independent cohort at UCSF. The Stanford team did not have access to the UCSF data. The model, without retraining, was provided to UCSF and the results were reported independently.

Although TPN practices may vary among providers, and more so across different hospital systems, certain characteristics remain similar. For example, the TPN dosage at both Stanford and UCSF can predict the weights of infants (Pearson’s R ≥ 0.90; Fig. 3a). At Stanford, TPN2.0 recommendations performance was highly correlated with that of human experts (Pearson’s R = 0.94; P value < 0.0001; 20% difference) and vastly outperformed baseline ML methods such as Elastic Net (Fig. 3b). Difference between prescriptions among human experts for a similar type of patients was used as the gold standard (Methods). The resulting difference, measured by distance of each TPN component, among human experts and to TPN2.0 recommendations is shown in Fig. 3c. Stratification of the results indicated that the performance generalized similarly across races and sexes (Extended Data Fig. 4a). The high level of correlation persisted even when the train/test set in the time-based cross-validation scheme. Specifically, we trained the model on data from two timeperiods and tested it on the remaining period, repeating this process for each of the three periods. This approach demonstrated that the model’s performance remained consistently high, regardless of which timeperiod was used for testing (Extended Data Fig. 4b). The stable correlation throughout all periods implies that potential shifts in clinical guidelines over time had little influence on the effectiveness of the model.

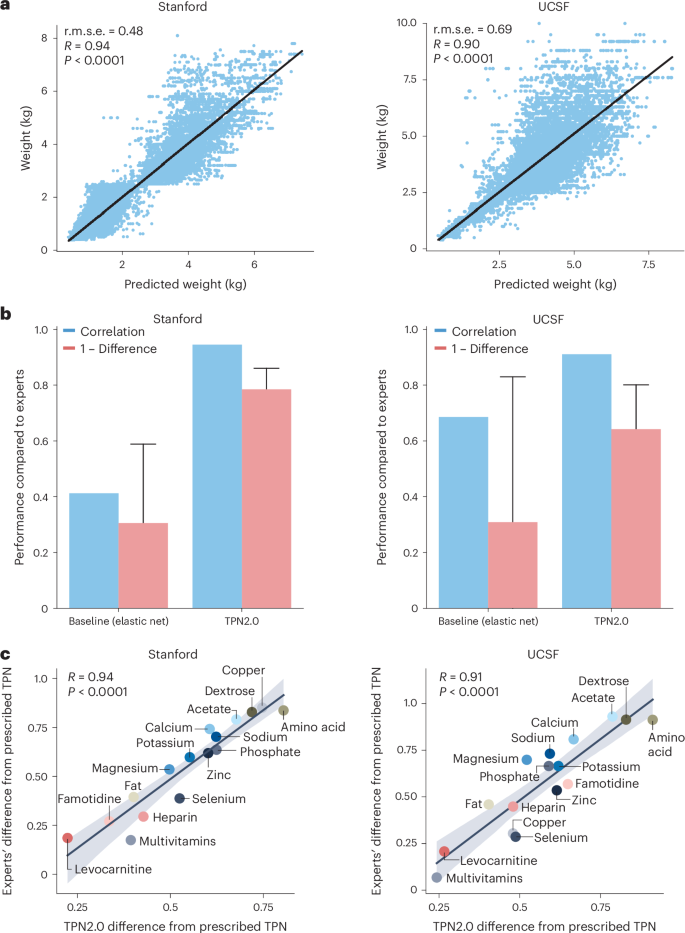

Fig. 3: TPN2.0 is validated in a second hospital and outperforms baseline Elastic Net models.
Fig. 3: TPN2.0 is validated in a second hospital and outperforms baseline Elastic Net models.
Full size image

a, To validate the model developed at Stanford, we extracted a second TPN dataset from UCSF. To check data consistency, we demonstrated that TPN compositions are associated with the weights of neonates in both sites (Pearson’s R and P value). b, The Stanford team did not have access to UCSF data, and models trained at Stanford were validated independently by the UCSF team. To examine TPN2.0 performance across sites, we report the distance between a prescribed TPN and another expert’s similar TPN order as the gold standard (Methods). We also report the relative difference, which is calculated as the absolute difference between TPN2.0 and the experts’ distances, divided by that of the expert. It is presented as ‘1 − Difference’, where higher values signify higher similarity between experts and TPN2.0 performance. Error bars, s.e. Comparing these distances between the experts’ TPN and TPN2.0 reveals a high correlation at both Stanford (n = 79,790 TPN from 5,913 patients) and UCSF (n = 63,273 TPN from 3,417 patients). The model also outperforms baseline ML (Elastic Net). Data are presented as mean values ± s.e.m. c, At both sites, TPN2.0 shows similar distance to experts for all components (Pearson’s R and P value). Here, lower distances suggest consistency among experts, as seen with components like levocarnitine or multivitamins. In contrast, higher distances reflect lower performance, such as in dextrose and amino acid contents, which are due to greater variability in practice. In contrast, levocarnitine or multivitamins are mostly a binary decision with better defined guidelines. The bands represent 95% confidence intervals.

At UCSF, TPN2.0 retained significantly high performance with their human experts (Pearson’s R = 0.91; P value < 0.0001; 35% difference; Fig. 3b). At both sites, dextrose and amino acids were among the components exhibiting the highest distances for both the human experts and, to a lesser extent, TPN2.0 (Fig. 3c). This implies higher variability between expert providers in these components, which was expected since the guidelines for these components have wider possibilities. This is in contrast to those with lower distances such as levocarnitine, which is usually constrained to either 0, 10 or 20 mg kg−1 day−1. Overall, this demonstrates that TPN2.0 performs similarly to experts in both institutions.

Blinded providers rate TPN2.0 higher than best practice

We validated TPN2.0 in a blinded study. We recruited ten members of the healthcare team to first chart review randomly selected NICU patients who received TPN. Next, they were presented with three potential TPN solutions: TPN2.0’s recommendation, the actual TPN solution developed by the care team according to best practice and a random TPN prescription as a negative control. Their task was to rate each of the three options on a scale of 0 to 100, with 100 being the highest preference (Fig. 4a). A total of 192 comparisons were completed. The results showed that TPN2.0 received the highest average expert rating (score of 56), outperforming both prescribed (average score of 35) and random TPN (average score of 20; Fig. 4b). By counts, TPN2.0 was also rated the highest most frequently (Supplementary Fig. 3). To reduce possible individual human errors, we performed an additional analysis where we included only patients evaluated by at least three stakeholders and took the mean of their scores. Even when compared against this mixture of human experts setup, TPN2.0 consistently received the highest ratings, with the score for every patient either matching or exceeding that of the prescribed TPN, underscoring the robustness of TPN2.0 preference (Extended Data Fig. 5). This blinded study supplements our performance metrics from the retrospective studies by providing additional insights from real-world scenarios.

Fig. 4: In a blinded study, TPN2.0 outperformed current best practice.
Fig. 4: In a blinded study, TPN2.0 outperformed current best practice.
Full size image

a, In a blinded study, physicians who regularly prescribe TPN were recruited to rank three TPN solutions: TPN2.0, TPN composition from a different patient (randomly selected) and the actual prescription developed for that patient according to current best practice. Each team member ranked each of the three solutions from 0 to 100 after a thorough chart review based on all information available in their EHR. The higher rating score indicates a more appropriate composition. b, From a total of n = 192 comparisons from ten healthcare team members, TPN2.0 received the highest experts’ rating scores. The scores are also significantly higher (Mann–Whitney U test, two-sided P value < 0.0001) than the actual prescribed TPN and random TPN. Data are presented as mean values ± s.e.m.

Deviation from TPN2.0 is associated with adverse outcomes

The process of prescribing TPN is one of the most frequently cited errors among high-alert medications in NICUs, potentially impacting patient outcomes22,23. Given this, we next asked whether retrospective data could shed light on the potential value of TPN2.0 in reducing adverse clinical outcomes. We selected a set of 16 critical neonatal morbidities, along with the congenital heart disease (CHD) status, to investigate whether the deviation from TPN2.0 in TPN prescribed before the diagnosis date is associated with an increase in these outcomes. The relationship between these outcomes is displayed in Fig. 5a, where closer nodes and thicker edges indicate the pairs that are more likely to co-occur. We calculated the odds ratio (OR) of each outcome when the actual prescriptions highly disagreed with TPN2.0 and displayed the results as a node size in Fig. 5a. Disagreement was defined as cases where the difference between the composition of TPN2.0 and the actual prescriptions fell within the top 20% of calculated distances across all pairs. Within this group of patients, the OR of mortality (fivefold), cholestasis (fivefold), NEC (threefold) and sepsis (twofold) increased significantly as the prescriptions deviated from TPN2.0 (Fig. 5b). These heightened ORs persisted even when adjusted for the volume of enteral feeds, if any, associated with the TPN prescriptions (Supplementary Fig. 4). Among these patients, actual prescriptions also exhibited higher variances among races than TPN2.0 (Extended Data Fig. 6). To avoid confounding factors, in each of these morbidities, we used control patients with matched gestational age, birth weight and postmenstrual age.

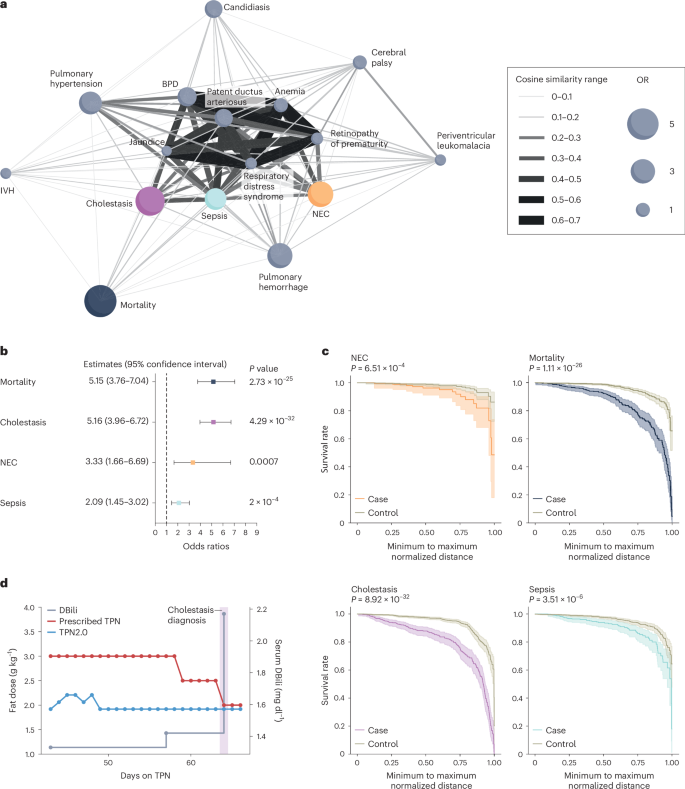

Fig. 5: TPN2.0 recommendations are associated with lower rates of morbidities and mortality.
Fig. 5: TPN2.0 recommendations are associated with lower rates of morbidities and mortality.
Full size image

a, A correlation network visualizing the cosine similarity between 16 neonatal outcomes. The size of each node is proportional to the OR of developing the morbidity when the patient’s prescriptions deviated from TPN2.0. Prescriptions are considered to deviate from TPN2.0 when the average Manhattan distance between their compositions is more than the 80th percentile away. Only prescriptions before the diagnosis (up to 3 months) are included. The thickness and color of the edges are proportional to the strength of the cosine similarity; thicker and darker lines indicate higher similarity. b, ORs in patients who received prescriptions deviating from TPN2.0. Morbidities that showed a significant increase in OR include cholestasis, NEC, sepsis and mortality. The P value of the OR is obtained through a two-sided z test for the log OR and is not adjusted for multiple comparison. Dots, mean values; error bars, 95% confidence intervals. c, Survival plots depicting the difference in the rate of developing an outcome between cases and controls as the distance between TPN2.0 and the actual prescription grows. The case group consists of patients whose average distances between TPN2.0 and the actual prescriptions are beyond the 80th percentile, that is, those with prescribed TPN with composition very different from TPN2.0. The control group consists of those with distances below the 20th percentile, that is, those with prescribed TPN with very similar compositions to TPN2.0 recommendations. Lines, estimated survival probability; shading, 95% confidence intervals. The P value is obtained from log rank test. d, To demonstrate this with an example, a patient whose actual prescriptions deviated from TPN2.0 and developed cholestasis on day 64 of TPN is visualized. The difference in fat dosage is one of the main contributors to the deviation from TPN2.0 recommendations. The actual prescriptions have mostly 3 g kg−1 while TPN2.0 recommends 2 g kg−1 before the diagnosis. In past studies, restriction of TPN fat in vulnerable populations has been associated with reduced risks of cholestasis50,51,52,53. DBili, direct bilirubin.

Over the decade of data collection, substantial changes in preterm infant care occurred. Key milestones include: 2013 (O2 saturation goals changed from 88–92% to 90–95% (ref. 41) and CHD screening was introduced42), 2014 (cooling on transport for HIE43), 2015 (brain care bundle, small baby unit, weight-based postextubation support), 2016 (standardized intubation and premedication44), 2017 (Premiloc protocol, TPN cessation at 100 ml kg−1 feeds45) and 2018 (PDA closure with Piccolo46,47). Later changes, including less invasive surfactant administration/minimally invasive surfactant therapy and faster NEC feeding pathways, were implemented after the study period48,49. Notably, there have been no great changes in the way that TPN has been prescribed or administered over the study period. More importantly, these changes did not affect the conclusion of our study. Even if we stratified the cohort into three different periods, we still observe the increased ORs when prescriptions deviated from TPN2.0 for all four morbidities across all periods (Supplementary Fig. 5). This analysis supports that these changes in infant treatments during these periods had limited effect on the outcomes related to TPN2.0.

As opposed to disagreement with TPN2.0, we also analyzed cases with high similarity to TPN2.0 compared to other prescriptions. Similarity was defined as prescriptions where the calculated distance between TPN2.0 and the actual formulation fell within the bottom 20th percentile of distances across all pairs. TPN prescriptions that were highly aligned with TPN2.0 were associated with significantly lower ORs: mortality (fivefold reduction), cholestasis (twofold reduction) and sepsis (twofold reduction; Supplementary Fig. 6). Collectively, these findings suggest that deviations from TPN2.0 are associated with increased odds of adverse outcomes, while close adherence could provide further benefits and reduce the likelihood of these complications.

In a separate analysis that combines these two insights, we used the same definition defining disagreement (>80th percentile) and similarity (<20th percentile) to TPN2.0 to conduct survival analysis of these outcomes. The analysis further emphasizes our previous results. For example, at the same distance proportion, the cholestasis survival rate of patients with prescribed TPN close to TPN2.0 was ~80% when those with prescribed TPN disagreeing with TPN2.0 were down to 50% (Fig. 5c).

An example patient is visualized in Fig. 5d. This patient showed a high deviation from TPN2.0 recommendations (more than the 95th percentile away) and was diagnosed with cholestasis, with fat dose accounting for one of the largest portions of this deviation before diagnosis (~2 g kg−1 in TPN2.0 as opposed to 3 g kg−1 in the actual prescriptions). A higher fat dose was probably prescribed to maximize growth and development. However, studies have also shown that excessive fat amounts are associated with heightened risks of cholestasis, especially in the prolonged use of soybean-based oil as in this case50,51,52,53. Note that, after the diagnosis, the actual prescription’s fat doses were decreased to a level similar to that initially recommended by TPN2.0. This example illustrates one source of disagreement between TPN2.0 and actual prescriptions. Interestingly, an additional blinded study of patients with cholestasis revealed that deviations from TPN2.0 were unlikely to result from physicians intentionally modifying TPN compositions in anticipation of clinical outcomes. In the blinded test, the healthcare teams were unable to distinguish between TPN2.0 prescriptions and best-practice prescriptions before the diagnosis date, suggesting that any observed differences in outcomes were not confounded by preemptive changes in TPN formulations (Supplementary Fig. 7). This suggests that TPN compositions can be optimized to improve outcomes, providing a foundation for future studies to establish new gold standards in patient care. However, it is important to note that these inferences are based on observational data and are hypothesis-generating. While the best attempts were made to account for possible confounders, these findings should not be considered causal until confirmed by a randomized controlled study. TPN components that largely contribute to the overall difference between TPN2.0 and actual prescriptions are visualized in Supplementary Fig. 8, and the complex interplay between different nutrients and patient characteristics is visualized in Supplementary Fig. 9.

Enabling guideline-adhering and physician-in-the-loop TPN2.0

In real-world NICUs, interactions with physicians and strict adherence to safety guidelines are crucial. To address this, we next developed a transformer-based, physics-informed (PI) model that not only incorporates clinical pharmacy safety guidelines, but also enables physician-in-the-loop collaborative decision-making. This hybrid approach balances automation with human expertise, enhancing both safety and personalization in neonatal care.

When compounding TPN, the prescribed TPN dosage should adhere to clinical and institutional guidelines54, such as osmolarity limits, maximum component concentrations and ensuring solubility. Indeed, the resulting TPN should also abide by physical expectations, such as the balance between total negative and positive ions. The list of all expectations and guidelines considered, as well as their limits, is tabulated in Supplementary Table 2. Here, we explored sequential models such as PI-transformers to achieve this goal. A transformer is a deep-learning model that uses an encoder to process longitudinal input data, that is, clinical characteristics, and a decoder that takes the previous days’ ground truth for predictions, that is, TPN prescriptions, along with the encoded data to generate the current output (Fig. 6a). Adding to these structures, the PI-transformer was designed to adhere to specific constraints while making predictions. Figure 6b presents the average violation across all criteria, with individual criteria detailed in Extended Data Fig. 7. The PI-transformer exhibited ~sixfold lower violation of these rules compared to the normal transformer architecture, and was the lowest among all algorithms considered. It also achieved this without sacrificing general correlation performance compared to the normal transformer or any other cutting-edge deep-learning methods (Extended Data Fig. 8).

Fig. 6: TPN2.0 by PI-transformer enables physician-in-the-loop recommendations that adhere to pharmacist guidelines.
Fig. 6: TPN2.0 by PI-transformer enables physician-in-the-loop recommendations that adhere to pharmacist guidelines.
Full size image

a, A PI-transformer was developed to cluster TPN compositions over time. To predict TPN composition at time t (Ŷt) for patient Pn, future data (Xt+i) is masked to prevent information leakage. The model employs a positional encoder for daily TPN to generate latent representations that the decoder combines with previous TPN data (Yt−i) to predict Ŷt. In pretraining, teacher forcing is used; in fine-tuning, ‘inference as training’ is applied as the decoder autoregressively processes previous predictions. During inference, the model predictions could also be replaced by actual prescriptions if needed. The predictions are further utilized to calculate TPN characteristics. b, TNP2.0 recommendations comply with pharmacist guidelines and rules. These computed values, together with ten pharmacist guidelines/physical expectations (Supplementary Table 2)—including osmolarity, dextrose concentrations and calcium phosphate solubility limits—are integrated into boundary condition losses to enforce clinical standards. TPN2.0 with PI-transformer exhibited the fewest violations among all algorithms tested (n = 79,790 prescriptions from 5,913 patients). c, The performance of TPN2.0 improves with increased physician intervention. Simulated interventions, in which 10% of the TPN2.0 recommendations that are least consistent with actual prescriptions are replaced by the actual prescriptions’ values in the decoder, further enhance performance. At 0% intervention, the model also outperforms the baseline teacher forcing method. This analysis mimics real-world scenarios where physicians modify AI recommendations, and shows that closer collaboration between AI and clinicians enhances model accuracy. Data are presented as mean values ± s.e.m. d, In one illustrative case, the model’s zinc prediction of 362 mcg kg−1 on day 1 was modified to 200 mcg kg−1 according to the actual prescription. The gray area represents the distribution of all zinc values in the data. After the intervention, the model maintained a zinc of 200 mcg kg−1 for the following 8 days, consistent with the actual prescriptions. Subsequently, the prediction shifted back to approximately 350 mcg kg−1—a change that was later followed by the physicians. This indicates the ability of the model to balance clinical judgment with the data-driven approach.

In clinical settings, exceptional cases are inevitable, making it essential that future versions of TPN2.0 are flexible enough to work collaboratively with physicians to respond to unique patient needs. To address this, we aim to explore the PI-transformer’s ability to incorporate physicians’ demands. We implemented a custom training method by using teacher forcing only for pretraining, followed by inference as training to fine-tune the model. This resulted in a substantial improvement to a correlation of 0.66. This TPN-specific training method not only improved performance but also enabled the transformer to meet physicians’ demands. For comparison, the baseline performance using teacher forcing is only 0.48 (Fig. 6c). The model was also interpretable end-to-end, allowing physicians to identify features that drive the model predictions both at the global and local (individual) levels. It also highlights how a single feature can influence predictions differently across samples. For example, in some cases, higher serum calcium increases the likelihood of being assigned to a specific cluster. However, in other cases, it has the opposite effect (Extended Data Fig. 9).

To highlight the utility of this approach, consider a scenario where a physician disagrees with components of the recommendation from the transformer. The physician could modify the recommendation. The next day, the model can use this modified prescription as the decoder’s input instead of its previous day’s prediction. This modification would allow the model to better mimic a given prescriber. To evaluate the model, we replicated this scenario by replacing TPN2.0 compositions with actual prescriptions in our dataset. By replacing only 5% of the TPN2.0 recommendations (with the biggest disagreement with physicians) with actual prescriptions, the correlation between TPN2.0 recommendations and prescribed TPN on the next days increased to 0.72 (Fig. 6c). The trend continued with the frequency of physician intervention and reached a correlation of 0.78 at 20% intervention. Further analyses showed that this improvement was observed across all individual physicians (Extended Data Fig. 10) and that the model still preserved most of its associations to improved outcomes even after intervention (Supplementary Fig. 10). This demonstrated how AI can synergistically co-pilot with healthcare providers providing real-world NICU care.

An example of this intervention is shown in Fig. 6d where we simulated the physician modifying a recommendation due to the large distance between TPN2.0 and the actual prescription. Zinc was the main difference between the recommendation and the physician’s preference. Here, the transformer suggested a zinc dosage of 364 mcg kg−1, whereas the actual prescription was 200 mcg kg−1. After the simulated intervention, the transformer was able to adapt and kept zinc at the same level the physician would have wanted for the next 8 days. According to guidelines, preterm infants like this case should receive 400 mcg kg−1 of zinc55. TPN2.0 correctly recommended the higher zinc, but in a rare circumstance such as this, providers may prescribe less zinc to accommodate other unique clinical factors. Over time, the transformer shifted zinc back to a higher level, which the actual prescriptions then followed only 3 days later. This result showcased that TPN2.0 can adapt to a provider’s needs while balancing consistency with its data-driven recommendations.

Discussion

We aggregated a cohort of 79,790 TPN orders linked to EHRs from 5,913 neonates and an external cohort with 63,273 TPN orders from 3,417 newborns and infants. Our data, collected over 10 years, include TPN orders with a nearly equal distribution of sexes and several racial representations (Supplementary Table 1). From these comprehensive datasets, we demonstrated that an AI model can develop TPN compositions in a data-driven manner. Based on the model, we also report a set of AI-driven TPN formulas that could respond to the varying nutritional needs of newborns while still being manageable for mass production, substantially reducing cost and risk for errors. Although the racial distribution modestly underrepresented Black/African American and Indigenous populations, findings from stratified analyses suggested our results were broadly applicable across racial groups (Extended Data Fig. 6). We then showed that TPN2.0 recommendations were rated higher by experts compared to current best practice, and validated the results independently in a second hospital system. Through in-depth analyses of newborn outcomes, we identified associations between the onset of morbidities and deviation from TPN2.0. We also leveraged a PI-transformer architecture to make our model adaptive to input from physicians and adhere to clinical/pharmacy safety guidelines. These benefits allowed TPN2.0 to standardize TPN with a personalization level comparable with the state-of-the-art, while also potentially making high-quality TPN potentially more accessible, both in low-resource settings in the United States and in LMICs.

While numerous predictive models have been deployed in intensive care settings56,57, often with great accuracy, these predictions have yet to meaningfully change clinical outcomes or practices12. In the current healthcare environment where the care team has to balance patient care with information overload and alarm fatigue, AI models need to focus on actionability, not just predictive modeling58,59. TPN presents a unique opportunity for such actionability, in partnership between AI and physicians. Currently, administering TPN for a neonate is challenging due to their complex nutritional needs and lack of clear clinical guidelines60, resulting in overreliance on anecdotal experience. Current TPN practice also requires an extensive amount of time and human resources to prescribe and prepare. With many stakeholders involved, TPN is error-prone, with 65% of errors occurring even before administration to patients61. The data-driven approach, standardization and objective recommendations provided by TPN2.0 directly address these limitations.

The benefits of standardized TPN, such as reduction in error, cost and practice variation62, are well established. Indeed, the industry, as well as professional societies worldwide20,63,64,65, have been attempting to move in this direction. Standardized TPN solutions are typically developed based on expert consensus and are considered best practice in some countries, such as the UK and Australia63,64,66. However, the lack of rigorous evidence through randomized trials and their design by expert opinion as a ‘gold standard’ raises concerns about their applicability, particularly for preterm infants—a population with highly diverse and individualized nutritional needs. Reflecting this, organizations like ASPEN advised against the use of standardized TPN in such cases20. The other bottleneck toward this goal is the lack of personalization in which the current one(or few)-size-fits-all solutions could jeopardize patient safety, such as by causing electrolyte disorders67,68,69 including hyponatremia or hypermagnesemia70. This drawback has prevented the widespread adoption of standardized TPN in many countries, including the United States. In contrast, customized TPN based on an individual expert opinion may introduce biases stemming from anecdotal experience. TPN2.0 strikes a balance between personalization and standardization by leveraging a data-driven approach, combining the strengths of both methods. Its recommendations were grounded in evidence and were associated with improved outcomes, such as reduced morbidity rates. The 15 standardized formulas produced by TPN2.0 increase safety and reduce cost, while the AI model maintains a high degree of responsiveness to patients’ dynamic needs during NICU stay.

TPN2.0 was designed to collaborate with the healthcare team in clinical settings to promote ease of adoption and increase safety. AI algorithms focused purely on a black box approach to clinical predictions often struggle with adoption and generalizability in the real world. In contrast, models with physician-in-the-loop have been evaluated to have improved accuracy and user satisfaction71,72. TPN2.0 has been developed to adapt to individual physicians’ judgment when needed, while continuing to promote a data-driven approach. This ensures that the AI serves as a supportive tool for physicians, while leaving the ultimate decision-making authority firmly in their hands. TPN2.0 was also designed to automatically adhere to clinical/pharmacy guidelines and composition requirements. Although validations in clinical settings are still required before the deployment of TPN2.0, these initial findings already demonstrate its ability to cater to both patient nutritional needs and clinical requirements.

One limitation of this study is the reliance on structured EHR data, which lacks comprehensive patient information and is prone to dataset shift73. This shift emphasizes the need for continuous AI performance monitoring, as highlighted by the United States Food and Drug Administration74. Although our dataset includes key TPN-related variables (laboratory values, diagnoses and procedures), it excludes imaging, waveforms and clinical notes. Future studies should incorporate multimodal or biological systems for enhanced decision-making75,76. Our blinded study was limited to Stanford experts prescribing TPN. To validate TPN2.0 preferences, future research will involve experts from other institutions to explore the impact of training, experience and local protocols. Variations in enteral feed types (formula versus breast milk) and compositions remain unexplored and should be investigated in future studies. Ethical considerations are critical when applying AI in the NICU, as decision-making involves parents or guardians representing critically ill newborns. Transparency and alignment with clinical expertise are essential to support, not replace, decision-making. Real-world data biases may also confound findings, as specific TPN compositions could be prescribed for particular conditions and outcomes. Although we mitigated potential confounders by analyzing prediagnosis TPN data and using a blinded study the findings remain preliminary and associative and need prospective validation in a randomized controlled trial (RCT). RCTs are crucial to establish causality, control biases and provide stronger clinical evidence. Future RCTs should assess not only growth and development but also nutrition-related morbidities (for example, hyponatremia, hypermagnesemia) and long-term outcomes such as neurodevelopment77 and the incidence of chronic conditions like metabolic and cardiovascular disorders78,79. Despite current limitations, this study highlights the ground-breaking potential of TPN2.0 to improve neonatal health, offering life-long benefits that are often harder to achieve in older populations.

Taken together, TPN2.0 demonstrates the potential of AI to go beyond predictive diagnosis and guide a key therapeutic decision for newborns in the most vulnerable time of their lives. This approach streamlines and standardizes TPN processes, enhancing accessibility (particularly in low-resource settings) and increasing safety. Our work sets the foundation for future studies to assess the real-world impact of TPN2.0 on this patient population, which may be influenced by various confounding factors. These studies will include ongoing efforts for multisite model validation and prospective clinical trials. This framework also allows future incorporation of causal AI80,81. This can better inform the design and execution of RCTs to establish a true gold standard for TPN that is based objectively on the improved outcomes for individual newborn characteristics. It also highlights the fundamental role that AI will have in future neonatal intensive care medicine. This progress will lay the foundation for AI models to autonomously guide therapeutic strategies beyond TPN, paving the way for the development of large action models82.

Methods

Study design

The discovery cohort data were aggregated from the EHRs at Stanford Health Care. The linkage of the two datasets enabled the integration of nutritional data, phenotypic traits and long-term outcomes. All Stanford EHR data were mapped to the Observational Medical Outcomes Partnership Common Data Model v.5.3.1. The data included patient observations, procedures, medications and conditions. The study was approved by the Institutional Review Board of Stanford University (reference no. 39225) with inform consent waived. We first identified a cohort of 6,991 neonatal/pediatric patients in NICU/pediatric intensive care units who received a total of 113,773 TPN orders recorded between January 2011 and January 2022. These TPN data represent best practice in the field and come as close as possible to representing the gold standard given the knowledge currently available to the field. All TPN orders were developed by a multidisciplinary healthcare team. Each order is placed by a neonatologist, house staff resident or neonatal nurse practitioner, and is then checked by a NICU clinical pharmacist and a NICU dietitian. They also use modular tools, such as those embedded in Epic, for automated calculation to ensure accurate molecular dosages and appropriate physicochemical properties. Of the 6,991 patients identified, 5,913 were retained as they received their first TPN within the first 2 years of delivery, which resulted in 79,790 TPN orders. Sex and gender were not considered in the study design as this is a retrospective study of all available patients that fit the inclusion criteria. Of these, 68% of the prescriptions were TPN with no enteral feeds, and the rest were partial PN with some amounts of enteral feed. These data include patients receiving both total and partial parenteral nutrition as they transition to increased enteral feeding while preparing for discharge from the NICU.

In addition, an independent validation cohort was obtained with EHRs from the UCSF. All 3,417 patients who received their first TPN within the first 2 years of birth between October 2012 and January 2024 in the UCSF EHR Database were included (63,273 TPN orders). The curated UCSF EHR data contain demographics, specific laboratory measurements and TPN data. This study was approved by the Institutional Review Board of UCSF (reference no. 17-22929) with consent waived.

Data processing and packages

At Stanford, gestational age at delivery and birth weight were extracted from clinical notes in the newborns’ EHRs. Free text in clinical notes was searched systematically using regular expressions. When several clinical notes were available for the same newborn and values were discordant, the most commonly occurring value was retained or the average across all the different values if two or more values appeared with the same frequency. To check the accuracy of the information extracted from clinical notes compared to manual chart review, in our previous study, we randomly sampled 40 newborns. Their gestational age at delivery and birth weight were extracted by reviewing electronic charts manually. Comparison of these systematically extracted data with those extracted manually from clinical notes showed perfect accuracy81.

For each newborn, their entire medical history available in the EHRs corresponding to their days on TPN was extracted. This consisted of all conditions, observations, medications and procedures, recorded under the patient identification number. Different types of records were as follows: (1) conditions (presence of a disease or medical condition); (2) observations (observed clinical sequelae obtained as part of the medical history); (3) medications (utilization of any prescribed and over-the-counter medicines, vaccines and large-molecule biologic therapies) and (4) procedures (records of activities or processes ordered by or carried out by a healthcare provider on the patient for a diagnostic or therapeutic purpose). Conditions, observations, medications and procedures were organized by patient and date and time of the day at which they were entered into the EHR system.

About 5% of the gestational age and birth weight data were missing, and they were imputed using missing forest based on the phenotypic data. Other missing laboratory values were imputed using the patient’s latest past known values, if any, otherwise mean values of the cohort were used. For the EHR data, each procedure, condition, drug and observation were represented in a binary format. All analyses were performed using Python v.3.10, and the deep-learning models were implemented using either pyTorch (v.2.0.1) or Tensorflow (v.2.11.0) on a linux-based server with Intel(R) Xeon(R) Gold 6330 and NVIDIA A40 equipped. Data processing and analyses were performed using Scipy (v.1.11.1), Numpy (v.1.24.4), scikit-learn (v.1.2.2), Pandas (v.2.2.2), statsmodel (v.0.14.0), sksurv (v.0.21), lifelines (v.0.28.0), missForst (v.3.1.3) and forestplot (v.0.4.1).

TPN2.0 by variational neural network and iterative clustering

Our VNN was an adaptation of a variational autoencoder (AE)83—a type of generative deep-learning model, to better suit the task of predicting TPN compositions from the inputs while maintaining the ability to generate latent representation of the patient via the bottleneck layer. The VNN bottleneck layer contained 16 nodes, which generated the latent space for subsequent clustering.

The inputs of the model were composed of two parts. The first part is a 32-dimensional latent representation obtained from a multimodal AE, where the first two layers were modality specific, then connected at the final layer before the bottleneck. The decoder mirrored this structure. The input and output include all EHR data, which consisted of four modalities: 1,625 observations; 1,037 medications; 5,607 conditions and 6,230 procedure features. The second part of the VNN inputs was the primary data physicians typically look at to determine TPN dosages. These include basic characteristics (sex, race, days since birth, gestational age, birth weight, dosing weight and cholestasis status), whole blood serum values (alanine transaminase, albumin, alkaline phosphatase, aspartate transferase, blood urea nitrogen, calcium, chloride, creatinine, glucose, ionized calcium, magnesium, phosphate, potassium, sodium, triglyceride) and feed information (total fluid volume, enteral fluid volume, TPN volume, infusion rate, protocol (neonatal versus pediatric), feed line (central versus peripheral), days on TPN, hours of TPN and fat product type). The second part of the input data was not compressed and was fed into the VNN explicitly (Fig. 2a). The outputs of the model are the TPN dosages which include fat (g kg−1), amino acids (g kg−1), dextrose (%), acetate (mEq kg−1), calcium gluconate (mg kg−1), copper (mcg kg−1), famotidine (mg kg−1), heparin (units ml−1), levocarnitine (mg kg−1), magnesium (mEq kg−1), multivitamins (ml kg−1), phosphate (mmol kg−1), potassium (mEq kg−1), selenium (mcg kg−1), sodium (mEq kg−1) and zinc (mcg kg−1).

The Stanford cohort data were separated randomly during the twofold cross-validation, where each fold is structured as 40% training, 10% validation and 50% test set. The separation was done at the patient level, that is, no different TPN orders from the same patient were in both the training and test sets. The model was trained using a batch size of 128 and optimized using an adaptive moment estimation (Adam) optimizer to minimize the average root mean squared error (r.m.s.e.) across all TPN components in the training set. The loss in the validation set was used to determine the stopping point of the training process. The model was then evaluated on the unseen test set using Pearson’s correlation between each pair of actual an actual prescription and TPN2.0 as the metric. We also reported performance compared to human experts (Fig. 3b). To first evaluate human performance (the gold standard), we calculated the Euclidean distance between a given prescription and another actual prescription from a patient with similar characteristics. A patient with similar characteristics was identified by randomly selecting one whose laboratory serum values and baseline characteristics were all within a 10% range of difference from the original patient’s values. To evaluate TPN2.0 performance, a similar approach was taken, but TPN2.0 recommendations of the matched patient were used to calculate Euclidean distance instead. The distance performance of human and TPN2.0 was then compared using normalized distance and correlation metrics.

The model’s performance was also evaluated using an independent cohort from UCSF. We trained a separate VNN model on a subset of features that overlaps both Stanford and UCSF data. This VNN version’s input did not include aspartate transferase, blood urea nitrogen, creatinine, enteral information, fat product, hours of TPN, infusion rate, ionized calcium or total fluid information. It was trained and evaluated at Stanford using the same protocol as described above, and then evaluated on the UCSF cohort without any retraining.

After training and validating the VNN model, we employed iterative semisupervised clustering on the training set to condense the number of predicted components into a finite set of formulas. For each combination of protocol and feeding line, for example, neonatal central line, the 16-dimension VNN latent representations were grouped into 100 clusters using K-means clustering. The Euclidean pairwise distances between these cluster centroids were calculated and sorted. We then selected the 30 pairs with the smallest distances. For each pair, we assessed the changes in correlations if the pair were to be merged. The correlations were between the compositions from the assigned clusters and the actual prescriptions. The pair that resulted in the smallest change in correlation was merged. Essentially, we first overclustered into 100 clusters and iteratively merged the pair of clusters that minimized the reduction in correlation to the actual prescriptions. This process repeated until we achieved the desired number of clusters. The final model was then applied to the test set without retraining.

Visualization of high-dimensional latent space

The 16-dimensions latent space from the VNN was reduced to 2D for visualization using uniform manifold approximation and projection. We randomly sampled 20,000 data points for the visualization. Uniform manifold approximation and projection was initialized with the following parameters: n_neighbors = 20, min_dist = 0.001, metric = ‘chebyshev’ and spread = 3. The resulting 2D datapoints were colored according to the TPN2.0 predicted clusters.

Evaluation of consistency in actual prescriptions and TPN2.0

To determine whether the variability of TPN2.0 was lower than that of actual prescriptions (Extended Data Fig. 3), we first needed to group similar patients together to be able to determine accuracy and consistency within each group. An AE with a 16-dimensional latent space was constructed to encode and decode the input data. The encoder and decoder used neural network layers with rectified linear units and sigmoid activations, respectively. Afterward, the AE was trained using mean squared error loss and the Adam optimizer. Post-training, the latent space representation was extracted for clustering. K-means clustering was performed with a range of 5 to 50 clusters. The optimal number of clusters was determined by two methods: (1) silhouette scores and (2) plotting the within-cluster sum of squares and using the KneeLocator method (Supplementary Fig. 11). We used the highest optimal number of clusters between these methods—29 clusters—to take a more conservative approach and improve the assessment of physician prescription variance.

To ensure that similar patients were clustered together and that the reduction in variance was due to accurate TPN2.0 clustering and not merely the result of reducing the number of possible formulas, a randomized clustering test was conducted. TPN2.0 clusters were shuffled 1,000 times and the weighted mean variances were recalculated. In all iterations, the actual TPN2.0 clusters had lower variance (σ2 = 0.76) than the random cluster (σ2 = 0.99), indicating the decrease in variance was due to accurate clustering.

Blinded study of TPN2.0

We conducted a blinded study to evaluate the healthcare team’s preference between actual prescriptions and TPN2.0. In this study, we recruited members of the healthcare team who were typically involved in TPN prescription to rate different TPN solutions from 0 to 100 when presented with a patient profile. Up to 30 patients were randomly selected from Stanford historical records. For each patient, the three TPN solutions were presented: the actual prescription given to the patient, the TPN2.0 cluster composition and a random TPN. The random TPN composition was drawn randomly from other actual prescriptions in the dataset. The team was blinded to the labels of the three TPN solutions; they also did not have access to the previous days’ TPN records. Other than these, the team was allowed to access any EHR of the patient. The healthcare team participating in the study included pediatric residents, neonatology fellows, neonatologists and pharmacists. This generated a total of 192 comparisons.

A similar blinded study was conducted with a physician to identify whether the distance between TPN2.0 and the actual prescription was confounded by the physician adjusting prescription composition in expectation of a certain diagnosis. In this study, only ten TPN from different patients were used. These patients were the ones who exhibited the highest distances between TPN2.0 and actual prescriptions before cholestasis diagnosis.

Outcome extraction and analysis against TPN2.0

We collected 17 neonatal outcomes of interest, including anemia, BPD, candidiasis, cerebral palsy, cholestasis, CHD, mortality, intraventricular hemorrhage, jaundice, NEC, patent ductus arteriosus, periventricular leukomalacia, pulmonary hemorrhage, pulmonary hypertension, respiratory distress syndrome, retinopathy of prematurity and sepsis. The selected clinical morbidities are among the most commonly observed in patients in the NICU setting84,85,86,87,88,89,90, especially in preterm infants. Although some, such as NEC, are more commonly seen in preterm infants, others like BPD and sepsis affect both term and preterm infants, and may be influenced by various factors, including the use of TPN91. Many of these conditions are interconnected. For example, conditions like NEC, which is linked to intestinal injury, can occur in term infants, particularly those with underlying conditions such as hypoxia in congenital cardiac diseases92. Although these morbidities are well recognized in NICU care, many of them remain underinvestigated, particularly in the context of emerging tools such as ML. This analysis, therefore, includes these conditions to provide a comprehensive evaluation of the potential risks that influence neonatal health outcomes, not solely limited to known risks associated with TPN use.

Outcomes were considered to be present or absent based on neonates’ health record data. The outcome data were extracted from the newborn’s medical history at any timepoint since their birth up until 3 months after their last day on TPN. Grouped disorders (for example, other central nervous system disorders or liver diseases) affecting the same organ system were excluded due to nonspecificity and confounding potentials. The list of SNOMED concept codes used to identify the presence/absence of each outcome is reported in Supplementary Table 3. A blinded manual chart review of the outcomes considered for 30 randomly sampled preterm newborns was conducted in our previous study to assess the sensitivity and specificity of the definitions used93. Overall sensitivity and specificity (across all outcomes) were 97.5% and 98.8%, respectively, showing high concordance between manual chart review adjudication and EHR-based definitions.

To evaluate whether the rates of adverse outcomes changed according to the similarity between TPN orders and TPN2.0 recommendations, we calculated the distance between the composition of each order and the TPN2.0 recommendations. The distance represents how similar the two were, where shorter distances indicated higher similarity. If the rates of outcomes changed with distance, that means prescribing more (or less) similar to TPN2.0 was associated with outcomes. The distance was calculated using the Manhattan distance across all standardized nutrient values. Three analyses were used to evaluate the distance versus outcome rates relationship: area under the receiver operating characteristic (AUROC), OR and survival analyses. The AUROC metric indicated if an increase in distance was associated with higher rates of adverse outcomes. In the OR analysis, we split the data into case and control groups by patients with less than the 80th percentile distance from TPN2.0 being the control and those with more being the case. We then calculated the OR for each outcome between these two groups. Outcomes with a significant OR (P < 0.05; Woolf test) and an AUROC > 0.6 suggested a trend where higher distances predicted higher risks of adverse outcomes (Supplementary Fig. 12) and were presented in the main findings. For the survival analysis, we replaced the commonly used time component with the Manhattan distance. To determine whether there was a difference in the rate of adverse outcomes between those who were very close to TPN2.0 and those who were very far, we split the case and control groups into those more than the 80th percentile away from TPN2.0 and those within the 20th percentile distance from TPN2.0, respectively. The P value to determine the rate differences between the two groups was obtained from a multivariate log rank test94. Note that, in all analyses, we used only the information from up to 3 months before the day of diagnosis and removed any cases with CHD to limit confounding potentials. For the analysis of NEC, we limited it to only prescriptions within the first 6 months of life to limit any false discovery, as the disease happens only early in life.

Development of deep sequential models for TPN

Sequential models could leverage the longitudinal nature of TPN data to increase model performance. Three deep-learning variants were investigated: long short-term memory (LSTM)95, temporal Kolmogorov–Arnold networks (KAN)96,97 and transformer98. LSTM is a variant of recurrent neural network architecture that allows the model to learn from sequential data. A sequence-to-sequence LSTM model was constructed such that, for each input, there was an output corresponding to that day. The hidden state from the timepoint t is then recycled as part of the inputs for timepoint t + 1 for predicting the next outputs. Our LSTM model consisted of a 256-node LSTM layer followed by a fully connected layer with sequence padding to address variable lengths. Afterward, a sequence-to-sequence KAN model was also investigated. KAN architecture is a recently developed alternative to multilayer perceptron, which is what LSTM, transformer and most other neural network models are based on, that showed superior performance in many applications and features, such as stability and interpretability. Essentially, KANs have learnable activation functions on edges, while multilayer perceptrons have fixed activation functions on nodes. KANs also have no linear weights, with every weight parameter replaced by a univariate function such as a spline. Similar to LSTM, our temporal KAN model consisted of a 256-node recurrent neural network-like KAN layer followed by a fully connected layer.

Transformer architecture is a neural network that learns the context of sequential data (encoding) and generates new data from it (decoding) using an attention mechanism to focus on relevant parts of the sequence. To predict the TPN dosage for timepoint t, the encoder was fed input from timepoint t and the decoder was fed the TPN dosage from timepoint t − 1 (Fig. 6a). We built a transformer model with a layer of 256-node encoder and decoder with eight attention heads. The model was first pretrained using the teacher forcing method98—a common training technique where the transformer’s decoder was fed the correct output (actual prescriptions) during training. Similar to VNN, the loss function to minimize was r.m.s.e. and the optimizer was Adam. For the PI-transformer, we imposed additional losses with regard to conditions and boundaries described in Supplementary Table 2. Note that the solubility was calculated using calcium phosphate curve approximation equations99. The model was then trained without the teacher forcing or using the actual prescriptions as input, that is, autoregressively generated the prediction of timepoint t and fed it as the decoder’s input for prediction of timepoint t + 1. Once trained, a clustering layer100 was appended to the previous prediction output layer. The clustering layer was initiated using K-means cluster centroid. The model was then trained to minimize an equal mix of clustering loss100 and the r.m.s.e. loss from predicted outputs before clustering until the cluster assignment converged. We found this method performed better in the TPN dataset context.

Inference was used to determine the transformer model’s performance measured by Pearson’s correlation. By default, inference makes predictions autoregressively, which is similar to the way we trained the model but without updating the model’s weights. The flexibility of the inference method also allowed us to investigate its next-day performance in a scenario where TPN2.0 recommendations were to be modified today. To conduct a study mimicking this scenario, the Euclidean distances between the model predictions and the actual prescriptions were calculated in the training set. A distance cutoff was chosen based on the desired percentile, that is, a cutoff at the 80th percentile distance if we are studying 20% intervention. During inference, any prediction with a distance over the cutoff was replaced by the actual prescription as the decoder’s input. This mimics a scenario where the predicted TPN composition was too different from the providers’ expectations; hence, they modified it. Note that when the actual prescription was used as the decoder’s input, we did not take that prediction instance for the calculation of the model performance.

Feature attribution was performed using Gradient SHAP—a variant of SHapley Additive exPlanations designed for deep-learning models101. The method leverages the gradients of the model’s outputs with respect to its inputs to estimate feature importance, enabling the decomposition of predictions into contributions from individual features. To simplify the analysis, the longitudinal data was flattened into a cross-sectional format. We summarized the training dataset into 100 representative background samples using K-means clustering. For each cluster assignment probability, SHAP values were computed for 7,500 randomly selected test samples.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
