Main

Immunotherapies have improved survival in an ever-widening range of malignancies, but eliciting effective antitumor T cell immune responses in patients with pancreatic ductal adenocarcinoma (PDAC), currently the third leading cause of cancer-related death in the USA1,2,3, has proven particularly challenging4,5,6,7,8,9,10,11. Multiple factors contribute to PDAC resistance to immunotherapy, including weak expression of target antigens and frequent production or upregulation of immunosuppressive molecules, resulting in a ‘cold’ tumor microenvironment (TME)12,13,14,15,16,17. Even when targetable antigens are present, heterogeneous expression can lead to rapid adaptation and target antigen modulation, which thwart the antitumor potential of T cell monotherapies.

To address tumor heterogeneity and immune evasion, we devised an ex vivo expanded, polyclonal (CD4+ and CD8+), T helper 1 (TH1) cell-polarized T cell product targeting a spectrum of tumor-associated antigens (TAAs) using professional antigen-presenting cells and a combination of peptide libraries spanning overexpressed cancer antigens18. When administered to patients with hematological malignancies without lymphodepleting chemotherapy (to allow for the recruitment of the endogenous immune system), this platform was previously shown to be safe and associated with the induction of effector immune activity and clinical benefit, including durable tumor control19,20,21,22,23.

We postulated that the preparation of a multi-antigen (nonengineered) T cell product specific for PRAME, SSX2, MAGEA4, NY-ESO-1 and Survivin—TAAs chosen based on their tumor specificity, oncogenicity, immunogenicity and level of expression24,25,26,27,28,29,30,31,32,33,34,35,36—would be feasible, even in heavily pre-treated patients and that infusion of the T cell product would be safe. Additional hypotheses were that these autologous T cells would persist in vivo and that clinical benefit would be associated with the expansion and persistence of the infused effector T cells, as well as the induction of de novo immune responses. We now report the results of TACTOPS, a three-arm, nonrandomized, phase 1/2 clinical trial for patients with PDAC.

Results

Patient characteristics

Between 31 January 2018 and 19 December 2019, 56 patients with biopsy-proven PDAC were enrolled and underwent procurement. Multi-antigen T cell (mTAA) manufacturing was successful in all but one case, in which the yield of antigen-presenting cells (dendritic cells (DCs)) was insufficient. Of the remaining enrollees, 18 were not infused due to inability to schedule (n = 1), change in eligibility (n = 2) and death from progressive PDAC (n = 15; in one of these cases, manufacture was consequently halted) (Fig. 1a). Some 37 participants (median age 63 years) were infused with mTAA T cells. Table 1 and Extended Data Table 1 summarize the baseline characteristics of those who underwent at least one T cell infusion. Patients were enrolled in one of three study arms and could receive up to six infusions. At baseline, patients in arm A had stage III or IV disease (n = 2 (15.4%) or n = 11 (84.6%), respectively), which was either stable or responding to at least 3 months of chemotherapy. Patients in arm B had stage III or IV disease (n = 2 (16.7%) or n = 10 (83.3%), respectively) that had progressed after chemotherapy. All patients in arm C had potentially resectable disease and received their initial T cell infusion between neoadjuvant therapy and planned surgery. At the time of surgery, three participants were unresectable, whereas nine were resected and eight of those received T cells postoperatively.

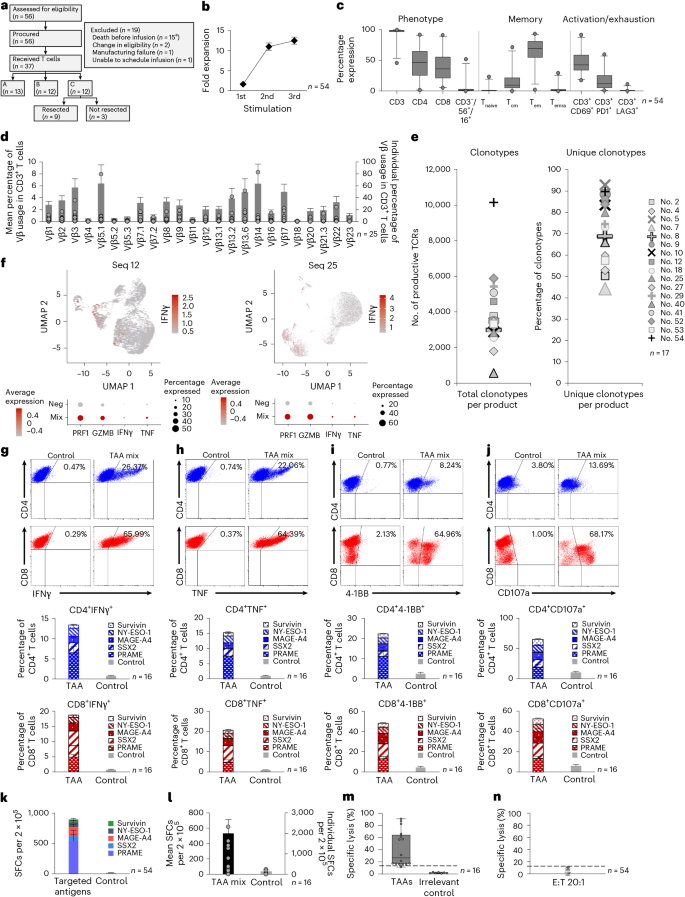

Fig. 1: Patient distribution and mTAA T cell characterization studies.
Fig. 1: Patient distribution and mTAA T cell characterization studies.
Full size image

a, CONSORT diagram depicting patients enrolled and treated in the three study arms. b,c, Fold expansion (b) and surface phenotype (c, left) and memory (c, middle) or activation profile (c, right) of mTAA T cells after three cycles of in vitro stimulation (mean ± s.e.m., n = 54 individual patient T cell products). Box plots show the median and 25th and 75th data quartiles. Whiskers extend to the 2.5th and 97.5th percentiles, capturing the lower and upper tails, respectively, of the data distribution. Minima and maxima are plotted. d, Clonal diversity evaluated as the mean (±s.e.m.) frequency of mTAA T cells expressing each of the 24 TCRvβ families tested (n = 25 T cell products). Individual data points are overlaid. e, Total number of individual TCR clonotypes (left) and proportion of clonotypes unique to the infusion product (not detectable in patient peripheral blood before infusion (right), as assessed by TCRvβ deep sequencing). Each symbol represents an individual patient’s mTAA T cell line (n = 17). f, Representative scRNA-seq data for patient nos. 12 (left) and 25 (right) showing Uniform Manifold Approximation and Projections of TAA-specific IFNγ-expressing cells (top) and dot plots (bottom) for expression of IFNγ, PRF1, TNF and GZMB in TAA-stimulated and unstimulated cells. g, Detection of IFNγ-producing CD4+ and CD8+ T cells by ICS. Top: representative donor. Bottom: summary data (mean ± s.e.m., n = 16 T cell products). h–j, Functional capacity of mTAA T cells evaluated within the CD4+ and CD8+ compartments by antigen-driven production of effector molecules (h; TNF), upregulation of co-stimulatory molecules (i; 4-1BB) and degranulation markers (j; CD107a). Representative donor examples are shown at the top whereas summary results are shown at the bottom (mean ± s.e.m., n = 16 T cell products). k, IFNγ ELISpot analysis (n = 54 T cell products). The results are shown as SFCs per 2 × 105 input cells (mean ± s.e.m.). l, Cytolytic potential of mTAA T cells as demonstrated by granzyme B production evaluated by ELISpot (n = 16 T cell products (mean ± s.e.m.); individual data points are overlaid). m, Specific killing of TAA-loaded autologous targets as measured in a carboxyfluorescein diacetatesuccinimidyl ester (CFSE)-based flow cytometric assay (n = 16 T cell products). The box plots show the median and 25th and 75th data quartiles. The whiskers extend to minima and maxima, capturing the full range of the data. n, Lack of cytolytic activity of mTAA T cells against antigen-unloaded autologous targets as assessed in a standard 4-h 51Cr release assay at the 20:1 E-to-T ratio. Each symbol represents an individual patient’s T cell product (n = 54). aIn one patient who died, product manufacture was halted as a consequence. Mix, Mixture; Neg, Negative; Tcm, central memory T cell; Tem, effector memory T cell.; Seq, patient sequence ID.

Source data

Table 1 Patient demographics (n = 37)
Full size table

Preparation of mTAA T cells: expansion, phenotype, gene profile and functional specificity

T cells underwent a median of 3 (range 2–4) rounds of in vitro stimulation with pepmix-loaded DCs for an average of 24.5 d ( ± 0.5 d) in culture, resulting in a mean 12.5 ± 0.9 fold increase in bulk T cells (Fig. 1b) and yielding sufficient cells for a median of 9 infusions (range 1–28) (Supplementary Table 1). The expanded cells, which were almost exclusively CD3+ T cells (mean ± s.e.m.: 95.7 ± 1.2%), with a mixture of CD4+ (47.4 ± 3.5%) and CD8+ (39.0 ± 3.1%) subsets expressing central (CD45RO+/CD62L+: 14.7 ± 1.9%) and effector memory markers (CD45RO+/CD62L−: 66.3 ± 2.6%), had an activated phenotype, as evidenced by upregulation of CD69+ (46.3 ± 2.2%). Naive T (Tnaive) cell, 1.4 ± 0.5%) or terminally differentiated T (Temra) cell, 2.9 ± 0.7%) content was negligible in the final product and the cells were not exhausted (programmed cell death-1 (PD-1; 16.9 ± 1.9%) and lymphocyte activation gene-3 (0.9 ± 0.2%)) (Fig. 1c). Product polyclonality was evaluated by co-staining CD3+ T cells with an antibody panel covering ~70% of the human T cell receptor (TCR) vβ repertoire and, as shown in Fig. 1d, all represented vβ families were detected (mean frequency of 0.2–6.4%, n = 25). For more in-depth clonality analysis, TCR complementary determining region 3 (CDR3), deep sequencing was performed on 17 cell lines, in which the presence of a median of 3,375 individual clonotypes (range, 559–10,149) was identified (Fig. 1e, left). Of these, 73.2% (median; range, 44.2–92.9%; Fig. 1e, right) were uniquely identified in the ex vivo expanded product and not in matched patient peripheral blood samples before infusion, thus enabling in vivo tracking of the infused (nongenetically modified) product over time to evaluate persistence.

Transcriptomic characteristics were explored in a subset of antigen-stimulated (versus unstimulated) mTAA T cell products (n = 7) by single-cell RNA sequencing (scRNA-seq). Supplementary Fig. 1 shows individual volcano plots with differentially expressed genes (DEGs) (Supplementary Fig. 1a), whereas genes that were upregulated or downregulated in at least three lines are presented in Supplementary Fig. 1b,c. Upregulated genes included those synonymous with migratory capacity (CCR5, CX3CR1, CXCR6 and CCL4), inflammation or TH1 cell polarization (E2F2, ADGRG1, IL32 and LTB)37,38,39,40,41,42,43,44,45 and cytolytic activity (NCR3, NKG7 and GZM)46,47,48,49, and downregulated genes included those linked to T cell exhaustion or impaired function (SLC3A2, RGS16, PYCR1, PSAT1 and VLDLR-AS1)50,51,52,53,54,55,56. To address mTAA product potency, transcriptional profiling was combined with functional studies. Figure 1f shows data for two donors (Supplementary Fig. 2: data from five additional donors), in whom stimulation with tumor-spanning pepmixes identified a population of T cells transcribing genes for TH1 cell effector molecules including interferon-γ (IFNγ), tumor necrosis factor (TNF), granzyme B (GZMB) and perforin. These results were assessed at the protein level, confirming the presence of reactive IFNγ-producing and TNF-producing T cells in both the CD4+ and CD8+ subsets (Fig. 1g,h, top: representative intracellular cytokine staining (ICS) IFNγ results; bottom: summary results) (13.4 ± 4.3%: CD4; 18.7 ± 8.0%: CD8+, TNF; 15.3 ± 4.8%: CD4; 20.6 ± 8.2%: CD8+). The mTAA T cells also upregulated 4-1BB (22.3 ± 6.4%: CD4; 48.1 ± 14.5%: CD8+), CD107a (64.9 ± 12.7%: CD4; 52.5 ± 13.2%: CD8+) and CD40L (22.9 ± 6.0%: CD4) on antigen exposure (Fig. 1i,j and Supplementary Fig. 3;, n = 16). For five mTAA products for which both TCR deep sequencing and scRNA-seq data were available, the functional profile of clonotypes unique to the product infused was investigated by evaluating IFNγ, TNF, GZMB and perforin transcripts, which revealed that most (median 79.7%; range, 60.3–88.9%) exhibited an effector profile (Supplementary Fig. 4). Overall, of the stimulating antigens, PRAME induced the strongest activity (541 ± 176 IFNγ spot-forming cells (SFCs) per 2 × 105 cells), followed in descending order by MAGEA4 (151 ± 46 SFCs), NY-ESO-1 (81 ± 25 SFCs), SSX2 (78 ± 22 SFCs) and Survivin (42 ± 22 SFCs) (Fig. 1k). The cytotoxic potential of the mTAA products was evaluated by assessing granzyme B production (531 ± 182 SFCs per 2 × 105; Fig. 1l) and direct cytolytic activity against antigen-loaded targets (Fig. 1m). Finally, to assess the potential for ‘off-tumor’ effects, cytotoxicity against autologous phytohemagglutinin (PHA)-stimulated blasts was measured. As shown in Fig. 1n, there was no autoreactivity against nonmalignant cells (mean 3.0 ± 0.5% specific lysis; effector-to-target (E-to-T) ratio, 20:1; n = 54), with <10% specific lysis at an E-to-T ratio of 20:1 set as a study release criterion, which was met by all products.

Clinical trial primary endpoints: feasibility and safety

Supplementary Table 2 summarizes the cell dose production and infusion data for each participant and study arm.

Production

Among the 37 infused patients, a median of 12 cell doses per participant (range 2–28) was produced and available for infusion. Only 3 (8%) participants (patient no. 2 in arm A and patient nos. 10 and 54 in arm C) had fewer than 6 available doses, attesting to the feasibility of producing 6 doses, even from participants who were heavily pretreated and/or actively receiving chemotherapy.

Infusion

Per protocol, the feasibility of completing six infusions (that is, a series) was evaluated in each arm. If two or more of the first six participants in each arm were unable to complete a series, the strategy was determined unfeasible but study enrollment continued. By this definition, it was not feasible to complete the infusion series in any of the study arms. However, reasons for stopping T cell therapy were primarily related to disease progression (n = 14), surgical complications (n = 4) or cancer-unrelated death (n = 1) (86% of cases), rather than insufficient cells, inability to administer cells or infusion-related toxicity. Patients in arm A received a median of 6 infusions (range 2–6), those in arm B a median of 2.5 infusions (range 1–6) and those in arm C a median of 3 infusions (range 1–6).

Safety

The 37 treated participants received a total of 140 infusions. No autoimmunity, cytokine release syndrome (CRS) or neurotoxicity was documented (Table 2 and Supplementary Table 3). Overall, 24 (64.9%) patients experienced adverse events (AEs) attributed as at least possibly related to mTAA infusions (Table 2), with only one of these being serious—a grade 3 lipase elevation classified as a treatment-related serious AE (tSAE), which occurred 3 d after the fifth T cell infusion of patient no. 11. This patient was admitted and treated for presumed pancreatitis and discharged within 24 h with no further symptoms, and proceeded to receive the sixth scheduled infusion with no further AEs.

Table 2 Possibly treatment-related AEs by study arm and grade
Full size table

Clinical outcomes

Arm A

Clinical outcomes are summarized in Fig. 2a, Supplementary Table 4 and Extended Data Table 2. The best response rate after at least one infusion was 1 complete response (CR) (7.7%), 2 partial responses (PRs) (15.4%), 8 stable disease (SD) (61.5%) and progressive disease (PD) in 2 patients (15.4%), for an overall response rate (ORR) of 23.1% (95% confidence interval (CI): 5.0–53.8%) and disease control rate (DCR) of 84.6% (95% CI: 54.6–98.1%). The three arm A responders had SD before study entry (Extended Data Table 2). The median duration of response (DOR) for those who achieved a PR or CR was 7.5 months (range 3.5–16.6 months), whereas a median duration of control (DOC) for patients with CR, PR or SD was 6.3 months (range 0.7–16.6 months). The median event-free survival (EFS) and overall survival (OS) for arm A participants were 6.4 months (95% CI: 2.4–9.5 months) and 14.1 months (95% CI: 3.6–15.4 months), respectively (Fig. 2d,e and Supplementary Table 5).

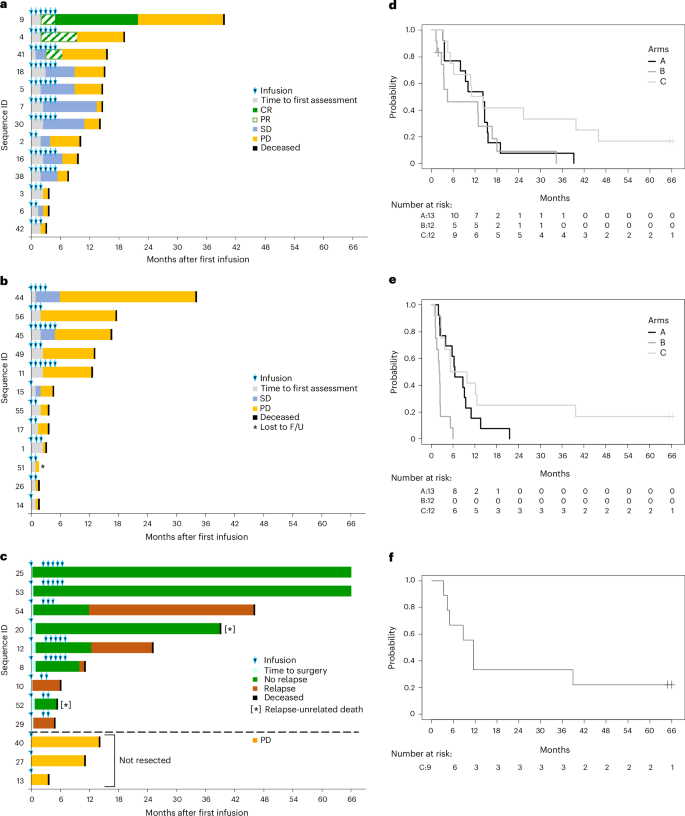

Fig. 2: Clinical outcomes.
Fig. 2: Clinical outcomes.
Full size image

a–c, Swimmers’ plots depicting DORs after mTAA infusions in patients treated in arms A (a), B (b) and C (c). The timing of infusions is indicated. d–f, Kaplan–Meier survival analysis. Survival estimates are shown for OS (d, all arms; n = 37), EFS (e, all arms; n = 37) and RFS (f; arm C only, resected patients; n = 9). F/U, follow-up, between 1 month and 12 months after the last infusion.

Source data

Arm B

Clinical outcomes are summarized in Fig. 2b, Supplementary Table 4 and Extended Data Table 2. No objective responses were recorded. Three patients (25%) had a best response of SD and the remaining nine patients (75%) had PD, for an ORR of 0% and DCR of 25.0% (95% CI: 5.5–57.2%). The median EFS and OS were 2.2 months (95% CI: 1.2–2.5 months) and 4.4 months (95% CI: 1.5-16.7 months), respectively (Fig. 2d,e and Supplementary Table 5).

Arm C

Clinical outcomes are summarized in Fig. 2c and Extended Data Table 2. Nine (75%) participants proceeded to planned resection whereas three (25%) were found to have unresectable or metastatic disease at the time of surgery. Survival estimates for OS, EFS and relapse-free survival (RFS) are shown in Fig. 2d–f and Supplementary Table 5. After 66 months of follow-up, two of the nine resected participants remained alive and disease free, despite being relatively high risk. Patient no. 25’s pathological stage was ypT2N1 despite having received 4–5 months of neoadjuvant FOLFIRINOX and no adjuvant chemotherapy postsurgery. Similarly, patient no. 53 was borderline resectable at diagnosis with radiographic evidence of extensive lymphatic spread (cT2N2), and despite this remains cancer free. The median EFS and OS for all participants enrolled in arm C were 7.5 months (95% CI: 2.6–39.7 months) and 12.6 months (95% CI: 4.5–45.9 months), respectively, whereas the median RFS and OS for those who underwent resection were 11.5 months (95% CI: 3.3 months to not available (NA)) and 25.3 months (95% CI: 4.5 months to NA), respectively.

When examining all patients across all study arms, those who received more infusions appeared to do better than those who received fewer (5–6 infusions > 3–4 infusions > 1–2 infusions; Supplementary Fig 5). However, per the clinical protocol, evidence of progression precluded continuing with infusions, thus confounding this analysis.

In vivo T cell behavior

To assess the potential contribution of our autologous, nonengineered, mTAA T cell therapy to clinical outcome, we evaluated in vivo persistence and investigated whether T cells were able to infiltrate the tumor (arm C participants). We also assessed whether there was an immune signature associated with superior clinical outcomes. To this end, we examined (1) the entire cohort (that is, all patients and all study arms) and (2) each study arm individually, dividing participants into: ‘responders’ (defined as those with an objective response in arm A and no relapse in arm C), those with SD (arms A and B) and ‘nonresponders’ (defined as PD in arms A and B and relapse in arm C). Persistence was evaluated by TCR deep sequencing analysis of peripheral blood samples collected during and after dosing to look for the presence of product-derived unique clones, whereas the expansion and functional capacity of tumor-reactive T cells were interrogated by performing IFNγ ELIspot analysis. In addition to evaluating activity against mTAA-targeted antigens, the emergence of T cell responses directed against tumor-expressed antigens not targeted by the infused product was also assessed as an indicator of in vivo antigen spreading.

To first evaluate persistence, TCR deep sequencing was performed on select blood samples collected during dosing and follow-up in a subset of patients (n = 14). Extended Data Fig. 1a shows the summary results, whereas individual ribbon plots depicting circulating product-derived unique clonotypes, during both the infusion period and the 12 months of follow-up, are shown in Extended Data Fig. 1b–o. In all 14 donors analyzed, product-derived clonotypes were detected at all timepoints tested, confirming that the infused autologous, nonengineered mTAA T cells persisted in vivo. To next evaluate the infiltrative capacity of the infused T cells, tumor material from seven of nine surgically resected arm C participants was evaluated. As shown in Extended Data Fig. 2, tumor-resident T cells were detected by flow cytometry in all seven cases and the presence of line-derived unique clones was confirmed by deep sequencing.

Finally, to examine the quality and longevity of immune activity in participants who responded to therapy compared to nonresponders and those with SD, the frequency of T cells directed against our five target TAAs was evaluated in the three patient groups. Figure 3a shows the results for the entire cohort depicting the peak frequency of reactive cells detected during dosing and follow-up, whereas Extended Data Fig. 3a shows reactive T cells after each infusion, relative to baseline. The results for each study arm are shown in Fig. 3b–d and individual patient data are shown in Extended Data Figs. 4–6. The initial change in the frequency of T cells directed against the five target TAAs was most pronounced in responders and continued to increase or remained persistently high with additional infusions. Overall, the magnitude of T cell activity during dosing was significantly higher in responders compared with nonresponders (mean 3.9 versus 1.9 log2(fold-change) from baseline, P = 0.027) and remained elevated for up to 12 months after the infusions had ceased (Fig. 3a–d). In addition, antigen spreading, as evidenced by the detection of T cells directed against nontargeted, tumor-expressed antigens, was also superior in responders versus nonresponders (Fig. 3e–h, and Extended Data Fig. 3b).

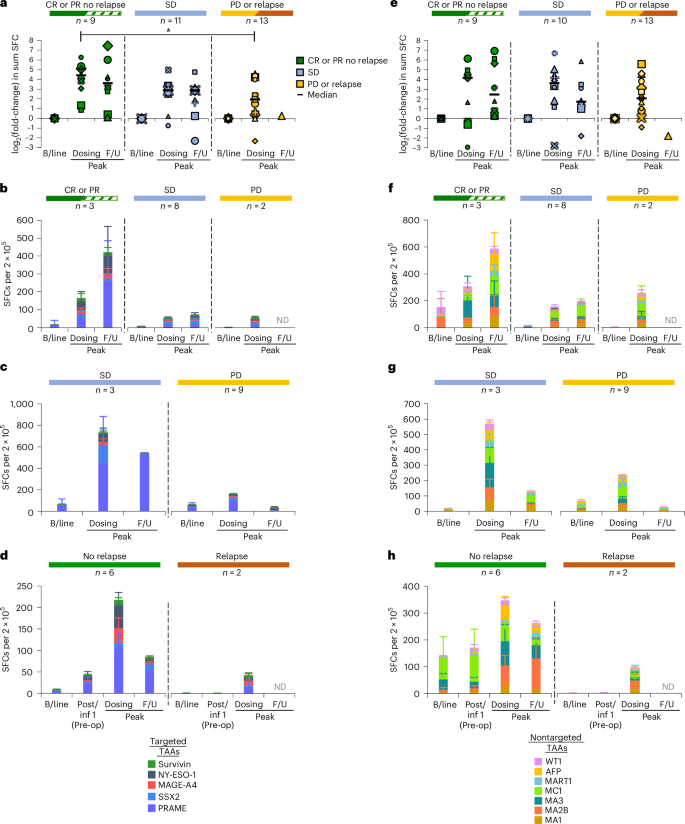

Fig. 3: In vivo T cell activity.
Fig. 3: In vivo T cell activity.
Full size image

a,e, in vivo expansion of tumor-reactive T cells: expansion of T cells specific for targeted (a) and nontargeted (e) TAAs in patients from all three arms grouped in responders (CR, PR or no relapse) versus SD versus nonresponders (PD or relapse). Results are reported as log transformed (fold-change) in SFCs at the specified time points in relation to baseline. Each symbol represents an individual patient and median values are indicated. Statistical significance was assessed using a two-sided Student’s t-test for continuous variables. Given the exploratory nature of the immune correlative analysis, no adjustments for multiple comparisons were made. *Denotes statistical significance (P = 0.027)). b–d, f–h, In vivo behavior of circulating tumor-reactive T cells specific for both targeted (b–d) and nontargeted (f–h) TAAs in patients treated in arms A (b and f), B (c and g) and C (d and h), respectively, grouped into responders (CR or PR) versus SD versus PD (arms A and B) and in relapsed versus nonrelapsed patients (arm C). The results are reported as SFCs (mean ± s.e.m.) per 2 × 105 cells at specified time points. Immune correlative analysis does not include arm C patient nos. 13, 27 and 40, who were not resected and were thus deemed nonevaluable for further analysis per study protocol, and patient no. 20 who only received a single infusion due to postsurgical complications and was deemed nonevaluable. B/line, baseline; B/line, pre-infusion 1: dosing period, during the active infusion period and up to week 4 after the last infusion; ND, no data; peak (dosing or F/U), maximum detected SFCs during the specified period; pre-op, preoperative (arm C only).

Source data

Figure 4 and Extended Data Figs. 7 and 8 show individual clinical and correlative data from select arm A and C participants. Figure 4 shows results from patient no. 9 (arm A) who achieved a complete radiographic response and patient no. 25 (arm C) who remains disease free after 66 months of follow-up. In patient no. 9 (CR; Fig. 4a), the frequency of T cells specific for nontargeted and targeted antigens increased from baseline through follow-up (Fig. 4b,c). A subset of the T cells specific for targeted antigens was confirmed to be mTAA line derived (based on TCRvβ deep sequencing) and could be detected both in the circulation (89 and 103 clones during infusion and follow-up, respectively; Fig. 4c) and in the patient’s tumor (7 clones; Fig. 4d) on biopsy material collected 4 months after T cell infusion. Of note, tumor expression of two antigens targeted by the mTAA line-derived T cells, PRAME and Survivin was confirmed for this patient (Fig. 4d). To evaluate the longitudinal functionality of the infused cells, TCR deep sequencing and scRNA-seq analysis were combined, focusing on IFNγ, TNF, GZMB and perforin transcripts. Notably, 37.1% and 34% of the line-derived (unique) clonotypes detected during infusion and follow-up were functional (Fig. 4e) and most (79% and 80%, respectively) were polyfunctional (Fig. 4f). Figure 4g–l shows similar data for patient no. 25, whereas Extended Data Fig. 7 shows data for arm A patient nos. 4, 41 and 5, who experienced partial radiographic responses (patient nos. 4 and 41) and prolonged disease stabilization (patient no. 5) after infusion of mTAA T cells. Arm C patient nos. 53, 12 and 54 are presented in Extended Data Fig. 8.

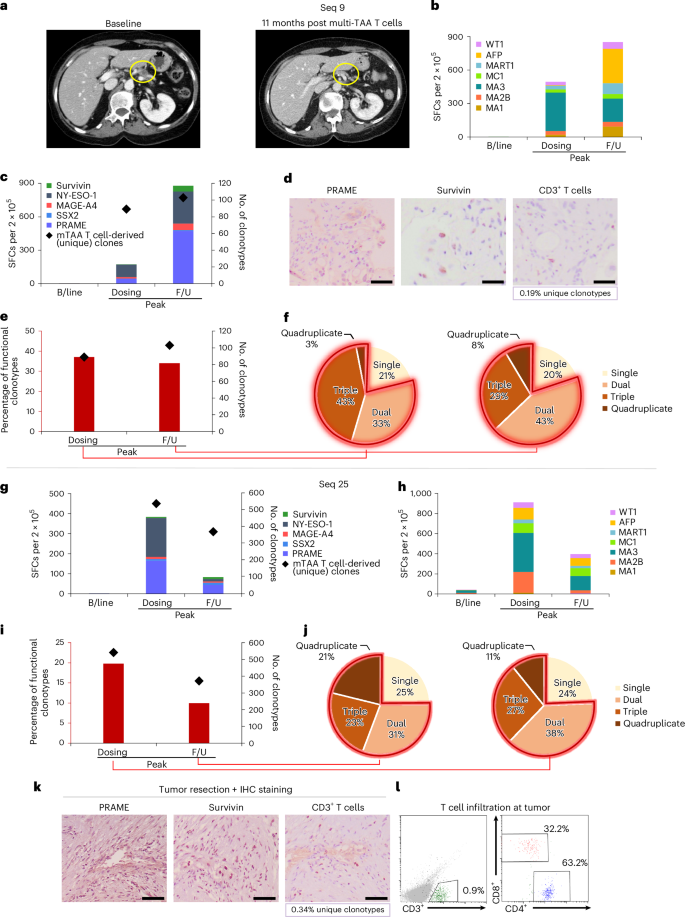

Fig. 4: Individual clinical and immune correlative data.
Fig. 4: Individual clinical and immune correlative data.
Full size image

a–c, Radiographic response (a) and immune activity against both nontargeted (b) and targeted (c) TAAs pre-infusion and postinfusion in arm A patient no. 9 who achieved a CR after mTAA T cells. Tracking of mTAA T cell product-derived (unique) TCR clonotypes (assessed by TCRvβ deep sequencing) is shown as the number of circulating unique clonotypes overlaid on IFNγ ELISpot charts (c). d, TAA expression (PRAME, Survivin) and CD3+ T cell infiltration in the patient’s tumor (with unique mTAA-derived clones representing 0.19% of total tumor T cell content as shown by TCRvβ deep sequencing) confirmed by IHC staining (×20 magnification) performed on biopsy material collected at 4 months postinfusiona. e,f, The polyfunctionality of circulating infused cells, as evaluated by scRNA-seq analysis and expressed as proportion of cells bearing IFNγ and/or TNF, GRZB and perforin transcripts. e, Proportion of functional TAA-reactive unique clonotypes. f, Multiple effector molecule production as assessed by scRNA-seq. g–j, immune activity against targeted (g) and nontargeted (h) TAAs pre-infusion and postinfusion, tracking (g) and longitudinal functionality assessment (i and j) of circulating unique clones shown for arm C patient no. 25, who remained disease free after 66 months of follow-up. i, Proportion of functional TAA-reactive unique clonotypes. j, Multiple effector molecule production as assessed by scRNA-seq. k, Tumor expression of PRAME and Survivin and T cell infiltration (with unique mTAA-derived clones representing 0.34% of total tumor T cell content) confirmed by IHC staining on material excised during surgery after the first infusiona. l, The intratumoral presence of CD3+ T cells (both CD4+ and CD8+) was also demonstrated by flow cytometry. aIHC experiments were performed once on each independent patient sample. Inset scale bars: 50 μm.

Source data

Discussion

In this study, we evaluated the safety and feasibility of serial autologous mTAA T cell infusions in patients across all stages and therapy lines in pancreatic cancer. Generating a sufficient number of T cells for six cell infusions was feasible, even in heavily pretreated participants and infusions were well tolerated, whether administered alone or with standard PDAC-targeted chemotherapy, because only a single grade 3 tSAE (transient lipase elevation) was reported, without any cases of CRS. Although efficacy was not the primary endpoint of this trial, objective clinical responses were observed, albeit primarily in arm A, in which patients were also receiving chemotherapy. The DCR (84.6%), median DOR (7.5 months) and median OS (14.1 months) in arm A are encouraging, given that these patients had already received 3–4 months of chemotherapy before starting T cell infusions. From an immunological perspective, there was clear evidence of persistence, expansion and sustained detection of tumor antigen-specific T cells directed against targeted TAAs and nontargeted antigens (epitope spreading). Importantly, T cell responses (magnitude, breadth and function) correlated with clinical outcome.

The current cell therapy product was designed to minimize immune escape in tumors with heterogeneous antigen expression12,13,14,15. PRAME, SSX2, MAGEA4, Survivin and NY-ESO-1 were chosen as therapeutic targets based on their: (1) frequency of expression (ranging from 2–10% for NY-ESO-1 to >75% for Survivin)24,27,28,31,33,34,35,36; (2) association with risk of progression25,26,29,30,32; and (3) documented safety as immunotherapeutic targets in both hematological20,21,22,23 and solid malignancies19,57. Although tumor antigen expression was not assessed before study entry, we hypothesized that targeting this combination of antigens would maximize the likelihood that at least two would be present in each patient’s tumor, as was subsequently confirmed by tumor immunohistochemistry (IHC) staining for a subset of participants. Furthermore, as these mTAA T cells have a mechanism of action quite different from cytotoxic chemotherapy, we posited that these cells could be administered as either monotherapy (as in arm B of the current study) or combined with approved chemotherapy (arms A and C).

Despite the wide spectrum of tumor stages included in this trial—from potentially resectable to refractory metastatic disease—we successfully generated mTAA T cells for 54 of the 56 (96%) enrolled patients. The expanded cells exhibited a polyclonal, TH1 cell-polarized effector profile composed of CD4+ (helper) and CD8+ (cytotoxic) cells that expressed a mix of central and effector memory markers. After T cell infusion without prior lymphodepletion, an increase in the frequency of circulating T cells directed against the targeted antigens was detected in most infused patients, along with evidence of in vivo antigen spreading. Furthermore, these cells were polyfunctional, exhibiting a TH1 cell-polarized or cytotoxic profile on antigen encounter and were ultimately detected circulating in the bloodstream and infiltrating tumors. This effector or TH1 cell immune signature, which characterized both the infused cells and those induced in vivo, was sustained in patients with objective radiographic responses, whereas weaker and shorter-lived immune responses correlated with disease progression. Sethna and colleagues58 recently reported a similar immunological signature in patients with surgically resected PDAC who received an individualized neoantigen vaccine (prime-boost protocol) containing up to 20 human leukocyte antigen (HLA)-class I and HLA-II targets in combination with an anti-programmed death-ligand 1 antibody and 5-fluorouracil-based combination chemotherapy. At a median follow-up of 1.5 years, 8 of 16 vaccinated patients harbored high-frequency, polyfunctional, neoantigen-specific, CD8+ effector T cells that correlated with delayed PDAC recurrence, a signal that persisted during the extended 3.2-year median follow-up period. Taken together, data from ref. 58 and TACTOPS underscore the potential role of long-lived, functional, tumor-directed T cells in establishing durable antitumor immunity.

Immune evasion may have contributed to tumor progression in this trial. The PDAC TME is replete with suppressive cells (for example, myeloid-derived suppressor cells, M2 macrophages and regulatory T cells)12,15,16 and cytokines (for example, granulocyte colony-stimulating factor, interleukin (IL)-10, transforming growth factor-β (TGFβ, IL-6 and IL-4)), and both the tumor cells and adjacent immune cells frequently express checkpoint molecules that promote tumor growth and survival while suppressing effector T cell function, proliferative capacity and in vivo persistence. Hence, future studies may explore lymphodepleting patients before mTAA T cells (to potentially alter the TME and improve T cell infiltration, as well as to maximize the in vivo expansion of the infused product), performing fewer mTAA infusions but with larger cell doses, continuing to dose escalate mTAA T cells57 and incorporating additional target specificities, including WT1, mesothelin and hotspot neoantigens58,59,60,61,62,63,64,65. In addition, combining mTAA T cells with other immunotherapeutic strategies (for example, checkpoint inhibitors7,66, oncolytic viruses67,68, stimulatory cytokines or tumor vaccines58,59,61,62,69,70) to enhance tumor immunogenicity and overcome immune evasion can be considered. Alternatively, mTAA T cells can be genetically modified to express transgenic molecules that enhance mTAA T cell persistence, functionality and capacity to resist the suppressive TME. In fact, our group has previously explored a strategy to overcome the hostile pancreatic TME by genetically programming T cells with a transgenic inverted cytokine receptor71,72 or decoy73 designed to convert the impact of immunologically suppressive molecules produced by both the tumor and the stroma (IL-4 and TGFβ) into signals that are immunostimulatory.

This small, nonrandomized study has limitations. First, the patient population was quite heterogeneous, in terms of disease stage, prior therapies and concurrent therapies. Drawing reliable conclusions about the benefits of such an immunotherapeutic approach for patients with PDAC in general or any subset of patients with PDAC is therefore difficult. Second, as there were no control arms, this study could not establish benefit over standard therapy in arms A and C or supportive care alone in arm B. However, the robust immunological signature seen in responders and the increased frequency of functional T cells detected early postinfusion and maintained thereafter is consistent with an immunological fitness that may be associated with better outcomes. Nevertheless, only a randomized trial could prove how much infused T cells contributed independently to disease response and survival.

In summary, this study demonstrates the feasibility of generating autologous mTAA T cells in patients with all stages of pancreatic cancer and the safety of infusing them for up to 6× at 1 × 107 cells m−2. This treatment was exquisitely well tolerated. Clinical outcomes correlated with peripheral expansion of mTAA-targeted T cell clones and treatment-emergent antigen spreading. Combining TAA T cells with other new immunotherapies and/or standard-of-care (SOC) chemotherapy, or possibly as a single therapeutic modality in a strategic way, warrants further investigation.

Methods

Inclusion and ethics

The protocol and amendments were approved by the Baylor College of Medicine (BCM) and Houston Methodist Hospital (HMH) institutional review boards (IRBs) and the study was conducted under an investigational new drug approved by the US Food and Drug Administration (protocol no. H-40378; ClinicalTrials.gov identifier: NCT03192462), in accordance with the principles of the Declaration of Helsinki and the International Conference on Harmonization of Good Clinical Practice guidelines.

Study design and patient population

TACTOPS (ClinicalTrials.gov identifier: NCT03192462) is a nonrandomized, three-arm, single-center, phase 1/2 trial conducted at the Dan L Duncan Comprehensive Cancer Center (BCM and HMH, Houston, TX, USA) in which patients with locally advanced or metastatic PDAC (arms A and B) and potentially resectable PDAC (arm C) received up to six fixed-dose infusions of autologous mTAA T cells. The protocol and amendments were approved by the BCM and HMH IRBs and the study was conducted under an investigational new drug approved by the Food and Drug Administration in accordance with the principles of the Declaration of Helsinki and the International Conference on Harmonization Good Clinical Practice guidelines. Participants provided written informed consent and could withdraw consent to end study participation at any time.

Eligibility requirements for T cell procurement included age ≥18 years, biopsy-proven PDAC, life expectancy of ≥6 months and hemoglobin ≥7.0 g dl−1; those with serious concurrent illness or active HIV infection were excluded. Eligibility requirements for T cell infusion included age ≥18 years, measurable disease per RECIST 1.1 criteria, life expectancy of ≥3 months, Eastern Cooperative Oncology Group performance status score of ≤2 or Karnofsky score of ≥50, hemoglobin ≥7.0 g dl−1, bilirubin ≤2× the upper limit of normal, aspartate aminotransferase ≤3× the upper limit of normal, creatinine ≤2× the upper limit of normal for age and completion of prior antineoplastic therapy ≥1 month before T cell infusion. Those with severe concurrent infection, HIV infection, pregnancy or medical immunosuppression with corticosteroids were excluded. If deemed eligible for T cell infusion, patients were enrolled into one of three arms: (1) advanced (locally advanced unresectable or metastatic) PDAC with investigator-assessed PR or SD per RECIST v1.1 after three 28-d cycles of first-line chemotherapy (arm A); (2) advanced PDAC with PD after first-line chemotherapy or judged by the investigator to be ineligible for SOC chemotherapy (arm B); or (3) potentially resectable PDAC after completion of standard neoadjuvant therapy (chemotherapy, radiotherapy or both) (arm C).

All study participants received a maximum of six infusions of mTAA T cells at a fixed dose of 1 × 107 cells m−2 in an arm-specific schema. The infused cell dose was chosen based on past regulatory interactions and prior clinical experience, demonstrating that targeting this mix of cancer testis antigens and TAAs was well tolerated at doses of 2 × 107 cells m−2, 2× infusions per patient23. In the current trial we sought to increase the infused cell dose (cumulatively) through performing repetitive infusions of 1 × 107 cells m−2, 6× infusions. In arm A, participants received SOC treatment of either nab-paclitaxel or gemcitabine (administered in 4-week cycles: days 1, 8 and 15 of a 28-day cycle) or FOLFIRINOX (administered every 2 weeks). Given the intent to administer mTAA T cells during the ‘off week’ of chemotherapy (that is, week 4 of a nab-paclitaxel cycle or week 2 of a FOLFIRINOX cycle) to minimize the impact of chemotherapy on the ‘fitness’ of the infused cells, infusions occurred every 4 weeks starting on week 4 (the ‘off’ week) of the fourth 28-day chemotherapy cycle. In arm B, T cells were infused every 4 weeks as monotherapy. In arm C, T cells were infused between 1 week and 4 weeks before surgical resection, then every 4 weeks, starting at least 8 weeks after surgery to address any minimal residual disease remaining following surgical resection of the primary mass.

Toxicity was evaluated during the 4-week period after each infusion. All patients who received at least one infusion of mTAA T cells were monitored for tSAEs. AEs were graded according to the National Cancer Institute Common Terminology Criteria for Adverse Events (CTCAE) v4.0, with the exception of CRS toxicities, which were graded using the CRS grading scale (see Clinical Protocol in Supplementary Information for full details). A tSAE was defined as grade 3–4 CTCAE toxicity or grade 3–4 CRS toxicity determined to be possibly, probably or definitely related to T cells. Per protocol, treatment would be considered unsafe and patient accrual halted for a given study arm if more than one tSAE was observed. The feasibility of completing six intravenous infusions of mTAA T cells (that is, a series) was monitored separately in each study arm using a method similar to the 3 + 3 procedure. The cumulative number of successfully completed infusion series was evaluated every three patients. If at most one patient could not finish an infusion series, then three additional patients could be enrolled in that arm. If, after six patients were treated, two or more were unable to complete the infusion series, the treatment strategy would be deemed unfeasible but additional enrollments on that arm would continue.

Patients with measurable disease (that is, lesions that could be accurately measured in at least one dimension as >10 mm) were assessed by RECIST 1.1 criteria to determine clinical response based on evaluations of tumor size. Imaging was performed before the first T cell infusion and every 2–3 months thereafter, per SOC radiographic monitoring. A CR was defined as the disappearance of all target lesions, a PR as a ≥30% decrease in the sum of the longest diameter of target lesions, PD as a ≥20% increase in the sum of the longest diameter of target lesions and SD as a decrease or increase in the sum of the longest diameter of target lesions that did not meet criteria for PD or PR. Blood for correlative studies was collected before the first T cell infusion, at weeks 1, 2, 4, 6 and 8 once infusions were initiated and then at months 3, 6, 9 and 12 after the last infusion. Patients were followed clinically for up to four additional years (for a total of 5 years after the final T cell infusion) to evaluate long-term disease and survival status. Tumor material was collected from seven patients in arm C who underwent surgical resection and two patients in arm A who underwent tumor biopsies while on the study. Details can be found in the full clinical protocol supplied in Supplementary Information.

Outcomes

The primary objective of TACTOPS was to determine the safety and feasibility of completing six intravenous infusions of mTAA T cells. The secondary objectives were to determine EFS and OS and tertiary endpoints were to assess antitumor immune activity.

Toxicities were graded according to the NCI–CTCAE v4.0 and the ASTCT consensus grading for CRS and neurological toxicity. The tSAEs were defined as grade III–IV toxicities according to CTCAE or grade III–IV CRS toxicities determined to be at least possibly related to T cells.

Clinical response was assessed using RECIST v1.1 based on diagnostic imaging (computed tomography, magnetic resonance imaging or nuclear imaging) obtained before the first infusion and every 2–3 months thereafter, for up to 1 year after the last infusion.

Generation of mTAA T cells

Monocyte-derived DCs were isolated from peripheral blood mononuclear cells by plastic adherence, loaded with pepmixes (panels of 15-mer peptides overlapping by 11 amino acids) spanning the TAAs Survivin, SSX2, MAGEA4, PRAME and NY-ESO-1 (JPT Peptide Technologies) and cocultured (1:10) with autologous peripheral blood mononuclear cells in the presence of a TH1 cell-polarizing cytokine cocktail (IL-7 (10 ng ml−1), IL-12 (10 ng ml−1), IL-15 (5 ng ml−1) and IL-6 (10 ng ml−1); R&D Systems) in T cell medium (45% Roswell Park Memorial Institute (RPMI) medium 1640 (HyClone Laboratories), 45% Click’s medium (Irvine Scientific), 2 mM GlutaMAX TM-I (Life Technologies) and 10% human AB serum (Valley Biomedical)). From day 10, responder T cells were restimulated weekly with pepmix-pulsed DCs (1:10 DCs to T cells) in the presence of IL-15 (5 ng ml−1) or IL-2 (50 U ml−1) (Proleukin (aldesleukin), TCH) until sufficient numbers were achieved for patient infusion and requisite release testing. The manufactured T cell lines were then cryopreserved.

The mTAA T cell characterization studies

Enzyme-linked immunospot assay (ELIspot) analysis was used to determine the frequency of T cells secreting IFNγ and granzyme B (Mabtech, Inc.) in response to TAA pepmixes, as described previously18. For phenotypic analysis, mTAA T cells were surface stained with phycoerythrin, fluorescein isothiocyanate, peridinin chlorophyll protein, allophycocyanin-conjugated, Alexa Fluor-700-conjugated, phycoerythrin cyanin 7-conjugated, Pacific Blue-conjugated or Krome Orange-conjugated CD3 (clone SK7), CD4 (SK3), CD8 (SK1), CD56 (B159), CD16 (SJ25C1), CD62L (DREG-56), CD45RA (H100 or 2H4), CD 45RO (UCHL1), CCR7 (3D12), CD69 (L78), CD83 (HB15e), HLA-DR (L243), PD-1 (PD1.3.5) and lymphocyte activation gene-3 (cat. no. 874501) (Becton Dickinson (BD); Beckman Coulter). Control samples labeled with the appropriate isotype antibodies were included and a ‘fluorescence − 1’ strategy was used for multicolor staining. Cells were analyzed using FACScan equipped with a filter set for four fluorescence signals, using CellQUEST software, or FACS-Canto II, using DIVA software (BD). TCRvβ flow cytometric analysis was performed using the IOTest Beta Mark kit (Beckman Coulter), as per the manufacturer’s instructions. Briefly, 0.5 × 106 cells per tube were surface stained with CD3 and the TCRvβ-specific monoclonal antibodies provided with the kit and incubated for 20 min at room temperature in the dark.

Subsequently, cells were washed, resuspended in 300 μl of phosphate-buffered saline (PBS, Sigma-Aldrich) and at least 10,000 live T cells acquired on a Gallios Flow Cytometer and analyzed with Kaluza Flow Analysis Software (Beckman Coulter).

ICS was performed by stimulating mTAA T cells with target or irrelevant (control) pepmixes in the presence of CD28 and CD49d (1 μg ml−1), followed by the addition of BD GolgiStop and BD GolgiPlug, which contain monensin and brefeldin A, respectively. After an overnight incubation, T cells were washed, pelleted and surface stained with CD8 and CD3, then fixed and permeabilized with Cytofix or Cytoperm solution. After manufacturer-directed incubations and washes, cells were stained with IFNγ and TNF antibodies, then acquired (at least 50,000 live cells) using a Gallios flow cytometer and analyzed with Kaluza software. All ICS reagents were from BD. For activation-induced marker staining, T cells were incubated for 5–18 h with target TAA pepmixes along with CD28 and CD49d to detect peak expression of CD40L, CD69 and 4-1BB. Next, cells were stained at 4 °C for 20 min with saturating amounts of antibodies (5 μl per antibody per tube: CD3, CD4, CD8, 4-1BB, CD69 and CD40L, all from BD). Subsequently, cells were washed, resuspended in PBS and data were acquired on a Gallios flow cytometer, by collection of at least 50,000 live cells, and analyzed with Kaluza software. For CD107a degranulation assays, mTAA T cells were incubated for 5–6 h with target pepmixes along with CD107a (BD), GolgiStop, CD28 and CD49d. Next, cells were washed in PBS, pelleted and surface stained with CD3, CD4 and CD8 (5 μl per antibody per tube) for 20 min at 4 °C. Subsequently, cells were washed, resuspended in PBS, acquired on a Gallios flow cytometer (at least 50,000 live cells) and analyzed using Kaluza software. A vital dye CFSE (CellTrace CFSE Cell Proliferation Kit, Invitrogen) cytotoxicity assay was employed to evaluate the specific cytolytic activity of mTAA T cells against antigen-pulsed autologous PHA blasts (tumor reactivity) using an optimized protocol as previously described74. Cytotoxicity of each mTAA T cell line toward unpulsed autologous PHA blasts (autoreactivity) was measured in a standard 4-h 51Cr release assay at varying E-to-T ratios (40:1, 20:1, 10:1 and 5:1) and the percentage of specific lysis was calculated as: ((Experimental release − Spontaneous release)/(Maximum release − Spontaneous release)) × 100.

The mTAA T cell in vivo persistence studies

To track the infused mTAA T cells, we applied high-throughput deep sequencing of TCRvβ CDR3 regions (Adaptive Biotechnologies). Deep sequencing was performed on infused mTAA T cell lines and patient peripheral blood (and tumor, when available) before and after infusion. Those T cell clones identified within the product, but not detected in the patient’s blood before T cell infusion, were coded as line-derived unique clones. The TCRvβ deep sequencing data are available in ImmuneACCESS (https://doi.org/10.21417/BLMC2025NM).

Tumor antigen profiling

To evaluate CD3 infiltration and TAA expression, available tumor tissue slides were analyzed by IHC using a one-step staining technique. Briefly, formalin-fixed paraffin-embedded, unstained slides (4–5 μm thickness) were stained with a clinical grade CD3 antibody to identify infiltrating T lymphocytes; to detect TAA expression, the following anti-human primary antibodies were used: MAGEA4 mouse monoclonal antibody (mAb) (clone 6C1, 1:200), NY-ESO-1 mouse mAb (clone E978, 1:50) (both Santa Cruz Biotechnology), PRAME rabbit polyclonal antibody (1:200, Bioss Antibodies), SSX2 mouse mAb (clone CL3202, 1:500; Atlas Antibodies) and Survivin rabbit mAb (clone 71G4B7, 1:500, Cell Signaling Technology). Standard deparaffinization, rehydration, heat antigen retrieval with citrate buffer, pH 6, elimination of endogenous peroxidase activity by 3% hydrogen peroxide (Thermo Fisher Scientific, cat. no. H323-500) and nonspecific normal horse serum (2.5%) block were performed with 1× Tris-buffered saline and Tween 20 washes. The TAA-specific antibodies were applied overnight at 4 °C. The next day, an anti-mouse secondary antibody (Ready Vector Labs, cat. no. MP-7402) or anti-rabbit secondary antibody (Ready Vector Labs, cat. no. MP-7402) was applied and then 3,3′-diaminobenzidine brown substrate was added to the slides. After 2–5 min of incubation, the slides were washed with water and counterstained with hematoxylin, rinsed in deionized water, dehydrated in alcohol and cover slipped with Cytoseal 60 mounting medium. Hematoxylin and eosin-stained and unstained slides served as positive and negative controls, respectively. Testes with intact spermatogenesis and epididymis served as positive and negative tissue controls, respectively. The intensity of staining was graded as 1+ (weak), 2+ (moderate) or 3+ (strong), using the combination semiquantitative scoring method. All scoring was performed by a pathologist who was blinded to the clinical outcome as well as to the demographics of individual patients.

ScRNA-seq

Single-cell TCR and 5′-expression sequencing

The mTAA T cells were thawed, rested in T cell medium and resuspended at 2 × 106 cells ml−1 and 200 μl was added per well of a 96-well plate. The mTAA T cells were incubated overnight with either 200 ng of stimulating pepmix (PRAME, SSX2, MAGEA4, NY-ESO-1 and Survivin) or dimethyl sulfoxide alone (unstimulated control). The following day, cells were harvested and passed through a 30-μm cell strainer and dead cells were magnetically removed (Dead Cell Removal kit, Miltenyi Biotec). The resulting single-cell suspensions (1 × 105 cells per 100 μl in RPMI + 10% fetal bovine serum) were loaded on to a chromium chip and captured with barcoded gel beads at a target rate of ~5,000 cells per patient sample (10x Genomics). Barcoded and amplified complementary DNAs were used for TCRV(D)J enrichment (2 μl of cDNA) and 5′-gene expression analysis (10 μl of cDNA). V(D)J and 5′-expression libraries were pooled and sequenced by Illumina NovaSeq sequencer (read 1, 26 bp; index, 8 bp; read 2, 90 bp).

Single-cell data processing

The analysis pipelines in Cell Ranger were used for sequencing data processing. FASTQ files were generated using cell ranger mkfastq with default parameters. Then, cell ranger count was run with transcriptome = refdata-cellranger-GRCh38-1.2.0 for each sample, in which reads had been mapped on the human genome (GRCh38/hg38) using STAR (v2.7.2a). TCR data were processed by running cell ranger vdj with reference = refdata-cellranger-vdj- GRCh38-alts-ensembl-2.0.0 to assemble TCR α and β chains and determine clonotypes. The Seurat R package was used to run principal components analysis, t-stochastic neighbor embedding (t-SNE) and k-means clustering algorithms to visualize clustered cells in a two-dimensional space. Principal components analysis-reduced data were passed into t-SNE, a nonlinear dimensionality reduction method. Cytokine-producing cellular subpopulations were assessed and visualized using Loupe Browser and they were matched to their respective clonotypes for the TCR β chains using Loupe VDJ Browser (https://10xgenomics.com). Those identified as vβ CDR3 were then manually compared with the line-derived unique TCRvβ CDR3 regions generated as described above by deep sequencing (Adaptive Biotechnologies). DEGs were identified for each sequenced T cell product by comparing the TAA-stimulated versus unstimulated cells; a gene expression cut-off of log2(fold-change) >1 or <−1 and an adjusted P ≤ 10−6 were applied to select DEGs. Functional enrichment analysis of DEGs was performed using publicly available online databases (https://www.gsea-msigdb.org/gsea/index.jsp and https://biit.cs.ut.ee/gprofiler/gost). The raw sequencing data and processed scRNA-seq expression matrices generated in this study are publicly available in the Gene Expression Omnibus (GEO) under accession no. GSE307914.

Statistical analysis

Descriptive statistics were calculated to summarize demographics, clinical characteristics and immunological parameters using mean, s.d., s.e.m., median and range. The ORR was defined as the proportion of evaluable patients with a best response of CR or PR to T cell infusions. The DCR was defined as the proportion of evaluable patients with a best response of CR, PR or SD. ORR and DCR, which were calculated along with exact 95% binomial CIs, were assessed in patients in arms A and B but not in those in arm C (because the latter underwent surgical resection after a single T cell infusion and without any intervening radiographic imaging).

OS, EFS and RFS were calculated using the Kaplan–Meier method and summarized with median survival times and 95% CIs. OS was defined as the time from the first infusion to death from any cause, EFS as the time from the first infusion to the first occurrence of disease progression, relapse or death from any cause and RFS as the time from surgery to recurrence or death from any cause. Patients without events were censored at the last follow-up date. Data for the analyses were collected up to 14 July 2025.

Summary statistics were also calculated at pre- and postinfusion timepoints to evaluate the T cell expansion and persistence based on immunological parameters; these analyses were performed in each patient group and for all treated patients. Peak T cell expansion during dosing period and follow-up was log(transformed) to achieve normality and comparisons between groups (responders versus nonresponders, and so on) were made using the Student’s t-test for continuous variables. Given the exploratory nature of the immunological component, no adjustments for multiple comparisons were made. A P < 0·05 was considered statistically significant. Circos visualization was performed using shinyCircos v2.0 (ref. 75). For Sankey style data visualization (ribbon plots), HTML and JavaScript code were used leveraging the D3.js library for graphics (https://d3js.org/)76 and Grok 3-beta (2025) for code generation and refinement (https://x.com/i/grok).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
