MISO: microfluidic protein isolation enables single-particle cryo-EM structure determination from a single cell colony

Nature Methods volume 22, pages 2563–2573 (2025)Cite this article

Subjects

Abstract

Single-particle cryogenic electron microscopy (cryo-EM) enables reconstruction of atomic-resolution 3D maps of proteins by visualizing thousands to millions of purified protein particles embedded in vitreous ice. This corresponds to picograms of purified protein, which can potentially be isolated from a few thousand cells. Hence, cryo-EM holds the potential of a very sensitive analytical method for delivering high-resolution protein structure as a readout. In practice, millions of times more starting biological material is required to prepare cryo-EM grids. Here we show that using a micro isolation (MISO) method, which combines microfluidics-based protein purification with cryo-EM grid preparation, cryo-EM structures of soluble bacterial and eukaryotic membrane proteins can be solved starting from less than 1 µg of a target protein and progressing from cells to cryo-EM grids within a few hours. This scales down the amount of starting biological material hundreds to thousands of times, opening possibilities for the structural characterization of hitherto inaccessible proteins.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

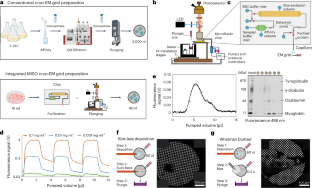

Fig. 1: MISO principle and method characterization.

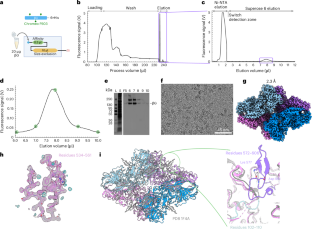

Fig. 2: Purification and cryo-EM structure of β-galactosidase isolated from 20 μg-containing cell extract.

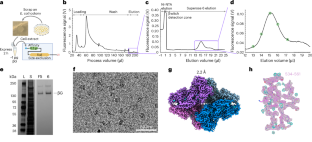

Fig. 3: Structure of β-galactosidase solved starting from a single E. coli colony.

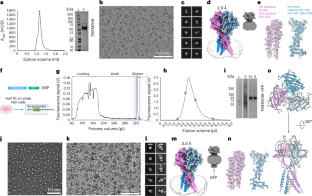

Fig. 4: Preparation and structure determination of btTMEM206 by conventional and MISO purification approaches.

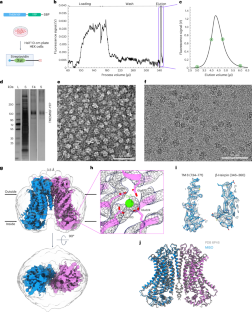

Fig. 5: Determination of mTMEM16F structure using one dish of HEK cells.

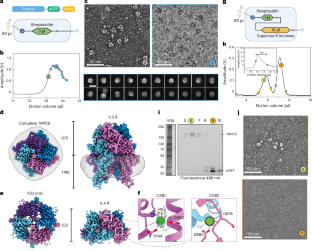

Fig. 6: Purification and identification of TRPC6 channel.
