Introduction

Recent studies on various nanostructured thin films have shown that factors such as substrate temperature and synthesis method significantly affect their morphological, optical, and structural properties1. Building on these insights, tungsten disulfide (WS2) has attracted increasing attention due to its layered structure and promising optical and electronic characteristics for optoelectronic applications2,3,4. Among the applications of WS2, we can mention gas sensors and photodetectors5,6. WS2 is a semiconductor with a direct band gap in bulk mode and an indirect band gap in monolayer mode7. The synthesis of WS2 nanostructures can significantly affect their structural integrity and optical characteristics. There are various physical and chemical methods such as chemical vapor deposition (CVD)8,9, magnetron sputtering10,11, chemical bath deposition (CBD)12,13, and hydrothermal methods14,15 for the synthesis of this material. Among these synthesis methods, sputtering can be a suitable candidate, controlling many parameters to attain pure and resistant thin films with high crystallinity and quality16,17. This method allows for precise control over the deposition parameters, such as synthesis time, substrate temperature, target-to-substrate distance, gas flow rate, input gas, and working pressure18,19. Substrate temperature has been identified as a key parameter influencing the crystallinity, morphology, and optical performance of WS2 films20. In particular, the appropriate thermal energy on the surface of the substrate increases the mobility of the adatoms, which move to the proper atomic position, thereby increasing the crystallinity18. Exploring the effect of substrate temperature on WS2 nanostructures can help to optimize their synthesis processes, leading to enhanced performance in practical applications. Only a few reports have been presented on the effect of temperature on sputtering WS2 layers. Genut et al.21 synthesized tungsten thin films (about 50 nm thick) by a sputtering method on various molybdenum, tungsten, quartz, and glass slides. For this purpose, the samples were annealed in a quartz furnace with H2S flow in the temperature range of 400 to 1000 °C, and the effect of the substrate at these temperatures on the WS2 layers was investigated. Ye et al.22 investigated the effect of annealing temperature on the properties of WS2 thin films by sputtering on glass and silicon substrates. For this purpose, thin WS2 layers with a thickness of 300 nm were synthesized by RF magnetic sputtering using a WS2 target, and finally, the samples were annealed in a nitrogen atmosphere at different temperatures of 200, 300, 400, and 500 °C for 1 h. Ma et al.23 investigated the effects of DC sputtering power and rapid thermal processing temperature on WS2 thin films. The layers were synthesized in a sputtering machine using a WS2 target at different powers of 80, 120, and 160 W. The prepared layers were annealed in a rapid thermal processing system, where the temperature increased from 200 °C to 800 °C at a rate of 3 °C/s. However, the effect of substrate temperature during synthesis on this material by the RF magnetron sputtering method has not been widely investigated yet.

In this study, we investigated how the substrate temperature during synthesis affects the morphology, structural and optical properties of WS2 nanostructures synthesized using the RF magnetron sputtering technique in the presence of argon gas. This study aims to systematically investigate WS2 thin films through techniques such as FESEM, AFM, XRD, Raman, and UV-Vis. spectroscopy.

Experimental

WS2 thin films were deposited using the RF sputtering technique with a WS2 target of 99.99% purity, 2 inches in diameter, and 75 W power in an argon atmosphere. Prior to deposition, the glass substrates were under a cleaning process involving soap and water, followed by ethanol, acetone, and distilled water in an ultrasonic device for 20 min. After cleaning, the substrates were dried with an air pump. The cleaned substrates were then placed into the sputtering chamber, where the base pressure and working pressure were maintained at 8.5 × 10−5 and 7 × 10−3 Torr, respectively. The deposition rate was approximately 2 Å/s and the film thickness was uniformly set at 200 nm, which was controlled by a quartz crystal in the sputtering system. To investigate the influence of substrate temperature, four different temperatures (25, 100, 200, and 300 °C) were applied during deposition. The synthesis process parameters are listed in Table 1.

Table 1 Parameters and their respective values for the deposition of WS2 thin films.
Full size table

The surface morphology of the fabricated thin films was examined using a Zeiss Sigma 300-HV field emission scanning electron microscope (FESEM) and an Atomic Force Microscope (AFM). The crystalline structures were characterized by Grazing Incidence X-Ray Diffraction (GIXRD; Bruker AXS) with CuKα radiation (1.5418 Å). Additionally, Micro-Raman spectroscopy (Avantes 532-Ci) was employed for further structural analysis, using an excitation wavelength of 532 nm. The optical properties of the films were estimated with a Shimadzu UV-1800 ultraviolet-visible (UV-Vis) spectrophotometer through the wavelength range of 300–1100 nm. The electrical properties were evaluated using an ECOPIA Hall effect measurement system, employing the van der Pauw four-probe configuration.

Results and discussions

Surface morphology

Figure 1 shows the FESEM images of WS2 samples at 100 and 200 nm scales. These high-resolution images present the morphological changes of WS2 nanostructures at different substrate temperatures. Increasing the temperature of the substrate to 100 °C results in a growth in the size of the nanoparticles. As the substrate temperature reaches 200 °C, a significant transformation takes place, resulting in the formation of nanosheets. These images suggest a change in the growth mechanism, where higher substrate temperatures promote lateral growth and thus sheet-like structures. The formation of nanosheets is significant due to their high surface-to-volume ratio and their performance in various applications. Upon reaching a temperature of 300 °C, the WS2 films exhibit separated grains on the surface. As the temperature rises, the energy levels of the adatoms arriving at the surface increase significantly, leading to greater atomic mobility24. Due to the shadowing effect, particles can be absorbed by higher surface points (hills), or, due to the re-emission effect, particles can “bounce around” before settling in the correct places on the surface25,26 which could have happened for the T300 sample. The images displayed on the right show cross-sectional views, where the thickness of all layers is uniformly 200 nm.

Fig. 1
figure 1

Top and cross-sectional FESEM images of WS2 thin films deposited at various temperatures by sputtering method.

Full size image

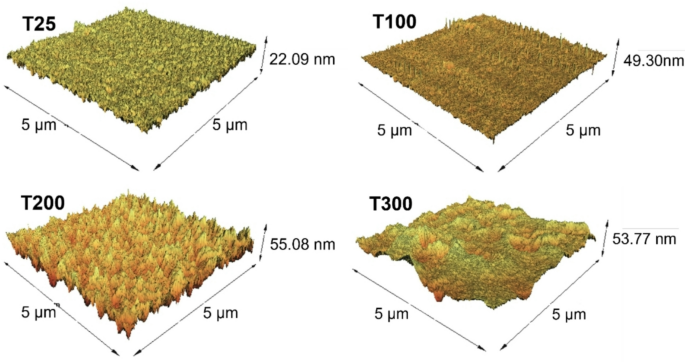

Figure 2 shows 3D atomic force microscopy (AFM) micrographs of the surface of all samples at a scale of 5 μm × 5 μm. As seen in the pictures, there are small crystal particles in samples T25 and T100. In contrast, the T200 sample shows a different surface morphology with the presence of larger crystal particles. As the substrate temperature increases to 300 °C (T300), it shows grains that are spaced apart.

Fig. 2
figure 2

Topographic images (3D) obtained by AFM for WS2 thin films prepared at various substrate temperatures by magnetron sputtering.

Full size image

The average roughness (Ra) and root mean square roughness (Rq) values were calculated using the following Eqs27,28.:

$$\:{R}_{a}=\frac{1}{n}\sum\:{y}_{i}$$
(1)
$$\:{R}_{q}=\sqrt{\frac{1}{n}\sum\:{y}_{i}^{2}}$$
(2)

Here yi represents the analyzed surface profile, and n is the evaluation length. The results of the roughness measurements are summarized in Table 2. The roughness of the T200 sample is higher than that of the other samples, and the FESEM images suggest that this sample consists of nanosheet-like structures, indicating increased porosity. These observations were further supported by AFM analysis. While the combination of FESEM and AFM data points toward a distinct morphological evolution at this temperature, further investigations would be beneficial to confirm the detailed structural nature. In particular, at 300 °C, although the surface roughness is relatively high (about 5.5 nm), other structural changes, such as defect density, grain boundaries, and possible phase transitions, may lead to increased phonon scattering and non-radiative recombination, which could reduce the effective phonon lifetime29.

Table 2 The roughness values for all samples WS2.
Full size table

Structural properties

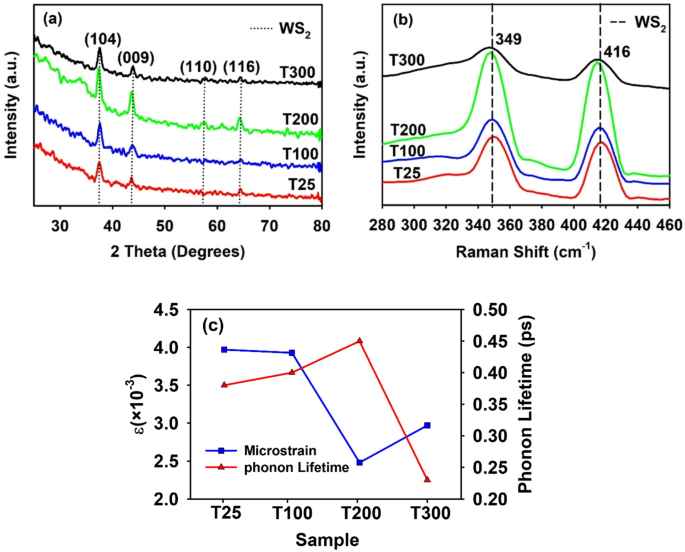

Figure 3 (a and b) present the XRD diffractogram and the Raman shift spectrum of the studied samples. According to the XRD spectrum of samples (Fig. 3a), it can be seen that the peaks (104), (009), (110), and (116) are related to the hexagonal phase of WS2 (JCPDS Card No. 35–0651). Also, no additional peaks related to oxide phases are observed. Among the peaks, the peak (104) is considered as the preferred peak. As the temperature increases from 25 °C to 100 °C and then 200 °C, an increase in peak intensity is observed, while the time reaches 300 °C, a decrease in peak intensity is observed again. Among the samples, sample T200 has sharper peaks. The sharpness of these peaks indicates a higher degree of crystallinity of the substance30. These observations show that the T200 sample has been subjected to optimal growth conditions, resulting in better crystallinity compared to other samples. According to Table 3, a slight change can be seen in the peaks corresponding to the WS2 films synthesized at different substrate temperatures, which can be caused by the expansion or contraction of the crystal lattice11,31.

Fig. 3
figure 3

(a) XRD patterns and (b) Raman spectra of WS2 deposited on various substrate temperatures by RF magnetron sputtering technique, and (c) a comparison between the variations in crystalline micro-strains (for main diffraction orientation (104)) and phonon lifetimes (for 416 cm−1 Raman peak).

Full size image
Table 3 Crystallographic parameters of the samples, based on the main diffraction orientation (104) and Raman FWHM for 416 cm−1 peak.
Full size table

To obtain a more detailed evaluation of the structural properties, we calculated the crystal size (D) using Scherer’s equation, along with the dislocation density (δ) and the micro-strain (ε) values, from the following relations32,33,34:

$$\:D=0.9\lambda\:/\beta\:{cos}\theta\:$$
(3)
$$\:\delta\:=1/{D}^{2}$$
(4)
$$\:{\upepsilon\:}={\upbeta\:}cos\theta\:/4$$
(5)

Where θ is the Bragg angle, β (in radians) is the full width at half maximum (FWHM), and λ is the wavelength of X-ray radiation The results of the calculations are given in Table 3. According to these analyses among the samples, sample T200 has the largest crystal size and the lowest density of dislocations and crystal strains among the samples. A lower dislocation density results in fewer defects within the crystal lattice, potentially enhancing the material’s electrical and optical properties. Furthermore, reduced crystal micro-strain provides improved stability and performance in various applications.

For further structural analysis of the samples, Raman spectroscopy was employed (Fig. 3b). The clear observation of Raman peaks indicates the good quality of the samples. The two peaks observed at 349 and 416 cm⁻¹ correspond to the E12g and A1g ​ modes, indicating in-plane and out-of-plane vibrations, respectively. Specifically, the two peaks at 349 and 416 cm2 correspond to the E12g and A1g modes, which represent in-plane and out-of-plane vibrations, respectively10,35. Understanding vibrational modes is crucial for the structural analysis of materials and phonon interactions.

To calculate the phonon lifetime, we have calculated from the energy-time uncertainty relationship36,37:

$$\:\frac{1}{\tau\:}=\frac{\varDelta\:E}{{\hbar}}=2\pi\:C\varGamma\:$$
(6)

Where ħ is Planck’s constant, \(\:\varDelta\:\text{E}\) is the uncertainty in the energy, and \(\:{\Gamma\:}\) is equal to FWHM of Raman peaks in units of cm−1. According to Fig. 3c, the lifetime of phonons for samples T25, T100, T200, and T300 is 0.38, 0.40, 0.45 and 0.23 ps for 416 cm−1 respectively. In the T200 sample, larger crystal size and fewer defects enhance the phonon distribution and extend the phonon lifetime36. The presence of fewer defects allows for less scattering of phonons and leads to longer phonon lifetimes38. This important phenomenon can help improve thermal and electrical properties and make materials more suitable for various applications. According to Table 3, it can be seen that the FWHM of peak 416 cm−1 decreased with increasing temperature from 25 °C to 100 °C and then 200 °C, and at 300 °C the FWHM increased again. Raman peaks related to the WS2 layer in T200 are sharper and stronger than other samples, which indicates a higher degree of crystallinity. The absence of additional peaks in Raman shows the purity level of the measured sample, which aligns well with the XRD analysis results for these samples39.

Optical properties

Figure 4 shows the transmission and absorption spectra of all samples at wavelengths of 300–1100 nm. The average transmission in the wavelengths of 800–1100 nm for samples is 65–80% and optical reflection (5–30%) in this region. The absorption spectrum of the samples indicates that as the temperature increases, the absorption edge of the samples changes and affects their band gap. Although roughness increases with increasing substrate temperature, the observed decrease in light transmission for the T200 sample is not only due to photon scattering but also to the significant transformation of the nanosheet structures in this sample, which increases the surface-to-volume ratio. This morphological change is likely to have a more substantial impact on light transmission than roughness alone.

Fig. 4
figure 4

(a) Transmittance and reflectance spectra; (b) Absorbance spectra for WS2 thin films deposited at various temperatures by RF sputtering technique.

Full size image

The optical band gaps (Eg) were calculated from the absorbance spectra of the thin films using Tauc’s relation1,40,41:

$$\:{\left(ah{\upnu\:}\right)}^{2}=A(h{\upnu\:}-{E}_{g})$$
(7)

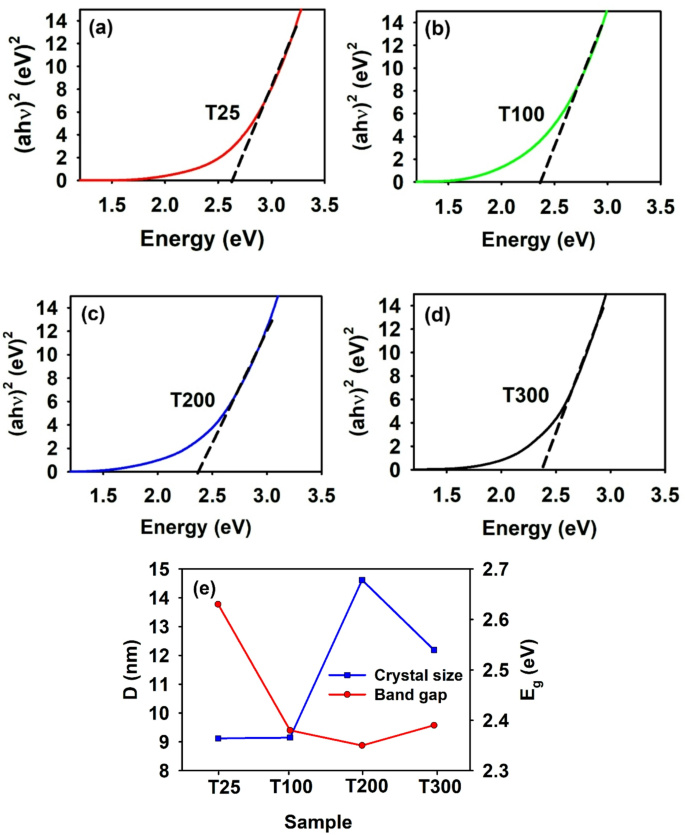

The Eg values were determined by extrapolating the linear portion of the plot to the energy axis, where, \(\:{\left(a\text{h}{\upnu\:}\right)}^{2}=0\)42,43. The results (Fig. 5(a-d)) show that the optical band gap of samples T25, T100, T200, and T300 are 2.63, 2.38, 2.35, and, 2.39 eV respectively. According to Fig. 5(e), there is a significant relationship between the crystal size of the samples and their optical band gaps. In particular, samples with larger crystal sizes have smaller band gaps. This phenomenon can be attributed to quantum confinement effects, which occur when the dimensions of matter approach the Bohr exciton radius. As the crystal size increases, the quantum confinement effects decrease, leading to a narrowing of the energy band gap.

Fig. 5
figure 5

(a-d) The estimation Eg of WS2 prepared at various substrate temperatures, (e) Comparison between crystalline size and band gap energy for WS2 samples deposited at various temperatures by RF magnetron sputtering method.

Full size image

Electrical properties

Room temperature Hall effect measurements were performed to investigate the electrical properties of WS2 thin films at different substrate temperatures. The results obtained, including resistivity, carrier density, and mobility, are summarized in Table 4. Increasing the substrate temperature from 25 °C to 100 °C resulted in a decrease in both carrier concentration and mobility, resulting in a significant increase in resistivity. This behavior suggests enhanced charge scattering, likely due to the emergence of microstructural irregularities or localized defects. At T200, the resistance increases, and the carrier density and mobility decrease dramatically. This can be attributed to the increased carrier dispersion due to the formation of grain boundaries, nanosheets, and higher porosity. Although the crystalline structure is still evident in the XRD patterns, the dominant effect seems to be related to structural disorder and high porosity, which lead to strong phonon scattering and carrier trapping, ultimately reducing the conductivity. At T300, the electrical properties improved again, with a decrease in resistance and an increase in carrier density and mobility. This change could be due to structural rearrangement in which nanoparticles are more uniformly distributed and carrier scattering is reduced. These results indicate that substrate temperature plays a key role in tuning the electrical properties of WS2 films, and to fully understand the charge transport behavior, one must consider the complex interplay between microstructure, crystal order, and surface porosity.

Table 4 Hall effect measurement results of the samples.
Full size table

Conclusion

In this study, WS₂ thin films were deposited onto glass substrates using RF magnetron sputtering with a WS₂ target. The influence of substrate temperature was investigated on the morphological, structural, and optical properties of the WS₂ thin films. The FESEM images showed that all the deposited samples had a constant thickness of about 200 nm. Notably, the T200 sample shows a unique morphology with a series of nanosheets. The formation of these nanosheets can increase the surface-to-volume ratio of the material and potentially improve its functional properties. The AFM spectrum shows more roughness in the T200 sample and confirms the FESEM images of the samples. Structural analysis using XRD confirmed the formation of a hexagonal WS2 phase in all samples. The XRD analysis indicated that the film formed at a substrate temperature of 200 °C has a greater crystal size, better crystallinity, and reduced micro-strains compared to the other samples. The Raman results showed that the T200 sample has better crystallinity and a longer phonon lifetime, which aligns with the observations made through XRD analysis. It was evaluated by examining the optical properties of the band gap, and it showed that the band gap of the T200 sample was lower than other samples. This narrowing of the band gap, combined with the observed growth in crystal size, could indicate the quantum confinement effect. Regarding the electrical properties, the highest resistance was observed at 200 ° C. These changes at higher temperatures were observed due to structural disorder and increased porosity, which led to greater phonon scattering and reduced electrical conductivity. In general, our findings highlight the significant influence of substrate temperature on the morphological, structural, optical, and electrical properties of the thin films. Considering the unique nanosheet-like morphology, high surface roughness, and favorable optical and electrical properties, the WS2 thin film deposited at 200 °C could be promising for future applications in gas sensing devices.
