Introduction

Colorectal cancer (CRC) is the third most prevalent cancer and the second leading cause of cancer-related deaths worldwide, with ~1.8 million new cases and 940,000 deaths annually. Despite treatment advances, metastatic CRC retains a poor prognosis, with a 5-year survival rate of 15% for stage IV patients, who account for 22% of diagnoses1,2. One key hallmark of malignant transformation is aberrant glycosylation, notably increased sialylation, which promotes tumor progression through metastasis, angiogenesis, immune evasion, and chemoresistance—all major contributors to poor outcomes3,4,5.

Tumor-associated sialoglycans regulate immune responses by interacting with sialic acid (Sia)-binding immunoglobulin-like lectins (Siglecs) on immune cells, including T cells, NK cells, macrophages, and dendritic cells. This interaction forms a glyco-immune checkpoint within the tumor microenvironment (TME), promoting immune suppression5,6,7. Most Siglecs, from Siglec-2 (CD22) to Siglec-XII, feature cytosolic immunoreceptor tyrosine-based inhibitory motif (ITIM) or ITIM-like domains that suppress immune responses. In contrast, a subset, including Siglec-14, -15, and -16, pairs with the adapter protein DNAX activation protein of 12 kDa (DAP12), which contains an immunoreceptor tyrosine-based activation motif (ITAM) to boost immune activity8,9.

ITIM-bearing Siglecs, such as Siglec-7 and -9, inhibit CD8+ T cell and NK cell cytotoxicity and skew macrophages toward immunosuppressive, tumor-promoting phenotypes10,11,12,13,14,15,16. Engagement of Siglec-9 and Siglec-10 also hampers macrophage-mediated tumor clearance17,18. Meanwhile, the roles of DAP12-associated Siglecs in cancer are less clear. Siglec-15 promotes immunosuppressive cytokine production in macrophages, and blocking it boosts antitumor immunity and curbs bone metastases19,20,21,22. Siglec-16, however, facilitates M1 macrophage polarization, and was linked to improved survival in glioblastoma patients23. Siglec-5 and Siglec-14, expressed on myeloid cells, are paired receptors that share identical sialoglycan-binding properties but opposing effects. Siglec-5 suppresses immune responses via its ITIM domain, while Siglec-14 amplifies activation through DAP129,24. A genetic fusion between SIGLEC5 and SIGLEC14 causes a SIGLEC14-null polymorphism with geographic variation, affecting antibacterial and inflammatory responses25,26,27. However, the role of this paired receptor system in the TME remains unexplored.

This study examines the immunomodulatory effect of Siglec-5/-14 in the CRC TME. We showed that Siglec-14 steers macrophage polarization to a SPP1+ tumor-associated macrophage (TAM) phenotype, which is associated with tumor progression. We also pinpointed lectin galactoside-binding soluble 3 binding protein (LGALS3BP), a highly sialylated protein, as a key ligand for Siglec-5/-14 in CRC. Elevated serum LGALS3BP levels correlated with worse clinical outcomes, underscoring the potential importance of the LGALS3BP-Siglec-14 axis in CRC progression.

Results

Siglec-14 promotes macrophage polarization to the M2/TAM phenotype

To explore the immunomodulatory role of the Siglec-5/-14 paired receptor in macrophage polarization, human monocytic THP-1 cells were engineered to express either vector control (EV/THP-1), human Siglec-5 (S5/THP-1), or human Siglec-14 (S14/THP-1). Expression of Siglec-5 and Siglec-14 was confirmed by flow cytometry (Supplementary Fig. 1). Following differentiation with PMA and polarization with LPS/IFN-γ (M1) or IL-4/IL-13 (M2), we measured M1 and M2 marker levels. Pro-inflammatory cytokine transcripts (TNF, IL1B, and IL6) and their corresponding proteins showed marginal differences across groups (Fig. 1A, C). However, Siglec-14 markedly upregulated M2 marker transcripts (CCL22, CD204, LXRA, and PPARG) and CCL22 protein levels compared to EV/THP-1 and S5/THP-1 macrophages (P < 0.01, Fig. 1B, C), suggesting a tilt toward M2 polarization.

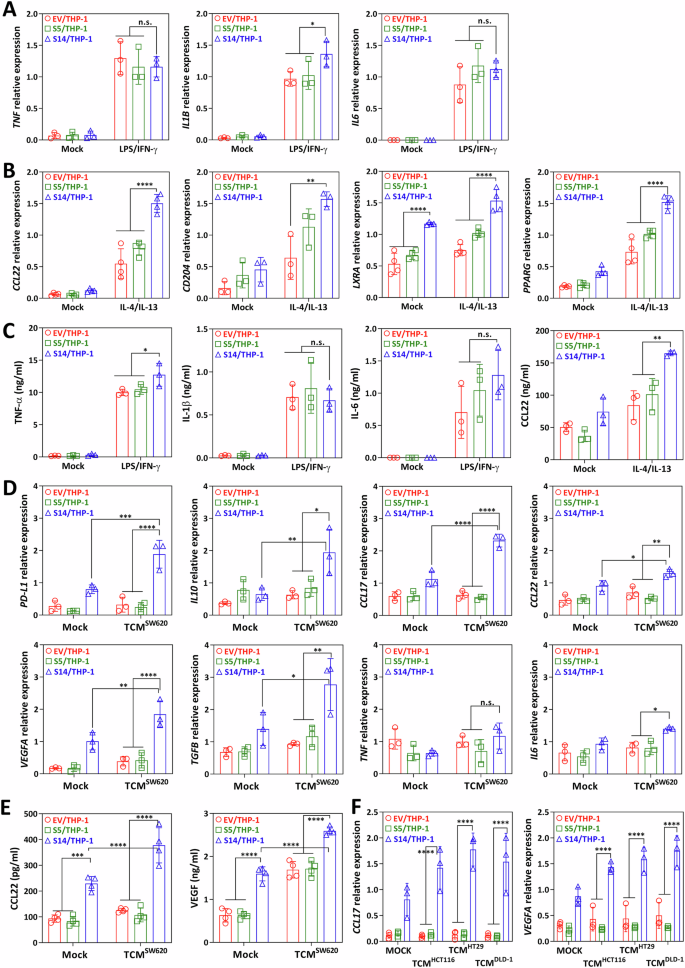

Fig. 1: Siglec-14 potentiates M2-like TAM polarization.
figure 1

A RT-qPCR analysis of mRNA levels of M1 macrophage markers in THP-1 macrophages treated with LPS/IFN-γ. B RT-qPCR analysis of mRNA levels of M2 macrophage markers in THP-1 macrophages treated with IL-4/IL-13. C Protein levels of TNF-α, IL-1β, IL-6, and CCL22 in the culture supernatants from stimulated THP-1 macrophages were analyzed by ELISA. D Transcript levels of TAM-associated markers in THP-1 macrophages treated with TCMSW620. E Production of CCL22 and VEGF in the culture supernatants of TCMSW620-stimulated THP-1 macrophages was determined by ELISA. F RT-qPCR analysis of mRNA levels of CCL17 and VEGFA in THP-1 macrophages treated with TCM from HCT116, HT29 and DLD-1 cells. Data were normalized with HPRT1 and presented as mean ± SD from 3 to 4 independent experiments (A, B, D, F). Significance was determined by two-way ANOVA with Tukey’s multiple comparison post hoc test. *P < 0.05; **P < 0.01; ***P < 0.001; ****P < 0.0001; n.s., not significant.

Full size image

Tumors release signals that shape immune cells in the TME, driving angiogenesis and tolerance. To test whether Siglec-14 amplifies TAM polarization in response to cancer-derived factors, we exposed PMA-differentiated THP-1 macrophages to tumor-conditioned medium (TCM) from human CRC SW620 cells (TCMSW620) for 48 h. Pro-inflammatory cytokine transcripts (TNF and IL6) showed no significant increase after TCMSW620 treatment. In contrast, TAM markers (PD-L1, IL10, CCL17, CCL22, VEGFA, and TGFB) were significantly elevated in S14/THP-1 macrophages compared to EV/THP-1 and S5/THP-1 macrophages (Fig. 1D). Consistently, CCL22 and VEGF protein levels were markedly increased in supernatants of TCMSW620-treated S14/THP-1 macrophages (Fig. 1E). Similar findings were observed using TCM from other CRC cell lines (HT29, DLD-1, and HCT116), as indicated by increased CCL17 and VEGFA levels (Fig. 1F), suggesting a broader role for Siglec-14 in fostering TAM polarization.

Siglec-14 drives SPP1+ TAM signatures in TCMSW620-treated macrophages

To investigate the role of Siglec-14 in modulating the transcriptomic profile of TCM-treated THP-1 macrophages, we exposed EV/THP-1, S5/THP-1, and S14/THP-1 macrophages to TCMSW620 for 48 h, followed by bulk RNA sequencing. We analyzed differentially expressed genes (DEGs) across these groups, both with and without TCMSW620 treatment, using k-means clustering with k = 6 (Fig. 2A and Supplementary Data 1). Gene clusters were subjected to Gene Ontology (GO) enrichment analysis, with the most significantly enriched GO terms (FDR <0.01) shown in Fig. 2B. Notably, cluster 3, comprising genes upregulated in S14/THP-1 macrophages treated with TCMSW620, was enriched in biological processes related to cell adhesion, migration, inflammatory response, and angiogenesis (Fig. 2B), suggesting a tumor-supportive role for Siglec-14.

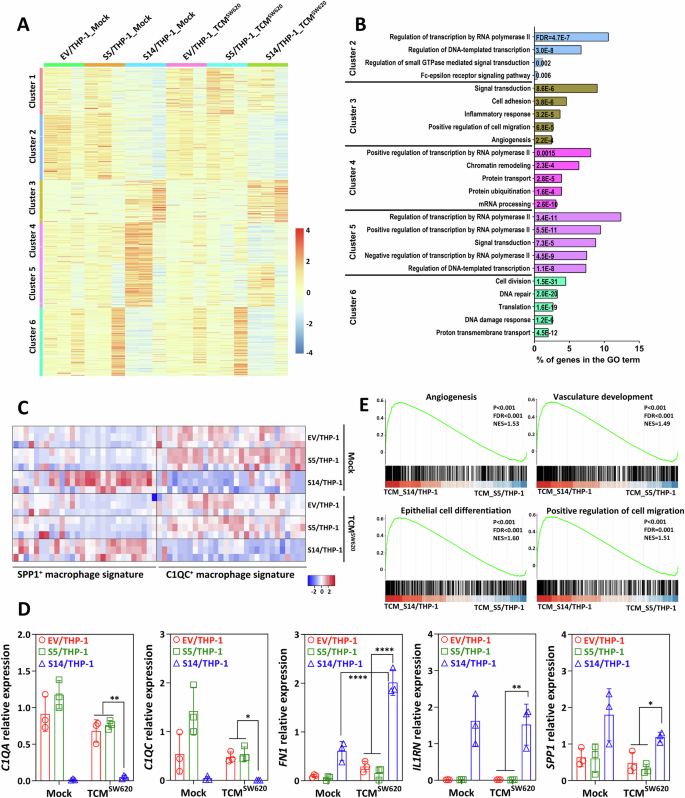

Fig. 2: Transcriptomic analysis of TCMSW620-treated THP-1 macrophages.
figure 2

A Heatmap of k-means clustering of variably expressed genes in EV/THP-1, S5/THP-1, and S14/THP-1 macrophages with or without TCMSW620 treatment (n = 16,918, k = 6). Genes were grouped into six clusters on the basis of expression similarity. B GO enrichment analysis of genes in each cluster using DAVID, showing top enriched GO terms with a FDR <0.01. C A Heatmap of gene expression levels of SPP1+ and C1QC+ macrophage signature in mock- and TCMSW620-treated EV/THP-1, S5/THP-1, and S14/THP-1 macrophages. D RT-qPCR analysis of mRNA levels of indicated genes in mock- and TCMSW620-treated THP-1 macrophages. Data were normalized with HPRT1 and presented as mean ± SD from three independent experiments. Significance was determined by two-way ANOVA with Tukey’s multiple comparison post hoc test. *P < 0.05; **P < 0.01; ****P < 0.0001. E GSEA showing upregulated genes related to angiogenesis, vasculature development, epithelial development, and positive regulation of cell migration in TCMSW620-treated S14/THP-1 macrophages compared to TCMSW620-treated S5/THP-1 macrophages.

Full size image

Recent studies utilizing single-cell RNA sequencing have identified two distinct TAM phenotypes in CRC: C1QC+ TAMs, which are correlated with favorable prognosis, and SPP1+ TAMs, which are associated with poorer clinical outcomes28,29. SPP1+ TAMs are characterized by enriched pathways that promote angiogenesis, extracellular matrix-receptor interactions, and tumor vasculature development, whereas C1QC+ TAMs are linked to complement activation and antigen presentation. To evaluate whether Siglec-14 drives macrophage polarization toward the SPP1+ TAM phenotype, we compared gene expression profiles of mock- and TCMSW620-treated EV/THP-1, S5/THP-1, and S14/THP-1 macrophages using the C1QC+ and SPP1+ TAM gene signatures defined by ref. 28. Our analysis demonstrated that both mock- and TCMSW620-treated S14/THP-1 macrophages exhibited significantly higher expression of SPP1+ TAM signature genes and lower expression of C1QC+ TAM markers. Despite Siglec-14 alone induced some TAM-associated gene changes but our data still demonstrated that Siglec-14 can further amplified TCMSW620-driven TAM polarization (Fig. 2C, with the complete gene list and their TPM value in Supplementary Data 2). These results were validated by RT-qPCR (Fig. 2D). Furthermore, Gene Set Enrichment Analysis (GSEA) revealed that pathways associated with SPP1+ TAMs, such as angiogenesis, vasculature development, epithelial development, and positive regulation of cell migration, were significantly enriched in TCMSW620-treated S14/THP-1 macrophages compared to TCMSW620-treated S5/THP-1 macrophages (Fig. 2E). Collectively, these results indicate that Siglec-14 promotes the development of a tumor-supportive SPP1+ TAM phenotype in macrophages exposed to CRC TCM.

Siglec-14 enhances macrophage-mediated tumor-promoting and angiogenic activities

To investigate whether Siglec-14-mediated macrophage polarization contributes to CRC progression, we co-inoculated SW620 tumor cells with THP-1 macrophages into nude mice (Fig. 3A). The co-inoculation of macrophages with tumor cells led to increased tumor volume and weight compared to tumors formed by SW620 cells alone. Notably, S14/THP-1 macrophages promoted faster and larger tumor growth than either EV/THP-1 or S5/THP-1 macrophages (Fig. 3B–D). This enhanced tumorigenicity did not result from differences in macrophage proliferation, as PMA-differentiated THP-1 macrophages did not proliferate, and cell numbers remained comparable across all experimental groups after 2 days of culture (Fig. 3E).

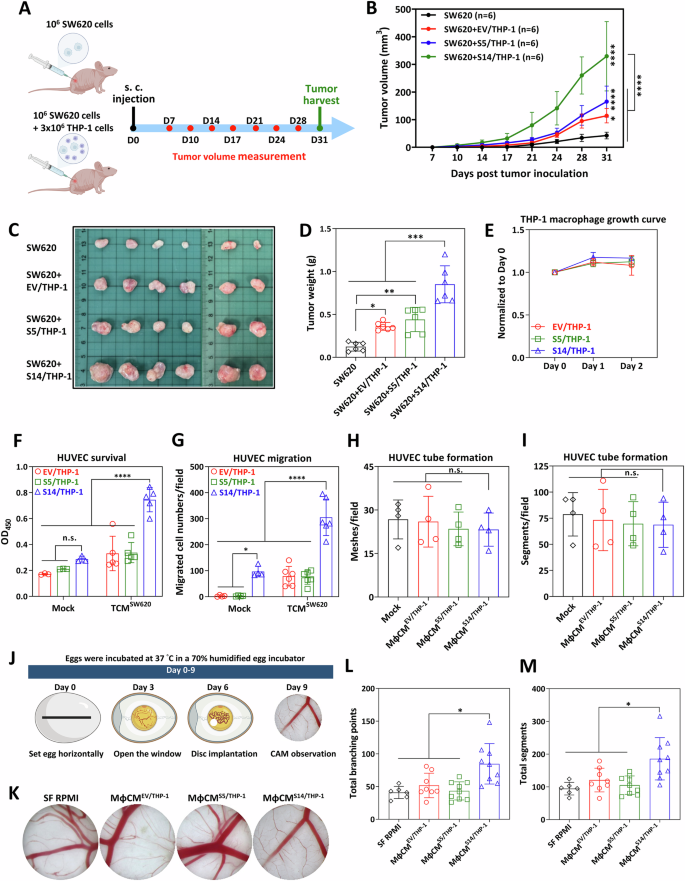

Fig. 3: Siglec-14 enhances macrophage-mediated pro-tumorigenic and pro-angiogenic functions.
figure 3

A Experimental design of the SW620 xenograft model in nude mice (Created with BioRender.com). Mice were subcutaneously implanted with SW620 cells alone or mixed with PMA-differentiated THP-1 macrophages into the right flank. B Tumor volumes in xenografted mice over time. C Photographs of xenograft tumors on day 31 post-implantation. D Weights of solid tumors on day 31 post-implantation. E WST-1 assay to determine the proliferation of PMA-differentiated THP-1 cells. F WST-1 assay of HUVEC viability 48 h after MφCM exposure. Data were expressed as mean ± SD from 3 to 5 independent experiments. G HUVEC migration assay. HUVECs were exposed to MφCM for 24 h, and migrated cells were stained with crystal violet and counted under a microscope. Data were expressed as mean ± SD from 4 to 6 independent experiments. H, I In vitro angiogenesis assay. HUVECs were cultured with MφCM on a Matrigel-coated plate for 6 h. Tube meshes (H) and segments (I) were quantified using ImageJ software. Data were expressed as mean ± SD from two independent experiments with biological duplicates. J Graphic illustration of the experimental procedure for CAM assay (Created with BioRender.com). K Representative CAMs at EDD 9 are shown for each treatment. The number of vessel branching points (L) and segments (M) in each CAM were quantified using WimCAM analysis, and presented as mean ± SD (n = 6–9 for each group). Significance was determined by one-way ANOVA (D, H, I, L, M) or two-way ANOVA (B, F, G) with Tukey’s multiple comparison post hoc test. *P < 0.05; **P < 0.01; ***P < 0.001; ****P < 0.0001; n.s., not significant.

Full size image

TAMs secrete a range of cytokines, chemokines, growth factors, and metabolites that support tumor growth, reduce cell death, and promote angiogenesis. To assess the functional role of Siglec-14 in these processes, we evaluated the effects of conditioned medium from TCMSW620-treated macrophages (MφCM) on CRC cells. However, MφCM derived from EV/THP-1, S5/THP-1, and S14/THP-1 macrophages had no impact on the growth rate, sensitivity to 5-fluorouracil, or clonogenicity and sphere formation of CRC cells (Supplementary Fig. 2A–F). Given the significant increase in VEGF, a key pro-angiogenic factor, in S14/THP-1 following stimulation with CRC TCM, we next examined the effects of MφCM on endothelial cell behavior. MφCM from mocked-treated S14/THP-1 macrophage had only minimal effects on the survival and migration of human umbilical vein endothelial cell (HUVEC), whereas MφCM from TCMSW620-treated S14/THP-1 macrophages (MφCMS14/THP-1) markedly enhanced both processes compared with MφCM from TCMSW620-treated EV/THP-1 macrophages (MφCMEV/THP-1) or S5/THP-1 macrophages (MφCMS5/THP-1) (Fig. 3F, G). MφCMS14/THP-1 did not increase tubulogenesis in an in vitro Matrigel angiogenesis assay (Fig. 3H, I), likely due to short exposure and the strong intrinsic angiogenic activity of Matrigel. In a chicken chorioallantoic membrane (CAM) model with extended treatment duration (Fig. 3J), MφCMS14/THP-1 significantly increased capillary formation, branching points, and vessel segments relative to controls (Fig. 3K–M). These results demonstrated that Siglec-14 enhances the pro-angiogenic functions of TAMs in response to CRC-derived factors.

Identification of Siglec-14 ligands and elucidation of their role in TAM polarization

Siglec-14 activation involves interaction with the ITAM-containing DAP12 adapter and spleen tyrosine kinase (SYK)-dependent signaling24. In PMA-differentiated S14/THP-1 macrophages, phosphorylated SYK levels were significantly higher compared to EV/THP-1 and S5/THP-1 macrophages, even without TCMSW620 stimulation (Fig. 4A), indicating constitutive SYK activation in Siglec-14-expressing cells post-PMA differentiation. Pretreatment with SYK inhibitor Bay 61-3606 (Fig. 4B) or Siglec-14 neutralizing antibodies (Fig. 4C) markedly reduced CCL22 and VEGF production in S14/THP-1 macrophages upon TCMSW620 exposure, highlighting the critical role of Siglec-14 and SYK in TAM polarization.

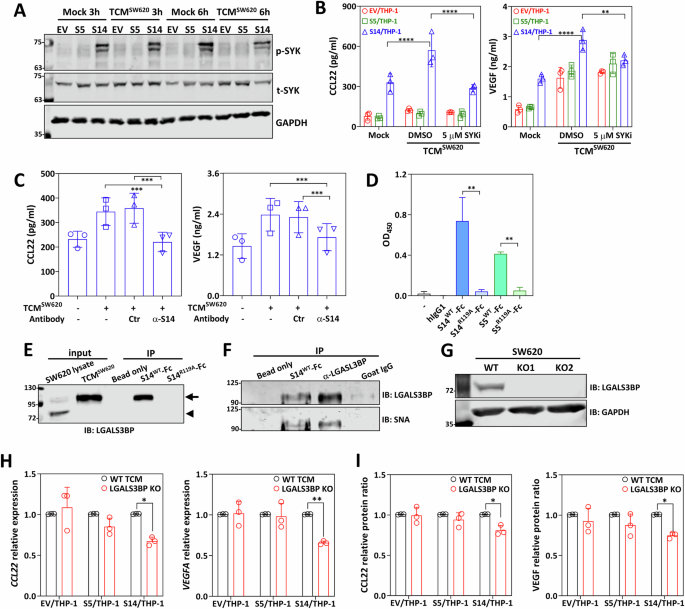

Fig. 4: The LGALS3BP-Siglec-14 axis drives TAM polarization.
figure 4

A Western blot analysis of SYK phosphorylation (p-SYK) in TCMSW620-treated THP-1-macrophages, with total SYK (t-SYK) and GAPDH as a loading control. B, C ELISA quantification of CCL22 and VEGF production in TCMSW620-stimulated THP-1 macrophages treated with either a SYK inhibitor (B) or Siglec-14 neutralizing antibodies (C). Data were expressed as mean ± SD from three independent experiments. D Interaction of TCMSW620 with different Siglec-Fc was determined by ELISA. Data were expressed as mean ± SD from two independent experiments with biological triplicate. E, F TCMSW620 was immunoprecipitated with Siglec-Fc or anti-LGALS3BP antibodies, followed by immunoblotting with anti-LGALS3BP antibodies (E) or Sambucus nigra agglutinin (SNA) (F). G Western blot analysis of LGALS3BP expression in WT and LGALS3BP KO SW620 cells. H RT-qPCR analysis of mRNA levels of CCL22 and VEGFA in THP-1 macrophages exposed to WT TCM or LGALS3BP KO TCM. Data were normalized with HPRT1 and presented as mean ± SD from three independent experiments. I Production of CCL22 and VEGF in THP-1 macrophages exposed to WT TCM or LGALS3BP KO TCM, determined by ELISA. Data were expressed as mean ± SD from three independent. Significance was determined by one-way ANOVA with Tukey’s multiple comparison post hoc test. *P < 0.05; **P < 0.01; ***P < 0.001; ****P < 0.0001.

Full size image

To explore Siglec-14 interactions with tumor-associated sialoglycans in TCMSW620, we incubated TCMSW620 with wild-type Siglec-5 and Siglec-14 (S5WT-Fc and S14WT-Fc) or their Sia-binding-deficient mutants carrying the R119A substitution (S5R119A-Fc and S14R119A-Fc). The conserved arginine residue (R119) in the V-set domain is critical for Sia recognition30. TCMSW620 sialoglycans bound to S5WT-Fc and S14WT-Fc but not to their R119A mutants (Fig. 4D), confirming the interaction is Sia-dependent. Consistently, multiple sialylated complex-type glycans were identified in TCMSW620 (Supplementary Fig. 3A).

To identify Sia-dependent ligands of Siglec-14, TCMSW620 was incubated with protein A beads immobilized with S14WT-Fc and S14R119A-Fc. Silver-stained SDS-PAGE analysis revealed distinct protein bands unique to S14WT-Fc (Supplementary Fig. 3B). Mass spectrometry identified Lectin galactoside-binding soluble 3 binding protein (LGALS3BP, also known as Gal-3BP, 90 K or Mac-2BP) as the top candidate ligand (Supplementary Data 3). Immunoprecipitation-western blot analysis confirmed Sia-dependent binding of LGALS3BP to S14WT-Fc, with no binding to S14R119A-Fc (Fig. 4E). Siglec-5 showed similar binding specificity (Supplementary Fig. 3C). The secreted form of LGALS3BP (arrow, Fig. 4E) migrated at a higher molecular weight than its intracellular form (arrowhead) and was recognized by the α-2,6 Sia-binding Sambucus nigra lectin (SNA) (Fig. 4F), indicating that sialylation of LGALS3BP is critical for Siglec-5/-14 recognition. To further test this, we generated CMAS (cytidine monophosphate-N-acetylneuraminic acid synthase) knockout (KO) SW620 cells, eliminating the activated Sia donor required for sialyltransferases (Supplementary Fig. 3D). Conditioned medium from CMAS KO or sialyltransferase inhibitor P-3Fax-Neu5Ac-treated cells contained LGALS3BP with reduced molecular weight and lost Siglec-14 binding, mimicking the S14R119A mutant (Supplementary Fig. 3E). These findings demonstrate that sialylated glycans on LGALS3BP are essential for Siglec-14 interaction.

LGALS3BP was abundantly detected in TCM from multiple CRC cell lines, with significantly higher levels than in conditioned medium from normal colonic epithelial CCD 841 CoN cells (Supplementary Fig. 3F). To assess its role in TAM polarization, we generated LGALS3BP KO SW620 cells (Fig. 4G). TCM from LGALS3BP KO cells induced significantly lower expression of TAM markers (CCL22, VEGF) in S14/THP-1 macrophages compared with WT TCM, at both mRNA and protein levels (Fig. 4H, I). In addition, recombinant LGALS3BP enhanced IL-4/IL-13-induced M2 gene expression (CCL17 and CCL22) in a dose-dependent manner (Supplementary Fig. 3G, H). Together, these findings demonstrate that the Siglec-14-LGALS3BP axis potentiates M2/TAM polarization.

Serum LGALS3BP, SIGLEC14 genotype, and clinical outcomes

To evaluate the clinical relevance of the LGALS3BP-Siglec-14 axis in CRC, we analyzed serum LGALS3BP levels and SIGLEC14 genotypes in 357 CRC patient specimens using enzyme-linked immunosorbent assay (ELISA) and genomic PCR, respectively. CRC patients were stratified into high and low serum LGALS3BP level groups using the median serum LGALS3BP concentration as the cut-off threshold. The same cohort was further categorized as Siglec-14 positive or negative based on the presence or absence of the SIGLEC14 gene (Fig. 5A). The associations between serum LGALS3BP levels, SIGLEC14 genotypes, and clinicopathological characteristics of CRC patients were examined and summarized in Table 1. Serum LGALS3BP levels showed no significant correlation with age, gender, T stage, differentiation status, tumor location, or carcinoembryonic antigen (CEA) and carbohydrate antigen 19-9 (CA19-9) levels. However, serum LGALS3BP levels were significantly associated with pathological tumor/node/metastasis (TNM) stage, microsatellite instability (MSI) status, immune cell infiltration, lymphatic invasion, and SIGLEC14 genotype (all p < 0.05). Additionally, a weak correlation was observed between serum LGALS3BP levels and vascular invasion (p = 0.0572).

Fig. 5: Serum LGALS3BP levels in CRC patients and correlation with clinicopathological features and patient survival.
figure 5

A Flow chart of patient inclusion in this study. B–G Serum LGALS3BP levels in CRC patients, measured by ELISA, were analyzed based on tumor pathological stages (B), microsatellite instability (MSI) status (C), lymphatic invasion (D), vascular invasion (E), immune cell infiltration (F), and SIGLEC14 genotype (G). H Kaplan–Meier curve showing CRC-specific survival in patients with high and low serum LGALS3BP levels. Significance was determined by one-way ANOVA with Dunn’s multiple comparison post hoc test (B) or Mann–Whitney U-test (C–G).

Full size image
Table 1 Correlation between the serum GAL3BP level with SIGLEC14 genotype and the clinicopathological characteristics of CRC patients
Full size table

Further analysis of serum LGALS3BP levels across clinicopathological subgroups revealed that higher serum LGALS3BP levels were significantly correlated with advanced TNM stages (Fig. 5B and Supplementary Fig. 4A–C). Moreover, serum LGALS3BP levels were markedly higher in microsatellite stable (MSS) CRC patients, often referred as “cold tumors” due to their typically poor responses to immunotherapy31,32 (Fig. 5C). Additionally, serum LGALS3BP levels were significantly elevated in patients with lymphatic and vascular invasion (Fig. 5D, E) and in those with reduced immune cell infiltration (Fig. 5F). While the SIGLEC14-null polymorphism did not significantly correlate with CRC clinicopathological characteristics (data not shown), SIGLEC14 positive CRC patients exhibited higher serum LGALS3BP levels than their SIGLEC14 negative counterparts (Fig. 5G).

We further examined the association between serum LGALS3BP levels and CRC patient survival. As shown in Fig. 5H, CRC patients with high serum LGALS3BP levels had significantly lower CRC-specific survival rates than those with low serum LGALS3BP levels across all I-IV stages. Multivariate Cox regression analysis identified serum LGALS3BP levels as an independent predictive biomarker for poor prognosis in CRC after adjusting for covariates (Table 2, hazard ratio [HR] 5.948, 95% confidence interval [CI] 1.899–18.630, p = 0.002). In summary, our retrospective study demonstrated that Siglec-14-positive CRC patients exhibit higher serum LGALS3BP levels, which are significantly associated with advanced TNM stage, increased vascular and lymphatic invasion, and CRC progression. These findings suggest that serum LGALS3BP could serve as a potential prognostic biomarker for poor clinical outcomes in CRC patients.

Table 2 Univariate and multivariate Cox regression analysis for CRC-specific survival
Full size table

Discussion

Siglecs are a family of cell-surface receptors predominantly expressed on immune cells. Most Siglecs possess ITIMs in their cytoplasmic domains, enabling them to function as inhibitory receptors. Elevated levels of these inhibitory Siglecs have been reported in tumor-infiltrating immune cells across multiple cancer types12,16,21,33,34,35,36. Within the TME, the interaction of Siglecs with sialylated ligands triggers tolerogenic signaling cascades that suppress T and NK cell activation and cytotoxicity12,13,14,16,37,38. Furthermore, Siglec signaling promotes macrophage polarization toward protumoral phenotypes while impairing their phagocytosis and antigen presentation functions10,11,15,17,18,39,40,41.

Desialylation of tumor cells has been shown to enhance anti-cancer immune responses38,42,43,44. However, a more targeted approach involves identifying specific Siglec ligands upregulated in malignant cells that selectively engage dominant Siglec receptors on immune cells. In this study, we used immunoprecipitation-mass spectrometry to identify LGALS3BP as a key Sia-dependent ligand for Siglec-14 in CRC TCM (Fig. 4E and Supplementary Data 3). Siglecs generally exhibit low affinity for sialylated glycoconjugates, with dissociation constants (Kd) ranging from 0.1 to 3 mM9. However, LGALS3BP, a highly N-glycosylated secreted glycoprotein, forms high-molecular-mass oligomers exceeding 1000 kDa45,46,47,48,49, which substantially increases its avidity for Siglecs. LGALS3BP has previously been shown to interact with multiple inhibitory Siglecs, including Siglec-5, -6, -7, -9, -10, and -11, and its binding to Siglec-9 has been implicated in neutrophil-mediated tumor suppression50. Given that Siglec-5 and Siglec-14 differ by only a single amino acid in their first two domains, it has been hypothesized that LGALS3BP also binds Siglec-14. In this study, we confirmed this interaction and further uncovered a novel role of this interaction in promoting macrophage polarization toward a protumoral SPP1⁺ TAM phenotype (Fig. 2).

Recent studies have identified two distinct TAMs subsets in CRC, SPP1+ TAMs and C1QC+ TAMs. While C1QC⁺ TAMs are enriched in genes related to phagocytosis and antigen presentation, SPP1+ TAMs exhibit a protumoral and pro-angiogenic signature and engage in crosstalk with tumor-associated fibroblast and endothelial cells28,29. Consistent with these findings, S14/THP-1 macrophages treated with TCMSW620 showed significant enrichment of angiogenic and vasculature development pathways (Fig. 2E). Functionally, MφCM from TCMSW620-treated S14/THP-1 macrophages enhanced HUVEC survival and migration, and promoted in vivo angiogenesis in the CAM model (Fig. 3J–M). We disrupted the LGALS3BP-Siglec-14 axis using three approaches: Siglec-14 blockade, inhibition of downstream spleen tyrosine kinase (SYK) activation, and knockout of LGALS3BP in SW620 cells. Each of these interventions significantly attenuated Siglec-14-mediated TAM polarization. Notably, these interventions also reduced the production of VEGF, a crucial angiogenic factor produced by SPP1⁺ TAMs (Fig. 4B, C, H, I). These findings suggest that targeting the LGALS3BP-Siglec-14 interaction could serve as a therapeutic strategy to modulate macrophage phenotype and enhance antitumor immunity in CRC.

Loss-of-function polymorphisms in SIGLEC14 and SIGLEC16 have been reported in human populations and are associated with reduced host immunity against bacterial infections25,26,27,51,52,53. Clinically, Siglec-14 overexpression correlates with poor prognosis in acute myeloid leukemia, whereas lower plasma Siglec-14 levels correlate with decreased risk of CRC54,55. In our cohort, however, the SIGLEC14-null polymorphism showed no significant association with patient survival. This lack of association may reflect complex regulatory mechanisms influencing Siglec-14 expression, localization, and function, which are not determined solely by gene presence or absence. For example, SIGLEC14 copy number variations affect mRNA expression levels, alternative splicing generates soluble forms of Siglec-14, and single-nucleotide polymorphisms (SNPs) within the SIGLEC5/SIGLEC14 locus modulate vaccine-induced inflammatory responses56,57,58. A more integrative analysis combining SIGLEC14-null status, SNP variations, and Siglec-14 protein expression on TAMs may therefore provide a more accurate prediction of CRC progression.

The biology of LGALS3BP further adds complexity, as it interacts with multiple partners, including β1 integrins45,59, galactins60, endosialin61, CD9/CD82 tetraspanin web62, DC-SIGN63, and Siglecs50, exerting context-dependent effects. For example, LGALS3BP binding to galectin-3 and integrins enhances cell aggregation, migration and viability, thereby promoting metastasis59, whereas its interaction with CD9/CD82 suppresses Wnt/β-catenin signaling and reduces cell proliferation, motility and tumorigenicity in nude mice62. It also modulates immune responses by engaging DC-SIGN to suppress dendritic cell maturation63 and Siglec-9 to reduce neutrophil cytotoxicity50. Our study does not exclude contributions from these additional LGALS3BP-binding receptors. Nevertheless, our functional experiments provide direct evidence for a specific role of the Siglec-14-LGALS3BP axis in shaping the tumor microenvironment. Ectopic expression of Siglec-14 in THP-1 macrophages enhanced LGALS3BP-driven M2-like polarization, angiogenesis, and tumor-promoting effects, whereas these effects were absent in Siglec-5-expressing or control cells. Moreover, elevated circulating LGALS3BP levels were preferentially observed in Siglec-14-positive patients. Thus, while clinical outcomes likely reflect the combined effects of multiple LGALS3BP-receptor interactions, our mechanistic data highlight a distinct role for the Siglec-14-LGALS3BP axis in driving a protumoral macrophage phenotype within the CRC microenvironment.

Within the Siglec family, Siglec-5/Siglec-14 and Siglec-11/Siglec-16 are paired receptors characterized by similar ligand-binding specificities but divergent signaling outcomes. Our findings indicate that Siglec-14 expression on THP-1 macrophages significantly enhances M2/TAM polarization and accelerates the growth of xenografted SW620 cells, whereas Siglec-5 expression has a minimal effect compared to control THP-1 macrophages (Figs. 1 and 3A–D). Interestingly, recent studies have shown that Siglec-16 drives M1 macrophage polarization, promoting pro-inflammatory responses, whereas Siglec-11 suppresses inflammation and fosters M2 polarization23,33,64. These functional disparities likely arise from differences in assay system, ligand specificity, and receptor modulation by cis-ligands present on the same cell surface. Siglecs engage both Sias on the same cell surface (cis-ligands) and those present on other cells or pathogens (trans-ligands). Binding to cis-ligands can modulate Siglec function by restricting access to trans-ligands and altering the activity of cis-ligand-bearing receptors9,65,66. Notably, Siglec-11 and Siglec-16 selectively recognize α2-8-linked oligo- and polySias, predominantly found in neural tissues, whereas Siglec-5 and Siglec-14 recognize a broader range of ligands, including α2,3-, α2,6-, and α2,8-linked Sias, as well as protein and lipid-based ligands67,68,69,70. The negligible effect of Siglec-5 in our experimental model may stem from pronounced cis-ligand masking, which likely diminishes its responsiveness to external ligands. This differential regulation underscores the complexity of Siglec-mediated immune modulation in the TME.

A key limitation of this study is the lack of homologous genes for the human Siglec-5/Siglec-14 paired receptors in mice, which significantly hinders the investigation of their roles and the impact of SIGLEC14 polymorphisms in animal models. Establishing lineage-specific expression of Siglec-5 and Siglec-14 in murine myeloid cells could provide valuable insights into the molecular mechanisms governing this primate-specific Siglec receptor pair.

In conclusion, this study identifies LGALS3BP as a tumor-associated sialoglycoprotein positively correlated with poor clinical outcomes in CRC patients. Our findings provide molecular evidence that LGALS3BP is the most abundant Siglec-14-interacting glycoprotein in CRC TCM, potentiating protumoral and pro-angiogenic TAM features. Given the limited studies on DAP12-coupled activating Siglecs in the TME, our work suggests that targeting the LGALS3BP-Siglec-14 axis may offer a viable strategy for reprogramming protumoral macrophages in Siglec-14-positive CRC patients. However, further studies are needed to explore the therapeutic potential of blocking this interaction in preclinical and clinical settings.

Methods

Cell lines

Human colorectal cancer (CRC) cell lines SW620, HCT116 and DLD-1 were purchased from Bioresource Collection and Research Center (BCRC, Taiwan) and grown in RPMI-1640 media (Cytiva) with 10% FBS. Human umbilical vein endothelial cells (HUVEC) were purchased from Sigma (200-05 N) and maintained in endothelial cell growth medium (Sigma). Human colonic epithelial cell line CCD 841 CoN, CRC cell line HT29, monocyte THP-1, and HEK 293T cells were from American Type Culture Collection (ATCC). CCD 841 CoN cells were grown in ATCC-formulated Eagle’s minimum essential medium with 15% FBS. HT29 cells were grown in RPMI-1640 with 10% FBS. THP-1 cells were cultured in RPMI-1640 medium supplemented with 10% FBS, 10 mM HEPES, 1 mM sodium pyruvate, 2.5 g/L glucose and 0.05 mM 2-mercaptoethanol. HEK 293T cells were cultured in DMEM with 10% FBS. All cells were cultured at 37 °C in a 5% CO2 humidified atmosphere, with routine mycoplasma test.

Lentiviral transduction of Siglec-5 and Siglec-14 to THP-1 cells

HEK 293T cells were cotransfected with lentiviral packaging plasmids pCMVΔ8.91 and pMG2.G and pLVX-EF1α-IRES-Puro empty vector (TaKaRa), pLVX-Siglec-5, or pLVX-Siglec-14 using LipofectamineTM 3000 (Thermo Fisher). After a 16-h incubation, the media was changed to DMEM with 10% FBS. Lentivirus-containing supernatants were collected after 72 h of incubation, centrifuged at 1600 rpm for 10 min, filtered, concentrated and stored at −80 °C until used. THP-1 cells were infected with these lentiviral preparations, and selected with puromycin (2 µg/ml) for 1 week. The selected THP-1 cells were stained with APC-conjugated anti-human CD170 antibodies (BioLegend, clone 1A5) and sorted with BD FACSAria (BD Biosciences) through the service provided by the Flow Cytometric Analyzing and Sorting Core (the First Core Laboratory, National Taiwan University College of Medicine).

Preparation of tumor-conditioned medium (TCM)

To generate CRC TCM and normal colonic epithelial cell conditioned medium, SW620, HT29, HCT116, DLD-1, and CCD 841 CoN cells were cultured in a 10-cm dish until ~90% confluence. The medium was then replaced with fresh serum-free RPMI-1640 medium, and cells were cultured for 48 h at 37 °C. The conditioned medium was collected by centrifuging at 1600 rpm for 10 min, filtered through 0.22-µm filters, and stored at −80 °C until used. To generate sialic acid-deficient TCM, TCM was collected from SW620 CMAS-knockout cells or from SW620 cells treated with the sialyltransferase inhibitor P-3Fax-Neu5Ac (R&D System) for 2 days.

THP-1 differentiation and polarization

THP-1 cells (106 cells/ml) were treated with 100 nM phorbol 12-myristate 13-acetate (PMA) for 24 h to induce differentiation into macrophage. PMA-differentiated THP-1 macrophages were then polarized into M1 macrophages with IFN-γ (BioLegend, 20 ng/ml) and LPS (Sigma, 100 ng/ml) for 24 h, or into M2 macrophages with IL-4 (BioLegend, 20 ng/ml) and IL-13 (BioLegend, 20 ng/ml) for 48 h, unless otherwise specified. To generate TAMs, PMA-differentiated THP-1 macrophages were treated with 50% TCM, prepared as a 50:50 mixture of TCM and RPMI-1640 medium containing 2% FBS, for 48 h. The supernatants from these TCM-treated macrophages were collected and designated as macrophage-conditioned medium (MφCM) for subsequent experiments. To investigate the role of spleen tyrosine kinase (SYK) and Siglec-14 in TAM polarization, the SYK inhibitor BAY 61-3606 (MedChemExpress) and Siglec-5/14 neutralizing antibodies (clone 1A5, BioLegend) were added during TCM-induced TAM polarization, as specified in the legend.

RNA isolation and qRT-PCR

Total cellular RNA from mammalian cells was isolated with NucleoZol reagent (Macherey-Nagel) and transcribed to cDNA using PrimeScriptTM RT reagent Kit (TaKaRa). RT-qPCR was performed on a CFX96 TouchTM Real-time PCR detection system (Bio-Rad) using qPCRBIO SyGreen® Blue Mix (PCR Biosystems) to quantify the expression of target genes. The expression levels were normalized to HPRT1. The primers used for RT-qPCR are listed in Supplementary Table 1.

Cytokine analysis

Cytokine levels in cell culture supernatants were quantified using CCL22, VEGF, and Galectin-3BP DuoSet ELISA kits from R&D Systems and TNF-α, IL-1β, and IL-6 ELISA kits from Thermo Fisher.

RNA-sequencing and data analysis

PMA-differentiated THP-1 macrophages were treated with 50% SW620 TCM (TCMSW620) for 48 h. Total cellular RNA was isolated using NucleoZol and used for the preparation of the sequencing library by TruSeq Stranded mRNA Library Prep Kit (Illumina). Briefly, mRNA was purified from total RNA (1 μg) by oligo(dT)-coupled magnetic beads and fragmented into small pieces under elevated temperature. The first-strand cDNA was synthesized using reverse transcriptase and random primers. After the generation of double-strand cDNA and adenylation on the 3’ ends of DNA fragments, the adapters were ligated. The products were enriched with PCR and purified with the AMPure XP system (Beckman Coulter). The libraries were qualified by the Qsep400 System (Bioptic Inc., Taiwan) and quantified by Qubit 2.0 Fluorometer (Thermo Scientific). The qualified libraries were then sequenced on an Illumina NovaSeq platform with 150 bp paired-end reads generated by Genomics, BioSci & Tech Co. (Taiwan).

Sequencing data were trimmed using Fastp, and the processed reads were aligned to the human reference genome (GRCh38) using HISAT2 to generate the expression profile. Differential expression analysis was conducted with DESeq2, considering genes with an adjusted p value (p adj) <0.05 as statistically significant. Unbiased Gene Set Enrichment Analysis (GSEA) was performed using Gene Ontology (GO) enrichment analysis, Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways, and the MSigDB (v7.0) hallmark gene sets to identify activated pathways and hallmark gene sets enriched in the high-abundance group. The GO enrichment analysis for cluster-specific gene was performed using the Database for Annotation, Visualization, and Integrated Discovery (DAVID)71,72. An expression heatmap comparing SPP1+ and C1QC+ macrophage signatures across groups was generated using Heatmapper73.

In vivo tumor xenograft model

Six-week-old BALB/cAnN.Cg-Foxn1nu/CrlNarl mice (purchased from National Laboratory Animal Center, Taiwan) were housed in a daily cycle of 12 h light and 12 h darkness under pathogen-free conditions. A total of 106 SW620 cells alone or mixed with 3 × 106 PMA-differentiated THP-1 macrophages were subcutaneously inoculated into the right flank of the mice. Tumor volume of each mouse was measured twice per week under inhalation anesthesia with 2% isoflurane delivered in oxygen. Tumor size was calculated using the formula: volume = (length × width²)/2. On day 31, all mice were euthanized by CO₂ inhalation (flow rate 30–70% of chamber volume per minute). Tumors were subsequently excised, photographed, and weighed.

Endothelial survival assay

HUVECs were seeded in 96-well tissue culture plates at 5 × 104 cells/well for 24 h, rinsed with HBSS and replaced with 200 µl of 50% MφCM, a 50/50 mix of the MφCM and endothelial cell basal medium (Sigma) with 2% FBS. After 48 h of incubation, cells were rinsed and incubated with WST-1 (TaKaRa)-containing fresh medium for 2 h. Absorbance of each well was measured at 450 nm by a spectrophotometer.

Transwell migration assay

The migration of HUVEC was analyzed using a 24-well hanging cell insert with 8-µm pores (JET Biofil). HUVECs (105 cells/well) were suspended in serum-free endothelial cell basal medium and added into the upper chamber, while the lower chamber was supplied with 400 µl of endothelial cell basal medium or 50% MφCM. After incubation for 24 h, non-migrated cells were scraped off from the upper surface with a cotton swab. The migrated cells were fixed in 4% paraformaldehyde for 30 min at room temperature, stained with 0.5% crystal violet for 20 min and counted under a microscope.

Tube formation assay

HUVECs (1.5 × 104) were suspended in 100 µl either endothelial cell basal medium or 50% MφCM and seeded onto a 96-well plate precoated with GeltrexTM basement membrane matrix (Thermo Fisher). After incubation at 37 °C for 6 h, images were taken and analyzed using the Angiogenesis Analyzer plugin in ImageJ to determine the number of meshes and segments.

Chorioallantoic membrane (CAM) assay

The CAM assay was performed as described previously74 with minor modifications. Fertilized chicken eggs were purchased from SFP chicken farm (JD-SFP Biotech, Taiwan), and incubated horizontally at 37 °C in a 70% humidified egg incubator. On embryo development day (EDD) 3, ~6 ml of albumin was aspirated to detach the developing CAM from the top part of the shell, and a window of ~4 cm2 was made on the wide end of the egg and sealed with a TegadermTM transparent film (3 M) to prevent dehydration. On EDD 6, eggs with exposed CAM were incubated with a 6 mm sterilized filter disc containing 15 µl of tenfold concentrated control RPMI medium or MφCM collected from TCMSW620-treated THP-1 macrophages. After a further incubation for 3 days, the CAM was fixed with 10% formalin and photographed by a stereomicroscope (Olympus SZX7) at 16x magnification. The contrast of images was slightly adjusted to clearly show the microvessels. The number of vessel branching points and segments in each CAM are quantified by the WimCAM image analysis tool (Onimagen Technologies).

Western blot

Cells were lysed in ice-cold lysis buffer (50 mM Tris-HCl, 150 mM NaCl, 1% NP-40 with HaltTM Protease and Phosphatase Inhibitor Cocktail (Thermo Fisher)). The protein concentration was measured with a PierceTM BCA Protein Assay Kit (Thermo Fisher). The collected cell lysate (60 µg) was separated on 10% SDS-PAGE, transferred to the PVDF membrane (Cytiva), probed with indicated antibodies or lectins listed in Supplementary Table 2, and visualized with a LI-COR Odyssey scanner after addition of IRDye® 800CW- or 680RD-conjugated secondary antibodies (LI-COR).

Expression and purification of Siglec-Fc chimeric proteins

Wild-type and Sia-binding-deficient R119A mutant variants of Siglec-5-Fc and Siglec-14-Fc chimeric proteins were expressed and purified based on previously established protocols with slight modifications24,69. Briefly, Siglec-Fc constructs in pcDNA3.1 vectors (from Dr. Takashi Angata, Academia Sinica) were transfected into HEK 293T cells using LipofectamineTM 3000. After a 16-h incubation, the medium was changed with a 50:50 mixture of serum-free DMEM and RPMI-1640 supplemented with 2 mM L-glutamine, 2 mM sodium pyruvate and 1% HL-1TM Supplement (Lonza). The cells were cultured for an additional 48 h, and the culture supernatants were collected. The medium replacement and culture process were repeated to collect additional supernatants after another 48 h. The combined supernatants were processed to purify Siglec-Fc proteins using rProtein A Sepharose™ Fast Flow resins (Cytiva). The bound Siglec-Fc proteins were washed thoroughly with Tris-buffered saline (TBS; 20 mM Tris-HCl, 150 mM NaCl, pH 8.0), and subsequently treated with neuraminidase from Arthrobacter ureafaciens (EY Laboratories) for 1 h at room temperature to remove Sias. After extensive washing with TBS, the Siglec-Fc were eluted with 0.1 M glycine-HCl, pH 3.0, immediately neutralized with 1 M Tris-HCl buffer, pH 8.0 and concentrated using Amicon Ultra centrifugal filters (Merck).

ELISA for Siglec-TCMSW620 interaction

A 96-well plate was coated with 100 µl of a 50-fold diluted TCMSW620 in 50 mM sodium carbonate/bicarbonate buffer (pH 9.6) and incubated overnight at 4 °C. The wells were washed with TBS, blocked with 2% BSA/TBS for 1 h at room temperature, and incubated with 0.1 µg of wild-type or R119A Siglec-Fc (diluted in 100 µl of 2% BSA/TBS) for 2 h at room temperature. After incubation, the wells were washed with TBS and incubated with biotinylated goat F(ab’)2 anti-human IgG (SouthernBiotech) for 30 min. After washing again with TBS, horseradish peroxidase (HRP)-conjugated streptavidin was added and incubated for 30 min. Following extensive TBS washing, HRP activity was developed with TMB substrate (BioLegend) for 20 min. The reaction was stopped by adding H2SO4, and the absorbance was measured at 450 nm using a spectrophotometer.

Immunoprecipitation

Wild-type and R119A Siglec-14-Fc proteins (5 µg each) were incubated with rProtein A Sepharose™ Fast Flow resins at room temperature for 2 h. After washing, the resin complexes were incubated with 1 ml of TCMSW620 overnight at 4 °C with rotation. The resins were subsequently washed three times with TBST (TBS with 0.1% Tween-20), followed by incubation with TBS supplemented with 3 mM 3’-sialyllactose and 3 mM 6’-sialyllactose (Biosynth) at room temperature for 45 min to elute the bound sialylated ligands. The eluted proteins were resolved on an SDS-PAGE gel, visualized using a Silver Stain Plus Kit (Bio-Rad) and identified via mass spectrometry.

LC-MS/MS analysis

Proteins eluted from Siglec-Fc proteins were reduced with 10 mM dithiothreitol for 30 min at 37 °C, followed by alkylation with iodoacetamide at a final concentration of 50 mM for 45 min at 37 °C in the dark. Proteins were then digested with trypsin (Promega) at a 1:50 (w/w) enzyme-to-substrate ratio overnight at 37 °C. The resulting tryptic peptides were acidified to pH 2–3 using TFA and desalted with Zip Tip® pipette tips (Merck). Tryptic peptides were analyzed using an Orbitrap Fusion Lumos mass spectrometer (Thermo Scientific) coupled with a Thermo Scientific UltiMate 3000 RSLCnano system (Thermo Scientific).

Peptide mixtures were loaded onto a Thermo Scientific PepMap C18 column (25 cm × 75 μm ID, Thermo Scientific) and separated using a gradient from 4 to 38.5% solvent B (ACN with 0.1% formic acid) over 90 min at a flow rate of 300 nL/min with the column temperature of 40 °C. Solvent A was 0.1% formic acid in water. The mass spectrometer operated in TopSpeed mode with a cycle time of 3 s. Full-scan MS spectra were acquired in the Orbitrap (m/z 375–1500) with a resolution of 60,000, an automatic gain control (AGC) target of 4e5, and a maximum injection time (IT) of 50 ms. The most intense ions were sequentially isolated for HCD MS/MS fragmentation and detected in the Orbitrap with dynamic exclusion for 20 s. For MS/MS, the resolution was set to 30,000, the isolation window was 1.4 Th, and the AGC target was set as 5e4, and maximum IT was 54 ms. Fragmentation was performed with a normalized collision energy of 30%. The precursor ions with 2+ to 7+ charges were selected for HCD fragmentation.

Data processing

All MS raw files were processed with MaxQuant (ver. 1.6.14.0) by the Andromeda engine against the SwissProt Homo sapiens database (downloaded on 2020.02) containing 20,303 protein entries, for protein identification and quantification. The search parameters included a precursor mass tolerance of 10 ppm and a product ion mass tolerance of 0.05 Da, with trypsin as the enzyme, allowing for up to two missed cleavages. Carbamidomethylation of cysteine (C, +57.021 Da) was set as a fixed modification, while oxidation of methionine (M, +15.995 Da) and acetylation of the protein N-terminus (protein N-term, +42.011 Da) were considered as variable modifications. A minimum peptide length of seven residues was required, and a false discovery rate (FDR) of 1% was applied to both peptide and protein identifications. Known contaminants were excluded for subsequent analysis.

CRISPR/Cas9 gene inactivation

LGALS3BP and CMAS sgRNAs (sequences listed in Supplementary Table 1) were cloned into the pSpCas9(BB)-2A-Puro (PX459) V2.0 plasmid75. The resulting constructs were transfected into SW620 cells using LipofectamineTM 3000. Transfected cells were selected with puromycin (2 μg/ml) for 1 week, followed by single-clone isolation and expansion. Knockout efficiency was confirmed by Western blotting with antibodies listed in Supplementary Table 2.

Patient samples and follow-up data

This study included 357 patients with primary CRC undergoing surgery at Taipei Veterans General Hospital from 01/13/2014 to 12/27/2017. None of the patients had received radiotherapy and chemotherapy before the operation. These patients had detailed clinical information, including gender, histological type, cancer stage, and survival. The pathological stages were determined based on the American Joint Committee on Cancer (AJCC) TNM system, a standard classification system of the anatomical extent of cancers describing the size of the tumor (T), the extent of spread to the lymph nodes (N), and the presence of metastasis (M). Blood carcinoembryonic antigen (CEA) and carbohydrate antigen 19-9 (CA19-9) were obtained from routine blood tests at the time of surgery. The most recent follow-up was completed on 05/14/2024. CRC-specific survival (CSS) was defined as the time from the initial diagnosis of CRC to the unfortunate event of death caused by CRC.

Genotyping

Genomic DNA and sera were obtained from the Biobank of Taipei Veterans General Hospital. The collection and use of specimens comply with the Declaration of Helsinki. Genotyping of the SIGLEC14 locus was performed as described previously with slight modification27. A set of three PCR reactions was run in parallel to specifically amplify the SIGLEC14, SIGLEC5, and SIGLEC14/5 fusion genes. Primers used for specific amplification for SIGLEC14, SIGLEC5, and SIGLEC14/5 fusion genes are listed in Supplementary Table 1. Thermal cycling parameters are as follows: 94 °C, 2 min; (94 °C, 30 s; 54 °C, 45 s; 72 °C, 1.5 min) × 27 cycles; 72 °C, 5 min.

Statistical analysis

Statistical analyses for the clinical data were performed using SPSS version 24 software. The χ2 test and Student’s t-test were used to evaluate associations among patient clinical characteristics. CRC-specific survival was analyzed using the Kaplan–Meier method, and the log-rank test was used to identify the differences between survival curves. Univariate and multivariate prognosis analyses were conducted with the Cox proportional hazards regression model using a forward stepwise procedure. Statistical tests for the in vitro and animal experiments were performed using GraphPad Prism version 9 software (GraphPad Software, Inc.). Data presented here were combined, normalized and expressed as mean ± SD. A p value less than 0.05 was considered statistically significant for all analyses.

Ethics approval

The human studies were approved by the Institutional Review Board of Taipei Veterans General Hospital (2021-02-015BC) and the Institutional Review Board of National Taiwan University Hospital (202101125RINB), and all study participants signed preapproved informed consent documents prior to enrollment into the studies. All the animal experiments were performed in accordance with relevant guidelines and regulations approved by the Institutional Animal Care and Use Committee of National Taiwan University College of Medicine (IACUC 20210289).
