Introduction

Two-dimensional (2D) layered materials, such as graphene, transition metal dichalcogenides, and hexagonal boron nitride (h-BN), have been intensively studied owing to their fundamental properties and technological potential. They have been explored for a variety of applications such as field-effect transistors, optoelectronics, flexible electronics, etc1,2,3,4,5. More recently, 2D materials show great promise in memristors, where nonvolatile resistive switching occurs between a high-resistance state (HRS) and a low-resistance state (LRS)6,7,8,9,10,11,12,13,14,15,16,17,18,19. In particular, memristor devices based on monolayer structures such as MoS2 and h-BN in the vertical metal–insulator–metal configuration have attracted ever-growing attention because of their potential for developing high-density memory and computing devices at the ultrathin scale15,16,20,21,22,23,24,25,26,27,28,29,30. These atomically thin memristors are also known as atomristors15. Furthermore, 2D memristors or atomristors can also be used as artificial synapses for next-generation neuromorphic computing31,32,33.

To fully realize the technological potential of single-layer 2D material-based memristors, however, we must first understand the resistive switching mechanism. Numerous experimental and theoretical works by us and others15,16,22,23,27,34,35,36 suggested that metal atoms are dissociated from the electrodes under a bias voltage and then adsorbed on the sites of defects (vacancies and/or grain boundaries) in 2D monolayers, leading to the formation of metal conductive bridges and filaments between the electrodes and the 2D active layer, and subsequently a HRS to LRS transition. Different resistance states arise from different numbers of metal atoms in the interface for the conduction. The desorption of metal atoms from the defective sites under a reversed voltage and/or Joule heating returns the system to the original HRS. Nevertheless, there are still some open questions: why are the current on/off ratio and switching voltage, key metrics of memristors, strongly device-dependent in the same experiments? Why do they also vary significantly among different experiments? For example, for monolayer h-BN-based memristors, Wu et al.16 found significant differences for the on/off ratio and switching voltage in crossbar devices with the same lateral area of 2 × 2 μm2. Some devices attain the current on/off ratio around 0.3 × 105 and the switching voltage about 2.0 V; in contrast, others possess substantially higher on/off ratio (up to 107) but also significantly higher switching voltage of ~3.4 V16. Similar trends were reported for monolayer MoS2-based memristors using gold/graphene as the top electrode and gold as the bottom electrode, where the on/off ratio can be as low as 1.6 and as high as 107, and the switching voltage is modulated between 3.0 and 4.0 V15,37. Such strong variations of the switching ratio and voltage have not been thoroughly investigated yet, casting doubt on the resistive switching mechanism proposed in the literature and hindering reliable fabrication of 2D memristors at both laboratory and industrial scales. Although defect density has been found to affect the on/off ratio, the resulting variation of the ratio is less than one order of magnitude37,38. Therefore, we hypothesize that the interface distance plays a more crucial role for the significant variations of the switching ratio and voltage among devices15,16,21,22,37. Our hypothesis is schematically illustrated in Fig. 1: the devices in the left panel have cleaner interfaces and shorter interface distances so they have lower current on/off ratios and lower switching voltages; on the other hand, the devices in the right panel have residues at the interface, thus larger interface distances leading to higher current on/off ratios and higher switching voltages.

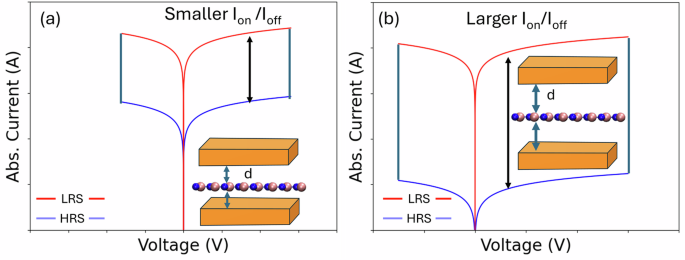

Fig. 1: Schematic illustration of the hypothesis for memristor devices based on monolayer h-BN, where we proposed that large variations in the current on/off ratio and switching voltage are influenced by the electrode-BN distance d.
Fig. 1: Schematic illustration of the hypothesis for memristor devices based on monolayer h-BN, where we proposed that large variations in the current on/off ratio and switching voltage are influenced by the electrode-BN distance d.
Full size image

a For devices with shorter interface distances, they have lower current on/off ratios and lower switching voltages. b For devices with larger interface distances, they show higher current on/off ratios and higher switching voltages. Note that the interface (electrode-to-electrode) distance is 2 d.

To test our hypothesis, simulating the electronic transport and directly computing I–V curves of the memristors using ab initio approaches is necessary. Although several prior works have carried out such simulations23,34,35,37, neither of them considered different interface conditions and distances, induced by fabrication processes, to understand the large variations of the switching ratio and voltage. Additionally, the device sizes were usually limited due to the high computational cost of quantum transport simulations. In some cases, some layers of the gold electrodes had to be reduced to Au diploids to reduce the cost34,35. Such simplification probably made the calculated on/off ratios less accurate. In this work, by implementing the nonequilibrium Green’s function (NEGF) method in a highly scalable first-principles density functional theory (DFT) code, the Real-space MultiGrid (RMG)39,40,41,42, we can directly simulate electronic transport of a h-BN monolayer sandwiched by top and bottom gold electrodes consisting of ~1000 atoms (close to 8000 orbitals). Note that our transport simulations can be applied to larger supercell structures and multilayer 2D systems with several thousands of atoms43,44. In fact, the largest system we simulated in this work contains more than 3600 atoms. For each system with the size of ~1000 atoms, the transport simulations need less than 3 h using 16 GPU nodes in the exascale supercomputer "Frontier" at Oak Ridge National Laboratory. Such speed and efficiency allow us to carry out systematic transport simulations at a variety of resistance states and interface distances. We found that the interface distance is a key factor affecting the current on/off ratio, which provides the first quantitative evidence on why the ratio can vary from 100 to 107 among different memristor devices. The calculated on/off ratio exhibits exponential dependence on the electrode-electrode distance, increasing by a factor of ~7.2 per angstrom. In addition, DFT calculations demonstrate that the energy barrier of a gold atom dissociating from the Au electrode to bind with h-BN increases dramatically with the interface distance, thereby shedding light on the strong dependence of the switching voltage on the distance. Our results underscore the significance of the interface distance in governing the current on/off ratio and switching voltage and help to reconcile the inconsistencies between different samples and experimental groups. The results presented here improve the understanding of the resistive switching mechanism in atomically thin memristors, also called atomristors, and provide valuable guidelines for engineering and optimizing memristor devices.

Results

To understand why and how the current on/off ratios of the atomically thin memristors show significant variations among different experimental works15,16,37 and even among different devices in the same works15,16, we simulated the electronic transport in a realistic Au/h-BN/Au device geometry using the self-consistent NEGF method implemented in RMG (more details in Methods) at a variety of resistance states and interface distances. According to prior experimental and theoretical works16,26,27,34, single boron vacancy on h-BN is the most plausible defect type to interact with metal atoms dissociated from the electrodes for enabling memristive switching. Therefore, we introduced a boron vacancy in h-BN and considered Au atom adsorption on the vacancy site, as shown in Fig. 2. Note that the equilibrium distance between h-BN and the Au (111) surface under an ideal condition (i.e., clean interface) is about 3.20 Å; however, for realistic devices, the fabrication process commonly involves polymers and solvents such as polydimethylsiloxane (PDMS), polymethyl methacrylate (PMMA), and de-ionized water15,16,37, which can introduce contaminants into the interface between the electrodes and h-BN, thereby leading to electrode-BN distances larger than 3.20 Å. Due to the surface roughness of the electrodes and the non-uniform presence of contaminants inside the interface, it is difficult to pinpoint the electrode-BN distance; in fact, the distance probably varies from location to location across the interface. The wavefunction overlap between the electrodes and h-BN is distance-dependent, affecting the transport. Therefore, we considered a wide range of electrode-BN distances from 3.20 to 7.50 Å. The lower bound of 3.2 Å corresponds to the equilibrium separation between monolayer h-BN and the Au(111) surface when no chemical residues exist between them. When fabrication-induced residues become trapped at the interface, the electrode-BN distance can be expressed as d = d(residues-BN) + d(residues-electrode) + t(residues), where d(residues-BN) is the equilibrium separation distance between the residues and h-BN, and d(residues-electrode) is the distance between the residues and the electrode surface. They are usually around 2.9–3.3 Å, the typical distance for physical (vdW type) interactions. t(residues) is the thickness of the residues, which can vary from almost zero to several angstroms depending on the orientation relative to h-BN. Therefore, the electrode-BN distance can reach 6 Å and higher. We chose 7.5 Å as the upper-bound testing example to illustrate the effect of the electrode-BN distance. It can be higher in real devices, as will be discussed below based on experimental atomic force microscopy measurements of the step height of the h-BN monolayer after transfer on the substrate.

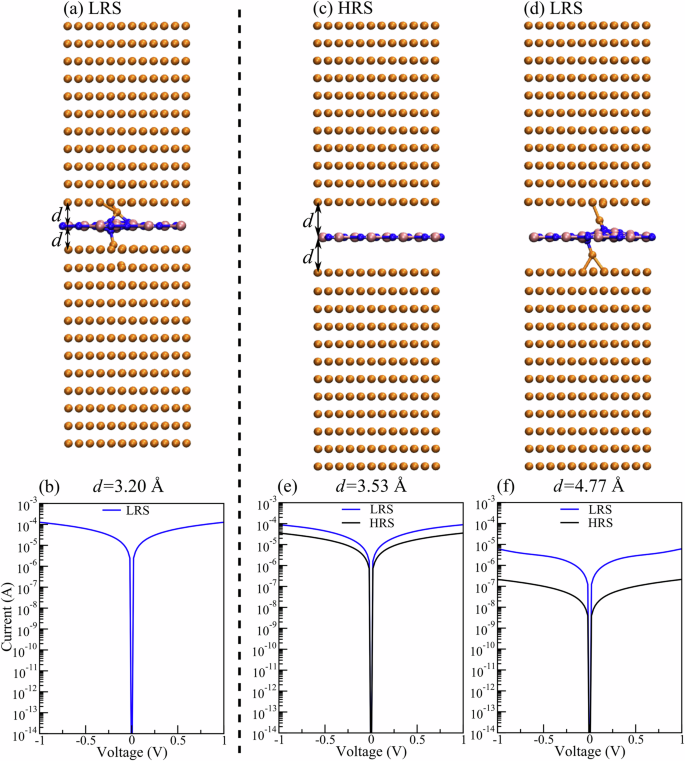

Fig. 2: Electronic transport simulations at short electrode-BN distances.
Fig. 2: Electronic transport simulations at short electrode-BN distances.
Full size image

a Atomic structure of the Au/h-BN/Au device at the equilibrium electrode-BN distance of 3.20 Å. Due to a boron vacancy in h-BN, an Au atom spontaneously moves towards the B vacancy to act as a conductive bridge, so the system is set to a low-resistance state (LRS). b Calculated I–V curve of the device at the LRS at the 3.20 Å distance. At a distance of 3.53 or 4.77 Å, the device assumes either a high-resistance state (HRS) shown in (c) or LRS in (d), depending on the atomic configurations. Calculated I–V curves under different states at a distance of e 3.53 Å and f 4.77 Å. Here, the switching behavior at the SET/RESET voltage is not simulated. The device area in one unit cell is 2.62 nm2.

The impact of the electrode-BN distance on the electronic transport

Figure 2a illustrates the atomic structure of the Au/h-BN/Au device at the equilibrium electrode-BN distance of 3.20 Å. According to our calculations, during the structural relaxation, an Au atom spontaneously moves towards the B vacancy site. It sits between the Au surface and h-BN, forming bonds with both the Au surface and h-BN, and acting as a conductive bridge between them. Consequently, the system is stuck in an LRS with or without an electric bias. For such a state, we computed its I–V curve at various source-drain biases by calculating the current from the transmission spectrum using the Landauer formula45,46, as shown in Fig. 2b. Because the system remains in the LRS, there is no hysteresis during the I–V sweep. However, when the electrode-BN distance is increased to 3.53 Å, the interaction between the Au surface and h-BN is weakened so that no gold atom is spontaneously displaced from the electrode. Therefore, without the application of an electric voltage, the system stays in an HRS, as shown in Fig. 2c. The application of a critical voltage enables a gold atom to dissociate from the electrode and subsequently be adsorbed on the vacancy site. In such an electrode-BN distance, the gold atom bonds both with the Au surface and h-BN, leading to a conductive bridge illustrated in Fig. 2d. As demonstrated previously34, an Au atom can pass through h-BN via the boron vacancy, so a full conductive filament from the top to the bottom electrode is eventually formed, leading to a transition to the LRS in Fig. 2d. Figure 2e shows the simulated I–V curves at both resistance states for the electrode-BN distance of 3.53 Å. The LRS exhibits a larger current than the HRS at any voltage, indicating higher conductance (lower resistance) due to the conductive filament across the interface. However, because the electrode-BN distance of 3.53 Å still allows considerable wavefunction overlap between the Au surface and h-BN, tunneling of electrons through the interface in the HRS is relatively easy, and thus, the resistance of the HRS is not notably higher than that of the LRS. As a result, the current on/off ratio near zero voltage (0.1 V) is only 2.29, and the hysteresis during the I–V sweep in Fig. 2e is not significant. In short, if the distance is larger than the equilibrium one but not large enough to eliminate the wavefunction overlap between the electrode and the 2D monolayer, resistive switching can occur, albeit with relatively small current on/off ratios. This could be the reason why the switching ratios in monolayer MoS2 memristors studied by Papadopoulos et al.37 were not higher than 1.70. To enhance the current on/off ratio, we need to increase the electrode-BN distance to minimize the interactions between the electrode and h-BN (i.e., reduce the current leakage). Our simulations suggest that the HRS has much higher resistance than the LRS when the electrode-BN distance is increased to 4.77 Å, leading to a current on/off ratio of 31.93 and appreciable hysteresis during the I–V sweep, as shown in Fig. 2f. Nevertheless, this ratio is still drastically lower than those (104 to 107) reported by Wu et al.16 for monolayer h-BN devices. The increase in the on/off ratio with electrode-BN distance suggests that at even larger distances, the experimentally observed on/off ratios might be observed. Note that the OFF current at the HRS shown by the black curves in Figs. 2 and 3 corresponds to the quantum tunneling current.

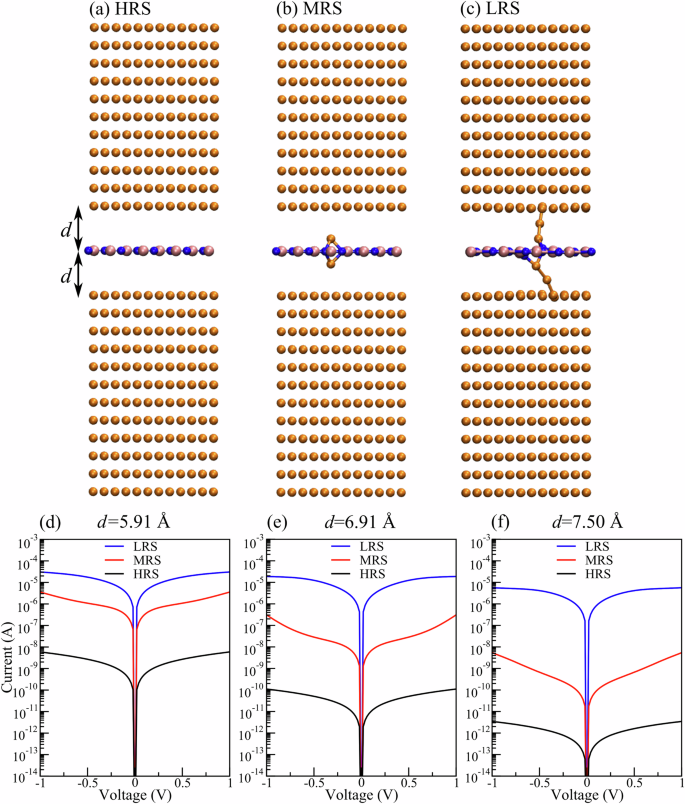

Fig. 3: Electronic transport simulations at relatively large electrode-BN distances.
Fig. 3: Electronic transport simulations at relatively large electrode-BN distances.
Full size image

Atomic structures of the Au/h-BN/Au device under different resistance states: a high-resistance state (HRS), b medium resistance state (MRS), and c low-resistance state (LRS). Calculated I–V curves under different states at varying electrode-BN distances: d 5.91 Å, e 6.91 Å, and f 7.50 Å. Here, the switching behavior at the SET/RESET voltage is not simulated. The device area in one unit cell is 2.62 nm2.

Multiple resistance states occur when the electrode-BN distance is increased further to 5.91 Å in Fig. 3a. As illustrated in Fig. 3b, the adsorption of a single gold atom on the vacancy site no longer ensures a conductive bridge across the interface since the shortest separation distance between the bound Au atom and any gold atom from the electrode is more than 4.3 Å. Thus, the electronic transport falls back into the quantum tunneling regime27. However, compared to the HRS in Fig. 3a, its electrical resistance is still lower and thus is denoted as a medium resistance state (MRS). Clearly, an additional gold atom is needed to form a complete conductive filament and generate the LRS, as demonstrated in Fig. 3c. The calculated I–V curves of all three states are shown in Fig. 3d, where the I–V curve of the MRS is between those of the HRS and LRS. For the distance of 5.91 Å, the current on/off ratio of MRS/HRS is around 0.60 × 103, while the ratio of LRS/HRS is computed to be 0.68 × 104 (Table 1), indicating that the LRS resistance is about one order of magnitude lower than that of the MRS. As we continue to increase the electrode-BN distance, the tunneling barrier from the electrode to h-BN is getting higher for the HRS in Fig. 3a, so is the tunneling barrier from the electrode to the gold atom bound on h-BN in Fig. 3b. Since the current tends to decay exponentially with the vacuum distance, the HRS and MRS currents are continuously and substantially reduced when the electrode-BN distance grows from 5.91 Å to 6.91 Å to 7.50 Å, as shown in Fig. 3e, f. In contrast, for the LRS, the presence of a conductive filament across the interface guarantees current flow, so the current does not decrease considerably with distance. As a result, the current on/off ratio of LRS/HRS quickly climbs to 0.22 × 106 for 6.91 Å and 0.26 × 107 for 7.50 Å (Table 1). On the other hand, as the distance increases, quantum tunneling dominates the electronic transport in the MRS as well, and hence, the difference between the MRS and HRS gets smaller. This is reflected in the on/off ratio of MRS/HRS, as it does not increase from 5.91 Å to 7.50 Å (Table 1). In short, our simulations clearly show that the current on/off ratio between the LRS and HRS is strongly dependent on the electrode-BN distance and can vary between 103 and 107, just like the experimental results reported by Wu et al.16. Note that at an electrode-BN distance of 7.50 Å, the current on/off ratio is 0.26 × 107. Because the on/off ratio increases dramatically with the distance, it can exceed 107 when the distance is larger than 7.50 Å. According to the fitting formula discussed below, it will exceed 107 when the distance is around 7.71 Å.

Table 1 Calculated current on/off ratios of the Au/h-BN/Au device between medium resistance state (MRS) and high-resistance state (HRS), and between low-resistance state (LRS) and HRS at different distances
Full size table

To gain a deeper understanding of the effects of the electrode-BN distance on memristor switching, we computed the zero-voltage electrical resistance at different resistance states as a function of the electrode-BN distance (Fig. 4a). For the HRS, where quantum tunneling is the dominant transport mechanism, the resistance clearly grows exponentially with the electrode-BN distance (the resistance R shown by black squares is plotted in the log scale, and log(R) is almost linearly dependent on the distance d). Since the current is proportional to the inverse of the resistance, the OFF current at the HRS decreases exponentially with the distance, as shown by black squares in Fig. 4b (log scale). For the MRS, as we discussed above, it corresponds to the adsorption of a single gold atom at the vacancy site of h-BN. When the electrode-BN distance d < 5 Å (Fig. 2), this gold atom can form bonds with both the Au surface and h-BN, and thus act as a conductive bridge between them for electrons flowing across the interface. However, when d > 5 Å (Fig. 3b), a single Au atom no longer ensures a conductive bridge across the interface, since the separation between the bound Au atom and the electrode is more than 4.3 Å. Thus, the electronic transport falls back into the quantum tunneling regime, and the tunneling begins to dominate as d continues to increase. As a result, for the MRS (shown by red triangles in Fig. 4a), the resistance R vs d follows two distinct patterns. When d > 5 Å, R grows more rapidly with d due to quantum tunneling, similar to the tunneling in the HRS, and therefore the difference between MRS and HRS gets smaller (hence the current on/off ratio of MRS/HRS decreases as shown in Table 1). We note that when d < 5 Å (Fig. 2), a single gold atom can form a conductive chain across the interface, and thus the MRS is the same as the LRS. For the LRS at d > 5 Å, on the other hand, an additional gold atom is needed to form the complete conductive chain (Fig. 3c) to ensure electrons flow through the interface. For the LRS (blue stars in Fig. 4a), regardless of the electrode-BN distance, the resistance only mildly increases with d because electrons can directly flow from the top to the bottom electrodes. Consequently, the ON current at the LRS does not change much with the distance, as shown by blue stars in Fig. 4b. With the OFF current at the HRS decreasing exponentially with the distance (black squares in Fig. 4b), the current on/off ratio of LRS/HRS therefore increases exponentially with the distance following a fitting formula of y = A × eB×d, where the coefficients A and B are 5.94e-07 (no unit) and 3.95 (in the unit of Å-1), respectively, as shown in Fig. 4c (the on/off ratio is also on the log scale). According to the fitting formula, the on/off ratio grows by a factor of ~7.2 when the electrode-electrode distance is increased by one angstrom (i.e., the electrode-BN distance d is increased by a half angstrom). To summarize, our simulations demonstrate that the resistance of the HRS and the resulting OFF current and on/off ratio exhibit exponential dependence on the electrode-BN distance, thereby leading to substantial variations in the on/off ratio between 100 and 107. Note that the absolute values of calculated OFF current in Fig. 4b and OFF current density in Fig. S1 (i.e., quantum tunneling current and current density) cannot be directly compared to the values in experimental devices for multiple reasons. First, a flat gold surface is considered in the calculations, but the gold electrodes in experiments have surface roughness, leading to variations in the distance between the electrode surface and h-BN. Second, due to chemical residues inside the interface, the electrode-BN distance in experimental devices could be notably larger than the equilibrium one (~3.20 Å). Since the tunneling current decays exponentially with the electrode-BN distance, different distances between the calculations and experiments can lead to different currents by orders of magnitude. For example, when the electrode-BN distance is increased from 3.53 Å to 4.77 Å, the OFF current is reduced by more than two orders of magnitude. Finally, because the electronic band gap of h-BN is underestimated by the calculations, the transport simulations usually overestimate the tunneling current compared to experiments. In short, caution needs to be taken when comparing the tunneling current and current density (similarly, resistance) between the calculations and experiments. In this work, the physical trends of the calculated resistance, current, and on/off ratio versus the electrode-BN distance are more reliable than the absolute values.

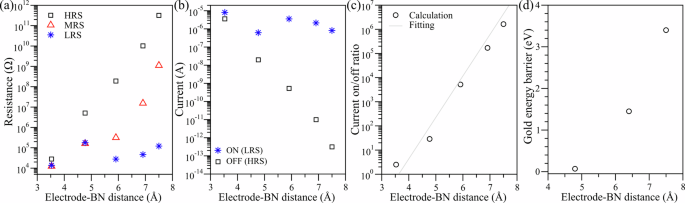

Fig. 4: Device parameters as a function of the electrode-BN distance.
Fig. 4: Device parameters as a function of the electrode-BN distance.
Full size image

a Calculated resistances of different states as a function of the electrode-BN distance for the Au/h-BN/Au device. Note that at shorter distances (<5 Å) the MRS is the same as the LRS (thus their data points are overlapped), while at larger distances (>5 Å) the MRS is no longer equivalent to the LRS. b Calculated ON and OFF currents near zero voltage (0.1 V) as a function of the electrode-BN distance. The OFF current corresponds to the HRS, while the ON current corresponds to the LRS. The device area in one unit cell is 2.62 nm2. Calculated OFF (i.e., quantum tunneling) current density is shown in Fig. S1 in Supplementary Information. c The corresponding current on/off ratio as a function of the electrode-BN distance. Gray line is a fitting curve based on the formula of y = A × eB×d. The on/off ratio is basically defined between the LRS and HRS at any given distance. The Y axis is in the log scale in (a–c). Note that the interface (electrode-to-electrode) distance is twice the electrode-BN distance. d Calculated energy barrier of an Au atom dissociated from the Au electrode to adsorbing on the B vacancy site of the h-BN surface as a function of the electrode-BN distance.

The impact of the electrode-BN distance on the switching voltage

It is interesting to note that the distance between the h-BN active layer and the Au electrode significantly affects the energy barrier of the dissociation of an Au atom from the electrode to be adsorbed on the vacancy site in h-BN. Using the climbing image nudged elastic band (NEB) method47, we calculated the energy barrier when the electrode-BN distance varies from 7.5 to 6.4 to 4.8 Å and found out that it is dramatically lowered from 3.40 to 1.45 to 0.07 eV, as shown in Fig. 4d. When the Au atom dissociates from the electrode, its orbitals become unsaturated, and it becomes energetically less stable unless it forms new bonds with other atoms to lower its energy. The shorter the distance between the electrode and h-BN, the quicker new bonds are formed between the Au atom and h-BN, thereby lowering the energy barrier. Detailed discussions about the NEB calculations, gold migration pathways, and the NEB energy profiles can be found in the Supplementary Information. These energy barriers are extracted from the full NEB reaction coordinates plotted in Fig. S2. The NEB pathway involves a single gold atom transitioning from its initial state (adsorbed within the bulk-like electrode surface) to the final state (bound at the boron vacancy site in the h-BN). Representative atomic structures and the energies of the initial, transition, and final states for each electrode-BN distance are shown in Fig. S3. Because the electrode-BN distance varies from device to device during the fabrication process, the energy barrier and subsequently the switching voltage (i.e., SET voltage) vary strongly in h-BN devices even with the same lateral area16.

Comparison between calculations and experiments

Now, we are ready to connect our simulation results (Table 1 and Fig. 4) to experimental findings in the literature that are summarized in Table 2. For typical crossbar h-BN devices, the fabrication processes involve polymers and solvents such as PMMA, ammonia persulfate solution, de-ionized water, and acetone, which inevitably introduce polymer residues and contaminants into the interface16,21,22. In combination with the surface roughness of the electrodes, the electrode-BN distance is therefore considerably larger than the equilibrium distance of 3.20 Å, leading to current on/off ratios higher than 104 as shown in Table 2. Furthermore, the distance varies from device to device since the amount of chemical residues inside the interface fluctuates during the fabrication process of each device, resulting in strong variations of the on/off ratio between 104 and 107 (Table 2) in the same experimental work16 and among different works16,21,22. Following the same logic, the switching voltage is also strongly modulated between 1.4 and 3.4 V16,21,22. Regarding the distance’s variation due to fabrication residues and electrodes’ surface roughness, cross-sectional transmission electron microscopy (TEM) is a great tool to image the interface. However, to the best of our knowledge, no cross-sectional TEM data have been provided to show unequivocally the interface spacing and its variation across the entire device. This matter is the subject of a future experimental work. What is known is that residues and electrodes’ surface roughness inevitably increase the interface gap, and this can be seen indirectly in various atomic force microscopy (AFM) measurements of the step height of the h-BN monolayer after transfer but before top electrode deposition. After the transfer of the h-BN monolayer on a substrate, the measured step height relative to the substrate has been reported in a wide range from 4.9 Å (average value)16 to 5.8 ± 0.6 Å48 to 6.9 Å27 to 8 ± 1 Å (the root-mean-square (RMS) roughness is 5.8 Å)49. The step height’s variation among different experimental works and the large RMS roughness relative to the film thickness found in ref. 49 have been commonly attributed to entrapped water and polymer residues introduced during the transfer. Gorbachev et al.50 reported that the h-BN films are often lifted above the substrate by up to extra 10 Å due to residues. Therefore, the electrode-BN distances ranging from 3.20 to 7.50 Å considered in our calculations should be realistic. In addition to the electrode-BN distance, it is important to note that the device area, the junction (or overlap) area between the top and bottom electrodes, can also strongly affect the on/off ratio and switching voltage51. Both decrease as the device area increases, as shown in Table 215,16. For h-BN devices, when the device area is increased from 1 × 1 μm2 to 2 × 2 μm2, the median value of the on/off ratio is reduced by one order of magnitude, from ~0.25 × 107 to ~0.2 × 106, but it is dramatically decreased to ~100 when the area reaches 10 × 10 μm2 16. For MoS2 devices, when the device area is increased from 1 × 1 μm2 to 2 × 2 μm2, the current on/off ratio is reduced by a factor of 33, from ~107 to ~0.3 × 106 15, but it is dramatically lowered to 10 when the area reaches 100 × 100 μm2. Therefore, the study of device variability requires the device areas to be as close as possible. The device variation is not significant with area changes from 1 × 1 μm2 to 2 × 2 μm2. Consequently, in Table 2 we compared the h-BN devices from three experimental works16,21,22 with device areas of 0.5 × 0.5, 1 × 1, and 2 × 2 μm2, which are not too different, to ensure that the device variations are mainly due to the interface condition and distance, not the device area. In fact, smaller device areas in refs. 21. and22 suggest that their on/off ratios and switching voltages should be further smaller if the devices were scaled up to 2 × 2 μm2 used in ref. 16. In other words, the lower limit of the on/off ratio and switching voltage should be probably close to 104 and 1.0 V, respectively, indicating an even wider variation range for h-BN memristors due to the interface distance. Similar analysis can be applied to MoS2 devices. Reference 37 reported a current on/off ratio of ~1.6 and a SET voltage of ~3.0 V for monolayer MoS2 memristors using mechanically exfoliated monolayer samples and a dry transfer technique that results in clean interfaces with shorter distances. According to our simulations, when the electrode-BN distance is close to the equilibrium one, the on/off ratio can be rather small and close to 1. In contrast, ref. 15 found a much higher on/off ratio of ~107 and a larger SET voltage of ~4.0 V for monolayer MoS2 devices with the same electrodes, but using chemical vapor deposition grown samples and the PDMS-assisted transfer, which tends to leave chemical residues in the interface and leads to much larger electrode-BN distances. This can subsequently give rise to the substantially higher on/off ratio and switching voltage as demonstrated by the calculations shown in Table 1 and Fig. 4. Note that the device areas in refs. 37 and 15 do not differ much. As discussed above, when the device area is increased from 1 × 1 μm2 to 2 × 2 μm2, the on/off ratio is slightly reduced from ~107 to ~0.3 × 106 according to ref. 15. It is still ~10 when the device area is substantially increased to 100 × 100 μm2. Therefore, we expect that the on/off ratio for the device area of 2.4 × 2.4 μm2 in ref. 15 (not studied in this work) should be ~105, and at least much higher than 10. The dramatic reduction of the on/off ratio to only ~1.6 for the device area of 2.4 × 2.4 μm2 in ref. 37 is thus not due to the device area. The effect of the device area can be ruled out as the leading cause of the observed variation in the ratio and the voltage.

Table 2 Summary of measured current on/off ratio and switching voltage in experimental 2D monolayer memristors based on different transfer techniques and metal electrodes
Full size table

Note that the systems are periodically repeated in our simulations, and in each unit cell, the in-plane cell size is 1.51 nm × 1.74 nm, so that the device area in one unit cell is 2.62 nm2, which is relatively small. Due to the periodic boundary condition, one cannot simply conclude that the device area in simulations is 2.62 nm2 and the simulation results are limited to small-area devices. In experimental devices, the on/off ratio can change from 107 to 10 when the area is changed from 1 × 1 μm2 to 100 × 100 μm2. Our simulations can produce such a ratio change when the electrode-BN distance varies from ~7.5 to ~3.5 Å, while using the same unit cell size. We hypothesize that the effects of chemical residues in the interface are stronger in small devices. Chemical residues are broken into pieces randomly scattered on top and bottom of the 2D flake. For devices with a small lateral area, such as 1 × 1 μm2, some large chemical residue molecules may fill the entire interface and thus push the vertical separation to higher values beyond 7 Å, thereby leading to much higher on/off ratios and switching voltages according to our simulations. However, for devices with larger areas, such as 100 × 100 μm2, the lateral area could be larger than any residue molecules, and thus the gap between two molecules constitutes a clean interface region with a shorter separation distance. As the device area becomes larger, the area with a shorter interface distance gets larger and begins to dominate the transport. Due to a shorter distance, the switching will occur at these locations first since the switching voltage is lower there. In short, a larger surface area of the electrode would reduce the effect of chemical residues and increase the likelihood of a shorter interface distance at some contact points, contributing to the decrease of the on/off ratio and the switching voltage according to our simulations. Therefore, our simulation results could work for both large and small device areas. The results are not limited by the lateral area of the unit cell because we focus on the effect of the interface distance (in the vertical direction rather than the lateral direction). To verify our hypothesis, further experimental works need to be carried out. A direct experimental means is to make a variety of devices with different device areas using different processing methods and perform cross-sectional transmission TEM measurements to unequivocally measure the interface spacing and correlate this to experimental transport measurements. This will be future work for experimental research. An indirect and partial approach is to use conductive AFM52 to scan the 2D monolayer surface after transfer on a substrate but before top electrode deposition, as mentioned above. By correlating the height with the tunneling current across the 2D surface, we could at least reveal the variation range of the distance between the AFM tip and the substrate and demonstrate how the OFF current depends on the distance.

Finally, we examined the effect of defect density on the current on/off ratio. In this work, without mentioning otherwise, the defect density in monolayer h-BN is 0.38 nm−2. According to an experimental work on monolayer h-BN grown by chemical vapor deposition53, the defect concentration is in the range of 0.03–0.30 nm−2 (i.e., 0.03–0.30 × 1014cm−2). To make the simulated defect concentration more comparable with experimental values, we have considered larger unit cell sizes and thus lower defect densities at an electrode-BN distance of ~6 Å, and summarized the calculated current on/off ratio versus the defect density in Table S1 in Supplementary Information. The largest Au/h-BN/Au unit cell contains more than 3600 atoms with a defect concentration of ~0.09 nm−2. Unfortunately, it is computationally prohibitive to simulate the experimental lower limit of the defect density (0.03 nm−2), which requires more than 10,000 atoms. According to our simulations (Table S1), the current on/off ratio changes between 0.30 × 104 and 0.96 × 104 when the defect concentration grows from ~0.09 to 0.19 to 0.38 nm−2. Both our calculations and two prior experimental works37,38 found that the on/off ratio variation by defect engineering is within one order of magnitude, and thus defects can also be ruled out as the primary cause for the substantial variations in the on/off ratio between 100 and 107. Although the defect density used in our calculations for the effect of the interface distance is larger than the experimental values, the physical trends (i.e., strong dependence of the current on/off ratio and the switching voltage on the distance) still hold.

Discussion

In summary, we have carried out electronic transport simulations in a realistic Au/h-BN/Au device geometry consisting of ~1000 atoms using the DFT package RMG. The massive parallelization of the real-space DFT-NEGF method on exascale supercomputers allows us to systematically study memristor switching at a variety of interface distances for such large systems. We found that the current on/off ratio increases exponentially with the distance, largely due to the exponential increase in the HRS resistance and the exponential decrease in the OFF current with the vacuum thickness. According to our fitting formula, it grows by a factor of ~7.2 when the electrode-electrode distance is increased by one angstrom. It can grow from 100 to 107 as the interface distance increases, which is a key contributing factor to the fact that the experimental on/off ratios vary significantly, in this same range, among different devices and experimental works. Furthermore, first-principles NEB calculations also revealed that the energy barrier for Au atom dissociation from the electrode increases dramatically with the interface distance, which explains why the switching voltage fluctuates strongly depending on the interface conditions and distances of the devices. Our work helps to reconcile the inconsistent results between the current on/off ratios among different works. It also provides a deeper understanding of the switching mechanism in atomically thin memristors and uncovers the crucial role of the interface distance in governing the current on/off ratio and switching voltage. Our simulations demonstrate that control of the interface distance is of great significance to ensure performance uniformity in practical memristive devices. Note that our device geometry is symmetric for the top and bottom electrodes, while it is probably asymmetric in terms of the distance and formation of filaments due to the random distribution of chemical residues in the interface. This will be a subject of future study. In addition, besides the interface distance, the impact of different defects in the monolayer structures, such as grain boundaries51, will also need to be studied, which will be a subject of future work too. However, the exponential dependence of the current on/off ratio on the distance and the conclusions made in this work should not be affected by the device asymmetry and grain boundaries.

Methods

Structural relaxation and energy barrier calculations of a single Au/h-BN interface

First-principles DFT calculations were performed through the plane-wave Vienna Ab initio Simulation Package (VASP) software54. Electron-ion interactions were described by the projector-augmented-wave pseudopotentials, and exchange-correlation interactions were described by the generalized gradient approximation using the Perdew-Burke-Ernzerhof functional55. For the interface between the Au electrode and monolayer h-BN, we constructed a commensurate hexagonal unit cell of h-BN with an Au (111) surface on the top, where there are 4 boron atoms, 4 nitrogen atoms, and 3 Au atoms per metal layer27,56. The most stable configuration corresponds to one Au atom on top of a boron atom, one Au atom on top of a nitrogen atom, and one Au atom on top of the center of a hexagon27. The Au (111) surface was simulated by four metal layers. The DFT-D3 method was adopted to capture the van der Waals interactions57. The system was modeled by a periodic slab geometry with a vacuum separation of 21 Å in the out-of-plane direction. Atoms were relaxed until the residual forces were below 0.01 eV/Å, and in-plane lattice constants were also optimized using the option of ISIF = 4 with the cutoff energy set at 520 eV. A k-point sampling of 12 × 12 × 1 was used. Based on the optimized hexagonal unit cell of Au (111)/h-BN, a 3 × 3 × 1 supercell was built, in which a boron vacancy was introduced to study the interactions between the Au electrode and the B vacancy. For the supercell structure, the outer two gold layers were fixed to mimic the bulk gold, while other atoms were relaxed until the residual forces were below 0.01 eV/Å. A single Γ point was used for the k-point sampling, and the cutoff energy was 400 eV. Such relaxation gives us the equilibrium separation distance between h-BN and the Au surface, which is around 3.2 Å. To model larger electrode-BN distances varying from 4.8 to 7.5 Å, we manually increased the separation distance to a given distance and fixed the z coordinates of atoms in the h-BN layer that are far away from the B vacancy, while still allowing atoms near the vacancy site in h-BN and the atoms in the inner two gold layers to move freely. The constrained structural optimization captured the atomic relaxation near the vacancy site while maintaining the electrode-BN distance at the given value. Finally, the climbing image NEB method was adopted to calculate the energy barrier for an Au atom dissociated from the electrode and migrated to the vacancy site on h-BN47. Four intermediate images along the reaction path were created for the NEB optimization to find the transition state and the energy barrier (the force criterion was set at 0.05 eV/Å).

Structural relaxation and transport simulations of the Au/h-BN/Au device

To simulate the electronic transport of a realistic Au/h-BN/Au device, we built a large heterostructure where top and bottom Au electrodes sandwich the h-BN monolayer. This device configuration was constructed based on the commensurate hexagonal unit cell of h-BN with the Au (111) surface discussed above. However, here we introduced the Au (111) surface on both the top and bottom of the h-BN monolayer as the top and bottom Au electrodes, respectively. For the top electrode, there are 11 gold layers in total with an ABCABCABCAB order counting from the inner to outer layers (inner layers closer to h-BN); for the bottom electrode, there are 12 gold layers in total with an ABCABCABCABC order counting from the inner to outer layers (inner layers closer to h-BN). In this way, a periodic boundary condition can be naturally imposed in the out-of-plane direction. The lattice constants and atomic positions were optimized using VASP until the residual forces were below 0.01 eV/Å. For the transport simulations, we converted the optimized hexagonal lattice to the orthorhombic lattice where the in-plane lattice constants are a = 5.017 Å and b = 8.689 Å, and then expanded the orthorhombic unit cell to a 3 × 2 × 1 supercell for which we introduced a boron vacancy in h-BN and considered Au atom adsorption on the vacancy site. In the supercell, only the innermost three gold layers are allowed to relax for both electrodes, while other layers are fixed to mimic the bulk gold. After structural relaxation via VASP (coordinate files of the full systems at different electrode-BN distances in the format of POSCAR are attached as Supplemental Information), the transport simulations were carried out based on the first-principles DFT code RMG39 that has been massively parallelized in real space40, using its implementation42,58,59 of the self-consistent nonequilibrium Green’s function method60,61. Four optimally localized orbitals per atom were used for boron and nitrogen atoms, while nine orbitals per atom were employed for gold atoms. For all the atoms, the localized orbital radius was set to 8.5 Bohr. The localized orbitals for each subsystem (the Au leads and the center conductor part) were variationally optimized to have an optimal and accurate basis set42,58,59. The I–V curves were obtained at various source-drain biases by calculating the current from the transmission spectrum using the Landauer formula45,46.
