Introduction

Sociality stands as an important evolutionary milestone, representing the transition from solitary life forms to group-oriented lifestyles1. Eusociality is the highest level of social organization, characterized by the division of individuals into castes with specialized roles, in particular regarding reproduction. Insects present the highest number of transitions towards eusociality, especially within the order of the Hymenoptera, with at least nine independent apparitions2. Eusocial insects exhibit remarkable cohesion and hierarchical organization, thanks to an elaborate communication between individuals, based in large part on the use of pheromones3. Social insects thus employ a diverse array of pheromones, in a multitude of contexts4. Moreover the chemical structures of these pheromones exhibit a remarkable diversity, encompassing variations in carbon chain length, functional group, and other characteristics5.

Among social insects, the honey bee Apis mellifera is known to use one of the largest panels of characterized pheromonal compounds, with over fifty identified compounds3,6,7. The queen emits a queen mandibular pheromone (QMP), which suppresses queen rearing, inhibits worker ovarian development, and also act as a sexual pheromone to attract males8. When confronted to a threat, worker bees release the alarm pheromone, which allows them to warn and attract other colony members and support colony defense9,10,11. The alarm pheromone is released by the Koschevnikov gland associated with the sting. Its major component, isopentyl acetate (IPA), triggers defensive and aggressive responses, including coordinated attacks12. Furthermore, workers also release an aggregation pheromone, which is employed in particular during swarm formation, signaling the group to gather and attract other workers towards important locations. Foragers that are successful at locating food, water and nesting sites use a waggle dance pheromone to recruit and stimulate other foragers to follow their recruitment dance and to search for these resources13. Finally, pheromone emitted by the brood (brood pheromone) mainly promotes brood care, inhibits the sexual maturation of worker bees and regulates the number of nurse bees and foragers14,15,16.

The large number of odorant cues used for communication in eusocial species, especially pheromones, has favored the emergence of an olfactory system capable of detecting and accurately processing these signals to produce appropriate behaviors. In insects, odorants are mainly detected at the level of the insect’s antennae17. These structures are covered with sensory hairs known as olfactory sensilla18, housing olfactory sensory neurons (OSNs)17. Odorant molecules penetrate the sensillum through its pores and reach the OSN dendrites either by diffusion into the hemolymph or through transport by odorant-binding proteins present in the lymph19. Upon reaching the OSN membrane, molecules bind to odorant receptors (ORs), which are seven-transmembrane proteins20,21 forming a heterodimer with a highly conserved co-receptor known as Orco22. Most OSNs express only one type of OR, and upon binding with an odorant, the OSNs depolarize and generate action potentials that are transmitted along their axons to the brain. Each insect species has evolved a repertoire of ORs that is tailored to its ecological needs23,24,25,26,27. The message generated by the OSNs is further relayed to the antennal lobe (AL), the primary olfactory center of the insect brain, where OSNs synapse with two other types of neurons, projection neurons and local interneurons, within spheroidal units called glomeruli28,29. After local processing, the message is conveyed to the higher order centers, the lateral horn and the mushroom bodies30,31,32.

This sophisticated nervous system allows the processing of pheromonal compounds, but how does it cope with the multiplication of such ecologically-relevant compounds found in social insects? One strategy for identifying how pheromonal compounds are detected and processed by the honey bee brain is to focus on the periphery of the olfactory system and to determine the response spectra of individual ORs. In honey bees, among the 170 ORs identified in the genome33,34, only three have been deorphanized (i.e. their ligand has been identified) and characterized thus far. Two receptors, AmelOR151 and AmelOR152 are known to detect floral compounds35, while AmelOR11 has been shown to detect 9-ODA, the major component of the QMP, involved in both sexual and social behaviors36,37. In this study, exploring a list of ORs chosen on the basis of available phylogenetic and transcriptomic data, we deorphanized two A. mellifera ORs belonging to the 9-exon clade, which strongly respond to honey bee alarm pheromone compounds, in particular the major component isopentyl acetate (IPA). One of these receptors appeared to be highly specific to alarm compounds, while the second displayed a more generalist response pattern. This work paves the way to the neurogenetic characterization of the role of these receptors in mediating bees’ behavioral response to alarm pheromones. Ultimately, it shall help understand how the social insect olfactory system makes sense of the plethora of social pheromones used for colony cohesion.

Results

In this study, we aimed to identify honey bee ORs tuned to social pheromones. A preliminary screening of the responses of Drosophila OSNs expressing each of the 8 ORs to a range of honey bee extracts allowed to identify two candidate social pheromone receptors, AmelOR136 and AmelOR109. We first used the high throughput of transcuticular calcium imaging36,38 to systematically screen the responses of the OSNs expressing these receptors to a range of pheromonal blends and individual pheromonal compounds. In a second phase, single sensillum electrophysiological recordings were used to characterize these receptors’ tuning range and sensitivity. In the following, for simplicity, we refer to the responses of the receptors (for instance AmelOR136), although it is clear that the observed responses are the product of the whole OSN expressing the receptor.

Responses to pheromonal blends

The receptor AmelOR136 showed significant calcium response to several pheromonal blends in comparison to the air control (Fig. 1A; Friedman ANOVA, χ2 = 45.2, df = 6, p = 4.3 E-08). First, the presentation of the alarm pheromone blend triggered a robust and statistically significant response in comparison to the air control (Fig. 1A, Wilcoxon post hoc test, p = 7.8E-05). The calcium response persisted over time following stimulation, still exhibiting activity distinct from the baseline seven seconds after stimulation (Fig. 1B). The queen mandibular pheromone blend (QMP) also activated AmelOR136 (Fig. 1A, p = 0.04), as well as the aggregation and queen retinue (QRP) blends, albeit to a lesser extent (p = 0.043 in both cases). The responses to the other pheromonal blends (brood and waggle dance pheromones) were not different from the air control (Fig. 1A, all p-values > 0.05).

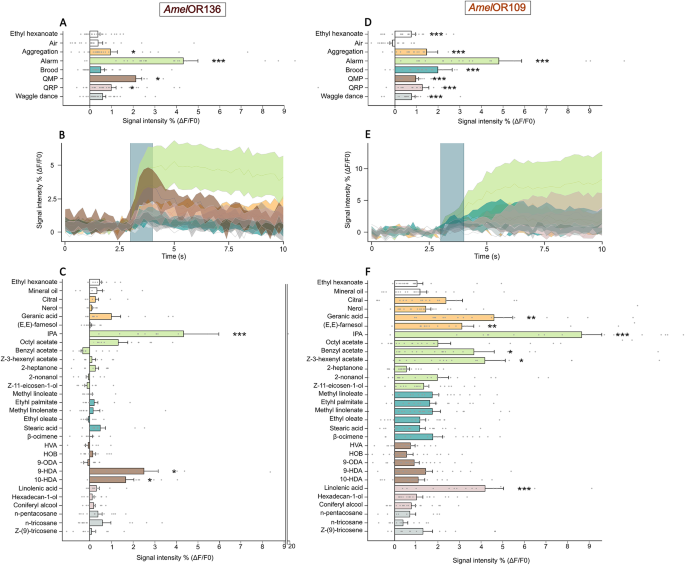

Fig. 1: Responses of AmelOR136 and AmelOR109 to pheromonal blends and individual compounds recorded using calcium imaging (ΔF/F0).
Fig. 1: Responses of AmelOR136 and AmelOR109 to pheromonal blends and individual compounds recorded using calcium imaging (ΔF/F0).
Full size image

A, D Mean response intensity of AmelOR136 (A, n = 27 individuals) and AmelOR109 (D, n = 20 individuals) in response to the presentation of different pheromonal blends: aggregation pheromone (orange), alarm pheromone (green),  brood pheromone (blue), queen mandibular pheromone (QMP, brown), queen retinue pheromone (QRP, pink), and waggle dance pheromone (grey) blends. Alarm pheromone (***p < 0.001) and QMP, QRP and aggregation blends significantly activate AmelOR136 in comparison to the air control (*p < 0.01), whereas all blends activate AmelOR109 (***p < 0.001). B, E Time course of odor-evoked responses (average of 27 individuals for AmelOR136 and 20 individuals for AmelOR109) to the presentation of the 6 pheromonal blends (blue bar) for AmelOR136 B and for AmelOR109 E ± SEM. C, F Mean response of AmelOR136 (C, n = 11) and for AmelOR109 (F, n = 20) to the presentation of the individual pheromonal compounds tested at 1000 µg. Only isopentyl acetate (IPA), 9-hydroxy-(E)-2-decenoic acid (9-HDA) and 10-hydroxy-2-decenoic acid (10-HDA) significantly activate AmelOR136 (C, *p < 0.05), whereas AmelOR109 is activated by several odorants (F, *p < 0.05, **p < 0.01, ***p < 0.001).

To identify the individual odorants that induced responses to the pheromone blends, all the compounds were then presented individually (Fig. 1C). The response of AmelOR136 to the alarm pheromone blend could be attributed to the sole presentation of isopentyl acetate (Friedman ANOVA, χ2 = 117.0, df = 29, p = 1.56 E-12, Wilcoxon post hoc test, p = 0.01). Concerning the QMP blend, AmelOR136 was activated by 9-HDA (p = 0.011), with a weaker response to 10-HDA (p = 0.01; Fig. 1C). No other compound induced any significant response of AmelOR136, suggesting that this odorant receptor is specific to a few odorants.

The receptor AmelOR109 also demonstrated significant responses to pheromonal blends compared to the air control (Fig. 1D; Friedman ANOVA, χ2 = 64.57, df = 7, p = 1.84 E-11). Remarkably, all the pheromonal blends triggered responses from AmelOR109 (Fig. 1D; Wilcoxon post hoc test, p < 0.003). It is noteworthy that the responses to these pheromonal blends varied, with the alarm pheromone eliciting the strongest response (Fig. 1D; p = 2.6E-05). In general, responses started slowly and persisted for more than seven seconds following stimulation (Fig. 1E). Presentation of the aggregation pheromone blend (Fig. 1D; p = 9.3E-05) elicited a response comparable to that obtained with the brood pheromone blend (Fig. 1D; p < 0.001). Similarly, both QMP and QRP blends induced a lower but significant response from AmelOR109 (Fig. 1D; QMP vs air: p = 1.3E-04, QRP vs air: p = 2.4E-04).

As above, the components of the different pheromonal blends were tested individually on AmelOR109. Six out of the 30 tested odorants were found to activate the receptor (Fig. 1F; Friedman ANOVA, χ2 = 142.7, df = 29, p < 2.2E-16). These included three compounds belonging to the alarm pheromone. Indeed, IPA was the odorant that triggered the highest response (Fig. 1F; Wilcoxon post hoc test vs mineral oil, p = 8.7E-05). (Z)-3-hexenyl acetate (Fig. 1F; p = 0.018) and benzyl acetate (Fig. 1F; p = 0.02) also activated the receptor. In addition, two compounds from the aggregation pheromone were strongly active: geranic acid (Fig. 1F; p = 0.008) and (E,E)-farnesol (Fig. 1F; p = 0.007). Finally, linolenic acid, a compound of the queen retinue pheromone, also activated this receptor (Fig. 1F; p = 0.008).

Specificity of AmelOR136 and AmelOR109 responses

We then aimed to determine the specificity and sensitivity of these receptors, and used SSR to this end. A panel of 42 novel odorants was tested, representing a wide array of chemical features and aiming to reflect the chemical diversity of odorants that honey bees may encounter in nature. Among the 42 tested odorants, only 2-butanone significantly activated AmelOR136 in comparison to the mineral oil control (Fig. 2A; Friedman ANOVA, χ2 = 97.5, df = 42, p = 2.62 E-06; Wilcoxon post hoc test, p = 0.021) with an average activity at around 30 spikes/s. The remaining compounds, including other ketones, did not activate AmelOR136 (p > 0.1), thus confirming that this receptor is highly specific.

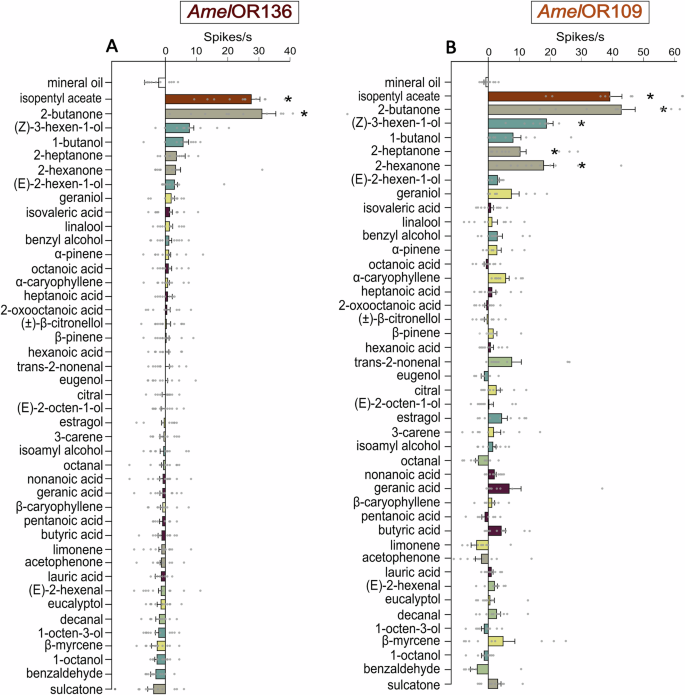

Fig. 2: Responses of AmelOR136 and AmelOR109 to 42 compounds from 6 chemical families measured using single sensillum recording.
Fig. 2: Responses of AmelOR136 and AmelOR109 to 42 compounds from 6 chemical families measured using single sensillum recording.
Full size image

Mean response of AmelOR136 A and AmelOR109 B, in spikes per second, in response to the presentation of 42 compounds presented at 1000 µg. 2-butanone activates AmelOR136 (*p < 0.05, n = 12). 2-butanone, Z-3-hexen-1-ol, 2-hexanone, and 2-heptanone significantly activate AmelOR109 (*p < 0.05, n = 10), with some compounds eliciting a minimal response, not reaching the significance threshold but with a different pattern compared to mineral oil.

In comparison, AmelOR109 was activated by multiple compounds in the panel, including 2-butanone (Fig. 2B; Wilcoxon post hoc test, p = 0.044) and chemically distinct compounds such as (Z)-3-hexen-1-ol (alcohol; Wilcoxon post hoc test, p = 0.02), 2-heptanone (p = 0.044) and 2-hexanone (p = 0.044). A number of other compounds induced modest, not statistically significant response.

As AmelOR136 and AmelOR109 were both activated by acetates present in the alarm pheromone (Fig. 1C, F), we proceeded to test the responses of these receptors to a range of different esters varying according to their chain length and structure (Fig. 3). Within this set of 18 esters, 7 compounds activated AmelOR136 (Fig. 4A; Friedman ANOVA, χ2 = 144.9, df = 19, p < 2.2 E-16), including isobutyl acetate, isopentyl acetate, benzyl acetate, butyl acetate, ethyl butyrate, ethyl-3-hydroxybutyrate and isopentyl propionate (in all cases, p < 0.003). The response pattern of AmelOR109 to the ester panel was distinct from that of AmelOR136 and appeared to be more generalist (Fig. 4B; Friedman ANOVA, χ2 = 114.1, df = 20, p = 3.4 E-15). AmelOR109 was significantly activated by 15 out of the 18 esters tested, including the 7 compounds that activated AmelOR136 (Wilcoxon post hoc test p < 0.05). Only 3 compounds, methyl benzoate (p = 0.64), methyl salicylate (p = 0.27) and ethyl benzoate (p = 0.4) did not activate this receptor.

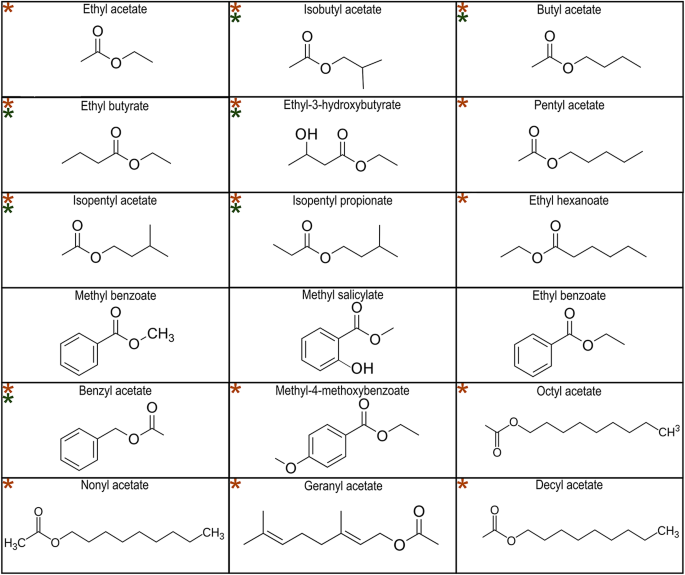

Fig. 3: Structure of the ester molecules.
Fig. 3: Structure of the ester molecules.
Full size image

Eighteen acetate derivatives were used, ordered from the smallest number of carbons at the top left to the largest number of carbons at the bottom right. A green star indicates molecules activating AmelOR136, while orange stars indicate molecules activating AmelOR109.

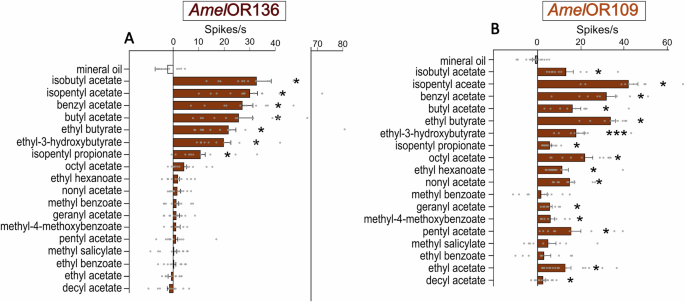

Fig. 4: Responses of AmelOR136 and AmelOR109 to 18 acetate derivatives measured using single sensillum recording.
Fig. 4: Responses of AmelOR136 and AmelOR109 to 18 acetate derivatives measured using single sensillum recording.
Full size image

Mean response of AmelOR136 A and AmelOR109 B, measured in spikes per second, upon stimulation with one of the 18 acetate derivatives presented at 1000 μg. Isobutyl acetate, isopentyl acetate, benzyl acetate, butyl acetate, ethyl butyrate, ethyl-3-hydroxybutyrate, and isopentyl propionate activate AmelOR136 (*p < 0.05, n = 12). AmelOR109 is activated by 15 ester odorants (*p < 0.05, n = 16).

Overall, these results suggest that AmelOR136 exhibits a more specific response spectrum than AmelOR109. To quantify the specificity of AmelOR136 and AmelOR109 responses, we computed the lifetime sparseness (S), a measure that ranges from 0 (unselective, broadly tuned) to 1 (maximally selective). Using the responses measured to all 61 compounds tested in electrophysiology on both receptors, a lifetime sparseness of 0.67 was obtained for AmelOR109, while a higher value of 0.88 was found for AmelOR136. This measure corroborates the sparser coding of AmelOR136 in comparison to AmelOR109.

Response sensitivity of AmelOR136 and AmelOR109

To approach the sensitivity of the two receptors to their main ligands, we performed dose-response analyses (Fig. 5; from 0 to 2.103 µg on the filter paper). Four ligands were chosen for each receptor (isobutyl acetate, isopentyl acetate, butyl acetate and ethyl-3-hydroxybutyrate for AmelOR136; benzyl acetate, ethyl butyrate, octyl acetate and isopentyl acetate for AmelOR109). To allow direct comparisons between odorants, we calculated for each stimulus an estimate of the airborne quantity of odorant in pmol (see Andersson et al.39).

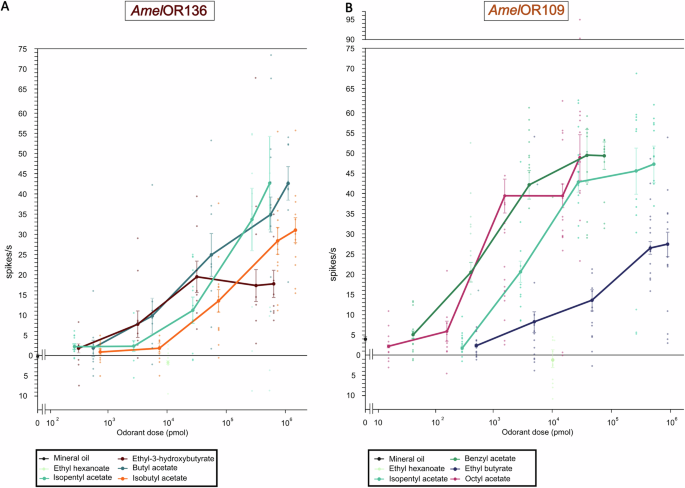

Fig. 5: Dose-response curves for AmelOR136 and AmelOR109 for 4 compounds.
Fig. 5: Dose-response curves for AmelOR136 and AmelOR109 for 4 compounds.
Full size image

Mean response of AmelOR136 (A, n = 13) and AmelOR109 (B, n = 15), in spikes per second. Five different doses of each compound were applied: 1, 10, 100, 1000, and 2000 μg. In order to compare these compounds with different volatilities, the airborne amount of each odorant (in pmol) was calculated using the guidelines in Andersson et al.39 (see methods). Responses to mineral oil and ethyl hexanoate (the ligand of DmelOR22a, to ensure that this receptor is not expressed - in light green) are shown as controls.

We observed a clear increase in the responses of AmelOR136 with increasing doses of odorant (GLMM, t = 14.4, p < 2 E-16). For each of the four ligands, no significant response was observed at the lowest tested dose (below \({10}^{3}\) pmol). Statistical significance was observed at a dose of 2.7*\({10}^{4}\) pmol for isopentyl acetate, 3.2*\({10}^{4}\) pmol for ethyl-3-hydroxybutyrate, 5.6*\({10}^{4}\) pmol for butyl acetate and 7.4*\({10}^{4}\) pmol for isobutyl acetate (Wilcoxon test vs mineral oil, p < 0.01 for each of the four odorants). Notably, responses for ethyl-3-hydroxybutyrate reached a saturation plateau at 3.2*\({10}^{4}\) pmol. We conclude that AmelOR136 is most sensitive and responsive to butyl acetate and isopentyl acetate, both compounds of the honey bee alarm pheromone.

For OSNs expressing AmelOR109, we also observed a clear increase in responses with increasing doses of odorant (GLMM, t = 13.47, p < 2 E-16). Among the four ligands, no significant responses were observed at the lowest tested dose similarly to AmelOR136. Statistical significance was observed at a dose of 3.9*\({10}^{2}\) pmol for benzyl acetate, 1.5*\({10}^{4}\) pmol for octyl acetate, 2.7*\({10}^{3}\) pmol for isopentyl acetate and 4.7*\({10}^{4}\) pmol for ethyl butyrate (Wilcoxon test vs mineral oil, p < 0.02 for each of the four odorants). Responses for isopentyl acetate reached a saturation plateau at 2.7*\({10}^{4}\) pmol. We conclude that AmelOR109 is generally more sensitive than AmelOR136, and most sensitive and responsive to acetates in comparison to ethyl butyrate.

Discussion

In this study, we deorphanized two odorant receptors of the honey bee Apis mellifera, AmelOR136 and AmelOR109, and demonstrated that both responded to social pheromone compounds of the honey bee. These receptors, which belong to the 9-exon clade, were selected based on their expression level, with AmelOR136 representing the most highly expressed OR in in-hive bees when compared to foragers40, while AmelOR109 ranks as one of the most abundantly expressed ORs in the honey bee transcriptome regardless of age or task34. We found that these receptors responded to social pheromones but exhibit distinct response spectra: while AmelOR136 appeared to respond to a restricted number of compounds, AmelOR109 was more broadly tuned, responding to a wider panel of odorants including non-pheromonal compounds.

More specifically, AmelOR136 is mainly activated by esters that belong to the alarm pheromone, such as isobutyl acetate, isopentyl acetate (IPA), benzyl acetate and butyl acetate. Alarm pheromones represent the second most prevalent class of chemical signals used by insects, following sex pheromones41. The alarm pheromone plays a vital role in alerting and recruiting nestmates, thereby enhancing colony defense. In the honey bee, the alarm pheromone consists of over fifteen chemical compounds3,11,42, with IPA representing the most abundant and behaviorally-active compound. IPA has multiple roles: it alerts returning bees to a potential danger, reduces foraging activity42, triggers a defensive response and increases aggression against a threat11,43,44. The other ester molecules have complementary effects, such as butyl acetate which recruits new defenders, while benzyl acetate is involved in signaling danger to departing and returning foragers45. Finally, isopentyl propionate is found on the sting shaft of honey bee workers in several species46,47. We observed that AmelOR136 exhibits a different sensitivity to the various ester compounds. Our data suggest that the receptor is finely tuned to some of the esters of the alarm pheromone, and remains poorly activated by other odorants. Among these, we observed some responses to compounds produced by queen and worker mandibular glands, 9HDA and 10HDA. Possibly, such sensitivity may play a role in increasing response of the receptor to the alarm pheromone in a colony context. Another compound, the fruit odorant ethyl-3-hydroxybutyrate also activated AmelOR136, but responses increased only moderately with increasing doses and remained below those observed for the alarm pheromone esters.

For several decades, most work on the processing of pheromone information in insects has focused on sex pheromones, especially in moths48,49,50. These studies suggested the existence of dedicated, labeled line pathways, in which pheromonal compounds would be detected by highly specific and sensitive ORs at the periphery, and dedicated pathways would convey this information, without much transformation, to specific brain centers, triggering fast and stereotyped behaviors. Given the natural constraints of neural systems (especially the costs associated with the maintenance of a high numbers of neurons), such a system is unable to encode for all potential odorants present in the environment. It has therefore been traditionally considered that other odorants are treated according to a combinatorial across-fiber processing framework5,51: each odorant is detected by many, weakly specific ORs, and the identity of a particular odorant can only be extracted by reading out a combination of these channels. In this model, multiple glomeruli are activated in the antennal lobe, and the interpretation of the odorant’s biological significance occurs in higher-order processing centers5,52,53,54. Theoretically, across-fiber processing can code for a much higher number of odorants with the same number of neurons, but it may be less efficient in its ability to detect a particular odorant, especially at low concentration. Overall, AmelOR136 is remarkable for its ability to responds to several components of the same pheromone. Such a coding strategy could be highly advantageous for efficiently recognizing the alarm pheromone as a whole and responding quickly, sensitively and efficiently to danger in the complex olfactory environment of the honey bee hive. However, activation of AmelOR136 was not exclusive to alarm pheromone compounds, indicating that this receptor is finely tuned but may not be involved in a labeled line coding. Recently, Hart et al.55 showed that the coding strategy observed for alarm pheromone in the olfactory system of the clonal raider ant Ooceraea biroi, while not entirely adhering to a labeled line model, still employed quite narrowly tuned channels. The features exhibited by AmelOR136 in our study may be consistent with these observations.

We found in this study that AmelOR109 is activated by ester compounds of the alarm pheromone, but also by several other pheromone blends (aggregation, queen or brood pheromone blends) and numerous individual pheromone compounds with diverse social functions. In contrast to AmelOR136, AmelOR109 appears to be a generalist receptor (confirmed by the sparseness value, S = 0.67 for AmelOR109, against S = 0.88 for AmelOR136), and could serve as a secondary contributor in the detection of the alarm pheromone. It is generally assumed that the majority of receptors in honey bees’ repertoires are generalists, involved in combinatorial coding, as most AL glomeruli are known to respond to a relatively wide panel of different odorants51,56. As such, AmelOR109 responded to several compounds, including (Z)-3-hexen-1-ol, a compound emitted by propolis57, or to ethyl hexanoate, a compound associated with varroa infection58. Thus, this receptor may play a role in the detection of important pheromones compounds while also contributing to the detection of other odors within or outside the colony.

Both AmelOR136 and AmelOR109 belong to the 9-exon clade, a subfamily known for its high level of recent gene duplications and sequential evolution compared to other OR subfamilies, initially observed in ants59. In honey bees, this subfamily constitutes 24% of the total number of ORs (42 ORs)40, whereas it constitutes 30% of the receptors in ants59. This 9-exon family is known to play a role in the detection of cuticular hydrocarbons (CHC) in ants60, therefore representing the foundation for nestmate recognition and kinship identity in ants, bees and wasps2. In this study, we focused on AmelOR109 which belongs to the 9-exon beta clade, whereas AmelOR136 originates from the 9-exon alpha clade, associated with CHC detection in ants61. Previous studies have shown that most 9-exon ORs in Harpegnathos saltator exhibit narrow tuning profiles similar to AmelOR136, although some are slightly more broadly tuned, in line with the response profile of AmelOR10926,60.

Interestingly, our findings evidenced that both receptors in honey bees were particularly sensitive to volatile social pheromone compounds, suggesting that members of the 9-exon clade may have evolved diverse functions beyond CHC detection. To further investigate this possibility, we tested whether these receptors could be activated by bee-derived CHC compounds. Although some responses were observed, they remained near the threshold of statistical significance (see Supplementary Fig. 1), suggesting that AmelOR136 and AmelOR109 are not primarily involved in the detection of CHCs in Apis mellifera. Note that nevertheless AmelOR136 exhibited a small affinity for the unsaturated hydrocarbons nonadecene and heneicosane (see Supplementary Fig. 1). Such functional versatility of ORs could allow the honey bee to integrate volatile and contact-mediated signals in a context-dependent manner, as recently suggested by Mondet et al.62. The absence of response of AmelOR109 to the tested CHCs may reflect functional specializations within the 9-exon clade, whereby certain receptors respond preferentially to volatile pheromones, while others — yet to be identified — may preferentially detect CHCs. Alternatively, the apparent lack of response to CHCs in our preliminary data may also result from technical limitations of the expression system: CHCs are heavy, low-volatility molecules with high molecular weight, which limits their effective diffusion and availability in our stimulation setup. It is therefore possible that the concentration reaching the receptor-expressing neurons remained below the detection threshold39.

In Hymenoptera, there is no compelling evidence for a strict segregation of OR subfamilies in the detection of CHCs26,63. This suggests that other ORs, in addition to the 9-exon ORs, may be sensitive to CHCs2. Consequently, it can be postulated that 9-exon ORs in honey bees may be involved in a wider range of functions than CHC detection. A more comprehensive survey of ORs from this clade is necessary to determine whether some are indeed specialized in CHC detection, while others may be involved in the detection of bees’ other social pheromones.

Crucially, the Drosophila-based system provides fine ligand-profiling, but in vivo validation of the response of OSNs expressing our receptors via single-sensillum recordings (SSR) on Apis mellifera antennae64,65 would be important. However, honey bee placode sensilla typically contain 5-35 OSNs, which makes the identification of the responses of individual neurons electrophysiologically very difficult66. It would be also interesting to use in situ hybridization or immunohistochemistry to determine if AmelOR136 and AmelOR109 co-localize within the same sensillum or are segregated in different sensilla. Presence in the same sensillum could leverage within-sensilla processing for enhanced detection of alarm pheromone, but this will need to be determined.

Further studies at the level of the antennal lobe could also contribute to a more comprehensive understanding of how information about odorants detected by these receptors is encoded in the brain. Although exceptions have been observed (e.g. Herre et al.67), OSNs expressing the same OR generally converge in a common glomerulus. Using in vivo optical imaging, one may be able to identify the glomeruli receiving OSNs that express AmelOR136 and AmelOR109 by presenting the same panels of odorants tested in this study. We can anticipate that the response profiles of these glomeruli will closely match those of the two receptors, as measured here in a heterologous expression system. Such experiments would also be important for addressing the question of whether a labeled line for alarm pheromone exists in the honey bee brain. Theoretically, it is expected that labeled lines are relatively isolated from the rest of the olfactory system, thus ensuring that the response to the pheromone remains sensitive and fast, protected from interference by background odors present in the environment5,68. As done in previous studies69,70, it should be possible to evaluate to which extent processing by local networks within the antennal lobe affects the transmission of information from AmelOR136 or AmelOR109 OSNs. Furthermore, studies could be conducted to investigate the impact of these receptors on behavior. Recent developments in genetic editing have introduced the possibility to develop honey bee neurogenetic tools, with the GCaMP-expressing bees71 serving as a pioneering example. CRISPR/Cas9 has revolutionized functional genetics in insects—and has been successfully applied to silence ORCO or individual ORs, for instance in Spodoptera littoralis, Bombyx mori, Manduca sexta, Locusta migratoria72,73,74,75, and, critically, to ORCO in Apis mellifera76. CRISPR/Cas9 genome editing in honey bees faces challenges (low transformation rates, unknown neuronal promoters, queen survival), but recent advances in embryo microinjection and germline delivery have markedly improved editing efficiency71. The generation of transgenic bees that do not express AmelOR136 seems achievable in the near future and would be a crucial step towards elucidating the possible role of this receptor in honey bees’ alarm and defense behaviors. It is hypothesized that the absence of this receptor will have a significant impact on bees’ behavioral response to the alarm pheromone, as well as on their efficiency in aggression tests77.

In conclusion, we have functionally characterized two new ORs in the honey bee Apis mellifera. We showed that AmelOR136 and AmelOR109 respond to social pheromonal compounds. Whereas AmelOR136 presented a sparse response spectrum, mainly responding to alarm pheromone esters, AmelOR109 appeared to be more generalist, responding to a wide range of odorants. This work represents a significant step forward in understanding the neural encoding of social pheromone information in the brains of social insects.

Methods

OR selection

In order to identify receptors potentially sensitive to social pheromones, we selected ORs based on their expression level in bees’ antennae and their phylogenetic position, using published data33,34,78,79. A list of 8 ORs (see list in Supplementary Data 1) overexpressed in female workers in comparison to males34 was selected, as workers play a more prominent role in behaviors involving the detection of social pheromones. We also considered ORs that were overexpressed in in-hive bees compared to foragers40, since the former are expected to be more strongly exposed to social pheromones than the latter. Experiments were performed at EGCE Lab in Gif-sur-Yvette (France) between 2021 and 2025.

Heterologous expression of AmelORs in Drosophila

The peripheral olfactory system of bees is not well suited to the specific study of individual OSNs, as a single olfactory sensillum (placode) can house up to 35 different OSNs64,80. To overcome this limitation, we used heterologous expression of ORs in the Drosophila melanogaster empty neuron system81, commonly used for deorphanizing ORs of Lepidoptera24 but also some Hymenoptera26,60,82. All honey bee ORs (AmelORX, sequences in Supplementary Data 1) were expressed in ab3A OSNs of D. melanogaster (housed in basiconic sensilla) lacking the endogenous receptors DmelOR22a and DmelOR22b. To do so, the full-length open reading frames of AmelORX were synthesized in vitro using codon optimization for expression in Drosophila and were inserted into the pUAST.attB vector (Synbio Technologies, Monmouth Junction, NJ, USA). Balanced UAS-AmelORX flies were generated by Bestgene Inc. (Chino Hills, CA, USA), by injecting the pUAST.attB-AmelORX plasmid (Endofree preparation) into fly embryos with the genotype y[1] M{vas-int.Dm}ZH-2A w[*]; M{3xP3-RFP.attP}ZH-86Fb, leading to a non-random insertion of the UAS-AmelORX construct into the locus 86F8 of the third chromosome. Subsequently, each UAS-AmelORX line was crossed with the DmelOR22abGAL4 line83 to obtain homozygous flies with the genotype w; DmelOR22abGAL4; UAS-AmelORX. Flies were reared on standard cornmeal-yeast-agar medium and kept in the dark in a climate-controlled environment (25 °C, 27% humidity). Effective presence of the UAS-AmelORX transgenes and absence of the DmelOR22ab gene were verified using PCR on genomic DNA extracted from 10 flies (Primers in Supplementary Table 1). Prior to calcium imaging experiments, flies expressing AmelORs were crossed with flies expressing the UAS-GCaMP6s84 calcium indicator to generate heterozygous flies with the genotype w; DmelOR22abGAL4; UAS-AmelORX/UAS-GCaMP6s.

Fly containment

To access the region of the antenna where ab3 basiconic sensilla are located, 3- to 7-day old flies were gently secured at the narrow end of a 200 μL plastic pipette tip, allowing only the antennae and half of the head to protrude. The tip was then securely fixed on a microscope glass slide using dental wax, exposing the ventral side of the fly upwards. One antenna was gently pressed onto a piece of microscope slide using a glass capillary positioned between the pedicel and the funiculus. The glass capillary itself was firmly secured using low-temperature melting wax, ensuring that the antenna remained immobile throughout the experiment85. A total of 75 flies expressing Amel0R136 and 61 flies expressing Amel0R109 were used in this study, the minimum number of individuals for assuring statistical robustness of the data.

Single sensillum recordings (SSR)

Mounted flies were placed under a microscope (BX51Wl, Olympus, Tokyo, Japan) equipped with an Olympus SLMPlan 100X/0.6 objective. Action potentials were recorded from the ab3A OSNs using tungsten electrodes (Phymep, Paris, catalog number: 716000), which were sharpened using electrolysis in a 10% potassium hydroxide solution. The reference electrode was inserted into the fly’s eye using a mechanical micromanipulator (Leitz, Wetzlar, Germany), and the recording tungsten electrode was inserted at the base of the sensillum using a motorized micromanipulator (PatchStar, Scientifica Ltd, UK). The electrical signal was amplified 10 times, then filtered (1 Hz -3 kHz) and further amplified (x50) with an AC-DC amplifier (EX1 Differential Amplifier, Dagan Corporation USA). The data were acquired on a computer by sampling at 10 kHz for 15 s with a precision of 16 bits. A data acquisition card (DT 9813, Data Translation, USA) was used, driven by the dbWave software86. The timing of the stimulation was recorded on a second channel using a TTL signal generated by the olfactory stimulation device.

Calcium imaging

Optical imaging recordings on fly antennae were performed using an Olympus BX51WI microscope with a Zeiss LD A-Plan 10x/0.25 Ph1 objective. The observed area was captured by an Evolve® 512 camera (Photometrics, 16 bits, binning 1:1). The recordings were made using routines implemented in Visiview® Software (Visitron Systems GmbH, Puchheim, Germany). A monochromator produced excitation light at 488 nm (Polychrome 5000, Till Photonics, Martinsried, Germany). Emission was collected using a 525BP50 filter. Each recording consisted of 100 frames (80 ms exposure time) of 512 ×512 pixels at a frequency of 5 Hz, which were saved as an STK file. Each recording thus lasted 20 s. A 90 s interval was applied between recordings. The first recording was performed without any stimulus, to measure fluorescence decay over the course of the recording (photobleaching). The collected data was used for photobleaching correction38.

Olfactory stimulation

Throughout the experiments, flies were exposed to a constant airflow of 3 L/min. During stimulation, a fraction of the air flow (500 mL/min) was redirected through the stimulation cartridge. Each stimulation cartridge consisted of a Pasteur pipette containing a 1 cm2 piece of filter paper soaked with 10 μL of the odorant solution. Each odorant was presented only once per individual.

For electrophysiological recordings, the stimulation was applied for 1 s, starting 5 s after the beginning of a recording. For calcium imaging recordings, the stimulation also lasted for 1 s, but started after 3 s (15th to 20th frame).

At the beginning of each experiment, control stimuli were presented: mineral oil, used as a solvent control, and ethyl hexanoate, the main ligand of DmelOR22a, the endogenous receptor expressed in ab3A neurons of the fruit fly. This last recording aimed to ensure the absence of the Drosophila receptor in the recorded individual. In electrophysiological experiments, 2-heptanone, the main ligand of DmelOR85b (expressed in the second OSN present in ab3a sensilla) was also presented to verify that the recorded sensillum was indeed an ab3. Odorants were always presented in a randomized order.

Odorant stimuli

In order to identify ORs tuned to social pheromones, a series of six blends was presented (OSN activity recorded using calcium imaging), each containing the main compounds of honey bees’ major pheromones (Table 1, pure odorants, equal volume of each odorant in the blend).

Table 1 Compounds of the pheromonal blends
Full size table

In addition to the pheromonal blends, flies were exposed to a panel of 42 odorants (OSN activity recorded in SSR), comprising both pheromonal compounds and floral scents relevant to honey bee’s lifestyle. These odorants were identified in the literature as being present in honey bees’ natural environment and/or previously shown to be detected by bees9,10,11,16,25,42,44,46,47,57,69,87,88,89,90,91,92,93,94,95,96,97,98,99,100,101,102,103,104,105,106,107,108. We ensured chemical diversity by including compounds from different functional groups (e.g., alcohols, aldehydes, acids, esters, and terpenes) and with varied carbon chain lengths. Furthermore, we used molecular descriptors from the PubChem database to optimize distribution across the chemical space. This allowed to assess the specificity of each AmelORX.

Subsequently, a second, more specific panel was presented to the flies, comprising 18 odorants belonging to the ester class, as AmelOR109 and AmelOR136 were found to be highly responsive to isopentyl acetate. This panel included short-chain esters (e.g., ethyl acetate [4 C], isobutyl acetate [6 C], butyl acetate [6 C]), medium-chain esters (e.g., isopentyl acetate [7 C], benzyl acetate [9 C], octyl acetate [10 C]), and long-chain esters (e.g., nonyl acetate [11 C], geranyl acetate [12 C], decyl acetate [12 C], and farnesyl acetate [17 C]). New stimulation cartridges were prepared daily. All chemicals were obtained from Thermofisher Scientific (Waltham, United States) except for 9-ODA bought from Apollo scientific (purity 95%, Bredbury, UK). All odorants were presented at a concentration of 100 μg/μL (diluted in mineral oil). A minimum of 10 flies were tested for each odorant.

For some of the receptors’ ligands, dose-response experiments were conducted using concentrations ranging from 0.1 μg/μL to 1000 μg/μL. We focused these dose–response curves on ethyl-3-hydroxybutyrate, butyl acetate, isobutyl acetate and isopentyl acetate for AmelOR136, and benzyl acetate, ethyl butyrate, octyl acetate and isopentyl acetate for AmelOR109. These compounds were among those that elicited the strongest and most reproducible responses in OSNs expressing these receptors. To compensate for differences in volatility in dose-response experiments, we calculated for each stimulus concentration, an estimate of the airborne quantity of molecules flowing out of the stimulus cartridge, following the guidelines formulated by Andersson et al.39. For a 100-µg load of odorant on the filter paper, the depletion rate Y was calculated, as Y = -0.010 BP – 0.178 L + 0.519, with BP the odorant’s boiling point, and L its lipophilicity. Then a log-log regression of the data presented in Fig. 4A of the study by Andersson et al.39 was used, as it provides a better fit to the data (R2 = 0.91) and to the assumptions of linear regression than the log-linear approach presented in the article (Fredrik Schlyter, pers. comm.). The estimated dose in the airflow could thus be calculated as follows:

$${{\rm{Log\; Dose}}}\left({{\rm{pmol}}}\right)=\frac{Y+4.7606}{0.7797}$$

Data Analysis

For calcium imaging experiments, we calculated the variation of fluorescence intensity during each recording using the following formula: \(\Delta {{\rm{F}}}=\frac{{{\rm{F}}}({{\rm{t}}})-{{\rm{F}}}(0)}{{{\rm{F}}}(0)}\) where F(0) corresponds to the average of 5 frames just before odor stimulation (frames 11 to 15). Photobleaching was corrected by subtracting from each recording the fluorescence decay measured in the first recording without any stimulus (see above). The quantification of response intensity was obtained by averaging frames following odor presentation (frames 17 to 31) and subtracting the average before odor presentation (frames 11 to 15).

For SSR, peri-stimulus time histograms were generated by dividing the 15 s recording into 100 ms bins. The average number of spikes per bin for all odorants tested was calculated. We observed that, on average, the odor responses occurred between 6.3 s and 8.1 s, with a peak response at 7 seconds. Thus, the responses of ab3A neurons were analyzed by subtracting the spontaneous firing rate (measured during 1.8 seconds before the onset of stimulation, in spikes per second) from the firing rate induced by odorant stimulation, calculated by averaging the number of spikes during a 1.8-second window (from 6.3 s to 8.1 s).

Statistics and Reproducibility

Responses to odorant stimuli were compared statistically to the control without odorant (air for pheromonal blends or mineral oil for the other experiments). The normality of the data distribution was evaluated using a density diagram and a Quantile-Quantile (QQ) plot. As the data did not follow a normal distribution, we compared responses to the different odorants in a panel using a Friedman test, followed by Wilcoxon post-hoc tests to compare response intensities between odorants and their respective controls. Due to multiple comparisons, the significance threshold was corrected using the Benjamini-Hochberg false discovery rate correction method. The odorants were considered active if the response was statistically higher than the response elicited by the control alone. All statistical tests were performed using R version 4.0.3.

For the dose-response experiments, a Generalized Linear Mixed-Effects Models (glmer function109) with two main predictors was employed: Odorant (representing the different odorants tested) and Dose. The model also considers individual-specific variations by including a random intercept for each individual. The response variable followed a gamma distribution, and we used a logarithm link function. The interaction term between Odorant and Dose was added in the model. Responses below 0 do not allow the use of Gamma family, so a constant was added to all data to ensure all values were positive.

The specificity of a receptor’s response spectrum was calculated using the lifetime sparseness formula110,111,112:

$$s=\left(\frac{1}{1-\frac{1}{n}}\right)\times \left(1-\left({\left(\sum \limits_{i=1,n}{r}_{i}/n\right)}^{2}/\sum\limits_{i=1,n}\left({{r}_{i}}^{2}/n\right)\right)\right)$$

With \({r}_{i}\) the amplitude of the response to stimulus i in the panel of n stimuli. The lifetime sparseness (s) ranges from 0 (unselective, broadly tuned) to 1 (maximally selective).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
