Nanobodies as tools for studying human frataxin biology

Abstract

Iron-sulfur clusters are essential cofactors for the accurate cellular function of many proteins. In eukaryotic cells, the biogenesis of most iron-sulfur clusters occurs in the mitochondria and involves the action of the Cys desulfurase supercomplex, which is activated by the protein frataxin (FXN). The decrease of FXN expression and/or function results in Friedreich’s ataxia (FRDA).

In this work, several nanobodies specific to human FXN were selected via phage display, demonstrating a wide range of effects on Cys desulfurase activity and a strong interaction with FXN. Nanobody interaction stabilized wild-type and FRDA-related FXN variants in vitro. FXN-nanobody complexes were characterized by NMR, SAXS, and X-ray crystallography. Additionally, Nanobody expression was studied in human cells. The subcellular localization, direct interaction with FXN by in situ proximity ligation assay, effect on cell viability, Fe-S-dependent enzymatic activities, and oxygen consumption rates were analyzed. Significantly, nanobody expression did not alter these key metabolic variables, suggesting that the interaction with FXN did not disrupt the pathway.

As a whole, our results suggest that nanobodies can serve as binding partners for mitochondrial FXN. However, the specific effect of the nanobodies on the conformational stability of FRDA-related FXN variants in cells should be investigated.

Introduction

The study of iron-sulfur cluster biosynthesis at the molecular level has recently increased our understanding of some of the relationships between structure and function concerning the mitochondrial supercomplex involved in this pathway. The Fe-S clusters are at the core of many essential biological activities. Mitochondrial enzymatic functions such as NADH dehydrogenase, aconitase (ACO), succinate dehydrogenase (SDH), and complex III from the respiratory chain, lipoic acid synthetase, and processes such as nuclear DNA repair¹, the cytoplasmic chemical modifications of transfer RNAs that affect base recognition between codon and anticodon², and the cytoplasmic Fe-S cluster assembly by the cytosolic iron-sulfur cluster assembly system require the mitochondrial cysteine desulfurase supercomplex^3,4. This supercomplex consists of several essential proteins, all of which are encoded by nuclear DNA (Fig. 1A, B)⁵. NFS1 is a pyridoxal phosphate-dependent cysteine desulfurase^6,7,8 that employs Cys381 to transfer a persulfide group from the Cys substrate to the ISCU. Even though NFS1 is crucial for mitochondrial Fe-S cluster biosynthesis, it has been found in the cytosol, providing the sulfur for molybdenum cofactor biosynthesis^9,10 and, more recently, it has been found at the centrosome¹¹. ISCU is an essential scaffold protein that supports the assembly of the [2Fe-2S] cluster at its active site^12,13 and is in close contact with the Cys-loop of NFS1, where the key Cys381 is located¹⁴. L-cysteine increases the binding efficiency of human ISCU2 to NFS1 nine-fold K_D = 0.2 or 1.7 µM, with or without cysteine, respectively¹⁴. Additionally, NFS1 is stabilized in its active dimeric form by a small protein called ISD11 (10.5 kDa), which is essential in eukaryotes and prevents NFS1 aggregation^15,16. In turn, ISD11 is stabilized by the acyl carrier protein (ACP)^17,18. Furthermore, the ferredoxin system provides a natural source of electrons involving NADPH, FdxR, and FDX2^{19,20,21,22,23}.

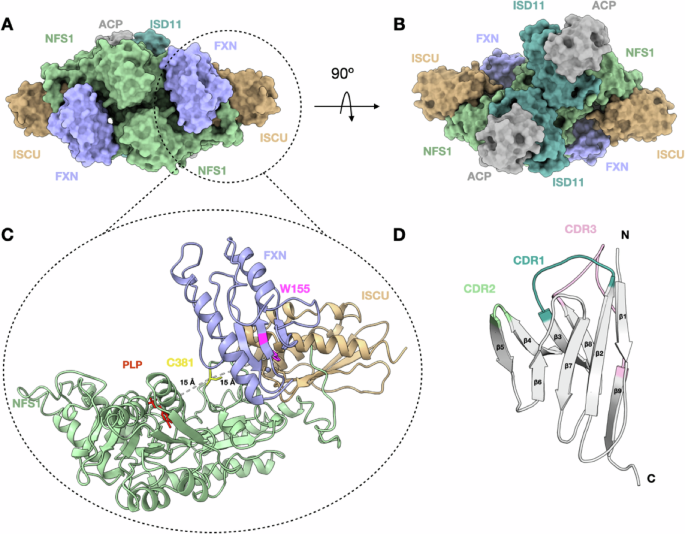

Fig. 1: Mitochondrial Fe-S cluster biosynthesis.

A, B Two views of the cryoEM structure of the Cys desulfurase supercomplex (PDB ID: 6NZU) are presented. Cys desulfurase NFS1, ACP, ISD11, ISCU2, and FXN are shown in a surface representation. Only part of the supercomplex is shown in (C), the Cys381 of the NFS1 enzyme, ISCU2, and FXN are shown—additionally, the PLP cofactor, FXN Trp155, and ISCU2 assembly site. The distance between PLP and Cys381 is ∼15 Å, and between Cys381 and the ISCU2 assembly site it is ∼15 Å. ISD11 and ACP subunits were omitted for clarity. D A nanobody (V_HH domain) structure scheme shows the three complementarity-determining regions: CDR1, CDR2, and CDR3. The N- and C-termini are indicated.

Another essential protein that forms the supercomplex is frataxin (FXN), the kinetic activator of NFS1, which accelerates the persulfide transfer²⁴. FXN is imported into the mitochondrial matrix as a 210-residue precursor and processed in two steps to produce the mature FXN form (14.2 kDa), which comprises residues 81-210^25,26. Current structural (Cryo-EM) and functional studies suggest that FXN simultaneously interacts with ISCU2 and with both subunits of the NFS1 dimer (Fig. 1A–C)⁵.

Notably, altering the function of NFS1, ISCU, or ISD11 results in rare diseases^27,28,29,30. In particular, the decrease of FXN expression results in Friedreich’s ataxia (FRDA), an inherited neurodegenerative rare disease affecting 1 in 50,000 people³¹. In approximately 95% of FRDA patients, the transcription of the FXN gene is significantly reduced due to a trinucleotide expansion in the first intron of both alleles. Expansion ranges from 70 to more than 1000 GAA triplets in patients (700–800 repeats in most cases), while the first intron of the FXN gene in normal chromosomes contains up to 35 to 40 GAA triplets³². In the remaining 5–6% of the FRDA patients, a point mutation is found in one FXN allele combined with an expansion in the other. These mutations, in some cases, alter the stability of the protein in vitro and/or in vivo (D122Y, G130V, G137V, W173G, L198R, among others^33,34,35,36), the localization and processing of the protein (R40C)³⁷, the internal motions (L198R and CTR truncation^36,38), or, as in the case of W155R or N146K, the interactions with the rest of the proteins that conform the supercomplex, dramatically reducing the activation function of FXN³⁹.

In this context, one of our main research goals is to identify specific small binder partners that can interact with FXN in the mitochondrial environment.

We have named this strategy quaternary addition⁴⁰. Recently, we selected affi_224, a synthetic FXN binder, employing the Ribosome Display strategy and archaeal Sac7D protein as the scaffold (Affitins)⁴⁰. Affi_224, fused to a human mitochondrial targeting sequence, was successfully expressed in HEK-293T cell lines and interacted with FXN⁴⁰.

Moreover, the presence of Affi_224 slightly increased the desulfurase activation exerted by the FXN G130V variant in vitro. Conversely, other in vitro experiments demonstrated that Affi_224 did not form a stable complex with FXN and is an inherently unstable protein that tends to form dimers. These characteristics may limit its applicability in further studies.

With this background, we explored additional scaffolds for FXN binders and chose the camelid-derived nanobody scaffold (V_HH or nanobodies (NBs)). Highly specific NBs can be obtained by phage display strategy from an RNA library of camelid antibody sequences prepared after a convenient immunization of the camelid with the target protein. Camelid heavy chain antibodies are formed by two heavy chains, each one containing a variable domain (V_HH), which includes three complementarity-determining regions (CDR1, CDR2, and CDR3, the latter longer than the others) (Fig. 1D). NBs are small (15 kDa) and conformationally stable proteins⁴¹ that can be expressed in E. coli. Their small size may allow for better tissue penetration⁴². Even though NBs usually display low immunogenicity, they can be humanized to further reduce this characteristic, making them suitable for therapeutic applications in humans⁴³. NBs can be expressed by mammalian cells as “intrabodies” while retaining their conformational stability. An advantage of NBs is that they can be delivered by gene therapy as single genes. Treatments based on the NB for various neurodegenerative disorders and cancers are currently under development, with several in clinical trials^41,44,45.

In this paper, we selected over twenty FXN-specific NBs and thoroughly investigated the interaction between FXN and four of these in both in vitro and cellular environments.

Results

Sequence analysis and structure predictions of the NB/FXN complexes

After the phage display selection, we performed an initial evaluation of NBs by assessing their interaction with recombinant FXN using a direct ELISA. FXN was bound to the plate and incubated with samples containing periplasmic proteins, which were obtained from the osmotic shock of bacteria expressing the NBs in the periplasmic compartment. Subsequently, a second selection was conducted to specifically assess the modulation of Cys desulfurase activity within the entire supercomplex (NFS1/ACP-ISD11/ISCU2/FXN)₂ after the addition of the same samples containing the NBs into the enzymatic reaction. None of the samples resulted in overactivation of the desulfurase enzyme.

Intending to study a broad range of potential effects on FXN function, we selected NBs that at 1:1 NB:FXN ratio, (a) either do not inhibit or minimally inhibit the desulfurase enzyme, (b) exhibit a moderate inhibitory effect, or (c) cause high in vitro inhibition.

After the screening, 30 NBs specific for human FXN were initially sequenced. We found substantial sequence diversity in the CDR1, CDR2, and CDR3 regions (Fig. 1D and Supplementary Fig. 2A), resulting in 16 distinct sequences. Eleven NBs were chosen for protein expression in E. coli WK6 strain, purification, and in vitro studies. Four NBs (NB_4A7, NB_6B1, NB_16C10, and NB_28F6, Supplementary Fig. 1 and Supplementary Table 1) and the corresponding NB:FXN complexes were deeply studied in this work.

Alpha-Fold 3^46,47,48 was used to infer structures of NB:FXN complexes from their amino acid sequences. The results suggested many different types of complexes NB:FXN might be formed (Supplementary Fig. 2C). Furthermore, predictions indicated that some NBs might display an inhibitory effect because the binding region comprises a surface of FXN involved in the supercomplex architecture (e.g., an ISCU2 or NFS1 interacting surface). On the other hand, some NBs might interact with FXN surface areas that are not involved in inter-subunit interactions. In those cases, NBs may not affect the activation exerted by FXN.

NB expression in E. coli WK6

NBs were purified by NTA-Ni²⁺, yielding 95% pure protein (5–15 mg/L, Supplementary Fig. 1). In all cases, monomeric conformations were obtained, as judged by SEC-FPLC (see below). For NB_28F6, protein degradation was observed when the NB was stored at 4 °C. Thus, we decided to preserve the NBs at −70 °C. Apart from NB_28F6, which exhibited proteolysis, the masses of the purified NBs were in the 2 Da range of the expected masses, as deduced from the amino acid sequences, considering the predicted processing site after NB export to the periplasmic space (the processing of the signal peptide results in an N-term QVQLQ, Supplementary Fig. 2A and Supplementary Table 1).

NB effect on supercomplex activity in vitro

After NB purification, we investigated the effect of NBs addition to the enzymatic reaction on the L-Cys desulfurase catalysis (Fig. 2A and Supplementary Fig. 3). The NBs NB_4A7 and NB_16C10 exhibited a low to middle degree of inhibition, while NB_6B1 and NB_28F6 showed higher inhibition of the in vitro L-Cys-desulfurase activity. It is worth noting that the complex (NFS1/ACP-ISD11/ISCU)₂ exhibits lower activity than the core (NFS1/ACP-ISD11)₂. One can infer ISCU interaction with (NFS1/ACP-ISD11)₂ from the observed decrease in desulfurase activity⁴⁹. Higher NB concentrations of NB_6B1 and NB_28F6 produced the highest decrease in the activity of the supercomplex, like the one detected in the virtual absence of FXN, which represents a drop in the value corresponding to (NFS1/ACP-ISD11/ISCU)₂. On the other hand, the inhibitory effect of higher concentrations of NB_16C10 was lower than that observed for NB_6B1 and NB_28F6, suggesting that NB_16C10 affects the conformation or the topology of the supercomplex but would not impede FXN-supercomplex interaction in these experimental conditions. Remarkably, NB_4A7 exhibited a low inhibition even at high NB concentrations, which is indicative of the formation of an activated supercomplex in the presence of the NB (Fig. 2B–E).

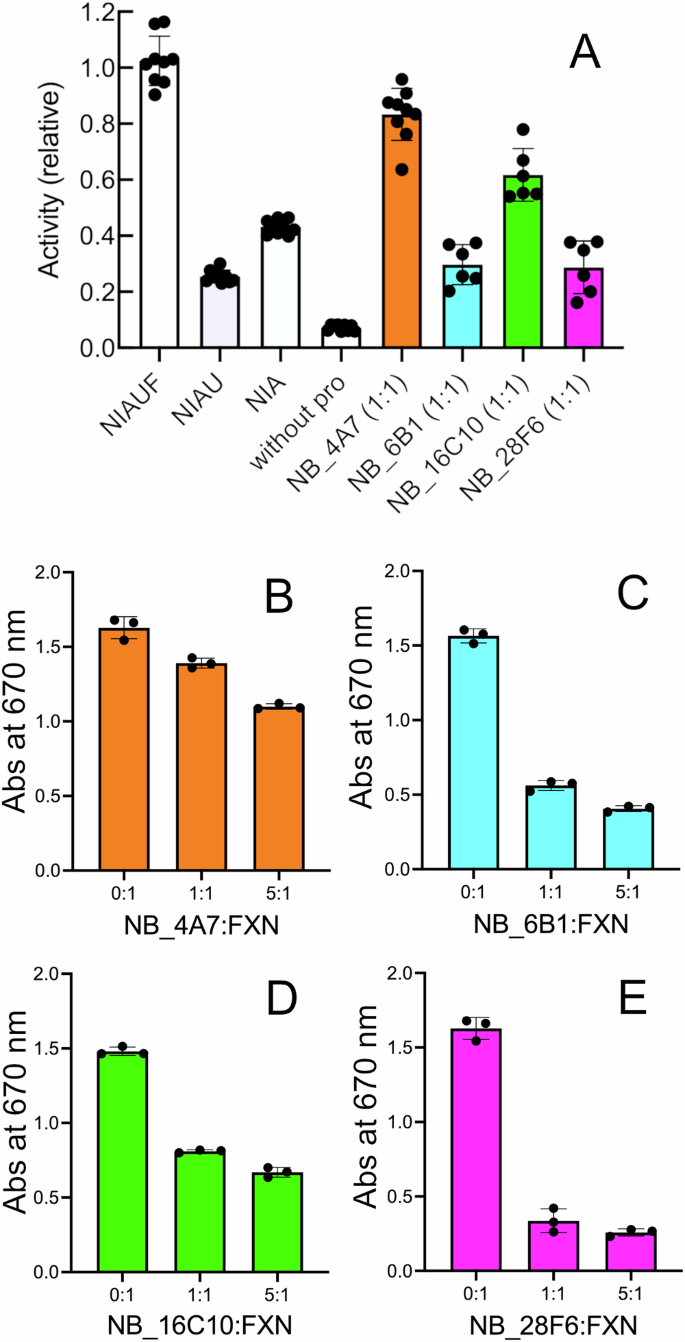

Fig. 2: Modulation of Cys desulfurase activity by NB:FXN interaction.

A The effect of the addition of NBs on the Cys-desulfurase supercomplex activity for NB_4A7, NB_6B1, NB_16C10, and NB_28F6). “NIAUF” refers to the reaction, including NFS1/ACP-ISD11/ISCU/FXN, in the absence of NB. NIA refers to a sample without ISCU2, FXN and NB, and corresponds to the activity of the core (NFS/ACP-ISD11)₂, whereas NIAU corresponds to the core plus ISCU2, but without FXN. “Without Pro” corresponds to a reaction in the absence of proteins. We also studied 5:1 molar ratio. B NB_4A7, C NB_6B1, D NB_16C10, and E NB_28F6. In (A), the activity was relativized to that of NIAUF. At least two independent experiments (n = 2), including three technical replicates for each. Error bars represent the standard errors.

In vitro characterization of the NB:FXN interaction

To evaluate the in vitro NB:FXN complex formation, we first studied the interaction by size-exclusion chromatography (SEC). Purified NBs, FXN, or the mix of both proteins (injection after a 10-min incubation of FXN and NB at room temperature) were loaded in an analytical SEC system. As judged by the SEC profiles, many of the selected NBs against FXN formed stable complexes (Fig. 3A–D and Supplementary Fig. 4), and their profiles suggested a slow dissociation equilibrium. Besides this, the SEC profile corresponding to NB_15C5 was compatible with the absence of complex formation, exhibiting two peaks consistent with free FXN and free NB (Supplementary Fig. 4C).

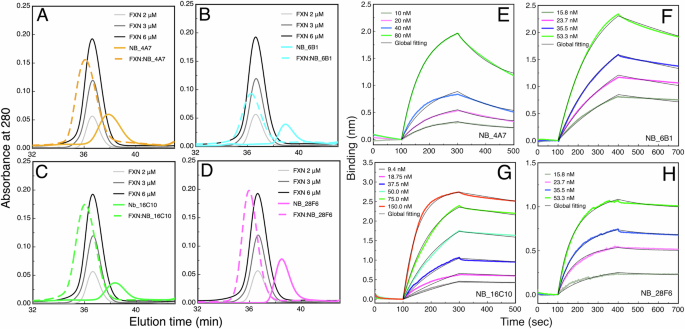

Fig. 3: NB:FXN interaction characterized by SEC-FPLC and BLI.

The interaction between NBs and FXN was followed by SEC for A NB_4A7, B NB_6B1, C NB_16C10, and D NB_28F6. The SEC profiles corresponding to the isolated FXN (black and gray, having three different concentrations at 2, 3, and 6 μM) or NBs (color lines). Dashed lines show the profiles corresponding to a 1:1 NB:FXN mixture. The lower elution volume for the mixture indicates the formation of a stable complex. The interaction followed by BLI. Biotin-labeled FXN variant (H177C) was titrated with each NB. Representative binding assay corresponding to E NB_4A7, F NB_6B1, G NB_16C10, and H NB_28F6 are shown. The experiment was performed in a 25 mM Tris-HC, 150 mM NaCl, pH 7.4 buffer, and 0.5 mg mL⁻¹ BSA was added in all solutions to avoid unspecific binding of FXN and NB to the sensor and tube surfaces. NB solutions typically contain concentrations ranging from 0 to 150 nM NB. The global fitting is represented by black lines.

The binding between NBs and FXN was studied employing biolayer interferometry (BLI). To evaluate the interaction, a biotin-labeled FXN variant (H177C, Supplementary Fig. 5) was immobilized in a streptavidin sensor at 10 μg mL⁻¹. The selected NBs exhibited high affinity with equilibrium dissociation constant K_D in the nanomolar range 1–33 nM (Table S2), and association and dissociation kinetic rate coefficients k_a and k_d in the range 10⁵ M⁻¹ s⁻¹ and 10⁻⁴M, respectively (Fig. 3E–H and Supplementary Table 2).

Identification of the NB binding site on the FXN surface

The binding sites of this subset of NBs were studied with a resolution at the level of the amino acid residues by NMR, analyzing the chemical shift perturbations (CSP). FXN was produced in E. coli using the ¹⁵N source ¹⁵NH₄Cl and purified for these experiments. The target was then titrated with each of the NBs, and ¹H-¹⁵N-HSQC NMR bidimensional spectra were acquired (Fig. 4A–N and Supplementary Fig. 6–9). Then, CSP and changes in the cross-peak intensities were analyzed (Fig. 4D, H, L, P).

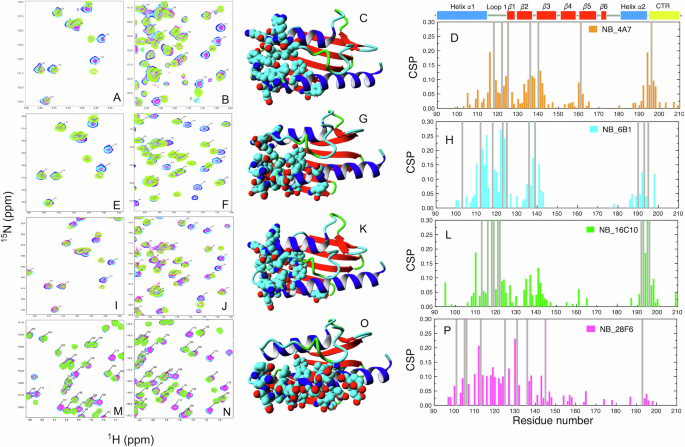

Fig. 4: NB interaction sites on FXN surface studied by NMR.

FXN was titrated with each NB at molar ratios of 0:1, 0.33:1, 0.66:1 and 1:1 (NB:¹⁵N-FXN), shown in blue, cyan, magenta and light green, respectively; A, B: NB_4A7, E and F: NB6B1, I and J: NB_16C10, M and N: NB_28F6 correspond to selected regions from the FXN spectra illustrating some of the residues exhibiting different patterns of CSP after incubation with the NB for each complex. C: NB_4A7, G: NB_6B1, K: NB_16C10, and O: NB_28F6, the residues exhibiting the highest CSP were mapped on the FXN structure (using a van der Waals style of representation for the residues involved and colored by element). Ribbon representation is colored as follows: alpha helix, beta strands, turns, and coils in blue, red, green, and cyan, respectively. D: NB_4A7, H: NB_6B1, L: NB_16C10, and P: NB_28F6, the calculated CSP values of amide peaks according to ${\Delta \delta }_{{{\mathrm{aV}}}}={\left[\left({\delta }_{{{{\rm{H}}}}}^{2}+\,{\delta }_{{{{\rm{N}}}}}^{2}/25\right)/2\right]}^{1/2}$. Gray bars in the right panels indicate those residues for which the CSP could not be calculated because the H-N assignments of the bound state were not determined. The complete spectra are shown in Supplementary Figs. 6–9. The experiment was performed in a 25 mM Tris-HCl, 150 mM NaCl, pH 7.4 buffer. ¹H-¹⁵N HSQC experiments were performed. A list of the residues involved is provided in the Supplementary Table 3.

CSP results indicated that NBs NB_4A7, NB_6B1, and NB_16C10 bind to a similar site on the FXN surface (residues involved are shown in Supplementary Table 3). Instead, NB_28F6 presents a different binding mode (Fig. 4C, G, K, O), as indicated by the residues involved in the interaction. As judged by the discontinuous pattern of CSP observed for almost all the cross peaks involved, the results suggested, in all cases, a binding mechanism characterized by a slow exchange regime. Remarkably, some residues from the FXN core exhibited significant CSP, including aromatic side chains Phe110, Tyr123, and Phe127 and the aliphatic residue Leu113. This suggests that the interaction between NB and FXN may adjust some conformational details of the FXN structure. In the case of NB_28F6, some residues far from the suggested interaction site also exhibited high CSP (Supplementary Table 3). Among them, Tyr143, Ile145, and Trp155, the latter involved in the assembly site of the supercomplex.

Modulation of the FXN conformational stability by NB interaction

To test whether NB interactions could stabilize the FXN conformation, we conducted in vitro temperature-induced unfolding experiments. Protein denaturation was monitored by the fluorescence of the Sypro-orange probe. Briefly, when the dye interacts with the unfolded state of proteins, the quantum yield increases. For these experiments, we first used FXN G130V as a probe for highly unstable FRDA variants^50,51.

Notably, the NBs were able to significantly stabilize the G130V FXN variant as judged by a significant shift (≥15 °C) in the observed Tm values (e.g., Tm values are 51.8 ± 0.3 and 70.1 ± 0.1 °C, for the G130V variant and NB_4A7: G130V_FXN complex, respectively, Fig. 5A, E). The Tm value corresponding to the complex is even higher than that observed for the wild-type FXN (Tm = 65.9 ± 0.3 °C). Similar results were obtained for the rest of the NBs (Fig. 5B–E). On the other hand, Sypro-orange dye did not exhibit a significant interaction with the NBs used in this assay at the range of temperatures tested (blue lines in Fig. 5A–D).

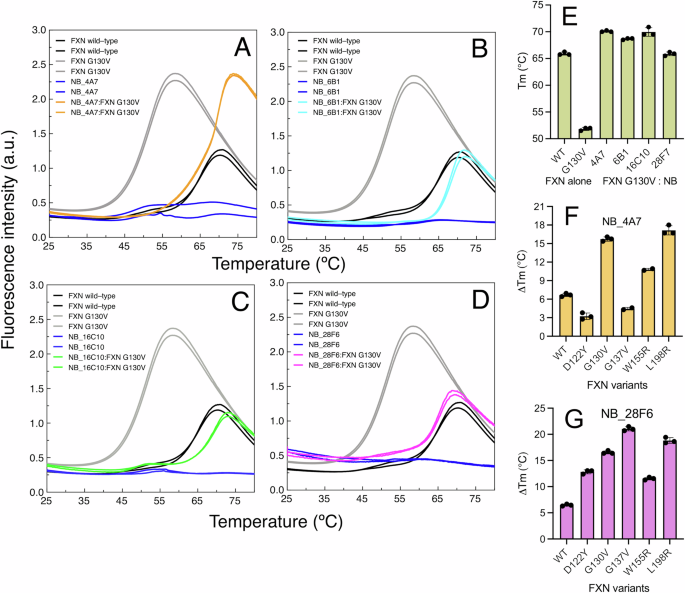

Fig. 5: Temperature-induced unfolding of NB:FXN G130V complexes.

Experiments were carried out on a multi-well plate, and Sypro-orange fluorescence was monitored. Wild type and G130V FXN variants without NB were included as controls in black (Tm = 65.9 ± 0.3 °C) and gray (Tm = 51.8 ± 0.3 °C), respectively. A–D correspond to NB_4A7, NB_6B1, NB_16C10, and NB_28F6, respectively. Tm values for the complexes are 70.1 ± 0.1, 68.7 ± 0.1, 69.9 ± 0.1 °C, and 65.9 ± 0.1 °C for NB_4A7: G130V, NB_6B1: G130V, NB_16C10: G130V, and NB_28F6:G130V complexes, respectively). E Tm values for FXN and G130V variants and the complexes FXN G130V:NB. Stabilization of the variants followed by the thermal shift assay. Wild type (WT), D122Y, G130V, G137V, W155R, and L198R variants were incubated with NB_4A7 (F) or NB_28F6 (G). For each FXN variant, the ΔTm value was calculated as ΔTm = Tm_(FXN+NB) − Tm_(FXN).

For the NB_4A7 and G130V variants, control experiments demonstrated that both proteins are fully folded, as indicated by circular dichroism spectra in the Near- and Far-UV regions (Supplementary Fig. 10A, B). Moreover, an additional temperature-induced unfolding experiment monitored by circular dichroism at 222 nm (Supplementary Fig. 10C), which reflects a change in secondary structure content as the temperature increases, yielded results similar to those previously observed with Sypro-Orange. The measured Tm values were 50, 65, and 69 °C for FXN G130V, NB_4A7:FXN G130V, and NB_4A7 alone, respectively. Thus, the addition of NB_4A7 resulted in a 15 °C increase in the Tm value of the variant.

Next, we evaluated the capability of NB_4A7 to stabilize other unstable FRDA-related variants. Remarkably, the NB_4A7 interaction stabilized W155R and L198R variants (ΔTm = 11 and 17 °C, respectively). Moreover, NB_4A7 stabilized the wild-type FXN variant (ΔTm = 7 °C). In turn, the stabilization for D122Y and G137V was visibly lower (ΔTm = 3 and 4 °C, respectively) (Fig. 5F), although NB_28F6 was indeed able to stabilize these variants (ΔTm = 12.8 and 21 °C, respectively) (Fig. 5G).

Three-dimensional structure of NB:FXN complexes

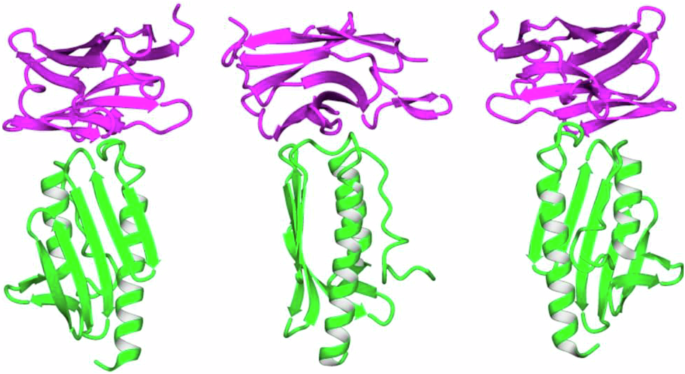

To get high-resolution information on the binding mode of the NBs studied in this work, NB_4A7, NB_6B1, and NB16C10 in complex with wild-type FXN (90-210 variant) were crystallized, and their structures solved (Fig. 6). The three crystallographic complexes were solved at atomic resolutions of 1.25 Å (FXN: NB_4A7), 1.48 Å (FXN: NB_6B1), and 2.0 Å (FXN: NB_16C10). The quality of the electron density map was excellent in all three cases (Supplementary Figs. 11 and 12), allowing unambiguous modeling of both proteins and fully identifying the residues involved in protein-protein interaction. FXN residues involved in the interaction are listed in Supplementary Table 4. The structure of human FXN in our complexes presents a nearly identical structure to that reported previously (PDB ID: 1EKG)⁵², with RMSD values ranging from 0.21 to 0.24 Å (for superimposition of all Cα atoms). FXN presents two parallel α-helices supported by a platform provided by a five-stranded, antiparallel β-sheet. The NBs adopt the typical immunoglobulin fold, with ten β-strands forming two β-sheets connected by loops and a conserved disulfide bond between Cys22 and Cys95 (Cys95 in NB_4A7 and NB_16C10 and Cys98 in NB_6B1) (Supplementary Fig. 2A). The NB:FXN crystal structures confirmed the interaction surface and binding regions observed by NMR experiments (CSP results, Fig. 5 and Supplementary Table 3). In all cases, the two proteins in the complex are arranged in a T fashion mode with FXN orienting the acidic ridge (the loop linking α1 and β1, residues Glu114-Glu122), the loop β2-β3 (residues 135-139) and the tip of helix α1, against the central part of the NB β-sandwich. Specifically, the NBs interact with frataxin through the loop β3-β4 (residues Arg38-His46, using Supplementary Fig. 2A numbering), the β4-strand (residues Leu47-Arg50), and the loop β5-β6 (residues Asp61-Lys64); NB_4A7 and NB_16C10 also interact through Asn58 from β4 (Fig. 6A, C). Remarkably, the CDR regions of the NBs are not directly involved in binding to FXN. Some relevant electrostatic interactions are observed the NB:FXN complexes (e.g., Glu121_FXN-Arg38_NB, Lys135_FXN-Asp61/64_NB, Asp139_FXN-Lys64/67_NB, Phe120_FXN-Arg50_NB) (Fig. 6A–C and Supplementary Table 5), involving a molecular contact surface area of 581.7 Ų. Structural comparison of FXN alone and in complex with NB (Supplementary Fig. 12) reveals that major changes upon NB interaction are in Loop 1, L1, connecting α1-β1, and the stretch connecting β2–β3, L2, (Fig. 6A–C and Supplementary Fig. 12). While some variations are also observed in β5-β6 turn and the loop connecting β6 and α2, depending on the NB. Overall, a similar pattern of interactions is conserved for the interaction of FXN with NB_4A7, NB_6B1, and NB_16C10, where loops L1 and L2, as well as a punctual interaction through helix α2, are pivotal for protein-protein recognition.

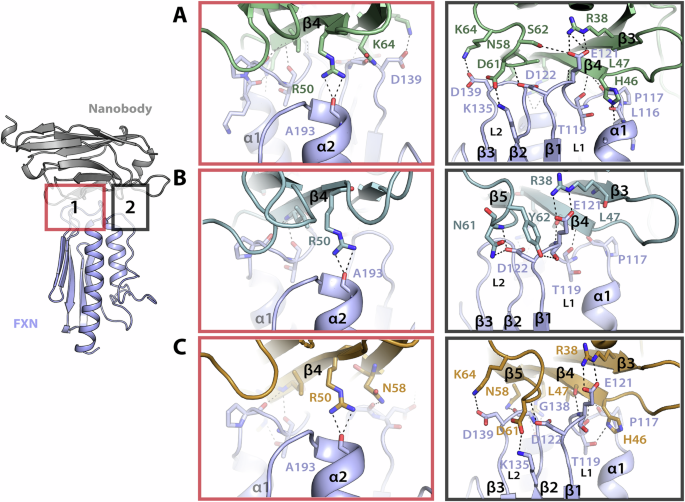

Fig. 6: Crystal structures of FXN:NB_16C10, FXN:NB_6B1, and FXN:NB_4A7 complexes.

A Cartoon representation of the FXN:NB_16C10 complex. Boxed areas show the most critical interactions between the NB_16C10 and FXN, box 1 colored in red and box 2 in black. Relevant residues are depicted as capped sticks and labeled. Polar interactions are represented as dotted lines. B Cartoon representation of the FXN:NB_6B1 complex. Boxed areas show the most important interactions between the NB_6B1 and Frataxin. C Cartoon representation of the FXN:NB_4A7 complex. Boxed areas show the most important interactions between the NB_4A7 and FXN.

Mutations D122Y⁵⁰ and G137V³⁵ found in two FRDA-related FXN variants occur in residues located on the interface of the NB:FXN complexes (Supplementary Fig. 13). As previously mentioned, we observed that the interaction between NB_4A7 and G137V or D122Y resulted in only a slight increase in the Tm value, consistent with a weaker interaction (Fig. 5F). Remarkably, the interaction between NB_4A7 and the D122Y or G137V variants could not be detected by BLI (Supplementary Fig. 13), suggesting that these mutations can locally alter the conformation of the FXN at the interaction site of NB_4A7. On the other hand, NB_4A7 interacted with G130V, W155R, or L198R variants (Supplementary Fig. 13).

SAXS studies on FXN:16C10 and FXN:28F6 complexes in solution

The complex FXN:NB_28F6 did not produce crystals in our hands; thus, we decided to perform small angle X-ray scattering (SAXS, Supplementary Table 6) studies to check if the interaction would follow or not the interaction pattern observed for NBs NB_16C10, NB_6B1, and NB_4A7. The complex FXN:NB_16C10 was also measured for comparison with our crystal structures. In both cases, there is a good superimposition of the experimental and theoretical scattering curves (Fig. 7A). As expected, for the FXN:NB_16C10 complex, the SAXS envelope in solution fits with the crystal structure of the complex (Fig. 7D) with the two proteins oriented in a T-fashion mode. However, the FXN:28F6 complex shows a new disposition in which the two proteins pack in a parallel fashion with the β-sheets from both proteins configured as a single long β-sheet (Fig. 7C). The model observed in the solution for the FXN:NB_28F6 complex is compatible with the predicted arrangement provided by AlfaFold3 (Supplementary Fig. 2C). As discussed below, this different arrangement for the NB_28F6 can explain the observed differences in the behavior in our cellular experiments.

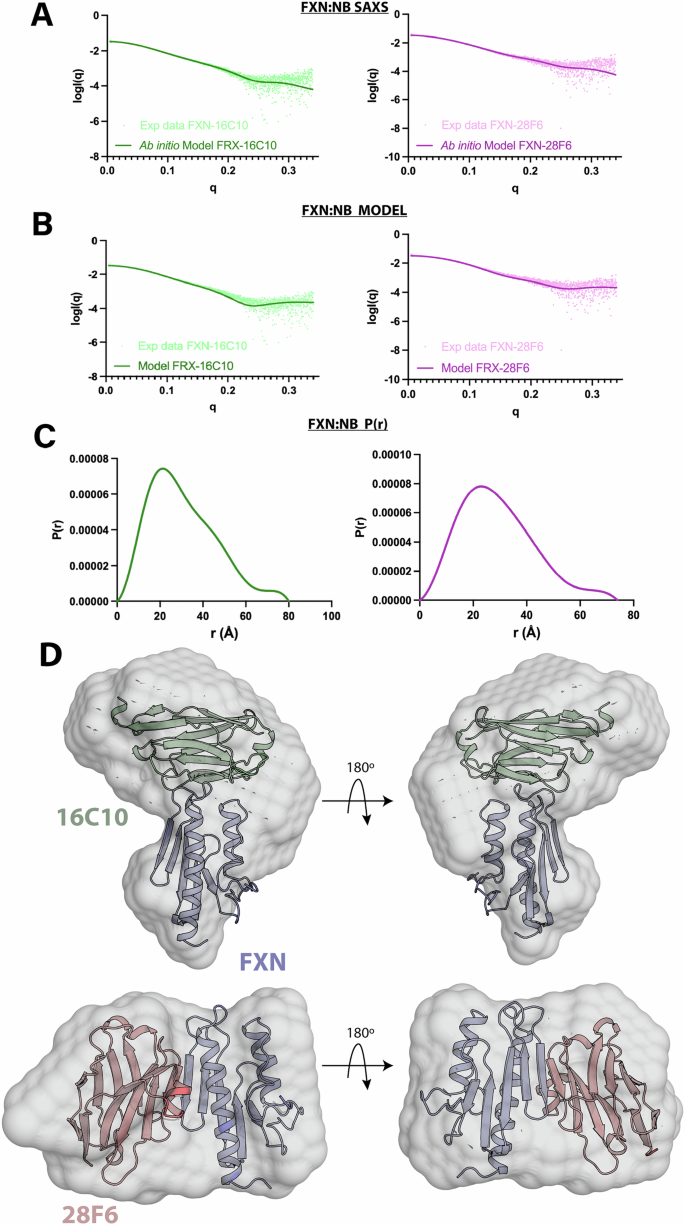

Fig. 7: Analysis by SAXS of complexes FXN:NB_28F6 and FXN:NB_16C10.

A, B Fit of the experimental scattering curve (green and pink dots) and theoretical scattering (green and pink lines) computed for the model of FXN:NB_28F6 and FXN:NB_16C10. C Plot showing the normalized pair-distance distribution function P(r) for the complexes reflecting the distance distribution. D The upper figure represents the superimposition on the ab initio-determined SAXS envelope (pale gray) for FXN:NB_28F6 complex with the AlphaFold3 predicted model. The bottom figure represents the superimposition on the ab initio-determined SAXS envelope (pale gray) for FXN:NB_16C10 with its crystal structure-based model.

Docking of the NB:FXN complex onto the supercomplex structure

Whether the selected NBs might block the interaction of FXN with the rest of the supercomplex depends on the specific structure of the NB:FXN complex and how it fits into the supercomplex structure throughout the catalytic cycle. To gain structural information on that hypothesis, we combined crystallographic NB:FXN complexes (this work) with the previous structural data for the supercomplex (NFS1/ACP-ISD11/ISCU/FXN)₂ provided by cryo-electron microscopy (PDB ID: 6NZU⁵). The different NB:FXN structures (Fig. 8A) were docked onto the supercomplex by the superimposition of the FXN subunit. In the type I NB-FXN binding (NBs NB_4A7, NB_6B1, and NB_16C10, Fig. 8B), only slight clashes between the NB and the rest of the subunits of the supercomplex were predicted. The predicted contacts that the NB may establish through its β3-β4 connector with one of the NFS1 subunits (Fig. 8B) could lead to the inhibitory effects observed in vitro, promoting FXN dissociation or directly blocking FXN binding to the supercomplex. In the case of NB_16C10, residues that could be involved in the clashes are Pro41_NB-Asn245_NFS1, Gly42_NB-Arg271_NFS1, Lys43_NB-Glu120_NFS1, Arg45_NB-Arg273_NFS1, and His46_NB-Arg273_NFS1 (using the numbering shown in Supplementary Fig. 2A for the NB and the numbering used in PDB ID: 6NZU for NFS1). Whether the plasticity of the protein chains might adequately accommodate this stretch could depend on the amino acid sequence of the NB β3-β4 connector (Fig. 8B), thus determining the rigidity/flexibility behavior and, ultimately, the inhibitory power of these NBs that bind using the same site. Given that NB_4A7 and NB_16C10 have an extra Gly in that stretch, we expect more flexibility than in the case of NB_6B1, in which an Asn residue occupies the place of the Gly44. Nevertheless, the edition by reengineering β3-β4 connectors will be a key for obtaining better FXN binders. Since the supercomplex exhibited higher enzymatic activity with NB_4A7 compared to NB_6B1 or NB_16C10, we considered NB_4A7 as a viable candidate for evaluating the interaction with the supercomplex in vitro.

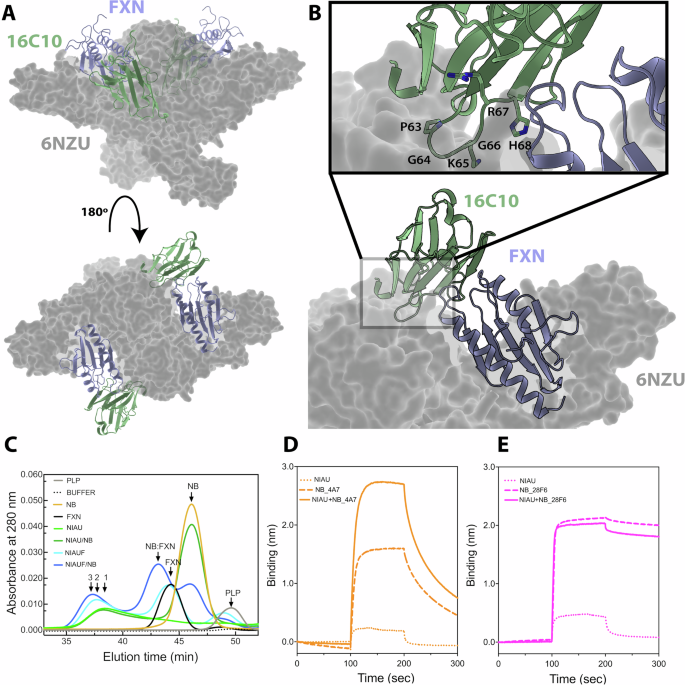

Fig. 8: NB:FXN complex mapped on the supercomplex.

A The X-ray structure of complex FXN:NB_16C10 was superimposed to the cryo-EM structure of the supercomplex (PDB ID: 6NZU). Gray surfaces represent NFS1subunits and ISCU2. B Residues from NB_16C10 involved in a possible clash with NFS1 subunit are shown. C SEC-FPLC profile of the supercomplex (NFS1/ACP-ISD11/ISCU2/FXN)₂ in the presence of NB_4A7 (blue) or in the absence of the NB_4A7 (light blue). The SEC profile corresponding to the subcomplex (NFS1/ACP-ISD11/ISCU2)₂ in the presence of the NB_4A7 (dark green, NIAU/NB) or the absence (light green, NIAU). FXN alone or NB_4A7 alone were also loaded (black and orange, respectively). Buffer or buffer plus PLP profiles are shown as controls (dashed black and gray lines, respectively). D Interaction between biotin-FXN and NB_4A7 (orange dashed line), the subcomplex (NFS1/ACP-ISD11/ISCU2)₂ (NIAU, orange dotted line), or biotin-FXN with NB_4A7 and subcomplex (NFS1/ACP-ISD11/ISCU2)₂ (NIAU + NB_4A7, orange full line) followed by Interferometry. E Interaction between biotin-FXN and NB_28F6 (magenta dashed line), the subcomplex (NFS1/ACP-ISD11/ISCU2)₂ (NIAU, magenta dotted line), or biotin-FXN with NB_28F6 and (NFS1/ACP-ISD11/ISCU2) ₂ (NIAU + NB_28F6, magenta full line) by Interferometry. Buffer was 25 mM Tris-HCl, 150 mM NaCl, 1 mM DTT, 1 mM Cys, 10 μM PLP, pH 8.0. (NFS1/ACP-ISD) concentration was 1 μM, and ISCU2 was 3 μM.

Remarkably, when the supercomplex formed by NFS1, ACP-ISD11, ISCU2, and FXN subunits was loaded in SEC-FPLC system, in the presence of NB_4A7, the elution of the complete assembly shifted to a lower elution time (from 37.65 to 37.28 min, black arrow 2 to 3, absence or presence of NB_4A7) (Fig. 8C). By contrast, when FXN was absent, the presence of NB_4A7 did not modify the elution time of the subcomplex (NFS1/ACP-ISD11/ISCU) (Fig. 8C, elution time 38.4 min, black arrow 1 dark and light green, with or without NB_4A7), a fact indicative of the NB specificity for FXN. More importantly, these results suggest that NB_4A7 can bind FXN in the context of the supercomplex. Additionally, it was evident that a fraction of the NB bound to the free FXN shifted its elution time to lower values, indicating the stabilization of the complex NB:FXN (elution time shifted from 44.4 to 43.3 min in the absence or presence of NB_4A7, respectively). It is worthy of note that under these experimental conditions, the interaction of FXN with NFS1 is not so strong; in fact, other research groups reported a dissociation constant for wild-type FXN of K_D ~ 3 ± 1 μM⁵. Thus, we expected a high fraction of unbound FXN (∼55% unbound, ∼45% bound⁵³). Moreover, considering the dilution due to the SEC column volume, the unbound FXN fraction may be higher (a half dilution would result in ∼72% unbound and ∼28% bound).

We also conducted an interferometry experiment to investigate whether the supercomplex and NB_4A7 can bind simultaneously to FXN (Fig. 8D). In this experiment, streptavidin sensors were sensitized using the biotin-labeled FXN H177C variant, (Supplementary Fig. 5) and, after that, sensors were incubated with solution containing both NB and the subcomplex (NFS1/ACP-ISD11/ISCU2)₂ in the presence of a 3:1 excess of ISCU2: (NFS1/ACP-ISD11/ISCU2)₂, L-Cys and PLP to increase the affinity between ISCU2 and the core complex (NFS1/ACP-ISD11)₂¹⁴. Our results showed that the signal corresponding to the complete mix of proteins is even higher than the one observed for the NB_4A7 alone, suggesting that the interaction of FXN with the NB_4A7 does not impede supercomplex formation. Additionally, the K_D measured for FXN: (NFS1/ACP-ISD11/ISCU2)₂ was ∼0.6 μM, a value in the range of the dissociation constant previously measured under similar conditions (0.2 μM)¹⁴.

On the other hand, when a similar experiment was carried out using NB_28F6 (Fig. 8E), which binds to the helix 1, the signal observed for the subcomplex (NFS1/ACP-ISD11/ISCU2)₂ and NIAU + NB_28F6 was similar to that observed for NB_28F6, suggesting that this NB inhibits the binding of the subcomplex to FXN, in agreement with structural results (SAXS and NMR).

Expression of NBs in the mitochondria of human cell lines

To evaluate the effects of NB:FXN interaction on the cellular metabolism, we first studied whether the NBs could be successfully imported to the mitochondrial matrix when expressed in human cell lines. We used transfected HeLa Kyoto cells to evaluate this by immunofluorescence. We prepared vectors that included the NB sequence in frame with the citrate synthase mitochondrial transit sequence (MTS) for mitochondrial matrix localization. The cells were co-transfected with the Discosoma red fluorescent protein (dsRed Mito), which also included an MTS (cytochrome c oxidase subunit VIII). The transfected cells were analyzed after 48 h post-transfection.

As expected, when NBs were detected using an anti-VHH polyclonal serum, which recognizes the NBs invariable regions (followed by an anti-rabbit secondary antibody labeled with Alexa 488), the NB signal co-localized with that obtained with dsRed-Mito, strongly suggesting a mitochondrial localization of the NBs. This behavior was observed for the four nanobodies studied in this work (Supplementary Fig. 14A).

Importantly, the expression of NBs NB_4A7, NB_6B1 and NB_16C10 did not alter the viability of the cells (Supplementary Fig. 14B). The absence of significant toxicity after NB transfection and the lack of increased cytosolic immunofluorescence related to NBs suggest that NBs did not remain in the cytosol and do not prevent FXN from reaching the mitochondria. However, more experiments will be done, especially with unstable FXN variants or those that may remain longer in the cytosol. Therefore, we demonstrated that the NBs are localized in the mitochondria and that their expression did not significantly affect the cell viability. In turn, although the expression of NB_28F6 was very low, it was still possible to evaluate its subcellular localization, and the analysis suggests that it is localized in the mitochondria. On the other hand, the viability analysis of cells transfected with NB_28F6 should be examined cautiously due to the lower expression levels and the possibility that the effects may not be comparable to those of the other NBs.

NB expression and interaction between FXN and NB in HeLa Kyoto and HEK-293T cells. Characterization of Fe-S clusters related to mitochondrial bioenergetics

The interaction between FXN and NB in the cellular environment was investigated (Fig. 9). The results clearly showed that co-expressing NB_4A7 (using the citrate synthase MTS) and FXN (in its 210-residue precursor form) led to the colocalization of both proteins in a similar subcellular compartment (Fig. 9H), supporting previous findings that indicate mitochondrial localization of the NB (Supplementary Fig. 14A).

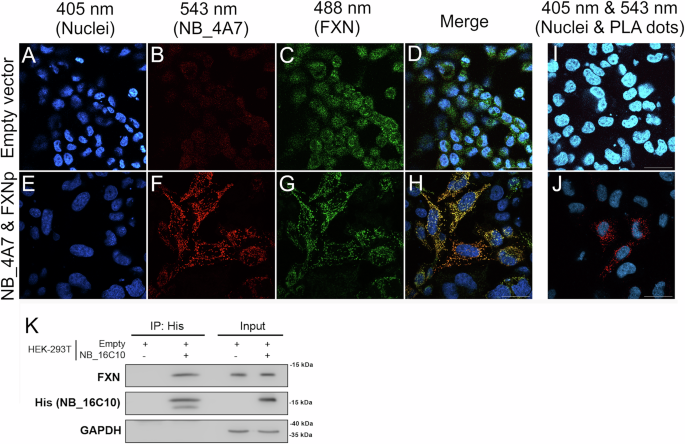

Fig. 9: Close proximity of FXN and NBs within the cellular environment.

A–H Immunofluorescence to assess NB_4A7 and FXN in the cellular environment using HeLa Kyoto cells. (A–D) Transfection with an empty plasmid; neither FXN nor NB_4A7 was transiently overexpressed (FXN is endogenous). E–H Both FXN precursor and NB_4A7 were transiently overexpressed from pCDNA3.1 vectors. Detection of FXN and NB_4A7 was performed using anti-FXN (host species: mouse, ABCAM ab110328) and anti-HA MAB (host species: rabbit, Cell Signaling HA-Tag (C29F4)). Labeled secondary antibodies detected FXN at 488 nm (secondary Antibody, Alexa Fluor™ 488) and NB at 543 nm (secondary Antibody, Alexa Fluor™ 594). The merged fluorescence signals are shown (yellow, D and H). Nuclei were counterstained with Hoechst (blue). I, J Proximity Ligation Assay (PLA) in HeLa Kyoto cells. Dots indicate the proximity of FXN to NB_4A7. Cells were fixed, washed, permeabilized, and incubated with primary antibodies, anti-FXN (mouse) and anti-HA (rabbit). PLA reactions were carried out, and cells were mounted using in situ mounting medium with DAPI. Two independent experiments were performed, and the presence or absence of red dots was analyzed in at least five different fields. Fluorescence microscopy images were then acquired. In (I), an empty vector was used, while (J), NB_4A7, and FXN precursors were transiently overexpressed using pCDNA3.1 vectors. Immunofluorescence was performed 48 h after transfection. K Co-immunoprecipitation of NB:FXN. HEK-293T cells were transfected with either an empty vector or a vector encoding the NB_16C10 sequence for protein expression. IP: His indicates the lanes where co-immunoprecipitation was performed using an anti-His tag antibody. FXN was detected with an anti-FXN monoclonal antibody, while NB was detected using the anti-His antibody. GAPDH was used to assess the protein content in the input of the co-IP experiments. The symbols + and – indicate the presence or absence of the respective vectors for cell transfection (empty or encoding NB_16C10). The scale bar is the same for all panels and corresponds, in all cases, to 30.0 μm.

Next, we employed the in situ proximity ligation assay (PLA, Fig. 9I, J and Supplementary Fig. 15) to determine whether the interaction between FXN and NB occurs within a cellular environment, particularly in HeLa Kyoto cells. Both FXN precursor and NB_4A7 were overexpressed. Most importantly, the PLA-positive signal (Fig. 9J) demonstrated that FXN and NB are within 40 nm of each other, indicating direct contact.

The interaction between NBs and FXN in a cellular environment was further studied through co-immunoprecipitation. Given that N_16C10 has a middle inhibitory effect on desulfurase activity compared to NB_4A7 and NB_6B1 and given that it exhibits the lowest K_D for FXN among the solved complexes (Supplementary Table 2), we evaluated this NB as a strong candidate for examining possible interactions in a more complex environment. The NB candidate, NB_16C10, was expressed in HEK-293T cells, and its interaction with endogenous FXN was examined. Notably, endogenous FXN was co-immunoprecipitated with NB_16C10 using an anti-His-tag antibody, indicating that a stable NB:FXN complex formed in the cells (Fig. 9).

Additionally, samples corresponding to the co-immunoprecipitation were investigated by mass spectrometry. The analysis of the peptides corresponding to the recovered proteins indicated a strong interaction between the NB_16C10 and FXN (Supplementary Table 7). The identification of peptides corresponding to citrate synthase suggests that the NB precursor containing the MTS of this mitochondrial enzyme was immunoprecipitated. However, since the immunoprecipitation was performed using an anti-His antibody, this does not necessarily indicate an interaction between the NB precursor and FXN in the cellular environment. Future research should focus on whether the NB and FXN can interact in the cytosol or, conversely, whether the precursor of the NB might interact with FXN in the mitochondrial matrix.

Remarkably, no proteins other than FXN, NB, and those recovered when cell samples were transfected with the empty vector were consistently retrieved, suggesting that the method used for cellular lysis may perturb the stability of other complexes involving protein-protein interactions of lower affinities than that of NB:FXN (K_D for FXN in the nanomolar range, Supplementary Table 2).

The effect of NB expression on FXN expression was studied. The densitometric analysis of Western blot membranes from three independent experiments showed similar levels of FXN among the cells transfected with an empty vector (Supplementary Fig. 16). Besides this, the expression of NB_4A7, NB_6B1, and NB_16C10 in HEK-293T cells was substantial (Supplementary Fig. 16B). However, the expression of NB_28F6 was significantly lower (Supplementary Fig. 16B) than the others (~90% lower, as evidenced by Western blotting).

Transfected HEK-293T cells were evaluated to identify possible adverse effects of the NB expression on Fe-S cluster-dependent enzymatic activities from ACO and SDH. The expression of NBs showed only slight modulations of ACO and SDH activities (Fig. 10A, B). Only the expression of the NB_16C10 led to a slight decrease of the SDH enzyme in HEK-293T cells (Fig. 10B). More experiments will be conducted to evaluate whether this is a direct effect on the enzyme through the alteration of Fe-S cluster assembly activity, or if, alternatively, the modulation of SDH is a consequence of more complex processes involving transcription, translation, or even post-translational modifications.

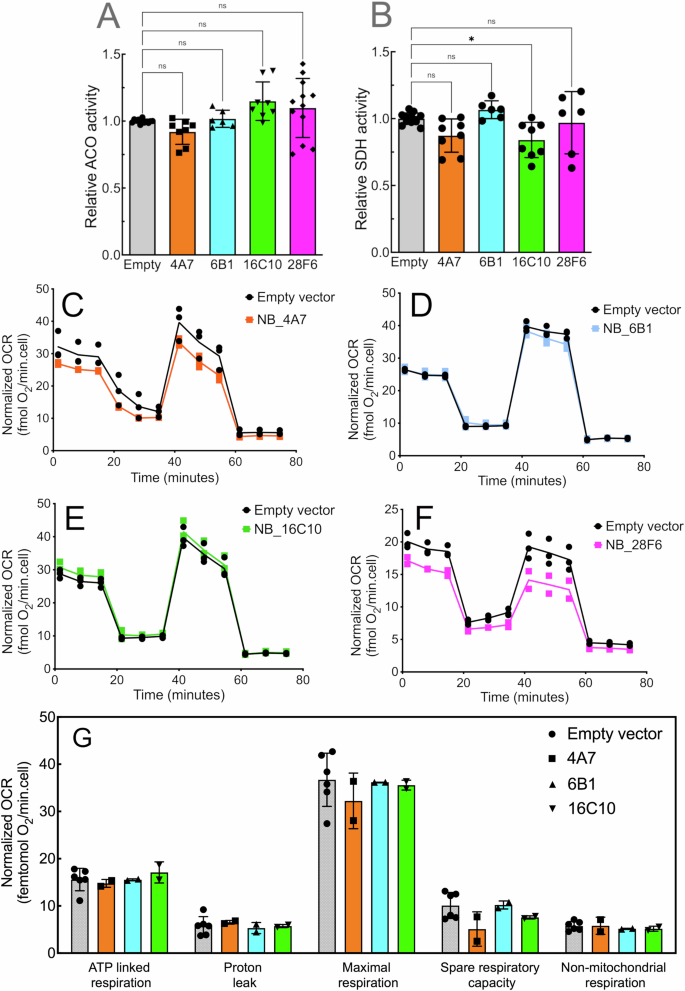

Fig. 10: Bioenergetic profiles, NB expression, enzymatic activities, and oxygen consumption rates in HEK-293T cells.

A Aconitase and B succinate dehydrogenase activities (ACO and SDH, respectively) were quantified 48 h after transfection. OCR profiles are shown for cells transfect with C NB_4A7, D NB_6B1, E NB_16C10, and F NB_28F6. G The OCR parameters. After basal O₂ consumption recording, oligomycin (an ATP synthase inhibitor) is added, and the coupling to the ATP synthesis is measured. Then, the addition of FCCP (a protonophore that uncouples oxygen consumption from ATP synthesis) allows us to measure the maximum respiratory capacity to use OXPHOS. This also enables the measurement of the spare respiratory capacity (SRC) as the difference between maximal and basal OCR. Finally, rotenone and antimycin A (Complex I and Complex III inhibitors, respectively) are added to block the electron transport chain. For panels A and B, three independent experiments were analyzed (n = 3), each with two technical replicates. For C–F, two independent experiments were analyzed (n = 2), including three technical replicates for each. Statistical analysis was performed using one-way ANOVA, followed by Dunnett´s test. Differences were considered significant when P ≤ 0.05. Error bars represent the standard errors.

To gain a more global picture of the effect of the FXN_ NB expression in these cells, we measured the oxygen consumption rate (OCR) 48 h after transfection (Fig. 10C–F), which is indicative of oxidative phosphorylation (OXPHOS) efficiency. Our results suggested that the OCR is not altered when NB_6B1 or 16C10 are expressed. These NBs exhibited similar extents in the increase of the OCR after p-trifluoromethoxyphenylhydrazone (FCCP) treatment, revealing a similar maximal respiratory capacity (Fig. 10G), as non-transfected cells. On the other hand, NB_4A7 exhibited a slight decrease in the basal respiratory capacity, possibly compatible with the slight decrease of SDH (Complex II, not significant) activity. However, the observed metabolic changes seem subtle, given the considerable mitochondrial protein expression of NB_4A7, 6B1, and 16C10.

In turn, when the HEK-293T cells were transfected with a vector encoding NB_28F6, although the expression of this NB was significantly lower than that of the other NBs (Supplementary Fig. 16B), a decrease in basal and maximal respiration was observed (Fig. 10F), indicating a reduction of mitochondrial metabolism.

Discussion

In this work, we characterized new molecular tools to explore the interaction of FXN with foreign binder partners. With this aim, twenty NBs specific to FXN were selected by phage display. We found that NBs can increase FXN conformational stability in vitro. It is therefore plausible to hypothesize that NB interaction may potentially rescue unstable FXN variants linked to FRDA. However, this hypothesis remains to be tested, as our study did not assess the effect of NB interaction on the conformational stability of FRDA-related FXN variants within a cellular context. Binding affinities were in the nanomolar range of 1–33 nM, suggesting a strong interaction, a key feature for complex formation in the cellular environment. SEC, NMR, and BLI results also suggested a slow dissociation equilibrium. In addition, in vitro L-Cys-desulfurase activity could be modulated by the NBs; while 1:1 molar ratio does not affect L-Cys desulfurase activity for some NBs (NB_4A7, 5A8, 29F7, and 83G4, Fig. 2 and Supplementary Fig. 3), an increase to 1:5 ratio was inhibitory. As at 1:1 ratio, ∼83% of the FXN is in complex with NB_4A7 (K_D = 33.0 nM), whereas ∼17% is free (calculated using the ligand binding simulation tool⁵³), the inhibition observed at 5:1 indicates a more complex interaction of the NB with the rest of the proteins of the system, suggesting unspecific binding under these conditions. The relevance of this fact will be further studied. On the other hand, binding of NB_4A7 to FXN did not inhibit the interaction of FXN with the supercomplex (Fig. 8), in agreement with the preservation of ∼85% and ∼70% of Cys desulfurase activity observed in vitro for 1:1 and 1:5 ratios, respectively (Fig. 2).

Different experimental techniques (NMR, X-ray crystallography, and SAXS) enabled us to characterize the interaction between the FXN and the NBs. Two distinct types of binding, which we have designated as Type I binding (as we find for NBs NB_16C10, NB_6B1, and NB_4A7), and Type II binding (as found for NB_28F6) were found (Figs. 4, 6, and 7). The complexes with a Type I binding have two key polar interactions with the FXN residues of the loop L1 of FXN; specifically, residues Glu121, Pro117, and Thr119, involving a molecular contact surface area of 581.7 Ų. Residue Glu121 plays a crucial role in the protein interaction of Type I by forming a salt bridge interaction with residue Arg38 and engaging in polar interactions with Ser62 of the NBs. Pro117 and Thr119 also play an important role by establishing H-bonds with residues His46 and Leu47 of β5 from the NBs. Even though Asn52 from CDR2 forms an H-bond with backbone Gly138 from FXN, and Val98, Pro99, and Pro100 from CDR3 are at Van der Waals distance of FXN, in Type I interaction mode, the recognition is not made using the three segments CDR1, CDR2, and CDR3. However, this is common for NBs that use a far vaster diversity of structural stretch combinations to bind antigens⁵⁴.

To study the effect of NBs in vivo, human cell lines were transfected with vectors encoding four different NBs. Three presented a considerable expression level; instead, NB_28F6 exhibited significantly lower expression. The four transfected NBs were found in the mitochondria of HeLa Kyoto cells. Remarkably, the expression of the NBs in HEK-293T and HeLa Kyoto cells did not alter FXN expression or cell viability. However, it will be important to assess the impact of NBs on the viability of other cell types and patient-derived cells.

Considering the degree of modulation of L-Cys desulfurase in vitro, the higher expression level of NBs in the cells, and the plausible broader spectrum of functions that FXN might exert inside the cells, including direct interactions with iron, aconitase^55,56, superoxide dismutase⁵⁷ or Complex I from the respiratory chain⁵⁸, we reasoned that the expression of the NBs could affect the Fe-S cluster-dependent enzymatic activities and energetics. However, the expression of NB_6B1 and NB_4A7 did not have effects on Fe–S–dependent ACO and SDH activities, and neither did the expression of NB_16C10 have effects on ACO, although it did exhibit a slight inhibition on SDH (Fig. 10). This last fact could be compatible with the absence of in-cell inhibition of mitochondrial L-Cys desulfurase NFS1 supercomplex in HEK-293T cells overexpressing NBs. Moreover, in a more global picture of the mitochondrial metabolism, we demonstrated that the expression of NB_4A7, NB_6B1 and NB_16C10 in HEK-293T did not alter mitochondrial respiration 48 h after transfection, suggesting that the mitochondrial global metabolism is not significantly perturbed when these NBs are expressed, imported into the mitochondria and eventually interacting with FXN (as judged by co-immunoprecipitation and in situ proximity ligation assay). However, the effect of nanobody expression on a wide range of Fe-S cluster-dependent enzymes should be assessed to understand its impact on cellular FXN function. Nanobody expression might alter specific enzymatic activities, which do not necessarily affect mitochondrial energetics.

Remarkably, NB_28F6 yielded a similar profile of ACO and SDH activities. However, under the same conditions, NB_28F6 showed very poor expression levels (∼5 times lower on average, Supplementary Fig. 16). Thus, we could not evaluate its effect on metabolism with confidence. The observed decrease of the OCR (even with a considerably lower protein expression level than the other NBs) suggests that NB_28F6 expression affects mitochondrial OCR through FXN intervention. In particular, the binding surface of FXN involved in the interaction with NB_28F6 could explain the inhibitory effects observed in vitro and in vivo (Figs. 2 and 10). As evidenced by our NMR results, it involves a larger portion of helix α1 in FXN, the acidic ridge of FXN and NB_28F6 binding resulted in the inhibition of the FXN-supercomplex interaction (Fig. 8). Unfortunately, the crystal structure of the FXN: NB_28F6 complex could not be obtained. We believe that some heterogeneity in the sample, arising from partial proteolysis of this NB (as indicated by mass spectrometry results), might impede the crystallization process. These dissimilar results between the in vitro and in-cell effects can be understood considering that the in vitro measured activity involves only a partial reaction, the first steps of Cys desulfurase reaction, employing DTT as a non-physiological reducing agent. In contrast, in the cell, the formation of the Fe-S cluster necessary to sustain Fe-S dependent enzymes involves several steps: the transfer of persulfide to ISCU2, the delivery of electrons (reduction) by FDX2, the assembly of the iron-sulfur cluster on ISCU2, and the transfer of the cluster to target subunits and enzymes.

The dynamic behavior of the L-Cys NFS1 desulfurase supercomplex was further characterized last year by including the electron donor for cluster assembly Ferredoxin 2 (FDX2)²¹. Recently, it was determined that this protein has a multifaceted binding mode (two steps involving the C-terminal partially folded stretch of FDX2) to the supercomplex⁵⁹. Moreover, it was demonstrated that FDX2 binds to the same supercomplex region as FXN. This indicates that precise exchange dynamics are essential for accurate function. Changes in FXN or FDX2 affinity by the supercomplex could significantly impact the kinetics of the catalytic cycle. The interaction of FXN with the NB, making subtle clashes of the NB and NFS1 structures, might have unexpected effects on function, suggesting that the reaction studied in vitro, the L-Cys desulfurization in the presence of DTT, may show a different profile compared to the complete reaction occurring in the cell, involving the Fe-S cluster formation, which depends on FDX2/FXN dynamics.

Regarding the interaction of NBs with FXN variants, NB_4A7 was able to interact with and stabilize some of the FRDA variants assayed (G130V, W155R, L198R), though not all. Specifically, variants D122Y and G137V, which carry mutations located at the interaction surface, were not significantly stabilized in vitro by this NB.

Notably, G130V, like many other FRDA-related FXN variants, exhibits less Cys desulfurase activation capability compared to the wild-type FXN. Specifically, this variant exhibits an in vitro activation of 50–60% compared to the control⁶⁰. Additionally, the FXN G130V concentration in vivo is low^51,61; it may be degraded, presumably due to its low conformational stability⁵⁰. Furthermore, altered mitochondrial import⁵¹ and MTS processing⁶² were described for this variant.

The analysis of in vitro experiments suggested that NB_4A7 does not increase the activation capability of G130V (Supplementary Fig. 3B). Considering also the observation that NBs can endow G130V with conformational stability, these results indicate that G130V may have a locally altered conformation in both states, free or in complex with the NB; thus, when a Val residue occupies position 130, the side chain is at van der Waals distance from residues Ser385 and Glu387, near of Cys381, which is involved in the transfer of persulfide from the PLP catalytic center to the ISCU2 assembly site. Thus, Val130 could directly alter the activation capability.

Currently, our laboratory is investigating the potential of producing NBs in a Trojan version for cell penetration and delivery⁶³. These NBs can be easily produced using a bacterial expression system, making their production cost-effective and efficient. It is worth mentioning that the premature folding of the Trojan NB precursor may cause the accumulation of NB in the cytosol or the stalling of NB at the protein import apparatus, leading to proteotoxic stress⁶⁴. Thus, NB proteostasis should be studied to prevent such stress and other effects of mitochondrial NB import. Additionally, although the immunogenicity of NBs is reduced⁶⁵, in vivo experiments will require a deeper understanding of the interaction between these specific NBs and the immune system.

In this work, we successfully localized NBs in the mitochondrial matrix, which exhibit a high affinity for FXN and stabilize a series of FRDA-related variants in vitro. Moreover, the analysis of the in situ Proximity Ligation Assay results demonstrated the direct interaction between NB and FXN in the cellular environment. These findings open the door to a general strategy based on intervening in mitochondrial biochemistry using specific nanobodies. These new tools may help in adding specific players to the macromolecular environment closest to the supercomplex.
