Enhancing radiation-resistance and peroxidase-like activity of single-atom copper nanozyme via local coordination manipulation

Wu, Jiabin; Zhu, Xianyu; Li, Qun; Fu, Qiang; Wang, Bingxue; Li, Beibei; Wang, Shanshan; Chang, Qingchao; Xiang, Huandong; Ye, Chengliang; Li, Qiqiang; Huang, Liang; Liang, Yan; Wang, Dingsheng; Zhao, Yuliang; Li, Yadong

doi:10.1038/s41467-024-50416-8

Download PDF

Article
Open access
Published: 22 July 2024

Enhancing radiation-resistance and peroxidase-like activity of single-atom copper nanozyme via local coordination manipulation

Nature Communications volume 15, Article number: 6174 (2024) Cite this article

15k Accesses
87 Citations
Metrics details

Subjects

Abstract

The inactivation of natural enzymes by radiation poses a great challenge to their applications for radiotherapy. Single-atom nanozymes (SAzymes) with high structural stability under such extreme conditions become a promising candidate for replacing natural enzymes to shrink tumors. Here, we report a CuN₃-centered SAzyme (CuN₃-SAzyme) that exhibits higher peroxidase-like catalytic activity than a CuN₄-centered counterpart, by locally regulating the coordination environment of single copper sites. Density functional theory calculations reveal that the CuN₃ active moiety confers optimal H₂O₂ adsorption and dissociation properties, thus contributing to high enzymatic activity of CuN₃-SAzyme. The introduction of X-ray can improve the kinetics of the decomposition of H₂O₂ by CuN₃-SAzyme. Moreover, CuN₃-SAzyme is very stable after a total radiation dose of 500 Gy, without significant changes in its geometrical structure or coordination environment, and simultaneously still retains comparable peroxidase-like activity relative to natural enzymes. Finally, this developed CuN₃-SAzyme with remarkable radioresistance can be used as an external field-improved therapeutics for enhancing radio-enzymatic therapy in vitro and in vivo. Overall, this study provides a paradigm for developing SAzymes with improved enzymatic activity through local coordination manipulation and high radioresistance over natural enzymes, for example, as sensitizers for cancer therapy.

Matching the kinetics of natural enzymes with a single-atom iron nanozyme

Article 06 May 2021

A cuproptosis nanocapsule for cancer radiotherapy

Article 19 September 2024

NF-κB is involved in the regulation of autophagy in mutant p53 cells in response to ionizing radiation

Article Open access 25 June 2021

Introduction

Generally, natural enzymes exposed to radiation such as X- and γ-rays can suffer a permanent alteration in their structures, resulting in their inactivation to some extent through both direct and indirect actions^1,2,3,4,5. Because water constitutes nearly 80% of the composition of most biological tissues, X-ray can ionize water molecules to break the hydrogen-oxygen bonds, generating a series of chemically reactive species (e.g., H₂O₂, ^•OH, ^•H, and e_aq⁻)^6,7,8. Sequentially, these species diffuse towards the surface of natural enzymes to damage their biochemical structures by chemical reactions. Meanwhile, X-ray can also interact with the atoms of natural enzymes, leading to the chain of physical and chemical events that eventually cause their structural changes and even chemical modifications^9,10,11,12. Therefore, the inactivation of natural enzymes by X- and γ-rays dramatically hinders their various applications¹³. For example, catalase, which can reverse the tumor hypoxia microenvironment via decomposing H₂O₂ into O₂, would lose its enzymatic activity during the course of radiotherapy¹⁴, consequently decreasing radiotherapeutic efficacy^15,16. Therefore, a major central issue of current research is to develop artificial enzymes with excellent radiation-resistance as well as superior enzymatic activity, aiming at addressing the limitations of natural enzymes to fulfilment of their actual application in radiotherapy.

Nanoenzymes, which exhibit intrinsic enzyme-mimetic activity, combine the advantages of biocatalysts and nanomaterials to confer unique capabilities beyond natural enzymes, including low cost, high stability, and easy storage^17,18,19,20. Owing to artificial enzyme engineering capable of manipulating biocatalytic active sites at both atomic and molecular levels, nanoenzymes with peroxidase-, superoxide dismutase-, and catalase-like enzymatic activities are continually designed through the inspiration from the structure of natural enzymes^{21,22,23,24,25,26}. So far, significant effort has been focused on understanding those nanozymes for tumor diagnosis and therapy from in vitro to in vivo^{27,28,29,30,31,32}. To further enhance the enzymatic activity, single-atom nanoenzymes (SAzymes) with designable geometric structures and optimized atom utilization have been studied for enzymatic therapy via generating therapeutic species from intracellular substances^{18,33,34,35,36,37,38,39,40}. In particular, Cu SAzymes with densely isolated CuN₄ sites (CuN₄-SAzyme) have been demonstrated to exhibit higher peroxidase-like activity than copper oxide (CuO_x) nanoparticles^{41,42,43,44,45}. However, this Cu-N₄ coordination structure still suffers from weak adsorption of H₂O₂, leading to the direct detachment of intermediate species. To overcome this issue, an alternative approach is to modulate the coordination number of single Cu sites, so as to promote the adsorption and dissociation of H₂O₂ at the active sites and boost the activity of Cu-based SAzymes towards peroxidase-like reactions^{46,47,48,49,50}. On the other hand, carbon materials are highly resistant to radiation damage^{51,52,53,54,55} and can be served as the substrate of SAzymes to endow them with high structural stability under X-ray and even high-energy γ-ray irradiation. This feature is able to stabilize the geometrical structure of active sites and maintain the enzyme activity against radiation. Hence, it is conceived that, by precisely regulating local coordination environment, such as coordination number, of single Cu sites supported on two-dimensional (2D) carbon nanostructures, CuN_x-SAzymes with excellent enzymatic activity and radioresistance will be realized to overcome the drawbacks associated with traditional nanoenzymes and natural enzymes, hopefully resulting in the concurrent higher therapeutic efficacy and fewer side effect to healthy tissues.

In this study, we fabricate a powerful single-atom Cu enzyme with Cu-N₃ coordination (CuN₃-SAzyme) via regulating local coordination number. The enzymatic activity and kinetics of this resulting CuN₃-SAzyme are much higher than those of CuN₄-SAzyme and CuO_x nanozymes. Density functional theory (DFT) calculations demonstrate that the designed CuN₃ active moiety endows CuN₃-SAzyme with remarkable peroxidase-like activity. Furthermore, CuN₃-SAzyme is more stable than natural enzyme peroxidase when exposed to X-ray with the radiation dose up to 500 Gy. Interestingly, the introduction of X-ray can enhance the peroxidase-like activity and kinetics of CuN₃-SAzyme. Combining superior radioresistance and excellent enzymatic activity, CuN₃-SAzyme can be utilized for enhanced radio-enzymatic therapy to resolve the crucial issues facing the application of natural enzymes.

Results

Synthesis and characterization of CuN_x-SAzymes

The synthesis of CuN₃-SAzyme and CuN₄-SAzyme is schematically illustrated in Fig. 1a. Taking CuN₃-SAzyme as an example, KCl crystals as the template were mixed with a methanol solution containing Cu(NO₃)₂ and 2-methylimidazole to form Cu-MOFs layers and the as-obtained precursor was calcinated at 850 °C for 2 h. After the removal of KCl template and etching with H₂SO₄, 2D carbon nanosheets supporting CuN₃ active moieties were obtained. Transmission electron microscopy (TEM) images demonstrate a typical 2D feature with atomically smooth surface for CuN₃-SAzyme (Fig. 1b), which is consistent with the result of Raman analysis (Supplementary Fig. 1), while a polyhedral morphology with a porous structure for CuN₄-SAzyme (Supplementary Fig. 2). Their X-ray diffraction (XRD) patterns show main broad diffraction peaks at ~26° corresponding to graphitic carbon but no significant characteristic peaks ascribed to Cu-based nanoparticles (Supplementary Fig. 3). Energy-dispersive spectroscopy (EDS) mapping analysis displays uniform dispersion of C, N, and Cu elements throughout the whole architectures of CuN₃-SAzyme and CuN₄-SAzyme, respectively (Fig. 1c, d and Supplementary Fig. 4). X-ray photoelectron spectroscopy (XPS) analysis was performed to determine the chemical states of C and N elements on CuN_x-SAzymes (Supplementary Figs. 5, 6). Typically, C 1 s spectrum exhibits three peaks associated with C = C/C-C ( ~ 284.7 eV), C-N ( ~ 285.8 eV), and O = C-C ( ~ 288.5 eV) and N 1 s spectrum can be deconvoluted into three peaks at binding energies of ~398.6 eV, ~400.1 eV, and ~401.3 eV, which are attributed to pyridinic N, pyrrolic N, and graphitic N, respectively. Inductively coupled plasma optical emission spectrometry (ICP-OES) was further applied to quantify the Cu content, which is 2.98 wt% for CuN₃-SAzyme and 1.21 wt% for CuN₄-SAzyme. In addition, the aberration-corrected high angle annular dark-field scanning transmission electron microscopy (AC HAADF-STEM) was performed to investigate CuN_x-SAzymes at the atomic scale (Fig. 1e–g and Supplementary Fig. 7).

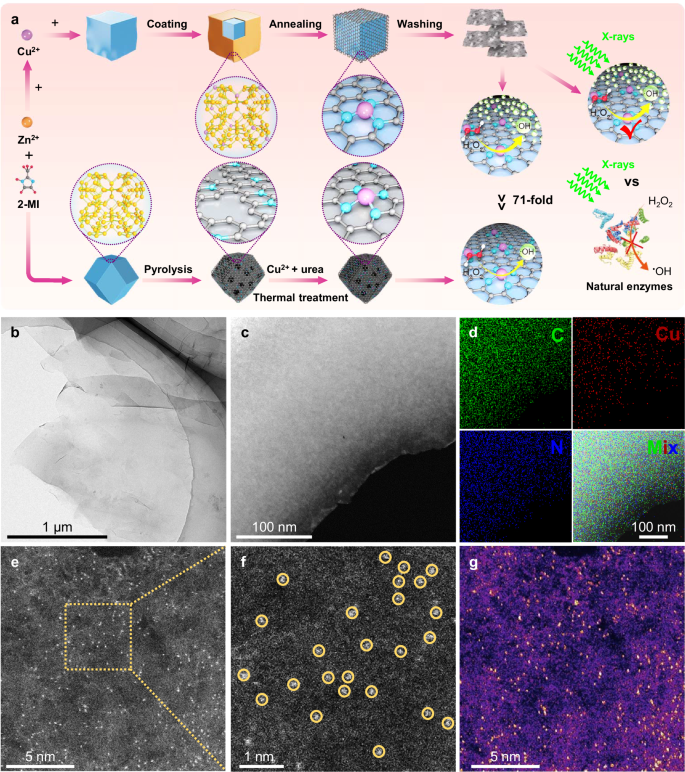

Fig. 1: Characterization of CuN3-SAzyme. — **Fig. 1: Characterization of CuN₃-SAzyme.**

Comparison of atomic structure of CuN₃-SAzyme with CuN₄-SAzyme

The chemical state and coordination environment of both CuN₃-SAzyme and CuN₄-SAzyme were analyzed using Cu K-edge X-ray absorption fine structure (XAFS) spectroscopy. The X-ray absorption near-edge structure (XANES) spectrum, which is sensitive to the three-dimensional atomic arrangement around the center metal, serves as a powerful tool for identifying the atomic configurations. Figure 2a shows the Cu K-edge XANES spectra of CuN_x-SAzyme, CuO_x nanozymes, and Cu foil. It is noteworthy that the absorption edges of CuN₃-SAzyme and CuN₄-SAzyme are located between those of CuO_x nanozymes. For CuN₃-SAzyme, the absorption edge is closer to that of Cu₂O nanozyme, indicating that the atomically dispersed Cu species have a positive charge with a chemical valence close to +1. This finding aligns with the Cu 2p XPS spectrum of CuN₃-SAzyme, which shows a peak at the binding energy of 931.4 eV (Fig. 2b). The presence of trace amount of Cu²⁺ in CuN₃-SAzyme could be attributed to the acid etching process. In contrast, the absorption edge of CuN₄-SAzyme is much closer to that of CuO nanozyme and its Cu 2p XPS spectrum displays a main peak at a binding energy of 934.4 eV^56,57. These observations suggest that the atomically dispersed Cu species in CuN₄-SAzyme have a chemical valence close to +2. A minor presence of Cu⁺ (931.4 eV) is likely due to the reduction of Cu²⁺ by ammonia generated during the pyrolysis process.

Fig. 2: Atomic structural analysis of CuN3-SAzyme by XAFS. — **Fig. 2: Atomic structural analysis of CuN₃-SAzyme by XAFS.**

Figure 2c displays the Fourier transformed extended Cu K-edge X-ray absorption fine structure (FT-EXAFS) spectra of CuN_x-SAzymes, using CuO_x nanozymes and Cu foil as references. Both CuN₃-SAzyme and CuN₄-SAzyme display a main peak around 1.5 Å, which corresponds to the Cu-N peak, with no obvious peak at ~2.3 Å, indicating the absence of Cu-Cu coordination. This confirms that no metallic crystalline Cu species are formed and that only isolated single Cu atoms are present, in agreement with the AC HAADF-STEM measurement results. To gain further structural insights, we performed least-squares fits to the R-space FT-EXAFS plots of CuN_x-SAzymes, CuO_x nanozymes, and Cu foil (Fig. 2d and Supplementary Fig. 8). The k-space EXAFS fitting plots are shown in Fig. 2e and Supplementary Fig. 9, with refined parameters listed in Supplementary Table 1. The best-fitting results demonstrate that the dominant peak at ~1.5 Å is due to the Cu-N first shell coordination. Given that the coordination number of Cu is three, the proposed structural model of CuN₃ active moieties is illustrated in Fig. 2f. The q-space EXAFS plots of CuN_x-SAzymes, CuO_x nanozymes, and Cu foil are shown in Supplementary Fig. 10.

EXAFS wavelet transform (WT) analysis was employed to distinguish the backscattering atoms, even when there was significant overlap in R space. As depicted in Fig. 2g, the WT contour plot of CuN₃-SAzyme exhibits a single intensity peak around 5 Å⁻¹, indicating the coordination between Cu and light atoms. This result is consistent with the WT contour plot of CuO_x nanozymes. Unlike Cu foil, the WT contour plot of CuN₃-SAzyme does not show an intensity peak at 7 Å⁻¹, which is associated with Cu-Cu interactions. This absence confirms that the Cu species in CuN₃-SAzyme are atomically dispersed without metal-derived crystalline structures (Fig. 2h, i and Supplementary Fig. 11).

Evaluation of peroxidase-like activity of CuN₃-SAzyme

Inspired by the chemical microenvironments capable of altering the activity of SAzymes, we next estimated and compared the peroxidase-like activities of CuN_x-SAzymes. Similar to natural horseradish peroxidase (HRP), both CuN₃-SAzyme and CuN₄-SAzyme show intrinsic peroxidase-like activity towards typical peroxidase substrates, such as 3,3’,5,5’-tetramethylbenzidine (TMB), 1,2-diaminobenzene (OPD), and 2,2’-azino-bis (3-ethylbenzothiazoline-6-sulfonic acid) (ABTS), to produce distinct color reactions in the presence of H₂O₂ (Fig. 3a). Taking TMB as a typical substrate, the absorbance of oxidized TMB increases immediately for CuN₃-SAzyme, which is much faster than those of CuN₄-SAzyme as well as CuO_x nanozymes. This indicates that CuN₃-SAzyme displays the highest enzymatic activity among those tested Cu-based nanozymes. The calculated apparent specific activity of CuN₃-SAzyme in pH 3.54 (11.33 U mg⁻¹) is about 71-fold higher than that of CuN₄-SAzyme (0.16 U mg⁻¹), more than 12-fold higher than that of CuO nanozyme (0.91 U mg⁻¹), and almost 5-fold higher than that of Cu₂O nanozyme (2.08 U mg⁻¹) (Fig. 3b). Conversely, Cu-free N-doped carbon support shows no significant catalytic performance under the same conditions (Supplementary Fig. 12). These results indicate that regulating the coordination structure, in particular coordination number, of the Cu sites enables orders of magnitude enhancement of the peroxidase-like activity of Cu-based nanozymes. In addition, the catalase-like activity of CuN₃-SAzyme was also determined and calculated to be 0.40 U mg⁻¹ (Supplementary Fig. 13). This value is lower than the per-oxidase activity of CuN₃-SAzyme, showing its catalytic specificity.

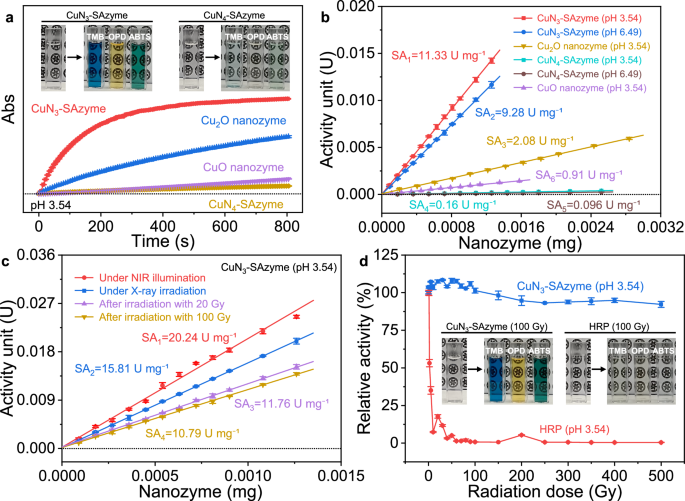

**Fig. 3: Characterization of enzymatic activity.**

These nanozymes were found to follow the Michaelis-Menten kinetics and the steady-state kinetic parameters were further determined to quantitatively compare their catalytic characteristics (Supplementary Fig. 14). Notably, at pH 3.54, CuN₃-SAzyme exhibits better catalytic efficiency (k_cat/K_m = 6.56 × 10³M⁻¹ min⁻¹) and higher selectivity (K_m = 1.61 × 10⁻³M) than those of CuN₄-SAzyme (k_cat/K_m = 1.46 × 10²M⁻¹ min⁻¹, K_m = 1.42 × 10⁻²M), as well as CuO_x nanozymes (k_cat/K_m = 19.30 M⁻¹ min⁻¹, K_m = 7.53 × 10⁻³M for Cu₂O nanozyme; k_cat/K_m = 31.30 M⁻¹ min⁻¹, K _m = 2.11 × 10⁻³M for CuO nanozyme) (Supplementary Table 2). The kinetic parameters for H₂O₂ substrate were also measured to confirm excellent enzymatic activity of CuN₃-SAzyme relative to CuN₄-SAzyme (Supplementary Fig. 15). As expected, the k_cat and k_cat/V_max values of Cu₃-SAzyme on H₂O₂ substrate (k_cat = 9.41 min⁻¹, k_cat/K_m = 1.43 × 10²M⁻¹ min⁻¹) is much higher compared to CuN₄-SAzyme (k_cat = 1.27 min⁻¹, k_cat/K_m = 1.69 M⁻¹ min⁻¹) and CuO_x nanozymes (k_cat = 5.88 × 10⁻²min⁻¹, k_cat/K_m = 0.52 M⁻¹ min⁻¹ for Cu₂O nanozyme; k_cat = 4.27 × 10⁻²min⁻¹, k_cat/K_m = 0.81 M⁻¹ min⁻¹ for CuO nanozyme) at pH 3.54, indicative of higher enzymatic activity of Cu₃-SAzyme (Supplementary Table 3). The similar trend is also observed at pH 6.49 (Supplementary Fig. 16). These results facilitate the establishment of a relationship between coordination environments and catalytic performance for rational design of SAzymes with excellent enzymatic activity beyond natural enzymes.

DFT calculations were also carried out to investigate the enzymatic activity of CuN₃-SAzyme. It is found that there is a strong interaction between the Cu single atom on CuN₃-SAzyme and H₂O₂ molecules, making H₂O₂ dissociation being a barrierless process; while this interaction is very weak for CuN₄-SAzyme and thus H₂O₂ cannot be adsorbed on it. The higher activity of CuN₃-SAzyme than CuN₄-SAzyme can be interpreted in terms of both electronic and geometric factors. As shown in Fig. 4a, most of the Cu d-states in CuN₃-SAzyme lie within an energy range of 2 eV below the Fermi level, and there is a significant distribution of the d-states on the single Cu atom near the Fermi level. However, for the single Cu atom on CuN₄-SAzyme, the vast majority of its d-states lie outside 2 eV below the Fermi level, and the distribution of Cu d-states near the Fermi level is also smaller. In addition, the single Cu atom on CuN₃-SAzyme protrudes more than 2 Å above the graphene plane, which can bind with H₂O₂ more easily than the in-plane Cu atom on CuN₄-SAzyme. Figure 4b shows the calculated energy profiles for the dissociation of H₂O₂ molecule on CuN₃-SAzyme at two experimental pH values (3.54 and 6.49). The cleavage of the O-O bond in H₂O₂ and the subsequent formation of the H₂O molecule are both readily occurring processes for CuN₃-SAzyme, further supporting its excellent enzymatic activity. It is worth noting that in reality the above processes are more likely to occur, because ^•OH radicals produced by H₂O₂ dissociation are very easily involved in reactions in the environment where they are located, leading to a further decrease in the energy of the whole system.

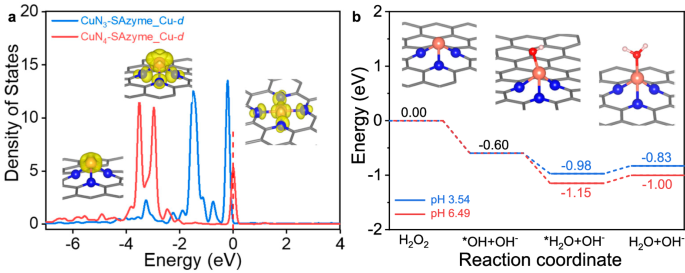

Fig. 4: DFT studies on the peroxidase-like activity of CuN3-SAzyme. — **Fig. 4: DFT studies on the peroxidase-like activity of CuN₃-SAzyme.**

Radiation-resistance characterization of CuN₃-SAzyme

Environment conditions, in particular X-ray, essentially affect the enzyme activity by altering the biochemical structures⁵⁸. Therefore, good resistance against X-ray is required for enzymes to maintain their structure and activity during radiotherapy, so that robust therapeutic efficacy would be continuously achieved to enhance therapeutic efficacy. Prior to using CuN₃-SAzyme as a radiosensitizer, we thus evaluated the influence of environment conditions on its peroxidase-like activity. Remarkably, high enzymatic activities (≥ 80%) are observed over a broad range of temperatures and pH levels, without substantial morphological change (Supplementary Figs. 17–19). This demonstrates that CuN₃-SAzyme shows better tolerance towards pH and higher stability against temperature compared to natural HRP. More interestingly, at pH 3.54, exposure of CuN₃-SAzyme to radiation significantly enhances its peroxidase-like activity: the specific activity and k_cat/K_m increase to 20.24 U mg⁻¹ and 9.04 × 10³M⁻¹ min⁻¹ under 808 nm NIR light illumination, respectively, and to 15.81 U mg⁻¹ and 8.43 × 10³M⁻¹ min⁻¹ under X-ray irradiation, respectively (Fig. 3c, Supplementary Figs. 20–23, and Supplementary Table 4). These may be attributed to CuN₃-SAzyme-mediated photothermal effect^32,59 and X-ray-accelerated Cu⁺/Cu²⁺ conversion on CuN₃-SAzyme⁶⁰.

As known, X-ray is capable of damaging the structure of natural enzymes. Therefore, it is observed that the enzymatic activity of natural HRP decreases sharply after X-ray irradiation and finally approaches to zero with the radiation dose greater than 50 Gy (Fig. 3d), accompanied by the changes in its structure (Supplementary Fig. 24). For CuN₃-SAzyme, however, there is no significant decrease in its peroxidase-like activity or kinetic parameters after irradiation by X-ray with the radiation dose up to 100 Gy, and only a 10% decrease is detected upon further irradiation (500 Gy) (Fig. 3d, Supplementary Figs. 21 and 25, and Supplementary Table 4). Moreover, the enzymatic activity of CuN₃-SAzyme does not decrease even after several radiation cycles (Supplementary Fig. 26). No changes are found, either in the morphology and chemical structures of CuN₃-SAzyme or its enzymatic kinetics, as attested by XPS, TEM and EDS mapping (Supplementary Figs. 27–30). Furthermore, XAFS analysis shows that the coordination microenvironment of Cu atoms remains the same after X-ray irradiation (Supplementary Fig. 31). These results suggest that CuN₃-SAzyme is more resistant to X-ray than natural enzymes and can be efficiently reused for repeated cycles without appreciable loss of enzymatic activity. The features are crucial for various applications, in particular for radiotherapy where radiation-resistance and good recyclability are highly desirable.

This difference between CuN₃-SAzyme and natural HRP in terms of radioresistance against X-ray is mainly due to the following reasons. First, each active site of CuN₃-SAzyme contains only one Cu atom and three N atoms, and the interaction between them is sufficiently strong. This means that the CuN₃ active sites can maintain not only structural but also conformational stability. Additional DFT calculations show that the interaction strength between the Cu atom and the N3 group is as high as 2.96 eV, meaning that the anchored Cu atom is not easily detached from the substrate. Moreover, our ab initio molecular dynamics (AIMD) simulations for simulating the energy fluctuations of CuN₃-SAzyme under X-ray irradiation (using a large supercell and at a high temperature of 1,773 K) (Supplementary Fig. 32) do not find any other geometry of CuN₃ except the one shown in Fig. 2f, demonstrating that the CuN₃ active sites can be well preserved and are not susceptible to conformational changes (Supplementary Fig. 33). We note in passing that a small fraction of Cu atoms detaches from the anchoring N3 groups when the simulated temperature is further increased to 2,273 K (corresponding to more drastic energy fluctuations), which is consistent with the observed slight decrease in the peroxidase-like activity of CuN₃-SAzyme under high-dose irradiation (500 Gy) (Fig. 4d and Supplementary Fig. 34). When one, two, three, and four electrons are removed from CuN₃-SAzyme, to simulate the ionization of CuN₃-SAzyme under X-ray irradiation, the above results still hold (Supplementary Fig. 35), further confirming the stability of the CuN₃ active sites. In contrast, the active center of natural HRP contains more atoms and groups, and the interactions include not only strong chemical bonds but also weaker hydrogen bonds and intermolecular interactions. Under X-ray irradiation, these weaker interactions can be easily disrupted, causing the active center to change to other configurations and lose its original enzymatic activity. Such instabilities can be further aggravated by electron ionization caused by X-ray irradiation.

The second reason stems from the low Cu content in CuN₃-SAzyme, which means that the short-wavelength X-ray photons that penetrate the nanozyme have a high probability of interacting with the carbon architecture and a very low probability of interacting with the CuN₃ active sites directly. Previous experiments have shown that the main structure of few-layer graphene remains unchanged after X-ray irradiation⁶¹, and our AIMD simulation results also confirm the stability of the CuN₃-SAzyme system (Supplementary Figs. 33 and 35). In contrast, the active center of natural HRP occupies a much larger space than that of the CuN₃ active moieties, and the stability of the adopted conformation of the active center also depends on its surrounding environment with an even larger size. The X-ray photons can easily hit some of the components associated with the functionality of the natural enzyme, thus destabilizing the conformation and decreasing its enzymatic activity. Taken together, these results attest that anchoring CuN₃ active moieties on 2D carbon nanostructures makes CuN₃-SAzyme much more radioresistant to X-ray and this concept could be further extended to fabricate other radioresistant SAzymes. Furthermore, it is found that CuN₃-SAzyme is also radioresistant to γ-ray (a cobalt-60 source, average photon energy of 1.25 MeV), without significant changes in its enzymatic activity or chemical structures (Supplementary Figs. 36-38).

Synergistical inhibition of tumor growth by CuN₃-SAzyme

Encouraged by the radiation-enhanced peroxidase-like activity of CuN₃-SAzyme and remarkable photothermal performance (Supplementary Figs. 39, 40), we employed CuN₃-SAzyme as an effective therapeutics for enhanced radio-enzymatic therapy. For biomedical application, CuN₃-SAzyme was first cut and reduced to tiny sheets through ultrasonication, with the average hydrodynamic diameter of ~280 nm and zeta potential of -9.70 mV (Supplementary Figs. 41, 42). CuN₃-SAzyme can be internalized into cells via clathrin-mediated endocytosis (Supplementary Fig. 43) and triggers a concentration-dependent death, with the half maximal inhibitory concentration (IC50) of 13.12 μg mL⁻¹ for 4T1 cells and 18.50 μg mL⁻¹ for K7M2 cells (Fig. 5a and Supplementary Fig. 44). In contrast, due to lower peroxidase-like activity, CuO_x nanozymes and CuN₄-SAzyme exhibit less toxicity at the same incubation concentration (Supplementary Fig. 45). In addition, CuN₃-SAzyme has higher IC50 value (23.18 μg mL⁻¹) for 3T3 cells as a normal model (Supplementary Fig. 46). These infer that CuN₃-SAzyme shows an efficient and selective inhibiting capability for tumor cells. After exposure to 808 nm NIR light, the IC50 value of CuN₃-SAzyme decreased to 8.85 μg mL⁻¹ at the power density of 1.00 W cm⁻² and further to 2.83 μg mL⁻¹ at the power density of 1.50 W cm⁻², indicating a progressive enhancement with increasing power density of 808 nm NIR light (Supplementary Fig. 47). Furthermore, CuN₃-SAzyme plus co-irradiation with 808 nm NIR light and X-ray induces the best inhibition ability for colony formation and this enhanced inhibition efficiency is concentration-dependent (Fig. 5b, c and Supplementary Figs. 48, 49). Using 2’,7’-dichlorofluorescin diacetate as a fluorescent indicator, it is found that CuN₃-SAzyme enables catalytic generation of more radical oxygen species (ROS) at the cellular level to kill cancer cells (Fig. 5d).

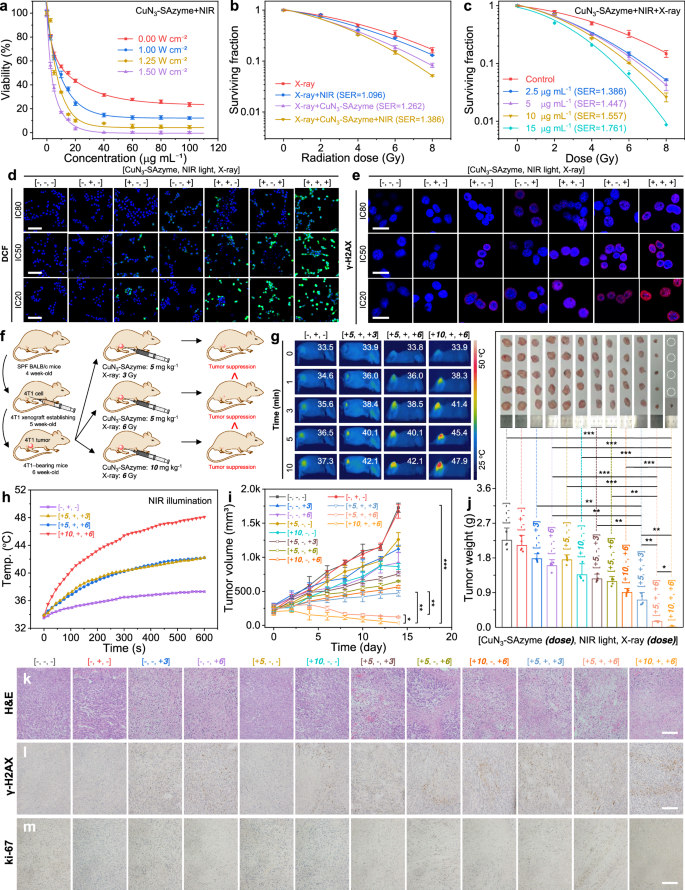

Fig. 5: In vitro and in vivo enhanced radio-enzymatic therapy by CuN3-SAzyme. — **Fig. 5: In vitro and in vivo enhanced radio-enzymatic therapy by CuN₃-SAzyme.**

The ROS-related cytotoxicity of CuN₃-SAzyme was further addressed by analyzing cellular response, including DNA double-strand breaks (DSBs) and mitochondrial membrane potential loss. When incubated with CuN₃-SAzyme, the γ-H2AX fluorescence is observed in the nuclei of 4T1 cells and sharply increases under 808 nm NIR light and/or X-ray irradiation (Fig. 5e and Supplementary Fig. 50). This indicates that the ROS generated from the elevated intracellular H₂O₂ indeed cause DSBs and this effect is remarkably improved upon 808 nm NIR light and X-ray irradiation. Moreover, the concentration-dependent loss of mitochondrial membrane potentials is observed in the CuN₃-SAzyme-treated 4T1 cells and the green fluorescence completely disappear when further irradiated by 808 nm NIR light and X-ray. This confirms the intensive damage of mitochondrial membrane, simultaneously accompanying with the release of cytochrome c into the cytosol and inducing mitochondria-mediated apoptosis pathway (Supplementary Figs. 51–53).

To further test the in vivo therapeutic efficacy, 4T1 mammary tumor-bearing BALB/c mice were injected intratumorally with CuN₃-SAzyme followed by X-ray irradiation (Fig. 5f). Notably, the remarkable photothermal effect enables the increase in the temperature of tumor sites (Fig. 5g, h), overcoming their tumor hypoxia microenvironment (Supplementary Figs. 54, 55). According to the variation in the tumor volume, co-treatment with CuN₃-SAzyme and X-ray leads to an enhanced tumor inhibition efficacy on tumor growth at 5 and 10 mg kg⁻¹ doses (Fig. 5i, j). The highest suppression effect is obtained in the CuN₃-SAzyme treated group plus co-irradiation and also confirmed by the evidence from the hematoxylin and eosin (H&E)- and γ-H2AX-stained histopathological images, as well as the lowest antigen Ki-67 expression (Fig. 5k–m and Supplementary Figs. 56, 57). These results demonstrate that CuN₃-SAzyme could effectively suppress 4T1 tumor growth in vivo mainly due to irradiation-enhanced peroxidase-like activity which enables the generation of more ROS from endogenous H₂O₂ and to the revision of the hypoxic microenvironment via CuN₃-SAzyme-mediated photothermal effect.

Finally, the safety profile of CuN₃-SAzyme was evaluated by examining the loss of body weight after intratumoral and subcutaneous injection in mice. As expected, CuN₃-SAzyme exhibits good hemocompatibility without red blood cell damage and induces no significant variations in body weight at various doses (5 and 10 mg kg⁻¹ for intratumoral injection, 10 and 20 mg kg⁻¹ for subcutaneous injection) (Supplementary Figs. 58–60). Except in tumors, no systemic inflammation or tissue damage are observed in the major organs such as the heart, liver, spleen, lung, and kidney at day 14 post-injection (Supplementary Figs. 61–62). Moreover, the index levels from blood routine test and blood biochemistry test fall within the reference ranges of the untreated mice (Supplementary Figs. 63–64). In addition, the tissue distribution of CuN₃-SAzyme in mice following subcutaneous injection does not change over time between organs and CuN₃-SAzyme are mainly located at the injection site (Supplementary Fig. 65). These preliminary data demonstrate that CuN₃-SAzyme is safe for local administration and can be used as an effective therapeutic agent for cancer treatment.

Discussion

In summary, we theoretically demonstrated and experimentally fabricated a CuN₃-SAzyme with higher enzymatic activity compared to CuN₄-SAzyme through modulating Cu-N_x coordination structures. The introduction of external fields, including 808 nm NIR light and X-ray, can remarkably enhance the enzymatic activity and kinetics of CuN3-SAzyme. Moreover, CuN₃-SAzyme is rather stable after repeated X-ray irradiation and high-dose irradiation, without a significant decrease in its enzymatic activity, and thus displays superior radioresistance against X-ray. As a result, CuN₃-SAzyme can completely eradicate cancerous cells through enhanced radio-enzymatic modality and significantly decrease the damage to normal tissues. Such a simple and valuable coordination engineering strategy not only provides insights into the development and optimization of SAzymes with excellent enzymatic activity and high radioresistance, but also can be extended to therapeutics for various diseases, such as tumors by enhanced radio-enzymatic therapy, thereby opening up new promising and breakthroughs in enzymatic applications.

Methods

Ethical statement

All animal experiments were performed in accordance with the published guidelines of the CAS Key Laboratory for Biomedical Effects of Nanomaterials and Nanosafety (Institute of High Energy Physics and National Center for Nanoscience and Technology; Approval ID: IHEPLLSC-2023-52). All mice were housed in a specific pathogen-free environment on a 12/12 h light-dark cycle with the standard conditions: Temperature, 20-25 °C; Relative humidity, 40-70%. All research was carried out according to relevant guidelines and regulations. The maximal tumor size permitted by the Animal Experiment Administration Committee of the Institute of High Energy Physics and National Center for Nanoscience and Technology is 15 mm in diameter, and no mice exceeded this criterion in this work.

Materials

Copper (II) chloride hydrate (CuCl₂·H₂O, 99 + %,), ascorbic acid (AA, 99 + %), copper nitrate hydrate (Cu(NO₃)₂·xH₂O, 99 + %), zinc nitrate hexahydrate (Zn(NO₃)₂·6H₂O, 99 + %), 2-methylimidazole (98%), and glacial acetic acid (99%) were purchased from Alfa Aesar. Copper(I) acetate (CuCH₃COO, 97%) and Tween-80 were purchased from Sigma-Aldrich. Other chemical reagents, including sodium hydroxide solution, potassium chloride, methanol, and ethanol, were supplied from Beijing Chemical Reagent Co. All reagents were used without further purification.

Synthesis of CuN₃-SAzyme

0.7275 g of Cu(NO₃)₂·xH₂O and 0.8210 g of 2-methylimidazole were dissolved in absolute methanol (30 mL), respectively. Upon mixing with each other, 500 g of KCl was added in the resulting solution. The precipitate was collected by centrifugation (7162 g, 5 min) and annealed at 850 °C for 2 h under argon flow. Finally, the sample was washed with H₂O and H₂SO₄ solution several times. Similarly, Cu-free N-doped carbon support was prepared in the absence of Cu(NO₃)₂·xH₂O.

Synthesis of CuN₄-SAzyme

First, ZIF-8 was synthesized. 2.6260 g of 2-MI and 2.2380 g of Zn(NO₃)₂·6H₂O were dissolved in absolute methanol (30 mL), respectively, and then mixed with each other at room temperature. The resulting precipitate was centrifuged (7,162 g, 5 min) and washed with absolute methanol several times. After dried in vacuum at 70 °C overnight, the ZIF-8 powder was placed in a tube furnace and heated at 900 °C for 3 h under flowing argon gas. The product was cooled down to room temperature naturally (named carbon nanoparticles, CNs).

Second, 0.0100 g of Cu(NO₃)₂·xH₂O and 2.0000 g of urea were dissolved in absolute methanol (30 mL) and then mixed the resulting NCs (200 mg). When the mixture was ultra-sonicated for 1 h and then stirred at room temperature for 6 h, the resulting precipitate was centrifuged (7162 g, 5 min) and washed with absolute methanol several times. The dried powder was transferred into a ceramic boat and placed in a tube furnace to be heated at 700 °C for 3 h under flowing argon gas, the sample was naturally cooled down to room temperature and washed with H₂O and H₂SO₄ several times.

Synthesis of Cu₂O nanozyme

Typically, 1 mmol CuCl₂·H₂O was dissolved in the deionized water (100 mL) under vigorous stirring. The obtained solution was placed into an oil bath and heated at 50 ^oC for 0.5 h, followed by the addition of 2 M NaOH solution (10 mL). After stirring at 50 ^oC for another 0.5 h, 0.6 M AA solution (10 mL) was added dropwise (3 mL min⁻¹) in the dark brown solution. This red mixture was aged at 50 ^oC for 3 h and finally cooled down to room temperature naturally. The resulting red precipitate was collected by centrifugation (13,400 g, 5 min) and washed with deionized water several times to remove the residuals. The precipitate was re-dispersed in deionized water and the concentration of this dispersion was measured by inductively coupled plasma mass spectrometry (ICP-MS, Thermo-X7, USA).

Synthesis of CuO nanozyme

In brief, 1 mmol of CuCH₃COO was dispersed in the deionized water (50 mL) under sonication and 0.25 mL of glacial acetic acid was added dropwise (0.25 mL min⁻¹) in the resulting solution. After heating to 100 ^oC under vigorous stirring, 1 M NaOH solution (5 mL) was added to form the black precipitate. This black precipitate was separated by centrifugation (13,400 g, 5 min) and washed with deionized water several times. The concentration of this dispersion was measured by ICP-MS.

Characterization

Transmission electron microscopy images and elemental mapping were obtained from a Tecnai G² F20 microscope operated at 200 kV (FEI, USA) and equipped with an energy-dispersive X-ray analysis system. High-angle annular dark-field scanning transmission electron microscopy (HAADF-STEM) was performed on a JEOL-ARM300F microscope equipped with a spherical aberration corrector at 200 keV. X-ray photoelectron spectroscopy (XPS) analysis was performed on a VG Multilab 2000 instrument (Thermo Fisher). X-ray diffraction (XRD) patterns were obtained from a D8 ADVANCE apparatus (Bruker, Germany; Cu K_α, 0.15406 nm). Inductively coupled plasma optical emission spectroscopy (ICP-OES) was conducted using an Agilent 720ES apparatus. X-ray absorption fine structure (XAFS) spectra at Cu K-edge were acquired at the 1W1B station in Beijing Synchrotron Radiation Facility (BSRF) and the BL11B station in Shanghai Synchrotron Radiation Facility (SSRF).

XAFS measurement and analysis

The Cu K-edge XAFS data were recorded in the fluorescence mode, using Cu foil and CuO_x nanozymes as references. All spectra were collected under ambient conditions. The extended Cu K-edge EXAFS data were processed using the ATHENA module in the IFEFFIT software packages. To obtain k³-weighted EXAFS spectra, the post-edge background was subtracted from the overall absorption and then normalized to the edge-jump step. These k³-weighted χ(k) data of Cu K-edge were Fourier transformed into real (R) space using a Hanning window (dk = 1.0 Å⁻¹) to isolate the EXAFS contributions from various coordination shells. Quantitative structural parameters around the central atoms were derived through least-squares curve fitting, performed with the ARTEMIS module of the IFEFFIT software packages, using the following EXAFS equation:

$${{{{\rm{\chi }}}}}\left({{{{\rm{k}}}}}\right)={\sum}_{j}\frac{{N}_{j}{S}_{0}{F}_{j}(k)}{k{R}_{j}^{2}}\exp \left[-2{k}^{2}{\sigma }_{j}^{2}\right]\exp \left[\frac{-2{R}_{j}}{\lambda \left(k\right)}\right]\sin [2k{R}_{j}+{\phi }_{j}(k)]$$

(1)

where, S₀² is the amplitude reduction factor, F_j(k) is the effective curved-wave backscattering amplitude, N_j is the number of neighbors in the j^th atomic shell, R_j is the distance between the X-ray absorbing central atom and the atoms in the j^th atomic shell (backscatterer), λ is the mean free path in Å, ϕ_j(k) is the phase shift (including the phase shift for each shell and the total central atom phase shift), σ_j is the Debye-Waller parameter of the j^th atomic shell (variation of distances around the average R_j). The functions F_j(k), λ, and ϕ_j(k) were calculated with the ab initio code FEFF8.2. The additional details for the EXAFS simulations are given below. The coordination numbers of the model samples were set to their nominal values, and the obtained S₀² was kept constant in subsequent fittings. However, the internal atomic distances (R), Debye-Waller factor (σ²), and the edge-energy shift (ΔE₀) were allowed to run freely.

Measurement of photothermal effect of CuN₃-SAzyme

The aqueous dispersions (1 mL) of CuN₃-SAzyme with different concentrations were exposed to 808 nm NIR light (1.00 W cm⁻²) for 10 min. At each interval time, the temperature and infrared thermal images were recorded by the thermal camera (FLIR Therma CAM E40). To evaluate the influence of power density on the temperature change, 50 μg mL⁻¹ of the aqueous dispersions of CuN₃-SAzyme were illuminated with 808 nm NIR light with the power density ranging from 0.25 W cm⁻² to 2.00 W cm⁻² and the temperature was recorded by the same protocol as described above. To calculate the photothermal conversion efficiency of CuN₃-SAzyme, 25 μg mL⁻¹ of the aqueous dispersion of CuN₃-SAzyme was illuminated with 808 nm NIR light at the power density of 1.00 W cm⁻² for 750 s and then cooled naturally for 1500 s, respectively. 1 mL of pure deionized water was set as a control sample. To assess the photothermal stability under 808 nm NIR light (1.00 W cm⁻²), the aqueous dispersion of CuN₃-SAzyme was illuminated with five heating/cooling (600 s/600 s) cycles. The stability of CuN₃-SAzyme in the physiological solutions was also detected by monitoring the heating profiles of CuN₃-SAzyme after storage for various days.

Measurement of enzyme-like activities of CuN_x-SAzymes and CuO_x nanozymes

The peroxidase-like property was detected by colorimetric assays. In a typically procedure, 3.6 μL of aqueous suspension of CuN_x-SAzyme (1.0 mg mL⁻¹), 30 μL of TMB solution (6 mM), and 22.5 μL of H₂O₂ solution (400 mM) were mixed into HAc-NaAc buffer solution (10 mM, pH 3.54) with a final volume of 180 μL. The catalytic oxidation of TMB (ox-TMB) was studied by monitoring the absorbance of ox-TMB (652 nm, ε = 39,000 M⁻¹ cm⁻¹) using a microplate spectrophotometer (Multiskan MK3, Thermo Fisher Scientific, USA). As for the kinetic data towards TMB substrate, TMB solutions with different concentrations were added into HAc-NaAc buffer solutions containing CuN_x-SAzyme (3.6 μL, 1 mg mL⁻¹) and H₂O₂ (22.5 μL, 400 mM), finally obtaining the mixtures with the final volume of 180 μL. The kinetic data towards H₂O₂ substrate was obtained using the method as described above except the addition of H₂O₂ solution with different concentrations into HAc-NaAc buffer solutions containing CuN_x-SAzyme (3.6 μL, 1.0 mg mL⁻¹) and TMB (30 μL, 6 mM). The kinetic data were calculated using the following typical Michaelis-Menten equation,

$$v=\frac{{{{{{\rm{V}}}}}}_{\max }\cdot [S]}{{K}_{M}+[S]}$$

(2)

where v is the initial velocity, [S] is the concentration of the substrate, K_M is the Michaelis-Menten constant, and V_max is the maximal reaction velocity. The specific activities (U mg⁻¹) were measured by monitoring the absorbance of the mixture (the total volume was 180 μL) containing 60 μL of H₂O₂ solution (9 M), 30 μL of TMB solution (6 mM), and various concentrations of CuN_x-SAzyme. In particular for catalase-like enzymatic activity, the concentration of generated O₂ was detected by a specific oxygen electrode (JPSJ-605F, INESA). Meanwhile, the external field-enhanced peroxidase-like performance was detected using the same protocol besides the introduction of X-/γ-ray and 808 nm NIR light (1.00 W cm⁻²).

Evaluation of the stability of CuN₃-SAzyme

To assess the influence of temperature and pH on the enzymatic-like performance, the absorbance of the mixture (the total volume was 180 μL) containing 3.6 μL of aqueous suspension of CuN_x-SAzyme (1.0 mg mL⁻¹), 30 μL of TMB solution (6 mM), and 22.5 μL of H₂O₂ solution (400 mM) was recorded in the range of temperature from 7 °C to 87 °C and pH value from 2.16 to 12.04. For the assessment of radio-resistance, the aqueous suspensions of CuN₃-SAzyme were irradiated by X-/γ-ray with the radiation dose ranging from 1 Gy to 500 Gy, and then the enzymatic-like activity was measured using the protocol as described above.

Evaluation of cytotoxicity

Luciferase-transfected murine breast carcinoma cell line (4T1-Luc), mouse osteosarcoma cell line (K7M2), and mouse embryonic fibroblast cell line (3T3) were obtained from Peking Union Medical College Hospital. In particular, 4T1-Luc cell line was authenticated using Short Tandem Repeat (STR) analysis on Apr 15^th 2024. The scientific justification demonstrated that 4T1-Luc cells are not cross-contaminated or otherwise misidentified cell lines (Supplementary Table 5). Cells were cultured in Dulbecco’s Modified Eagle Medium (DMEM, Gibco, USA) containing 10% Fetal Bovine Serum (FBS, Gibco, USA) and 1% penicillin-streptomycin (Gibco, USA) in 5% CO₂ at 37 °C. When seeded in the 96-well plates for 24 h (6,000 cells/well for 4T1-Luc cells; 6,000 cells/well for K7M2 cells; 6,000 cells/well for 3T3 cells), cultured cells were co-incubated with CuN₃-SAzyme, CuN₄-SAzyme, CuO nanozyme or Cu₂O nanozyme at various concentrations for 24 h (consistent with the content of copper in CuN₃-SAzyme). The standard Cell Counting Kit-8 (CCK-8, Dojindo, Japan) assay was performed to determine the cytotoxicity via recording the absorbance at 450 nm using the microplate spectrophotometer. To evaluate photothermal cytotoxicity, CuN₃-SAzyme-treated cells were further illuminated with 808 nm NIR light at various power densities for 10 min and the cell viability was measured using the same protocol as described above.

Live/dead cell staining assay

To further evaluate the photothermal killing efficacy, 4T1-Luc cells were seeded in 6-weel plates for 24 h (200,000 cells/well) and treated with of CuN₃-SAzyme at different concentrations. After co-incubation for 6 h, these treated cells were illuminated with 808 nm NIR light at different power densities for 10 min. Following co-incubation for another 18 h, these cells were stained with calcein AM (CA, Beyotime, China) and propidium iodide (PI, Beyotime, China) for 20 min at 37 °C in the dark. Finally, the fluorescent images were collected using an inverted fluorescence microscope (Olympus X73, Tokyo, Japan).

Colony formation assay

To evaluate the inhibition effects, 4T1-Luc cells seeded in 6-well plates (2,000 cells/well) were incubated with CuN₃-SAzyme. After incubation for 6 h, these treated cells were irradiated with 808 nm NIR light (1.00 W cm⁻²) for 10 min and/or X-ray (6 Gy). Following incubation for another 18 h, these cells were continued to be cultured in fresh DMEM medium for 7 days. Subsequently, formed clones were fixed with 4% paraformaldehyde (Innochem, China) for 10 min and stained by Giemsa Staining Solution (Beyotime, China) for 30 min. Finally, clones were counted and used to plot the survival fraction. To further evaluate the radiosensitization efficiency of CuN₃-SAzyme, 4T1-Luc cells were incubated with CuN₃-SAzyme at different concentrations for 6 h and then irradiated by X-ray with different doses for 10 min and/or 808 nm NIR light (1.00 W cm⁻²) for another 10 min. Following incubation for 7 days, the number of clones were obtained using the same protocol as described above to plot the survival fraction.

Detection of intracellular ROS

To detect the level of intracellular ROS, 4T1-Luc cells were seeded in the confocal dish (200,000 cells/well) and treated with CuN₃-SAzyme at various concentrations for 6 h. When irradiated with 808 nm NIR light (1.00 W cm⁻²) for 10 min and/or X-ray (6 Gy) for another 10 min, these treated cells were co-stained with 2’,7’-dichlorofluorescin diacetate (DCFH-DA, Beyotime, China) and the nuclei probe 2-(4-Amidinophenyl)-6-indolecarbamidine dihydrochloride (DAPI, Beyotime, China) for 20 min at 37 °C in the dark. The fluorescent images were recorded using a fluorescence confocal microscope (A1/LSM-Kit, Nikon/PicoQuant GmbH, Japan/Germany).

Evaluation of intracellular mitochondrial membrane potential

To detect the change of intracellular mitochondrial membrane potential (MMP), 4T1-Luc cells (200,000 cells/well) were treated with CuN₃-SAzyme at different concentrations for 6 h and then irradiated with 808 nm NIR light (1.00 W cm⁻²) for 10 min and/or X-ray (6 Gy) for another 10 min. After incubation for 12 h, these treated cells were incubated with JC-1 working solution (10 μg mL⁻¹) for 20 min. Finally, the change of intracellular MMP was monitored by recording the fluorescent images using the fluorescence confocal microscope.

Evaluation of intracellular DNA damage

To detect the intracellular DNA damage, CuN₃-SAzyme-treated cells (20,000 cells/well) were irradiated with 808 nm NIR light (1.00 W cm⁻²) for 10 min and/or X-ray (6 Gy) for another 10 min. After incubation for 12 h, these cells were fixed with 4% paraformaldehyde for 10 min and treated with 0.25% Triton X-100 to enhance the permeability of cell membranes. Following the blocking with 1% bovine serum albumin, these treated cells were labeled by γ-H2AX mouse monoclonal antibody overnight and secondary antibody of Cy3-conjugated sheep anti-mouse for 2 h. The intracellular DNA damage was monitored by recording the fluorescent images using the fluorescence confocal microscope.

Evaluation of cytochrome c release

In detail, 4T1-Luc cells were pre-seeded in 24-well plates (20,000 cells/well) and then treated with CuN₃-SAzyme. After incubation for 6 h, these cells were irradiated with 808 nm NIR light (1.00 W cm⁻²) for 10 min and/or X-ray (6 Gy). After another 12 h, these treated cells were stained by MitoTracker Red CMXRos for 30 min and fixed with 4% paraformaldehyde for another 10 min. Subsequently, 0.5% Triton X-100 was used to permeabilize the cell membrane. When further blocked by 1% bovine serum albumin for 1 h at room temperature and labeled with Cyt c antibody (1:1000) overnight at 4 °C, these cells were co-labeled with Alexa Fluor 488 secondary antibody and nuclei probe DAPI. Finally, the fluorescent images were recorded using the fluorescence confocal microscope.

Western blot analysis apoptosis-related proteins

After different treatments, 4T1-Luc cells (1,000,000 cells/well) were collected and lysed with radioimmunoprecipitation assay buffer (50 mM Tris-HCl containing 1% NP-40, 1 mM EDTA, 0.1% SDS, 150 mM NaCl, supplemented with 1 mM PMSF, pH 7.50) on ice for 30 min. The whole protein of cells was obtained by centrifugation at 4 °C for 15 min. The concentration of whole protein was quantified by the BCA Protein Assay Kit (Beyotime, China). Subsequently, the apoptosis-related proteins were separated by sodium dodecyl sulfate-polyacrylamide gel electrophoresis and blotted on nitrocellulose membranes. The primary antibody was incubated with target protein at 4 °C overnight. After using Tris-buffer saline (50 mM Tris-HCl, pH 7.5, 150 mM NaCl, 1‰ Tween-20) to wash the nitrocellulose membranes three times, the secondary antibody was incubated for 2 h. The protein marker and target protein undergo electrophoresis on the same gel under identical conditions. The molecular weight of target protein of interest by simply comparing the position of its band on the gel with those of the PageRuler prestained protein marker (Catalog number. 26616, Thermo Fisher Scientific, US). The target protein visualization was performed by enhanced chemiluminescence (ECL, Beyotime, P0018).

In vitro apoptosis analysis

4T1-Luc cells were pre-seeded in 6-well plates (200,000 cells/well) and incubated with CuN₃-SAzyme for 6 h and sequentially irradiated with 808 nm NIR light (1.00 W cm⁻²) for 10 min and/or X-ray (6 Gy). After another 24 h, these treated cells were collected and stained by annexin V-FITC (AV, Dojindo, Japan) and propidium iodide (PI, Dojindo, Japan) at 37 °C. Finally, the apoptosis cells were quantified by flow cytometry (BD Accuri C6, USA).

Cellular uptake pathway of CuN₃-SAzyme

Typically, 4T1-Luc cells were seeded in 6-well plates (200,000 cells/well) and incubated with various inhibitors including filipin III (7.5 µM), chlorpromazine (50 µM), cytochalasin D (5 µM), and wortmannin (5 µM) for 30 min. Then, FITC-labeled CuN₃-SAzyme was added and incubated for another 2 h. Finally, cells were washed three times with phosphate buffer saline (PBS, pH 7.40) and analyzed immediately using flow cytometry.

Hemolysis assay

Fresh mouse blood was obtained from BALB/c mice (6-8 weeks old, female) and washed with PBS three times to collect mouse blood cells (RBCs). The resulting RBCs were re-dispersed in aqueous suspensions of CuN₃-SAzyme with different concentrations. The deionized water was used as the corresponding positive control and PBS (pH 7.40) was used as the negative control. After incubation for 4 h, the specimens were centrifuged at 2990 g for 5 min and the absorbance of the supernatant was detected using the microplate spectrophotometer. The hemolysis ratios of CuN₃-SAzyme were calculated by the following equation:

$${{{{\rm{Hemolysis\; ratio}}}}}=\frac{{{{{\rm{OD}}}}}({{{{\rm{test}}}}})-{{{{\rm{OD}}}}}({{{{\rm{negative\; control}}}}})}{{{{{\rm{OD}}}}}({{{{\rm{positive\; control}}}}})-{{{{\rm{OD}}}}}({{{{\rm{negative\; control}}}}})}$$

(3)

Evaluation of enhanced radio-enzymatic therapy

BALB/c mice (4-6 weeks old, female) were provided by Beijing HFK Bioscience Co., Ltd. To establish the 4T1 bear tumor model, 4T1 cells suspended in PBS were subcutaneously injected into the right flank of the mice. Tumor volumes were calculated by the following equation:

$${{{{\rm{V}}}}}=\frac{L\times {W}^{2}}{2}$$

(4)

where L (mm) is the tumor long dimension and W (mm) is the tumor width.

When the tumor volume reached a size of about 100 mm³, the mice were randomly divided into several groups (n = 5). After intratumoral injection of CuN₃-SAzyme dispersed in 5% glucose solution (volume: 50 µL; dose: 5 mg kg⁻¹ and 10 mg kg⁻¹), mice were irradiated with 808 nm NIR light (1.00 W cm⁻²) for 10 min and/or X-ray (3 Gy or 6 Gy). Tumor volume and body weight of mice were measured every other day. At the end of treatment period, the tumors from different groups were exfoliated, weighed, and fixed with 4% polyoxymethylene (v/v). The exfoliated tumors were sliced to hematoxylin and eosin (H&E, Abcam, UK) staining, immunohistochemical analysis of Ki-67 (Beyotime, China) and γ-H2AX (Beyotime, China).

Evaluation of biosafety of CuN₃-SAzyme

BALB/c mice (6-8 weeks old, female) were subcutaneously injected by CuN₃-SAzyme with various doses. At each interval time, treated mice were sacrificed and major organs including the heart, liver, spleen, lung, and kidney were dissected and harvested. To prepare the ICP-MS samples, the harvested organs were weighed and mixed with nitric acid (65%, m/m) and incubated at 60 °C for 72 h. After dilution and filtration, the biodistribution of Cu element was measured by ICP-MS and calculated as Cu percentage over administrated dose per gram of tissues.

In vivo photoacoustic imaging

4T1-bearing BALB/c nude mice (5–6 weeks old, male) were anesthetized by inhalation of isoflurane/air for 5 min. Subsequently, 25 μL of the s4T1-bearing BALB/c nude mice (5–6 weeks old, male)uspension of CuN₃-SAzyme (4 mg mL⁻¹) was intratumorally injected. The mice were illuminated by 808 nm NIR light (1.00 W cm⁻²) for 10 min. The photoacoustic images were collected and analyzed on a multispectral optoacoustic tomography (MSOT, iThera Medical 128, Germany) system (750 nm to 900 nm).

Computational details

The structural relaxations, energy calculations, and electronic structure analyzes were performed using the Vienna ab initio simulation package (VASP)^62,63. The interactions between ionic cores and valence electrons were considered by using the projector augmented wave (PAW) method⁶⁴, and the exchange-correlation interactions were described by the optPBE-vdW functional^65,66. The energy cutoff for the plane-wave basis sets was set to 500 eV. Both CuN₃ and CuN₄ units were embedded in a 5 × 5 graphene unit cell. The vacuum space between consecutive slabs along the vertical direction was set to 14 Å. A 3 × 3 × 1 Monkhorst-Pack grid was utilized for the first Brillouin zone sampling⁶⁷. The atomic coordinates were relaxed until the maximum force was less than 0.03 eV Å⁻¹. All structures were visualized using the program VESTA⁶⁸.

Under irradiation, X-ray excites electrons in the inner layers of constituent atoms, causing not only radiative but also non-radiative transitions. The non-radiative transitions could induce a drastic energetic stimulation and lead to further ionization of the matter. Considering that it is rather complex to directly simulate the structural evolution of matter under X-ray radiation from first principles, we focused on whether CuN₃-SAzyme can maintain its stability under drastic energy fluctuations (equivalent to being in a hot environment of thousands of Kelvin) and when one to several electrons are ionized, by using extensive ab initio molecular dynamics (AIMD) simulations. The AIMD simulations were performed using the CP2K package⁶⁹. The unit cell used here is nine times (3 × 3) the size of the unit cell used in the VASP calculations, containing a total of 414 C atoms, 27 N atoms, and 9 Cu atoms. The exchange-correlation interactions were described by the PBE functional⁷⁰, and the empirical scheme (D3) developed by Grimme et al. ⁷¹ was employed for the dispersion correction. We used the optimized double-ξ Gaussian basis sets⁷² and an auxiliary plane wave basis set (energy cutoff: 500 Ry)⁷³ to expand wavefunctions. The core electrons were treated with the scalar relativistic norm-conserving pseudopotentials⁷⁴ and the number of valence electrons adopted for C, N, and Cu were 4, 5, and 11, respectively. Only the Γ point was used for the first Brillouin zone sampling. The canonical (NVT) ensemble was adopted in the AIMD calculations with a time step of 1 fs. The Nosé-Hoover thermostats^75,76 were employed here and the corresponding temperature was set to a range between 1773 K and 3273 K (equivalent to 1,500 °C and 3000 °C, respectively), to simulate potential drastic energy fluctuations that the CuN₃-SAzyme may experience under X-ray irradiation.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The data generated in this study are present in the main text and the Supplementary Information file. Source data are provided with this paper.
