The CIN-TCP transcription factors regulate endocycle progression and pavement cell size by promoting cell wall pectin degradation

Shen, Feng; Zhang, He; Wan, Miaomiao; Yang, Yanzhi; Kuang, Zheng; Xiao, Liang; Zuo, Daqing; Li, Zhan; Qin, Genji; Li, Lei

doi:10.1038/s41467-025-59336-7

Download PDF

Article
Open access
Published: 02 May 2025

The CIN-TCP transcription factors regulate endocycle progression and pavement cell size by promoting cell wall pectin degradation

Nature Communications volume 16, Article number: 4108 (2025) Cite this article

6017 Accesses
8 Citations
2 Altmetric
Metrics details

Subjects

Abstract

In plants, endoreplication, the process where nuclear DNA replicates in the absence of mitosis, and remodeling of the primary cell walls are both coupled with cell expansion. However, the mechanisms by which these two processes coordinate to determine cell size remain largely elusive. Here, employing the tcpΔ7 septuple mutant disabling seven of the eight CIN-TCP transcription factors in Arabidopsis, we find that hindered endoreplication progression in tcpΔ7 whereby ploidy increases from 8 C to beyond is correlated with an increase in cell wall pectin. CIN-TCPs transcriptionally activate POLYGALACTURONASE LIKE 1 (PGL1), which encodes a polygalacturonase downregulating both abundance and molecular mass of pectin polymers. Genetic analysis of PGL1 in both the wild type and tcpΔ7 backgrounds confirm that pectin reduction promotes endocycle progression and cell enlargement. Collectively, these findings reveal a critical role of pectin in regulating endoreplication, providing insights in the understanding of cell growth and organ development in plants.

Complete chloroplast genomes and phylogenetic relationships of Pedicularis chinensis and Pedicularis kansuensis

Article Open access 21 June 2024

Glucose-driven TOR–FIE–PRC2 signalling controls plant development

Article 14 September 2022

Ac-DEVD-CHO (caspase-3/DEVDase inhibitor) suppresses self-incompatibility–induced programmed cell death in the pollen tubes of petunia (Petunia hybrida E. Vilm.)

Article Open access 30 January 2024

Introduction

Leaves are the main photosynthesis organ, and their size determination is an important question in plant biology¹. In flowering plants, as leaf cells exit the mitotic program and leave meristematic regions in leaf primordia, they differentiate and grow in volume. During this process, cells often undergo endoreplication in which DNA replication continues but chromosome separation and cell division are omitted, resulting in progressive increases in somatic ploidy levels^2,3. As an alternative mode of cell cycle, the endocycle utilizes many elements of the mitotic cycle, including cyclins (CYC), cyclin-dependent kinases (CDKs), and CDK inhibitors, to regulate its onset, progression, and exit⁴. During the onset of the endocycle, whereby the ploidy level successfully increases to 8 C, the activity of certain CYC-CDK complexes must be down-regulated^4,5. For example, CELL CYCLE SWITCH 52 A (CCS52A) induces endocycle onset by activating the anaphase-promoting complex/cyclosome to degrade CYCs^6,7. In contrast, the progression of the endocycle whereby the ploidy level increases from 8 C to 16 C and beyond is far less understood. Various studies have illustrated that endoreplication is associated with post-mitotic cell expansion and organ size determination. For example, ploidy levels were found to highly correlate with the size of pavement cells and trichomes^3,8. In Arabidopsis mutants defective in topoisomerase VI, the endocycle is stalled at the 8 C stage and the mutant plants exhibit extreme dwarfism^9,10,11,12.

Different from metazoan cells, plant cells are enclosed in the primary cell walls that serve as a barrier, a structural support, and a site for cell-cell communications at the same time^13,14. The cell wall is a highly dynamic structure composed of complex polysaccharides including mainly cellulose, hemicellulose, and pectin^13,14,15. Pectin polymers, defined as polysaccharides rich in galacturonic acid, include homogalacturonan (HG), rhamnogalacturonan I, and the lesser abundant rhamnogalacturonan II^16,17,18. Chemical and genetic analyses have shown that pectin is a major determinant of the chemical, structural, and mechanical properties of plant cell walls^16,19. Molecular and nanoimaging studies have provided further support to the key regulatory roles of pectin in cell growth and tissue morphogenesis^20,21,22. In addition to biosynthesis and modifications, degradation is also important for maintaining pectin homeostasis. Polygalacturonases are enzymes that hydrolyze the α-1,4 glycosidic bonds in galactosyluronic acid polymers and, therefore, can degrade HG^16,23. Involvement of several polygalacturonases in regulating cell and tissue growth via reducing the molecular weight and/or abundance of HG has been reported^21,24.

Given their roles in cell size control, intrinsic associations between endoreplication and cell wall remodeling are anticipated. The observations that endocycle onset precedes rapid cell expansion and drastically impacts the expression of cell wall biosynthesis and modifying genes^25,26 have led to the proposal that endoreplication prepares cells for massive enlargement following cell cycle exit by promoting cell wall loosening²⁷. Analysis of Arabidopsis plants with different somatic ploidy levels showed that incrementing ploidy was negatively correlated with pectin and hemicellulose contents in the cell wall²⁸. A recent study showed that reduction of endoreplication enhances cell wall stiffening, actively reducing cell size²⁹. However, whether cell wall remodeling has a direct role in regulating endocycle onset and/or progression remains elusive.

TEOSINTE BRANCHED 1/CYCLOIDEA/PCF (TCP) genes encode plant-specific transcription factors that play vital roles in controlling cell growth and plant architecture³⁰. TCP proteins are classified as class I and class II based on the differences in the TCP domain, while class II is further divided into the CINCINNATA-like (CIN) clade and the CYCLOIDEA/TEOSINTE BRANCHED1-like (CYC/TB1) clade^30,31,32. In Arabidopsis, the CIN-TCP clade consists of eight members (TCP2, 3, 4, 5, 10, 13, 17, and 24) that are crucial regulators of the mitotic cycle. In plants overexpressing microRNA319 (miR319), which targets five members of the CIN-TCP clade, prolonged maintenance of mitotic activity was observed, indicating that CIN-TCPs limit cell proliferation³³. Moreover, reduction in the activities of these CIN-TCPs was shown to extend cell proliferation along leaf margins and result in large curled leaves made up of small cells, indicating that loss of CIN-TCP function increases cell number and decreases cell size^33,34. Subsequently, CYCLIN-DEPENDENT KINASE INHIBITOR 1 (ICK1), a repressor of the cell cycle, was identified as a direct downstream target of TCP4³⁵. TCP24 was found to repress expression of components of the pre-replication complex required for the initiation of nuclear DNA replication and cell cycle progression from the G1 to the S phase³⁶. Despite a study showing that induction of miR319-resistant TCP4 was able to commit leaf cells to exit proliferation and promote endoreplication³⁷, mechanistic investigations of the CIN-TCPs in coordinating endoreplication and cell wall remodeling remain scanty.

Here, we employed a tcp2/3/4/5/10/13/17 septuple mutant, designated as tcpΔ7, which disabled seven of the eight members of the CIN-TCP clade in Arabidopsis³⁸, to study the relationship between endocycle and cell wall remodeling in cell size control. Our cell biology analyses showed that hindered endocycle progression in tcpΔ7 was correlated with an increase in cell wall pectin. Molecular experiments revealed that the CIN-TCPs directly activate POLYGALACTURONASE LIKE 1 (PGL1), which encodes a functional polygalacturonase that impacts both abundance and molecular mass of the pectin polymers. Genetic manipulations confirmed that pectin reduction specifically promotes endocycle progression but not onset to enlarge pavement cells. Collectively, these findings revealed a critical role of pectin in determining endocycle progression and cell growth, paving the way for further understanding organ development in plants.

Results

CIN-TCPs promote cell expansion and endoreplication

The CIN-TCP transcription factors exhibit high genetic redundancy in regulating plant morphogenesis^30,38. To further explore their roles in controlling cell size, we employed the tcp2/3/4/5/10/13/17 septuple mutant that disables seven of the eight members of the CIN-TCP clade in Arabidopsis³⁸ (Fig. 1a), which was referred to as tcpΔ7 in this study. Cryo-scanning electron microscopy (cryo-SEM) analysis of cotyledons showed that the average pavement cell size in tcpΔ7 was about 2.5 times smaller than that of the wild type, due to a reduction in the number of extremely large cells (Fig. 1b). This observation was consistent with the reported changes in cell size caused by miR319 overexpression that downregulated five members of the CIN-TCP clade³³. Similar to the pavement cells, we found that the average size of cotyledon mesophyll cells in tcpΔ7 was approximately 2.3 times smaller than that of the wild type (Fig. 1c). These observations indicate that CIN-TCPs positively regulate cell size.

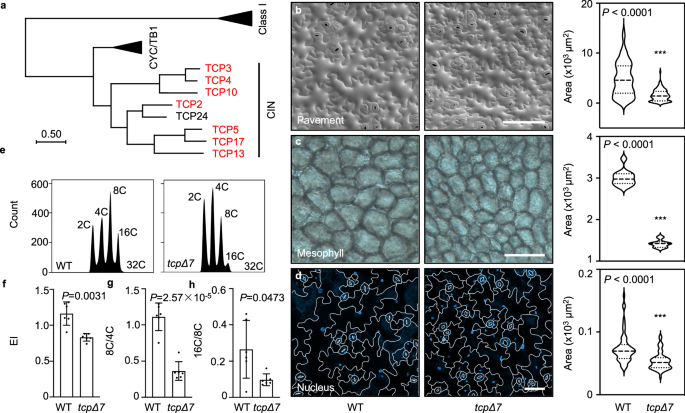

**Fig. 1: CIN-TCPs promote cell expansion and endocycle.**

Given that cell size is highly correlated with the DNA ploidy levels in pavement cells^3,8, we first compared the nuclear area between tcpΔ7 and the wild type. DAPI staining of the nuclei of cotyledon pavement cells revealed that the nuclear area in tcpΔ7 was significantly smaller, with a particular reduction in the number of large nuclei (Fig. 1d). Next, we performed flow cytometry analysis of the nuclei from the wild type and tcpΔ7 cotyledons of the same age. Compared to the wild type, tcpΔ7 exhibited a striking increase in the population of 2 C and 4 C nuclei and a concurrent reduction of 8 C, 16 C, and 32 C nuclei (Fig. 1e). Endoreplication index (EI) representing the average number of endocycles per nucleus has been used to quantitate endoreplication^30,39. We found that the calculated EI of tcpΔ7 was significantly decreased relative to the wild type (Fig. 1f). These results indicate that the endocycle is repressed in the tcpΔ7 mutant.

To start the endocycle, cells need to escape from the mitotic cycle and transit from the 4 C stage to the 8 C stage, a process known as endocycle onset^4,5. As the endocycle further advances, the ploidy level increases from 8 C to 16 C and beyond, a process known as endocycle progression⁵. To test whether both processes are impeded in tcpΔ7, we calculated the ratios of 8 C nuclei over 4 C nuclei (8 C/4 C) and 16 C nuclei over 8 C nuclei (16 C/8 C) as the surrogates for endocycle onset and progression, respectively^40,41. We found that both the 8 C/4 C and 16 C/8 C ratios were significantly decreased in the tcpΔ7 leaves in comparison to the wild type (Fig. 1g). These results indicate that the absence of CIN-TCPs hampers both endocycle onset and progression.

CIN-TCPs regulate expression of genes related to both cell cycle and cell wall remodeling

To elucidate the potential mechanisms by which CIN-TCPs promote endocycle, we performed whole transcriptome RNA sequencing (RNA-seq) analysis of the wild type and tcpΔ7 leaves. Compared to the wild type, 4685 genes were differentially expressed in tcpΔ7, including 2317 up-regulated and 2368 down-regulated (Supplementary Fig. 1a). We identified significantly enriched Gene Ontology (GO) terms associated with the differentially expressed genes to elucidate biological processes regulated by the CIN-TCPs. To deconvolute the highly redundant information among the GO terms, we performed clustering analysis and constructed an association network of the GO terms in the biological process category by calculating the similarity between each pair of GO terms⁴² (Supplementary Fig. 1b).

We found that a cluster of GO terms related to the cell cycle was enriched in the constructed association network (Supplementary Figs. 1b and 2). Examination of individual genes showed that 19 of the 49 CYC genes, 4 of the 14 CDK genes, and 2 of the 15 CDK inhibitors genes were differentially expressed in tcpΔ7 (Supplementary Fig. 3a, b). This finding was corroborated by RT-qPCR analysis showing that selected genes encoding positive regulators of cell cycle were indeed up-regulated in tcpΔ7, whereas genes encoding negative regulators of cell cycle displayed the opposite trend (Supplementary Fig. 3c). In agreement with previously reported transcriptome profiling using the rTCP4 plants that contains synonymous mutations in the miR319-binding site³⁵, transcriptome profiling using tcpΔ7 revealed that CIN-TCPs broadly regulate genes related to the mitotic cell cycle. Thus, contrary to the previously reported mode of action for class I TCPs^43,44,45, CIN-TCPs may promote endocycle by inhibiting the mitotic cell cycle.

In addition to the cell cycle, a cluster of GO terms related to saccharide metabolism was conspicuously enriched in the constructed association network (Supplementary Figs. 1b and 4a). We postulated that this was in part due to enrichment of GO terms pertinent to the synthesis and metabolism of polysaccharides, the major cell wall component. Indeed, GO terms directly related to cell wall biogenesis and organization, including cell wall polysaccharide metabolism and cell wall pectin metabolism, were significantly associated with genes regulated by CIN-TCPs (Supplementary Fig. 4b). These results suggest that CIN-TCPs regulate the expression of genes related to cell wall remodeling.

CIN-TCPs modulate cell wall pectin level and PG activity

The observed transcriptomic changes prompted us to analyze cell wall polysaccharides. Chemical quantification of cellulose and hemicellulose contents in the rosette leaves showed no significant differences between tcpΔ7 and the wild type (Fig. 2a). In contrast, total pectin level in tcpΔ7 leaves significantly increased in comparison to the wild type (Fig. 2a), indicating that CIN-TCPs specifically repress the accumulation of cell wall pectin. To corroborate this conclusion, we performed immunolabeling assays to examine the accumulation of HG that accounts for the majority of pectin in plant cell walls¹⁶. We used the 2F4 and LM19 monoclonal antibodies, which detects Ca²⁺-crosslinked HG and de-methylesterified HG, respectively^46,47. Fluorescence microscopy analysis revealed that the intensity of the LM19 (Fig. 2b, c) and 2F4 signals (Fig. 2d, e) was both significantly enhanced in tcpΔ7 cotyledons and young rosette leaves compared to the wild type. By contrast, the signals of Fluorescent Brightener 28 (FB28), which mainly stains cellulose, showed no substantial difference between tcpΔ7 and the wild type (Fig. 2b–e). These observations confirmed that CIN-TCPs repress cell wall pectin abundance.

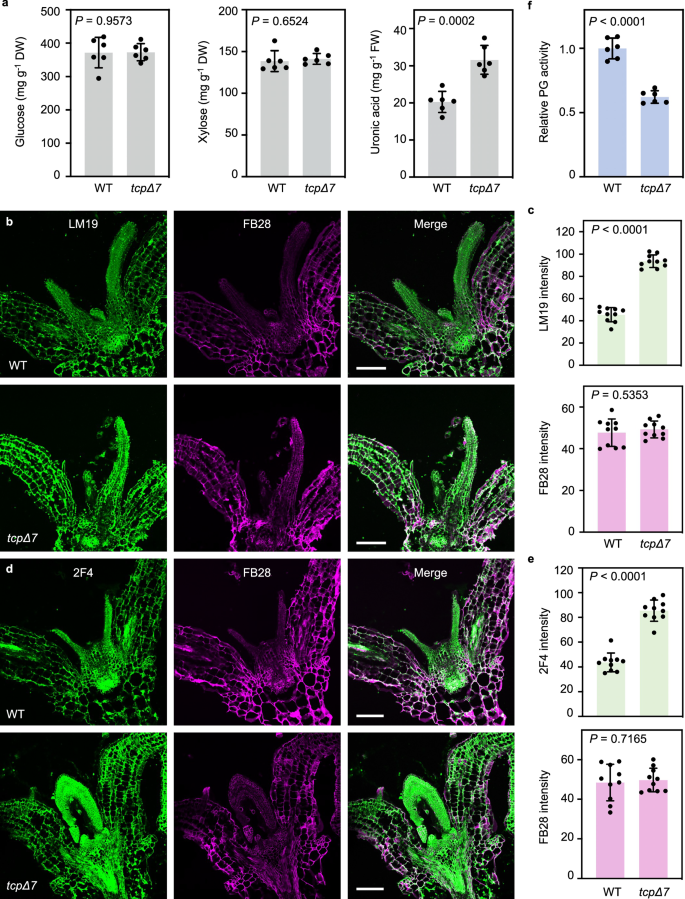

Fig. 2: tcpΔ7 exhibits elevated cell wall pectin and reduced PG activity. — **Fig. 2: *tcpΔ7* exhibits elevated cell wall pectin and reduced PG activity.**

Variation in pectin content is attributed to changed pectin biosynthesis and/or degradation^23,48. As de-methylesterified pectin could be crosslinked by calcium and/or degraded by PGs²¹, increase of both de-methylesterified HG and Ca²⁺-crosslinked HG in tcpΔ7 prompted us to examine whether in vivo PG activity was altered in tcpΔ7. Using an established assay for PG activity using a polygalacturonic acid substrate as previously reported^21,49, we found that total protein extracted from tcpΔ7 rosette leaves possessed a significantly lower PG activity than the wild type (Fig. 2f). This result further suggests that CIN-TCPs repress cell wall pectin accumulation possibly via upregulating total PG activity in the leaves.

CIN-TCPs directly bind to the PGL1 promoter and activate its expression

To pinpoint which genes contribute to the reduction of PG activity in tcpΔ7, we profiled the expression of all 68 PG-related genes annotated in Arabidopsis⁵⁰. Based on the RNA-seq data, we found that 12 of the PG genes were differentially expressed in tcpΔ7 relative to the wild type (Fig. 3a). Among these, POLYGALACTURONASE LIKE 1 (PGL1; AT1G56710) showed the most drastic decrease in transcript abundance in tcpΔ7 (Fig. 3a). Using RT-qPCR, we confirmed that the PGL1 transcript level was repressed by more than 10-fold in the tcpΔ7 cotyledons compared to the wild type (Fig. 3b).

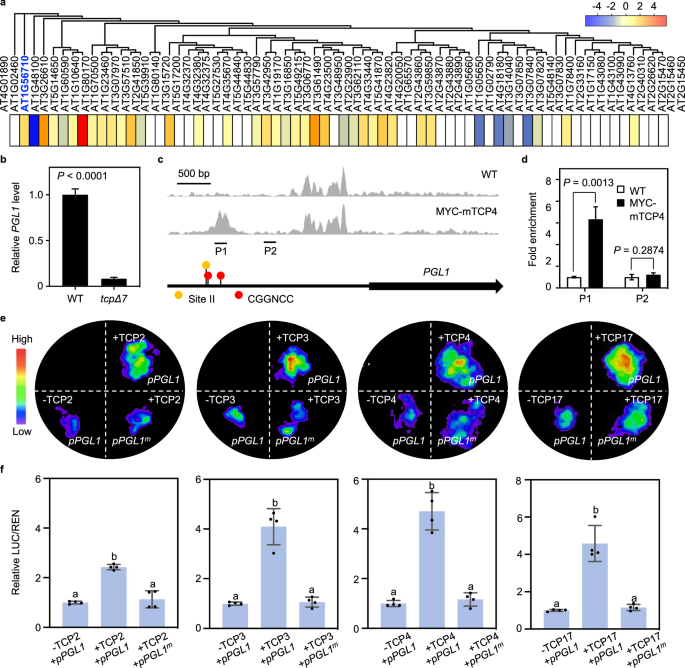

Fig. 3: TCP4 directly activates PGL1 expression. — **Fig. 3: TCP4 directly activates *PGL1* expression.**

To determine whether PGL1 is a direct target gene of CIN-TCPs, we analyzed the previously reported chromatin immunoprecipitation sequencing (ChIP-seq) data for TCP4, one of the CIN-TCPs. The ChIP-seq was performed using 35S:MYC-mTCP4 seedlings in which the Cauliflower Mosaic Virus 35S promoter was used to drive mTCP4, a mutated form of TCP4 that only alters the coding region to make it resistant to miR319-mediated downregulation⁵¹. We found a TCP4-specific binding peak in the PGL1 promoter, approximately 2 Kb upstream of the transcription start site (Fig. 3c). Scanning this region revealed three putative cis-regulatory elements that have been reported as binding sites for CIN-TCPs^30,52, including one site II element and two CGGNCC elements (Fig. 3c). Using ChIP-qPCR assay performed on the 35S:MYC-mTCP4 seedlings, significant enrichment of TCP4 occupancy at the PGL1 promoter encompassing the proximal CGGNCC element was confirmed (Fig. 3d), indicating that TCP4 binds to the PGL1 promoter.

To assess the effect of CIN-TCPs on the PGL1 promoter, we employed the firefly luciferase (LUC) and Renilla luciferase (REN) dual reporter system⁵³ in a transient expression assay. We generated the 35S:TCP2, 35S:TCP3, 35S:TCP4, and 35S:TCP17 effector constructs. We then used the PGL1 promoter to drive LUC expression and generated the pPGL1:LUC-35S:REN dual reporter construct (Supplementary Fig. 5). We tested the four effector-reporter combinations through co-infiltration of tobacco (Nicotiana benthamiana) leaf epidermal cells. We found that, in the presence of TCP2/3/4/17, the LUC chemiluminescence was all markedly increased (Fig. 3e) and the ratio of LUC/REN intensities significantly elevated (Fig. 3f), indicating that the tested CIN-TCPs positively regulate the PGL1 promoter. Moreover, we mutated the three cis-regulatory elements (site II, CGGNCC-I and CGGNCC-II) to generate the pPGL1^m:LUC-35S:REN reporter construct (Supplementary Fig. 5). We found that both the LUC intensities (Fig. 3e) and the LUC/REN ratios (Fig. 3f) in the presence of TCP2/3/4/17 were markedly decreased comparing to pPGL1:LUC-35S:REN.

Biolayer interferometry (BLI) is a label-free optical biosensing technology that analyzes biomolecular interactions in real-time⁵⁴. Employing BLI, we monitored the binding kinetics between recombinant TCP2 or TCP3 and DNA fragments containing the three cis-regulatory elements in the PGL1 promoter (Supplementary Fig. 6). We found that all the combinations between TCP2 or TCP3 and the DNA elements showed high binding affinities with the dissociation constants consistently in the ~ 0.1 μM range. In contrast, mutating these elements abolished the binding by TCP2 or TCP3 (Supplementary Fig. 6). Taken together, our results demonstrated that CIN-TCPs are able to directly bind to the promoter of PGL1 and activate its expression.

PGL1 is a functional PG positively regulating cell size and endocycle progression

To investigate the biological role of PGL1, we identified an Arabidopsis T- DNA line carrying an insertion in the first exon of PGL1, which was named pgl1-1, and generated a deletion allele based on CRISPR/Cas9, which was named pgl1-2 (Supplementary Fig. 7a). We also generated PGL1-overexpressing plants (PGL1-OX) in which the enhanced 35S promoter was used to drive expression of the PGL1 coding region. RT-qPCR analysis showed that PGL1 expression was drastically compromised in pgl1 and enhanced in PGL1-OX seedlings compared to the wild type, respectively (Fig. 4a, b and Supplementary Fig. 7b, c). The pgl1 mutants displayed significantly reduced cotyledon areas in comparison to the wild type, whereas PGL1-OX displayed the opposite phenotype (Fig. 4a, c and Supplementary Fig. 7d, e). Moreover, cryo-SEM analysis showed that the pgl1 cotyledons exhibited significantly smaller average area of pavement cells compared to the wild type, with a concurrent reduction of the number of extremely large cells while PGL1-OX plants exhibited the opposite phenotypes (Fig. 4d, e), indicating that PGL1 is a positive regulator of pavement cell size.

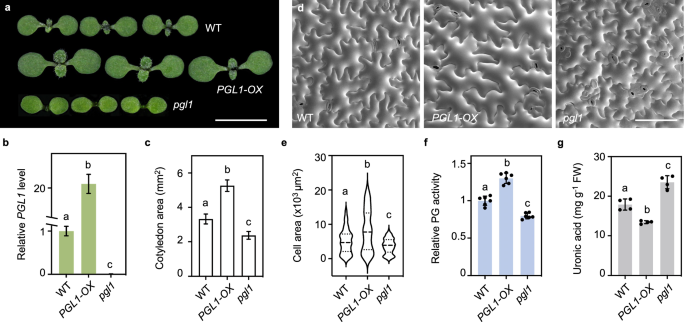

Fig. 4: PGL1 promotes cell expansion and represses cell wall pectin. — **Fig. 4: *PGL1* promotes cell expansion and represses cell wall pectin.**

To determine whether the effect of PGL1 on cell size was related to PG activity, we examined the in vivo PG activity in PGL1-OX and pgl1. We found that the total protein extracted from PGL1-OX seedlings possessed a significantly higher PG activity than the wild type, whereas the pgl1 seedlings displayed the opposite phenotype (Fig. 4f). These results indicate that PGL1 is likely a functional PG that substantially contributes to the total in vivo PG activity in the leaves. We further quantified the total cell wall pectin contents in PGL1-OX and pgl1 seedlings, and a significant decrease in PGL1-OX and a significant increase in pgl1 relative to the wild type were observed (Fig. 4g). Thus, PGL1 positively regulates cell expansion by increasing total PG activity to limit pectin abundance in the cell walls.

To determine whether PGL1 impacts endoreplication, we performed flow cytometry analysis of the pgl1 and PGL1-OX nuclei. We sampled the third pair of rosette leaves at three different development stages: stage 1 at 14 days after sowing (DAS) in which the cells are primarily in the mitotic cycles, stage 2 at 18 DAS in which the cells exit the mitotic cycle, and stage 3 at 28 DAS in which the cells are endoreduplicating^55,56. Compared to the wild type at the same ages, pgl1 showed a striking decrease in the population of 16 C nuclei only at stage 3 when cells were fully committed to endoreduplication (Fig. 5a–c), which was in accordance with the observation that pgl1 had a reduced number of large pavement cells (Fig. 4d). On the contrary, PGL1-OX showed an increase in the population of 16 C nuclei over the wild type only at stage 3 (Fig. 5c), also in accordance with its increased number of large pavement cells (Fig. 4d). Examination of leaf morphology at the three stages confirmed that leaf area and cell number of pgl1 and PGL1-OX remained the same as the wild type until stage 3 (Fig. 5d, e). Together with the calculated EI that was significantly lower in pgl1 but higher in PGL1-OX only at stage 3 (Fig. 5a–c), these results indicate that PGL1 promotes endoreplication. To further discern whether PGL1 impacts endocycle onset or progression, we calculated the 8 C/4 C and 16 C/8 C ratios at stage 3 (Fig. 5c). We found that the 8 C/4 C ratios showed no significant difference between pgl1 or PGL1-OX against the wild type (Fig. 5c). On the contrary, the 16 C/8 C ratio was significantly decreased in the pgl1 but significantly increased in PGL1-OX leaves relative to the wild type (Fig. 5c). These results demonstrated that PGL1 positively regulates endoreplication by specifically promoting endocycle progression.

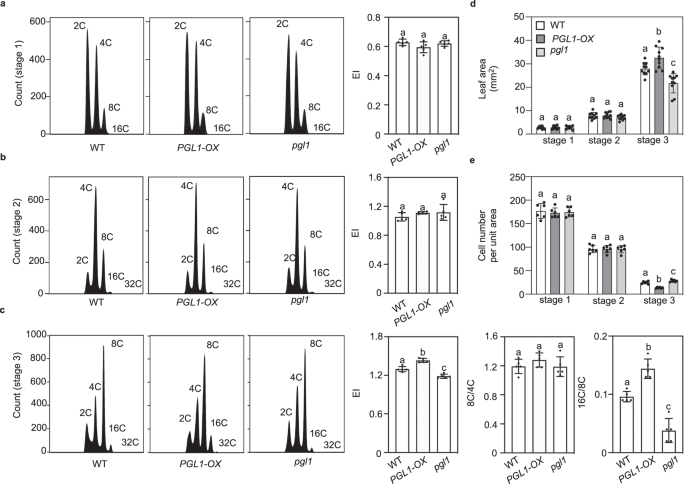

Fig. 5: PGL1 promotes endocycle progression. — **Fig. 5: *PGL1* promotes endocycle progression.**

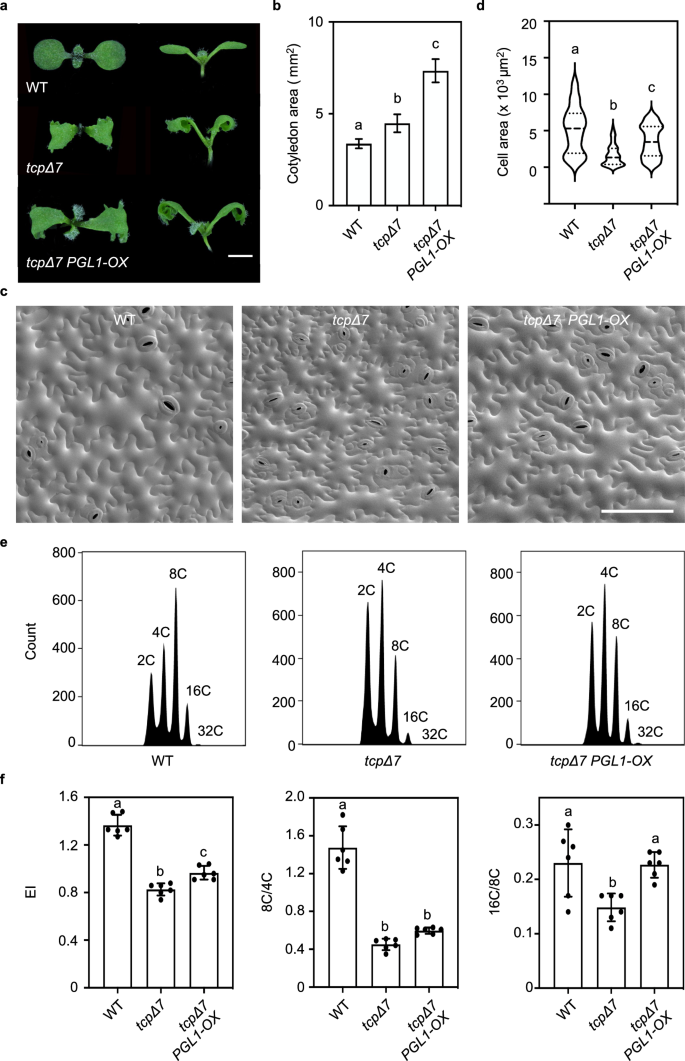

PGL1 rescues the endocycle progression defect in tcpΔ7

To test whether PGL1 is sufficient to rescue the tcpΔ7 phenotypes, we generated the tcpΔ7 PGL1-OX plant. RT-qPCR analysis showed that the PGL1 transcript level was drastically enhanced in independent tcpΔ7 PGL1-OX lines compared to tcpΔ7 (Supplementary Fig. 8a). While PGL1 did not affect the jagged and curly shape of the tcpΔ7 cotyledons³⁸, the already larger than wild type cotyledon size of tcpΔ7 was further enlarged in tcpΔ7 PGL1-OX (Fig. 6a and Supplementary Fig. 8b, c). Moreover, cryo-SEM analysis showed that the area of pavement cells in tcpΔ7 PGL1-OX was significantly larger than tcpΔ7, albeit not to the same size as the wild type (Fig. 6b, c). These results indicate that PGL1-mediated cell enlargement is independent of the enhanced cell proliferation defect that causes overgrowth of the leaf margins in tcpΔ7^33,34,38,57.

To determine how endocycle is impacted in tcpΔ7 PGL1-OX, we compared ploidy levels among the wild type, tcpΔ7, and tcpΔ7 PGL1-OX plants. Flow cytometry analysis revealed that the proportion of nuclei with high ploidy levels was increased in tcpΔ7 PGL1-OX, with a calculated EI significantly higher than tcpΔ7 (Fig. 6d, e). Interestingly, whilst the 8 C/4 C ratio in tcpΔ7 PGL1-OX showed no obvious change compared to tcpΔ7, the 16 C/8 C ratio was significantly higher than tcpΔ7 and restored to the same level as the wild type (Fig. 6f). These results indicate that overexpression of PGL1 in the tcpΔ7 mutant specifically rescued the cell enlargement and endocycle progression defects.

We further tested whether PGL1 rescues endocycle progression in tcpΔ7 by acting on pectin. Quantification of extracted cell wall polysaccharides revealed that elevated pectin content in the tcpΔ7 seedlings was significantly lowered in tcpΔ7 PGL1-OX (Fig. 7a). Immunolabeling analysis using the 2F4 antibody showed that the tcpΔ7 PGL1-OX cotyledons had significantly weaker labeling than that in tcpΔ7 (Fig. 7b, c). We performed fast protein liquid chromatography (FPLC) coupled with uronic acid detection to compare the molecular mass of pectin polymers in the wild type, tcpΔ7, and tcpΔ7 PGL1-OX seedlings. Consistent with previous reports in Arabidopsis^24,49,58, the pectin polymer peak eluted from the wild type cell wall exhibited a molecular mass of approximately 150 kD (Fig. 7d). In contrast, the eluted pectin polymer peak in tcpΔ7 exhibited a molecular mass well over 200 kD (Fig. 7d). In tcpΔ7 PGL1-OX, the pectin molecular mass was near 200 kD, in between that of the tcpΔ7 and the wild type (Fig. 7d). In addition, the amount of pectin estimated by the area of the eluted peaks was in agreement with the chemical quantification results (Fig. 7a). The relative PG activity in tcpΔ7 PGL1-OX was significantly higher than that in tcpΔ7 (Fig. 7e). Taken together, these results indicate that PGL1 overexpression in the tcpΔ7 background led to substantial reduction of the abundance and molecular mass of the pectin polymers by increasing the PG activity.

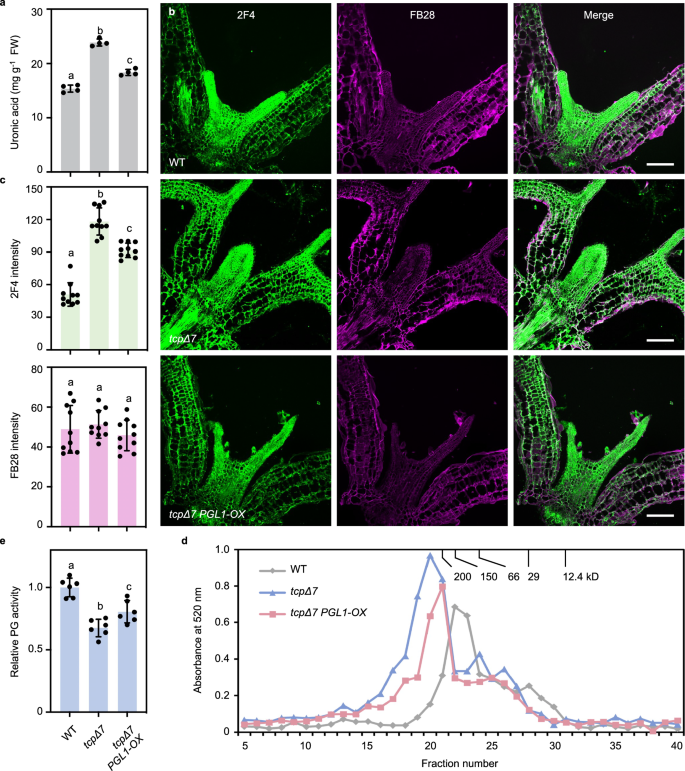

Fig. 7: PGL1 partially restores cell wall pectin accumulation in tcpΔ7. — Fig. 7: *PGL1* partially restores cell wall pectin accumulation in *tcpΔ7.*

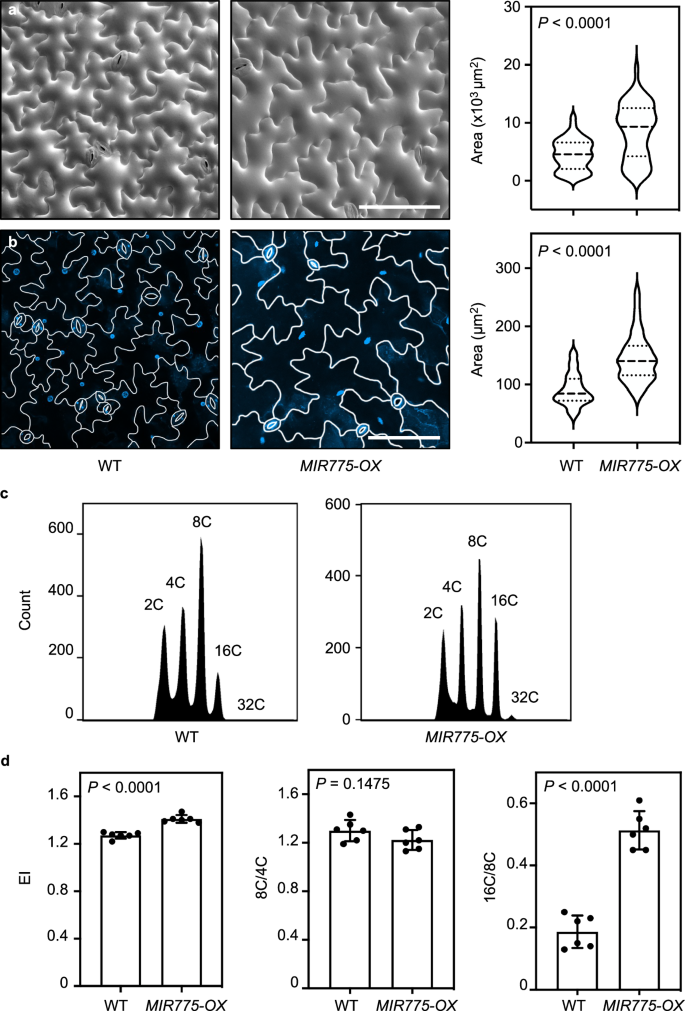

Pectin regulating miR775 promotes endocycle progression

To independently verify the relationship among pavement cell size, wall pectin, and endocycle progression, we employed a pectin-regulating microRNA, miR775, which post-transcriptionally silences a galactosyltransferase gene involved in maintaining pectin content and cell wall elastic modulus²². We have previously shown that overexpression of miR775 in Arabidopsis (MIR775-OX) resulted in reduced cell wall pectin level and enlarged epidermal cells relative to the wild type²². Using cryo-SEM, we confirmed that MIR775-OX exhibited significantly larger cotyledon pavement cells in comparison to the wild type (Fig. 8a). In addition, using chemical quantification and LM19 immunolabelling, we confirmed that pectin content in MIR775-OX was significantly lower than the wild type (Supplementary Fig. 9).

DAPI staining of cotyledon pavement cells showed that the nuclear size in MIR775-OX was significantly larger than that of the wild type (Fig. 8b). Flow cytometry analysis further showed that the number of cells with the 16 C and 32 C ploidy levels was significantly increased in MIR775-OX leaves (Fig. 8c). The calculated EI in MIR775-OX was significantly higher than that of the wild type (Fig. 8d). Moreover, we found that the 8 C/4 C ratios exhibited no difference between MIR775-OX and the wild type, whereas the 16 C/8 C ratio was increased significantly in MIR775-OX (Fig. 8d). Taken together, these results indicate that miR775 is able to repress wall pectin accumulation, promote endocycle progression, and enlarge pavement cells.

Hindering endocycle onset does not alter cell wall pectin level

To further confirm the association of pectin level with endocycle progression but not its onset, we employed the cell cycle switch protein 52 a2 (ccs52a2) mutant that disrupts CCS52A2, a rate-limiting activator of the anaphase promoting complex/cyclosome E3 ubiquitin ligase that promotes exit from the mitotic cell cycle and entry into the endocycle^7,59. Flow cytometry analysis confirmed that ccs52a2 cotyledon cells contain a higher proportion of 2 C and 4 C nuclei but a lower proportion of 8 C and 16 C nuclei than the wild type (Fig. 9a). The calculated EI of ccs52a2 was significantly lower than the wild type (Fig. 9b). Moreover, the 8 C/4 C ratio in ccs52a2 exhibited a significant decrease while the 16 C/8 C ratio showed no difference in comparison to the wild type (Fig. 9c). Thus, consistent with previous reports^59,60, endocycle onset but not progression is effectively hindered in ccs52a2. However, quantification of pectin levels showed no significant difference between ccs52a2 and wild-type cotyledons (Fig. 9d). In addition, ccs52a2 possessed comparable PG activity as the wild type (Fig. 9e). Together, these results indicate that hindering endocycle onset does not alter pectin abundance in the cell walls.

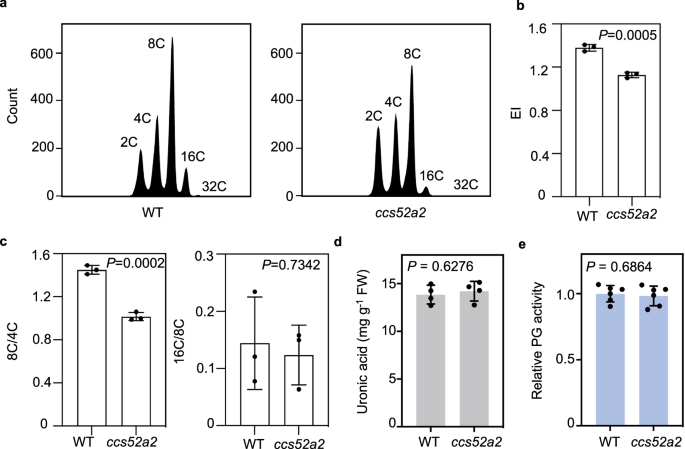

**Fig. 9: Hindering endocycle onset alone does not impact pectin level.**

Discussion

Plant cells are surrounded by a primary cell wall that needs to be loosened in a controlled manner for nondestructive cell expansion during various biological processes^19,61. In this study, we found that two independent molecular routes regulating cell wall pectin both impact endocycle progression and cell enlargement (Fig. 10). In the first route, we found that the CIN-TCP transcription factors, in addition to regulating endocycle onset (Supplementary Figs. 1–3), promote endoreplication to advance beyond the 8 C stage by specifically modulating cell wall pectin metabolism (Figs. 1, 2). We showed that CIN-TCPs downregulate pectin abundance and molecular sizes by directly binding to the promoter and activating transcription of PGL1 (Fig. 3). Genetic analysis confirmed PGL1 as a functional PG and its overexpression results in significantly reduced pectin content, enlarged pavement cells, and restoration of endocycle progression in tcpΔ7 (Figs. 4–7). In the second route, we found that miR775, which post-transcriptionally silences a galactosyltransferase gene required for maintaining pectin content, the elastic modulus of the cell wall, and epidermal cell sizes²², promotes progression of endoreplication (Fig. 8). These results collectively support a working model in which modulation of cell pectin level is sufficient and necessary to alter endocycle progression and cell enlargement (Fig. 10).

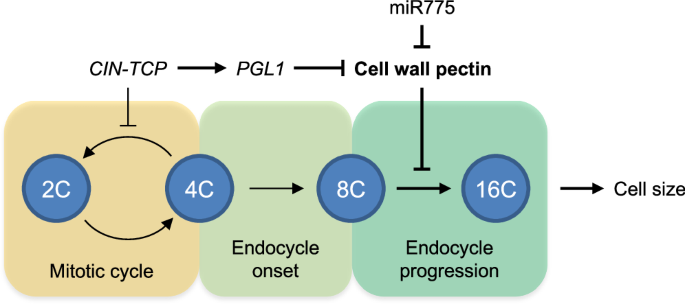

**Fig. 10: A working model of the role of cell wall pectin in regulating endoreplication and cell size.**

Although further studies are needed, our findings provide fresh insights into the relationship among pectin, endocycle progression, and cell enlargement. Foremost, we found that cell wall pectin drives endocycle progression, and this regulation is independent of endocycle onset based on several lines evidence. For instance, we found that in the tcpΔ7, pgl1, and MIR775-OX plants with altered pectin levels, endocycle progression but not onset was affected (Figs. 4–8). On the contrary, in the ccs52a2 mutant with defective endocycle onset, cell wall pectin was not altered in comparison to the wild type (Fig. 9). Moreover, when PGL1 was overexpressed in tcpΔ7, the total PG activity, cell wall pectin level, endocycle progression, and growth of pavement cells were effectively restored (Figs. 6, 7). However, the jagged, curly, and enlarged leaf morphology due to increased cell proliferation in tcpΔ7 was not affected in tcpΔ7 PGL1-OX (Fig. 6)^33,34,38,57. In fact, with cell enlargement restored, the tcpΔ7 PGL1-OX plants exhibited even larger leaves than tcpΔ7 (Fig. 6 and Supplementary Fig. 8). Thus, pectin metabolism specifically regulates endocycle progression with an effect on cell enlargement and leaf growth additive to that bestowed by cell proliferation.

Our findings imply that ploidy level and cell wall pectin are coordinated in 8 C cells to determine whether the endocycle will further advance. Given that an increase in ploidy greatly contributes to cell enlargement, especially the epidermal cells^3,8, the accompaniment of endocycle progression with relaxation of the cell wall and changes in mechanical properties of the wall are expected^19,61. It could be extrapolated from our model that cell wall properties bestowed by different pectin levels would be different in 4 C, 8 C, and 16 C cells. Although a direct assessment of the pectin profiles and wall properties in individual cells at these ploidy levels is not yet available, several lines of evidence provide circumstantial support to this notion. The DNA topoisomerase VI complex is essential for the decatenation of replicated chromosomes during endocycles. It has been reported that the endocycle in mutants defective in various components of the DNA topoisomerase VI complex is stalled at 8 C^9,10,11,12. Interestingly, a reduction in the amount of secreted mucilage, which in Arabidopsis is mainly composed of pectin^10,62, was noticed in the midget mutant with defective DNA topoisomerase VI¹⁰, implying that the wall pectin level might have increased in this mutant. It would be interesting to investigate whether pectin level was up-regulated in midget and whether activation of PG genes such as PGL1 might lead to progression of the endocycle beyond the 8C stage in this mutant.

In mutants defective in DNA topoisomerase VI, an extreme dwarfism of plants and a scarcity large cell types that normally endoreduplicate their DNA were exhibited^9,10,11,12. A preliminary survey of the literature revealed that similar morphological phenotypes were reported in many mutants hyper-accumulating cell wall pectin. For example, plants overexpressing PGX1, which encodes a PG, displayed enhanced cell elongation in the hypocotyl as a result of reduced abundance and molecular mass of pectin²⁴. It has been reported that overexpression of PECTIN METHYLESTERASE 5 (PME5), which promotes HG demethylation, led to larger pavement cells in Arabidopsis cotyledons²⁰. By contrast, overexpression of PECTIN METHYLESTERASE INHIBITOR 3 (PMEI3), which inhibits HG demethylation, resulted in smaller cotyledon pavement cells²⁰. These coincidences should inspire future efforts to test whether the various mutants with altered pectin metabolism would specifically impact endocycle progression.

The finding on the role of CIN-TCP transcription factors in regulating endocycle progression and cell enlargement through PGL1-mediated pectin metabolism adds one more node to the regulatory networks coordinating mechanical forces and nuclear events. This is more conceptually straightforward in animals as the cytoskeleton bridges the nuclear envelope and the plasma membrane, and mechanical deformations resulted from the extracellular matrix would impact the architecture of the genome⁶³. Plants also use the cortical microtubules as the active mechanosensors to transduce mechanical forces⁶⁴. How mechanical forces of the cell wall coordinate the inner bioprocesses to control cell growth is thus a fascinating research direction. On the other hand, mechanical forces could be indirectly perceived by the mechanotransduction pathways, such as wall sensors, mechanosensitive channels, the cytoskeleton, and even the nucleus⁶⁵. For example, some cell wall components could serve as signals for converting mechanical properties into biochemical signals to regulate morphogenesis^66,67. Future investigation of how plants orchestrate these two important processes would pave the way to coordinately engineer cell wall remodeling and endoreplication to sculpt cell expansion and plant architecture, which determine many critical traits such as biomass accumulation and stress tolerance in crops⁴.

Methods

Plant materials and growth conditions

All the Arabidopsis (Arabidopsis thaliana) materials used in this study were in the Columbia-0 background. The septuple mutant tcpΔ7 were generated by genetic crossing, and the 35S:MYC-mTCP4 plant were generated by PCR-based mutagenesis³⁸. To generate the PGL1-OX and tcpΔ7 PGL1-OX plants, the coding region of PGL1 was PCR-amplified from cDNA using primers listed in Supplementary Table 1. The fragment was cloned into the pJim19 vector, and the resulting construct was transformed into the wild-type and tcpΔ7 plants, respectively. Transformants were selected on half-strength Murashige and Skoog medium containing 20 mg L⁻¹ Hygromycin and allowed to propagate to the T₂ generation for subsequent analyses. T-DNA insertion mutants of ccs52a2 (SALK_073708) and pgl1-1 (SALK_202104) were obtained from the Arabidopsis Biological Resource Center. The pgl1-2 line was obtained by the CRISPR/Cas9 method using a pair of sgRNA designed to delete a 1693 bp region in PGL1 (Supplementary Table 1). Following transformation of the wild type, T₁ transgenic seedlings were genotyped by PCR and sequencing to identify deletion events. A Cas9-free homozygous mutant line was selected at the T₂ generation.

To grow Arabidopsis seedlings, seeds were surface-sterilized and plated on agar-solidified half-strength Murashige and Skoog medium. The plates were incubated at 4 °C for three days in the dark and then transferred to a growth chamber with 22 °C/20 °C, 16 h light/8 h dark settings, and a light intensity of 150 μmol m⁻² s⁻¹. Adult plants were maintained in commercial soil and a growth chamber with settings of 22 °C/20 °C, 16 h light/8 h dark cycles, light intensity of 120 μmol m⁻² s⁻¹, and 50% relative humidity. Tobacco (Nicotiana benthamiana) plants were maintained in a growth chamber with 25 °C/21 °C, 16 h light/8 h dark settings, a light intensity of 200 μmol m⁻² s⁻¹, and a relative humidity of 50%.

Flow cytometry

The third pair of rosette leaves of 14 DAS (stage 1), 18 DAS (stage 2), and 28 DAS (stage 3) or 7-day-old cotyledons were prepared for flow cytometry using DNA-selective fluorochromes⁶⁸. Briefly, approximately 250 mg fresh leaves were cut into small pieces in ice-cold Otto I solution (100 mM citric acid, 0.5% (v/v) Tween 20), filtered through a 40 μm nylon mesh (Falcon), and centrifuged at 150 × g for 5 min for rosette leaves or at 100 × g for 5 min for cotyledons. The nuclei were resuspended in 100 μL ice-cold Otto I solution, followed by incubation with 1 mL Otto II solution (400 mM disodium hydrogen phosphate) containing 50 μg mL⁻¹ DNase-free RNase (Sigma-Aldrich) and 50 μg mL⁻¹ propidium iodide (Sigma-Aldrich). Approximately 15,000 nuclei per sample for rosette leaves or 10,000 nuclei per sample for cotyledons were analyzed using the FACSVerse flow cytometer (Becton Dickinson). Quantitative analysis of ploidy level was conducted using the FlowJo software (v10.4). EI was calculated from the ploidy histograms using the formula: EI = 4 C + 2*8 C + 3*16 C + 4*32 C, where 4 C/8 C/16 C/32 C was the percentage of 4 C/8 C/16 C/32 C nuclei within the sample³⁹.

DAPI staining

Ten-day-old cotyledons were stained with 10 μg mL⁻¹ DAPI (Sigma-Aldrich) for 20 min in the dark under a vacuum. Nuclear DAPI fluorescence of abaxial epidermal cells was observed using an LSM 800 laser scanning confocal microscope (Zeiss).

Cryo-SEM

The third pair of rosette leaves or cotyledons or were collected and immediately frozen in subcooled liquid nitrogen (−210 °C). The samples were transferred in vacuum to the cold stage of a PP3010T workstation chamber (Quorum Technologies) for sublimation (−90 °C, 5 min) and platinum sputter coating (10 mA, 30 s). The samples were then transferred to the cold stage in an FEI Helios NanoLab G3 UC scanning electron microscope (Thermo Scientific). Images were acquired using the electron beam at 2 kV and 0.2 nA with a working distance of 10 mm. Cell size was quantitatively measured using ImageJ⁶⁹. The average cell size for each genotype was calculated from a minimum of 100 pavement cells from three individual plants.

Chemical analysis of cell wall polysaccharides

Cellulose, pectin, and hemicellulose levels in leaves of four-week-old plants were measured using the Cellulose Extraction and Determination kit, the Pectin Extraction and Determination kit, and the Hemicellulose Extraction and Determination kit, respectively, following the manufacturer’s protocols (Comin Biotechnology). Following extraction of cell wall polysaccharides, the amount of glucose, uronic acid, and xyloglucan, the primary hydrolysates of cellulose, pectin and hemicellulose^22,70,71, was used to represent contents of the respective polysaccharides. Cellulose and pectin levels were quantificated by colorimetry^22,72. To quantify hemicellulose, approximately 20 mg dried leaf tissues per sample was homogenized, mixed with 1 mL solution I provided in the kit, heated at 90 °C for 10 min, and centrifuged at 8000 × g for 10 min. The pellets were washed three times in 1 mL distilled water and centrifuged at 8000 × g for 10 min. The pelleted cell wall materials were dried, resuspended in 0.2 mL solution II, and heated at 90 °C for 1 h. After cooled to room temperature, the samples were mixed with 0.2 mL solution III and centrifuged at 8000 × g for 10 min. The hemicellulose content in the supernatants was determined by the DNS method⁷⁰ using a NanoDrop 2000c spectrophotometer (Thermo Scientific).

Immunohistochemistry

Immunofluorescence analysis of cell wall pectin was performed in this study^22,46. Seven-day-old seedlings were fixed in precooled methanol, vacuum infiltrated for 30 min, and stored overnight at 4 °C. After dehydration, seedlings were embedded in Steedman’s wax (Sigma-Aldrich) and cut into 8 μm sections using an RM2255 microtome (Lecia). After rehydration, the sections were pretreated for 1 h with 2% (w/v) BSA in PBS (for the LM19 antibody) or T/Ca/S (20 mM Tris-HCl, pH 8.2, 1 mM CaCl₂, 150 mM NaCl, for the 2F4 antibody) buffer. The sections were then incubated overnight with the corresponding primary antibodies diluted 1:500 with 0.1% BSA in PBS or T/Ca/S. After three washes in buffer containing 0.1% (v/v) Tween 20 (Sigma-Aldrich), sections for LM19 (PlantProbes, Cat#LM19; RRID: AB_2734788) and 2F4 (PlantProbes, Cat#PP-2F4) were incubated for 1 h with the secondary antibody Alexa Fluor 546 goat anti-rat IgG (Life Technologies, Cat#A11081) and Alexa Fluor 546 goat anti-mouse IgG (Life Technologies, Cat#A11003) diluted 1:800 with 0.1% BSA in PBS or T/Ca/S, respectively. After additional rinses in buffer containing 0.1% Tween 20, sections were stained with 0.1 mg mL⁻¹ Fluorescent Brightener 28 (Sigma-Aldrich) for 10 min. After three washes in water, sections were mounted in ProLong Antifade (Life Technologies) under coverslips. Fluorescence imaging was performed under an LSM 800 laser scanning confocal microscope (Zeiss). Quantitative analysis of fluorescent intensity was performed using ImageJ, with the mean intensity of given areas calculated and normalized using the FB28 signals.

PG activity assay

Total protein extraction and PG activity assay were performed in this study^24,49. Briefly, 3 g of seven-day-old seedlings were harvested and ground into fine powder in liquid nitrogen. The samples were homogenized in 5 mL ice-cold extraction buffer (50 mM TrisHCl, pH 7.5, 2.5 mM DTT, 3 mM EDTA, 2 mM PMSF, 1 M NaCl, and 10% (v/v) glycerol) and centrifuged at 18,000 g for 40 min at 4 °C. The supernatant was dialyzed in 50 mM sodium acetate, pH 5.0, using 10,000 MWCO centrifugal filter devices (Millipore). PG activity was assessed as the increase in reducing end groups using 0.2% (w/v) polygalacturonic acid (Sigma-Aldrich) as the substrate and measured at 276 nm absorbance on a NanoDrop 2000c spectrophotometer.

FPLC analysis of pectin molecular sizes

Seven-day-old seedlings were harvested and ground into fine powder in liquid nitrogen. The powder was washed with 70% ethanol after treatment with 1:1 (v/v) chloroform:methanol. The air-dried cell wall residues were used for pectin extraction using 1,2cyclohexylenedinitrilotetraacetic acid (CDTA)^21,24. Five mg CDTAsoluble lyophilized pectin powder was dissolved in 1 mL 0.1 M sodium acetate and filtered through a 0.22 μm filter. A Superdex 75 10/300 GL gel filtration column (GE Healthcare) with gel media equilibrated with 0.1 M sodium acetate, pH 5.0, was used to fractionate the CDTA-soluble polymers. The sample was eluted at a flow rate of 500 μL per min, and the MWGF200 Size Standard Kit (SigmaAldrich) was used to calibrate molecular mass. Fifty fractions with 500 μL each were collected and analyzed for uronic acid content²¹. Briefly, 250 μL of each fraction was mixed with 1 mL 0.0125 M sodium tetraborate (SigmaAldrich) in sulfuric acid solution, boiled for 5 min, and cooled to room temperature. Absorbance of the sample was measured at 520 nm as the background. The sample was then mixed with 20 μL of 0.15% (w/v) mhydroxydiphenyl (SigmaAldrich), dissolved in 0.5% (w/v) sodium hydroxide, and incubated at room temperature for 10 min. The content of uronic acid was measured as the absorbance at 520 nm.

RNA-seq analysis

RNA samples were collected from young leaves of four-week-old wild-type and tcpΔ7 plants and sent to Beijing Genomics Institution (China) for sequencing. Trimmomatic was used to remove low-quality reads with the default parameters and to retain reads longer than 50 bases. The clean reads were mapped to the reference genome (TAIR10_Araport11) using HISAT (v2.1.0). Transcript quantification was processed by StringTie (v1.0.4). DEseq2 was implemented to identify differentially expressed genes with Qvalue (adjusted P-value) < 0.05. The false discovery rate (FDR) method was applied for correcting the P-value.

AgriGO 2.0 was used for GO term enrichment analysis⁷². For differentially expressed genes, we estimated GO term enrichment in the biological process category using the Fisher test. GO terms in the biological process category was clustered and analyzed using the simplifyEnrichment package⁴². Similarity between each pair of GO terms was calculated with k-means. GO terms with similarity >0.6 were used to construct an association network.

Quantitative transcript analysis

Total RNA was extracted using the Quick RNA Isolation Kit (Huayueyang). First strand cDNA synthesis and qPCR were performed respectively with the Fasting RT Kit with gDNase (Tiangen) and the SuperReal Premix Plus SYBR Green (Tiangen) on a QuantStudio 3 Real-Time PCR System (Applied Biosystems) in standard mode. ACTIN7 was used as an internal control. Relative transcript abundance was calculated using the comparative threshold cycle method.

ChIP-qPCR

Approximately 2 g of seven-day-old wild-type and MYC-mTCP4 seedlings³⁸ were harvested and crosslinked in 1% formaldehyde for 30 min. The ChIP procedure was performed following the standard protocol⁷³. AntiMYC Agarose Affinity Gel antibody (Sigma-Aldrich, Cat#A7470) was used to perform the immunoprecipitation. IgG was used as the negative control for the MYC antibody. Following ChIP, qPCR was performed to examine the enrichment level of selected DNA fragments using primers listed in Supplementary Table 1. The enrichment of each target site was calculated as the percentage of coimmunoprecipitated DNA relative to the corresponding input DNA.

Promoter activity assays

A 3000 bp promoter sequence upstream of the predicted translational initiation site of PGL1 was PCR amplified from genomic DNA using primers listed in Supplementary Table 1. The fragment was cloned into the p1305.1 vector to generate the pPGL1:LUC-35S:REN reporter construct. The pPGL1^m:LUC-35S:REN construct with the nucleotides of the three CIN-TCP binding sites (site II, CGGNCC-I and CGGNCC-II) mutated was generated using primers listed in Supplementary Table 1. The coding region of TCP4 was cloned from cDNA using primers listed in Supplementary Table 1 and inserted into the pJim19 vector to generate the 35S:TCP4 effector construct. The reporter constructs, combined with either the pJim19 empty vector or the 35S:TCP4 effector, were used to transform Agrobacterium cells, which was prepared to OD₆₀₀ of 1.0 in the infiltration buffer⁷⁴. The Agrobacterium cells were used to infiltrate tobacco leaf epidermal cells. After grown at 24 °C for 2 days, the infiltrated leaves were detached, sprayed with 20 g L⁻¹ potassium luciferin (Gold Biotechnology), and incubated in darkness for 5 min before imaging. Luminescence imaging was performed with the Lumazone system (Roper Technologies) with 5 min exposure time and 1 MHz ADC rate. Quantification of luminescence was carried out with ImageJ using integrated density.

BLI assay

The binding kinetics of TCP2 and TCP3 to the PGL1 promoter was monitored using a GatorPrime instrument (Gator Bio) with minor modifications⁵⁴. In brief, the trigger factor- and His-tagged recombinant TCP2 and TCP3 based on the pCold TF DNA vector (Takara Bio) were purified from E. coli strain Rossetta DE3. The biotin-labeled DNA fragments containing the binding motifs (site II, CGGNCC-I and CGGNCC-II) or mutated versions (site II^m, CGGNCC-I^m and CGGNCC- II^m) were loaded onto the streptavidin-coated sensors (Gator Bio, 160002) from a solution of 100 nM. After immobilization, the sensors were dipped into various concentrations of TCP2 (70 to 1200 nM) or TCP3 (112.5 to 1800 nM) for 120 s of association and 180 s of dissociation in a PBST buffer supplied with 0.2% (w/v) BSA. The processed data curves for the association and dissociation steps were used to calculate the K_off, K_on, and K_d values with a 1:1 binding model (global fit) using the GatorOne software (Gator Bio).

Statistical analysis

Statistical analyses were performed using Prism 8 (v8.4.0). For the two-sample comparison, Student’s t test was performed if the sample data conforms to Gaussian distribution, if not, the Mann-Whitney test was performed. For the multiple-sample comparison, one-way ANOVA was performed if the sample data conforms to a Gaussian distribution, if not, the Kruskal-Wallis test was performed. The number of samples and statistical significance were indicated in the relevant figure legends.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The RNA-seq data generated in this study have been deposited in the National Center for Biotechnology Information (NCBI) Database with the BioProject ID PRJNA971251. Source data are provided in this paper.
