Introduction

Type 1 diabetes is characterized by immune-associated destruction of insulin producing pancreatic beta cells resulting in a lifelong reliance on insulin replacement. However, cardiovascular disease remains the main cause of mortality in type 1 diabetes and increased cardiovascular risk is not fully explained by traditional risk factors1.

Insulin resistance is an important metabolic disturbance in type 1 diabetes. Insulin resistance in type 1 diabetes is considered to be partially driven by the disturbed portal-peripheral insulin concentration gradient created by the subcutaneous route of insulin delivery2. Insulin resistance is of interest in type 1 diabetes as studies, including those with surrogate measures of cardiovascular disease, report an association between insulin resistance and cardiovascular risk3,4. Whether this association is driven by muscle or liver insulin resistance has not been previously examined3,5,6,7. This differentiation is important, since targeted intervention with adjunctive therapies that ameliorate insulin resistance may provide cardioprotection in type 1 diabetes8,9.

Metformin, an inexpensive and safe oral medication, is an ideal candidate to address insulin resistance in type 1 diabetes. Although used first-line in the pharmacological management of type 2 diabetes, its mechanisms of action are not entirely understood. In type 2 diabetes, hyperinsulinemic-euglycemic clamp studies demonstrate that metformin alters glucose metabolism at muscle and liver10. In addition, metformin has been found to increase circulating growth differentiation factor 15 (GDF15), a stress-regulated hormone with an association with appetite suppression, weight and glucose regulation11,12. In type 2 diabetes, large cohort studies, such as the UK Prospective Diabetes Study (UKPDS), indicated an association between metformin and reduced cardiovascular risk and mortality13. In type 1 diabetes, systematic reviews of randomized controlled clinical trials demonstrate that metformin reduces total daily insulin dose, often inferring an improvement in insulin resistance14. However, studies in type 1 diabetes using the gold-standard clamp technique to directly measure insulin resistance have only been performed in adolescents15,16,17,18. No study has employed the clamp technique to assess the effect of metformin on insulin resistance in adults with type 1 diabetes.

We designed a cross-sectional study in adults with and without type 1 diabetes to quantify insulin resistance at muscle, liver and adipose tissue; and identify biochemical and clinical features that associated with muscle and liver insulin resistance. We followed this with a 6-month randomized controlled clinical trial, the Insulin Resistance in Type 1 Diabetes Managed with Metformin (INTIMET) study, to test the hypothesis that among adults with type 1 diabetes, relative to placebo, the addition of metformin to insulin would decrease hepatic insulin resistance and improve other cardiometabolic measures, without an increase in adverse effects.

Results

Study participants

Men and women with type 1 diabetes for at least 10 years were eligible for the trial if aged between 20 and 55 years, with fasting c-peptide less than 0.3 nmol/L, and an HbA1c less than 9.5% (80 mmol/mol). Twenty adults without diabetes were recruited for baseline studies only. We excluded participants taking medications or with conditions known to impact insulin sensitivity. Complete eligibility criteria are provided in the Methods.

Participants underwent baseline phenotyping assessment between November 2019 and December 2021. In the type 1 diabetes participants, the mean age was 37.4 ± 8.8 years (mean ± SD), with type 1 diabetes duration 22.9 ± 8.9 years, 60% male, BMI 26.3 ± 3.8 kg/m2, total daily insulin dose 0.6 (0.5, 0.7) units/kg/day (mean [IQR]) and HbA1c 7.5 ± 0.9% (Table 1). A similar proportion of type 1 diabetes participants used multiple daily insulin injections and insulin pumps. The twenty adults without diabetes were aged 37.0 ± 8.4 years, 60% male, with BMI 26.2 ± 4.3 kg/m2 and HbA1c 5.1 ± 0.3%. Therefore, adults with and without type 1 diabetes did not differ in age, sex or anthropometric characteristics (Table 1).

Table 1 Baseline demographic and metabolic characteristics of groups with and without type 1 diabetes
Full size table

Baseline analyses in participants with and without type 1 diabetes

Insulin resistance

Insulin resistance was assessed at multiple tissue sites, using the three-stage hyperinsulinemic-euglycemic clamp technique with isotope labelled glucose (6,6-2H2-glucose). The type 1 diabetes group exhibited significantly greater liver, adipose and muscle insulin resistance compared to control participants. Participants with type 1 diabetes had higher endogenous glucose production than controls (EGP; 5.9 ± 2.2 µmol/kg fat free mass [FFM]/min and 3.6 ± 1.7 µmol/kgFFM/min respectively; p = 0.0002) and higher non-esterified fatty acids (NEFA) in the low-dose phase (0.08 ± 0.01 mmol/L and 0.02 ± 0.02 mmol/L respectively; p = 0.001), indicating impaired insulin-mediated suppression of hepatic glucose release and lipolysis, respectively. Participants with type 1 diabetes had lower glucose infusion rate (GIR) during the high-dose phase (61.9 ± 20.1 µmol/kgFFM/min and 87.7 ± 18.4 µmol/kgFFM/min respectively; p = 0.00001), indicating impaired insulin-stimulated glucose uptake by skeletal muscle (Fig. 1). Adjusting for the effect of steady-state insulin and glucose concentrations on clamp variables did not change this result (Supplementary Table 1).

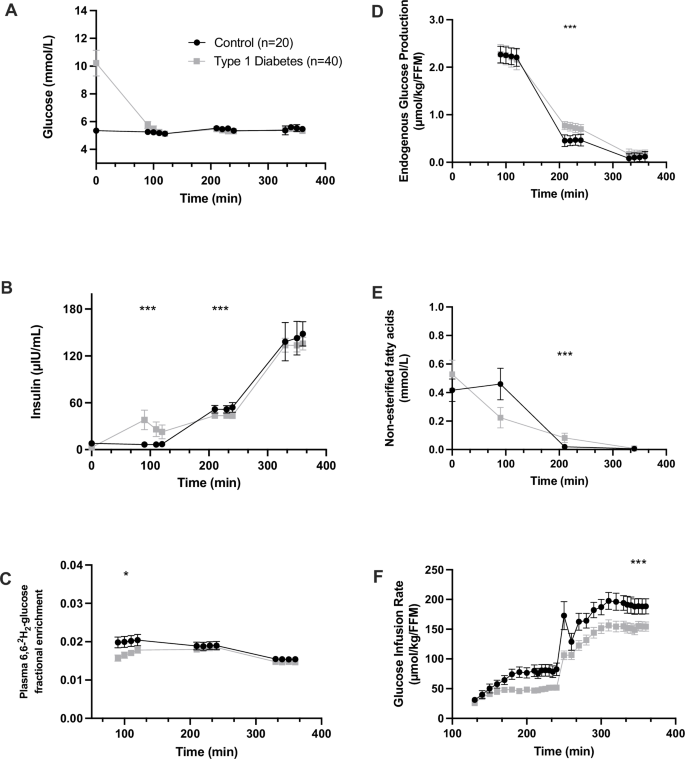

Fig. 1: Clamp measurements from the hyperinsulinemic-euglycemic clamp in type 1 diabetes and control groups, displayed across the time course of the clamp.
figure 1

A Though participants with type 1 diabetes arrived with hyperglycaemia, steady state glucose levels were equivalent between type 1 diabetes and control participants across all clamp phases. B Steady state plasma insulin concentration was higher in type 1 diabetes participants in the basal phase (p = 0.00001), lower in the low-dose phase (p = 0.001) and similar in the high-dose phase (p = 0.55). The higher basal-phase insulin concentrations in the type 1 diabetes group reflect the infused insulin necessary to achieve euglycemia. C Plasma 6,6-2H2-glucose isotope enrichment was lower in the type 1 diabetes group in the basal phase (p = 0.00002), and equivalent between groups in the low and high-dose phases. D Endogenous glucose production (EGP) decreased across the stages of the clamp indicating dose-dependent suppression in response to insulin. EGP during the low-dose step of the clamp was 64% higher in type 1 diabetes indicating impaired suppression of hepatic endogenous glucose production (p = 0.0002). E Non-esterified fatty acid (NEFA) levels during the low-dose step of the clamp were higher in type 1 diabetes indicating impaired suppression of lipolysis by insulin (p = 0.001). F Glucose infusion rate (GIR) requirements increased across the course of the clamp and was steady by the sampling period. The GIR during the high-dose step of the clamp was 29% lower in type 1 diabetes, indicating muscle insulin resistance (p = 0.00001). Together these graphs show the presence of multi-tissue insulin resistance in type 1 diabetes relative to control participants. Analyses are two-sided, using t-tests or Mann–Whitney U according to data distribution, without adjustment for multiple testing. Data are presented as means and 95% confidence intervals. *p < 0.05, **p < 0.01, ***p < 0.001.

Full size image

Metabolic characteristics

Comprehensive cross-sectional metabolic assessments were performed at baseline for all participants with and without diabetes, and at 26 weeks for randomized participants with type 1 diabetes.

At baseline, augmentation index (AIx; a measure of arterial stiffness and validated surrogate of cardiovascular disease) was higher in participants with type 1 diabetes than participants without diabetes (Table 2)19. Serum levels of soluble intercellular adhesion molecule 1 (sICAM-1) and GDF15 were also higher in participants with type 1 diabetes (Table 2). Despite greater insulin resistance in type 1 diabetes, serum adiponectin and body composition measurements, including visceral adipose tissue (VAT) mass, were similar (Table 2). Uric acid and insulin-like growth factor-1 (IGF-1) were lower, and sex hormone binding globulin (SHBG) was higher, in participants with type 1 diabetes (Table 2). Triglycerides were lower in type 1 diabetes individuals but not after adjusting for statin use (p = 0.061). The type 1 diabetes group had higher high-density lipoprotein (HDL) cholesterol concentrations after adjusting for statin use (1.4 ± 0.4 vs 1.2 ± 0.2 mmol/L, respectively, p = 0.044).

Table 2 Biochemical, body composition and vascular characteristics of the groups with and without type 1 diabetes
Full size table

Metabolic characteristics and relationships with insulin resistance

To examine the phenotype of insulin resistance, relationships between cardiometabolic measures and sites of insulin resistance were assessed using baseline measures. In the total cohort, liver insulin resistance did not relate to any metabolic variable except sICAM-1, soluble endothelial selectin (sE-selectin) and alkaline phosphatase (ALP) (Supplementary Table S2). Muscle insulin resistance (i.e. 1/GIR) positively associated with Log-AIx (r = 0.258; p = 0.048), BMI, VAT mass, serum inflammatory markers (sICAM-1, sE-selectin), liver enzymes (ALT, GGT, ALP) and LDL cholesterol (Supplementary Table S2). In participants with type 1 diabetes, muscle insulin resistance additionally correlated directly with HbA1c, insulin dose, mean overnight glucose, and inversely with glycemic variability (Supplementary Table S2). Adjustment for HbA1c, but not fasting glucose, attenuated the difference in GIR between participants with and without type 1 diabetes (Supplementary Table S3).

Efficacy analyses – metformin in type 1 diabetes

The baseline characteristics of participants with type 1 diabetes randomized to metformin or placebo were similar, except for a lower total daily insulin dose in the metformin group (Table 3). After completing baseline studies, participants with type 1 diabetes were randomized to metformin extended release, or identical appearing placebo, as 500 mg tablets, titrated from 500 mg for 7 days, then 1000 mg for 7 days then 1500 mg for the remaining 26-week treatment period. Dosage could be adjusted to accommodate adverse effects, and a submaximal dose was permitted. Thirty-seven of 40 participants completed the 26-week intervention period, with no pattern to the participant dropout by treatment group (Fig. 2). Medication adherence assessed by tablet count was similar between groups (89 vs 88% metformin vs placebo; p = 0.88).

Fig. 2: Screening, randomization and follow up sample sizes.
figure 2

Between November 2019 and December 2021, 40 adults with type 1 diabetes were enroled in the study, then randomized 1:1 to metformin or placebo. Nineteen participants in the metformin group, and 18 in the placebo group completed the study and analyses were conducted by intention to treat.

Full size image
Table 3 Baseline characteristics of participants with type 1 diabetes by treatment group
Full size table

Insulin resistance

The primary endpoint was change in liver insulin sensitivity at 26 weeks. Treatment with metformin did not significantly alter EGP (treatment by time interaction: β = 0.2 [95% CI −0.4 to 0.8], p = 0.53) compared to placebo after 26 weeks (Fig. 3, Supplementary Table S4).

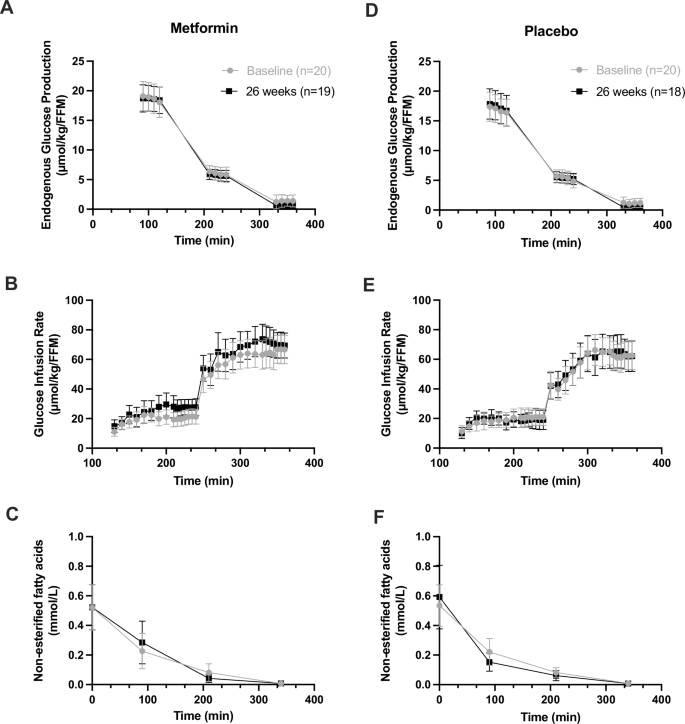

Fig. 3: Insulin resistance measures at baseline and after 26 weeks by treatment group.
figure 3

The graphs show the pre- and post-treatment endogenous glucose production (Panel A), glucose infusion rate (Panel B) and non-esterified fatty acids (Panel C) in the participants with type 1 diabetes treated with metformin or placebo (Panel D, E and F). Metformin had no significant effect on measures of liver, muscle or adipose insulin resistance. Analyses are two-sided using generalized linear mixed modelling without adjustment for multiple testing. Data are presented as means and 95% confidence intervals.

Full size image

Pre-specified secondary endpoints included the change in muscle and adipose insulin sensitivity at 26 weeks. The change in GIR in the metformin group was 8.3 µmol/kgFFM/min (95% CI 0.8–15.9; p = 0.03), and 6.6 µmol/kgFFM/min (−1.2 to 14.6; p = 0.10) in the placebo group, with no overall difference in GIR at 26 weeks between groups (GIR treatment by time interaction: β = 1.6 [95% CI −4.8 to 7.9], p = 0.62). Additionally, there was no significant difference in NEFA from baseline to 26 weeks between groups (treatment by time interaction: βlogscale = −0.12 [95% CI −0.5 to 0.3], p = 0.54). Adjustment for age, sex, baseline BMI, baseline HbA1c or insulin delivery method did not change the result for insulin resistance measures (Supplementary Table S5).

Total daily insulin, glycemia and weight

The results for the pre-specified secondary endpoint of change in insulin dose at 26 weeks are shown in Fig. 4. Metformin significantly reduced total daily insulin dose relative to placebo (estimated treatment difference [ETD] −0.10 units/kg/day [95% CI −0.15 to −0.04], p = 0.0008; metformin −0.03 units/kg/day [95% CI −0.08 to 0.030], placebo +0.04 units/kg/day [95% CI −0.01 to 0.10]), and the result remained significant after adjustment for multiple comparisons (p = 0.02). Adjustment for age, sex, baseline BMI, baseline HbA1c or insulin delivery method did not change the result for total daily insulin dose (Supplementary Table S5).

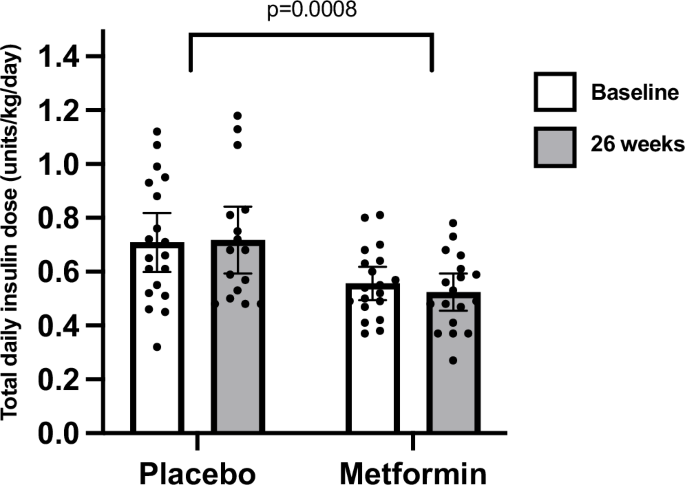

Fig. 4: Insulin dose at baseline and after 26 weeks by treatment group.
figure 4

Metformin significantly decreased total daily insulin dose (estimated treatment difference −0.1 units/kg/day [95% CI −0.15 to −0.04]; p = 0.0008). Analyses are two-sided using generalized linear mixed modelling without adjustment for multiple testing. Data are presented raw as means and 95% confidence intervals and were available for n = 19 placebo and n = 19 metformin at baseline, n = 16 placebo and n = 18 metformin at 26 weeks.

Full size image

HbA1c and continuous glucose monitoring parameters were used to assess the effect of metformin on glycemia. Participants with type 1 diabetes wore blinded continuous glucose monitoring (CGM) for up to 2 weeks prior to the baseline and 26-week study visits. The first 20 enrolled participants were provided the Medtronic iPro ® Enlite system, (Medtronic Northridge, CA, changed after 7 days, in total 2 devices worn per participant) and the final twenty participants were provided the Dexcom G6 monitor (Dexcom, San Diego, CA) due to discontinued supply of the Medtronic system mid-trial. There were no differences between the trial groups for HbA1c, % time within target range (3.9–10 mmol/L [70–180 mg/dL]), % time below range, <3.9 mmol/L [<70 mg/dL]), time below range, <3.0 mmol/L [<54 mg/dL]), % time above range >10.0 mmol/L [>180 mg/dl]), % time above range >13.9 mmol/L (>250 mg/dl), or glycemic variability (coefficient of variation) over 26 weeks (Supplementary Tables S4, S6).

Other secondary endpoints and exploratory analyses

After 26 weeks, participants randomized to metformin had lower VAT (ETD βlogscale −0.3 [95% CI −0.7 to −0.02], p = 0.04; metformin −15.2 g [95% CI −88.6 to 58.2], placebo +94.2 g [95% CI −208 to 397]) and higher serum GDF15 levels (ETD βlogscale 0.3 [95% CI 0.1–0.4], p = 0.001; metformin +399 pg/mL [95% CI [93–704], placebo +17 pg/mL [95% CI −102 to 136] compared to placebo (Supplementary Table S4 and Fig. 5). The p-value for GDF15 remained significant after accounting for multiple comparisons (p = 0.03), although the reduction in VAT was no longer significant.

Fig. 5: GDF15 at baseline and after 26 weeks by treatment group.
figure 5

Metformin significantly increased growth differentiation factor 15 (GDF15) compared to placebo (estimated treatment difference 382 pg/mL [95% CI 59–704]; p = 0.001). Analyses are two-sided using generalized linear mixed modelling without adjustment for multiple testing. Data are presented raw as means and 95% confidence intervals and were available for n = 20 placebo and n = 19 metformin at baseline, n = 18 placebo and n = 18 metformin at 26 weeks.

Full size image

There were no significant differences between the trial groups in AIx, weight or other body composition, biochemical or anthropometric secondary endpoints at 26 weeks (full detail in Supplementary Table S4). Microbiome analyses, a pre-specified secondary endpoint, is not reported in this manuscript.

To further examine contributors to the effect of metformin on insulin dose, exploratory analysis of the impact of metformin on glucagon and caloric intake was performed. Metformin did not alter fasting glucagon levels or glucagon response to insulin during the clamp (Supplementary Table S7). Participants kept detailed diet records for up to 14 days prior to their baseline and 26-week study visits. There was no difference in total caloric, carbohydrate, protein, fat or sugar intake between groups at 26 weeks (Supplementary Table S7).

Safety

Overall, metformin was well tolerated, with an acceptable side effect profile (Supplementary Tables S6, S8). One participant in the metformin group (5%) and two in the placebo group (10%) discontinued treatment prior to the 26 week follow up visit (Fig. 2). There was no pattern to the participant dropout by treatment group. The participant in the metformin group discontinued 22 weeks after randomization due to pregnancy. In the placebo group, one participant developed intolerable gastrointestinal side effects (bloating), and the other elected to discontinue due to COVID-19 related lockdowns impacting personal capacity to complete the study (Fig. 2). The placebo group had more frequent gastrointestinal adverse effects (nausea, bloating) and required dose de-escalation in one individual and led to study drop out in another (Supplementary Table S8). Gastrointestinal side effects were absent in the metformin group. In the metformin group, the two hospitalization events occurred in the same individual and was considered unrelated to the study drug (appendicitis, and pre-syncope leading to emergency department presentation without admission). Iron deficiency was considered likely secondary to heavy menstrual periods. There were no episodes of diabetic ketoacidosis or severe hypoglycemia in either group. The frequency of hypoglycemia (% time <3.9 mmol/L or <3.0 mmol/L) occurred in similar frequency in metformin and placebo groups (Supplementary Table S6). Hypoglycemia was not defined by the American Diabetes Association levels of hypoglycemia due to the trial design and conduct preceding the introduction of these definitions.

Discussion

This study, the first randomized controlled clinical trial assessing the effect of adjunctive metformin on insulin resistance in adults with type 1 diabetes, did not demonstrate improvement in liver, muscle or adipose tissue insulin resistance after treatment for 26 weeks. These results do not support the use of metformin to reduce insulin resistance in adults with type 1 diabetes. This finding contrasts with studies of metformin in adolescents with type 1 diabetes, that reported improved peripheral insulin sensitivity and no change in hepatic glucose production (a measure of liver insulin resistance)15,16. The influence of pubertal factors on insulin resistance in adolescents may explain this difference in results20.

Although there was no evidence of an effect on measures of insulin resistance, metformin was associated with a reduction in total daily insulin dose by 0.1 units/kg/day relative to the placebo group. The finding of an insulin dose reduction mirrors systematic review findings pooling studies with insulin dose as a trial endpoint performed in both adults and youth with type 1 diabetes14. Insulin dose reduction is often assumed to imply a reduction in insulin resistance. However, no prior studies have employed the clamp technique to directly measure insulin resistance in adults. Our findings suggest that in adults with type 1 diabetes, metformin may have metabolic impacts that translate to sparing of insulin requirements via effects independent of insulin resistance.

The mechanisms for the reduction of insulin dose in the absence of change in insulin resistance is of interest. Since carbohydrate intake and glucagon levels did not change with metformin treatment, we could not attribute the effect to appetite suppression, or to glucagon impacting the net effect of metformin on glucose metabolism. There is mounting evidence for an interaction between metformin and the gut, a phenomena that is clearly apparent in metformin exposed individuals that exhibit increased colonic and small intestinal glucose tracer uptake when undergoing fluoro-deoxyglucose (FDG)-positron emission topography (PET) imaging21,22,23. The mechanism by which metformin increases intestinal glucose uptake is thought to be due to increased glucose transporter (GLUT) and reduced SGLT1 apical expression in enterocytes24. Other postulated theories for metformin’s action on the gut include effects on lactate-glucose cycling, bile acid absorption, incretin secretion, GDF15 and changes to the gut microbiome21. Our group will report the effect of metformin on the microbiome in type 1 diabetes in a separate manuscript.

GDF15 is a novel stress-responsive cytokine that is gaining interest as a metabolism biomarker and a potential therapeutic target. GDF15 was elevated at baseline in the type 1 diabetes group. This finding is consistent with the expectation that GDF15 is elevated in diabetes but likely offers a protective function. Therefore, paradoxically, whilst an elevated basal GDF15 level may represent poorer health, increased levels are thought to be protective, and pharmacologically inducing GDF15 has been shown to be metabolically favourable.

Metformin led to a significant increase in serum GDF15 levels compared to placebo. This is consistent with prior human clinical studies in prediabetes, type 2 diabetes and obesity11,25,26,27,28,29. Data from rodents and primates demonstrated that GDF15 treatment induces reductions in food intake, body weight, triglyceride concentrations and implicates GDF15 in metformin’s glucoregulatory actions12,30,31. To our knowledge, no prior study has examined the effect of metformin on GDF15 in type 1 diabetes, nor in humans with diabetes in a placebo-controlled setting. In this study, it is unclear whether GDF15 is mechanistically related to insulin dosage, and/or glucose metabolism. We hypothesize that GDF15 may promote metformin-induced glucose transport into enterocytes, thereby creating an intestinal glucose sink and reducing insulin dose requirements. Animal studies would assist in testing this hypothesis.

Insulin monotherapy remains the mainstay of treatment of type 1 diabetes, yet is associated with iatrogenic insulin resistance and insulin resistance is indirectly associated with increased CV risk2,4. Using the hyperinsulinemic-euglycemic clamp technique with glucose isotope, we demonstrated that participants with type 1 diabetes had considerable muscle (29% lower GIR), liver (64% higher EGP) and adipose tissue insulin resistance, and greater arterial stiffness, than control participants. Muscle insulin resistance was associated with arterial stiffness, suggesting that muscle insulin resistance may be a key therapeutic target to reduce vascular risk in type 1 diabetes. From studies in type 2 diabetes, it has been proposed that metformin primarily inhibits hepatic glucose output (possibly via AMP kinase activation), secondarily reducing fatty acid oxidation, with indirect effects on skeletal muscle glucose disposal10,32. This provided rationale for the investigation of metformin in type 1 diabetes.

Our study suggests that in type 1 diabetes, muscle insulin resistance is influenced by hyperglycaemia. It is also likely induced by the direct absorption of subcutaneously administered insulin into the peripheral circulation, bypassing hepatic insulin clearance and distorting the usual balance between portal and peripheral insulin concentrations2,33. Exposure to chronic hyperinsulinemia may disrupt insulin transduction and is associated with defective oxidative glucose disposal, endothelial dysfunction and obesity in type 1 diabetes2,34,35. Thus, reducing insulin resistance, hyperinsulinemia, and insulin dose may all be important therapeutic targets in the treatment of type 1 diabetes.

However, it has not yet been established whether reducing total daily insulin dose may lead to a reduction in insulin resistance in type 1 diabetes. Thus, the clinical relevance of our finding of insulin dose reduction is uncertain. Notably, in a Diabetes Control and Complications Trial/Epidemiology of Diabetes Interventions and Complications (DCCT/EDIC) follow up study, higher insulin doses were adversely associated with cardiovascular risk factors, and each 0.1 units/kg/day insulin dose increase predicted a 6% increase in cardiovascular disease risk over 30 years36. Although the association with cardiovascular outcomes was attenuated after adjustment for traditional risk factors, the findings raise the hypothesis that minimizing insulin dose may have beneficial consequences for cardiovascular risk over time36. Indeed lower insulin dose requirements is one of the proposed mechanisms by which insulin pump therapy has been linked with lower mortality compared to multiple daily injections37.

Furthermore, though metformin failed to reduce insulin resistance in type 1 diabetes, this finding does not discount possible pleotropic effects to reduce cardiovascular risk in this population. The REMOVAL study, an international multicentre trial in adults age 40 years or older with multiple cardiovascular risk factors randomized to metformin 1000 mg twice daily or placebo, sought to provide cardiovascular data for metformin in type 1 diabetes, using carotid artery intima-media thickness (cIMT), a validated surrogate measure of atherosclerotic cardiovascular disease38,39. Metformin did not significantly reduce the primary endpoint, mean far wall cIMT, although a significant reduction was seen a pre-specified subgroup analysis in participants that had never-smoked40. In REMOVAL, there were mixed results regarding insulin dose reduction with metformin, with a significant reduction seen from 6 months after randomization. The mechanism for metformin offering possible CV protection in type 1 diabetes remains uncertain, and whether the mechanism involves insulin dose conservation requires further study38.

The clinical significance of, and the mechanisms driving, hepatic insulin resistance in type 1 diabetes are uncertain. In our study, as liver fat was not higher, and did not correlate with liver insulin resistance, liver fat was considered unlikely to contribute to the development of liver insulin resistance in type 1 diabetes. This is unlike the well-established relationship between hepatic fat and insulin resistance reported in some studies of type 2 diabetes41. Impaired hepatic insulin sensitivity may also arise due to hyperglucagonemia causing increased EGP, an underappreciated defect in type 1 diabetes42. Glucagon itself can exacerbate post-prandial hyperglycaemia, insulin resistance and cardiovascular risk42,43. However, we did not demonstrate elevated glucagon levels relative to participants without diabetes. Further, impaired suppression of lipolysis may increase gluconeogenic substrate flux (such as fatty acids or glycerol) from peripheral adipose tissue to the liver which then interfere with insulin sensitivity at the hepatic site44. Thus, in type 1 diabetes, apparent hepatic insulin resistance may in fact be a downstream consequence of peripheral insulin resistance.

A major strength of our study was that we included individuals across a wide range of insulin sensitivities. This distinguishes our study from other type 1 diabetes studies, which included individuals with overweight or obesity, high insulin dose requirements or metabolic syndrome features15,16,45,46. This is important given our demonstration of prominent insulin resistance in type 1 diabetes without an elevated BMI or visceral adiposity and offers the benefit of generalizability across the BMI spectrum. This benefit is also a limitation. Our trial could have provided different results if targeted to a cohort with a higher BMI, or higher HbA1c. Our enrolment criteria excluded those with HbA1c greater than 9.5%, a population in whom glucotoxicity may significantly contribute to insulin resistance. However, even with this restriction, HbA1c appeared to predict insulin resistance in our cohort. Other limitations include our predominantly Caucasian cohort which limits generalizability. Our study may have been underpowered to detect the effect of metformin on GIR, or other secondary outcomes, and differences in clamp methodology may account for differences compared to the findings reported in adolescents15,16. Although EGP was almost completely suppressed in most participants, we did not correct for tracer estimated EGP in the high-dose phase. This may have led to an underestimation of GIR in some participants, however there were no observable differences in between group EGP between participants with and without diabetes, or between placebo and metformin groups. Notably insulin dose adjustment was left to the discretion of the participant with diabetes and their treating clinician. Therefore, we cannot determine whether the reduction in insulin dose impacted or masked glycemic efficacy measures such as HbA1c. We only assessed EGP in the fasting state. The impact of metformin on prandial glucose and glucagon kinetics were not assessed, noting that glucagon response to food is exaggerated in type 1 diabetes47. Additionally, we could not determine if the insulin dose reduction was predominantly meal-time insulin, or exclude that there were inherent differences in the group randomized to metformin, who had a lower insulin dose requirement at baseline. However we were reassured by the consistency of our findings relative to other studies reporting reduced insulin dose requirements14.

Multi-tissue insulin resistance is a prominent metabolic defect in adults with type 1 diabetes and can occur in the absence of factors that typify the metabolic syndrome. However, the addition of metformin to insulin for 6 months did not improve insulin resistance. Of the secondary endpoints, the findings favoured metformin for insulin dose reduction. These results do not support prescribing metformin to reduce insulin resistance in adults with type 1 diabetes but suggest that metformin may reduce insulin dose via mechanisms independent of insulin resistance. The potential cardiovascular benefits of insulin sparing and reducing peripheral hyperinsulinemia warrant further study.

Methods

Study design

INTIMET was a single-site investigator-initiated phase 3 randomized placebo-controlled trial that was approved by the St Vincent’s Hospital Human Research and Ethics Committee (Sydney) and was conducted in accordance with the principles of the Declaration of Helsinki. The trial was prospectively registered on 17th October 2019 prior to the start of participant enrolment (Australian New Zealand Clinical Trials Registry, ACTRN12619001440112). The trial did not involve a data safety monitoring board. Participants provided written informed consent and were not compensated. The trial protocol was previously published, and discrepancies from the study as original planned are as stated48. Assessment of energy expenditure using indirect calorimetry was planned for in our original protocol but was aborted during the COVID-19 pandemic due to concerns regarding adequate infection control. Therefore, energy expenditure and oxidative metabolism data were not available.

Participants

Participants were enroled between November 2019 and December 2021. All metabolic measurements occurred within the Clinical Research Facility (CRF) of the Garvan Institute of Medical Research, Darlinghurst, New South Wales Australia, and data were collected, recorded and stored within the Garvan REDCap database. The study was conducted in 40 participants with type 1 diabetes who met the following criteria, and 20 participants without diabetes were studied at baseline only.

Study eligibility criteria

Inclusion

  1. 1.

    Age 20–55 years.

  2. 2.

    Pre-menopausal.

    And if type 1 diabetes

  3. 3.

    At least 10 years since diagnosis of type 1 diabetes.

  4. 4.

    Fasting c-peptide <0.3 nmol/L.

  5. 5.

    HbA1c ≤ 9.5% (≤80 mmol/mol).

Exclusion

  1. 1.

    Current smoking.

  2. 2.

    Medications affecting glucose metabolism (including, but not limited to glucocorticoids, anti-psychotic medications, immunosuppressants, glucagon-like peptide-1 receptor agonists, sodium-glucose cotransporter inhibitors).

  3. 3.

    Exposure to metformin within the last 30 days (a wash out period was permitted).

  4. 4.

    Alcohol intake greater than 40 g/day in men or greater than 20 g/day in women

  5. 5.

    History of significant weight change (defined as greater than 5%) in the last 3 months, or history of weight loss surgery.

  6. 6.

    Pregnancy or breastfeeding.

  7. 7.

    Major organ dysfunction (including eGFR <60 ml/min/1.73 m2, liver disease transaminases greater than 3 times the upper limit of normal, cardiac event within the last 6 months, current cancer or uncontrolled thyroid dysfunction).

  8. 8.

    Diabetic ketoacidosis or severe hypoglycemia (defined as hypoglycemia requiring third-party assistance) in the last 6 months.

Intervention

After completing baseline studies, participants with type 1 diabetes were randomized to metformin extended release, or identical appearing placebo, as 500 mg tablets, titrated from 500 mg for 7 days, then 1000 mg for 7 days then 1500 mg for the remaining 26-week treatment period. Dosage could be adjusted to accommodate adverse effects, and a submaximal dose was permitted. Pill count was used to assess medication adherence. Randomization, performed by an independent clinician, was 1:1 for metformin to placebo using a computerized minimization procedure to stratify for BMI, HbA1c, sex and age (40%, 20%, 20% and 20% weighting, respectively)49. Sex was determined by self-report at enrolment. Participants, outcome assessors and data analysts were blinded to treatment allocation.

Study procedures

At baseline for all participants with and without diabetes, and at 26 weeks for randomized participants with type 1 diabetes, comprehensive metabolic assessments were performed including blood pressure, BMI and waist-to-hip ratio measurement. Body composition was assessed using dual-energy x-ray absorptiometry (Lunar Prodigy GE-Lunar, CoreScan™ algorithm), to determine fat and fat-free mass (FFM) and visceral adipose tissue (VAT) mass, Magnetic Resonance Imaging (MRI) (GE Architect 3.0-T, GE Healthcare, software version DV28 r5, Chicago, Illinois, image analysis by AMRA® Researcher AMRA Medical AB, Linköping), and transient elastography (Fibroscan® 502 Touch, FibroScan Expert 630®, Echosens, Paris France) to quantify liver and muscle fat. We assessed arterial stiffness using radial artery applanation tonometry fasted and during the basal period of the clamp procedure during euglycemia (SphygmoCor., AtCor Medical, Australia) to compute the augmentation index (AIx), a validated surrogate of cardiovascular disease19.

In participants with type 1 diabetes, insulin doses were recorded for up to 14 days in the pre-treatment and end of treatment period. Records were kept manually by participants treated with insulin injections or downloaded using manufacturer-specific software if treated with an insulin pump. Participants with type 1 diabetes wore blinded continuous glucose monitoring (CGM). The first 20 enrolled participants were provided the Medtronic iPro ® Enlite system, (changed after 7 days, in total 2 devices worn per participant) (Medtronic Northridge, CA) and the final twenty participants were provided the Dexcom G6 monitor (Dexcom, San Diego, CA) due to discontinued supply of the Medtronic system mid-trial. These systems were inserted subcutaneously as per manufacturer specifications to measure interstitial glucose, providing measurements approximately every 5 minutes. The recorded CGM outcomes measures included mean sensor glucose, % time in range, % time <3.0 mmol/L, % time <3.9 mmol/L, % time >10 mmol/L, % time >13.9 mmol/L, glucose variability (coefficient of variation; CV%, defined as standard deviation glucose divided by mean glucose*100), mean overnight (0000 − 0559AM) and mean daytime (0600-2359PM) glucose.

To compute these metrics, valid time-stamped sensor glucose data were manually sorted according to glucose value and time of day. At least valid 3 days of CGM data per sensor period were required for analysis. A 24-h period was defined as 0000–2359 h. A day was defined as eligible if ≤20% of the datapoints were missing during that period. Missing sensor data were not imputed.

Diet records were collected for up to 14 days (Easy Diet Diary, Xyris. Brisbane Australia) and analysed using Foodworks 10 Professional (Xyris Pty Ltd, 2019). Retinal photographs were graded using the International Clinical Diabetic Retinopathy (ICDR) severity scale50. Urine albumin-creatinine ratio (ACR) data was collated from the preceding 12 months and albuminuria was coded as present or absent based on the single sample.

Participants withheld caffeine, alcohol and strenuous physical activity for 48 h prior to their planned clamp procedure. Women were studied in the follicular phase of the menstrual cycle. Participants with type 1 diabetes underwent washout of their subcutaneous insulin under the supervision of the study Endocrinologist, per published study protocol48.

Participants arrived fasted for a 6-h, three-stage hyperinsulinemic-euglycemic clamp48. The first stage (basal-phase) was a 2-h tracer equilibration period (6,6-2H2-glucose, Cambridge Isotope Laboratories), started by a priming bolus (5 mg/kg; administered over 5 min) then continuous infusion of the 6,6-2H2- glucose (Cambridge Isotope Laboratories) (0.05 mg/kg/min), which was continued for at least 2 h, aiming for a 2% enrichment by the time of the steady state basal sampling phase. Participants with type 1 diabetes also received a variable insulin infusion (Actrapid, Novo Nordisk) to achieve a target glucose of 5.5 mmol/L during subcutaneous insulin washout48. In the second stage, a fixed insulin infusion was administered at 20 mU/m2/min for 2 h (low-dose phase), with reduction of the tracer infusion dose to 0.025 mg/kg/min. The final high-dose phase was initiated with an insulin bolus (240 mU/m2/min over 2 min, then 120 mU/m2/min over 2 min), then continued at 60 mU/m2/min for 2 h. Body surface area (BSA) was calculated according to the Du Bois formula51.

Hepatic and adipose insulin sensitivity were defined by EGP and NEFA levels respectively, after partial suppression by insulin during the steady state of the low-dose phase. EGP was calculated using Steele non–steady-state equations, modified for use with stable isotope-labelled glucose52. We used a spiked dextrose infusion (25% dextrose with 2% 6,6-2H2-glucose enrichment) to maintain euglycemia and stable tracer enrichment during the low- and high-dose phases. Muscle insulin sensitivity was defined as the high-dose phase GIR required to achieve the target glucose level. EGP and GIR data were normalized to fat-free mass. For clamp analysis, we took arterialized samples once steady-state conditions were achieved. Steady-state was defined as minimally fluctuating glucose levels for unchanging GIR and occurred within the last 30 min of each clamp phase. Glucose tracer enrichment was analysed via positive chemical ionization gas chromatography-mass spectrometry using the glucose methyloxime pentaproprionate derivatization strategy, per published methods53.

Fasting plasma and serum samples were collected for metabolite assessment on pre- and post-treatment clamp study days prior to clamp commencement, including serum for GDF15 (analysed using an in-house ELISA method per previous descriptions), insulin, NEFA and SHBG, and plasma for other blood measures including lipids, uric acid, LFT, IGF-1, adiponectin, IL-6, sE-selectin, sICAM-1 and glucagon54,55. Any samples below the sensitivity of the assay were assigned a value equivalent to the limit of quantification (LoQ) divided by the square root of 2 (LoQ/√2).

Trial endpoints

The primary endpoint was change in liver insulin sensitivity after 26 weeks. Pre-specified secondary endpoints included the change in muscle insulin sensitivity, change in adipose insulin sensitivity, insulin dose, HbA1c and continuous glucose monitoring parameters, GDF15 and other vascular and metabolic measurements (reported in Supplementary Table S4). Glucagon analyses were exploratory. Microbiome analyses are ongoing and not reported in this article. Liver fibrosis measures were not reported, as all values fell within the lower normal reference range in our cohort. CRP analysis was not performed as the available assay did not meet the sensitivity requirements for this study.

Statistics and reproducibility

Randomized control trial

The primary endpoint was assessed by the time-by-treatment group interaction using a generalized linear mixed model with low-dose EGP at baseline and 26 weeks as the response variable. Group allocation, time, and group-by-time interaction terms were included as fixed effects, and a random intercept was assigned for each participant. If a baseline difference was present, a group-by-time interaction model without treatment group as a fixed effect was used56. All analyses were adjusted for baseline value. Model distributions and link were selected based on residual plots.

In the initial protocol, basal Ra was listed with low-dose EGP as a co-primary endpoint. Basal Ra was removed after trial commencement but before trial completion due to concerns regarding the variable insulin infusion during the basal clamp period impacting the validity of the basal Ra measure. Since participants with type 1 diabetes tended to arrive with glucose levels above the glucose target, variable insulin concentrations were infused in the type 1 diabetes participants during the basal phase to achieve euglycemia. Higher insulin concentrations would then excessively suppress Ra in the type 1 diabetes participants compared to control participants, and variable insulin concentrations during the basal phase would invalidate the basal Ra measures in type 1 diabetes as each participant would be subjected to a different insulin concentration depending on their arrival glucose. Further, insulin concentrations measured in type 1 diabetes represent exogenously infused insulin into the peripheral circulation. Unlike type 1 diabetes, in control participants without diabetes, plasma insulin concentrations measured during the basal phase represent endogenous insulin secreted from the pancreas to the portal circulation, with hepatic clearance before reaching the peripheral circulation. Thus, the basal phase served the purpose of tracer equilibration, and achievement of euglycemia only.

To detect an end-of-treatment difference between groups in EGP of 0.3 mg/kg/min with 80% power (presumed 0.3 mg/kg/min standard deviation; equivalent to 2.4 µmol/kgFFM/min, alpha level 0.05), we needed 17 participants in each group, increased to 20 to accommodate up to 15% participant attrition.

Data were analysed by intention-to-treat principles without imputation. All assessments used two-sided tests and a p-value ≤ 0.05 was considered statistically significant. For secondary analyses, a Bonferroni corrected p-value was applied to account for multiple comparisons. Normally distributed data were presented as mean and standard deviation (SD) and analysed using parametric tests. Skewed data were presented as median and interquartile range (IQR) then analysed with non-parametric tests or as log-transformed data analysed with parametric tests. Categorical

data were presented as counts and percentages. We did not perform specific sex-based analyses, as the study was not powered for subgroup analyses.

Baseline cross-sectional study

Two-sample t-tests, Mann–Whitney U or Chi-square tests were used to compare baseline characteristics between participants with and without type 1 diabetes. We determined relationships between insulin resistance and cardiometabolic variables using Pearson, Spearman’s, and regression models to determine predictors of insulin resistance. As exploratory analyses, these data are presented without correction for multiple testing.

Excluded data points

A single outlying GDF15 value from the type 1 diabetes group was excluded from the analysis. This datapoint was from an individual who was subsequently diagnosed with a medical condition deemed likely to falsely elevate serum GDF15 levels. Hormonal contraceptive users were excluded for all analyses involving SHBG.

Statistical analyses were performed using SPSS version 28.0.1.0 (IBM Corp. Released 2021. IBM SPSS Statistics for Macintosh, Version 28.0. Armonk, NY: IBM Corp). Due to the nature of the data, Rstudio (Rstudio 2023.06.1 + 524 “Mountain Hydrangea”) using the glmmTMB package was used for continuous glucose monitoring data as SPSS did not have the beta-binomial distribution option within its generalized linear mixed modelling framework. A p-value ≤ 0.05 was considered statistically significant.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
