Abstract
Medullary thyroid carcinoma (MTC) is a rare, aggressive neuroendocrine tumor with limited treatment options and frequent recurrence. Comprehensive recurrence risk stratification remains lacking. Here, we profile 482 MTC samples from 452 patients across ten Chinese clinical centers, identifying 10,092 proteins and mutations in 87.0% of patients. Clinically, MTC grading, concurrent papillary thyroid carcinoma, and lymph node metastasis are significant recurrence risk factors, whereas at the genetic level, RET M918T and RET S891A mutations are correlated with high recurrence risk in sporadic and hereditary MTC, respectively. Ubiquitinomics show downregulated E3 ligases CUL4B and TRIM32 are associated with structural recurrence. We define three molecular subtypes with distinct outcomes and present an integrative machine learning model combining clinical, genomic, and proteomic features, validated in an independent test dataset of 105 patients and a published dataset. This multi-center, multi-omics study enhances the understanding of MTC heterogeneity and facilitates personalized patient management.
Similar content being viewed by others
Introduction
Medullary thyroid carcinoma (MTC) is a rare neuroendocrine tumor arising from parafollicular C cells1. The incidence of MTC represents only 2% of all thyroid cancers2,3, yet it accounts for 8% of thyroid cancer-related deaths. MTC is characterized by aggressive behavior and elevated metastatic potential, leading to a median disease-specific survival of 8.6 years4. At primary diagnosis, 75% of patients with MTC had metastases in cervical lymph nodes, while 10–15% present with distant metastasis5,6. The disease’s inherent resistance to radioiodine therapy significantly restricts viable treatment options. The primary treatment for MTC is surgical intervention, specifically total thyroidectomy and bilateral central neck lymph node dissection7. However, postoperative recurrence remains a significant issue, with a reported reoperation rate of 16.3% and a median time to reoperation of 6.4 months8. Disease recurrence significantly affects disease-free survival and quality of life, underscoring the importance of effective risk stratification to predict outcomes and optimize long-term follow-up strategies for improved results.
The current postoperative prognostic assessment of MTC primarily relies on the TNM staging system, which evaluates maximum primary tumor size, extrathyroidal extension (ETE), lymph node metastasis (LNM), and distant metastasis. However, this system does not incorporate other critical prognostic factors, such as age, sex, heredity, and postoperative levels of calcitonin and carcinoembryonic antigen9,10,11. Consequently, there is a need for a more comprehensive tool that integrates these diverse factors to accurately assess prognostic risk in MTC patients. Xu et al. recently introduced the international MTC grading system (IMTCGS), which incorporated measures of proliferative activity, including the mitotic index and/or Ki67 proliferative index, as well as tumor necrosis12. This grading system stratifies MTC into high and low grades, with high-grade tumors demonstrating worse disease-specific survival and higher recurrence rates at both local and distant sites. While the system has been validated in several cohorts from Europe, the United States and Australia, its generalizability to large Asian populations remains uncertain12,13,14,15,16.
Genomic and transcriptomic technologies have been extensively utilized to investigate MTC prognosis, revealing genomic features associated with heredity17,18, IMTCGS grade14, and clinical outcomes11. The RET mutation plays a pivotal role in both hereditary and sporadic MTC. Hereditary MTC involves germline RET mutations, accounting for approximately 25% of all MTC cases. For sporadic MTC, somatic RET M918T mutations are linked to a worse prognosis11. Notably, 10-20% of sporadic MTC cases lack known driver mutations, necessitating other technologies to elucidate the underlying pathogenesis11,17.
Proteins represent the final product of gene expression, but their abundances do not always align with DNA or RNA levels. Mass spectrometry (MS)-based proteomic analysis19 remains underexplored despite its potential to enhance prognostic assessment in MTC. One study involving three MTC patients demonstrated that decreased fibronectin 1 (FN1) expression was correlated with reduced progression-free survival20. In a prior study involving 102 Chinese patients with MTC, three proteomic subtypes with distinct biological traits and prognoses were identified21. However, these studies are limited by small sample sizes and/or a lack of validation in independent test cohorts. Proteomic analyses focusing on structural recurrence in MTC are particularly scarce, yet such research could illuminate the molecular mechanisms associated with MTC aggressiveness and metastatic potential.
Ubiquitination is a versatile post-translational modification in which the 76-amino-acid ubiquitin protein is covalently attached to lysine residues of substrate proteins. Substrate proteins tagged by ubiquitin will be recognized and degraded by proteasome, through which to regulate protein stability, trafficking, and signaling transduction22. Ubiquitination is reversible and dynamically regulated by E3 ubiquitin ligases and deubiquitinases (DUBs)23. Increasing evidence indicates that perturbations of the ubiquitin–proteasome system intersect with RET signaling, cell-cycle control, and apoptosis, highlighting ubiquitination as a mechanistically relevant layer in MTC24,25,26,27. MS-based ubiquitinomics enables proteome-wide site mapping of ubiquitination by identifying the characteristic di-glycine (K-GG) remnant that remains on modified lysines after tryptic digestion28,29,30. Proteome-scale studies on ubiquitination dynamics in MTC remain limited. Such investigations may provide insights into potential therapeutic strategies, including the development of proteasome or ubiquitin pathway inhibitors31.
In this study, we systematically analyze data from 482 samples obtained from 452 Chinese MTC patients from 10 clinical centers. We integrate proteomics, ubiquitinomics, gene panel data, and clinical information and identify three molecular subtypes based on 52 proteins, each demonstrating distinct clinical, prognostic, and molecular characteristics. Furthermore, we develop a predictive model combining proteomic and clinical features to assess the risk of structural recurrence in MTC.
Results
Clinicopathological characteristics of MTC patients
After careful curation, we procured 377 (N = 347) and 105 (N = 105) eligible formalin-fixed, paraffin-embedded (FFPE) samples in the discovery and the independent test datasets, respectively (Fig. 1a). The study design is summarized in Fig. 1b. We collected 12 clinical indicators, sequenced a panel of 28 genes, and quantified the proteome using pressure cycling technology (PCT) for sample preparation followed by data-independent acquisition (DIA) MS32,33. The baseline clinical characteristics are summarized in Table 1. The mean age at primary surgery for all patients in the study is 49.7 ± 12.2 (mean ± standard deviation) years, with a mean maximum nodule size of 2.2 ± 1.4 cm. Male patients comprise 45.8% of the cohort, and hereditary MTC represents 17.0% of cases. During the follow-up period in the discovery dataset, 20.7% of MTC patients experienced structural recurrence (SR), and 3.5% died from MTC-specific causes. The mean time from primary surgery to SR or disease-specific mortality (DSM) is 52.5 and 78.6 months, respectively. In comparison, the corresponding control groups have mean follow-up times of 102.0 and 106.5 months, respectively. Compared to non-recurrence (NR) cases, patients with SR exhibit larger maximum nodule sizes, a higher proportion of males, and more frequent multifocal and bilateral lesions, extrathyroidal extension (ETE), and lymph node metastasis (LNM). Similarly, the DSM group has larger maximum nodule sizes, higher tumor grades, and more ETE and LNM than the survival (S) group.
a Sample exclusion criteria; b The diagram shows the study workflow, including sample collection, MS-based proteomics, ubiquitinomics, gene-panel-based sequencing, and data analysis (Created in BioRender. lab, g. (2025) https://BioRender.com/vsdjlxg). IMTCGS International Medullary Thyroid Carcinoma Grading System, HT Hashimoto’s thyroiditis, PTC papillary thyroid carcinoma, ETE extrathyroidal extension, LNM lymph node metastasis, SR structural recurrence, NR non-recurrence, DSM disease-specific mortality, S survival.
Association of RET and RAS mutations with clinicopathologic characteristics and disease prognosis
In addition, we explored the clinical features stratified by RET and RAS mutation status. Gene sequencing revealed germline RET mutations in 17.3% of MTC patients, somatic mutations in 69.9%, and no detectable mutations in 12.8% (Fig. 1b). Patients with germline RET mutations were younger than those with RET/RAS wild-type patients (P = 0.003, Table 2). Five patients were not sequenced for mutation, so they were not included in the table. Both germline and somatic RET mutations were associated with higher incidences of ETE and LNM compared to RET/RAS wild-type cases (germline: P = 0.038 (ETE) and P = 0.017 (LNM); somatic: P = 0.011 (ETE) and P = 0.013 (LNM)). RET somatic mutations present a higher rate of structural recurrence than the RET/RAS wild-type group (29.0% vs. 14.9%). However, RET or RAS mutations do not significantly correlate with DSM. There are no statistically significant differences between RAS mutations and RET/RAS wild-type cases regarding clinical characteristics or prognosis. In summary, our results show that RET/RAS mutation is not related to SR or DSM when specific mutation sites are not considered.
To further investigate the recurrence risk associated with specific mutation sites, Kaplan-Meier (K-M) survival analyses were performed. Among sporadic MTC cases, patients harboring the RET M918T mutation exhibit a higher recurrence risk than those without the mutation (P = 0.0013, Fig. 2b). In hereditary MTC, the RET S891A mutation presents a higher recurrence risk, whereas the RET C634 mutation is associated with a lower recurrence risk (P = 0.0015, Fig. 2c).
a The forest plot showed the results of a multivariate Cox proportional hazards (CoxPH) regression of 12 clinical risk factors. N represents the number of patients. MTC recurrence risks were represented by hazard ratios (square) and 95% confidence intervals (whisker). P values were calculated under the Cox proportional hazard model. **, P < 0.01; ***, P < 0.001. Kaplan–Meier survival curves for sporadic (b) and hereditary (c) MTC showed different risk levels of RET mutations (RET M918T, n = 84; non-RET M918T, n = 199; RET S891A, n = 7; RET C634, n = 26; RET others n = 26). P values were calculated using the log-rank test. Differentially expressed proteins (DEPs) were shown in the volcano plots. d structural recurrence (SR) vs. non-recurrence (NR) samples and e disease-specific mortality (DSM) vs. survival samples. P values were calculated by empirical Bayes moderated t test (limma). Cutoff: |log2(fold change, FC) | > 0.25, Benjamini-Hochberg (B-H) adjusted P < 0.05. Proteins with |log2(FC) | > 0.5 were labeled with protein names. f The heatmap illustrated the results of functional analysis and DEPs across different prognostic groups. The protein expression was represented by the median value of the protein in each group. Color bars labeled the DEPs in SR and DSM groups, secreted proteins, and druggable proteins. Sample size in d,e,f: NR, n = 294; SR, n = 83; S, n = 358; DSM, n = 19.
A comparative analysis was subsequently conducted to evaluate the frequencies of genetic mutation sites between our dataset of Chinese patients (Westlake) and those of Western populations (Pisa17, MSKCC11). Among sporadic MTC patients, the RET M918T, HRAS, and RET C634 mutations are the three most prevalent mutation sites across the three datasets (Supplementary Fig. 1a, Supplementary Data 1). Notably, the Westlake dataset exhibits an HRAS mutation frequency higher than the other two datasets (30.0% vs. 17.1% and 14.8%). For hereditary MTC cases, the RET C634 mutation is the most common in the Westlake dataset, accounting for 44.1%, compared to 27.5% in the MSKCC dataset (Supplementary Fig. 1b). Conversely, the RET C609Y mutation, which is the most prevalent in the MSKCC dataset, is rare in the Westlake cohort (35.0% vs. 1.7%). Additionally, the RET S891A mutation is identified as the second most frequent mutation in the Westlake dataset (11.9%) but is absent in the MSKCC dataset. In conclusion, Chinese MTC patients have a unique mutation pattern compared to Western patients, especially with more HRAS and germline RET C634 mutations and fewer germline RET C609Y mutations.
Clinical, genomic, and proteomic characterization of MTC patients with different prognoses
To identify risk factors related to the disease prognosis of MTC, univariate Cox proportional hazards (CoxPH) models were constructed for each of the 12 clinicopathological features. The analysis identifies sex, IMTCGS, max nodule size, multifocality, concurrence of papillary thyroid carcinoma (PTC), vascular invasion, ETE, and LNM as risk factors associated with SR (Supplementary Table 1). Subsequently, a multivariate CoxPH model was employed to assess these 12 factors collectively (Fig. 2a). The results indicate that IMTCGS (P = 0.0096, hazard ratio, HR = 4.5), concurrence of PTC (P = 1.83e−04, HR = 5.6), and LNM (P = 1.65e−04, HR = 16.2) are independent risk factors associated with SR in MTC.
Using parallel accumulation–serial fragmentation (PASEF) combined with DIA techniques34, a total of 115,134 peptides and 10,092 proteins were quantified from 377 samples in the discovery dataset. After excluding proteins with over 90% missing values, the final dataset comprises 9380 proteins. Pearson correlations for pooled samples and each pair of biological and technical replicates are above 0.92, showing the high quality and reproducibility of the proteomic data (Supplementary Fig. 2a). Given the multi-center origin of the data, batch effects were evaluated and minimized. Visualization of the corrected data by the t-distributed stochastic neighbor embedding (t-SNE) method reveals no significant batch effects (Supplementary Fig. 2b, c).
RET and RAS are two of the most frequently mutated genes in MTC. We examined the effects of these mutations on proteins in their respective pathways. RET mutations led to an increased abundance of RET protein (Supplementary Fig. 3), consistent with previous findings35. In the RAS pathway, proteins like neurofibromin 1 (NF1) and protein sprouty homolog 4 (SPRY4) were regulated oppositely in RET and RAS mutation patients. NF1 and SPRY4 were downregulated in the RET mutation patients but upregulated in the RAS mutation patients. A previous study suggest that low expression of NF1 could serve as a potential biomarker for high recurrence risk in MTC21, while SPRY4 has been identified as a candidate susceptibility gene for familial non-medullary thyroid cancer36. These proteins may contribute to recurrence risk differentiation between RET and RAS mutation patients.
By exploring the expression of reported markers of MTC20,21, we find that the calcitonin gene-related peptide 1(CGRP1, P = 0.021) and NF1 (P = 2.8e−05) are differentially expressed between the SR and NR groups (Supplementary Fig. 4a). CGRP1 and NF1 are also differentially expressed between DSM and S groups (Supplementary Fig. 4b).
To further investigate expression differences between MTC prognostic groups in the proteomic scale, we analyzed proteins with dysregulated expression in SR and DSM. The volcano plot shows 141 differentially expressed proteins (DEPs) that are significantly increased (in red) or decreased (in blue) in patients with structural recurrence compared to those without recurrence, highlighting potential biomarkers related to recurrence risk (Fig. 2d, Supplementary Fig. 5a). Similarly, there are 395 DEPs between DSM and S groups of MTC patients (Fig. 2e, Supplementary Fig. 5b). We further examined whether the DEPs varied between male and female patients. Only four upregulated proteins and two downregulated proteins were shared between both sexes (Supplementary Fig. 6): pancreatic secretory granule membrane major glycoprotein GP2 (GP2), 15-hydroxyprostaglandin dehydrogenase (HPGD), tenascin C (TNC), and serine/threonine-protein kinase DCLK1 (DCLK1) (upregulated), as well as neuronal pentraxin-1 (NPTX1) and LIM/homeobox protein Lhx2 (LHX2) (downregulated).
Interestingly, DEPs up-regulated in SR compared to NR showed even higher expression in DSM, while down-regulated DEPs exhibited a progressive decrease, revealing a continuous expression trend across the NR-SR-DSM progression (Fig. 2f). Each column of the heatmap represents a DEP, with red indicating higher and blue indicating lower expression levels. The top color bar marks druggable or secreted proteins, suggesting potential molecular markers and therapeutic targets relevant to disease progression. Pathways enriched at the bottom right highlight that proteins positively associated with worse prognosis are related to extracellular matrix (ECM) remodeling, collagen synthesis, and angiogenesis. In contrast, those negatively associated are related to basement membrane reorganization and metabolism (Fig. 2f, Supplementary Fig. 5c). Transforming growth factor beta receptor 2 (TGFBR2), cyclin-dependent kinase inhibitor 1 A (CDKN1A), erb-b2 receptor tyrosine kinase 4 (ERBB4), and ERBB2 are predicted to be upstream regulators of dysregulated proteins in SR samples (Supplementary Fig. 5d). These findings suggest that different prognosis groups have various proteomic patterns, especially the dysregulated functions happening in the ECM, which may lead to SR and DSM.
Characterization of the MTC ubiquitinome landscape
Proteomic analysis revealed pathways associated with different prognoses in MTC, which may also be affected by post-translational modifications. Previous studies have reported that E3 ligases, such as HUWE1, and DUBs, including USP9X and UBP7, exhibit differential expressions and oncogenic functions in PTC primary and metastatic tumors37,38. Building on these findings, we further characterized the ubiquitinome of MTC to gain insights into the regulation of recurrence.
We collected fresh-frozen tissues of nine MTC samples (four NR and five SR), and seven normal adjacent thyroid (NAT) samples from clinical center 1 (Supplementary Table 2), and quantified both the global proteome and ubiquitinome. In total, 22,811 diGly-modified sites and 6505 diGly-modified proteins were identified. After filtering for sites with < 75% missing values, 7090 diGly-modified sites (5925 in NAT, 6517 in NR, 6780 in SR) and 3161 diGly-modified proteins (2719 in NAT, 2968 in NR, 3086 in SR) remained for downstream analysis.
Although NR and SR showed extensive overlap in diGly-modified sites and proteins, a subset of sites was uniquely detected in only one group (Fig. 3a), suggesting potential roles in recurrence. The numbers of diGly-modified sites and proteins were both higher in MTC than in NAT, whereas NR and SR showed no significant difference (Fig. 3b). t-SNE analysis of all modified sites clearly separated MTC from NAT, whereas NR and SR clustered closely (Fig. 3c).

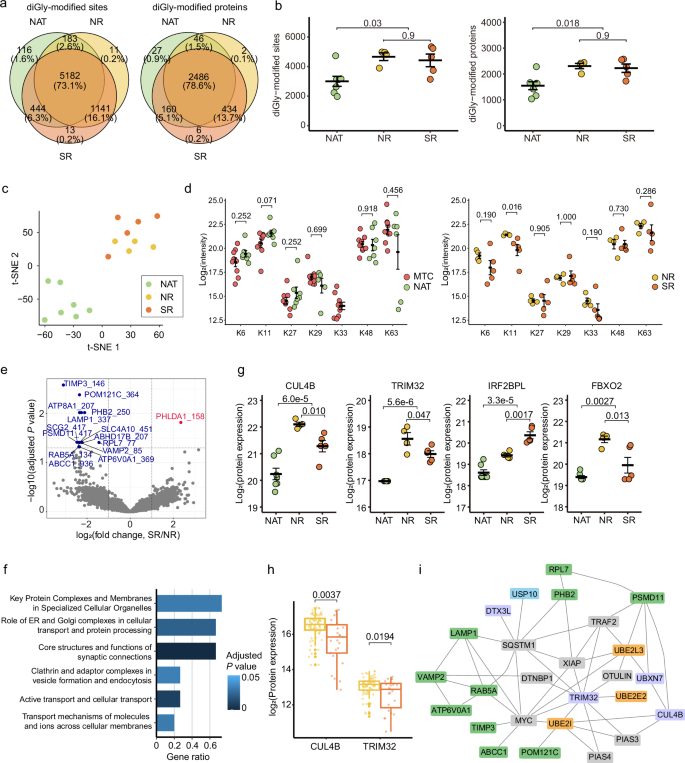

a Overlap of quantified diGly-modified sites and proteins across groups. b Numbers of identified diGly-modified sites and proteins in each group. The significance is determined by Wilcoxon rank sum test. c t-SNE plot of the MTC ubiquitinome. d Intensities of ubiquitination at different lysine residues of ubiquitin. The significance is determined by Wilcoxon rank sum test. e Differentially regulated diGly-modified sites between SR and NR. Numbers after protein names indicate the position of ubiquitinated lysine residues. P values were calculated by empirical Bayes moderated t test (limma). Cutoff: |log2(FC) | > 1, B-H adjusted P < 0.05. f Pathways enriched by diGly-modified sites with significant changes between SR and NR groups (one-sided Fisher’s Exact Test). g E3 ligases differentially expressed in both SR vs. NR and MTC vs. NAT. P values were calculated by empirical Bayes moderated t test (limma). h Validation of E3 ligases CUL4B and TRIM32 expression in the FUSCC dataset21 (yellow, NR, n = 77; orange, SR, n = 25). Box plots show the first quartile, median, and third quartile, and the whiskers represent ±1.5 interquartile range. P values were calculated by two-sided Welch’s t test. i Interaction network of differentially expressed E3 ligases, DUBs and ubiquitinated proteins between SR and NR. Green, downregulated ubiquitinated proteins; orange, dysregulated E2 ubiquitin-conjugating enzymes; purple, dysregulated E3 ligases; blue, dysregulated DUB. Abbreviations: NAT, normal adjacent thyroid tissue; NR, non-recurrence; SR, structural recurrence. Data in panel b, d and g are presented as mean values +/− SEM. Sample size in panel b, c, d and g: NAT, n = 7; NR, n = 4; SR, n = 5.
Ubiquitin can be attached to a substrate to form mono-ubiquitination, or multiple ubiquitins can be linked through one of its seven lysine residues or the N-terminal methionine to generate polyubiquitin chains. Differently branched ubiquitin chains encode distinct signals that mediate diverse cellular outcomes39. By quantifying seven diGly-modified lysine residues (K6, K11, K27, K29, K33, K48, K63) of ubiquitin, we found that K33-linked sites were detected only in MTC tissues but absent from NAT, implicating the potential role of K33 linkage in tumorigenesis (Fig. 3d). In addition, K11 ubiquitination was significantly reduced in SR compared with NR. K11-linked chains are best known for their role in cell-cycle regulation, particularly during mitosis, and act as degradation signals similar to K48 linkage40,41.
To further investigate the role of ubiquitination in MTC development and recurrence, we analyzed diGly-modified sites with significantly different intensities in both MTC vs. NAT and SR vs. NR. In total, 1067 sites were differentially regulated between MTC and NAT groups (Supplementary Data 2). By contrast, only 15 sites exhibited significant differences between SR and NR (Fig. 3e, Supplementary Data 3), with the enriched pathways shown in Fig. 3f. The label in the volcano plot shows the increasing diGly-modified sites (red) and decreasing diGly-modified sites (blue), with the number representing the position of amino acid at the protein where the ubiquitin is at. These enriched pathways were primarily related to intracellular and transmembrane transport, processes whose aberrant regulation has been reported to enhance the invasiveness and metastatic potential of cancer cells42,43.
Given that ubiquitination regulates diverse signaling networks through the coordinated action of ubiquitin-activating enzymes (E1), ubiquitin-conjugating enzymes (E2), ubiquitin ligases (E3), and deubiquitinases (DUBs), we compiled lists of these enzymes from GeneCards44, UniProt45 and UbiBrowser46 and mapped them with our dataset. Differential expression analysis revealed three E2 ubiquitin-conjugating enzymes, seven E3 ligases and one DUB were significantly changed between SR and NR groups, including ubiquitin-conjugating enzyme E2 I (UBE2I, E2), ubiquitin-conjugating enzyme E2 L3 (UBE2L3, E2), ubiquitin-conjugating enzyme E2 E2 (UBE2E2, E2), interferon regulatory factor 2-binding protein-like (IRF2BPL, E3), UBX domain-containing protein 7 (UBXN7, E3), tripartite motif-containing protein 32 (TRIM32, E3), F-box/LRR-repeat protein 18 (FBXL18, E3), E3 ubiquitin-protein ligase DTX3L (DTX3L, E3), cullin-4B (CUL4B, E3), F-box only protein 2 (FBXO2, E3) and ubiquitin carboxyl-terminal hydrolase 10 (USP10, DUB).
Among these, E3 ligases IRF2BPL, CUL4B, FBXO2, and TRIM32 showed consistent differences across both comparisons (SR vs. NR, MTC vs. NAT; Fig. 3g). To validate these findings, we examined the protein intensities of the four E3 ligases in external fresh frozen samples21, and found that CUL4B and TRIM32 were consistently downregulated in SR relative to NR in the external FUSCC dataset (Fig. 3h). Finally, by integrating significantly altered diGly-modified sites, E2 ubiquitin-conjugating enzymes, E3 ligases and DUB, we constructed an interaction network using STRING47, providing ubiquitin-mediated regulatory pathways potentially involved in MTC recurrence (Fig. 3i).
In summary, we characterized the ubiquitinome of MTC, revealed differentially expressed diGly-modified sites, E2 ubiquitin-conjugating enzymes, E3 ligases, and DUBs, and reconstructed their potential regulatory networks, with key dysregulated E3 ligases CUL4B and TRIM32 validated in an independent larger dataset. These findings raise important considerations regarding their potential functions in MTC pathogenesis.
Molecular subtyping of MTC based on proteomic profiles
To investigate the prognostic relevance of proteomic heterogeneity in MTC, we applied the non-negative matrix factorization (NMF) algorithm to perform unsupervised clustering of differentially expressed proteins (Supplementary Fig. 7). The algorithm prioritized 52 proteins, stratifying the cohort into three distinct molecular subtypes: M1, M2, and M3. These subtypes exhibit divergent clinicopathological features, mutational landscapes, and proteomic profiles.
Comparative analysis reveals significant demographic and genetic disparities among subtypes. The three subtypes significantly differ in terms of structural recurrence rate. The M2 subtype has a poorer prognosis, with a 5-year recurrence-free survival (RFS) rate of 68.8% and a DSM rate of 6.3%, while samples of the M3 subtype have a better prognosis, with a 5-year RFS of 94.2% and no DSM (Table 3). In the heatmap, each column represents a patient, and each row represents either a clinical feature (Fig. 4a), a gene mutation (Fig. 4b), or the expression level of a protein (Fig. 4c). The M3 has a lower proportion of males and a higher proportion of hereditary MTC patients than the other two subtypes (Fig. 4a, Supplementary Fig. 8a). The M2 subtype has larger max nodule sizes and more cases of ETE, LNM, and high-grade MTC (Supplementary Data 4). M2 also contains a higher proportion of patients with the RET M918T mutation (Fig. 4b). The 52 subtyping proteins cluster into three groups, each highly expresses in one of the subtypes (Fig. 4c). Notably, MTC-specific marker (calcitonin), pan-neuroendocrine markers have higher protein abundances in M3 (Supplementary Fig. 8b). TNC, a reported prognosis biomarker of MTC21, is enriched in M2 and decreased in M3.
a Clinical characteristics, b genomic alterations, and c proteomic expressions and pathway enrichment of the three MTC subtypes. P values were calculated by one-sided Fisher’s Exact Test for pathway enrichment.
To further explore the association between protein subtypes and prognosis, we used the same molecular typing method based on these 52 proteins to validate in our independent test dataset consisting of four hospitals and a published dataset (FUSCC21). Quality control details for the independent test datasets are shown in Supplementary Fig. 2d–g. Survival analysis shows that the RFS rates of M2 and M3 are significantly different in the discovery dataset (P = 4.57e−06), independent test set (P = 0.034), and the 64 MTC samples from the published literature21 (P = 0.017) (Fig. 5a-c), demonstrating the robustness of our 52-protein classifier in classifying patients into proteomic subtypes with different prognostic outcomes.

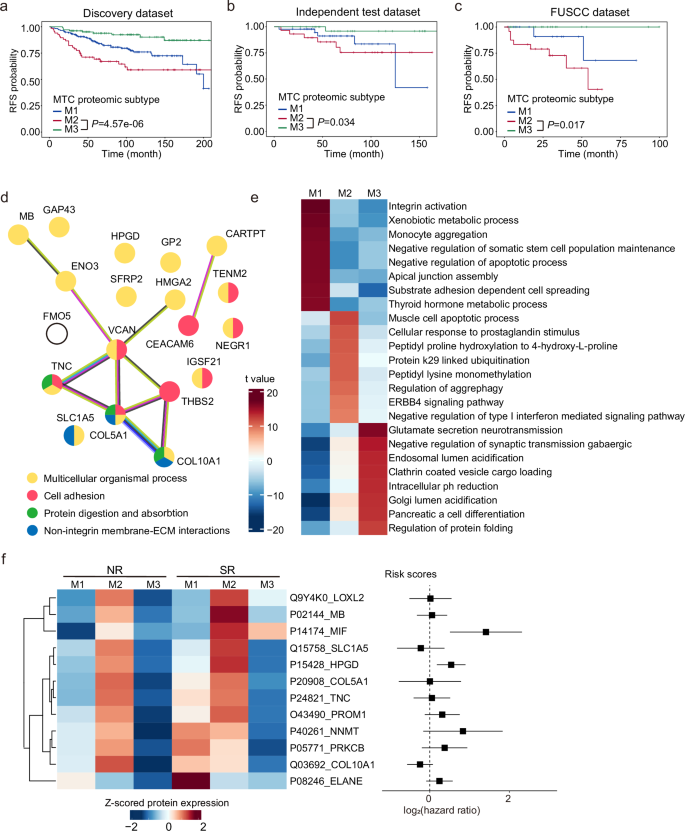

Kaplan–Meier survival curves for a the discovery dataset (M1, n = 178, M2, n = 64, M3, n = 104), b the independent test dataset (M1, n = 43; M2, n = 29; M3, n = 33), and c the test dataset from published data (M1, n = 17; M2, n = 27; M3, n = 20) showing different prognostic risks of MTC subtypes. P values were calculated by Peto-Peto test. d The protein interaction network of subtyping proteins that were highly expressed in the M2 subtype based on the STRING database. e Pathways enriched in each proteomic subtype by gene set variation analysis (GSVA) using gene ontology biological process gene set (M1, n = 178, M2, n = 64, M3, n = 104). The enrichment score was represented by t-values. f Potential drug targets for MTC. The Proteins that can be targeted by FDA-approved drugs or candidate drugs were shown on the left, with respective multivariate CoxPH risk scores on the right. Risk scores were represented by hazard ratios (square) and 95% confidence intervals (whisker). Sample size from left to right: 139, 41, 95, 39, 23, 9.
Functional analysis by Metascape reveals that proteins highly expressed in M1, M2, and M3 are related to metabolic process, cell adhesion, and ECM regulation, respectively (Fig. 4c). The interaction network of subtyping proteins highly expressed in M2 reveals their involvement in multicellular organismal processes, cell adhesion, protein digestion and absorption, and non-integrin membrane-ECM interactions (Fig. 5d). Pathway enrichment analysis using GSVA highlights distinct functional characteristics that may play important roles across the three subtypes (M1, M2, M3), suggesting potential mechanisms underlying disease heterogeneity. A larger absolute t value indicates greater significance, and a positive value denotes higher pathway activity. The M1 subtype is linked to integrin activation, metabolism, and monocyte aggregation (Fig. 5e), while M2 is enriched for apoptotic process, response to prostaglandin, modification of amino acids, and cell signaling. M3 is associated with neurotransmission, synaptic transmission, and intracellular environmental regulation. Given the association between epithelial-mesenchymal transition (EMT) and tumor aggressiveness, we quantified EMT pathway activity. M2 tumors exhibit elevated expression of EMT drivers, such as Zinc finger E-box binding homeobox 2 (ZEB2), alongside downregulation of epithelial markers cadherin 1 (CDH1), indicating a more mesenchymal phenotype (Supplementary Fig. 9).
Since the three subtypes of MTC showed differences in clinical indicators, genetic mutations, and protein expression, we further explored potential therapeutic targets related to MTC subtypes. We first matched all the proteins that differed among the three subtypes (at least one group P < 0.05, n = 6756) with the drug targets in the Ingenuity Pathway Analysis (IPA) database and the Human Protein Atlas48 (HPA) database. Then, we used multivariate Cox to remove confounding factors to find 12 significant targets. The left heatmap shows the expression patterns of the 12 drug-target proteins across the three subtypes, particularly highlighting their differential expression between the SR and NR groups. The right panel presents the corresponding risk scores, reflecting the prognostic impact of each drug-target protein. Among these, macrophage migration inhibitory factor (MIF) has the highest risk factor (Fig. 5f).
We computed the immune infiltration scores by xCell49 and found that M1 had the highest immune scores. Further exploration of cell-type specific immune cell infiltration reveals different levels of CD8+ T cells, Tregs, dendritic cells, NK cells, macrophages, and granulocytes in the three subtypes (Supplementary Fig. 10a). M2 and M3 have more CD8+ T cells, and M3 has the lowest Tregs. Higher levels of infiltration of dendritic cells, NK cells, macrophages, and granulocytes are found in M1. The expression of immune checkpoints in each subtype is also examined. Among the 24 immune checkpoints quantified in our dataset, 7 are significantly higher in M1 (Supplementary Fig. 10b).
To validate the immune infiltration results estimated by xCell, we performed immunohistochemistry (IHC) staining for immune cells using a CD45 antibody on the three molecular subtypes. Quantification of CD45+ cells showed higher immune cell infiltration in the M1 subtype compared with M2 and M3, while no significant difference was observed between M2 and M3 (Supplementary Fig. 11).
In conclusion, we identified three proteomic subtypes of MTC based on 52 proteins. M1 with an intermediate prognosis is featured in the upregulated metabolic process and immune infiltration score. M2 with the worst prognosis is featured in the upregulated EMT pathway and the lowest immune score. The M3 subtype exhibits favorable prognosis and distinct neuroendocrine differentiation, characterized by overexpression of pan-neuroendocrine markers and enhanced synaptic signaling pathways.
Machine learning model for recurrence prediction
To predict prognostic risk and develop individualized treatment and follow-up plans for patients, four machine learning models were developed to predict the probability of structural recurrence after initial surgery, each derived from clinical indicators, gene mutations, and proteomic data, respectively, and one that integrated three kinds of data. The construction of the model consisted of three phases: feature selection, model training and cross-validation, and model prediction (Fig. 6a). The detailed process of model construction is described in the Methods section.

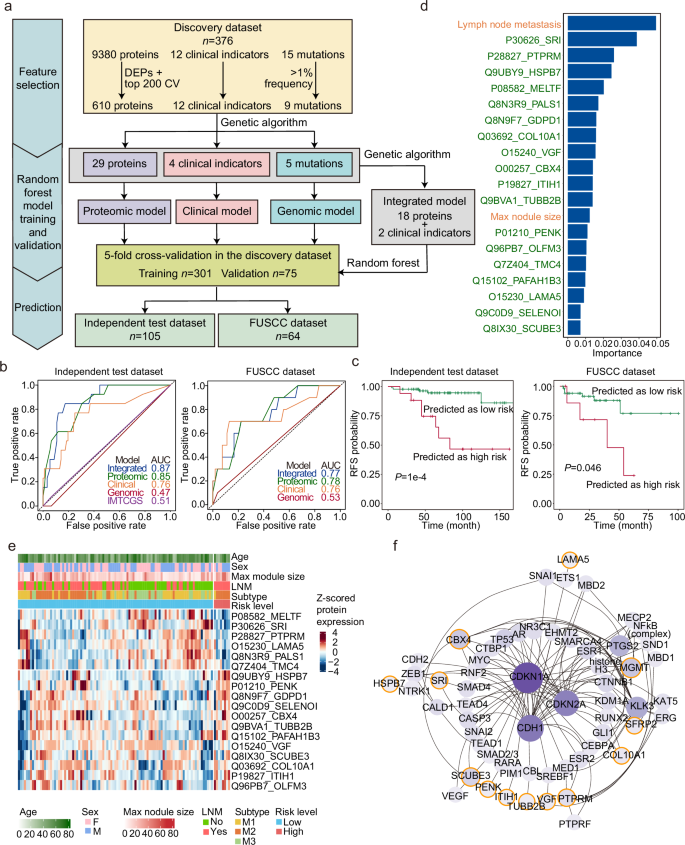

a Schematic workflow of the model development. b The ROC curves of random forest models in the independent test (n = 105) and the FUSCC (n = 64) datasets. c Kaplan-Meier plot for recurrence-free survival of the 20-feature integrated model in the independent test (n = 105) and the FUSCC (n = 64) datasets. P values were calculated by Peto-Peto test. d Permutation importance of the 20 features from the integrated model ranked by the Shapley additive explanations (SHAP values). e Expression levels of the 18 proteins from the integrated model in the two risk groups (n = 105). Color bars above the heatmap indicate clinical characteristics and molecular subtypes of patients in the independent test dataset. f Network showing the 18 proteomic features of the integrated model with the connected proteins enriched by the Ingenuity Pathway Analysis software.
The models were further validated in the independent test dataset (n = 105) and FUSCC dataset (n = 64) to evaluate the generalization ability (Fig. 6b). In the independent test set, the integrated model and the protein model obtain similar areas under the curve (AUCs) (0.87 and 0.85), which are higher than the clinical (0.76), genomic (0.47) models, and IMTCGS (0.51). In the FUSCC dataset, the proteomic model obtains the highest AUC (0.78), followed by the integrated model (0.77), the clinical model (0.76), and the genomic model (0.53). It is worth noting that the samples in the FUSCC dataset are fresh frozen, which is different from the FFPE samples in the discovery dataset used to train our model. The similar performance of the model further demonstrates the robustness of our model. In addition, the number of features in the integrated model is 31% fewer than that in the protein model, so with a similar AUC, the integrated model is considered better.
Based on the expression of proteins in the integrated model and clinical indicators, we divided the patients in the two test sets into high-risk and low-risk groups, and their RFS probabilities are shown in Fig. 6c (P = 1e−4 and P = 0.046). Figure 6d and Supplementary Fig. 12 illustrate the ranking of feature importance, where features with higher scores contribute more significantly to the model. Of the 18 proteins in the integrated model, five proteins are reported to be associated with thyroid: melanotransferrin (MELTF)50, VGF nerve growth factor inducible (VGF)51, inter-alpha-trypsin inhibitor heavy chain 1 (ITIH1)52,53,54, platelet-activating factor acetylhydrolase 1b catalytic subunit 3 (PAFAH1B3)55, and selenoprotein 1 (SELENOI)56. Of the remaining 13 proteins, all have been reported to be associated with the progression of multiple cancers, except for lysophospholipase D GDPD1 (GDPD1), which is not reported to be related to cancer. The relative abundance of the 18 model proteins and clinical characteristics in the different risk groups is illustrated in the heatmap (Fig. 6e). MELTF, sorcin (SRI), protein tyrosine phosphatase receptor type M (PTPRM), laminin subunit alpha 5 (LAMA5), protein associated with Lin7 1 (PALS1), and transmembrane channel like 4 (TMC4) have lower abundance in the high-risk group, while the other 12 proteins have higher abundance. Pathway enrichment by STRING database47 revealed that GDPD1, SELENOI, and PAFAH1B3 were significantly enriched in the ether lipid metabolism pathway (false discovery rate = 0.0041). Ether lipid metabolism is elevated in several cancers and supports tumor proliferation and survival, suggesting its potential role in MTC progression and recurrence57,58. The network established by IPA shows that there are 13 proteins out of the 18 proteins connected with each other (Fig. 6f), which are regulated directly or indirectly by CDH1, CDKN1A and cyclin-dependent kinase inhibitor 2A (CDKN2A).
To investigate the expression levels of the three key regulators, we explored the expression levels in a dataset comprises various thyroid nodule pathologies from multiple clinical centers (https://www.ebi.ac.uk/pride/archive/projects/PXD061183). Due to its very low abundance, CDKN1A was not detected in this dataset. Additionally, we examined cyclin-dependent kinase 4 inhibitor C (CDKN2C), which, together with CDKN2A, inhibits cyclin binding to CDK4 and CDK659. CDH1 was significantly lower in MTC compared to normal, MNG, and FTC samples, but higher than in PTC, PDTC, and ATC (Supplementary Fig. 13a), indicating a negative correlation with metastasis tendency. CDKN2A was higher in PTC, while CDKN2C was elevated in MNG, PTC, and FTC than in MTC. We further examined these proteins across the identified molecular subtypes and found that M2 was characterized by low CDH1 and CDKN2C but high CDKN2A expression, a pattern similar to that of ATC (Supplementary Fig. 13b).
The differential expressions of CDH1, CDKN2A, and CDKN2C across various histological types suggest associations with disease aggressiveness and metastatic potential. CDH1, a regulator of epithelial-mesenchymal transition, has been linked to thyroid cancer progression and metastasis60,61. Our findings are consistent with previous studies but extend them by incorporating a broader range of histological types.
We also investigated how the 18 proteins in the integrated model were affected by mutation patterns and sex. COL10A1 expression was higher in males and in patients harboring RET mutations, including RET M918T (Supplementary Fig. 14). OLFM3 and ITIH1 exhibited opposite expression trends based on RET and RAS mutations. VGF expression was significantly elevated in RAS mutation patients. In addition, age influenced protein expressions differently among the three subtypes. For instance, COL10A1 increased with age in M1 patients, while OLFM3 and SCUBE3 increased, and MELTF decreased with age in M3 patients (Supplementary Fig. 15).
To sum up, the integrated model comprising two clinical features and 18 proteins demonstrated the best performance among the models and performed well in predicting structural recurrence in MTC patients.
Discussion
This study represents a multi-center data resource of MTC, integrating proteomic, genomic, and clinical data from 452 MTC patients from 10 clinical centers and quantified 10,092 proteins through MS-based proteomics. Our work identified clinical, genomic, and proteomic risk factors of structural recurrence and produced an MTC subtyping classifier that divided patients into three subtypes with various characteristics and prognoses. We built a machine learning model for predicting the risk of SR in MTC and validated it in two independent test datasets. The model performed better compared to reported prognostic indicators such as IMTCGS and RET mutations, which may facilitate tailored risk stratification and informing individualized follow-up strategy.
The univariate CoxPH analysis identified male62, high-grade tumor13,14,15,16,63, multifocality64, concurrence with PTC, vascular invasion65,66, ETE10, and LNM10 as risk factors of SR in MTC, consistent with previous studies. Our study applies the IMTCGS to a large Chinese dataset, validating its utility for identifying SR and DSM risk. The co-occurrence of PTC and MTC has rarely been studied. We report the risk of this co-occurrence in MTC, hinting at potential interactions. In contrast to preoperative67 and postoperative10 unstimulated serum calcitonin levels, which are reported to be associated with prognostic risk, we found no significant association between calcitonin levels in tumor tissues and recurrence. Instead, CGRP1, from the same coding gene of calcitonin and alternative RNA splicing, exhibited a positive correlation with structural recurrence, indicating a potential MTC prognosis marker. Future work could further examine CGRP1 levels in serum and validate its effect.
This study reported an overall mutation rate of 60.0% for RET and 26.4% for RAS in MTC patients. Although the RAS mutations were relatively frequent, neither our study nor the literature found a significant association between RAS mutations and the prognosis of MTC11. Additionally, our data revealed distinct germline RET mutation patterns in Chinese hereditary MTC patients compared to Western populations. Similar frequencies were reported in other published Asian datasets. Separate studies from Japan68 (# families = 75), South Korea69,70 (# families = 48), and China71,72,73,74 (# families = 62) consistently identified RET C634 as the most common mutation site, with frequencies of 60%, 47.9%, and 66.1%, respectively. Our previous study21 also reported a 60% prevalence of RET C634 locus in patients with germline RET mutations. According to the 2015 American Thyroid Association (ATA) guidelines1, RET C634 is classified as a high-risk mutation, suggesting a higher risk for Asian hereditary MTC patients.
In our study, we found differential expression of the E3 ubiquitin ligases CUL4B and TRIM32 across NAT, NR, and SR groups, and the network analysis further predicted regulatory pathways involving these ligases and downstream dysregulated diGly-modified sites. CUL4B participates in DNA damage repair, chromatin remodeling, and cell cycle regulation75. It is overexpressed in various solid tumors, including thyroid carcinoma, compared to normal tissues, and correlates with tumor malignancy and poor prognosis76. In thyroid cancer specifically, emerging data demonstrate that CUL4B promotes dedifferentiation and poor prognosis by ubiquitinating ARID1A and repressing PAX8 expression77. This process contributes to the development of anaplastic thyroid carcinoma and modulates sensitivity to MAPK inhibitors. TRIM32 enhances proliferation, migration, and chemoresistance by degrading tumor suppressors such as p53 and activating oncogenic pathways including Wnt/β-catenin and TGF-β78,79. High expression of TRIM32 is associated with metastasis and poor prognosis in various cancers, including prostate cancer and lung cancer79,80,81. Although direct evidence in MTC remains limited, their known roles suggest that CUL4B and TRIM32 may promote recurrence and metastasis. Our findings highlight them as potential regulators of MTC pathogenesis and therapeutic targets, providing a valuable direction for future investigation.
Compared with the previously reported molecular subtypes of MTC21, the subtypes in this study not only reproduced certain clinical and molecular associations observed in earlier studies but also provided several notable advances. First, the subtypes in this study are based on fewer proteins (52 vs. hundreds) and validated in more samples and multiple independent testing datasets (Supplementary Table 3). Second, it demonstrated stronger associations with patient outcomes. For example, the M3 subtype was characterized by favorable prognosis and very low disease-specific mortality, while M2 showed poor outcomes, highlighting improved prognostic stratification. Finally, the proteomic signatures also corresponded to immune contexture, with M1 exhibiting higher immune scores, suggesting potential therapeutic implications. We further observed significantly lower expressions of CGRP1 and CGRP2 in M1 than in M2/M3. This finding aligns with prior evidence82 linking elevated CGRP levels to abnormal dendritic cell development and impaired tumor-infiltrating T-cell activity, which collectively foster an immune-suppressive microenvironment. Importantly, subtype malignancy (prognostic risk) positively correlates with CD276 abundance. This immune checkpoint protein enabling tumor immune evasion via suppression of cytotoxic T cells and NK cells83, and has recently emerged as a potential therapeutic target for MTC84. Together, these data indicate distinct immune microenvironments across subtypes and suggest that molecular heterogeneity drives divergent prognostic outcomes in MTC.
This study has several limitations. First, its retrospective design and reliance on postoperative FFPE samples may limit the generalizability of the findings. Future studies should validate the identified MTC prognostic biomarkers using preoperative plasma or fine-needle aspiration (FNA) samples to improve their clinical utility. Second, targeted proteomic approaches could be applied to quantify selected model proteins in independent cohorts, offering a cheaper, more accurate technology to validate the model’s performance and robustness. Additionally, expanding the number of centers for molecular subtyping validation and experimentally validating potential drug targets in cell lines or animal models are important directions for future research. Despite these limitations, our study contributes significantly to MTC recurrence risk stratification.
In conclusion, this study provides a valuable data resource on proteomics and gene mutations in Chinese MTC patients while identifying potential biomarkers and therapeutic targets. The proteomic subtypes associated with varying prognoses offer a foundation for investigating disease heterogeneity and developing personalized therapies. Furthermore, the machine learning model, which utilizes multidimensional features to stratify recurrence risk in MTC patients, may facilitate the development of individualized treatment, potentially benefiting patient outcomes.
Methods
Patients and samples
This study was conducted in accordance with the ethical principles in the Declaration of Helsinki. The Ethics Committee of Westlake University reviewed and approved the study protocol with the study number 20240527GTN001. Informed consent was waived because this retrospective study analyzed previously archived clinical data and specimens, and all patient identifiers were removed to ensure minimal risk and protection of privacy.
This retrospective study included 543 patients with MTC who underwent surgical treatment between 2002 and 2022. The exclusion criteria were as follows: (a) non-primary surgery, (b) loss to follow-up, or (c) a prior history of MTC-related medication. Disease remission and recurrence were determined according to the ATA management guidelines1. Only structural recurrences were considered in this study, which was defined as recurring histological or radiologic evidence of MTC after radical surgery. RFS was defined as the time from initial surgery to the first SR. For patients without SR, RFS was the time from initial surgery to the last follow-up.
FFPE slides were collected for each sample. All samples were reviewed by at least two experienced pathologists. Ninety-one patients were excluded for the following reasons: (1) loss to follow-up (n = 22), (2) not-thyroid tissue (n = 32), (3) non-primary surgery (n = 18), (4) normal thyroid tissue (n = 6) and (5) non-radical surgery (n = 13). After careful review, 377 and 105 samples were included in the two datasets respectively (Fig. 1a, Supplementary Table 4). The discovery dataset includes 30 biological replicate samples from the same patient. The MTC tumor grades were determined according to the IMTCGS12.
FF samples were collected from the tissue bank of clinical center 1 under the same criteria for FFPE slides, including four NR samples, five SR samples, and seven normal adjacent thyroid (NAT) samples.
Gene-panel based sequencing
We obtained both MTC and adjacent cancer-free normal tissue samples for gene sequencing during sample collection. Sequencing libraries were created using a next-generation sequencing panel developed by RigenBio to detect variations in 28 genes associated with thyroid cancer (see Supplementary Table 5 for the gene list). DNA was extracted from 477 FFPE thyroid samples, excluding five samples from the discovery dataset, using the DNA Extraction Kit (Rigen Biotech, China). The extraction and sequencing protocol was previously described50. In brief, the DNA underwent multiplex amplification of target regions after extraction, followed by PCR amplification to incorporate unique dual-index and Illumina sequencing adapters. After purification using beads, the indexed libraries were quantified using a Thermo Fisher Qubit fluorometer and sequenced on the Illumina NovaSeq 6000 System, generating 150 bp paired-end reads.
The quality of the raw sequencing data was assessed using FastQC (v0.11.9). The raw reads were preprocessed to remove adapters and low-quality bases through Cutadapt (v1.18). The processed reads were then aligned to the hg19 human reference genome using Burrows-Wheeler Aligner software (v0.7.17). Single nucleotide variants (SNVs) and insertions/deletions (InDels) were identified using VarScan2 (v2.4.4), and Ensembl Variant Effect Predictor was used for variant annotation to assess potential impacts.
Proteomic sample preparation
FFPE tissues were prepared as previously described33,85. Briefly, the FFPE slides were dewaxed, rehydrated, and de-crosslinked using heptane, three different concentrations of ethanol (100%, 90%, and 75%), 100% of water and 100 mM Tris-HCl solution (pH=10.0), sequentially. Samples were then lysed, assisted by PCT, in a buffer containing 6 M urea, 2 M thiourea, 10 mM Tris(2-carboxyethyl)phosphine, and 40 mM iodoacetamide. Trypsin and lysC were mixed and used for digestion using PCT. Finally, the digested peptides were quenched with trifluoroacetic acid and desalted using C18 columns (Thermo Fisher Scientific, USA).
Ubiquitinomic sample preparation
Fresh frozen samples were lysed in 8 M urea, supplemented with protease inhibitor cocktail (Roche, Germany). The lysis process was assisted by a cryogenic grinder under 65 Hz and -20 °C. The protein yield was determined by BCA protein assays (Thermo Fisher Scientific, USA). The lysates were reduced (Tris(2-carboxyethyl)phosphine, 10 mM), alkylated (iodoacetamide, 40 mM), and digested (trypsin, 1:50 w/w). The first digestion took 4 hours and the second digestion took 12 hours. The digested peptides were desalted using 100 mg C18 SepPak cartridges (Waters, USA). The desalted peptides were dried in a vacuum concentrator. Ubiquitin remnant were enriched from 1.5 mg cleaned peptides by immunoaffinity purification (Cell Signaling Technology, USA) according to the manufacturer’s protocol. The enriched peptides were desalted using C18 columns (Thermo Fisher Scientific, USA).
DIA-MS data analysis
Peptide samples were injected into a custom-packed C18 separation column (15 cm × 75 μm × 1.9 μm, 120 Å) equipped with a nanoElute® system (Bruker Daltonics, Germany). Then, samples were separated by a 60 min liquid chromatography (LC) gradient, from 5% to 27% buffer B in 50 min, then to 40% buffer B in 10 min. Buffer A contains 0.1% formic acid in water and buffer B contains 0.1% formic acid in 100% acetonitrile.
Peptides eluted from the LC were analyzed in a hybrid trapped ion mobility spectrometry quadrupole time-of-flight mass spectrometer (timsTOF Pro, Bruker Daltonics, Germany) through a CaptiveSpray nanoflow electrospray ion source. PASEF was performed in DIA mode. The dual TIMS analyzer had an accumulation and ramp time of 100 ms and a total cycle time of 1.17 s, consisting of 14 PASEF scans with four ion mobility- m/z two-dimensional isolation windows per scan. Ion mobility scans ranged from 0.6 to 1.6 Vs/cm2. MS1 and MS2 acquisition was performed within the m/z range from 100 to 1700 Th. Precursor ions with single charge were excluded.
DIA raw files were analyzed by DIA-NN86,87 (v1.8.1) against a thyroid-specific spectral library88, containing 12,000 proteins and 215,000 precursors. Variable modifications were set to include methionine oxidation and N-terminal acetylation. The fixed modification included cysteine carbamidomethylation. Peptide length range, precursor m/z range, and fragment ion m/z range were set as 6–30, 300–1800, and 200–1800, respectively. The false discovery rate for both precursor and protein was set to 1%. “unrelated run” and “use isotopologues” options were selected. Protein inference was set to “off”. Other parameters were kept as default.
For ubiquitinome, the enriched peptides were separated using a custom-packed C18 separation column (15 cm × 75 μm × 1.9 μm, 120 Å) in a Vanquish™ Neo UHPLC system (Thermo Fisher Scientific, USA). The separation process consisted of a 19.5-min gradient running step and a 4.5-min column washing step. During running step, buffer B increased from 3% to 7% in 1 min, then to 30% in 18.5 min. The mobile phase comprised buffer A (98% MS grade H2O, 2% MS grade ACN, and 0.1% FA) and buffer B (98% MS grade ACN, 2% MS grade H2O, and 0.1% FA).
Following LC separation, the eluted peptides were analyzed in an Orbitrap Astral mass spectrometer equipped with a Nanospray Flex ion source (Thermo Fisher Scientific, USA). The total carrier gas flow was set to 4 L/min. The Orbitrap MS1 full scan settings included a resolution of 240k, a scan range of 380-980 m/z, a FAIMS CV of −48 V, a radio frequency (RF) lens of 40%, a normalized automatic gain control (AGC) target of 500%, and a maximum injection time (IT) of 3 ms. The Astral DIA-MS2 parameters included a scan range of 150 to 2000 m/z, an isolation window of 2 m/z, a higher-energy collisional dissociation (HCD) collision energy of 25%, and a loop control time of 0.6 s. Other parameters were kept identical to those used for MS1.
Raw files for ubiquitinome were analyzed by DIA-NN (v2.2.0)89 using a predicted spectral library. The predicted library was generated by DIA-NN using the FASTA file downloaded from UniProt (v 29/06/2025). Variable modifications were set to include methionine oxidation and diGly-modification. The fixed modification included N-term methionine excision and cysteine carbamidomethylation. Peptide length range was set to 6–30. “Unrelated run” option was selected, and “MBR” was disabled. Mass accuracy was set to 10, and MS1 accuracy was set to 4. Scoring was set to “Proteoforms” mode. Other parameters were kept as default.
Proteomic data quality control and preprocessing
To minimize possible bias during sample preparation and mass spectrometry acquisition, we randomly assigned recurrent and non-recurrent samples. Each batch had 15 tissue samples and one thyroid pooled peptide sample (quality control). Samples from the same patient were used as biological replicates. One sample per batch was randomly selected as a technical replicate, which was injected twice to evaluate the quantification stability of mass spectrometry.
Missing values in the protein matrix were imputed by the ridge regression method90 through NAguideR91. The resulting protein matrix was corrected for batch effects using the empirical Bayesian framework Combat in the R package sva92 (v3.48.0). Batch effects were corrected for different clinical centers and sample batches. Each pair of technical replicate samples was combined into one sample by calculating the average protein abundance.
Proteomic-based unsupervised clustering
The coefficient of variation (CV) was calculated for all proteins, and the 200 proteins with the highest CV values were selected and combined with DEPs. These highly variable proteins were subjected to unsupervised clustering using the non-negative matrix factorization method (NMF93 package, v0.26) in R (v4.3.1). The optimal number of subtypes was obtained using the rank survey function. A total of 150 iterations were conducted to ensure the robustness of the clustering results.
In silico immune infiltration analysis
The immune score was calculated by xCell49 (https://comphealth.ucsf.edu/app/xcell) using the xCell gene signatures which contained 64 cell types. For in silico immune infiltration, we used CIBERSORTx94 (https://cibersortx.stanford.edu/) to deconvolute the proportions of nine immune cells. An MS-based proteomic data of immunocytes95 was used as a protein expression profile for generating a custom signature matrix.
Immunohistochemistry
FFPE sections (5 μm) were deparaffinization, antigen retrieval, and nonspecific binding blockage (10% normal goat serum). Subsequently, the slides were incubated overnight with anti-CD45 (1:500, DAKO) and then subsequently probed with secondary antibody (DAKO DAB kit). Stained slides were scanned by KF-SCAN-ST (Kfbio, China) at 10 × 40. Qupath (v0.5.1) was used for image processing and positive cell counting.
Cox proportional hazards analysis
To identify risk factors associated with structural recurrence, univariate and multivariate CoxPH analyses were performed using 12 clinicopathological features: age, sex, heredity, tumor grade, presence of Hashimoto’s thyroiditis (HT), multifocality, bilaterality, max nodule size, concurrence of PTC, ETE, LNM, and vascular invasion.
Univariate CoxPH models were initially constructed for each of the 12 factors to identify those with a significance level of P < 0.05. Subsequently, a multivariate CoxPH model was developed, incorporating all 12 factors to identify independent risk factors associated with structural recurrence.
Druggable protein screening
Proteins differentially expressed among the three subtypes were identified using the Kruskal-Wallis test and Dunn test. Proteins with a B-H adjusted P < 0.05 were considered significant and matched to drug targets in the IPA and the HPA databases. Subsequent filtering retained only DEPs from this protein pool. Univariate CoxPH analysis was employed to identify significant drug targets, followed by multivariate CoxPH analysis to control for potential confounders.
Dataset partitioning and cross-validation in machine learning
The dataset consisted of a discovery dataset and two test datasets. The two test datasets included one independent test dataset collected from four independent medical centers (n = 105) and the other from published literature21 (FUSCC dataset, n = 93). Of the 93 patients in the FUSCC dataset, 29 were also included in the discovery set. After removing the overlapping patients, 64 patients remained in the FUSCC dataset. Due to variations in the instruments, laboratories, and sample types, batch effects were observed between the proteomic data of the three datasets. These effects were corrected using the Combat92 method. The preprocessing steps for the test datasets were consistent with those applied to the discovery dataset. To optimize model performance, the discovery dataset was evenly divided into five folds for cross-validation. During each iteration, four subsets were used to train the model, and one subset was used to validate the model.
Feature selection and model generation
Initially, proteins with missing values greater than 90% were excluded, with 9380 proteins remaining. Then, the proteins were screened in the discovery dataset to identify those significantly associated with prognosis by differential protein analysis and the CV values. DEPs were defined as |log2(FC) | > 0.25 and B-H adjusted P < 0.05 between SR vs. NR and DSM vs. S groups. The DEPs and top 200 CV proteins were combined, yielding 610 prognosis-related and most dynamic proteins. Additionally, gene mutation sites with mutation rates > 1% were retained. Subsequently, a genetic algorithm (GA) was employed for feature selection, with a detailed methodology previously described96,97. Briefly, the genetic algorithm was implemented using the eaSimple function (Python package DEAP, v1.4.1), with the following parameters: a crossover probability (cxpb) of 0.5, a mutation probability (mutpb) of 0.2, and a total of 400 generations (ngen). The population was iteratively optimized to retain subsets of features with better performance.
Based on the optimal feature subset selected by GA, three random forest (RF) models were constructed, each utilizing one of the feature types: clinical, genomic, and proteomic. In addition, the genetic algorithm was employed for all 38 features of three types, leading to a further reduction in the number of features. This process culminated an integrated model encompassing 18 proteins and 2 clinical features.
The RF models predict the final classification result by aggregating the predictions from all decision trees through majority voting. During each iteration, the fitness of feature subsets was evaluated using a RandomForestClassifier (with random_state=42) as the primary performance metric. The classifier assessed the contribution of each feature subset to the classification task, according to which the samples were divided into high-risk and low-risk groups. The model was optimized in the discovery set using 5-fold cross-validation (training set to validation set ratio 4:1).
Bioinformatics and statistical analysis
The tables of baseline clinical characteristics were calculated by SPSS Statistics (v23.0, IBM Corporation). The Kolmogorov-Smirnov test was used for normality testing of continuous variables, and the independent double-sided Student’s t test was used for variables that conform to the normal distribution. P values were calculated using the nonparametric Mann-Whitney U test for variables that did not meet normality. The chi-square test was used for calculating the P values of categorical variables.
The differentially expressed analyses were performed using the limma package98 (v3.56.2). The P values were adjusted using the B-H method. Samples lacking RFS information or exhibiting persistent disease were excluded when conducting the differentially expressed analyses. The secreted protein data were obtained from the Human Protein Atlas portal (www.proteinatlas.org). Druggable proteins were annotated from the IPA software database. IPA was also used for pathway enrichment of the differentially expressed proteins. Functional analysis of the 52 subtyping proteins was performed by Metascape99. The network was visualized using the STRING database47. Functional enrichment of proteins in subtypes was performed using the R package gsva with the C5 gene ontology biological process gene sets (v2024.1) from the Molecular Signatures Database (MSigDB). Chi-square test was used to calculate the statistical differences in the characteristics among the three proteomic subtypes. The P values in the Kaplan–Meier curve were derived from the Peto-Peto test. The RAS and RET pathway protein list was curated from the MSigDB (v2025.05)100. The differences in protein expression between the gene mutation and wildtype groups were calculated by unpaired two-sided Wilcoxon rank sum test. The P values were adjusted using the B-H method.
Reporting summary
Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
Data availability
The mass spectrometry proteomic raw data generated in this study have been deposited in the ProteomeXchange Consortium101 (https://proteomecentral.proteomexchange.org) via the PRIDE database102 under accession code PXD063677. The FUSCC21 dataset used in this study is available in the iProX database103,104 under accession code IPX0004234000. The thyroid dataset is publicly available in the PRIDE database under accession code PXD061183. The remaining data are available within the Article, Supplementary Information or Source Data file. Source data are provided with this paper.
Code availability
Code relevant to data analysis in this study is available at https://github.com/guomics-lab/MTC.
