CD4+ T cells license Kupffer cells to reverse CD8+ T cell dysfunction induced by hepatocellular priming

Venzin, Valentina; Beccaria, Cristian G.; Perucchini, Chiara; Delfino, Pietro; Bono, Elisa B.; Giustini, Leonardo; Moalli, Federica; Grillo, Marta; Fumagalli, Valeria; Laura, Chiara; Di Lucia, Pietro; Reinhard, Katharina; Petschenka, Jutta; Omokoko, Tana Annmarie; Celant, Anna; Ottolini, Sabrina; Kawashima, Keigo; Ravà, Micol; De Giovanni, Marco; Inverso, Donato; Kuka, Mirela; Kennedy, Patrick T. F.; Guilliams, Martin; Casorati, Giulia; Pedica, Federica; Ponzoni, Maurilio; Şahin, Uğur; Le Bert, Nina; Bertoletti, Antonio; Vascotto, Fulvia; Guidotti, Luca G.; Iannacone, Matteo

doi:10.1038/s41590-025-02199-3

Download PDF

Article
Open access
Published: 30 June 2025

CD4⁺ T cells license Kupffer cells to reverse CD8⁺ T cell dysfunction induced by hepatocellular priming

Nature Immunology volume 26, pages 1352–1366 (2025)Cite this article

28k Accesses
16 Citations
70 Altmetric
Metrics details

Subjects

Abstract

Chronic hepatitis B virus (HBV) infection is marked by dysfunctional HBV-specific CD8⁺ T cells, and restoring their effector activity is a major therapeutic goal. Here, we generated HBV-specific CD4⁺ T cell receptor transgenic mice to show that CD4⁺ effector T cells can prevent and reverse the CD8⁺ T cell dysfunction induced by hepatocellular priming. This rescue enhances antiviral CD8⁺ T cell function and suppresses viral replication. CD4⁺ T cell help occurs directly within the liver, independent of secondary lymphoid organs, and requires local antigen recognition. Kupffer cells, rather than dendritic cells, are the critical antigen-presenting platform. CD4⁺ T cells license Kupffer cells via CD40–CD40L interactions, triggering interleukin (IL)-12 and IL-27 production. IL-12 expands the CD4⁺ T cell pool, while IL-27 is essential for CD8⁺ T cell rescue. Exogenous IL-27 similarly restores HBV-specific CD8⁺ T cell function in mice and in T cells isolated from chronically infected patients. These findings identify IL-27 as a tractable immunotherapeutic target in chronic HBV infection.

Attenuated effector T cells are linked to control of chronic HBV infection

Article Open access 28 August 2024

Chronic HBV infection impairs the glucose metabolism and effector function of NK cells via HBsAg/IL-15/mTOR axis

Article Open access 13 October 2025

Immunobiology and pathogenesis of hepatitis B virus infection

Article 17 May 2021

Main

HBV is a noncytopathic, hepatotropic DNA virus that can establish persistent infections, often progressing to cirrhosis and hepatocellular carcinoma¹. Viral clearance relies primarily on the adaptive immune system, particularly CD8⁺ effector T (T_eff) cell functions, as HBV elicits limited innate responses during early phases of infection^1,2,3. However, in most neonatal or perinatal infections, and in some adult-onset cases, virus-specific CD8⁺ T cell responses are weak and dysfunctional, leading to viral persistence^1,2,4. Restoring CD8⁺ T_eff cell activity is, therefore, a central goal of curative therapy for chronic hepatitis B⁵.

Although naive CD8⁺ T cells are generally thought to be primed in secondary lymphoid organs (SLOs), studies have shown that HBV-specific CD8⁺ T cells can also be primed directly in the liver^6,7,8. However, liver-primed CD8⁺ T cells often enter a dysfunctional state, proliferating but failing to acquire effector functions⁶. Multiple lines of evidence—from chimpanzee depletion studies⁹ to human cohort data^10,11,12,13—suggest that CD4⁺ T cell help is essential for an effective antiviral CD8⁺ T cell response. Yet, the molecular and cellular mechanisms involved during chronic antigen exposure remain poorly defined.

Classical models portray CD4–CD8 cooperation as a synchronous, tri-cellular interaction in SLOs, where antigen-specific CD4⁺ and CD8⁺ T cells engage the same dendritic cell (DC) to achieve optimal responses^{14,15,16,17,18}. More recent work suggests a staged model in which CD4⁺ T cell help is delivered after CD8⁺ T cell priming and in a separate SLO compartment¹⁹. Whether pre-activated (effector) CD4⁺ T cells can deliver restorative signals directly within nonlymphoid tissues, such as the chronically infected liver, remains unknown and therapeutically relevant.

Here, by combining existing mouse models of hepatitis B with newly generated HBV-specific CD4⁺ T cell antigen receptor (TCR) transgenic mice, we dissect how antigen-experienced CD4⁺ effector T cells reprogram Kupffer cells (KCs) to revive dysfunctional CD8⁺ T cells in a tolerogenic hepatic environment. Defining this liver-centric help circuit identifies key cytokine mediators and provides mechanistic rationale for immunotherapeutic strategies aimed at achieving a functional cure for chronic HBV.

Results

Generation and validation of HBV-specific CD4⁺ TCR transgenic mice

We began our investigation by generating an HBV-specific CD4⁺ TCR transgenic (Tg) mouse. Wild-type (WT) mice were immunized with the I-A^b-restricted immunodominant Env_126–138 peptide from the preS2 region of the HBV genome²⁰. Splenocytes were subsequently isolated from immunized mice and restimulated with the Env_126–138 peptide to enrich for antigen-specific T cells (Extended Data Fig. 1a). Single-cell sorting of these T cells (Extended Data Fig. 1b) allowed us to identify and clone the TCR alpha and beta chains. After confirming the TCR’s specificity and reactivity to the Env_126–138 peptide (Extended Data Fig. 1c), the cloned TCR alpha and beta chains were inserted into TCR expression vectors²¹ (Extended Data Fig. 1d) and injected into fertilized C57BL/6 eggs, generating two mouse lines expressing the Env_126–138 Tg TCR chains. Crossbreeding of these lines produced HBV-specific CD4⁺ TCR Tg mice (Env126 mice).

Flow cytometry confirmed the presence of HBV-specific CD4⁺ T cells in primary and secondary lymphoid organs of Env126 mice (Fig. 1a). Tetramer staining verified Tg TCR expression on CD4⁺ T cells, enabling ex vivo detection of HBsAg-specific Env126 CD4⁺ T cells (Fig. 1a). These cells made up between 8% and 30% of total CD4⁺ T cells and exhibited a naive phenotype (CD44^loCD62L^hiCD69⁻CD25⁻) comparable to WT CD4⁺ T cells (Fig. 1b and Extended Data Fig. 1e).

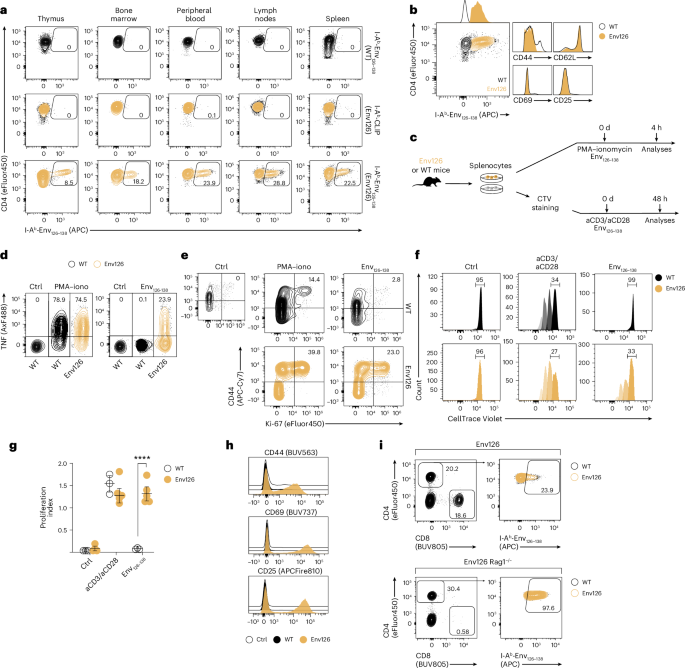

Fig. 1: Generation and characterization of HBV-specific CD4+ TCR transgenic mice. — **Fig. 1: Generation and characterization of HBV-specific CD4⁺ TCR transgenic mice.**

Next, to assess HBsAg-specific reactivity of Env126 TCR in CD4⁺ T cells, splenocytes from Env126 and WT mice were stimulated in vitro with either the Env_126–138 peptide or polyclonal stimuli (phorbol 12-myristate 13-acetate (PMA)–ionomycin or anti-CD3/anti-CD28 beads) for 4 h and 48 h (Fig. 1c). Only Env126 CD4⁺ T cells were activated by peptide stimulation, as evidenced by tumor necrosis factor (TNF) production and CD44 and Ki-67 upregulation (Fig. 1d,e and Extended Data Fig. 1f). After 48 h, Env126 CD4⁺ T cells proliferated and upregulated CD44, CD69 and CD25 in response to Env_126–138 peptide, while WT cells only responded to polyclonal stimuli (Fig. 1f–h and Extended Data Fig. 1g).

To prevent the development of polyclonal endogenous T cells, Env126 mice were bred onto a Rag1^−/− background. Resulting CD4⁺ T cells stained uniformly positive for the Env126 tetramer (Fig. 1i) and displayed similar phenotype and function to their WT background counterparts (Supplementary Fig. 1). These mice were used for all subsequent experiments, providing an ideal system for in vivo functional studies.

CD4⁺ T_eff cells reverse CD8⁺ T cell dysfunction

To assess the ability of CD4⁺ T_eff cells to support intrahepatic CD8⁺ T cell responses, we developed an in vivo activation strategy to generate Env126 CD4⁺ T_eff cells for adoptive transfer experiments (Extended Data Fig. 2a). Naive Env126 CD4⁺ T cells were transferred into Rag1^−/− mice that were subsequently infected with a recombinant vesicular stomatitis virus expressing the HBV envelope glycoprotein (rVSV^Env)²² (Extended Data Fig. 2a). After 7 days, Env126 CD4⁺ T cells differentiated into CD62L^loCD44^hiT-bet⁺CXCR3⁺ effector cells, producing interferon gamma (IFNγ), TNF and IL-2 upon peptide restimulation (Extended Data Fig. 2b–f). Single-cell RNA sequencing (scRNA-seq) confirmed the Env126 T_eff phenotype and identified two clusters (Extended Data Fig. 3a–c) expressing transcripts encoded by type 1 helper T (T_H1) cell-associated genes, including Cxcr3, Tbx21, Ifng, Tnf, Il2, Il12rb1 and Il12rb2 (Extended Data Fig. 3a–f and Supplementary Table 1) with differences limited to proliferative state (Extended Data Fig. 3b,g,h).

To evaluate whether Env126 CD4⁺ T_eff cells could prevent CD8⁺ T cell dysfunction induced by hepatocellular priming^6,7,23,24, we co-transferred Env126 CD4⁺ T_eff cells and naive Env28 CD8⁺ naive T (Env28 T_N) cells²³ into HBV replication-competent Tg mice (hereafter HBV Tg mice)²⁵ (Fig. 2a). While Env28 T_N cells alone, as expected^6,7,23, failed to induce serum alanine aminotransferase (sALT) elevation (Fig. 2b), co-transfer with Env126 CD4⁺ T_eff cells caused liver damage (Fig. 2b), increased intrahepatic leukocyte (IHL) and Env28 CD8⁺ T cell numbers (Fig. 2c,d), enhanced Env28 CD8⁺ T_eff cell functions, including IFNγ, TNF and granzyme B (Grzm-B) production (Fig. 2e,f), increased proliferation (Ki-67 expression), reduced inhibitory marker expression (PD-1, Lag-3 and CTLA-4) and upregulation of activation markers (CD44, CD25, CD107a, Sca-1; Fig. 2g–i and Extended Data Fig. 4a,b). Delayed transfer (day 7) of Env126 CD4⁺ T_eff cells still increased CD8⁺ T cell number and function, demonstrating that CD4⁺ T cells can also reverse established CD8⁺ T cell dysfunction (Extended Data Fig. 4c–g). Despite these effects in the liver, Env126 CD4⁺ T_eff cells did not affect the number of Env28 CD8⁺ T cells in SLOs (Extended Data Fig. 4h), suggesting that CD4⁺ T cell help to CD8⁺ T cells was localized in the liver. Histological and confocal analyses revealed that when Env28 CD8⁺ T cells were co-transferred with Env126 CD4⁺ T_eff cells into HBV Tg mice, the T cells formed clusters scattered throughout the liver lobules (Fig. 2j). This distribution pattern closely resembled that seen during acute, self-limited HBV infection²⁶. In contrast, Env28 CD8⁺ T cells transferred alone tended to accumulate around periportal areas (Fig. 2j), a pattern characteristic of chronic HBV infection²⁷. Co-transfer reduced HBV replication, as demonstrated by Southern blot analysis (Fig. 2k), decreased cytoplasmic HBcAg staining (Fig. 2l) and reduced viremia (Fig. 2m).

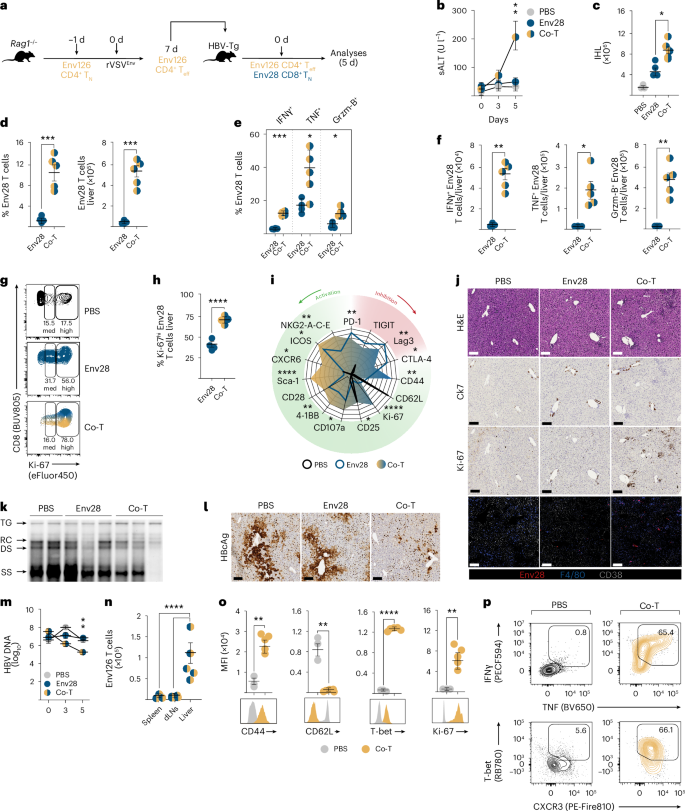

Fig. 2: CD4+ Teff cells limit CD8+ T cell dysfunction induced by hepatocellular priming. — **Fig. 2: CD4⁺ T_eff cells limit CD8⁺ T cell dysfunction induced by hepatocellular priming.**

Further analysis revealed that, as expected, Env126 CD4⁺ T_eff cells preferentially accumulated in the liver, rather than in SLOs, in HBV Tg mice (Fig. 2n) and maintained their activated phenotype (Fig. 2o), their T_H1 profile, and their ability to produce antiviral cytokines (for example, IFNγ and TNF; Fig. 2p). Similar results were obtained when lower, more physiological numbers of Env126 CD4⁺ T_eff cells and HBV-specific naive CD8⁺ T cells were co-transferred in HBV Tg mice (Extended Data Fig. 4i–n).

Importantly, when Env126 CD4⁺ T_eff cells were transferred alone into HBV Tg mice, no T cell-mediated liver immunopathology was observed (Extended Data Fig. 5a–e) and HBV replication was not affected (Extended Data Fig. 5f,g), indicating that the Env28 CD8⁺ T cells were the primary effectors responsible for the observed antiviral effects in the co-transferred HBV Tg mice.

In conclusion, our findings demonstrate that CD4⁺ T_eff cells can prevent or reverse hepatocellular priming-induced CD8⁺ T cell dysfunction, prompting investigation into the antigen-presenting cells (APCs) and cytokine signals involved.

CD4⁺ T cell help requires antigen recognition but not epitope linkage

To determine whether CD4⁺ T_eff cell help extends to CD8⁺ T cells with different antigen specificities from those of the CD4⁺ T cells, we co-transferred Env126 CD4⁺ T_eff cells with Cor93 CD8⁺ naive T (Cor93 T_N) cells, whose TCR recognizes an H-2K^b-restricted epitope within the HBV core protein (HBcAg^23,24) into HBV Tg mice (Fig. 3a). Co-transfer induced acute liver injury (Fig. 3b) and increased IHL numbers (Fig. 3c). Cor93 CD8⁺ T cells, like Env28 CD8⁺ T cells, expanded and were phenotypically reinvigorated in the liver when co-transferred with Env126 CD4⁺ T_eff cells (Fig. 3d and Extended Data Fig. 6a–d). HBV replication was also suppressed in these mice (Fig. 3e and Extended Data Fig. 6e), and the T cells formed clusters scattered throughout the liver lobules (Fig. 3f and Extended Data Fig. 6f), demonstrating that Env126 CD4⁺ T_eff cells can provide heterologous help, enhancing the antiviral responses of CD8⁺ T cells regardless of their viral TCR specificity.

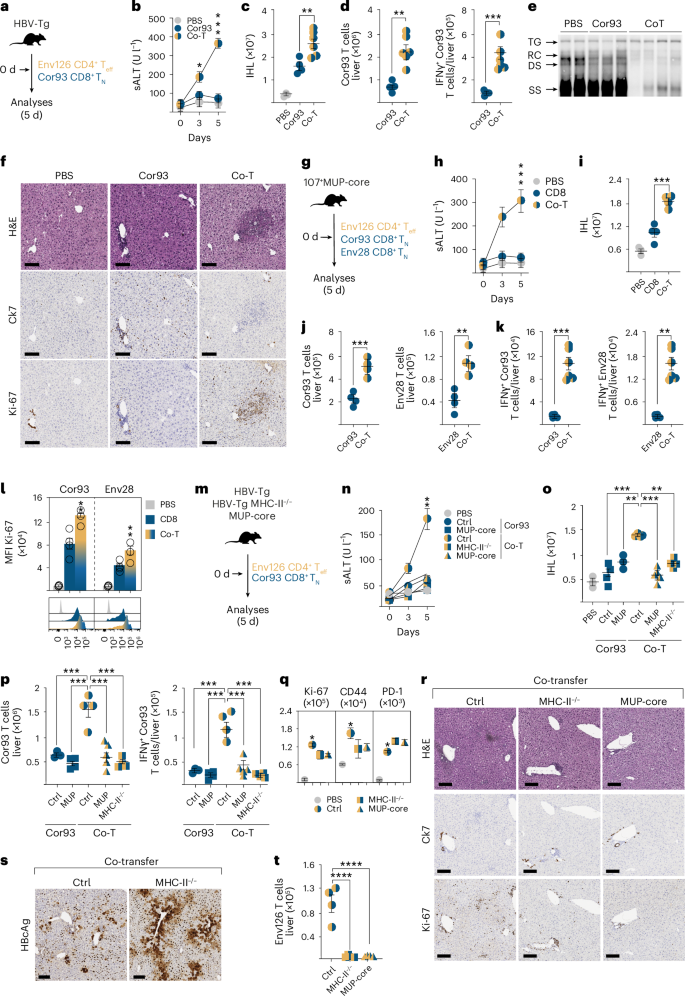

Fig. 3: CD4+ T cell help relies on direct antigen recognition but does not require epitope linkage. — **Fig. 3: CD4⁺ T cell help relies on direct antigen recognition but does not require epitope linkage.**

Previous studies have suggested that optimal CD4⁺ T cell help requires the recognition of linked epitopes^17,28. To test whether epitope linkage was required in our model, we co-transferred Env126 CD4⁺ T_eff cells with Env28 T_N and Cor93 T_N into 107-5 mice (ref. ²³; expressing the HBV envelope proteins) crossed with MUP-core (expressing the HBV core protein)²⁹ F1 mice (Fig. 3g). In contrast to HBV Tg mice, which produce virions containing both envelope and core proteins within the same particle, the 107-5 mice crossed with MUP-core F1 mice produce these proteins independently. Despite lack of physical linkage between viral epitopes, co-transferred mice exhibited elevated sALT levels (Fig. 3h) and increased IHL numbers (Fig. 3i). Both CD8⁺ T cell populations showed enhanced proliferation and effector functions in the presence of Env126 CD4⁺ T_eff cells (Fig. 3j–l). These findings suggest that CD4⁺ T cell help might not be reliant on epitope linkage, aligning with evidence that this requirement is dispensable, especially at high antigen doses¹⁷.

Next, we investigated whether CD4⁺ T cell help required direct antigen recognition and TCR engagement by CD4⁺ T cells. To test this, we performed adoptive transfer experiments using either HBV Tg MHC-II^−/− mice or MUP-core mice (expressing the HBV core protein; Fig. 3m). This setup allowed us to assess Env126 T_eff cell help under conditions in which either their cognate antigen was present but not presented on MHC class II molecules (HBV Tg MHC-II^−/− mice) or where MHC-II was broadly expressed on APCs but the cognate antigen was absent (MUP-core mice), preventing TCR engagement. Env126 CD4⁺ T_eff cell transfer led to elevated sALT levels only in HBV Tg control mice, but not in HBV Tg MHC-II^−/− or MUP-core mice, and there was no increase in IHL numbers in these latter groups (Fig. 3n,o). Additionally, HBV-specific CD8⁺ T cells accumulated and exhibited enhanced effector functions only in HBV Tg control mice co-transferred with Env126 CD4⁺ T_eff cells (Fig. 3p,q). Histological analyses showed that, without antigen recognition by CD4⁺ T cells, T cells failed to form intra-parenchymal clusters, instead clustering around portal tracts (Fig. 3r). This was associated with a failure to suppress HBV replication, as shown by persistent cytoplasmic HBcAg staining (Fig. 3s). Furthermore, the number of Env126 CD4⁺ T_eff cells was significantly reduced in MHC-II^−/− mice and MUP-core mice, confirming that their proliferation and helper functions depend on direct antigen recognition (Fig. 3t).

These experiments elucidate that intrahepatic CD4⁺ T_eff cell help to HBV-specific CD8⁺ T cells in HBV Tg mice relies on antigen recognition by CD4⁺ T cells but does not require cognate epitope linkage. This help extends to CD8⁺ T cells with different antigen specificities, underscoring the critical role of direct TCR–MHC class II interactions in mediating CD4⁺ T cell support for antiviral CD8⁺ T cells. These findings raise important questions about which APC presents antigens to CD4⁺ T cells and whether this occurs in the liver or in SLOs.

CD4⁺ T cells help CD8⁺ T cells through extra-lymphoid licensing of APCs

Although the data described thus far establish a critical role of CD4⁺ T cell help in shaping CD8⁺ T cell function, it remains unclear whether this support is delivered within SLOs, or can occur within the liver itself. To address this, we used a model in which HBV-specific CD8⁺ T cell priming is restricted to the liver⁶ (Fig. 4a and Extended Data Fig. 7a). We co-transferred Env126 CD4⁺ T_eff cells with HBV-specific CD8⁺ T_N cells into either control HBV Tg mice or HBV Tg mice that had undergone splenectomy and anti-CD62L treatment to block recirculation of CD8⁺ T_N cells through SLOs⁶ (Fig. 4a and Extended Data Fig. 7a). In both conditions, co-transfer led to elevated sALT levels (Fig. 4b), increased IHL accumulation (Fig. 4c), expansion and activation of HBV-specific CD8⁺ T cells (Fig. 4d–h) and formation of scattered intrahepatic T cell clusters (Fig. 4i and Extended Data Fig. 7b) alongside a reduction in cytoplasmic HBcAg staining (Fig. 4j), suggesting that CD4⁺ T_eff cells can provide local help toward CD8⁺ T cells within the liver. Consistent with their effector phenotype, the number and functionality of Env126 CD4⁺ T_eff cells were unaffected by impaired SLO recirculation (Fig. 4k–m). Similar results were observed when FTY720 treatment was used to prevent lymphocyte egress from SLOs (Extended Data Fig. 7c–h).

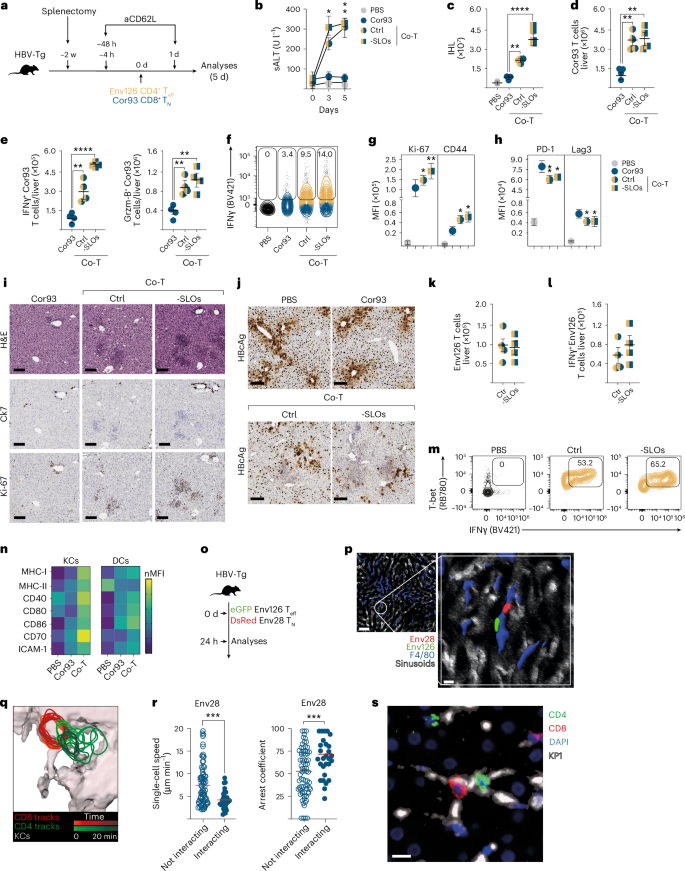

Fig. 4: CD4+ T cells help CD8+ T cell function by licensing APCs in the liver. — **Fig. 4: CD4⁺ T cells help CD8⁺ T cell function by licensing APCs in the liver.**

We next sought to identify which hepatic APC serves as the cellular platform for CD4⁺ T_eff cell help delivery to CD8⁺ T cells. Because KCs and hepatic DCs are the main APCs in the liver, we examined their activation following adoptive transfer of Env126 CD4⁺ T_eff cells and HBV-specific CD8⁺ T cells. Our results demonstrated that, under the co-transfer condition, KCs exhibited markedly higher upregulation of MHC machineries and key co-stimulatory molecules (including CD40, CD80, CD86 and CD70) compared to hepatic DCs. This enhanced activation, which is critical for antigen presentation and T cell priming¹⁶, was particularly evident when compared to the single CD8⁺ T cell transfer condition (Fig. 4n and Extended Data Fig. 7i–k).

To investigate whether KCs serve as the platform for intrahepatic CD4⁺–CD8⁺ T cell cooperation, we performed confocal and multiphoton intravital microscopy in HBV Tg mice 24 h after transfer (Fig. 4o). Both imaging approaches revealed that Env126 CD4⁺ T_eff cells and HBV-specific CD8⁺ T cells frequently interact with KCs within the liver, even with the same KC (Fig. 4p), forming triadic structures. Notably, HBV-specific CD8⁺ T cells in proximity to KCs and Env126 CD4⁺ T_eff cells predominantly exhibited reduced motility and higher arrest coefficients, indicative of antigen sensing and active engagement, while non-interacting ones remained highly motile (Fig. 4q–r, Supplementary Video 1 and Supplementary Fig. 2). These interactions persisted for over 20 min, aligning with the estimated 30-min duration required for stable immunological synapse formation between naive T cells and APCs³⁰. While HBV-specific CD8⁺ T cells formed long, stable interactions with KCs, Env126 CD4⁺ T_eff cells established similarly stable interactions but migrated between KCs in a stop-and-go manner, likely facilitating the licensing process (Supplementary Video 1).

To extend these findings, we analyzed liver biopsy samples from a previously published chimpanzee model of acute HBV infection⁹. In these samples, we qualitatively observed consistent CD4⁺–CD8⁺–KC triadic interactions across multiple time points during the acute phase in a chimpanzee that naturally resolved the infection (Fig. 4s and Supplementary Fig. 3). While these data are limited in number and scope and did not allow for comprehensive quantification of APC–T cell interactions, they offer a unique window into hepatic immune responses in higher primates. Within these constraints, our observations are consistent with the possibility that intrahepatic CD4⁺–CD8⁺ T cell cooperation involving KC may also occur during natural HBV infection.

Thus, our findings demonstrate that CD4⁺ T_eff cell-mediated help to CD8⁺ T cells can occur within the liver, independently of SLO involvement. While DCs are traditionally considered primary mediators of CD4⁺–CD8⁺ T cell cooperation, they remained phenotypically poorly affected by the presence of Env126 CD4⁺ T_eff cells in our setting. Instead, KCs emerged as the principal APC facilitating intrahepatic T cell cooperation, unveiling an extra-lymphoid mechanism of immune modulation that may be critical in chronically infected tissues.

CD4⁺ T cell help to CD8⁺ T cells requires KCs

To determine which APCs mediate CD4⁺ T_eff cell help to HBV-specific CD8⁺ T cells, we performed selective depletion experiments. First, we depleted DCs using diphtheria toxin in HBV Tg mice reconstituted with CD11c-iDTR-GFP bone marrow (Fig. 5a,b and Extended Data Fig. 8a–e). Despite efficient DC depletion, Env126 CD4⁺ T_eff cells continued to provide help to HBV-specific CD8⁺ T cells, as indicated by sustained liver damage (elevated sALT), increased IHL accumulation and improved effector function and phenotype of HBV-specific CD8⁺ T cells (Fig. 5c–e and Extended Data Fig. 8f,g). Inflammatory infiltrates persisted throughout the liver parenchyma, and HBV replication remained suppressed (Fig. 5f and Extended Data Fig. 8h). Moreover, DC depletion did not affect the number, phenotype or functionality of Env126 CD4⁺ T_eff cells (Fig. 5g and Extended Data Fig. 8i–k).

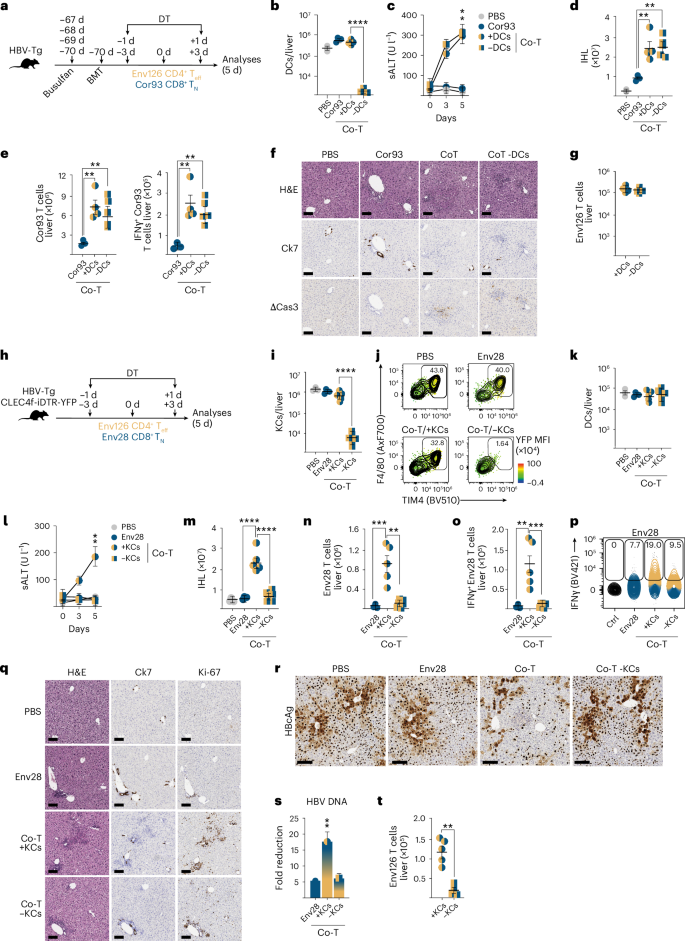

Fig. 5: KCs function as a cellular platform for CD4+–CD8+ T cell cooperation in the liver. — **Fig. 5: KCs function as a cellular platform for CD4⁺–CD8⁺ T cell cooperation in the liver.**

We next depleted KCs using diphtheria toxin in HBV Tg mice crossed with CLEC4f-iDTR-YFP mice³¹ (Fig. 5h). In these mice, diphtheria toxin specifically depletes KCs while sparing other resident macrophages and DCs (Fig. 5i–k and Extended Data Fig. 9a–e). In mice co-transferred with Env126 CD4⁺ T_eff cells and HBV-specific CD8⁺ T_N cells, KC depletion prevented liver damage (Fig. 5l), led to decreased IHL accumulation (Fig. 5m) and severely impaired HBV-specific CD8⁺ T cell expansion, differentiation and cytokine production (Fig. 5n–p). In the absence of KCs, CD8⁺ T cells accumulated around portal tracts and were unable to induce T cell-mediated liver immunopathology or suppress HBV replication (Fig. 5q–s and Extended Data Fig. 9f). KC depletion also significantly reduced the accumulation and expansion of Env126 CD4⁺ T_eff cells in the liver (Fig. 5t). Similar results were obtained using clodronate liposomes for KC depletion, confirming the specificity of these findings (Extended Data Fig. 9g–l).

In conclusion, these data demonstrate that KCs, but not DCs, can serve as a cellular platform through which CD4⁺ T_eff cells rescue dysfunctional CD8⁺ T cells in a tolerogenic hepatic environment.

CD4⁺ T cells license KCs via CD40L to trigger IL-27 production

Given that CD40 signaling on APCs is a well-established mediator of CD4⁺ T cell help to CD8⁺ T cells^14,15, we investigated its relevance by blocking CD40L in HBV Tg mice co-transferred with Env126 CD4⁺ T_eff cells and HBV-specific CD8⁺ T_N cells (Fig. 6a). CD40L blockade prevented sALT elevation and IHL accumulation (Fig. 6b,c), as Env126 CD4⁺ T_eff cells failed to promote CD8⁺ T cell proliferation and effector functions (Fig. 6d). It also impaired Env126 CD4⁺ T_eff cell expansion (Fig. 6e) and abolished upregulation of MHC and co-stimulatory molecules in KCs (Supplementary Fig. 4a), underscoring the importance of the CD40L–CD40 axis in the CD4⁺ T cell-mediated licensing of KCs, which is essential for reversing CD8⁺ T cell dysfunction. Similar results were obtained with the administration of an Fc-mutated version of anti-CD40L (MR-1-CP032), which prevents potential Fc-mediated depletion of CD40L-expressing cells (Supplementary Fig. 4b–h).

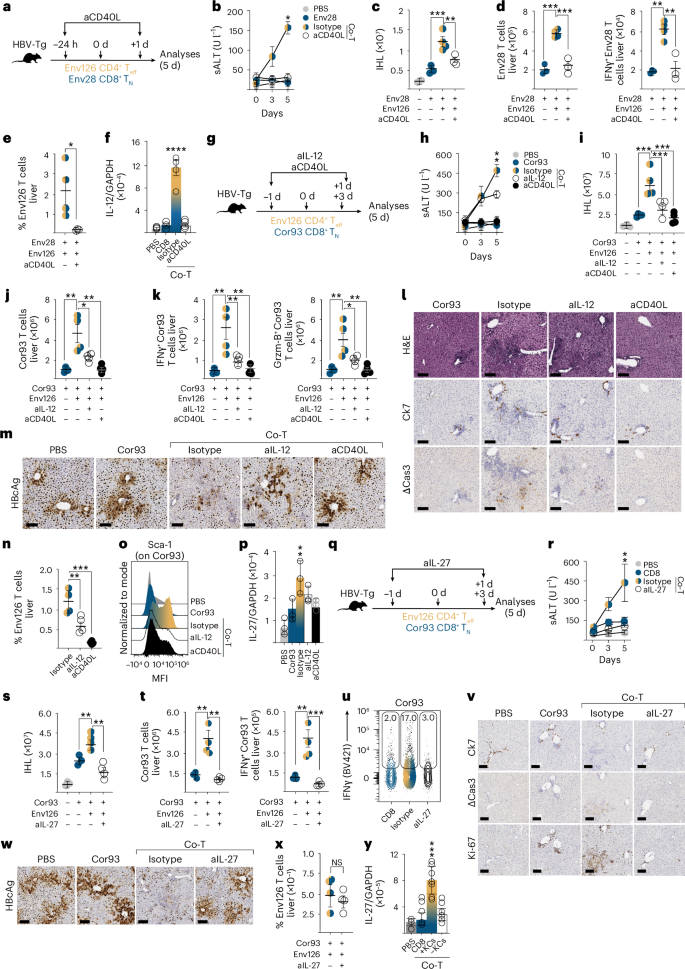

Fig. 6: CD4+ T cells license KCs via CD40L to produce IL-12 and IL-27. — **Fig. 6: CD4⁺ T cells license KCs via CD40L to produce IL-12 and IL-27.**

We next investigated downstream mediators. CD40–CD40L interactions are known to induce IL-12 production by myeloid cells, a cytokine crucial for sustaining T_H1 and CD8⁺ T cell effector responses³². Indeed, transfer of Env126 CD4⁺ T_eff cells to HBV Tg mice markedly increased hepatic IL-12 levels, which was fully prevented by CD40L blockade (Fig. 6f). To explore the potential involvement of IL-12, we co-transferred Env126 CD4⁺ T_eff cells and HBV-specific CD8⁺ T_N cells into HBV Tg mice treated with either anti-CD40L or anti-IL-12 blocking antibodies (Fig. 6g). In mice treated with anti-IL-12, liver damage (Fig. 6h), IHL (Fig. 6i) and numbers and effector functions of HBV-specific CD8⁺ T cells (Fig. 6j,k) were significantly reduced, although somewhat less pronounced compared to CD40L blockade. While CD40L blockade fully abolished T cell-mediated liver immunopathology, IL-12 blockade primarily reduced the size and extent of intra-parenchymal inflammatory foci without fully preventing their formation (Fig. 6l). Similarly, the reduction in HBV replication was less pronounced with IL-12 blockade than with CD40L blockade (Fig. 6m). IL-12 blockade also diminished Env126 CD4⁺ T cell expansion (Fig. 6n and Supplementary Fig. 4i,j), consistent with the hypothesis that IL-12 supports Env126 CD4⁺ T cell proliferation and expansion.

Further analysis revealed that Sca-1, a key surface marker associated with enhanced CD8⁺ T_eff cell functions³³, was subtantially downregulated following CD40L blockade (Fig. 6o and Supplementary Fig. 4k). Since IL-27 is known to induce Sca-1 expression and shape CD8⁺ T cell activation and differentiation^34,35, we examined its regulation. Interestingly, CD40L blockade not only reduced Sca-1 expression but also prevented the upregulation of IL-27 in the liver following the adoptive transfer of Env126 CD4⁺ T_eff cells (Fig. 6p), highlighting the role of the CD40L–CD40 axis in driving effective T cell cooperation in the liver, with IL-27 potentially serving as a key mediator.

To further investigate the role of IL-27, we co-transferred Env126 CD4⁺ T_eff cells and HBV-specific CD8⁺ T_N cells into HBV Tg mice treated with a blocking anti-IL-27 antibody (Fig. 6q). IL-27 blockade completely prevented sALT elevation (Fig. 6r), IHL accumulation (Fig. 6s), HBV-specific CD8⁺ T cell expansion and effector differentiation (Fig. 6t,u), effectively abolishing liver immunopathology and antiviral activity (Fig. 6v,w). Notably, unlike CD40L or IL-12 blockade, IL-27 blockade did not affect Env126 CD4⁺ T_eff cell expansion or effector functions (Fig. 6x), suggesting that IL-27 acts directly on CD8⁺ T cells.

To determine whether KCs are the intrahepatic source of IL-27, we measured IL-27 levels in the livers of HBV Tg CLEC4f-iDTR-YFP mice, which were co-transferred with T cells and depleted of KCs using diphtheria toxin (Fig. 5h–t). In the absence of KCs, the increase in IL-27 levels was completely abolished, confirming that KCs are required for intrahepatic IL-27 production (Fig. 6y).

In summary, CD4⁺ T cells license KCs via CD40L–CD40 interactions, enabling KCs to produce IL-12 and IL-27. While IL-12 primarily supports CD4⁺ T_eff cell expansion, IL-27 is crucial for reversing dysfunctional HBV-specific CD8⁺ T cells, revealing a mechanism by which CD4⁺ T cells can reprogram hepatic APCs to restore CD8⁺ T cell function within a tolerogenic tissue environment.

Therapeutic potential of IL-27 for CD8⁺ T cell restoration

To assess the therapeutic relevance of our findings, we administered recombinant IL-27 (rIL-27) to HBV Tg mice that had been transferred with HBV-specific naive CD8⁺ T cells (Fig. 7a). IL-27 treatment induced sALT elevation, increased IHL accumulation (Fig. 7b,c) and promoted robust expansion and differentiation of Cor93 T cells into IFNγ-producing cytotoxic effectors (Fig. 7d–f and Extended Data Fig. 10a,b). These activated T cells formed intra-parenchymal clusters throughout the liver, effectively suppressing HBV replication (Fig. 7g,h). Furthermore, in vitro experiments confirmed that T cell reinvigoration by IL-27 required TCR signaling and that IL-27 alone was ineffective without antigenic stimulation (Extended Data Fig. 10c,d). Notably, systemic administration of IL-27 did not induce observable toxic effects, further supporting its favorable safety profile (Extended Data Fig. 10e–m).

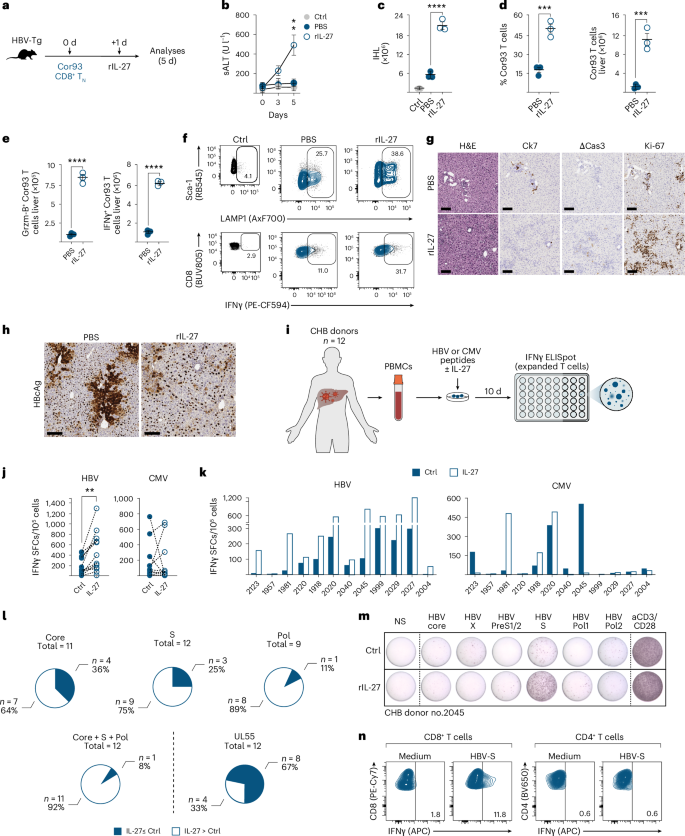

**Fig. 7: Therapeutic potential of IL-27.**

We next investigated whether IL-27 could restore dysfunctional HBV-specific T cell responses in individuals with chronic HBV infection (CHB). To this end, peripheral blood mononuclear cells (PBMCs) from 12 individuals with CHB (4 HBeAg⁺, 8 anti-HBe⁺; Supplementary Table 2 and Supplementary Fig. 5) were cultured with or without rIL-27 and stimulated with overlapping peptide pools spanning the entire HBV proteome. Following 10 days of in vitro expansion, the frequency of IFNγ-secreting cells (spot-forming cells (SFCs)) specific to individual HBV proteins (core, PreS1/S2, S, X, and polymerase) was measured using an IFNγ ELISpot assay (Fig. 7i). In parallel, PBMCs were stimulated with human cytomegalovirus (hCMV) UL55 peptides as a control to confirm that IL-27 selectively enhances HBV-specific responses. IL-27 increased the frequency of IFNγ-SFCs specific to HBV peptides in most individuals (92%), with no comparable enhancement in CMV UL55-specific responses (Fig. 7j,k). Enhancement was particularly notable in two HBeAg⁺ donors (Fig. 7k, donors no. 2123, 1981), although statistical comparisons were limited by sample size. Polymerase-specific responses showed the most consistent improvements (8 of 9 individuals), but improvements were also observed for S-specific and core-specific responses (Fig. 7l and Supplementary Fig. 5). Notably, while some individuals showed an across-the-board increase in HBV-specific responses with IL-27, others exhibited selective enhancement for specific antigens. In donor no. 2045, IL-27 markedly expanded HBV-S-specific responses, as evidenced by a substantial increase in IFNγ-SFCs and intracellular cytokine staining of HBV-specific T cells (Fig. 7k,m and Supplementary Fig. 5), demonstrating improved functional capacity of HBV-S-specific CD8⁺ T cells (Fig. 7n).

Collectively, these findings from human samples suggest that IL-27 may have therapeutic potential in augmenting the functional capacity of HBV-specific T cells in patients with chronic HBV infection, offering a promising avenue for restoring antiviral immunity in this setting.

Discussion

In this study, we show that antigen-experienced CD4⁺ T_eff cells can prevent or reverse the dysfunction imposed on HBV-specific CD8⁺ T cells by hepatocellular priming, restoring effector function and suppressing viral replication. This rescue is mediated through a liver-intrinsic circuit in which CD4⁺ T cells license KCs via CD40–CD40L engagement, leading to IL-12 and IL-27 production. IL-12 amplifies the helper pool, while IL-27 is necessary and sufficient to reinvigorate dysfunctional CD8⁺ T cells. These findings provide a mechanistic explanation for the long-standing correlation between robust CD4⁺ T cell immunity and HBV control in chimpanzees⁹ and humans^{10,11,36,37,38,39,40,41,42}, and identify a tractable therapeutic axis.

Our results extend the classical model of CD4-mediated help within SLOs^16,43. Although canonical models emphasize synchronous tri-cellular encounters of CD4⁺ T cells, CD8⁺ T cells and DCs^15,18,44, more recent work supports a staged paradigm in which CD4⁺ T cells help follow CD8⁺ T cell priming, often in separate anatomical compartments^19,45,46. By isolating the effector phase and decoupling priming events, we demonstrate that pre-activated CD4⁺ T cells can deliver restorative signals through local licensing of hepatic APCs, revealing that the liver itself can serve as an autonomous site for CD4⁺ T cell-mediated immune modulation. This aligns with emerging evidence that CD4⁺ T cells can license APCs outside SLOs, particularly in persistent infections and cancer^47,48,49,50.

Within this framework, KCs emerge as the dominant antigen-presenting platform, extending previous work from our laboratory⁷. KCs outnumber hepatic DCs by approximately 10:1, and are strategically positioned within liver sinusoids to efficiently sense blood-borne antigens^51,52. Unlike periportal DCs⁵³, KCs have direct access to antigens released from hepatocytes and initiate immune response without requiring trafficking to lymph nodes^54,55. Hepatic DCs may also possess intrinsic functional limitations compared to their lymphoid counterparts. Together, these features may explain why KCs, rather than DCs, support intrahepatic T cell cooperation in chronic viral infections^7,8,31,56.

Work has shown that hepatic cDC1 can also be licensed by CD4⁺ T cells to amplify CD8⁺ T cell responses within periportal niches⁵⁷. Although we cannot exclude similar processes during HBV infection, English et al.⁵⁷ observed CD4⁺ T cell help only after lymph node priming of both T cell subsets. In contrast, our data show that CD4⁺ T_eff cells can act directly within the liver to revive dysfunctional CD8⁺ T cells primed locally, without prior coordination in SLOs. While neither model fully recapitulates the complexity of human HBV infection, our findings are particularly relevant for chronic infection, where intrahepatic CD8⁺ T cell dysfunction predominates and local reactivation through CD4⁺ T cell-mediated licensing may offer a viable therapeutic strategy¹⁶.

Beyond confirming that CD40 engagement restores intrahepatic T cell function²³, our work identifies IL-27 as the critical cytokine mediating CD8⁺ T cell rescue. CD40–CD40L interactions trigger IL-27 release from licensed KCs, and IL-27’s ability to balance effector activation with regulation has been documented across viral infections and cancer^{58,59,60,61,62}. In the chronically infected liver, we show that IL-27 is indispensable: blocking IL-27 collapses CD8⁺ T cell rescue, whereas administering IL-27 reinstates effector function. Thus, CD4⁺ T cells harness IL-27 to override the liver’s tolerogenic bias, offering a therapeutic strategy.

The translational potential of this axis is underscored by our ex vivo experiments with PBMCs from chronically infected patients, where IL-27 consistently enhanced HBV-specific CD8⁺ responses. Together with IL-27’s favorable safety profile^63,64, these results position IL-27 as an attractive, low-toxicity lever for immune-based HBV therapy.

Several limitations should be acknowledged. Our model does not recapitulate the full course of HBV infection, including naive T cell priming, and no small-animal model currently enables study of early HBV-specific T cell priming under productive infection. Using pre-activated CD4⁺ T cells allowed us to isolate the effector phase but cannot capture all aspects of natural infection. Similarly, rVSV immunization, while effective for T_H1 polarization, may imprint functional properties distinct from hepatotropic priming. Finally, while TCR transgenic systems enable mechanistic dissection, they simplify the TCR repertoire and may not fully reflect endogenous human responses.

In summary, we delineate a liver-centric mechanism whereby CD4⁺ T_eff cells license KCs to produce IL-27 and restore antiviral CD8⁺ T cell function. These findings broaden the paradigm of T cell help beyond lymphoid organs and nominate the KC–IL-27 axis as a promising target for immune-based strategies aimed at functional cure of chronic HBV infection.

Methods

Mice

C57BL/6, CD45.1 (inbred C57BL/6), BALB/c, Thy1.1 (CBy.PL(B6)-Thya/ScrJ), Rag1^−/− (B6.129S7-Rag1tm1Mom/J), CD11c-iDTR (B6.FVB-1700016L2RikTg(Itgax-DTR/EGFP)57Lan/J), CAG-eGFP (C57BL/6-Tg(CAG-EGFP)1Osb/J) and CAG-DsRed (B6.Cg-Tg(CAG-DsRed*MST)1Nagy/j) mice were purchased from Charles River or The Jackson Laboratory. Clec4f-iDTR-YFP mice were generated as previously described³¹. MHC-II^−/− (B6.129S2-H2^dlAb1Ea/J) mice were obtained through the Swiss Immunological Mutant Mouse Repository (Zurich, Switzerland). MUP-core transgenic mice (lineage MUP-core 50, inbred C57BL/6, H-2K^b) have been previously described^6,29. HBV replication-competent transgenic mice (lineage 1.3.32, inbred C57BL/6, H-2K^b) have been previously described²⁵. HBV transgenic mice were used as C57BL/6 or C57BL/6 mice crossed with BALB/c H-2^bxd F1 hybrids. Cor93 TCR transgenic mice (lineage BC10.3, inbred CD45.1) have been previously described²³. Env28 TCR transgenic mice (lineage 6C2.36, inbred Thy1.1 BALB/c) have been previously described²³. Env126 TCR transgenic mice (Rag1^−/− CD45.1/2 C57BL/6 inbred) were generated in this laboratory, in collaboration with BioNTech. For intravital imaging experiments, Cor93 and Env28 TCR transgenic mice were crossbred with the CAG-DsRed lineage and Env126 TCR transgenic mice were crossbred with the CAG-eGFP lineage for homozygous fluorescent protein expression. Mice were housed under specific pathogen-free conditions and used at 8–10 weeks of age. No randomization was used in group allocation; experimental groups were predefined based on genetic background or treatment. In all experiments, mice were matched for age, sex and (for the 1.3.32 animals) serum HBeAg levels before experimental manipulations. In selected experiments, 1.3.32 mice were matched for serum HBV DNA levels before experimental manipulations. All experimental animal procedures were approved by the Institutional Animal Committee of the San Raffaele Scientific Institute and are compliant with all relevant ethical regulations. Mice were maintained on an ad libitum diet (VRF1 (P), Special Diets Services, 801900) in specific pathogen-free-controlled housing, with a 12-h light–dark cycle and stable environmental conditions.

Bone marrow chimeras

Bone marrow chimeras were generated by treatment of HBV transgenic mice with four consecutive doses of 20 mg per kg body weight of busulfan (1,4-butanediol dimethanesulfonate; Sigma-Aldrich, B2635) before receiving the new bone marrow (6 h after last dose); mice were allowed to reconstitute for at least 8 weeks before use.

Single-cell sorting

For Env126 transgenic mouse generation, WT C57BL/6 mice were immunized weekly with 100 µg Env_126–138 peptide and 50 µg polyI:C for 3 weeks by subcutaneous injection. Seven days after the third injection, 5 × 10⁶ splenocytes were cultured for 15 h in the presence of 4 µg ml⁻¹ peptide or with 2 µg ml⁻¹ concanavalin A (Sigma-Aldrich). Activated cells were labeled using IFNγ-secretion assay-APC kit and were further enriched via anti-APC-microbeads according to the manufacturer’s protocol (Miltenyi, 130-090-433, 130-090-855) using the magnetic-activated cell sorting technique. CD4⁺CD8⁻IFNγ^hi single T cells (anti-CD4, clone GK1.5, eBioscience, 48-0041-82 and anti-CD8α clone 53-6.7, BD Biosciences, 560777) were sorted (BD FACSAria) into wells of 96-well V-bottom plates (Greiner Bio-One) containing 6 μl of a mild hypotonic cell lysis buffer per well consisting of 0.2% Triton X-100, 0.2 μl RiboLock RNase inhibitor (Thermo Scientific, EO0381), 5 ng poly(A) carrier RNA (Qiagen, 1068337) and 1 μl dNTP mix (10 mM, Biozym, 331520) in RNase-free water. Plates were sealed, centrifuged and stored at −65 °C to −85 °C directly after sorting.

For Env126 CD4⁺ T_N cell and T_eff cell sorting, single-cell suspensions were prepared from mouse liver and spleen according to previously described protocols. Cells were subsequently stained with the following panel: LIVE/DEAD Fixable Far-Red dye (Invitrogen, L34973), CD11b-eFluor450 (M1/70, eBioscience, 48-5698-82), CD19-eFluor450 (1D3, eBioscience, 48-0193-82), NK1.1-Pacific Blue (PK136, BioLegend, 108722), CD8a-eFluor450 (53-6.7, eBioscience, 48-0081-82), CD45.1-Alexa Fluor 488 (A20, BioLegend, 110718), CD45.2-PE (104, BioLegend, 109808), Ter119-PE-Cy7 (TER-119, BioLegend, 116222), B220-PE-Cy7 (RA3-6B2, BD Bioscience, 552772) and CD4-Alexa Fluor 647 (GK15, BioLegend, 100426). Cells were resuspended at a concentration of approximately 15–20 × 10⁶ cells per ml in sorting buffer (PBS with 0.04% BSA Invitrogen UltraPure, AM2616). Live CD4⁺ CD45.1⁺, CD45.2⁺, CD11b⁻, CD19⁻, NK1.1⁻, CD8a⁻, Ter119⁻ and B220⁻ cells originally from Env126 CD45.1.2 mice were sorted using a BD FACSAria cell sorter equipped with a 100-µm nozzle at 20 PSI and maintained at 4 °C. Sorted target cells were collected in 1.5-ml microcentrifuge tubes pre-coated overnight with 1% UltraPure BSA at 4 °C. The final cell purity exceeded 98%.

Cloning and selection of antigen-specific TCRs

Plates with sorted CD4⁺CD8⁻IFNγ^hi T cells were thawed, and template-switch cDNA synthesis was performed as described⁶⁵ with adapted primers specific to murine TCRα and TCRβ constant genes. TRA and TRB fragments were further amplified⁶⁶, sequenced and the respective V(D)J junctions analyzed using the IMGT/V-Quest tool. DNAs of novel and productively rearranged corresponding TCR chains were digested using NotI and cloned into pST1 vectors⁶⁷ containing the appropriate constant region for in vitro transcription of complete TCRα/β chains. The reactivity of the isolated TCRα/β chains was validated in active C57BL/6 T cells transfected with respective TCR mRNA, using Env_126–138 pulsed bone marrow-derived DCs in an IFNγ ELISpot assay, as previously described⁶⁸. TCR7 (alpha chain: V7-4*2orV7D-4J15C and beta chain: V4D2J1-6C1) was used for the generation of the Env126 Tg mouse.

Viruses and viral vectors

Mice were injected intravenously (i.v.) with 10⁶ plaque-forming units of replication-competent recombinant VSV expressing HBsAg (rVSV^Env) vector 24 h after Env126 CD4⁺ T cell adoptive transfer. All infectious work was performed in designated BSL-3 workspaces, in accordance with institutional, national and international guidelines.

T cell isolation, adoptive transfer and in vivo treatments

In selected experiments, WT C57BL/6 mice were immunized subcutaneously with 100 μg of Env_126–138 peptide and 50 μg of polyI:C immune adjuvant at three time points every 7 days.

Isolation of CD8⁺ T cells from spleens of Cor93 or Env28 mice and CD4⁺ T cells from spleens of Env126 transgenic mice were performed as previously described⁶. Isolation of CD4⁺ T cells from spleens of Env126 transgenic mice was performed by negative immunomagnetic selection using the EasySep Mouse CD4⁺ T Cell Isolation Kit (StemCell Technologies). Mice were injected i.v. with 10⁶ HBV-specific (Cor93 or Env28) naive CD8⁺ T cells and/or HBV-specific effector CD4⁺ T cells (Env126 T_eff cells). In the indicated experiments, mice were splenectomized and treated i.v. with 200 μg of anti-CD62L monoclonal antibody (clone MEL-14, BioXcell) 48 h and 4 h before cell injection and 24 h after cell transfer. Splenectomy was performed according to standard procedures⁶⁹ and as previously described⁶. For FTY720 treatment, mice were injected with 1 mg per kg body weight of fingolimod (Sigma) intraperitoneally (i.p.) every 48 h throughout the experiment. In selected experiments, mice were treated i.p. with busulfan and reconstituted i.v. with bone marrow from CD11c-iDTR-GFP mice (10⁷). In selected experiments, DCs and KCs were depleted by injecting i.p. 25 ng per gram body weight of diphtheria toxin (Sigma-Aldrich) 3 days and 1 day before T cell transfer and 1 day and 3 days after cell transfer. In the indicated experiments, KCs were depleted by i.v. injection of clodronate-containing liposomes (10 μl per gram body weight; Liposoma B’V) 2 days before T cell injection⁷⁰^,71. In the indicated experiments, mice were treated i.p. with 250 μg of anti-CD40L monoclonal antibody (clone MR-1) or 250 μg anti-CD40L monoclonal antibody (clone D265A), 250 μg of anti-IL-12 p40 monoclonal antibody (clone C17.8), 250 μg of anti-IL-27 p28 monoclonal antibody (clone MM27.7B1) and 2.5 μg of rIL-27 (Fc: LALA-PG-KIH heterodimer, Adipogen). All monoclonal antibodies were purchased from BioXcell, unless otherwise indicated.

In vitro cell activation

In the indicated experiments, Env126 CD4⁺ T cells were cultured in vitro under 4 h of stimulation in lymphocyte complete medium: RPMI 1640, penicillin–streptomycin (100 IU ml⁻¹ and 100 µg ml⁻¹, Corning), 2 mM l-glutamine (Corning), 50 µM 2-mercaptoehanol (Sigma-Aldrich), HEPES 10 mM (Corning), NEAA (non-essential amino acids, Corning) at 100 µM. HBsAg_126–₁₃₈ was used at a concentration of 1 µg ml⁻¹. Ionomycin calcium salt (Sigma-Aldrich), was used at a concentration of 1 µg ml⁻¹ in combination with PMA (Sigma-Aldrich) at a concentration of 50 ng ml⁻¹. In the indicated experiments, Env126 CD4⁺ T cells were cultured in vitro for 48 h in complete medium with HBsAg_126–₁₃₈ peptide (1 µg ml⁻¹) or with Dynabeads Mouse T-Activator CD3/CD28 (Thermo Fisher Scientific, 11456D) following the manufacturer’s instructions. For ex vivo intracellular staining to assess cytokine production before FACS analyses, cell suspensions were incubated for 4 h at 37 °C in complete medium, with HBsAg_126–₁₃₈, HBsAg_28–39 or HBcAg_93–100 at 2 µg ml⁻¹ with 1 µg ml⁻¹ brefeldin A (Sigma-Aldrich) and Monensin (BioLegend) according to the manufacturer’s instructions. In selected experiments, in vitro cultured CD8⁺ T cells were stimulated for 48 h with rIL-27 at 25 ng ml⁻¹ (R&D Systems, 7430-ML).

In vitro cell labeling

In the indicated experiments, WT or Env126 CD4⁺ T cells were labeled with CellTrace Violet Cell Proliferation Kit (Invitrogen, C34571) following the manufacturer’s protocol. Briefly, WT or Env126 CD4⁺ T cells were isolated, washed and resuspended in PBS at a concentration of 10⁶ cells per ml in the working dye solution for 20 min at 37 °C. After the incubation, complete medium was added to the cell suspension that was rested at room temperature for 5 min to dilute and remove free remaining dye. Labeled cells were then resuspended in complete medium ready to be cultured.

Cell isolation and flow cytometry

Briefly, cells were plated at 2 × 10⁶ cells per well in a 96-well U-bottom tissue culture plate with cognate peptide (2 µg ml⁻¹) for 4 h in an incubator in complete RPMI medium containing 10 µg ml⁻¹ of brefeldin A and 10 U ml⁻¹ of IL-2 (EL-4 supernatant). At the end of the stimulation, cells were washed and stained as described above. Cell viability was assessed by staining with Viability 405/520 fixable dye (Miltenyi, 130-130-404) and LIVE/DEAD Fixable Far-Red dye (Invitrogen, L34973). In each experiment, Env28 CD8⁺ T cells were identified as live, CD45⁺, CD8⁺CD4⁻ Thy1.1⁺; Env126 CD4⁺ T cells were identified as live, CD45⁺, CD8⁻CD4⁺ CD45.2⁺CD45.1⁺; and Cor93 CD8⁺ T cells were identified as live, CD45⁺, CD8⁺CD4⁻ CD45.1⁺.

Staining of cell surface markers was performed with Brilliant Stain buffer (BD Biosciences, 566349) according to the manufacturer’s instructions. Antibodies are described in this order: target, clone name, catalog number and dilution to ensure precise identification of the reagent used. Antibodies from BD Biosciences: anti-CD45.2 (104, 564616; 1:200 dilution), anti-Thy1.1 (OX-7, 740917; 1:200 dilution), anti-CD8 (53-6.7, 612898; 1:300 dilution), anti-B220 (RA3-6B2, 564662; 1:300 dilution), anti-CD19 (1D3, 562291; 1:200 dilution), anti-CD3 (145-2C11, 562286; 1:100 dilution), anti-Ly6G (1A5, 562700; 1:300 dilution), anti-CD49b (DX5, 562453; 1:100 dilution), anti-CD44 (IM7, 569705, 560781; 1:200 dilution), anti-CD69 (H1.2F3, 612793, 552879; 1:100 dilution), anti-CD86 (GL1, 564199; 1:100 dilution), anti-IA-IE (M5/114.15.2, 748846, 2G9, 569244; 1:300 dilution), anti-H2-kB (AF6-88.5, 742861; 1:200 dilution), anti-CD40 (44986, 745218; 1:100 dilution), anti-TIM4 (21H12, 742774; 1:100 dilution), anti-CD28 (37.51, 740466; 1:100 dilution), anti-CD70 (FR70, 740931; 1:100 dilution), anti-Ly6A/E (D7, 756372; 1:100 dilution), anti-Ly108 (13G3, 755697; 1:100 dilution), anti-TIGIT (1G9, 744212; 1:100 dilution), anti-NKG2A/C/E (20d5, 740549; 1:100 dilution), anti-2B4 (2B4, 740671; 1:100 dilution), anti-Bcl-6 (K112-91, 562401; 1:75 dilution), anti-IFNγ (XMG1.2, 562333; 1:200 dilution), anti-T-bet (O4-46, 569089; 1:75 dilution) and anti-TNF (MP6-XT22, 563943; 1:100 dilution). From BioLegend: anti-CD45 (30-F11, 103108; 1:400 dilution), anti-CD45.1 (clone A20, 110743; 1:300 dilution), anti-CD4 (GK1.5, 100480; 1:200 dilution), anti-CD62L (MEL-14, 104438, 104453; 1:200 dilution), anti-CD80 (16-10A1, 104738; 1:100 dilution), anti-CD25 (PC61, 102075, 102020; 1:100 dilution), anti-CD11c (QA18A72, 161107; 1:100 dilution), anti-CD11b (M1/70, 101285; 1:100 dilution), anti-CD44 (IM7, 103028; 1:200 dilution), anti-F4/80 (BM8, 123110, 123130; 1:100 dilution), anti-CD64 (X54-5/7.1, 139311; 1:100 dilution), anti-CD69 (H1.2F3, 104527; 1:100 dilution), anti-ICAM-1 (YN1/1.7.4, 116116; 1:100 dilution), anti-ESAM (1G8/ESAM, 136203; 1:100 dilution), anti-CD206 (C068C2, 141719; 1:100 dilution), anti-Lag-3 (C9B7W, 125248; 1:100 dilution), anti-CD39 (Duha59, 143819; 1:100 dilution), anti-CD31 (390, 102424; 1:100 dilution), anti-IL-2 (JES6-5H4, 503837; 1:100 dilution), anti-CD107a (1D4B, 121608; 1:80 dilution), anti-ICOS (15F9, 107716; 1:100 dilution), anti-PD-1 (29F.1A12, 125253; 1:100 dilution), anti-NK1.1 (S17016D, 156529; 1:100 dilution), anti-KLRG1 (2F1/KLRG1, 138410; 1:100 dilution), anti-CXCR3 (S18001A, 155923; 1:100 dilution), anti-CTLA-4 (UC10-4B9, 106314; 1:75 dilution), anti-4-1BB (17B5, 107105; 1:100 dilution), anti-OX40 (OX-86, 119414; 1:100 dilution), anti-TNF (MP6-XT22, 506313; 1:200 dilution), anti-TIM3 (RMT3-23, 119738; 1:100 dilution), anti-CXCR5 (L138D7, 145532; 1:75 dilution), anti-CXCR6 (SA051D1, 151111; 1:100 dilution), anti-IFNγ (XMG1.2, 505830; 1:200 dilution). From eBioscience: anti-CD4 (RM4-5, 48-0042-82; 1:200 dilution), anti-CD27 (LG.7F9, 25-0271-80; 1:100 dilution), anti-Ki-67 (SolA15, 48-5698-82; 1:400 dilution). Antibodies from Invitrogen: anti-Foxp3 (FJK-16s, 53-5773-82; 1:100 dilution), anti-CD11c (N418, 25-0114-82; 1:100 dilution), anti-T-bet (4b10, 25-5825-80; 1:75 dilution), anti-TOX (TXRX10, 50-6502-82; 1:100 dilution), anti-Grzm-B (GB11, GRB04, GRB05; 1:80 dilution). Human antibodies included: anti-CD3 (clone HIT3a, BioLegend, 300306; 1:40 dilution), anti-CD4 (clone SK3, BD Bioscience, 563875; 1:20 dilution), anti-CD8 (clone RPA-T8, BD Bioscience, 557746; 1:100 dilution) and anti-IFNγ (clone B27, BioLegend, 506510; 1:20 dilution).

Recombinant dimeric H-2L^d–Ig or H-2K^b–Ig fusion proteins (BD Biosciences) complexed with peptides derived from HBsAg (Env_28–39, IPQSLDSWWTLS, Primm) or from HBcAg (Cor_93–100, MGLKFRQL, Primm), respectively, were prepared according to the manufacturer’s instructions. Dimer staining was performed as described and used to quantify HBV-specific CD8⁺ T cells (Env28 and Cor93)⁶. Peptide HBs_126–₁₃₈-loaded tetramer (I-A^b Env_126–₁₃₈) and human CLIP peptide-loaded negative control (I-A^b CLIP) were provided by the National Institutes of Health (NIH) Tetramer Core Facility. Tetramer staining was performed by incubating cell suspensions at 37 °C for 1 h according to the manufacturer’s instructions. Flow cytometry staining for all transcription factors and intranuclear proteins was performed using Foxp3/Transcription Factor Staining Buffer Set (eBioscience, 00-5523-00), following the manufacturer’s instructions. All flow cytometry analyses have been performed in FACS buffer comprising PBS with 2 mM EDTA and 2% FBS (Corning). Flow cytometry analyses were performed on the BD FACSCanto Clinical Flow Cytometry System, BD FACSymphony A5 Cell Analyzer or Cytek Aurora. Flow cytometry data were analyzed with FlowJo software (TreeStar, v10).

Southern blot analysis

Genomic DNA was isolated from frozen livers using the phenol–chloroform method and analyzed for intrahepatic HBV DNA contents by Southern blotting, as previously described⁷. No molecular weight markers were included, as the migration pattern of HBV DNA forms, including RC, DS, SS DNA and integrated TG, has been well characterized²⁵. Band identity was assigned based on electrophoretic mobility and comparison to these widely recognized standards. All blots are shown for qualitative purposes only.

Biochemical analysis

The extent of hepatocellular injury was monitored by the measuring of sALT activity at different and multiple time points after experimental manipulation and cell transfer, as already described⁶. Normal intervals of sALT activity are between 20 and 80 U l⁻¹.

RT–PCR

Total RNA was extracted from frozen livers using the ReliaPrep RNA Tissue Miniprep System (Promega), according to the manufacturer’s instructions, as described⁶. Genomic DNA contamination was removed using TURBO DNA-free DNase (Ambion). Around 1 μg of total RNA was reverse transcribed with Superscript IV Vilo (Life Technologies) before qPCR analysis for mouse Il27 (TaqMan Mm00461163, Life Technologies) and Il12b (TaqMan Mm 01288989, Life Technologies). All experiments were performed in triplicate and normalized to the reference gene GAPDH (TaqMan Mm99999915, Life Technologies). All nucleic acids were purified from serum using the MiniElute Virus Spin Kit (Qiagen). Viremia was determined by plotting a standard curve using HBV plasmid DNA and the Core TaqMan probe (forward TACCGCCTCAGCTCTGTATC, reverse CTTCCAAATTAACACCCACCC, probe TCACCTCACCATACTGCACTCAGGCAA). Reactions were run and analyzed on the QuantStudio 5 instrument (Life Technologies).

Confocal immunofluorescence and histochemistry

At the time of autopsy, mouse livers were perfused via the inferior vena cava with 10 ml of PBS as liver pieces were surgically removed and instantly fixed in paraformaldehyde at 4% concentration for 16–20 h. The solutions were then dehydrated in 30% sucrose before their embedding into OCT freezing media (Bio-Optica). Liver sections were obtained with a Leica CM1520 Cryostat (20 µm per section). Then, liver sections were stained as already described⁶. Antibodies used included anti-F4/80 Alexa Fluor 647 (Invitrogen, MF48021) and anti-CD38 Brilliant Violet 421 (BioLegend, 102732). All images were acquired using a Mavig RS-G4 confocal microscope.

For all the immunohistochemical staining, liver pieces were harvested in zinc formalin solution and transferred into 70% ethanol solutions 24 h later. All the tissues were then embedded in paraffin and stained as previously described⁶. Primary antibodies included monoclonal rat anti-Ki-67 (clone TEC-3, Dako, M7249), polyclonal rabbit anti-HBcAg (Dako, B0586), monoclonal rabbit anti-cytokeratin 7 (clone ERP17078, Abcam, ab181598), monoclonal rabbit anti-CD3 (clone SP7, Abcam, ab16669) and polyclonal rabbit anti-cleaved caspase-3 (Asp175, CST, 9661). Bright-field images were acquired using an Aperio Scanscope CS2 microscope and ImageScope software (Leica Biosystems), following the manufacturer’s guidelines. In each experiment, histochemical analysis was conducted for every mouse using the median-left liver lobe, following a standardized protocol established in collaboration with our institutional histopathology core facility. The entire lobe section was scanned to avoid selection bias and ensure inclusion of all tissue regions. For qualitative assessment, regions of interest were selected from these whole-lobe scans based on tissue integrity and staining quality, each covering an area of approximately 600 µm². These regions of interest were chosen to capture diverse hepatic microenvironments (for example, periportal, pericentral and mid-zonal regions), rather than isolated or extreme features. Selection was performed independently by two investigators (blinded to condition) and confirmed by a pathologist to ensure consistency and reproducibility. All HBcAg IHC stainings are presented as a qualitative assessment of antigen distribution, illustrating its presence or absence across conditions. The number of animals and sections analyzed per group is indicated in each figure legend. Immunohistochemical imaging analyses were performed with QuPath 0.5.0-x64 software.

Intravital multiphoton microscopy

Liver intravital multiphoton microscopy was performed as described⁶. Liver sinusoids were visualized by injecting nontargeted Quantum Dots 655 (Invitrogen) i.v. during image acquisition. Images were acquired with a LaVision BioTec TriMScope II coupled to a Nikon Ti-U inverted microscope enclosed in a custom-built environmental chamber (Life Imaging Services) that was maintained at 37–38 °C with heated air. Fluorescence excitation was provided by two tunable femtosecond-pulsed titanium–sapphire lasers (680–1,080 nm, 120-fs pulse width, 80-MHz repetition rate, Ultra II, Coherent), an Optical Parametric Oscillator (1,000–1,600 nm, 200-fs pulse width, 80-MHz repetition rate, Chameleon Compact OPO, Coherent). The setup includes four non-descanned photomultiplier tubes (Hamamatsu H7422-40 GaAsP High Sensitivity PMTs and Hamamatsu H7422-50 GaAsP High Sensitivity red-extended PMT from Hamamatsu Photonics K.K.) and a ×25, 1.05-NA, 2-mm working distance, water-immersion multiphoton objective (Olympus). For four-dimensional analysis of cell migration, stacks of 5–13 square xy sections (1,024 × 1,024 pixel) sampled with 4-μm z-spacing were acquired every 20 s for 20 min. Sequences of image stacks were transformed into volume-rendered, four-dimensional time-lapse movies with Imaris (Bitplane, v9.1.2). The three-dimensional (3D) positions of the cell centroids were segmented by the semiautomated cell tracking algorithm of Imaris.

The single-cell speed was calculated as the mean 3D velocity per cell track, while the instantaneous velocity represents the 3D velocities of each single step in a track. The arrest coefficient was defined as the percentage of time a track instantaneous velocity remains below a given motility threshold (here 5 μm min⁻¹). The track displacement (distance between the initial and the final position of a cell) was divided by the total track length to obtain the corrected straightness, a measure of the directionality of a track. Finally, instantaneous speed, turning angle changes, mean displacement versus time and the motility coefficient were calculated from the x, y and z coordinates of the cell centroids using custom-designed scripts in RStudio.

scRNA-seq library preparation

Env126 CD4⁺ T_eff cells and Env126 CD4⁺ T_N cells were fixed according to the Evercode Fixation (Parse Biosciences) protocol, and single-cell RNA libraries were prepared using the Evercode split-pool combinatorial barcoding technology approach using the ParseBio Evercode WT v2 kit. Sequencing was performed on the Illumina NovaSeq 6000 sequencer with the S4 flow cell 200 cycle kit according to the sequencing protocol provided by the Evercode kit (v1.5) at a desired depth of 30,000 reads per cell.

scRNA-seq data analysis

Parse Biosciences analysis pipeline ‘split-pipe’ (v.1.1.0p) was used with default parameters to perform demultiplexing, alignment of sequencing reads against the GRCm38.93 genome and generation of the cell-by-gene count matrix. A raw counts matrix of the aggregated libraries containing the counts for all the samples was imported into R (version 4.2.3) and processed with custom scripts. The ‘isOutlier’ function from the ‘scuttle’ package⁷² was used to identify outlier and low-quality cells in an unbiased way. For each of the following features, cells with values greater or lower than four median absolute deviations were discarded: library size, number of features, percentage of mitochondrial gene contamination, percentage of ribosomal gene contamination, percentage of hemoglobin gene contamination, percentage of platelet gene contamination. After quality filtering, only cells with a number of features greater than 200 and genes expressed in at least three cells were kept. Doublet removal was performed with the scDblFinder R package⁷³; only the cells automatically classified as a ‘singlet’ by the algorithm in the package were kept. Cells that were not CD4⁺ T cells were discarded from each sample individually by calling the ‘SingleR’ function using the ‘celldex MouseRNAseqData’ dataset⁷⁴^,75 aided by manual curation. A Seurat (version 4.3.0)⁷⁶ object was created for each filtered sample and merged into a single dataset. The complete dataset was normalized and scaled following the standard Seurat workflow (scaling to 10,000 and log transformation log1p). The top 3,000 genes identified by Seurat’s FindVariableFeatures using the vst method were used for principal component analysis. Uniform manifold approximation and projection reduction was then applied on the first 30 principal components. Graph-based clustering was performed to cluster cells according to their gene expression profile with the FindClusters function in Seurat with default parameters, and a resolution value of 0.2 was chosen. Differential gene expression was calculated with the FindAllMarkers function in Seurat. Gene-set or signature scores were obtained with the AddModuleScore Seurat function. CD4⁺ T cells signatures were obtained from Kiner et al.⁷⁷. Heat maps were prepared with the ComplexHeatmap package; feature plots were generated with the function FeaturePlot_scCustom from the scCustomize R package⁷⁸^,79. Gene-set enrichment analysis was performed using the fgsea R package (v.1.8.0)⁸⁰ on all genes ranked by log₂ fold change (from FindMarkers Seurat output) from the selected comparison. P values were calculated using 1,000,000 permutations and were corrected using the Benjamini–Hochberg method. Gene sets with a false discovery rate <0.05 were considered significant. R packages used for data analysis were scuttle (v.1.8.4), scDblFinder (v1.12.0), SingleR (v2.0.0), Seurat (v4.3.0), scCustomize (v1.1.3), celldex (v1.8.0).

Study participants and approval

A total of 12 individuals with chronic HBV infection (HBsAg⁺) were included (Supplementary Table 2), of whom 4 had HBeAg-positive and 8 had HBeAg-negative chronic HBV infection. All 12 individuals were treatment-naive, had no known history of hepatitis (normal ALT) and were non-cirrhotic with a normal FibroScan result. Supplementary Table 2 summarizes the available clinical and virological parameters. Blood donors were recruited from the viral hepatitis clinic at The Royal London Hospital. Written informed consent was obtained from all participants. The study was conducted in accordance with the Declaration of Helsinki and approved by the Barts and the London NHS Trust local ethics review board and the NRES Committee London–Research Ethics Committee (reference 10/H0715/39) and by the Singapore National Healthcare Group ethical review board (DSRB 2008/00293).

Clinical and virological parameters

On recruitment to the study, viral serology and HBV DNA levels were tested. HBsAg, HBeAg and anti-HBe levels were measured with a chemiluminescent microparticle immunoassay (CMIA; Architect Assay, Abbott Diagnostics). HBV DNA levels in serum were quantified by real-time PCR (COBAS AmpliPrep/COBAS TaqMan HBV test v2.0; Roche Molecular Diagnostics).

HBV peptide library

A set of 15-mer peptides overlapping by ten amino acids was used to identify HBV-specific T cells. The peptides covered the sequences of the HBV protein core, envelope (S) and polymerase (Pol) of genotypes A, B, C and D and were purchased from T Cell Diagnostics. Similarly, 15-mer peptides overlapping by ten amino acids that covered the sequence of hCMV protein UL55 were used to identify CMV-specific T cells and were purchased from GenScript.

PBMC isolation and T cell culture

PBMCs were isolated from peripheral blood by Ficoll gradient and cryopreserved. Cells were thawed and T cell lines were generated as follows: 20% of PBMCs were pulsed with 10 μg ml⁻¹ of the overlapping HBV or CMV peptides for 1 h at 37 °C, subsequently washed, and co-cultured with the remaining cells in AIM-V medium (Gibco; Thermo Fisher Scientific) supplemented with 2% AB human serum (Gibco; Thermo Fisher Scientific). T cell lines were cultured for 10 days in the presence of 20 U ml⁻¹ of rIL-2 (R&D Systems) with or without 50 ng ml⁻¹ of rIL-27. Half of the medium was refreshed on day 4 and day 8.

ELISpot assays

ELISpot assays for the detection of IFNγ-producing cells were performed on in vitro-expanded T cell lines using either HBV peptide pool core, envelope (S), polymerase 1 (Pol 1), polymerase 2 (Pol 2) or CMV peptide pool UL55. T cell lines were incubated overnight at 37 °C with pools of HBV/CMV peptides (2 μg ml⁻¹), where final dimethylsulfoxide concentrations did not exceed 0.2%. IFNγ ELISpot assays (Millipore) were performed as previously described⁸¹. Spot-forming units were quantified with ImmunoSpot 7.0.26.0.

Liver histology from HBV-infected chimpanzees

Liver tissue from an HBV-infected chimpanzee (A3A005) was analyzed. All relevant details regarding sex, age, and body weight before infection are available in the published dataset⁹. The animal was handled in accordance with humane care and use guidelines established by the Animal Research Committees at the NIH, The Scripps Research Institute and Bioqual Laboratories. It was housed individually at Bioqual Laboratories, an AAALAC International-accredited institution under contract with the National Institute of Allergy and Infectious Diseases. The chimpanzee was inoculated with 10⁴ genome equivalents of HBV, a dose that typically results in a self-limited infection⁹. Liver tissue samples, measuring 5 to 10 mm in length, were obtained via needle biopsy and fixed in 10% zinc formalin for histological analysis. Formalin-fixed paraffin-embedded liver sections were subjected to multiplex immunofluorescence staining using the Opal detection system (Akoya Biosciences) and visualized with fluorescence microscopy. Sections were first deparaffinized and subjected to heat-induced epitope retrieval using Bond Epitope Retrieval Solution (Leica Biosystems). Immunostaining was performed on an automated Leica Bond RX platform using ready-to-use primary antibodies for CD4 (clone 4B12, Leica PA0427), CD8 (clone C8/144B, Dako) and CD68 (clone KP1, Ventana 790-2931). Images were acquired using an HT 2.0 Akoya scanner at a magnification of ×20. Image analysis was performed using Phenochart software (Akoya Biosciences) to assess spatial interactions within the hepatic microenvironment.

Statistical analyses

All results are expressed as means ± s.e.m. All statistical analyses were performed in Prism (GraphPad Software, v10). Statistical tests, sample size and P values are indicated in each figure. No statistical methods were used to predetermine sample sizes, but our sample sizes are similar to those reported in previous publications^6,7,24. Data distribution was assumed to be normal, but this was not formally tested. Data collection and analysis were not performed blind to the experimental conditions. No data were excluded from the analyses unless classified as outliers using the ROUT method (Q = 5%), which combines robust regression and false discovery rate control. This method was used to objectively remove technical artifacts while minimizing subjective bias.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

scRNA-seq data for mouse CD4⁺ T cells have been deposited in the Gene Expression Omnibus under the accession code GSE283038. The processed scRNA-seq data that support the findings of this study are available in Figshare via https://doi.org/10.6084/m9.figshare.27894906. Source data are provided with this paper. All other data supporting the findings of this study are available within the article and its Supplementary Information.

Code availability

The scripts used to analyze the mouse scRNA-seq data can be accessed at https://doi.org/10.6084/m9.figshare.27894906.
