Introduction

Gulf War illness (GWI), affecting over 25% of the 700,000 military personnel deployed to the 1991 Persian Gulf War1, features a variety of symptoms including fatigue, pain, memory/concentration problems, balance disturbances, post-exertion malaise, chronic diarrhea, skin rashes and depression. Studies of a gene-environment interaction strongly support the causative role of low-level sarin nerve gas exposure from U.S. and Coalition bombing of Iraqi chemical weapon production and storage facilities2,3. In 2012 Golomb first suggested mitochondrial dysfunction as the underlying mechanism of GWI based on overlap of their symptoms4. In three subsequent studies she and colleagues supported the hypothesis with phosphorus magnetic resonance spectroscopy (31P-MRS) demonstrating prolonged recovery time of muscle phosphocreatine after exercise, a direct measure of mitochondrial function, in veterans with GWI5,6,7 and with response of some GWI symptoms to treatment with co-enzyme Q10, a known treatment for mitochondrial dysfunction8. Concurrently, O’Callaghan and colleagues described with a preclinical rodent model that repetitive low-level doses of the sarin proxy diisopropylfluorophosphate (DFP) produces a lasting behavioral disturbance in rodents related to neuroinflammation9,10,11 possibly from mitochondrial dysfunction12. Deshpande and colleagues reported increased intracellular calcium concentration in a similar GWI rodent model13,14. Human studies suggest that these pathological processes are active in Gulf War veterans also5,7,15.

Among the early mechanistic studies of GWI was the report in 2000 of the first proton magnetic resonance spectroscopy (1H-MRS) brain scans of GWI cases and controls performed in 1997–199816, the third in a longitudinal series of epidemiologic and clinical studies to understand GWI in the 24th Reserve Naval Mobile Construction Battalion (Seabees)16,17,18. That study applied long echo-time (TE = 272 ms) 1H-MRS at 1.5 Tesla (T) field strength in 22 GWI cases and 18 well veteran controls drawn from prior studies. It showed a statistically significant reduction of the N-acetylaspartate/total creatine ratio (NAA/tCr) in the right basal ganglia and pons, thought at the time to suggest neuronal damage.

A year later, Meyerhoff et al. replicated the finding by demonstrating reduced NAA/tCr and NAA/choline ratios in right basal ganglia with long echo time (TE = 270 ms) 1H-MRS at 1.5T in 11 GWI veterans and 11 controls selected from a VA Gulf War clinic19. In 2004 the first application of short echo time (TE = 30 ms) 1H-MRS at 1.5T, Menon et al. found reduced NAA/tCr in the hippocampi of GWI veterans bilaterally20. In 2011 Weiner et al. published a larger study using intermediate echo-time (TE = 135) at 4T in Gulf War veterans recruited through public advertising found no difference from controls in [NAA], NAA/tCr and NAA/Cho in basal ganglia, pons, hippocampus, and gray and white matter, suggesting that the previously demonstrated abnormality might have normalized over time21.

A decade later the longitudinal sample was enlarged with additional GWI veterans from the Seabees Battalion for a fourth study in the longitudinal series. We designed the restudy to test Weiner’s hypothesis by repeating the 1H-MRS at the same long echo time (TE = 270 ms), expecting normalization, and adding a more powerful short-echo-time scan (TE = 30 ms) to detect possible weaker signal of residual disease in the chronic phase. As before, the protocol included scanning a single voxel in the basal ganglia bilaterally and analyzing the concentrations of N-acetylaspartate (NAA), total creatine (tCr) and the NAA/tCr ratio, only this time at 3T field strength instead of 1.5T to obtain more precise estimates of metabolite concentrations.

Methods

Subjects/groups

For inclusion in these studies, veterans must have served in the Seabees Battalion during the 1991 Gulf War, and GWI veterans had to meet the original GWI Research case definition17, a subset of the later CDC and Kansas definitions22,23, that subclassifies ill veterans into 3 GWI variants: syndromes 1 (impaired cognition), 2 (confusion-ataxia) and 3 (neuropathic pain). Seven of the 16 Seabees controls were not deployed to the war zone. The only exclusion criteria were those that precluded MRI. None served in military actions after the 1991 Gulf War. This study was the fourth in a 23-year longitudinal study of GWI in this battalion (Fig. 1). Over the 10 years between the third and fourth studies, the sample lost eight participants, and claustrophobia and a poor shim excluded two more. Twenty-six additional Battalion members were added to ensure adequate statistical power (Fig. 1). All were included in a national study of 8,021 Gulf War veterans24. Demographic and clinical characteristics of the 55 education-matched right-handed cases and controls are given in Table 1. The groups were comparable on all measures except age which we therefore controlled for in the main analysis of group effects.

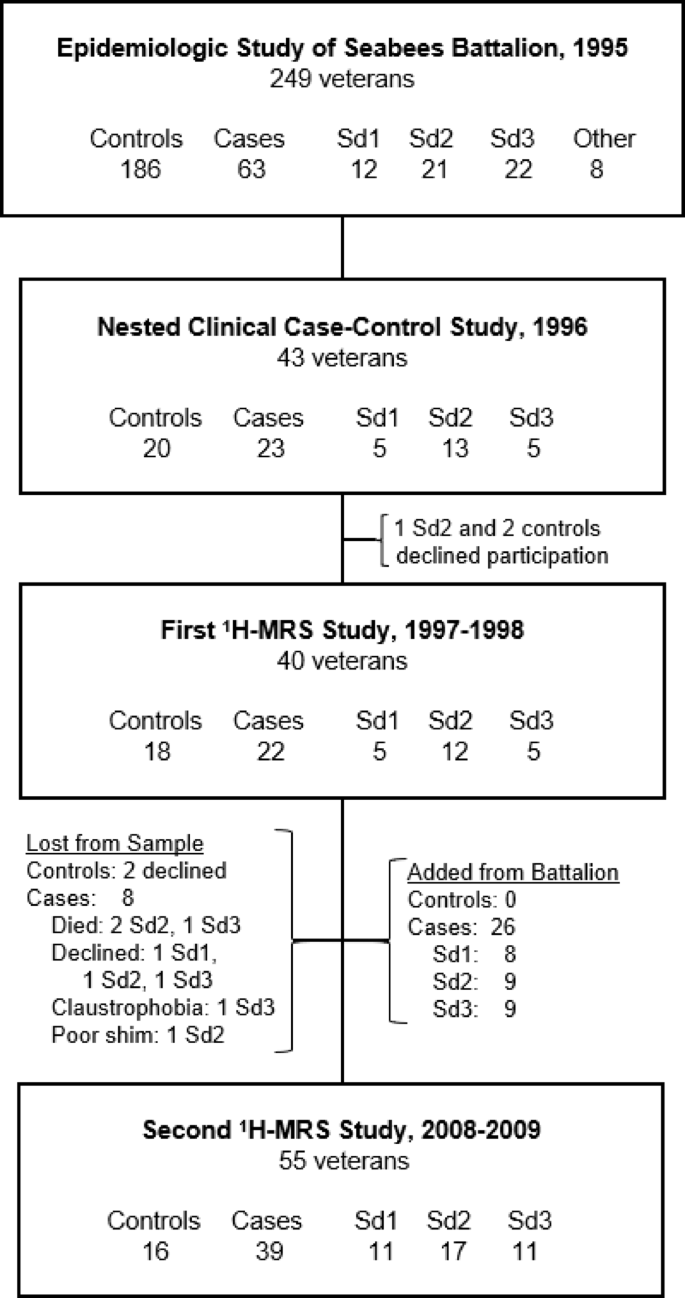

Fig. 1
figure 1

Flow chart of the Gulf War veteran samples of the Seabees Battalion across the 4 studies of the 23-year longitudinal study.

Full size image
Table 1 Demographics and clinical information for seabees subjects from the 24th Reserve Naval Mobile Construction (Seabees) Battalion. *Of the controls, 9 were deployed and 7 were non-deployed, all from the same seabees battalion. † P values for age and education were obtained from an F-test with 3 df, and those for the rest, from Fisher’s exact test for a 4 × 2 table. ‡ no information was provided by one deployed control subject.
Full size table

The study was conducted according to the Declaration of Helsinki and the Belmont Report, and all subjects gave written informed consent for the study protocol, approved by the Institutional Review Board of the University of Texas Southwestern Medical Center, before the study procedures began.

Data collection

Localized 1H-MRS data were collected using a single-voxel point-resolved spectroscopy sequence (PRESS) on a Siemens 3T Trio total imaging matrix (TIM) MR system with a 12-channel head coil and TR = 2500 ms, TE = 30 ms (96 averages, acquisition time = 4:10) and 270 ms (64 averages, acquisition time = 2:47). Single voxels were centered in the putamen bilaterally, catching small corners of the caudate head and anterior thalamus, and excluding ventricular cerebrospinal fluid [CSF] with volume = 12.0 mL (20 mm x 30 mm x 20 mm, LR/AP/IS) (Fig. 2A). It had spectral width = 2000 Hz, water suppression bandwidth = 50 Hz, data points = 1024. An unsuppressed water spectrum with eight averages was acquired for eddy current compensation25 and quantitation.

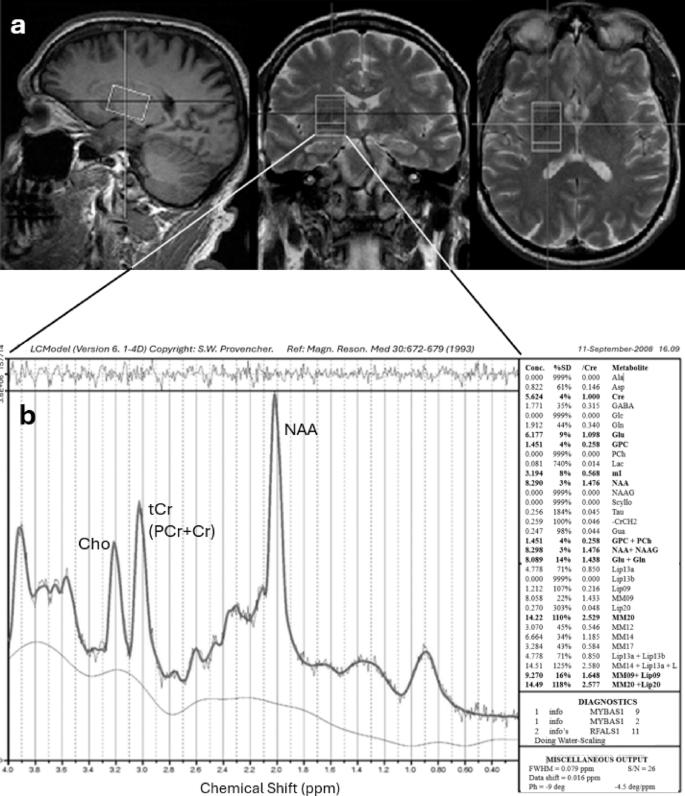

Fig. 2
figure 2

Acquisition of spectra from a Gulf War veteran with LCModel to estimate concentrations of N-acetylaspartate (NAA), total creatine (tCr) and choline (Cho). (A) Spectroscopy voxel positioning in the right basal ganglia. (B) A 3T 1H-MR spectrum (TE = 30 ms) of the left basal ganglia of a representative subject processed using LCModel. Metabolites detected with acceptable reliability are shown in bold font in the table on the right.

Full size image

High resolution localizer images in 3 orthogonal planes were used in combination with Siemens AutoAlign to ensure accurate and reproducible voxel positioning among subjects and across multiple scan sessions within subjects and avoiding white matter and ventricles to prevent confounding by tissue type26 (Fig. 2A). Magnetic field homogeneity was achieved by standard auto-shim followed by first order manual shimming.

For determination of metabolite T2 relaxation times, data were collected for each subject with TR = 2500 ms at five echo times (TE = 60 ms, 90 ms, 135 ms, 195 ms, 270 ms), with 32 averages at TE ≤ 135 ms and 64 averages at TE ≥ 195 ms to compensate for decreasing SNR at higher TE values. TE = 30 ms data were not used in the T2 calculations because of the contamination of the 3.0 ppm tCr peak with macromolecule resonance at that TE value, which was not accounted for in the jMRUI fit used for the T2 data analysis. The TE = 270 ms data, with 64 averages due to time constraints from the suite of TE values used for T2 calculations, was also used for metabolite quantification to compare to metabolite quantifications obtained from 96 averages at TE = 30 ms.

Coefficients of variation of the data produced by these methods have been demonstrated in reproducibility studies of normal controls to be about 3%, 5%, and 7% for [tCho], [tCr], and [NAA] quantification, respectively; <8% for [NAA] T2 measurement; and < 17% for [tCr] and [tCho] T2 measurements27,28.

Spectral processing

The TE = 30 ms and TE = 270 ms 1H-MRS data were processed for metabolite quantification with LCModel29,30 using the 3T Siemens basis set of 26 metabolites including lipid and macromolecule signals, obtained with the software. A basis set including glutathione was derived by theoretical simulation of metabolite spectra with VESPA (http://scion.duhs.duke.edu/vespa/project).

Analysis of data collected for determination of T2 consisted of Hankel-Lanczos singular values decomposition (HLSVD) filtering of residual water signal, apodization of 5 Hz, phasing, and quantification of [NAA], [tCr], and [tCho] using the non-linear AMARES algorithm of the jMRUI software package31. T2 values were calculated from least-squares fits of the logarithm of the peak areas vs. TE values after correction for the different number of averages used at the various TE values. The T2 decay curves were modeled as bi-exponentials, and a single exponential decay was found to give the best result, consistent with rapid exchange averaging.

To correct for partial T1 saturation at longer TE values in the constant TR paradigm, which if not accounted for leads to systematic underestimation of T2 values32,33, the intensity at each TE value was corrected by dividing by the following correction factor33:

f(T1,TR,TE) = 1–2exp[-(TR-3TE/4)/T1] + 2exp[-(TR-TE/4)/T1] - exp[-TR/T1].

For TR = 2500 ms, using for T1 the longest (1.55 s) of the metabolite T1 values measured at 2T and 3T from the literature34,35,36, this correction factor differs by 3% between the shortest and longest TE values used in this study.

Statistical analysis

We designed the study to scan members of the same Seabees battalion with both long- and short-echo-time 1H-MRS to test the specific hypothesis, raised by the 4 prior studies, that the inability to replicate the initial reduced NAA/tCr ratio18,19,20 10 years later21 was due to its signal fading over time. We modeled each metabolite and ratio using a mixed-effects linear model.

$${y_{{\text{ijk}}}}\,=\,{\mu_{{\text{ij}}}}\,+\,{x_{\text{k}}}\,+\,{\epsilon_{{\text{ijk}}}},$$

where yijk is the metabolite concentration (or the ratio) for the jth hemisphere of the kth subject in the ith group; µij is the mean of the ith group and jth hemisphere, xk is the age of the kth subject; and εijk is a random error term for which subjects are independent but hemispheres within subject are correlated. We used a variance component model as the covariance structure of εijk, a 2 × 2 matrix for each of the k subjects, where the off-diagonal elements are the between-subject variance component and the diagonal elements are the sum of the between- and within-subject variance components. Group-level contrasts of means were of the form µij - µi’j within each hemisphere, specifically for ill groups against the control group. We included age in the linear mixed model to control for its possible effect on metabolites or their ratio due to the fact that mean ages were significantly different across the groups (F3,51 = 7.25, p = 0.0004; Table 1), syndrome 1 having the lowest. Each omnibus ANOVA test used a 4-degree-of-freedom F statistic, and each contrast, a t statistic. We used the two-stage linear step-up procedure described by Benjamini et al.37 to protect the false discovery rate (FDR) over the set of all contrasts and metabolites within each of the short- and long-echo-time data at the α = 0.05 level. The association of GWI with the absolute myo-inositol concentration was tested in the right and left basal ganglia with 4-group ANOVAs with 2-group contrasts testing the association of each of the 3 syndrome groups with the control group. In a third analysis with both sides pooled, the association was tested with a linear mixed model including contrasts accounting for the correlation between the sides. Initially significant P values of the 2-group tests remained significant if the familywise error rate was ≤ 0.05 by Dunnett’s procedure.

Results

Data quality

Metabolite half-height line widths were 9–14 Hz. Cramer-Rao lower bounds were 3–4% for [tCr], [NAA], and [tCho] fits. Less than 3% of data sets for T2 calculations were rejected due to poor fit quality. A typical example of a spectrum is shown in Fig. 2B.

Control groups

Since there were no significant differences between the deployed and non-deployed control groups in metabolite concentrations or ratios (P > 0.25) or T2 values (P > 0.40) of the three major metabolites (NAA, tCr, tCho), data for the two control groups were pooled for further analyses.

Metabolite concentrations and ratios

When measured at short TE, the mean NAA/tCr ratios of the GWI syndrome groups were consistently and substantially lower and the [tCr] in both basal ganglia were consistently and substantially higher than those of the control group; whereas, the differences of [NAA] from controls were small and inconsistent in direction (Table 2; Fig. 3). These NAA/tCr differences were statistically significant across all three syndrome groups and the pooled grouping in the left basal ganglia but not in the right basal ganglia. The increased [tCr]’s were statistically significant for all GWI syndrome groups and the pooled grouping except the syndrome 2 group. When measured at long TE, all of these differences from controls were mostly smaller and none was statistically significant (Table 2; Fig. 4). The mean myo-inositol concentrations were higher than controls for all 3 GWI syndrome groups, particularly syndrome 1, in both hemispheres, and the difference was statistically significant in the right basal ganglia (Table 3). No other metabolites or ratios differed significantly.

Table 2 Mean metabolite ratios and concentrations from the short-echo time (TE = 30 ms) and long echo time (TE = 270 ms) 1H-MRS. a.u. = arbitrary units. The values in cells are the mean metabolite ratio or concentration ± S.E.M., the percentage difference from the control group mean, and the age-adjusted 2-tailed P value from the contrast testing the difference from controls in the mixed-effects linear model. The P values in bold font remained statistically significant after controlling the overall false discovery rate of 0.05 across all contrasts and metabolites for the short-echo-time data.
Full size table

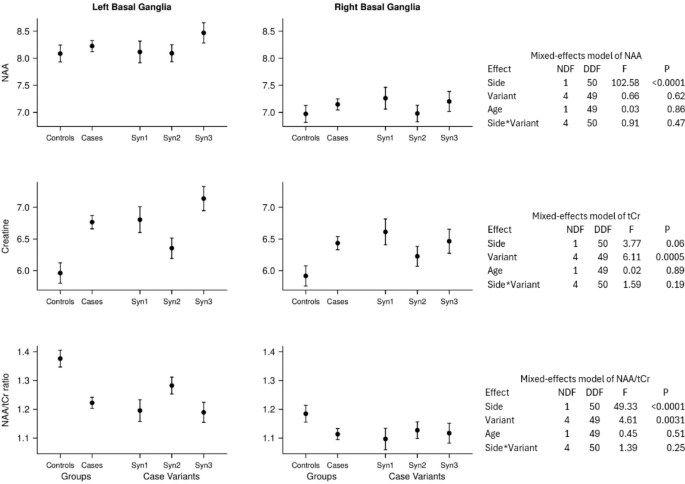

Fig. 3
figure 3

Mixed-effects linear models of [NAA] (N-acetylaspartate), [tCr] (total creatine) and their ratio (NAA/tCr) measured at short echo time (TE = 30 ms). For each outcome, the model tested for differences between the left and right basal ganglia (Hemisphere), between controls and case variants (Groups), and the Hemisphere-by-Group interaction. The model also controlled for age.

Full size image

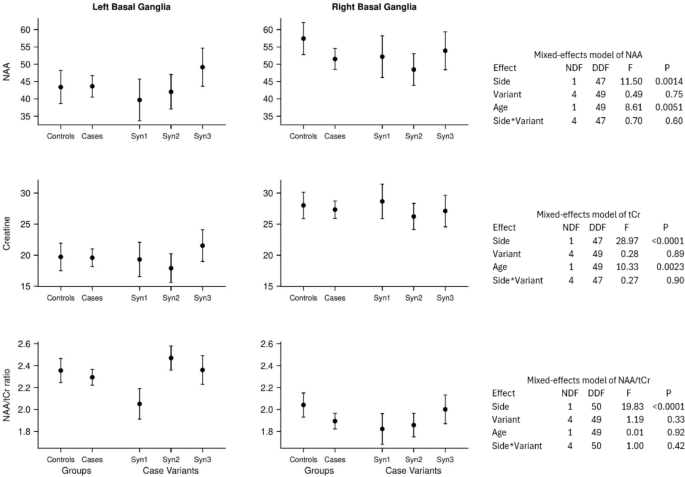

Fig. 4
figure 4

Mixed-effects repeated-measures linear models of [NAA] (N-acetylaspartate), [tCr] (total creatine) and their ratio (NAA/tCr) measured at long echo time (TE = 270 ms). For each outcome, the model tested for differences between the left and right basal ganglia (Hemisphere), between controls and case variants (Groups), and the Hemisphere-by-Group interaction. The model also controlled for age.

Full size image
Table 3 Association of absolute myo-inositol concentrations in left and right basal ganglia with GWI. In the pooled analyses, the contrasts accounted for the correlation between the sides in a linear mixed model. The significant P values of the 2-group tests remained significant at the familywise error rate of 0.05 using Dunnett’s procedure.
Full size table

T2 relaxation times and correction factors

Calculated from the T2 relaxation times measured for each of the three metabolites (Table 4), the T2 correction factors for the metabolite concentrations measured at short TE were consistently 2–5 times smaller than for those measured at long TE (Table 5). The differences between case and control groups of the T2 correction factors measured at short TE were generally far smaller than the case-control differences in metabolite concentrations; whereas, those measured at long TE were generally of similar magnitude (Table 5). The relative standard errors of the T2 correction factors for the group means were smaller when measured by short TE than by long TE, indicating smaller variance and thus greater SNR for short TE measurements (Table 5).

Table 4 Calculated values of T2 relaxation times of NAA, tCr and tCho methyl 1H (mean ± SD, in ms) in basal ganglia. NAA = N-acetylaspartate, tCr = total creatine, tCho = total choline.
Full size table
Table 5 Comparison of group mean T2 correction factors* with metabolite concentration or ratio values and their relative standard errors. SEM = standard error of the mean; syn = syndrome; long TE was 272 ms for T2 correction factors and 270 ms for metabolites and ratios. Short TE was 30 ms. Relative SEM is the SEM expressed as a percentage of the point estimate, which can be compared across groups. L m m. *\(\rm{T_2~ correction~ Factor} = 1/(T_2 ~decay~ Factor) = 1/(e^{-TE/T_2})\).
Full size table

Brain MRIs

In the first phase of our long-term study of this Seabees battalion in 1996, 23 of our GWI veterans (5 with syndrome variant 1, 13 with variant 2, and 5 with variant 3) and 19 of our well control veterans underwent thin section, T1-weighted MRI before and after gadolinium infusion and T2-weighted spin echo MRI of the brain on a 1.5-T magnet (Phillips Medical Systems), and no gadolinium-enhancing lesions were observed18. Eighteen of those 23 GWI veterans and 16 of those 19 controls remained alive and participated in the second 1H-MRS phase reported here.

Screens for systemic inflammation

In the first phase we also performed 14 clinical tests in the 23 GWI veterans and 20 controls to screen for diseases that often involve systemic inflammation which can include neuroinflammation (Tables S1 and S2 in Supplementary Material 1). The case and control groups did not differ significantly on any of the tests.

Discussion

This repeat 1H-MRS study of GWI case and control veterans sampled from the same Seabees Battalion found, first, that the reduction in the NAA/tCr ratio in deep gray matter identified originally in the 1997–1998 study16 persisted for at least 10 years up to this 2008–2009 restudy and, second, that 1H-MRS at higher field strength (3T) and short echo time found that the reduced NAA/tCr ratio was due to elevated [tCr] rather than reduced [NAA] as previously assumed16. Moreover, the [tCr] values measured at short TE were consistently elevated compared with controls across the three GWI syndrome variants and in both the right and left basal ganglia, with differences from controls being large and statistically significant in syndrome variants 1 and 3 bilaterally but paradoxically smaller and marginally significant in syndrome variant 2, the most clinically severe.

These findings were not detectable at long TE because of confounding by T2 decay. Following the magnetization from the MR magnet’s radiofrequency pulse, the signal from energy given off by the scanned object as the net magnetization relaxes back to its original orientation decays over time TE with time constant T2 (Fig. 5 and Supplementary Material 2). The rate of relaxation varies by chemical makeup of the scanned object; of relevance for our study, the T2 relaxation time of Cr is three times longer than for PCr (Fig. 5)38. The echo time chosen by the investigator is the point along the T2 decay curve where the 1H-MRS scan is done; short TE scans measure the signal earlier before much relaxation has occurred.

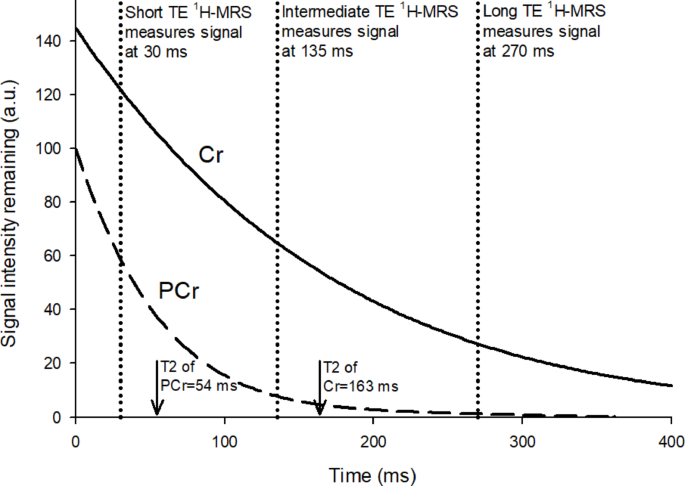

Fig. 5
figure 5

Conceptual illustration of exponential T2 decay curves of PCr (phosphocreatine) and Cr (creatine) following radio frequency pulse delivered at time = 0 ms. The scale of the vertical axis in arbitrary units (a.u.) reflects the fact that the concentration, and thus the signal strength of Cr at time = 0 ms before any signal decay, is 1.45 times that of PCr (this ratio at time = 0 is calculated from its known value of 1.7 at TE = 30 ms40. The horizontal axis is the time (ms) elapsed since the radio frequency pulse. The Cr and PCr lines show the exponential signal decay determined by their T2 decay constants which were derived as follows. The average total creatine (tCr) = 119 in the left basal ganglia of our control group (Table 4); normal brain tissue tCr is composed of approximately 59% Cr and 41% PCr; and the T2 decay constant of Cr is 3 times that of PCr38. With X denoting the T2 decay constant of PCr and 3X denoting that of Cr, then the T2 decay constant of tCr = 40.78419 · X + 59.2158 · 3X. Given, then, that the signal intensity of tCr at time = 0 is 119, the T2 decay constant of PCr = 54 and that of Cr = 163 (see details in Supplementary Material 2).

Full size image

Consequently, at short echo time the case-control differences in the T2 correction factors were smaller than the case-control differences in metabolite concentrations and ratios (Table 5), indicating relatively little possibility of confounding. In contrast, group differences in T2 correction factors measured at intermediate- or long echo times (TE = 135 or 272 ms) were substantially larger and of comparable magnitude to group differences in metabolite concentrations and ratios (Table 5) and thus capable of exerting important confounding effects.

Interestingly, the signal-to-noise ratio (SNR) advantage of higher field strengths, such as 3T and 4T, is greater at short echo time, because the increased signal intensity is not as affected by T2 decay in signal (Fig. 5). At long echo times, however, the SNR advantage of high field strength may be substantially offset by the greater T2 decay, as illustrated by the greater variance of metabolite concentrations and ratios found in our study.

Of the four prior 1H-MRS studies of GWI, only the 2004 Menon et al. study20 used the more accurate short echo time at 1.5T and found significantly reduced NAA/tCr ratio in hippocampus bilaterally. The studies by Haley et al.16 in 2000 and Myerhoff et al.19 in 2001 used long echo time of 272 ms at 1.5T, and both found statistically significant reductions of the NAA/tCr ratio in the right basal ganglia and a nonsignificant trend on the left. Weiner et al.21 a decade later used intermediate echo time (TE = 135 ms) at 4T in a larger sample of GWI cases and controls and found no significant differences in NAA/tCr ratio in basal ganglia, pons or other deep brain structures, the authors suggesting the null finding may have been due to normalization over time. Our present negative findings at long echo time are consistent with the Weiner et al. finding of normalized [NAA/tCr] at intermediate echo time. However, our current finding of reduced [NAA/tCr] at short echo time suggests that the normalization was only partial, leaving residual reduction below the detection threshold of long echo-time 1H-MRS but quite visible at short echo time where the signal is less degraded by T2 signal decay. As illustrated in Fig. 5, at TE = 30 ms the small amount of signal decay has left large signal intensities of both Cr and PCr comprising the tCr signal detected by 1H-MRS; whereas, at TE = 135, and particularly at TE = 270 ms, almost all the tCr signal is from the diminished Cr with very little from PCr. Since the increase in signal strength of tCr from ATP depletion is due to both the increase in Cr and the decrease in PCr, the loss of the PCr component at higher TE degrades the change in signal strength of the tCr measurement and the decrease in tCr increases the variance of its measurement, thus obscuring the difference in signal strength between GWI cases and controls.

Understanding how our finding of elevated [tCr] helps elucidate the pathogenesis of GWI begins with the basic concept that the tCr signal increases as the cell tries to restore a depleted ATP pool by engaging the creatine kinase (CK) buffer system, which normally acts as an energy buffer in cells, particularly in tissues with high and fluctuating energy demands like the brain and muscles39. Potential energy is stored as PCr. When energy is needed, CK catalyzes the reversible transfer of a phosphate group from PCr to ADP to produce Cr and ATP:

$${\text{PCr}} +{\text{ADP}} \mathop{ \rightleftharpoons}\limits^\text{CK}{\text{Cr}}+{\text{ATP}}$$

As ATP is generated, Cr is added to the cytoplasm and PCr is lost. 1H-MRS measures [tCr] but cannot distinguish between its components, PCr and Cr. However, Cr gives off a stronger echo signal than PCr (approximately 1.7:1 in basal ganglia, measured at TE = 30 ms40 so that the conversion from PCr to Cr increases the signal intensity of the measured [tCr]. Thus, in the absence of rare gene mutations and nutritional creatine supplementation, increased [tCr] indicates ATP depletion, in GWI most likely from mitochondrial dysfunction4,5,6,7,8.

Inhibition of the electron transport chain during mitochondrial dysfunction reduces mitochondrial ATP synthesis, and the resulting intracellular ATP depletion activates pannexin 1 channels that paradoxically leak Ca2+ into the extracellular space as a distress signal41,42. The extracellular ATP activates P2X7 receptors on microglia that in turn activate NLRP3 inflammasomes to release cytokines IL-1β and IL-18, leading to neuroinflammation. The extracellular ATP also serves as a damage-associated molecular pattern (DAMP) that incites inflammation through NF-κβ, and impairment of the electron transport chain itself can invoke the production of reactive oxygen species and oxidative stress leading to neuroinflammation.

Our finding of elevated myo-inositol on 1H-MRS supports the presence of neuroinflammation in our GWI veterans in agreement with prior studies of rodent models of GWI11,43 and clinical studies of GWI veterans15. Chronic neuroinflammation can result from two basic disease mechanisms. First, it can occur in the absence of mitochondrial dysfunction from primary inflammatory diseases like brain infections (e.g., herpes encephalitis), tumors or demyelinating diseases (e.g., multiple sclerosis) and systemic inflammatory diseases (e.g., lupus) that can incite CNS inflammation that depletes ATP through its high metabolic demands. These conditions were ruled out in earlier phases of our study by negative brain MRIs with gadolinium enhancement and negative results on a panel of inflammatory blood markers in former highly fit soldiers made ill by a common environmental exposure18 as well as by a later clinical study7.

This leaves the second mechanism, dysfunction of ATP-producing mitochondria that normally maintain ATP levels in the brain. Whereas our findings showing ATP deficits cannot directly attribute it to mitochondrial dysfunction in our GWI veterans, the series of studies by Golomb et al. directly confirmed it with 31P-MRS demonstrating delayed PCr recovery after muscle exertion in GWI veterans5,6,7. Moreover, Deshpande et al. reported a series of studies showing that low-level sarin exposure in their rodent model of GWI caused an upward reset of intracellular calcium concentration13,14, and low-level sarin exposure in the Gulf War is known to have been a major cause of GWI2,3,44.

When cytoplasmic [Ca2+] remains elevated, it leads to mitochondrial Ca2+ overload and dysfunction45,46,47,48. This, in turn, reduces mitochondrial ATP production, which increases reactive oxygen species (ROS) and oxidative stress, leading ultimately to neuroinflammation49. The cell will attempt to restore ATP homeostasis by drawing on PCr reserves, converting PCr to Cr to generate ATP, and increasing PCr synthesis and dietary uptake to replenish those PCr reserves39. Furthermore, the resulting neuroinflammation increases energy demands, further driving the generation of ATP and Cr by the CK buffer system.

If, however, the elevation of intracellular [Ca2+] and mitochondrial dysfunction persist and become severe, PCr synthesis may be impaired, resulting in depletion of the PCr pool, drop in PCr and Cr production, and reduction in the 1H-MRS measure of [tCr] to normal or low levels49,50. This mechanism appears to explain the largest increases in [tCr] in our syndrome variants 1 and 3, which past studies have shown involve only moderately severe illness, and the smaller increases in [tCr] in our syndrome variant 2 veterans who have the most severe illness17,51.

The sample of Gulf War veterans studied here was drawn from the roster of the Seabees Battalion that served in the Gulf War and thus might not represent the full spectrum of the U.S. military personnel deployed to the Kuwaiti Theater of Operations in 1990–1991. Their characteristic symptoms, however, are indistinguishable from those reported from population-representative samples of the deployed17,52. Most importantly, they were selected for study from the battalion roster, not healthcare-seeking volunteers17. Fully relaxed spectra were not collected to calculate T1 relaxation times to assess the possibility of confounding by differences between T1 values of the groups. The T2 decay curves were modeled as bi-exponentials, and a single exponential decay was found to give the best result, consistent with rapid exchange averaging. Finally, intravoxel segmentation was not done to adjust for partial volumes of gray and white matter because we placed the basal ganglia single voxel mostly inside the putamen with small corners of caudate head and thalamus where there is little white matter and no CSF. Although greater atrophy in GWI veterans than controls might have altered the fractional distribution of gray and white matter slightly within the voxel, this would not have altered the Cr:PCr ratio, which has been shown to be relatively constant across gray and white brain regions40.

Although our study confirms that reduced NAA/tCr at long echo-time 1H-MRS in the 1990s in sarin-caused GWI16,19,20 later disappeared21, its continued persistence at short echo time20 confirms chronic pathology. Our clarification that, at least in later years, it is due to elevated [tCr] rather than reduced [NAA] supports preclinical and clinical findings of mitochondrial dysfunction, ATP deficit, oxidative stress and neuroinflammation5,9,10,12 as potential targets for treatment.
