Introduction

TED, also known as Graves’ ophthalmopathy, is characterized by retrobulbar tissue inflammation, adipose hyperplasia, and fusiform hypertrophy of extraocular muscles, leading to orbital volume expansion and remodeling1. The pathogenesis of TED remains incompletely understood and involves mechanisms such as immune responses, apoptosis, and autophagy2. In TED’s immune mechanism, interactions among fibroblasts, activated CD4+ T cells, and cytokines may directly induce orbital inflammation, subsequently activating fibrosis and fat accumulation in the orbit, thereby contributing to TED development3,4.

Transcriptome sequencing, as a representative high-throughput sequencing technology in recent years, enables the analysis of differential gene expression by comparing gene expression profiles from different tissues and conditions to identify genes that play a major role in phenotypes5. Studies have shown that analyzing differential gene expression in tumors is helpful in identifying potential cancer biomarkers6,7,8,9. Given the important role of transcriptome sequencing in various diseases, it is reasonable to believe that it can identify new molecular targets for TED and provide new insights for mechanistic research and potential treatment. Therefrom, a comprehensive analysis, combining transcriptome sequencing of TED patient orbital connective tissue with relevant Thyroid-Associated Ophthalmopathy datasets from the Gene Expression Omnibus (GEO), will be conducted to pinpoint potential novel differentially expressed genes and their underlying signaling pathways.

Materials and methods

Patients and samples

A total of 13 cases of orbital adipose connective tissue were obtained from patients with TED during orbital decompression surgery, and 12 cases of normal controls were obtained from the same tissue during oculoplastic surgery, matched for age and sex (Table 1). Transcriptome analysis was performed in three cases from the TED group and three cases from the control group. The study was conducted in accordance with the Declaration of Helsinki and was approved by the Ethics Committee of the Second Affiliated Hospital of Soochow University, China.

Table 1 Clinical profile of participants from TED patients and controls.
Full size table

Analysis of public TED gene expression data

We interrogated GEO database using the keyword “Thyroid associated Ophthalmopathy” and identified the dataset GSE58331 for analysis. This dataset, profiled on the Affymetrix Human Genome U133 Plus 2.0 Array (GPL570), included gene expression data from retrobulbar connective tissue and lacrimal glands across multiple cohorts. For our study, we selectively extracted data from retrobulbar connective tissues, excluding samples from lacrimal glands and orbits with nonspecific inflammation. The final curated dataset comprised 27 Thyroid-Associated Ophthalmopathy and 21 normal control samples.

RNA extraction and database construction

Total RNA was extracted using Trizol reagent according to the manufacturer’s protocol. RNA purity and concentration were measured using a NanoDrop 2000 spectrophotometer (Thermo Scientific, USA), and RNA integrity was assessed with an Agilent 2100 Bioanalyzer (Agilent Technologies, Santa Clara, CA, USA). Libraries were constructed using the TruSeq Stranded mRNA LT Sample Prep Kit (Illumina, San Diego, CA, USA) according to the manufacturer’s instructions. Transcriptome sequencing and analysis were performed by OE Biotech Co., Ltd. (Shanghai, China).

Cell culture

Orbital adipose connective tissue collected during surgery was placed in 100 mm Petri dishes containing DMEM supplemented with 20% FBS and 1% penicillin–streptomycin for primary fibroblast culture. Cells were continuously passaged, and those between the third and eighth passages were used for experiments.

qRT-PCR

Total RNA was extracted from cultured fibroblasts using a total RNA extraction kit and reverse transcribed into cDNA with a reverse transcription kit. qRT-PCR was performed using a PCR instrument. The primers used in this experiment are shown in Table 1, and GAPDH served as the internal reference.

Data analysis

Data were analyzed using the ΔΔCT method: ΔCT = CT value of target gene − CT value of internal reference gene; ΔΔCT = [ΔCT (experimental group)] − [ΔCT (mean value of control group)]; fold change = 2^(-ΔΔCT), representing the relative gene expression in the experimental group compared with the control group. Data were expressed as mean ± standard error, and independent-sample t-tests were performed for comparisons between groups. Statistical analysis and figure plotting were conducted using GraphPad Prism software. A P-value ≤ 0.05 was considered statistically significant.

Result

Identification and functional characterization of differentially expressed genes in TED

To identify genes differentially expressed in TED, we analyzed the “GSE58331” dataset from GEO. This analysis yielded 114 DEGs, of which 9 were upregulated and 105 were downregulated (Supplementary Fig. 1). Subsequently, functional enrichment analysis was conducted, which identified significant terms across biological processes, molecular functions and cellular components (Supplementary Fig. 2). Moreover, a protein-protein interaction network was constructed from the DEGs, pinpointing CD44, CD24, and SSR gene family members as potential key contributors to TED pathogenesis (Supplementary Fig. 3).

Identification of differentially expressed genes TED and normal control adipose tissues

To identify differentially expressed genes between TED and normal control adipose tissues from our obtained samples, we analyzed RNA-seq data with FPKM > 1 as the expression threshold. A Venn diagram showed 11,399 genes co-expressed in both groups, with 164 and 399 genes specific to the TED and control groups, respectively (Fig. 1a). We then screened for statistically significant DEGs using DESeq2 with stringent criteria (|log2FC| ≥ 2 and FDR < 0.01), which identified 288 DEGs (198 upregulated, 90 downregulated). Notably, the most significantly upregulated genes (e.g., RPS4Y1, DDX3Y) and downregulated genes (e.g., FRZB, LGR5) are displayed in the heatmap and volcano plot (Fig. 1b and c).

Fig. 1
figure 1

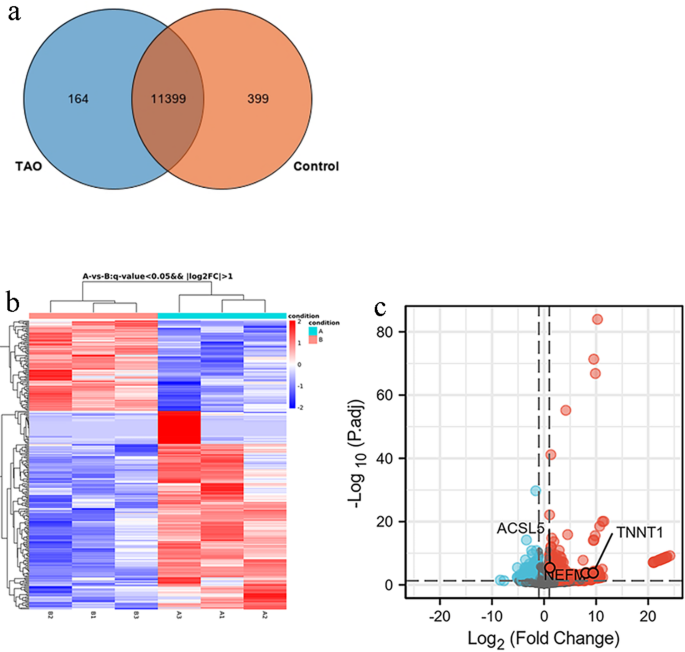

Identification and functional characterization of differentially expressed genes in TED. a Wayne diagram shows the gene expression level of orbital connective tissue in TED and controls. The blue part indicates that there are 164 genes specifically expressed in TED, the orange part indicates that 399 genes are specifically expressed in controls, and the dark overlap indicates that there are 11,399 genes expressed between the two groups. b Heatmap from the hierarchical clustering analysis showed the differential expressed mRNAs between the two groups. The color scale on the top illustrates the relative expression level of mRNAs across all samples: red denotes mRNA expression greater than the average value, and blue denotes mRNA expression lesser than the average value. A: TED group, B:control group. c Volcano plots of all detected mRNAs in the TED and Control groups. The red dots represent significantly upregulated genes (log2 fold change > 1 and adjusted P < 0.05); the blue dots represent significantly downregulated genes (log2 fold change < − 1 and adjusted P < 0.05).

Full size image

Deciphering the transcriptional landscape underlying TED pathogenic mechanisms

TED pathogenesis involves activation of orbital inflammation, increased fat volume, and hypertrophy of extraocular muscles. Our data revealed significant differences in the expression of genes related to fat metabolism, including PCK2, ACSL5, GYS1, ACACA, FASN, ACADL, DGAT1, AQP7, and LPL, which were markedly expressed in TAO (Fig. 2a; Table 2). Muscle hypertrophy, as a contributing factor to proptosis in TED, can be detected based on orbital Computed Tomography (CT). Consistent with this, genes related to muscle fiber formation and contraction such as TNNT1, MYL1, MYH2, and ACTC1, were highly expressed in TED, with some not expressed at all in controls (Fig. 2b; Table 3). These highly specific genes may play a decisive role in fusiform hypertrophy of orbital muscles. Additionally, genes related to nerve growth and function showed decreased expression in TED compared with controls (Fig. 2c; Table 4). Specifically, NELL2, GFRA2, NTNG1, and PPFIA2, which are genes involved in neuronal growth, differentiation, and axon development, were downregulated, whereas NEFM, a biomarker of neuronal injury, was highly expressed in TED. These findings may provide a new direction for studying neurological impairment in TED.

Fig. 2
figure 2

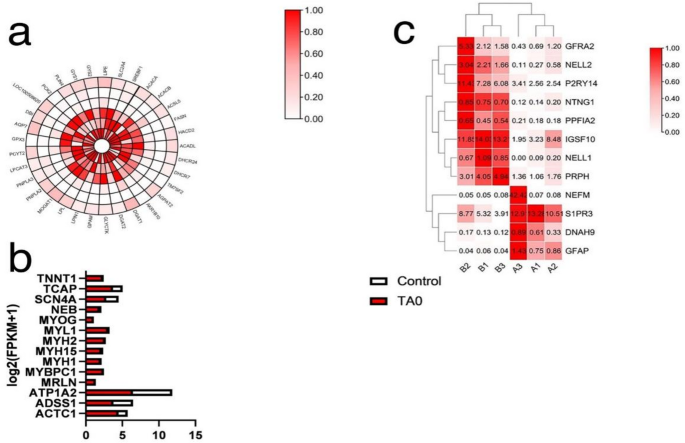

Identification of differentially expressed genes TED and normal control adipose tissues. a Genes related to adipogenesis. The color shades represent the level of gene expression, and the inner circle to outer circle are A1, A2, A3, B1, B2 and B3 in total 6 groups of specimens. b Genes related to muscle fibers. Red represents TED group and white represents control group. c Genes related to nerve growth and function. The darker the red, the more significant the difference. A1-A3 represent the TED group and B1-B3 represent normal controls.

Full size image
Table 2 Summary of fat-related genes.
Full size table
Table 3 Summary of genes related to muscle fiber.
Full size table
Table 4 Summary of differential genes related to nerve damage.
Full size table

Functional and pathway enrichment analysis of TED transcriptome

To delineate the functional landscape of TED, we performed Gene Ontology (GO) enrichment analysis. The results showed that highly expressed genes in TED were mainly involved in triglyceride biosynthetic process, muscle filament sliding, retinol metabolic process, diacylglycerol biosynthetic process, and fatty acid biosynthetic process. These genes were predominantly located in the myosin complex, myosin filament, lipid droplets, myofibril, sarcomere, extracellular exosome, extracellular space, and specific granule lumen, indicating that TED pathophysiology is largely associated with fat accumulation and muscle hypertrophy (Fig. 3a). In contrast, downregulated genes were mainly associated with collagen fibril organization, extracellular matrix organization, leukocyte migration, thyroid hormone generation, cell adhesion, and response to cAMP (Fig. 3b).

Fig. 3
figure 3

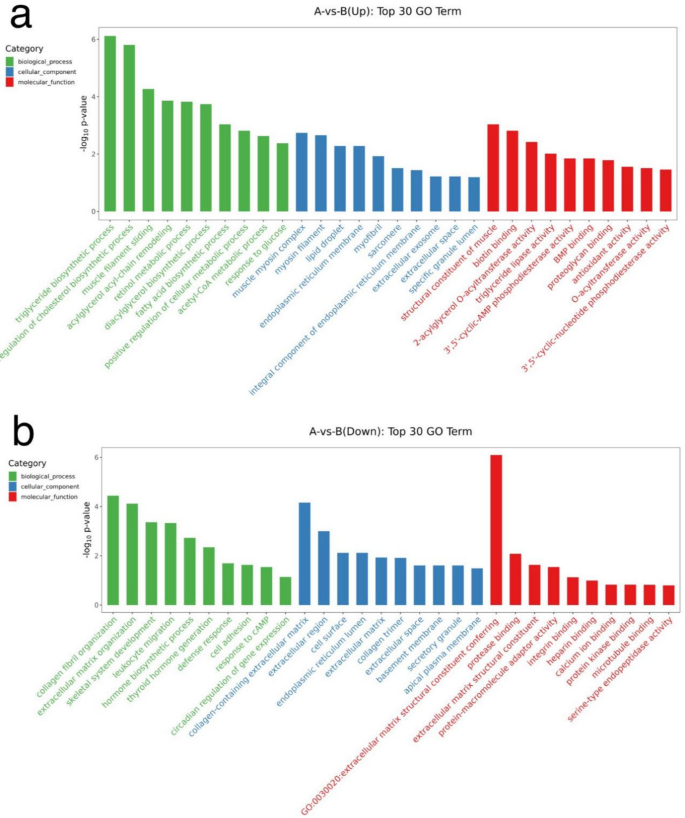

Gene ontology enrichment analysis. Upregulated (a) and downregulated (b) genes. The highly expressed genes in TED group are mainly involved in the triglyceride biosynthetic process, while the low expressed genes are mainly involved in the collagen fibril organization. A: TED group, B: control group.

Full size image

In parallel, Kyto Encyclopedia of Genes and Genomes (KEGG) pathway analysis showed that upregulated genes were mainly enriched in the PPAR signaling pathway, AMPK signaling pathway, and adipocytokine signaling pathway (Fig. 4a). Downregulated genes were mainly enriched in cell adhesion molecules, ECM–receptor interaction, PI3K-AKT signaling pathway, neuroactive ligand–receptor interaction, and cAMP signaling pathway (Fig. 4b).

Fig. 4
figure 4

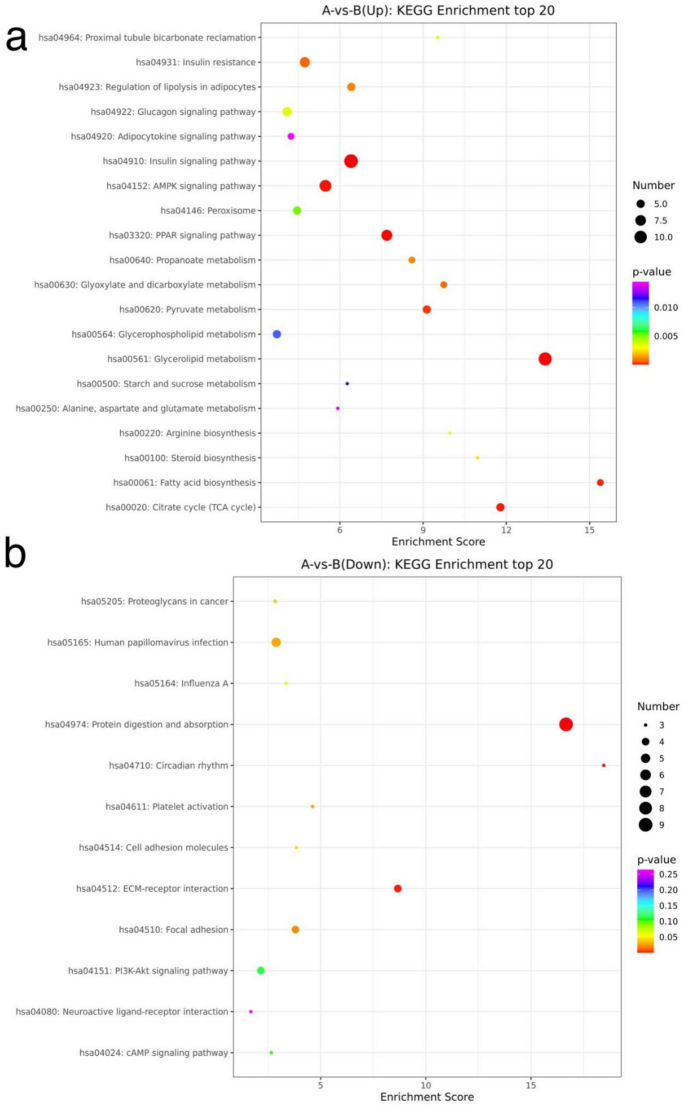

KEGG analysis of the biological pathways. Upregulated (a) and downregulated (b) genes. The color scale on the top right shows the relative expression level of the genes and the size of the open circle on the lower right represents the number of genes.

Full size image

These findings collectively underscore the involvement of specific metabolic and structural pathways in TED pathogenesis.

TED fibroblasts exhibit overexpression of key pathogenic factors

To validate our transcriptomic findings at the functional level, we quantified the expression of pivotal mediators in primary orbital fibroblasts. qRT-PCR demonstrated that TED fibroblasts significantly overexpressed the pro-inflammatory factor IL-6, the profibrotic gene COL1A1, and the lipogenic transcription factor PPARγ relative to normal fibroblasts (Fig. 5a).

Fig. 5
figure 5

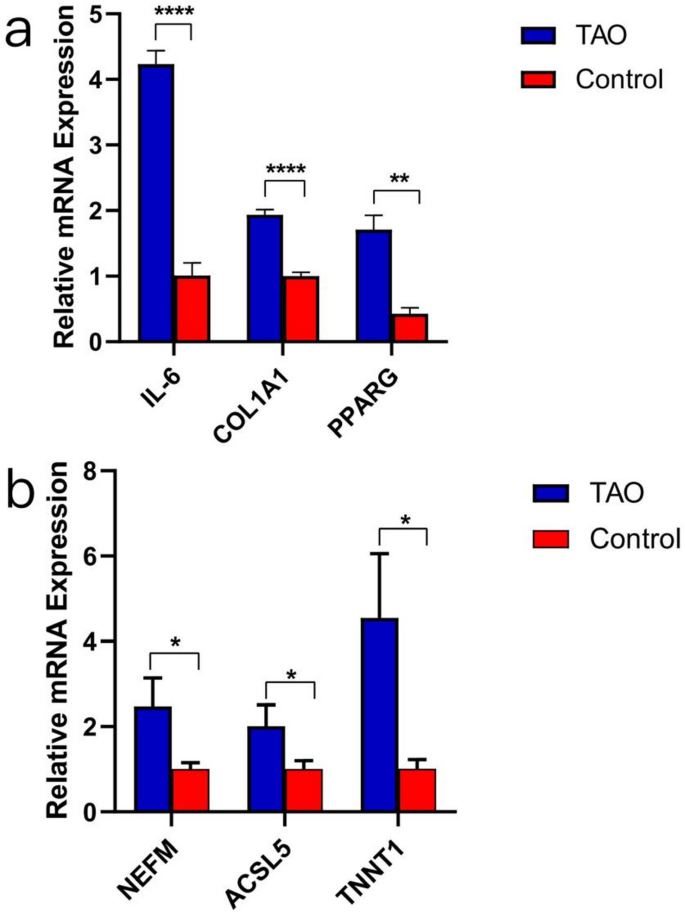

Validation of key differentially expressed genes in orbital fibroblasts a The cultured primary fibroblasts were detected by qRT-PCR. The orbital fibroblasts in TED group expressed high levels of IL-6 pro-inflammatory factor, COL1A1 fibrosis factor and PPAR-γ lipid-promoting factor. b Three genes with large differences and high expression abundance in the sequencing results were selected for verification. NEFM, ACSL5 and TNNT1 were highly expressed in TED orbital fibroblasts, and the p value was < 0.05. The difference was statistically significant. Blue is TED group, red is control group. Data are presented as mean ± SD (n = 13 per TED and 12 per control). *P < 0.05, **P < 0.01 and ****P < 0.0001.

Full size image

Validation of key differentially expressed genes in orbital fibroblasts

Based on our transcriptomic profiling, we selected three candidate genes including NEFM (neuronal injury), ACSL5 (lipogenesis) and TNNT1 (muscle contraction) from the 288 identified DEGs for further validation. qRT-PCR analysis in primary cultured orbital fibroblasts confirmed significantly elevated expression of all three genes in the TED group compared to normal controls (p < 0.05), which was consistent with the transcriptome sequencing data (Fig. 5b).

Discussion

The rising standard of living and increased focus on personal health have contributed to earlier diagnosis of TED, which predominantly affects women aged 30–50 years, with an overall prevalence of 0.5%10. Understanding its pathogenesis and identifying molecular targets remain central to ophthalmology research. Current investigations focus on TSHR and IGF-1R as key molecular targets. While TSHR is central to hyperthyroidism, its role in TED remains controversial due to its low expression in orbital tissues compared to thyroid epithelial cells11,12. IGF-1R has attracted attention with the approval of teprotumumab for active TED13,14. However, the mechanisms underlying refractory fat accumulation and muscle thickening in TED, particularly in the absence of marked inflammation, remain poorly understood.

Advances in high-throughput sequencing and multi-omics approaches have enabled comprehensive biomarker discovery across diseases, including cancer and autoimmune disorders15,16,17. For instance, Zhang et al. synthesized multi-omics advances in TED, highlighting biomarker potential across genomic, transcriptomic, proteomic, metabolomic and microbiomic domains17. Marinò et al. identified epigenetic mechanisms as pivotal in driving differential gene expression in TED18. Proteomic studies have further nominated upregulated proteins involved in inflammation and tissue remodeling as biomarkers of disease severity19, while single-cell sequencing has delineated the local cellular landscape, informing therapeutic strategies20.

In this study, transcriptomic analysis of orbital adipose tissue from TED patients and normal controls identified 288 differentially expressed genes (198 upregulated, 90 downregulated), largely involved in fat metabolism. These findings align with the metabolic profiling by Huang et al.21, who reported alterations in cholesterol metabolism, adipocyte lipolysis and insulin resistance. Reduced Thy1 expression in TED fibroblasts suggests a shift toward adipogenic differentiation, as Thy-1+ fibroblasts preferentially differentiate into adipose fibroblasts2,22,23, potentially driving orbital fat accumulation.

Orbital fibroblasts (OFs) serve as central mediators in TED, driving progression through multiple mechanisms. They are activated by cytokines from infiltrating inflammatory cells, triggering phenotypically distinct populations3,24,25. Single-cell transcriptomic profiling of TED orbital tissue has further defined a specific PDGFRα + DPP4 + fibroblast subpopulation. This subset demonstrates both progenitor-like attributes and a marked propensity for fibrosis, thereby establishing its pivotal role in driving the fibrotic remodeling of the orbit26. In this study, primary OFs from orbital adipose tissue exhibited elevated expression of IL-6, COL1A1, and PPARγ, consistent with earlier findings. Burnstine et al.27 confirmed high IL-6 mRNA in OFs, and recent evidence shows that TED-related proteins further enhance IL-6 expression. PPARs, nuclear hormone receptors with three subtypes (PPARα, PPARγ, and PPARβ/δ), regulate energy metabolism28. PPARγ is essential for adipose tissue development and adipogenic differentiation of fibroblasts and stem cells29,30. Its immunomodulatory role is well established. For example, Kumar et al.31 correlated PPARγ levels in TED tissue with adipogenesis and TSHR expression. Consistent with this, single-cell RNA sequencing (sc-RNA seq) by Kim et al.32 revealed an expanded adipogenic fibroblast fraction in TED orbits, aligning with our PPARγ upregulation. PPARα has also been implicated in inflammation by modulating CXCL8 and CXCL10 secretion in OFs and preadipocytes28,33. We further observed high COL1A1 expression, supporting its role in orbital fibrosis. Together, these results collectively establish OFs as key drivers of inflammation, fibrosis, and adipogenesis in TED via dysregulation of IL-6, PPARγ and COL1A1.

We selected three representative genes, NEFM, ACSL5, and TNNT1, which were from our transcriptomic data, and confirmed their elevated expression in TED orbital fibroblasts, supporting the reliability of our sequencing results. ACSL5, a member of the acyl-CoA synthetase family, mediates de novo lipogenesis, fatty acid degradation, and membrane remodeling34. Substrate specificity among acyl-CoA synthetases, which include ACSL1, ACSL3, ACSL4, ACSL5 and ACSL635, depends on fatty acid carbon chain length (C12–C20). Although ACSL5 has been implicated in tumor progression, serving as a favorable prognostic marker in pancreatic cancer36 yet exerting oncogenic effects in gastric cancer37, its role in TED remains unstudied. Notably, ACSL5 is a transcriptional target of SREBP1-c38, PPARα39 and PPARγ40. Given the significant enrichment of PPAR signaling in TED and the co-upregulation of both PPARγ and ACSL5 in fibroblasts, we propose that the PPARγ/ACSL5 axis may contribute to orbital adipogenesis in TED.

We observed significant upregulation of genes involved in muscle fiber formation and contraction including MYL1, MYH1, MYH2, MYH15, NEB, TCAP, and TNNT1, consistent with previous reports41. It has been proposed that myogenesis may be associated with the increased muscle volume in the early stage of the disease and its correlation with the severity of TED42.GO analysis further confirmed significant enrichment of muscle structure organization and muscle filament sliding in TED. Myosin heavy chain isoforms, which regulate muscle fiber contractility, are predominantly composed of MYH1, MYH2, and MYH13 in healthy extraocular muscles43. In addition to MYH1 and MYH2, our study identified MYL1 involvement in myosin assembly. We also detected elevated expression of ATP1A2 and SCN4A, implicated in neuromuscular action potential, along with TNNT1, which regulates muscle contraction. These findings collectively suggest that dysregulated expression of TNNT1, MYH1, MYH2, MYL1, SCN4A, and ATP1A2 may alter contractile properties of extraocular muscles in TED. Subsequent validation experiments confirmed elevated TNNT1 expression in TED orbital fibroblasts.

Transcriptomic analysis revealed a distinct neural expression profile in TED orbits. Genes involved in nerve development were downregulated, while those associated with nerve injury were elevated. Specifically, NELL2 and GFRA2 (neuronal growth/differentiation) and NTNG1 and PPFIA2 (axonal development) showed reduced expression, whereas NEFM, a recognized biomarker of neuronal injury, was markedly upregulated in TED fibroblasts. As neurodevelopmental injury pathways have not been previously reported in TED, these findings suggest that orbital nerve impairment may precede mechanical compression from increased orbital volume. These genes may thus offer new insights into TED pathogenesis.

We also noted significant downregulation of extracellular matrix (ECM)-related genes, which contrasts with the elevated expression of fibrotic proteins commonly reported in TED. This observation aligns with previous transcriptomic studies describing impaired ECM organization and cell adhesion in TED. For example, Wu et al.44 reported that downregulated mRNAs in TED were predominantly linked to cell adhesion, collagen catabolism, and ECM organization.

Functional enrichment analyses provided further insights into TED pathogenesis. GO and KEGG results collectively identified adipogenesis, muscle fiber formation, nerve injury, and extracellular matrix reorganization as core pathological processes in TED. Specifically, GO analysis revealed significant enrichment of lipid metabolic processes including triglyceride, cholesterol, diglyceride and fatty acid biosynthesis, alongside retinol metabolism and BMP binding, findings consistent with previous transcriptomic studies44,45,46. KEGG pathway analysis demonstrated enrichment in PPAR, AMPK, insulin, and adipocytokine signaling pathways, all implicated in adipogenic regulation. To address limitations from the small sequencing cohort, we supplemented our analysis with a public TED microarray dataset from GEO. This external validation identified 9 upregulated and 105 downregulated genes, with enrichment in biological processes including retinal homeostasis, neutrophil degranulation, and ECM organization. Integration of this independent dataset thus reinforced and extended our primary findings, providing a more comprehensive view of TED pathology.

In summary, our findings implicate ACSL5, TNNT1, and NEFM as key mediators of adipogenesis, extraocular muscle thickening, and neuropathic injury in TED. The elevated expression of these genes in TED orbital fibroblasts underscores their pathogenic significance. Specifically, the PPARγ–ACSL5 signaling axis emerges as a potential driver of orbital adipogenesis. Future studies should prioritize experimental validation of this pathway, with the broader goal of advancing mechanism-based therapies for TED.
