Prospective isolation of mouse and human hematopoietic stem cells using PLXDC2

Communications Biology volume 9, Article number: 20 (2026) Cite this article

1822 Accesses
Metrics details

Subjects

Abstract

Numerous strategies exist to isolate hematopoietic stem cells (HSCs) using complex combinations of markers and flow cytometry. However, robust identification of HSCs using imaging techniques is substantially more challenging which has prompted the recent development of HSC reporter mice. To date, very few molecules used in these reporters have been useful for human HSC identification. Here we report that PLXDC2 is a useful marker for both mouse and human cord blood HSCs. Using a green fluorescent protein (GFP) knock-in at the Plxdc2 locus in mice (hereafter denoted as Plxdc2-GFP), we showed that Plxdc2-GFP is highly expressed in HSCs with 1 in 2.8 Plxdc2-GFP⁺CD150⁺ cells giving long-term multi-lineage reconstitution in transplantation. Moreover, we developed a novel human PLXDC2 antibody and showed that human PLXDC2⁺ HSCs have higher long-term multilineage reconstitution ability compared with PLXDC2^- HSCs in a xenograft model. This study identifies PLXDC2 as a highly relevant molecule in HSC identification.

A molecular signature predicts hematologic evolution in polycythemia vera patients

Article Open access 18 June 2025

Placental expanded mesenchymal-like cells (PLX-R18) for poor graft function after hematopoietic cell transplantation: A phase I study

Article Open access 08 August 2023

Lineage tracking to reveal the fate of hematopoietic stem cells influenced by Flk2⁻ multipotent progenitors after transplantation

Article Open access 13 January 2023

Introduction

A key aspect of stem cell biology is the definition of the different phenotypic and functional compartments, especially the most immature compartment, which replenishes all cells within a given tissue. In this regard, hematopoietic stem cells (HSCs) are the most comprehensively characterized tissue stem cells. Over the past three decades, the identification of HSCs has been improved by using both multicolor fluorescence-activated cell sorting analysis (FACS) and the in vivo bone marrow (BM) repopulation assay^{1,2,3,4,5,6,7,8,9,10,11,12}. c-Kit⁺, Sca-1⁺, lineage marker⁻ (KSL) cells represented the first major step in HSC identification, but have been further enriched by additional negative (CD34², Flk2¹³, CD48, and CD41⁴) and positive (CD150⁴, CD105¹⁴, CD201¹⁵, and Esam1^16,17) markers. Most of the FACS-based HSC purification methods use the CD150⁺CD34^low/−c-Kit⁺Sca-1⁺lineage marker-negative (Lin–) BM population to purify adult mouse HSCs, which contain cells with long-term multilineage reconstitution and self-renewal ability^4,18,19. However, the CD150⁺CD34^low/−c-Kit⁺Sca-1⁺Lin⁻ BM cells still contain cells that are not long-term HSCs (LT-HSCs). Additionally, identification of negatively stained cells is straightforward with FACS analysis, but is substantially more complicated with non-quantitative immunofluorescence on fixed and embedded tissue sections, despite the urgent need to understand HSC behavior in the context of the in vivo HSC-microenvironment (niche). Several HSC-specific reporters, such as Fgd5-mCherry or ZsGreen, Hoxb5-mCherry, and α-catulin-GFP, already exist as powerful tools for visualizing HSCs throughout the BM^20,21,22. However, these HSC visualization technologies are not accessible to all researchers because they require mice. Therefore, simple methods using a few antibodies for positive markers are preferable to meet the above requirements.

Human transplantation and xenograft repopulation assays show that human HSCs are CD34⁺, but the majority of CD34⁺ cells are lineage-restricted progenitors, and HSCs consist of a minor component of the population. The standard purification strategy to date for human HSCs uses the cell surface marker profile Lin⁻CD34⁺CD38⁻CD90⁺CD45RA^6,7,8,11,23 and the most recent purification method for human HSCs uses CD49f in addition to these markers to arrive at a population that is ~10% functional HSCs when human cord blood (CB) is used as the starting material¹¹. While this is a major milestone, the enriched CD34⁺CD38⁻CD90⁺CD45RA⁻CD49f⁺ population remains more heterogeneous than mouse HSCs, therefore requiring new markers to further purify functional human HSCs.

Our previous screening on HSC-specific genes identified several cell surface genes²⁴. We noted plexin domain containing 2 (Plxdc2) among them. PLXDC2 is a single-pass type I membrane protein that encodes a 350-amino acid-long plasma membrane protein. PLXDC2 plays an important role in cell proliferation and differentiation during nervous system development^25,26. PLXDC2 is also known as one of the membrane receptors of pigment epithelial-derived factor, an endogenous anti-angiogenesis factor²⁷. Moreover, PLXDC2 is an activating ligand for ADGRD1 displayed on cumulus cells²⁸. In addition, PLXDC2 has a regulatory function and a significant impact on the modulation of the host immune response against Helicobacter pylori²⁹. However, the function of PLXDC2 in the hematopoietic system remains unknown.

In the present study, we identified PLXDC2 as an HSC purification marker using a Plxdc2-GFP knock-in mouse line²⁶ and found that the combination of two positive markers, Plxdc2-GFP and CD150, provided sufficient purification of functional HSCs without any additional markers. Moreover, PLXDC2 was also highly expressed in human HSCs derived from both CB and BM. We showed that the anti-PLXDC2 antibody, clone 4G3, which we previously developed³⁰, was useful for further purification of human functional HSCs from the conventional human HSC fraction.

Results

Plxdc2 is highly expressed in mouse HSCs

Our previous gene expression analysis between CD34⁻ KSL cells as HSCs and other hematopoietic cells identified HSC-specific genes²⁴. In the present study, we studied Plxdc2 as a candidate surface marker for purification of HSCs among them. Plxdc2 is a single-pass type I membrane protein that is expressed in tumor vessels but not in most normal tissues. Quantitative reverse transcription PCR revealed that Plxdc2 was highly expressed in CD34⁻KSL cells and CD4⁺CD8⁺ double positive T cells in mouse hematopoietic cells (Fig. 1A). We further confirmed that Plxdc2 was highly expressed in LT-HSCs compared with short-term HSCs (ST-HSCs), multipotent progenitors (MPPs) and progenitors (Fig. 1B). Moreover, public gene expression data showed that Plxdc2 was highly expressed in HSCs and niche cells, including CAR (CXCL12-abundant reticular) cells, fibroblasts, and Schwann cells in mouse BM (Supplementary Fig. 1A–C).

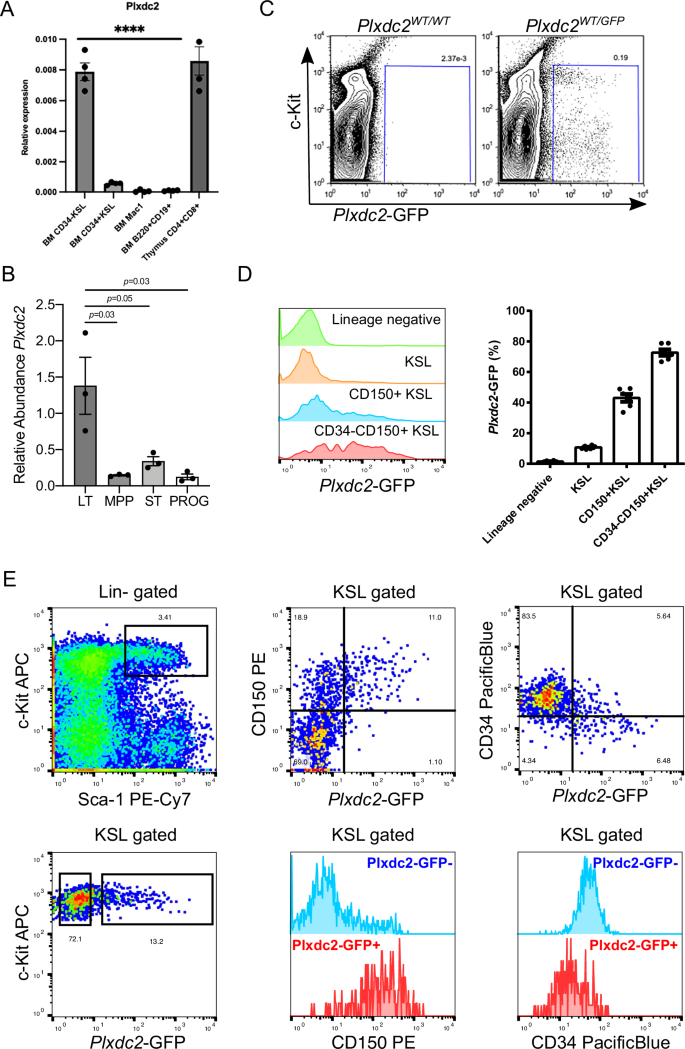

**Fig. 1: Plxdc2 is enriched for functional HSCs.**

To assess Plxdc2 expression in hematopoiesis in detail, we analyzed Plxdc2-GFP knock-in mice. Both Plxdc2^GFP/+ and Plxdc2^GFP/GFP mice were born and survived into adulthood with expected Mendelian frequencies. Plxdc2^GFP/+ and Plxdc2^GFP/GFP mice showed normal hematopoiesis (Supplementary Tables 1 and 2). Colony-forming assay of whole BM cells revealed no significant difference between Plxdc2^+/+ and Plxdc2^GFP/GFP littermates in the frequency of lineage-restricted hematopoietic progenitors (Supplementary Fig. 2A). Plxdc2^GFP/+ and Plxdc2^GFP/GFP mice showed normal HSC frequency and normal HSC function upon transplantation into lethally irradiated mice, indicating that Plxdc2 is dispensable for HSC function (Supplementary Fig. 2B, C).

Mature hematopoietic cells in the BM from Plxdc2^GFP/+ mice did not express Plxdc2-driven GFP (hereafter referred to as “Plxdc2-GFP”), whereas most of the T cells, except CD4⁻CD8⁻c-Kit⁻CD25⁻ cells in the thymus, expressed Plxdc2-GFP (Supplementary Fig. 3A, B). Overall, just 0.19% of total BM cells in Plxdc2^GFP/+ mice were Plxdc2-GFP⁺ (Fig. 1C). Neither common lymphoid progenitors (CLPs) nor myeloid progenitors (MPs) expressed Plxdc2-GFP (Supplementary Fig. 3C). Plxdc2-GFP expression was highly enriched in KSL cells (9.23%), CD150⁺ KSL cells (43%) and CD34⁻CD150⁺ KSL cells (72.7%) suggesting that it was highly enriched in LT-HSCs (Fig. 1D). Of note, Plxdc2-GFP expression in KSL cells was negatively correlated with CD34 expression and most of the Plxdc2-GFP cells were CD150⁺ (Fig. 1E), further supporting the notion that Plxdc2-GFP⁺ cells are highly enriched in HSCs.

Functional HSC activity is highly restricted to Plxdc2-GFP⁺CD150⁺ cells

To examine HSC potential of Plxdc2-GFP⁺ cells in the BM, 500 Plxdc2-GFP⁺ cells or 2 × 10⁵ Plxdc2-GFP⁻ cells were transplanted into lethally irradiated mice alongside 2 × 10⁵ cells of competitor cells (Fig. 2A). Long-term multilineage chimerism was observed in peripheral blood (PB) from Plxdc2-GFP⁺ cell-transplanted mice over 21 weeks, whereas only short-term lymphoid lineage chimerism was observed at low levels in PB from Plxdc2-GFP^- cell-transplanted mice (Fig. 2B). Limiting dilution analysis revealed that 1 in 3.53 Plxdc2-GFP⁺ KSL cells gave long-term multilineage reconstitution of irradiated primary recipients (Supplementary Table 3) and single-cell transplantations showed that 1 in 2.05 Plxdc2-GFP⁺CD150⁺KSL cells gave long-term multilineage reconstitution of irradiated primary recipients. To simplify the purification method of HSCs to a two-color strategy, we assessed the combination of Plxdc2-GFP and CD150. Nearly all of the Plxdc2-GFP⁺CD150⁺ cells were also CD34⁻CD150⁺ KSL cells, and Plxdc2-GFP⁺CD150⁻ cells were c-Kit⁻ cells (Fig. 2C). Limiting dilution analysis of the Plxdc2-GFP⁺CD150⁺ fraction of whole BM cells revealed that the HSC frequency of Plxdc2-GFP⁺CD150⁺ cells was 1 in 2.8 (Supplementary Table 3). Single-cell transplantation studies revealed that 44.7% (17/38) of Plxdc2-GFP⁺CD150⁺ cells and 48.8% (21/43) of Plxdc2-GFP⁺CD150⁺KSL were functional HSCs capable of long-term multilineage reconstitution (Supplementary Table 3), indicating that the Plxdc2-GFP⁺CD150⁺ fraction was roughly equivalent to the Plxdc2-GFP⁺CD150⁺KSL fraction. Collectively, these data suggest that Plxdc2-GFP⁺CD150⁺ cells in the whole BM are functional HSCs and therefore the combination of Plxdc2-GFP and CD150 is sufficient to purify functional HSCs in the whole BM.

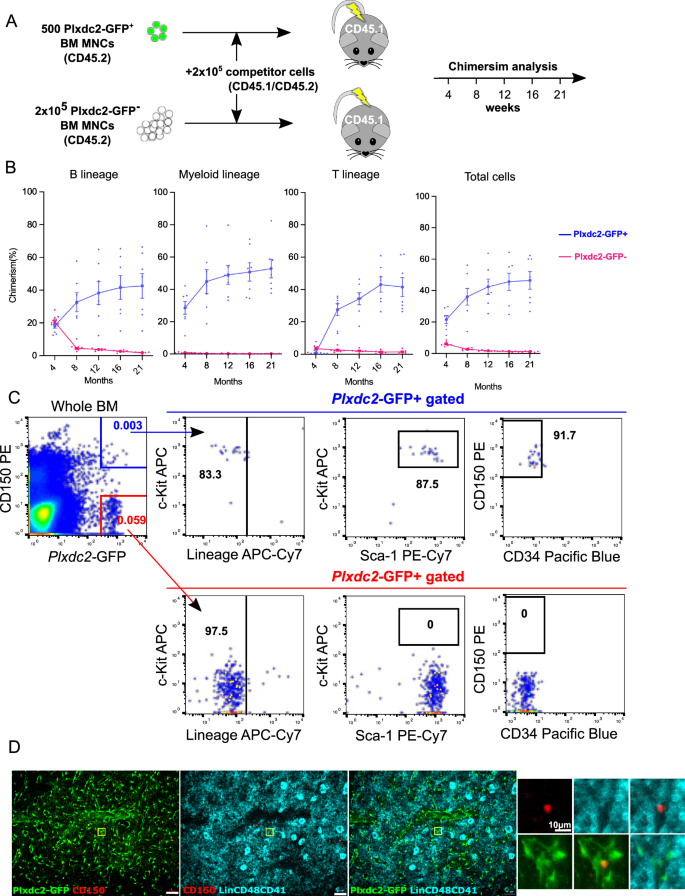

**Fig. 2: *Plxdc2-*GFP⁺ cells are highly enriched for functional HSCs.**

To further validate the Plxdc2-GFP and CD150 combination for HSC identification, we compared this strategy with the widely used SLAM-based method described by Kiel et al.⁴. We analyzed the spatial distribution of Plxdc2-GFP⁺CD150⁺ cells relative to CD150⁺CD48⁻CD41⁻Lin⁻ HSCs in BM sections. Plxdc2-GFP⁺CD150⁺ cells were overlapping with CD150⁺CD48⁻CD41⁻Lin⁻ cells (Fig. 2D), consistent with their enrichment in HSCs observed by flow cytometry. In addition, Plxdc2-GFP⁺CD150⁺ cells expressed other HSC-associated markers, including CD31 and Emcn (Supplementary Fig. 3D, Supplementary Movie 1). These findings indicate that Plxdc2-GFP combined with CD150 can reliably identify HSCs in both dissociated and tissue-based analyses.

Plxdc2 stably marks mobilized HSCs

To further extend analysis for the clinical setting, we examined whether Plxdc2-GFP also marked mobilized HSCs in the spleen after cyclophosphamide/granulocyte-colony stimulating factor (G-CSF) treatment. To this end, we administered a single dose of cyclophosphamide on day 0 and constitutive administration of G-CSF for 1 week from day 1 and then analyzed Plxdc2-GFP expression in mobilized HSCs in the spleen (Fig. 3A). No Plxdc2-GFP⁺ cells were detected in the spleen in the steady-state condition, whereas 0.11% of cells were Plxdc2-GFP⁺ after administration of G-CSF (Fig. 3B). 8.15% of mobilized KSL cells in the spleen expressed Plxdc2-GFP and CD150. 500 Plxdc2-GFP⁺ cells isolated from mobilized spleen gave long-term multilineage chimerism in lethally irradiated mice, whereas 2 × 10⁵ cells of Plxdc2-GFP⁻ cells in mobilized spleen contained no HSCs (Fig. 3C, D). These data indicate that Plxdc2-GFP expression consistently marks HSCs under the mobilization condition.

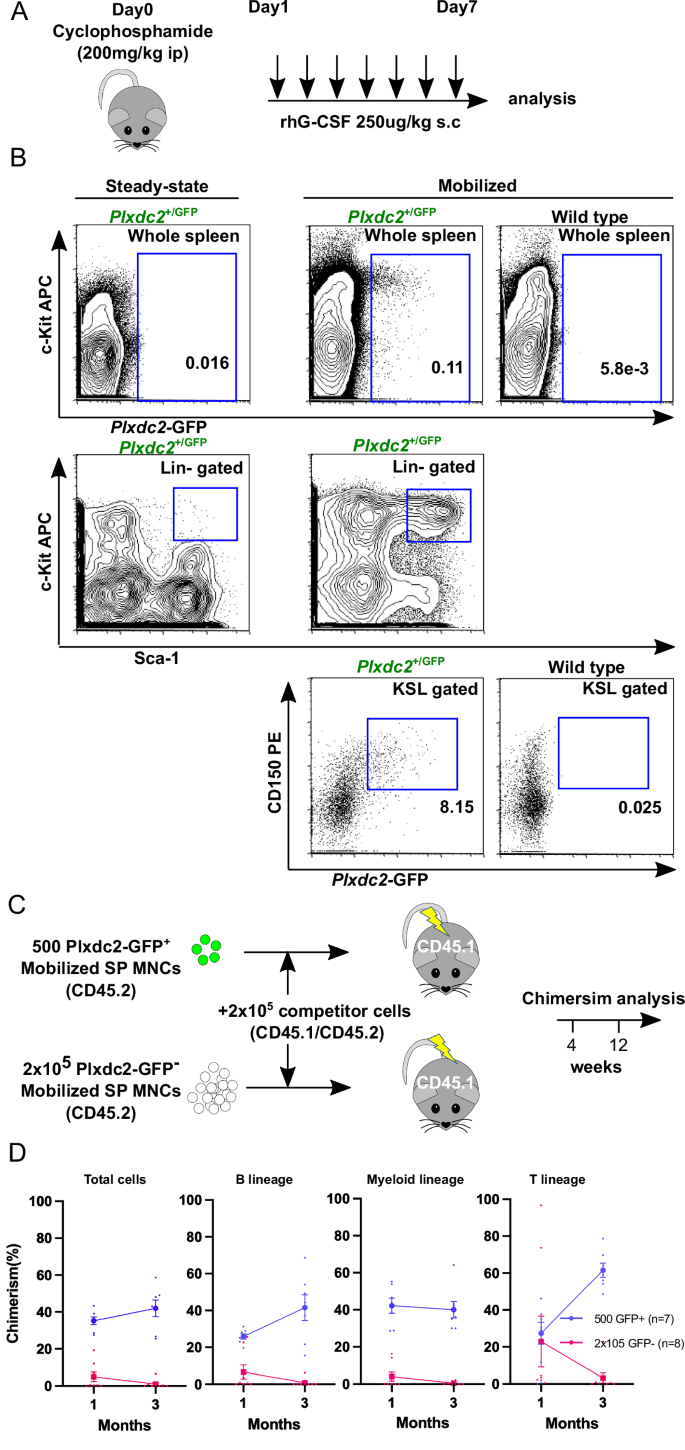

**Fig. 3: *Plxdc2-*GFP marks mobilized HSCs.**

PLXDC2 is heterogeneously expressed on human HSCs

In order to determine whether PLXDC2 is relevant for human HSCs, we extended our analysis by first assessing its expression using a newly established rabbit monoclonal antibody for human PLXDC2 (clone 4G3)³⁰. Although this antibody was originally validated in HEK293 cells overexpressing PLXDC2, we further evaluated its specificity by Western blot using human peripheral blood mononuclear cells (PBMCs) and human platelets. Multiple bands ranging from 75 to 100 kDa were detected, depending on cell type, consistent with the predicted molecular weight of glycosylated PLXDC2 (Supplementary Fig. 4A–D). This heterogeneity likely reflects glycosylation status and protein conformation. Notably, clone 4G3 was identified by flow cytometric screening and shows strong binding to native PLXDC2 on the cell surface, suggesting preferential recognition of conformational epitopes. Moreover, the specificity was confirmed by flow cytometry using PLXDC2-overexpressing SKM-1 cells, showing dose-dependent signal reduction upon antibody dilution (Supplementary Fig. 4E). These data support the antibody’s suitability for native-state applications such as flow cytometry-based HSC purification. PLXDC2 expression was highest on the conventional human HSCs (CD34⁺CD38⁻CD90⁺CD45RA⁻CD49f⁺ cells) among hematopoietic stem and progenitor cells (HSPCs) in the CB (Fig. 4A, Supplementary Fig. 5A). Interestingly, this expression pattern varied in the BM and G-CSF-mobilized PB HSPCs. MEPs (Megakaryocyte–erythroid progenitor cells) showed the highest expression of PLXDC2 in the BM HSPCs, whereas GMPs (Granulocyte-monocyte progenitor cells) did in the G-CSF-mobilized PB HSPCs (Supplementary Fig. 5B). Unlike in mouse, PLDXC2 expression was not entirely restricted to the HSC compartment, showing some expression in progenitor cells and CD14⁺ monocytes (Supplementary Fig. 5B–D). Flow cytometric analysis of the PBMCs showed that PLXDC2 was detected on CD41⁺ cells (12.6%), CD56⁺ cells (2.8%), CD19⁺ cells (13.9%), CD3⁺ cells (3.05%), CD33⁺CD66b⁻ cells (15.5%) and CD14⁺CD15⁺ cells (49.4%) (Supplementary Fig. 5E). In order to test whether PLXDC2 expression tracked with HSC function, we separated human HSCs derived from CB into PLXDC2^+/high (referred to here as PLXDC2⁺) and PLXDC2^−/low (referred to here as PLXDC2⁻) and performed functional assays (Fig. 4B). We first evaluated their hematopoietic colony-forming capacity in serial replating assays. PLXDC2⁻ cells formed 1.6-fold more colonies than PLXDC2⁺ cells in the first round. In contrast, PLXDC2⁺ cells formed 1.6-fold more colonies than PLXDC2⁻ cells in the second round of plating (Fig. 4C), suggesting that PLXDC2⁺ cells were more immature than PLXDC2⁻ cells. We next evaluated their capacity for long-term multilineage reconstitution by transplanting them into NOD-scid-IL2Rgc^−/− (NSG) recipients (200 cells of either PLXDC2⁺ HSCs or PLXDC2⁻ HSCs per mouse). PLXDC2⁺ cells gave higher human CD45⁺ chimerism in PB than PLXDC2⁻ cells during the observation period (Fig. 4D). Although levels of chimerism remained high in the PB of mice transplanted with PLXDC2⁺ HSCs, engraftment of PLXDC2⁻ HSCs peaked at 2 months and then declined. The chimerism pattern of PLXDC2⁻ HSCs indicated that PLXDC2⁻ HSCs were mainly ST-HSCs. Moreover, PLXDC2⁺ cells gave much higher mean chimerism in hematopoietic organs than PLXDC2⁻ cells (Fig. 4E). PLXDC2⁺ cells gave more B cell output (Chimerism of CD19⁺ cells) than PLXDC2⁻ cells (Fig. 4F), whereas erythrocyte output was similar between PLXDC2⁺ and PLXDC2⁻ cells (Fig. 4G). Limiting dilution assays demonstrated that 1 in 49.9 PLXDC2⁺ cells could give rise to long-term multilineage engraftment compared with 1 in 249.1 PLXDC2⁻ cells (P = 0.00348, Fig. 4H). Our HSC frequency (2%) was much less than that shown by the Dick group (10%)¹¹. This discrepancy may be due to differences in experimental conditions, such as an irradiation dose and an injection method.

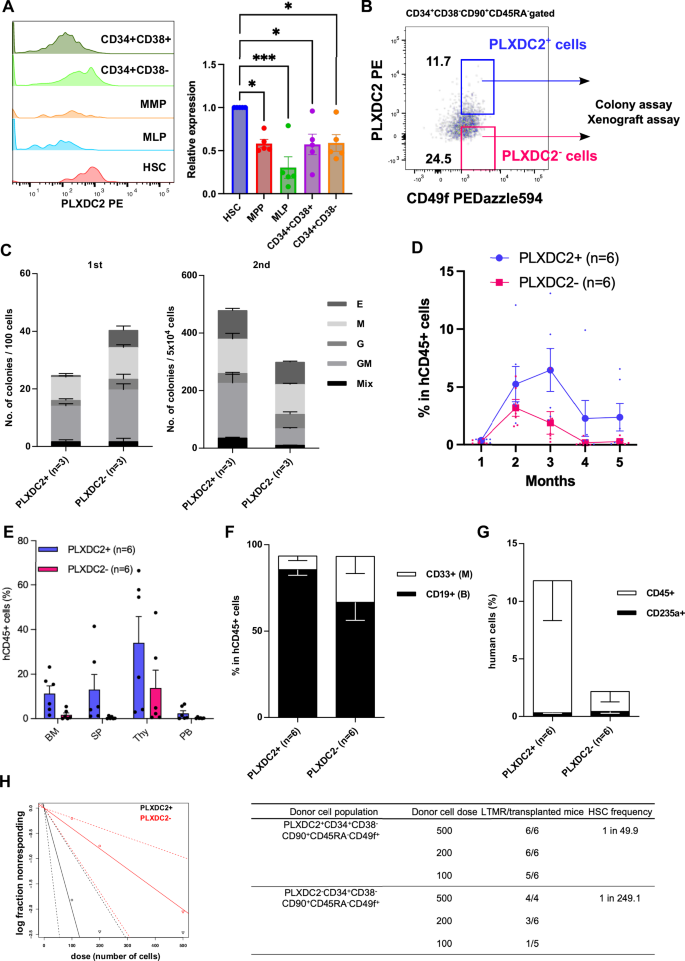

**Fig. 4: Enrichment of human functional HSCs by PLXDC2 expression.**

Next, we evaluated the surface expression of PLXDC2 on HSPCs during HSC culture using flow cytometric analysis to determine whether PLXDC2 is a useful marker in this context. PLXDC2 expression showed a positive correlation with CD90 and CD201 after 6 days in culture (Supplementary Fig. 6A). Furthermore, we compared the expression of CD112, a recently reported marker of HSC latency, between PLXDC2⁺ and PLXDC2⁻ HSCs. Both populations expressed CD112 at similar levels (Supplementary Fig. 7A, B). Taken together, although PLXDC2 is not a specific marker for human HSCs, it serves as a useful marker for further purification of human HSCs and may be beneficial in the context of HSC culture.

PLXDC2⁺ HSCs express more HSC signature genes than PLXDC2⁻ HSCs

To examine the expression pattern of PLXDC2 mRNA in human HSPCs, we analyzed publicly available single-cell RNA-seq data from fresh CB CD34⁺ cells. PLXDC2 was highly expressed in Cluster 1, which was defined as HSPCs based on high expression of MECOM, MLLT3, and HLF, indicating that PLXDC2 is enriched in human HSPCs (Fig. 5A, B). To examine transcriptomic differences between PLXDC2⁺ and PLXDC2⁻ HSCs derived from the CB, we performed RNA-Seq analysis. Although transcriptomes of PLXDC2⁺ HSCs and PLXDC2⁻ HSCs were highly similar, THBS1, SORBS2, SGSH, and SAMHD1 were identified as highly differentially expressed genes (DEGs) in PLXDC2⁺ HSCs (FDR < 0.01), whereas CPA3, ABCA1, CDK6, and IRF8 were highly DEGs in PLXDC2⁻ HSCs (FDR < 0.01) (Fig. 5C, D). Interestingly, CDK6 expression has been shown to mark active HSCs in mouse and human studies^31,32,33 and IRF8 is a differential marker for myeloid cells^34,35. The gene expression data therefore suggest that PLXDC2⁻ HSCs express a more differentiated gene signature than PLXDC2⁺ HSCs. Interestingly, although the functions of THBS1, SORBS2, SGSH, and SAMHD1 in HSCs were not well understood, their functions were related to important HSC signatures such as active TGFβ signaling, adhesion character, activation of lysosomal function, and resistance to viral infection (Supplementary Table 4). Next, we investigated the biological pathways differentially represented between PLXDC2⁺ HSCs and PLXDC2⁻HSCs using gene set enrichment analysis (GSEA) (Fig. 5E, FDR < 0.1). Again, PLXDC2⁺ HSCs showed an enrichment for the HSC signature. Conversely, we found downregulation of essential biosynthetic processes such as mRNA processing, oxidative phosphorylation, and MYC targets in PLXDC2⁺ HSCs compared with PLXDC2⁻ HSCs. Together, these data reinforced the functional data above, indicating that the PLXDC2⁺ fraction contains more cells expressing HSC-related genes than the PLXDC2⁻ fraction.

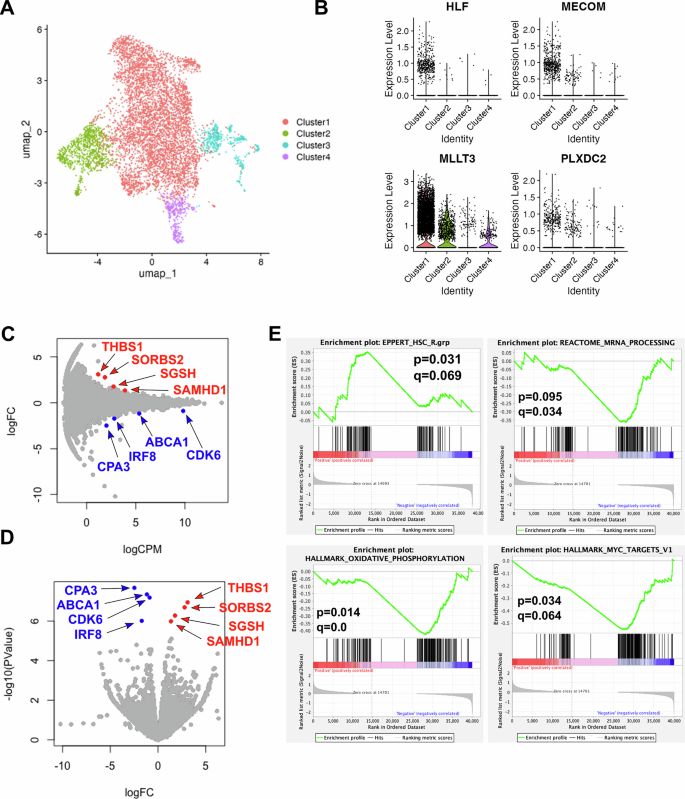

**Fig. 5: PLXDC2⁺ HSCs show more HSC signature.**

Discussion

Our study shows that PLXDC2 is a useful marker for identifying both mouse and human HSCs. Because of the limited availability of human HSCs in the BM or fetal liver and their different purification methods from those of mouse HSCs, the features of human HSCs are not well understood. In order to make robust comparisons across species, it is therefore essential to identify common markers. To date, however, only a few common markers, such as EPCR and ESAM, have been reported^{15,16,36,37,38,39}. Interestingly, these markers, including PLXDC2, are all endothelial markers, suggesting that HSCs retain some aspects of an endothelial program, which is perhaps reflective of their origin from endothelial cells during development and may be a useful feature that allows their discrimination from other hematopoietic cells. Therefore, developing common purification methods between mouse and human HSCs using these endothelial markers is useful for deepening our understanding of human HSCs.

Plxdc2 in combination with CD150 is enough to highly purify mouse functional HSCs compared with the conventional multi-antibody combination. 1 in 2.8 Plxdc2-GFP⁺CD150⁺ cells in whole BM were functional HSCs (Supplementary Table 3). This HSC frequency is equivalent to the frequency reported using α-catulin in combination with c-Kit (1 in 3.1 cells)²² and collectively represent the best two-color strategies to date. Plxdc2 is a more attractive marker for purification of HSCs than α-catulin, because Plxdc2 is a membrane protein, whereas α-catulin is an intracellular protein. In this study, we developed a flow cytometry approach using a recently available anti-human PLXDC2 antibody. Developing a flow cytometric analysis available antibody against mouse Plxdc2 will allow us to highly purify mouse functional HSCs in combination with CD150 and to easily detect mouse functional HSCs without the need for a reporter mouse. Our two-color strategy is also useful for imaging studies. It is hoped that the new antibody will improve the sensitivity and enable HSC detection.

Our study also shows that PLXDC2 further purifies human HSCs from the conventional human CD34⁺CD38⁻CD90⁺CD45RA⁻CD49f⁺ fraction, which may be one of the most purified fractions for human functional HSCs. The finding that further enrichment of functional human HSCs could be achieved by using an anti-PLXDC2 antibody will aid researchers looking to further purify functional human HSCs for cellular and molecular studies. Moreover, PLXDC2⁺ HSCs showed a negative correlation with gene signatures for mRNA processing, upregulation of Myc-regulated genes, and oxidative phosphorylation, indicating that PLXDC2⁺ HSCs are likely to be quiescent (Fig. 5E). The mature cell output ratio between B cells and myeloid cells in PLXDC2⁺ HSCs was B lymphoid dominant, consistent with that of conventional CD34⁺CD38⁻CD90⁺CD45RA⁻CD49f⁺ HSCs. In contrast, repopulation in PLXDC2⁻ HSCs was balanced, which could be explained by higher expression of IRF8 in PLXDC2⁻ HSCs compared to PLXDC2⁺ HSCs.

The timing of quiescence exit in human HSC subsets is regulated by CDK6 levels³¹. As PLXDC2⁺ HSCs show lower CDK6 expression than PLXDC2⁻ HSCs, they are likely more quiescent. Four genes, THBS1, SORBS2, SGSH, and SAMHD1, are highly upregulated in PLXDC2⁺ HSCs. THBS1 activates latent TGFβ⁴⁰, which is essential for HSC maintenace⁴¹. SORBS2, an adapter protein involved in focal adhesion⁴², suppresses cancer metastasis⁴³ and may support HSC anchoring in the niche^44,45. SGSH, which degrades heparan sulfate in lysosomes, is critical for lysosomal function; active lysosomes help maintain HSC stemness after division⁴⁶. SAMHD1, a restriction factor for HIV^47,48, and an interferon-stimulated gene, is selectively expressed in HSCs⁴⁹. Thus, these genes may cooperatively support the stem cell state of PLXDC2⁺ HSCs.

Taken together, our data show that Plxdc2 is a potent marker for enrichment of both mouse and human HSCs. Until we have common markers across species, we will be limited in our ability to make comparisons between mouse and human HSCs. Therefore, the finding of PLXDC2 as a common marker between mouse and human has a great impact in this regard.

Methods

Animals

All animal studies were approved by the Animal Care Committee of the Institute of Medical Science at the University of Tokyo and were conducted in accordance with the Regulation on Animal Experimentation at the University of Tokyo based on International Guiding Principles for Biomedical Research Involving Animals. C57BL/6J mice were purchased from SLC Inc., Japan. NOD.Cg-PrkdcscidIl2rgtm1Wjl (NSG) mice were purchased from The Jackson Laboratory Inc., Japan. Plxdc2-GFP mice were kindly provided by Thomas M Jessell (Columbia University). All mice were obtained at the age of 8–10 weeks and maintained in a specific-pathogen-free environment with free access to food and water. Housing conditions were temperature 22 ± 2 °C, humidity 55 ± 5%, light/dark cycle 12 h/12 h (8 a.m.–20 p.m. light). All mice were euthanized under isoflurane anesthesia followed by cervical dislocation, in accordance with institutional animal care and use guidelines.

Cell lines

PlatE cells were maintained in Dulbecco’s Modified Eagle’s Medium supplemented with 10% fetal bovine serum (FBS) and 1% penicillin–streptomycin(P/S). SKM-1 (JCRB0118, JCRBCell Bank) cells were maintained in RPMI-1640 medium supplemented with 10% FBS and 1% P/S.

Preparation of retrovirus

The cDNA encoding human PLXDC2 was cloned into the EcoRI site of the MSCV-IRES-GFP vector. Retroviral packaging cells (Plat-E) were transiently transfected with either empty or MSCV-PLXDC2-IRES-GFP plasmids using polyethylenimine (Sigma-Aldrich).

Quantitative PCR

Plxdc2 expression levels in LT-HSCs and MPPCs were quantified relative to expression of the hypoxanthine-guanine phosphoribosyltransferase (Hprt) housekeeping gene via qPCR. The primer pairs were as follows: Plxdc2-Forward CCC GGA AGA GGT ACA GTC AAA, Plxdc2-Reverse GAA TTG CAT GGT GGT CGT GT, Hprt-Forward GTT GGA TAC AGG CCA GAC TTT GTT G, Hprt-Reverse GAG GGT AGG CTG GCC TAT AGG CT. qPCRs were performed using 10 µl of 2x SYBR Green master mix, 1 µl of LT-HSC or MPPC cDNA, 1 µl each of Plxdc2 or Hprt forward and reverse primers concentrated at 1000 nM, and 7 µl of nuclease-free water per well. Negative control wells containing 1 µl of nuclease-free water instead of cDNA were constructed to rule out contamination of our reagents. Progenitor cDNA samples were sourced from four biologically distinct mice, and LT-HSC cDNA samples were sourced from three biologically distinct mice in an attempt to enable a valid statistical analysis of our qPCRs. The progenitor and LT-HSC cDNA libraries used in these qPCRs were also derived courtesy of Dr Jillian Barlow. qPCRs using progenitor cDNA were performed in triplicate, whilst qPCRs using LT-HSC cDNA were performed in duplicate to identify anomalous results. qPCRs were run using the StepOnePlus™ Real-Time PCR System (Applied Biosystems™) on a fast ramp speed for 45 cycles before quantifying Plxdc2 expression relative to Hprt expression (mean ΔΔCt) in Microsoft Excel. The statistical significance of differential Plxdc2 expression between LT-HSCs and MPPCs was determined in R-studio using the Mann–Whitney U test.

Hematopoietic progenitor assays

Colony-forming activity (CFU-C) assays were performed using MethoCult M3434 (Stem Cell Technologies). A total of 2 × 10⁴ BM mononuclear cells (MNCs) were plated on 35-mm culture dishes and then incubated at 37 °C in humidified chambers containing 5% CO₂. Colonies were counted using a dissecting microscope after 10–14 days of culture.

Long-term competitive reconstitution assay

Test cells from Plxdc2^+/+, Plxdc2^+/GFP, and Plxdc2^GFP/GFP mice (CD45.2) were mixed with 2 × 10⁵ CD45.1/CD45.2 adult BM MNCs and injected into adult recipient mice (CD45.1) irradiated at a dose of 9.5 Gy using a Cesium137 GammaCell40 Exactor Irradiator (MDS Nordia). PB cells were stained with

FITC-conjugated anti-CD45.1 antibodies, biotinylated anti-CD45.2 antibodies followed by APC-Cy7 streptavidin, PE-conjugated anti-Mac-1 and Gr-1 antibodies, APC-conjugated anti-CD4 and -CD8 antibodies, and PE-Cy7–conjugated anti-B220 antibodies. The test cell-derived chimerism was evaluated on a FACSCanto (BD Bioscience) system.

Blood count

PB was collected and analyzed on an automated blood cell counter, KX-21 (Sysmex), according to the manufacturer’s instructions.

Human cord blood processing

All experiments using human CB cells were approved by the Ethics Committee at the Institute of Medical Science, the University of Tokyo (approval number: 27-34-1225). Human CB cells were obtained from the Japanese Red Cross Kanto-Koshinetsu Cord Blood Bank (Tokyo, Japan) following an institutional review board-approved protocol. Informed consent was obtained in accordance with the Declaration of Helsinki. Various CB samples were pooled, and an equal volume of PBS/2% FBS was added prior to layering on Lymphoprep^TM (STEM CELL Technologies) in 50 mL conical tubes. Tubes were subjected to 30 min centrifugation at 800 × g followed by careful removal of mononuclear layer and washed with PBS/2% FBS. CD34⁺ cells were enriched by Direct CD34⁺ Progenitor Isolation Kit (Miltenyi Biotec) according to the manufacturer’s protocol. CD34⁺ cells were stored in liquid nitrogen.

Cell preparation for cell sorting

CD34⁺ cells were stained with CD45RA (FITC, clone HI100), CD90 (APC/, clone 5E10), CD49f (PE-DazzleTM594, clone GoH3), CD34 (APC-Cy7, clone 581), CD38 (PE-Cy7, clone HIT2), Lineage marker cocktail (BV510, CD3/14/16/19/20//56, clone OKT3/M5E2/3G8/HIB19/2H7/HCD56) (BioLegend) and PLXDC2 (PE/APC, rabbit monoclonal clone 4G3) (Kyokuto Pharmaceutical Industrial Co. Ltd. and Abwiz Bio Inc.) and incubated for 30 min at 4 °C. Cells were washed with PBS/2% FBS and stained with streptavidin conjugated BV605 (BioLegend) if a CD90 biotin-conjugated antibody was used. Cells were subsequently washed and resuspended in PBS/2% FBS prior to sorting. Cells were sorted on FACSAriaII (Becton Dickinson) with a 100-micron nozzle operating mode and collected in 1.5 mL microtubes.

Xenotransplant assays

NOD.Cg-Prkdc^scidIl2rg^tm1Wjl/SzJ (NSG) (Jackson Laboratory) were purchased. Animal experiments were performed in accordance with institutional guidelines approved by the University of Tokyo. Various cell doses of PLXDC2⁺ or PLXDC2⁻ human HSCs were transplanted into 2.5 Gy irradiated NSG mice by tail vein injection.

Assessment of human cell engraftment

BM, thymus, PB, and spleen from NSG mice were analyzed for human cell engraftment with CD45 (BV421, clone). Cells were stained in PBS/2% FBS and analyzed by flow cytometry (FACSAriaII, Beckton Dickinson). Lineage committed cells in BM, PB, and spleen were analyzed with CD33 (PE, clone WM53), CD19(PE-Cy7, clone HIB19), and CD3 (FITC, clone OKT3). Thymocytes were analyzed with CD4 (FITC, clone OKT4) and CD8 (PE, clone SK1). Stem progenitor cells in BM were analyzed with CD34, CD38, CD90, CD45RA, CD49f, and PLXDC2. All antibodies used in this study were obtained from BioLegend unless otherwise indicated.

RNA-seq

We performed RNA-seq as described previously⁵¹ with minor modifications. In brief, using 100 sorted cells, the first strand of cDNA was synthesized by using PrimeScript RT reagent kit (TaKaRa Bio Inc.) and not-so-random primers. Following the synthesis of the first strand, the second strand was synthesized by using Klenow Fragment (30, _50, exo-; New England Biolabs Inc.) and complement chains of not-so-random primers. Using purified double-strand cDNA, the library for RNA-Seq was prepared and amplified using Nextera XT DNA sample Prep kit (Illumina Inc.). These prepared libraries were sequenced on the Next-Seq system (Illumina Inc.), according to the manufacturer’s instructions. In addition, each obtained read was mapped to the reference sequence “GRCh38” using CLC genomic workbench v11.0.0 (QIAGEN), and expression levels were normalized and subjected to statistical analyses based on EdgeR. Transcriptome data were subjected to GSEA using GSEA v3.0.0 software, available from the Broad Institute⁵². All Gene sets were obtained from the database of the Broad Institute unless otherwise stated. Principal component analysis, hierarchical clustering analysis, and visualization of gene expression or protein level were performed by Multi-expression Viewer.

Analysis of public single-cell RNA-seq data

Analysis was performed using Seurat v.4.0 (ref. ⁴⁰) in R. HLF, MECOM, MLLT3, and PLXDC2 expression in fresh CB data was obtained from the Gene Expression Omnibus (GSE153370).

BM slice preparation, immunostaining, and optical clearing

Methods for 3D imaging of BM were adapted from previously published protocols⁵³. Femurs were isolated from Plxdc2^GFP/+ mice, cleaned, and immersed in PBS/2% paraformaldehyde for 6 h at 4 °C, followed by a dehydration step in 30% sucrose for 72 h at 4 °C. Femurs were then embedded in cryopreserving medium (optimal cutting temperature (OCT)) and snap frozen in liquid nitrogen. Bone specimens were iteratively sectioned using a cryostat until the BM cavity was fully exposed along the longitudinal axis. The OCT block containing the bone was then reversed, and the procedure was repeated on the opposite face until a thick bone slice with bilaterally and evenly exposed BM content was obtained. Once the BM slices were generated, the remaining OCT medium was removed by incubation and washing of the bone slices in PBS three times for 5 min. For immunostaining, slices were incubated in blocking solution (0.2% Triton X-100, 5% skim milk, 1% bovine serum albumin (BSA), 10% donkey serum in PBS) overnight at 4 °C.

Primary antibody incubations were performed in blocking solution for 3 days at 4 °C, followed by overnight washing in PBS. Secondary antibody stainings were performed for another 3 days at 4 °C in blocking solution but in the absence of BSA to avoid cross-absorption. Immunostained thick femoral slices were successively washed in PBS overnight and incubated in RapiClear 1.52 for a minimum of 6 h, which typically increased imaging depth to 150 μm from the tissue surface without significant loss of signal intensity. The clearing protocol employed is fast, compatible with all fluorescent probes and proteins tested, and preserves the integrity of subcellular structures.

Preparation of PBMC

Human PBMCs were isolated from the peripheral venous blood of healthy volunteers, as described previously⁵⁴. Briefly, whole blood (20 mL) was mixed with 7 mL of a 6% dextran solution and 15 mL of HBSS(−) (Gibco) and allowed to stand for 30 min at 25 °C until stratification occurred. The upper leukocyte-rich plasma layer was transferred to a new tube containing endotoxin-free Ficoll-Paque PLUS gradient (GE Healthcare Japan, Tokyo, Japan) and was centrifuged (500 × g, 30 min, 25 °C). The cell layer was harvested, and subsequently, the cells were resuspended at 100 million PBMC per mL in PBS. Monocyte Attachment Medium (Promocell, Heidelberg, Germany) HBSS. The protocol was approved by the Ethical Review Committee at the Teikyo University School of Medicine (no. 15-192-2). All participants gave written informed consent prior to their inclusion in the study. All ethical regulations relevant to human research participants were followed.

Preparation of PBMC Lysate

Human PBMCs (up to 1 × 10⁷ cells) were lysed using the Mem-PER Plus Membrane Protein Extraction Kit (Thermo Fisher Scientific, Waltham, USA) in the presence of a protease inhibitor cocktail (Cell Signaling Technology, Danvers, MA), following the manufacturer’s instructions. Briefly, the cells were harvested by centrifugation at 180 × g for 5 min and washed twice with 1 mL of Cell Wash Solution (Thermo Fisher Scientific). The washed cell pellets were resuspended in 300 µL of Permeabilization Buffer (Thermo Fisher Scientific) containing a protease inhibitor cocktail and incubated for 15 min at 4 °C. The lysate was then centrifuged at 16,000 × g for 15 min at 4 °C, and the supernatant containing the cytosolic fraction was carefully transferred to a new tube. The pellet was resuspended in 100 µL of Solubilizing Buffer (Thermo Fisher Scientific) containing a protease inhibitor cocktail and incubated at 4 °C for 30 min with constant mixing. This suspension was subsequently centrifuged at 16,000 × g for 15 min at 4 °C, and the resulting supernatant, containing the membrane fraction, was carefully transferred to a new tube. Protein concentrations in both fractions were determined using the BCA assay.

SDS-PAGE

The cytosolic and membrane fractions (10 μg/lane) of PBMCs or human platelet lysate (50 or 250 μg/lane) (UltaGRO, AventaCell biomedical, New Taipei, Taiwan) were analyzed by SDS-PAGE using a 7.5% Super-Sep gel (Fujifilm Wako Chemicals, Tokyo, Japan). A pre-stained protein marker, Precision Plus Protein Dual Color Standards (Bio-Rad, CA, USA), was used as a reference. Electrophoresis was conducted at a constant current of 25 mA for 50 min. Following electrophoresis, gels were stained with Coomassie Brilliant Blue.

Western blotting

Proteins were transferred from the gel to a PVDF membrane using an electrical blotting system, following the Bio-Rad manual. After transfer, the PVDF membranes were blocked with a PVDF blocking solution (TOYOBO, Tokyo, Japan) for 1 h. For the detection of PLXDC2 in PBMC, the membranes were incubated at room temperature (RT) for 24–48 h with primary antibodies: either a biotinylated rabbit monoclonal antibody (4G3, Abwiz Bio, 1:1000) or a rabbit polyclonal antibody (ab67226, Abcam, 1:2000), diluted in Can Get Signal 1 solution (TOYOBO). To detect the primary antibody, membranes were treated at RT for 1 h with streptavidin-poly-HRP80 (Stereospecific Detection Technologies GmbH, Baesweiler, Germany) for 4G3 or with a combination of biotinylated anti-rabbit IgG (H+L) antibody (#14708, CST) and streptavidin-poly-HRP80 for rabbit polyclonal antibody. Antibody binding was visualized using EzWest Blue (ATTO, Tokyo, Japan).

For the detection of PLXDC2 in human platelets, membranes were incubated at RT for 24 h with primary antibodies—either a clone 4G3 (1:2000) or a rabbit polyclonal antibody (12285-1-AP, Proteintech, 1:2000)—diluted in Can Get Signal 1 solution (TOYOBO). To detect the bound primary antibodies, membranes were then incubated at RT for 1 h with an HRP-conjugated anti-rabbit IgG secondary antibody (#7074, CST, 1:5000), diluted in TBS-T. Antibody binding was visualized using SuperSignal Western Blot Enhancer (Thermo Fisher Scientific). Chemiluminescent signals were captured using the ImageQuant LAS 500 system (Cytiva, Japan).

Statistics and reproducibility

Data for each experiment were collected from a minimum of three biological replicates. Quantitative data were analyzed using GraphPad Prism (10.1.0) employing unpaired Student’s t-test or one- or two-way ANOVA without correction for multiple comparison (Fisher LSD test). All data are presented as mean ± SEM. Significance levels were set at *p < 0.05, **p < 0.01, and ***p < 0.001. For statistical analysis, GraphPad Prism was used.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

The RNA-sequencing data have been deposited in the NCBI Gene Expression Omnibus under the accession code GSE303568. Source data are provided with this paper.

Materials availability

Plxdc2-GFP knock-in mice are available from Columbia University with a material transfer agreement (MTA). The human PLXDC2 monoclonal antibody generated in this study is also available from Kyokuto Pharmaceutical Industrial Co., Ltd and Abwiz Bio Inc.

References

Spangrude, G. J., Heimfeld, S. & Weissman, I. L. Purffication and Characterization Of Mouse Hematopoietic Stem Cells. Science 241, 58–62 (1988).
PubMed Google Scholar
Osawa, M., Hanada, K. I., Hamada, H. & Nakauchi, H. Long-term lymphohematopoietic reconstitution by a single CD34-low/negative hematopoietic stem cell. Science 273, 242–245 (1996).
PubMed Google Scholar
Spangrude, G. J. Long-term repopulation of irradiated mice with limiting numbers of purified hematopoietic stem cells: in vivo expansion of stem cell phenotype but not function. Blood 85, 11 (1995).
Google Scholar
Kiel, M. J. et al. SLAM family receptors distinguish hematopoietic stem and progenitor cells and reveal endothelial niches for stem cells. Cell 121, 1109–1121 (2005).
PubMed Google Scholar
Mayani, H. & Dragowska, W. Characterization of functionally distinct subpopulations of CD34+ cord blood cells in serum-free long-term cultures supplemented with hematopoietic cytokines. Blood 82, 2664–2672 (1993).
PubMed Google Scholar
Baum, C. M. & Peault, B. Isolation of a candidate human hematopoietic stem-cell population. Proc. Natl. Acad. Sci. USA 89, 2804–2808 (1992).
PubMed PubMed Central Google Scholar
Craig, W., Kay, R., Cutler, R. L. & Lansdorp, P. M. Expression of Thy-1 on human hematopoietic progenitor cells. J. Exp. Med. 177, 1331–1342 (1993).
PubMed Google Scholar
Majeti, R., Park, C. Y. & Weissman, I. L. Identification of a hierarchy of multipotent hematopoietic progenitors in human cord blood. Cell Stem Cell 1, 635–645 (2007).
PubMed PubMed Central Google Scholar
Hao, Q., Shah, A., Thiemann, F., Smogorzewska, E. & Crooks, G. A functional comparison of CD34 + CD38- cells in cord blood and bone marrow. Blood 86, 3745–3753 (1995).
PubMed Google Scholar
Bhatia, M., Wang, J. C. Y., Kapp, U., Bonnet, D. & Dick, J. E. Purification of primitive human hematopoietic cells capable of repopulating immune-deficient mice. Proc. Natl. Acad. Sci. USA 94, 5320–5325 (1997).
PubMed PubMed Central Google Scholar
Notta, F. et al. Isolation of single human hematopoietic stem cells capable of long-term multilineage engraftment. Science 333, 218–221 (2011).
PubMed Google Scholar
Visser, J. W., Bauman, J. G., Mulder, A. H., Eliason, J. F. & de Leeuw, A. M. Isolation of murine pluripotent hemopoietic stem cells. J. Exp. Med. 159, 1576–1590 (1984).
PubMed Google Scholar
Christensen, J. L. & Weissman, I. L. Flk-2 is a marker in hematopoietic stem cell differentiation: a simple method to isolate long-term stem cells. Proc. Natl. Acad. Sci. USA 98, 14541–14546 (2001).
PubMed PubMed Central Google Scholar
Chen, C. Z. et al. Identification of endoglin as a functional marker that defines long-term repopulating hematopoietic stem cells. Proc. Natl. Acad. Sci. USA 99, 15468–15473 (2002).
Balazs, A. B., Fabian, A. J., Esmon, C. T. & Mulligan, R. C. Endothelial protein C receptor (CD201) explicitly identifies hematopoietic stem cells in murine bone marrow. Blood 107, 2317–2321 (2006).
PubMed PubMed Central Google Scholar
Yokota, T. et al. The endothelial antigen ESAM marks primitive hematopoietic progenitors throughout life in mice. Blood 113, 2914–2923 (2009).
PubMed PubMed Central Google Scholar
Ooi, A. G. L. et al. The adhesion molecule Esam1 is a novel hematopoietic stem cell marker. Stem Cells 27, 653–661 (2009).
PubMed Google Scholar
Morita, Y., Ema, H. & Nakauchi, H. Heterogeneity and hierarchy within the most primitive hematopoietic stem cell compartment. J. Exp. Med. 207, 1173–1182 (2010).
PubMed PubMed Central Google Scholar
Yamamoto, R. et al. Clonal analysis unveils self-renewing lineage-restricted progenitors generated directly from hematopoietic stem cells. Cell 154, 1112–1126 (2013).
PubMed Google Scholar
Gazit, R. et al. Fgd5 identifies hematopoietic stem cells in the murine bone marrow. J. Exp. Med. 211, 1315–1331 (2014).
PubMed PubMed Central Google Scholar
Chen, J. Y. et al. Hoxb5 marks long-term haematopoietic stem cells and reveals a homogenous perivascular niche. Nature 530, 223–227 (2016).
PubMed PubMed Central Google Scholar
Acar, M. et al. Deep imaging of bone marrow shows non-dividing stem cells are mainly perisinusoidal. Nature 526, 126–130 (2015).
PubMed PubMed Central Google Scholar
Chao, M. P., Seita, J. & Weissman, I. L. Establishment of a normal hematopoietic and leukemia stem cell hierarchy. Cold Spring Harb. Symp. Quant. Biol. 73, 439–449 (2008).
PubMed Google Scholar
Kubota, Y., Osawa, M., Jakt, L. M., Yoshikawa, K. & Nishikawa, S.-I. Necdin restricts proliferation of hematopoietic stem cells during hematopoietic regeneration. Blood 114, 4383–4392 (2009).
PubMed Google Scholar
Miller, S. F. C. et al. Expression of Plxdc2/TEM7R in the developing nervous system of the mouse. Gene Expr. Patterns 7, 635–644 (2007).
PubMed Google Scholar
Miller-Delaney, S. F. C., Lieberam, I., Murphy, P. & Mitchell, K. J. Plxdc2 is a mitogen for neural progenitors. PLoS ONE 6, e14565 (2011).
PubMed PubMed Central Google Scholar
Cheng, G. et al. Identification of PLXDC1 and PLXDC2 as the transmembrane receptors for the multifunctional factor PEDF. eLife 3, e05401 (2014).
PubMed PubMed Central Google Scholar
Bianchi, E. et al. Control of oviductal fluid flow by the G-protein coupled receptor Adgrd1 is essential for murine embryo transit. Nat. Commun. 12, 1251 (2021).
PubMed PubMed Central Google Scholar
Tubau-Juni, N. et al. Identification of new regulatory genes through expression pattern analysis of a global RNA-seq dataset from a Helicobacter pylori co-culture system. Sci. Rep. 10, 11506 (2020).
PubMed PubMed Central Google Scholar
Shimizu, H. et al. Improving the quality of a recombinant rabbit monoclonal antibody against PLXDC2 by optimizing transient expression conditions and purification method. Protein Expr. Purif. 146, 27–33 (2018).
PubMed Google Scholar
Laurenti, E. et al. CDK6 levels regulate quiescence exit in human hematopoietic stem cells. Cell Stem Cell 16, 302–313 (2015).
PubMed PubMed Central Google Scholar
Cabezas-Wallscheid, N. et al. Vitamin A-retinoic acid signaling regulates hematopoietic stem cell dormancy. Cell 169, 807–823.e19 (2017).
PubMed Google Scholar
Fukushima, T. et al. Discrimination of dormant and active hematopoietic stem cells by G0 marker reveals dormancy regulation by cytoplasmic calcium. Cell Rep. 29, 4144–4158 (2019).
PubMed Google Scholar
Kurotaki, D. et al. Essential role of the IRF8-KLF4 transcription factor cascade in murine monocyte differentiation. Blood 121, 1839–1849 (2013).
PubMed PubMed Central Google Scholar
Kurotaki, D. et al. Transcription factor IRF8 governs enhancer landscape dynamics in mononuclear phagocyte progenitors. Cell Rep. 22, 2628–2641 (2018).
PubMed Google Scholar
Georgantas, R. W. et al. Microarray and serial analysis of gene expression analyses identify known and novel transcripts overexpressed in hematopoietic stem cells. Cancer Res. 64, 4434–4441 (2004).
PubMed Google Scholar
Fares, I. et al. Pyrimidoindole derivatives are agonists of human hematopoietic stem cell self-renewal. Science 345, 1509–1512 (2014).
PubMed PubMed Central Google Scholar
Fares, I. et al. EPCR expression marks UM171-expanded CD34+ cord blood stem cells. Blood 129, 3344–3351 (2017).
PubMed Google Scholar
Ishibashi, T. et al. ESAM is a novel human hematopoietic stem cell marker associated with a subset of human leukemias. Exp. Hematol. 44, 269–281.e1 (2016).
PubMed Google Scholar
Murphy-Ullrich, J. E. & Poczatek, M. Activation of latent TGF-b by thrombospondin-1: mechanisms and physiology. Cytokine Growth Factor Rev. 11, 59–69 (2000).
Yamazaki, S. et al. Nonmyelinating Schwann cells maintain hematopoietic stem cell hibernation in the bone marrow niche. Cell 147, 1146–1158 (2011).
PubMed Google Scholar
Wang, B., Golemis, E. A. & Kruh, G. D. ArgBP2, a multiple Src homology 3 domain-containing, Arg/Abl-interacting protein, is phosphorylated in v-Abl-transformed cells and localized in stress fibers and cardiocyte Z-disks. J. Biol. Chem. 272, 17542–17550 (1997).
PubMed Google Scholar
Zhao, L. et al. The RNA binding protein SORBS2 suppresses metastatic colonization of ovarian cancer by stabilizing tumor-suppressive immunomodulatory transcripts. Genome Biol. 19, 35 (2018).
Lu, J. et al. Fak depletion in both hematopoietic and nonhematopoietic niche cells leads to hematopoietic stem cell expansion. Exp. Hematol. 40, 307–317.e3 (2012).
Batista, S. et al. Haematopoietic focal adhesion kinase deficiency alters haematopoietic homeostasis to drive tumour metastasis. Nat. Commun. 5, 5054 (2014).
PubMed Google Scholar
Loeffler, D. et al. Asymmetric lysosome inheritance predicts activation of haematopoietic stem cells. Nature 573, 426–429 (2019).
PubMed Google Scholar
Laguette, N. et al. SAMHD1 is the dendritic- and myeloid-cell-specific HIV-1 restriction factor counteracted by Vpx. Nature 474, 654–657 (2011).
PubMed PubMed Central Google Scholar
Hrecka, K. et al. Vpx relieves inhibition of HIV-1 infection of macrophages mediated by the SAMHD1 protein. Nature 474, 658–661 (2011).
PubMed PubMed Central Google Scholar
Wu, X. et al. Intrinsic Immunity Shapes Viral Resistance of Stem Cells. Cell 172, 423–438.e25 (2018).
PubMed Google Scholar
Lehnertz, B. et al. HLF expression defines the human hematopoietic stem cell state. Blood 138, 2642–2654 (2021).
Hayashi, T. et al. Single-cell full-length total RNA sequencing uncovers dynamics of recursive splicing and enhancer RNAs. Nat. Commun. 9, 619 (2018).
PubMed PubMed Central Google Scholar
Subramanian, A. et al. Gene set enrichment analysis: a knowledge-based approach for interpreting genome-wide expression profiles. Proc. Natl. Acad. Sci. USA 102, 15545–15550 (2005).
PubMed PubMed Central Google Scholar
Gomariz, A. et al. Quantitative spatial analysis of haematopoiesis-regulating stromal cells in the bone marrow microenvironment by 3D microscopy. Nat. Commun. 9, 2532 (2018).
PubMed PubMed Central Google Scholar
Sato, Y., Unno, Y., Miyazaki, C., Ubagai, T. & Ono, Y. Multidrug-resistant Acinetobacter baumannii resists reactive oxygen species and survives in macrophages. Sci. Rep. 9, 17462 (2019).

Download references

Acknowledgements

The authors thank Shiori Shikata and Akiho Tsuchiya for expert technical assistance. The authors thank the IMSUT FACS Core Laboratory and the IMSUT Animal Research Center. This work was supported by a Grant-in-Aid for Challenging Exploratory Research (17K19645, Y.T.), KAKENHI grant number (20K07639, Y.K.), a grant from The SENSHIN Medical Research Foundation (Y.T.), a grant from Leukemia Research Fund (S.G.), Tokyo Metropolitan Small and Medium Enterprise Support Center (T.A. and Y.T.), and MRC-AMED joint award (MR/V005502/1) (D.G.K. and Y.T). The authors finally thank Shin-ichi Nishikawa for supervision of starting this study.

Author information

These authors contributed equally: Yosuke Tanaka, Yasushi Kubota.
Deceased: Yasunori Kurosawa.
Deceased: Thomas M. Jessell.

Authors and Affiliations

Division of Cell Regulation, Center for Experimental Medicine and Systems Biology, The Institute of Medical Science, The University of Tokyo, Tokyo, Japan
Yosuke Tanaka, Takaharu Kimura, Tsuyoshi Fukushima & Satoshi Yamazaki
Laboratory of Stem Cell Regulation, International Research Center for Medical Sciences, Kumamoto University, Kumamoto, Japan
Yosuke Tanaka, Tomohiro Yabushita & Toshio Suda
Division of Hematology, Respiratory Medicine and Oncology, Department of Internal Medicine, Faculty of Medicine, Saga University, Saga, Japan
Yasushi Kubota & Shinya Kimura
Department of Clinical Laboratory Medicine, Saga-ken Medical Centre KOSEIKAN, Saga, Japan
Yasushi Kubota
Department of Hematology, Faculty of Medicine, University of Tsukuba, Tsukuba, Japan
Riko Kikuchi & Hidekazu Nishikii
Centre for Gene Therapy and Regenerative Medicine and Centre for Developmental Neurobiology, King’s College London, London, UK
Ivo Lieberam
Department of Biology, York Biomedical Research Institute, University of York, York, UK
Jillian L. Barlow, Josh W. Bramley & David G. Kent
Kyokuto Pharmaceutical Industrial Co., Ltd, Tokyo, Japan
Chiaki Sakuma, Takashi Shibata, Masataka Nakagawa, Yasunori Kurosawa & Teruo Akuta
Abwiz Bio, Inc., San Diego, CA, USA
Yasunori Kurosawa, Toshiaki Maruyama & C. J. Okumura
Department of Anatomy, Faculty of Life Sciences, Kumamoto University, Kumamoto, Japan
Yuichiro Arima
Department of Microbiology and Immunology, Teikyo University School of Medicine, Tokyo, Japan
Yoshinori Sato & Yasuo Ono
Faculty of Health and Medical Science, Teikyo Heisei University, Tokyo, Japan
Yasuo Ono
Laboratory of Multi-dimensional imaging, International Research Center for Medical Sciences, Kumamoto University, Kumamoto, Japan
Hidenobu Mizuno
Howard Hughes Medical Institute, Zuckerman Institute, Depts. of Neuroscience, and Biochemistry and Molecular Biophysics, Columbia University, New York, NY, USA
Thomas M. Jessell
Division of Molecular Oncology, Department of Computational Biology and Medical Sciences, Graduate School of Frontier Sciences, The University of Tokyo, Tokyo, Japan
Susumu Goyama
Division of Cellular Therapy, The Institute of Medical Science, The University of Tokyo, Tokyo, Japan
Toshio Kitamura

Authors

Yosuke Tanaka
View author publications
Search author on:PubMed Google Scholar
Yasushi Kubota
View author publications
Search author on:PubMed Google Scholar
Riko Kikuchi
View author publications
Search author on:PubMed Google Scholar
Tomohiro Yabushita
View author publications
Search author on:PubMed Google Scholar
Takaharu Kimura
View author publications
Search author on:PubMed Google Scholar
Ivo Lieberam
View author publications
Search author on:PubMed Google Scholar
Jillian L. Barlow
View author publications
Search author on:PubMed Google Scholar
Josh W. Bramley
View author publications
Search author on:PubMed Google Scholar
Tsuyoshi Fukushima
View author publications
Search author on:PubMed Google Scholar
Chiaki Sakuma
View author publications
Search author on:PubMed Google Scholar
Takashi Shibata
View author publications
Search author on:PubMed Google Scholar
Masataka Nakagawa
View author publications
Search author on:PubMed Google Scholar
Yasunori Kurosawa
View author publications
Search author on:PubMed Google Scholar
Toshiaki Maruyama
View author publications
Search author on:PubMed Google Scholar
C. J. Okumura
View author publications
Search author on:PubMed Google Scholar
Yuichiro Arima
View author publications
Search author on:PubMed Google Scholar
Yoshinori Sato
View author publications
Search author on:PubMed Google Scholar
Yasuo Ono
View author publications
Search author on:PubMed Google Scholar
Teruo Akuta
View author publications
Search author on:PubMed Google Scholar
Hidenobu Mizuno
View author publications
Search author on:PubMed Google Scholar
David G. Kent
View author publications
Search author on:PubMed Google Scholar
Thomas M. Jessell
View author publications
Search author on:PubMed Google Scholar
Susumu Goyama
View author publications
Search author on:PubMed Google Scholar
Hidekazu Nishikii
View author publications
Search author on:PubMed Google Scholar
Shinya Kimura
View author publications
Search author on:PubMed Google Scholar
Satoshi Yamazaki
View author publications
Search author on:PubMed Google Scholar
Toshio Suda
View author publications
Search author on:PubMed Google Scholar
Toshio Kitamura
View author publications
Search author on:PubMed Google Scholar

Contributions

Conceptualization and methodology: Y.T., T.A. and Y.K.; investigation: Y.T., Y.K., T.F., Y.A., T.K., T.Y., J.L.B., R.K., Y.S., Y.O., H.M. and J.W.B.; visualization: C.S., T.S., M.N., Y.K., T.M. and T.A.; writing—original draft: Y.T.; writing—review and editing: Y.T., Y.K., D.G.K., S.Y. and T.S.; funding acquisition: Y.T., T.A., D.G.K. and Y.K.; resources: Y.T., Y.K., S.G., I.L., C.S., T.S., M.N., Y.K., T.M., C.J.O., T.A., H.N. and T.M.J.; supervision: S.K., T.A., and T.K.

Corresponding authors

Correspondence to Yosuke Tanaka or Yasushi Kubota.

Ethics declarations

Competing interests

The authors declare no competing interests.

Peer review

Peer review information

Communications Biology thanks the anonymous reviewers for their contribution to the peer review of this work. Primary Handling Editor: Dario Ummarino. A peer review file is available.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary information

Transparent Peer Review file

Supplementary Information

Description of Additional Supplementary Files

Supplementary Data

Supplemental Movie S1

Reporting Summary

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution-NonCommercial-NoDerivatives 4.0 International License, which permits any non-commercial use, sharing, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if you modified the licensed material. You do not have permission under this licence to share adapted material derived from this article or parts of it. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by-nc-nd/4.0/.

Reprints and permissions

About this article

Cite this article

Tanaka, Y., Kubota, Y., Kikuchi, R. et al. Prospective isolation of mouse and human hematopoietic stem cells using PLXDC2. Commun Biol 9, 20 (2026). https://doi.org/10.1038/s42003-025-09242-x

Download citation

Received: 11 September 2024
Accepted: 12 November 2025
Published: 10 December 2025
Version of record: 05 January 2026
DOI: https://doi.org/10.1038/s42003-025-09242-x
