Main

Nitrogen atoms play a ubiquitous role across pharmaceuticals, agrochemicals, natural products, materials and various commodity chemicals. Moreover, at the core of life itself lies the simplest amine, ammonia, whose function as a fertilizer sustains the world’s food production. Accordingly, biological systems utilize ammonia as a fundamental building block for synthesizing complex molecules. In organic compounds, nitrogen atoms appear in various important functional groups, including amines, amides and N-heterocycles, among others. Consequently, the development of synthetic methodologies for forming carbon–nitrogen (C–N) bonds is paramount1. Practical approaches to forge these sigma bonds involve amine alkylation, reductive amination of carbonyl groups with amines, and transition-metal-catalysed C–N cross coupling of N-nucleophiles with alkyl or aryl halides2,3,4,5,6,7. Alternatively, alkenes have proven effective substrates in hydroamination reactions using transition-metal catalysis8,9,10,11. For terminal alkenes, this can yield two regioisomeric products: the anti-Markovnikov or the branched Markovnikov product, depending on the method chosen (Fig. 1a).

Fig. 1: Hydroamination and hydration of alkenes.
figure 1

a, Hydroamination of terminal alkenes using transition-metal catalysis or radical methods provides either the Markovnikov or the anti-Markovnikov product. b, Mukaiyama-type hydration with O2 as the radical trapping reagent and improved variant that uses a nitroarene as the C-radical oxygenation reagent, exemplified by the hydration of a complex natural product, aromadendrene. c, The design of a radical amination reagent based on the structure of the successful nitroarene oxygen atom donor. r.t., room temperature; Fe(acac)3, iron acetylacetonate.

Full size image

In addition to transition-metal-catalysed hydroaminations, effective radical processes have emerged over the past two decades. Considering N-centred radicals, the anti-Markovnikov products are obtained with high regioselectivity as a result of N-radical addition at the terminal position of the alkene functionality12,13,14,15,16. Conversely, regioisomeric hydroamination products are formed through metal-hydride hydrogen atom transfer reactions (MHAT)17, followed by radical C–N bond formation. Silanes are commonly used as stoichiometric hydride sources in these reactions. Cobalt catalysis, in combination with azodicarboxylates18 or α-azoesters19 as C-radical trapping reagents, has proven to be efficient. Notable, nitric oxide20, alkyl nitrite21 and phenylsulfonyl azide22,23 have been also successfully used as radical amination reagents in Co-catalysed processes. Probably even more valuable are the corresponding hydroamination processes catalysed or mediated by iron salts, as iron is highly abundant and cost efficient. Arylazo sulfones24, nitroarenes25, diazo compounds26 and other amine sources27,28 have been used as the radical amination reagents in these processes. Despite these advancements, a universally applicable method for the Fe-catalysed hydroamination of complex alkenes remains to be reported.

The most prominent reaction across all MHAT transformations is the hydration, often called Mukaiyama hydration29, where the C-radical generated after initial hydrogen atom transfer to an alkene is oxidized by air (Fig. 1b). This reaction has demonstrated its importance through numerous applications in the synthesis of complex natural products, effectively showcasing its utility17. However, achieving control over diastereoselectivity in these transformations has often posed challenges, primarily due to the near diffusion-controlled nature of C-radical trapping with O2. To address this critical issue, we recently introduced electron-poor nitroarenes as the oxygenation reagents in iron-catalysed alkene hydrations30. The scope of this reaction was remarkably broad, leading to its successful application in complex natural product synthesis31,32,33,34,35. Moreover, the diastereoselectivity observed was consistently superior to that of classical Mukaiyama-type hydrations.

Encouraged by these findings, we decided to develop a broadly applicable radical amination reagent for the stereoselective Fe-catalysed hydroamination of complex alkenes on the basis of the molecular structure of the highly efficient nitroarene oxygen atom donor. As an initial step in our reagent design process, we opted to replace the nitro functionality with an azoxy functionality, while keeping the central arene moiety that can be readily substituted at the para-position to additionally tune the electronic properties of the targeted amination reagent (Fig. 1c). This structure-based design led us to first propose azoxyarenes that are known and easily accessible compounds36.

Studies were commenced by preparing as series of azoxyarenes 2a–2d with the goal to add an aniline moiety across a double bond (please refer to Supplementary Fig. 3 for the synthesis of these reagents). The unactivated alkene 1a was selected as the model substrate. Initial screening of the conditions with the ester-substituted reagent 2a revealed that the desired hydroamination can be achieved with Fe(dibm)3 as the catalyst (Supplementary Table 1). Thus, reaction of 1a with the reagent 2a (1.2 equiv.), PhSiH3 (3.0 equiv.) and Fe(dibm)3 (10 mol%) in an ethanol–dichloromethane (DCM) mixture (1:1) at room temperature provided the desired product 4a, albeit in 11% yield only (Fig. 2). The nitrile congener 2b gave the same yield, while the corresponding CF3 derivative (2c) and the nitro derivative (2d) afforded worse results. Contrary to our expectation, an electron-withdrawing para-substituent seems to be detrimental to the reaction outcome. We therefore installed electron-donating substituents at the aryl moiety (see 2e–2h) and identified the para-dimethylamino-azoxybenzene 2h as an improved reagent in this series. The amine 4a was formed in 18% yield with exclusive Markovnikov selectivity.

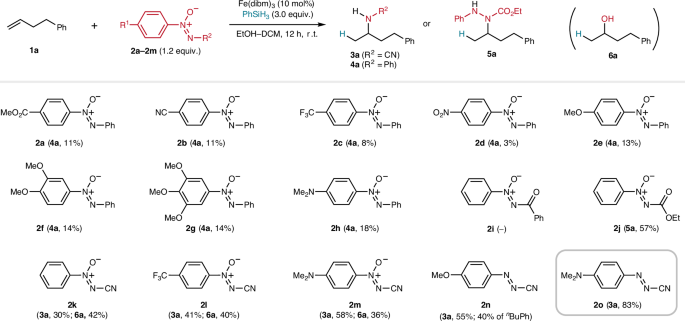

Fig. 2: Evolution of the radical amination/amidation reagent using alkene 1a as the model substrate.
figure 2

Conditions: 1a (0.2 mmol) in ethanol (EtOH)–DCM (1:1, 2 ml). Fe(dibm)3, iron tris(diisobutyrylmethane). The grey box highlights the best hydroamidation reagent.

Full size image

Investigations were continued by varying the R2 substituent in the reagent. As electron-donating groups at the arene moiety improved the C-radical trapping efficiency, we decided to install π-acceptors as N substituents to increase the polarity of the N=N double bond. The N-benzoyl system 2i did not afford any of the targeted hydroamidation product, probably for steric reasons. An improved yield was noted with the N-ethoxycarbonyl reagent 2j to afford the hydrazide 5a in 57% yield. Thus, the addition reaction worked more efficiently; however, final N–N-bond cleavage did not occur for this transformation. Realizing the importance of steric effects, we then tested the reagent 2k carrying the small cyano group and obtained the hydrocyanamidation product 3a in 30% yield. Surprisingly, the major product in this reaction was the secondary alcohol 6a through a Mukaiyama-type hydration. Thus, reagent 2k can obviously act as an O donor as well as an NCN donor. Reaction efficiency further improved with the CF3-substituted congener 2l with the desired hydroamidation product 3a and 6a being formed in roughly equal amounts (81% overall yield). The best result in this cyanamide series was obtained with the para-dimethylamino-substituted radical trapping reagent 2m that provided the targeted 3a in 58% yield along with alcohol 6a (36%). We intensively tried to improve the ratio of hydroamidation versus hydration product by further optimizing reaction conditions. However, all our attempts failed. Of note, by carefully excluding O2, we could show that the alcohol 6a is fully derived from reagent 2m and not through air-mediated radical oxygenation. A logical progression in the optimization campaign, therefore, was to remove the oxygen atom from the reagent, hoping that the resulting cyanoazo compound would retain sufficient reactivity as a C-radical acceptor. The cyanated azo compounds 2n and 2o can be readily prepared on a larger scale37 (see ‘General procedure 3’ in the Supplementary Information, page 6). Under standard conditions, reagent 2n delivered the desired cyanamide 3a in 55% yield. As a side product, n-butylbenzene resulting from hydrogenation17 of 1a was formed in 40% yield. We were pleased to find that the dimethylamino-reagent 2o performed very well affording the targeted cyanamide 3a in 83% yield and formation of the hydrogenation product was fully suppressed. It is noteworthy that the cyanamide functionality easily introduced via our methodology possesses distinct properties both as a highly valuable building block in organic synthesis and as a ligand for various metals38. In addition, cyanamides have recently gained attention as privileged reactive functionalities in bioactive compounds, for example, serving as covalent inhibitors of deubiquitinating enzymes39.

With the optimized conditions in hand, various activated and unactivated alkenes bearing different functionalities could be efficiently hydroamidated (Fig. 3). Considering monosubstituted alkenes, both simple aliphatic and aromatic systems worked well, with isolated yields ranging from 67% to 82% (3a–3d and 3f). Notably, an aryl iodide moiety that can be used in subsequent cross-coupling reactions was tolerated. Styrenes (3c and 3d) and an internal aryl-substituted activated alkene (3e) underwent highly regioselective Markovnikov hydroamidation in good yields (67–87%). The reaction also worked well on 1,1-disubstituted alkenes (3k, 3n and 3o). Furthermore, internal cyclic alkenes engaged in the hydrofunctionalization to give the corresponding cyanamidation products (3l and 3m). For unsymmetrical 1,2-disubstituted internal alkenes, low regioselectivity was observed for 4-methyl-2-pentene (3p) and the even more sterically biased 4,4-dimethyl-2-pentene (3q) also reacted with moderate selectivity. O-benzoylated crotyl alcohol also provided a low regioselectivity (3r), while complete regiocontrol was achieved in the hydroamidation of a vinyl amide to give the N,N-acetal 3s. The regioselectivity of the latter aligns with MHAT-type reactions on vinyl amides17. However, hydroamidation did not work for the electron-poor double bond in methyl crotonate and crotononitrile. The radical hydroamidation was compatible with commonly used functional groups, including halogen (3d, 3g and 3h), silane (3h), boronic acid pinacol ester (3i), phthalimide (3j), ester (3n, 3k, 3ag, 3aj, 3ak and 3al), nitrile (3o), acetal (3ak), ketone (3u, 3ab and 3ah) and free alcohols (3aa and 3af).

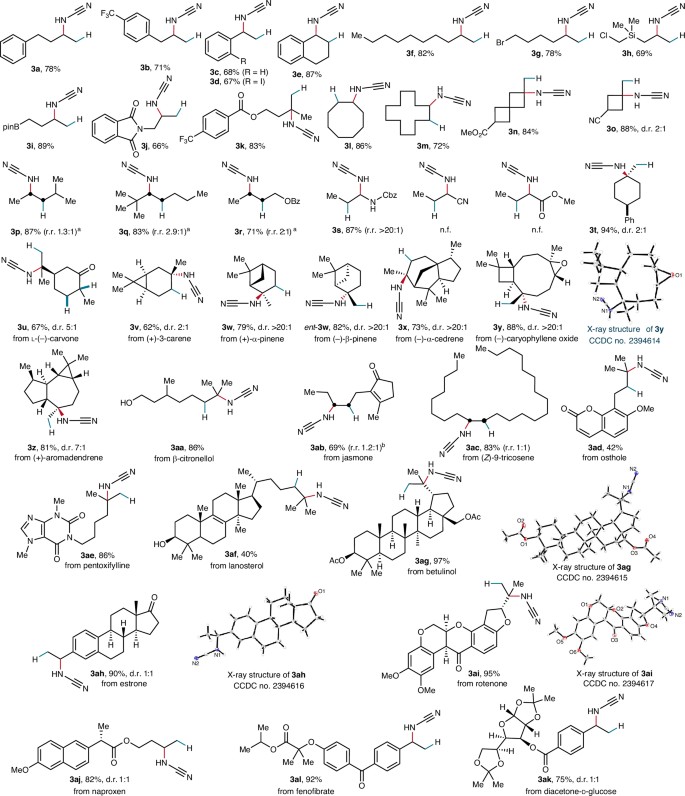

Fig. 3: Scope of the Fe-catalysed hydroamidation of complex alkenes including natural products.
figure 3

Conditions: alkene (0.2 mmol) in EtOH–DCM (1:1, 2 ml). Fe(dibm)3 (10 mmol%): iron tris(diisobutyrylmethane). Phenylsilane (0.6 mmol). Reagent 2o (0.24 mmol). n.f., no functionalization; Bpin, pinacolborane. X-ray structure of compounds 3y, 3ag, 3ah and 3ai. Reactions were carried out on 0.1 mmol scale, and all yields provided refer to isolated yields. Diastereoselectivity (if applicable) was determined by gas chromatography or NMR spectroscopy analysis, and the relative configuration was assigned by X-ray analysis of single crystals or in analogy to a known related compound. r.r., regioselectivity ratio; Cbz, benzyloxycarbonyl. aMajor isomer of the two inseparable regioisomers drawn. bRegioisomers could not be unambiguously assigned. In products 3p, 3q, 3r, 3ab and 3ac, the two black dots indicate the sites where the N atom is attached to the carbon backbone in the two regioisomers. However, only one regioisomer is depicted in the figure.

Full size image

To illustrate the potential of the developed radical hydroamidation strategy, we applied the reaction to late-stage modification of natural products and drug derivatives. For example, the chemical modification of bicyclic monoterpenes is readily achieved, as exemplified by the hydroamidation of (+)-α-pinene and (−)-β-pinene to afford the tertiary cyanamides 3w and ent-3w in very good yields (79% and 82%, respectively) and excellent diastereoselectivity (>20:1 for both pinene isomers). Products derived from ring opening of the strained four-membered rings in these systems were not identified, indicating a highly efficient trapping of the tertiary C-radical by reagent 2o. (+)-3-Carene could be hydroamidated to provide 3v (62%) with moderate selectivity (diastereomeric ratio (d.r.) 2:1). Epoxides are tolerated, as documented by the successful hydroamidation of natural (−)-caryophyllene oxide to afford 3y in 88% yield and excellent diastereoselectivity (>20:1). The relative configuration of 3y was unambiguously assigned by X-ray structure analysis. More complex (+)-aromadendrene gave the tertiary cyanamide 3z with a good stereoselectivity (d.r. 7:1) in high yield (81%). (−)-α-Cedrene was an eligible substrate to afford the tertiary cyanamide 3x as a single diastereoisomer in 73% yield. The hydroamidation of the terminal double bond in l-(−)-carvone could be achieved; however, the enone moiety was also hydrogenated under the applied conditions to give 3u. As mentioned above, the free alcohol moiety in β-citronellol was well tolerated (3aa, 86%). Notably, this successful transformation further showed that 1,1,2-trisubstituted alkenes are eligible substrates for our Fe-catalysed radical hydroamidation. For jasmone and (Z)-9-tricosene, the products 3ab and 3ac could be isolated in 69% and 83% yields as regioisomeric mixtures. Considering jasmone, hydroamidation of the enone moiety does not occur for electronic reasons, while its hydrogenation is probably suppressed for steric reasons. The relative electron-rich coumarin ring in osthole (3ad) was retained, and its terminal double bond was chemoselectively cyanamidated. Other heterocycles are also tolerated, and, for example, hydroamidation of pentoxifylline occurred in good yield (3ae, 86%). Pentacyclic triterpenoid derivatives could be transformed, as documented by the hydroamidation of acyl-protected betulinol, which gave the desired tertiary cyanamide 3ag in excellent 97% yield. The steroidal compound lanosterol reacted with complete chemoselectivity, and the tetrasubstituted alkene moiety in the ring remained unreacted (3af). Likewise, electron-rich arenes and naphthalene rings were also compatible (3ai and 3aj). The structures of 3ag, 3ah and 3ai were further confirmed through X-ray analysis. It is important to note that many of the presented products are difficult to construct through de novo synthesis. Furthermore, various styrene derivatives derived from estrone (3ah), diacetone-d-glucose (3ak) and fenofibrate (3al) could be hydroamidated in moderate-to-excellent yields.

The highly valuable cyanamide functionality in these products can undergo various transformations to afford diverse compound classes (Fig. 4a). The hydrolysis of cyanamide 3a with potassium hydroxide in ethanol/H2O in the presence of a crown ether gave the free amine 7 in good yield (81%). Aminolysis of the cyanamide moiety in 3a with acetaldoxime and InCl3 afforded the urea 8 with excellent yield (95%)40. The latter can be further hydrolysed to the free amine 7 using diethylenetriamine (DETA, 93%)41. N-benzoylation of 3a with benzoyl chloride using sodium hydride as the base afforded the N-benzoyl-protected amide 9 (98%). The product cyanamides also serve as hub structures for the preparation of tetrazoles, as shown by the successful transformation of 3a through nitrile/azide cycloaddition to give 10. A ZnCl2-catalysed formal (3 + 2) cycloaddition between compound 3a and an amidoxime reagent provided the 1,2,4-oxadiazole 12 (92%), which represents a key structural motif in a number of bioactive compounds. Moreover, under acidic conditions, cyanamide 3a reacted with ortho-aminothiophenol to the aminated benzothiazole 11. Recently, a methodology using adaptive dynamic homogeneous catalysis with nickel under visible-light-driven redox reaction conditions to realize C(sp2)-(hetero)atom coupling was reported42. Applying this method, the C–N coupling of cyanamide 3a with an aryl iodide was achieved (see 13, Fig. 4b). Benzyl bromide can be used as N-alkylation reagent for cyanamides applying copper catalysis to afford the corresponding N-benzylated amides, as documented by the successful preparation of 14 (89%; Fig. 4c). Importantly, N-cyanated piperidines can be readily accessed through intramolecular N-alkylation under basic conditions, as shown by the transformation of 3g to 15 (73%; Fig. 4d). Cyanamides after N-benzylation are eligible substrates for Ir-catalysed [2 + 2 + 2] cycloaddition with α,ω-diynes (Fig. 4e). This atom-economic route was successfully used for the construction of a 2-aminopyridine (17, 95%)43. Finally, starting from cyanamide 3d, the synthesis of a tetracyclic pyrroloquinazoline was achieved in two steps using a photoredox radical cascade strategy (19, 89%; Fig. 4f)44.

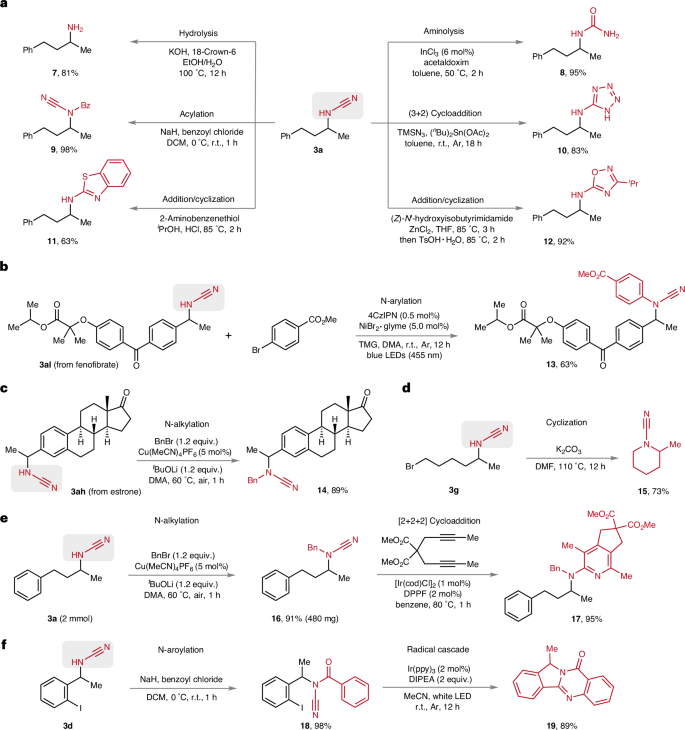

Fig. 4: Chemical transformation of the cyanamide functionality.
figure 4

a, Different reactions of the cyanamide functionality either at the NH moiety or at the nitrile group. The free amine 7 can also be obtained through hydrolysis of the urea 8 with DETA at 140 °C for 12 h (93% yield). b, N-arylation through cooperative photoredox/nickel catalysis. c, Cu-catalysed N-benzylation. d, Intramolecular N-alkylation at elevated temperature under basic conditions. e, N-benzylation followed by Ir-catalysed cycloaddition for pyridine construction. f, N-aroylation and subsequent radical cascade cyclization. Reactions were carried out on 0.1 mmol scale, and all yields provided refer to isolated yields. TMS, trimethylsilyl; Bz, benzoyl; THF, tetrahydrofuran; 4CzIPN, 1,2,3,5-tetrakis(carbazol-9-yl)-4,6-dicyanobenzene; TMG, tetramethylguanidine; DMA, dimethylacetamide; LED, light-emitting diode; DMF, dimethylformamide; cod, 1,5-cyclooctadiene; DPPF, 1,1′-bis(diphenylphosphino)ferrocene; ppy, 2-phenylpyridine; DIPEA, diisopropylethylamine.

Full size image

To demonstrate the practicality and robustness of the method in both medicinal and process chemistry, we ran the radical alkene hydrofunctionalization at a larger scale using (−)-caryophyllene oxide as well as a naproxen, an estrone and a fenofibrate derivative as starting materials (Fig. 5a). Hydroamidation of (−)-caryophyllene oxide on a 2 mmol scale gave 93% isolated yield of 3y without compromising the high diastereoselectivity (>20:1). Likewise, the other three test compounds could be hydroamidated at a larger scale in very good yields (3aj, 3ah and 3al, 81–90%).

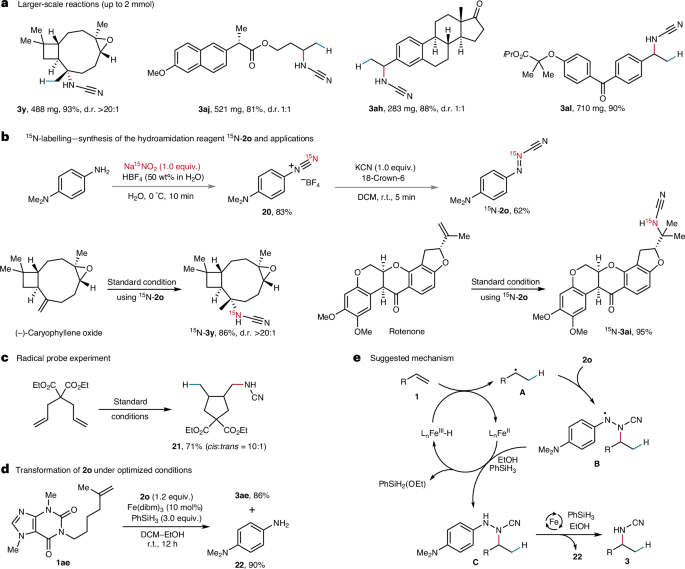

Fig. 5: Scale-up synthesis, 15N-labelling, mechanistic studies and proposed mechanism.
figure 5

a, Larger-scale experiments using reagent 2o. b, The 15N-labelled hydroamidation reagent 15N-2o is readily prepared from commercial Na15NO2. This reagent can be used for the synthesis of complex 15N-marked amine derivatives. c, A 5-exo-cyclization experiment showing the radical nature of the process. d, Analysis of the remainder of reagent 2o after a successful hydroamidation under optimized conditions. e, The proposed mechanism for the Fe-catalysed alkene hydroamidation.

Full size image

More excitingly, we were able to prepare the selectively 15N-isotopically labelled hydroamidation reagent 15N-2o in a two-step procedure using commercial Na15NO2 (52%), which was then successfully used for the 15N-labelling of complex natural compounds through Fe-catalysed hydroamidation (Fig. 5b). Thus, (−)-caryophyllene oxide was readily transformed to the isotopically labelled amide 15N-3y, which was isolated 86% yield with excellent diastereoselectivity and an excellent 15N-incorporation ratio (>95%). In analogy, rotenone was successfully converted to its 15N-labelled cyanamide 15N-3ai (95%). This strategy highlights the synthetic versatility and potential for precise isotopic labelling within complex molecular frameworks, offering valuable tools for advanced applications in natural product synthesis.

To shed light on the mechanism of the hydroamidation, additional experiments were conducted. The radical nature of the hydroamidation was additionally supported by a hydrofunctionalization comprising a radical 5-exo-cyclization (Fig. 5c). α,α-Diallyl-malonic acid diethyl ester was reacted under the standard conditions with reagent 2o, and the cyclization product 21 was isolated in good yield and cis-diastereoselectivity (71%, d.r. 10:1). We further investigated the fate of the remainder of reagent 2o after successful hydroamidation. Radical hydrofunctionalization of 1ae under the optimized conditions gave the desired product 3ae in 86% along with 90% the aminoaniline 22 (Fig. 5d). It is important to note that aniline 22 serves as the starting material for the preparation of the reagent 2o, demonstrating that the portion of the hydroamidation reagent not transferred to the alkene moiety is reusable, further enhancing the atom economy of our iron-catalysed hydroamidation process.

Based on these findings and previous reports on Fe-catalysed hydrofunctionalization reactions30,45,46, we propose the following mechanism (Fig. 5e). In-situ-generated iron(III) hydride first reacts regioselectively with the alkene via MHAT to give the corresponding adduct radical A. This C-radical A then adds regioselectively to reagent 2o to give the hydrazinoyl radical B. The regioselectivity of this reaction is governed by steric and electronic effects. The N-radical B is then probably reduced by the intermediately generated iron(II) species in the presence of ethanol to give the intermediate C. The concomitantly formed iron(III)OEt species can subsequently be reduced with the silane to reform the iron(III) hydride, completing the catalytic cycle. As a stoichiometric byproduct PhSiH2OEt is formed. Further reduction of the N–N bond in the N-cyanated hydrazine C with phenylsilane through iron catalysis eventually provides the cyanamide product 3. As a byproduct of the final reductive N–N-bond cleavage step, the aniline 22 is formed.

Taken together, we have developed a general method for radical Markovnikov-type hydroamidation of various complex alkenes using a catalyst derived from earth-abundant iron. This was achieved through careful design of an alkyl radical amidation reagent. Tuning of steric and electronic effects of the radical acceptor showed that the readily prepared azo compound 2o is an ideal radical amidation reagent. The alkene hydrofunctionalization reactions can be conducted under mild conditions, which is well reflected by the broad functional group tolerance and the broad scope. These practical transformations generally occur with high yields and high selectivity, and also late-stage hydroamidation of complex alkene-containing natural products is feasible. Importantly, we could show that the corresponding 15N-labelled hydroamidation reagent is easy to prepare from commercial Na15NO2 allowing the late-stage 15N-labelling of complex alkenes through iron-catalysed radical hydroamidation. The product amides obtained through the hydroamidation process contain the highly valuable cyanamide functionality that can be chemically further transformed into diverse other important structural entities, as convincingly documented by a series of interesting follow-up reactions. We are confident that the strategy presented here will have broad applicability in pharmaceutical and synthetic research fields.

Methods

The general procedure for hydroamidation of alkenes was as follows. Under an argon flow, Fe(dibm)3 (5.2 mg, 0.01 mmol, 10 mol%) was placed in an oven-dried Schlenk tube equipped with a magnetic stirring bar and dissolved in dry ethanol (0.5 ml) and dry dichloromethane (DCM, 0.5 ml). The alkene (0.10 mmol, 1.0 equiv.) and the radical amination/amidation reagent (0.12 mmol, 1.2 equiv.) were added, followed by dropwise addition of phenylsilane (0.300 mmol, 37.5 µl, 3.0 equiv.). The reaction was stirred for 12 h at room temperature. Afterwards, the solvent was evaporated and the residue was purified using flash chromatography to obtain the pure product.
