Introduction

Myelin is a structure formed by oligodendrocytes, a type of glial cell in the central nervous system (CNS), and is an essential component of neural circuits. It ensheathes neuronal axons, enabling saltatory propagation that accelerates neural transmission and contributes to the maintenance of neural network homeostasis by providing metabolic and trophic support to axons. Therefore, alterations in myelin quantity or structure are considered to have a direct impact on neural function1. Demyelination, characterized by the loss or degradation of myelin, is a hallmark pathological change in CNS diseases such as multiple sclerosis (MS)2 and Alzheimer’s disease (AD)3,4. In addition, myelin abnormalities have been reported to be associated with aging5, excessive physical activity6, and even peripheral, non-neurological diseases7,8,9, leading to white matter damage in the brain. Clinically, early remyelination is crucial for preserving neural function, as prompt myelin repair is expected to mitigate axonal degeneration and prevent irreversible neurological deficits10. Thus, accurate assessment of myelin status is considered beneficial for early diagnosis and timely therapeutic intervention. However, current methods for detecting myelin status in humans rely on positron emission tomography (PET) and diffusion magnetic resonance imaging (MRI)11, both of which have significant limitations in terms of accessibility, simplicity, and cost-effectiveness. MRI requires prolonged stillness, while PET involves the administration of radioactive tracers, both of which impose considerable physical and time burdens on patients. Furthermore, image analysis demands specialized expertise, making these methods unsuitable for simple or routine screening. Given these limitations, there is a growing need, both in clinical and research contexts, for simple, cost-effective methodologies capable of reliably predicting myelin status.

Myelin content fluctuations are closely linked to the developmental dynamics of oligodendrocytes. Oligodendrocytes are formed through the differentiation of their precursor cells, oligodendrocyte precursor cells (OPCs), which are widely distributed throughout the CNS. Myelination begins with the proliferation of OPCs, followed by differentiation into mature oligodendrocytes, and subsequent ensheathment of axons, which requires extensive lipid synthesis12. Traditionally, research on myelination mechanisms has been primarily focused on molecular and cellular roles within the CNS. For instance, leukemia inhibitory factor (LIF) derived from astrocytes promotes OPC differentiation13, while brain-derived neurotrophic factor (BDNF) released from activated neurons stimulates OPCs to myelinate14. The emphasis on CNS-derived molecular regulation of myelination stems from the long-standing view that the brain, protected by the blood-brain barrier (BBB), is functionally isolated from peripheral organs. However, recent advances in inter-organ communication research have revealed that CNS function can be modulated by systemic physiological states and peripheral signals. For instance, the gut microbiota, such as Bacteroidetes and Firmicutes, are linked to cognitive impairment, depending on the gut–brain communication15. Obesity, a systemic condition characterized by altered inter-organ communication, may contribute to impaired cognitive function and an increased risk of dementia later in life16. Regarding myelin regulation, we previously reported that peripheral factors such as leptin17 and fibroblast growth factor (FGF) 2118, promote myelin repair following CNS injury. Among these factors, apelin—produced abundantly by the lungs—has been shown to promote myelin repair in both age-related and disease-associated demyelination19. Furthermore, accumulating evidence highlights various lung–brain interactions, including brain inflammation triggered by inhalation of lipopolysaccharide (LPS)20, the association between aging of respiratory functions and cognitive decline21, and even depression-like behaviors following lung resection in non-small-cell lung cancer22. These findings prompted us to hypothesize that myelin dynamics may be closely linked to the physiological state of peripheral organs such as the lungs, providing a novel perspective for understanding and detecting changes in CNS myelination.

In the present study, we aimed to explore whether morphological changes in myelin could be predicted based on respiratory function. We found that variations in myelin content within the corpus callosum could be predicted through integrative analysis of multiple respiratory parameters, including peak expiratory flow (PEFb), respiratory frequency (f), and pause (PAU), with these metrics emerging as key contributing factors. The integrative analysis could also be applied to predict demyelination in the brain of the mice fed cuprizone, a well-established demyelination reagent. These findings suggest that respiratory parameters may serve as a non-invasive and informative proxy for assessing myelin status in the brain.

Results

Association between age-dependent changes in myelination and respiratory parameters

To investigate the relationship between myelin morphology and respiratory parameters, we designed an experimental approach to visualize both developmental changes in myelin and pathological myelin loss, and to examine their association with respiratory function under each condition (Fig. 1). In this study, we used partially overlapping, but not identical, cohorts for respiratory measurements and MBP immunostaining. We first analyzed developmental changes in myelin content by performing immunohistochemical staining for myelin basic protein (MBP) in brain sections obtained from mice at different ages (2, 4, 9, and 84 weeks). Quantitative analysis revealed age-dependent changes in the MBP-positive area of the corpus callosum (Fig. 2A–C), consistent with previous findings showing that myelination increases from the early postnatal period up to adulthood, followed by a gradual decline in older mice5. Subsequently, respiratory function parameters of the mice (Table 1) were measured at the corresponding ages. Average values of each respiratory parameter were calculated over the observation period (Fig. 2D), and correlation analyses were performed between intergroup differences in these parameters and MBP levels (Table 2). Intergroup variations in parameters such as enhanced pause (Penh), pause (PAU), end inspiratory pause (EIP), time of pause (TP), and time of break (TB) showed a correlation with age-related changes in MBP (Penh, Spearman’s ρ = 0.8, p = 0.2; PAU, Spearman’s ρ = 0.8, p = 0.2; EIP, Spearman’s ρ = 1, p = 0; TP, Spearman’s ρ = 0.8, p = 0.2; and TB, Spearman’s ρ = -1, p = 0). These findings suggest that respiratory function may be partly associated with myelin content in the brain.

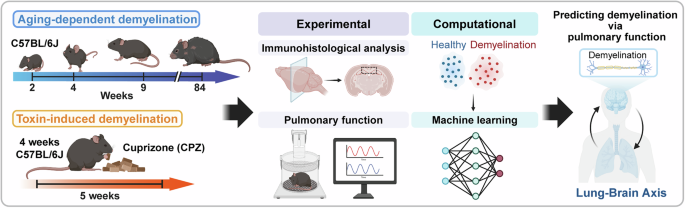

Fig. 1: Experimental design.
figure 1

The study consists of two experimental paradigms to investigate the relationship between myelin morphology and respiratory function. In the developmental (aging) experiment, mice at different ages were evaluated for myelin content using immunostaining and respiratory function using whole-body plethysmography. In the pathological model, demyelination was induced by feeding mice a 0.2% cuprizone (CPZ)-containing diet for 5 weeks. Respiratory measurements and MBP staining were performed after treatment to assess disease-related changes. Data from each experiment were analyzed to determine correlations between respiratory parameters and myelin status. Some elements of this figure were created with BioRender.com (licensed to our institution).

Full size image
Fig. 2: Changes in myelin formation and respiratory functions with aging.
figure 2

A Ages (weeks) of mice used in each experimental group. B Representative images of brain sections from the mice at indicated ages. Sections were labeled with MBP. C Quantification of MBP expression in the corpus callosum in the indicated age of mice (n = 4). D Quantification of respiratory function measures in the indicated age of mice (n = 5-6). Error bars represent mean ± SEM. Statistical analysis was performed using one-way ANOVA followed by Tukey’s post-hoc test. *p < 0.05, **p < 0.01. n.s., not significant difference. The correlation between MBP expression and each respiratory parameter was analyzed using Spearman’s rank correlation coefficient. Some elements of this figure were created with BioRender.com (licensed to our institution).

Full size image
Table 1 Respiratory Function Measurements
Full size table
Table 2 Correlation coefficient between MBP expression and respiratory function
Full size table

Predicting myelin development by integrated respiratory parameter analysis

Since multiple respiratory parameters were associated with myelin content, we next explored the possibility of predicting myelin levels through an integrated analysis of these parameters. We used time-series measurements of respiratory parameters, treating each measured value obtained during the observation period as an individual data point, to examine whether respiratory function was associated with the state of myelination. To classify the mice into four age groups, three machine learning models, a kernel support vector machine (SVM), a k-nearest neighbor (KNN) classifier, and a random forest (RF), trained on the training dataset, were used. Permutation importance analysis for each classifier in the test set (Fig. 3A) identified PEFb and f as important features for group discrimination. The decision boundary of each machine learning model on the test set, retrained on data reduced to a 2-dimensional UMAP (uniform manifold approximation and projection) space (Fig. 3B), indicated reasonable predictive performance for each classifier. To quantitatively evaluate the performance of each classifier on the test set, we calculated the macro averages of precision, recall, and F1-score (Fig. 3C). These results indicate that integrative analysis of respiratory parameters may effectively predict age-related changes in myelin status across all three machine learning models.

Fig. 3: Predictive performance of the aging model using supervised machine learning.
figure 3

A Permutation importance on the test set for the three classifiers. B Decision boundaries on the test set for the three classifiers. C Performance comparison among the three classifiers based on macro averages of precision, recall, and F1-score.

Full size image

Association of pathological demyelination with respiratory parameters

We next asked whether prediction by respiratory functions of myelin contents is not limited to the developmental change of myelin but also useful for the pathological change of myelin formation. Mice fed cuprizone-containing diets are widely used as demyelination models because they exhibit demyelination primarily in the corpus callosum, the largest myelinated region in the brain (Fig. 4A)23. In this study, we first confirmed demyelination in the corpus callosum of adult mice (9 weeks) fed cuprizone using MBP staining (Fig. 4B, C). We then measured spontaneous respiration in the same animals and recorded each respiratory parameter. Furthermore, we calculated the average values of each parameter and found no significant differences in any of the respiratory parameters between the cuprizone-treated and control groups (Fig. 4D). These findings suggest that average respiratory parameter values may be insufficient for predicting demyelination in disease-like conditions.

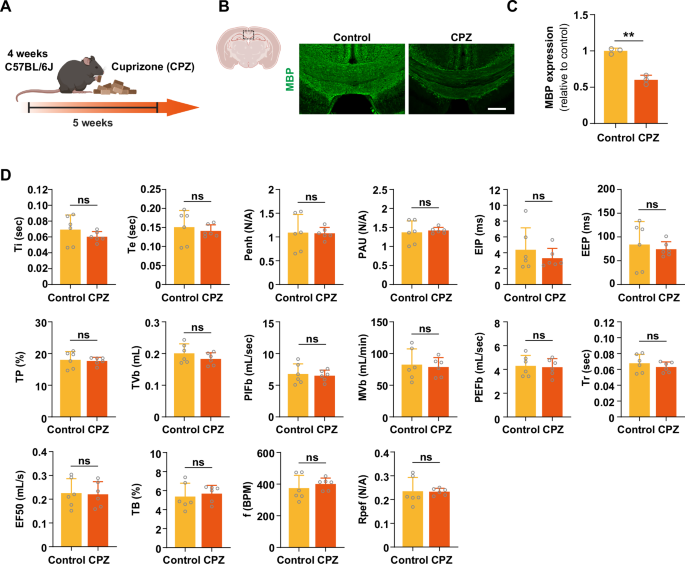

Fig. 4: Changes in myelin formation and respiratory functions in CPZ-treated demyelination mice.
figure 4

A Condition of mice used in this experiment. B Representative images of brain sections from the mice with or without CPZ treatment. Sections were labeled with MBP. C Quantification of MBP expression in the corpus callosum of each mouse (n = 3). D Quantification of respiratory function measures of each mouse (n = 6). Error bars represent mean ± SEM. Statistical analysis was performed using Student’s t-test. **p < 0.01. n.s., not significant difference. Some elements of this figure were created with BioRender.com (licensed to our institution).

Full size image

Predicting pathological demyelination by integrated respiratory parameter analysis

We assessed whether the respiratory measurements obtained during the observation period, treated as individual data points, were associated with the demyelination state. Three commonly used machine learning models (kernel SVM, KNN, and RF) were trained on the training dataset to perform binary classification (demyelination vs. control). Permutation importance analysis of each classifier on the test set (Fig. 5A) identified PAU as an important feature common to all three classifiers. The decision boundary of each machine learning model on the test set showed that all classifiers achieved good discrimination (Fig. 5B). The receiver operating characteristic (ROC) curves for the three classifiers showed that RF achieved the highest AUC (area under the ROC curve) (Fig. 5C). Collectively, these data demonstrate that integrative respiratory function analysis may provide a robust prediction of pathology-associated myelin alterations, with predictive utility that transcends model-specific limitations.

Fig. 5: Predictive performance of the demyelination model using supervised machine learning.
figure 5

A Permutation importance on the test set for the three classifiers. B Decision boundaries on the test set for the three classifiers. C Receiver operating characteristic (ROC) curves for the three classifiers with corresponding AUC (area under the ROC curve) values.

Full size image

Discussion

In this study, we demonstrated that the integration of respiratory parameters enables the prediction of brain myelin status in mice under both physiological aging and pathological demyelination conditions. This finding suggests that peripheral physiological outputs, such as respiratory function, are functionally linked to the structure of central white matter. Although spontaneous respiration is primarily controlled by brainstem circuits24, it is also regulated by descending myelinated pathways such as the corticobulbar and corticopontine tracts that originate in the motor cortex25. These tracts pass through the internal capsule and cerebral peduncle, serving as conduits between the cortex and respiratory centers. Thus, changes in their myelination may alter signal transmission and manifest as changes in respiratory output. In the aging model, we found that the average values of specific respiratory parameters were correlated with myelin levels, and integrative analysis further identified “PEFb” and “f” as particularly effective predictors. These results suggest that combining multiple parameters can enhance classification accuracy. Interestingly, some respiratory parameters remained unchanged even in older mice with reduced myelin levels, indicating that age-related alterations in respiratory parameters are not uniform. As respiratory function is governed by multiple cell types that undergo both intracellular and extracellular age-related changes, it is plausible that the extent of age-associated variation differs by parameter depending on the balance of contributing factors. This interpretation is consistent with the previously reported phenomenon of cell–type–specific aging within the same organ26.

To model demyelination with pathological conditions, we employed cuprizone-induced demyelination in mice. In this model, while average values of respiratory parameters did not differ significantly between control and demyelinated mice, specific parameters such as “PAU” contributed strongly to classification accuracy via machine learning. This suggests that pathological demyelination induces changes in respiratory control that are not reflected in mean values. The differences in respiratory profiles between the aging and disease models may reflect not only variations in factors associated with pathological features, such as inflammation, but also differences in the rate of demyelination. Gradual myelin loss during aging may allow time for functional adaptation, whereas abrupt pathological demyelination may lead to the capacity for neural compensation being exceeded, unmasking latent dysfunction. Although OPCs are preserved and maintain their proliferative capacity in aged animals27, OPC loss has been reported in disease models28. Moreover, oligodendrocytes contribute not only to myelination but also to BBB maintenance29 and metabolic support for surrounding cells, including neurons30, suggesting that CNS–lung communication may be affected by mechanisms beyond MBP level changes. Reports of the “clinico-radiological paradox”, in which demyelination or axonal damage occurs without overt clinical symptoms31, also support the idea that compensatory neural mechanisms are at play. Notably, the ability to predict myelin status from respiratory data in both aging and disease models highlights the robustness and generalizability of this phenomenon. Despite differences in the demyelination mechanisms and kinetics, the consistent classification accuracy across models suggests that respiratory patterns universally reflect white matter integrity in the brain.

This study has several limitations. First, our machine learning evaluation primarily reflects within-subject temporal prediction. Because the train-test split was performed chronologically within each animal, generalization to completely unseen subjects remain untested, and the models may capture subject-specific patterns that do not readily generalize. Second, respiratory measurements and MBP immunostaining were conducted in partially overlapping, but not identical, cohorts. Although animals were matched by age and treatment duration, the absence of fully paired datasets limits the ability to perform individual-level correlations between respiratory features and myelin status. Third, limitations inherent to the cuprizone model should be noted. Although demyelination is most prominent in the corpus callosum, other white matter regions are also affected, and cuprizone targets not only oligodendrocytes but also other glial and immune cells32. Thus, more selective approaches, such as toxin-induced focal demyelination or oligodendrocyte-specific depletion, would be required to draw conclusions that are strictly corpus callosum- or oligodendrocyte-specific. Fourth, MBP immunostaining reflects myelin protein abundance but does not provide detailed information on ultrastructural morphology. We did not incorporate numerical data derived from electron microscopy into the current machine learning models, which were constructed solely based on MBP-derived measures. Therefore, it remains unclear whether the same models could accurately predict other indices of myelin integrity. Finally, although the corpus callosum ROI was defined with reference to a standard atlas, we cannot completely exclude minor involvement of adjacent white matter in the MBP quantification, which should be considered when interpreting the results.

Despite these limitations, our findings provide new evidence supporting the concept of the “lung-brain axis,” in which bidirectional communication between the respiratory and nervous systems plays a functional role. Notably, the lungs have been shown to regulate brain function via humoral factors. For instance, the lung microbiome modulates autoimmune inflammation in the brain in experimental autoimmune encephalomyelitis (EAE), an animal model of MS33. Apelin, a lung-derived secreted factor, promotes central myelin repair under both aging and pathological conditions19. In contrast, the present study revealed a functional association between respiratory dynamics and myelin status in the brain. This finding supports the concept that inter-organ communication is mediated not only by molecular signaling but also by systemic physiological outputs such as peripheral respiratory patterns. The fact that a physiological and non-invasive parameter like breathing pattern can be used to estimate CNS white matter status offers significant potential for future clinical applications. In the future, comparing respiratory data with MRI findings in elderly individuals or patients with demyelinating diseases such as MS may enable the development of simple, non-invasive screening and monitoring tools. Respiratory parameters may also serve to predict the efficacy of remyelination therapies, such as clemastine34, and to guide therapeutic decisions. More broadly, this approach could lead to the development of generalizable biomarkers applicable to several CNS diseases, including dementia and depression, with the potential for early diagnosis, disease monitoring, and therapeutic evaluation.

Methods

Mice

All experimental procedures were approved by the Committee on the Ethics of Animal Experiments of the National Institute of Neuroscience, National Center of Neurology and Psychiatry (2024030R1). Male C57BL/6 J mice were obtained from Tokyo Laboratory Animal Science and Japan SLC. Mice were housed in an air-conditioned room at 23 ± 1°C with a 12 h light–dark cycle under specific pathogen-free conditions. They had free access to water and standard chow throughout the study period. All analyses were performed by investigators blinded to the experimental groups. The experimental unit was a single mouse.

Cuprizone-induced demyelination model

Four-week-old mice were fed a diet containing 0.2% (w/w) cuprizone (Sigma-Aldrich, C9012) for 5 weeks35. The cuprizone-containing diet was refrigerated and replaced with fresh food every day. Experimental units were randomly assigned to control and treatment groups by the experimenter. Throughout the experimental period, body weight was monitored, and the changes observed were consistent with those reported previously (data not shown)36,37. Body weight was not included as a covariate in the analyses.

Immunohistochemistry

Mice were transcardially perfused with phosphate-buffered saline (PBS), followed by 4% paraformaldehyde in PBS. The brains were subsequently immersed in 20% and then 30% sucrose in PBS, each for 24 hours at 4°C. The tissues were embedded in Tissue-Tek® O.C.T. Compound (Sakura Finetek), and serial coronal sections (25 µm thick) were cut in the anterior-to-posterior direction from bregma −0.13 mm to −2.3 mm and mounted on TOMO® Adhesion Microscope Slides (Matsunami Glass). For myelin basic protein (MBP) staining, sections were incubated in PBS containing 0.3% Triton X-100 and 3% normal donkey serum for 30 minutes at room temperature. The sections were incubated with anti-MBP antibody (1:400, Abcam, ab7349), followed by Alexa Fluor 488-conjugated donkey anti-rat IgG secondary antibody (1:500, Thermo Fisher Scientific, A21208) for 2.5 hour at room temperature. Images were acquired using a fluorescence microscopes (Olympus, BX53, FV3000).

To quantify the MBP-positive area, we used ImageJ (National Institutes of Health) to calculate the proportion of MBP-positive regions within the corpus callosum. MBP-positive regions were defined as pixels exceeding a predetermined signal threshold. The corpus callosum ROI was delineated with reference to a standard mouse brain atlas, ensuring that the entire corpus callosum was consistently included across animals. For each animal, the mean MBP-positive area was obtained from at least six coronal sections, each spaced at least 100 μm apart. No explicit adjustment was made for age-related differences in overall brain size. Quantification was performed using sections of anatomically matched coronal levels for all animals. Each section was confirmed to have uniform staining quality across samples using Black Gold, an independent myelin marker (data not shown).

Whole-body plethysmography

Respiratory function was assessed using unrestrained whole-body plethysmography (2-Site System-Mouse, Buxco® FinePointe, DSI) in conscious, freely moving mice. Before measurement, mice were acclimated to the plethysmography chamber for 5 minutes, and respiratory parameters were recorded for 60 minutes under room air conditions. All measurements were performed during the light cycle at room temperature, and animals were monitored throughout the procedure to minimize stress. All parameters were automatically calculated, collected, and analyzed using the associated FinePointe Software (DSI). Each parameter was averaged over a 10-second interval, and the mean value from each interval was treated as a single data point.

Preprocessing of respiratory data

For the respiratory data obtained from both aging and demyelination models, a rejection index (Rinx) was employed to filter out unreliable data points within continuous time intervals. The Rinx is defined as the ratio of excluded wave counts to total wave counts within a 10-second interval. Specifically, the longest interval with a median Rinx ≤ 20% was selected backward from the final data point, as data collected during later time intervals tend to be more reliable than those from earlier intervals. Subsequently, among the 20 parameters (features) obtained from the system, environmental parameters and derived features calculated from other features were excluded. Features with variance < 0.001 across all samples were also removed. For the time-series analysis, only trending data points were selected by calculating autocorrelation for each feature, yielding a maximum of nine features (Table 1). Missing values and outliers were then addressed through linear interpolation. Finally, a sliding window of size 10 was applied across the entire time interval with a step size of one to compute the mean and standard deviation of each feature. Additionally, the difference between adjacent data points was incorporated as a new feature. To ensure comparability across features, each feature was standardized. The total number of data points was 6873 for the aging model and 3043 for the demyelination model.

Supervised machine learning

Each preprocessed dataset from the two models was split into training and test sets at a ratio of 70% to 30%, respectively. The training set was temporally positioned before the test set, and stratification was performed to preserve class label proportions. The main reason for this setting is that our primary objective is to predict future states/labels from preceding temporal patterns within the same subject, which reflects the intended real-world application of our model. In clinical or monitoring scenarios, the model would be deployed to forecast future outcomes for an individual based on their own historical data. Therefore, our evaluation focuses on temporal generalization (predicting unseen time points) rather than cross-subject generalization (predicting unseen individuals). On the other hand, there are a few limitations: (1) our current evaluation does not fully address the model’s performance on completely unseen animals/subjects. The reported metrics primarily reflect within-subject temporal prediction capability, and (2) the model may capture subject-specific patterns that do not generalize to new individuals.

We then employed three supervised machine learning models: a kernel support vector machine (SVM) with a radial basis function, a k-nearest neighbor (KNN) classifier, and a random forest (RF) algorithm. The hyperparameters for each machine learning model were optimized using grid search with 5-fold cross-validation that accounted for the time-series nature of the data. To evaluate predictive performance, we used precision and recall metrics. Precision is calculated as the ratio of true positives to all positive predictions, and recall is calculated as the ratio of true positives to all actual positives. In addition, to assess balanced performance, we used the F1-score, which is defined as the harmonic mean of precision and recall metrics.

Statistical analysis

All statistical analyses are detailed in the figure legends. Student’s t-test and one-way analysis of variance (ANOVA) followed by Tukey–Kramer post hoc test were performed using Prism 10 (GraphPad software). A p-value < 0.05 was considered statistically significant. Data are presented as mean ± standard errors of the mean.

Language editing

ChatGPT (OpenAI) was used for language editing. The authors are fully responsible for the final content.
