ULBP2 CAR-T cells enhance gastric cancer immunotherapy by inhibiting CAF activation

Wentao Zhang ORCID: orcid.org/0009-0007-6803-2331^1,2^na1,
Wen Ren¹^na1,
Shuyan Guo¹^na1,
Haobo Han^1,2,
Weiwen Cai^1,2,
Haowen Bai^1,2,
Long Li²,
Xiangyan Jiang^1,2,
Xin Zheng³,
Tiansheng Zhang⁴,
Yan Wang¹,
Huili Ye^1,5,
Hongtai Cao²,
Wengui Shi^1,5,
Huinian Zhou^2,5,
Zeyuan Yu^2,5,
Long Qin ORCID: orcid.org/0000-0001-9995-7176^1,5 &
…
Zuoyi Jiao ORCID: orcid.org/0000-0003-1942-0905^1,2,5

Cell Death & Disease volume 16, Article number: 597 (2025) Cite this article

5406 Accesses
7 Citations
10 Altmetric
Metrics details

Subjects

Abstract

Gastric cancer (GC) is characterised by a dense stromal microenvironment, lack of therapeutic targets, and limited effective treatment options, collectively leading to a poor prognosis. Here, we identify UL16 binding protein 2 (ULBP2) as a potential therapeutic target in GC. Mechanistically, ULBP2 overexpression activates the TGF-β signalling pathway, promoting the activation of cancer-associated fibroblasts (CAFs) and tumor progression in GC. Furthermore, we developed ULBP2 CAR-T cells and assessed their therapeutic potential in GC cell lines, organoids, cell line-derived xenograft (CDX) and patient-derived xenograft (PDX) mouse models. We showed that ULBP2 CAR-T cells effectively eliminated GC cell lines and organoids and, either alone or in combination with an anti-PD-1 antibody, significantly inhibited tumor growth and prolonged survival in both CDX and PDX mouse models. In conclusion, ULBP2 contributes to GC progression by promoting TGF-β mediated CAF activation, which collectively reinforce the dense stromal microenvironment. Targeting ULBP2 suppresses tumor growth, reduces stromal deposition, and promotes T cell infiltration, thereby enhancing the efficacy of immunotherapy in GC.

The ELF3-regulated lncRNA UBE2CP3 is over-stabilized by RNA–RNA interactions and drives gastric cancer metastasis via miR-138-5p/ITGA2 axis

Article Open access 17 July 2021

Development of a CD8+ T cell associated signature for predicting the prognosis and immunological characteristics of gastric cancer by integrating single-cell and bulk RNA-sequencing

Article Open access 24 February 2024

USP14-IMP2-CXCL2 axis in tumor-associated macrophages facilitates resistance to anti-PD-1 therapy in gastric cancer by recruiting myeloid-derived suppressor cells

Article 23 April 2025

Introduction

Gastric cancer (GC) ranks fifth globally in terms of tumor incidence and cancer-related deaths, with the highest incidence rates observed in Eastern Asia [1]. Owing to its delayed diagnosis, high metastatic potential, and dense stromal microenvironment, GC has a poor prognosis [2]. The extracellular matrix (ECM) is a complex acellular macromolecular network that drives cancer progression and immunotherapy resistance [3]. PD-1 inhibitors combined with chemotherapy are the preferred first-line therapy for GC, and pembrolizumab plus chemotherapy significantly improves overall survival (OS) from 11.5 to 12.9 months, compared with chemotherapy alone [4]. Although immunotherapy has revolutionised GC treatment, durable responses remain limited because of the dense stromal microenvironment, which facilitates immune evasion and contributes to resistance to both conventional and immune therapies [5].

Chimeric antigen receptor (CAR) T cells are approved for use in patients with B-cell malignancies and multiple myeloma; however, their efficacy against most solid tumors remains elusive [6,7,8]. Claudin 18.2 (CLDN18.2) is highly expressed in GC and is one of the most popular therapeutic targets [9]. The Phase 1 NCT03874897 trial found that CT041, a CLDN18.2-specific CAR-T cells, achieved an objective response rate (ORR) of 54.9% and a disease control rate (DCR) of 96.1% in 59 GC patients, with a median progression-free survival (mPFS) of 5.8 months (95% CI: 4.1, 8.0) and a median overall survival (mOS) of 9.0 months (95% CI: 7.0, 11.9), respectively; the OS rate at 12 months was 37.3% (95% CI: 25.2, 49.4) [10]. A number of studies have found that uPAR, HER2, Mesothelin, CD133, and Trop2/PD-L1 CAR-T cells show promising efficacy for the treatment of GC [11,12,13,14,15]. However, the slow progress of CAR-T therapy in GC underscores the urgent need to identify alternative targets that can modulate the dense stromal microenvironment to develop novel therapeutic strategies.

Natural killer group 2D (NKG2D) receptor is expressed in NK cells as well as certain T cells, such as NKT cells, CD8⁺ T cells, and γδT cells. NKG2D ligands (NKG2DL), which are specifically expressed in most tumor cells, bind to NKG2D receptors to activate NK cells and induce tumor cell destruction. However, various mechanisms inhibit the activation of the NKG2D receptor, NKG2DL, to enable immune escape of tumor cells [16, 17]. NKG2D CAR-T cells have satisfactory treatment efficacy and potential application value in several solid tumors, including glioblastoma, hepatocellular carcinoma, breast cancer, and GC [18,19,20,21,22]. However, although NKG2D is a highly conserved receptor, NKG2DLs are diverse, including MICA, MICB, and UL16 binding proteins (ULBPs), leading to suboptimal efficacy and thus necessitating further investigation. UL16 binding protein 2 (ULBP2), an MHC class I-related molecule, is minimally expressed in normal tissues but is highly upregulated in tumor tissues, including pancreatic and colorectal cancers [23, 24]. A recent study showed that ULBP2 expression correlates with the immunosuppressive TME and immunotherapy in breast cancer [25]. Therefore, it is essential to investigate the role of ULBP2 in the immunosuppressive microenvironment of GC and explore potential therapeutic strategies.

We, therefore, aimed to identify the oncogenic role that ULBP2 plays in GC as a potential therapeutic target. ULBP2 promotes the formation of a dense stromal microenvironment in GC by activating cancer-associated fibroblasts (CAFs) and driving collagen deposition through the TGF-β signalling pathway. Furthermore, we developed a novel ULBP2 CAR-T cell line that effectively killed ULBP2-expressing cells and patient-derived GC organoids in vitro. Treatment with ULBP2 CAR-T cells and anti-PD-1 showed remarkable antitumor efficacy, enhancing the survival of GC cell-line-derived xenografts (CDX) and GC patient-derived xenograft (PDX) mouse models. Our study offers new promising therapeutic strategies for the treatment of GC.

Results

ULBP2 is overexpressed in GC and correlates with collagen deposition

To identify antigens that are specifically overexpressed in GC, associated with the dense stromal microenvironment and therapeutic potential, we first performed an mRNA microarray analysis of differentially expressed genes between tumor and adjacent normal tissues from 16 patients with GC, revealing that 666 genes were upregulated. By analysing a cross-dataset of single-cell RNA sequencing (ScRNA-seq) data from GSE163558 and GSE206785, we identified 3227 upregulated genes associated with ECM (Fig. 1A). By referencing immune-related genes from the Immunology Database and Analysis Portal (ImmPort), we further revealed 49 immune-related genes specifically associated with GC. A comparison of the three sets identified overlapping genes, ULBP2 and IL-18 (Fig. 1B), indicating that they are immune-related proteins upregulated in GC.

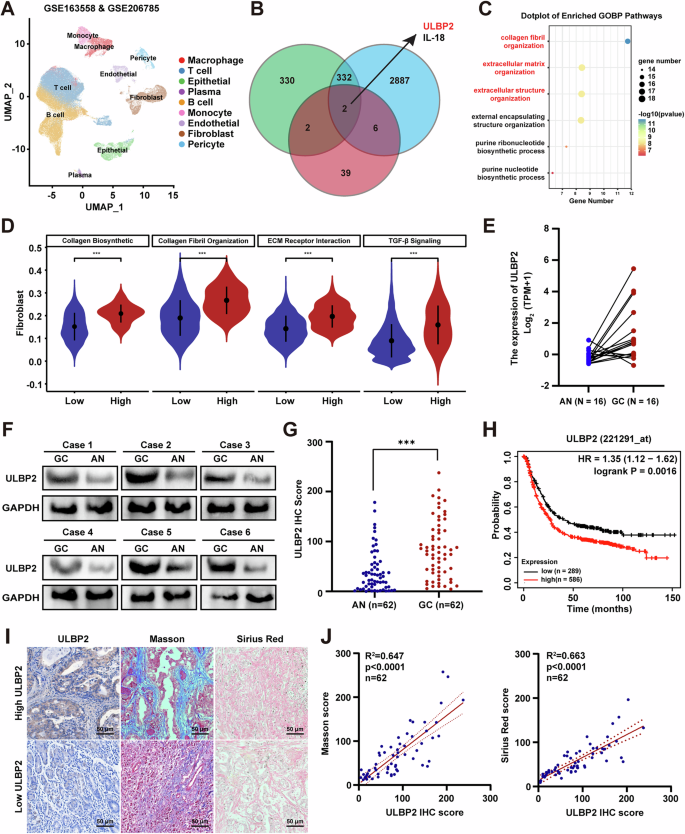

**Fig. 1: ULBP2 is overexpressed in GC and correlated with collagen deposition.**

ULBP2 is a cell surface molecule anchored to the membrane via a glycosylphosphatidylinositol (GPI) moiety, and previous studies have identified it as a potential immunotherapeutic target [25]. Through gene filtering, normalisation, and principal component analysis of the scRNA-seq data, we identified nine distinct clusters and observed that ULBP2 was significantly overexpressed in epithelial, fibroblast, and immune cells within tumors compared with normal tissues (Supplemental Fig. S1A). Therefore, we focused on ULBP2 for further analysis. Using the Gene Ontology (GO) database for pathway analysis, collagen fibril organisation, extracellular matrix organisation, and extracellular structure organisation related to the ECM were found to be significantly upregulated (Fig. 1C). CAFs are the primary regulators of the ECM or their secretion and remodelling [3]. Further analysis of ULBP2 expression in fibroblasts revealed a correlation with collagen biosynthetic, collagen fibril organisation, ECM-receptor interaction and TGF-β signalling (Fig. 1D; Supplemental Fig. S1B, C).

To further investigate ULBP2 expression in patients with GC, we first analysed 16 mRNA microarray samples and found that ULBP2 was significantly upregulated in tumors compared to normal tissues (Fig. 1E). Consistent with this, the TCGA database demonstrated the upregulation of ULBP2 in GC tissues (Supplemental Fig. S1D). Next, we performed western blotting and found that ULBP2 protein levels were upregulated in GC tumors compared to those in adjacent normal tissues (Fig. 1F). Furthermore, we analysed ULBP2 expression in 62 paired GC and adjacent normal tissues using tissue microarray (TMA)-based immunohistochemistry (IHC). We found that ULBP2 was highly expressed in GC samples (Fig. 1G). Using Kaplan–Meier Plotter Database analysis, we found that high ULBP2 expression was positively correlated with worse OS in patients with GC, indicating that ULBP2 is an independent prognostic factor (Fig. 1H). Clinical GC samples showed significantly elevated collagen levels in tumors with high ULBP2 expression (Fig. 1I, J). Moreover, we examined ULBP2 expression in 20 human tissues using IHC. We detected almost no expression of ULBP2 in these tissues (Supplemental Fig. S1E), demonstrating that ULBP2 was not abundantly expressed in vital organs. These data indicate that ULBP2 is highly expressed in both tumor epithelial cells and fibroblasts, potentially contributing to the dense stromal microenvironment in tumors.

ULBP2 promotes the malignant phenotype of GC and is a potential therapeutic target

To explore the role of ULBP2 in GC, we identified two GC cell lines (SNU-216 and MKN-45) with higher ULBP2 expression levels compared to (AGS and HGC-27), as determined by western blotting (Supplemental Fig. S2A). We then knocked out ULBP2 using CRISPR/Cas9 in SNU-216 and MKN-45 cells, and the efficiency was confirmed by flow cytometry (FCM) and western blotting (Fig. 2A, Supplemental Fig. S2B). Using MTT, colony formation, and Transwell invasion assays, we showed that ULBP2 deficiency significantly reduced cell proliferation and invasion in both SNU-216 and MKN-45 cells (Fig. 2B, D). Additionally, we evaluated the impact of ULBP2 knockout on migration ability using a wound healing assay, which revealed reduced healing capacity in the ULBP2 knock out group compared with the control group (Supplemental Fig. S2C). Furthermore, we revealed that ULBP2 knockout effectively induced apoptosis in both SNU-216 and MKN-45 cells (Supplementary Fig. S2H).

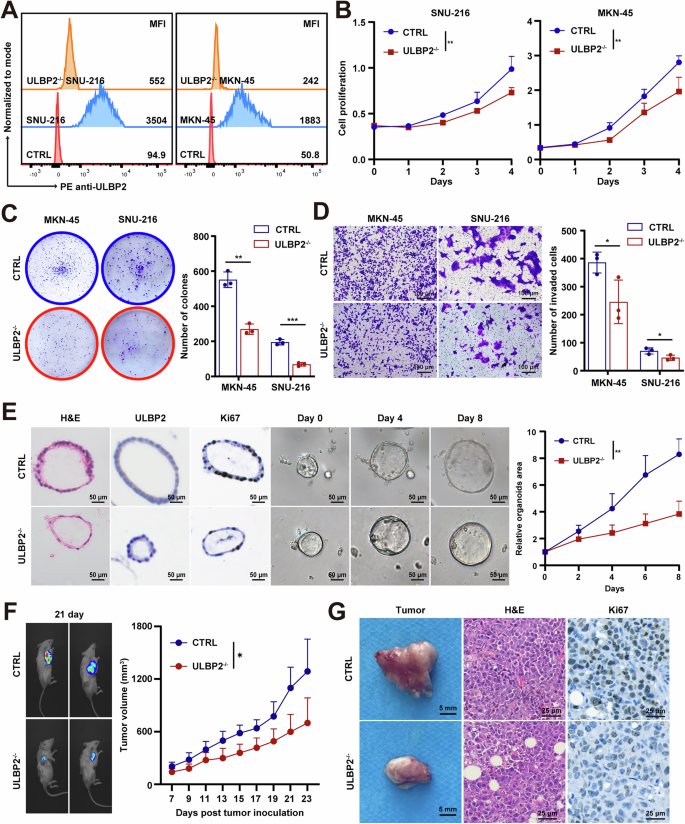

**Fig. 2: ULBP2 promotes the malignant phenotype of GC.**

We also engineered cell lines to overexpress ULBP2 and performed proliferation, colony formation, and invasion assays, which indicated that ULBP2 overexpression promoted the proliferation and invasion of both AGS and HGC-27 cells (Supplemental Fig. S2D–G). Using GC patient-derived organoids, we showed that ULBP2 knockout significantly reduced the proliferation of organoids (Fig. 2E). In vivo, ULBP2 knockout MKN-45 cells exhibited a significantly slower growth rate in the CDX mouse model compared to wild-type cells (Fig. 2F). Histological analysis of the excised tumors using haematoxylin and eosin (H&E) and IHC staining of Ki-67 corroborated these findings (Fig. 2G, Supplemental Fig. S2I).

Taken together, these results suggest that ULBP2 plays an oncogenic role in GC. We identified ULBP2 as a cell surface protein that promotes the malignant phenotype of GC and is a potential therapeutic target.

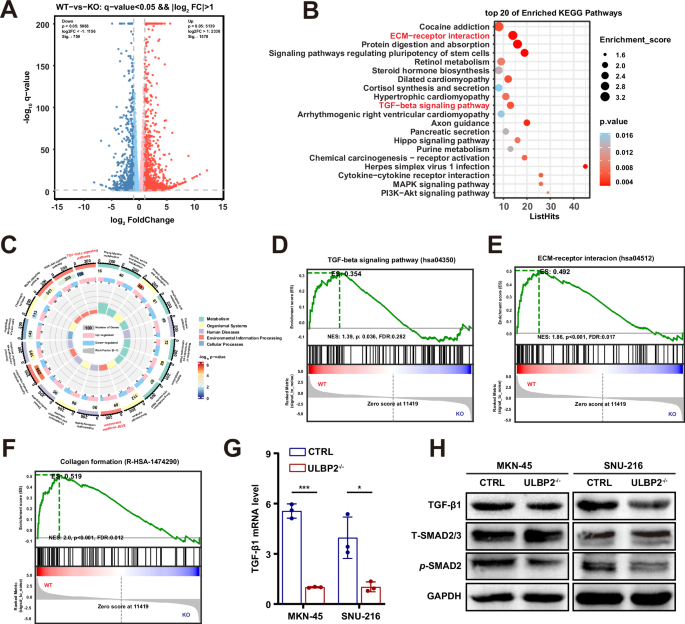

ULBP2 activates TGF-β signalling and collagen formation in GC

To elucidate the underlying mechanisms of ULBP2 in GC, we performed transcriptomic analysis of ULBP2 knockout MKN-45 cells and compared them with wild-type cells. A total of 2138 differentially expressed genes (DEGs) were identified, including 1426 genes upregulated and 712 downregulated genes (Fig. 3A). Using the Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) databases for pathway analysis of the DEGs within the transcriptome, we identified 20 pathways that exhibited the lowest p-values. Notably, the ULBP2 knockout had the most pronounced impact on TGF-β signalling and ECM-receptor interaction (Fig. 3B, C; Supplemental Fig. S3A). Furthermore, Gene Set Enrichment Analysis (GSEA) supported these findings by revealing significant enrichment of TGF-β Signalling, ECM-receptor interaction, and collagen formation pathways (Fig. 3D–F).

To further validate these findings, we first performed real-time quantitative reverse transcription PCR (qRT-PCR) to determine the transcription levels of the TGF-β signalling pathway genes. We found that the mRNA expression of TGF-β1 was significantly reduced in ULBP2 knockout MKN-45 and SNU-216 cells compared with wild-type cells (Fig. 3G). We also performed western blotting and found that TGF-β1 and phosphorylated SMAD2 protein levels were downregulated in ULBP2 knockout cells (Fig. 3H). TGF-β signalling, a critical regulator of diverse biological processes, is generally accepted for its dual role in tumorigenesis, acting as a tumor suppressor in early stages while promoting tumor progression at later stages [26]. TGF-β stimulates fibroblasts, transforming them into CAFs, which regulate the production and remodelling of ECM components to establish a dense stromal microenvironment [27]. Moreover, TGF-β can facilitate the progression of epithelial-derived tumors through the induction of EMT [28]. Thus, we evaluated the expression of EMT-associated factors and found that the ULBP2 knockout upregulated E-cadherin expression and downregulated vimentin expression (Supplemental Fig. S3B, C).

These results collectively indicate that the ULBP2 may promote GC proliferation and collagen deposition via the TGF-β signalling pathway. We hypothesised that ULBP2 overexpression might activate the TGF-β signalling pathway, thereby upregulating TGF-β expression and promoting CAF activation and stromal deposition.

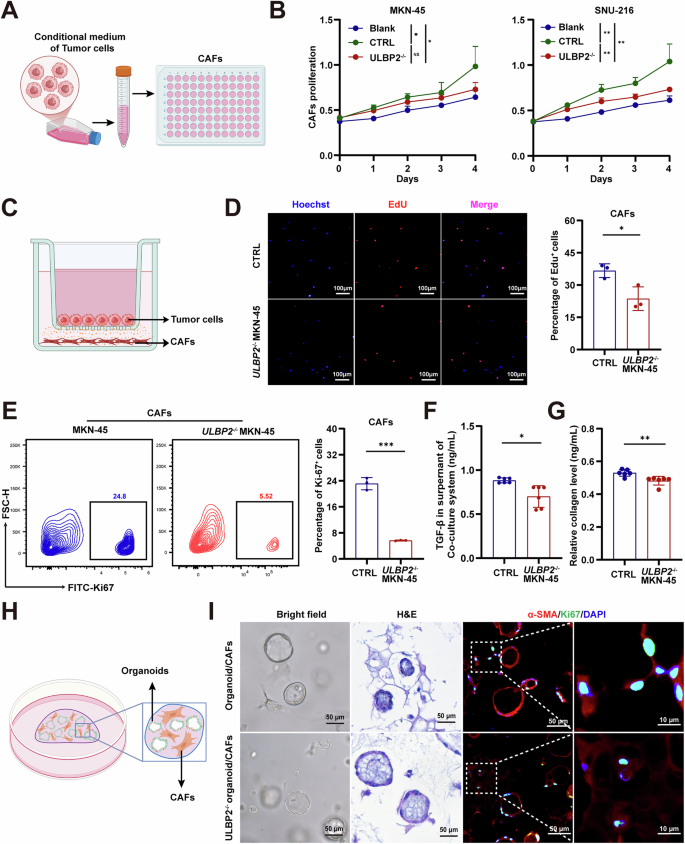

ULBP2 promotes CAF activation via TGF-β signalling in GC

To investigate the impact of ULBP2 on CAF activation, tumor cell culture supernatants were collected and added to the CAF culture system (Fig. 4A). The results demonstrated that CAF proliferation was significantly reduced when cells were exposed to supernatants from ULBP2 knockout MKN-45 and SNU-216 cells, compared to wild-type cells (Fig. 4B), while ULBP2 overexpression significantly enhanced CAF proliferation (Supplemental Fig. S4A). Next, we established another co-culture system in which tumor cells were cultured in the upper chamber of a Transwell chamber, and CAFs were cultured in the lower chamber (Fig. 4C). Using EdU proliferation and FCM assays, we showed that ULBP2 deficiency in both MKN-45 and SNU-216 cells lead to a significant reduction in CAF proliferation in this co-culture system (Fig. 4D, E; Supplemental Fig. S4B, C). Moreover, TGF-β and collagen protein levels were markedly decreased in the co-culture system with ULBP2 knockout MKN-45 and SNU-216 cells compared to wild-type cells (Fig. 4F, G; Supplemental Fig. S4D, E). We also conducted Transwell invasion assays in the CAF co-culture system (Supplemental Fig. S4F). ULBP2 knockout significantly reduced the number of CAFs that penetrated the lower chamber (Supplementary Fig. S4G).

To further explore the role of ULBP2 in CAF activation, we developed organoid and CAF co-culture systems, demonstrating that ULBP2 knockout organoids significantly suppressed α-SMA activation compared to wild-type organoids (Fig. 4H, I). Altogether, these results indicate that ULBP2 overexpression activates the TGF-β signalling pathway and upregulates TGF-β expression, thereby promoting CAF activation and ECM remodelling, and contributing to the formation of a dense stromal microenvironment.

ULBP2 CAR-T cells eliminate GC cells and organoids

To develop CAR-T cell-based therapy for GC, we first generated a mouse-derived monoclonal antibody (mAb) targeting ULBP2. We then construct chimeric antigen receptor-expressing T (CAR-T) cells based on the novel anti-ULBP2 mAb, and evaluated the anticancer efficacy of ULBP2 CAR-T cells.

We constructed a second-generation CAR consisting of a single-chain variable fragment (scFv) derived from the anti-ULBP2 mAb, human CD8 hinge and transmembrane domains, a human 4-1BB co-stimulatory domain, and a CD3ζ signalling domain (Fig. 5A). FCM analysis revealed a transduction efficiency of 90.7% for T cells transduced with ULBP2 CAR lentivirus (Fig. 5B). The immunofluorescence (IF) assay revealed that ULBP2 CAR-T cells expressing green fluorescent protein (GFP) could specifically recognize MKN-45-mCherry cells expressing red fluorescent protein (mCherry) (Fig. 5C). Additionally, ULBP2 CAR-T cells effectively lysed wild-type MKN-45 cells, accompanied by elevated concentrations of IFN-γ and granzyme B in the culture medium compared to control T cells (Fig. 5D, E; Supplemental Fig. S5A). Similarly, ULBP2 CAR-T cells effectively lysed SNU-216 cells, which express high levels of ULBP2 and AGS cells engineered to overexpress ULBP2 (Supplemental Fig. S5B, C). A low killing activity of ULBP2 CAR-T cells was observed in ULBP2 knockout MKN-45 and SNU-216 cells (Fig. 5F; Supplemental Fig. S5D).

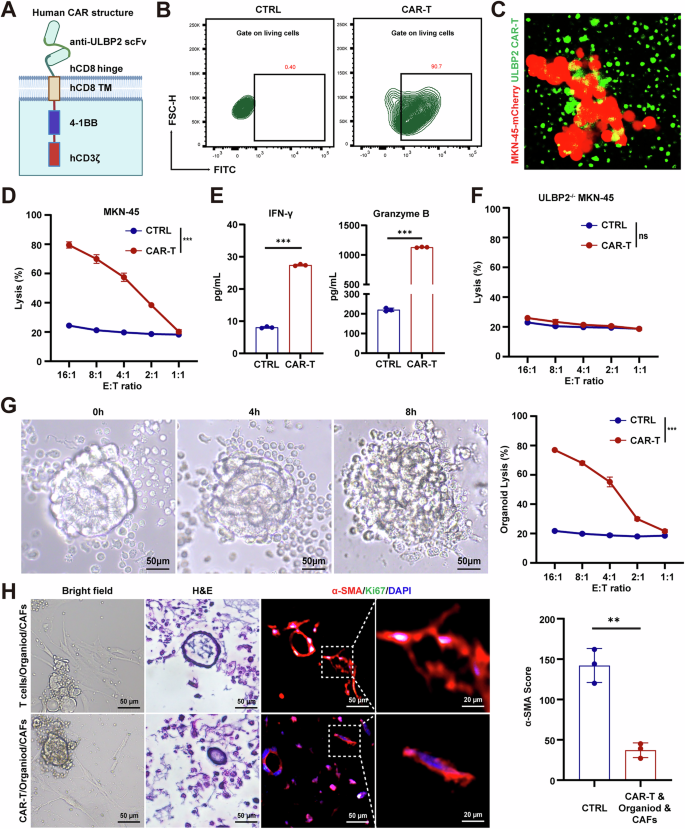

**Fig. 5: ULBP2 CAR-T cells specifically eliminate GC cells and organoids.**

We further evaluated the anti-tumor efficacy of ULBP2 CAR-T cells using GC organoids. ULBP2 CAR-T cells effectively lysed the organoids, demonstrating their potent ULBP2-dependent cytotoxicity in a clinically relevant in vitro model (Fig. 5G). We also established a co-culture system consisting of ULBP2 CAR-T cells, CAFs, and organoids and found that ULBP2 CAR-T cells not only effectively eliminated organoids, but also suppressed CAF activation within the co-culture environment (Fig. 5H). Collectively, these results highlight the specificity and efficacy of ULBP2 CAR-T cells and provide a promising therapeutic strategy for GC.

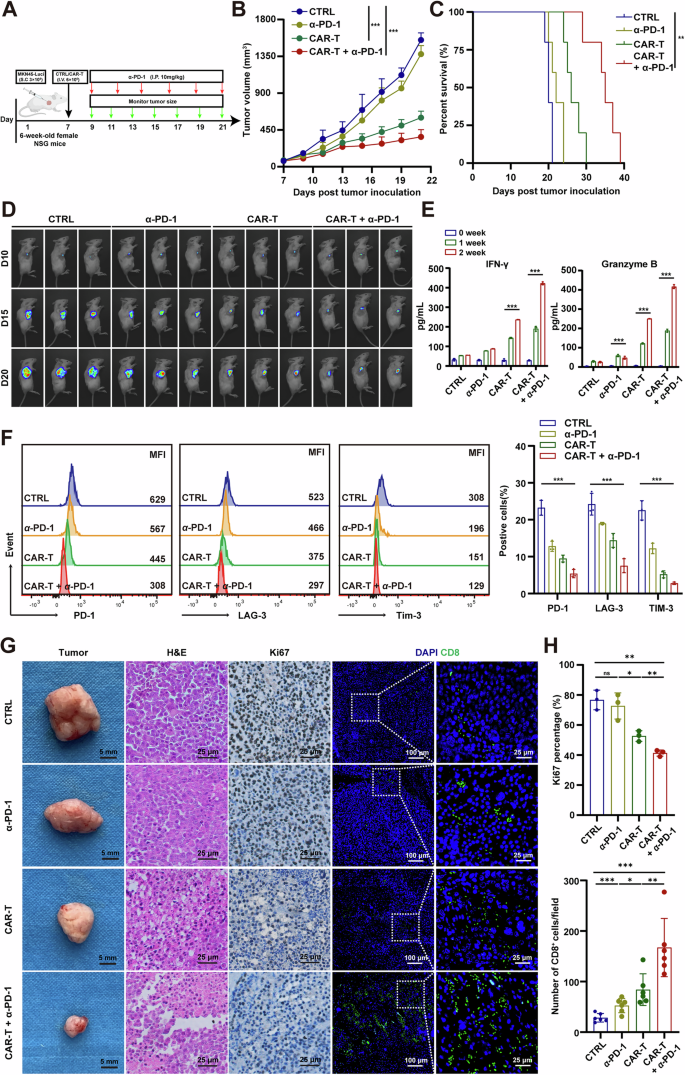

ULBP2 CAR-T cells alone or in combination with PD-1 blockade suppress GC growth and prolong survival

To examine the effects of ULBP2 CAR-T cells in vivo and the potential to enhance the efficacy of anti-PD-1 therapy, we first generated a CDX model using NSG mice inoculated with MKN-45-ULBP2-T2A-Luc cells. When the average tumor size reached 90 mm³, CDX mice were infused with ULBP2 CAR-T cells. One day later, mice in the combination group were treated with anti-PD-1 antibodies every 5 days. Un-transduced human T cells were used as a negative control and anti-PD-1 monotherapy (10 mg/kg, intraperitoneal injection) served as a positive control. Tumor growth and body weight were monitored throughout the course of the experiment (Fig. 6A). We found that ULBP2 CAR-T cells potently curbed tumor growth and prolonged survival compared to un-transduced T cells and anti-PD-1 treatment groups. The anti-tumor effect of ULBP2 CAR-T cells was further significantly enhanced by co-treatment with anti-PD-1 (Fig. 6B–D; Supplemental Fig. S6A–C). Peripheral blood was collected on days 7 and 14, and CAR-T cells were consistently detected with robust expansion, indicating the successful engraftment of CAR-T cells (CD45⁺CD3⁺CD4⁺CD8⁺) in NSG mice (Supplemental Fig. S6D, E). Higher concentrations of IFN-γ and granzyme B were detected in the serum of ULBP2 CAR-T cells treated mice than control mice, indicative of an activated immune response of the infused CAR-T cells (Fig. 6E). We measured cytokines including IL-6, IL-1β and TNF-α and found that CAR-T cell therapy did not induce severe cytokine release syndrome (CRS) (Supplemental Fig. S6F). The expression of molecules associated with T cell exhaustion [29], such as PD-1, lymphocyte activation gene 3 (LAG-3), and T cell immunoglobulin, and mucin domain-containing 3 (TIM-3), decreased in tumor-infiltrating CAR-T cells compared with that in un-transduced T cells, especially in the presence of anti-PD-1 mAb (Fig. 6F). Additionally, we performed haematoxylin and eosin (H&E) and IHC staining of Ki-67 and IF staining of CD8 in the excised tumors. The results were consistent with the above findings (Fig. 6G, H). Notably, no significant changes in body weight were observed in any of the treatment groups, suggesting the safety of ULBP2 CAR-T therapy (Supplemental Fig. S6B).

To further evaluate the efficacy of ULBP2 CAR-T cells alone and in combination with anti-PD-1 antibodies against GC, we established a GC PDX model [30]. Fresh tumor specimens were obtained from a patient with GC (the clinical characteristics was shown in Table S1) and serially transplanted into 6-week-old female NSG mice to produce sufficient amounts of primary tumor tissue. The third generation of serially transplanted mice were used for the experiments when the average tumor size reached 90 mm³ (Fig. 7A). We observed that the growth of PDX was significantly hindered by ULBP2 CAR-T cells alone compared to that of un-transduced T cells, and was further impeded by the combination with anti-PD-1 (Fig. 7B; Supplemental Fig. S7A). More importantly, the combination therapy markedly improved survival.

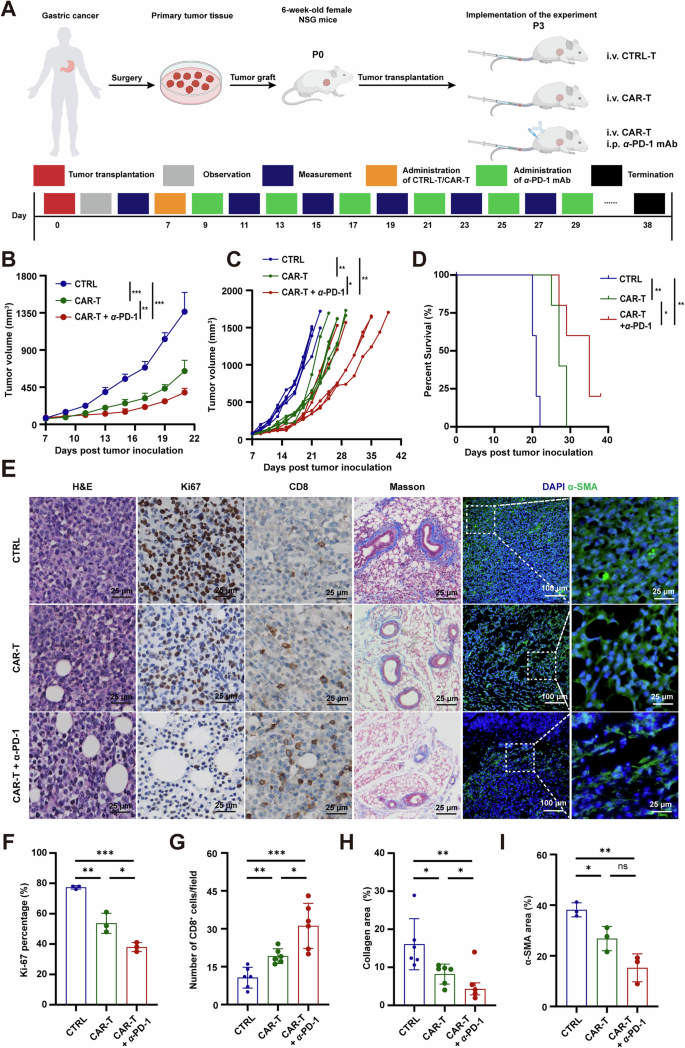

**Fig. 7: ULBP2 CAR-T cells alone or in combination with anti-PD-1 improves survival of NSG mice bearing patient-derived xenografts.**

While all five mice in each of the other groups died within 29 days, one out of five mice in the combination therapy group survived beyond 38 days (Fig. 7C, D). In line with these studies, we found that the combination therapy strongly inhibited cell proliferation, as shown by H&E and IHC staining (Fig. 7E, F). IHC staining revealed a significant increase in the number of CD8⁺ T cells in the ULBP2 CAR-T cell-treated mice compared with that in the control mice, and co-treatment with anti-PD-1 further enhanced the infiltration of cytotoxic T cells into the tumor (Fig. 7E, G). Using Masson’s trichrome and IF assays, we showed that ULBP2 CAR-T cell treatment reduced stromal deposition and CAF activation (Fig. 7H, I). Moreover, none of the ULBP2 CAR-T cell treatments caused significant changes in the body weight of the mice, indicating the safety and tolerability of ULBP2 CAR-T cells alone and in combination with anti-PD-1 mAb (Supplemental Fig. S7B). Therefore, ULBP2 CAR-T cells alone strongly inhibit GC growth and prolong survival, and the anti-tumor effects are further augmented when combined with PD-1 blockade.

Discussion

Despite the significant therapeutic progress in immunotherapy for GC, many challenges still remain including the lack of effective therapeutic targets, and the prevalence of primary or acquired resistance in most patients. Here, we identified ULBP2 as a potential therapeutic target for GC and developed ULBP2 CAR-T cells. We demonstrated the efficacy of ULBP2 CAR-T cells alone, and particularly in combination with PD-1 blockade, to inhibit tumor growth and promote survival, using GC cell lines and organoids, as well as CDX and PDX models. In addition, ULBP2 overexpression promotes TGF-β signalling, driving CAF activation, leading to a dense stromal microenvironment. Targeting ULBP2 effectively reduced stromal deposition, stimulated CAR-T cell infiltration, and augmented the antitumor efficacy of PD-1 blockade therapy (Fig. 8). Our findings suggest a promising new therapeutic strategy for the treatment of GC.

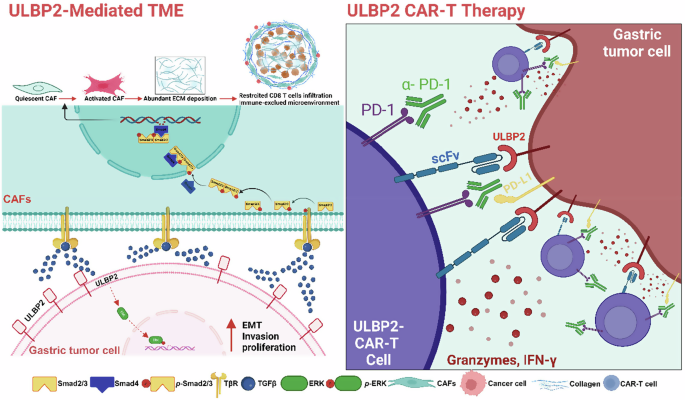

**Fig. 8: ULBP2 CAR-T cells potentiate anti-PD-1 efficacy in GC.**

CAR-T cell therapy has led to breakthroughs in the treatment of gastrointestinal (GI) tract cancers. CLDN18.2 CAR-T cells have demonstrated promising efficacy against CLDN18.2-positive digestive cancers, particularly in GC [10]. CYAD-101, a NKG2D-based, non-gene-edited allogeneic CAR-T cell line, has shown the ability to sustain CAR-directed anti-tumor activity without inducing graft-versus-host disease (GvHD) [31, 32]. However, a major limitation of CAR-T cell therapy is the lack of safely targetable cancer antigens on the cell surface [33]. Here, we identified ULBP2 as an immune-related cell surface protein that is overexpressed in GC, but absent in adjacent normal tissues.

Previous studies have shown that ULBP2 is expressed in many types of human cancers, including breast cancer [34], pancreatic cancer [23], colon cancer [24], and ovarian cancer [35, 36]. In our study, we further validated ULBP2 overexpression in GC using western blotting, qRT-PCR, and IHC staining. Additionally, we found that high ULBP2 expression serves as an independent prognostic factor for poor OS in GC. The high positivity rate and prognostic relevance of ULBP2 indicates that it could be a promising alternative therapeutic target in GC.

ULBP2 is a cell surface molecule that binds to the NKG2D receptor and exists either as a membrane-bound form via a glycosylphosphatidylinositol (GPI) anchor or as a secreted protein [37]. ULBP2 is frequently expressed in tumor cells where it activates natural killer (NK) cells through NKG2D receptor engagement, enabling NK cell-mediated tumor cell cytotoxicity [38]. However, tumors employ various mechanisms to inhibit the NKG2D/NKG2DL axis, thereby facilitating immune evasion. Notably, the proportion of NKG2D-positive NK cells is reduced in pancreatic, gastric, and colorectal cancers, correlating with poor prognosis in these malignancies [39]. Soluble ULBP2 derived from tumor cells impairs immune surveillance by inhibiting NKG2D expression and NK cell activity [40, 41]. Similarly, TGF-β is an important component in the tumor microenvironment (TME) that promotes the occurrence and growth of tumor cells and has immunosuppressive activity, particularly by downregulating the expression of NKG2D on the surface of NK cells [42, 43]. Our findings revealed that ULBP2 knockout significantly suppresses the proliferation and invasion of GC cells, both in vitro and in vivo. Transcriptomic analysis using the KEGG data identifies the TGF-β signalling pathway and ECM−receptor interaction as the most significantly affected pathways. Furthermore, we demonstrate that ULBP2 enhances immunosuppression in GC by activating CAFs and promoting collagen deposition via the TGF-β signalling pathway. These findings highlight the oncogenic role of ULBP2 and its potential as a therapeutic target in cancer.

The overexpression of ULBP2 in tumors and its pleiotropic roles in cancer progression make it an attractive therapeutic target [25]. Previous studies developed NKG2D-based CAR-T and CAR-NK cells to target ligands in cancer and senescent cells [44,45,46,47]. Here we engineered a second-generation ULBP2 CAR-T cells using a novel anti-ULBP2 monoclonal antibody (mAb). These CAR-T cells effectively killed ULBP2-expressing cells and GC patient-derived organoids in vitro. ULBP2 CAR-T cells alone or in combination with PD-1 mAb significantly suppressed tumor growth in MKN-45-ULBP2-T2A-Luc derived CDX models. Currently, patient-derived xenograft (PDX) models are widely regarded as the most clinically relevant in vivo cancer models due to their preservation of key tumor characteristics and high translational fidelity to patient drug responses [30, 48, 49]. In our study, we demonstrated that treatment with ULBP2 CAR-T cells, particularly in combination with anti-PD-1 antibodies, markedly prolonged the survival of PDX mice. Additionally, ULBP2 CAR-T cells exhibited enhanced resistance to T cell exhaustion compared with un-transduced T cells, especially when combined with anti-PD-1 mAb. Therefore, combination therapy consisting of ULBP2 CAR-T cells and anti-PD-1 could be a promising strategy for GC treatment.

In conclusion, we demonstrate that ULBP2 activates the TGF-β signalling pathway, promoting collagen deposition and CAF activation, which collectively fosters a dense stromal microenvironment in GC. The combination of ULBP2 CAR-T cells and anti-PD-1 mAb significantly inhibits tumor growth and improves survival in preclinical models. Our findings highlight the therapeutic potential of targeting ULBP2 in combination strategies to improve the clinical outcomes of patients with GC.

Material and methods

Cells and culture conditions

Human GC cell lines SNU-216, MKN-45, HGC-27, and AGS were obtained from the Chinese Academy of Medical Sciences (China). HEK-293T cells were obtained from the American Type Culture Collection (ATCC). All cell lines were authenticated by short tandem repeat (STR) DNA fingerprinting and confirmed to be free from mycoplasma contamination. SNU-216, HGC-27, AGS, and HEK-293T cells were cultured in DMEM supplemented with 10% foetal bovine serum, 100 U/mL penicillin, and 100 μg/mL streptomycin. MKN-45 cells were cultured in RPMI-1640 medium supplemented with 10% FBS, 100 U/mL penicillin, and 100 μg/mL streptomycin. CD3⁺ T cells were enriched from human peripheral blood mononuclear cells (hPBMCs) using the EasySep Human T Cell Isolation Kit (STEMCELL, 17951) and cultured in RPMI-1640 medium supplemented with 10% FBS, 100 U/mL penicillin, 100 μg/mL streptomycin, and 10 ng/mL recombinant human IL-2 (STEMCELL, 78036). All cells were maintained at 37 °C in a humidified incubator with 5% CO₂.

Animals

M-NSG mice (NOD-Prkdc^scidIl2rg^em1/Smoc) lacking mature T, B, and NK cells were obtained from Shanghai Model Organisms Center, Inc. C57BL/6 mice were provided by the Lanzhou Veterinary Research Institute. All animals were female, aged 6–8 weeks, maintained under specific pathogen-free (SPF) conditions, and randomly assigned to experimental groups using a random number table. Animal care and experiments were conducted in accordance with the Guide for the Care and Use of Laboratory Animals from the National Institute of Health.

Human GC specimens

Tissue microarrays (TMAs) comprising 62 pairs of GC and adjacent normal tissues were prepared as formalin-fixed, paraffin-embedded blocks, and analysed using immunohistochemistry (IHC). Additionally, 20 normal tissues were included for IHC staining of ULBP2 (Proteintech, 13133-1-AP), and six pairs of GC and adjacent normal tissues were used for gene expression analysis by western blotting.

Bioinformatics analysis of gene expression profiles in GC

Single-cell sequencing datasets (GSE163558 and GSE206785) and corresponding clinical information were obtained from the Gene Expression Omnibus database. The major cell types in GC were annotated based on cellmarker2.0, while pathway-specific gene sets were curated from The Molecular Signatures Database (MsigDB, https://www.gsea-msigdb.org/gsea/msigdb). Immune-related genes in human cancers were retrieved from the Immunology Database and Analysis Portal (http://www.immport.org/). The pathway activity and gene scores were computed using the add-module score function.

Generation of anti-ULBP2 monoclonal antibody

To generate monoclonal antibodies against human ULBP2, 6-week-old C57BL/6 mice were immunised three times via subcutaneous multipoint injections with 1 × 10⁷ HEK-293T cells stably expressing ULBP2. Serum samples were collected via retroorbital bleeding to monitor antibody titres. Five days before splenectomy for monoclonal antibody generation, the mice were boosted with a subcutaneous multipoint injection of 2 × 10⁶ HEK-293T-ULBP2 cells. Monoclonal antibodies were subsequently prepared using Microfluid-based Antibody Tech (MBAT, Huazhitiancheng Inc.).

Generation of ULBP2 CAR

The amino acid sequence of the single-chain variable fragment (scFv) specific to human ULBP2 was derived from the variable regions of heavy and light chains of the generated anti-ULBP2 monoclonal antibody. A second-generation CAR (Chimeric Antigen Receptor) was engineered, consisting of anti-ULBP2 scFv, human CD8-derived hinge and transmembrane, and human 4-1BB co-stimulatory and CD3ζ signalling domains.

Lentiviral vector production

HEK-293T cells were used for lentiviral vector production. To generate stable cell lines, including HGC-27-ULBP2-T2A-GFP, AGS-ULBP2-T2A-GFP, MKN-45-ULBP2-T2A-Luc, as well as ULBP2^−/− MKN-45 and ULBP2^−/− SNU-216, pseudotyped lentiviruses were produced by co-transfecting HEK-293T cells in a 3.5-cm dish with 1 μg pLenti-EF1α-ULBP2-T2A-GFP, 1 μg pMD2G, and 0.5 μg psPAX2 into HEK-293T cells in a 3.5-cm dish. After 48 h post-transfection, lentivirus-containing supernatants were collected, filtered through a 0.45 μm non-pyrogenic filter, and immediately used to transduce target cells in the presence of polybrene. Transduced cells were selected with 2 μg/mL puromycin for 5–7 days to establish stable cell lines. To generate ULBP2 knockout SNU-216 and MKN-45 cell lines, pLenti-CRISPR-V2, pSPAX2, and pMD2G were used. Transduction and selection were conducted as previously described. Guide RNA (gRNA) sequences used for the CRISPR/Cas9-mediated ULBP2 knockout are listed in Table S2.

Lentivirus production for CAR-T cell transduction was performed using HEK-293T cells (6 × 10⁶ cells per 10-cm dish). After 18 h, cells were transfected with 7 μg Lenti-CAR plasmid, 5 μg psPAX2 plasmid, and 3.5 μg pMD2G plasmid, using 30 μL Lipofectamine 2000 in 500 μL opti-MEM medium. After 6 h, fresh DMEM containing 10% FBS was added to each well. At 60 h post-transfection, the cell culture supernatants were collected, centrifuged at 1000 × g for 10 minutes at 4 °C to remove cellular debris, and filtered through 0.45-μm low protein-binding membranes. The lentiviruses were concentrated in DMEM containing 10% FBS and 1% bovine serum albumin.

Preparation of ULBP2 CAR-T cells

T cells were purified from hPBMCs using the EasySep Human T Cell Isolation Kit (STEMCELL, 17951) and stimulated with CD3/CD28 T cell activator Dynabeads (Gibco, 11131D) at a bead-to-cell ratio of 1:2 and IL-2 (10 ng/mL). After 24 h, lentiviral transduction was performed by centrifugation at 1000 × g and 32 °C for 90 minutes in the presence of 4.4 μg/mL polybrene. After 10 h, the viral supernatant was replaced with fresh culture medium. T cells were expanded by replacing half of the culture medium with fresh medium every 2 days. After 6 days, the Dynabeads were removed, and T cells were allowed to expand for an additional 3 days. Transduction efficiency was evaluated by FCM, and ULBP2 CAR-T cells were subsequently used for in vitro assays or adoptively transferred into mice.

Cytotoxicity assays

The cytotoxicity of ULBP2 CAR-T cells was determined using standard lactate dehydrogenase (Promega, J2381). A 96-well plate was taken and 100 μL cell suspension added (cell density is 1 × 10⁵ /mL); 100 μL test substance were added to each well. For the natural release control, 100 μL cell suspension and 100 μL of culture medium were added. For the maximum release control, 100 μL of cell suspension and 100 μL of 0.2% TritonX-100 were added. Each condition was tested in triplicate, and the plates were incubated at 37 °C with 5% CO₂ for 8 h.

After incubation, the 96-well plates were centrifuged at 250 × g for 5 min, and 50 μL of the suspension was transferred from each well to a new 96-well plates. Then, 50 μL of CytoTox 96 reagent was added to each well. After 30 min reaction at room temperature, 50 μL of stop solution was added to terminate the reaction, and the relative luminescence units (RLUs) of each well were measured. Cytotoxicity was calculated using the following formula: cytotoxicity (%) = [RLU of reaction - RLU of natural release/RLU of maximum release - RLU of natural release] × 100%.

Organoid culture

GC organoids were generated according to established protocols. In brief, tumor tissues were collected from patients with GC (the clinical characteristics was shown in Table S1), washed with human washing medium (DMEM/F 12 supplemented with 2 mM glutamine and 10% FBS), minced with scissors, and enzymatically digested using 0.1 mg/mL collagenase IV at 37 °C for 30 min. The digestion was halted by adding human washing medium and the digested tumor tissues were filtered through a 100-μm cell strainer. The retained cell clusters were pelleted at 300 g for 5 min, resuspended in 50% Matrigel (R&D, BME001-05)/organoid culture medium (BioGenous, K2179-GC), and plated as 50 μL drops in the centre of pre-warmed 24-well plates. The drop was allowed to solidify by incubation at 37 °C and 5% CO₂ for 30 min. Once solidified, organoid culture medium (0.5 mL) was added, and the medium was replaced every 3–4 days.

Co-culture of organoids and fibroblasts

To establish a co-culture system, organoids were resuspended and cultured in a healthy state. After dissociation from Matrigel, organoids were washed several times with pre-cooled phosphate buffered saline (PBS) to remove most of the matrix components and then resuspended in the co-culture medium following cell counting. Adherent CAFs were digested with trypsin and resuspended in the co-culture medium after counting. Counted organoids and CAFs were then mixed with Matrigel and co-culture medium and plated as 50 μL droplets in the centre of pre-warmed 24-well plates. The droplets were incubated at 37 °C and 5% CO₂ for 30 min to allow solidification. After solidification, the co-culture medium (0.5 mL) was added, with medium changes every 2–3 days. After 6 days, the co-culture was established, and the medium, along with organoids/CAFs, was collected for further experiments.

Mouse tumor models

The cell-derived xenograft (CDX) model was established using MKN-45 cells stably expressing ULBP2 and firefly luciferase (MKN-45-ULBP2-T2A-Luc). Cells were suspended in 100 μL of PBS and mixed with 100 μL of Matrigel (Corning, 354234), and injected subcutaneously (3 × 10⁶ per mouse) into 6-week-old NSG mice. Bioluminescence imaging was conducted at designated time points using a VISQUE in vivo Smart-L. Tumors were harvested at the experimental endpoint.

To establish the PDX patient-derived xenograft (PDX) model, fresh tumor tissues were obtained from patients with GC (the clinical characteristics were shown in Table S1), dissected into small pieces (approximately 10 mm³), and subcutaneously injected into 6-week-old NSG mice for serial transplantation. For CAR-T cell therapy studies, mice received adoptive transfer of transduced ULBP2 CAR-T cells (6 × 10⁶ per mouse, intravenous injection) when the average tumor size reached 90 mm³, and the combination therapy group received anti-PD-1 (10 mg/kg, intraperitoneal injection) every 5 days. Un-transduced human T cells were used as a negative control and anti-PD-1 monotherapy (10 mg/kg, intraperitoneal injection) served as a positive control. Tumor volume was measured using a digital calliper, and body weight was monitored every other day. The tumor volume was calculated using the following formula: tumor volume = (longer diameter) × (shorter diameter)²/2. The experimental endpoint was defined as either death or a tumor size of 1500 mm³. Tumor tissues were collected at the endpoint, fixed in formalin, and embedded in paraffin for H&E, IHC, and IF staining. Blinding was implemented throughout the study to minimize bias. Investigators responsible for administering treatments and assessing outcomes were blinded to group allocations during all experimental procedures. All animal procedures were performed using five mice per group. The group size was determined according to published studies in this field and in accordance with the 3 R principles of animal research ethics.

Flow cytometry analysis

To analyse cells from the tumor models, tumors isolated from mice were minced with scissors and digested with collagenase IV to obtain single-cell suspensions. The resulting cell slurry was passed through a 70-μm filter and transferred into a 15-mL centrifuge tube. After centrifugation at 300 × g for 5 min, the supernatant was discarded and the pellet was resuspended in 2 mL of freshly prepared 45% Percoll solution. The suspension was centrifuged at 350 × g for 7 min. Erythrocytes were lysed using Red Blood Cell Lysis Buffer, and the remaining cells were resuspended in PBS containing 2% FBS, stained with specific antibodies for 30 min in the dark, and analysed using flow cytometry. The following antibodies were used: FITC anti-human CD3 (Biolegend, 100204), PE anti-human CD4 (Biolegend, 100408), APC anti-human CD8 (Biolegend, 100712), APC-Cy7 anti-human CD45 (Biolegend, 103116), APC anti-human PD-1 (Biolegend, 329908), PE/Cyanine7 anti-human Tim-3 (Biolegend, 345014), PE anti-human LAG-3 (Biolegend, 369306), and anti-ULBP2 (Abcam, ab89930). The expression of ULBP2 across the cell groups was quantified using flow cytometry.

Immunofluorescence

Fixed fibroblasts were permeabilised with 0.1% Triton X-100 and incubated overnight at 4 °C with anti-α-SMA (Abcam, ab5831). After three washes with PBS, the samples were incubated with fluorescently labelled secondary antibodies. Nuclei were counterstained with 4,6-diamidino-2-phenylindole (DAPI) before mounting. To determine the ability of ULBP2 CAR-T cells to bind to MKN-45-mCherry cells, they were co-cultured in a 35-mm glass-bottom microwell dish for 4 h. Confocal fluorescent images were captured using a Zeiss LSM880 laser microscope.

Histological analysis

Tissue specimens obtained from patients or mice were fixed in 10% formalin, embedded in paraffin, and cut into 5-μm sections. The sections were subsequently de-paraffinised, rehydrated, and subjected to HE, Masson’s trichrome, Sirius Red, or IHC staining. The following primary antibodies were used: anti-human ULBP2 (13133-1-AP; Proteintech) and anti-human CD8 (ab316778; Abcam). Images were acquired using the TissueFAXS Viewer. Staining intensity (0, 1, 2, and 3) and the percentage of positive cells (0–100%) were independently assessed. The histoscore (H-score) was calculated by multiplying the staining intensity with the percentage of positive cells.

RNA extraction and real-time quantitative PCR

Total RNA was extracted from tissues or cells using TRIzol reagent and reverse transcribed into cDNA using a reverse transcription kit (Bio-Rad, 1708891). The relative expression levels of mRNAs were determined by qRT-PCR with a LightCycler instrument (Roche) using SYBR Green dye (Bio-rad, 1725124), and the results were analysed by the ΔΔCT method. The sequences of forward and reverse primers (10 μM) for human TGF-β1 and GAPDH are listed in Table S3.

CAF proliferation detection

CAF proliferation was assayed using a Ki-67 antibody (CST, 9449S). Following the manufacturer’s protocol, cells were harvested after 7 days of treatment, washed with PBS, and fixed with 4% formaldehyde for 15 min at room temperature. After washing with PBS, cells were permeabilised on ice with 0.1% PBS-Tween for 15 min. According to the datasheet, 1 × 10⁶ cells were incubated with the Ki-67 antibody for 1 h at room temperature, followed by washing with PBS. Before measurement, cells were again washed twice and resuspended in PBS. Measurements were performed using FCM (BD Biosciences).

Immunoblotting

Cells (2 × 10⁶) or tissues (20 mg) were washed twice with cold PBS and whole cell lysates were extracted using 100 μL of lysis buffer (PBS, 1% NP-40, 0.5% sodium deoxycholate, 0.1% sodium dodecyl sulphate) containing phosphatase inhibitor cocktail. After lysis, the cell debris were removed by centrifugation at 12,000 × g for 10 min. The primary antibodies used for immunoblotting were anti-ULBP2 (Abcam, ab275023), anti-GAPDH (Proteintech, 10494-1-AP), anti-TGF-β1 (Selleck, F1624), anti-smad2/3 (Selleck, F0363), anti-p-smad2 (Selleck, A5192), anti-E-cadherin (Abcam, ab314063), anti-N-cadherin (Abcam, ab256744), and anti-Vimentin (Abcam, ab92547). Horseradish peroxidase-conjugated goat anti-mouse IgG antibody was used as a secondary antibody.

Enzyme-linked immunosorbent assays (ELISA)

The protein levels of human IFN-γ and granzyme B in the supernatant from cytotoxicity assays of CAR-T cells against GC cells or organoids, and the protein levels of human IFN-γ, granzyme B, IL-6, IL-1β and TNF-α in the serum of CDX or PDX mice were measured using human ELISA kits (Solarbio, SEKH-0193, SEKH-0046, SEKH-0013, SEKH-0047 and SEKH-0002) following the manufacturer’s protocol. A total of 100 μL of sample or standard was added to each well and incubated on a shaker at 37 °C for 1–2 h. Then, 100 μL of biotinylated antibody and enzyme-labelled reagent were added for further incubation. After incubation, the colour-developing solution was added, and the reaction was terminated with a stop solution. The absorbance at 450 nm was measured within 10 min using a microplate reader.

Statistical analysis

Statistical analyses were performed using SPSS 24.0 (IBM, Armonk, NY) and GraphPad Prism 8.0 (San Diego, CA). The normality of data distribution was assessed using the Shapiro–Wilk test, and the homogeneity of variances was evaluated using Levene’s test. Comparisons between two groups were performed using an unpaired two-tailed t-test or a paired t-test, as appropriate. For comparisons among multiple groups, one-way analysis of variance (ANOVA) was conducted, followed by either Tamhane’s T2 or LSD post hoc test, depending on variance equality. Survival analyses were conducted using the Kaplan–Meier method, and survival curves were compared using the log-rank (Mantel–Cox) test. Data are presented as mean ± standard error of the mean (SEM). Statistical significance was denoted as follows: *p < 0.05, **p < 0.01, and ***p < 0.001.

Data availability

All data needed to evaluate the conclusions in the paper are present in the paper and/or the Supplementary Materials. Original images of Western blots and qPCR results are provided as supplementary material. The RNA-sequencing datasets generated in this study and the code used for single-cell RNA sequencing analysis have been deposited in the Figshare repository (https://figshare.com/) and are available from the corresponding author upon reasonable request.
