Introduction

Advances in nanotechnology have shown that many materials, when confined to nanoscale dimensions, exhibit unique properties, making them scientifically stimulating and technologically desirable. While research in thin film and nanoparticle synthesis has shown that many of these nanoscale materials can be pushed further into the sub-nm regime, an alternative path for new science and next-generation technology is possible through engineering naturally-occurring defects in them, especially extended defects. These extended defects—line (or 1D, dislocations and disclination, etc.) and planar (or 2D, grain boundaries, stacking faults, etc.)—are particularly promising because they span the entire crystal in one or two directions while remaining atomically abrupt in others1. Additionally, since they occupy a very small volume fraction of the host crystal (\(\lesssim\)10%), nanostructures can leverage the properties of both defect and host. Extended defects in perovskite crystals, especially in perovskite oxides (ABO3), are particularly promising. The structural flexibility of these crystals allows them to accommodate various types of distortions, including octahedral BO6 tilts2,3, uniaxial and biaxial strains4,5, orbital ordering6,7, and cation ordering8. Compositional complexity of perovskite oxides combined with such high structural flexibility also allows them to host a wide variety of defects, including unique extended defects, such as inclusion of Ruddlesden-Popper (RP) faults and phases9,10,11, Aurivillius phase12, new kinds of 1D defects13,14,15 and dislocations with non-conventional cores16.

Since extended 1D and 2D defects in these crystals are accompanied by local strain and variation in composition, they often exhibit enhanced electrical, catalytic, or electrochemical properties and, in some cases, originate new phenomena14,15,16,17,18. They are particularly well documented for dislocations and RP faults16,19,20. In ceramic oxide films, dislocations can introduce localized conductive channels, as seen in α-Al2O321 and AlN films22, in LiNbO323 (along grain boundaries) and cores in La-doped BaSnO3 films16. Further, dislocation-driven modulation of piezoelectric and dielectric properties was achieved in BaTiO3 films24 as well as tuning of superconductivity in plastically deformed SrTiO325. Benefits can also be realized with RP faults, such as tunability of the electrocatalytic activity in LaNiO3 films26. Such property modulations are a result of having different atomic arrangements, localized strain-states, and charged defects, which contribute to the formation of special electronic states in the band structure of the host film.

Nucleation and growth of these defects at high densities in thin films, with nanometer-scale location control, can provide the needed pathway for harnessing their properties and designing new device building blocks for future electronics. The existing techniques of defect management—strain engineering through substrate selection26,27,28, introduction of buffer layers29, varying composition or temperature during film growth30,31, or through heat or stress treatments18,32,33,—are inadequate as they lack location control.

In this work, we present a method for engineering ultra-high-density 1D dislocations and 2D RP faults in perovskite oxide thin films with nanoscale location specificity. The method is based on nanoscale modifications of the substrate surface using ion-beam patterning before film growth. Such surface treatment promotes nucleation of these defects at the film-substrate interface and their propagation through the film. To demonstrate the method, we patterned SrTiO3 substrates using a Ga ion-beam in a FIB, and subsequently grew thin films of BaSnO3 and SrSnO3 using hybrid molecular beam epitaxy (MBE). The analysis of the films using a combination of scanning electron microscopy (SEM) and analytical aberration-corrected scanning transmission electron microscopy (STEM), shows that ultra-high densities of dislocations and RP faults can be achieved in these films at locations directly above the patterns on the substrate.

Results

In bulk perovskite crystals, the distribution of 1D and 2D defects is relatively isotropic in all directions. However, in thin films grown on a substrate, the direction of crystal growth introduces an anisotropy in their distribution1,34. Due to lattice mismatch between the substrate and the film, the film grows under a substrate-imposed strain, resulting in nucleation of extending defects at the interface, a fraction of which then threads along the film growth direction35,36. The edge dislocations are the most common threading defects in these thin films, followed by 2D RP faults. Among them, edge dislocations of [001]/(100)- and [001]/(110)-types with A- or B-terminated cores37,38 are the most prominent (Fig. 1a). RP faults, which consist of two facing AO planes along one of the \(\left\langle 100\right\rangle\) directions, in these crystals often appear in the pure form as standalone defects or in the form of loops (either close, or open). In many cases, the RP loops include sections of antiphase boundaries with two facing ABO planes along \(\left\langle 110\right\rangle\) directions, as illustrated in Fig. 1b. High-resolution, high angle annular dark-field (HAADF)-STEM images and corresponding elemental energy dispersive X-ray (EDX) maps of two threading dislocations and a RP fault loop from a BaSnO3 thin film are shown in Fig. 1c, where their characteristic atomic arrangements can be seen.

Fig. 1: Extended defects in perovskite oxides thin films.
Fig. 1: Extended defects in perovskite oxides thin films.
Full size image

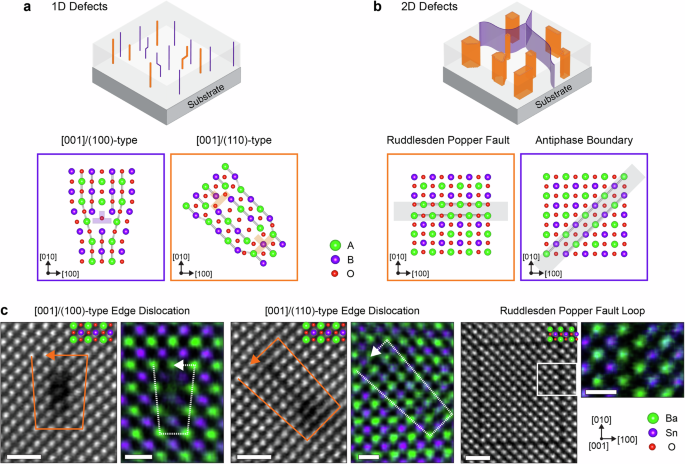

a Illustration of threading 1D line defects in perovskite oxide thin films grown on a substrate along with atomic models of common [001]/(100)-type and [001]/(110)-type edge dislocations with B-terminated cores. The [001]/(110)-type dislocation has a dissociated core with an antiphase boundary in the middle. b Illustration of threading 2D planar defects in perovskite oxide thin films. RP fault loops are in orange and grain boundaries are in purple. Atomic models of RP fault and antiphase boundary are shown in the panels below. c HAADF-STEM images of both types of edge dislocations and a RP fault loop from a BaSnO3 film. The Burgers loops are shown. STEM-EDX maps (the panels on the right) show the Sn-termination of the [001]/(100)-type dislocation core, the antiphase structure of dissociated cores of [001]/(110)-type dislocation and facing BaO planes of the RP fault. Scale bars are 1 nm for the HAADF images and 5 Å for the EDX maps.

Nanoscale patterning of SrTiO3 substrate using an ion-beam

An (001) SrTiO3 substrate was used here, as it is one of the preferred substrates for growth of both BaSnO3 and SrSnO3 films39,40,41. Ga ion-beam in a dual beam FIB-SEM system was utilized to modify the surfaces of the SrTiO3 substrates with specific patterns. While a wide variety of different patterns can be made using the FIB system, for simplicity of analysis in this study, all the patterns here were sets of periodically spaced parallel and crossing lines. The characteristics of the lines and the degree of surface modification are directly correlated with the Ga ion-beam dose of the FIB (DI)42,43. At lower ion-doses, amorphous ridges are created on the substrate surface due to amorphization of the substrate under Ga ion bombardment. At higher ion-doses, in addition to amorphization, trenched channels are created due to partial sputtering of the surface atoms. Figure 2a and b illustrates schematically the differences between low-dose and high-dose patterning with examples. For SrTiO3 substrates with (001) exposed surfaces, the transition of the patterned line characteristics from low-dose to high-dose regime occurs at about DI \(\simeq\) 3 × 1017 ions/cm2 42. Three sets of parallel lines patterned on (001) SrTiO3 substrate, 900 nm apart with varying ion-doses are shown in Fig. 2c. As can be seen, the lines are uniform and the width of the impacted region on the surface widens with an increase of the ion-dose (for more examples, see SI Fig. S1). The structure of these lines was evaluated by HAADF-STEM imaging and STEM-EDX compositional maps obtained from the line cross-sections. One such case for a line patterned with high-dose ions is shown in Fig. 2d, where the trenched channel with the surrounding amorphous region can be seen. More examples of lines made with low- and high-ion-doses are presented in SI Fig. S2. It should be noted that the dimensions of the patterned lines could also be controlled by adjusting Ga ion energy. This is shown in SI Fig. S3.

Fig. 2: Ion-beam patterning of SrTiO3 substrates.
Fig. 2: Ion-beam patterning of SrTiO3 substrates.
Full size image

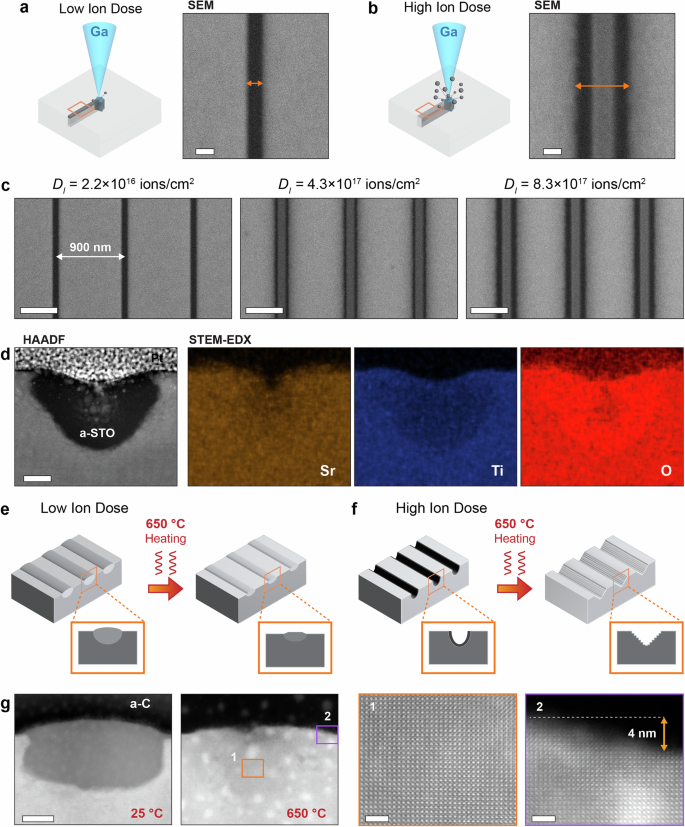

a, b Models illustrating patterning of the substrate surface using low-dose and high-dose Ga ions, and corresponding SEM images of such patterned lines on SrTiO3. Scale bars are 100 nm. c SEM images from patterned parallel lines on (001) SrTiO3 substrate, showing change of structure and increase of line width with increase of ion-dose (DI). The spacing between pattern lines is 900 nm. Scale bars are 500 nm. d Cross-sectional HAADF-STEM image of a line made with DI = 8.3 × 1017 ions/cm2, showing a shallow trenched channel. Dark contrast around the channel is due to amorphized SrTiO3. STEM-EDX maps show that the elemental composition of the patterned line is the same as that of the substrate. Scale bar is 20 nm. e, f Models illustrating structural modifications of the patterned ridges and channel lines after heat treatment. g HAADF-STEM images of patterned ridges on (001) SrTiO3 substrate, made with DI = 4.4 × 1016 ions/cm2, before and after ex-situ 650 °C heat treatment. Scale bar is 20 nm. Atomic-resolution images, from the boxed areas, show recrystallization of the amorphous patterned line. The brighter dots in the images are Pt particles from the Pt-weld migrated during heating. Scale bars are 2 nm.

To ensure that the films of BaSnO3 and SrSnO3 grow over the patterned lines with sufficient coherency, recrystallization of the amorphous lines made on the surface of the SrTiO3 substrate was carried out. It should be noted that a considerable density of imperfections should be preserved in these newly recrystallized lines to nucleate extending 1D and 2D defects. It can be achieved by annealing the patterned substrates at high temperatures, which can be performed either ex-situ, after patterns are made in the FIB, or in-situ in the film growth chamber before growing the thin films. For SrTiO3 substrates, temperatures between 600 °C < T < 950 °C are found to be optimal, resulting in the creation of the needed recrystallized ridges or channels on the surface (Fig. 2e and f). A set of HAADF-STEM images of the SrTiO3 substrate with a patterned ridge before and after ex-situ 650 °C heat treatment is shown in Fig. 2g, where the crystallinity of the region is mostly restored, while still containing considerable imperfections. It was observed that as the temperature of heat treatment is increased, higher was the crystallinity of the transformed region with less remining imperfections. For more details on this amorphous to crystalline transition of the patterned lines on the SrTiO3 surface, see SI Fig. S4. Further, annealing the patterned substrates created with a lower Ga ion beam energy (8 keV) resulted in similar quality of recrystallized SrTiO3 substrate (for details, see SI Fig. S5 and S6), which suggests that Ga ion energy could be utilized for further controlling dimensions of the patterned lines and substrate roughness. It should be noted that this patterning method can be applied to many substrates with some modifications of ion-beam parameters42.

Growth of BaSnO3 and SrSnO3 films on patterned SrTiO3 substrates

Thin films of BaSnO3 and SrSnO3 were grown on these patterned (001) SrTiO3 substrates by hybrid MBE (Fig. 3a). Before growing the films, the FIB-patterned substrates were in-situ heat-treated inside the MBE chamber at about 900 °C, recrystallizing the amorphous SrTiO3 around the patterned lines. The 2θ-ω X-ray diffraction (XRD) patterns obtained from these BaSnO3 and SrSnO3 films indicate high film quality and epitaxial relationship between the films and the substrate (Fig. 3b). It should be noted that the BaSnO3 films are, as expected, in the cubic phase and strain relaxed40. The SrSnO3 films are also as expected for the films grown on (001) SrTiO3, predominantly in the tetragonal phase and slightly strained (−4.1%)44. A combination of SEM surface and STEM cross-section images obtained from the regions of the film grown on non-patterned areas of the substrate confirmed that the films are indeed epitaxially grown on the (001) SrTiO3 substrate, uniform in thickness, and are of high quality with a nominal concentration of defects. Figure 3c–e and Fig. 3f–h show two such sets of images for BaSnO3 and SrSnO3 films, respectively. For more details, see SI Fig. S7 and S8. These observations are consistent with previous reports on BaSnO3 and SrSnO3 films grown on (001) SrTiO3 without any patterning using hybrid MBE45,46.

Fig. 3: Growth of perovskite BaSnO3 and SrSnO3 thin films on patterned (001) SrTiO3 substrates.
Fig. 3: Growth of perovskite BaSnO3 and SrSnO3 thin films on patterned (001) SrTiO3 substrates.
Full size image

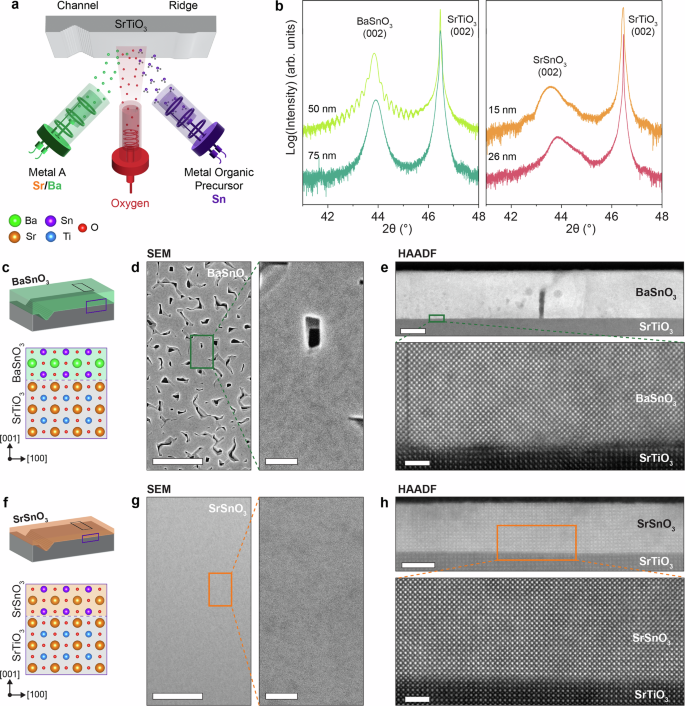

a Schematic illustrating hybrid MBE growth of thin films of BaSnO3 and SrSnO3 on the patterned and recrystallized SrTiO3 substrates. b 2θ–ω XRD scans for BaSnO3 (left) and SrSnO3 (right) films grown on patterned (001) SrTiO3 substrates. The film thicknesses are indicated. c A model of BaSnO3 film growth on patterned SrTiO3 substrate with epitaxial atomic arrangements at the interface between film and substrate. d SEM images from a 75 nm-thick BaSnO3 film from the top surface (dark regions are voids in the film). Scale bars are 1 µm and 100 nm. e Low- and high-magnification HAADF-STEM images from BaSnO3 film in cross-section showing epitaxial growth and uniformity. Scale bars are 50 nm and 2 nm. f A model depicting SrSnO3 film growth on patterned SrTiO3 substrate with epitaxial atomic arrangements at the interface between SrSnO3 and SrTiO3. g SEM images from a 15 nm-thick SrSnO3 film from the top surface showing uniformity of the film. Scale bars are 1 µm and 100 nm. h Low- and high-magnification HAADF-STEM images from SrSnO3 film in cross-section showing epitaxial growth, uniform 15 nm film thickness, and excellent film quality. Scale bars are 10 nm and 2 nm.

Next, when SEM images of the surfaces of the films grown over different patterned lines on SrTiO3 (DI/separations) were obtained, distinct growth characteristics in these regions, for both BaSnO3 and SrSnO3 films, were observed. Atomic-resolution STEM imaging, performed in cross-section and plan-view, allowed to identify the 1D and 2D defects in the patterned regions and quantify their densities.

1D defects in BaSnO3 films on patterned substrates

Based on the results obtained from BaSnO3 films grown on non-patterned regions of the substrate (see SI Fig. S7), where fewer defects were observed in the 75 nm-thick BaSnO3 film, in-depth analysis of threading dislocations in the patterned channels was carried out for the 75 nm thick BaSnO3 film. A set of SEM images from the film grown directly over patterned lines are shown in Fig. 4a, where cases for two different Ga ion-doses (DI = 2.2 × 1016 ions/cm2 for low-dose and DI = 8.3 × 1017 ions/cm2 for high-dose) and two different spacings between lines (900 nm and 300 nm) are presented. As can be seen, the higher the patterning ion-doses and the smaller the spacing between the lines, the less it resembles the film from the non-patterned region (Fig. 3d). It is particularly visible in void shapes and sizes. For more examples, see SI Fig. S9. The sensitivity of film growth on patterned line size and their proximity is evident, with a more continuous film structure along the channels.

Fig. 4: Extended defects in BaSnO3 thin film grown on patterned SrTiO3.
Fig. 4: Extended defects in BaSnO3 thin film grown on patterned SrTiO3.
Full size image

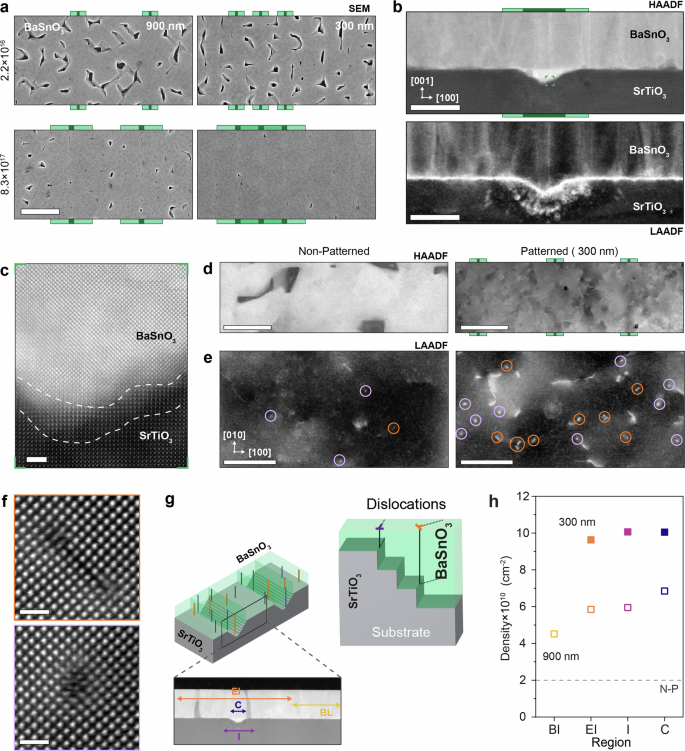

a A set of SEM images showing the top surface of the 75 nm-thick BaSnO3 film grown on the patterned surface of the (001) SrTiO3 substrate. It includes cases for two different ion-doses, DI [ions/cm2], and spacings between patterned lines (900 and 300 nm). Underlying green strips are guides showing the locations of the patterned lines and widths of the channels (dark) and impacted areas (light). Scale bar is 500 nm. b A pair of low-magnification HAADF- and LAADF-STEM images of BaSnO3 film grown over a recrystallized SrTiO3 channel lines made with DI = 4.3 × 1017 ions/cm2 ion-beam with 300 nm spacing between them. Scale bars are 50 nm. c Atomic-resolution image of the interface between BaSnO3 film and recrystallized SrTiO3 substrate from the channel (highlighted with box in (b)) showing epitaxial growth and interface roughness (marked with dash lines). Scale bar is 2 nm. d Plan-view HAADF images of BaSnO3 film from non-patterned and patterned regions. Scale bars are 200 nm. e Higher-magnification LAADF images from the same regions as in (d). The bright spots are threading dislocations: [001]/(100)-type single core (purple circles) and [001]/(110)-type dissociated cores (orange circles). Scale bars are 50 nm. f HAADF-STEM images of both types of dislocations from the patterned region. Scale bars are 1 nm. g A model and STEM image illustrating four sub-regions in the film used for dislocation density estimates along with a model illustrating dislocation formation and propagation from the substrate. h Evaluated density of dislocations in BaSnO3 film in different sub-regions indicated in (g). Here regions with 900 nm and 300 nm spacings between the line were considered. The density of dislocations (2 × 1010 cm‒2) from the non-patterned (N-P) region is marked with dashed line.

For atomic-level analysis of the BaSnO3 films grown over the patterned regions, cross-sectional and plan-view STEM imaging were performed. Figure 4b shows a pair of complementary low-magnification HAADF- and low-angle annular dark-field (LAADF)-STEM images obtained in cross-section from the 75 nm-thick BaSnO3 film grown over a patterned channel in SrTiO3. The low density of vertical bright lines visible throughout the film in both images are primarily due to threading grain boundaries and dislocations. A strong, bright contrast can be seen at the interface between the film and the substrate in the LAADF image due to strain. This contrast or strain is particularly enhanced and widened in the channel and surrounding areas, which is the result of a more imperfectly recrystallized amorphous channel, discussed earlier (Fig. 2). Atomic-resolution HAADF images of interface inside the channel shows that, while the BaSnO3 film is grown epitaxially on the SrTiO3 substrate, considerable interface roughness is still present (Fig. 4c). As indicated earlier, having channels with such surface roughness was intentional to promote nucleation and growth of extended defects. Since BaSnO3 films prefer hosting threading edge dislocations among extended defects, the film was also analyzed from the plan-view along the film growth direction. For that, a dedicated STEM sample preparation method was developed allowing preparation of electron transparent plan-view, substrate-free, samples of the film from any location on the wafer47.

Figure 4d compares two low-magnification HAADF-STEM images of BaSnO3 films in plan-view obtained from non-patterned and patterned regions. Presence of much smaller columnar grains in the patterned region is evident, which was also observed in cross-section (Fig. 4b). Higher-magnification LAADF images of the film obtained from the same regions shows a dramatic increase in the number of strain-induced bright spots in the film grown over patterned lines (Fig. 4e). The single bright spot is a signature of single-core [001]/(100)-type threading dislocations, and the pair of spots is a signature of [001]/(110)-type dissociated dislocations16. Atomic-resolution HAADF-STEM images of a few of these dislocations are shown in Fig. 4f. For additional discussion, see SI Fig. S10 and S11.

As discussed earlier, FIB-patterning lines on the surface of the substrate for film growth involves a step of recrystallizing the amorphous regions surrounding the channels and ridges. As a result, the final widths of the channels, or the ridges, are smaller than that of the original patterned lines. Therefore, for evaluation of threading dislocation densities in the BaSnO3 film in the patterned region, the area was divided into four sub-regions as follows: ‘C’ region of the film exactly above the channel after recrystallization of the patterned amorphous line; ‘I’ impacted region corresponding to the area where the original patterned amorphous line was before recrystallization, ‘EI’ extended impacted region beyond region ‘I’ where the film grew differently than in the non-patterned areas, and ‘BL’ region between the lines beyond ‘EI’ regions, where film has all resemblance of the non-patterned region. They are shown schematically in Fig. 4g (also, in SI Fig. S9). The widths of the regions ‘C’ and ‘I’ are estimated directly from cross-sectional STEM images, and the widths of ‘EI’ and ‘BL’ from top-view SEM images. The evaluated 1D dislocation densities from all four regions are summarized in Fig. 4h. Threading dislocation densities approaching 1011 cm−2 are achieved along the patterned channel, which is × 5 higher compared to the non-patterned bulk regions. Analysis of the relative fractions of these two types of dislocations in patterned and non-pattered areas indicate that, while [001]/(100)-type threading dislocations are the majority of dislocations in both regions, the relative fraction of [001]/(110)-type dislocations increases from 14% in non-patterned regions to 23% in patterned regions. Further, an increase in the density of RP faults was also observed in these patterned regions going from 1 × 105 cm−1 in the reference regions to 2.2 × 105 cm−1.

Comparisons of the dislocation densities from different sub-regions suggests that surface roughness, introduced from recrystallization of the SrTiO3 substrate, is the likely origin of this dramatic increase. This is further supported by a gradual decrease in the dislocation density moving away from the channel, approaching the reference concentration for larger line separations. Created surface roughness introduces a 3D strain (in-plane and out-of-plane) along the substrate surface for the growing film, and therefore, is more inducive for nucleating these threading defects. It is different from the common 2D biaxial strain due to lattice mismatch between film and substrate48,49.

2D Defects in SrSnO3 films on patterned substrates

Here again, based on the results obtained from SrSnO3 films grown on non-patterned regions of the SrTiO3 substrate (see SI Fig. S8), where less defects were observed in the 15 nm-thick film, in-depth analysis of threading RP faults in the patterned channels were carried out for the 15 nm-thick SrSnO3 film. Figure 5a shows a set of SEM images obtained from the SrSnO3 film grown directly on the patterned lines, comparing three different patterns (cases with DI = 2.2 × 1016 ions/cm2 for low-dose, DI = 4.3 × 1017 ions/cm2 for medium-dose, and DI = 8.3 × 1017 ions/cm2 for high-dose Ga ions) and for two different line spacings (900 nm and 90 nm). Since the film is very thin, the pattern lines on the substrate surface are visible in almost all cases, with the channels created at higher ion-doses showing a more pronounced contrast. As can be seen, the patterning results in the formation of some voids in the film near the lines as well as some texture above the channel, both of which are reduced at smaller line spacings. As was the case with the BaSnO3 film, lower the patterning ion-doses and larger the spacing between the lines are, more it resembles the film from non-patterned region (Fig. 3g). For more cases, see SI Fig. S12.

Fig. 5: Extended defects in SrSnO3 thin film grown on patterned SrTiO3.
Fig. 5: Extended defects in SrSnO3 thin film grown on patterned SrTiO3.
Full size image

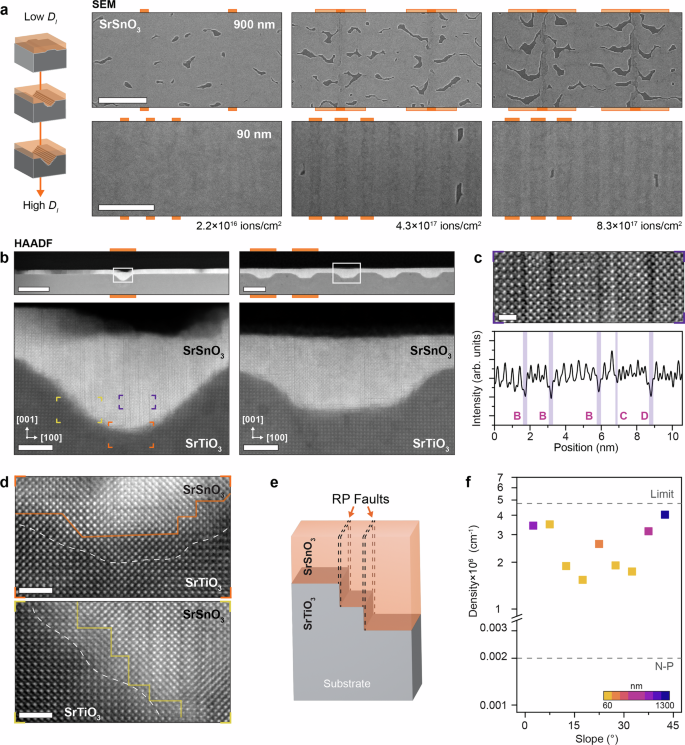

a A set of top-view SEM images showing the SrSnO3 film grown on the patterned surface of the (001) SrTiO3 substrate with three different DI and two different line spacings. Underlying orange strips are guides showing the locations and the widths of the patterned lines. Scale bars are 500 nm (top row) and 200 nm (bottom row). b Low- and high-magnification HAADF-STEM images of 15 nm-thick SrSnO3 film grown over recrystallized patterned channels created with ion-doses of DI = 8.3 × 1017 ions/cm2 and 900 nm spacing (left) and DI = 4.3 × 1017 ions/cm2 with 90 nm spacing (right), respectively. Scale bars are 100 and 50 nm (top row) and 10 nm (bottom row). c Atomic-resolution image of SrSnO3 film in the channel, highlighted by the purple box in (b) showing presence of high-density RP faults. HAADF intensity line-scan shown in the panel below with types of RP orientations indicated. The image is low-pass filtered for clarity. Scale bar is 1 nm. d HAADF-STEM images from interface between SrSnO3 film and SrTiO3 substrate at different locations in the channel (marked in (b)) showing epitaxial growth of the film and RP fault nucleation sites. Scale bars are 2 nm. e A model illustrating RP fault formation and propagation at the steps of the substrate. f Evaluated densities of RP faults as function of channel slope angle. The color map shows the total length over which the density was estimated. The theoretical limit and density of RP faults from the non-patterned (N-P) region (2 × 103 cm−1) in SrSnO3 are indicated by dash line.

Two pairs of cross-sectional low- and high-magnification HAADF-STEM images of the same SrSnO3 film grown on the patterned recrystallized channels, created with a high ion-dose of DI = 8.3 × 1017 ions/cm2 and line spacing of 900 nm line separation and, a medium ion-dose of DI = 4.3 × 1017 ions/cm2 and spacing of 90 nm, are shown in Fig. 5(b) (see also SI Fig. S13). As can be seen, similar to the case of the BaSnO3 film, despite the presence of considerable substrate surface roughness, the SrSnO3 film grows epitaxially everywhere, including in the channels. It should be noted here that the depth and the shape of the recrystallized channels are a function of ion-dose42. High density of contrast variations visible in the SrSnO3 in the channels is indicative of a highly defective local structure of the film. Atomic-resolution images of the film obtained from the channels show that the high-density of dark vertical lines visible in the high-magnification images are 2D RP faults propagating through the SrSnO3 film (Fig. 5c). Differences in the atomic arrangements of different RP faults in this image are due to (i) crystallographic orientation of the faults and (ii) the projection it is being viewed in (for in-depth discussion, see SI Fig. S14).

HAADF-STEM images obtained from the interface between SrSnO3 and SrTiO3 inside the recrystallized channels show that the film grows epitaxially on the substrate with a rough surface, (1–3 nm in roughness), and a correlation between the structure of the film and the substrate surface (Fig. 5d). Atomic-resolution images in Fig. 5 show that the nucleation sites of the RP faults in the film coincide with the atomic steps formed at recrystallized SrTiO3 surface in the channel, as seen in the model in Fig. 5e. It is particularly evident at the slopes of the channels, where more steps are present (for more examples, see SI Fig. S15). Correlation between steps on the substrate and RP faults was also observed in LaNiO3/LaAlO3 superlattices50. This correlation can be understood through the 3D strain that a rough substrate surface imposes on the growing film. The results of density functional theory (DFT)-based calculations that minimize the surface energies for SrTiO3 surfaces51, show that steps on the substrate surface create strain in the in- and out-of-plane directions (see SI Fig. S16). They also show that the higher the slope angle of the surface, the higher are the in- and out-of-plane surface strains imposed on the growing film (for in-depth discussion, see SI Fig. S17). This 3D surface strain, which can be as high as 3 to 6%, in turn forces more nucleation of RP faults. The presence of these surface strains at the film-substrate interface at the patterned sites is readily observed in the LAADF-STEM images (see SI Fig. S17).

The density of these engineered RP faults in the channels was quantified as a function of substrate surface slope angle (Fig. 5f). As seen from the HAADF images, the density of the RP faults is very high and has an identifiable slope dependence. The density of the RP faults in the channels is larger than 2 × 106 cm−1, reaching 4 × 106 cm−1 at the 45° inclined slopes. Such densities are not only × 103 higher than those observed in non-patterned regions of the film, but they are close to the theoretical limit of RP fault packing in SrSnO3. When the lattice constants of SrSnO3 were calculated using DFT, the results indicated that the maximum density of RP faults that SrSnO3 can maintain without a large internal stress (i.e., without a significant change in the lattice parameter) is one per 5-unit-cells, or 4.8 × 106 cm−1, beyond which there is a large strain difference between the RP and the bulk perovskite, which would lead to different strain relaxation (for in-depth discussion, see SI Fig. S18). This is also supported by DFT calculations minimizing the energies of the n = 5 RP phase of Sr6Sn5O16 at different ranges of in-plane strain, indicating formation of these phases can be stabilized (see SI Fig. S19) at different strains.

Since such ultra-high density of RP faults can be created in the patterned areas, their effects on the electronic properties of the host SrSnO3 film were evaluated through DFT calculations. The calculated band structures of bulk SrSnO3 and SrSnO3 containing RP faults 5-unit-cells apart are shown in Fig. 6a, b. Examination of the element-specific electronic density-of-states (DOS) from these structures indicates that the majority of the changes occur in the conduction band within 3.5 to 4.5 eV energies above the conduction band minimum. The changes are primarily due to changes in the bonding environment of Sr and O atoms, which is consistent with the presence of RP fault in the structure (for more details, see SI Fig. S18).

Fig. 6: Changes in the electronic band structure of the SrSnO3 film containing RP fault.
Fig. 6: Changes in the electronic band structure of the SrSnO3 film containing RP fault.
Full size image

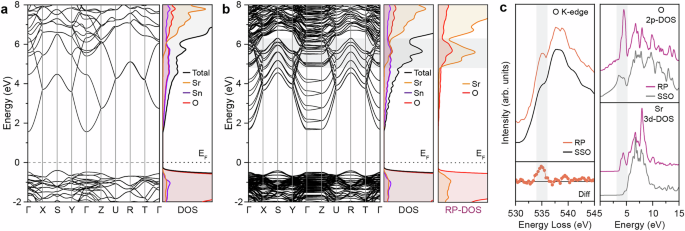

a DFT-calculated electronic band structure (left) and DOS (right) from bulk SrSnO3 film. b Calculated electronic band structure (left) and DOS (right) from the n = 5 RP structure based on relaxed atomic structure. The region highlighted in gray shows the region with considerable changes in the conduction band. c EELS O K-edges measured from RP fault and bulk SrSnO3 film with differences in the fine structure shown below (left). DFT-calculated O 2p- (right-top) and Sr 3d- (right-bottom) DOS from the RP fault and bulk SrSnO3. The main differences in EELS spectra and DOS are highlighted in gray matching observations in (b).

For further analysis, using STEM-EELS site-specific DOS of the RP faults were measured and compared with the DOS of bulk SrSnO352. By measuring the O K-edges (resulting from 1 s \(\to\) 2p electron excitations) from the RP fault and a pristine region, the differences in the 2p-DOS of the conduction bands are captured and identified (Fig. 6c). The increase in the number of states around 4 eV above the conduction band minimum in the RP faults originated from the modified O(2p)-Sr(3 d) bonds at the fault plane. This increase in DOS in RP faults can be seen in calculated O(2p) and Sr(3d) conduction band DOS, also shown in Fig. 6c. These observations suggest that the RP faults, like dislocations, indeed have unique local electronic properties that can be utilized. Because of flattening of the bands at Γ point and removal of some degeneracies due to defect-induced symmetry reduction and changes in local interatomic bonds (Fig. 6b), considerable reduction of effective masses of charge carriers (for both electrons and holes) as well as changes in local dielectric function are expected.

In summary, localized FIB Ga ion-beam exposure followed by subsequent annealing can produce nanoscale patterns on the surface of a substrate with built-in roughness, such that thin films grown over the patterned regions will exhibit ultra-high densities of extended defects propagating through the thickness of the film. This is demonstrated by using a common SrTiO3 wafer as a substrate for growing perovskite oxide BaSnO3 and SrSnO3 thin films using hybrid MBE. This approach produces either channels or ridges of desired dimensions on the surface of the substrate with 1–3 nm surface roughness. This roughness, a source of local 3D strain, provides an ultra-high density of defect nucleation sites while still allowing for epitaxial film growth. In the case of BaSnO3 thin films, locally increased substrate roughness favors the formation of 1D extended defects, such that an order of magnitude higher density of threading dislocations is observed in the patterned SrTiO3 channels. In the case of SrSnO3 thin films, patterning-induced roughness favors the formation of RP faults; the density of these 2D defects was found to be three orders of magnitude higher in the patterned channels. These cases show how different types of extended defects can be engineered precisely in specific film regions, with local defect densities approaching the theoretical limit, as was the case for SrSnO3 films. Since these extended defects have a unique electronic structure, as detailed for dislocations and other line defects in BaSnO3 in previous studies15,16 and for RP faults in SrSnO3 above, thin films can be produced with different nanoscale regions having different electronic properties. While this approach of engineering extended defects is demonstrated for line patterns, it can be extended to patterns of any shape and size, limited only by the technical capabilities of FIB and other focused ion processing routes. The methods can also be extended to different substrates and films beyond perovskite oxides.

Methods

Substrate patterning

Standard 5 mm (001) SrTiO3 wafers were patterned using a Ga ion-beam in a FEI Helios G4 dual-beam FIB-SEM system. Prior to loading in the FIB system, the substrates were cleaned in solvents (acetone, iso-propyl alcohol, methanol, and distilled water) and air-dried to remove any contamination. The sample chamber in the FIB was plasma cleaned for ~2 hours prior to the wafer loading. The SrTiO3 wafers were mounted onto screw top SEM holders to prevent contamination, which occurs when conductive carbon tape is used for sample mounting. To prevent ion-beam exposure to the wafer surface, SEM imaging with the secondary electron detector was used to navigate to different positions on the wafer and to monitor patterning. Pattern lines were created on the SrTiO3 wafer surface with built-in “array” functionality using a 30 keV Ga ion beam with a beam current of 1 pA. Pattern lines were drawn parallel to the \(\left\langle 100\right\rangle\) or \(\left\langle 110\right\rangle\) crystallographic directions of SrTiO3 wafer. The wafers were patterned with ion-doses ranging from DI = 4 × 1014 to 8.3 × 1017 ions/cm2. Around each patterned region, fiducial markers were made onto the surface to ensure the areas could be located after thin film growth. The patterns were created in the central area of the SrTiO3 wafer to maximize the uniformity of the films.

Film growth by hybrid MBE

The BaSnO3 and SrSnO3 thin films were grown using hybrid MBE40,46. This approach employs conventional effusion cells for La, Ba, and Sr, hexamethylditin (HMDT) as a metal-organic precursor for Sn, and an inductively coupled radio frequency (RF) plasma for oxygen. All films were grown at substrate temperature of 950 °C. The substrates were cleaned in situ with oxygen plasma for 25 min at substrate temperature of 950 °C prior to film deposition. Sr or Ba was sublimed from a titanium crucible separately with its beam equivalent pressure (BEP) measured by a retractable beam flux monitor before growth. The oxygen flow was set to 0.7 sccm to achieve an oxygen background pressure of 5 × 10−6 Torr while applying 250 watts of RF power to the plasma coil. HMDT vapor enters the chamber through a heated gas injector in an effusion cell port that was in direct line-of-site to the substrate. The HMDT bubbler was held at 75 °C to provide sufficient HMDT vapor pressure and the HMDT vapor lines were held at a slightly higher temperature of 85 °C to prevent HMDT condensation in the lines. The injector itself was held at 60 °C. For La: BaSnO3 75 nm-thick films, the La cell temperature was fixed at 1220 °C to provide a dopant concentration of 2%.

Characterization of films and defects

The films were characterized using a combination of XRD, SEM, and STEM. A Rigaku SmartLab XE was used for XRD measurements. Film thicknesses were extracted from X-ray reflectivity (XRR). SEM imaging was performed on a Helios G4 dual-beam FIB, using a 15 keV beam and 0.10 nA probe current at a working distance of 3 mm using the back-scatter electron detector in the immersion mode. The atomic structures of the films were studied using a combination of LAADF- and HAADF-STEM imaging and the compositional analysis using EDX. Cross-section and plan-view samples for STEM analysis were prepared using the FIB. Here, 30 keV Ga ion beam was used for thinning, followed by 2-5 keV ion beam showers for removing surface damaged layers. Prior to sample preparation, the films were coated with ~50 nm of amorphous carbon in a sputter deposition system to protect the film from damage. STEM imaging and EDX analysis were carried out on an aberration-corrected FEI Titan G2 60-300 STEM equipped with a CEOS-DCOR probe corrector, a monochromator, and a Super-X EDX detector. The microscope was operated at 200 keV with a probe current of 100-140 pA for imaging and EDX. HAADF and LAADF STEM imaging were performed using detector collection angles of 55–200 mrad and 18–99 mrad, respectively. STEM-EDX maps were collected with drift correction using the Bruker Esprit software. STEM-EELS experiments were carried out using a monochromated STEM beam with a beam current of 40 pA. The energy resolution was 0.13 and 0.4 eV for energy dispersions of 0.01 and 0.1 eV/channel, respectively. All core-level EELS spectra were aligned, background subtracted, and normalized using a post-edge intensity window (600-625 eV) for direct comparison.

Heating experiments of patterned SrTiO3 substrates in the STEM were carried out using heating chips (from Protochips). The chips are loaded into the Protochips Fusion Select STEM holder and heated to the desired temperature with 2–4 °C/min ramp rate, followed by holding at that temperature for 10–200 mins. Additional imaging was performed after cooling the sample back to room temperature.

DFT calculations of SrSnO3 RP structures and DOS

First-principles DFT calculations were performed using the projector-augmented wave approach53 as implemented in the Vienna ab initio simulation package (VASP)54,55,56. The PBEsol exchange correlation functional and PAW potentials were used. A plane wave cutoff energy of 550 eV was used for all calculations. For structure optimization (or relaxation) calculations, residual forces were converged to below 0.001 eV/Å. A 10 × 10 × 10 Γ-centered k-point mesh was used for SrSnO3. For Ruddlesden-Poppers, the k-point meshes were adjusted to have a similar k-point density as for bulk SrSnO3. Phonon frequencies and eigenvectors were calculated using the frozen phonon approach by constructing dynamical matrices in a basis of symmetry-adapted modes. On this basis, the dynamical matrix is in block diagonal form, where each block corresponds to a single irreducible representation of the space group. The ISOTROPY software suite was used to obtain the symmetry-adapted linear combinations of atomic displacements. For the SrSnO3, the R and M point phonon modes of the parent \({Pm}\bar{3}m\) (No. 221) structure were calculated. For the Ruddlesden-Poppers Srn+1SnnO3n+1 (n = 1-5), the X point phonon modes were considered, since their corresponding atomic displacements are responsible for the oxygen octahedral rotations that are known to dominate the structural phase diagram57,58. The phonon modes with imaginary frequencies were used to determine possible lower-symmetry “distorted” structures. Low-symmetry structures containing either a single or a combination of two normal modes with different symmetries and directions were considered. The Structure Data Converter and Editor tool of the Bilbao Crystallographic Server (BCS) was used to obtain the \(\sqrt{2}\times \sqrt{2}\times 2\) supercells from the larger 2 × 2 × 2 supercells, while still capturing the octahedral rotation patterns present in the structures59. For the DOS calculations, the Brillouin zone was sampled using a 20 × 20 × 20 k-point grid for bulk SrSnO3. The k-point mesh was adjusted to obtain a similar mesh density for the other structures. A 100 meV Gaussian smearing scheme was used for these DOS calculations.

SrTiO3 structure relaxation

All the SrTiO3 surface relaxation calculations were carried out using periodic plane-wave DFT methods as implemented in VASP. The Perdew–Burke–Ernzerhof (PBE) functional was used to determine the corrections to the energy due to exchange and correlation effects60. D3 dispersion corrections were used to account for the long-range interactions present in the system61. The structures used in the calculations were constructed from the bulk cubic SrTiO3 crystal with a lattice constant of \(a=3.913\) Å. For the (100) surface, the bulk SrTiO3 crystal was cleaved across the (010) plane, and supercells of sizes 4 × 4, 5 × 5, and 6 × 6 were constructed. A vacuum slab was inserted between each of these surfaces to avoid spurious interactions across the periodic unit cell along the c-axis. Γ-centered k-point mesh of 2 × 2 × 1 was used to sample the Brillouin zone (BZ) for the (010) surface supercells. An energy cut-off value of 400 eV was used. Structural optimizations were carried out in two steps: (1) the wavefunctions were self-consistently optimized to within 10−4 eV, and (2) the atomic positions were iteratively optimized until the maximum force was less than 0.08 eV/Å. The wavefunctions were then optimized to within 10-6 eV, and the maximum allowable force on each atom was less than 0.05 eV/Å.
