Water availability positions auxin response maxima to determine plant regeneration fates

Kareem, Abdul; van Wüllen, Anna K.; Zhang, Ai; Walckiers, Gabriel; Fasth, Ellen; Melnyk, Charles W.

doi:10.1038/s41477-025-02029-2

Download PDF

Article
Open access
Published: 04 July 2025

Water availability positions auxin response maxima to determine plant regeneration fates

Nature Plants volume 11, pages 1367–1379 (2025)Cite this article

13k Accesses
7 Citations
86 Altmetric
Metrics details

Subjects

Abstract

Wounding and hormones serve as diverse triggers for regeneration in animals and plants. Despite important advances in understanding various types of regeneration, the mechanism by which plants determine regeneration outcomes remains largely unknown. Here we demonstrate in Arabidopsis that a trade-off between two regeneration fates, wound-induced callus and root regeneration, was driven by distinct molecular pathways related to cambium and root development, respectively. We discovered that local water availability near the wound site determined the early stages of regeneration fates in Arabidopsis and tomato, with high water triggering root fate and low water initiating callus fate. Distinct spatial distributions of auxin response maxima around the wound, shaped by water availability, were critical for determining root or callus fates. We found that, by perturbing auxin response or auxin transport dynamics, we could change regeneration outcomes. Moreover, high water availability enhanced ethylene and jasmonic acid responses, whereas treatments with these hormones could modify auxin transport dynamics or the location of auxin response maxima, thus influencing regeneration fates. We propose that, through stress hormones, water availability modifies the auxin response distribution to control regeneration outcomes, thus allowing environmental control of regeneration and providing a means to improve in vitro regeneration by changing the water potential.

Cell surface and intracellular auxin signalling for H⁺ fluxes in root growth

Article 27 October 2021

Slow release of a synthetic auxin induces formation of adventitious roots in recalcitrant woody plants

Article 24 January 2024

The dynamics of stomatal closure of Arabidopsis thaliana determined by terahertz spectroscopy and a water transport model

Article Open access 23 September 2025

Main

Plants adapt to fluctuating environmental conditions, a remarkable trait largely controlled by their developmental plasticity. Such plasticity relies on cell fate determination by internal hormonal signals, transcription factors and receptors as well as the external environmental factors such as water availability, nutrient supply and temperature. For instance, roots use hydropatterning to form lateral roots in response to local water availability^1,2,3. Similarly, a population of pericycle cells within roots display high plasticity to give rise to lateral roots, cambium or periderm depending on root developmental age and hormonal cues^4,5,6. Such pericycle-derived cells express transcription factors such as LATERAL ORGAN BOUNDARIES DOMAIN16 (LBD16) when obtaining lateral root fates^5,7, whereas they express LBD11 and WUSCHEL‐RELATED HOMEOBOX4 (WOX4) when obtaining cambium fates^4,5,8,9.

This developmental plasticity also underpins the regenerative capacity of plants, crucial for wound healing, biotechnology and plant propagation. Culturing plant tissues on hormone-rich medium induces pericycle cells to form pluripotent cell masses called callus that, by changing the ratio of auxin and cytokinin, can be subsequently regenerated into tissues such as shoots or roots^10,11,12. Such hormone-induced callus (HIC) expresses root stem cell regulators PLETHORA1 (PLT1) and PLT2 and occurs via molecular pathways resembling root meristem development^13,14. However, when plant tissues are wounded, they also trigger a regeneration process, for example, wound-induced callus (WIC) formation, de novo root regeneration (DNRR), root tip healing or vascular reconnection^{15,16,17,18,19,20}. Such regeneration pathways allow plants to recover from injury without external hormonal requirement. With WIC, activation of transcription factors such as WOUND INDUCED DEDIFFERENTIATION1 (WIND1) and WOX13, along with the peptide REGENERATION FACTOR1 (REF1) and hormone cytokinin, initiates callus formation, seals the wound and later differentiates to missing tissues^{17,21,22,23,24}. During DNRR, auxin activates WOX11 and LBD16 transcription factors to facilitate adventitious root formation from wounded tissues^16,25,26. Although the molecular players involved in different regeneration processes are well known, how plants determine whether to trigger a specific regeneration fate remains unknown. Moreover, unlike DNRR and HIC, the molecular fate of WIC is not well understood.

Here, by investigating diverse regeneration fates initiated from the same tissue, we demonstrated a regulatory interplay between different forms of regeneration driven by distinct cambium- or root-related molecular pathways. We discovered that water availability is a factor deciding whether plant tissues undergo root-mediated or callus-mediated regeneration fates in both Arabidopsis and tomato. Furthermore, we revealed that the spatial distribution of auxin response maxima is relevant for such fate changes and that water availability regulates such auxin maxima through the hormones ethylene and jasmonic acid.

Results

Different regeneration fates use distinct molecular pathways

The same plant tissue can exhibit different types of regeneration, yet previous studies have used different tissues undergoing WIC formation, wound-induced DNRR or HIC formation^{14,16,17,23,27,28,29}. To more accurately compare these processes, we used a single tissue, the Arabidopsis leaf petiole, and sought to determine whether different regeneration fates had common or distinct molecular pathways. DNRR was initiated at the wound site of the petiole touching hormone-free culture medium, while WIC was induced at the wound site when not in contact with the medium (Fig. 1a–d), consistent with previous findings¹⁵. HIC, meanwhile, was triggered by culturing unwounded tissues in an auxin-rich medium (Fig. 1e). We focused on key genes implicated in DNRR and observed activation of LBD16, PLT2 and WOX11 during both DNRR and HIC, while their expression was low in WIC (Fig. 1b–e and Extended Data Figs. 1a–d and 2a). We monitored the expression patterns of genes associated with the vascular cambium and found LBD1, LBD11, PHLOEM INTERCALATED WITH XYLEM (PXY) and WOX4 activated in the proliferating cells of WIC. Their expression levels were generally lower during both DNRR and HIC except for PXY, which was also induced in HIC (Fig. 1c–e and Extended Data Figs. 1b–d and 2b). The similar expression profiles of DNRR and unwounded HIC suggest that they probably shared similar molecular pathways, consistent with the finding that HIC from wounded tissues follows a root meristem pathway¹⁴, while WIC probably used a pathway linked to the vascular cambium.

WIC inhibits root regeneration

To further investigate the molecular basis for WIC, we tested cambial mutants, including lbd1,11; lbd1,3,4,11; wox4,14; and wox13,14, and found them to be defective in WIC formation (Fig. 2a and Extended Data Fig. 3a), suggesting an essential role of cambial genes in this process. Inducible overexpression of LBD11 or WOX4 also boosted WIC formation (Fig. 2b and Extended Data Fig. 3b). By contrast, the pericycle cell division-defective mutant solitary root1 (slr-1) did not inhibit WIC formation (Extended Data Fig. 3c). Despite deficient WIC formation, cambial mutants displayed an enhanced ability to form DNRR, even in conditions where wild-type tissues failed to form roots (Fig. 2a,c and Extended Data Fig. 3a,d–f). We observed increased DNRR-related gene transcription in the WIC deficient lbd1,11 mutant (Extended Data Fig. 3g), implying suppression of WIC activated DNRR-related pathways. In addition, overexpression of WIC-promoting genes LBD11 and WOX4 inhibited the DNRR pathway, while overexpression of DNRR-promoting genes LBD16, PLT2 and WOX11 suppressed the WIC pathway (Fig. 2d,e and Extended Data Fig. 3h–j). Our data indicate that activation of cambial cells was crucial for WIC formation and that WIC fate inhibited DNRR fate, suggesting a trade-off between regeneration fates.

Water availability determines regeneration fates

What determined cell fate was unknown, but we observed that, when the wound site was in contact with B5 agar medium, DNRR was triggered (Fig. 3a,c), whereas contact with parafilm or air favoured WIC formation (Fig. 3a,c) Similarly, DNRR was initiated when the petiole was sandwiched between agar and parafilm, whereas WIC formed when the petiole was sandwiched between two layers of parafilm, suggesting that physical contact or force alone did not determine regeneration fates (Fig. 3b,d). Nutrient availability also had no substantial impact (Extended Data Fig. 4a,b). We then tested the role of water by culturing leaf tissues with the wound site in contact with B5 medium with various agar concentrations (0.375% to 3%) that represented different water potentials (Extended Data Fig. 4c). This variation corresponded to the available water at the medium surface, as previously described³. We found that higher water availability (lower agar concentrations) favoured DNRR, whereas lower water availability (higher agar concentrations) promoted WIC (Fig. 3a,c). Applying water to the wound site touching parafilm induced DNRR, whereas parafilm alone led to WIC formation (Fig. 3a,c). This fate decision was made shortly after wounding because changes in water availability during this period impacted regeneration outcomes (Extended Data Fig. 4d,e). Similar to Arabidopsis, tomato tissues also responded to water availability by regenerating roots or calli (Fig. 3e,f). Air layering is commonly used to propagate plants, so we used this technique on tomato stems and found that damp soil promoted DNRR whereas dry soil promoted WIC (Fig. 3g,h). This supports the observation that water availability, rather than physical contact with the soil, was the primary factor determining regeneration outcomes. In addition, we found that water availability had a substantial impact on root regeneration and callus formation rates in tomato cotyledon explants cultured on hormone-containing root-inducing medium (RIM) and callus-inducing medium (CIM), respectively (Fig. 3i and Extended Data Fig. 4f). To further understand the genes involved in fate decision, we conducted RNA sequencing (RNA-seq) on wounded Arabidopsis petioles at various timepoints with high water (0.75% agar) or low water (2% agar) concentrations (Extended Data Fig. 5a–d). DNRR-promoting genes (LBD16, PLT2 and WOX5) were predominantly induced under high-water conditions, while WIC-promoting genes (LBD11, WOX4 and WOX14) were primarily upregulated under low-water conditions, although there was some variation at different timepoints (Fig. 3j and Extended Data Fig. 4g). The corresponding mutants displayed defects in either WIC or DNRR, consistent with a role for promoting either DNRR or WIC during varying water availability (Extended Data Fig. 4h,i). Overall, our findings suggest that water availability at the wound site was crucial for deciding whether tissues undergo root or callus regeneration in Arabidopsis and tomato.

**Fig. 3: The trade-off between regeneration of callus and root is determined by the availability of water.**

Water availability regulates stress hormones in regeneration

Stress hormones are important for wound response^28,30 and water availability response³¹, so we analysed our RNA-seq dataset for hormone-responsive genes. We observed activation of genes responsive to ethylene and jasmonic acid in our RNA-seq datasets within 3 h of wounding under high-water conditions (Fig. 4a and Extended Data Fig. 6a,b). Reporter gene analyses also showed upregulation of ethylene biosynthesis (ACS6-VENUS) and jasmonic acid response (JAZ10-VENUS) markers in high-water conditions (Fig. 4b,c). Consistent with a role for these hormones, short treatments of ethylene precursor (4 µM 1-aminocyclopropane-1-carboxylate, ACC) and jasmonic acid (5 µM methyl-jasmonate, MeJA) enhanced the DNRR-to-WIC ratio (Fig. 4d). Similarly, treatments with the ethylene inhibitor silver nitrate suppressed DNRR fate and promoted WIC fate, although the resulting callus area was smaller. This effect was partially rescued by auxin (1-naphthaleneacetic acid, NAA) treatment (Extended Data Fig. 6c). We next analysed loss-of-function mutants and found that the ethylene signalling mutant ethylene resistant1-1 (etr1-1)³² exhibited defects in both DNRR and WIC (Fig. 4e,f). However, it displayed a greater impairment in the DNRR fate, leading to a higher WIC-to-DNRR ratio at intermediate water availability (Fig. 4g). Notably, the ethylene overproducing mutant eto2³³ also affected DNRR, with minimal impact on WIC (Fig. 4e,f). Although our transcriptome and treatment assays indicated that increases in ethylene and jasmonic acid promoted DNRR, a basal level of ethylene signalling appeared relevant for both DNRR and WIC (Fig. 4e,f).

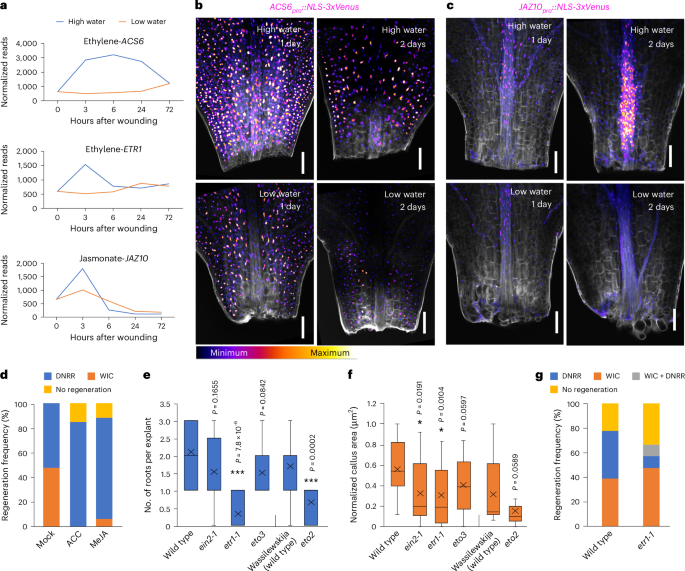

**Fig. 4: Water availability regulates stress hormones.**

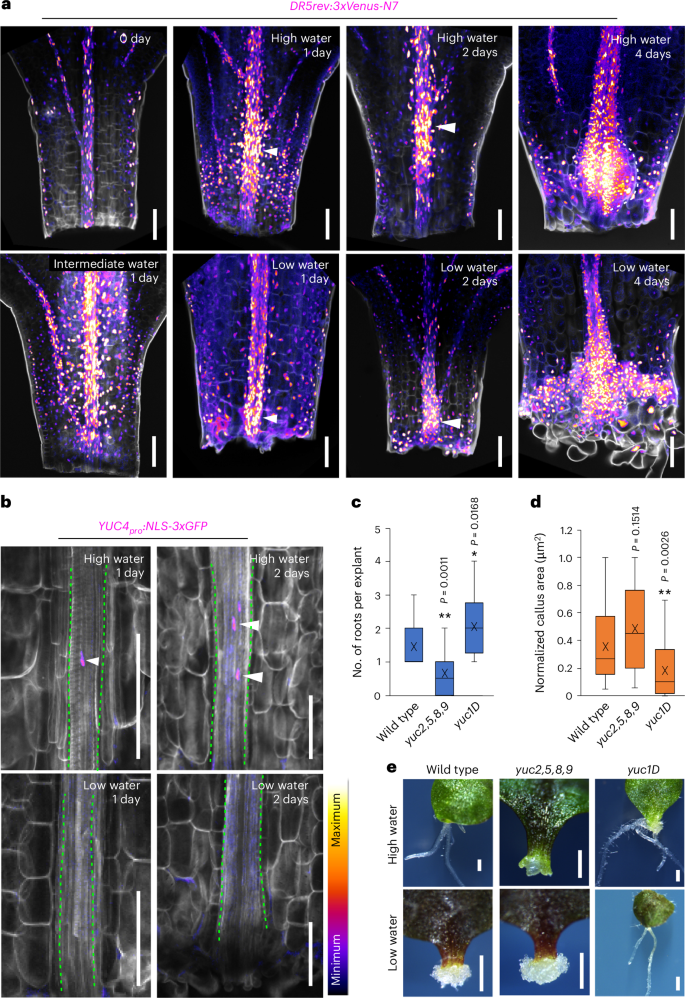

Water availability shapes spatial auxin response

We further analysed the hormone response, and our transcriptome data revealed differential expression of many auxin-responsive genes under varying water availability (Extended Data Fig. 7a). We therefore explored auxin response distribution using the auxin-responsive reporter DR5-VENUS and observed distinct spatial expression patterns in Arabidopsis tissues across water conditions. High water availability (0.75% agar) caused the auxin maxima to form distal to the wound at the root primordium initiation site, whereas low water availability (2% agar) caused it to form near the wound site (Fig. 5a). Intermediate water availability (1.5% agar), promoting both DNRR and WIC regeneration, resulted in a broader auxin distribution (Fig. 5a).

Auxin biosynthesis genes such as ANTHRANILATE SYNTHASEα1 (ASA1), YUCCA1 (YUC1), YUC4 and YUC5 were upregulated in high water, with YUC4–GFP activating specifically at the root primordium initiation site (Fig. 5b and Extended Data Fig. 7b). We tested a role for auxin biosynthesis and found the yuc2,5,8,9 mutant to have impaired DNRR but normal WIC formation. Treatment with exogenous auxin or using the auxin-overproducing line yuc1D perturbed WIC but enhanced DNRR (Fig. 5c–e and Extended Data Fig. 7c,d). We investigated downstream auxin signalling and found that mutants auxin response factor6 (arf6) and arf8 displayed defects in DNRR, while arf7 and arf7,19 mutants showed an increased ratio of DNRR to WIC formation (Extended Data Fig. 8a). Similarly, the loss-of-function SHORT HYPOCOTYL2 mutant, shy2-31, promoted DNRR under low water, indicating that high ARF7, ARF19 or SHY2 activity inhibits DNRR under low water (Extended Data Fig. 8b). A SHY2-VENUS reporter showed low signal in high water and high signal in low water (Extended Data Fig. 8c), consistent with its role as a negative regulator of DNRR in water conditions. Thus, auxin biosynthesis and signalling played an important role in fate decision, potentially operating through pathways involving DNRR-promoting factors and WIC-promoting factors.

Stress hormones influence auxin response maxima

Our previous observations found that high water promoted a shift from proximal to distal auxin response maxima, so we investigated the basis for this. Using the DR5-VENUS reporter, we observed that ethylene precursor (ACC) and jasmonic acid (MeJA) treatments resulted in an auxin maxima that was farther from the wound site and more concentrated, similar to that observed during high-water conditions (Figs. 5a and 6a,b). MeJA treatments also reduced the SHY2-VENUS signal, similar to what occurred during high-water conditions (Extended Data Figs. 8c and 9a,b). We next investigated how stress hormones impact spatial auxin distribution, focusing on auxin transport. We found that genes encoding auxin efflux and influx carriers were differentially expressed under different water conditions (Extended Data Fig. 10a–c). In particular, PINFORMED1–CFP (PIN1–CFP) accumulated at the root primordium initiation site early in regeneration under conditions of high water availability (Fig. 6c). Testing several auxin transport mutants revealed that pin1 and the AUXIN RESISTANT 1/LIKE-AUX1 (AUX1/LAX) mutants aux1,lax1,2,3 exhibited substantial defects in DNRR, with minimal or no impact on WIC formation (Fig. 6d,e and Extended Data Fig. 10d–h). Overexpression of PIN1 (35S::PIN1–GFP), which interferes with polar auxin transport³⁴, also caused strong defects in DNRR but had no significant effect on WIC formation, highlighting an important role for PIN1-dependent polar auxin transport in fate determination (Fig. 6d,e and Extended Data Fig. 10f,g). Furthermore, treatment with the auxin transport inhibitor N-1-naphthylphthalamic acid (NPA) showed that DNRR was more sensitive to auxin transport perturbation than WIC, although both regeneration processes appeared to require a basal level of auxin transport (Fig. 6f). We also tested MeJA treatments and found that they rapidly induced PIN1 expression at the root primordium initiation site (Fig. 6g,h). Our findings suggest that stress hormones, including jasmonic acid, regulate spatial auxin distribution via PIN1, helping to narrow and define distal auxin maxima that promote DNRR (Fig. 6i).

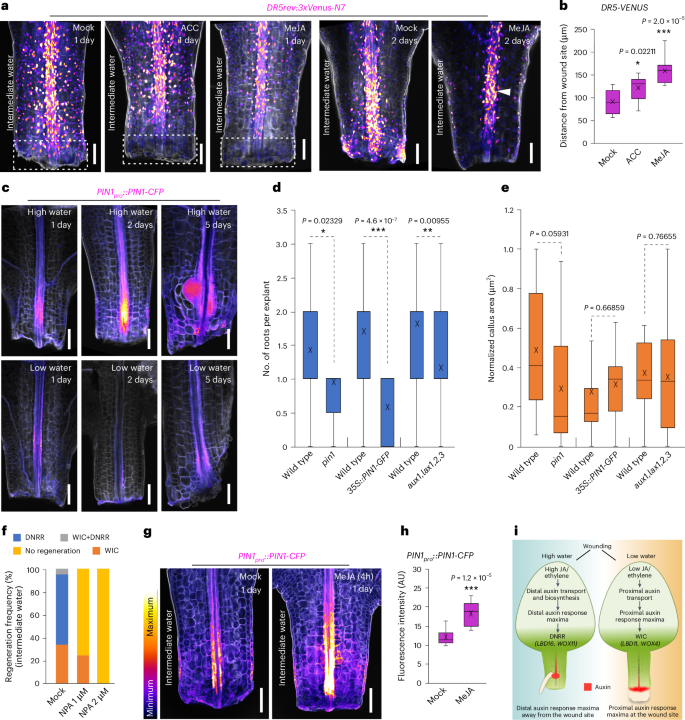

**Fig. 6: Stress hormones and auxin transport influence auxin response maxima.**

Discussion

During wound healing, various regeneration processes can become activated. Here, we uncovered a critical role for the vascular cambium in WIC formation. Previous work has observed divisions in the vascular stele and pericycle upon early WIC formation²³, and our findings broaden and expand this work to describe key molecular players and cell types involved in this process. Importantly, WIC formation appeared to inhibit DNRR formation, suggesting a trade-off between developmental fates consistent with what has been proposed for xylem pole pericycle cells giving rise to either lateral roots or cambium³⁵. When tissues detach from a growing plant, they can lose water, nutrients, growth signals and positional cues, necessitating their reliance on internal and external stimuli for survival and adaptation. Our study reveals external water availability as a key factor determining regeneration fates in wounded tissues, seemingly playing a greater role than nutrients and physical contact observed in other developmental processes^36,37,38. Mechanical pressure along with developmental age and positional information all impact cell fate changes during restorative regeneration^39,40. However, our study revealed that physical force or touch alone did not determine regeneration fates in detached tissues. Differences in regeneration observed between intact and detached tissues could be due to detached or poorly connected tissues facing a restricted environment from lost connections, missing positional information and increased dehydration unlike intact tissues undergoing restorative regeneration that are affected by physical cues^39,40. Our conclusions also contrast those from a previous study that did not test the role of water availability at the wound site itself¹⁵; such differences can be reconciled given our finding regarding the importance of water at the wound site. Consequently, we propose that detached tissues rely on water signals, important for sustaining cell viability, to determine their regeneration fates leading to the regeneration of either root for water uptake or pluripotent callus for wound sealing. Severe damage across multiple cell layers in mature tissues could also respond to water availability in fate determination, as observed in air layering. Thus, water signals appear to exert greater influence over other signals on detached and damaged tissues.

Water availability is also crucial for root branching in lateral root hydropatterning³. Water dictates a single developmental fate in lateral root hydropatterning, with irreversible changes occurring in as little as 20 min of deficiency¹. By contrast, here we show that water determines a balance between two regeneration fates operating through distinct pathways, offering some reversibility. This underscores the greater flexibility of our findings with regeneration. Furthermore, regenerating tissues respond to fluctuating water availability rather than mere presence or absence, contrasting with xerobranching, an extreme form of hydropatterning, wherein water absence represses root branching^3,41. We found that water levels influenced the distinct spatial distribution of auxin response maxima in regeneration pathways by coordination between auxin transporters and the stress hormones ethylene and jasmonic acid. We uncovered that transient elevations in these stress hormones were crucial for regeneration, consistent with previous work^28,30. However, overproduction negatively affected regeneration fates (Fig. 4e,f), similar to the detrimental effects on regeneration previously reported with higher doses or constant treatments of stress hormones^30,42, probably triggering defence pathways⁴³. This suggests a potential trade-off between regeneration and defence⁴⁴, where the initial surge in stress hormones promotes regeneration, yet prolonged activation may trigger defensive responses. Such defence responses could be an extreme manifestation of adaptive responses. However, further investigation is required to understand this correlation and explore whether extreme water levels or water deprivation also trigger a defence-like response, potentially linking to mechanisms such as xerobranching. Altogether, our data provide mechanistic insight into how spatial auxin distribution drives fate determination with water availability and stress hormones acting as key regulators early in the process (Fig. 6i), opening new research avenues.

The role of water availability in conventional tissue culture protocols has been largely overlooked, with attention focused instead on optimizing nutrients and hormones. Our findings highlight the crucial role of water in regeneration, both in hormone-free and in hormone-containing tissue culture media. Our study provides mechanistic insights into how water availability influences regeneration, offering a simple yet potentially effective tool for enhancing regeneration in tissue culture and plant transformation. Adjusting water availability in media could significantly improve regeneration (Fig. 3i and Extended Data Fig. 4f), particularly in species for which existing protocols are suboptimal. Moreover, fine-tuning stress hormones such as abscisic acid, ethylene and jasmonic acid through transient exposure or low concentrations offer additional potential for improving regeneration. This approach is particularly relevant in somatic embryogenesis, where use of stress hormones is common^45,46, as well as in hormone-induced pluripotent callus formation, where short-term tissue submergence via an ethylene-mediated pathway helps to promote callus formation⁴⁷. Taken together, our research sheds light on the origins of WIC and paves the way for major advancements in agricultural regeneration techniques by optimizing water availability and hormonal balance to improve outcomes across various plant species and tissue types.

Methods

Plant materials and growth conditions

Arabidopsis thaliana ecotype Columbia-0 (Col-0) was used throughout as the wild type, unless otherwise indicated. Tomato (Solanum lycopersicum) variety Moneymaker was used. All Arabidopsis mutants and transgenic lines used in this study have been previously described, and the details are listed in Supplementary Table 1. Arabidopsis seeds were surface-sterilized with 70% ethanol for 10 min and dried on sterilized filter paper. The seeds were then plated on half-strength Murashige and Skoog (MS) medium (pH 5.7–5.75) containing half-strength MS salts (including vitamins), 0.5% sucrose, 0.25 g l⁻¹ 2-(N-morpholino)ethanesulfonic acid (MES) and 0.8% (w/v) plant agar. After 2 days of stratification at 4 °C in the dark, seedlings were grown vertically at 22 °C under a 16-h light (110 μE intensity) and 8-h dark photoperiod.

Tomato seeds were surface sterilized with 75% bleach for 10–15 min, washed five times in water and plated on MS medium (pH 5.7–5.75) containing half-strength MS salts (including vitamins), 0.5% sucrose, 0.25 g l⁻¹ MES and 0.8% (w/v) plant agar. The plates were then transferred to a growth cabinet at 25 °C with a 16-h light and 8-h dark photoperiod.

Wounding and regeneration assays

Cotyledon, leaf and hypocotyl explants were used for wound-induced regeneration in both Arabidopsis and tomato. Cotyledons with approximately 0.5-mm petioles were carefully detached from 7-day-old seedlings using microscissors. Hypocotyls were wounded above the root–hypocotyl junction in 7-day-old seedlings. For leaf wounding, the first pair of leaves with petioles (0.5 mm) were detached from 10-day-old seedlings. The detached explants were subsequently transferred to hormone-free Gamborg’s B5 medium (pH 5.7) containing Gamborg’s B5 salts (including vitamins), 2% glucose, 0.5 g l⁻¹ MES and 0.75% (w/v) plant agar unless otherwise indicated. The explants were oriented with their wound site either touching the medium (abaxial side facing the medium for leaf and cotyledon) or not touching the medium (adaxial side facing the medium for leaf and cotyledon), as described previously¹⁵. The explants were cultured horizontally for regeneration under the same growth conditions as mentioned above. Regeneration responses were analysed between 6 days and 10 days after wounding. For the regeneration response on parafilm, the detached leaf explants were oriented with their wound site in contact with a parafilm strip placed on B5 medium. For the sandwich assay, the wound site of the petiole was positioned between a layer of parafilm and a thin layer of 0.75% agar, or between two layers of parafilm with an agar layer on top, forming a sandwich-like set-up. For the regeneration response to water availability, the detached leaf explants were transferred onto the B5 medium with varying concentrations of agar (0.375%, 0.75%, 1.2%, 1.5%, 2% and 3% plant agar (Duchefa Biochemie)). The water potential of the agar plates was calculated using the following formula after measuring the water activity (aw) and temperature (T) of the different agar media with a water activity meter (AquaLab Pre)

$${\rm{Water}}\; {\rm{potential}}=\frac{\left(8.314\right.\times \left(274+T\right)\times {\mathrm{ln}}({\mathrm{aw}})}{18}.$$

Water potential measurements were made in triplicate for each agar concentration and averaged.

For regeneration on nutrient-free medium, the detached leaves were cultured on a medium containing only agar without added nutrients. For hormone-induced callus (HIC) formation without wounding, 10-day-old whole seedlings were transferred onto a B5 medium supplemented with 2 μg ml⁻¹ of 2,4-dichlorophenoxyacetic acid and 0.05 μg ml⁻¹ of kinetin. After 5 days of culture, the petiole calli were collected for confocal imaging. For hormone-induced root regeneration in tomato, fully developed cotyledon was cut to a size of 0.5 cm and cultured on RIM (pH 5.7) containing Gamborg’s B5 salts (including vitamins), 2% glucose, 0.5 g l⁻¹ MES, 0.5 mg l⁻¹ indole-3-acetic acid and varying agar concentrations (0.35–1.5% plant agar). Cultures were maintained under long day conditions at 25 °C, and the number of roots per explant was counted after 3 weeks. For HIC formation in tomato, cotyledon cut pieces of 0.5 cm were cultured on CIM (pH 5.8) containing MS salts (including vitamins), 30 g l⁻¹ sucrose, 1.5 mg l⁻¹ zeatin and varying agar concentrations (0.35–1.5% plant agar), following a modified protocol⁴⁸. Cultures were kept under long day conditions at 25 °C and subcultured every 2 weeks. The tissue area was measured after 26 days. For air layering in tomato, the stem was wounded using a sharp blade in the greenhouse. The wounded area was then wrapped with plastic film containing 5 g of either dry or wet soil, and tissue regeneration was monitored after 2 weeks.

Chemical treatments

For the inducible overexpression of LBD11 and WOX4, 35S::XVE≫LBD11 and 35S::XVE≫WOX4 seedlings were pretreated with B5 medium containing 5 µM oestradiol for 6 h before wounding. After wounding, tissues were placed on the same medium, either touching or not touching it. An equivalent volume of dimethyl sulfoxide (DMSO) was added to the B5 medium for the mock treatment. For PLT2 overexpression, 35S::PLT2-GR petiole tissues were cultured on B5 medium with 5 µM dexamethasone with the wound site not touching the medium. Ethanol was used for the mock treatment. For auxin treatments, petiole tissues were cultured on B5 medium with 0.2 µM NAA or DMSO (mock) under conditions of high (0.75% agar) or intermediate (1.5% agar) water availability. For inhibition of polar auxin transport, 1 µM or 2 µM NPA or DMSO (mock) was added to the B5 medium and the petiole tissues were cultured under high- or intermediate-water conditions. For ethylene precursor and jasmonic acid treatments, 4 µM ACC or 5 µM MeJA was added to the B5 medium, with water or ethanol, respectively, as the mock. Petiole explants were cultured for 4, 24 or 43 h under high- or intermediate-water conditions and then transferred onto hormone-free B5 medium under the same water conditions. For inhibition of ethylene activity, 10 µM silver nitrate (AgNO3) or water (mock) was added to the B5 medium and the petiole tissues were cultured under high- or intermediate-water conditions. For the NAA + AgNO₃ treatment, 0.2 µM NAA and 10 µM AgNO₃ were added together to the medium, and the petiole tissues were cultured under intermediate-water conditions.

Tissue fixation and clearing for confocal imaging

The regenerating tissues with various fluorophores were fixed, cleared and then stained for cell walls before confocal imaging using a protocol that we modified from the previously published method⁴⁹. In brief, tissues were fixed with 4% paraformaldehyde in 1× phosphate-buffered saline (PBS) buffer with 0.1% Triton X-100 for 1 h at room temperature, including a 10-min vacuum application. After fixation, the tissues were washed twice in 1× PBS, followed by treatment with absolute methanol and then absolute ethanol for 30 min each. Subsequently, after a wash with 1× PBS, the tissues underwent clearing in ClearSee solution (10% xylitol, 15% sodium deoxycholate and 25% urea) at room temperature for 2–3 days. The tissues were then stained in 0.1% Calcofluor-white in ClearSee solution for 30–60 min, followed by destaining in ClearSee for 15 min.

Microscopy

Confocal images were captured using a Zeiss LSM780 with a 20× dry objective (numerical aperture 0.8). The pixel format was set to either 512 × 512 or 1,024 × 1,024 (for high-resolution images). A bidirectional scan was configured with a scan speed of 8, using line averaging for 4. The following wavelength settings were used for imaging various fluorophores: for Calcofluor-white imaging, excitation wavelength (ex.) 405 nm and emission (em.) 414–471 nm; for CFP, ex. 458 nm and em. 464–499 nm; for GFP, ex. 488 nm and em. 491–519 nm; for YFP and Venus, ex. 514 nm and em. 518–540 nm. The laser power and pinhole were adjusted on the basis of fluorescence brightness to prevent signal saturation or bleaching. The gain was set to 1. Imaging of CFP, GFP and YFP/Venus was conducted using a ChS1 (high-sensitivity GaAsP PMTs) detector. The settings remained unchanged throughout each experiment where fluorescent signal comparison was needed. Figure 6g imaging utilized a Leica Stellaris 5 confocal microscope with a 20× glycerol objective (numerical aperture 0.75) and HyD detectors. Images were acquired at a resolution of 512 × 512 pixels using bidirectional scanning at 400 Hz with a line average of 4. Calcofluor-white was excited at 405 nm with emission collected between 420 nm and 460 nm at 1.68% laser intensity. CFP fluorescence was excited at 448 nm with emission collected between 460 nm and 490 nm at 1% laser intensity. Sequential scanning was used. Bright-field images of regenerating callus and de novo roots were captured with a Leica M205FA stereomicroscope.

Image analysis and data processing

The images were analysed using FIJI software (https://fiji.sc). The callus area was measured by the freehand tool in FIJI. Images were sometimes rotated for better orientation. The brightness of the fluorescence signal was adjusted for improved visualization, and these adjustments were consistently equal across various timepoints or treatments. Images were then annotated and arranged in Affinity Designer (version 1.9.1). All cartoons in the figures were created using Inkscape software version 1.3.2 (091e20e, 2023-11-25) (https://inkscape.org/).

Reverse transcription quantitative PCR assays

Arabidopsis leaf petioles from wild-type and lbd1,11 mutant plants were wounded and cultured for regeneration with the wound site not in contact with the medium. Approximately 0.5 mm of tissue from the wound site was collected 4 days after wounding. Total RNA was extracted using the Roti-Prep RNA MINI Kit, and the RNA samples were quantified with a NanoDrop ND-1000 spectrometer (Thermo Fisher Scientific). For cDNA synthesis, 500 ng of total RNA was reverse-transcribed using the Maxima First Strand cDNA Synthesis Kit, which includes oligo(dT) and random hexamer primers. Quantitative PCR (qPCR) was carried out with the iCycler iQ Real-Time PCR detection system in 10-μl reaction volumes. Each reaction contained 5 μl of 2× Maxima SYBR Green qPCR/ROX Master Mix, 0.75 μM of both forward and reverse primers, and 2 μl of diluted cDNA. The quantitative PCR with reverse transcription (RT–qPCR) protocol included an initial denaturation at 95 °C for 10 min, followed by 40 cycles of 95 °C for 10 s and 60 °C for 30 s. A melt curve analysis was performed to ensure specificity by confirming the absence of off-target amplification. Gene expression levels were quantified using the 2^−ΔΔCT method, with normalization to the ACTIN2 reference gene. The list of primers is provided in Supplementary Table 2.

Transcriptomic analyses

Approximately 0.5 mm of tissue from the wound site of Arabidopsis wild-type leaf petioles treated with conditions of high (0.75% agar) or low (2% agar) water availability was collected at 0, 3, 6, 24 and 72 h after wounding. Samples were collected in three biological replicates, with approximately 60 petioles combined per sample. Total RNA was extracted using the Roti-Prep RNA MINI Kit according to the manufacturer’s instructions. mRNA library preparation (poly-A enrichment) and sequencing (NovaSeq X Plus in 150-bp paired-end) were performed at Novogene.

For RNA-seq analyses, low-quality reads were filtered out using Fastp⁵⁰, and the cleaned reads were mapped to the Arabidopsis reference genome (TAIR10) with Hisat2⁵¹. The read counts were determined using HTSeq⁵². Differentially expressed genes (DEGs) were identified with the DESeq2 R package⁵³, using a threshold q value <0.05. Genes with a q value <0.05 and an absolute log₂(fold change) >1 were considered to exhibit statistically significant expression differences between samples. At each timepoint, the low-water condition served as the reference. For each sample comparison, the time 0 sample was used as the reference. Gene expression patterns under different water conditions were analysed using the Mfuzz package⁵⁴ in R. Initially, DEGs from all timepoints were compiled into a single list for analysis. Time 0 samples were also included to identify gene expression patterns under high- and low-water conditions based on the list of DEGs. Gene Ontology (GO) annotation was conducted using the clusterProfiler package⁵⁵. Enriched GO terms were identified with an adjusted P value of less than 0.05, an enrichment fold change greater than 2 and a DEG count above 10. The lists of DEGs and GO annotations are provided in Supplementary Data 1 and 2. Heatmaps of hormone-responsive genes^23,56 were generated using R (v4.3.3) with the pheatmap package.

Statistical analysis

Statistical analysis was conducted using Excel version 16.77.1 or RStudio version 4.41.1. A two-tailed Student’s t-test was performed between two groups within Excel, and Kruskal–Wallis analysis was performed in RStudio. Statistical significance was determined by P values <0.05.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

All data are accessible in the Article and its Supplementary Information and extended data. Transcriptomic data reported in this Article are deposited in the NCBI Sequence Read Archive (SRA) with BioProject ID PRJNA1129885 and are available at https://www.ncbi.nlm.nih.gov/bioproject/PRJNA1129885. This study did not generate original code.

References

Orosa-Puente, B. et al. Root branching toward water involves posttranslational modification of transcription factor ARF7. Science 362, 1407–1410 (2018).
Article CAS PubMed Google Scholar
von Wangenheim, D. et al. Early developmental plasticity of lateral roots in response to asymmetric water availability. Nat. Plants 6, 73–77 (2020).
Article Google Scholar
Bao, Y. et al. Plant roots use a patterning mechanism to position lateral root branches toward available water. Proc. Natl Acad. Sci. USA 111, 9319–9324 (2014).
Article CAS PubMed PubMed Central Google Scholar
Smetana, O. et al. High levels of auxin signalling define the stem-cell organizer of the vascular cambium. Nature 565, 485–489 (2019).
Article CAS PubMed Google Scholar
Xiao, W. et al. Pluripotent pericycle cells trigger different growth outputs by integrating developmental cues into distinct regulatory modules. Curr. Biol. 30, 4384–4398 (2020).
Article CAS PubMed Google Scholar
Dolan, L. et al. Cellular organisation of the Arabidopsis thaliana root. Development 119, 71–84 (1993).
Article CAS PubMed Google Scholar
Okushima, Y., Fukaki, H., Onoda, M., Theologis, A. & Tasaka, M. ARF7 and ARF19 regulate lateral root formation via direct activation of LBD/ASL genes in Arabidopsis. Plant Cell 19, 118–130 (2007).
Article CAS PubMed PubMed Central Google Scholar
Ye, L. et al. Cytokinins initiate secondary growth in the Arabidopsis root through a set of LBD genes. Curr. Biol. 31, 3365–3373 (2021).
Article CAS PubMed PubMed Central Google Scholar
Zhang, J. et al. Transcriptional regulatory framework for vascular cambium development in Arabidopsis roots. Nat. Plants 5, 1033–1042 (2019).
Article CAS PubMed PubMed Central Google Scholar
Skoog, F. & Miller, C. O. Chemical regulation of growth and organ formation in plant tissues cultured in vitro. Symp. Soc. Exp. Biol. 11, 118–130 (1957).
CAS PubMed Google Scholar
Weigel, D. & Glazebrook, J. Arabidopsis: A Laboratory Manual (Cold Spring Harbor Laboratory Press, 2002).
Atta, R. et al. Pluripotency of Arabidopsis xylem pericycle underlies shoot regeneration from root and hypocotyl explants grown in vitro. Plant J. 57, 626–644 (2009).
Article CAS PubMed Google Scholar
Kareem, A. et al. PLETHORA genes control regeneration by a two-step mechanism. Curr. Biol. 25, 1017–1030 (2015).
Article CAS PubMed PubMed Central Google Scholar
Sugimoto, K., Jiao, Y. & Meyerowitz, E. M. Arabidopsis regeneration from multiple tissues occurs via a root development pathway. Dev. Cell 18, 463–471 (2010).
Article CAS PubMed Google Scholar
Shanmukhan, A. P. et al. Regulation of touch-stimulated de novo root regeneration from Arabidopsis leaves. Plant Physiol. 187, 52–58 (2021).
Article CAS PubMed PubMed Central Google Scholar
Liu, J. et al. WOX11 and 12 are involved in the first-step cell fate transition during de novo root organogenesis in Arabidopsis. Plant Cell 26, 1081–1093 (2014).
Article CAS PubMed PubMed Central Google Scholar
Iwase, A. et al. The AP2/ERF transcription factor WIND1 controls cell dedifferentiation in Arabidopsis. Curr. Biol. 21, 508–514 (2011).
Article CAS PubMed Google Scholar
Sena, G., Wang, X., Liu, H.-Y., Hofhuis, H. & Birnbaum, K. D. Organ regeneration does not require a functional stem cell niche in plants. Nature 457, 1150–1153 (2009).
Article CAS PubMed PubMed Central Google Scholar
Xu, J. et al. A molecular framework for plant regeneration. Science 311, 385–388 (2006).
Article CAS PubMed Google Scholar
Asahina, M. et al. Spatially selective hormonal control of RAP2.6L and ANAC071 transcription factors involved in tissue reunion in Arabidopsis. Proc. Natl Acad. Sci. USA 108, 16128–16132 (2011).
Article CAS PubMed PubMed Central Google Scholar
Ikeuchi, M. et al. Wound-inducible WUSCHEL-RELATED HOMEOBOX 13 is required for callus growth and organ reconnection. Plant Physiol. 188, 425–441 (2022).
Article CAS PubMed Google Scholar
Feng, M., Augstein, F., Kareem, A. & Melnyk, C. W. Plant grafting: molecular mechanisms and applications. Mol. Plant 17, 75–91 (2024).
Article CAS PubMed Google Scholar
Ikeuchi, M. et al. Wounding triggers callus formation via dynamic hormonal and transcriptional changes. Plant Physiol. 175, 1158–1174 (2017).
Article CAS PubMed PubMed Central Google Scholar
Yang, W. et al. Peptide REF1 is a local wound signal promoting plant regeneration. Cell 187, 3024–3038 (2024).
Article CAS PubMed Google Scholar
Zhang, T., Ge, Y., Cai, G., Pan, X. & Xu, L. WOX-ARF modules initiate different types of roots. Cell Rep. 42, 112966 (2023).
Article CAS PubMed Google Scholar
Sheng, L. et al. Non-canonical WOX11-mediated root branching contributes to plasticity in Arabidopsis root system architecture. Development 144, 3126–3133 (2017).
CAS PubMed PubMed Central Google Scholar
Zhai, N., Pan, X., Zeng, M. & Xu, L. Developmental trajectory of pluripotent stem cell establishment in Arabidopsis callus guided by a quiescent center-related gene network. Development 150, dev200879 (2023).
Article CAS PubMed Google Scholar
Liu, W. et al. Transcriptional landscapes of de novo root regeneration from detached Arabidopsis leaves revealed by time-lapse and single-cell RNA sequencing analyses. Plant Commun. 3, 100306 (2022).
Article CAS PubMed PubMed Central Google Scholar
Zhai, N. & Xu, L. Pluripotency acquisition in the middle cell layer of callus is required for organ regeneration. Nat. Plants 7, 1453–1460 (2021).
Article CAS PubMed Google Scholar
Zhang, G. et al. Jasmonate-mediated wound signalling promotes plant regeneration. Nat. Plants 5, 491–497 (2019).
Article CAS PubMed Google Scholar
Mehra, P. et al. Hydraulic flux–responsive hormone redistribution determines root branching. Science 378, 762–768 (2022).
Article CAS PubMed Google Scholar
Bleecker, A. B., Estelle, M. A., Somerville, C. & Kende, H. Insensitivity to ethylene conferred by a dominant mutation in Arabidopsis thaliana. Science 241, 1086–1089 (1988).
Article CAS PubMed Google Scholar
Vogel, J. P., Woeste, K. E., Theologis, A. & Kieber, J. J. Recessive and dominant mutations in the ethylene biosynthetic gene ACS5 of Arabidopsis confer cytokinin insensitivity and ethylene overproduction, respectively. Proc. Natl Acad. Sci. USA 95, 4766–4771 (1998).
Article CAS PubMed PubMed Central Google Scholar
Benková, E. et al. Local, efflux-dependent auxin gradients as a common module for plant organ formation. Cell 115, 591–602 (2003).
Article PubMed Google Scholar
Wang, X., Ye, L., Zhang, J., Melnyk, C. W. & Mähönen, A. P. Cell fate plasticity of xylem–pole–pericycle in Arabidopsis roots. Preprint at bioRxiv https://doi.org/10.1101/2024.06.17.599297 (2024).
Ditengou, F. A. et al. Mechanical induction of lateral root initiation in Arabidopsis thaliana. Proc. Natl Acad. Sci. USA 105, 18818–18823 (2008).
Article CAS PubMed PubMed Central Google Scholar
Hernandez, L. F. & Green, P. B. Transductions for the expression of structural pattern: analysis in sunflower. Plant Cell 5, 1725–1738 (1993).
Article PubMed PubMed Central Google Scholar
Drew, M. C. Comparison of the effects of a localised supply of phosphate, nitrate, ammonium and potassium on the growth of the seminal root system, and the shoot, in barley. New Phytol. 75, 479–490 (1975).
Article CAS Google Scholar
Iida, H., Mähönen, A. P., Jürgens, G. & Takada, S. Epidermal injury-induced derepression of key regulator ATML1 in newly exposed cells elicits epidermis regeneration. Nat. Commun. 14, 1031 (2023).
Article CAS PubMed PubMed Central Google Scholar
Hoermayer, L. et al. Wounding-induced changes in cellular pressure and localized auxin signalling spatially coordinate restorative divisions in roots. Proc. Natl Acad. Sci. USA 117, 15322–15331 (2020).
Article CAS PubMed PubMed Central Google Scholar
Orman-Ligeza, B. et al. The xerobranching response represses lateral root formation when roots are not in contact with water. Current Biology 28, 3165–3173 (2018).
Article CAS PubMed Google Scholar
Li, H., Yao, L., Sun, L. & Zhu, Z. ETHYLENE INSENSITIVE 3 suppresses plant de novo root regeneration from leaf explants and mediates age-regulated regeneration decline. Development 147, dev179457 (2020).
Article CAS PubMed Google Scholar
Bürger, M. & Chory, J. Stressed out about hormones: how plants orchestrate immunity. Cell Host Microbe 26, 163–172 (2019).
Article PubMed PubMed Central Google Scholar
Hernández-Coronado, M. et al. Plant glutamate receptors mediate a bet-hedging strategy between regeneration and defense. Dev. Cell 57, 451–465 (2022).
Article PubMed Google Scholar
Kępczyńska, E., Ruduś, I. & Kępczyński, J. Abscisic acid and methyl jasmonate as regulators of ethylene biosynthesis during somatic embryogenesis of Medicago sativa L. Acta Physiol. Plant. 31, 1263–1270 (2009).
Article Google Scholar
Chen, B. et al. ABA signalling promotes cell totipotency in the shoot apex of germinating embryos. J. Exp. Bot. 72, 6418–6436 (2021).
Article CAS PubMed PubMed Central Google Scholar
Shin, S. Y. et al. Submergence promotes auxin-induced callus formation through ethylene-mediated post-transcriptional control of auxin receptors. Mol. Plant 15, 1947–1961 (2022).
Article CAS PubMed Google Scholar
Sun, H.-J., Uchii, S., Watanabe, S. & Ezura, H. A highly efficient transformation protocol for Micro-Tom, a model cultivar for tomato functional genomics. Plant Cell Physiol. 47, 426–431 (2006).
Article CAS PubMed Google Scholar
Ursache, R., Andersen, T. G., Marhavý, P. & Geldner, N. A protocol for combining fluorescent proteins with histological stains for diverse cell wall components. Plant J. 93, 399–412 (2018).
Article CAS PubMed Google Scholar
Chen, S., Zhou, Y., Chen, Y. & Gu, J. fastp: an ultra-fast all-in-one FASTQ preprocessor. Bioinformatics 34, i884–i890 (2018).
Article PubMed PubMed Central Google Scholar
Kim, D., Langmead, B. & Salzberg, S. L. HISAT: a fast spliced aligner with low memory requirements. Nat. Methods 12, 357–360 (2015).
Article CAS PubMed PubMed Central Google Scholar
Anders, S., Pyl, P. T. & Huber, W. HTSeq—a Python framework to work with high-throughput sequencing data. Bioinformatics 31, 166–169 (2015).
Article CAS PubMed Google Scholar
Love, M. I., Huber, W. & Anders, S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 15, 550 (2014).
Article PubMed PubMed Central Google Scholar
Kumar, L. & Futschik, M. E. Mfuzz: a software package for soft clustering of microarray data. Bioinformation 2, 5–7 (2007).
Article PubMed PubMed Central Google Scholar
Wu, T. et al. clusterProfiler 4.0: a universal enrichment tool for interpreting omics data. Innovation 2, 100141 (2021).
CAS PubMed PubMed Central Google Scholar
Nemhauser, J. L., Hong, F. & Chory, J. Different plant hormones regulate similar processes through largely nonoverlapping transcriptional responses. Cell 126, 467–475 (2006).
Article CAS PubMed Google Scholar

Download references

Acknowledgements

We thank the Nottingham Arabidopsis Seed Center (NASC), A. P. Mähönen (University of Helsinki, Finland), R. Heidstra (Wageningen University, Netherlands), L. Ragni (University of Freiburg, Germany), L. Xu (CAS Center for Excellence in Molecular Plant Sciences, China), M. J. Bennett (University of Nottingham, UK), P. Etchells (Durham University, UK), P. Marhavý (Swedish University of Agricultural Sciences, Sweden), S. Robert (Swedish University of Agricultural Sciences, Sweden), T. Greb (University of Heidelberg, Germany) and T. Laux (University of Freiburg, Germany) for sharing materials. We thank C. Wärdig and F. Augstein for technical assistance. A.K. was supported by the Horizon Europe Marie Sklodowska-Curie Actions framework HORIZON-MSCA-2021-PF (grant no. UMOCELF-101069157). A.K.v.W. and C.W.M. were supported by a Vetenskapsrådet Grant (grant no. 2022-03018). A.K., E.F. and C.W.M. were supported by a H2020 European Research Council Starting Grant (grant no. GRASP-805094). E.F. and C.W.M. were supported by a Knut and Alice Wallenberg Stiftelse Wallenberg Academy Fellowship (grant no. 2022-0193).

Funding

Open access funding provided by Swedish University of Agricultural Sciences.

Author information

Gabriel Walckiers
Present address: Louvain Institute of Biomolecular Science and Technology, UCLouvain, Louvain-la-Neuve, Belgium

Authors and Affiliations

Department of Plant Biology, Linnean Center for Plant Biology, Swedish University of Agricultural Sciences, Uppsala, Sweden
Abdul Kareem, Anna K. van Wüllen, Gabriel Walckiers, Ellen Fasth & Charles W. Melnyk
College of Life Sciences, Northwest A&F University, Yangling, China
Ai Zhang

Authors

Abdul Kareem
View author publications
Search author on:PubMed Google Scholar
Anna K. van Wüllen
View author publications
Search author on:PubMed Google Scholar
Ai Zhang
View author publications
Search author on:PubMed Google Scholar
Gabriel Walckiers
View author publications
Search author on:PubMed Google Scholar
Ellen Fasth
View author publications
Search author on:PubMed Google Scholar
Charles W. Melnyk
View author publications
Search author on:PubMed Google Scholar

Contributions

A.K. and C.W.M. conceptualized the study. A.K., A.K.v.W., G.W. and E.F. performed experiments. A.Z. performed the bioinformatic analyses. A.K., A.K.v.W., A.Z. and G.W. analysed the data. A.K. and C.W.M. wrote the manuscript. All authors edited the paper.

Corresponding authors

Correspondence to Abdul Kareem or Charles W. Melnyk.

Ethics declarations

Competing interests

The authors declare no competing interests.

Peer review

Peer review information

Nature Plants thanks Kenneth Birnbaum, Xian Sheng Zhang and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.

Additional information

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Extended data

Extended Data Fig. 1 Wound-induced callus activates cambium-related markers but not root regeneration-related markers.

a–d, Expression patterns of fluorescence reporters (magenta) for WOX11 (de novo root regeneration (DNRR) marker), LBD1 and PXY (cambial markers) in the Arabidopsis leaf petiole on day 0 (a) or during DNRR (b), wound-induced callus (WIC) (c), or hormone-induced callus (HIC) from unwounded tissues (d) on day 5. Dashed lines indicate the regenerating root primordium in (b). Calcofluor white (grey) was used to stain cell walls. The corresponding representative bright-field images of the detached leaf (a), DNRR (b), WIC (c) and HIC (d) at 0, 8 or 12 days are shown in the left panel. Scale bar: 500 µm for the bright-field images, 100 µm for the confocal images. Confocal experiments were independently performed 3 times with similar results.

Extended Data Fig. 2 Spatio-temporal expression pattern of DNRR and WIC marker genes.

a, b, Expression patterns of fluorescence reporters (magenta) for WOX11 (de novo root regeneration (DNRR) marker) (a) and LBD1 (cambial marker) (b) in the Arabidopsis leaf petiole. Images were taken on day 0 and at time points of 1, 2, and 5 days during DNRR (touch medium) or wound-induced callus (WIC) (non-touch medium) formation. Arrowheads mark the WOX11 signal in (a). Dashed lines indicate the regenerating root primordium. Calcofluor white (grey) was used to stain cell walls. Scale bar:100 µm. Confocal experiments were independently performed 3 times with similar results.

Extended Data Fig. 3 A trade-off between wound-induced callus and root regeneration determines regeneration fates.

a, Formation of wound-induced callus (WIC) or de novo root regeneration (DNRR) in leaf explants of wild type and cambial mutants with wound sites not in contact with the medium. b, WIC formation in the cotyledon explants of WOX4-OE with the wound site not touching the medium. c, Images and quantifications of normalized WIC areas of wild type and slr-1 cotyledon petioles with the wound site not touching the medium (n = 18 (wild type), 16 (slr-1) independent explants; two-tailed Student’s t-test; box plot shows median (central line), mean (cross), first and third quartiles (top and bottom edges), minimum and maximum values excluding outliers (whiskers)). d, Representative images showing DNRR in the wox13,14 mutant with the wound site touching the medium. e, f, Frequency of DNRR in various mutants compared to wild type with the wound site touching the medium. (n = 29, 31, 28, 28, 29 (left to right) independent explants in (e) and 35, 24, 27 (left to right) independent explants in (f); ***P ≤ 0.001; two-tailed Student’s t-test; box plot details as in (c)). g, LBD16 and WOX11 transcript levels in lbd1,11 mutant petioles 4 days post-wounding with the wound site not touching the medium, measured by RT-qPCR. Expression normalized to ACTIN2. (n = 3 independent biological replicates with 3 technical replicates each; ***P < 0.001; two-tailed Student’s t-test; box plot details as in (c)). h, Frequency of DNRR in WOX4-OE and LBD11-OE with the wound site touching the medium. (n = 20 independent explants per genotype; *P < 0.05; **P < 0.01; two-tailed Student’s t-test; box plot details as in (c)). i, DNRR formation in LBD16-OE (constitutive) and WOX11-OE (constitutive) with the wound site not touching the medium. j, DNRR and WIC formation frequencies in the petiole of PLT2-OE with the wound site not touching the medium. Mock (ethanol) and 5 µM dexamethasone (DEX) treatments are shown (n = 10 independent explants per genotype; mean). Scale bar: 500 µm in (d) and 200 µm in the rest.

Extended Data Fig. 4 Water availability determines regeneration fates.

a, Regeneration frequencies in Arabidopsis leaf petioles with the wound site touching either nutrient rich or nutrient-free agar medium 8 days post wounding. (n = 19 (nutrient-rich),18 (nutrient-free) independent explants; mean). b, Root regeneration in petioles exposed to either nutrient-rich or nutrient-free agar media. c, Correlation between water potential (MPa) and agar concentration of B5 medium. (n = 3 independent biological replicates with 3 technical replicates each; *P < 0.05; two-tailed Student’s t-test; box plot shows median (central line), mean (cross), first and third quartiles (top and bottom edges), minimum and maximum values excluding outliers (whiskers)). d, Regeneration frequencies assessed 10 days after wounding by altering tissue orientation (touch to non-touch or vice versa) for different durations in Arabidopsis petioles. (n = 10 independent explants per treatment; mean). e, Normalized wound-induced callus area in petioles after altering tissue orientation from touch to non-touch for different durations (n = 10 independent explants per treatment; *P < 0.05; two-tailed Student’s t-test; box plot details as in (c)). f, Hormone-induced callus area in tomato cotyledon explant cultured on callus inducing medium (CIM) under varying agar concentrations. (n = 23, 24, 23, 24, 26, 23 (left to right) independent explants; letters indicate significant differences (P ≤ 0.05); Kruskal–Wallis with pairwise Wilcoxon; box plot details as in (c)). g, Transcriptional dynamics of genes associated with cambium, callus and root at high (0.75% agar) and low (2% agar) water conditions. h, Wound-induced callus (WIC) or de novo root regeneration (DNRR) in cambial and DNRR mutants under low water (3% agar) conditions. i, Regeneration frequencies in cambial and DNRR mutants under high (0.75% agar) and low (3% agar) water conditions. (n = 20, 21, 10, 20, 20, 20, 11, 20 (left to right) independent explants; mean). Scale bar: 500 µm in (b), 200 µm in (h).

Extended Data Fig. 5 Transcriptional dynamics of regeneration fate changes.

a, Schematic depicting 0.5 mm tissue harvesting and time points for Arabidopsis petiole wound sites under high and low water conditions for RNA-seq. b, The distribution of differentially expressed genes (DEGs) in response to high and low water conditions. c, Principal Component Analysis (PCA) of the gene expression data from the regeneration fate transcriptome. The two principal components (PC1 and PC2) explain 69% of the total variation in the regeneration transcriptome. Different colors indicate various time points after wounding (in hours). Data from three biological replicates (r1, r2, r3) per water condition (high (H) or low (L) water) per time point are shown. d, Clustering analysis of transcriptional dynamics under high and low water availability conditions (12 clusters in total). Lines represent the average expression levels of DEGs within each cluster. Representative genes for selected clusters are shown in the top right corner.

Extended Data Fig. 6 Water availability influences expression of ethylene and jasmonic acid biosynthesis and response genes.

a, Heatmaps showing fold changes of expression of genes involved in ethylene, and jasmonic acid synthesis and response under high (0.75% agar) vs. low (2% agar) water conditions in wounded Arabidopsis petioles. b, Transcriptional dynamics of genes associated with ethylene and jasmonic acid synthesis and signalling. c, Regeneration frequencies after treatments with 0.2 µM NAA, 10 µM AgNO3 or NAA+AgNO3 at intermediate water conditions. (n = 12, 18, 10, 12 (left to right) independent explants; mean). DNRR= de novo root regeneration, WIC=wound-induced callus.

Extended Data Fig. 7 Water availability influences expression of auxin biosynthesis, transport and responsive genes during regeneration.

a, Heatmap showing fold changes of expression of genes involved in auxin synthesis, transport and response under high (0.75% agar) vs. low (2% agar) water conditions in wounded Arabidopsis petioles. b, Transcriptional dynamics of auxin biosynthesis genes at high and low water conditions. c, Regeneration frequencies in yuc1D and yuc2,5,8,9 mutants at high and low water conditions (n = 20, 20, 20, 19, 19, 20 (left to right) independent explants; mean). d, Regeneration frequencies after 0.2 µM NAA treatment under intermediate water conditions (1.5% agar). (n = 19 (mock), 14 (NAA) independent explants; mean). DNRR= de novo root regeneration, WIC=wound-induced callus.

Extended Data Fig. 8 Auxin signalling is involved in distinct regeneration pathways.

a, Regeneration frequencies in arf6, arf7 and arf8 mutants at intermediate (1.5% agar) and low (2% agar) water conditions (n = 24 independent explants per genotype; mean). b, Regeneration frequencies in the shy2-31 mutant under low water conditions (3% agar) (n = 10 independent explants per genotype). c, Spatial expression of SHY2-VENUS under high (0.75% agar) and low (2% agar) water conditions. Green dotted lines mark vasculature, while the white dotted line marks the root primordium. DNRR= de novo root regeneration, WIC=wound-induced callus. Scale bar: 100 µm. Confocal experiments (c) were independently performed 3 times with similar results.

Extended Data Fig. 9 Jasmonic acid affects SHY2 expression.

a, SHY2-VENUS expression after mock or 5 µM MeJA treatment for 43 h at intermediate water conditions (1.5% agar). Green dotted lines mark vasculature. b, Average fluorescence intensity of SHY2-VENUS post-treatment with 5 µM MeJA or mock for 43 h at intermediate water conditions (1.5% agar). (n = 10 (mock), 9 (MeJA) independent explants; *P < 0.05; two-tailed Student’s t-test; box plot shows median (central line), mean (cross), first and third quartiles (top and bottom edges), minimum and maximum values excluding outliers (whiskers)). Scale bar: 100 µm.

Extended Data Fig. 10 Water availability influences auxin transport during regeneration.

a, Transcriptional dynamics of auxin transport genes at high and low water conditions. b, c, Expression pattern of PIN2-GFP (b) and PIN3-GFP (c) under high (0.75% agar) and low (2% agar) water conditions in the leaf petiole. d, Average number of root regeneration per petiole explant in wild type, pin2, pin3,4,7 and abcb1,19 under high water conditions (n = 10, 15, 20, 20, 20 20 (left to right) independent explants; two-tailed Student’s t-test; box plot shows median (central line), mean (cross), first and third quartiles (top and bottom edges), minimum and maximum values excluding outliers (whiskers)). e, Normalized wound-induced callus area in wild type, pin2, pin3,4,7, and abcb1,19 under low water conditions (n = 20, 30, 19, 20, 20, 20 (left to right) independent explants; two-tailed Student’s t-test; box plot details as in (d)). f, Regeneration frequencies in pin1 and 35S::PIN1-GFP at high (0.75% agar) and low (2% agar/non-touch medium) water conditions (n = 20, 20, 21, 20, 19, 19 (left to right) independent explants; mean). g, Regeneration frequencies in wild type and 35S::PIN1-GFP under intermediate water conditions (1.5% agar) (n = 14 (wild type), 16 (35S::PIN1-GFP) independent explants; mean). h, Regeneration frequencies in pin2, and pin3,4,7 mutants at high and low water conditions (n = 20, 22, 20, 19, 20 20 independent explants; mean). DNRR= de novo root regeneration, WIC=wound-induced callus. Scale bar: 100 µm. The look-up table in c displays the signal intensity range used for b and c. Confocal experiments (b, c) were independently performed 3 times with similar results.

Supplementary information

Supplementary Information (download PDF )

Supplementary Tables 1 and 2.

Reporting Summary (download PDF )

Supplementary Data 1 (download XLSX )

DEGs identified under high- and low-water conditions during regeneration.

Supplementary Data 2 (download XLSX )

GO enrichment analysis of transcriptome clusters under high- and low-water conditions during regeneration.

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this article

Cite this article

Kareem, A., van Wüllen, A.K., Zhang, A. et al. Water availability positions auxin response maxima to determine plant regeneration fates. Nat. Plants 11, 1367–1379 (2025). https://doi.org/10.1038/s41477-025-02029-2

Download citation

Received: 23 September 2024
Accepted: 22 May 2025
Published: 04 July 2025
Version of record: 04 July 2025
Issue date: July 2025
DOI: https://doi.org/10.1038/s41477-025-02029-2

This article is cited by

Integrative miRNA-mRNA-lncRNA Analysis Unveils Regulatory Networks Involved Clonal Reproduction of Root Sprouting in Toona fargesii
- Jiaming Tie
- Qiangqiang Li
- Jikai Ma
Plant Molecular Biology Reporter (2026)
