Main

Highly pathogenic avian influenza (HPAI) H5N1 poses a substantial public health threat with pandemic potential. The first H5N1 human fatality was in 1997 in Hong Kong after genetic reassortment between A/goose/Guangdong/1/1996 (Gs/GD lineage) and other low pathogenic avian influenza (LPAI) viruses1. Since then, sporadic H5N1 human infections have occurred with a 51% case fatality rate of laboratory confirmed infections2. The emergence of clade 2.3.4.4b H5N1 from a 2.3.4.4b H5N8 reassortment in 20203 has caused global alarm, as the virus continues to spread rapidly in the Western hemisphere4. In particular, detection of clade 2.3.4.4b across diverse hosts, including terrestrial and marine mammals5,6,7, demonstrates a concerning shift in the epidemiological landscape of H5N1. Since March 2024, this clade has caused sizeable outbreaks in US dairy farms, the first HPAI 2.3.4.4b H5N1 infections in dairy cattle8. Human-to-human transmission has not been observed; however, reports of HPAI H5N1 infections among farm workers with direct contact with infected cattle and poultry9 underscores the public health risk of this panzootic pathogen. Besides clade 2.3.4.4b H5N1 virus, a recent surge in human infections with clade 2.3.2.1e H5N1 virus in Southeast Asia with a 43% fatality rate in symptomatic individuals10 further highlight the urgent need for effective medical countermeasures.

Antibody-based biologics could provide protection if available in a timely manner, particularly among populations with historically poor vaccine responsiveness, such as geriatric and immunocompromised individuals, as demonstrated for SARS-CoV-2 (ref. 11). Most of the protective antibody response to influenza is directed to the viral surface glycoprotein haemagglutinin (HA). HA is a homotrimeric class 1 fusion protein composed of functionally competent HA1 and HA2 subunits. The immunodominant HA1 globular head is responsible for binding to sialic acids on the host cell surface and defines receptor tropism (that is, α2,3- versus α2,6-linked sialic acids), while the immunologically subdominant HA stem, comprising mostly HA2, mediates fusion between viral and endosomal membranes. Potently neutralizing antibodies primarily target the globular head and are characteristically strain specific because of the hypervariable antigenic landscape of the HA head. Neutralizing antibodies against the conserved HA stem region are less frequent; however, they are broadly cross-reactive across HA subtypes, albeit less potent12,13.

To isolate the most potent and broadly protective monoclonal antibodies (mAbs), we focused our discovery efforts on HA head-specific antibodies. Using samples from a 2010 A/Indonesia/05/2005 (Indo/05) vaccine trial14, we identified five potently neutralizing mAbs against both historical and emerging H5Nx viruses that target the HA globular head and confer protection in mice against A/dairy cattle/Texas/24008749001/2024 2.3.4.4b H5N1 virus challenge. Our findings highlight the translational potential of these H5 mAbs for further clinical development as pandemic countermeasures.

Results

Isolation of H5 HA-specific antibodies

To isolate H5 HA-specific antibodies, we took peripheral blood mononuclear cells (PBMCs) from a Phase I clinical trial14 2 weeks or 6 months after two H5 Indo/05 vaccine doses. Isotype-switched B cells that bound the HA ectodomain of the vaccine strain (H5 Indo/05) and clade 2.3.4.4b H5 strain A/Texas/37/2024 (H5 TX/24) but not the headless H5 stem (HA head+) were single-cell sorted into 96-well plates (Fig. 1a,b, and Extended Data Fig. 1 and Extended Data Table 1). Using the RATP-Ig15 workflow (Fig. 1b), we obtained supernatants containing secreted mAbs from each single B cell and screened them for binding to H5 TX/24 HA and the ability to neutralize H5N1 TX/24 virus. A total of 501 wells (~60% of sorted B cells) expressed antibodies reactive to H5 TX/24 HA, 282 wells expressed clonally distinct paired immunoglobulin (Ig) sequences and of these, 128 had some neutralizing activity. We recombinantly expressed these 128 Igs and other highly cross-reactive Igs, totalling 135 clonally distinct mAbs. These mAbs had a diverse Ig repertoire and an average of 5% heavy-chain somatic hypermutation (SHM) (Extended Data Fig. 2).

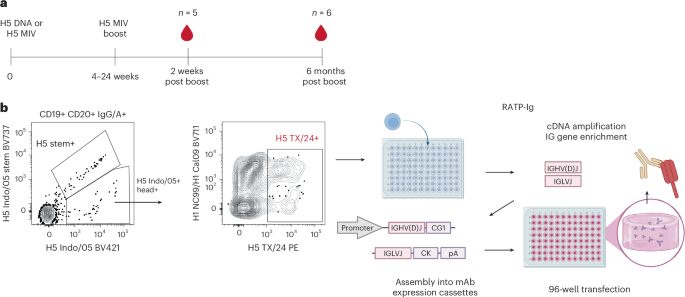

Fig. 1: Isolation of H5 TX/24 specific antibodies.
Fig. 1: Isolation of H5 TX/24 specific antibodies.
Full size image

a, Schematic diagram of VRC310 clinical trial vaccine schedule. Individuals received either H5 A/Indonesia/05/2005 HA DNA vaccine, followed by subvirion H5N1 monovalent inactivated vaccine (MIV) (A/Indonesia/05/2005), or a two-dose regimen of H5N1 MIV. Blood was collected at 2 weeks p.b. and at 6 months p.b. b, Gating strategy for single-cell sorting of H5 TX/24+ memory B cells. Cells that bound H5 Indo/05 ectodomain but not headless H5 stem were further selected for binding H5 TX/24. A subset of cells also bound H1 HA (cocktail of H1 NC/99 and H1 Cal/09). RATP-Ig supernatants from five 96-well plates at 2 weeks p.b. and five 96-well plates at 6 months p.b. were screened for H5 HA-specific binding by MSD. Created in BioRender (https://BioRender.com/elo13eu). CK, kappa constant region; pA, polyA tail; RATP-Ig, rapid assembly, transfection and production of immunoglobulins.

We tested the 135 mAbs for binding to a panel of recombinant HAs from human viral isolates representative of seven historical or current H5 clades, along with two H1 and two H2 strains (Fig. 2a). All mAbs bound H5 TX/24 and H5 Indo/05 (Extended Data Fig. 3a). mAbs isolated from 2 weeks post boost (p.b.) PBMCs were predominately cross-subtype binding and few had neutralizing activity as measured by the 80% inhibitory concentration (IC80) (Fig. 2b,c). mAbs isolated from cells at 6 months p.b. were largely H5 specific, with many binding to 6–7 H5 HAs, and had higher mean neutralizing activity (Fig. 2b,c). The mAbs with the highest potency were generally those with less breadth (Fig. 2d).

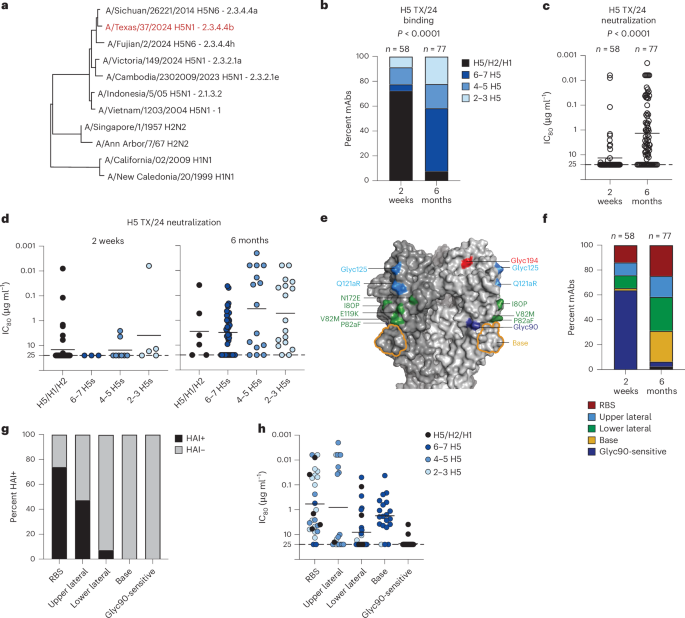

Fig. 2: Characterization of H5 TX/24 specific antibodies.
Fig. 2: Characterization of H5 TX/24 specific antibodies.
Full size image

a, Phylogenetic relationship of select H5, H2 and H1 HAs. The H5 GISAID clade is indicated after each virus strain name. H5 TX/24 is in red. b, Proportions of recombinantly produced mAbs at 2 weeks p.b. and 6 months p.b. that display specific patterns of binding reactivity: H5/H1/H2 (bind at least one H5 strain plus H1 and/or H2), or cross-reactivity within the H5 subtype to different numbers of H5 HA strains as indicated. Total number of mAbs tested is indicated above the graph. c, Neutralization IC80 of mAbs at 2 weeks p.b. and 6 months p.b. to H5N1 TX/24. d, Neutralization IC80 of mAbs at either 2 weeks p.b. (left) or 6 months p.b. (right) differentiated by binding cross-reactivity as in b. In c and d, each dot represents one mAb, with line indicating the mean. e, Representation of HA mutations used to differentiate epitope regions of mAbs, colour coded to match HA region designated in f. Glyc, mutations that introduced a glycan at the indicated position. The outlined HA base region was identified through nsEM and/or competition experiments (Extended Data Fig. 3). f, Percentage of mAbs from each timepoint that target each of the indicated HA regions, colour coded to match mutations in e. g, Percentage of mAbs targeting each region that inhibited red blood cell haemagglutination (HAI+) by H5N1 TX/24 virus at a concentration of 25 µg ml−1 or lower. h, Neutralization IC80 of mAbs differentiated by binding region. Each dot represents one mAb colour coded by cross-reactivity as in b, with the line indicating the mean. The dashed line in c, d and h represents the highest mAb concentration tested. Statistical significance in b by Fisher’s exact test, in c by Mann–Whitney test. All statistical tests were two-sided.

Source data

To map the HA head region targeted by the mAbs, we used H5 TX/24 mutants to identify mAbs that recognized regions surrounding the receptor binding site (RBS) as well as upper and lower lateral regions (Fig. 2e and Extended Data Fig. 3b,c), confirmed by negative stain electron microscopy (nsEM) images. Several mAbs did not bind H5 HA with a glycan at 90HA1 (Glyc90 sensitive) (Fig. 2e and Extended Data Fig. 3b) and may represent trimer interface-binding mAbs16,17. nsEM and competition studies further identified mAbs that bound a region at the base of the HA head (Fig. 2e and Extended Data Fig. 3d,e). Over 60% of the mAbs obtained from cells at 2 weeks p.b. were Glyc90 sensitive, while mAbs from 6 months p.b. evenly targeted the other 4 HA head regions (Fig. 2f). Most mAbs binding around the RBS or upper lateral region had HAI activity against TX/24 H5N1 virus and had the highest neutralization potency but lower overall breadth (Fig. 2g,h). Eight mAbs binding the upper lateral epitope had particularly high neutralizing ability (Fig. 2h) and all eight, from multiple individuals, were encoded by kappa chain variable gene (IGKV) 2D-28, without an apparent heavy variable gene (IGHV) enrichment, suggesting a light-chain-mediated convergence of B cells targeting this region (Extended Data Fig. 3f). Altogether, vaccination with H5 Indo/05 elicits B cells expressing mAbs cross-reactive to H5 TX/24 that target a range of HA head epitopes with varying levels of neutralizing potency and breadth across H5Nx clades.

Five broad and potent H5 mAbs

Despite the trend of decreasing neutralization potency with increased breadth, two RBS-targeting and one upper lateral-targeting mAbs, termed 310-12D03, 310-1H02 and 310-7D11, respectively, were able to bind five or more H5 HA clades and had a neutralization IC80 to H5 TX/24 of 0.02 µg ml−1 or less. In addition, we identified two mAbs, 326-289.74 and 326-366.24, with this breadth–potency criterion, from a participant in the 2010 H5 vaccine study obtained from PBMCs isolated 1 week after the participant received an additional experimental vaccine (NCT05968989) containing H2 A/Singapore/1/1957 (Sing/57) HA 13 years later (Extended Data Fig. 4). Each of the five mAbs were encoded by different IGHV and IGK/LV genes and exhibited a range of heavy and light-chain SHMs (Extended Data Table 2). All five mAbs were able to bind H5 Indo/05 and TX/24, as well as A/Sichuan/26221/2014 (Sich/14) and A/Cambodia/2302009/2023 (Cam/23), with apparent affinities ranging from 1.4 × 10−8 M to 6.1 × 10−10 M (Fig. 3a,b and Extended Data Fig. 5). They also neutralized TX/24 H5N1, Sich/14 H5N6, Indo/05 H5N1 and Cam/23 H5N1 virus, except for one mAb that did not neutralize Cam/23 H5N1 virus (Fig. 3c). 310-12D03 and 310-7D11 had the greatest potency against the currently circulating TX/24 and Cam/23, with IC80 of 0.01 µg ml−1 or lower for both H5N1 strains (Fig. 3c and Extended Data Table 2). In addition, 310-12D03 potently neutralized a non-Gs/GD H5H2 virus from a recent human fatal case in Mexico18 (Fig. 3c). In comparison, HA stem mAb MEDI8852 that has been evaluated in a clinical trial for efficacy against seasonal influenza viruses19,20, had broad binding and neutralization of all the H5Nx and H2N2 viruses tested, albeit at a ≥10-fold lower potency compared with the HA head-specific mAbs for most strains (Fig. 3a–c). Thus, we identified H5-head-specific mAbs that neutralized both clade 2.3.4.4b and 2.3.2.1e H5N1 viruses with higher potency than the best-in-class HA stem-directed mAb.

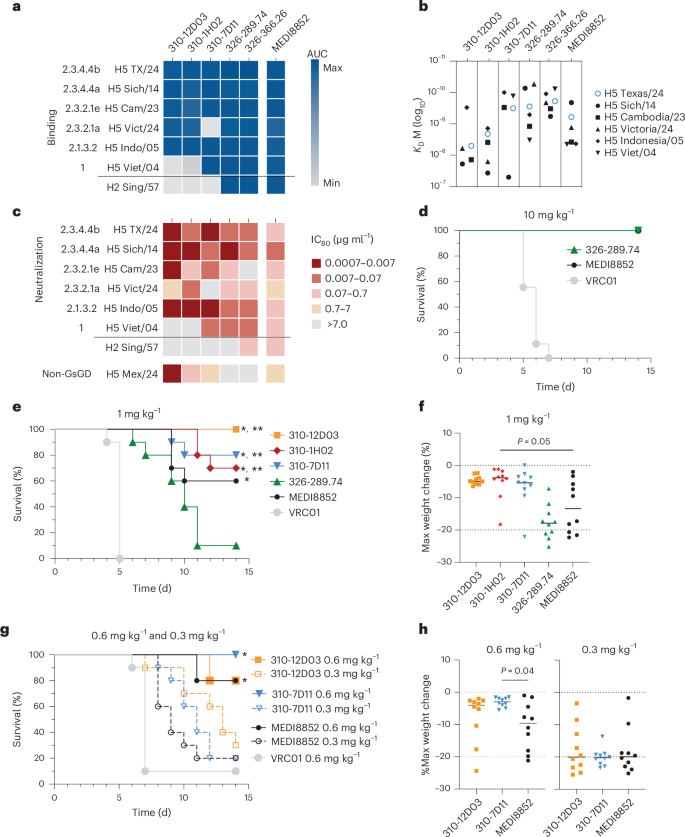

Fig. 3: Characterization of top mAbs.
Fig. 3: Characterization of top mAbs.
Full size image

a, Binding of top candidates and MEDI8852 by MSD to indicated H5 HA strains, displayed as a heat map of the AUC (area under the binding curve), with minimum AUC displayed in grey and maximum AUC shown in blue. Data representative of at least 2 independent experiments. b, Equilibrium dissociation constants KD (M) of lead candidates and MEDI8852 by SPR as indicated. c, Neutralization IC80 of top mAbs and MEDI8852 against a panel of circulating and historical H5 and H2 strains. IC80 values displayed as a heat map, with no neutralization shown in grey and increasing potency shown in darker shades of red as indicated. Data representative of 3 or more independent experiments. d, Kaplan–Meier survival of BALB/c mice (n = 8–9 per group) infected with H5 TX/24 after passive transfer of MEDI8852 and 326-289.74 at 10 mg ml−1. e,f, Kaplan–Meier survival of BALB/c mice (n = 10 per group) infected with H5 TX/24 after passive transfer of mAbs at 1 mg kg−1 (e) and maximum weight loss (f). g,h, Kaplan–Meier survival of BALB/c mice (n = 10 per group) infected with H5 TX/24 after passive transfer of 310-12D03, 310-7D11 and MEDI8852 at 0.6 and 0.3 mg kg−1 (g) and maximum weight loss (h). In f and h, horizontal lines indicate group mean. Upper and lower dashed lines indicate no change (0%) and humane euthanasia threshold (–20%) for the study. For e and g, statistical significance of survival was determined by log-rank (Mantel–Cox) test with Bonferroni–Sidak adjustment. *P < 0.001 significant relative to VRC01, **P < 0.03 significant relative to 326-289.74. For comparisons against VRC01: P < 0.0001 for 310-12D03, 310-1H02, 310-7D11, 326-289.74 and MEDI8852 (e), and P = 0.0004 for 310-12D03 at 0.6 mg kg−1, P = 0.0001 for 310-7D11 at 0.6 mg kg−1 and P = 0.0004 for MEDI8852 at 0.6 mg kg−1 (g). For comparisons against 326-289.74: P < 0.0001 for 310-12D03, P = 0.0032 for 310-7D11 and P = 0.0011 for 310-1H02 (e). Virus inoculum used in the challenge was titrated in a plaque assay to confirm the dose given to mice. Statistics in f and h by Kruskal–Wallis test with Dunn’s multiple comparisons test. Min, minimum; Max, maximum.

Source data

H5 mAbs protect against H5N1 lethal challenge

We then tested the ability of mAbs to protect against bovine TX/24 H5N1 infection in mice 24 h after administering either anti-H5 mAbs or control anti-HIV-1 mAb VRC01 (ref. 21). This virus is highly pathogenic in mice and causes neurological symptoms22,23. We first tested MEDI8852 and 326-289.74 at 10 mg kg−1 and saw that they conferred full protection in vivo (Fig. 3d and Extended Data Fig. 6a). To stratify the mAbs by level of protection, we tested MEDI8852, 326-289.74, 310-12D03, 310-1H02 and 310-7D11 at 1.0 mg kg−1. Mice given 310-12D03, 310-7D11 and 310-1H02 were more protected than those that received 326-289.74 (100%, 80% and 70% survival, respectively), with less than 5% weight loss, while MEDI8852 resulted in 60% survival with more pronounced weight loss (Fig. 3e,f and Extended Data Fig. 6b). In addition, we tested 310-12D03, 310-7D11 and MEDI8852 at 0.6 mg kg−1 and 0.3 mg kg−1. All three mAbs at 0.6 m kg−1 conferred 80% or more survival, but mice that received MEDI8852 had greater weight loss (Fig. 3g,h and Extended Data Fig. 6b). Mice given 0.3 mg kg−1 of mAb suffered substantial weight loss although they had extended survival over the control VRC01 by 2–6 days (Fig. 3g,h and Extended Data Fig. 6b). Thus, antibodies with the greatest neutralization potency, 310-12D03 and 310-7D11, provided the greatest protection against H5N1 infection at 1.0 and 0.6 mg kg−1. In addition, pharmacokinetics studies of these mAbs in a humanized mouse model showed comparable serum half-lives to anti-HIV-1 mAb VRC01LS used in human clinical trials24, suggesting that they would be viable candidates for prophylaxis treatment in humans (Extended Data Fig. 6d).

mAbs target distinct regions on the HA head

Cryogenic electron microscopy (cryo-EM) of H5N1 TX/24 HA in complex with the Fabs of 310-12D03, 310-1H02, 310-7D11, 326-289.74 and 326-366.26 produced good-resolution structures showing that each mAb engaged the HA1 head region with a distinct angle of approach and epitope location (Fig. 4a–c, Supplementary Figs. 1–5 and Supplementary Table 1).

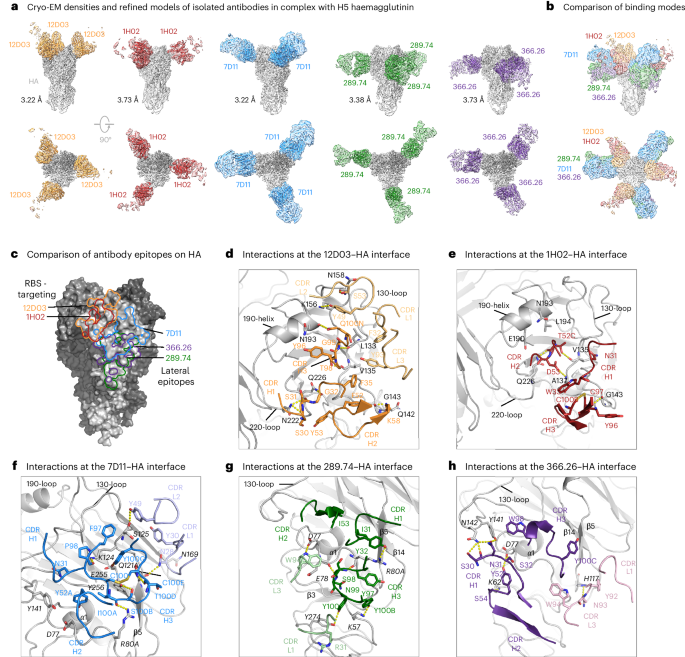

Fig. 4: Cryo-EM structures of H5N1 HA in complex with Fabs.
Fig. 4: Cryo-EM structures of H5N1 HA in complex with Fabs.
Full size image

a, Cryo-EM densities and refined models. The refined models of the antigen-binding fragments of 310-12D03, 310-1H02, 310-7D11, 326-289.74 and 326-366.26 in complex with H5 HA are shown inside the semi-transparent electron density maps. Structures indicated that these antibodies targeted the RBS and the lateral epitope regions on HA. The protomers of the trimeric HA are shown in different shades of grey, and the Fabs are coloured in orange, firebrick red, dodger blue, green and purple for 310-12D03, 310-1H02, 310-7D11, 326-289.74 and 326-366.26, respectively. Only the variable regions of the Fabs were built and refined. b, Superposition of the cryo-EM density maps. The maps were superposed on the HA regions and coloured in the same scheme as in a. c, Epitopes of antibodies 310-12D03, 310-1H02, 310-7D11, 326-289.74 and 326-366.26 on HA. The footprints of each antibody are marked with lines coloured in the same scheme as in a. Both 310-12D03 and 310-1H02 bound to the RBS on HA, whereas 326-289.74 and 326-366.26 targeted the lateral region below the RBS. 310-7D11 bound to an area overlapping with the RBS and lateral epitope regions. d–h, Interactions at the antibody–HA interfaces. The antibody elements contributing to the binding are shown as cartoons and coloured in the same colour scheme as in a. The light-chain elements are shown in lighter shades than corresponding heavy chains for clarity. Residues with substantial contributions to the binding interactions are shown in stick representation, with identified hydrogen bonds highlighted in yellow dashed lines. Key HA structural motifs, including the 190-helix, 130-loop and 220-loop, which contribute to the formation of the HA RBS, are highlighted for positional reference.

While both 310-12D03 and 310-1H02 targeted the RBS, they employed distinct binding modes to engage common HA motifs. 310-12D03 engaged HA with all complementarity-determining regions (CDR) of both heavy and light chains. Centred over the HA 130-loop, 310-12D03 also engaged residues from the HA 190-helix and 220-loop at the rim of the RBS, along with adjacent regions (Fig. 4d and Supplementary Table 2). Compared to 310-12D03, 310-1H02 targeted the HA RBS in a 90-degree rotated mode, engaging the HA 190-helix, 130-loop, 142-loop and 220-loop exclusively through heavy-chain-mediated interactions, with a smaller epitope of 614 Å2 (Fig. 4e and Supplementary Table 2).

310-7D11 bound to the upper lateral region of the globular head, adjacent to the RBS. The heavy chain contributed two-thirds of the 900 Å2 paratope surface with the 17-residue-long CDR H3, stabilized by a disulfide bond between C100 and C100E, providing over 420 Å2 binding surface. Interestingly, five of the six light-chain paratope residues (H27D, S27E, N28, Y30, Y32 and Y49) were directly encoded by the germline IGKV2D-28 gene, which explains the preferential usage of IGKV2D-28 in 310-7D11-like antibodies targeting the upper lateral epitope (Fig. 4f and Supplementary Table 2).

326-289.74 and 326-366.26 targeted the lower lateral region on HA, with epitopes partly overlapping that of 310-7D11 but shifted down towards the stem region (Fig. 4c). 326-366.26 bound to HA in a 90-degree rotated orientation relative to that of 326-289.74 and to a smaller epitope surface of 750 Å2 (Fig. 4g,h and Supplementary Table 2). 326-289.74 and 326-366.26 recognized common HA motifs, such as the α1-β3 connecting loop, the β5 and β14, and the 140-loop, despite their distinct binding orientations (Fig. 4g,h and Supplementary Table 2).

Vulnerability of the epitopes targeted by mAbs

We curated 523 non-redundant H5 HA amino acid sequences representing all the major clades from a total of 1,694 HA sequences of Gs/GD lineage H5Nx viruses to analyse the sequence conservation of the contact residues of the five H5 mAbs (Fig. 5a).

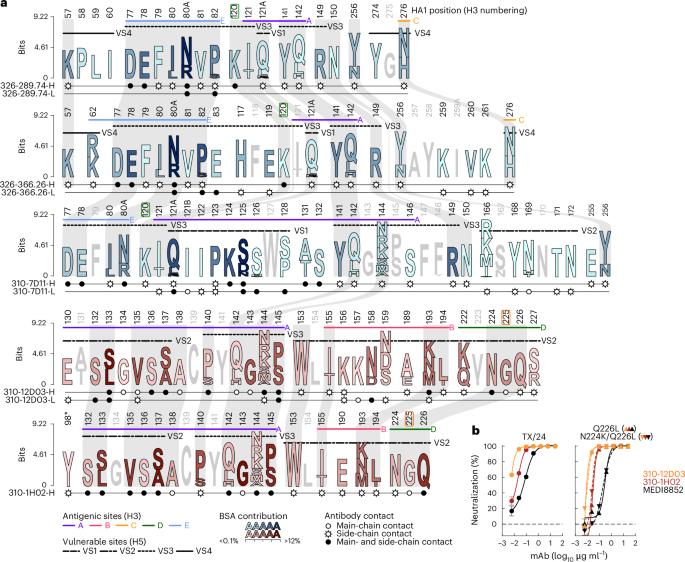

Fig. 5: Sequence conservation and mutation tolerability of the epitopes targeted by top mAbs.
Fig. 5: Sequence conservation and mutation tolerability of the epitopes targeted by top mAbs.
Full size image

a, Amino acid sequence variations of the epitopes targeted by top mAbs. HA residues that have contact with each of the five mAbs are shown in the sequence logos. The sequence logo was generated with a collection of 523 non-redundant gsGD H5Nx HA sequences. Each residue is coloured according to the buried surface area at the HA–Fab interface. Types of interaction between HA and Fab residues are indicated with symbols below each residue. Shared epitope residues between mAbs are shaded and connected. HA antigenic sites based on H3 (ref. 41) as well as vulnerable sites (VS)36 are indicated above the sequence logos. b, Neutralization sensitivity of TX/24 viruses carrying sialic acid receptor preference switching mutations to RBS mAbs. Anti-HA stem MEDI8852 was used as a control. Triangle symbols with solid lines and reverse triangles with dashed lines indicate neutralization curves for Q226L and N224K/Q226L viruses, respectively. Data represent the mean ± s.d. of 4 technical replicates, representative of 2 independent experiments.

Source data

For both 326-289.74 and 326-366.26, E78HA1, R80AHA1 and P82HA1 comprise more than 1/3 of the total buried surface area (BSA) (Fig. 5a and Supplementary Table 2). While R80AHA1 in TX/24 HA is asparagine in many other H5 sequences, this substitution does not interfere with antibody binding or neutralization. Residues P123HA1, K124HA1 and S125HA1 contributed to more than 1/3 of the total BSA, making 310-7D11 distinct from 326-289.74 and 326-366.26 (Fig. 5a). Variations in Vict/24 (2.3.2.1a) at residues Q121AHA1–R121AHA1 and/or S125HA1–D125 HA1 might explain the inability of 310-7D11 to bind and neutralize this strain (Fig. 3b,e). Residues L133HA1, V135HA1, A137HA1, G143HA1 and P145HA1 contributed more than 1/2 of the total BSA for both mAbs 310-12D03 and 310-1H02. While some of these positions exhibit a few variations, both RBS mAbs tolerate these variations. Both RBS mAbs also made contact with residues N224HA1 and Q226HA1. A Q226L mutation alone or in combination with N224K can switch receptor specificity from avian α2,3-linked to human α2-6-linked sialic acids25, which could facilitate upper respiratory tract infection in humans. mAbs 310-12D03 and 310-1H02, however, still neutralized H5N1 TX/24 virus expressing HA with Q226L or N224K/Q226L mutations, indicating that they would maintain functionality if the virus were to acquire these mammalian adaptation mutations (Fig. 5b).

We also used a deep mutational scanning (DMS) non-replicative pseudovirus library based on HA of A/American wigeon/South Carolina/USDA-000345-001/2021 (clade 2.3.4.4b H5N1) to assess the neutralization resistance profile of every possible substitution at each HA position26. There was a high degree of agreement between the neutralization resistance maps and structurally defined epitopes (Fig. 6a), indicating that mutations outside the structurally defined epitopes are unlikely to cause neutralization resistance against the H5 mAbs. Of note, the neutralization resistance maps for these H5 mAbs are drastically different from that of animal sera after vaccination or infection with closely related H5N1 viruses26, highlighting that the cross-clade neutralizing epitopes targeted by the H5 mAbs might not be easily targeted by primary vaccination or infection.

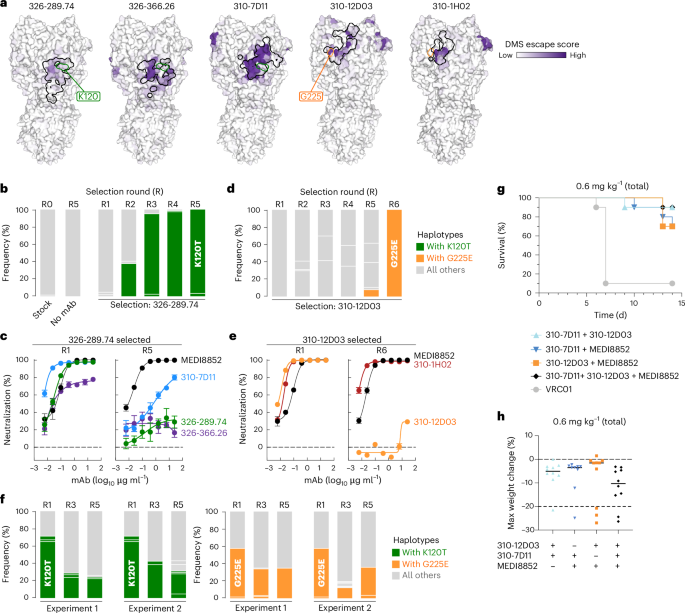

Fig. 6: Virus escape generation and in vivo protection with co-administered mAbs.
Fig. 6: Virus escape generation and in vivo protection with co-administered mAbs.
Full size image

a, DMS library-based selection of mAb escape. Lentivirus-based pseudovirus expressing H5 DMS HA library was used to enrich mAb escape variants. DMS escape score is shown in purple gradient. The structurally defined epitope of each antibody is shown as a black outline. See the interactive version of deep mutational scanning data at https://dms-vep.org/Flu_H5_American-Wigeon_South-Carolina_2021-H5N1_DMS/htmls/VRC_antibody_escape_faceted.html. The residues K120 and G225 are highlighted in green and orange outlines, respectively. b, HA haplotype frequency of TX/24 virus in the absence or presence of 326-289.74 pressure by single-genome sequencing. Samples from input TX/24 virus stock as well as virus culture without mAb (no mAb) were used as controls. In each successive round, an increased amount of selection mAb was used. c, Neutralization sensitivity of TX/24 viruses selected with 326-289.74. Neutralization curves of early (R1) and late (R5) TX/24 viruses against mAbs. MEDI8852 was used as a control. d, HA haplotype frequency of TX/24 virus in the absence or presence of 310-12D03 pressure by single-genome sequencing. e, Neutralization sensitivity of TX/24 viruses selected with 310-12D03. Neutralization curves of early (R1) and late (R6) TX/24 viruses against mAbs. f, Viral replication fitness of TX/24 and its neutralization resistant variant carrying either K120T or G225E mutation. HA haplotype frequency after 1:1 mix of TX/24 virus and either 326-289.74-selected virus (left) or 310-12D03-selected virus (right) (R1) and after serial passages in the absence of antibody pressure. R3 and R5 samples were taken from 2 independent replicates after 3 and 5 passages, respectively. g, Protection against H5 TX/24 challenge of combinations of mAbs. Total mAb dose including all mAbs in each condition was 0.6 mg kg−1. Statistical significance of survival was determined by log-rank (Mantel–Cox) test with Bonferroni–Sidak adjustment. All mAb combinations were statistically significant relative to VRC01 (P < 0.001); P = 0.0002 for 310-7D11 + 310-12D03, P = 0.0006 for 310-12D03 + MEDI8852, P = 0.0008 for 310-7D11 + MEDI8852 and P = 0.0002 for 310-7D11 + 310-12D03 + MEDI8852. h, Maximum weight change (%) post challenge with same mAb combinations as in g as indicated. There was no significant difference between groups by Kruskal–Wallis test.

Source data

To further investigate the potential of the 2.3.4.4b H5N1 virus to escape from the H5 mAbs, we serially passaged our rewired replication-restricted reporter influenza virus27 expressing TX/24 HA and neuraminidase without mAb pressure or with increasing concentrations of 326-289.74, 310-7D11 or 310-12D03, followed by analysis of virus sequence variants using high-throughput single-genome sequencing (HT-SGS)28,29. This engineered virus replicates only when the viral polymerase (PB1) is complemented in trans by infected cells and does not facilitate genomic RNA reassortment of the HA-encoded segment due to genomic packaging signal incompatibility27,30, enabling us to safely generate antibody escape viral variants. Selection with mAb 326-289.74 was associated with emergence of sequence variants bearing a K120THA1 substitution beginning at round 3 (R3) (Fig. 6b, Extended Data Fig. 7 and Supplementary Table 3). After 5 passages (R5), the selected virus exhibited neutralization resistance not only against 326-288.74 but also against 326-366.26, and a ≥100-fold reduced neutralization sensitivity to 310-7D11 (Fig. 6c), although K120HA1 minimally contributed to the 310-7D11 footprint (Figs. 5a and 6a). In contrast, virus grown in the presence of 310-7D11 did not acquire neutralization resistance to this mAb in two independent attempts. Selection with mAb 310-12D03 was associated with emergence of variants bearing G225HA1 to glutamic acid from a haplotype with a non-synonymous mutation (Fig. 6d, Extended Data Fig. 7 and Supplementary Table 3). This selected virus exhibited complete neutralization resistance against 310-12D03, but neutralization sensitivity to the other RBS mAb 310-1H02 remained unchanged (Fig. 6e). Importantly, neither 326-289.74-selected nor 310-12D03-selected virus acquired a replication fitness advantage over the unselected TX/24 virus when passaged with the parental virus in the absence of mAb (Fig. 6f and Supplementary Table 4). Taken together, while virus escape from lower-lateral-targeting mAbs and RBS-targeted 310-12D03 may be more likely, viral escape against the potent mAb 310-7D11 targeting the upper lateral region appears to be more difficult.

mAb cocktails confer protection from lethal H5N1 challenge

Because 310-12D03 selected for escape mutations in HA, we tested whether combinations of mAbs could both protect in vivo and mitigate viral escape. After 10 rounds of selection in the presence of both 310-7D11 and 310-12D03, we were unable to generate neutralization resistant TX/24 virus, suggesting that simultaneously escaping from both these mAbs is difficult. We next tested whether combining mAbs binding distinct epitopes could protect against H5 TX/24 challenge. We administered 0.3 mg kg−1 of 310-12D03 together with 310-7D11, or each of these mAbs with MEDI8852. We also administered 0.2 mg kg−1 of all three mAbs so that a total of 0.6 mg kg−1 mAb was given in each case. 310-12D03 and 310-7D11 together conferred 90% protection with or without further addition of MEDI8852, while combinations of one head mAb and MEDI8852 provided 70% protection (Fig. 6g,h and Extended Data Fig. 8). There was no statistical difference in survival among combination groups, but each combination, except 310-12D03 + MEDI8852, was more protective than with each antibody alone at 0.3 mg kg−1 (Fig. 6g,h and Extended Data Fig. 8). Each antibody at 0.6 mg kg−1 alone conferred similar protection as mAb cocktails, suggesting an additive rather than a synergistic effect (Fig. 3g,h and Extended Data Fig. 8). We conclude that combinations of mAbs binding distinct epitopes could provide strong protection to infection in vivo and limit viral escape.

Discussion

Should HPAI clade 2.3.4.4b H5N1 viruses acquire the necessary mammalian adaptations to facilitate human-to-human transmission, we will likely have a global health emergency. Pre-existing immunity from seasonal and pandemic H1N1 influenza exposure could attenuate disease severity31, but given the ~50% morbidity experienced in sporadic avian-origin human H5N1 infections in Southeast Asia, seasonal influenza exposure cannot fully mitigate serious human disease with HPAI H5N1 (ref. 8). Vaccines derived from H5Nx clade 2.3.4.4b candidate vaccine viruses (CVVs) are authorized for use in Canada32 and Europe33, and early data suggest that CVV A/Astrakhan/2020 H5N8-based vaccines induce seroprotective titres in humans and can provide cross-protection against currently circulating 2.3.4.4b H5N1 (ref. 34). In the advent of a pandemic, however, early intervention apart from vaccines, such as antibody biologics, will be crucial in limiting morbidity and mortality induced by an HPAI virus, especially in high-risk populations.

Before this study, several mAbs targeting the H5 HA head had been characterized, but most are unlikely to bind or potently neutralize H5 TX/24 (refs. 35,36,37,38). Recently, a panel of H5 antibodies was generated from humanized mice vaccinated with 2.3.4.4b H5 HA and N1 NA that bind H5 TX/24 but with limited breadth to other H5 clades39. While the antibodies neutralized and protected against a 2022 avian 2.3.4.4b HPAI H5N1 strain, neutralization of bovine H5 TX/24 was not shown39. Here we undertook isolation and characterization of mAbs expressed by B cells elicited by vaccination in a human clinical study with H5 Indo/05 that also cross-reacted with H5 TX/24, with the aim of finding the most potent and broad H5-head-specific mAbs. Despite the antigenic mismatch between the vaccinating H5N1 strain driving affinity maturation and H5 TX/24, antibodies isolated at 6 months p.b. after vaccination had higher neutralization potency to H5 TX/24 compared with antibodies isolated at 2 weeks p.b. Five mAbs displayed marked breadth among diverse clades of H5Nx human viral isolates, including representatives of clade 2.3.2.1e viruses circulating in Southeast Asia and panzootic clade 2.3.4.4b viruses circulating in Europe and the Americas. Although MEDI8852 is considered one of the best HA stem-directed mAbs isolated so far20, it was 20-fold less potent compared to these mAbs. Mice that received 310-12D03 and 310-7D11 prophylactically had similar survival rates as MEDI8852 after clade 2.3.4.4b H5N1 infection, but we noted substantially more weight loss in animals that received MEDI8852, suggesting more severe disease in these animals. This is probably due to differences in mechanisms of neutralization. While 310-12D03 and 310-7D11 block sialic acid binding to the RBS and viral entry, HA stem-directed mAbs primarily inhibit membrane fusion after viral attachment and endocytosis, allowing innate immune sensing and inflammatory responses to occur. Further studies including measurement of lung titres are needed to fully understand the mechanism and extent of protection for HA head and stem mAbs in this highly pathogenic H5N1 challenge mouse model. We also do not address the ability of the mAbs to protect against viral transmission.

One concern with HA head-targeted mAbs is viral escape, given the high mutability of many HA head epitopes. Viral escape studies demonstrated that H5N1 TX/24 virus could escape from 326-289.74 and 310-12D03 in vitro, but we could not detect escape from 310-7D11 either alone or as a cocktail with 310-12D03. These experiments and animal protection studies with multiple antibody cocktails binding distinct epitopes suggest that these mAbs in combination or in a bispecific format could provide broad and potent protection across H5 clades and be resistant to antibody-mediated viral escape.

We note that the lead mAbs identified in this study did not target classical antigenic sites characterized in the literature for H1 (ref. 40), H3 (ref. 41) or H5 (ref. 36), or epitopes targeted by serum antibodies through primary immunization or infection with closely related clade 2.3.4.4b H5N1 viruses in mice or ferrets26. We specifically selected for mAbs cross-reactive for both Indo/05 and TX/24, which allowed for the identification of highly potent and cross-neutralizing H5 mAbs such as 310-12D03 or 310-7D11. However, such mAbs may not be efficiently elicited through primary H5N1 immunization or infection. It may require targeted elicitation of antibodies to the RBS and/or upper lateral epitopes through structural vaccine design such as epitope cloaking42, epitope masking42 and diversified mosaic antigen display43,44,45. Our mAbs were markedly more potent at 6 months p.b., but they had relatively low percent SHM and affinity. The low affinity and limited epitope footprint of the RBS Fabs might be desired to circumvent hypervariability surrounding the RBS, as it might allow for tolerance of variations as described for other RBS mAbs46,47. Nevertheless, efforts to affinity mature those antibodies by directed evolution or protein design may yield higher affinity and potentially more potent and/or broader neutralizing variants.

In summary, we conducted a highly effective human antibody discovery campaign that yielded several lead mAb candidates with high neutralizing potency and broad cross-clade breadth against H5Nx viruses, including the clade 2.3.4.4b virus. The lead mAbs identified in this study offer direct translational value for H5N1 influenza pandemic preparedness alongside ongoing vaccine development efforts.

Methods

Ethics statement

All clinical trials were reviewed and approved by the National Institutes of Health institutional review board. For pharmacokinetic studies, the study protocol was reviewed and approved by the Institutional Animal Care and Use Committee (IACUC) of the Vaccine Research Center (VRC), National Institute of Allergy and Infectious Diseases, National Institutes of Health. All mice in this study were housed in Association for Assessment and Accreditation of Laboratory Animal Care (AAALAC)-accredited animal facilities in a 12-h light/dark cycle at an ambient temperature of 22.2 ± 2.8 °C with a relative humidity maintained between 30 and 70%. For passive transfer and viral challenge studies, animal procedures were approved by the University of Pittsburgh IACUC, with animal care in accordance with the Guide for the Care and Use of Laboratory Animals (National Research Council) and AAALAC, and studies were conducted in a biosafety level 3 facility.

Vaccine study design

The H5 vaccine study (NCT01086657)14 and the FluMos-v2 study (NCT05968989) were conducted at the NIH Clinical Center by the VRC Clinical Trials Program of NIAID. Written informed consent was obtained from every enrolled individual and complied with all relevant ethics regulations. Consent included sample use for broad purposes in future research, including the potential development of new products. Compensation was given for time and effort related to participation in the clinical trial. Both studies were phase 1, open-label, randomized clinical trials in healthy adults designed to study the safety, tolerability and immunogenicity of prime–boost vaccination regimens. In the H5 vaccine study, individuals were vaccinated with a recombinant DNA plasmid that encodes H5 A/Indonesia/05/2005 HA or a monovalent influenza subunit virion (MIV; A/Indonesia/05/2005) vaccine manufactured by Sanofi Pasteur. All individuals were then boosted 4–24 weeks later with the MIV vaccine. In the FluMos-v2 vaccine study, individuals were vaccinated with a mosaic nanoparticle displaying 20 HA ectodomain trimers from the following influenza strains: H1 A/Idaho/07/2018, H2 A/Singapore/1/1957, H3 A/Perth/1008/2019, H3 A/Darwin/106/2020, B/Victoria B/Colorado/06/2017 and a B/Yamagata B/Phuket/3073/2013 strain. All individuals were then boosted 16 weeks later with the mosaic nanoparticle. Only one individual who was a participant of the FluMos-v2 trial was included in this study.

Protein expression and purification

mAbs and recombinant HA proteins were expressed in Expi293F (Thermo Fisher, A14527) cells by transient transfection using Expifectamine transfection reagents (Thermo Fisher). HA antigens contained a point mutation at the sialic acid-binding site (Y98F) within the HA ectodomain, a T4 fibritin foldon trimerization domain, a hexahistidine tag and an AVI-tag. mAb heavy and light-chain sequences were synthesized and cloned by GenScript into IgG1 kappa or lambda bicistronic expression vectors. For the pharmacokinetics study, LS mutations (M428L/N4324S) were introduced in the IgG1 Fc domain48. Cultures were suspended for 4–7 days at 37 °C and 8% CO2 saturation with shaking. For HAs, at collection, cultures were centrifuged at 2,500 × g for 20 min at 4 °C, followed by filtration (0.45 µm) and then slow purification by metal affinity chromatography. For each litre of supernatant, 10 ml of Ni Sepharose Excel resin (GE) bed was washed (10× resin bed volume) with buffer composed of Tris (50 mM, pH 8.0), NaCl (500 mM) and imidazole (30 mM, pH 8.0) using a gravity column, followed by slow dripping of clarified supernatant at 4 °C. A final column wash (>10× bed volume) with Tris (50 mM, pH 8.0), NaCl (500 mM) and imidazole (30 mM, pH 8.0) preceded elution of His-tagged protein using 50 mM Tris (pH 8.0), 500 mM NaCl and 300 mM imidazole. Eluates were concentrated and applied to a HiLoad 16/600 Superdex 200 pg column pre-equilibrated with PBS + 0.01% sodium azide for preparative size exclusion chromatography. Fractions containing trimeric HA were identified on the basis of elution volume and verified with SDS–PAGE. Fractions were pooled, concentrated and stored at −80 °C until use.

Monoclonal antibodies were purified from the cell supernatant using sepharose Protein A (Pierce). To produce Fabs for kinetics, the mAbs were cleaved by LysC enzyme (1:2,000 w/w) (New England BioLabs) at room temperature overnight. The enzymatic digestion was stopped using protease inhibitor (Roche). The digestion mixture was then passed through a protein A or protein G column to separate the Fc fragment from the Fab.

Biotinylation and labelling of antigens

Antigens were dialysed into 10 mM of Tris-HCl buffer using Thermo Scientific Slide-A-Lyzer mini dialysis devices (3.6 KDa molecular weight cut-off (MWCO), 88400) before biotinylation using BirA enzyme–biotin ligase and reaction buffers (Avidity, BirA500). Final reaction mixtures contained 1× BioMixA, 1× BioMixB, AVI-tagged protein and BirA enzyme. Reactions were incubated for 1 h with mixing at 600 r.p.m. at 30 °C before removal of excess biotin with Amicon (30 KDa MWCO) columns. Biotinylated antigens were conjugated to streptavidin-labelled fluorochromes for detection of HA-specific B cells.

Flow cytometry and single-cell sorting for RATP-Ig

Cryopreserved PBMCs from blood collected at 2 weeks and 6 months p.b. from trial participants were stained with a variety of cell markers and HA probes for fluorescence-activated cell sorting (FACS). Cell markers included: CD3 (1:400 dilution), CD56 (1:200 dilution), CD14 (1:200 dilution) and CD20 (1:400 dilution) from BioLegend; IgG (1:100 dilution) and IgM (1:40 dilution) from BD Biosciences; and CD19 (1:50 dilution) from Beckman Coulter and Aqua dead for live/dead discrimination (Thermo Fisher). Soluble fluorochrome-labelled HAs included H5 A/Indonesia/05/2005 ectodomain and stabilized stem; H5 A/Texas/37/2024 ectodomain; H1 A/New Caledonia/20/1999 ectodomain; and H1 A/California/04/2009 ectodomain. Stained samples were run on a FACSAria II (BD Biosciences) running BD FACSDiva software 8.0, and data were analysed using FlowJo v.10 (TreeStar). CD3−CD14−CD56−CD19+CD20+IgG+IgA+IgM− memory B cells were gated for isolation of HA-binding memory B cells. Cells were single-cell sorted into 96-well plates for RATP-Ig processing15. Briefly, single-cell RNA was purified for complementary (c)DNA synthesis, followed by immunoglobulin enrichment. Enriched products are sequenced on an Illumina NextSeq 2000 and assembled into linear DNA expression cassettes including a CMV promoter, heavy chain or light chain constant region and polyA tail. Amplified DNA cassettes were transfected into Expi293 cells in 96-well deep-well plates using the Expi293 Expression System according to manufacturer protocol. Cultures were incubated with shaking at 1,100 r.p.m. for 5–7 days at 37 °C and 8% CO2. Supernatants were clarified by centrifugation and then collected.

V(D)J sequence analysis

Reads were demultiplexed using bcl2fastq v.2.20.0.422 and analysed for V(D)J sequences as previously described15, using SONAR v.4.3 to annotate and cluster the sequences. Paired heavy and light-chain sequences were clustered into groups based on 80% identity.

Phylogenetic analysis of HAs used for binding assays

HA amino acid sequences from HPAI H5Nx and H2N2 and H1N1 matching the recombinant HA proteins used for binding assays (11 in total) were downloaded from NCBI and the GISAID EpiFlu database. Multiple sequence alignments were performed using ClustalW, and the maximum-likelihood tree was inferred using a JTT matrix-based model with a discrete Gamma distribution to model evolutionary rate differences among sites. Evolutionary analyses were conducted in MEGA11 (ref. 49).

H5 phylogenomic tree analysis

HA sequences were downloaded from NCBI and the GISAID EpiFlu database. A total of 1,694 Gs/GD H5 HA sequences were filtered with HHfilter using 99% cut-off value to curate 523 non-redundant sequences50,51. Sequence logo plots were generated using Skylign tool52.

Meso Scale Discovery (MSD)

MSD multi-array 384-well streptavidin-coated SECTOR Imager 600 plates were coated with 5% MSD Blocker A, then incubated for 1 h at room temperature before being washed with wash buffer (PBS + 0.05% Tween). Plates were coated with biotinylated HA protein diluted to 1 µg ml−1 in 1% MSD Blocker A and incubated for 1 h, then washed. Antibodies were diluted in 1% MSD Blocker A before being added to the plate and incubated for 1 h. RATP-Ig supernatants were diluted 1:10, and mAbs were diluted to a concentration of 1 µg ml−1 before being serially diluted threefold. Plates were then washed, coated with SULFO-TAG goat anti-human IgG at a concentration of 2 µg ml−1, and incubated for 1 h before washing. Plates were coated with 1× MSD reading buffer and read on an MSD SECTOR S 600MM imager. For the serially diluted mAbs, binding curves were plotted using GraphPad Prism 10 and area under the curve was calculated. HA from the following strains were tested: H5N1 A/Texas/37/2024, H5N1 A/Indonesia/02/2005, H5N1 A/Cambodia/2302009/2023, H5N1 A/Vietnam/1194/2004, H5N6 A/Fujian/2/2024, H5N6 A/Sichuan/26221/2014, H5N1 A/Victoria/149/2024, H1N1 A/New Caledonia/20/1999, H1N1 A/California/04/2009, H2N2 A/Singapore/1/1957 and H2N2 A/Ann Arbor/7/1967.

Competitive binding of H5 mAbs with site-specific antibodies

We coated 96-well plates with 100 µl of 2 µg ml−1 purified H5 TX/24 ectodomain at 4 °C overnight. Plates were then blocked with 200 µl of 1% BSA in PBS + 0.05% Tween (PBS-T) for 1 h at room temperature and washed three times with PBS-T. Preparations of select Fabs of interest were added to wells at a final concentration of 10 µg ml−1 (75 µl per well) and incubated for 1 h at room temperature. Recombinantly expressed IgGs were then added to wells of each Fab at final concentrations of 0.25 µg ml−1, 0.025 µg ml−1 and 0.0025 µg ml−1 in a volume of 25 µl per well, without washing the competitor Fab, and then incubated for 1 h at room temperature. Plates were washed three times with PBS-T and bound antibodies were detected using horseradish peroxidase (HRP)-conjugated goat anti-human IgG Fc (1:15,000, Invitrogen) and 1-Step TMB ELISA substrate (Thermo Scientific).

Reporter viruses

H5Nx viruses (that is, H5N1 A/Vietnam/1203/2004, A/Indonesia/05/2005, A/Cambodia/2302009/2023, A/Victoria/149/2024; A/Texas/37/2024; H5N6 A/Sichuan/26221/2014; and non-GsGD H5N2 A/State of Mexico/INER-INF645/2024) and H2N2 A/Singapore/1/1957 virus used for the neutralization assay, as well as H5N1 A/Texas/37/2024 used to generate virus escape mutants were prepared as rewired replication-restricted reporter viruses (R4ΔPB1). The procedure for rescue and propagation of these viruses is described in detail elsewhere27,29,30. Briefly, R4ΔPB1 H5Nx viruses had the PB1 segment engineered by inserting the coding region of the H5 (or H2) HA gene between the PB1 genomic packaging signals, thereby missing a functional PB1 gene. Inserted H5 (or H2) HA sequences were modified by introducing synonymous mutations to inactivate the HA genomic packaging signals, which comprise the 16 amino acids of the signal peptide and the last 12 amino acids of the cytoplasmic domain, and the polybasic cleavage site was replaced with a monobasic cleavage site to enable virus propagation only in the presence of exogenous trypsin53. The HA segment was prepared by inserting the fluorescent reporter TdKatushka2 gene fused with a nuclear localization signal at the C terminus between the sequences containing the HA genomic packaging signals of A/Puerto Rico/8/1934 (Genbank MW298214.1). The internal genes of A/WSN/1933 H1N1 influenza virus (that is, PB2, PA, NP, M and NS) were used to rescue these viruses. R4ΔPB1 viruses were only able to propagate in MDCK-SIAT1 (Millipore Sigma, 05071502) cells constitutively expressing PB1 of A/WSN/1933 (MDCK-SIAT-PB1 cell line) in the presence of 1 µg ml−1 TPCK-treated trypsin (Sigma). Due to genomic packaging signal incompatibilities, R4ΔPB1 viruses used in the study do not generate replication-competent virus through reassortment of viral genomic RNA segments with wild-type influenza viruses. These two layers of safety precaution (missing PB1 gene and rewired segments) ensure compliance to biosafety standards. R4ΔPB1 viruses were titrated to determine the linear range between the virus dilution and the number of infected cells54.

Neutralization

Neutralization activity of antibodies was determined using R4ΔPB1 H5Nx viruses as previously described27,54. Briefly, either 2 dilutions (for screening RATP-Ig supernatants) or 7 fourfold serial dilutions of antibody were mixed with an equal volume of pre-titrated R4ΔPB1 virus in 96-well U-bottom untreated plates. Of note, virus titrations and neutralization assays were performed without adding exogenous trypsin. After 1 h incubation at 37 °C in 5% CO2 humidified atmosphere, 30 µl MDCK-SIAT1 cells (Millipore Sigma, 05071502) expressing PB1 (8 × 105 cells per ml) cells were added to 90 µl antibody–virus solution, and the mixture of antibody–virus–cells was transferred to a 384-well plate in quadruplicate (25 µl per well). The 384-well plates were then incubated overnight at 37 °C in 5% CO2 humidified atmosphere, and fluorescent cells were imaged and counted using a Celigo Image cytometer (Revvity) with a customized red filter for detecting TdKatushka2 fluorescence27. Percent neutralization was calculated for each well by constraining the virus control (virus plus cells) as 0% neutralization and the cell-only control (no virus) as 100% neutralization. A 7-point neutralization curve was plotted against antibody concentration for each sample, and a sigmoidal 4PL curve fit generated using Prism was used to estimate the 80% inhibitory concentrations. These concentrations take into account the antibody dilution after admixing with virus at a 1:1 ratio.

Viral escape

Selection and enrichment of virus escape mutants towards neutralizing antibodies utilized the R4ΔPB1 H5 TX/24 reporter virus. Serial dilutions of antibody were mixed with an equal volume of pre-titrated virus. After incubation, pre-washed MDCK-SIAT1-PB1 cells with or without addition of TPCK-treated trypsin were added to the antibody–virus mixtures and transferred to a 96-well plate. For each antibody dilution set, one set contained TPCK-treated trypsin (1 µg ml−1 final concentration) and one set did not, giving a set whereby virus undergoes a single cycle of replication and a set where virus can propagate for multiple cycles of replication. Plates were imaged at 24-h increments as described above. Well pairs for a given antibody concentration that showed >90% inhibition in the single-cycle condition and >20,000 fluorescent cell counts in the propagation condition were chosen to collect virus for the next round. Once the antibody being selected against exhibited an IC50 greater than 25 µg ml−1, virus was sequenced.

Deep mutational scanning

Pseudovirus-based deep mutational scanning libraries for H5 haemagglutinin using A/American Wigeon/South Carolina/USDA-000345-001/2021 strain have been described previously26. This deep mutational scanning uses libraries of HA expressed on pseudotyped lentiviral particles that can only undergo a single round of infection, and can thus be used to safely study HA mutations at biosafety level 2. To identify mutations that lead to escape, each antibody was incubated with the deep mutational scanning library at concentrations 3 times and 12 times above their IC99 value (as determined by a pseudovirus neutralization assay) for 45 min at 37 °C. After incubation, virus library–antibody mixtures were used to infect 293T cells (ATCC), viral genomes were recovered at 15 h post infection and DNA libraries were prepared for Illumina sequencing. Two biological replicates (virus libraries with independent mutation sets) were used for each antibody escape mapping.

To calculate escape caused by each variant in the library, a non-neutralizable control was used as described previously55. Escape for individual mutations in the library was calculated using a biophysical model implemented in the ‘polyclonal’ package (https://jbloomlab.github.io/polyclonal/)56, as in our previous work with this library26.

Haemagglutinin inhibition assay

mAbs were diluted in a 96-well format with PBS (total final volume of 25 μl per dilution) and 25 μl of pre-titrated H5N1 R4ΔPB1 viruses (at a concentration of 8 HA units per 50 µl) was added to each well with mixing. After a 30-min incubation at room temperature, 50 μl of 0.5% pre-washed turkey red blood cells (Lampire Biological) was added to each well. The samples were allowed to incubate for an additional 30 min at room temperature, and the mAb dilution that no longer completely inhibited haemagglutination as seen by drip test was documented as the HAI titre for each sample.

Sample extraction and HT-SGS

Viral samples were extracted and inactivated using the Quick-RNA MagBead (Zymo, R2132) protocol, substituting beads for MagBead J beads (Zymo, D4100-3-3). The protocol was modified to enhance recovery of genetic material from smaller sample volumes and lower RNA concentrations, using 25% of suggested volumes. Each sample used 10 µl of MagBead J. Both the stock and the passage without antibody exposure were also sequenced to distinguish natural or stock-based adaptation from antibody-driven escape.

HT-SGS of the HA segment was performed following modified protocols described previously28,29. Primer and probe adaptations are listed in Supplementary Table 5. The extension temperature for cDNA synthesis was set to 58 °C, and 20,000 cDNA copies were targeted per sample for PCR. Amplicons were prepared and barcoded for sequencing using the SMRTbell prep kit v.3.0 (PacBio, 102-182-700) and SMRTbell Barcoded Adapter plate 3 (PacBio, 102-009-200) according to the protocol (PacBio, 102-359-000 REV04 DEC2024), followed by the Revio polymerase kit (PacBio, 102-817-600). The libraries were sequenced on the PacBio Revio.

Sequence data processing

PacBio circular consensus sequences (CCS) generated with SmrtLink v.13 were mapped against the reference HA sequence A/Texas/37/2024 to identify the HA segment using Perl v.5.16.3, RStudio v.2022.07.1 and Minimap2. Then, single genome sequences (SGS) were generated following the UMI PacBio pipeline (https://github.com/niaid/UMI-pacbio-pipeline). SGS sequences were further cleaned and haplotypes with a minimum of 5× SGS coverage or a 0.1% SGS frequency were called using Perl v.5.16.3, SeqKit (v.2.3.1)57, Cutadapt v.4.0, MAFFT (v.7.467)58 and Geneious Prime v.2023.0.4 (Biomatters). Statistics and visualization were performed with RStudio v.2022.07.1. A phylogenetic tree was generated from all unique HA sequences using the maximum-likelihood method, employing the program RAxML59. The substitution model used was GTR + G + I with invariable sites, and bootstrap support was generated with rapid bootstraps using 1,000 replications. The resulting phylogeny was visualized with ITOL60.

Surface plasmon resonance (SPR)

High-throughput SPR capture kinetic experiments were performed on a Carterra LSA system, using an SAHC30M sensor chip in a 384-ligand array format. The chip surface was primed with run buffer (HBST-Carterra) and conditioned using 50 mM NaOH (Carterra), 1 M NaCl (Teknova) and 10 mM glycine pH 2 (Carterra). A capture lawn was prepared using 15 µg ml−1 of Human Fab-kappa Kinetics Biotin and Human Fab-lambda Kinetics Biotin conjugate mix (Thermo Scientific) for 10 min, followed by a 10 mM glycine pH 2 wash to determine capture lawn viability. For capture kinetics, Fabs were diluted fourfold (200 nM, 50 nM, 12.5 nM, 3.125 nM) in HBST + 0.5 mg ml−1 BSA (HBST + BSA) running buffer and printed onto the capture lawn for 7 min, followed by a baseline injection of running buffer (HBST + BSA). Antigens of interest (H5 A/Texas/37/2024, H5 A/Sichuan/26221/2014, H5 A/Victoria/149/2024, H5 A/Vietnam/1194/2004, H5 A/Cambodia/2302009/2023 and H5 A/Indonesia/05/2005), in a twofold dilution series (200 nM–0 nM), were sequentially injected onto the chip surface. For each concentration, the antigen was injected for 5 min (association phase), followed by HBST + BSA running buffer injection for 15 min (dissociation phase). Two regeneration cycles of 15 s were performed after the antigen dilution series by injecting 10 mM glycine pH 2 on the chip surface. Data were analysed using the Carterra Kinetics analysis software in a 1:1 Langmuir binding model to determine association (ka), dissociation (kd), binding affinity constants (KD) and Rmax.

Virus for lethal challenge

An infectious clone of A/dairy cattle/Texas/24008749001/2024, the first sequenced virus published in Global Initiative on Sharing All Influenza Data (GISAID) from the outbreak in dairy cattle61,62, was used in mouse lethal challenge studies. Plasmids with both a pol I and pol II expression system (based on the pHW system) were synthesized by Twist Biosciences on the basis of sequences deposited in GISAID (accession no. EPI_ISL_19014384), with non-coding regions for each segment determined from consensus alignment of H5N1 strains from the 2.3.4.4b clade viruses. One plasmid was synthesized for each virus segment (8 in total). The plasmids containing the eight segments were each diluted to a concentration of 100 ng µl−1, and a total of 500 ng of each gene segment was combined with 100 µl of Opti-MEM and 5 µl of Lipofectamine 2000 transfection reagent (Life Technologies). The transfection mixture was incubated at room temperature for 25 min and transferred to 293T cells in Opti-MEM complete media (Life Technologies) in a 6-well plate. After 24 h of incubation at 37 °C with 5% CO2, 750,000 Madin–Darby canine kidney (MDCK) cells (ATCC, CCL-34) were added to the 293T cells. Following another 24-h incubation, the supernatant from the cells was transferred to MDCK cells in a T75 cm2 flask containing MEM medium with L-glutamine and tosyl-phenylalanine chrolomethyl ketone (TCPK)-treated trypsin. The flask was monitored for cytopathic effect (CPE) for 48 h post inoculation; once CPE was confirmed, the supernatant was collected and virus titre determined by plaque assay. Aliquots of the rescued reverse genetic virus were then inoculated into 10-day embryonated SPF chicken eggs (AVS Bio) that were incubated at 38 °C for 24 h followed by an overnight incubation at 4 °C before collection of the amniotic fluid. The virus stock was sequenced and the absence of mutations compared to the sequence deposited in GISAID EPI_ISL_19014384 was confirmed.

Passive transfer and viral challenge

BALB/c female mice (6–10 weeks old, Charles River) were anaesthetized with isoflurane for all procedures. The day before challenge, mice (10 per group) were inoculated with antibodies by intraperitoneal injection (200 µl administered using a 1-ml syringe and 25-gauge needle). Mice were also marked at the same time with ear tags for tracking purposes. For challenge, a dose of 6 plaque-forming units (p.f.u.s) (3× LD50) was used (50% lethal dose (LD50) was established to be ≤2p.f.u.s. based on preliminary studies). Dose was confirmed by plaque assay. Virus challenge was by intranasal inoculation, applying 50 µl by micropipette to the nares while mice were anaesthetized. Mice were weighed once daily and checked twice daily for 14 days. Clinical signs of disease (changes in appearance and behaviour, neurological signs) were noted at each check. Mice that were either moribund, suffering respiratory distress, had a ≥20% loss of body weight from baseline, or with severe neurological signs (seizures and/or hindlimb paralysis) were euthanized immediately using carbon dioxide. Euthanasia was performed using procedures consistent with the American Veterinary Medical Association guidelines.

Plaque assay

Virus stock titre and challenge dose for mouse protection studies were confirmed by plaque assay on MDCK cells (ATCC, CCL-34). Samples were serially diluted and absorbed onto monolayers of MDCK cells in 6-well plates, which were overlaid with agarose-containing EMEM medium and incubated for 3 days at 37 °C and 5% CO2. The wells were then fixed with formaldehyde and stained with 0.25% crystal violet to visualize plaques.

Pharmacokinetic study in human neonatal Fc receptor-Fc (FcRn-Fc) transgenic mice

Half-life extension LS mutations (M428L/N4324S) were introduced in the IgG1 Fc domain of mAbs48. Human FcRn-Fc transgenic mice (mFcRn−/− hFcRn-Fc Tg mice, JAX 029686, The Jackson Laboratory) were used to assess the pharmacokinetics of selected antibodies. Each animal was infused intravenously with 5 mg mAb kg−1 of body weight (5 mice per mAb condition). Whole blood samples were collected on days 1, 2, 5, 7, 9, 14, 21, 28, 35, 42, 49 and 56.

All mice were bred and maintained under pathogen-free conditions at the AAALAC-accredited Animal Facility at the National Institute of Allergy and Infectious Diseases and housed in accordance with the procedures outlined in the Guide for the Care and Use of Laboratory Animals. All mice were between 8 and 12 weeks of age and a mix of males and females.

Serum mAb levels were quantified using plates coated with HA (H5/Texas/37/2024). Briefly, Nunc MaxiSorp (Thermo Fisher) plates were coated with 100 ng well−1 of HA in PBS, washed with PBS-T five times and blocked with a blocking buffer of Tris-buffered saline-Tween 20 (TBS-T) with 5% milk and 2% bovine serum albumin (BSA) for at least 1 h. Fivefold serial dilutions ranging from 1:20 to 1:12,500 of plasma were made in blocking buffer. For each sample, three consecutive serial dilutions were plated in duplicate. An antibody-specific standard curve (starting at 200 ng ml−1 with 8 twofold serial dilutions) and positive, negative and spiked controls were included on each plate. Samples were incubated on the plate for 1 h at r.t., followed by a PBS-T wash. Bound mAbs were probed with a horseradish peroxidase-labelled donkey anti-human IgG (1:10,000 dilution; Jackson ImmunoResearch) for 30 min at r.t. The plate was washed and 100 μl SureBlue TMB (SeraCare) substrate was added. Once colour was developed (typically 15 to 20 min), stopping buffer (100 μl 1 N H2SO4) was added and the optical density at 450 nm was read. Softmax Pro v.5.2revC (Molecular Devices) software was used to calculate mAb concentrations. Pharmacokinetic parameters were calculated using Phoenix WinNonlin 8.5.1.3.

nsEM

Complexes were formed by mixing HA with Fab at a slight molar excess of Fab over HA protomer. Samples were immediately diluted to ~0.02 mg ml−1 with buffer containing 10 mM HEPES pH 7.0 and 150 mM NaCl, and applied to a freshly glow-discharged carbon-coated copper grid for ~15 s. After removing excess liquid, the grid was washed twice with the same buffer, and adsorbed proteins were negatively stained by consecutively applying 2 drops of 0.75% uranyl formate. Datasets were recorded at a nominal magnification of ×57,000 (corresponding to a pixel size of 2.53 Å) on a ThermoFisher Talos F200C electron microscope operated at 200 kV and equipped with a Ceta camera. Particles were selected from micrographs using Topaz63. Two-dimensional (2D) classification, 3D classification and map refinement were performed in Relion64. UCSF Chimera65 was used for map alignment and visualization.

Cryo-EM structural analysis

The HA–Fab complexes were prepared by mixing HA and individual Fabs at a molar ratio of 1:1.25 (HA protomer:Fab). DDM detergent (0.085 mM) was added to all mixtures except for the complex with Fab 326-289.74 such that the final HA concentration was ~0.5 mg ml−1. The mixtures were incubated at room temperature for 5 min. UltrAuFoil holey grids (R 2/2, Quantifoil) were used for the complexes with Fabs 326-366.26 and 310-1H02, and UltrAuFoil holey grids (R 1.2/1.3, Quantifoil) were used for the complexes with Fabs 326-289.74, 310-7D11 and 310-12D03. The grids were glow discharged for 30 s in atmospheric air using a PELCO easiGlow glow discharger (air pressure: 0.39 mBar, current: 20 mA). Vitrification was performed in an FEI Vitribot Mark IV automatic plunge freezer at 4 °C in a chamber with 95% humidity, blotting time of 2 s and sample volume of 2.7 μl.

All grids were imaged on an FEI Titan Krios G1 electron microscope equipped with an Apollo direct electron detector (Direct Electron). Movies were recorded using a super-resolution pixel size of 0.5 Å pixel−1 with exposure time of 2.005 s, 24 frames per movie and a total dose of 40.08 e− Å−2. The datasets were collected using SerialEM 4.09. Detailed data collection statistics are presented in Supplementary Table 1.

Single-particle cryo-EM data analysis was performed using cryoSPARC66. Raw movies were pre-processed using patch motion correction and patch CTF estimation jobs. The resulting micrographs were subjected to curation based on full-frame motion, CTF fit resolution and relative ice thickness. Blob picking was used to pick the initial set of particles from a small subset of micrographs. Several rounds of 2D classification were performed to filter out low-quality particles. High-quality 2D class averages were used for template-based particle picking in the entire dataset. The particles were extracted using a box size of 400 × 400 pixels and subjected to several rounds of 2D classification. Three 3D maps were generated from the resulting particles using ab initio reconstruction. These three maps were then subjected to heterogeneous refinement. The resulting best map was then refined separately with C3 symmetry imposed. To aid with model building, the final map was sharpened with ‘deepEMhancer’67. Details of single-particle analysis are presented in Supplementary Table 1. The initial atomic models of HA and the Fabs were generated using ‘ColabFold’68. Sections of the models that were well resolved in the sharpened cryo-EM maps were identified. These sections were isolated and positioned individually in the corresponding regions of the cryo-EM map. The remaining residues were manually built using Coot69 and ChimeraX70. The models were further refined by alternating rounds of real-space refinement in Phenix71 and model building in Coot and ISOLDE72; unsharpened, cryoSPARC-sharpened and DeepEMhancer-sharpened maps were all utilized for model building. The final real-space refinement against the unsharpened map was performed in Phenix. Refinement statistics are summarized in Supplementary Table 1.

Statistical analysis

Statistical analysis was performed with GraphPad Prism 10.0. Specific details of statistical analysis are indicated in the figure legends and results section. These include the type of statistical test used, n values, and whether the mean, median, s.d. or s.e.m. was calculated and shown. P values equal to or below 0.05 were considered significant. Normality tests were conducted on all data to determine the appropriate statistical test. All statistical tests used are two-tailed.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
