Main

The live-attenuated oral poliovirus vaccine (OPV) has proven to be a very effective tool to protect against poliomyelitis and interrupt poliovirus (PV) transmission, being the primary strategy driving the Global Polio Eradication Initiative (GPEI) for more than 60 years. This has helped to reduce wild PV transmission to the brink of extinction, with wild PV types 2 and 3 being certified eradicated and wild PV type 1 cornered in the remaining two endemic countries Afghanistan and Pakistan1,2. However, the rare ability of OPV strains to regain virulence and establish circulating vaccine-derived poliovirus (cVDPV) outbreaks in areas with persistently low immunity poses a substantial risk to eradication efforts. This risk is particularly pronounced for PV type 2 (PV2), as wild PV type 2 was declared eradicated in 2015, and immunity gaps following the global cessation of OPV type 2 use from routine immunization have allowed cVDPV2 outbreaks to emerge3,4.

To address these challenges, a modified version of the vaccine, designated novel OPV type 2 vaccine strain (nOPV2) was developed that is genetically more stable and less likely to regain virulence than the original Sabin OPV2 strain5. This was achieved by introducing genetic modifications that include stabilizing the 5′ non-translated region (5′NTR) to preserve attenuation determinants, relocating the cis-acting replication element (CRE) from the 2C coding region to the 5′NTR (CRE5) to reduce recombination risk, and introducing mutations in the 3D polymerase (Rec1 and HiFi) to further reduce recombination frequency and improve replication fidelity. In addition, nOPV2 contains three unique silent mutations in the VP4-VP2 capsid coding region incorporated during the nOPV2 cloning process. nOPV2 demonstrated robust immunogenicity and safety profiles in clinical trials conducted between 2017–2019, effectively inducing strong immune responses while minimizing the risks associated with viral reversion6,7,8. For this reason, the World Health Organization (WHO) in 2020, issued an Emergency Use Listing (EUL) recommendation for the use of nOPV2 in response to cVDPV2 outbreaks9,10.

A key requirement of the EUL framework was the molecular characterization of nOPV2 viruses isolated from patients diagnosed with acute flaccid paralysis (AFP) and from environmental surveillance (ES) to monitor genetic stability and to detect mutations potentially impacting neurovirulence and/or transmissibility. Data generated from whole-genome sequencing of nOPV2 virus isolates from AFP patients and ES were reviewed by the genetic characterization subgroup of the nOPV2 working group within the GPEI11. During the initial use phase (March–October 2021), ~111 million nOPV2 doses were administered in seven countries, and whole-genome sequencing of 251 isolates confirmed the genetic stability of nOPV2 compared with the original Sabin monovalent OPV2 (mOPV2) based on the preservation of the main attenuation site domain V in the 5′NTR in all nOPV2 isolates10,12. This informed the subsequent Strategic Advisory Group of Experts on Immunization (SAGE) and WHO decision to grant approval for wider use of nOPV2 under the EUL framework9.

In this context, Uganda detected two cVDPV2 isolates from ES samples collected from the Lubigi sewage treatment plant, located in the capital city of Uganda, Kampala, on 1 June and 2 November 202113. These isolates were genetically linked to cVDPV2 isolates previously identified in Sudan in 2020, belonging to the CHA-NDJ-1 emergence first detected in the Republic of Chad in 2019. Following the detection of these cVDPV2 isolates, the Ministry of Health declared a public health emergency of international concern on 12 August 2021. A risk assessment concluded that due to the high virologic risk, gaps identified in AFP surveillance, low coverage of inactivated polio vaccine for the 2 years following its introduction, high population density in the Kampala metropolitan area, and high risk of importation of cVDPV2 from neighbouring countries, Uganda should be classified as high-risk for polio re-emergence. In response, two nationwide nOPV2 campaigns were conducted in Uganda between 14–21 January and from 4 November 2022 until 28 February 202314, immunizing ~9.8 million and 11 million children, respectively. The second round was conducted in 3 phases: phase 1 from 4–28 November 2022; phase 2 for four of the five Ebola-affected districts (Kassanda, Mukono, Mubende and Wakiso) from 20–27 January; and phase 3 for Kampala district from 20–28 February 2023. Despite challenges with the Ebola outbreak, ~1.6 million children were immunized in the five high-risk districts.

This study reports the genetic characterization of 231 nOPV2 isolates from Uganda following the vaccination campaigns, 147 from sewage samples and 84 from stools of AFP cases and their contacts. The primary aim was to further evaluate the genetic stability of nOPV2 and identify genomic changes potentially influencing genetic stability and other viral properties. A double recombinant nOPV2 strain, which had replaced all nOPV2-specific sequences upstream and downstream of the capsid coding region with those from enterovirus (EV)-C strains resulting in the loss of all major nOPV2 genetically engineered modifications, was identified, raising concerns about its potential to regain virulence.

The findings are discussed in the context of further evaluating nOPV2 as an improved vaccine for the GPEI to interrupt cVDPV2 circulation while minimizing the risk of generating new cVDPV2 outbreaks, compared with Sabin mOPV2, which has been used for over six decades.

Results

Isolation of PV2

Between January 2022 and March 2023, a total of 2,773 stool and 205 ES specimens were processed in the WHO-accredited National Polio Laboratory in Uganda. Of these, 100 (48.8%) sewage samples and 123 (4.4%) stool samples yielded PV isolates in cell culture. A total of 147 PV isolates from ES samples and 84 from stool samples were identified as PV2 by intratypic differentiation (ITD). All PV2 isolates (except 3 isolates from one sewage sample collected on 15 February 2022 from Kisenyi sewage ponds in Kabarole district) were confirmed as nOPV2+ in the ITD assay, indicating preservation of the nOPV2-relocated CRE5 domain in the 5′NTR as primers for this ITD reaction targets this region. The time interval between nOPV2 vaccination campaigns and the collection of PV2-positive samples ranged from 2 to 46 days for AFP samples (mean = 16.6, median = 13) and from 5 to 109 days for ES samples (mean = 30.7, median = 32).

Whole-genome sequence analysis of PV2 isolates and nOPV2 category classification

Whole-genome sequences of the 231 PV2 isolates were determined using Illumina deep sequencing of overlapping tiled PCR products. Sequences were aligned and compared with the nOPV2 vaccine strain (GenBank ID: MZ245455) to confirm nOPV2 origin and identify mutations or recombination events. All isolates were confirmed to be of nOPV2 origin, retaining some or all the nOPV2-specific genetic modifications.

Isolates were classified into nOPV2 categories 1–9 on the basis of mutation and recombination profiles12. This ranking matches with the risk of emergence of pathogenic strains from category 9 (no mutation) to category 1 (double recombinant VDPV2 strains). As shown in Table 1, 5 isolates (2.2%) showed no changes from nOPV2 (category 9), while the majority (n = 217; 93.9%) were classified as category 8, exhibiting no reversion or recombination and limited VP1 substitutions (0–5). Six isolates (2.6%) were classified as category 6, showing limited VP1 substitutions (0–5) but containing single recombination events with sequences derived from nOPV2 and Sabin 1 (n = 2) or unidentified species C EVs (n = 4). These recombination events preserved the nOPV2 KO CRE motif in the 2C protein coding region but lost one or both nOPV2 HiFi and Rec1 3D polymerase mutations (Extended Data Fig. 1). Finally, the three isolates from the Kisenyi Sewage Ponds site, which showed a PV2+/nOPV2− ITD result, exhibited a double recombinant structure, replacing all nOPV2 genetic modifications upstream and downstream of the capsid coding region with sequences from unidentified species C EVs (Fig. 1). The replacement of the nOPV2 5′NTR explains the nOPV2− ITD result. The nOPV2 origin of these three isolates was confirmed by the presence of the three unique silent mutations in the capsid-coding region (C814A, C817U and A1375U) that were incorporated during the nOPV2 cloning process. These viruses were classified as category 2 as they show a double recombinant structure and <5 VP1 nt changes (n = 1–2) from the nOPV2 vaccine strain.

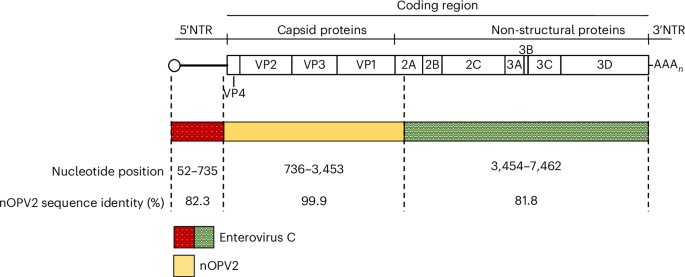

Fig. 1: Genomic structure of double recombinant nOPV2 strain from Kabarole (Uganda).
figure 1

Schematic representation of double recombinant nOPV2 strain from Kabarole (Uganda) with sequences derived from the nOPV2 vaccine strain and unidentified enterovirus C strains.

Full size image
Table 1 Classification of nOPV2 isolates from Uganda based on genome composition
Full size table

No VDPV2 strains associated with nOPV2 use (VDPV2-n) were detected in Uganda, as the maximum number of VP1 nucleotide changes from the nOPV2 vaccine strain was 5, below the threshold that separates vaccine-like strains and VDPV2s (6 nt changes). Importantly, no cVDPV2 isolates linked to the viruses found in Lubigi ES samples from July and November 2021 have been detected in any stool or ES samples from Uganda ever since.

Identification of mutations in nOPV2 isolates

The number of mutations identified in nOPV2 isolates as a function of time after the corresponding supplementary immunization activity (SIA) campaigns is represented in Fig. 2. A simple linear regression analysis was used to estimate the rate of sequence evolution. On the basis of this analysis, a sequence evolution rate was estimated, giving very similar values of 1.36% and 1.30% mutations per site per year using data from isolates from AFP and ES samples, respectively (Fig. 2), as expected for poliovirus evolution.

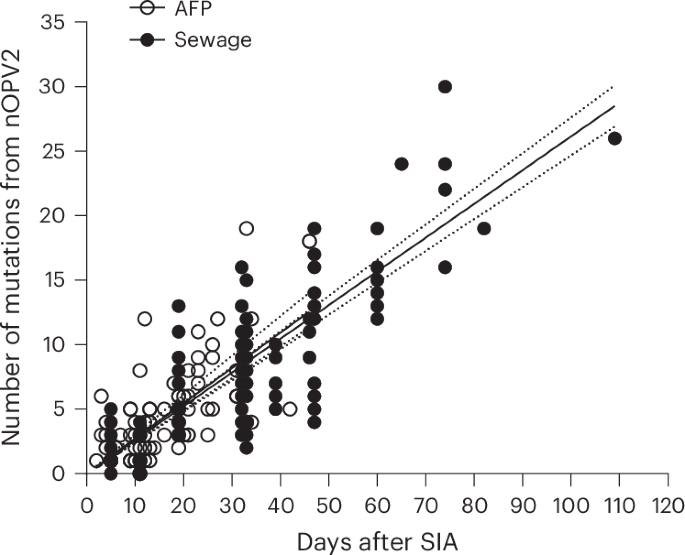

Fig. 2: Number of mutations from nOPV2 vaccine strain found in nOPV2 isolates.
figure 2

The nOPV2 vaccine strain (GenBank ID MZ245455) was found in nOPV2 isolates from AFP (white circles) and ES samples (black circles). Data were adjusted to a linear function for the accumulation of nucleotide substitutions (Y = 0.2733 × X, Y = 0.2624 × X). Solid line shows best-fit simple linear regression of number of mutations versus days after SIA; dotted lines indicate the 95% confidence interval of the regression. Source data are provided.

Source data

Full size image

Notably, the primary attenuation site (stabilized domain V in the 5′NTR) remained unchanged in all isolates except the three double recombinants, which had replaced the entire 5′NTR. Two isolates showed mutations in this region: one with C547U, weakening a stem region and potentially increasing attenuation, and another with A566G in a loop region, with no expected effect on neurovirulence.

The frequencies and possible effect of key mutations observed in nOPV2 isolates are shown in Fig. 3 and Table 2, respectively. The most frequent mutations were noted at nucleotide positions that have been shown or inferred to individually decrease attenuation slightly, located at CRE5, domain II and domain IV in the 5′NTR and VP1 amino acids 143 and 171. We found 36 different sequence combinations at these positions, including 24 isolates with no mutations and 207 isolates containing 1–5 mutations per isolate (Extended Data Table 2).

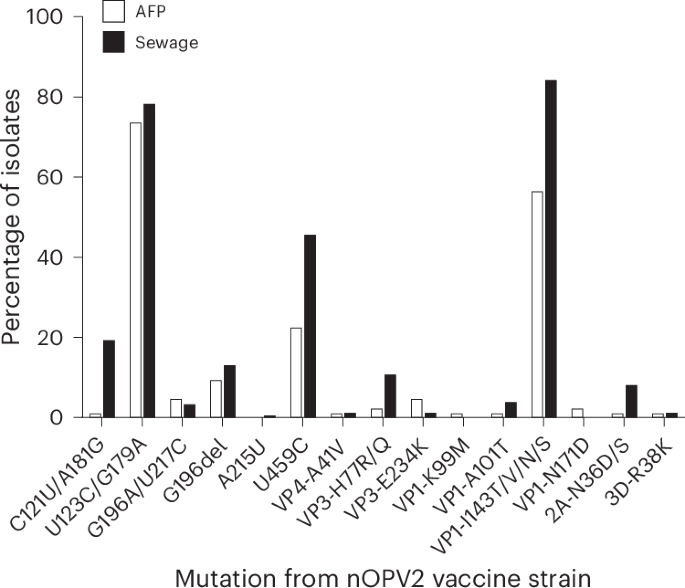

Fig. 3: Percentage of nOPV2 isolates with key mutations from the nOPV2 vaccine strain.
figure 3

The nOPV2 isolates were from AFP (white bars) and ES (black bars) surveillance in Uganda. Source data are provided.

Source data

Full size image
Table 2 Location and possible effect of key mutations found in nOPV2 isolates from Uganda
Full size table

Genetic characterization of the double recombinant nOPV2 strain from Kabarole

The three double recombinant isolates from Kabarole exhibited nearly identical whole-genome sequences, with sequence identity to nOPV2 varying across the genome: 82.3% in the 5′NTR, 99.9% in the capsid coding region and 81.8% in the non-structural coding region (Fig. 1), demonstrating a double recombinant structure. In addition, all three isolates showed reversion at secondary attenuation site VP1–143. Phylogenetic analysis revealed no close genetic links of this strain to any other enterovirus strain in Genbank in the 5′NTR and the non-structural coding region.

In addition to Flinders Technology Associates (FTA) cards, all original sewage concentrates and recovered virus isolates from the Kisenyi ES site were sent to the Medicines and Healthcare products Regulatory Agency (MHRA, UK) for further analysis. Whole-genome sequence analysis of infectious poliovirus isolates recovered from RNA from FTA cards by transfection and from sewage concentrates by cell culture infection corroborated the initial observations. Two additional double recombinant isolates, identical or nearly identical to the previous three, were identified in the ES sample collected on 15 February 2022 from the Kisenyi site. In contrast, all other sequenced nOPV2 isolates from the same site, collected before and after 15 February 2022, exhibited a non-recombinant genomic structure and were genetically distinct from the double recombinant strain.

Neurovirulence assessment of the double recombinant nOPV2 strain from Kabarole in transgenic mice

The neurovirulence of the double recombinant strain was assessed using transgenic mice expressing the human poliovirus receptor. As shown in Table 3, the dose required to cause paralysis in 50% of transgenic animals (50% paralytic dose, PD50) for the Uganda strain was 1.1 (95% confidence interval (CI) 0.6–1.6) log10(CCID50, the 50% cell culture infectious dose), substantially lower than that of nOPV2 (>8.4) and the original Sabin 2 vaccine (5.8; 95% CI 5.1–6.4) and closer to the wild PV type 2 strain MEF-1 (0.7; 95% CI 0.2–1.2) and mOPV2 with the revertant 481G mutation (1.8; 95% CI 1.4–2.2), indicating a neurovirulent phenotype as expected from the observed revertant genotype (Table 3).

Table 3 Neurovirulence of the double recombinant nOPV2 strain from Kabarole in transgenic mice compared with type 2 vaccine, revertant and wild-type poliovirus strains
Full size table

Detection of poliovirus transmission following SIA campaigns

No evidence of prolonged transmission of any nOPV2 strain was observed, including the double recombinant virus from Kisenyi, as VP1 nucleotide changes in nOPV2 isolates ranged from 0 to 5, below the threshold for VDPV2 classification. Of the 84 children sampled, only 7 were confirmed to have received nOPV2. Given the dynamics of household and community transmission, some nOPV2 isolates detected in stool were probably attributable to secondary spread. Importantly, sequence analysis showed no evidence of sustained transmission, and the maximum observed interval between vaccination and detection of a positive stool sample was 46 days, supporting the conclusion that prolonged shedding did not occur. However, two possible short-term transmission events were identified by sequential viruses from the same ES site showing close genetic links (Extended Data Fig. 2). The first cluster involved isolates from one site collected over 2 weeks; they shared 9 mutations from nOPV2, two in the VP1. The second cluster included isolates from another site collected over 46 days; these viruses shared 7 mutations from the vaccine strain, two in the VP1 region. None of the clusters involved recombination. In any case, these events represent short periods of time and can also be explained by shedding by the same individual/household.

Prevalence of non-polio enterovirus serotypes in wastewater samples from Kabarole

A retrospective analysis of wastewater samples from the Kisenyi site (January–April 2022) identified 64 unique EV strains from 33 serotypes across species A (n = 7), B (n = 16) and C (n = 10). Species C EVs were the most prevalent, with multiple strains from serotypes known to recombine with PV, including CV-A11 (n = 2), CV-A13 (n = 9), CV-A17 (n = 3), CV-A20 (n = 5) and CV-A24 (n = 2) representing 27.27% of the total sequence reads (Extended Data Figs. 3 and 4). PV2 was detected in ES samples from 18 January, 1 February and 15 February 2022, consistent with routine virus isolation results.

Discussion

Uganda implemented nOPV2-based targeted immunization campaigns under the WHO EUL framework to interrupt cVDPV2 transmission after the detection of two genetically linked cVDPV2 isolates from an ES site in Lubigi in July and November 202114. As of 30 January 2025, no additional cVDPV2 isolates related to this emergence have been identified in Uganda, suggesting nOPV2 was effective in interrupting transmission.

The whole-genome sequences of 231 nOPV2 isolates were analysed over a 1-year period of enhanced surveillance following vaccination. Remarkably, as observed in nOPV2 isolates from the nOPV2 initial use phase (March–October 202112), no mutations affecting RNA secondary structure base-pairing were detected in the nOPV2 primary attenuation site domain V in the 5′NTR in any of the isolates, unlike mOPV2, which typically reverts at this site in nearly all vaccinees within days7,8.

Nevertheless, we identified molecular pathways by which nOPV2 can lose attenuation properties, including the accumulation of single mutations that alone reduce attenuation slightly and/or recombination with co-circulating enterovirus C strains. Mutations strengthening base pairing in RNA secondary structure domains in the 5′NTR, which are known or predicted to slightly reduce attenuation when present individually, together with capsid mutations affecting antigenicity and attenuation8,12, were observed. However, based on the analysis of similar viruses shed by vaccinees in clinical trials7,8 and laboratory studies of molecular clones containing increasing numbers of the observed mutations (A.M. et al., manuscript in preparation), few, if any, of these mutation combinations identified in nOPV2 isolates would restore neurovirulence comparable to that of Sabin 2 with the single A481G reversion alone.

Six nOPV2 isolates were found to be recombinants between nOPV2 and Sabin 1 or a species C EV, resulting in the loss of nOPV2 3D polymerase mutations, although no substantial effect on attenuation is expected. However, we detected a double recombinant strain in a sewage sample collected from the Kisenyi ES site in Kabarole on 15 February 2022. This strain had replaced genomic regions upstream and downstream of the capsid coding region with sequences from EV C strains, resulting in the loss of all genetic modifications contributing to nOPV2’s genetic stability and attenuation. This double recombinant nOPV2 strain was the first instance of such an event, reported in the May 2022 report of the nOPV Working Group (nOPV WG). It triggered a ‘level 2’ alert, which prompted a targeted response, including further investigation, communication with stakeholders and the development of action plans to monitor and address subsequent findings. Further laboratory testing confirmed the initial results, and a total of five double recombinant isolates with nearly identical whole-genome sequences were identified from the same sewage sample.

Extensive surveillance confirmed that these isolates remained the only double recombinant nOPV2 viruses detected in Uganda. The absence of related viruses in samples collected before and after 15 February 2022, or from any other site in Uganda, suggests that the virus did not persist or spread widely. Furthermore, the limited VP1 nucleotide changes (2–3) in these isolates indicate minimal replication or transmission before detection. Overall, we confirmed that 7 of 84 children sampled were vaccinated with nOPV2, but given household and community transmission dynamics, some nOPV2 isolates in stool probably originated from secondary spread. The maximum interval between vaccination and a positive stool sample was 46 days, supporting the absence of prolonged shedding, although virus was detected in sewage for up to 109 days after nOPV2 vaccination campaigns. Importantly, sequence analysis provided no evidence of sustained transmission. The absence of any viruses exhibiting >5 VP1 nucleotide changes from the nOPV2 vaccine strain provides additional assurance that no significant transmission events occurred following the nOPV2 vaccination campaigns in Uganda.

High-resolution whole-genome sequence analysis revealed minor local transmission events lasting up to 46 days, but these can probably be explained by continued excretion of the virus by one or a few individuals.

The loss of nOPV2 genetic modifications through double recombination is expected to restore the virus’s neurovirulence, increasing the risk of paralytic disease and potential cVDPV2 outbreaks. Indeed, the double recombinant nOPV2 strain from Uganda exhibited high neurovirulence in transgenic mice expressing the human poliovirus receptor, comparable to the MEF-1 wild PV type 2 strain. However, Uganda’s high-quality nOPV2 vaccination campaigns and historically generally high population immunity probably prevented spread of this or other nOPV2 strains. In contrast, following this event, similar double recombinant strains have been associated with cVDPV2 outbreaks in countries with less-robust public health systems15,16,17. According to WHO/UNICEF Estimates of National Immunization Coverage, Uganda has consistently maintained coverage above 80% for both OPV3 and inactivated polio vaccine over the years. In contrast, countries such as Nigeria, where transmission of double recombinant nOPV2 polioviruses has been reported, have had estimates for OPV3 and inactivated polio vaccine consistently below 70% (ref. 18; https://immunizationdata.who.int/dashboard/regions/african-region/UGA).

Although nOPV2 has been linked to rare cVDPV2 outbreaks, a recent review of its use up to 1 August 2024 concluded that it has a substantially lower rate of reversion compared with mOPV2. On the basis of mOPV2 and nOPV2 use in Africa in recent years, the number of VDPV2 emergences derived from nOPV2 so far is estimated to be 76% lower than what would have occurred had mOPV2 been used instead19.

The role of recombination in the evolution of nOPV2 and its implications for viral attenuation deserve further investigation. Whole-genome sequencing of nOPV2 isolates following human replication, as reported here and elsewhere, reveals that genetic modifications in nOPV2, particularly the relocation of the CRE motif to the 5′NTR, appear to limit the frequency and diversity of recombinant structures in comparison to Sabin 2-derived viruses. So far, all identified single recombinant nOPV2 strains retain both the 5′NTR CRE and the KO CRE in the 2C genomic region, while double recombinant viruses lose the 5′NTR-relocated CRE and acquire a functional wild-type CRE from an EV-C strain. In contrast, both Sabin 2 single and double recombinant viruses are frequent and exhibit recombination across multiple sites in the P2 and P3 coding regions20,21,22.

These findings highlight the essential role of a functional CRE motif in poliovirus replication and suggest that nOPV2 strains with two functional CRE sites are not evolutionarily favoured. While nOPV2 strains can regain full virulence through double recombination with EV-C strains, as demonstrated here, the likelihood of such events and the biological factors driving the generation and selection of double recombinants in humans remain poorly understood. The high prevalence and genetic diversity of EV-C strains capable of recombining with poliovirus, as identified in sewage samples from the Kisenyi ES site in Kabarole, indicate that recombination events are not uncommon. Variations in the prevalence of such EV-C strains across different regions and seasons may influence the evolutionary trajectory of nOPV2 in natural settings. These insights could inform immunization strategies to minimize the risk of generating recombinant viruses.

Our study has several limitations. First, the adequacy of surveillance in areas of use may have influenced the analysis, as the source data rely on the sensitivity of both AFP and ES systems. Second, the presence of multiple nOPV2 isolates in several environmental surveillance samples could have impacted the accuracy of frequency and temporal analyses. Therefore, ongoing monitoring of isolates from diverse field settings and locations will be essential to validate or refine the observations presented here. In addition, integrating these findings with clinical case characteristics, safety data and other epidemiologic factors will be critical for assessing the impact on disease or outbreak dynamics.

The detection of double recombinant nOPV2 strains highlights the need for continued vigilant surveillance and rapid detection of such incidents, as well as intensified vaccination efforts, including emphasis on inactivated polio vaccine use, to accelerate progress towards polio eradication.

Methods

Sampling, virus isolation, ITD and shipping of poliovirus materials

AFP surveillance, well established in Uganda, was enhanced to ensure the effective detection of any potential polio paralytic cases. ES, operational in Uganda since May 2017, was expanded to include 11 sites sampled once a month. Following the cVDPV2 outbreak in the country, sampling frequency for Kampala sites was increased to twice a month to enhance sensitivity for PV detection. Stool samples were collected through the routine nationwide AFP surveillance programme, in which children <15 years old presenting to health facilities with weakness or paralysis are investigated regardless of vaccination status. Two stool samples, collected 24–48 h apart, were transported under cold chain to the laboratory for analysis. Grab sewage samples were collected at regular intervals from the 11 established ES sites and similarly transported. These collections occurred after nationwide nOPV2 campaigns targeting all children <5 years old.

Stool samples were processed for poliovirus isolation following the standard WHO protocol23. Poliovirus isolation was performed using two WHO-recommended cell lines: L20B and RD. L20B cells, which are genetically engineered mouse L cells expressing the human poliovirus receptor CD155, provide a highly specific substrate for poliovirus replication and facilitate rapid differentiation from non-polio enteroviruses. RD cells (human rhabdomyosarcoma cell line), which support the growth of a broader range of enteroviruses, were used in parallel to ensure the sensitive detection of poliovirus. The cells were obtained from master cell banks stored at MHRA which are distributed through the World Health Organization’s Global Polio Laboratory Network (GPLN) and are used routinely in accredited national and regional polio laboratories. Sewage samples were collected using the grab method and concentrated overnight using the two-phase separation method24, followed by poliovirus isolation using the cell culture algorithm following WHO guidelines for ES samples25. All cell culture flasks with positive cytopathic effect (CPE) in the L20B cell line were subjected to ITD PCR26 as independent specimens. The nOPV2 isolates were then inactivated by spotting the supernatant onto FTA cards (Whatman, Life Sciences), which contain chemicals that inactivate the virus while preserving the viral RNA. This method has been used in the WHO Global Polio Laboratory Network for several years and includes a ‘70 °C for 4 min’ heat treatment before spotting isolates on the FTA cards and shipment as non-infectious materials. The FTA cards were sent to the MHRA WHO Global Specialized Laboratory for Polio in the United Kingdom for whole genome sequence analysis. In addition, PV2+/nOPV2− virus isolates were shipped to MHRA for whole-genome sequencing. Due to the trigger of a level 2 response in relation to nOPV2 use, the original sewage concentrate plus previous and subsequent sewage concentrates from the same location (n = 5) were also shipped to MHRA for subsequent re-culture using WHO guidelines for ES samples and characterization of any polioviruses.

PV whole-genome and tiled PCR with reverse transcription amplification

Using disposable punches, 6 discs of 4 mm diameter were cut from each FTA card and viral RNA extracted using the Qiagen QIAamp Viral RNA kit (Qiagen, 52904). Viral RNA was purified from infected cell culture supernatant using the High Pure viral RNA kit (Roche, 11858882001) with Proteinase K pre-treatment. Whole-genome PV PCR with reverse transcription (RT–PCR) fragments were amplified from extracted viral RNA by one-step RT–PCR using a SuperScript III One-Step RT–PCR system with Platinum Taq High Fidelity DNA Polymerase (Invitrogen, 12574026) and primers PCR-F (5′-AGA GGC CCA CGT GGC GGC TAG-3′) and PCR-3′ (5′-CCG AAT TAA AGA AAA ATT TAC CCC TAC A-3′)27. Amplification conditions were 50 °C for 30 min for the RT reaction plus 94 °C for 2 min plus 42 cycles of 94 °C for 15 s, 55 °C for 30 s and 68 °C for 8 min, with a final extension step of 68 °C for 5 min. Since the quality of RNA extracted from FTA cards is generally poor compared with RNA extracted from cell culture fluid, a custom-made tiled PCR approach with overlap between amplicons was used to generate sequence information spanning the whole genome of any poliovirus present in the FTA card. We followed a published protocol28. Primers used to generate tiled PCR products are provided in Extended Data Table 1. Equimolar mixtures of the overlapping PCR products spanning the whole genome were used for sequencing, and additional PCRs were conducted to complete any sequencing gaps if required. Good laboratory practice was used in all molecular assays to prevent cross-contamination of samples. Positive and negative RNA extraction and PCR controls were included in every assay.

PV whole-genome next-generation sequencing

PV whole-genome and tiled PCR products were sequenced using MiSeq Illumina technology. Sequencing libraries were constructed using the Nextera DNA Prep kit (Illumina, 20060059) and dual-indexed using Nextera DNA Indexes (Illumina, set A 20091660). These libraries were pooled in equimolar concentrations and sequenced with 250-bp paired-end reads on MiSeq v2 (500 cycles) kits (Illumina, MS-102-2003) or with 150-bp paired-end reads on NextSeq 2000 (Illumina, MS-20100984). Initial demultiplexing was performed on board using bcl2fastq v.2.2 (MiSeq) and DRAGEN BCL Convert v.3.8.4 (NextSeq 2000) software. FASTQ sequencing data were adapter and quality trimmed using Cutadapt v.2.10 for a minimum Phred score of Q30, minimal read length of 75 bp and 0 ambiguous nucleotides.

In addition, selected PV whole-genome and tiled PCR products were also sequenced using Oxford Nanopore Technologies (ONT). PCR products underwent a standard preparation for Nanopore sequencing with the SQK-NBD110-9/SQK-NBD112.96 kit together with the barcoding expansion EXP-PBC096 kit. Briefly, PCR products were sheared using the NEBNext Ultra II End Repair/dA-Tailing Module (E7546L), and the native barcode adapters were ligated to the PCR product using Blunt/TA Ligase Master Mix (M0367). Individual barcoded samples were pooled into one tube and the barcoded libraries were purified using AmPure XP beads (A63882). Next, the sequencing adapters supplied in the kit were ligated to the pooled library using NEBNext Quick Ligation Module (E6056L). The flow cells were primed using flow cell priming kit (EXP-FLP002) and the DNA libraries were loaded along with sequencing buffer and loading beads. Sequencing was performed on an ONT MinION Mk1B sequencer using R9.4, R10.3 or R10.4 flow cells. Nanopore data were drawn from several individual MinION sequencing runs. Sequencing run duration ranged between 4 h and 16 h depending on the number of samples included in that run. Only flow cells with a minimum of 600 active pores on flow cell check (pre-test) were used. Fast5 files were base called with the high-accuracy basecalling model using Guppy v.5 with graphics processing unit (GPU) acceleration on a Precision 7540 Dell laptop running Ubuntu 18 LTS with 32 GB RAM, a 16 core Intel Xeon central processing unit (CPU) and Nvidia RTX3000 GPU. FASTQ files were generated using MinKNOW software and stored for further processing.

Fastq files from both Nanopore and Illumina sequencing were further processed and analysed using Geneious 10.2.6 software. Raw sequence data were imported into Geneious 10.2.6 and sequence contigs were built by reference-guided assembly as previously validated27,29,30,31,32. Fastq reads were initially mapped simultaneously to Sabin 1, nOPV2 and Sabin 3 whole-genome sequences, and contig sequences were generated. Potential nOPV2 recombinant sequences were identified in contigs showing partial sequence coverage across the genome. Filtered reads were then iteratively reassembled to consensus sequences covering the nOPV2 capsid region using stringent assembly conditions to build whole-genome contig sequences. Assembly conditions were as follows: minimum of 50 base overlap, minimum overlap identity of 98%, maximum of 2% mismatches per read and both end-pair reads mapping for Illumina and minimum of 2,000 base overlap, minimum overlap identity of 95%, maximum of 5% mismatches per read for Nanopore. Final consensus sequences were obtained by assigning the most common nucleotide sequence to each nucleotide position within each contig, requiring a minimum of 20-nt sequence coverage, trimming to the reference sequence and removing the primer sequences from the final consensus sequence. When necessary and to confirm the results, fastq reads were also independently assembled de novo, using the same stringent assembly conditions. In addition, the options to produce scaffolds and ignore words repeated more than 100–1,000 times, available in the Geneious assembler, were selected to improve the quality of the assembly process. When sequencing whole-genome PCR products with Nanopore, assembly and contig generation was much more straightforward as it simply required a single step mapping whole-genome reads simultaneously to Sabin 1, nOPV2 and Sabin 3 whole-genome sequences, and generating consensus sequences as above. Results using different PCR amplification strategies and assembly approaches were identical. Manual analyses for visualizing and quantifying assembly results were performed throughout the process. Final consensus sequences are available from GenBank under accession numbers listed in Supplementary Table 1. nOPV2 genome sequences were aligned using the programme MUSCLE (v.3.8.425), and phylogenetic trees were constructed using the FastTree algorithm (v.2.1.11), both within Geneious.

Transfection of RNA extracted from FTA cards

Transfection experiments were carried out to show viability of the recombinant virus genetic information obtained from the FTA cards by sequencing on the Illumina platform. Fresh RNA was extracted as described above on the day of transfection. Transfection was carried out using Hank’s balanced salt solution and the DEAE-dextran transfection method33. The flasks with RNA and the control were incubated at 35 °C in a CO2 incubator. CPE (4+) was observed for flasks transfected with RNA extracted from FTA cards (n = 3) on day 3. No CPE was observed in the control flasks at 5 days post transfection. Flasks showing CPE were then subjected to RNA extraction and whole-genome pan-PV PCR amplification, and sequenced using Illumina and Nanopore technology as described above27.

Direct sequencing of enteroviruses from sewage concentrates

A retrospective investigation was conducted to determine the EV distribution in sewage concentrates collected from January 2022 to April 2022 from the Kisenyi site, that is, before and after the point detection of the double recombinants (n = 5). RNA was extracted from the sewage concentrates using the High Pure viral RNA kit (Roche, 11858882001) with Proteinase K pre-treatment, and pan-EV entire capsid-coding region RT–PCR templates were generated and sequenced using the MiSeq Illumina platform as described here and elsewhere32. The closest virus relatives to the Uganda EV sewage strains were identified using the RIVM and BLAST online sequence analysis tools34,35, and EV serotypes were assigned on the basis of their VP1 sequence. EV genome sequences were aligned using the programme MUSCLE (v.3.8.425), and phylogenetic trees were constructed using the FastTree algorithm (v.2.1.11), both within Geneious.

Transgenic mouse neurovirulence test

Tg66-CBA transgenic mice expressing the human poliovirus receptor (50% male, 50% female, 6–8 weeks old) were used for these experiments. Tg66-CBA mice are the product of crossing Tg66 mice with CBA/J mice several times then selecting for homozygous CBA MHC genes and homozygous PVR. Animal experiments were performed at the MHRA, with ethics approval from MHRA’s Ethics and Human Materials Advisory Committees and the Animal Welfare and Ethical Review Body. All procedures were conducted under UK Home Office Procedure Project Licence Number PPL PP6108158. The mice were housed in individually ventilated cages or conventional cages under controlled environmental conditions in accordance with the UK Animals (Scientific Procedures) Act 1986 and the Home Office Code of Practice for the Housing and Care of Animals Bred, Supplied or Used for Scientific Purposes36. Ambient temperature was maintained between 20–24 °C with relative humidity maintained between 45–65%. A daily 12 h/12 h light/dark cycle with half an hour of half-light to mimic dawn and dusk was provided to regulate circadian rhythms. Stocking density was carefully considered to ensure that mice were provided with sufficient floor space and to allow for provision of environmental enrichment in line with legislative standards. Environmental enrichment, including nesting material, refuges, wooden and disposable enrichment, was provided during weekly cage cleaning to encourage natural behaviours that are crucial for maintaining the health and wellbeing of the mice. Diet and water were provided ad libitum, and environmental parameters were continuously monitored to meet legislative and welfare requirements. Mice were routinely handled using refined handling techniques, including tunnel handling and cupping, to minimize stress and ensure high standards of animal welfare. The mice were inoculated via the intraspinal route with 5 µl of tenfold serial virus dilutions (a minimum of 8 mice per dilution) and monitored for clinical signs for 14 days (ref. 37). The cell culture infectious dose (CCID50) required to paralyze 50% of the mice (PD50) was calculated using the Spearman–Karber method38. While the transgenic mouse neurovirulence test (TgmNVT) does not reproduce natural infection through the oral route, it has been proven to accurately measure the neurovirulence of PV isolates and hence their potential for causing paralytic disease, showing very good correlation with the results using the gold standard monkey neurovirulence test and is recommended by the World Health Organization.

Statistical analysis

Simple linear regression and molecular clock-based inference of the nucleotide sequence data were done using GraphPad Prism (v.10.1.2) software. Regression analyses are exploratory/descriptive (mutation vs time), hence no inferential statistics (p values) were the focus. The dose required to cause paralysis in 50% of transgenic animals (PD50) was calculated using the Spearman–Karber method using Microsoft Excel software. Poliovirus sequencing data were processed and analysed using Geneious (v.10.2.6).

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
