Hepatic stellate cells control liver zonation, size and functions via R-spondin 3

Sugimoto, Atsushi; Saito, Yoshinobu; Wang, Guanxiong; Sun, Qiuyan; Yin, Chuan; Lee, Ki Hong; Geng, Yana; Rajbhandari, Presha; Hernandez, Celine; Steffani, Marcella; Qie, Jingran; Savage, Thomas; Goyal, Dhruv M.; Ray, Kevin C.; Neelakantan, Taruna V.; Yin, Deqi; Melms, Johannes; Lehrich, Brandon M.; Yasaka, Tyler M.; Liu, Silvia; Oertel, Michael; Lan, Tian; Guillot, Adrien; Peiseler, Moritz; Filliol, Aveline; Kanzaki, Hiroaki; Fujiwara, Naoto; Ravi, Samhita; Izar, Benjamin; Brosch, Mario; Hampe, Jochen; Remotti, Helen; Argemi, Josepmaria; Sun, Zhaoli; Kendall, Timothy J.; Hoshida, Yujin; Tacke, Frank; Fallowfield, Jonathan A.; Blockley-Powell, Storm K.; Haeusler, Rebecca A.; Steinman, Jonathan B.; Pajvani, Utpal B.; Monga, Satdarshan P.; Bataller, Ramon; Masoodi, Mojgan; Arpaia, Nicholas; Lee, Youngmin A.; Stockwell, Brent R.; Augustin, Hellmut G.; Schwabe, Robert F.

doi:10.1038/s41586-025-08677-w

Download PDF

Article
Open access
Published: 12 March 2025

Hepatic stellate cells control liver zonation, size and functions via R-spondin 3

Nature volume 640, pages 752–761 (2025)Cite this article

83k Accesses
68 Citations
135 Altmetric
Metrics details

Subjects

Abstract

Hepatic stellate cells (HSCs) have a central pathogenetic role in the development of liver fibrosis. However, their fibrosis-independent and homeostatic functions remain poorly understood^1,2,3,4,5. Here we demonstrate that genetic depletion of HSCs changes WNT activity and zonation of hepatocytes, leading to marked alterations in liver regeneration, cytochrome P450 metabolism and injury. We identify R-spondin 3 (RSPO3), an HSC-enriched modulator of WNT signalling, as responsible for these hepatocyte-regulatory effects of HSCs. HSC-selective deletion of Rspo3 phenocopies the effects of HSC depletion on hepatocyte gene expression, zonation, liver size, regeneration and cytochrome P450-mediated detoxification, and exacerbates alcohol-associated and metabolic dysfunction-associated steatotic liver disease. RSPO3 expression decreases with HSC activation and is inversely associated with outcomes in patients with alcohol-associated and metabolic dysfunction-associated steatotic liver disease. These protective and hepatocyte-regulating functions of HSCs via RSPO3 resemble the R-spondin-expressing stromal niche in other organs and should be integrated into current therapeutic concepts.

Hepatic stellate cells: balancing homeostasis, hepatoprotection and fibrogenesis in health and disease

Article 22 May 2025

Opposing roles of hepatic stellate cell subpopulations in hepatocarcinogenesis

Article 05 October 2022

Generation of human adult hepatocyte organoids with metabolic functions

Article 16 April 2025

Main

The liver functions as a central hub for carbohydrate, glucose and protein metabolism and the detoxification of endogenous and exogenous substances⁶. As many of its functions are essential for life, the liver is endowed with a considerable capacity for regeneration and repair^2,7. The liver’s metabolic functions are carried out by hepatocytes in a zonation-dependent manner^8,9. Hepatocytes reside within a complex niche that supports their metabolic functions: liver sinusoidal endothelial cells (ECs) promote the metabolic influx and efflux from or to the circulation¹⁰. Cholangiocytes enable the transport of bile acids and metabolites, excreted by hepatocytes, towards the intestine¹¹. Kupffer cells form a protective firewall against gut-derived bacteria¹². HSCs are best known for storing retinoids in health and mediating fibrogenesis after injury^1,2,3,4,5. Moreover, their anatomical position, long protrusions¹³ and sizeable ligand–receptor repertoire¹⁴ render HSCs prone to interactions with other cells, including hepatocytes. However, the functions of HSCs within the hepatic niche remain poorly understood⁵. HSC depletion with lower potency and specificity, using gliotoxin or GFAP-TK, has yielded inconsistent effects on liver regeneration and injury^15,16,17,18. Recently, the more specific and efficient just eGFP death-inducing (JEDI) depletion method revealed a role for HSCs in homeostatic hepatocyte proliferation¹⁹.

Here we combined genetic HSC depletion with conditional knockout of candidate genes to analyse fibrosis-independent functions of HSCs. We identified hepatocyte-regulatory functions of HSCs, controlling hepatic zonation, metabolism, injury and regeneration via RSPO3 and the subsequent activation of WNT signalling, a master regulator of liver zonation and function²⁰. Together, our findings provide evidence for a mesenchymal liver niche that controls epithelial cell functions in health and disease, akin to the R-spondin–LGR5-mediated mesenchymal–epithelial cross-talk in the gastrointestinal tract^21,22.

Altered regeneration and injury in HSC-depleted livers

To understand their functions in the healthy liver, we depleted HSCs through Lrat-cre and Cre-inducible diphtheria toxin receptor (iDTR)¹⁴. Low-dose diphtheria toxin efficiently reduced TdTom⁺ HSCs and Lrat and Colec11 mRNA without triggering inflammation or a decrease in Lrat-cre-labelled TdTom⁺ cells and Lrat mRNA in other organs 7 days later (Fig. 1a and Extended Data Fig. 1a–c). Flow cytometry analysis of HSC-depleted livers did not reveal immune cell alterations except for an increase in neutrophils, probably a consequence of HSC killing, and a decrease in dendritic cells (Supplementary Information 1a). As reported previously¹⁹, HSC-depleted livers were smaller and contained smaller hepatocytes and less Ccnd1 mRNA, a potent driver of hepatocyte proliferation²³ (Fig. 1a and Extended Data Fig. 1d). We therefore investigated the role of HSCs in liver regeneration, which is essential for restoring critical hepatic functions after the loss of functional liver mass⁷. After 70% partial hepatectomy (PHx), we observed substantially impaired regeneration with significant decreases in the liver–body weight ratio, Ki-67⁺ and cyclin D1⁺ hepatocytes and Mki67 and Ccnd1 mRNA in HSC-depleted mice (Fig. 1b and Extended Data Fig. 1e). Like other mice with impaired liver regeneration^24,25, HSC-depleted livers exhibited compensatory hyperproliferation at later stages, while HSC depletion persisted (Extended Data Fig. 1f). A similar but longer-lasting reduction in the liver–body weight ratio and the number of Ki-67⁺ and cyclin D1⁺ hepatocytes was observed in HSC-depleted mice after inducing liver proliferation by the constitutive androstane receptor agonist 1,4-bis[2-(3,5-dichloropyridyloxy)]benzene (TCPOBOP) (Fig. 1c and Extended Data Fig. 1g,h). Depleting HSCs 1 h after 70% PHx also suppressed liver regeneration (Extended Data Fig. 1i). When injected with hepatotoxin CCl₄ or acetaminophen (APAP), the leading cause for acute liver failure in patients, HSC-depleted mice displayed a nearly 80% reduction in liver injury, as determined by serum ALT and the necrosis area, as well as a significant increase in survival (Fig. 1d,e). In contrast to APAP and CCl₄, which cause pericentral liver injury, treatment with a predominantly periportal liver toxin, allyl alcohol, substantially increased liver injury and mortality in HSC-depleted mice (Fig. 1f). Although the smaller size of HSC-depleted livers could affect injury responses, the decreased injury in some and increased injury in other models makes this unlikely. In summary, our data establish HSCs as potent regulators of liver regeneration and injury, two fundamental processes determining liver disease development and outcomes, possibly in a zone-dependent manner.

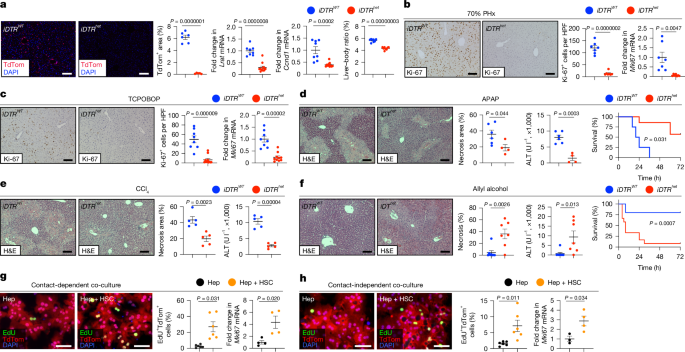

**Fig. 1: HSCs regulate liver regeneration and injury.**

To dissect the underlying molecular mechanisms, we first determined whether HSCs may exert direct effects on hepatocytes. While hepatocyte monocultures exhibited the expected low proliferation rate, both direct and contact-independent co-culture with HSCs significantly increased hepatocyte proliferation (Fig. 1g,h), suggesting that a soluble factor is responsible. Hepatocyte growth factor (HGF) is a potent hepatomitogen that is enriched in HSCs^7,14. However, mice lacking Hgf in HSCs (Hgf^ΔHSC)¹⁴ did not display impaired liver regeneration and showed increased CCl₄-induced liver injury¹⁴, in contrast to the decreased liver injury in HSC-depleted mice. Type I collagen is another HSC mediator regulating hepatocyte proliferation during hepatocarcinogenesis¹⁴. However, liver- or HSC-specific deletion of Col1a1 or receptors with critical roles in HSC activation, such as Tgfbr1 and Pdgfrb, did not phenocopy the changes in proliferation after 70% PHx (Extended Data Fig. 2a–g) or CCl₄-induced liver injury¹⁴ seen in HSC-depleted mice. Together, these findings suggested that an HSC-secreted factor mediates the effects of HSCs on hepatocyte proliferation and injury.

HSCs control hepatocyte functions and zonation

To gain insights into the mechanisms of HSC–hepatocyte cross-talk, we queried transcriptomic data in HSC-depleted livers for differential gene expression and pathway activation. To focus on the effects of HSC depletion on the liver rather than the expected alterations in HSC-expressed genes (Extended Data Fig. 3a,b and Supplementary Table 1), we removed HSC-enriched genes. Notably, the top altered pathways in HSC-depleted livers, achieved using the iDTR system or the JEDI model¹⁹, were metabolic, including drug, cytochrome P450, linoleic acid, tyrosine, tryptophan and caffeine metabolism (Extended Data Fig. 4a and Supplementary Table 2). As these essential metabolic functions are carried out by hepatocytes, our analysis hinted towards an unrecognized role of HSCs in regulating hepatocyte and liver functions. Using RNA sequencing (RNA-seq) and quantitative PCR (qPCR), we identified a decrease in characteristic hepatocyte-enriched genes with roles in metabolism, regeneration and the development of metabolic dysfunction-associated steatotic liver disease (MASLD) and alcohol-related liver disease (ALD), such as cytochrome P450 oxidases Cyp1a2 and Cyp2e1, and Ang, Gulo, Hsd3b5, Avpr1a and Chrna4^26,27,28 as well as an increase in Cyp2f2 (Fig. 2a,b and Extended Data Fig. 4b). Single-cell RNA-seq (scRNA-seq) analysis confirmed that these genes were indeed enriched in hepatocytes (Extended Data Fig. 4c). Immunohistochemistry (IHC) analysis confirmed an approximately 70% decrease and altered pattern of CYP1A2, CYP2E1 and CYP2F2 protein expression, accompanied by decreased CYP2E1 activity (Fig. 2c and Extended Data Fig. 4d).

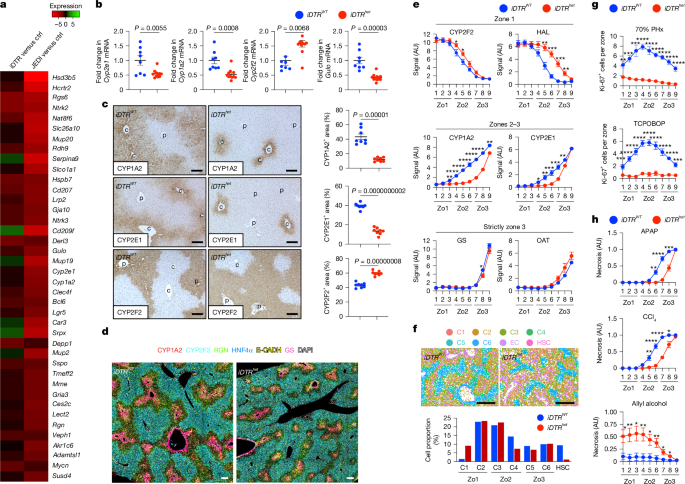

**Fig. 2: HSCs regulate metabolic zonation and zone-specific injury and proliferation in the liver.**

Further zone-specific quantification identified marked changes in liver zonation, showing a condensed pericentral-to-midzonal CYP2E1⁺CYP1A2⁺RGN⁺ zone, a concomitant expansion of the CYP2F2⁺HAL⁺ periportal zone and unaltered or minimally reduced pericentral marker glutamine synthetase (GS) and OAT in HSC-depleted mice (Fig. 2d,e and Extended Data Fig. 4e). The condensation of zone 3 and expansion of zone 1 in HSC-depleted livers were confirmed by a 100-plex spatial transcriptomic panel²⁹ (Fig. 2f and Extended Data Fig. 4f). Similar alterations in CYP2E1 and CYP1A2 were observed in the JEDI HSC depletion model (Extended Data Fig. 4g). Thus, in HSC-depleted mice, the hepatic midzone shifted from expressing well-established zone 3 markers to expressing zone 1 markers. The decrease in hepatocyte proliferation after 70% PHx or TCPOBOP as well as alterations in cell death after APAP, CCl₄ or allyl alcohol treatment followed similar zonal patterns, with the largest differences occurring in the midzonal areas in HSC-depleted mice (Fig. 2g,h). Together, these findings revealed a role of HSCs in regulating the metabolic zonation of the liver and zone-specific hepatocyte proliferation and cell death.

HSCs regulate hepatic WNT activity

We next sought to identify mediators through which HSCs regulate hepatocyte proliferation, metabolism and zonation. Consistent with its master role in liver function and zonation^9,20, WNT/β-catenin emerged as a top hit in our pathway analysis in HSC-depleted livers (Extended Data Fig. 4a). Gene set enrichment analysis (GSEA) confirmed significant changes in the WNT pathway in JEDI and iDTR HSC-depleted mice (Fig. 3a and Extended Data Fig. 4h). HSC-depleted livers displayed a substantial reduction in hepatocyte-enriched WNT-target genes, including the top 15 genes decreased in Ctnnb1^ΔHep livers (Fig. 3a, Extended Data Fig. 4b,i and Supplementary Table 3). To understand how HSCs might regulate WNT signalling in the liver, we next analysed hepatic WNT expression using scRNA-seq. Although Wnt4 and Wnt5a were enriched in HSCs (Extended Data Fig. 5a), mice with HSC-selective deletion of Wntless (Wls^ΔHSC), a gene required for WNT secretion, did not display the same alterations in Cyp2e1 and Cyp1a2, in the liver–body weight ratio or in APAP-induced liver injury compared with HSC-depleted mice (Extended Data Fig. 5b–g). These findings align with previous studies³⁰ and exclude HSC-secreted WNTs mediating the alterations observed in HSC-depleted mice.

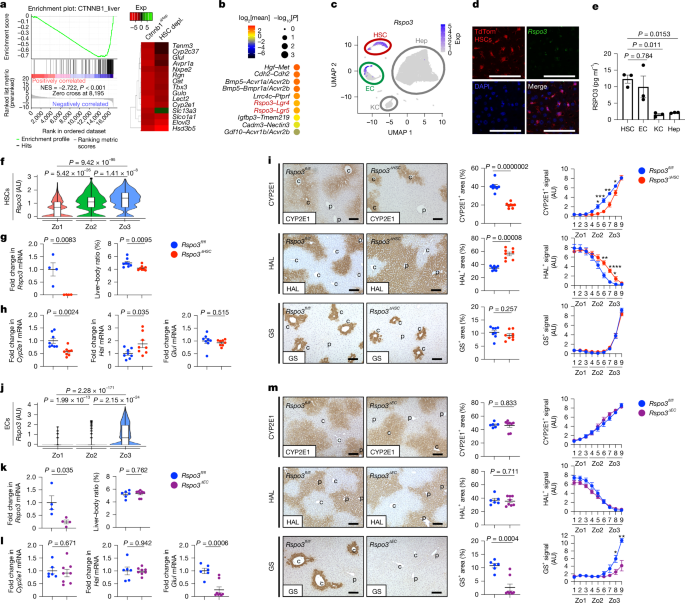

**Fig. 3: HSC-derived RSPO3 regulates hepatocyte gene expression and liver zonation.**

To identify candidates through which HSCs regulate WNT activity in hepatocytes, we next analysed ligand–receptor interactions using CellPhoneDB. RSPO3, a potent positive regulator of the WNT pathway^21,22, emerged among the top-ten HSC ligands mediating HSC–hepatocyte interactions through its corresponding receptors LGR4 and LGR5 (Fig. 3b and Supplementary Table 4). Rspo3 was highly enriched in HSCs and a small population of pericentral ECs without appreciable expression in other liver cells (Fig. 3c and Extended Data Fig. 6a–c). Conversely, RSPO3 receptors Lgr4 and Lgr5 were enriched in hepatocytes (Extended Data Fig. 6d), as described previously²⁴. Notably, Rspo3 was expressed at higher levels compared with other secreted mediators of the WNT pathway in isolated HSCs (Extended Data Fig. 6e). Moreover, Rspo3 was significantly reduced in iDTR and JEDI HSC-depleted livers and correlated significantly with the HSC marker Lrat and the WNT-target genes Cyp1a2 and Cyp2e1 in HSC-depleted mice (Extended Data Fig. 6f–h). RNAscope analysis demonstrated the expression of Rspo3 within Lrat-cre-labelled HSCs (Fig. 3d). Enzyme-linked immunosorbent assay (ELISA) and immunoblotting confirmed RSPO3 expression in HSCs at the protein level (Fig. 3e and Extended Data Fig. 6i). Consistent with previous studies^31,32,33 and befitting the zonal alterations in HSC-depleted livers, we observed a pericentral-to-periportal gradient of Rspo3 in HSCs (Fig. 3f). Notably, mice with hepatocyte-specific deletion of the RSPO3 receptors Lgr4 alone, Lgr4 plus Lgr5 or their downstream target β-catenin displayed alterations in liver size, zonation and regeneration, including hyperproliferation at late timepoints, similar to HSC-depleted mice^24,25. On the basis of these findings, we hypothesized that RSPO3 mediates the communication between HSCs and hepatocytes and that its lack in HSC-depleted livers could be the cause of altered regeneration and hepatocyte injury. Treatment with recombinant RSPO3 induced proliferation and WNT-dependent gene expression in AML12 hepatocytes, while RSPO3 neutralization significantly reduced the proliferation of primary hepatocytes in HSC–hepatocyte co-cultures (Extended Data Fig. 7a,b), suggesting direct effects on hepatocytes. This was corroborated by the restoration of liver regeneration after 70% PHx and APAP-induced liver injury after AAV8-mediated rescue of Rspo3 expression in HSC-depleted mice (Extended Data Fig. 7c–f).

HSCs control liver size and zonation through RSPO3

To further investigate the hepatocyte-regulatory roles of HSC-derived RSPO3 in vivo, we generated mice with HSC-specific deletion of Rspo3 (Rspo3^ΔHSC). Rspo3 deletion in HSCs was highly efficient and did not alter hepatic immune cell composition except for small increases in B cells and dendritic cells (Fig. 3g and Supplementary Information 1b). Importantly, Rspo3^ΔHSC mice phenocopied key changes of HSC-depleted mice, including a reduction in the liver–body weight ratio, suppressed WNT-target gene expression in livers and hepatocytes, and an altered zonation with a condensation of the CYP2E1⁺CYP1A2⁺RGN⁺ zones 2–3 and a concomitantly expanded CYP2F2⁺HAL⁺ zone 1 without alteration in GS and OAT (Fig. 3g–i, Extended Data Fig. 8a–d and Supplementary Table 5). ECs isolated from Rspo3^ΔHSC mice did not display downregulated Rspo3, Wnt2 or Wnt9b, excluding indirect effects of HSC-derived RSPO3 through ECs (Extended Data Fig. 8e). Thus, Rspo3^ΔHSC mice reproduced key aspects of HSC-depleted, Lgr4/Lgr5^ΔHep and Ctnnb1^ΔHep mice^{24,25,34,35,36,37,38,39}, suggesting HSC-derived RSPO3, hepatocyte-expressed LGR4 and its downstream target β-catenin as central mediators of the HSC–hepatocyte cross-talk that controls liver size, zonation and function.

As Rspo3 is expressed in HSCs during development³², we generated mice with an inducible knockout of Rspo3 in HSCs through Pdgfrb-creERT2 (Rspo3^ΔHSC-ind) mice for postnatal deletion. Rspo3 deletion during adulthood in Rspo3^ΔHSC-ind mice caused a similar reduction in the liver–body weight ratio and alterations in liver zonation to in Rspo3^ΔHSC mice and did not change Rspo3, Wnt2 or Wnt9b expression in ECs isolated from these mice (Extended Data Figs. 8f,g and 9a), thereby excluding developmental abnormalities as a cause for these effects. Consistent with our single-nucleus RNA-seq (snRNA-seq) data and the critical role of HSC-derived RSPO3, we did not find a reduction in Rspo3 mRNA, an altered liver–body weight ratio or changes in zonation in mice with hepatocyte-specific deletion (through AAV8-TBG-cre) or Kupffer cell-specific deletion (through Clec4f-cre) of Rspo3 (Extended Data Figs. 8h,i and 9b,c).

ECs control WNT^high hepatocytes through RSPO3

In addition to HSCs, pericentral ECs constitute a second liver cell population with high expression of Rspo3^31,40,41, confirmed by scRNA-seq and snRNA-seq, ELISA, immunoblotting and spatial transcriptomics (Fig. 3c,e,j and Extended Data Fig. 6a–c,i). In contrast to HSC-depleted and Rspo3^ΔHSC mice, constitutive or inducible EC-selective deletion of Rspo3 (Rspo3^ΔEC and Rspo3^ΔEC-ind) did not alter the liver–body weight ratio or the expression and zonation of CYP2E1, CYP1A2, RGN, CYP2F2 and HAL, despite being highly efficient (Fig. 3k–m and Extended Data Fig. 9d,e). However, RNA-seq, qPCR and IHC revealed alterations in select WNT-target genes such as Glul and Oat, which are characteristically expressed by the most pericentral WNT^high hepatocytes, in Rspo3^ΔEC mice (Fig. 3l,m, Extended Data Fig. 9d,e and Supplementary Table 6). Notably, expression of these genes was not altered in HSC-depleted and Rspo3^ΔHSC mice, with a small pericentral rim of WNT^high hepatocytes—expressing GS, OAT, but also CYP2E1, CYP1A2 and RGN—remaining (Fig. 3h,i and Extended Data Fig. 8b,c). Together, these findings suggest distinct zonal roles of RSPO3-expressing HSCs and ECs, with HSCs regulating WNT activity in the majority of hepatocytes and, thereby, exerting strong effects on liver size and all liver zones with the exception of the most pericentral hepatocyte layers.

Altered regeneration and injury in Rspo3 ^ΔHSC mice

We next tested whether Rspo3^ΔHSC mice displayed similar alterations in liver regeneration and injury compared to HSC-depleted mice. After 70% PHx or treatment with TCPOBOP, Rspo3^ΔHSC mice exhibited a lower liver–body weight ratio, significantly reduced Ki-67⁺ and cyclin D1⁺ hepatocytes and late-stage compensatory hyperproliferation (Fig. 4a and Extended Data Fig. 10a,b). Analysis using qPCR and IHC suggested that this effect was mediated by RSPO3-dependent regulation of the WNT target CCND1 (Fig. 4a and Extended Data Figs. 7a and 10b), a key driver of liver regeneration^23,42. While the effects of Rspo3 deletion on liver regeneration were potent, they were not as pronounced as those in HSC-depleted mice. Double knockout of Rspo3 and Hgf in HSCs had a stronger effect on liver regeneration after 70% PHx or TCPOBOP (Extended Data Fig. 10c), suggesting that additional HSC mediators collaborate with RSPO3 to maximally stimulate hepatocyte proliferation.

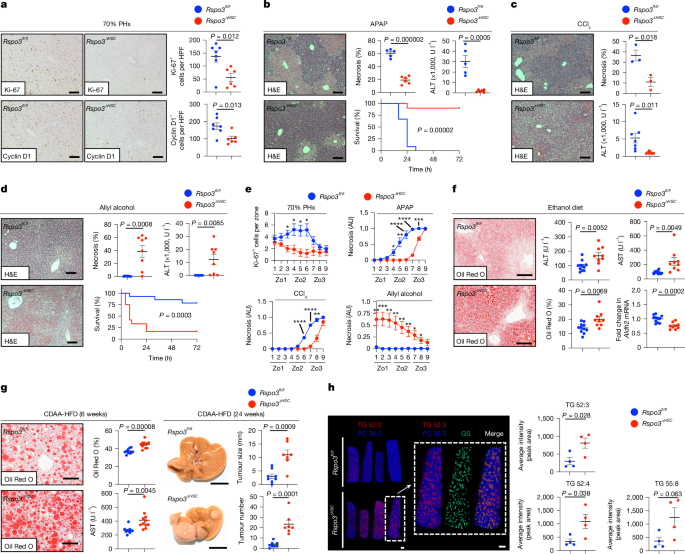

**Fig. 4: HSC-derived RSPO3 regulates hepatocyte injury, liver regeneration and steatosis.**

To investigate the potential role of HSC-derived RSPO3 in toxin-induced liver injury, Rspo3^ΔHSC mice were injected with APAP, CCl₄ or allyl alcohol. Similar to HSC-depleted mice, Rspo3^ΔHSC mice exhibited significant reductions in serum ALT and hepatic necrosis area as well as improved survival after sublethal or lethal doses of pericentral toxins APAP or CCl₄ (Fig. 4b,c). Accordingly, liver fibrosis was reduced in Rspo3^ΔHSC mice after chronic CCl₄ treatment (Extended Data Fig. 10d). Like HSC-depleted mice, Rspo3^ΔHSC mice displayed increased injury and mortality after treatment with periportal toxin allyl alcohol (Fig. 4d). Corresponding to the predominantly midzonal alterations in WNT-target genes as a result of a condensed zone 3 and an expanded zone 1 (Fig. 3i and Extended Data Fig. 8c), the alterations in proliferation and liver injury in Rspo3^ΔHSC mice were most pronounced in the hepatic midzone (Fig. 4e and Extended Data Fig. 10b), which is pivotal for hepatocyte regeneration⁴².

Rspo3^ΔHSC mice, subjected to the Lieber–DeCarli model of ALD, displayed increased liver steatosis and injury, alongside decreased expression of the acetaldehyde-metabolizing gene Aldh2 (Fig. 4f and Extended Data Fig. 10e,f). Similarly, Rspo3^ΔHSC mice subjected to a choline-deficient amino-acid-supplemented high-fat diet (CDAA-HFD) model of MASLD displayed increased steatosis, serum ALT, fibrogenic gene expression, fibrosis and tumour formation, with TUNEL-positive cells present in zone 3 (Fig. 4g and Extended Data Fig. 10g,h). Furthermore, when aged, Rspo3^ΔHSC mice exhibited more pronounced changes of WNT-target genes and increased fibrogenic gene expression (Extended Data Fig. 10i and Supplementary Table 7), similar to the exacerbated phenotype seen in aged Ctnnb1^ΔHep mice⁴³. HSCs isolated from Rspo3^ΔHSC mice did not display differences in Acta2, Col1a1 and Col1a2 mRNA, suggesting that RSPO3 does not affect cell-intrinsic mechanisms of HSC activation (Extended Data Fig. 10j). A similar reduction in CCl₄-induced liver injury was observed in Rspo3^ΔHSC-ind mice (Extended Data Fig. 10k), excluding developmental effects as the cause of altered injury. Together, these data align with the critical role of the β-catenin–WNT pathway in liver injury, promoting APAP- and CCl₄-induced injury³⁴ but protecting from ALD^36,37, MASLD^35,38,39 and ageing-induced injury⁴³. By contrast, Rspo3^ΔEC or Rspo3^ΔEC-ind mice did not show alterations in CCl₄-, APAP- or CDAA-HFD-induced liver injury or regeneration after 70% PHx (Extended Data Fig. 10l–o). In conjunction with our findings in HSC-depleted mice, these data suggest that HSCs, through RSPO3, regulate the majority of hepatocytes in the liver, affecting liver size, regeneration and injury. By contrast, EC-derived RSPO3 regulates only the most pericentral WNT^high hepatocytes that have a key role in the liver’s glutamine synthesis and ammonia detoxification⁴⁴. In silico metabolomic pathway analysis of transcriptomic data from Rspo3^ΔHSC, HSC-depleted and Ctnnb1^ΔHep livers revealed many shared alterations, including bile acid metabolism and xenobiotic metabolism, mitochondrial β-oxidation, carnitine shuttling and acyl-CoA hydrolysis (Supplementary Information 2 and Supplementary Table 8). Consistent with the altered zonation, increased susceptibility and possible changes in mitochondrial β-oxidation, desorption ionization (DESI) mass spectrometry (MS) imaging revealed a marked pericentral accumulation of triglycerides in Rspo3^ΔHSC mice (Fig. 4h and Supplementary Information 3a,b). Metabolomic analyses also showed significant increases in bile acid levels, including taurocholic acid, tauromuricholic acid and taurochenodeoxycholic acid, in Rspo3^ΔHSC mice (Extended Data Fig. 10p–r and Supplementary Table 9). These findings match the role of β-catenin in hepatic bile acid metabolism^35,39,45 as well as mitochondrial function and energy balance^37,38, which have been linked to increased steatosis and liver injury in mice with hepatocellular deletion of β-catenin signalling components^35,37,38,39 and in non-hepatic tissues^46,47.

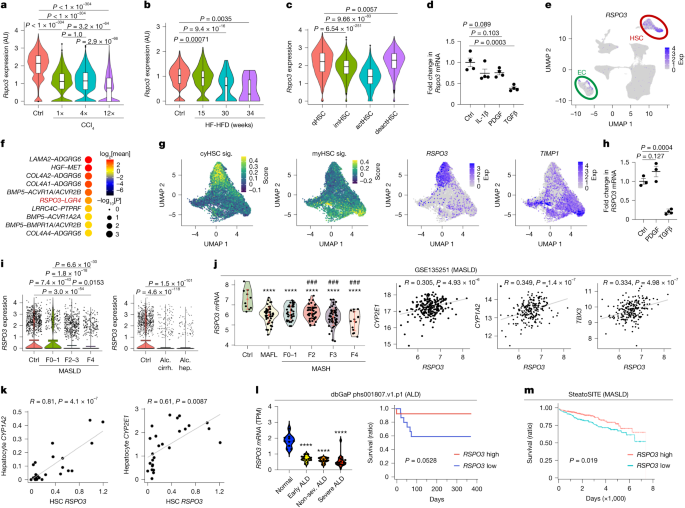

Dynamic regulation of Rspo3 in liver disease

Finally, we determined the regulation of RSPO3 and its receptors in clinically relevant contexts. RSPO3 expression was substantially decreased in HSCs isolated from models of toxic, biliary or MASLD-related liver fibrosis, progressively declining in advanced disease stages, alongside a reduction of RSPO3 protein (Fig. 5a,b and Extended Data Fig. 11a–c). This decline suggested a maladaptive process that may contribute to the loss of hepatocyte function and alterations in liver injury during progression of chronic liver disease (CLD). Conversely, analysis of HSC deactivation during fibrosis regression revealed restored Rspo3 mRNA levels alongside partially restored Col1a1 and Hgf mRNA levels in HSCs (Fig. 5c and Extended Data Fig. 11d). TGFβ, the most potent inducer of HSC activation, but not inducers of HSC proliferation and inflammation, such as PDGF and IL-1β, substantially reduced Rspo3 mRNA levels in primary HSCs (Fig. 5d). Notably, Tgfb2 and Tgfb3 displayed a periportal-to-pericentral gradient and potently suppressed Rspo3 mRNA in primary HSCs (Extended Data Fig. 11e). Thus, a periportal suppression of Rspo3 expression by TGFβ2 and TGFβ3 could contribute to the zonal Rspo3 gradient in HSCs. Analysis of human snRNA-seq datasets revealed a similar enrichment of RSPO3 in HSCs and pericentral ECs as in mice and confirmed RSPO3–LGR4 as one of top ligand–receptor pairs mediating HSC–hepatocyte interactions (Fig. 5e,f, Extended Data Fig. 11f,g and Supplementary Tables 10 and 11). RSPO3 was more abundantly expressed in quiescent cytokine- and growth factor-expressing HSCs (cyHSCs) than in activated myofibroblastic HSCs (myHSCs) (Fig. 5g and Extended Data Fig. 11h) and was potently downregulated by TGFβ1, TGFβ2 and TGFβ3 but not PDGF in human LX-2 HSCs (Fig. 5h and Extended Data Fig. 11e). snRNA-seq analysis revealed a marked and progressive downregulation of RSPO3 mRNA in HSCs with advancing stages fibrosis in patients with MASLD, alcohol-associated cirrhosis or alcoholic hepatitis (Fig. 5i), whereas RSPO3 levels were low and remained largely unchanged during disease progression in ECs from the same patients (Extended Data Fig. 11i). The decrease in RSPO3 mRNA expression with advancing liver disease was confirmed by bulk RNA-seq analysis in additional MASLD cohorts (Fig. 5j and Extended Data Fig. 12a). RSPO3 mRNA, but not RSPO1, RSPO2 and RSPO4 mRNA, showed significant positive correlations with WNT-target gene expression in multiple cohorts of patients with MASLD (Fig. 5j and Extended Data Fig. 12b–e). Notably, correlation analyses in human snRNA-seq data directly linked RSPO3 expression in HSCs to WNT-target genes CYP1A2 and CYP2E1 in hepatocytes (Fig. 5k). The reduction of RSPO3 expression and its correlation with WNT-target genes was confirmed by bulk RNA-seq in patients with ALD (Fig. 5l and Extended Data Fig. 12f,g). Consistent with our functional data in mouse models of MASLD and ALD, we observed that RSPO3 conferred protection in patients, revealing an association of high RSPO3 expression with reduced mortality, HCC and liver-related events in patients with MASLD, as well as a trend towards lower mortality in patients with alcohol-associated hepatitis (Fig. 5l,m and Extended Data Fig. 12h,i). Together, these findings suggest that the dynamic regulation of RSPO3 in HSCs during CLD progression and regression may affect hepatocyte functions and disease outcomes.

Discussion

With fibrosis representing the primary determinant of CLD outcomes⁴⁸, the field has focused on the paradigm of HSCs as the liver’s primary fibrogenic cell population^1,3,4,5. The current study amends this fibrocentric concept by demonstrating fibrosis-independent roles for HSCs through RSPO3, regulating critical parameters that affect CLD progression and outcomes, including metabolic hepatocyte functions, liver regeneration and hepatocyte death^2,49,50. These hepatocyte-regulatory roles of HSC-derived RSPO3 are highlighted by our functional studies in Rspo3^ΔHSC mice and the association of RSPO3 expression with patient outcomes. However, further studies are needed to confirm altered RSPO3 protein levels in patients and their associations with outcomes. Our data suggest that the positive regulation of hepatocyte function by RSPO3 from quiescent HSCs is gradually lost during CLD progression, accompanied by a shift towards a disease-promoting activated HSC state. The critical impact of HSC-derived RSPO3 on liver size, zonation, metabolism, regeneration and injury matches findings in mice with hepatocyte-specific deletion of β-catenin or LGR4/5^{24,25,34,35,36,37,38,39}, rendering RSPO3–LGR4-mediated HSC–hepatocyte communication a gatekeeper of liver function in health and disease.

Evolutionarily, the liver is geared for rapid regeneration and restoration of function after toxic injury to ensure organismal survival. The seemingly opposing functions of RSPO3 in acute toxic liver and chronic metabolic injury align with the functions of its downstream target β-catenin in hepatocyte injury^{34,35,36,37,38,39}. Notably, the functions of hepatic cytochrome P450 oxidases are generally beneficial, protecting other organs and thereby promoting organismal health. Massive cell death after exposure to P450-activated hepatotoxins such as APAP or CCl₄ probably represents a new evolutionary development as these are man-made toxins that do not exist in nature. Owing to the lack of evolutionary pressure, the liver may only be geared for eliminating smaller amounts and less toxic P450-metabolized natural substances. Deletion of Rspo3 in HSCs or inhibition of RSPO3 by blocking antibodies⁵¹ inhibited CCl₄-induced fibrosis in mice, but P450-activated toxins like APAP are not considered clinically relevant causes of CLD and liver fibrosis as they usually trigger only acute liver disease. By contrast, MASLD and ALD, against which RSPO3, LGR4/5 and their downstream target β-catenin protect^35,39, represent the commonest forms of CLD and liver fibrosis in patients. Thus, the overall functions of RSPO3 in the liver seem to be protective. The reduction in hepatic RSPO3 expression appears to be part of a maladaptive process linked to the prolonged HSC activation in CLD⁵, contributing to increased metabolic injury, reduced regeneration and, thereby, adverse outcomes. Conversely, restored RSPO3 expression during HSC deactivation^52,53 or by therapeutic interventions might help to regain hepatocyte functions. Our findings underscore the complex multicellular nature of interactions that maintain liver homeostasis and hepatocyte functions and suggest that shifts in HSC-expressed RSPO3 contribute to a gradual switch from liver homeostasis with intact regeneration and metabolism to fibrosis with impaired regeneration and altered metabolism. Accordingly, liver zonation is perturbed in CLD, including MASLD^54,55. Moreover, many hepatocyte functions and characteristic features like their predominant proliferation in zone 2 may not be intrinsic but regulated by the niche surrounding hepatocytes, with HSCs as key actors in the niche. Our data amend the purely angiocrine model of liver zonation^29,41,56,57 and suggest that liver zonation and functions are regulated by a ‘ménage à trois’ of WNT-secreting ECs, RSPO3-secreting HSCs and hepatocytes expressing the R-spondin receptors LGR4 and LGR5²⁴. The strictly pericentrally expressed EC-derived RSPO3 selectively regulates WNT^high hepatocyte layers, which control glutamine metabolism and thereby prevent ammonia toxicity and encephalopathy⁴⁴ but not liver size, regeneration, toxic or metabolic injury. Previous studies, using global knockout or overexpression, have found that RSPO3 is an important regulator of liver zonation and hepatocyte proliferation, but did not dissect its cell-specific functions and its key role in the HSC–hepatocyte cross-talk^24,41,55. These cell-specific expression patterns of Rspo3 underscore the importance of spatial organization in liver. It is likely that the pericentral to periportal gradient of Rspo3 expression in HSCs is not only explained by zonal Tgfb2 and Tgfb3 expression but also by the liver’s well-characterized oxygen and nutrient gradients^9,58. While HSCs interact with other cell populations, such as Kupffer cells and ECs, through additional mediators including GDF2 and BMP10⁵⁹, our findings in HSC-depleted and Rspo3^ΔHSC mice underscore the central role of HSCs interacting with and regulating hepatocytes. Moreover, HSC mediators besides RSPO3, such as HGF, but possibly also neurotrophin-3¹⁹ or epiregulin⁶⁰ may be involved in additional aspects of HSC–hepatocyte cross-talk and—together with ECs^29,59—collaboratively control hepatocyte health and functions.

Owing to their key role in fibrosis and CLD outcomes, HSCs are considered to be a potential therapeutic target⁵. The positive effects of HSCs on hepatocyte metabolism, regeneration, MASLD and ALD through RSPO3 suggest that reverting HSCs to quiescence or increasing RSPO3 levels may represent a more potent therapeutic approach for most liver diseases compared with inhibiting or killing activated HSCs. Integrating the dichotomous roles of HSCs in hepatocyte protection and fibrogenesis into current therapeutic concepts for CLD may allow simultaneous inhibition of fibrogenesis and restoration of liver function.

Methods

Human specimens

Human liver tissues for the single-nucleus sequencing were obtained from different sources as shown in Supplementary Table 10. Liver samples were collected under IRB-approved protocols at the University of Pittsburgh (IRB protocol 19120198), Johns Hopkins University School of Medicine (IRB protocol 00107893), the University of Kiel, Germany (Ethikkommission der Medizinischen Fakultät der Universität Kiel, D425/07, A111/99) or obtained from LifeNet Health, an organ procurement organization (operating under the Anatomical Gift Act). All patients provided written informed consent. Liver samples for alcoholic hepatitis, alcohol-associated cirrhosis and MASLD-associated cirrhosis were obtained from liver explants in patients undergoing liver transplant. All other liver samples from living donors were obtained intraoperatively in patients in whom an intraoperative liver biopsy was indicated on clinical grounds such as during scheduled liver resection, exclusion of liver malignancy during major oncologic surgery or assessment of liver histology during bariatric surgery. The samples were frozen immediately in liquid nitrogen ensuring an ex vivo time of less than 40 s in all cases. Patients with evidence of viral hepatitis or haemochromatosis were excluded in all groups, and patients with alcohol consumption >20 g per day (for women) and >30 g per day (for men) were excluded in the normal and MASLD groups. Liver sections stained by H&E, Sirius Red and/or Trichrome were reviewed by a board-certified pathologist.

Animal studies and strains

All animal procedures were performed with approval by the Columbia University Institutional Animal Care and Use Committee (protocols, AC-AABQ5565, AC-AABQ5566), the local institutional or the Vanderbilt University Institutional Animal Care and Use Committee (protocol M2000054-01) and in accordance with the Guide for the Care and Use of Laboratory Animals; or with approval from the governmental animal care and use committees Karlsruhe, Germany (in accordance with German national guidelines on animal welfare and the regulations of the regional council Karlsruhe under permit number G-251/20). Randomization and blinding were done as described in the Reporting Summary. Mice were housed in the Irving Cancer Research Center at Columbia University and in the Central Animal Facility of the German Cancer Research Center (DKFZ) Heidelberg. They were fed with a standard mouse diet (ad libitum water and food access) with a constant temperature of 21–24 °C, 45–65% humidity and under a 12 h–12 h light–dark cycle. Lrat-cre mice have been described previously⁴. Clec4f-cre mice (Jax, 033296). Rspo3-floxed mice (Jax, 027313; this strain was used for crosses with Lrat-cre or Lyve1-cre), Pdgfbr-floxed mice (Jax, 010977), Rosa26-lox-stop-lox-tdTomato (TdTom) mice (Jax, 007908), Rosa26- lox-stop-lox-HBEGF (iDTR) mice (Jax, 007900), Wls-floxed mice (Jax, 012888), Lyve1-cre (Jax, 012601) and Pdgfrb-P2A-creERT2 mice (Jax, 030201) were obtained from the Jackson Laboratory. Cdh5-creERT2 mice⁶² as well as Mx1-cre mice, Col1a1-floxed mice, Hgf-floxed mice and Tgfbr1-floxed mice⁶³ have been described previously. Rspo3-floxed mice (this strain was used for crosses with Pdgfrb-P2A-creERT2 mice or Cdh5-creERT2) have been described previously⁶⁴. JEDI mice have been described previously¹⁹. All mouse strains, except for Wls-floxed mice (backcrossed 2× to C57BL/6) were backcrossed with C57BL/6J mice more than five times. Male mice were used between 7 and 42 weeks of age with the exception of few experiments that included female mice, as detailed in each figure legend. To induce HSC- and EC-specific deletion of Rspo3, mice were treated with 2 mg tamoxifen, dissolved in 100 μl corn oil, through oral gavage for 5 consecutive days at 8–12 weeks of age. Mice were kept for a 1-week washout period before experimental use. For the deletion of Rspo3 in hepatocytes, Rspo3-floxed mice were intravenously administrated with 10¹¹ genomic copies per mouse of AAV8-TBG-cre (Addgene, 107787-AAV8) or AAV8-TBG-Null (Addgene, 105536-AAV8) diluted in saline solution. For the deletion of Col1a1 in the liver, Mx1-cre^negCol1a1-floxed and Mx1-cre^posCol1a1-floxed mice received polyI:C (GE Healthcare, ww27-432-01, intraperitoneal, 10 μg g^–1) three times every 3 days. Samples sizes for animal experiments differed between models and were based on estimates on the variability of specific models.

HSC depletion, liver regeneration and liver injury models

To deplete HSCs, Lrat-cre⁺TdTom⁺DTR⁺ mice or Lrat-cre⁺TdTom⁺DTR⁻ littermates were injected with 0.25–2.0 ng kg⁻¹ diphtheria toxin (DT; Sigma-Aldrich, D0564) as previously described¹⁴ and were used for experiments 7 days after DT injection unless otherwise specified. For some experiments, livers from mice with HSCs depleted using the JEDI model, described previously¹⁹, were used for analysis. For the ethanol-induced liver injury model, mice were treated with Lieber–DeCarli ‘82 ethanol-containing and control diets (Bio Serv, F1258, F1259). The ethanol diet was introduced gradually over 5 days, for a final concentration of 5%, and maintained for the indicated duration according to manufacturer’s protocol. To model metabolic dysfunction-associated steatotic liver injury, mice were fed a CDAA-HFD diet (Research Diet, A06071302) for 6 weeks. To induce MASLD-associated liver cancer, mice were fed the CDAA-HFD for 24 weeks. Tumours did not exceed the size limit of 20 mm in our IRB protocol. To model toxic liver injury, mice were treated with either CCl₄ or APAP. CCl₄ (Sigma-Aldrich, 319961) was dissolved in corn oil at ratio of 3:1 and injected either intraperitoneally at 0.5 ml kg⁻¹ or given by gavage at 1.6 g kg⁻¹. To induce severe liver fibrosis, CCl₄ was dissolved in corn oil (400 µg µl⁻¹) and delivered through oral gavage at a concentration of 1.6 g kg⁻¹ body weight. Mice were treated twice per week for up to 20 weeks. APAP (Sigma-Aldrich, A5000) was dissolved in warm 0.9% NaCl and injected intraperitoneally into mice after overnight starvation at 300 mg kg⁻¹ (sublethal dose) to assess liver injury or at 750 mg kg⁻¹ (lethal dose) to determine survival. Allyl alcohol (AlOH, Sigma-Aldrich, 240532) was dissolved in 0.9% NaCl and injected intraperitoneally into mice at 60 mg kg⁻¹ (sublethal dose) to assess liver injury or at 75 mg kg⁻¹ (lethal dose) to determine survival. To induce liver regeneration, mice were either subjected to 70% PHx or treatment with constitutive androstane receptor ligand, 1,4-bis(2-(3,5-dichloropyridyloxy))benzene (TCPOBOP). 70% PHx was performed according to a previously published protocol⁶⁵ under isoflurane and buprenorphine anaesthesia, and mice were euthanized 48 h later unless indicated otherwise. TCPOBOP (Sigma-Aldrich, T1443) was injected intraperitoneally at a dose of 3 mg kg⁻¹ and the mice were euthanized 48 h later. For Rspo3 rescue experiments, HSC-depleted or control mice were intravenously injected with 0.5 × 10¹¹ genomic copies per mouse of AAV8-CMV-Rspo3 (Vector Biolabs, AAV-271188) or AAV-8-CMV-EGFP (Addgene, 105530-AAV8).

Cell isolation and cell culture

Primary mouse hepatocytes were isolated as described previously¹⁴ using 15–30-week-old LSL-TdTom⁺ C57BL/6 mice that had been injected with 1 × 10¹¹ GC AAV8-TBG.PI.Cre.rBG (Addgene, 107787) 7 days before isolation. Primary hepatocytes were plated and cultured in serum-free William’s E medium (Gibco, 12551-032) supplemented with hepatocyte supplement (Gibco, A13448), 10 µM dexamethasone (Gibco, A13449), 10% FBS, gentamicin and antibiotic–antimycotic (Gibco, 150062) as described previously^14,66. Primary HSCs were isolated from 9–10 months old male BALB/c mice as described previously⁶⁷. HSCs were seeded in 12-well plates and incubated in Dulbecco′s modified Eagle′s medium (DMEM, Gibco, 11965092) supplemented with 10% FBS, gentamicin and antibiotics. After 4 h, the medium was changed to a medium containing 0.5% FBS, followed by treated with TGFβ1 (2.5 ng ml⁻¹, R&D systems, 240B), PDGF-BB (20 ng ml⁻¹, R&D systems, 220BB) or IL-1β (5 ng ml⁻¹ R&D systems, 401ML). After 24 h, cells were collected and processed for RT–qPCR. For HSC–hepatocyte co-culture, HSCs were added either directly to the tissue culture well before hepatocyte plating for contact-dependent co-culture, or into Transwell inserts (Corning, 353180) for contact-independent coculture, both at a hepatocyte:HSC ratio of 5:1. For some experiments, RSPO3 neutralizing antibody (ProteoGenix, PX-TA1446) or isotype control antibody (ProteoGenix, PTX17885) was added to the medium at a concentration of 100 nM. After 24 h of culture, EdU was added to the medium for another 24 h, followed by EdU staining according to the manufacturer’s instructions (Thermo Fisher Scientific, C10637). Images were captured using an Olympus IX71S1F-3 microscope and analysed using ImageJ software. Cells co-cultured in the absence of EdU were also collected for RT–qPCR analysis. The human HSC line LX-2⁶⁸ was serum-starved overnight and treated with TGFβ1 (2.5 ng ml⁻¹, R&D systems, 240B), TGFβ2 (2.5 ng ml⁻¹, R&D systems, 302-B2-002), TGFβ3 (2.5 ng ml⁻¹, R&D systems, 8420-B3-005), PDGF-BB (20 ng ml⁻¹, R&D systems, 220BB) or IL-1β (5 ng ml⁻¹ R&D systems, 401ML) for evaluation by RT–qPCR. The mouse hepatocyte line AML12, obtained from the American Type Culture Collection, was cultured in DMEM (Thermo Fisher Scientific, 11965118) with 10% (v/v) antibiotic–antimycotic (Gibco, 150062) and 10% (v/v) fetal bovine serum (FBS; GeminBio, 900-108) at 37 °C under 5% CO₂. Cell lines were regularly screened for mycoplasma contamination. Recombinant mouse RSPO3 (R&D 3500-RS) was added to the culture medium for 24–48 h at the indicated concentration. Proliferation was determined by WST-1 (Roche, 11644807001) and WNT-dependent gene expression was determined using RT–qPCR. Liver ECs were isolated from mice using a protocol similar to the HSC isolation described above but using liver perfusion medium (Gibco) and liver digestion medium (Gibco) supplemented with 20 μg ml⁻¹ Liberase (Roche) at 3 ml min⁻¹ for 5 min and purification of EC from the non-parenchymal cell fraction using mouse CD146 MicroBeads (Miltenyi Biotec, 130-092-007) and LS columns. Kupffer cells were purified from the non-parenchymal cell fraction after liver perfusion as described above, using magnetic mouse F4/80 MicroBeads (Miltenyi Biotec, 130-110-443) and LS columns (Miltenyi Biotec) according to the manufacturer’s instructions.

IHC, immunofluorescence and histological determination of liver fibrosis and steatosis

Liver samples were fixed with 10% formalin for paraffin-embedded blocks or with 4% paraformaldehyde for frozen blocks. Liver sections were stained with antibodies against Ki-67 (Abcam, ab16667), cyclin D1 (Abcam, ab134175), CYP1A2 (Santa Cruz, sc-53241), CYP2E1 (Abcam, ab28146), RGN (Thermo Fisher Scientific, PA5-56057), GS (Abcam, ab176562), OAT (antibodies.com, A15120), CYP2F2 (Santa Cruz, sc-374540), HAL (Sigma-Aldrich, HPA038547), E-cadherin (Cell Signaling, 3195), HNF4α (Thermo Fisher Scientific, MAI-199) or Na–K ATPase (Abcam, ab7671). Positive areas for Ki-67, cyclin D1, CYP1A2, CYP2E1, RGN, GS, OAT, CYP2F2 and HAL were analysed using ImageJ. Multiplex immunostaining was performed as previously described on 2-μm-thick formalin-fixed paraffin-embedded mouse liver sections⁶⁹. The antibody elution buffer was prepared by mixing 675 μl distilled water, 125 μl 0.5 M Tris-HCl pH 6.8, 200 μl 10% (w/v) sodium dodecyl sulfate, and 8 μl 2-mercaptoethanol. The acquired images were processed and analysed using FIJI (v.2.14.0)⁷⁰, ilastik (v.1.3.3post3)⁷¹ and CellProfiler (v.4.2.1)⁷² as described previously⁶⁹. Zone-specific hepatocyte marker expression was quantified using the FIJI profile function on a portal–central vein axis, dividing the axis into nine equal sectors. Quantification was performed in four representative areas of interest for each sample. The same procedure was used to determine zonal Ki-67⁺ cells in Ki-67-stained liver sections, but quantifying positive cells within each sector using ImageJ. Zonal necrosis was evaluated using the above-described division of the portal–central axis into nine sectors, followed by sector-specific determination of the necrotic area assigning a percentage of necrosis (0%, 25%, 50%, 75% and 100%) to each area, based on H&E images. For determination of liver fibrosis, paraffin liver sections were stained with Picrosirius Red solution as previously described⁷³. Frozen liver sections of 8 µm were stained in Oil Red O (Sigma-Aldrich, O9755) for 10 min. After being washed in distilled water, the sections were counterstained with Mayer’s haematoxylin for 3 min and mounted in aqueous mounting. All pictures were captured on an Olympus IX 71S1F-3 microscope coupled to a QImaging Retiga camera using QCapture Suite Plus (v.3.1.3.10) and the images were analysed using Adobe Photoshop or ImageJ software. For some analyses, images were scanned on a Leica SCN400 slide scanner with a Scanner Console (v.102.0.7.5) and quantified using ImageJ.

Determination of liver injury

Liver injury was assessed by determination of serum ALT and serum AST activity. For this, samples were measured either at the Columbia University Institute of Comparative Medicine laboratory or at the analysis centre at the University Clinic of Heidelberg. Samples were diluted with 0.9% NaCl or PBS as needed. For some experiments, the necrotic areas were determined in H&E liver sections and quantified by ImageJ software.

Immunoblotting

Proteins were extracted from liver tissue using RIPA buffer containing anti-protease (Complete, Roche) and anti-phosphatase (PhosSTOP, Roche). After adding Laemmli buffer, sonication and boiling at 95 °C, samples were loaded and run on SDS–PAGE gels and transferred onto nitrocellulose membranes (Sigma-Aldrich) using a semi-dry blotting system (Bio-Rad). The following antibodies were used: anti-ALDH2 (Proteintech, 15310-1-AP; 1:10,000), anti-RSPO3 (Proteintech, 17193-1-AP; 1:2,000), anti-GAPDH (Sigma-Aldrich, G9295; 1:75,000), anti-β-actin (Sigma-Aldrich, A3854, 1:10,000), and HRP anti-rabbit (Santa Cruz, sc-2004; 1:2,000). Blots were visualized using ultrasensitive enhanced chemiluminescent substrate (Thermo Fisher Scientific, 34094) on a FluorChem M System instrument (ProteinSimple) and quantified using FIJI.

ELISA

RSPO3 protein concentrations were quantified in homogenized mouse liver tissues using the DuoSet ELISA kit (R&D Systems). For this, lysates from snap-frozen liver samples were collected from the supernatant of homogenized tissue followed by centrifugation at 1,000g for 20 min and adjusted to 100 mg ml⁻¹. RSPO3 protein was also determined in the supernatants from cultured primary mouse liver cells using a sandwich ELISA kit (LSBio) according to the manufacturer’s protocol. For this, supernatant samples were collected 24 h after 0.1 million cells were seeded in a 12-well plate with DMEM supplemented with 10% FCS, 1% penicillin–streptomycin and 50 mg ml⁻¹ gentamycin, and centrifuged at 1,000g for 20 min. ELISAs were read on the iMark Microplate Reader (Bio-Rad).

Flow cytometry analysis of immune cells

Flow cytometry analysis of the lymphocytic and myeloid liver cell population was performed as previously described^14,63. Briefly, liver tissues were mechanically homogenized followed by an enzymatic digestion with 1 mg ml⁻¹ of collagenase A (Roche, 10103578001) and 0.5 µg ml⁻¹ DNase I (Roche, 10104159001) in isolation buffer (RPMI 1640, 5% FBS, 1% l-glutamine, 1% penicillin–streptomycin and 10 mM HEPES) for 45 min at 150 rpm at 37 °C. Cells were filtered through a 100-µm cell strainer, washed and separated in two parts to analyse the myeloid and the lymphocytes cell subsets. For the latter, cells were loaded onto a Percoll gradient (67% overlay with 40%) followed by red blood cell lysis using ammonium-chloride-potassium buffer and stained. Cells were incubated with Ghost dye red 780 (Tonbo Biosciences) to exclude dead cells and anti-CD16/32 (Tonbo, 2.4G2, 1:200) before staining. The following extracellular antibodies were included: anti-CD45 (BD and BioLegend, 30-F11, 1:400), anti-CD19 (Tonbo, 1D3, 1:200), anti-CD3e (Tonbo, 145-2C11, 1:400), anti-CD4 (BD, RM4-5, 1:400), anti-CD8a (Tonbo, 53-6.7, 1:400), anti-NK1.1 (BD, PK136, 1:300), anti-CD11b (BD, M1/70, 1:500), anti-CD11c (BD, HL3, 1:200), anti-F4/80 (Tonbo, BM8.1, 1:500), anti-Ly6C (BioLegend, HK1.4, 1:500), anti-Ly6G (BioLegend, 1A8, 1:500), anti-B220 (BD, RA3-6B2, 1:200), anti-CD44 (BioLegend, IM7, 1:200), anti-CD64 (BioLegend, X54-5/7.1, 1:200), anti-CD80 (Tonbo, 16-10A1, 1:200), anti-CD86 (BD, GL1, 1:200), anti-VSIG4 (eBioscience, NLA14, 1:200) and anti-MHCII (Tonbo, M5/114.15.2, 1:400). The following intracellular antibodies were included: anti-CD3e (BD, 145-2C11, 1:400), anti-TCRβ (BD, H57-597, 1:300), anti-FOXP3 (eBioscience, FJK-16s, 1:300), anti-Ki-67 (Thermo Fisher Scientific, SolA15, 1:200) and anti-granzyme-B (BioLegend, QA16A02, 1:200). Cells were fixed using the FOXP3/transcription factor staining buffer set (Tonbo) according to the manufacturer’s protocol. The samples were analysed using the BD LSR Fortessa cell analyser. Flow cytometry analysis was performed using FlowJo (v.10.10.0).

CYP2E1 activity assay

CYP2E1 activity was analysed in liver microsomes as previously described⁷⁴ with minor modifications. For microsome preparation, liver tissue was dounce homogenized in 50 mM Tris, 150 mM KCl, 2 mM EDTA buffer containing PhosSTOP (Roche, 59124500) and cOmplete Mini (Roche, 57350900). The liver homogenate was centrifuged at 6,000g for 5 min, followed by a second centrifugation of the supernatant centrifuge at 12,000g for 10 min. CaCl₂ was added to the supernatant to a final concentration of 8 mM, followed by centrifugation at 211,000g for 20 min. After removal of the supernatant, the pellet was resuspended in KCl-Tris-EDTA buffer, and again centrifuged at 211,000g for 20 min. The pellet was resuspended in 0.1 ml containing 100 mM KPi, pH 7.2, 0.2 mM PNP at 37 °C for determination of CYP2E1 using the PNP method as described previously⁷⁴, using a Varioskan LUX spectrophotometer (Thermo Fisher Scientific) spectrophotometer at 510 nm.

RNA isolation and RT–qPCR

Liver tissue was homogenized in a Tissuelyser (Qiagen) in Trizol and purified using chloroform, followed by isolation of total RNA using RNA isolation kits (Qiagen, Roche or Sigma-Aldrich). Total RNA from cells was isolated directly using RNA isolation kits. After quantification using a Nanodrop ND-1000 spectrophotometer, RNA was reverse-transcribed using TaqMan reverse transcription reagents (Applied Biosystems, 4368813). qPCR was run on an Applied Biosystems QuantStudio 5 Real-Time PCR system (Applied Biosystems) using PerfeCTa FastMix II buffer (Quantabio, 95120) and the following probes (Thermo Fisher Scientific): 18S (Hs99999901_s1), Acta2 (Mm001546133_m1), Aldh2 (Mm0047763_m1), Ang (Mm00833184_S1), Avpr1a (Mm00444092_m1), Axin2 (Mm00443610_m1), Ccl2 (Mm00441242_m1), Ccl3 (Mm00441259_g1), Ccl4 (Mm00443111_m1), Ccl5 (Mm01302427_m1), Ccnd1 (Mm00432360_m1), Chrna4 (Mm00516561_m1), Col1a1 (Mm00801666_g1), Col1a2 (Mm00483888_m1), Colec11 (Mm01289834_m1), Cyp1a2 (Mm00487224_m1), Cyp2e1 (Mm00487224_m1), Cyp2f2 (Mm00484087_m1), Emr1 (Mm00802530_m1), Glul (Mm00725701_s1), Gulo (Mm00626646_m1), Hal (Mm00456709_m1), Hand2 (Mm00439247_m1), Hsd3b5 (Mm00657677_mH), Il1a (Mm00439620_m1), Il1b (Mm00434228_m1), Lect2 (Mm00521920_m1), Lox (Mm00495386_m1), Mki67 (Mm01278617_m1), Oat (Mm00497544_m1), Pdgfrb (Mm00435546_m1), Rgn (Mm00485711_m1), Rspo3 (Mm00661105_m1, Mm01188251_m1), Slco1b2 (Mm00451510_m1), Tgfbr1 (Mm03024015_m1), Timp1 (Mm00441818_m1), Tnf (Mm00443258_m1), Wls (Mm00509695_m1), Wnt2 (Mm00470018_m1, Mm00437330_m1), Wnt9b (Mm00457102_m1) and RSPO3 (Hs00262176_m1).

RNA scope and spatial transcriptomics

Target RNA was detected using the RNAscope Multiplex Fluorescent Reagent Kit v2 (Advanced Cell Diagnostics (ACD), 323110) on 10 µm frozen mouse liver sections from Lrat-cre⁺LSL-TdTom⁺ mice using RNAscope Mm-Rspo3 probe (ACD, 402011) and Opal 520 Reagent (Akoya Biosciences, FP1487001KT). Anti-RFP (Rockland, 600-401-379) was used to detect TdTomato as described previously¹⁴. Confocal microscopy was performed using an AXR confocal scanner mounted on a Ti2 microscope stand (Nikon Instruments) using a ×20/0.75 Plan-Apo VC objective lens or a ×60/1.49 NA Apo-TIRF oil-immersion objective lens in the DLDRC imaging core. 100-plex spatial transcriptomics (the 100 gene panel is shown in Supplementary Table 12) focusing on WNT pathway and zonation genes was done on the Resolve platform. Probe design as well as tissue sectioning, processing, probe design and hybridization, slide imaging, spot segmentation and data preprocessing were performed as previously described²⁹. Single-cell spatial transcriptomic analysis was performed by quantifying gene counts per cell using cell segmentation using QuPath software⁷⁵. The libraries from each condition (iDTR^WT, iDTR^het, Rspo3^fl/fl, Rspo3^ΔHSC) were integrated together using the R package Seurat⁷⁶. Analysed cells included those filtered for greater than or equal to 10 gene counts per cell. After preprocessing, unbiased clustering on all 100 genes was performed using the dimensionality reduction method of principal component analysis (PCA) and uniform manifold approximation and projection (UMAP)⁷⁷. Clusters corresponding to different zones were identified and annotated on the UMAP based on expression of different landmark genes as previously done²⁹. Moreover, HSC- and EC-specific clusters were identified and annotated on the UMAP based on expression of Lrat and Pecam1, respectively. Furthermore, using the Seurat package, feature plots and violin plots were used to visualize gene expression at cluster and cell level, respectively. Lastly, once clusters were annotated, cells corresponding to specific clusters based on gene expression were mapped back onto the virtual slide to visualize spatial location of specific clusters. Expression of individual landmark genes for pericentral, midzonal and periportal zones were used to verify accurate spatial localization of clusters. For zone- and cell-specific analysis of Rspo3 expression, the overall expression of established landmark genes was first used to define zones, followed by assignment of cells to one of three zones based on their localization within these regions. This was done by plotting cells positive for Cyp2f2 on one image using ggplot2 in R, and cells positive for Cyp2e1 on another ggplot2 image. These images were processed in MATLAB using the Image Processing Toolbox to smooth and fill in distinct regions as either zone 1 or zone 3, yielding two matrices delineating zone 1 and zone 3 regions. Cells were classified as zone 1 if they were located in the zone 1 region only, zone 3 if they were located in the zone 3 region only, and zone 2 if they were located in overlapping zone 1 and 3 regions. Gene expression levels, including Rspo3, were evaluated across both zone and cluster using the VlnPlot function in Seurat.

Microarray and bulk RNA-seq, heat maps and pathway analysis

RNA-seq analyses were performed on high-quality total RNA samples, with RNA integrity numbers of >8 (determined using a Bioanalyzer 2100, Agilent Technologies). Bulk RNA-seq data were processed by the Columbia Genome Center. For each sample, a minimum of 20 million 100 bp single-end reads were sequenced on the Illumina NovaSeq 6000 system. RTA (Illumina) was used for base calling and bcl2fastq2 (v.2.19 and v.2.20) was used for converting BCL to fastq format, coupled with adaptor trimming. A pseudoalignment to a kallisto index was created from transcriptomes (human, GRCh38; mouse, GRCm38) using kallisto (v.0.44.0). To explore similarities and dissimilarities between samples, count data were normalized using the variance stabilizing transformation function from the DESeq2 package. Microarray analysis for comparison between Ctnnb1^ΔHep and Ctnnb1^fl/fl livers was conducted using a published dataset (GSE68779). Heat maps were generated using the Heatmapper tool⁷⁸. KEGG pathway analysis in HSC-depleted liver was performed using enrichr using the 100 significant (P < 0.05) genes with the highest combined log-transformed fold change in HSC iDTR- and JEDI-depleted livers compared with their respective controls (GSE211370)⁷⁹.

GSEA

GSEA was performed using GSEA v.4.3.2 software (https://www.gsea-msigdb.org/gsea/downloads.jsp). Analysis was performed from pre-ranked genes from DESeq2 (v.1.42.0) analysis of bulk RNA-seq data using the GSEAPreranked function with 1,000 permutations on the Hallmark collection from the Molecular Signature Database (MSigDB) or by curating the CTNNB1_Liver gene set from genes with a log-transformed fold change of >1 in the microarray analysis from Ctnnb1^ΔHep and Ctnnb1^fl/fl livers as reference for β-catenin-regulated liver genes.

Nucleus isolation for snRNA-seq

For snRNA-seq analysis, human and mouse livers (Supplementary Tables 4 and 10) were processed as previously described¹⁴. In brief, frozen liver tissue was minced with scissors in 1 ml TST buffer in the well of a six-well plate for 10 min on ice. The homogenized solution was then passed through a 40-μm cell strainer. An additional 1 ml of TST buffer and 3 ml of 1× ST buffer were used to wash the well and passed through a 40-μm cell strainer. The resulting 5 ml of nuclei suspension was centrifuged for 5 min at 500g at 4 °C. The supernatant was discarded, and the pellet resuspended in 1 ml of 1× ST buffer. The nuclei suspension was then passed through a 35 μm filter. For single-cell multiome ATAC plus gene expression analysis, the Chromium Nuclei Isolation with RNase Inhibitor Kit (10x Genomics, PN-1000494) was used to isolate nuclei from mouse liver.

scRNA-seq, snRNA-seq and scATAC and gene expression sequencing

All analysed scRNA-seq data, including HSCs isolated from 1× CCl₄-, 2× CCl₄-, 4× CCl₄- and 12× CCl₄-treated mouse livers (GSE172492) and 0, 15, 30 and 34 weeks of HF-HFD-treated mouse livers (GSE166504) as well as whole mouse liver (GSE158183) have been published and deposited previously. Samples for human snRNA-seq analysis (GSE256398) were prepared as previously described¹⁴ using the 10x Chromium Single Cell Platform using a ChromiumSingle Cell 3′ Library and Gel Bead Kit v.3 and a Chromium Single Cell B Chip kit (10x Genomics, PN-1000074) according to the manufacturer’s protocol. Data were aligned to a modified version of the GRCh38 reference genome (counting intronic reads as well as those aligned to exons), and estimated cell-containing partitions and associated unique molecular identifiers (UMIs) using Cell Ranger v.3.1.0 from 10x Genomics.

snRNA-seq and scRNA-seq analysis

In total, 26 human snRNA-seq datasets and 4 mouse snRNA-seq datasets were analysed (Supplementary Table 10). Technical artefacts such as ambient background RNA and empty droplets in these datasets were removed using the remove-background function in CellBender v.0.2.0 as described (fpr = 0.01 for human datasets; fpr = 0.1 for mouse datasets)¹⁴. For human datasets, the output raw_feature_bc_matrix_filtered.h5 from CellBender for each sample was further subjected to doublet removal using Scrublet with the default parameters⁸⁰. The resulting singlets from human datasets and the raw_feature_bc_matrix_filtered.h5 from mouse datasets were analysed in Seurat (v.5.0.1).

For each dataset, the samples were combined and low-quality cells or outlier cells were filtered using the same standard (nFeatureRNA < 200 or nFeatureRNA > 6500 or nCount_RNA > 40000 or percent.mt > 20 for human, nFeatureRNA < 200 or nFeatureRNA > 7500 or nCount_RNA > 60000 or percent.mt > 20 for mouse). Each sample was first analysed in parallel using the NormalizeData, FindVariableFeatures (nFeatures = 3000), ScaleData and RunPCA function. The samples were integrated using the SelectIntegrationFeatures, FindIntegrationAnchors (k.anchor = 10, reduction = “rpca”) and IntegrateData functions. After integration, a single integrated analysis with a batch-corrected integrated count matrix layer was run on all cells using the ScaleData, RunPCA (npcs = 50), RunUMAP, FindNeighbors and FindClusters functions. All of the default parameters were used unless mentioned otherwise. The main cell types including T cell/natural killer, myeloid cells, HSCs, ECs, cholangiocytes and hepatocytes were identified manually by checking the expression of well-known marker genes as described previously¹⁴. For each main cell type, the clusters were subset and reclustered using the non-batch-corrected RNA count matrix layer using ScaleData, RunPCA (npcs = 50), RunUMAP, FindNeighbors and FindClusters function. Detailed cell types were identified manually using the expression of well-known marker genes as described previously⁸¹ and markers for each population are provided in the Supplementary Information as dot plots for mouse snRNA-seq data (Supplementary Information 4) and human snRNA-seq data (Supplementary Information 5). Clusters that simultaneously express marker gene sets from two or more cell types were identified and further removed as doublets. For each dataset, the differentially expressed genes (DEGs) in every cell cluster were identified using the FindAllMarkers function in Seurat v.3.

Some published datasets, including human and mouse snRNA-seq from the Henderson lab⁸² and from the Livercellatlas⁸¹ were analysed using web-based tools described in the respective publications.

CellPhoneDB analysis

After identifying cell types in each dataset as described above, we used CellPhoneDB⁸³ in the most recent v.5 version to identify ligand–receptor interactions in n = 6 healthy livers from our human snRNA-seq dataset (GSE256398). To determine mouse ligand–receptor interactions, mouse genes from n = 2 healthy control livers (GSE256398) were first converted to human gene symbols (HGNC) using biomaRt (v.2.60.1) package in R, followed by recommended procedures for preparation of input files. All CellPhoneDB statistical analysis was performed using the default parameters and the percentage cell expression threshold of 5%. After ranking cell–cell interactions by the interaction scores, all interactions with a positive interaction score were further ranked by the mean expression. Heat maps showing ligand–receptor interactions, log₂-transformed mean (molecule 1, molecule 2) and log₁₀[P] values were generated using ggplot2 (v.3.4.4) package.

Gene expression and survival analysis in clinical cohorts of patients with CLDs

To determine survival and liver-related events in the SteatoSITE cohort of patients with MASLD⁸⁴, normalized counts per minute of RSPO3 from the biopsy subset of cases in the SteatoSITE data commons were used in survival analysis using R (v.4.3.0) in RStudio (v.2023.12.0 build 369) and the ‘survminer’ package (v.0.4.9). The optimal cutpoint for normalized RSPO3 counts was separately calculated for overall survival, and hepatic decompensation (when a first coding of any component of the composite outcome occurred after the biopsy date and with death as a competing risk) using surv_cutpoint, applying maximally selected rank statistics of the ‘maxstat’ package (v.0.7-25) with a minimum proportion of 0.25. Kaplan–Meier estimator curves of all-cause mortality were compared by regular log-rank testing with weights = 1. To determine survival in the dbGaP phs001807.v1.p1 cohort of patients with ALD⁸⁵, the median RSPO3 expression was established as a threshold for high and low expression cohorts, for analysis of survival using Kaplan–Meier estimator curves of all-cause mortality and log-rank testing. Moreover, genome-wide hepatic transcriptome datasets of clinical cohorts of MASLD without HCC (Gene Expression Omnibus (GEO): GSE49541 (ref. ⁸⁶) and GSE193066 (ref. ⁸⁷)) and with resected or ablated HCC (GSE192959 (ref. ⁸⁷)), alcoholic-associated cirrhosis (GSE103580 (ref. ⁸⁸)) and severe alcohol-associated hepatitis (GSE94397 (ref. ⁸⁸)) were analysed for association with clinical disease phenotypes and outcome for RSPO1, RSPO2, RSPO3 and RSPO4 genes, including association with known WNT pathway target genes (CYP2E1 and CYP1A2), and previously reported transcriptomic signatures of overall survival, decompensation and HCC risk in CLDs (prognostic liver signature (PLS))⁸⁹ and overall survival in severe alcohol-associated hepatitis⁸⁸. For analyses in these cohorts, high expression of the RSPO genes was defined based on a top-quartile cut-off in each cohort; the presence of high-risk pattern of the prognostic transcriptomic signatures was determined by the nearest template prediction algorithm⁹⁰; associations of the high gene expression and presence of the high-risk signatures with clinical phenotypes and outcomes were evaluated using Wilcoxon rank-sum tests, log-rank tests and/or the Kaplan–Meier method depending on the availability of clinical annotations in each cohort.

Genome-scale metabolic pathway analysis

We performed metabolic pathway analysis using liver transcriptomics data, comparing JEDI HSC-depleted livers to their controls (GSE211370), hepatocytes from Rspo3^fl/fl and Rspo3^ΔHSC mouse livers (GSE256398) and livers from Ctnnb1^ΔHep and Ctnnb1^fl/fl mice (GSE68779), as described previously⁹¹. In brief, we translated the statistically significant DEGs (FDR ≤ 0.05) to enzymatic reaction rate changes according to gene–protein–reaction (GPR) rules. As a database for pathways, reactions and GPR rules, we used the Mouse1 (v.1.3.0) metabolic models, genome-scale metabolic reconstruction⁹². Metabolic pathways were then scored and ranked according to the amount of perturbed reactions that they encompass⁹¹. We also computed P values for each pathway to evaluate their statistical significance. We used the hypergeometric test, which is based on the hypergeometric distribution⁹¹. The computed P values were subjected to a FDR correction, using the Benjamini–Hochberg procedure.

Bulk and spatial metabolomics

Snap-frozen mouse liver samples were analysed at the Roswell Park Comprehensive Cancer Center Bioanalytics, Metabolomics and Pharmacokinetics Shared Resource, using the MxP Quant 500 XL kit (Biocrates Life Sciences) according to the manufacturer’s instructions. In brief, liver samples were homogenized at a ratio of 1 mg of tissue to 3 μl of solvent (25% ethanol and 75% 0.01 M phosphate buffer) using optimized settings on the Omni-Bead Ruptor 24 (Omni). After centrifugation, 10 μl of each supernatant, quality control samples, blank, zero sample or calibration standard were added on the filterspot (already containing internal standard) in the appropriate wells of two 96-well plates and dried under a gentle stream of nitrogen. On one plate, the samples were derivatised with phenyl isothiocyanate for the amino acids and biogenic amines, and dried again. Sample elution on both plates was performed with 5 mM ammonium acetate in methanol. Sample extracts were diluted with either water for the HPLC–MS/MS analysis (1:1) or kit running solvent (Biocrates Life Sciences) for flow injection analysis (FIA)–MS/MS (50:1), using the Shimadzu HPLC system interfaced with the Sciex 5500 mass spectrometer. Data were processed using WebIDQ software (Biocrates Life Sciences), and Limma for differential metabolite analysis.

For DESI MS imaging, fresh-frozen mouse liver tissue blocks were embedded in 5% gelatin over dry ice and stored at −80 °C. The tissue blocks were then cryosectioned at a thickness of 8 µm (Leica, CM3050S) and thaw-mounted onto a microscope slide and stored at −80 °C until analysis. The microscope slides were dried in a vacuum desiccator for 8 min. DESI MSI data acquisition was performed on the Synapt G2-XS QToF mass spectrometer coupled to a DESI ion source (Waters) in positive-ion sensitivity mode with a mass range of m/z 100–1,000. The following DESI parameters were used: capillary voltage and sampling cone voltage of 0.5 kV and 50 V, respectively, DESI sprayer angle of 78 °C, source temperature of 150 °C, nebulizing gas (N₂) pressure of 0.9 bar and spatial resolution of 40 µm. The solvent used was methanol:water 95:5 (v/v) with 0.01% formic acid and 40 pg µl⁻¹ leucine enkephalin, at a flow rate of 1.5 µl min⁻¹. Data were processed and visualized in HDI imaging software (Waters, v.1.6) and SCiLS (Bruker, version 2024a). Peak picking and lockmass correction were performed using leucine enkephalin ([M+H]+, m/z 556.2771). Lipid annotations were performed by accurate mass search against the Lipidmaps database⁹³ and also from annotations previously performed by lipidomics analysis using UPLC with ion mobility ToF MS^E(HDMS^E) data-independent acquisition⁹⁴. Co-localizing with glutamine synthetase by IHC was used to determine zonation in images. The distribution of the intensity of the ions and quantification using area under the curve of the corresponding lipid feature, denoting the average intensity of the m/z interval within the tissue, normalized to TIC, were generated within the SCiLS software.

Quantification and statistical analysis

No statistical methods were used to predetermine sample size. Investigators were blinded for in vivo treatments and post-mortem analyses such as (1) quantification by IHC and (2) determination of gene expression by qPCR. Investigators were not blinded for snRNA-seq analyses studies as there were not separate groups involved or the samples were annotated. For immunoblotting, the investigators were not blinded when loading the gel to display the results in a logical way. Statistical significance was determined using GraphPad Prism (v.9.0) or R (v.4.0.2). After assessing the normal distribution of the data using D’Agostino and Pearson omnibus normality tests and or Shapiro–Wilk’s normality test, P values were calculated, and all statistical tests used are described in the figure legends. Survival curves were represented using the Kaplan–Meier method and compared using log-rank statistics.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.

Data availability

RNA-seq data have been deposited at the Gene Expression Omnibus database (GEO), including snRNA-seq data from livers of 26 human patients (GSE256398), snRNA-seq data from healthy mouse livers, Rspo3^ΔHSC and Rspo3^fl/fl livers (GSE256398) as well as bulk RNA-seq data from HSC-depleted versus control mice, aged Rspo3^ΔHSC mice versus control mice and Rspo3^ΔEC versus control mice (GSE256377). The previously published datasets GSE68779, GSE211370, GSE172492, GSE158183, GSE49541, GSE193066, GSE192959, GSE103580 and GSE94397 were used for analysis. Source data are provided with this paper.

Code availability

R markdown scripts enabling the main steps of the analysis have been deposited at GitHub (https://github.com/SchwabeLabcu/HSC_RSPO3).
